Samsung Digital Presenter Software User Manual

Digital Presenter

Software User Manual (For Windows)

SDP USB Viewer

CONTENTS

installation

3

3 Installing Samsung Digital Presenter

installer program

3 System Requirements
4 Installing the program

running the program

9

9 Running the Samsung Digital Presenter

program

appendix

27

27 Commonly Used Shortcuts
27 Troubleshooting

● INSTALLATION

INSTALLING SAMSUNG DIGITAL PRESENTER INSTALLER PROGRAM

With Samsung Digital Presenter, you can connect it to the PC and save the video image incoming from the
lens of the camera in a picture format or in a video format.

Use the provided USB cable to connect the digital presenter to the PC. Install the Samsung Digital Presenter
program on your PC, which is contained in the provided CD.

M

`Design and specifications are subject to change without prior notice.

SYSTEM REQUIREMENTS

• CPU: Pentium 4 or higher (recommendation: Core 2 Duo or higher)

• Windows XP Service Pack3 or later

- Windows OS compatibility: Windows XP(Service Pack 3)/Windows Vista(Service Pack 1)/Windows 7

• RAM: 512MB or more (more than 2GB recommended)

• USB 2.0 Port

• Graphic adaptor supporting XGA (1024x768) in more than 65,536 colors

- Video RAM 512MB or more

- SXGA or higher recommended

• CD-ROM Drive

M

`A PC into which a PCI/PCMCIA-type USB 2.0 card is inserted may not exert USB 2.0 communication performance

of the digital presenter properly.

`If you use a specific theme supported in Windows 7, the USB viewer may not perform the display functions

properly. It is recommended to use the default Windows 7 theme.

`For Windows 7 users, it is recommended to specify at least 5.0 for the Windows Experience Index (WEI).

`Selecting a certain aspect ratio of Windows display option may cause problem with displaying options window.

Windows 7 : If set to 125% in [Personalize] – [Display] (Recommended to use 100%)
Windows XP :If set to 120 dpi in [Display Properties] – [Settings] – [Advanced] – [General] tab. (Recommended
to use 96 dpi)

J

`The Windows 7 64 bit edition may not support the viewer in some languages excluding English and Korean.

installation

English

_3

installation

4_ installation

INSTALLING THE PROGRAM

Following the instructions below to install the program.

1. Use the USB cable to connect between Samsung Digital Presenter and PC. Then, turn on the digital

presenter.

2. Install the Samsung Digital Presenter program.
For more information, refer to “Installing Samsung Digital Presenter installer program”. (page 5)

Connecting Samsung Digital Presenter to the PC

Connect one end of the USB cable to the USB port of the PC, and the other end to that of the digital
presenter.
Plug the power cable and turn on the presenter.

J

`It is recommended to connect the USB cable to the USB port on the main board of your PC.

(Using an extension front port or the bus-power USB hub may cause a problem, depending on the manufacturer.)
Use only the USB cable of less than 4.0m in length.

`Use the USB cable provided by Samsung Techwin.

(Using a cable from different manufacturer may cause problem depending on the cable specifications.)

DC 5V IN

RS-232C USB C-VIDEO VGA OUT

USB

USB Cable

PC

Digital Presenter

● INSTALLATION

Installing Samsung Digital Presenter installer program

1. Before connecting the digital presenter to the PC, you must install the provided installer software on

your PC before making USB connection so that the presenter can display video properly.

2. Insert the CD, and select Install Viewer from the autorun screen to begin installation.

3. From the start screen of the Wizard, click [Next].

4. The end-user license agreement will be displayed. Click [Yes].

English

_5

installation

6_ installation

5. Specify the folder path to save the installation program.

6. To proceed with the next step, click [Next].

7. SDP USB Viewer will be installed.

● INSTALLATION

8. When the installation is completed, click [Finish] to exit the installer program.

9. On your desktop, the shortcut to Samsung Digital Present will be created. The

program shortcut menu and product manual shortcut will be created in the [Start]
menu.

J

`You may encounter an error message related to .NET FRAMEWORK during the installation.

This is because .NET FRAMEWORK is not installed on your PC. Install the .NET FRAMEWORK provided in the
installation CD before installing the program. The error message will be displayed.
(Requires .Net Framework 2.0)

English

_7

installation

8_ installation

Questions & Answers

How can I check that my computer supports USB protocols?

1. Select [Control Panel] ; [System] ; [Device Manager].

2. If you can see the USB Universal Host Controller and USB root hub as shown below, your PC has

installed and is running the USB protocols properly.

3. USB 2.0 protocol is supported on your PC if the USB Enhance Host Controller item is displayed as
shown.

How can I uninstall the USB driver and Samsung Presenter Program?

Select [Control Panel] ; [Add/Delete Programs]. Select SDP USB Viewer from the list and click [Add/
Delete] to start uninstalling or restoring the program to your preference. Follow the on-screen instructions
to uninstall the program.

M

`Samsung Digital Presenter does not require you to install/uninstall the USB driver.

Unlike other conventional models, the presenter that supports UVC protocols can be connected directly to your
PC via USB cable without the installation process.

J

`If you want to use the TWAIN feature, install the TWAIN driver provided in the installation CD. You can use the

features of Viewer and TWAIN. However, if you do not want to use TWAIN, it is recommended not to install the
TWAIN driver. And use the product with no other UVC driver than the default.
(If using TWAIN driver, it may limit frame rate and other performance.)

● RUNNING THE PROGRAM

running the program

RUNNING THE SAMSUNG DIGITAL PRESENTER PROGRAM

Following the instructions below to run the program.

1. Turn on both Samsung Digital Presenter and PC.

2. Simply double-click the shortcut to Samsung Digital Presenter on your desktop, or select [Start]

;

[Programs] ; [SDP USB Viewer].

3. You will see the start screen of the digital presenter consisting of: main screen and control pane.

J

`If you fail to start the program, check if the presenter is turned on and connected to the PC properly using the

USB cable. And, if the screen does not display properly after running the program, check if OUTPUT MODE of the
presenter menu is set to <USB OUT MODE>. Otherwise, it may not display properly.

`Do not unplug the power cable or disconnect the USB cable while playing/capturing/saving a video clip using the

digital presenter. Otherwise, it may cause a failure or damage to the digital presenter or PC.

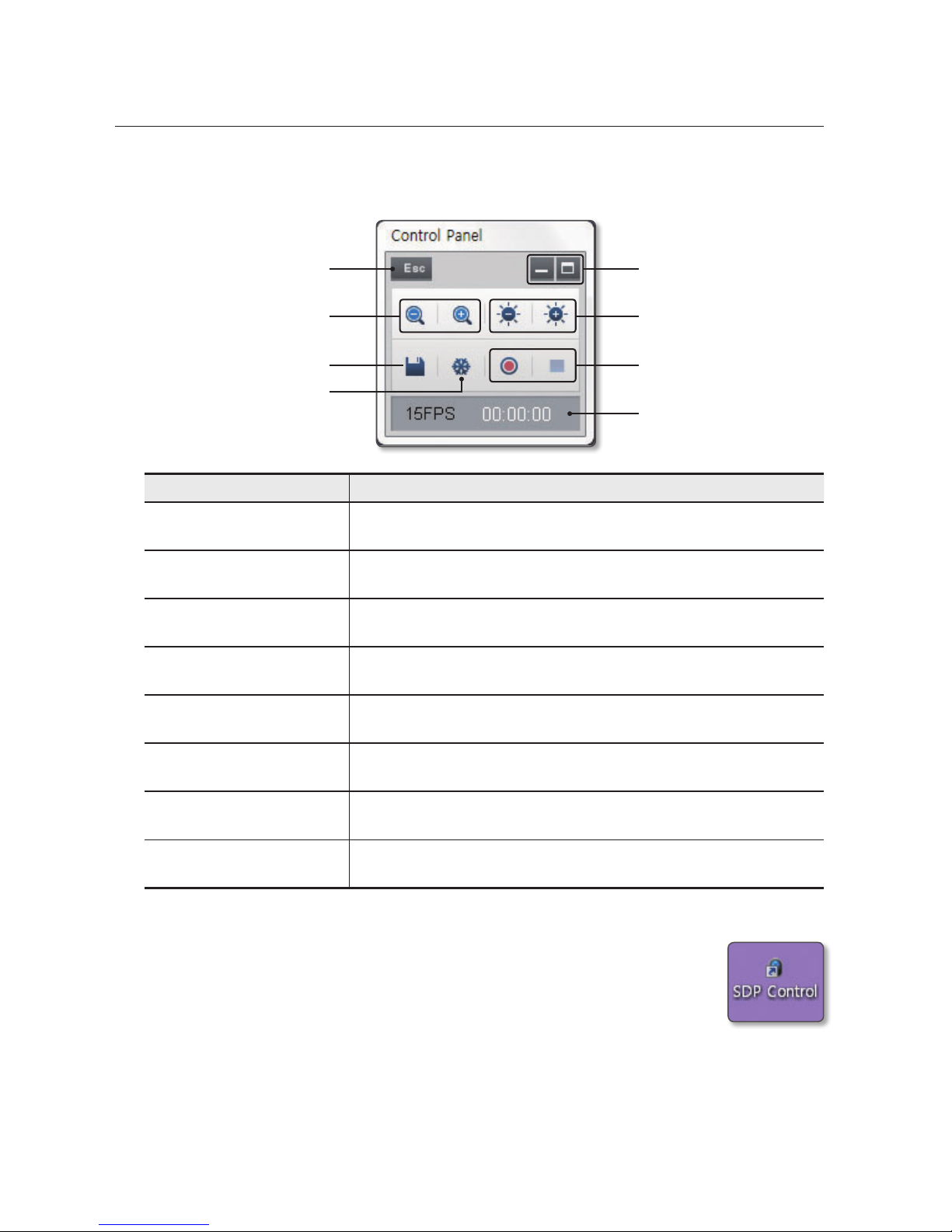

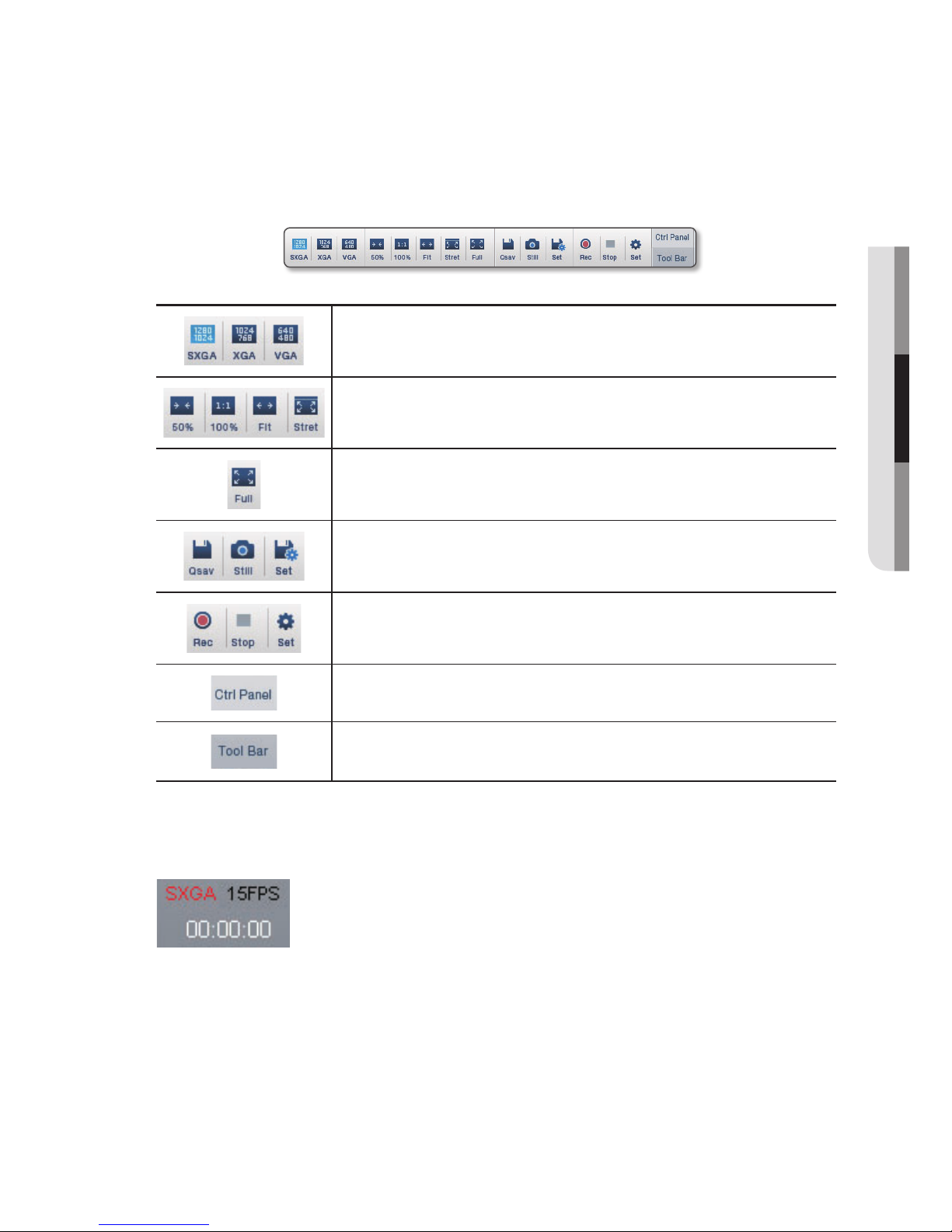

Main Panel of Samsung Digital Presenter at a Glance

Item Description

a

Menu Bar Consists of 4 menus: Function, View, Option, Help.

b

Toolbar

A collection of frequently used menus. You can hide the tool bar for a larger view of
the image. (Use the applicable button in the menu bar.)

a

c

b

d

English

_9
