Owner’s
Instructions
COLOR TELEVISION
...........................................................................................................................
.............
AA68-03258B-0 0
CL29A10
CL34A10
CL29M6
CL21S8MQU
CL25M6MQU
CL29M6MQU
CL29M16MQU
CL29K5MQU
2
Important Warranty Information
Regarding Television Format
Viewing
Standard screen format televisions (4:3, the aspect ratio of the screen width to height) are
primarily designed to view standard format full-motion video. The images displayed on
them should primarily be in the standard 4:3 ratio format and constantly moving.
Displaying stationary graphics and images on screen, such as the dark top and bottom
letterbox bars (wide screen pictures), should be limited to no more than 15% of the total
television viewing per week.
Wide screen format televisions (16:9, the aspect ratio of the screen width to height) are
primarily designed to view wide screen format full-motion video. The images displayed
on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the
screen if your model offers this feature, and constantly moving. Displaying stationary
graphics and images on screen, such as the dark side-bars on non-expanded standard
format television video and programming, should be limited to no more than 15% of the
total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports,
video game displays, station logos, web sites or computer graphics and patterns, should
be limited as described above for all televisions. Displaying any stationary images that
exceed the above guidelines can cause uneven aging of picture tubes (CRTs) that leave subtle,
but permanent burned-in ghost images in the television picture. To avoid this, vary the programming
and images, and primarily display full screen moving images, not stationary patterns or
dark bars. On television models that offer picture sizing features, use these controls to
view the different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven
CRT aging as a result of format selection and use, as well as other burned-in images, is
not covered by your Samsung limited warranty.
CONTENTS
3
Chapter 1: Your New TV . . . . . . . . . . . . . . . . 5
List of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Familiarizing Yourself with The TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Side Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter 2: Installation . . . . . . . . . . . . . . . . . 11
Connecting VHF and UHF Antennas . . . . . . . . . . . . . . . . . . . . . . . . . 11
Antennas with 300-ohm Flat Twin Leads . . . . . . . . . . . . . . . 11
Antennas with 75-ohm Round Leads . . . . . . . . . . . . . . . . . . 12
Separate VHF and UHF Antennas. . . . . . . . . . . . . . . . . . . . . 12
Connecting Cable TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cable without a Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting to a Cable Box that Descrambles All Channels . . 13
Connecting to a Cable Box that Descrambles Some Channels13
Connecting a VCR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting an S-VHS VCR. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting a Second VCR to Record from the TV. . . . . . . . . 17
Connecting a DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting a Camcorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing Batteries in the Remote Control. . . . . . . . . . . . . . . . . . . . . . 19
Chapter 3: Operation . . . . . . . . . . . . . . . . . . 20
Turning the TV On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Plug & Play Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Viewing the Menus and On-Screen Displays. . . . . . . . . . . . . . . . . . . . 22
Viewing the Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Viewing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Selecting a Menu Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Memorizing the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Selecting the Video Signal-source . . . . . . . . . . . . . . . . . . . . . 24
Storing Channels in Memory (Automatic Method) . . . . . . . . 25
Adding and Erasing Channels (Manual Method). . . . . . . . . . 26
Changing Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the Channel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Directly Accessing Channels . . . . . . . . . . . . . . . . . . . . . . . . . 27
Using the PRE-CH Button to select the Previous Channel. . . 27
Labeling the Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setting the Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Customizing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Using Automatic Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Customizing the Sound. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using Automatic Sound Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Setting the Blue Screen Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Setting The On/Off Melody. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Viewing an External Signal Source . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Setting the Signal Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Assigning Names to External input mode . . . . . . . . . . . . . . . 38
CONTENTS
4
Chapter 4: Special Features. . . . . . . . . . . . . 39
Changing the Color Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Changing the Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Digital Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
DNIe JrTM(Digital Natural Image engine) . . . . . . . . . . . . . . . . . . 42
Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the R.Surf Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Choosing a Multi-Channel Sound (MTS) Soundtrack . . . . . . . . . . . . . 45
Extra sound settings (Auto Volume, Turbo Sound or Pseudo Stereo). . 46
LNA (Low Noise Amplifier). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Setting the On/Off Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting the Sleep Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Setting the Preferred Volume Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Viewing Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Viewing Picture-in-Picture
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Activating Picture-in-Picture. . . . . . . . . . . . . . . . . . . . . . . . . 52
Selecting a Signal Source (External A/V) for PIP . . . . . . . . . . 53
Swapping the Contents of the PIP image and Main image. . . 54
Changing the Position of the PIP Window . . . . . . . . . . . . . . 55
Changing the PIP Channel . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Changing the Size of the PIP Window. . . . . . . . . . . . . . . . . . 57
Viewing the Demonstration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Customizing Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Chapter 5: Troubleshooting. . . . . . . . . . . . . 61
Identifying Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Cleaning and Maintaining Your TV . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Using Your TV in Another Country. . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
YOUR NEW TV
5
Chapter One
YOUR NEW TV
List of Features
Your TV was designed with the latest technology. This TV is a high-performance unit that
includes the following special features:
• Full Flat Screen
• Easy-to-use remote control
• Easy-to-use on-screen menu system
• Automatic timer to turn the TV on and off
• Adjustable picture and sound settings that can be stored in the TV’s memory
• Automatic channel tuning for up to 181 channels
• A special filter to reduce or eliminate reception problems
• A built-in multi-channel sound decoder for stereo and bilingual listening
• Built-in, dual channel speakers
• A special sleep timer
• Picture in Picture (CL29A10/CL34A10/CL29M6)
YOUR NEW TV
6
Familiarizing Yourself with The TV
Front Panel Buttons
The buttons on the front panel control your TV’s basic features, including the on-screen
menu. To use the more advanced features, you must use the remote control.
Œ
TV/VIDEO
Press to change bet ween viewing TV programs
and signals from other components.
´
MENU
Press to see an on-screen menu of your TV's features.
ˇ
VOL – and +
Press to increase or decrease the
volume. Also used to select items on the onscreen menu.
¨
CH (▼) and CH (▲)
Press to change channels. Also press to select
various items on the on-screen menu.
ˆ
Remote Control Sensor
Aim the remote control towards this spot on the
TV.
Ø
TIMER indicator
When the TV is turned on, the TIMER indicator
blinks five times. This indicator illuminates when
the TIMER mode is set to the “On” position after
setting the clock and either the On timer or Off
timer, with the remote control.Even if the power is
turned off, this indicator stays lit. (Clock must be
set before using this function.)
∏
POWER
Press to turn the TV on and off.
CL29A10/CL34A10
CL29M6/CL25M6MQU/CL29M6MQU
CL29K5MQU CL29M16MQU
CL21S8MQU
YOUR NEW TV
7
Side Panel Jacks
You can use the side panel jacks to connect an A/V component that is used only occasionally, such as a camcorder or video game. (For information on connecting equipment,
see pages 11 ~ 18.)
CL29A10
CL34A10
Œ
AUDIO INPUT jacks
Used to connect t he audio
signals from a camcorder or video game.
´
VIDEO INPUT jack
Used to connect a video signal from
a camcorder or video game.
ˇ
SUPER VIDEO INPUT jack
S-Video signal from an S-VHS VCR or DVD
player.
Note: In S-Video mode, Audio Output depends what
kind of audio input source is connected to the side
audio input jacks (AV2).
¨
HEADPHONE
Connect a set of external headphones to this jack for
private listening.
CL29M6
CL25M6MQU/CL29M6MQU
CL29K5MQU/CL29M16MQU
CL21S8MQU
YOUR NEW TV
8
Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
Because there are two sets of input jacks, you can connect two different A/V
components (i.e., a VCR and a DVD, 2 VCRs, etc.)
For more information on connecting equipment, see pages 11 – 18.
Œ
VIDEO INPUT jack
Video signals from VCRs, DVD players and similar
devices.
´
AUDIO INPUTS (INPUT1
and 2)
/DVD AUDIO INPUTS
(INPUT 2)
Audio signals from VCRs, DVD players and similar
devices.
Use these jacks to connect the audio signals from a
DVD player when using the DVD video input jacks.
When not using the DVD jacks, these audio jacks
function as audio for Video 2 or S-VIDEO.
ˇ
AUDIO-VIDEO MONITOR
OUTPUT jacks
These audio-video signals are identical to A/V
signals being displayed on the big screen. (Typically
used as the input signals for a recording VCR.)
¨
SUPER VIDEO INPUT jack
S-Video signal from an S-VHS VCR or DVD player.
Note: In S-Video mode, Audio Output depends what
kind of audio input source is connected to the side
audio input jacks (AV2).
ˆ
COMPONENT VIDEO INPUT
jacks
Connect video from a DVD player.
Note: Only black and white signals are output from
a monitor in DVD mode.
Ø
VHF/UHF
Connect to an antenna or to a cable TV system.
CL29M6/CL29K5MQU/CL29M16MQU/
CL25M6MQU/CL29M6MQU/CL21S8MQU
CL29A10/CL34A10
YOUR NEW TV
9
Remote Control
You can use the remote control up to about 23 feet from the TV. When using the remote,
always point it directly at the TV.
You can also use your remote control to operate your VCR, DVD and cable box. See page
59 for details.
Œ
POWER
Turns the TV on and off.
´
S.MODE
Adjust the TV sound by selecting
one of the preset factory settings
(or select your personal, customized
sound settings).
ˇ
P.MODE
Adjust the TV picture by selecting
one of the preset factory settings
(or select your personal, customized
picture settings).
¨
Number buttons
Press to select channels directly on
the TV.
+100
Press to select channels over 100.
For example, to select channel 121,
press “+100”, then press “2” and “1”.
ˆ
VOL - and VOL +
Press to increase or decrease the
volume.
Ø
MUTE
Press to temporarily cut off
the sound.
∏
SLEEP
Press to select a preset time interval for automatic shutoff.
”
MENU
Displays the main on-screen menu.
’
P.SIZE
Press to change the screen size.
˝
R.SURF
Press the R.SURF button to automatically return to a preferred
channel after a user-preset time
delay.
Ô
MODE
Selects a target device to be controlled by the Samsung remote control (i.e., TV, Set Top Box, VCR, Cable
box, or DVD).
PRE-CH
Tunes to the previous channel.
Ò
TV/VIDEO
Press to display all of the available
video sources (i.e., AV1, AV2,
S-VIDEO, COMPONENT).
Ú
CH and CH
(Channel Up/Down)
Press CH or CH to change
channels.
Æ
INFO
Press to see the time, channel, etc.,
on-screen. Also press to exit (quit)
the menu system.
ı
EXIT
Press to exit the menu.
˜
Up, Down, Left,
Right (▲,▼,œ,√)/
ENTER
Press to select highlight up, down,
left or right. While using the onscreen menus, press ENTER to activate (or change) a particular item.
¯
TURBO
Press to select the turbo sound
On or Off.
˘
MTS (Multichannel
Television Stereo)
Press to choose stereo, mono or
Separate Audio Program (SAP
broadcast).
YOUR NEW TV
10
Remote Control
¿
CH. SCAN
Not available.
¸
VCR(DVD, DVR or
STB) Controls
REW (Rewind)
Press to rewind a tape in your
VCR(DVD, DVR or STB).
STOP
Press this button to stop a tape
during play, record, rewind or
fast forward. If the button is
pressed during Full-Automatic
play, the function will be can-celled.
PLAY/PAUSE
Press the PLAY/PAUSE button to
play back prerecorded tapes or
pause the tape.
FF
Press to fast forward the tape in
your VCR(DVD, DVR or STB).
˛
SET
Use this button when you are setting up your remote control to operate your Set Top Box,VCR, Cable
box or DVD.
◊
PIP Controls
(CL29A10/CL34A10/
CL29M6)
PIP ON
Press this button to control the PIP
window.
SIZE
Press to make the PIP window small
window or large window.
SWAP
Exchanges the video signal that is
currently displayed on the main
screen with the signal in the PIP
window.
CH
Displays the available channels in
sequence (These buttons change
channels in the PIP window only).
±
RESET
If your remote control is not functioning properly, take out the batteries and press the reset but ton for
about 2~3 seconds. Re-insert the
batteries and try using the remote
control again.
INSTALLATION
11
Chapter Two
INSTALLATION
Connecting VHF and UHF Antennas
If your antenna has a set of leads that
look like this, see “Antennas with
300-ohm Flat Twin Leads” below.
If your antenna has one lead that looks
like this, see “Antennas with 75-ohm
Round Leads”, on page next.
If you have two antennas, see “Separate
VHF and UHF Antennas”, on page next.
Antennas with 300-ohm Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has
300-ohm twin flat leads, follow the directions below.
1
Place the wires from
the twin leads under
the screws on the 30075 ohm adaptor (not
supplied). Use a screwdriver to tighten the
screws.
2
Plug the adaptor into
the VHF/UHF terminal
on the bottom of the
back panel.
l
INSTALLATION
12
Connecting Cable TV
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
▼
1
Plug the incoming cable
into the VHF/UHF
antenna terminal on back
of the TV.
Because this TV is
cable-ready, you do not need a
cable box to view unscrambled cable
channels.
2
Plug the combiner into
the VHF/UHF terminal
on the bottom of the
rear panel.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must
combine the two antenna signals before connecting the antennas to the TV. This
procedure requires a an optional combiner-adaptor (available at most electronics shops).
1
Connect both antenna
leads to t he combiner.
Antennas with 75-ohm Round Leads
1
Plug the antenna lead
into the VHF/UHF
terminal on the bottom of
the back panel.
INSTALLATION
13
Connecting to a Cable Box that Descrambles All Channels
▼
1
Find the cable that is
connected to the ANTENNA OUT terminal on your
cable box.
This terminal might be labeled
“ANT OUT”, “VHF OUT” or simply,
“OUT”.
2
Connect the other end of
this cable to the
VHF/UHF antenna
terminal on the back of
the TV.
Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the
instructions below. You will need a two-way splitter, an RF (A/B) switch and four lengths of
coaxial cable. (These items are available at most electronics stores.)
▼
1
Find and disconnect the
cable t hat is connected
to the ANTENNA IN
terminal on your
cable box.
This terminal might be labeled
“ANT IN”, “VHF IN” or simply,
“IN”.
2
Connect this cable to a
two-way split ter.
3
Connect a coaxial cable
between an OUTPUT terminal on the splitter and
the IN terminal on the
cable box.
Incoming Cable
Split ter
Incoming Cable
Cable Box
Split ter
INSTALLATION
14
Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a cable
TV system (according to the instructions on pages 11-13). Skip step 1 if you have not yet
connected to an antenna or a cable system.
1
Unplug the cable or
antenna from the back of
the TV.
4
Connect a coaxial cable
between the ANTENNA
OUT terminal on the cable
box and the B–IN terminal
on the RF(A/B) switch.
5
Connect another cable
between the other OUT terminal on the splitter and
the A–IN terminal on the
RF (A/B) switch.
6
Connect the last coaxial
cable bet ween the OUT
terminal on the RF (A/B)
switch and the VHF/UHF
terminal on the rear of the
TV.
After you’ve made this connection, set the A/B switch to the “A” position for normal viewing. Set the A/B switch to the “B” position to view scrambled channels. (When you set the
A/B switch to “B”, you will need to tune your TV to the cable box’s output channel, which is
usually channel 3 or 4.)
Incoming
Cable
Cable Box
RF (A/B)
Switch
Split ter
Incoming
Cable
Cable Box
RF (A/B)
Switch
Split ter
Incoming
Cable
Cable Box
RF (A/B)
Switch
TV Rear
Split ter
2
Connect the cable or
antenna to the
ANTENNA IN terminal on
the back of the VCR.
Incoming
Cable or
Antenna
VCR Rear Panel
INSTALLATION
15
Follow the instructions in “Viewing an External Signal Source” to view your VCR tape.
Note: This figure shows the Standard connector-jack panel. The actual configuration for
your TV may be different.
3
Connect a coaxial cable
between the ANTENNA
OUT terminal on the VCR
and the antenna
terminal on the TV.
4
Connect a set of audio
cables bet ween the
AUDIO OUT jacks on the
VCR and the AUDIO jacks
on the TV.
5
Connect a video cable
between the VIDEO OUT
jack on the VCR and the
VIDEO jack on the TV.
A coaxial cable is usually included with a VCR. (If not, check your local electronics store).
VCR Rear Panel
Coaxial Cable
TV Rear Panel
VCR Rear Panel
Audio Cable
TV Rear Panel
VCR Rear Panel
Video Cable
TV Rear Panel
INSTALLATION
16
3
Connect an S-video
cable bet ween the
S-VIDEO OUT jack on the
VCR and the
S-VIDEO INPUT
jack on the TV.
An S-video cable is usually included with an S-VHS VCR. (If not, check your local
electronics store.)
Note: This figure shows the Standard connector-jack panel. The actual configuration for
your TV may be different.
Make sure the jacks you are using are underneath the number “2.”
2
Connect a set of audio
cables bet ween the
AUDIO OUT jacks on the
VCR and the 2 AUDIO
INPUT jacks on the TV.
1
To begin, follow steps
1–3 in the previous
section to connect the
antenna or cable to your
VCR and your TV.
Connecting an S-VHS VCR
Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR. (This
connection delivers a better picture as compared to a standard VHS VCR.)
VCR Rear Panel
Coaxial Cable
TV Rear Panel
VCR Rear Panel
Audio Cable
TV Rear Panel
VCR Rear Panel
Video Cable
TV Rear Panel
INSTALLATION
17
Connecting a Second VCR to Record from the TV
Your TV can send out signals of its picture and sound to be recorded by a second VCR.
To do this, connect your second VCR as follows:
1
Connect a set of audio
cables bet ween the
AUDIO OUT jacks on the
TV and the AUDIO IN
jacks on the VCR.
2
Connect a video cable
between the VIDEO OUT
jack on the TV and the
VIDEO IN jack on the
VCR.
Refer to your VCR’s instructions for more information about how to record using this kind
of connection.
(The VCR input jacks might be either on the front or on back of the VCR.)
Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables bet ween the
AUDIO INPUT 2 jacks on
the TV and the AUDIO
OUT jacks on the DVD
player.
2
Connect a video cable
between t he COMPONENTINPUT(Y,Pb,Pr)
jacks on the TV and the
COMPONENT VIDEO OUT
(Y, Pb, Pr) jacks on the
DVD player.
VCR Input Panel
Audio Cable
TV Rear Panel
VCR Input Panel
Video Cable
TV Rear Panel
DVD Player Rear Panel
TV Rear Panel
Audio Cable
DVD Player Rear Panel
TV Rear Panel
Video Cable
Note: For an explanation of Component video, see your DVD player's owner's manual.
Note: This figure shows the Standard connector-jack panel. The actual configuration for
your TV may be different.
INSTALLATION
18
2
Connect an audio cable
between t he AUDIO
OUTPUT jack on the
camcorder and the
AUDIO terminals on t he
side of the TV.
3
Connect a video cable
between the VIDEO OUTPUT jack on the camcorder and the VIDEO terminal on the side of the
TV.
1
Locate the A/Voutput
jacks on the camcorder.
They are usually found on
the side or back of the
camcorder.
Connecting a Camcorder
The side panel jacks on your TV make it easy to connect a camcorder to your TV. They allow
you to view the camcorder tapes without using a VCR. (Also see “Viewing an External Signal
Source” on page 37)
The audio-video cables shown here are usually included with a Camcorder. (If not, check
your local electronics store.) If your camcorder is stereo, you need to connect a set of two
cables.
Note: This figure shows the Standard connector-jack panel. The actual configuration for
your TV may be different.
Camcorder
Outpu t Jacks
Camcorder
Outpu t Jacks
Audio Cable
Video Cable
Y-Connector
TV Side Panel
Camcorder
Outpu t Jacks
TV Side Panel
INSTALLATION
19
▼
3
Replace the cover.
Remove the batteries and store
them in a cool, dry place if you won’t
be using the remote control for a
long time.
The remote control can be used up
to about 23 feet from the TV.
(Assuming typical TV usage, the
batteries last for about one year.)
▼
2
Install two AAA size
batteries.
Make sure to match the “+” and
“
–” ends of the batteries with the
diagram inside the compartment.
Installing Batteries in the Remote Control
1
Slide the cover out completely.
OPERATION
20
OPERATION
Chapter Three
OPERATION
1
Press the POWER button
on the remote control.
The message “Plug &
Play” is displayed.
It flickers for a little while
and then the “Language”
menu is automatically displayed.
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the front panel.
Plug & Play Feature
When the TV is initially powered On, five basic customer settings proceed automatically
and subsequently: Setting the language, Video signal source, Ant. input check, Auto
program and Clock.
Plug & Play
3
Press the MENU button
then t he “Ant Input check”
is automatically displayed.
Make sure that the antenna
is connected to the TV.
Press the ENTER button
and then the “Channel”
menu is automatically
displayed.
2
Press the
œœ
or √√button to
select the desired
language.
Adjust Skip
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
Ant Input check
Auto Program Exit
4
Press the
œœ
or √√button to
select signal source (Air,
STD, HRC, IRC).
Adjust Skip
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
OPERATION
21
7
Press the ENTER button
and then press the œœor
√√
button to move the hour or
minute. Set the hour or
minute by pressing the
▲ or
▼ button. (refer to “Setting
the Clock” on page 30.)
8
When you have finished,
press the MENU but ton.
The message “Enjoy your
watching..” is displayed.
Note: Plug & Play feature doesn’t work when in the AV mode.
Enjoy your watching..
Move Adjust Return
Time
Clock 12 :00 am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
6
Press the ENTER button to
start “Auto Program” or
press the
MENU button to
return.(refer to “Auto pro-
gram” on page 25.) The TV
will begin memorizing all of
the available channels.
Auto Program
Air 7
Enter Return
Stop
5
Press the MENU button and
then t he “Auto Program” is
automatically displayed.
Auto Program
Air 3
Enter Return
Start
9
If you want to reset this feature
(1)Press the MENU button.
(2)Press the ▲ or ▼ button
to select the “Setup”, then
press the ENTER but ton.
(3)Press the ▲ or ▼ button
to select “Plug & Play”,
then press the ENTER but-
ton.The message “Plug &
Play” is displayed.
OPERATION
22
Viewing the Display
The display identifies the current channel and the status
of certain audio-video settings.
▼
The on-screen displays
disappear after ten seconds.
Viewing the Menus and On-Screen Displays
Viewing the Menus
▼
1
With the power on, press
the
MENU button.
The main menu appears on
the screen. Its left side has
five icons: Input, Picture,
Sound, Channel and Setup.
The on-screen menus disappear
from the screen after two minutes.
▼
You can also use the MENU, CH
and VOL buttons on the control
panel of the TV to make selections.
1
Press the INFO button.
The on-screen display
shows any or all of the
following:
Active channel, t he
channel label, signal, picture mode, sound mode,
MTS and the
current time.
2
Use the ▲ and ▼ buttons to highlight one of the 5 icons.
Then press the ENTER button to access the icon’s sub-menu.
3
Press the EXIT button to exit.
Move Enter Exit
Source List : TV
√√
Edit Name
√√
Input
Air 10
Signal : Mono
Sound : Custom
Picture : Custom
MTS : Stereo
12 : 00 am
OPERATION
23
Selecting a Menu Language
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select “Setup”, then
press the ENTER but ton.
3
Press the
œœ
or
√√
button to
select the appropriate
language: “English”,
“Español” or “Português”.
Press the EXIT button to
exit.
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
2
Press the ▲ or ▼ button
to select “Language”, then
press the ENTER but ton.
Mover Ajuste Regresar
Configuración
Tiempo
√√
Plug & Play
√√
Subtítulos
√√
Idioma : Español
▼
Más
Move Adjust Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
OPERATION
24
Memorizing the Channels
Your TV can memorize and store all of the available channels for both “off-air” (antenna)
and cable channels. After the available channels are memorized, use the CH and
CH buttons to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels:
selecting a broadcast source, memorizing the channels (automatic) and adding and deleting channels (manual).
Selecting the Video Signal-source
Before your television can begin memorizing the available channels, you must specify the
type of signal source that is connected to the TV (i.e., an antenna or a cable system).
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button to
select “Channel”, then press
the ENTER button
2
Press the ▲ or ▼ button
to select “Air/CATV”, then
press the ENTER but ton
Note: STD, HRC and IRC identify various types of cable
TV systems. Contact your local cable company to identify
the type of cable system that exists in your particular area.
At this point the signal source has been selected. Proceed
to “Storing Channels in Memory” (next page).
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
Move Adjust Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
3
Repeatedly press the
œœ
or √√button to cycle
through these choices:
“Air” (antenna) “STD”,
“HRC” or “IRC” (all cable
TV)
Press the EXIT button to
exit.
Move Adjust Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : STD
Name :
----
OPERATION
25
3
Press the ENTER button
to start "Auto Program".
The TV will begin
memorizing all of the available channels.
After all the available channels are stored, the Auto
program menu reappears.
Press the MENU button to
skip and press the ENTER
button to stop.
Storing Channels in Memory (Automatic Method)
▼
The TV automatically cycles
through all of the available channels
and stores them in memory. This
takes about one to two minutes.
2
Press the ▲ or ▼ button
to select “Auto program”
and then press the ENTER
button.
The “Auto Program” is
automatically displayed.
1
First , select the correct signal source (Air, STD, HRC,
IRC). See steps 1~3 on previous page.
Move Adjust Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
Auto Program
Air 3
Enter Return
Start
Auto Program
Air 5
Enter Return
Stop
OPERATION
26

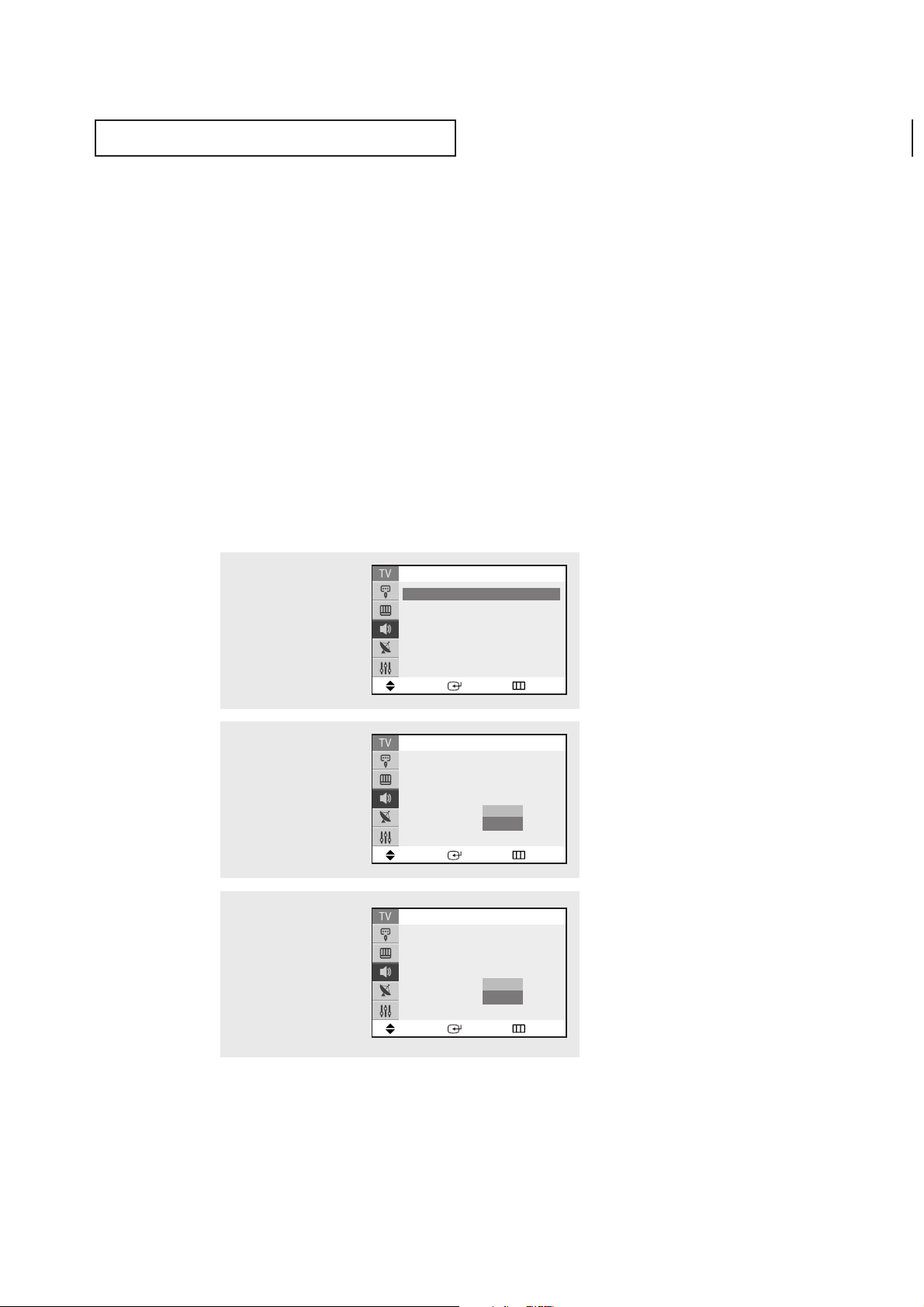

Adding and Erasing Channels (Manual Method)
First, press the CH or CH button or the number buttons
to select the channel you want to add or delete.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select “Channel”, then
press the ENTER but ton.
2
Press the ▲ or ▼ but ton
to select “Add/Delete”,
then press the
ENTER
button.
3
Press the ▲ or ▼ but ton
to select “Added” or
“Deleted” then press the
ENTER button.
Press the
EXIT button to
exit.
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
Air/CATV : Air
Name :
----
Deleted
Added
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
OPERATION
27
Changing Channels
Using the Channel Buttons
1
Press the CH or CH but ton to change channels.
When you press CH or CH , the TV changes channels in sequence. You will see all the
channels that the TV has memorized. (The TV must have memorized at least three channels.)
You will not see channels that were either erased or not memorized.
Directly Accessing Channels
Use the number buttons to quickly tune to any channel.
1
Press the number buttons to go directly to a channel. For example,
to select channel 27, press “2” then “7”. The TV will change channels
when you press the second number.
When you use the number buttons, you can directly select channels that were either erased
or not memorized.
To select a channel over 100, press the +100button. (For channel 122, press “+100” then “2”
then “2”.)
To change to single-digit channels (0–9) faster, press “0” before the single digit.
(For channel “4” press “0” then “4”.)
Using the PRE-CH Button to select the Previous Channel
1
Press the PRE-CH button.
The TV will switch to the
last channel viewed.
▼
To quickly switch between two
channels that are far apart, tune to
one channel, then use the number
button to select the second channel.
Then, use the PRE-CH button to
quickly alternate between them.
OPERATION
28
Labeling the Channels
Use this feature to assign an easy-to-remember label to any channel (i.e., “CBS”,
“ESPN”, “PBS2”, CNN1”, etc.) A label consists of four fields, where each field is a letter,
a number, “*”, or a blank. When the INFO button is pressed, the channel label will
appear next to the channel number.
1
Press the CH or CH
button to tune to the
channel that will be labeled.
2
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select “Channel”, then
press the ENTER but ton.
3
Press the ▲ or ▼ button to
select “Name”.
Press the
√√
button to begin
labeling. The left-most field
will be highlight.
(Each label has four fields.
See top paragraph.)
4
Press the ▲ or ▼ button
to select a let ter, a number,
“*” or a blank.
(Pressing
▲ or ▼ but ton
results in this sequence:
A, B,...Z, *, blank, 0,1, ...9).
▼
Note: You cannot select “Name”
in the AV mode.
5
Press the
√√
button to
switch to the next field,
which will be highlight.
Select a second let ter or
digit using the ▲ or ▼
button, as above.
Repeat t he process to select
the last two digits.
Press the EXIT button to
exit.
Air 11
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
Move Adjust Return
Channel
Move Adjust Return
Channel
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
P
---
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
PBS2
OPERATION
29
Adjusting the Volume
Press the VOL + or – VOL – but ton to increase or decrease the volume.
Using the MUTE Button
At any time, you can temporarily cut off the sound using the MUTE button.
1
Press the MUTE button and
the sound cuts off.
The word “Mute” will appear
in the lower-left corner of
the screen.
2
To turn mute off, press the MUTE button to again, or simply press
either the
VOL + or VOL – button.
Mute
OPERATION
30
Setting the Clock
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select “Setup”, then
press the ENTER but ton.
▼▼
When selecting the hours, be sure
to select the proper time of day (am or
pm).
You can change the hours by pressing
the
▲ or ▼ button repeatedly (or by
holding down either of these buttons).
3
After the hour is entered,
Press the √√button.
(at this point the minutes
digits will be highlighted).
Press the ▲ or ▼ button
to select the correct minutes.
After selecting the correct minutes,
press the √√button.
Press the EXIT button to exit.
The time will appear every time
you press the INFO button.
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
Move Adjust Return
Time
Clock 09: - - am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
Move Adjust Return
Time
Clock 09: 30 am
On Timer - - : - - am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
2
Press the ENTER button.
Press the ENTER button
again to select the hours.
(the hours digits will be
highlighted).
Press the ▲ or ▼ button
repeatedly until the
correct hour appears.
OPERATION
31
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select “Picture”, then
press the ENTER but ton.
Customizing the Picture
You can use the on-screen menus to change the Contrast, Brightness, Sharpness, Color,
Tint and according to personal preference. (Alternatively, you can use one of the
“Automatic” settings. See next page.)
4
Press the œœor√√button to
increase or decrease the
value of a particular item.
For example, if you select
“Brightness”,pressing
the √√button increases it.
Press the EXIT button to
exit.
▼
After adjusting an item, the gauge
will automatically disappear (after
about 10 seconds).
2
Press the ▲ or ▼ button
to select “Custom”, then
press the ENTER but ton.
(The words Contrast,
Bright ness, Sharpness,
Color and Tint will appear
on the screen.)
3
Press the ▲ or ▼ but ton
to select a particular item,
then press the ENTER
button.
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
Contrast : 80
Brightness : 50
Sharpness : 50
Color : 50
Tint : G50 R50
Custom
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Brightness 55
Move Adjust Return
OPERATION
32
Using Automatic Picture Settings
Your TV has three automatic picture settings (“Dynamic”, “Standard” and “Movie” ) that
are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom
by pressing the P.MODE button (or by making a selection from the menu). Or, you can
select “Custom” which automatically recalls your personalized picture settings.
• Choose Dynamic for viewing the TV during the day or when there is
brightlight in the room.
• Choose Standard for the standard factory settings.
• Choose Movie when viewing the movie.
• Choose Custom if you want to adjust the settings accordings to personal
preference (see “Customizing the Picture”, page 31).
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ but ton
to select “Picture”, then
press the ENTER but ton.
2
Press the ENTER button
again.
Press the ▲ or ▼ but ton
to select the “Dynamic”,
“Standard”“Movie” or
“Custom” picture setting,
then press the ENTER
button.
Press the EXIT button to
exit.
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
Mode : Custom
Custom
Color tone : Normal
Size : Normal
▼
More
Dynamic
Standard
Movie
Custom
OPERATION
33
2
Press the ▲ or ▼ button
to select “Custom”, then
press the ENTER but ton.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Sound”, then
press the
ENTER button.
Customizing the Sound
You can use the on-screen menus to adjust the bass, treble and balance according
to individual preference. (Alternatively, you can use one of the “automatic” settings.
See next page.)
3
Press the ▲ or ▼ but ton
to select a particular item,
then press the ENTER but-
ton.
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Stereo
√√
Auto Volume : Off
√√
▼
More
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Stereo
√√
Auto Volume : Off
√√
▼
More
Move Enter Return
Custom
Bass : 50
Treble : 50
Balance : L 50 R 50
4
Press the œœor√√button to
increase or decrease the
value of a particular item.
For
example, if you select
“Tr e b l e ”, pressing the
√√
button increases it.
Press the EXIT button to
exit.
Treble 55
Move Adjust Return
OPERATION
34
Using Automatic Sound Settings
Your TV has four automatic sound settings (“Standard”, “Music”, “Movie” and “Speech”)
that are preset at the factory. You can activate either Standard, Music, Movie or Speech
by pressing the S.MODE button (or by making a selection from the menu). Or, you can
select “Custom”, which automatically recalls your personalized sound settings.
• Choose Standard for the standard factory settings.
• Choose Music when watching music videos or concerts.
• Choose Movies when watching movies.
• Choose Speech when watching a show that is mostly dialogue (i.e., news).
• Choose Custom to recall your personalized settings.
(see “Customizing the Sound”, page 33).
2
Press the ENTER button
again.
Press the ▲ or ▼ but ton
repeatedly to select the
“Standard”,“Music”
“Movie”, “Speech” or
“Custom” sound settings,
then press the ENTER
button.
Press the EXIT button to
exit.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Sound”, then
press the ENTER but ton.
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Stereo
√√
Auto Volume : Off
√√
▼
More
Move Enter Return
Sound
Mode : Custom
Custom
MTS : Mono
Auto Volume : Off
▼
More
Standard
Music
Movie
Speech
Custom
OPERATION
35
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Setup”, then
press the
ENTER button.
2
Press the ▲ or ▼ but ton
to select "Blue Screen",
then press the ENTER
button.
3
Press the ▲ or ▼ button
to select Blue Screen “On”,
then press the ENTER but-
ton.
Press the EXIT button to
exit.
▼
Pressing the ▲ or ▼ button will
alternate between “On” and “Off”.
Setting the Blue Screen Mode
If no signal is being received or the signal is very weak, a blue screen automatically
replaces the noisy picture background. If you wish to continue viewing the poor picture,
you must set the “Blue screen” mode to “Off”.
Move Enter Return
Setup
▲
More
Blue Screen : On
√√
Melody : On
√√
Demonstration
√√
Move Enter Return
Setup
▲
More
Blue Screen : On
Melody : On
√√
Demonstration
√√
Off
On
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
OPERATION
36
1
Press the MENU button to
display the menu.
Press the
▲ or ▼ but ton
to select the “Setup”, then
press the
ENTER button.
2
Press the ▲ or ▼ button
to select “Melody ”, then
press the ENTER but ton.
Setting The On/Off Melody
You can hear clear a melody sound when the TV is powered on or Off.
Move Enter Return
Setup
▲
More
Blue Screen : On
√√
Melody : On
√√
Demonstration
√√
3
Press the ▲ or ▼ but ton
to select “On”, then press
the ENTER button.
Press the EXIT button to
exit.
Move Enter Return
Setup
▲
More
Blue Screen : On
√√
Melody : On
Demonstration
√√
Off
On
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
OPERATION
37
▼
Quick way to access the external
signal source: Just press the
“TV/VIDEO” button on the remote
control.
Viewing an External Signal Source
Use the remote control to switch between viewing signals from connected equipment,
such as VCRs, DVD, Set-Top Box and the TV source (broadcast or cable).
Setting the Signal Source
1
Press the MENU button to
display menu, then press the
ENTER button.
2
Press the ENTER button
again.
Press the
▲ or ▼ but ton
to select signal source,
then press the ENTER
button.
Press the
EXIT button to
exit.
Move Enter Return
Source List : TV
√√
Edit Name
√√
Input
Move Enter Return
TV
AV1
----
AV2
----
S-Video
----
Component
----
Source List
AV 1
OPERATION
38
Assigning Names to External input mode
1
Press the MENU button to
display menu, then press the
ENTER button.
2
Press the ▲ or ▼ but ton
to select the “Edit Name”,
then press the
ENTER
button.
Move Enter Return
Source List : TV
√√
Edit Name
√√
Input
Move Enter Return
Source List : AV1
√√
Edit Name
√√
Input
3
Press the ▲ or ▼ but ton
to select the Source List,
then press the ENTER
button.
Move Enter Return
AV1
:
----
√√
AV2
:
----
√√
S-Video
:
----
√√
Component
:
----
√√
Edit Name
4
Press the ▲ or ▼ button
to select external device
( VCR,DVD,Cable STB,
Sat. STB, AV Recv, DVD
Recv, Game, Camcorder,
DVD Combo), then press
the ENTER button.
Set other signal sources
(AV2, S-Video, Component)
using the same method as
listed above.
Press the
EXIT button to
exit.
Move Enter Return
AV1
:
----
√√
AV2
:
----
√√
S-Video
:
----
√√
Component
:
----
√√
Edit Name
----
VCR
DVD
Cable STB
Sat. STB
AV Recv
DVD Recv
Game
Camcorder
DVD Combo
AV 1 VCR
39
Changing the Color Tone
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ but ton
to select the “Picture”, then
press the ENTER but ton.
2
Press the ▲ or ▼ but ton
to select “Color tone”, then
press the ENTER but ton.
3
Press the ▲ or ▼ button
to select “Cool2”, “Cool1”,
”Normal”, “Warm1” or
“Warm2” according to per-
sonal preference, then
press the ENTER but ton.
Press the EXIT button to
exit.
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
Size : Normal
√√
▼
More
Cool2
Cool1
Normal
Warm1
Warm2
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
SPECIAL FEATURES
Chapter Four
SPECIAL FEATURES
SPECIAL FEATURES
40
• Normal (4:3) : Sets the picture to 4:3 normal mode.
• Zoom : Magnifies the size of the picture on screen.
Changing the Screen Size
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ but ton
to select the “Picture”, then
press the ENTER but ton.
2
Press the ▲ or ▼ but ton
to select “Size”, then press
the ENTER button.
3
Press the ▲ or ▼ button
to select “Normal” or
“Zoom”, then press the
ENTER button.
Press the EXIT button to
exit.
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
▼
More
Normal
Zoom
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
▼
Quick way to access the Screen size:
Just press the P.SIZE button on the
remote control.
▼
Notes: Screen size cannot be
changed in the PIP mode.
(CL29A10/CL34A10/CL29M6)
SPECIAL FEATURES
41
Digital Noise Reduction
If the broadcast signal received by your TV is weak, you can activate the Digital Noise
Reduction feature to help reduce any static and ghosting that may appear on the screen.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ but ton
to select the “Picture”, then
press the
ENTER button.
2
Press the ▲ or ▼ but ton
to select “Digital NR”, then
press the ENTER but ton.
3
Press the ▲ or ▼ button
to select “On”, then press
the ENTER button.
Press the EXIT button to
exit.
▼
Pressing the ▲ or ▼ button will
alternate between “On” and “Off”.
Move Enter Return
▲
More
Digital NR : Off
√√
Tilt :
0
Move Enter Return
▲
More
Digital NR : Off
Tilt :
0
Off
On
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
e:
SPECIAL FEATURES
42
DNIe Jr
TM
(Digital Natural Image engine)
(CL29A10/CL34A10/CL29M6)
Samsung’s New Technology enables an improved image with detail, contrast and white
enhancement and 3D noise reduction.
1
Press the MENU button to
display the menu.
Press the
▲ or ▼ button
to select the “Picture”, then
press the
ENTER button.
2
Press the ▲ or ▼ but ton
to select "DNIe Jr”, then
press the ENTER but ton.
3
Press the œœor √√button to
select “On”, then press the
ENTER button.
Press the
EXIT button to
exit.
Move Enter Return
▲
More
Digital NR : Off
√√
DNIe Jr : On
√√
Tilt :
0
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Adjust Enter Return
DNIe Jr
Off On
SPECIAL FEATURES
43
Tilt
Due to the Earth’s magnetic field there may be same minor image tilt depending
on the TV’s location. When this occurs, follow the steps below.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ but ton
to select the “Picture”, then
press the
ENTER button.
2
Press the ▲ or ▼ but ton
to select “Tilt”.
3
Press the œœor √√button to
adjust the Tilt.
Press the EXIT button to
exit.
Move Adjust Return
▲
More
Digital NR : Off
√√
Tilt :
0
Move Adjust Return
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
▲
More
Digital NR : Off
√√
Tilt :
2
SPECIAL FEATURES
44
Using the R.Surf Feature
This feature allows you to set the TV to return to a particular channel after a certain
amount of time. For example, you may be watching a channel when commercials start.
You can set the R.Surf to “5 minutes”, then switch channels. After minutes, the TV will
return to the original channel. To use the R.Surf feature:
1
While you are watching the
channel to which you want
to return, press the
R.SURF
button. The on-screen display will read “Surf off ”.
2
Press the R.SURF button
again to set the timer in
thir ty second intervals, up
to five minutes.
3
The time you set will begin counting down on the screen.
When the time runs out, the TV will return to the channel you
were watching when you set the timer.
Surf Off
Surf 0: 30
SPECIAL FEATURES
45
Choosing a Multi-Channel Sound (MTS) Soundtrack
Depending on the particular program being broadcast, you can listen to Stereo, Mono, or
a Separate Audio Program. (SAP audio is usually a foreign-language translation.
Sometimes SAP has unrelated information like news or weather.)
2
Press the ▲ or ▼ button
to select the “MTS”, then
press the ENTER but ton.
3
Press the ▲ or ▼ button
to select “Mono”, “Stereo” or
“SAP”, then press the
ENTER button.
Press the EXIT button to
exit.
▼
The text at the bottom of the
menu tells you if the incoming
audio is Mono, Stereo or SAP.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Sound”, then
press the ENTER but ton.
• Choose Mono for channels that are broadcasting in mono, or if you are
having difficulty receiving a stereo signal.
• Choose Stereo for channels that are broadcasting in stereo.
• Choose SAP to listen to the Separate Audio Program, which is usually a
foreign-language translation.
▼
Quick way to access the MTS:
Just press the “MTS” button on the
remote control.
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Stereo
√√
Auto Volume : Off
√√
▼
More
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Mono
Auto Volume : Off
√√
▼
More
Mono
Stereo
SAP
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Stereo
√√
Auto Volume : Off
√√
▼
More
SPECIAL FEATURES
46
Extra sound settings (Auto Volume, Turbo Sound or Pseudo Stereo)
The following sound settings can be adjusted to suit your personal preferences
• Auto Volume
Each broadcasting station has its own signal conditions, which can make it necessary
to adjust the volume every time the channel is changed. “Auto volume” lets you
automatically adjust the volume of the desired channel by lowering the sound out
put when the modulation signal is high or by raising the sound output when the
modulation signal is low.
• Turbo Sound
Turbo sound emphasizes the bass and treble frequencies to add fullness to the sound.
You can select the turbo sound by simply pressing the “TURBO” button on the remote
control.
• Pseudo Stereo
“Pseudo Stereo” converts a monaural sound signal into two identical left and right
channels. Once the “Pseudo Stereo” is set to “On” or “Off”, the setting applies to the
sound effects such as “Standard”, “Music”, “Movie” and “Speech”.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Sound”, then
press the ENTER but ton.
2
Press the ▲ or ▼ button
to select the required item
(Aut o Volume, Turbo Sound,
Pseudo Stereo), then press
the ENTER button.
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Mono
√√
Auto Volume : Off
▼
More
Off
On
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Mono
√√
Auto Volume : Off
√√
▼
More
3
Press the ▲ or ▼ but ton
to select “On”, then press
the
ENTER button.
Press the EXIT button to
exit.
Move Enter Return
Sound
Mode : Custom
√√
Custom
√√
MTS : Mono
√√
Auto Volume : Off
▼
More
Off
On
SPECIAL FEATURES
47
LNA (Low Noise Amplifier)
(CL29A10/CL34A10/CL29M6)
If the TV is operating in a weak-signal area, sometimes the LNA function can improve
the reception (a low-noise preamplifier boosts the incoming signal).
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Channel”,
then press the ENTER but-
ton.
▼
Pressing ▲ or ▼ will alternate
between “On” and “Off”.
2
Press the ▲ or ▼ button
to select “LNA”, then press
the ENTER button.
3
Press the ▲ or ▼ button
to select “On”, then press
the ENTER button.
Press the EXIT button to
exit.
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
LNA : Off
√√
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
LNA : Off
Off
On
Move Enter Return
Channel
Auto Program
√√
Add/Delete : Deleted
√√
Air/CATV : Air
Name :
----
LNA : Off
√√
SPECIAL FEATURES
48
Setting the On/Off Timer
1
Press the MENU button to
display the menu.
Press the
▲ or ▼ button
to select the “Setup”, then
press the
ENTER button.
2
Press the ENTER button to
select “Time”.
▼
Before using the timer, you must
set the TV’s clock. (See “Setting the
Clock” on page 30).
When any of the timers are set, the
“Timer” LED will illuminate (front
panel of TV.)
3
Press the ▲ or ▼ button to
select the “On Time”, t hen
press the
ENTER button.
Press the ▲ or ▼ but ton
repeatedly to select the
appropriate hours (i.e.,
the hour when the TV
will turn on.)
Move Adjust Return
Time
Clock 09: 30am
On Timer 06: 00am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
Move Adjust Return
Time
Clock 09: 30am
On Timer 06: 00am Off
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
4
Press the √√button to
select the minutes.
(The minutes digits will
be highlighted.)
Press the ▲ or ▼ but ton
to select the appropriate
minutes.
Move Adjust Return
Time
Clock 09: 30am
On Time 06: 30am Off
Off Time - - : - - am Off
Sleep Timer : Off
On Time Volume : 10
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
SPECIAL FEATURES
49
6
To set the Off time, press
the ▲ or ▼ button to
select “Off Time”.
Press the
√√
button and set
the hours and minutes.
(Follow the same procedure as in steps 3~5
above.)
When finished setting
the timer, press the EXIT
button to exit.
1
Press the SLEEP button on
the remote control.
2
Press the SLEEP button
repeatedly until the appropriate time interval
appears (any of the preset
values from “Off” to
“18 0”).
▼
After about 5 seconds, the sleep
display will disappear from the
screen, and the time interval will be
set.
Setting the Sleep Timer
The sleep timer automatically shuts off the TV after a preset time
(from 30 to 180 minutes).
▼
Absent Power Off
When you set the timer “On”, your
television will eventually be turned
off, if you do not operate any
controls during the 3 hours after the
TV is turned on by timer.
This function is available in only the
timer “On” mode and will prevent a
leakage accident or overheating,
caused by your TV left on for a long
time due to the timer “On” (when
you are away on holiday, for
example).
Move Adjust Return
Time
Clock 09: 30am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
Move Adjust Return
Time
Clock 09: 30am
On Timer 06 : 30 am On
Off Timer 12 : 00pm On
Sleep Timer : Off
On Timer Volume : 10
Sleep Timer : Off
Sleep Timer : 30
▼
To deactivate the “On time,”
select “Off” during this step.
Move Adjust Return
Time
Clock 09: 30am
On Timer 06 : 30 am On
Off Timer - - : - - am Off
Sleep Timer : Off
On Timer Volume : 10
5
Press the √√button to
select “On” or “Off”.
Press the ▲ or ▼ button
to turn the on-timer “On”.
(Repeatedly pressing
the ▲ or ▲ or ▼ button will
alternate between “On”
and “Off”.)
When finished, press the MENU button.
SPECIAL FEATURES
50
Setting the Preferred Volume Level
The preferred volume can be set for when the timer automatically turns on the TV.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Setup”, then
press the
ENTER button.
2
Press the ENTER button to
select “Time”.
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
3
Press the ▲ or ▼ button to
select “On Time Volume”.
Press the
œœ
or √√button
to adjust volume level.
Press the EXIT button to
exit.
Move Adjust Return
Time
Clock 09: 30am
On Timer 06 : 30 am On
Off Timer 12 : 00pm On
Sleep Timer : Off
On Timer Volume : 15
Move Adjust Return
Time
Clock 09: 30am
On Timer 06 : 30 am On
Off Timer 12 : 00pm On
Sleep Timer : Off
On Timer Volume : 10
SPECIAL FEATURES
51
▼
Misspellings and unusual
characters sometimes occur during
closed caption transmissions, especially
those of live events. There may be a
small delay before captions appear when
you change channels. These are not
malfunctions of the TV.
3
Press the ENTER button,
then press the ▲ or ▼
button to turn closed captioning “On” or “Off”.
Press the ENTER button.
▼
In “Caption” mode, captions appear
at the bottom of the screen, and they usually cover only a small portion of the
picture.
In “Text” mode, information unrelated to
the program, such as news or weather, is
displayed. Text often covers a large
portion of the screen.
4
Press the ▲ or ▼ button to
select “Mode”, then press
the ENTER button.
Press the ▲ or ▼ button to
select “Caption” or “Tex t ”,
then press the
ENTER but-
ton.
Viewing Closed Captions
Your TV decodes and displays the closed captions that are broadcast with certain TV shows.
These captions are usually subtitles for the hearing impaired or foreign-language translations.
All VCRs record the closed caption signal from television programs, so home-recorded video
tapes also provide closed captions. Most pre-recorded commercial video tapes provide closed
captions as well. Check for the closed caption symbol in your television schedule and on the
tape’s packaging: .
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Setup”, then
press the ENTER but ton.
2
Press the ▲ or ▼ button
to select the “Caption”, then
press the
ENTER button.
▼
5
Depending on the particular broadcast , it might be necessary to
make changes to “Channels” and “Field”:
Use the ▲, ▼,
œœ
and
√√
but tons to make t he changes. (Follow
the same procedure as in steps 3~4 above.)
Press the EXIT button to exit.
Different channels and fields
display different information: Field 2
carries additional information that
supplements the information in Field 1.
(For example, Channel 1 may have
subtitles in English, while Channel 2 has
subtitles in Spanish.)
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
Move Enter Return
Caption
Caption : Off
Mode : Caption
Channels : 1
Field : 1
Off
On
Move Enter Return
Caption
Caption : Off
Mode : Caption
Channels : 1
Field : 1
Caption
Tex t
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
SPECIAL FEATURES
52
Viewing Picture-in-Picture
(CL29A10/CL34A10/CL29M6)
You can use the PIP feature to simultaneously to watch two video sources.
Note:When PIP is selected in the Zoom mode, the Mode is automatically converted
into the Normal mode.
Activating Picture-in-Picture
1
Press the MENU button to
display the menu.
Press the
▲ or ▼ but ton
to select the “Picture”, then
press the
ENTER button.
2
Press the ▲ or ▼ button
to select “PIP”, then press
the ENTER button.
3
Press the ENTER button
agian.
Press the ▲ or ▼ button
to select PIP “On”, then
press the ENTER but ton.
Press the EXIT button to
exit.
▼
If you turn TV off while watching
and turn it on again, the PIP window
will disappear.
▼
Quick way to access the PIP:
Just press the PIP button on the
remote control.
Move Enter Return
▲
More
Digital NR : Off
√√
DNIe Jr : On
√√
Tilt :
0
PIP
√√
Move Enter Return
PIP
PIP : Off
Off
On
Move Enter Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
√√
Channel : Air 3
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
SPECIAL FEATURES
53
Selecting a Signal Source (External A/V) for PIP
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Picture”, then
press the ENTER but ton.
2
Press the ▲ or ▼ button
to select “PIP”, then press
the
ENTER button.
3
Press the ▲ or ▼ to select
the “Source”, then press the
ENTER button.
Press the ▲ or ▼ button
to select “TV”, “AV1 ”,
“AV2 ”or “S-Video”, t hen
press the ENTER but ton.
Press the EXIT button to
exit.
Move Enter Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
√√
Channel : Air 3
Move Enter Return
PIP
PIP : On
√√
Source : TV
Swap
√√
Position :
√√
Channel : Air 3
TV
AV1
AV2
S-Video
▼
For more information about
external A/V components and signals,
see “Viewing an External Signal
Source” on page 37.
If you select “TV”, the PIP image is
the same as the main image.
Move Enter Return
▲
More
Digital NR : Off
√√
DNIe Jr : On
√√
Tilt :
0
PIP
√√
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
SPECIAL FEATURES
54
Swapping the Contents of the PIP image and Main image
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Picture”, then
press the ENTER but ton.
2
Press the ▲ or ▼ button
to select “PIP”, then press
the
ENTER button.
3
Press the ▲ or ▼ to select
the “Swap”, then press the
ENTER button.
The image in the PIP window will appear on the
main screen, and vice
versa.
Press the EXIT button
to exit.
▼
Quick way to access the SWAP:
Just press the SWAP button on the
remote control.
Move Enter Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
√√
Channel : Air 3
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
▲
More
Digital NR : Off
√√
DNIe Jr : On
√√
Tilt :
0
PIP
√√
SPECIAL FEATURES
55
Changing the Position of the PIP Window
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Picture”, then
press the ENTER but ton.
2
Press the ▲ or ▼ button
to select “PIP”, then press
the
ENTER button.
3
Press the ▲ or ▼ to select
the “Posi tion”, then press
the ENTER button.
Press the ▲ or ▼ button
to select the required
screen positon, then
press the ENTER but ton.
Press the EXIT button to
exit.
Move Enter Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
√√
Channel : Air 3
Move Enter Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
Channel : Air 3
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
▲
More
Digital NR : Off
√√
DNIe Jr : On
√√
Tilt :
0
PIP
√√
SPECIAL FEATURES
56
Changing the PIP Channel
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Picture”, then
press the ENTER but ton.
2
Press the ▲ or ▼ button
to select “PIP”, then press
the
ENTER button.
3
Press the ▲ or ▼ to select
the “Channel”.
Press the
œœ
or √√button to
change the channel that
appears in the PIP window.
Press the
EXIT button to
exit.
▼
Quick way to access the PIP channel:
Just press the CH or CH button on
the remote control.
Move Adjust Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
√√
Channel : Air 3
Move Adjust Return
PIP
PIP : On
√√
Source : TV
√√
Swap
√√
Position :
√√
Channel : Air 5
Move Enter Return
Mode : Custom
√√
Custom
√√
Color tone : Normal
√√
Size : Normal
√√
▼
More
Move Enter Return
▲
More
Digital NR : Off
√√
DNIe Jr : On
√√
Tilt :
0
PIP
√√
SPECIAL FEATURES
57
Changing the Size of the PIP Window
1
Press the SIZE button
under the cover of the
remote control.
Press the SIZE button
repeatedly to cycle through
this sequence: large window, small
window.
<Large Window>
<Small Window>
l:
n
SPECIAL FEATURES
58
3
Each of the menu options
is displayed in turn.
When you wish to stop
the demonstration, press
any but ton on the remote
control.
Press the EXIT button to
exit.
Viewing the Demonstration
To become familiar with the various menus provided by your television, you can view
the in built demonstration.
1
Press the MENU button to
display the menu.
Press the ▲ or ▼ button
to select the “Setup”, then
press the
ENTER button.
2
Press the ▲ or ▼ button
to select “Demon strat ion”,
then press the ENTER
button.
Move Enter Return
Setup
▲
More
Blue Screen : On
√√
Melody : On
√√
Demonstration
√√
Move Enter Exit
Source List : AV1
√√
Edit Name
√√
Input
Move Enter Return
Setup
Time
√√
Plug & Play
√√
Caption
√√
Language : English
▼
More
SPECIAL FEATURES
59
Customizing Your Remote Control
Your TV comes equipped with a universal remote control. In addition to controlling the TV,
the universal remote control can also operate a Set-Top Box, VCR, Cable box and DVD (even
if your VCR, Cable box and DVD are made by manufacturers other than Samsung).
• The remote control might not be compatible with all VCRs, DVD players and Cable boxes.
1
Turn off your VCR (Cable box or DVD player).
2
Press the MODE button and make sure that the VCR (CABLE or DVD) LED is
illuminated.
œ The remote control has five
modes:
TV, STB, VCR, CABLE
and DVD.
3
On your Samsung remote control, press the SET button.
4
Enter 3 digits of the VCR (Cable box or DVD player) code listed on next page
for your brand of VCR (Cable box or DVD player).
œ Make sure you enter 3 digits
of the code, even if the first digit
is a “0”. (If more than one code
listed, try the first one.)
5
Press the POWER button on the remote control. Your VCR (Cable box or DVD
player) should turn on. If your VCR (Cable box or DVD player) turns on, your
remote control is now set correctly.
œ If your VCR (Cable box or
DVD player) does not turn on,
repeat steps 2, 3, and 4, but try
one of the other codes listed for
the brand of your particular VCR
(Cable box or DVD player).
6
Once your remote control is set up, press the MODE button any time you want
to use the remote to operate your VCR (Cable box or DVD player).
• When your remote is in the TV mode, the VCR (or DVD player) control buttons (REW, STOP,
PLAY/PAUSE and FF) will still operate your VCR (or DVD player).
• When your remote control is in the
VCR (CABLE or DVD) mode, the volume buttons still con-
trol your TV’s volume
Setting Up Your Remote Control to Operate Your VCR (Cable box
or DVD player)
SPECIAL FEATURES
60
VCR Codes
Cable Box Codes
DVD Codes
Remote Control Codes
000
Samsung
001
LG(Goldstar)
002
003
004
Daewoo
005
006
007
Daewoo, LG(Goldstar)
008
Daewoo
009
Curtis Mathes, Dimensia,
General Electric, PROSCAN,
RCA
011
Bell & Howell, Fisher, JC Penny,
JCL, Kenwood, Marantz, NEC,
Quartz, Radio Shack, Realistic,
Sanyo, Sears, Tandy
014
Hitachi, JC Penny, Pentax,
Pioneer, RCA, Sears, Toshiba
015
Admiral, Optimus, Radio Shack,
Realistic, Sharp
016
Candle, Citizen, Craig,
Curtis Mathes, General Electric,
Go Video, JC Penny, MTC,
Multitech, RCA, Samsung,
Totevision
017
Canon, Curtis Mathes,
Emerson, General Electric,
Instant Replay, JC Penny,
JCL, Magnavox, Marantz,
Panasonic, Philco, Philips,
Quasar, Radio Shack, Realistic,
RCA, Sylvania, Technics, Teknika
Candle, Citizen, Emerson,
018
LG(Goldstar), Radio Shack,
Realistic, Sears, Toshiko, Teknika,
Totevision
019
Broksonic, Emerson
021
Craig, Fisher, Radio Shack,
Realistic, Sanyo, Sears
022
Audio Dynamics, Candle, Citizen,
Daewoo, Emerson, Samsung,
Scott, Toshiba
023
Colortyme, Curtis Mathes, DB,
LG(Goldstar), Harman Kardon,
JC Penny, JCL, Kenwood,
Marantz, NEC
024
Aiwa, Curtis Mathes, Dynatech,
Emerson, Funai, Hitachi, Lloyd,
LXI, MTC, Multitech, Radio Shack,
Realistic, Signature, Sylvania,
Symphonic, Tandy, Teac, Teknika
025
Audio Dynamics, DB, JC Penny,
JCL, Kenwood, Marantz, NEC,
Pioneer, Sansui
026
Akai, Shintom, Sony
027
Fisher, Sears
028
Fisher, Radio Shack, Realistic,
Sears, Toshiba
029
Emerson
030
Teknika
031
Akai, Samsung
032
Akai, Emerson
035
Shintom, Sony
036
Electrohome, Emerson,
Radio Shack, Realistic, Sharp
037
RCA
038
Magnavox, Marantz, Philco,
Philips, Sylvania
039
JC Penny, JCL, Kenwood,
Marantz, NEC, Tatung, Teac
040
Logik, Multitech, Shintom
041
General Electric, Multitech,
Samsung
042
Pioneer
043
Emerson
044
Hitachi, JC Penny, Pentax, RCA,
Sears
045
Hitachi
046
RCA
047
Sony
048
Sharp
050
Emerson, Scott
051
Emerson, Samsung
052
Fisher, Radio Shack, Realistic,
Sears
053
Portland, Quasar
054
Candle, Citizen, Daewoo,
Portland, Sharp
055
Candle, Citizen, Curtis Mathes,
LG(Goldstar), JCL, Kenwood,
Marantz, NEC, Pentex Research+
056
Emerson
057
Fisher, Sears, Toshiba
058
Emerson, Scott, Toshiba
059
Pioneer
060
JC Penny
061
Candle, Citizen, Portland
062
Canon, Curtis Mathes,
General Electric, JC Penny,
Magnavox, Panasonic, Philco,
Radio Shack, Realistic, Sylvania
063
RCA
064
Shintom
065
Magnavox, Philco, Sylvania
066
Emerson
067
Fisher
069
LG(Goldstar)
070
Marantz, NEC
071
Emerson
073
Curtis Mathes, NEC
074
Emerson
076
Curtis Mathes, Emerson, TMK
077
Emerson, Scott
078
RCA, Teac
079
Emerson
082
KLH
084
Panasonic
085
Daewoo
086
Panasonic
088
Admiral
000
Samsung
001
Nawoo
002
TaePyungYang
003
DeaRyung
004
DongKuk
005
DaeHan
006
LG(Goldstar)
007
Saewoo
008
RCA
010
Regency
011
Hamlin, Panasonic, Regal,
Samsung
012
GI, Hamlin, Jerrold
013
GI, Jerrold
015
Anvision, Cable Star, Eagle,
016
Magnavox, Philips, Randtek,
Viewstar
017
NSC
019
Sylvania, Texscan
000
Samsung
001
LG(Goldstar)
002
Toshiba
Eastern International, Hamlin,
020
Regal
021
Hamlin, Regal
022
Zenith
023
GI, Jerrold
024
Oak, Osk Sigma
025
Tocom
026
Pioneer
027
Magnavox, Philips, Viewstar
028
Pioneer
029
Magnavox, Philips, Tocom,
Viewstar
030
Samsung
031
032
GI, Jerrold
033
034
Magnavox, Philips, Viewstar
035
RCA, Panasonic, Sprucer
036
Magnavox, Philips, Viewstar
037
003
JVC
004
Sony
005
Sharp
038
039
040
041
042
044
045
046
047
048
049
050
051
052
054
056
006
007
008
GI, Jerrold
Unika
Magnavox, Philips, Unika,
Viewstar
Magnavox, Philips, Regency,
Viewstar
Hamlin
GI, Jerrold
Hitachi, Macom
Oak
Panasonic
Magnavox, Philips, Viewstar
Magnavox, Philips, Unika,
Viewstar
Zenith
Hitachi, Macom
Pioneer, Samsung, Warner Amex
General Instrument, Hitachi,
Jerrold, Signature, Starcom
Hamlin
Panasonic
Philips
PROSCAN, RCA
057
058
059
060
063
065
066
067
069
070
071
072
073
074
075
076
077
009
Tocom
Universal
Tocom
Zenith
Stargate 2000
Sylvania, Texscan
Panasonic, Zenith
Jerrold
Samsung
Jerrold
RCA
GI
Curtis Mathes
MEMO
61
If the TV seems to have a problem, first try this list of possible problems and solutions.
If none of these troubleshooting tips apply, then call your nearest service center.
Identifying Problems
Problem Possible Solution
Poor picture Try another channel.
Adjust the antenna.
Check all wire connections.
Poor sound quality. Try another channel.
Adjust the antenna.
No picture or sound. Try another channel.
Press the TV/VIDEO button.
Make sure the TV is plugged in.
Check the antenna connections.
No color, wrong colors or tints. Make sure the program is broadcast in color.
Adjust the picture settings.
If the set is moved or turned in a different
direction, the power should be OFF for at least
30 minutes.
Picture rolls vertically. Adjust the antenna.
Check all wire connections.
The TV operates erratically Unplug the TV for 30 seconds, then try
operating it again.
The TV won’t turn on. Make sure the wall outlet is working.
SPECIAL FEATURES
Chapter Five
TROUBLESHOOTING
SPECIAL FEATURES
62
APPENDIX
MEMO
APPENDIX
Cleaning and Maintaining Your TV
With proper care, your TV unit will give you many years of service. Please follow these
guidelines to get the maximum performance from your TV.
Placement
• Do not place the TV near extremely hot, cold, humid or dusty places.
• Do not place the TV near appliances with electric motors that create magnetic fields,
such as vacuum cleaners.
• Keep the ventilation openings clear; do not place the TV on a soft surface, such as
cloth or paper.
• Place the TV in a vertical position only.
Liquids
• Do not handle liquids near or on the TV. Liquids that spill into it can cause serious
damage.
Cabinet
• Never open the cabinet or touch the parts inside.
• Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or
chemicals.
• Do not put heavy objects on top of the cabinet.
Temperature
• If your TV is suddenly moved from a cold to a warm place, unplug the power cord,
and allow at least two hours for moisture that may have formed inside the unit to dry
completely.
Using Your TV in Another Country
If you plan to take your TV with you to a foreign country, please be aware of the different
television systems that are in use around the world. A TV designed for one system may
not work properly with another system due to differences in the TV channel frequencies.
APPENDIX
63
Specifications
Model
Voltage
Frequency of Operation
Power Consumption
Dimensions
(mm/inches)
W eight (Kg/ lbs)
CL29A10
CL29M6/CL29M6MQU
CL29K5MQU
CL29M16MQU
AC100-240 V
50/60 Hz
150 W atts
766 X 561 X 581/
30.15 X 22.08 X 22.87
730 X 485 X575/
28.74 X 19.09 X 22.63
806 X 493 X598/
31.73 X 19.41 X 23.54
766 X 558 X 586/
30.16 X 21.97 X 23.07
45.7/100.75
44.9/98.98
44/97.00
41/ 90.39
CL25M6MQU
AC100-240 V
50/60 Hz
130 W atts
656 X 459 X 511/
25.83 X 18.07 X 20.12
35/77.16
CL21S8MQU
AC100-240 V
50/60 Hz
120 W atts
740 x 580 x 590/
29.13 x 22.83 x 23.23
29.5/65.04
CL34A10
AC100-240 V
50/60 Hz
160 W atts
910 X 585 X690/
35.83 X 23.03 X 27.17
68.0/149.92
Loading...
