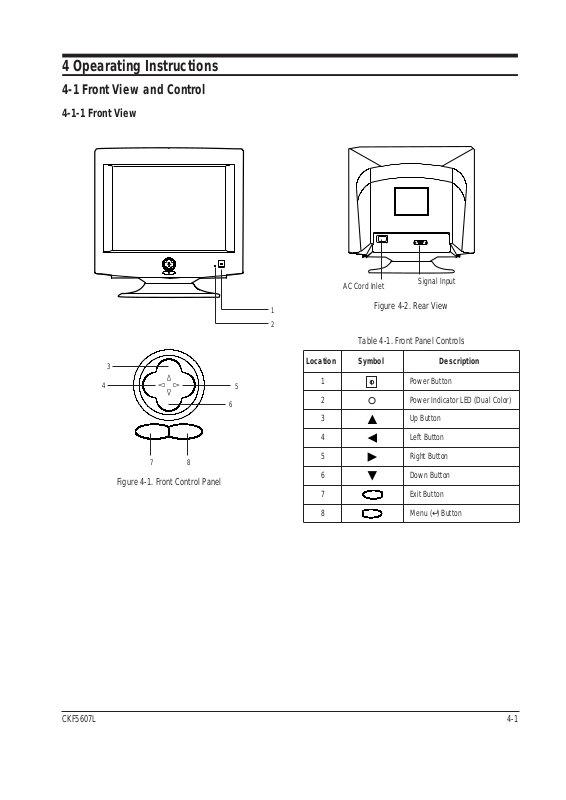

4-1 Front View and Control
4-1-1 Front View
CKF5607L 4-1
4 Opearating Instructions
1
2
Figure 4-1. Front Control Panel
Figure 4-2. Rear View
3
5
6
78
4
AC Cord Inlet
Signal Input
1 Power Button
Power Indicator LED (Dual Color)
Up Button
Left Button
Right Button
Down Button
Exit Button
Menu (
↵) Button
3
4
5
6
7
8
2
Location Symbol Description
Table 4-1. Front Panel Controls
Page 2
This monitor has factory preset display settings
for each of the signals listed in the standard
Display Modes Timing Chart (see page 3-3).
As a result, when the monitor senses one of the
standard signal timings, it automatically adjusts to
an optimum size and position.
However, the user may wish to adjust the monitor
to their own preferred settings rather than use
those preset at the factory. The monitor saves up
to 11 user defined settings.
4-2-1 On Screen Display
This monitor features an On-Screen Display (OSD)
that shows information about the display setting.
The OSD appears on the screen when you select a
function button. The OSD can show the name,
range and current setting of the control function.
In addition, the OSD shows the current input
signal frequency and the list of user and factory
preset timings. The OSD remains active for
approximately 7 seconds after the completion of
any adjustment.
4-2-2 OSD Window
Push the ↵ button to open the OSD. The Main
Menu shows all of the adjustment icons along the
top of the window. The Title Bar displays Main
Menu and the icon for the last accessed function
appears highlighted. The window shows one or
more adjustment names in the Adjustment Box
and instructions display in the Information Bar.
To access a function, use the and buttons to
move to its associated icon, and then use the
or button to highlight the adjustment type.
Then, push the ↵ button to access the function.
All OSD windows change color to indicate that
the associated adjustment control is active. When
the OSD displays the name of the adjustment, for
example, Pincushion/Trap, with a green border,
adjustments for pincushion or trapezoidal effects
are available. Each OSD window shows directions
for use along the bottom of the window. When
you are satisfied with the adjustments you have
made to the current control, select the Exit button
to return to the OSD Menu where you can select
another control, or exit from the OSD system and
save your changes. The OSD remains active for
approximately 7 seconds after completion of any
adjustments.
4-2-3 Direct Controls
The on-screen Direct controls have the following
two functions:
•Brightness:With the menu off, push the or
button. The brightness
display will appear.
Push the button to increase the
brightness or the button to
decrease the brightness.
•Contrast: With the menu off, push the or
button. The contrast
adjustment display will appear.
Push the button to increase the
contrast or the button to decrease
the contrast.
4 Operating Instructions
4-2 CKF5607L
4-2 Microprocessor Controls and Functions
Main Menu
Brightness
:Access Function
Exit:Exit Menu
Figure 4-3. OSD Windows
Icon Bar
Title Bar
Adjustment Box
Information Bar
Page 3
This monitor has a built-in power management
system called PowerSaver. This system saves
energy by switching your monitor into a lowpower mode when it has not been used for a
certain amount of time. The available modes are
“On,” “Standby,” “Suspend,” and “Off.”
This system operates with a VESA DPMS
compliant video card installed in your computer.
You use a software utility installed on your
computer to set up this feature. See the table
below for details.
Note 1:This monitor automatically returns to
normal operation when horizontal and
vertical sync return. This occurs when you
move the computer's mouse or press a key
on the keyboard.
Note 2:This monitor is EPA Energy Star
compliant and NUTEK compliant when
used with a computer equipped with
VESA DPMS functionality. If your
computer system cannot support a display
power management function, you can
purchase an optional DPMS software
program to enable the power saving
function. Please contact Samsung or your
dealer for more information.
Note 3:For energy conservation, turn your
monitor OFF when it is not needed, or
when leaving it unattended for long
periods.
Note 4:The PowerSaver functions do not apply to
sound functions and may cause sound
abnormalities during its power saving
modes.
4 Operating Instructions
CKF5607L 4-3
State
Items
Normal
Operation
Horizontal Sync
Vertical Sync
Video
Power
Indicator
Power
Consumption/hr
Active
Active
Active
Green Amber
Amber/Green
Blinking
Amber
Blinking
85 W (max.)
65 W
(nominal)
Less than
15 W
50 W
(nominal)
Less than
5 W
Inactive
Active
Blanked
Active
Inactive
Blanked
Power saving function EPA/NUTEK
Stand By
Mode
Suspend Mode
Position A
Power Off Mode
Position B
Inactive
Inactive
Blanked
4-3 Power Management System
Table 4-2. Display Power Management Signaling (DPMS)
