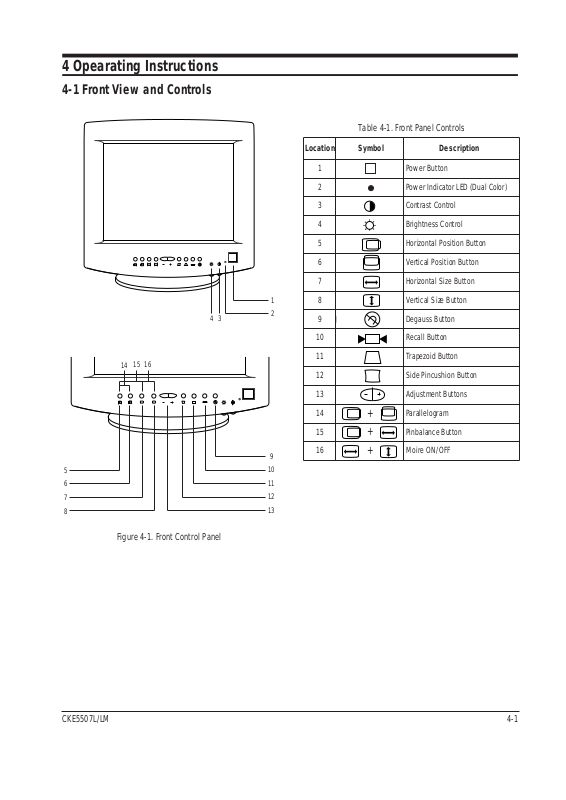

4-1 Front View and Controls

CKE5507L/LM 4-1

4 Opearating Instructions

151416

6 7 8

Figure 4-1. Front Control Panel

Location Symbol Description

1 Power Button

Power Indicator LED (Dual Color) Contrast Control Brightness Control Horizontal Position Button

Trapezoid Button

Degauss Button

Side Pincushion Button Adjustment Buttons Parallelogram Pinbalance Button Moire ON/OFF

Vertical Size Button

Vertical Position Button Horizontal Size Button

Recall Button

3 4

9 10 11 12 13 14 15 16

Table 4-1. Front Panel Controls

+ + +

Note 1:When used with a computer equipped

with VESA DPMS functions, this monitor is EPA Energy Star compliant and NUTEK compliant.

Table 4-2. Display Power Management Signaling (DPMS)

4 Operating Instructions

4-2 CKE5507L/LM

State

Items

Normal

Operation

Horizontal Sync Vertical Sync Video

Power Indicator

Power Consumption/hr

Active Active Active

Green Amber

Alternating

Amber/Green

Blinking

Amber

Blinking

85 W (max.)

75 W

(nominal)

Less than

15 W

70 W (max.)

66.5 W

Less than

8 W

Inactive

Active

Blanked

Active Inactive Blanked

Power saving function EPA/NUTEK

Stand-By

Mode

Suspend Mode

Position A

Power Off Mode

Position B

Inactive Inactive Blanked
