Samsung C480W User Manual [ru]

Samsung Multifunction Xpress

C48x series
C48xW series

C48xFN series

C48xFW series

User’s Guide

User’s Guide

BASIC

BASIC

This guide provides information concerning the installation, basic operation
and troubleshooting on windows.

ADVANCED

This guide provides information about the installation, advanced configuration, operation
and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

1. Introduction

3. Maintenance

Key benefits 5

Features by model 7

Useful to know 12

About this user’s guide 13

Safety information 14

Machine overview 20

Control panel overview 24

Turning on the machine 29

Installing the driver locally 30

Reinstalling the driver 32

2. Menu Overview and Basic Setup

Menu overview 34
Machine’s basic settings 42

Ordering supplies and accessories 81

Available supplies 82

Available maintenance parts 84

Storing the toner cartridge 85

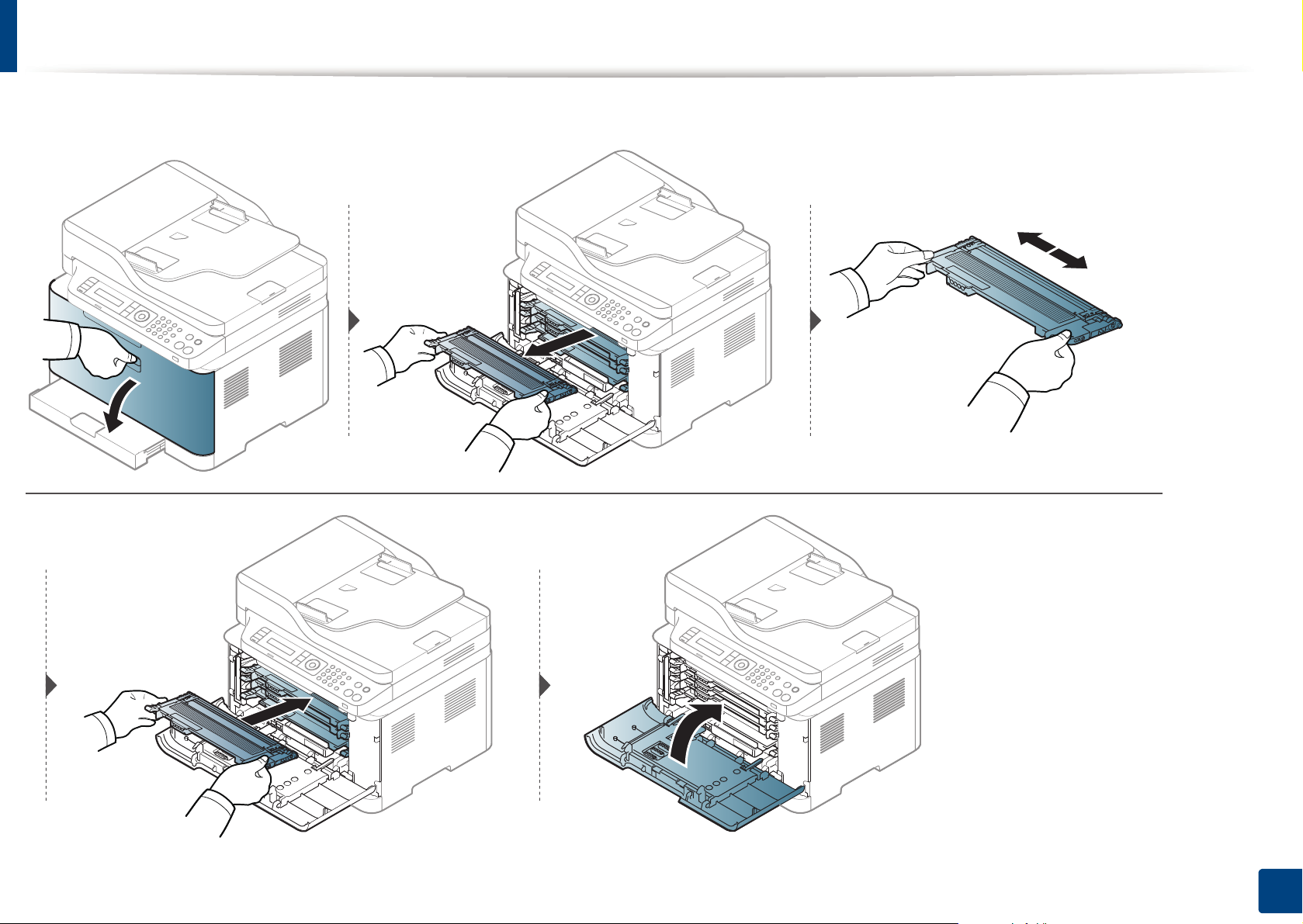

Redistributing toner 87

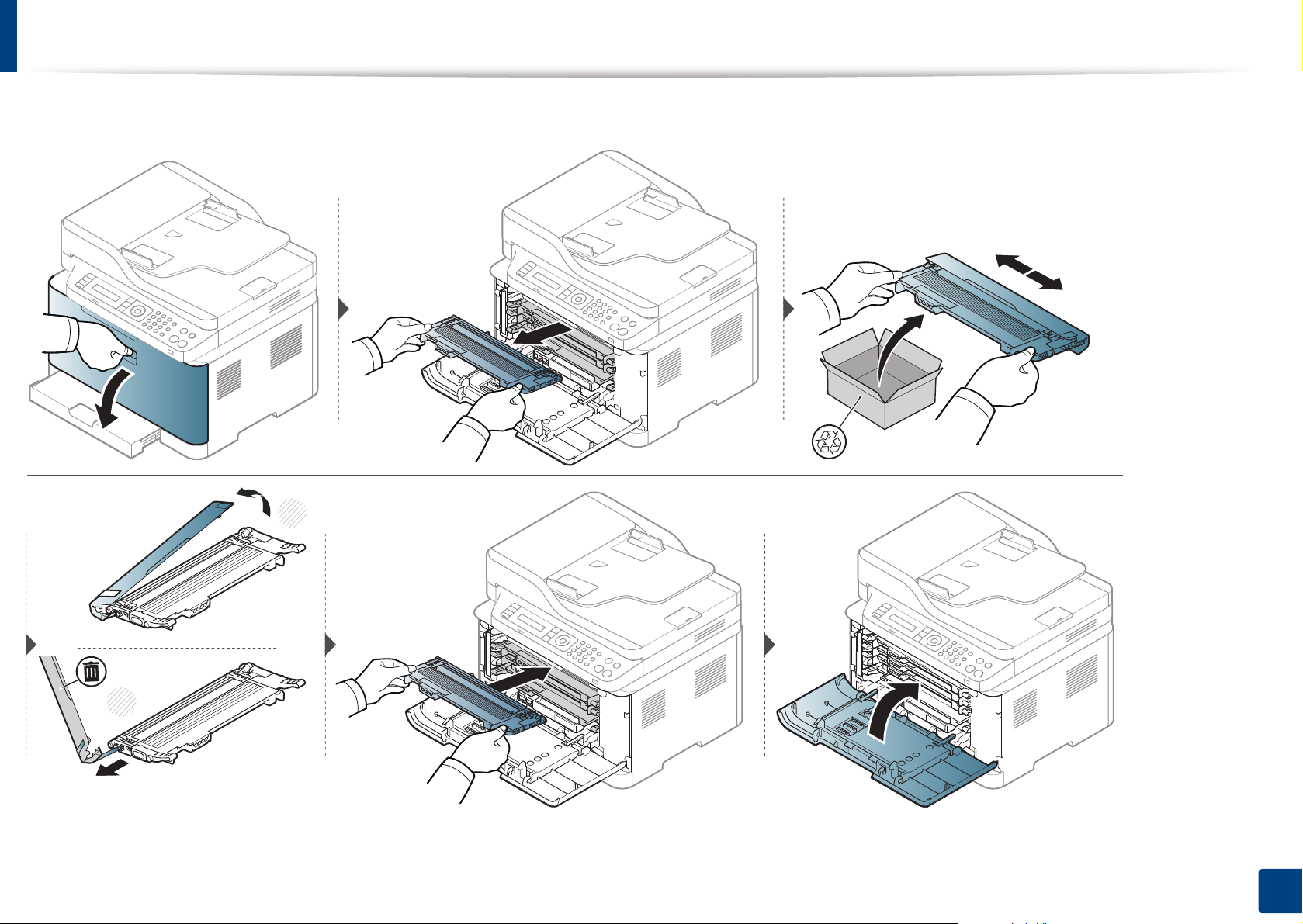

Replacing the toner cartridge 90

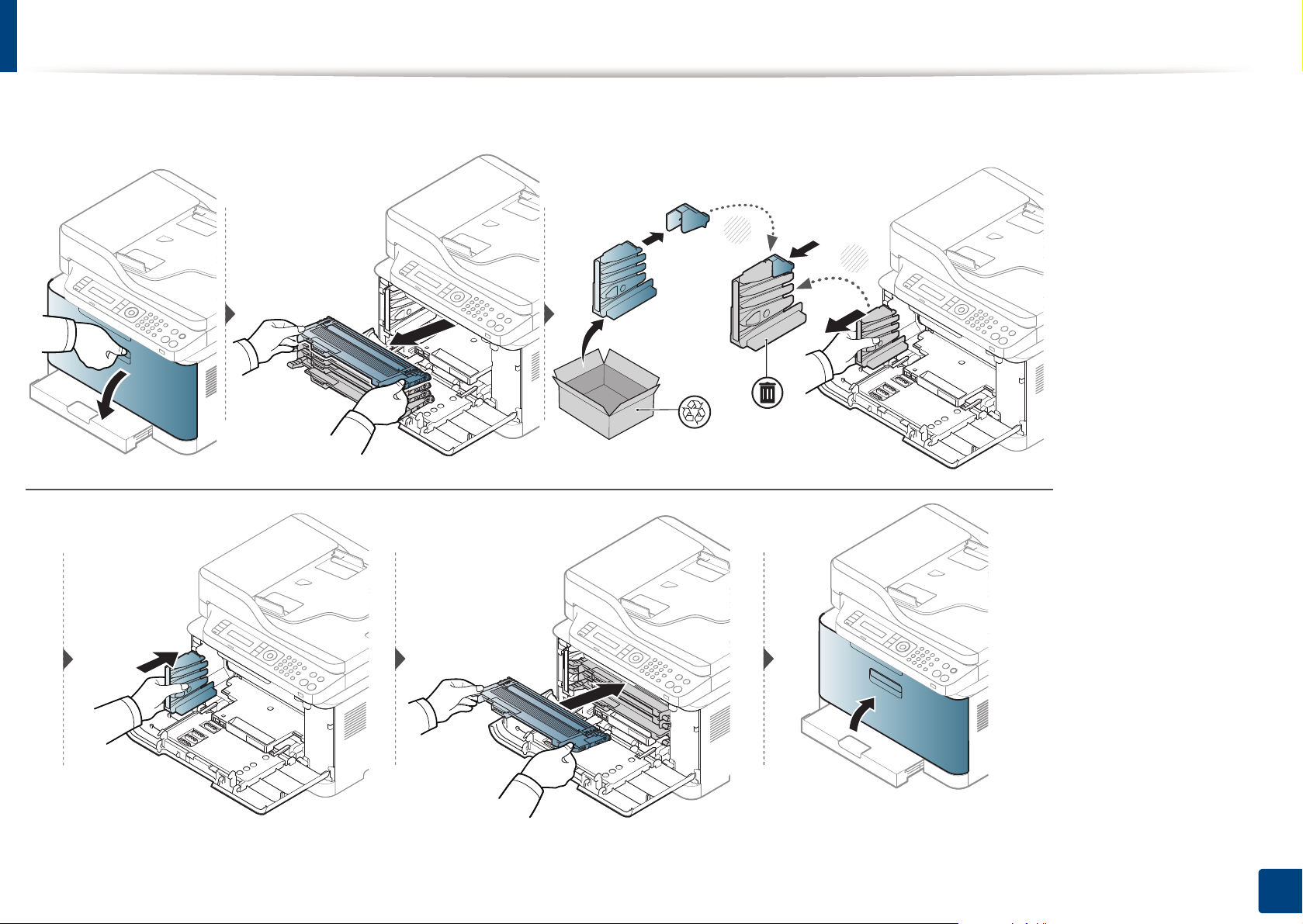

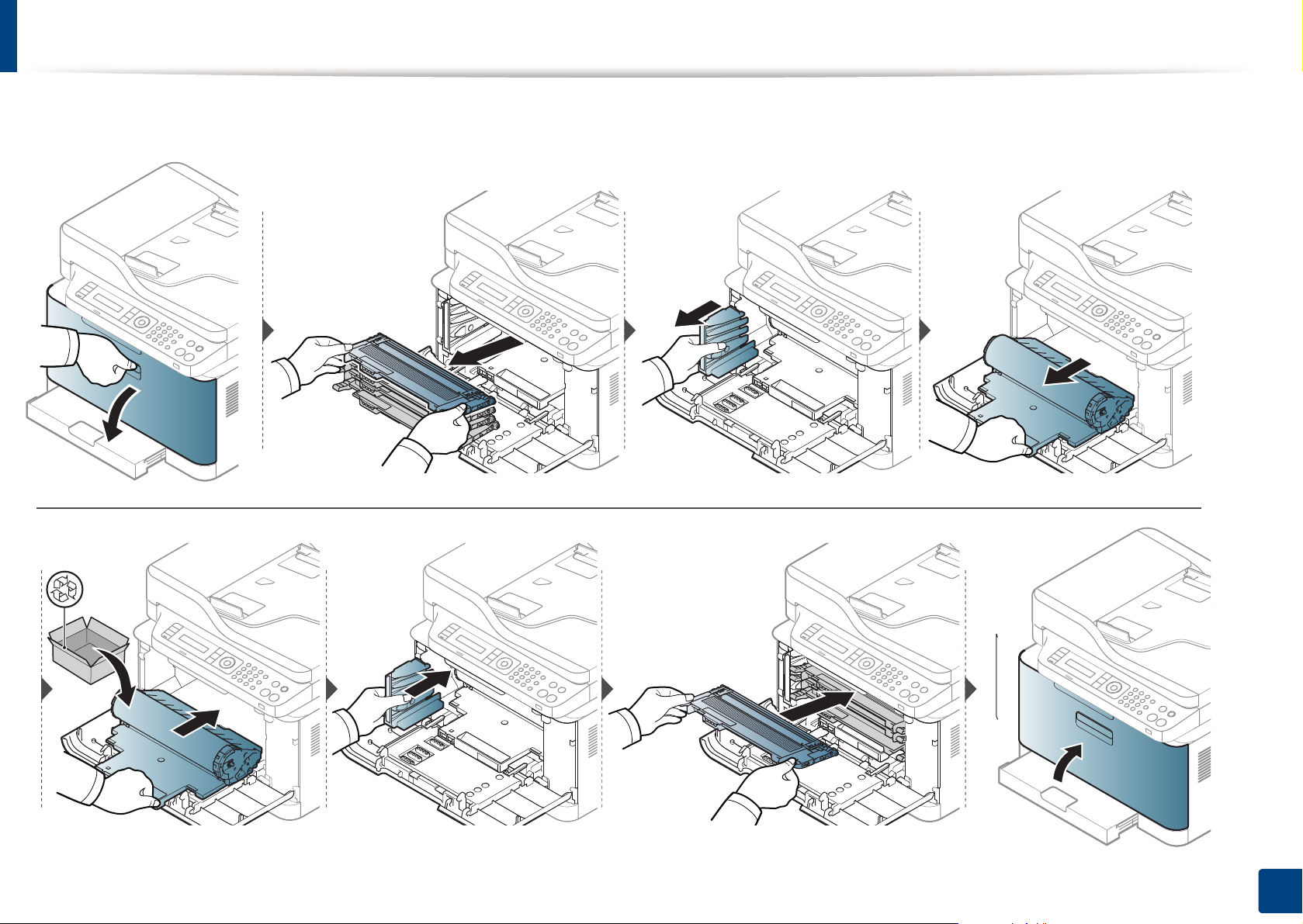

Replacing the imaging unit 92

Replacing the waste toner container 95

Monitoring the supplies life 98

Setting the toner low alert 99

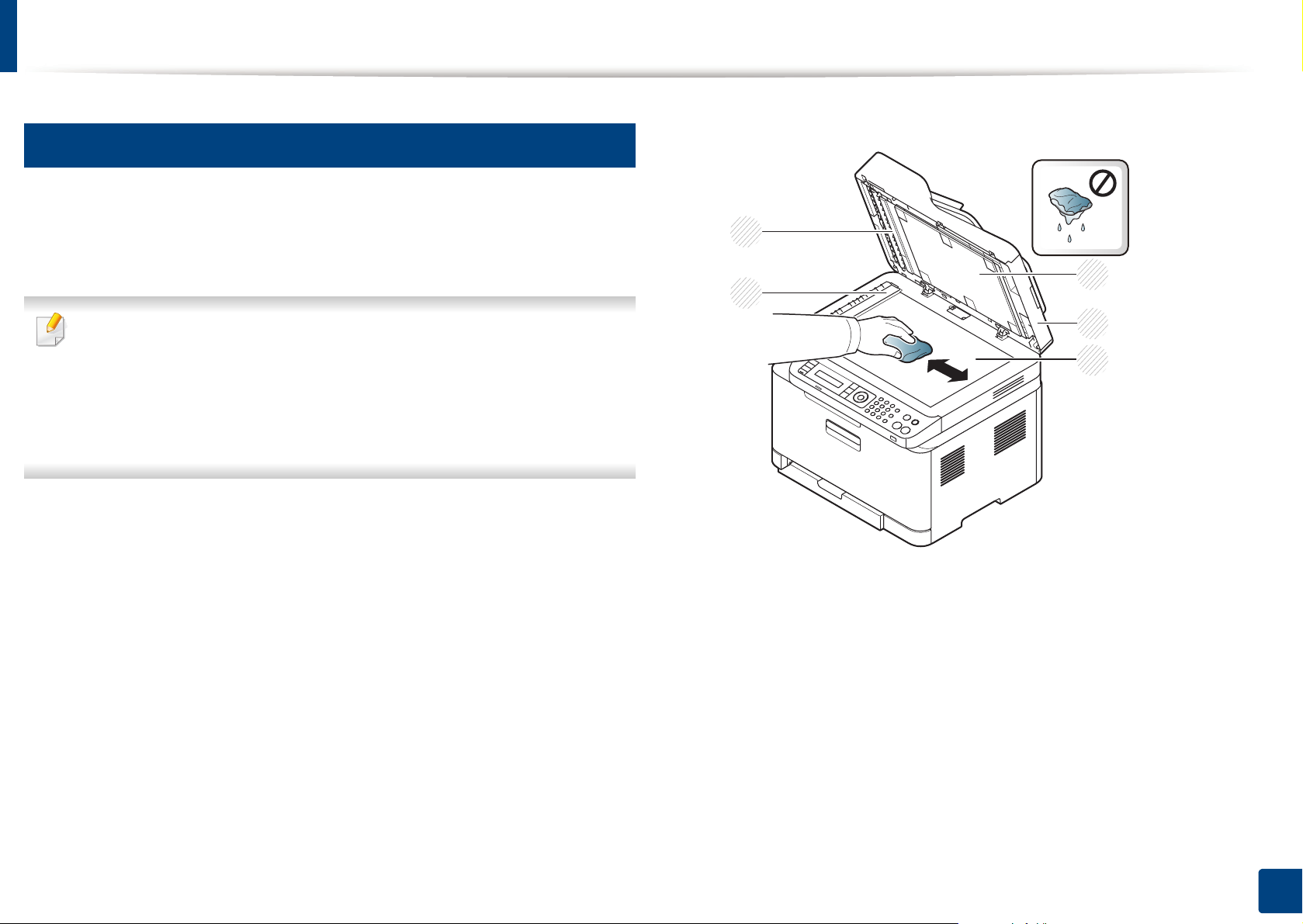

Cleaning the machine 100

Tips for moving & storing your machine 105

4. Troubleshooting

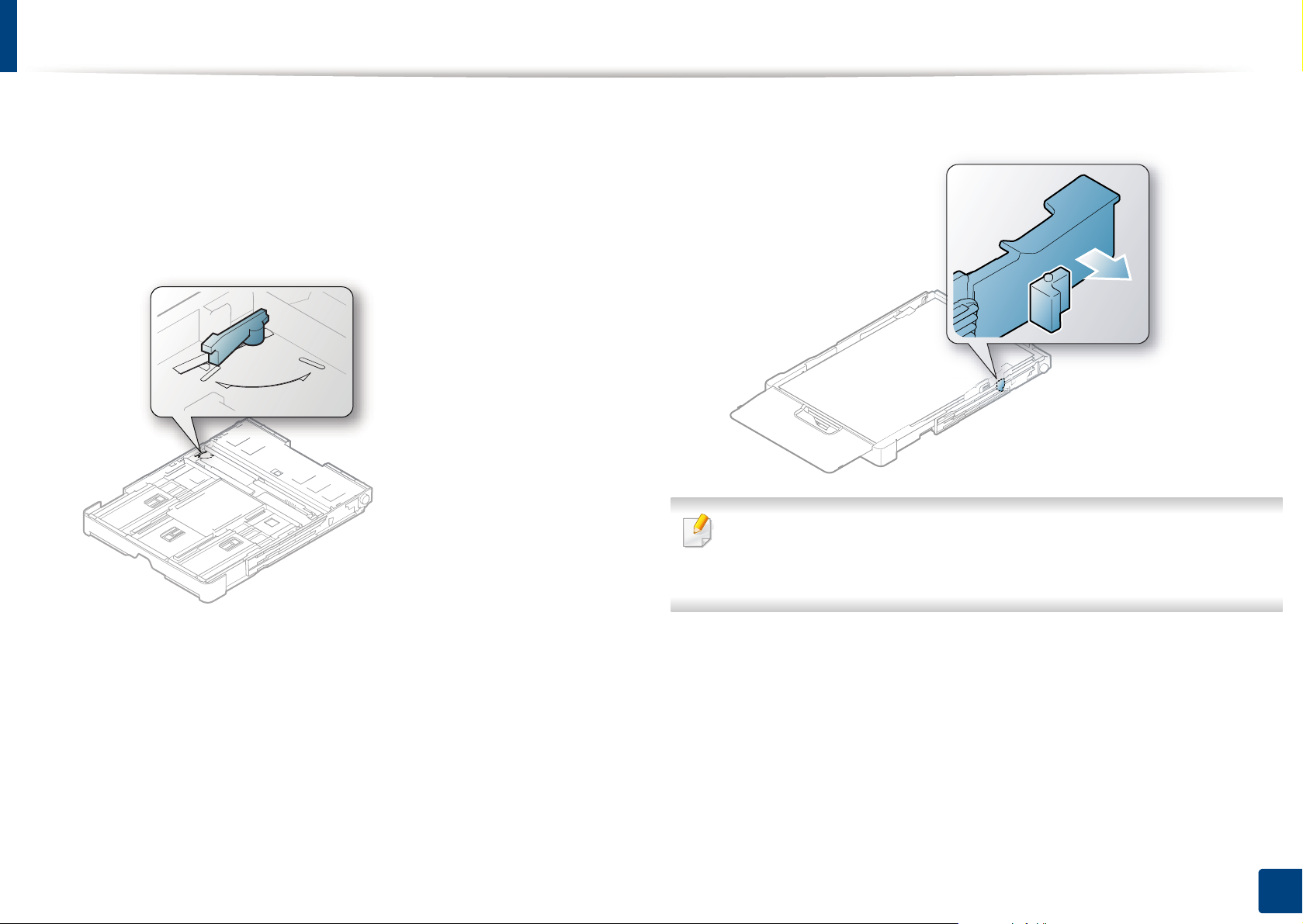

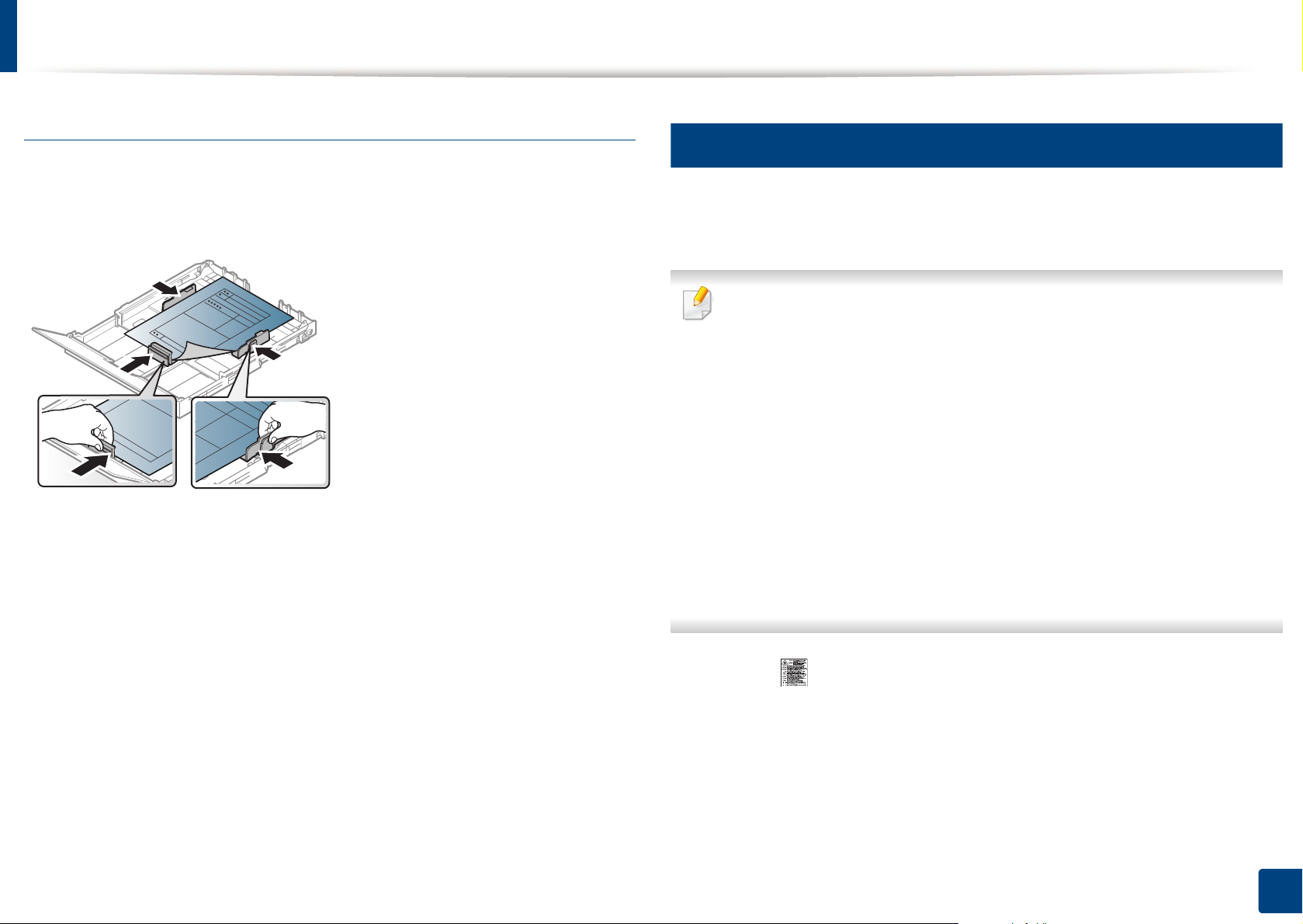

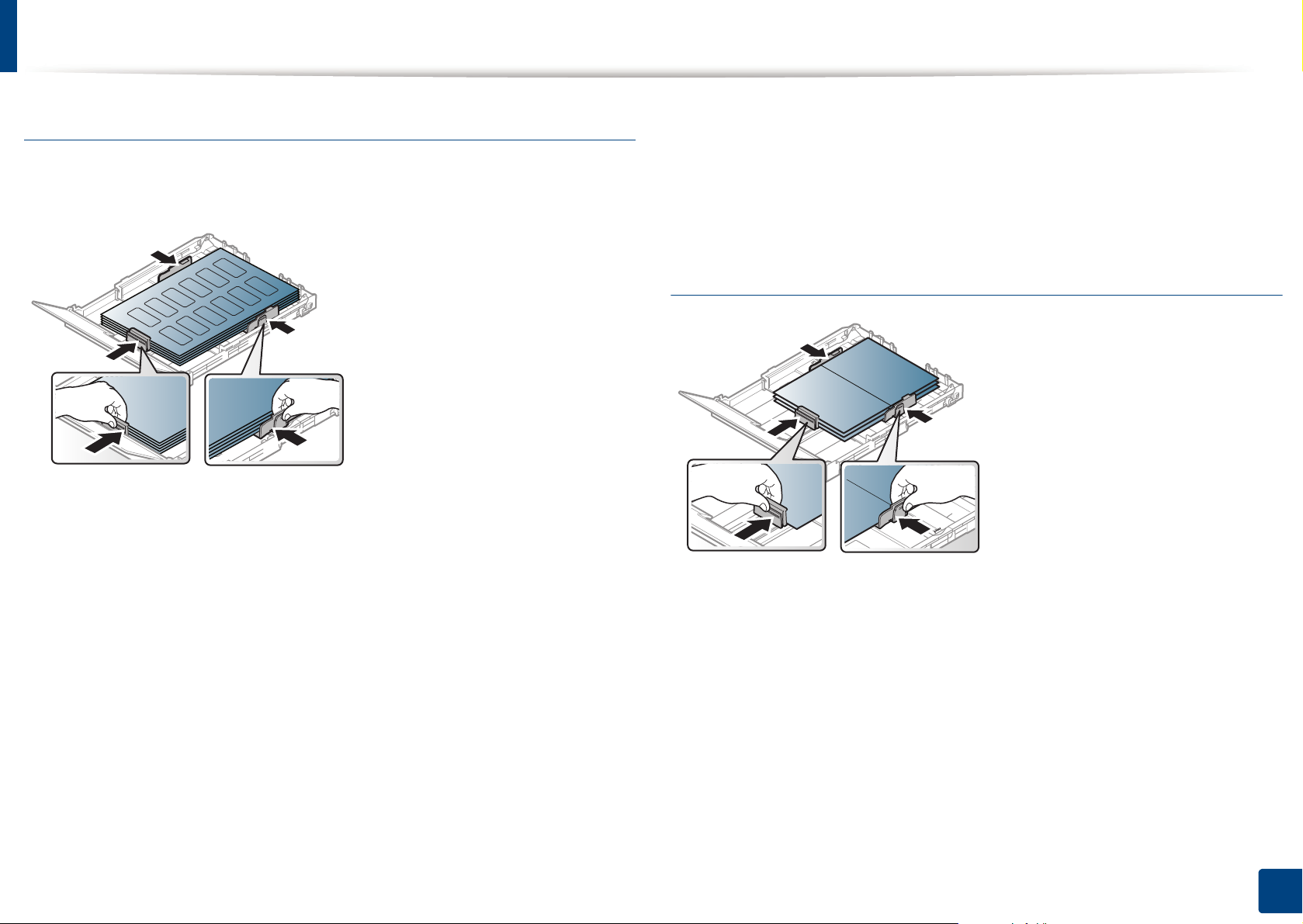

Media and tray 44

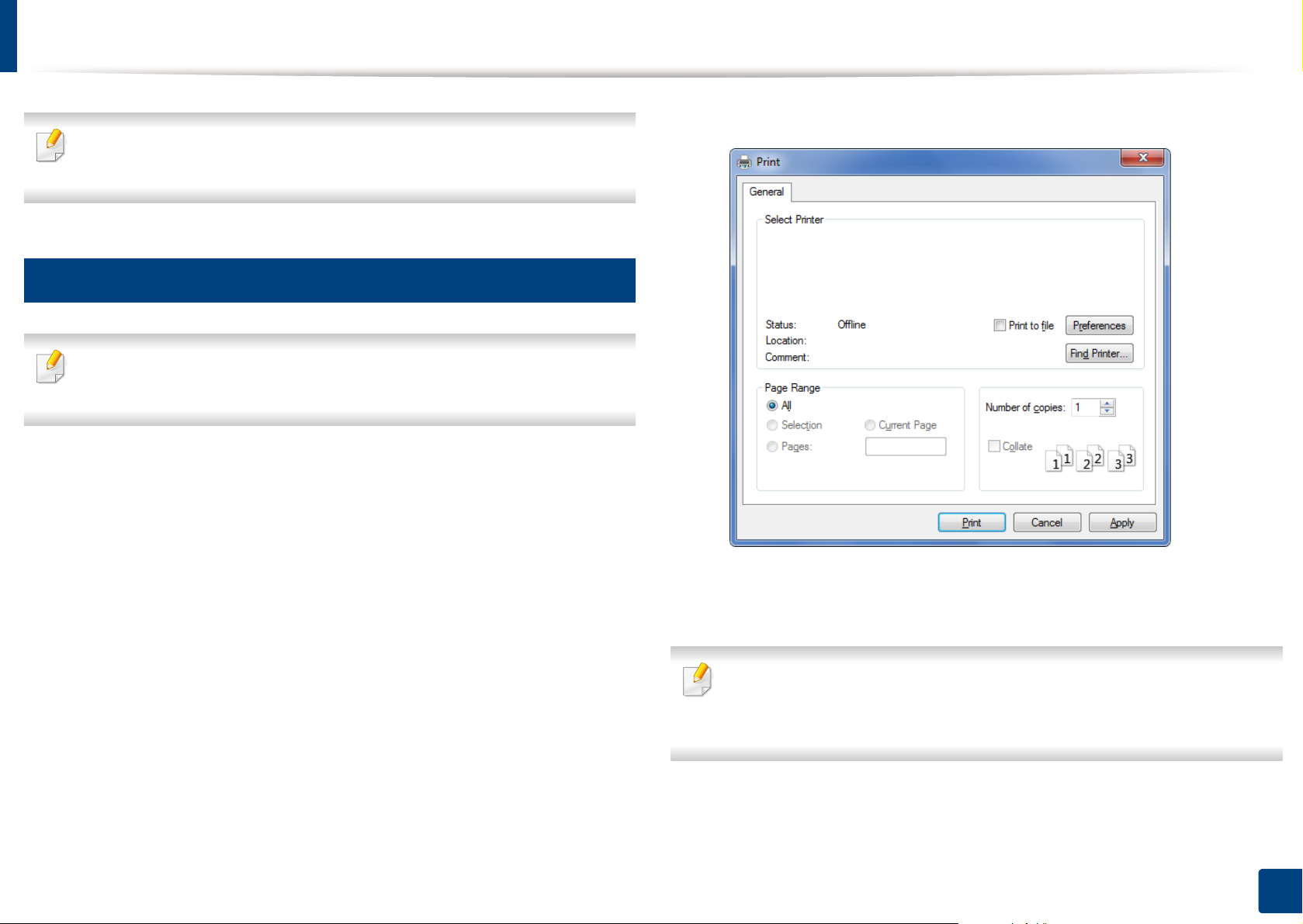

Basic printing 59
Basic copying 65
Basic scanning 69
Basic faxing 71

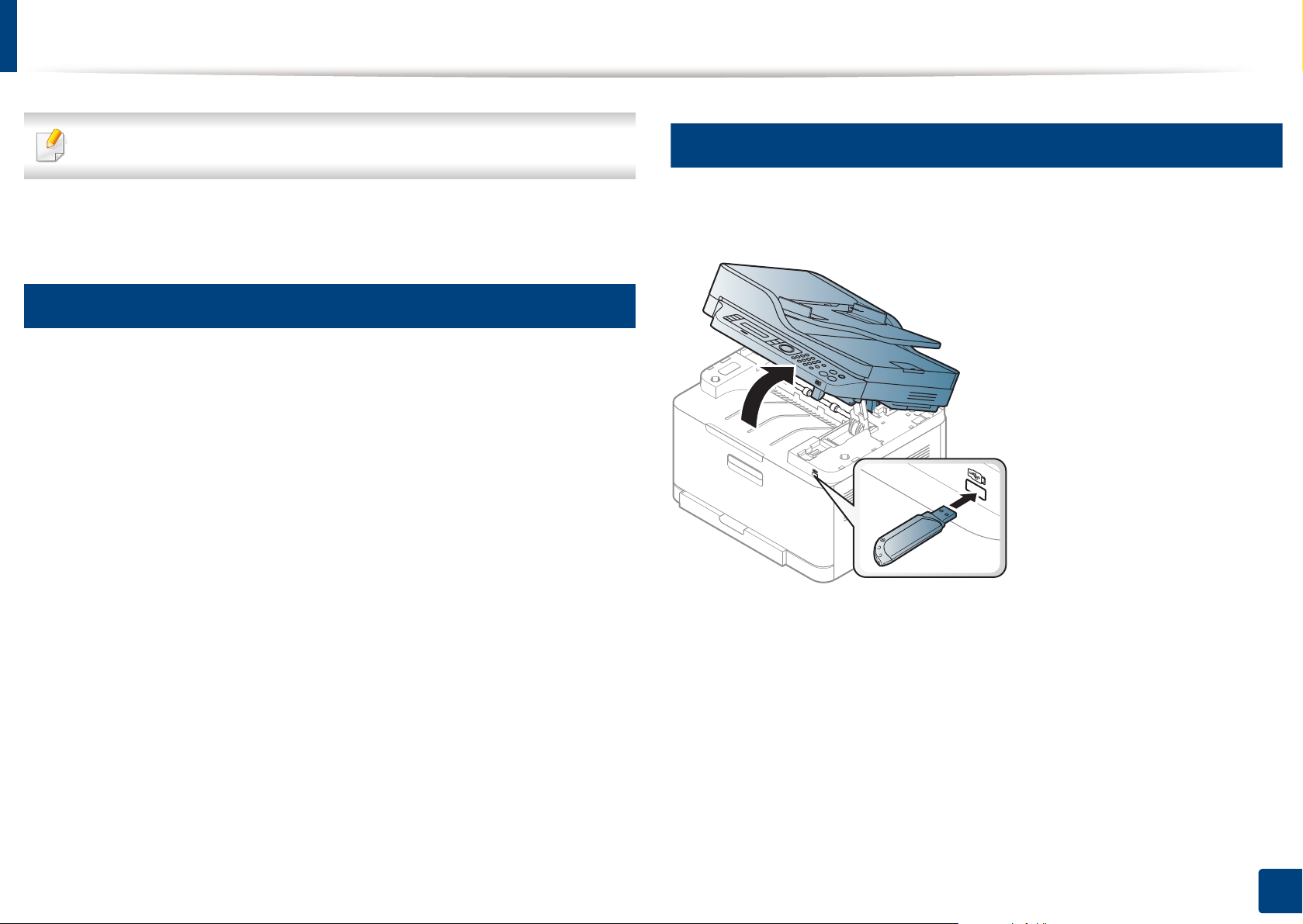

Using USB memory device 75

Tips for avoiding paper jams 107

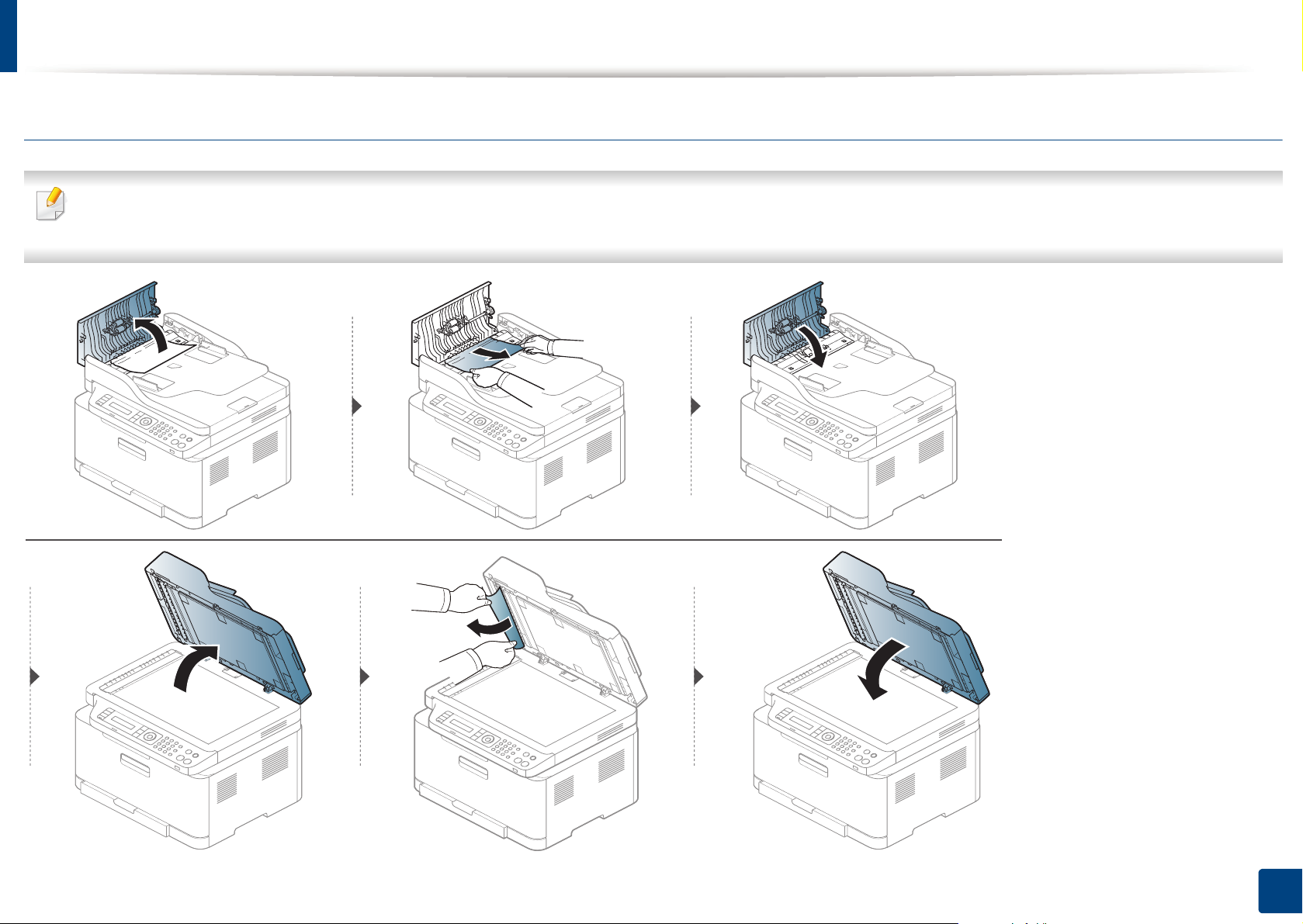

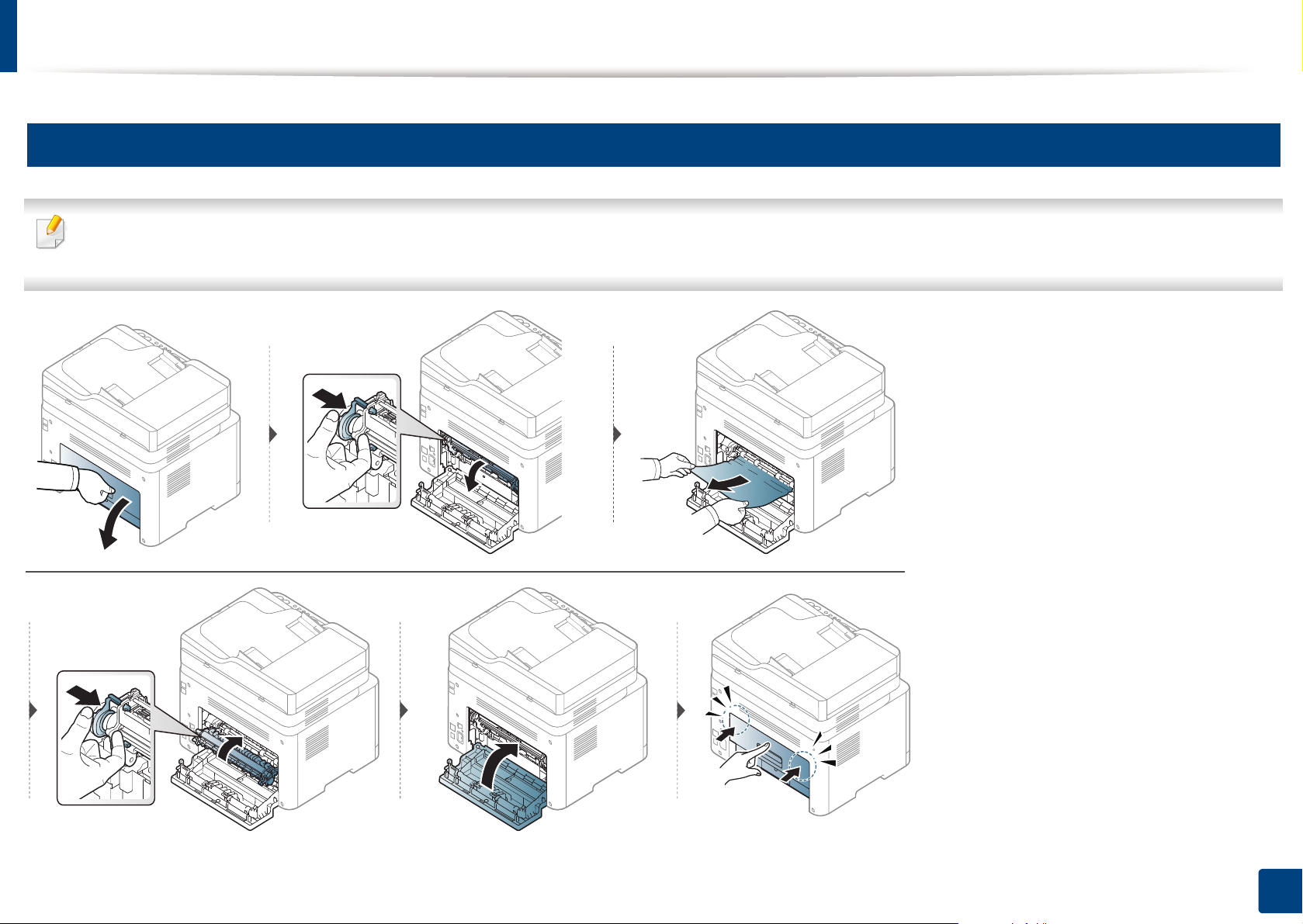

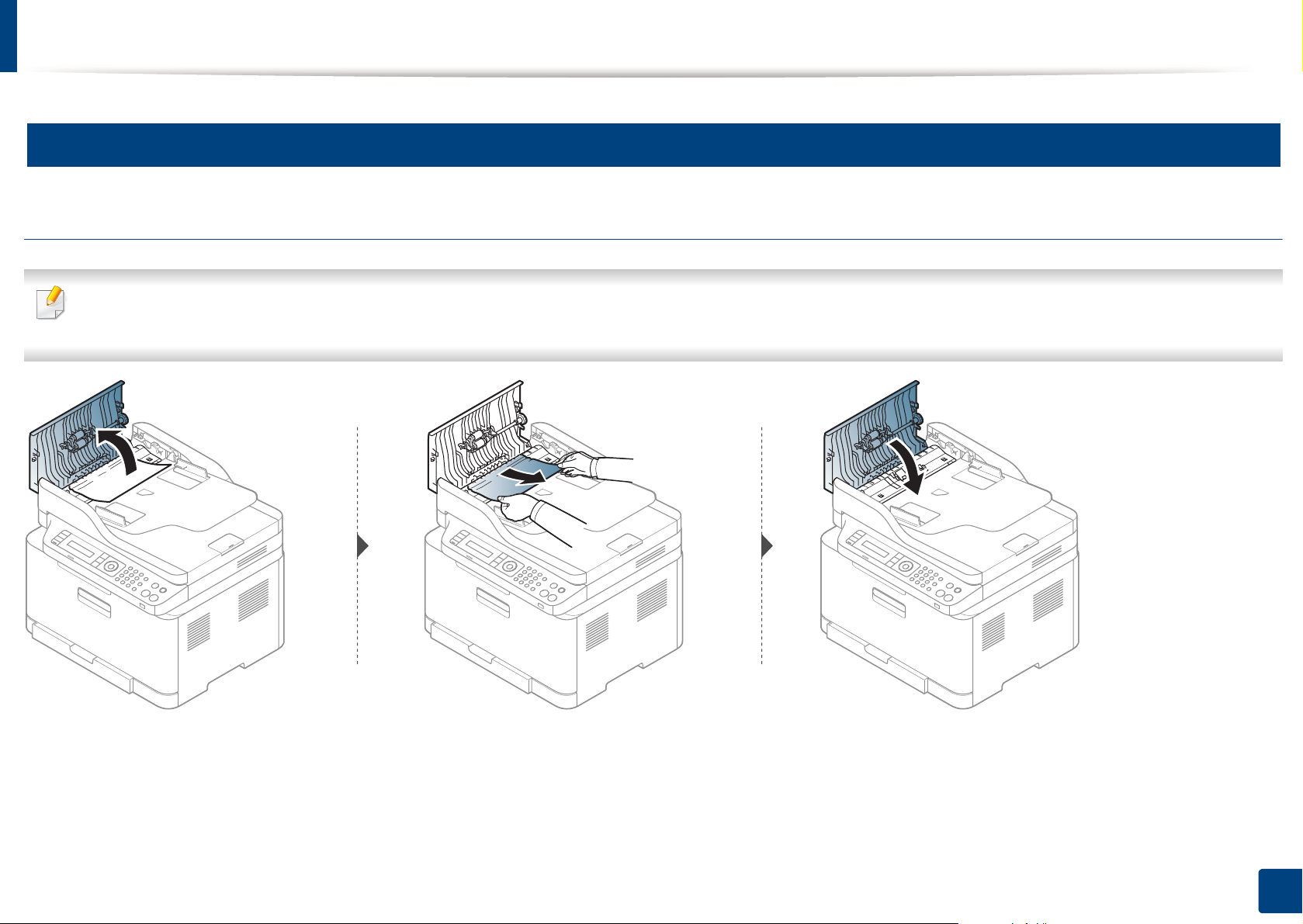

Clearing paper jams 108

Understanding the status LED 115

Understanding display messages 117

2

5. Appendix

Specifications 125

Regulatory information 133

Copyright 146

3

1. Introduction

This chapter provides information you need to know before using the machine.

•Key benefits 5

• Features by model 7

• Useful to know 12

• About this user’s guide 13

• Safety information 14

• Machine overview 20

• Control panel overview 24

• Turning on the machine 28

• Installing the driver locally 29

• Reinstalling the driver 31

Key benefits

Environmentally friendly

• To save toner and paper, this machine supports Eco feature (see "Eco
printing" on page 58).

• To save paper, you can print multiple pages on one single sheet of paper
(see "Using advanced print features" on page 231).

• To save paper, you can print on both sides of the paper (double-sided
printing) (Manual) (see "Using advanced print features" on page 231).

• To save electricity, this machine automatically conserves electricity by
substantially reducing power consumption when not in use.

• We recommend using recycled paper for saving energy.

Fast high resolution printing

• You can print in a full range of colors using cyan, magenta, yellow, and black.

• You can print with a resolution of up to 2,400 x 600 dpi effective output (600
x 600 x 2 bit).

• Fast, on-demand printing.

Convenience

• Simply touch your cell phone on the NFC tag on your printer and get the
print job done (see "Using the NFC feature" on page 187).

• You can print on the go from your smartphone or computer using Samsung
Cloud Print apps (see "Samsung Cloud Print" on page 198).

• You can print on the go from your smartphone or computer using Google
Cloud Print enabled apps (see "Google Cloud Print™" on page 201).

• Easy Capture Manager allows you to easily edit and print whatever you
captured using the Print Screen key on the keyboard (see "Easy Capture
Manager" on page 259).

• Samsung Easy Printer Manager and Printing Status is a program that
monitors and informs you of the machine’s status and allows you to
customize the machine’s settings (see "Using Samsung Easy Printer
Manager" on page 268 or "Using Samsung Printer Status" on page 271).

• Samsung Easy Document Creator is an application to help users compile
and share large documents or other scanned or faxed information digitally.
(see "Using Samsung Easy Document Creator" on page 270).

• Smart Update allows you to check for the latest software and install the
latest version during the printer driver installation process. This is available
only for Windows.

• If you have Internet access, you can get help, support application, machine
drivers, manuals, and order information from the Samsung website,
www.samsung.com > find your product > Support or Downloads.

Key benefits

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 127).

• Print watermark: You can customize your documents with words, such as
“CONFIDENTIAL” (see "Using advanced print features" on page 231).

• Print posters: The text and pictures of each page of your document are
magnified and printed across the multiple sheets of paper and can then be
taped together to form a poster (see "Using advanced print features" on
page 231).

• You can print in various operating systems (see "System requirements" on
page 130).

• Your machine is equipped with a USB interface and/or a network interface.

Supports various wireless network setting method

• Using the WPS (Wi-Fi Protected Setup™) button

- You can easily connect to a wireless network using the WPS button on

the machine and the access point (a wireless router).

• Using the USB cable or a network cable

- You can connect and set various wireless network settings using a USB
cable or a network cable.

• Using the Wi-Fi Direct

- You can conveniently print from your mobile device using the Wi-Fi or
Wi-Fi Direct feature.

See "Introducing wireless set up methods" on page 168.

Features by model

Some features and optional goods may not be available depending on model or country.

Operating System

(●: Supported, Blank: Not supported)

Operating System C48x series C48xW series C48xFN series C48xFW series

Windows ● ● ● ●

Mac ● ● ● ●

Linux ● ● ● ●

Features by model

Software

You can install the printer driver and software when you insert the software CD into your CD-ROM drive.

For Windows, select the printer driver and software in the Select Software to Install window.

Software C48x series C48xW series C48xFN series C48xFW series

SPL printer driver ● ● ● ●

PCL printer driver ● ● ● ●

PS printer driver

a

● ● ● ●

XPS printer driver

a

● ● ● ●

Samsung Easy
Printer Manager

Scan to PC settings

●

b

● ● ●

Fax to PC settings ● ●

Advanced Setting ● ● ● ●

Samsung Easy Document Creator

a

● ● ● ●

Samsung Easy Color Manager ● ● ● ●

Samsung Printer Status ● ● ● ●

Samsung Printer Center ● ● ● ●

SyncThru™ Web Service ● ● ●

Samsung Eco Driver Pack

c

● ● ● ●

Features by model

(●: Supported, Blank: Not supported)

Samsung Stylish Driver Pack

d

● ● ● ●

SyncThru™ Web Service ● ● ● ●

Fax Samsung Network PC

Fax

● ●

Scan Twain scan driver ● ● ● ●

WIA scan driver ● ● ● ●

a. Download the software from the Samsung website and install it: (http://www.samsung.com > find your product > Support or Downloads). Before installing, check whether your

computer’s OS support the software.
b. Some models do not support this feature. If this feature doesn't appear in the menu of Samsung Easy Printer Manager, then this feature is not available on your model.
c. To use the Easy Eco Driver features, the Eco Driver Pack must be installed.
d. The printer driver includes a user interface that is optimized for touchscreens. To use this UI, click Samsung Printer Center > Device Options and then select Stylish User Interface

(see "Using Samsung Printer Center" on page 262).

Software C48x series C48xW series C48xFN series C48xFW series

Features by model

Variety feature

(●: Supported, Blank: Not supported)

Features C48x series C48xW series C48xFN series C48xFW series

Hi-Speed USB 2.0 ● ● ● ●

Network Interface Ethernet 10/100 Base TX
wired LAN

● ● ●

Network Interface 802.11b/g/n wireless LAN

a

a. Depending on your country, wireless LAN card may not be available. For some countries, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you

bought your machine.

● ●

NFC (Near Field Communication) ● ●

Mopria™ ● ● ●

Samsung Cloud Print ● ● ●

Google Cloud Print™ ● ● ●

AirPrint ● ● ●

Eco printing (Control panel) ● ● ●

Duplex (2-sided) printing (Manual)

b

b. Windows only.

● ● ● ●

USB memory interface ● ● ●

Automatic Document Feeder (ADF) ● ●

Features by model

(●: Supported, Blank: Not supported)

Features C48x series C48xW series C48xFN series C48xFW series

Fax Multi-send ● ●

Delay send ● ●

Secure receive ● ●

Send/ Receive forward - fax/
Email

● ●

Scan Scan to PC ● ● ●

Copy ID card copying ● ● ● ●

Reduced or enlarged copying ● ● ● ●

Collation ● ● ● ●

2-up/4-up ● ● ● ●

Adjust background ● ● ● ●

Useful to know

The machine does not print.

• Open the print queue list and remove the document from the
list (see "Canceling a print job" on page 55).

• Remove the driver and install it again (see "Installing the driver
locally" on page 29).

• Select your machine as your default machine in your Windows
(see "Setting your machine as a default machine" on page

230).

Where can I purchase accessories or supplies?

• Inquire at a Samsung distributor or your retailer.

• Visit www.samsung.com/supplies. Select your country/region
to view product service information.

A paper jam has occurred.

• Open and close the cover (see "Front view" on page 21).

• Check the instructions on removing jammed paper in this
manual and troubleshoot accordingly (see "Clearing paper
jams" on page 108).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner
cartridge (see "Redistributing toner" on page 85).

• Try a different print resolution setting (see "Opening printing
preferences" on page 56).

• Replace the toner cartridge (see "Replacing the toner
cartridge" on page 87).

The status LED flashes or remains constantly on.

• Turn the product off and on again.

• Check the meanings of LED indications in this manual and
troubleshoot accordingly (see "Understanding the status LED"
on page 115).

Where can I download the machine’s driver?

• You can get help, support application, machine drivers,
manuals, and order information from the Samsung website,
www.samsung.com > find your product > Support or
Downloads.

About this user’s guide

This user's guide provides information for your basic understanding of the
machine as well as detailed steps to explain machine usage.

• Do not discard this manual, and keep it for future reference.

• Read the safety information before using the machine.

• If you have a problem using the machine, refer to the troubleshooting
chapter.

• Terms used in this user’s guide are explained in the glossary chapter.

• All illustrations in this user’s guide may differ from your machine depending
on its options or model you purchased.

• The screenshots in this administrator’s guide may differ from your machine
depending on the machine’s firmware/driver version.

• The procedures in this user’s guide are mainly based on Windows 7.

1

2

General icons

Icon Text Description

Used to alert users to the possibility of personal injury.

Warning

Gives users information to protect the machine from

Caution

Note

possible mechanical damage or malfunction.

Provides additional information or detailed
specification of the machine function and feature.

Conventions

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.

• Paper is synonymous with media, or print media.

• Machine refers to printer or MFP.

1. Introduction

13

Safety information

These warnings and precautions are included to prevent injury to you and
others, and to prevent any potential damage to your machine. Be sure to read
and understand all of these instructions before using the machine. After reading
this section, keep it in a safe place for future reference.

3

Important safety symbols

Explanation of all icons and signs used in this chapter

Warning

Caution

Hazards or unsafe practices that may result in severe
personal injury or death.

Hazards or unsafe practices that may result in minor
personal injury or property damage.

4

Operating environment

Warning

Do not use if the power cord is damaged or if the electrical outlet is
not grounded.

This could result in electric shock or fire.

Do not place anything on top of the machine (water, small metal or
heavy objects, candles, lit cigarettes, etc.).

This could result in electric shock or fire.

• If the machine gets overheated, it releases smoke, makes
strange noises, or generates an odd odor, immediately turn off
the power switch and unplug the machine.

Do not attempt.

• The user should be able to access the power outlet in case of
emergencies that might require the user to pull the plug out.

This could result in electric shock or fire.

Do not bend, or place heavy objects on the power cord.

Stepping on or allowing the power cord to be crushed by a heavy
object could result in electric shock or fire.

Do not remove the plug by pulling on the cord; do not handle the
plug with wet hands.

This could result in electric shock or fire.

1. Introduction

14

Safety information

5

Caution

During an electrical storm or for a period of non-operation,
remove the power plug from the electrical outlet.

This could result in electric shock or fire.

Be careful, the paper output area is hot.

Burns could occur.

If the machine has been dropped, or if the cabinet appears
damaged, unplug the machine from all interface connections and
request assistance from qualified service personnel.

Otherwise, this could result in electric shock or fire.

If the machine does not operate properly after these instructions
have been followed, unplug the machine from all interface
connections and request assistance from qualified service
personnel.

Otherwise, this could result in electric shock or fire.

Operating method

Caution

Do not forcefully pull the paper out during printing.

It can cause damage to the machine.

Be careful not to put your hand between the machine and paper
tray.

You may get injured.

Be care when replacing paper or removing jammed paper.

New paper has sharp edges and can cause painful cuts.

When printing large quantities, the bottom part of the paper
output area may get hot. Do not allow children to touch.

If the plug does not easily enter the electrical outlet, do not
attempt to force it in.

Call an electrician to change the electrical outlet, or this could
result in electric shock.

Do not allow pets to chew on the AC power, telephone or PC
interface cords.

This could result in electric shock or fire and/or injury to your pet.

Burns can occur.

When r emov ing j amme d pap er, d o not use t weez ers o r sha rp m etal
objects.

It can damage the machine.

Do not allow too many papers to stack up in the paper output tray.

It can damage the machine.

1. Introduction

15

Safety information

Do not block or push objects into the ventilation opening.

This could result in elevated component temperatures which can
cause damage or fire.

Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.

This machine's power reception device is the power cord.

To switch off the power supply, remove the power cord from the
electrical outlet.

6

Installation / Moving

Warning

Do not place the machine in an area with dust, humidity, or water
leaks.

This could result in electric shock or fire.

Place the machine in the environment where it meets the
operating temperature and humidity specification.

Do not use the machine when it is below freezing temperature or
has recently been moved from a location below freezing
temperature. Doing so may damage the machine. Only operate the
machine when the internal temperature of the machine is within
the operating temperature and humidity specifications.

Otherwise, quality problems can occur and cause damage to the
machine.

See "General specifications" on page 125.

Caution

Before moving the machine, turn the power off and disconnect all
cords. The information below are only suggestions based on the
units weight.If you have a medical condition that prevents you
from lifting, do not lift the machine. Ask for help, and always use
the appropriate amount of people to lift the device safely.

Then lift the machine:

• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.

• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift
with 2 people.

• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or
more people.

The machine could fall, causing injury or machine damage.

1. Introduction

16

Safety information

Choose a flat surface with enough space for ventilation to place
the machine. Also consider the space required to open the cover
and trays.

The place should be well-ventilated and be far from direct light,
heat, and humidity.

When using the machine for a long period of time or printing a
large number of pages in a non-ventilated space, it could pollute
the air and be harmful to your health. Place the machine in a well­ventilated space or open a window to circulate the air periodically.

Do not place the machine on an unstable surface.

The machine could fall, causing injury or machine damage.

Use only No.26 AWG

Otherwise, it can cause damage to the machine.

Make sure you plug the power cord into a grounded electrical
outlet.

a

or larger, telephone line cord, if necessary.

Do not put a cover over the machine or place it in an airtight
location, such as a closet.

If the machine is not well-ventilated, this could result in fire.

Do not overload wall outlets and extension cords.

This can diminish performance, and could result in electric shock
or fire.

The machine should be connected tothe power level which is
specified on the label.

If you are unsure and want to check the power level you are using,
contact the electrical utility company.

a. AWG: American Wire Gauge

7

Maintenance / Checking

Otherwise, this could result in electric shock or fire.

Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2 meters (6
feet) with a 110V machine, then the gauge should be 16 AWG or
larger.

Otherwise, it can cause damage to the machine, and could result
in electric shock or fire.

Caution

Unplug this product from the wall outlet before cleaning the
inside of the machine. Do not clean the machine with benzene,
paint thinner or alcohol; do not spray water directly into the
machine.

This could result in electric shock or fire.

1. Introduction

17

Safety information

When you are working inside the machine replacing supplies or
cleaning the inside, do not operate the machine.

You could get injured.

8

Supply usage

Keep cleaning supplies away from children.

Children could get hurt.

Do not disassemble, repair or rebuild the machine by yourself.

It can damage the machine. Call a certified technician when the
machine needs repairing.

To clean and operate the machine, strictly follow the user's guide
provided with the machine.

Otherwise, you could damage the machine.

Keep the power cable and the contact surface of the plug clean
from dust or water.

Otherwise, this could result in electric shock or fire.

• Do not remove any covers or guards that are fastened with
screws.

• Fuser units should only be repaired by a certified service
technician. Repair by non-certified technicians could result in
fire or electric shock.

• The machine should only be repaired by a Samsung service
technician.

Caution

Do not disassemble the toner cartridge.

Toner dust can be dangerous if inhaled or ingested.

Do not burn any of the supplies such as toner cartridge or fuser
unit.

This could cause an explosion or uncontrollable fire.

When storing supplies such as toner cartridges, keep them away
from children.

Toner dust can be dangerous if inhaled or ingested.

For supplies that contain toner dust (toner cartridge, waste toner
bottle, imaging unit, etc.) follow the instructions below.

• When disposing of the supplies, follow the instructions for
disposal. Refer to the reseller for disposal instructions.

• Do not wash the supplies.

• For a waste toner bottle, do not reuse it after emptying the
bottle.

If you do not follow the instructions above, it may cause machine
malfunction and environmental pollution. The warranty does not
cover damages caused by a user's carelessness.

1. Introduction

18

Safety information

Using recycled supplies, such as toner, can cause damage to the
machine.

In case of damage due to the use of recycled supplies, a service
fee will be charged.

When toner gets on your clothing, do not use hot water to wash
it.

Hot water sets toner into fabric. Use cold water.

When changing the toner cartridge or removing jammed paper,
be careful not to let toner dust touch your body or clothes.

Toner dust can be dangerous if inhaled or ingested.

1. Introduction

19

Machine overview

9

Components

The actual component may differ from the illustration below. Some components may change depending on the configuration.

Power cord Quick installation guide

Software CD

a. The software CD contains the print drivers, user’s guide, and software applications.
b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

a

Misc. accessories

b

1. Introduction

20

Machine overview

10

Front view

• This illustration may differ from your machine depending on your model.
There are various types of machine.

• Some features and optional goods may not be available depending on
model or country (see "Features by model" on page 7).

C48x/C48xW series

4

Front door

5

Output support

11

Scan unit

12

USB memory port

6 Control panel 13 Scanner glass

7

NFC tag

a. Close the scanner lid before opening the scan unit.
b. Be careful not to pinch your fingers.
c. C48xW series only.

c

a b

c

1

8
7

6

5

4

2

3

9

10

11

12

13

1 Scanner lid 8 Toner cartridges

2 Front handle 9 Waste toner container

3Tray 10Imaging unit

1. Introduction

21

Machine overview

C48xFN/C48xFW series

1 3

10

9

8

7

5

6

1

Document feeder cover

2 Document feeder width

guide

2 4

11

12

13

10

NFC tag

11

Toner cartridges

a. C48xFW series only.
b. Close the scanner lid before opening the scan unit.
c. Be careful not to pinch your fingers.

14

15

16

17

a

3 Document feeder input tray 12 Waste toner container

4 Document feeder output

support

5

Front handle

6 Tray 15 USB memory port

7 Front cover 16 Scanner lid

8 Output support 17 Scanner glass

9 Control panel

13

Imaging unit

14

Scan unit

b c

1. Introduction

22

Machine overview

1

4

3

2

11

Rear view

C48xFN/C48xFW series

• This illustration may differ from your machine depending on your model.
There are various types of machine.

• Some features and optional goods may not be available depending on
model or country (see "Features by model" on page 7).

C48x/C48xW series

6

5

4

3

1

2

1 Rear cover 4 Network port

2 Power receptacle 5 Telephone line socket (LINE)

3 USB port 6 Extension telephone socket (EXT.)

1 Rear cover 3 USB port

2

Power receptacle

a. C48xW series only.

4

Network port

a

1. Introduction

23

Control panel overview

2

1

3 5

6

7

8

9 10

11

13

12

4

• This control panel may differ from your machine depending on its model. There are various types of control panels.

• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7).

12

C48x/C48xW series

1

2

a

WPS

Scan to

a

Configures the wireless network connection easily without a computer (see "Using the WPS Settings menu" on page 169).

Switches between scan and copy mode. The Scan to LED turns on scan mode and turns off on copy mode.

3 Display screen Shows the current status and displays prompts during an operation.

4 Arrows Scrolls through the options available in the selected menu and increases or decreases values.

1. Introduction

24

Control panel overview

5

Menu

6 OK Confirms the selection on the screen.

7

Stop/Clear

8

Power/Wake Up

9

Start

10

Back

11

Status/Wireless LED

Status LED

12

Eco

a

b

a

Opens Menu mode and scrolls through the available menus (see "Menu overview" on page 34).

Stops an operations at any time.

Turns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this
button for more than three seconds when the machine is in ready mode.

Starts a job.

Sends you back to the upper menu level.

Indicates the status of your machine (see "Understanding the status LED" on page 115).

Turn into eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see "Eco printing" on page

58).

13

Direct USB

a. C48xW series only.
b. C48x series only.

a

Allows you to directly print files stored on a USB memory device when it is inserted into the USB port on the front of your machine.

1. Introduction

25

Control panel overview

13

C48xFN/C48xFW series

1

2

WPS

19

a

20

1

3

18

4

5

17

Configures the wireless network connection easily without a computer (see "Using the WPS Settings menu" on page 169).

6

7

8 9 10 11

16

12

15 14

13

2 ID Copy Allows you to copy both sides of an ID card like a driver’s license on a single side of paper (see "ID card copying" on page 62).

3 Display screen Shows the current status and displays prompts during an operation.

4

Copy

Switches to Copy mode.

5

Fax

Switches to Fax mode.

6 Arrows Scrolls through the options available in the selected menu and increases or decreases values.

7

Menu

Opens Menu mode and scrolls through the available menus (see "Menu overview" on page 34).

8 OK Confirms the selection on the screen.

1. Introduction

26

Control panel overview

9 Numeric keypad Dials a number or enters alphanumeric characters (see "Keypad letters and numbers" on page 226).

10 Address Book Allows you to store frequently used fax numbers or search for stored fax numbers (see "Setting up the fax address book" on page 227).

11

Redial/Pause

12

Stop/Clear

13

Power/Wake Up

14

Start

15

On Hook Dial

16

Back

17

Scan

18

Status/Wireless LED

Status LED

Redials the recently sent fax number or received caller ID in ready mode, or inserts a pause(-) into a fax number in edit mode (see
"Redialing the fax number" on page 249).

Stops an operations at any time.

Turns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button
for more than three seconds when the machine is in ready mode.

Starts a job.

When you press this button, you can hear a dial tone. Then enter a fax number. It is similar to making a call using speaker phone (see
"Receiving manually in Tel mode" on page 254).

Sends you back to the upper menu level.

Switches to Scan mode.

a

b

Indicates the status of your machine (see "Understanding the status LED" on page 115).

19 Eco Turn into eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see "Eco printing" on page 58).

20 Direct USB Allows you to directly print files stored on a USB memory device when it is inserted into the USB port on the front of your machine.

a. C48xFW series only.
b. C48xFN series only.

1. Introduction

27

Turning on the machine

Power is turned on automatically.

2

Keep in mind that you should use the power cord supplied with the
machine. Otherwise, it can cause damage or fire to the machine.

Connect the machine to the electricity supply first.

1

For C48x/C48xW series, press (Power/Wake Up) button on the

control panel.

If you want to turn the power off, press and hold (Power/Wake Up)

Turn the switch on if the machine has a power switch.

button for about 3 seconds.

1

2

Illustrations on this user’s guide may differ from your machine depending
on its options or models. Check your machine type (see "Front view" on
page 21).

1. Introduction

28

Installing the driver locally

A locally connected machine is a machine directly attached to your computer
using a USB cable. If your machine is attached to a network, skip the following
steps below and go on to installing a network connected machine’s driver (see
"Installing driver over the network" on page 160).

• If you are a Mac or Linux operating systems user, refer to the "Installation
for Mac" on page 151 or "Installation for Linux" on page 153.

• The installation window in this User’s Guide may differ depending on the
machine and interface in use.

• Only use a USB cable no longer than 3 meters (118 inches).

14

Windows

Make sure that the machine is connected to your computer and

1

powered on.

Insert the supplied software CD into your CD-ROM drive.

2

If the installation window does not appear, click Start > All programs >
Accessories > Run.

X:\Setup.exe replacing “X” with the letter, which represents your CD­ROM drive and click OK.

• For Windows 8,

If the installation window does not appear, from Charms, select
Search > Apps and search for Run. Type in X:\Setup.exe, replacing
“X” with the letter that represents your CD-ROM drive and click OK.

If “Tap to choose what happens with this disc.” pop-up window
appears, click the window and select Run Setup.exe.

Review and accept the installation agreements in the installation

3

window. Then, click Next.

Select USB on the Printer Connection Type screen. Then, click Next.

4

Follow the instructions in the installation window.

5

1. Introduction

29

Installing the driver locally

You can select the software applications in the Select Software to Install
window.

From the Windows 8 Start Screen

• The V4 driver is automatically downloaded from the Windows Update if
your computer is connected to the Internet. If not, you can manually
download the V4 driver from Samsung website, www.samsung.com >
find your product > Support or downloads.

• You can download Samsung Printer Experience app from the Windows

Store. You need have a Microsoft account to use the Windows Store.

1 From Charms, select Search.
2 Click Store.
3 Search and click Samsung Printer Experience.
4 Click Install.

Make sure that your computer is connected to the Internet and powered

1

on.

Make sure that the machine is powered on.

2

Connect the computer and the machine with a USB cable.

3

The driver is automatically installed from the Windows Update.

• If you install the driver using the supplied software CD, V4 driver is not
installed. If you want to use the V4 driver in the Desktop screen, you can
download from the Samsung website, www.samsung.com >find your
product > Support or downloads.

• If you want to install Samsung’s printer management tools, you need to
install them using the supplied software CD.

1. Introduction

30

Reinstalling the driver

If the printer driver does not work properly, follow the steps below to reinstall
the driver.

15

Windows

Make sure that the machine is connected to your computer and

1

powered on.

From the Start menu, select Programs or All Programs > Samsung

2

Printers > Uninstall Samsung Printer Software.

• For Windows 8,

1 From Charms, select Search > Apps.

2 Search and click Control Panel.

3 Click Programs and Features.

4 Right-click the driver you want to uninstall and select Uninstall.

From the Windows 8 Start Screen

Make sure that the machine is connected to your computer and

1

powered on.

Click on the Uninstall Samsung Printer Software tile in the Start

2

screen.

Follow the instructions in the window.

3

• If you cannot find a Samsung Printer Software tile, unintstall from the
desktop screen mode.

• If you want to uninstall Samsung’s printer management tools, from the

Start screen, right-click the app > Uninstall > right-click the program
you want to delete > Uninstall and follow the instruction in the window.

Follow the instructions in the installation window.

3

Insert the software CD into your CD-ROM drive and install the driver

4

again (see "Installing the driver locally" on page 29).

1. Introduction

31

2. Menu Overview and Basic Setup

This chapter provides information about the overall menu structure and the basic setup options.

• Menu overview 34

• Machine’s basic settings 38

• Media and tray 40

• Basic printing 54

• Basic copying 60

• Basic scanning 64

• Basic faxing 65

• Using USB memory device 69

Menu overview

The control panel provides access to various menus to set up the machine or use
the machine’s functions.

• An asterisk (*) appears next to the currently selected menu.

• Some menus may not appear on the display depending on options or
models. If so, it is not applicable to your machine.

• Some menu names may differ from your machine depending on its
options or the models.

• The menus are described in the Advanced Guide (see "Useful Setting
Menus" on page 204).

1

Accessing the menu

Select the Copy, Fax, or Scan button on the control panel depending on

1

the feature to be used.

Select (Menu) until the menu you want appears on the bottom line

2

of the display and press OK.

Press the left/right arrows until the needed menu item appears and press

3

OK.

If the setting item has sub menus, repeat step 3.

4

Press OK to save the selection.

5

Press (Stop/Clear) to return to the ready mode.

6

2. Menu Overview and Basic Setup

34

Menu overview

Copy Feature

(see "Copy" on page 207)

Original Size
Reduce/Enlarge
Darkness

Normal
Dark+1- Dark+5
Light+5- Light+1

Original Type

Text
Text/Photo
Magazine

Collation

On
Off

Layout

Normal
2-Up
4-Up
ID Copy

Adjust Bkgd.

Off
Auto
Enhance Lev.1
Enhance Lev.2
Erase Lev.1- Erase Lev.4

(see "Copy" on page 207)

Change Default

Copy Setup

Original Size
Copies
Reduce/Enlarge
Darkness
Original Type
Collation

Darkness

Light+5- Light+1
Normal
Dark+1- Dark+5

Resolution

Standard
Fine
Super Fine

Photo Fax
Original Size
Multi Send
Delay Send
Send Forward

Forward to Fax

Fwd. to Email

Fax Featurea

(see "Fax" on page 210)

Rcv. Forward

Forward to Fax
Forward to PC
Fwd. to Email
Forward&Print

Secure Receive

Off
On
Print

Cancel Job

Sending

Redial Times
Redial Term
Prefix Dial
ECM Mode
Modem Speed
Fax Confirm.
Image TCR

Dial Mode

Receiving

Receive Mode
Ring to Answer
Stamp Rcv Name
Rcv Start Code
Auto Reduction
Discard Size
Junk Fax Setup

DRPD Mode

Fax Setup

(see "Fax" on page 210)

b

b

a

Change Default

Darkness
Resolution
Original Size

Smart Fax Diag

Auto Config.
Start Now
Initialize

Manual TX/RX

On
Off

a. C48xFN/C48xFW series only.
b. This option may not be available depending on your country.

2. Menu Overview and Basic Setup

35

Menu overview

Scan Feature

(see "Scan" on page 214)

a

Scan Setup

a

(see "Scan" on page 214)

Print Setup

(see "Print" on page 206)

USB Feature

Original Size

Original Type

Resolution

Color Mode

File Format

Darkness

Email Feature

b

Original Size

Original Type

Resolution

Color Mode

Darkness

Samsung Cloud

Original Size

Original Type

Resolution

Color Mode

Darkness

Change Default

USB Default

Email Default

Samsung Cloud

b

b

b

Orientation

Portrait

Landscape

Copies

[1 - 999]

Resolution

Standard

High Resol.

Clear Text

Off

Minimum

Medium

Maximum

Edge Enhance

Screen

Normal

Enhanced

Detailed

Auto CR

LF

LF+CR

SkipBlankPages

On

Off

Emulation

Emulation Type

Setup

Off

Normal

Maximum

Trapping

Off

Normal

a. C48xW/C48xFN/C48xFW series only.
b. C48xFN/C48xFW series only.

Maximum

2. Menu Overview and Basic Setup

36

Menu overview

System Setup

(see "System setup" on page 216)

Machine Setup

Machine ID

Fax Number

Date & Time

Clock Mode

Language

Default Mode

Power Save

Auto Power Off

Wakeup Event

System Timeout

Job Timeout

Altitude Adj.

Humidity

Auto Continue

Paper Substit.

Eco Settings

b

b

b

b

b

c

Paper Setup

Paper Size

Paper Type

Margin

Sound/Volume

Key Sound

Alarm Sound

Speaker

Ringer

b

Report

Configuration

Demo Page

Network Conf.

Supplies Info.

Usage Counter

Fax Received

Fax Sent

Scheduled Jobs

Fax Confirm.

Email Sent

Junk Fax

PCL Font

PS Font

Address Book

Network

a

(see "Network setup" on page 222)

Maintenance

CLR Empty Msg

d

Supplies Life

a

Image Mgr.

Custom Color

TonerLow Alert

b

b

b

ImgU.Low Alert

Serial Number

TCP/IP (IPv4)

DHCP

BOOTP

Static

TCP/IP (IPv6)

IPv6 Protocol

DHCPv6 Config

Ethernet

Ethernet Port

Ethernet Speed

b

e

Wi-Fi

Wi-Fi On/Off

Wi-Fi Settings

WPS

Wi-Fi Direct

Wi-Fi Signal

Wi-Fi Default

Protocol Mgr.

HTTP

SCP

WINS

b

SNMPv1/v2

b

UPnP(SSDP)

mDNS

SetIP

b

SLP

Network Conf.

Clear Settings

a. C48xW/C48xFN/C48xFW series only.
b. C48xFN/C48xFW series only.
c. C48x/C48xW series only.
d. This option only appears when small amount of toner is left in the cartridge.
e. C48xW/C48xFW series only.

2. Menu Overview and Basic Setup

37

Machine’s basic settings

You change the machine’s setting set in the machine from Samsung Easy
Printer Manager or SyncThru™ Web Service.

• If your machine is connected to the local, you can set the machine’s
setting from Samsung Easy Printer Manager > Advanced Setting >

Device Settings (see "Using Samsung Easy Printer Manager" on page

268).

• If your machine is connected to the network, you can set themachine’s
setting from SyncThru™ Web Service > Settings tab > Machine

Settings (see "Using SyncThru™ Web Service" on page 265).

After installation is complete, you may want to set the machine's default
settings.

To change the machine’s default settings, follow these steps:

It may be necessary to press OK to navigate to lower-level menus for some
models.

Select the option you want, then press OK.

3

• Language: change the language that is displayed on the control
panel.

• Date & Time: When you set the time and date, they are used in delay
fax and delay print. They are printed on reports. If, however, they are
not correct, you need to change it for the correct time being.

Enter the correct time and date using arrows or numeric keypad (see
"Keypad letters and numbers" on page 226).

• Month = 01 to 12

• Day = 01 to 31

• Year = requires four digits

• Hour = 01 to 12

• Minute = 00 to 59

• Clock Mode: You can set your machine to display the current time
using either a 12-hour or 24-hour format.

Select (Menu) button on the control panel.

1

Press System Setup > Machine Setup.

2

• Power Save: When you are not using the machine for a while, use
this feature to save power.

2. Menu Overview and Basic Setup

38

Machine’s basic settings

• When you press the Power/Wake Up button, start printing, or a fax is
received, the product will wake up from the power saving mode.

• Press (Menu) > System Setup > Machine Setup > Wakeup Event >

On on the control panel. When you press any button except Power/
Wake Up button, the machine wake up from the power save mode.

• Altitude Adj.: Print quality is affected by atmospheric pressure,

which atmospheric pressure is determined by the height of the
machine above sea level. Before you set the altitude value,
determine the altitude where you are (see "Altitude adjustment" on
page 225).

Select the option you want, then press OK.

4

Press OK to save the selection.

5

Press (Stop/Clear) to return to ready mode.

6

Refer to below links to set other settings useful for using the machine.

• See "Entering various characters" on page 226.

• See "Keypad letters and numbers" on page 226.

• See "Setting the paper size and type" on page 48.

• See "Setting up the fax address book" on page 227.

2. Menu Overview and Basic Setup

39

Media and tray

This chapter provides information on how to load print media into your
machine.

2

Selecting print media

You can print on a variety of print media, such as plain paper, envelopes, labels,
and transparencies. Always use print media that meet the guidelines for use
with your machine.

Guidelines for select the print media

Print media that does not meet the guidelines outlined in this user’s guide may
cause the following problems:

• Poor print quality

• Increased paper jams

• Surface smoothness: The smoothness of the print media affects how crisp
the printing looks on the paper.

• Some print media may meet all of the guidelines in this user’s guide and
still not produce satisfactory results. This may be the result of the sheets
characteristics, improper handling, unacceptable temperature and
humidity levels, or other variables over which cannot be controlled.

• Before purchasing large quantities of print media, ensure that it meets
the requirements specified in this user’s guide.

• Using print media that does not meet these specifications may cause
problems or require repairs. Such repairs are not covered by Samsung’s
warranty or service agreements.

• The amount of paper put into the tray may differ according to media
type used (see "Print media specifications" on page 127).

• Make sure not to use the inkjet photo paper with this machine. It could
cause damage to the machine.

• Premature wear on the machine.

Properties, such as weight, composition, grain, and moisture content, are
important factors that affect the machine’s performance and the output quality.
When you choose print materials, consider the following:

• The type, size, and weight of the print media for your machine are described
in print media specifications (see "Print media specifications" on page 127).

• Desired outcome: The print media you choose should be appropriate for
your project.

• Brightness: Some print media are whiter than others and produce sharper,
more vibrant images.

• Using flammable print media can cause a fire.

• Use designated print media (see "Print media specifications" on page

127).

The use of flammable media or foreign materials left in the printer may lead
to overheating of the unit and, in rare cases may cause a fire.

The amount of paper put into the tray may differ according to media type used
(see "Print media specifications" on page 127).

2. Menu Overview and Basic Setup

40

Media and tray

21

4

3

3

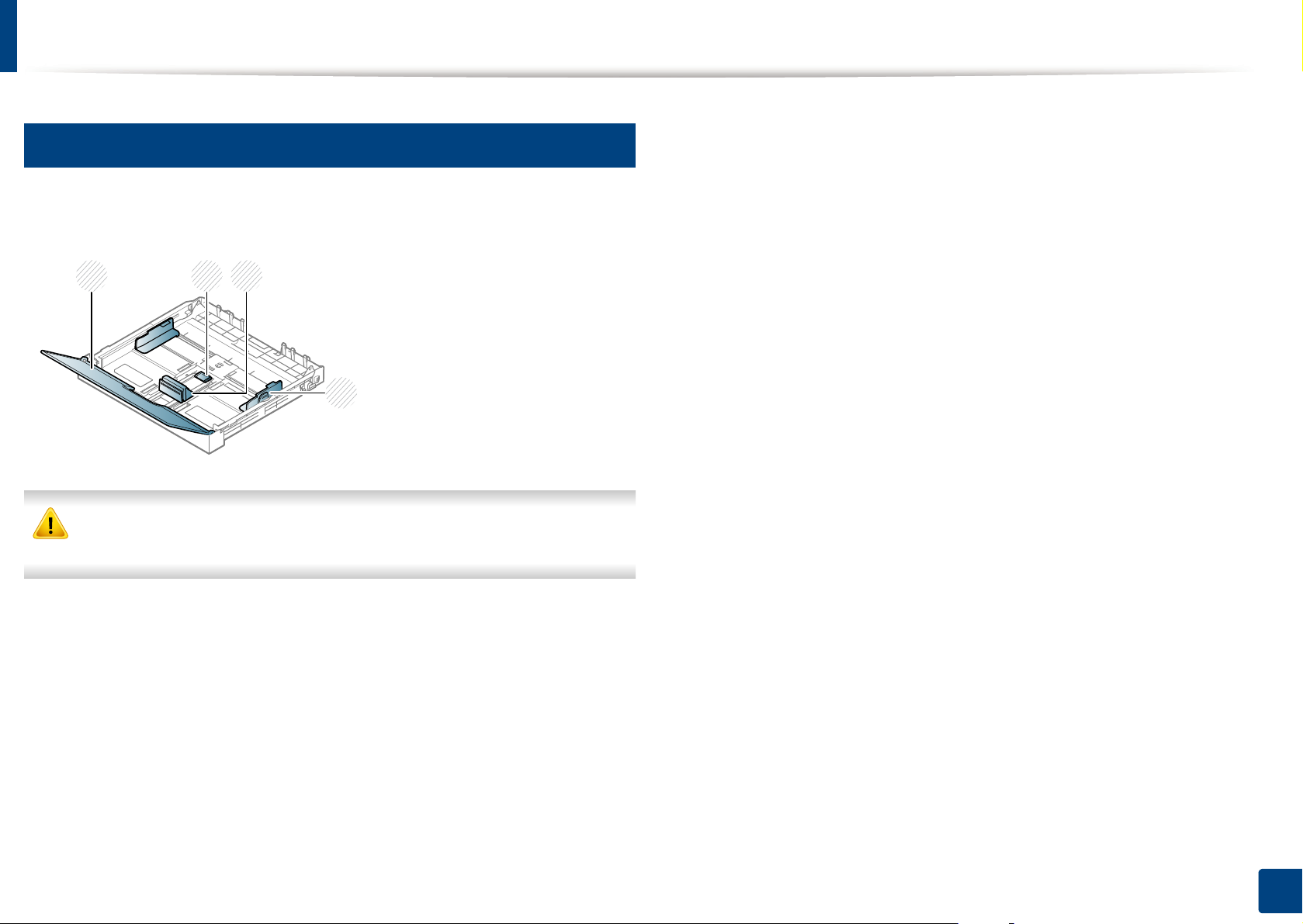

Tray overview

To change the size, you need to adjust the paper guides.

1 Paper cover
2 Guide lock
3 Paper length guide
4 Paper width guide

If you do not adjust the guide, it may cause paper registration, image skew,
or jamming of the paper.

2. Menu Overview and Basic Setup

41

Media and tray

4

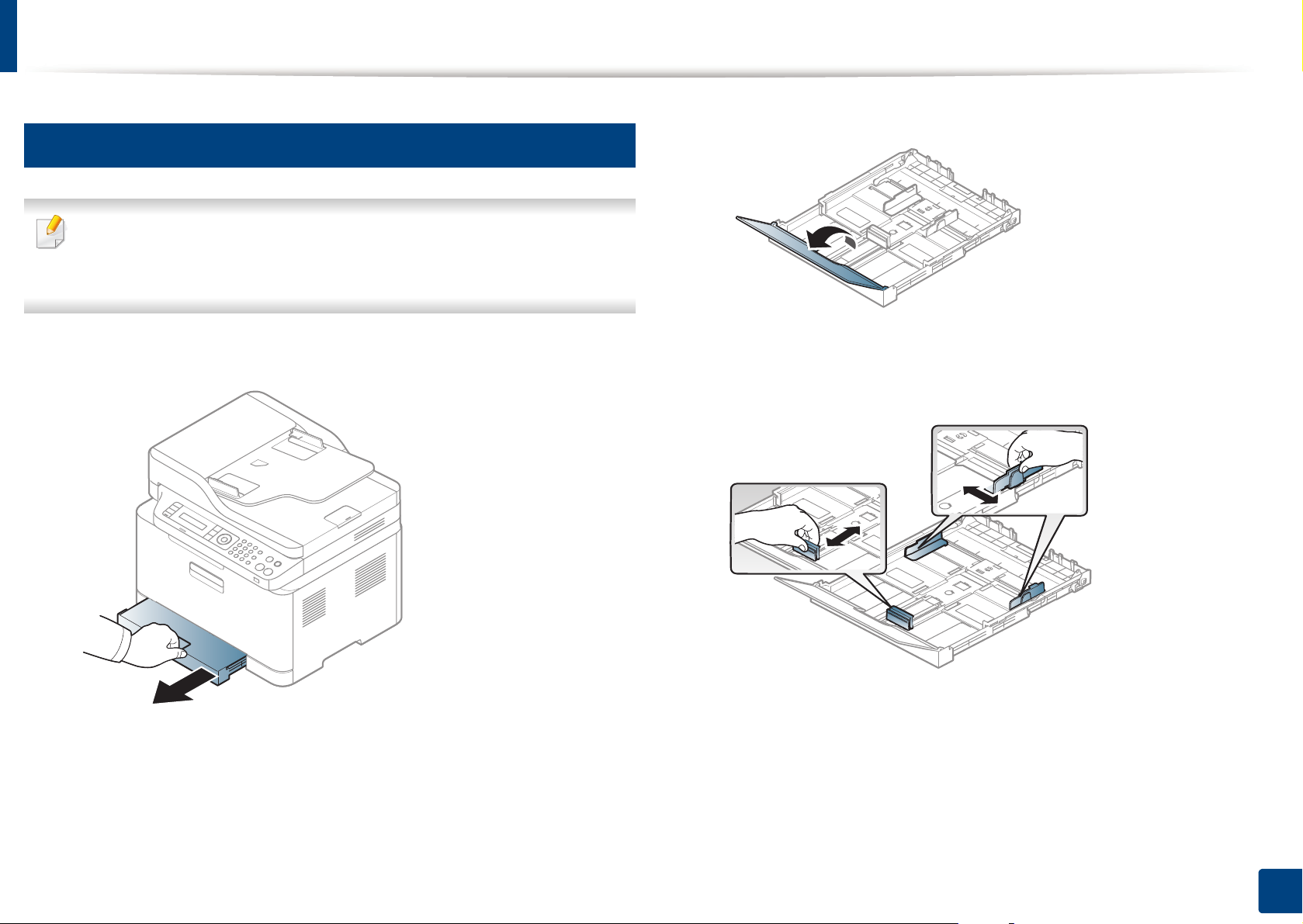

Loading paper in the tray

Illustrations on this user’s guide may differ from your machine depending
on its options or models. Check your machine type (see "Front view" on
page 21).

Pull out the paper tray (see "Tray overview" on page 41).

1

Open the paper cover.

2

Squeeze and the paper width guide and paper length lever to locate

3

them in the correct paper size slot marked at the bottom of the tray to
adjust to the size.

2

2. Menu Overview and Basic Setup

42

Media and tray

2

1

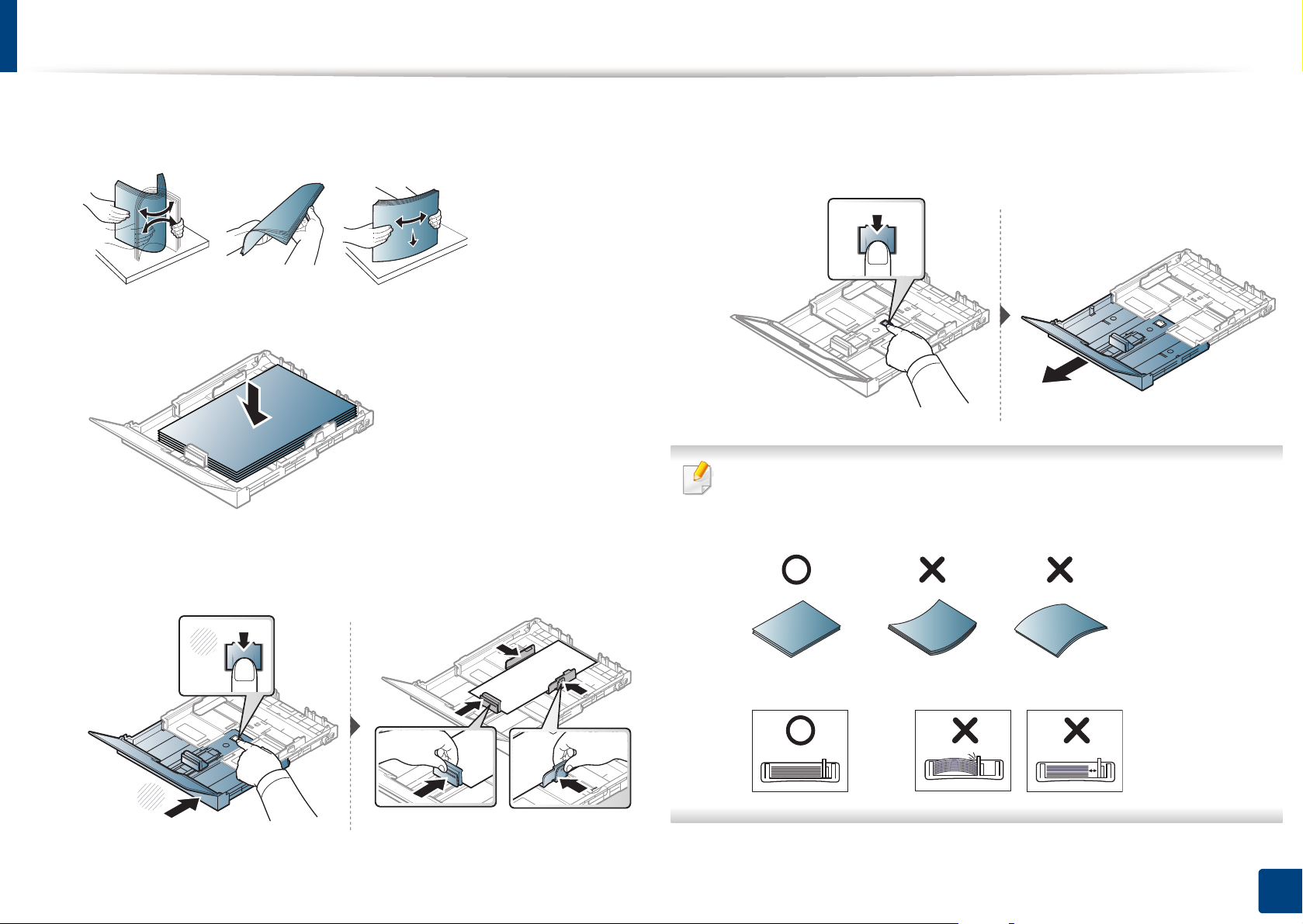

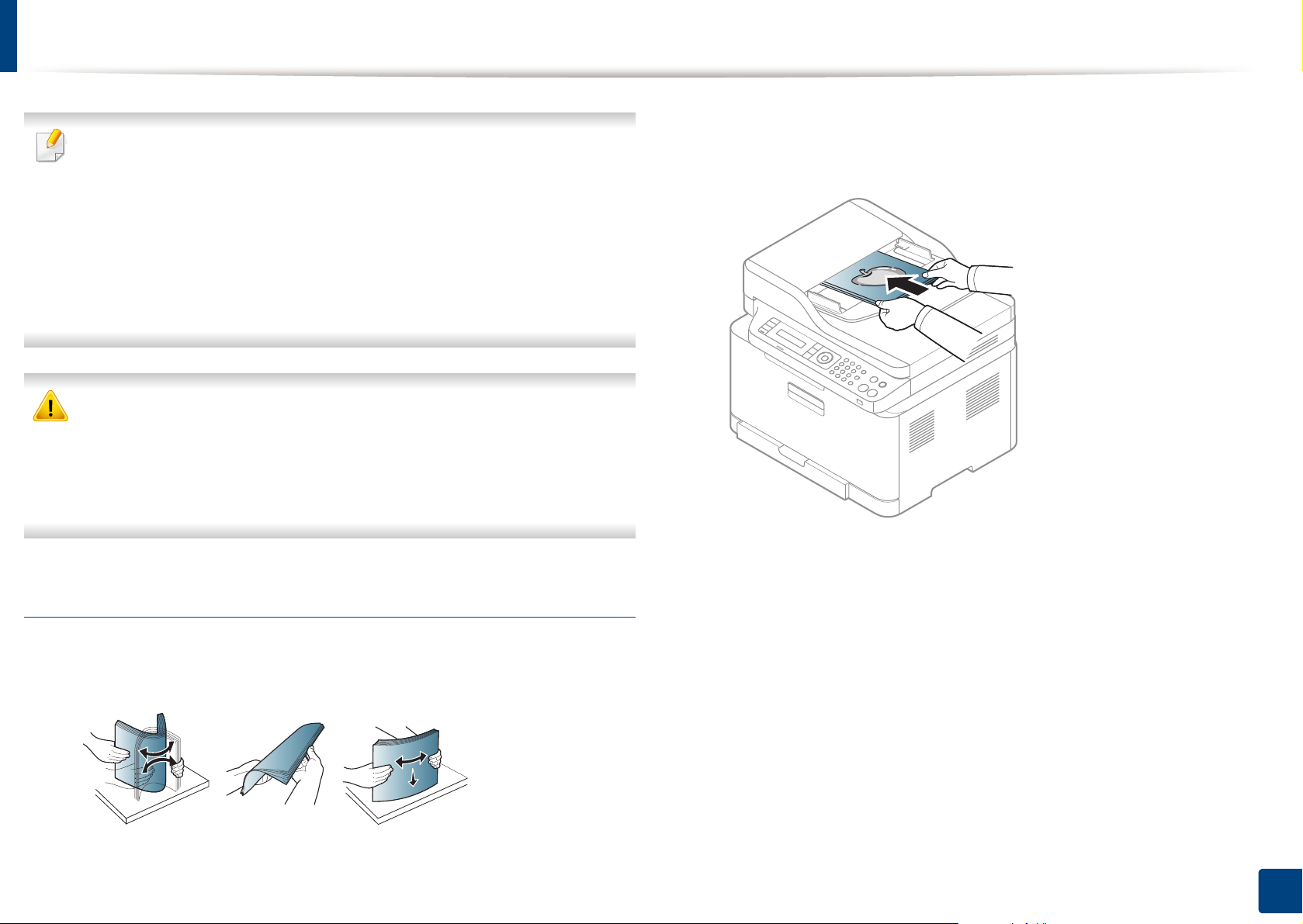

Flex or fan the edge of the paper stack to separate the pages before

4

loading papers.

Place the paper with the side you want to print facing up.

5

For paper smaller than A4-sized, press and unlatch the guide lock in the
tray, push the tray in manually. Then adjust the paper length guide and
paper width guide.

For paper longer than Legal-sized, press and unlatch the guide lock in
the tray, pull the tray out manually. Then adjust the paper length guide
and paper width guide.

• Do not push the paper width guide too far causing the media to buckle.

• Do not use a paper with a leading-edge curl, it may cause a paper jam or
the paper can be wrinkled.

• If you do not adjust the paper width guide, it may cause paper jams.

2. Menu Overview and Basic Setup

43

Media and tray

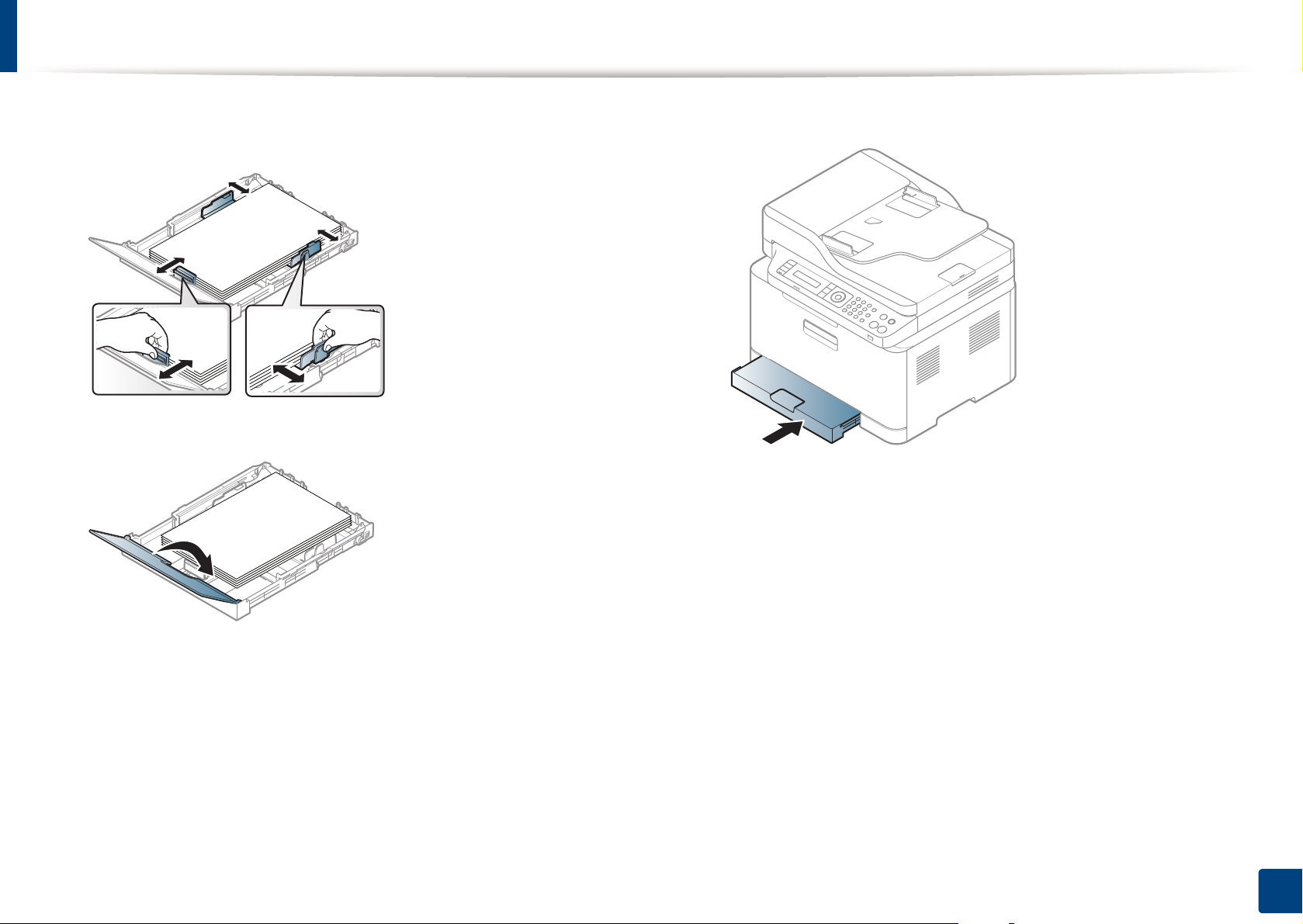

Squeeze the paper width guide and slide it to the edge of the paper stack

6

without causing it to buckle.

Close the paper cover.

7

Insert the paper tray.

8

When you print a document, set the paper type and size for the tray (see

9

"Setting the paper size and type" on page 48).

The tray is preset to Letter or A4 size, depending on your country. To change the
size to A4 or Letter, you must adjust the lever and paper width guide properly.

2. Menu Overview and Basic Setup

44

Media and tray

LTR

A4

LTR

A4

Pull the tray out of the machine. Open the paper cover and remove

1

paper from the tray if necessary.

If you want to change the size to Letter, hold the lever at the back of the

2

tray, and rotate the lever clockwise. You can see the lever when you
move the paper length guide to the legal-sized paper (LGL).

Squeeze the paper width guide and slide it to the edge of the lever.

3

If you want to change the size to A4, first move the paper width guide to left
and rotate the lever counterclockwise. If you force the lever, it could
damage the tray.

2. Menu Overview and Basic Setup

45

Media and tray

5

Printing on special media

• When using special media, we recommend you feed one sheet at a time
(see "Print media specifications" on page 127).

The table below shows the special media usable in tray.

The paper setting in the machine and driver should match to print without a
paper mismatch error.

The paper setting in the machine and driver should match to print without
a paper mismatch error.

• You change the paper setting set in the machine from Samsung Easy

Printer Manager program or SyncThru™ Web Service.

- If your machine is connected to the local, you can set the machine’s

setting from Samsung Easy Printer Manager > Advanced Setting >
Device Settings (see "Using Samsung Easy Printer Manager" on page

268).

To see paper weights for each sheet, refer to "Print media specifications" on
page 127.

Types

Tray

a

Plain ●

Thick ●

Thin ●

Bond ●

Color ●

CardStock ●

Labels ●

Preprinted ●

Cotton ●

Recycled ●

Archive ●

- If your machine is connected to the network, you can set the

machine’s setting from SyncThru™ Web Service > Settings tab >
Machine Settings (see "Using SyncThru™ Web Service" on page 265).

• You can set it using System Setup > Paper Setup > select you want

Paper Size or Paper Type button on the control panel.

Glossy Photo ●

Matte Photo ●

a. The paper types available manual feeding in tray.

(●: Supported)

2. Menu Overview and Basic Setup

46

Media and tray

Labels

To avoid damaging the machine, use only labels designed for use in laser
printers.

• When selecting labels, consider the following factors:

- Adhesives: Should be stable at your machine’s fusing temperature
about 170°C (338°F).

• Do not run a sheet of labels through the machine more than once. The
adhesive backing is designed for only a single pass through the machine.

• Do not use labels that are separating from the backing sheet or are wrinkled,
bubbled, or otherwise damaged.

Card stock/ Custom-sized paper

- Arrangement: Only use labels with no exposed backing between them.
Labels can peel off sheets that have spaces between the labels, causing
serious jams.

- Curl: Must lie flat with no more than 13 mm of curl in any direction.

- Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.

• Make sure that there is no exposed adhesive material between labels.
Exposed areas can cause labels to peel off during printing, which can cause
paper jams. Exposed adhesive can also cause damage to machine
components.

• In the software application, set the margins to at least 6.4 mm (0.25 inches)
away from the edges of the material.

2. Menu Overview and Basic Setup

47

Media and tray

Preprinted paper

When loading preprinted paper, the printed side should be facing up with an

6

Setting the paper size and type

uncurled edge at the front. If you experience problems with paper feeding, turn
the paper around. Note that print quality is not guaranteed.

• Must be printed with heat-resistant ink that will not melt, vaporize, or
release hazardous emissions when subjected to the machine’s fusing
temperature for 0.1 second (about 170°C (338°F)).

• Preprinted paper ink must be non-flammable and should not adversely
affect machine rollers.

After loading paper in the paper tray, set the paper size and type using the
control panel buttons.

The paper setting in the machine and driver should match to print without
a paper mismatch error.

• You change the paper setting set in the machine from Samsung Easy

Printer Manager program or SyncThru™ Web Service.

- If your machine is connected to the local, you can set the machine’s

setting from Samsung Easy Printer Manager > Advanced Setting >
Device Settings (see "Using Samsung Easy Printer Manager" on page

268).

- If your machine is connected to the network, you can set the

machine’s setting from SyncThru™ Web Service > Settings tab >
Machine Settings (see "Using SyncThru™ Web Service" on page 265).

• You can set it using System Setup > Paper Setup > select you want

Paper Size or Paper Type button on the control panel.

• Before you load preprinted paper, verify that the ink on the paper is dry.
During the fusing process, wet ink can come off preprinted paper, reducing
print quality.

Select (Menu) button on the control panel.

1

Press System Setup > Paper Setup > Paper Size or Paper Type.

2

Select the tray and the option you want.

3

Press OK to save the selection.

4

2. Menu Overview and Basic Setup

48

Media and tray

Press (Stop/Clear) to return to ready mode.

5

• If you want to use special-sized paper such as billing paper, select the

7

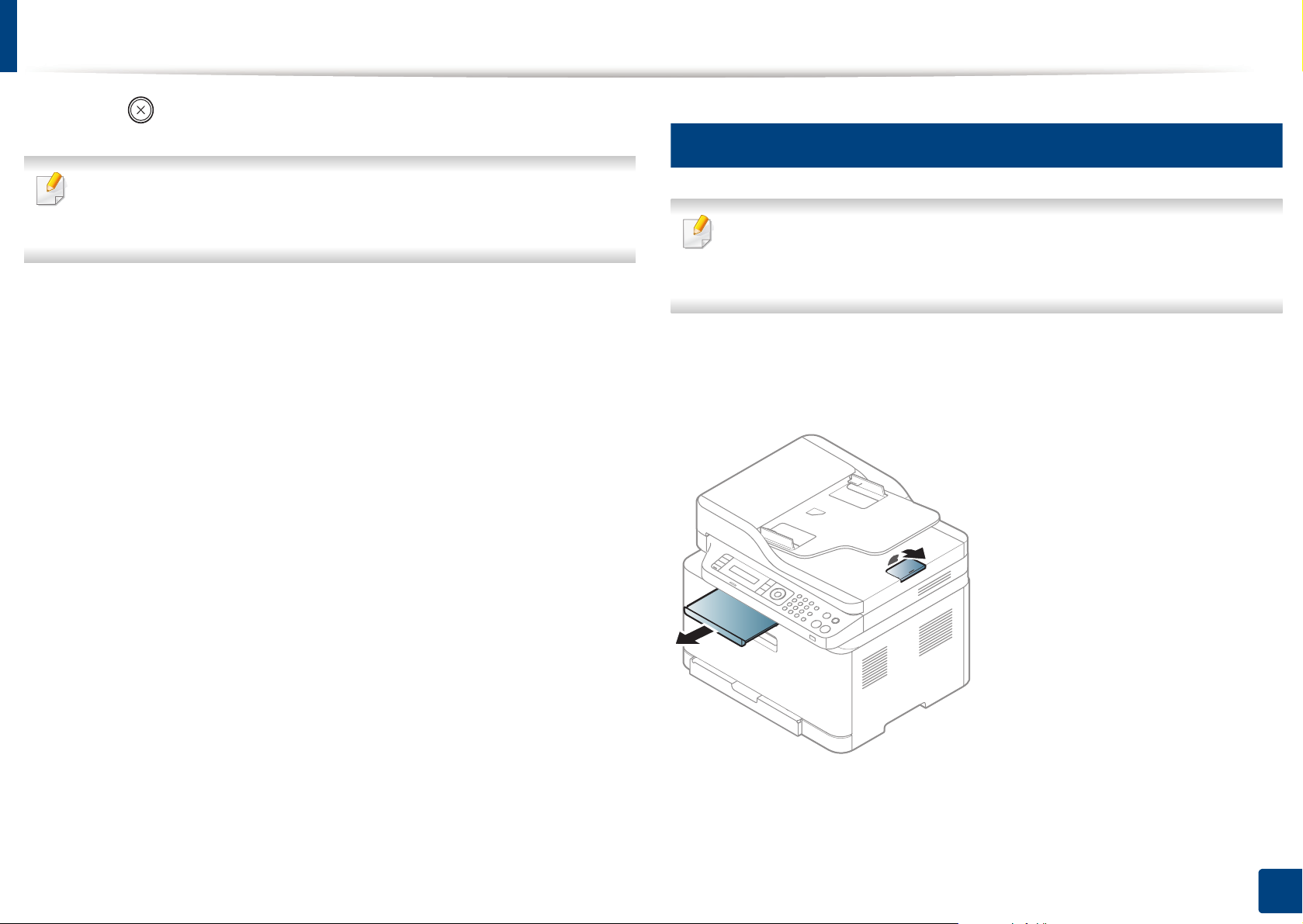

Using the output support

Paper tab > Size > Edit... and set Custom Paper Size Settings in the
Printing Preferences (see "Opening printing preferences" on page 56).

The surface of the output tray may become hot if you print a large number
of pages at once. Make sure that you do not touch the surface, and do not
allow children near it.

The printed pages stack on the output support, and the output support will help
the printed pages to align. The printer sends output to the output tray by
default.

2. Menu Overview and Basic Setup

49

Media and tray

Illustrations on this user’s guide may differ from your machine depending
on its options or models. Check your machine type (see "Front view" on
page 21).

8

Preparing originals

• Do not load paper smaller than 142 x 148 mm (5.6 x 5.8 inches) or larger than
216 x 356 mm (8.5 x 14 inches).

• Do not attempt to load the following s of paper, in order to prevent paper
jam, low print quality and machine damage.

- Carbon-paper or carbon-backed paper

- Coated paper

- Onion skin or thin paper

- Wrinkled or creased paper

- Curled or rolled paper

9

Loading originals

You can use the scanner glass or the document feeder to load an original for
copying, scanning, and sending a fax.

Illustrations on this user’s guide may differ from your machine depending
on its options or models. Check your machine type (see "Front view" on
page 21).

On the scanner glass

Using the scanner glass, you can copy or scan originals. You can get the best
scan quality, especially for colored or gray-scaled images. Make sure that no
originals are in the document feeder. If an original is detected in the document
feeder, the machine gives it priority over the original on the scanner glass.

- Torn paper

• Remove all staples and paper clips before loading.

• Make sure any glue, ink, or correction fluid on the paper is completely dry
before loading.

• Do not load originals that include different sizes or weights of paper.

• Do not load booklets, pamphlets, transparencies, or documents with other
unusual characteristics.

2. Menu Overview and Basic Setup

50

Media and tray

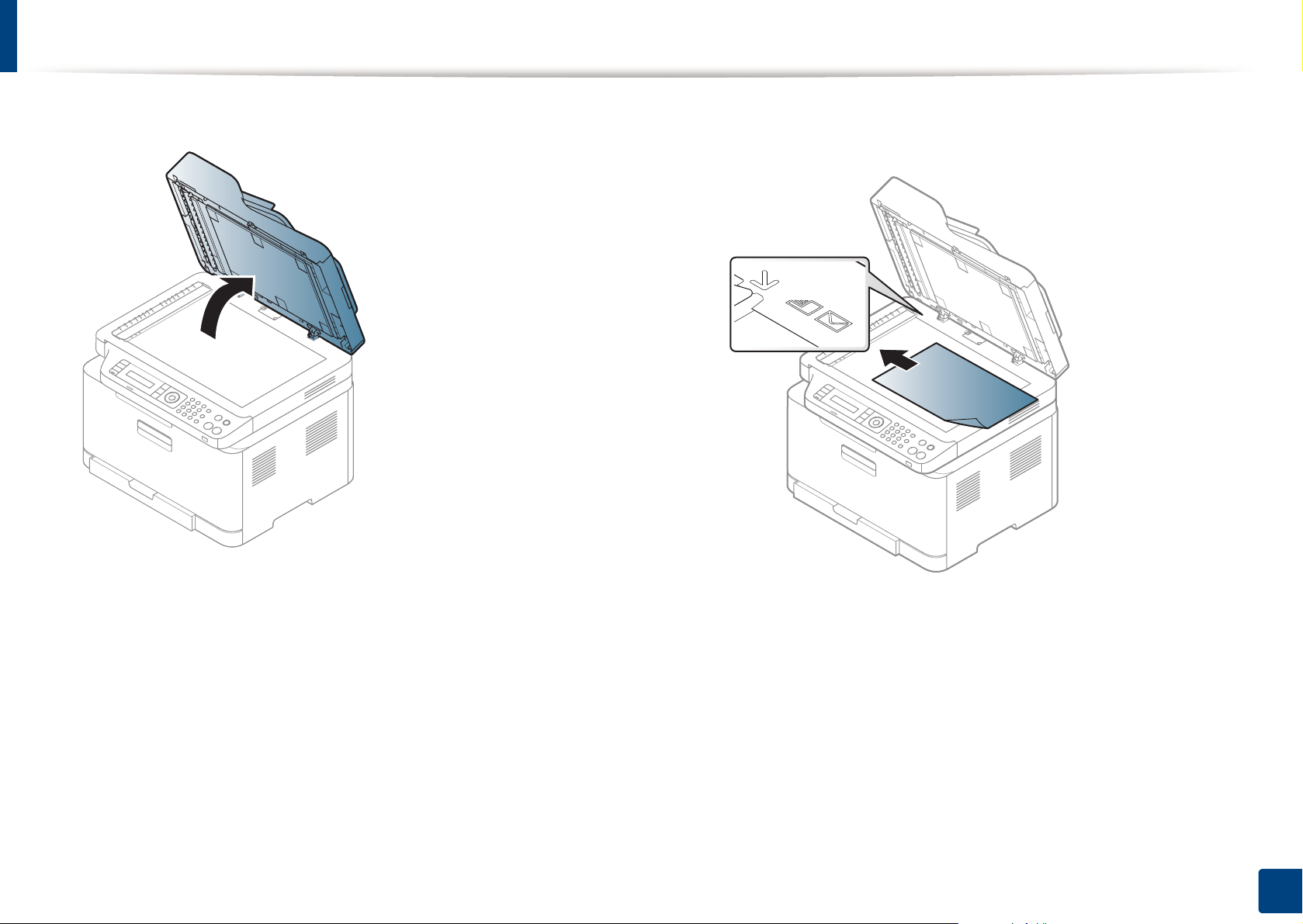

Lift and open the scanner lid.

1

Place the original face down on the scanner glass. Align it with the

2

registration guide at the top left corner of the glass.

Close the scanner lid.

3

2. Menu Overview and Basic Setup

51

Media and tray

• Leaving the scanner lid open while copying may affect copy quality and
toner consumption.

• Dust on the scanner glass may cause black spots on the printout. Always
keep it clean (see "Cleaning the machine" on page 95).

• If you are copying a page from a book or magazine, lift the scanner lid
until its hinges are caught by the stopper and then close the lid. If the
book or magazine is thicker than 30 mm, start copying with the scanner
lid open.

• Be careful not to break the scanner glass. You may get hurt.

• Do not put hands while closing the scanner lid. The scanner lid may fall
on your hands and get hurt.

• Do not look into the light from inside of the scanner while copying or
scanning. It is harmful to eyes.

Load the original face up into the document feeder input tray. Make sure

2

that the bottom of the original stack matches the paper size marked on
the document input tray.

In the document feeder

Flex or fan the edge of the paper stack to separate the pages before

1

loading originals.

2. Menu Overview and Basic Setup

52

Media and tray

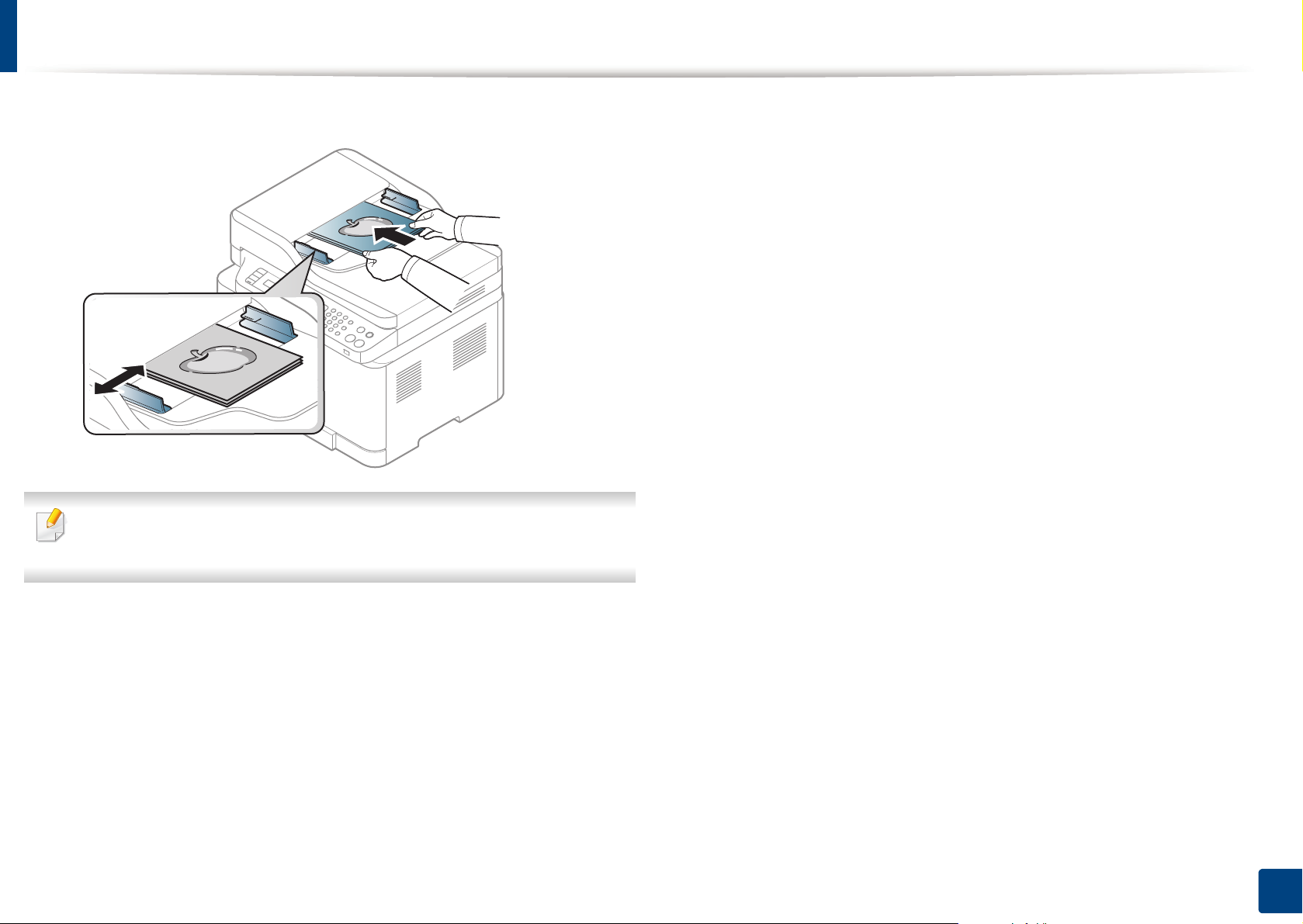

Adjust the document feeder width guides to the paper size.

3

Dust on the document feeder glass may cause black lines on the printout.
Always keep the glass clean (see "Cleaning the machine" on page 95).

2. Menu Overview and Basic Setup

53

Basic printing

For special printing features, refer to the Advanced Guide (see "Using
advanced print features" on page 231).

10

Printing

• Mac printing (see "Mac printing" on page 238).

• Linux printing (see "Linux printing" on page 240).

The following Printing Preferences window is for Notepad in Windows 7. Your
Printing Preferences window may differ, depending on your operating system
or the application you are using.

Select your machine from the Select Printer list.

3

Open the document you want to print.

1

Select Print from the File menu.

2

The basic print settings including the number of copies and print range

4

are selected within the Print window.

To take advantage of the advanced printing features, click Properties or
Preferences from the Print window (see "Opening printing preferences" on
page 56).

To start the print job, click OK or Print in the Print window.

5

2. Menu Overview and Basic Setup

54

Basic printing

11

Canceling a print job

If the print job is waiting in the print queue or print spooler, cancel the job as
follows:

• You can access this window by simply double-clicking the machine icon

( ) in the Windows task bar.

• You can also cancel the current job by pressing (Stop/Clear) on the

control panel.

2. Menu Overview and Basic Setup

55

Basic printing

12

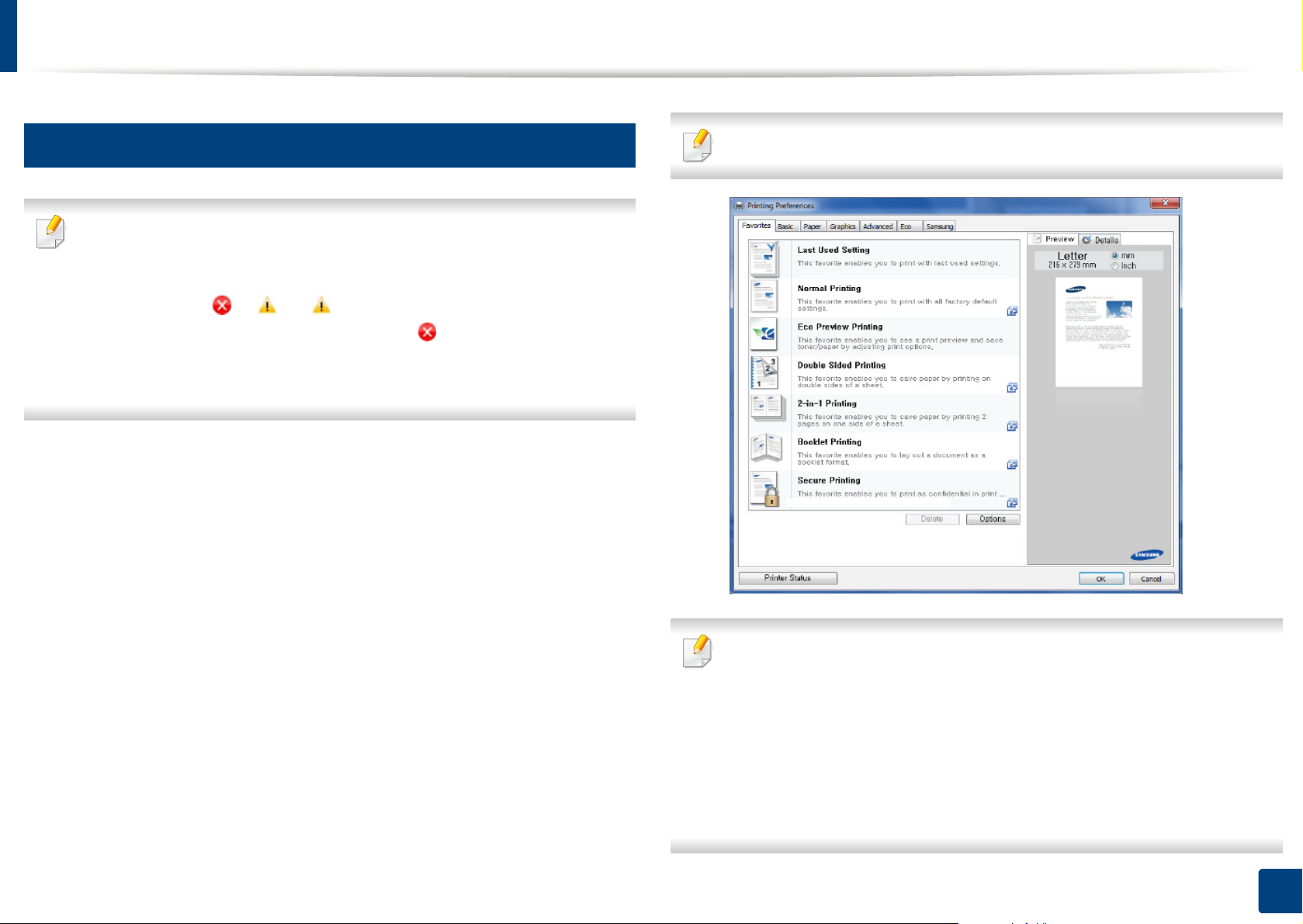

Opening printing preferences

• The Printing Preferences window that appears in this user’s guide may
differ depending on the machine in use.

• When you select an option in Printing Preferences, you may see a

warning mark or . An mark means you can select that certain

option but it is not recommended, and an mark means you cannot

select that option due to the machine’s setting or environment.

• For Windows 8 user, see "Opening more settings" on page 276.

Open the document you want to print.

1

Select Print from the file menu. The Print window appears.

2

The screenshot may differ depending on model.

Select your machine from the Select Printer.

3

Click Properties or Preferences.

4

• You can apply Eco features to save paper and toner before printing (see
"Easy Eco Driver" on page 261).

• You can check the machine’s current status pressing the Printer Status

button (see "Using Samsung Printer Status" on page 271).

• The printer driver includes a user interface that is optimized for
touchscreens. To use this UI, click Samsung Printer Center > Device

Options and then select Stylish User Interface (see "Using Samsung

Printer Center" on page 262).

2. Menu Overview and Basic Setup

56

Basic printing

Using a favorite setting

The Favorites option, which is visible on each preferences tab except for the
Samsung tab, allows you to save the current preferences for future use.

To save a Favorites item, follow these steps:

Change the settings as needed on each tab.

1

Enter a name for the item in the Favorites input box.

2

To use a saved setting, select it in the Favorites tab. The machine is now set
to print according to the settings you have selected. To delete saved
settings, select it in the Favorites tab and click Delete.

13

Using help

Click the option you want to know on the Printing Preferences window and
press F1 on your keyboard.

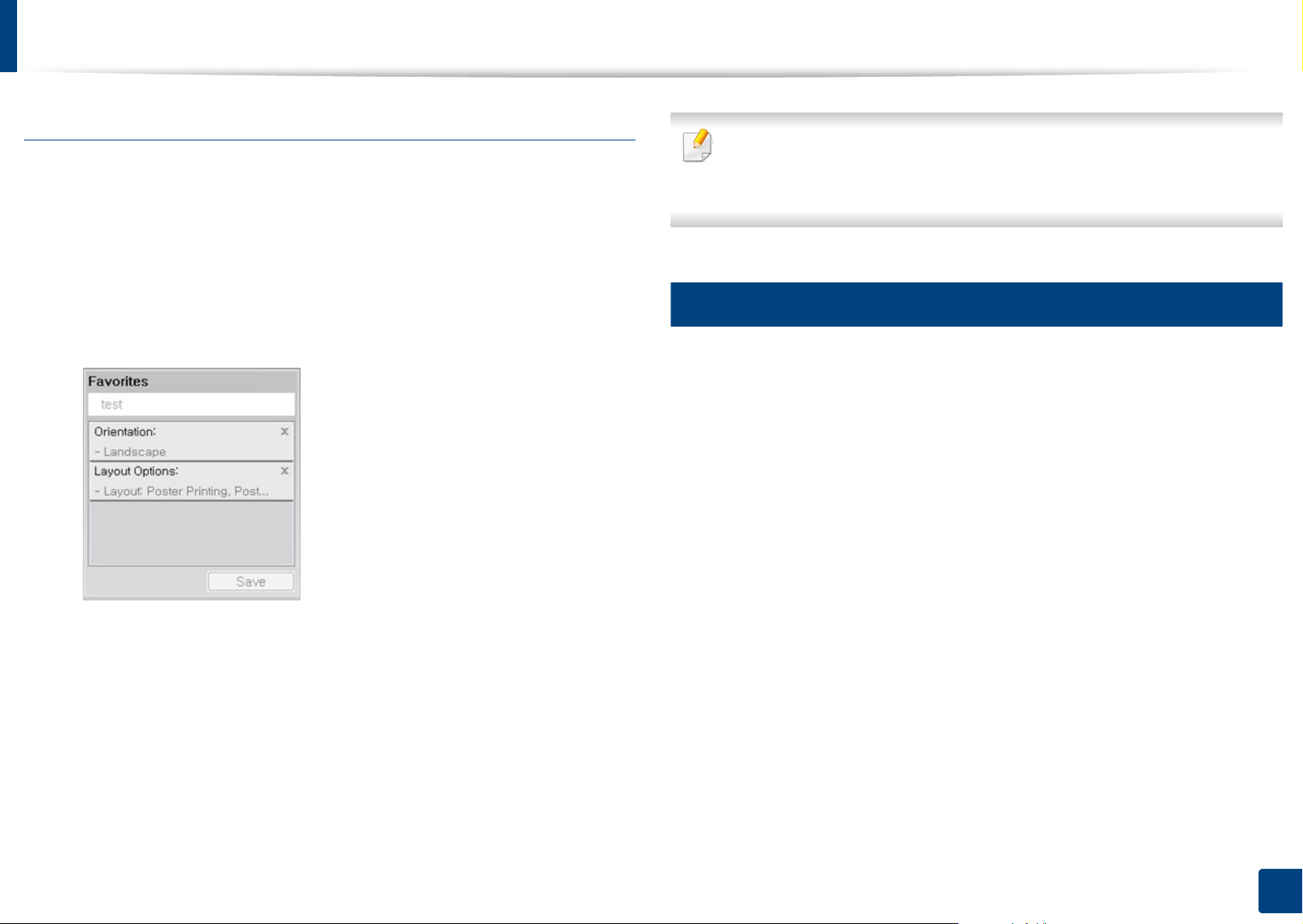

Click Save.

3

Enter name and description, and then select the desired icon.

4

Click OK. When you save Favorites, all current driver settings are saved.

5

2. Menu Overview and Basic Setup

57

Basic printing

14

Eco printing

The Eco function cuts toner consumption and paper usage. The Eco function
allows you to save print resources and lead you to eco-friendly printing.

If you press the Eco button from the control panel, eco mode is enabled. The
default setting of Eco mode is Multiple Pages per Side (2) and Toner Save.

Setting Eco mode on the control panel

Select (Menu) > System Setup > Machine Setup > Eco Settings on

1

the control panel.

Select the option you want and press OK.

2

• Default Mode: Select this to turn on or off the eco mode.

Some features may not be available depending on the model.

• You change the machine’s setting set in the machine from Samsung Easy

Printer Manager or SyncThru™ Web Service.

- If your machine is connected to the local, you can set the machine’s

setting from

Samsung Easy Printer Manager > Advanced Setting > Device
Settings (see "Using Samsung Easy Printer Manager" on page 268).

- If your machine is connected to the network, you can set

themachine’s setting from SyncThru™ Web Service > Settings tab >
Machine Settings (see "Using SyncThru™ Web Service" on page 265).

Depending on the printer driver you use, Skip blank pages may not work
properly. If Skip blank pages feature does not work properly, set the feature
from the Easy Eco Driver (see "Easy Eco Driver" on page 261).

- Off: Set the eco mode off.

- On: Set the eco mode on.

If you set the eco mode on with a password from the SyncThru™ Web
Service (Settings tab > Machine Settings > System > Eco Settings) or
Samsung Easy Printer Manager (Advanced Setting > Device Settings >
Eco), the On force message appears. You have to enter the password to
change the eco mode status.

• Select Temp.: Follow the settings from Syncthru™ Web Service or
Samsung Easy Printer Manager. Before you select this item, you must
set the eco function in SyncThru™ Web Service (Settings tab >
Machine Settings > System > Eco Settings) or Samsung Easy
Printer Manager (Advanced Setting > Device Settings > Eco).

- Default Eco: The machine is set to Default Eco mode.

- Custom Eco: Change any necessary values.

Press OK to save the selection.

3

2. Menu Overview and Basic Setup

58

Basic printing

Setting eco mode on the driver

Open the Eco tab to set Eco mode. When you see the eco image ( ), that
means the eco mode is currently enabled.

Eco options

• Printer Default: Follows the settings from the machine's control panel.

• None: Disables Eco mode.

• Eco Printing: Enables eco mode. Activate the various Eco items you want to
use.

• Password: If the administrator fixed to enable the Eco mode, you have to
enter the password to change the status.

Result simulator

• The actual amount displayed is only an estimate as the actual amount may
differ depending on the operating system used, computing performance,
application software, connection method, media type [thickness], media
size, job complexity, etc.

Result Simulator shows the estimated results of reduced emissions of carbon
dioxide, used electricity, and the amount of saved paper in accordance with the
settings you selected.

• The results are calculated on the basis that the total number of printed
paper is one hundred without a blank page when the Eco mode is disabled.

• Refers to the calculation coefficient about CO2, energy, and paper from IEA,
the index of Ministry of Internal Affairs and Communication of Japan and
www.remanufacturing.org.uk. Each model has a different index.

• The power consumption in printing mode refers to the average printing
power consumption of this machine.

2. Menu Overview and Basic Setup

59

Basic copying

For special printing features, refer to the Advanced Guide (see "Copy" on
page 207).

15

Basic copy

C48xW series: Make sure that the Scan to button’s LED is off.

1

C48xFN/C48xFW series: Select (copy) on the control panel.

Select (Menu) > Copy Feature on the control panel.

2

Place a single document face down on the document glass, or load the

3

documents face up into the document feeder (see "Loading originals" on
page 50).

If you need to cancel the copying job during the operation, press (Stop/

Clear) and the copying will stop.

16

Changing the settings for each copy

Your machine provides default settings for copying so that you can quickly and
easily make a copy.

• If you press the (Stop/Clear) button twice while setting the copy
options, all of the options you have set for the current copy job will be
canceled and returned to their default status. Or, they will automatically
return to their default status after the machine completes the copy in
progress.

If you want to customize the copy settings including Reduce/Enlarge,

4

Darkness, Original Type and more by using the control panel buttons

(see "Changing the settings for each copy" on page 60).

Enter the number of copies using the arrow or number keypad, if

5

necessary.

Press (Start).

6

• Accessing menus may differ from model to model (see "Accessing the
menu" on page 34).

• It may be necessary to press OK to navigate to lower-level menus for
some models.

Darkness

If you have an original containing faint marking and dark images, you can adjust
the brightness to make a copy that is easier to read.

2. Menu Overview and Basic Setup

60

Basic copying

C48xW series: Make sure that the Scan to button’s LED is off.

1

C48xFN/C48xFW series: Select (copy) on the control panel.

Select (Menu) > Copy Feature > Darkness on the control panel.

2

Select the option you want and press OK.

3

For example, the Light+5 being the lightest, and the Dark+5 being the
darkest.

Press (Stop/Clear) to return to ready mode.

4

Original

The original setting is used to improve the copy quality by selecting the
document for the current copy job.

If texts in the printout is blurry, select Text to get the clear texts.

• Photo: Use when the originals are photographs.

• Magazine: Use when the originals are magazine.

Press (Stop/Clear) to return to ready mode.

4

Reduced or enlarged copy

You can reduce or enlarge the size of a copied image from 25% to 400% from the
document feeder or scanner glass.

• This feature may not be available depending on model or optional goods
(see "Variety feature" on page 10).

C48xW series: Make sure that the Scan to button’s LED is off.

1

C48xFN/C48xFW series: Select (copy) on the control panel.

Select (Menu) > Copy Feature > Original Type on the control panel.

2

Select the option you want and press OK.

3

• Text: Use for originals containing mostly text.

• Text/Photo: Use for originals with mixed text and photographs.

• If the machine set to Eco mode, reduce and enlarge features are not
available.

To select from the predefined copy sizes

C48xW series: Make sure that the Scan to button’s LED is off.

1

C48xFN/C48xFW series: Select (copy) on the control panel.

Select (Menu) > Copy Feature > Reduce/Enlarge on the control

2

panel.

2. Menu Overview and Basic Setup

61

Basic copying

Select the option you want and press OK.

3

Press (Stop/Clear) to return to ready mode.

4

To scale the copy by directly entering the scale rate

C48xW series: Make sure that the Scan to button’s LED is off.

1

C48xFN/C48xFW series: Select (copy) on the control panel.

Select (Menu) > Copy Feature > Reduce/Enlarge > Custom on the

2

control panel.

Enter the copy size you want using the numeric keypad.

3

Press OK to save the selection.

4

Press (Stop/Clear) to return to ready mode.

5

When you make a reduced copy, black lines may appear at the bottom of
your copy.

17

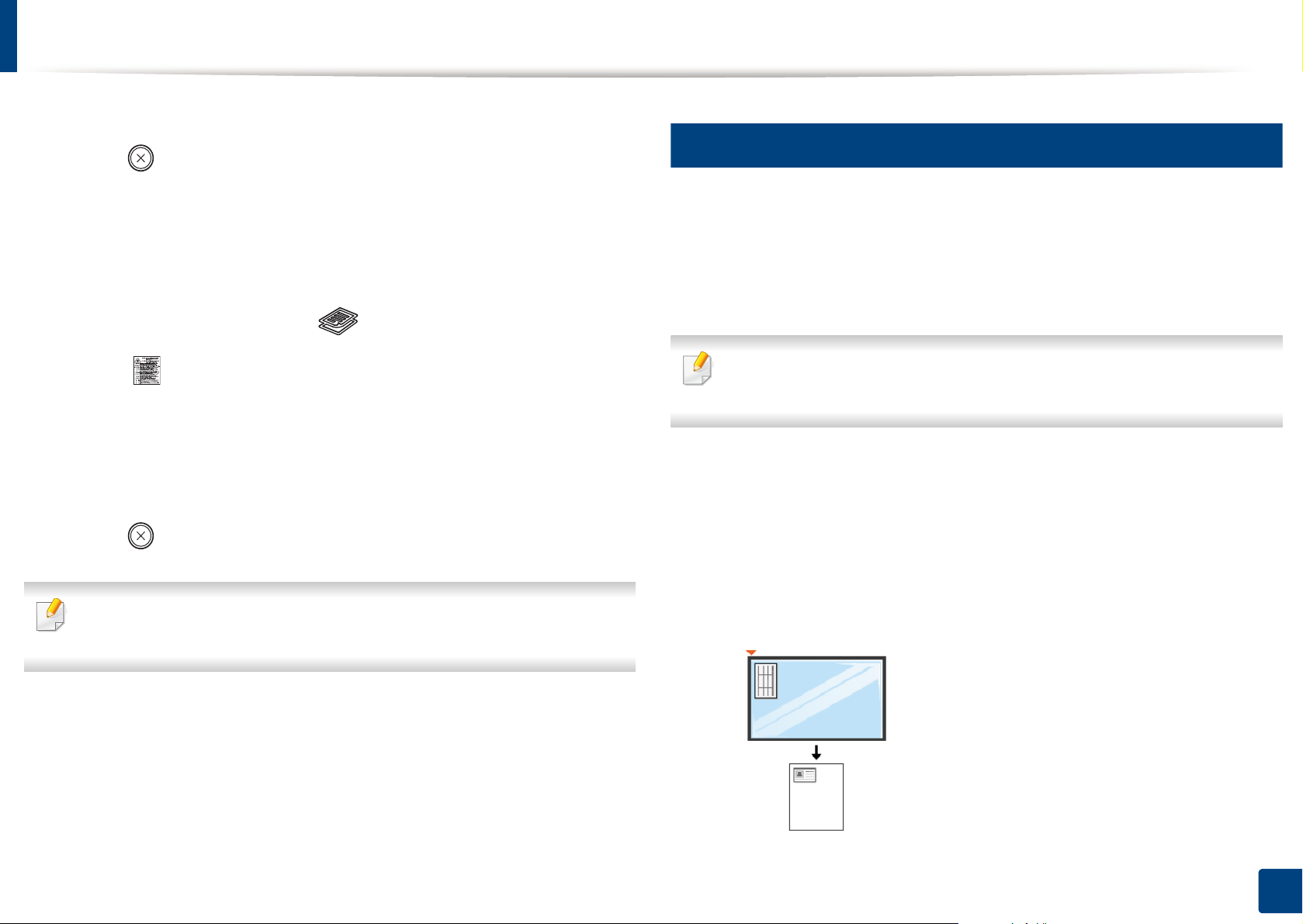

ID card copying

Your machine can print 2-sided originals on one sheet.

The machine prints one side of the original on the upper half of the paper and
the other side on the lower half without reducing the size of the original. This
feature is helpful for copying a small-sized item such as business card.

• The original must be placed on the scanner glass to use this feature.

• If the machine set to Eco mode, this feature is not available.

Depending on the model, the operating procedure may differ.

Press ID Copy on the control panel.

1

Place the front side of an original facing down on the scanner glass

2

where arrows indicate as shown. Then, close the scanner lid.

2. Menu Overview and Basic Setup

62

Basic copying

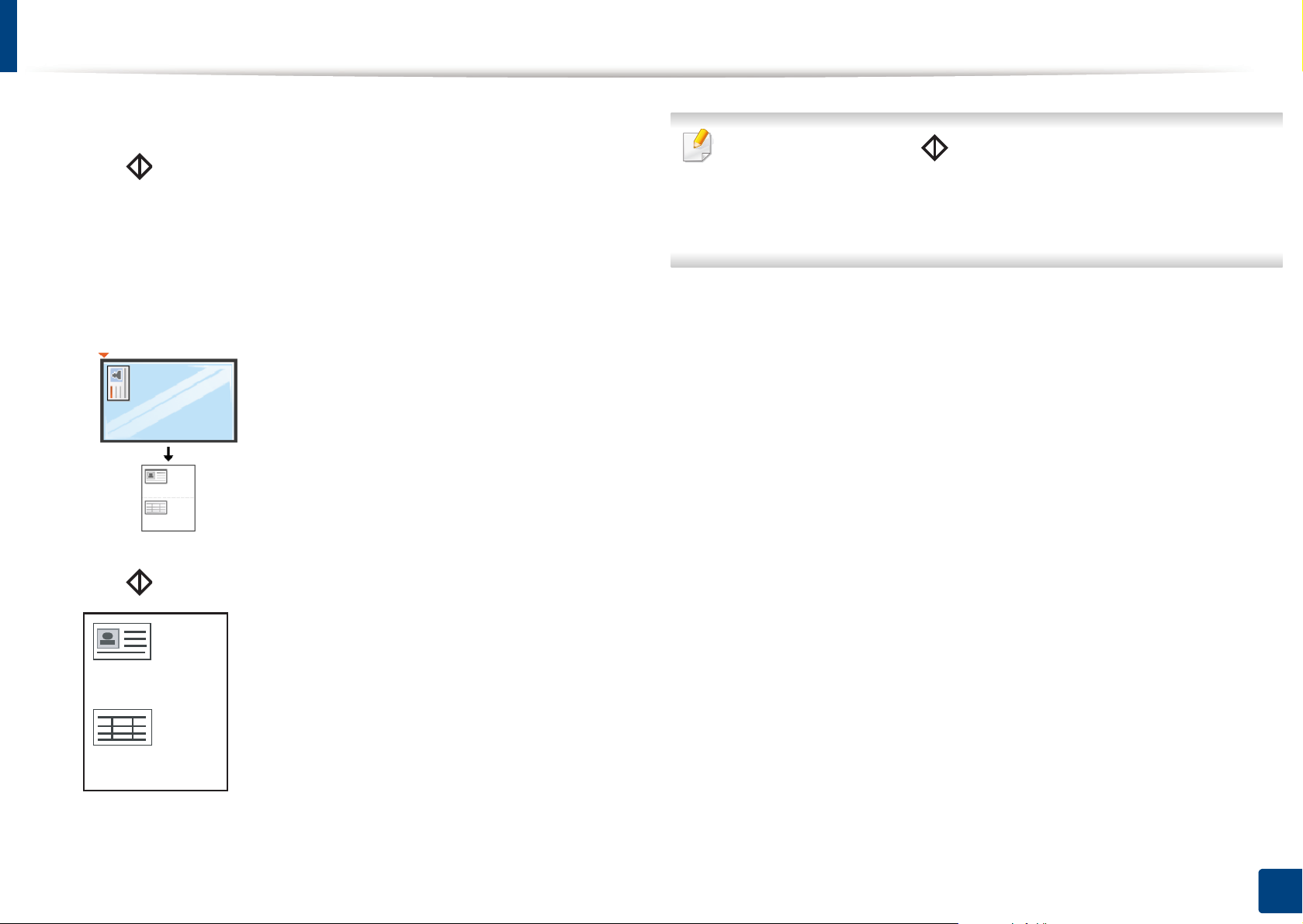

Place Front Side and Press [Start] appears on the display.

3

Press (Start).

4

Your machine begins scanning the front side and shows Place Back Side
and Press [Start].

Turn the original over and place it on the scanner glass where arrows

5

indicate as shown. Then, close the scanner lid.

• If you do not press the (Start) button, only the front side will be
copied.

• If the original is larger than the printable area, some portions may not be
printed.

Press (Start) button.

6

2. Menu Overview and Basic Setup

63

Basic scanning

For special scanning features, refer to the Advanced Guide (see "Scan
features" on page 241).

18

Basic Scanning

C48xFN/C48xFW series: Select (scan) > Scan to PC > Local PC on the

control panel.

If you see Not Available message, check the port connection, or select

Enable Scan from Device Panel in Samsung Easy Printer Manager >
Advanced Setting > Scan to PC Settings.

This is the normal and usual procedure for scanning originals.

This is a basic scanning method for USB-connected machine.

• It may be necessary to press OK to navigate to lower-level menus for
some models.

• If you want to scan using the network, refer to the Advanced Guide (see
"Scanning from network connected machine" on page 242).

• C48xW series only support Scan to key on the control panel (see "Basic
scanning method" on page 241).

Place a single document face down on the document glass, or load the

1

documents face up into the document feeder (see "Loading originals" on
page 50).

C48xW series: Press Scan to > Scan to PC > Local PC on the control

2

panel.

Select the scan destination you want and press OK.

3

Default setting is My Documents.

• You can create and save the frequently used settings as a profile list. Also
you can add and delete the profile and save each profile to a different
path.

•To change the Samsung Easy Printer Manager > Advanced Setting >

Scan to PC Settings.

Select the option you want and press OK.

4

Scanning begins.

5

Scanned image is saved in computer’s C:\Users\users name\My
Documents. The saved folder may differ, depending on your operating

system or the application you are using.

2. Menu Overview and Basic Setup

64

Basic faxing

• C48xFN/C48xFW series only.

19

Preparing to fax

• For special faxing features, refer to the Advanced Guide (see "Fax
features" on page 249).

• You cannot use this machine as a fax via the internet phone. For more

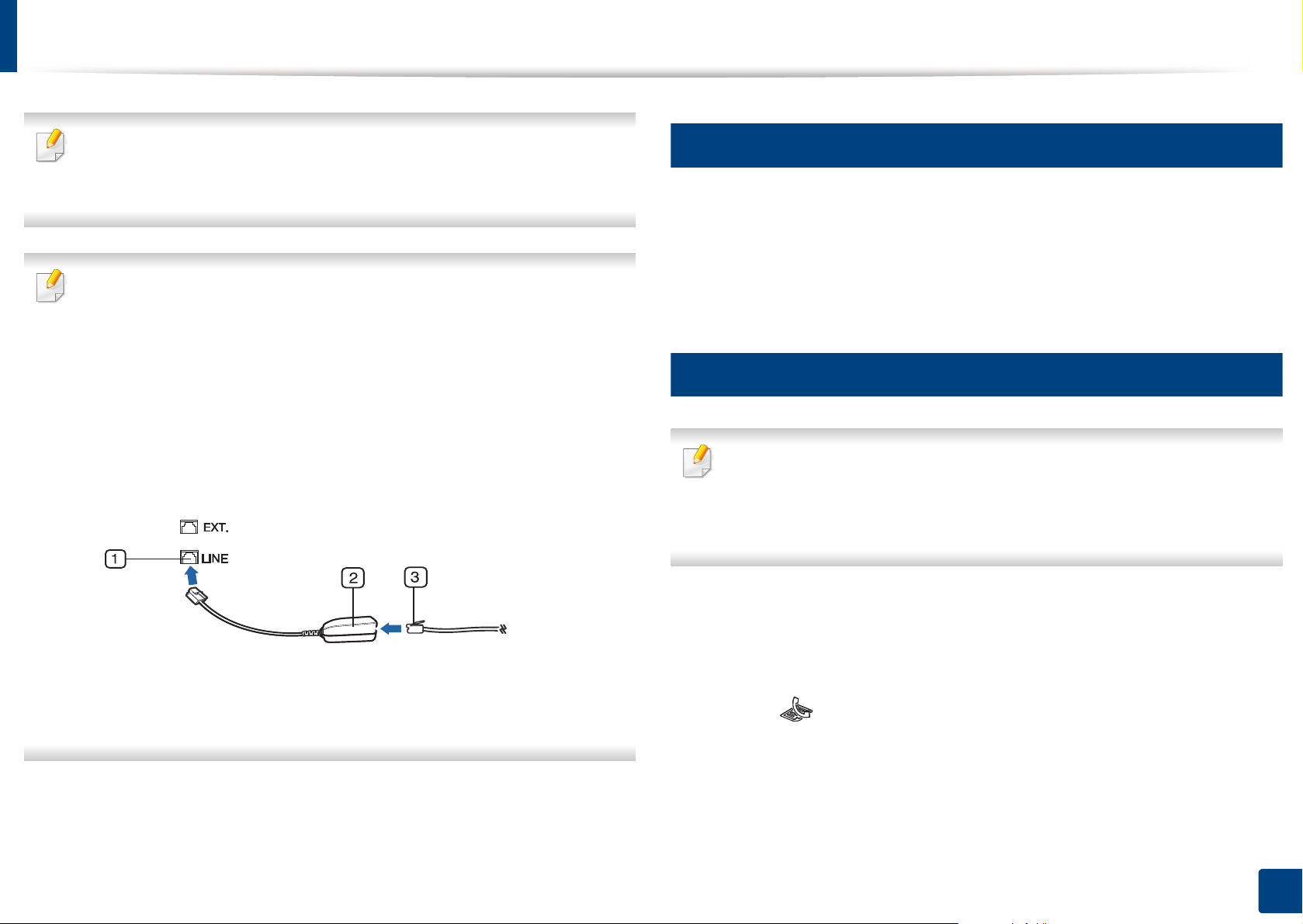

Before you send or receive a fax, you need to connect the supplied line cord to
your telephone wall jack (see "Rear view" on page 23). Refer to the Quick
Installation Guide how to make a connection. The method of making a
telephone connection is different from one country to another.

information ask your internet service provider.

• We recommend using traditional analog phone services (PSTN: Public

20

Switched Telephone Network) when connecting telephone lines to use
a fax machine. If you use other Internet services (DSL, ISDN, VolP), you can

Sending a fax

improve the connection quality by using the Micro-filter. The Micro-filter
eliminates unnecessary noise signals and improves connection quality or
Internet quality. Since the DSL Micro-filter is not provided with the
machine, contact your Internet service provider for use on DSL Micro­filter.

When you place the originals, you can use either the document feeder or
the scanner glass. If the originals are placed on both the document feeder
and the scanner glass, the machine will read the originals on the document
feeder first, which has higher priority in scanning.

Place a single document face down on the document glass, or load the

1

documents face up into the document feeder (see "Loading originals" on

1 Line port
2 Micro filter
3 DSL modem / Telephone line

(see "Rear view" on page 23).

page 50).

Select (fax) on the control panel.

2

Adjust the resolution and the darkness to suit your fax needs (see

3

"Adjusting the document settings" on page 67).

2. Menu Overview and Basic Setup

65

Basic faxing

Enter the destination fax number (see "Keypad letters and numbers" on

4

page 226).

Press (Start) on the control panel. The machine starts to scan and

5

send the fax to the destinations.

• If you want to send a fax directly from your computer, use Samsung

Network PC Fax (see "Sending a fax from your computer" on page 250).

• When you want to cancel a fax job, press (Stop/Clear) before the
machine starts transmission.

• If you used the scanner glass, the machine shows the message asking to
place another page.

Sending a fax manually

Place a single document face down on the document glass, or load the

1

documents face up into the document feeder (see "Loading originals" on
page 50).

Select (fax) on the control panel.

2

Adjust the resolution and the darkness to suit your fax needs (see

3

"Adjusting the document settings" on page 67).

Press (On Hook Dial) on the control panel or lift the handset.

4

Enter a fax number using the number keypad on the control panel.

5

Press (Start) on the control panel when you hear a high-pitched fax

6

signal from the remote fax machine.

Sending a fax to multiple destinations

Perform the following to send a fax using (On Hook Dial) on the control

panel.

If your machine is a handset model, you can send a fax using the handset
(see "Variety feature" on page 10).

You can use the multiple send feature, which allows you to send a fax to multiple
locations. Originals are automatically stored in memory and sent to a remote
station. After transmission, the originals are automatically erased from memory.

You cannot send faxes with this feature if you have chosen super fine as an
option or if the fax is in color.

2. Menu Overview and Basic Setup

66

Basic faxing

Place a single document face down on the document glass, or load the

1

documents face up into the document feeder (see "Loading originals" on
page 50).

Select (fax) on the control panel.

2

Adjust the resolution and the darkness to suit your fax needs (see

3

"Adjusting the document settings" on page 67).

Select (Menu) > Fax Feature > Multi Send on the control panel.

4

Enter the number of the first receiving fax machine and press OK.

5

You can press speed dial numbers or select a group dial number using

the (Address book) button.

Enter the second fax number and press OK.

6

The display asks you to enter another fax number to send the document.

21

Receiving a fax

Your machine is preset Fax mode at the factory. When you receive a fax, the
machine answers the call on a specified number of rings and automatically
receives the fax.

22

Adjusting the document settings

Before starting a fax, change the following settings according to your original’s
status to get the best quality.

It may be necessary to press OK to navigate to lower-level menus for some
models.

To enter more fax numbers, press OK when Yes appears and repeat

7

steps 5 and 6.

You can add up to 10 destinations.

When you have finished entering fax numbers, select No at the Another

8

No.? prompt and press OK.

The machine begins sending the fax to the numbers you entered in the
order in which you entered them.

Resolution

The default document settings produce good results when using typical text­based originals. However, if you send originals that are of poor quality, or
contain photographs, you can adjust the resolution to produce a higher quality
fax.

2. Menu Overview and Basic Setup

67

Basic faxing

Select (fax) > (Menu) > Fax Feature > Resolution on the control

1

panel.

Select the option you want and press OK.

2

• Standard: Originals with normal sized characters.

• Fine: Originals containing small characters or thin lines or originals

printed using a dot-matrix printer.

• Super Fine: Originals containing extremely fine detail. Super Fine

mode is enabled only if the machine with which you are
communicating also supports the Super Fine resolution.

• For memory transmission, Super Fine mode is not available. The

resolution setting is automatically changed to Fine.

• When your machine is set to Super Fine resolution and the fax machine

with which you are communicating does not support Super Fine

resolution, the machine transmits using the highest resolution mode
supported by the other fax machine.

The darkness setting is applied to the current fax job. To change the default
setting (see "Fax" on page 210).

Select (fax) > (Menu) > Fax Feature > Darkness on the control

1

panel.

Select a darkness level you want.

2

Press (Stop/Clear) to return to ready mode.

3

• Photo Fax: Originals containing shades of gray or photographs.

Press (Stop/Clear) to return to ready mode.

3

Darkness

You can select the degree of darkness of the original document.

2. Menu Overview and Basic Setup

68

Using USB memory device

C48x series do not support USB memory port.

This chapter explains how to use a USB memory device with your machine.

23

About USB memory

USB memory devices are available with a variety of memory capacities to give
you more room for storing documents, presentations, downloaded music and
videos, high resolution photographs or whatever other files you want to store or
move.

You can do the following tasks on your machine by using a USB memory device.

• Scan documents and save them on a USB memory device

24

Plugging in a USB memory device

Lift the scanner lid slightly and insert your USB memory device into the USB
memory port. Close the scanner lid again before using the device.

• Print data stored on a USB memory device

• Restore backup files to the machine’s memory

• Format the USB memory device

• Check the available memory space

The USB memory port on the front of your machine is designed for USB V1.1 and
USB V2.0 memory devices. Your machine supports USB memory devices with
FAT16/FAT32 and a sector size of 512 bytes.

Check your USB memory device’s file system from your dealer.

2. Menu Overview and Basic Setup

69

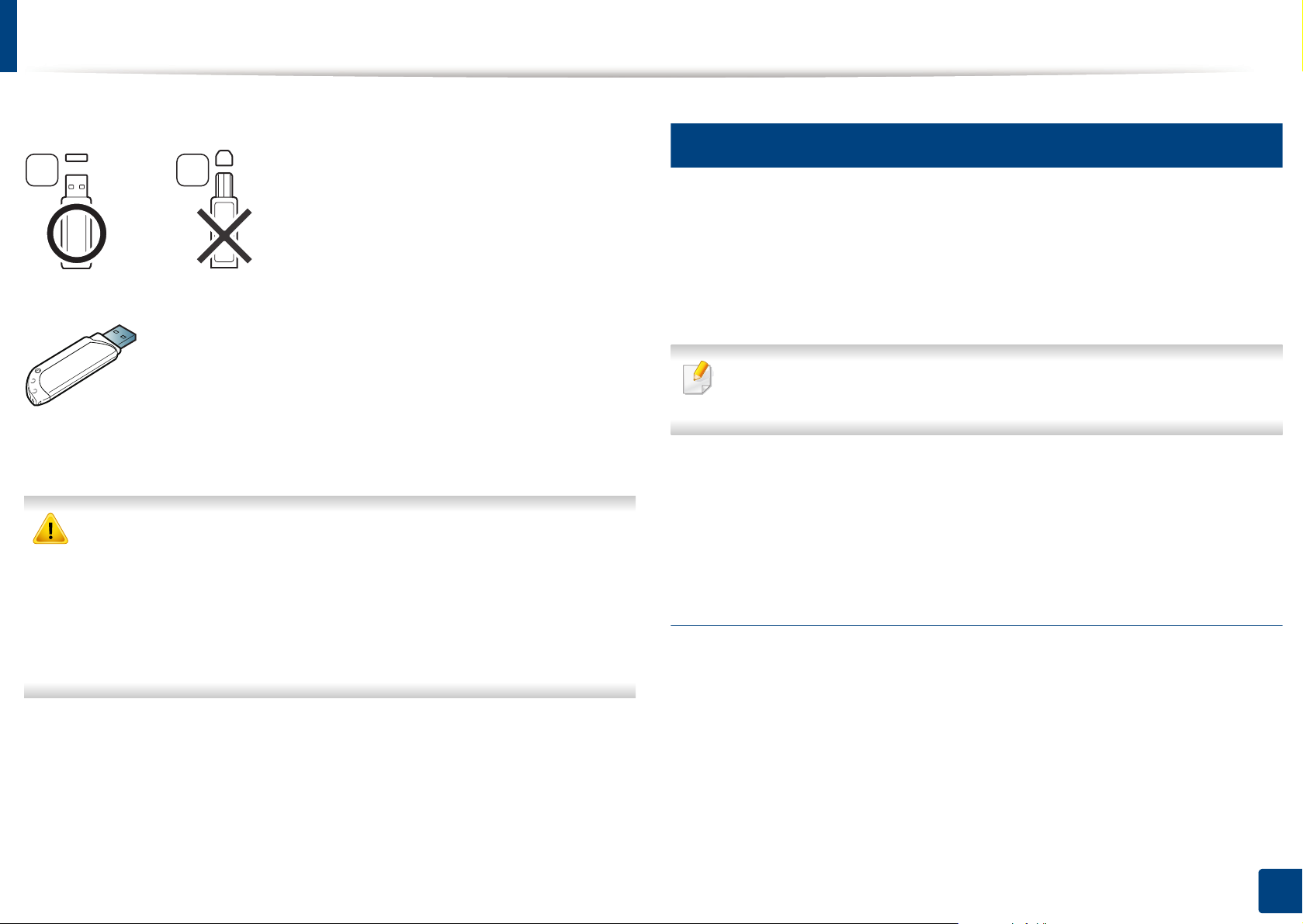

Using USB memory device

You must use only an authorized USB memory device with an A plug connector.

A B

Use only a metal-shielded USB memory device.

Only use a USB memory device that has obtained compatibility certification;
otherwise, the machine might not recognize it.

• Do not remove the USB memory device while the machine is in operation
or writing to or reading from USB memory. The machine warranty does
not cover damage caused by user’s misuse.

25

Printing from a USB memory device

You can directly print files stored on a USB memory device.

File is supported by Direct Print option.

• PRN: Only files created by provided driver with your machine are
compatible.

If you print PRN files created from other machine, the printout would be
different.

• TIFF: TIFF 6.0 Baseline

• JPEG: JPEG Baseline

• PDF: PDF 1.7 or lower version

• If your USB memory device has certain features such as security settings
and password settings, your machine may not automatically detect it.
For details about these features, see the user’s guide of the USB memory
device.

To print a document from a USB memory device

Insert a USB memory device into the USB memory port on your machine,

1

and then press Direct USB.

Select USB Print.

2

2. Menu Overview and Basic Setup

70

Using USB memory device

Select the folder or file you want and press OK.

3

If you see [+] or [D] in the front of a folder name, there are one or more
files or folders in the selected folder.

Select the number of copies to be printed or enter the number.

4

Press OK, Start or Print to start printing the selected file.

5

After printing the file, the display asks if you want to print another job.

Press OK when Yes appears to print another job, and repeat from step 2.

6

Otherwise, press the left/right arrow to select No and press OK.

Press (Stop/Clear) to return to ready mode.

7

26

Scanning to a USB memory device

Scanning

Insert a USB memory device into the USB memory port on your machine.

1

Place a single document face down on the document glass, or load the

2

documents face up into the document feeder (see "Loading originals" on
page 50).

Select (scan) > Scan To USB > OK on the control panel.

3

The machine begins scanning.

To scan multiple pages, select Yes while Another Page? Yes/No appears. After
scanning is complete, you can remove the USB memory device from the
machine.

Customizing Scan to USB

• Accessing menus may differ from model to model (see "Accessing the
menu" on page 34)

• It may be necessary to press OK to navigate to lower-level menus for
some models.

You can scan a document and save the scanned image onto a USB memory
device.

You can specify image size, file format, or color mode for each scanning to USB
job.

Select (scan) > (Menu) > Scan Feature > USB Feature on the

1

control panel.

Select the setting option you want appears.

2

• Original Size: Sets the image size.

• Original Type: Sets the original document’s.

• Resolution: Sets the image resolution.

2. Menu Overview and Basic Setup

71

Using USB memory device

• Color Mode: Sets the color mode. If you select Mono in this option,

you cannot select JPEG in File Format.

• File Format: Sets the file format in which the image is to be saved. If

you select JPEG in this option, you cannot select Mono in Color
Mode.

• Darkness: Sets the brightness level to scan an original.

Select the desired status you want and press OK.

3

Repeat steps 2 and 3 to set other setting options.

4

Press (Stop/Clear) to return to ready mode.

5

You can change the default scan settings. Refer to the Advanced Guide.

27

Managing USB memory

After deleting files or reformatting a USB memory device, files cannot be
restored. Therefore, confirm that you no longer need the data before
deleting it.

Deleting an image file

Insert a USB memory device into the USB memory port on your machine,

1

and then press Direct USB.

Select File Manage > Delete and press OK.

2

Select the file you want to delete and press OK.

3

Select Yes.

4

Press (Stop/Clear) to return to ready mode.

5

You can delete image files stored on a USB memory device one by one or all at
once by reformatting the device.

If you see [+] or [D] in the front of a folder name, there are one or more files
or folders in the selected folder.

Formatting a USB memory device

Insert a USB memory device into the USB memory port on your machine,

1

and then press Direct USB.

Select File Manage > Format and press OK.

2

Select Yes.

3

Press (Stop/Clear) to return to ready mode.

4

2. Menu Overview and Basic Setup

72

Using USB memory device

Viewing the USB memory status

You can check the amount of memory space available for scanning and saving
documents.

Insert a USB memory device into the USB memory port on your machine,

1

and then press Direct USB.

Select Check Space.

2

The available memory space appears on the display.

3

Press (Stop/Clear) to return to ready mode.

4

2. Menu Overview and Basic Setup

73

3. Maintenance

This chapter provides information about purchasing supplies, accessories and maintenance parts available for your
machine.

• Ordering supplies and accessories 81

• Available supplies 82

• Available maintenance parts 83

• Storing the toner cartridge 84

• Redistributing toner 85

• Replacing the toner cartridge 87

• Replacing the imaging unit 89

• Replacing the waste toner container 91

• Monitoring the supplies life 93

• Setting the toner low alert 94

• Cleaning the machine 95

• Tips for moving & storing your machine 99

Ordering supplies and accessories

Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts.

To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine.
You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.

3. Maintenance

81

Available supplies

When supplies reach the end of their life spans, you can order the followings of supplies for your machine:

Type

Average yield

Toner cartridge • Average continuous black cartridge yield: Approx. 1,500 standard pages (Black)

• Average continuous color cartridge yield: Approx. 1,000 standard pages (Yellow/Magenta/Cyan)

a

Part name

• K404 (CLT-K404S): Black

• C404 (CLT-C404S): Cyan

• M404 (CLT-M404S): Magenta

Y404 (CLT-Y404S): Yellow

Imaging unit

Waste toner container

a. Declared yield value in accordance with ISO/IEC 19798. The number of pages may be affected by operating environment, printing interval, graphics, media type and media size.
b. Image counts based on one color on each page. If you print documents in full color (Cyan, Magenta, Yellow, Black), the life of this item will be reduced by 25%.

Approx. 16,000 images

Approx. 7,000 images

b

b

CLT-R406

CLT-W406

Depending on the options, percentage of image area and job mode used, the toner cartridge’s lifespan may differ.

When purchasing new toner cartridges or other supplies, these must be purchased in the same country as the machine you are using. Otherwise, new toner
cartridges or other supplies will be incompatible with your machine due to different configurations of toner cartridges and other supplies according to the specific
country conditions.

• The toner cartridge included in the printer/all-in-one product you purchased is not available for sale and is not guaranteed to be compatible with any

other printer.

• Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine

Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine’s

warranty.

3. Maintenance

82

Available maintenance parts

You need to replace the maintenance parts at specific intervals to keep the machine in the best condition and avoid print quality and paper feeding problems
resulting from the worn-out parts. Maintenance parts are mostly rollers, belts and pads. However, the replacement period and parts may differ depending on the
model. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. To purchase
maintenance parts, contact the retailer where you bought the machine. The replacement period for the maintenance parts is informed by the "Samsung Printer
Status" program. Or on the UI (User Interface) if your machine supports a display screen. The replacement period varies based on the operating system used,
computing performance, application software, connecting method, paper type, paper size, and job complexity.

3. Maintenance

83

Storing the toner cartridge

Toner cartridges contain components that are sensitive to light, temperature
and humidity. Samsung suggests users follow these recommendations to
ensure optimal performance, highest quality, and longest life from your new
Samsung toner cartridge.

Store this cartridge in the same environment in which the printer will be used.
This should be in controlled temperature and humidity conditions. The toner
cartridge should remain in its original and unopened package until installation
– if original packaging is not available, cover the top opening of the cartridge
with paper and store in a dark cabinet.

Opening the cartridge package prior to use dramatically shortens its useful shelf
and operating life. Do not store on the floor. If the toner cartridge is removed
from the printer, follow the instructions below to store the toner cartridge
properly.

• Store the cartridge inside the protective bag from the original package.

• Store lying flat (not standing on end) with the same side facing up as if it
were installed in the machine.

1

Handling instructions

• Do not expose the cartridge to unnecessary vibrations or shock.

2

Toner cartridge usage

Samsung Electronics does not recommend or approve the use of non-Samsung
brand toner cartridges in your printer including generic, store brand, refilled, or
remanufactured toner cartridges.

Samsung’s printer warranty does not cover damage to the machine caused
by the use of a refilled, remanufactured, or non-Samsung brand toner
cartridges.

• Do not store consumables in any of the following conditions:

- Temperature greater than 40°C (104°F).

- Humidity range less than 20% or greater than 80%.

- An environment with extreme changes in humidity or temperature.

- Direct sunlight or room light.

- Dusty places.

- A car for a long period of time.

- An environment where corrosive gases are present.

- An environment with salty air.

3

Estimated cartridge life

Estimated cartridge life (the life of the toner cartridge yield) depends on the
amount of toner that print jobs require. The actual print yield may vary
depending on the print density of the pages you print on, operating
environment, percentage of image area, printing interval, media type and/or
media size. For example, if you print a lot of graphics, the consumption of the
toner is higher and you may need to change the cartridge more often.

3. Maintenance

84

Redistributing toner

When the toner cartridge is near the end of its life:

• White streaks or light printing occurs and/or density varies from side to side.

• The Status LED blinks orange. The toner-related message saying that the toner is low may appear on the display.

• The computer’s Samsung Printing Status program window appears on the computer telling you which color cartridge is low on toner (see "Using Samsung Printer
Status" on page 271).

If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still
occur even after you have redistributed the toner.

Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

• When opening a scan unit, hold the document feeder and scan unit together.

• Printing even after the toner empty status can cause serious damage to your machine.

3. Maintenance

85

Redistributing toner

3. Maintenance

86

Replacing the toner cartridge

When a toner cartridge has reached the end of life, the Printing Status window appears on the computer, indicating the toner cartridge needs to be placed.

• Shake the toner cartridge thoroughly, it will increase the initial print quality.

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.

• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

• When opening a scan unit, hold the document feeder and scan unit together.

• Printing even after the toner empty status can cause serious damage to your machine.

3. Maintenance

87

Replacing the toner cartridge

1

2

3. Maintenance

88

Replacing the imaging unit

When the life span of the imaging unit has expired, the Printing Status window appears on the computer, indicating the imaging unit needs to be placed. Otherwise,
your machine stops printing.

• Don’t use sharp objects such as a knife or scissors to open the imaging unit package. You could damage the surface of the imaging unit.

• Be careful not to scratch the surface of the imaging unit.

• To prevent damage, do not expose the imaging unit to light for more than a few minutes. Cover it with a piece of paper to protect it if necessary.

• Before closing the front cover, make sure all toner cartridges are installed properly.

3. Maintenance

89

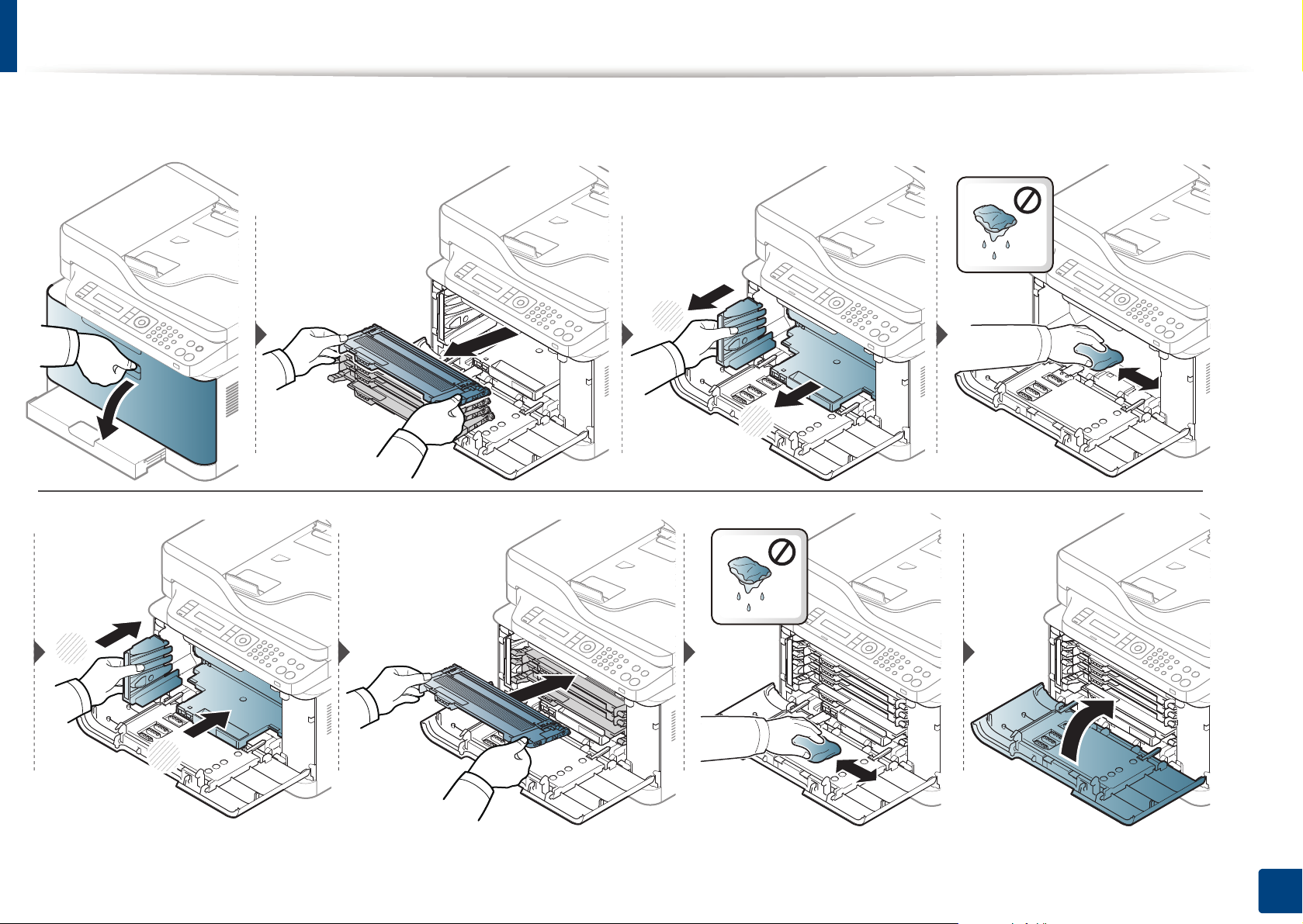

Replacing the imaging unit

3. Maintenance

90

Replacing the waste toner container

When the life span of the waste toner container has expired, waste toner container-related message appears on the screen display of the control panel, indicating
the waste toner container needs to be replaced. Check the waste toner container for your machine (see "Available supplies" on page 82). For information about
installing the waste toner container, refer to the waste toner container installation guide included on the package.

• Toner particles can be released inside the machine but it does not mean the machine is damaged. Contact a service representative when print quality problems
occur.

• When you pull out the waste toner container out of the machine, move the container carefully not to drop it from your hands.

• Make sure that you lay the waste toner container on a flat surface so that the toner does not spill.

Do not tilt or turn over the container.

3. Maintenance

91

Replacing the waste toner container

2

1

3. Maintenance

92

Monitoring the supplies life

If you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if
necessary.

It may be necessary to press OK to navigate to lower-level menus for some models.

Select (Menu) > System Setup > Maintenance > Supplies Life on the control panel.

1

Select the option you want and press OK.

2

Press (Stop/Clear) to return to ready mode.

3

3. Maintenance

93

Setting the toner low alert

If the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not
this message or LED appears.

• You change the machine’s setting set in the machine from Samsung Easy Printer Manager or SyncThru™ Web Service.

- If your machine is connected to the local, you can set the machine’s setting from Samsung Easy Printer Manager > Advanced Setting > Device Settings

(see "Using Samsung Easy Printer Manager" on page 268).

- If your machine is connected to the network, you can set themachine’s setting from SyncThru™ Web Service > Settings tab > Machine Settings (see "Using

SyncThru™ Web Service" on page 265).

• It may be necessary to press OK to navigate to lower-level menus for some models.

Select (Menu) > System Setup > Maintenance > TonerLow Alert on the control panel.

1

Select the option you want.

2

Press OK to save the selection.

3

3. Maintenance

94

Cleaning the machine

If printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing
condition and use your machine longer.

• Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the
cabinet.

• If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum
cleaner, toner blows in the air and might be harmful to you.

4

Cleaning the outside or the display screen

Clean the machine cabinet or the display screen with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into
the machine.

3. Maintenance

95

Cleaning the machine

5

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks
or smearing. Cleaning the inside of the machine clears and reduces these problems.

• To prevent damage to the imaging unit, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

• Do not touch the green area of the imaging unit. Use the handle on the imaging unit to avoid touching this area.

• Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such
as benzene or thinner. Printing quality problems can occur and cause damage to the machine.

• Use a dry lint-free cloth to clean the machine.

• Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before
cleaning the machine.

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

• When opening a scan unit, hold the document feeder and scan unit together.

3. Maintenance

96

Cleaning the machine

1

2

2

1

3. Maintenance

97

Cleaning the machine

6

Cleaning the scan unit

Keeping the scan unit clean helps ensure the best possible copies. We suggest
that you clean the scan unit at the start of each day and during the day as
needed.

• Turn the machine off and unplug the power cord. Wait for the machine
to cool down. If your machine has a power switch, turn the power switch
off before cleaning the machine.

• Illustrations on this user’s guide may differ from your machine
depending on its options or models. Check your machine type (see
"Front view" on page 21).

Slightly dampen a soft, lint-free cloth or paper towel with water.

1

Wipe the surface of the scanner until it is clean and dry.

3

1

2

3

4

5

Lift and open the scanner lid.

2

Close the scanner lid.

4

1 White bar
2 Document feeder glass
3 White sheet
4 Scanner lid
5 Scanner glass

3. Maintenance

98

Tips for moving & storing your machine

• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to
the machine or reduce print quality.

• When moving the machine, make sure at least two people are holding the machine securely.

3. Maintenance

99

4. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Tips for avoiding paper jams 107

• Clearing paper jams 108

• Understanding the status LED 115

• Understanding display messages 117

This chapter gives helpful information for what to do if you encounter an error. If your machine
has a display screen, check the message on the display screen first to solve the error.If you
cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in
the Advanced Guide (see "Troubleshooting" on page 282).If you cannot find a solution in the
User's Guide or the problem persists, call for service.

Tips for avoiding paper jams

By selecting the correct medias, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:

• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 41).

• Do not remove paper from the tray while your machine is printing.

• Flex, fan, and straighten paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix papers in a tray.

• Use only recommended print media (see "Print media specifications" on page 127).

• Perforated or embossed paper does not separate easily. Flex the sheets back and forth to loosen them, and fan them.

Feed single paper from tray if there are multi-feeds or paper jams.

• Grain refers to the alignment of the paper fibers in a sheet of paper. Grain long paper is recommended.

• Do not use rough-edged paper.

4. Troubleshooting

107

Clearing paper jams

When an original document jams in the document feeder, a warning message appears on the display.

To avoid tearing the document, remove the jammed document slowly and carefully.

To prevent document jams, use the scanner glass for thick, thin or mixed paper- originals.

4. Troubleshooting

108

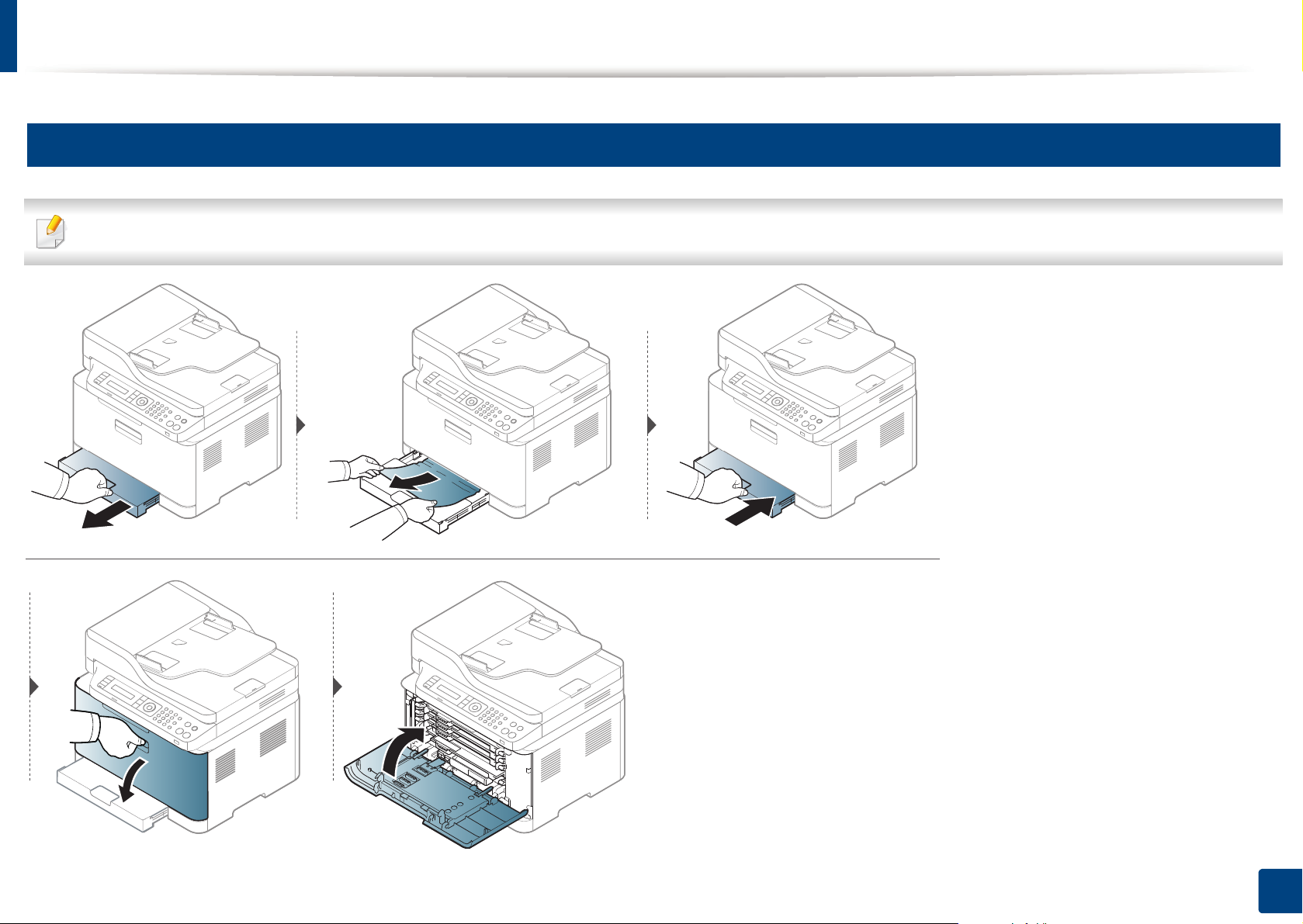

Clearing paper jams

1

In tray

Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

4. Troubleshooting

109

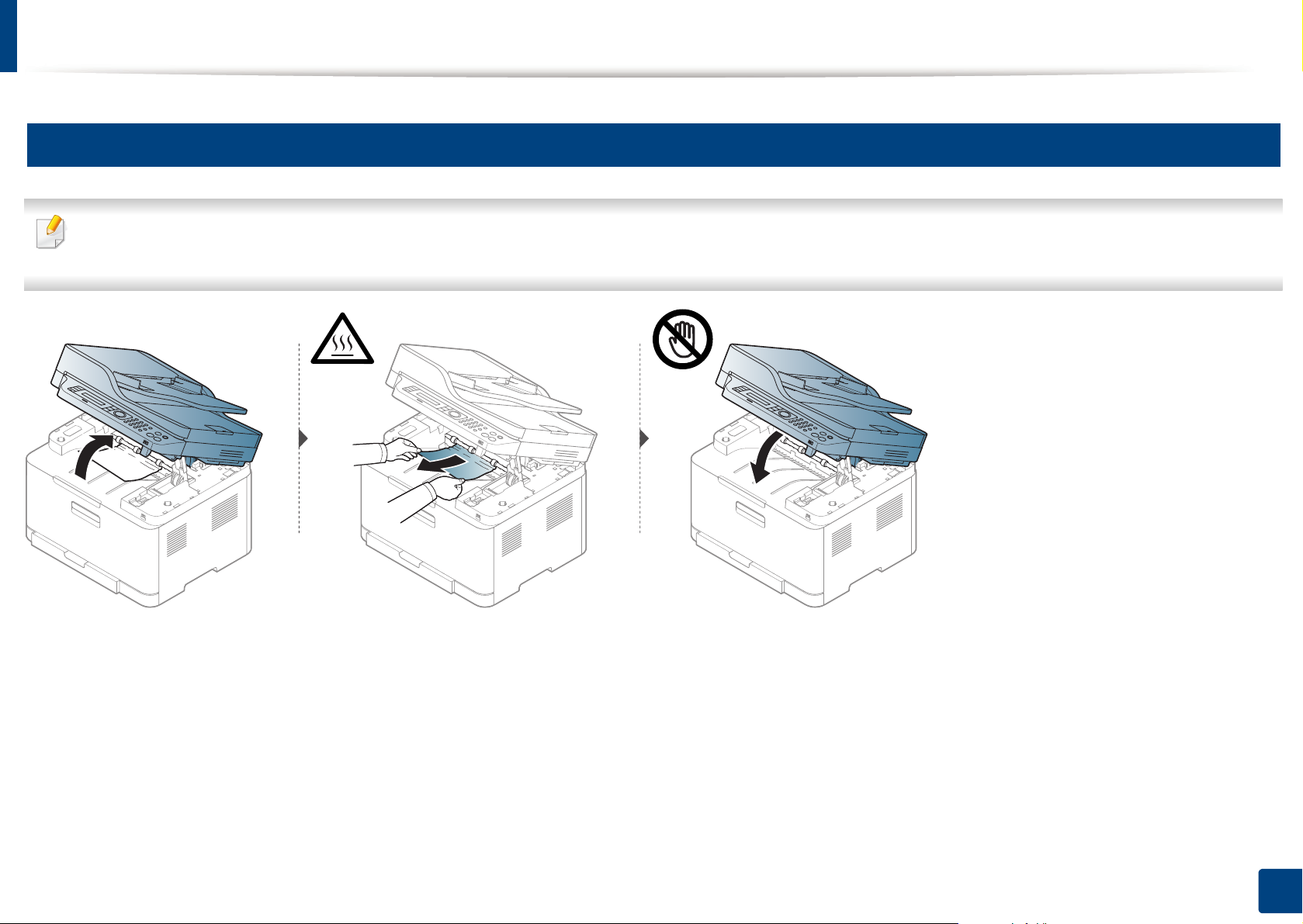

Clearing paper jams

2

Inside the machine

• The fuser area is hot. Take care when removing paper from the machine.

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

4. Troubleshooting

110

Clearing paper jams

3

In exit area

• The fuser area is hot. Take care when removing paper from the machine.

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

4. Troubleshooting

111

Clearing paper jams

4

Original paper jam

Original paper jam in front of scanner

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 10).

4. Troubleshooting

112

Clearing paper jams

Original paper jam inside of scanner

• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 21).

• This troubleshooting may not be available depending on model or optional goods (see "Variety feature" on page 10).

4. Troubleshooting

113
