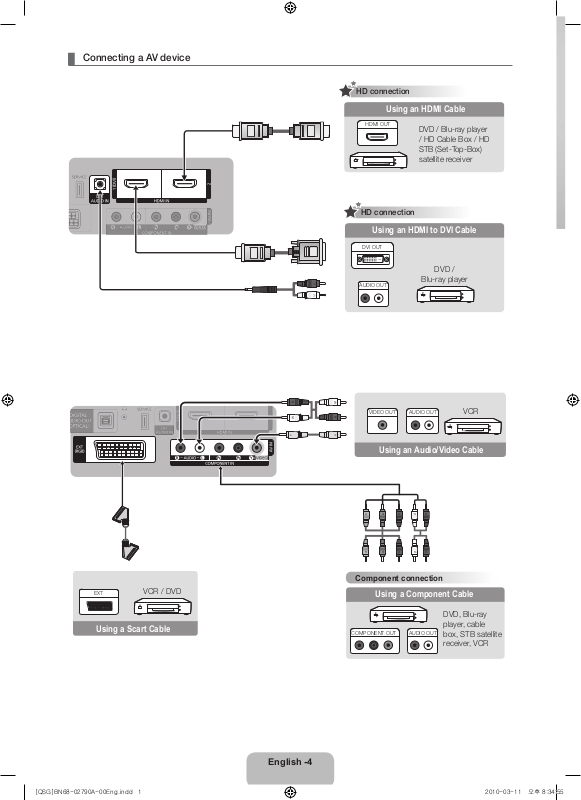

¦¦ Connecting¦a¦AV¦device

W

R

HD¦connection

Using an HDMI Cable

HDMI OUT

HD¦connection

DVD / Blu-ray player
/ HD Cable Box / HD
STB (Set-Top-Box)
satellite receiver

Using an HDMI to DVI Cable

DVI OUT

DVD /

R

W

AUDIO OUT

Blu-ray player

EXT

VCR / DVD

Using a Scart Cable

W R

W R

Y

Y

AUDIO OUTVIDEO OUT

VCR

Using an Audio/Video Cable

B

Component connection

W

RRG

RGB

W

R

Using a Component Cable

DVD, Blu-ray

AUDIO OUTCOMPONENT OUT

player, cable
box, STB satellite
receiver, VCR

English -4

Plasma TV

QUICK SETUP GUIDE

¦¦ The¦Supplied¦Accessories

yRemote Control & Batteries (AAA x 2)
yOwner’s Instructions

yQuick Setup Guide

yBlanking Bracket yFerrite Core (2EA)

See separate guide for installing the stand.

yStand (1EA) yGuide Stand (1EA) yScrews (10EA)

Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core

✎

and clip it around the cable near the plug as shown in the figure.

yDistance between the ferrite core and one end of the cord put into the TV set

yA : below 50 mm
yB : below 20 mm

A

B

yCleaning Cloth
yPower Cord

C

(depending on the country)

(M4 X L16)

yC : 100 ~ 150 mm
yD : below 15 mm

D

(Switzerland only)

English - 1

BN68-02790A-00
