Samsung UN19C4000, UN22C4000, UN26C4000, C4, UN22C4010 User Manual

Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Country
CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca Samsung Electronics Canada Inc., Customer
U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us Samsung Electronics America, Inc.
Customer Care Center
Web Site Address
Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada
Samsung Electronique Canada Inc., Service à la Clientèle 55 Standish Court Mississauga, Ontario L5R 4B2 Canada
105 Challenger Road Ridgeeld Park, NJ 07660-0511

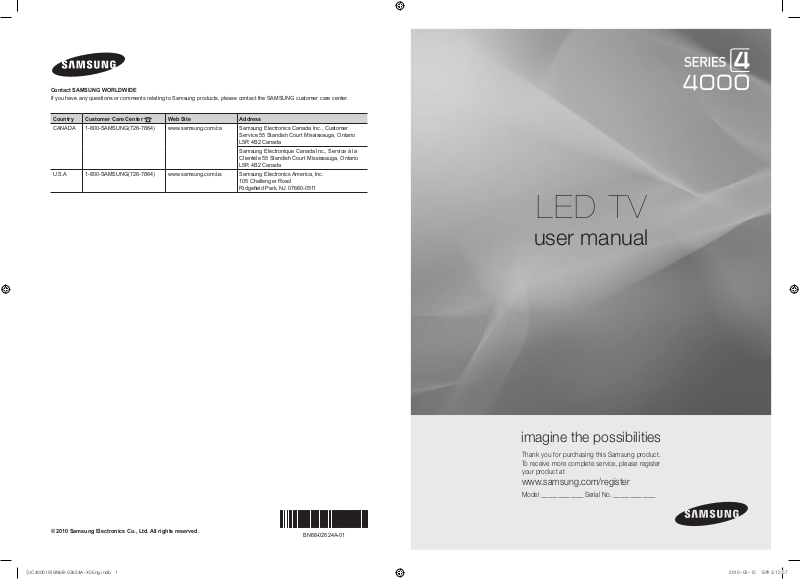

LED TV
user manual
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
imagine the possibilities
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at
Model _____________ Serial No. _____________
BN68-02624A-01
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.
Important Warranty Information Regarding Television Format Viewing
See the warranty card for more information on warranty terms.
Wide screen format LED Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on no expanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LED Displays that leave subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burned in images, are not covered by your Samsung limited warranty.
• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG)
products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited
Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or
replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free: – In the United States : 1-800-SAMSUNG (1-800-726-7864) – In Canada : 1-800-SAMSUNG
Still image warning
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause uneven wear of the screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
When using a stand or wall-mount, use parts provided by Samsung Electronics only.
If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
x
The appearance may differ depending on the product.
Installation with a stand Installation with a wall-mount
2
4 inches
English
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
Contents
Getting Started
y List of Features ......................................................... 4
y Accessories .............................................................. 4
y Install the Stand
(UN19C4000, UN22C4000 / UN22C4010) ............... 5
y Install the Stand (UN26C4000) .................................. 5
y Viewing the Control Panel ......................................... 6
y Viewing the Remote Control ...................................... 7
y Connecting to an Antenna ........................................ 8
y Plug & Play (Initial Setup) ........................................... 8
Connections
y Connecting to an AV Device ...................................... 9
y Connecting to an Audio Device ............................... 10
y Connecting to a PC ................................................ 11
y Changing the Input Source ..................................... 12
Basic Features
y How to Navigate Menus ..........................................12
y Channel Menu ........................................................ 13
Seeing Channels 13 Using Favorite Channels 13 Memorizing channels 14 Editing Channels 14 Other Features 14
y Picture Menu .......................................................... 15
Changing the Preset Picture Mode 15 Adjusting Picture Settings 15 Economical Solutions 16 Changing the Picture Options 16 Setting up the TV with Your PC 18
y Sound Menu ........................................................... 18
Changing the Preset Sound Mode 18 Adjusting Sound Settings 18 Sound Settings 18
y Setup Menu ............................................................ 19
Setting the Time 19 Using the Sleep Timer 20 Setting the On / Off Timer 20
Locking Programs 20 Other Features 22 Picture In Picture (PIP) 23
y Support Menu .........................................................23
Advanced Features
y Media Play .............................................................. 25
Connecting a USB Device 25 Screen Display 26 Playing Multiple Files 29 Media Play - Additional Functions 29
y Anynet+ .................................................................31
Setting Up Anynet+ 32 Switching between Anynet+ Devices 32 Recording 32 Listening through a Receiver 33 Troubleshooting for Anynet+ 33
Other Information
y Assembling the Cables ........................................... 34
y Installing the Wall Mount ......................................... 34
y Anti-theft Kensington Lock ...................................... 36
y Securing the TV to the Wall ..................................... 36
To Avoid the TV from Falling 36
y Troubleshooting ...................................................... 37
License 39
y Specifications ......................................................... 40
y Dimensions ............................................................. 41
y Index ...................................................................... 42
ENGLISH
TOOLS
This function can be used by pressing the
TOOLS button on the remote control.
Check the Symbol!
Note
Indicates additional information.
Step by Step Guide
Check here for instructions on how to open
the relevant submenu within the OSD (on
screen display).
English
3

Getting Started

Getting Started

List of Features

y Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver (Set-Top Box). y Media Play: Allows you to play music files, pictures, and movies saved on a USB device (p. 25). y Self Diagnosis: You can check to make sure picture and sound operate normally (p. 23).

Accessories

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.
The items' colors and shapes may var y depending on the models.
y Remote Control (BN59-00996A) & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide / Quick Setup Guide
(M4 X L8)
Blanking Bracket (BN63-06542B) Cable Tie
(26 inch model Only) (BN61-05596A)
y Cleaning Cloth (BN63-01798B) y Power Cord (3903-000527)
Holder-Wire stand
(BN61-05596A)
(26 inch model Only)
For best cable connection to this product, be sure to use cables with a maximum thickness as below:
y Maximum thickness - 0.55 inches (14mm)
Input Cables (Sold Separately)
HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA
Holder-Wire (3EA)
(BN61-05373A)
(26 inch model Only)
Holder-Ring (4EA)
BN61-05280A
(26 inch model Only)
4
English
Install the Stand (UN19C4000, UN22C4000 / UN22C4010)
See separate guide for installing the stand.
Stand Base Stand Body
Follow the steps below to connect the TV to the stand.
RELEASE
01 Getting Started
LOCK
1. Insert the stand body into the stand base.
NOTE
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Lay the product down, with the screen facing up and fasten the screws.
x
2. Screw the stand base to the stand body.
3. Slide the TV onto the stand body.
Install the Stand (UN26C4000)
See separate guide for installing the stand.
s
Stand (1EA) Guide Stand (1EA) Screws (10EA)
Follow the steps below to connect the TV to the stand.
Top view
Screws (M4 X L12)
Guide Stand
Stand
s
s
s
s
s
Rear
1. Connect the Guide Stand to the Stand
2. With your TV upright,
using four screws (M4 X L12) as shown.
s
s
s
s
s
s
s
s
s
connect the TV to the Stand as shown.
(A)
(B)
2
1
3. Fasten two screws (M4 X
L8) at position 1, and then fasten three screws (M4 X L8) at position 2.
5EA (M4 X L12)
5EA (M4 X L8)
s
s
s
s
s
NOTE
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
x
Make sure that at least two persons lift and move the LED TV.
x
Stand the product up and fasten the screws. If you fasten the screws with the LED TV placed down, it may lean to
x
one side.
English
5
Getting Started

Viewing the Control Panel

The product color and shape may vary depending on the model.
Power Indicator
Speakers
Remote control sensor Aim the remote control towards this spot on the TV.
SOURCE
MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
(Power)
Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.
Adjusts the volume. In the OSD, use the and buttons on the remote control.
Changes the channels. In the OSD, use the and buttons on the remote control.
Turns the TV on or off.
Remote control sensor
buttons as you would use the
buttons as you would use the
6
English

Viewing the Remote Control

This is a special remote control for the visually impaired and has Braille points on the Power, Channel and Volume buttons.
POWER SOURCE
Turns the TV on and off
01 Getting Started
Selects the HDMI mode directly.
Press to directly access channels.
Press to select additional channels
(digital) being broadcasted by the same
station. For example, to select channel
"54-3", press "54", then press" - "and
"3".
Adjusts the volume.
Brings up the OSD.
Displays Media Play (p. 25).
Quickly select frequently used functions.
Returns to the previous menu.
Buttons used in the Channel List,
Media Play menu, etc.
Use these buttons in Media Play and
Anynet+ modes (p. 25, 31).
(: Controls recording for Samsung
recorders that have the Anynet+ feature)
HDMI
CHLIST
MENU
MEDIA.P
TOOLS
RETURN
A B C D
S.MODE
P.MODE
SLEEP
P.SIZE
PRE-CH
FAV.CH
INFO
EXIT
MTS
CC
Displays and selects the available video sources (p. 12).
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the channel list on the screen (p. 13).
Displays Favorite Channel Lists on the screen (p. 13).
Displays information on the TV screen.
Selects the on-screen menu items and changes the values seen on the menu.
Exits the menu.
S.MODE: Press to select the sound
mode (p. 18).
SLEEP: Automatically shuts off the TV at
a preset time (p. 20).
MTS: Press to choose stereo, mono
or Separate Audio Program (SAP broadcast) (p. 19).
P.MODE: Press to select the picture
mode (p. 15).
P.SIZE: Selects the picture size (p. 17). CC: Controls the caption decoder (p.
22).
Installing batteries (Battery size: AA A)
NOTE
Use the remote control within 23 feet from the TV.
x
Bright light may affect the per formance of the remote
x
control. Avoid use when nearby fluorescent lights or neon signs.
The color and shape may vary depending on the model.
x
English
7
Getting Started

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.
Connecting the power cord and antenna.
If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port properly.
VHF/UHF Antenna
Antenna Cable (Not Supplied)
or
Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER button. Plug & Play is available only when the Input source is set to TV.
To return to the previous step, press the Red button.
Selecting a language
1
Selecting Store Demo
2
or Home Use
Selecting an antenna
Press the or button, then press the ENTER button. Select the desired OSD (On Screen Display) language.
Press the or button, then press the ENTER
y Select the Home Use mode. Store Demo Mode is for retail
environments.
y To return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.
Press the or button, then press the ENTER
button.
button. Select Air, Cable or Auto.
Cable
ANT OUT
POWER
P
3
Selecting a channel
4
Setting the Clock
5
Mode
Viewing the HD
6
Connection Guide. Enjoy your TV.
Press the or button, then press the ENTER button. Select the channel source to memorize. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel Auto Program
Press the ENTER button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
y Auto: Allows you to select DST (Daylight Saving Time) mode and time zone. y Manual: Allows you to manually set the current date and time. y The connection method for the best HD screen quality is displayed.
Press the ENTER
button.
(p. 14).
(p. 19).
7
If You Want to Reset This Feature...
MENU Setup Plug & Play ENTER
English
8

Connections

Connecting to an AV Device
Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
02 Connections
HDMI OUT
WR
Red White
HDMI IN 1(DVI), 2, PC/DVI AUDIO IN
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack for video. A DVD, Blu-ray
x
player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter. The PC/DVI AUDIO IN jack is required for audio.
If an external device such as a DVD / Blu-ray player / HD cable box / HD STB satellite receiver supporting
x
HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal color).
If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you
x
suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.
It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a
x
connection error may occur.
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: Digital Audio System, Amplifier, Home Theater
HDMI Cable (Not Supplied)
HDMI to DVI Cable (Not Supplied)
Audio Cable (Not Supplied)
Device
DVI OUT
AUDIO OUT
R-AUDIO-L
Device
Video Cable (Not Supplied)
W
R
Red RedRedWhite BlueWhiteYellow Green
COMPONENT IN / AV IN: When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not
Y
Device Device
VIDEO OUT
W
Y
Y
R
W
R
AUDIO OUT
R-AUDIO-L
Audio Cable (Not Supplied)
AUDIO OUT
R-AUDIO-L
WR R GB
RGB W R
COMPONENT OUT
PR
Component Cable (Not Supplied)
RGBWR
PB Y
match the video cable (yellow).
For better picture quality, the Component connection is recomended over the A/V connection.
If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port properly.
English
9
Connections
R-AUDIO-L

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analog) Cable or Headphone Connection
Available devices: Digital Audio System, Amplifier, DVD Home Theater
UN19C4000, UN22C4000
Headphone
Optical Cable (Not Supplied)
UN26C4000
Audio Cable (Not Supplied)
WR
Red White
DIGITAL AUDIO OUT (OPTICAL)
When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
x
of both the TV and the system.
5.1 CH (channel) audio is available when the T V is connected to an external device supporting 5.1 CH.
x
When the receiver amplifier or DVD home theater is set to on, you can hear sound output from the TV’s optical
x
jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theater. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top­Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theater. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theater.
HEADPHONE : You can connect your headphones to the headphones output on your set. While the
headphones are connected, the sound from the built-in speakers will be disabled.
Sound function may be restricted when connecting headphones to the TV.
x
Headphone volume and TV volume are adjusted separately.
x
AUDIO OUT: Connects to the audio input jacks on your amplifier/home theater.
When connecting, use the appropriate connector.
x
When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the
x
volume level with the amplifier’s volume control.
Optical Cable (Not Supplied)
Digital Audio System
OPTICAL
AUDIO IN
OPTICAL
DVD home theater
Digital Audio System
Amplifier /
10
English
Using an EX-Link Cable Connection
Available Devices: External devices that support EX-Link
EX-LINK: Connector for service only.

Connecting to a PC

Using an HDMI/DVI cable or a D-sub cable
02 Connections
HDMI to DVI Cable (Not Supplied)
Audio Cable (Not Supplied)
D-Sub Cable (Not Supplied)
DVI OUT
AUDIO OUT
AUDIO OUT
PC OUT
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1360 x 768 @ 60 Hz.
Mode Resolution
IBM
MAC
VESA CVT
VESA DMT
VESA GTF 1280 x 720 52.500 70.000 89.040 -/+
640 x 350 720 x 400
640 x 480 832 x 624
720 x 576
1280 x 720
640 x 480 640 x 480 640 x 480 800 x 600 800 x 600
800 x 600 1024 x 768 1024 x 768 1024 x 768 1280 x 720 1360 x 768
Horizontal Frequency
(KHz)
31.469
31.469
35.000
49.726
35.910
56.456
31.469
37.500
37.861
37.879
46.875
48.077
48.363
56.476
60.023
45.000
47.712
Vertical Frequency
(Hz)
70.086
70.087
66.667
74.551
59.950
74.777
59.940
75.000
72.809
60.317
75.000
72.188
60.004
70.069
75.029
60.000
60.015
Pixel Clock Frequency
(MHz)
25.175
28.322
30.240
57.284
32.750
95.750
25.175
31.500
31.500
40.000
49.500
50.000
65.000
75.000
78.750
74.250
85.500
Sync Polarity
(H / V)
+/-
-/+
-/-
-/-
-/+
-/+
-/-
-/-
-/­+/+ +/+ +/+
-/-
-/­+/+ +/+ +/+
NOTE
For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.
x
The interlace mode is not supported.
x
The set might operate abnormally if a non-standard video format is selected.
x
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
x
English
11
Connections
HLIS
T
S
SOURCE
RE-CH
P
O
WER
SOURCE

Changing the Input Source

Source List
Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.
MENU Input Source List
ENTER
■ TV / PC / AV / Component / HDMI1/DVI /
HDMI2 / USB
You can only choose external devices that are connected to the TV. In the Source List, connected inputs will be highlighted.
In the Source List, PC is always activated.

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.
MENU
1
2
3
1 MENU button: Displays the main on-screen menu. 2 ENTER
3 RETURN button: Returns to the previous menu. 4 EXIT button: Exits the on-screen menu.
select an item. Confirm the setting.
.
TOOL
RETURN
/ Direction button: Move the cursor and
AV.CH
INF
EXIT
EXIT
4
Edit Name
MENU Input Edit Name ENTER
■ VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:
Name the device connected to the input jacks to make your input source selection easier.
When a PC with a resolution of 1360 x 768 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set to DIV PC mode under Edit Name.
When connecting an HDMI/DVI cable to the
HDMI IN 1(DVI) port, you should set to DVI PC or DVI
Devices mode under Edit Name.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
MENU
1
/ Select an icon with the or
2
ENTER
3
/
4
/
5
ENTER
6
EXIT
The main menu options appear on the screen:
Picture, Sound, Channel, Setup, Input, Application, Support.
button. Press ENTER to access the
sub-menu. Select the desired submenu with
the or button. Adjust the value of an item with the
or button. The adjustment in the OSD may differ depending on the selected menu.
Press ENTER to confirm the selection.
Press EXIT.
7
12
English

Channel Menu

B
 Seeing Channels
Channel List
Add, delete or set Favorite channels and use the program guide for digital broadcasts.
MENU → Channel → Channel List
ENTER
Select a channel in the All Channels, Added Channels, Favorite or Programmed
screen by pressing the / and ENTER buttons. Then you can watch the selected channel.
Added Channels
6 Air 6-1 * TV #6
7 Air
8 Air 9 Air
9-1 * TV #9 10 Air
10-1 * TV #10 11-1 * TV #11
Air Antenna B Zoom Select Page
All Channels: Shows all currently available channels.
Added Channels: Shows all added channels.
Favorite: Shows all favorite channels.
Programmed: Shows all currently reserved
programs.
Using the color buttons with the Channel List
Red (Antenna): Switches to Air or Cable.
x
Green (Zoom): Enlarges or shrinks a channel
x
number.
Yellow (Select): Selects multiple channel lists.
x
Select desired channels and press the Yellow button to set all the selected channels at the same time. The
mark appears to the left of the selected channels.
(Page): Move to next or previous page.
x
(Tools): Displays the Channel List option menu.
x
(The options menus may differ depending on the situation.)
CH LIST

Tools
Channel Status Display Icons
Icons Operations
A channel selected.
A channel set as a Favorite.
A reserved Program.

Using Favorite Channels

MENU Channel Channel List ENTER
Add to Favorite / Delete from Favorite
Set channels you watch frequently as Favorites.
1. Select a channel and press the TOOLS button.
2. Add or delete a channel using the Add to Favorite or Delete from Favorite menu respectively.
Added Channels
To show all Favorite channels, click on the button shown on the right.
6 Air 6-1 * TV #6
7 Air
8 Air 9 Air
9-1 * TV #9 10 Air
10-1 * TV #10 11-1 * TV #11
Air Antenna B Zoom Select Page
Delete
Add to Favorite Timer Viewing Channel Name Edit Select All

Tools
FAV.CH
03 Basic Features
English
13
Loading...
+ 30 hidden pages
