LCD TV

user manual

BN68-01541A-01

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

Important Warranty Information Regarding Television Format Viewing

Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week. Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture sizing features, use these controls to view different formats as a full screen picture. Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.

U.S.A Only

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,991,715, 5,740,317, 4,972,484, 5,214,678, 5,323,396, 5,539,829, 5,606,618, 5,530,655, 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960,037, 6,023,490, 5,878,080, and under US Published Patent Application No. 2001-44713-A1. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Other countries

The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT

Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.

The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser.

Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product.

Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables.

For the location of a SAMSUNG Authorized Service Center, please call toll-free:

In the United States : 1-800-SAMSUNG (1-800-726-7864) In Canada : 1-800-SAMSUNG

See the warranty card for more information on warranty terms.

➣

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Contents

English

GENERAL INFORMATION

List of Features ............................................................................. 2

■

Accessories ..................................................................................2

■

Viewing the Control Panel ...........................................................3

■

Viewing the Connection Panel ....................................................4

■

Remote Control ............................................................................ 5

■

Installing Batteries in the Remote Control ....................................6

■

CONNECTIONS

Connecting VHF and UHF Antennas ............................................6

■

Connecting Cable TV ................................................................... 7

■

Connecting a DVD Player or Cable Box/Satellite receiver

■

(Set-Top Box) via HDMI ................................................................8

Connecting a DVD Player or Cable Box/Satellite receiver

■

(Set-Top Box) via DVI ...................................................................8

Connecting a DVD Player or Cable Box/Satellite receiver

■

(Set-Top Box) via Component cables ........................................... 9

Connecting a Camcorder ............................................................9

■

Connecting a VCR ...................................................................... 10

■

Connecting a Digital Audio System ............................................ 11

■

Connecting an Amplier/DVD Home Theater ............................. 11

■

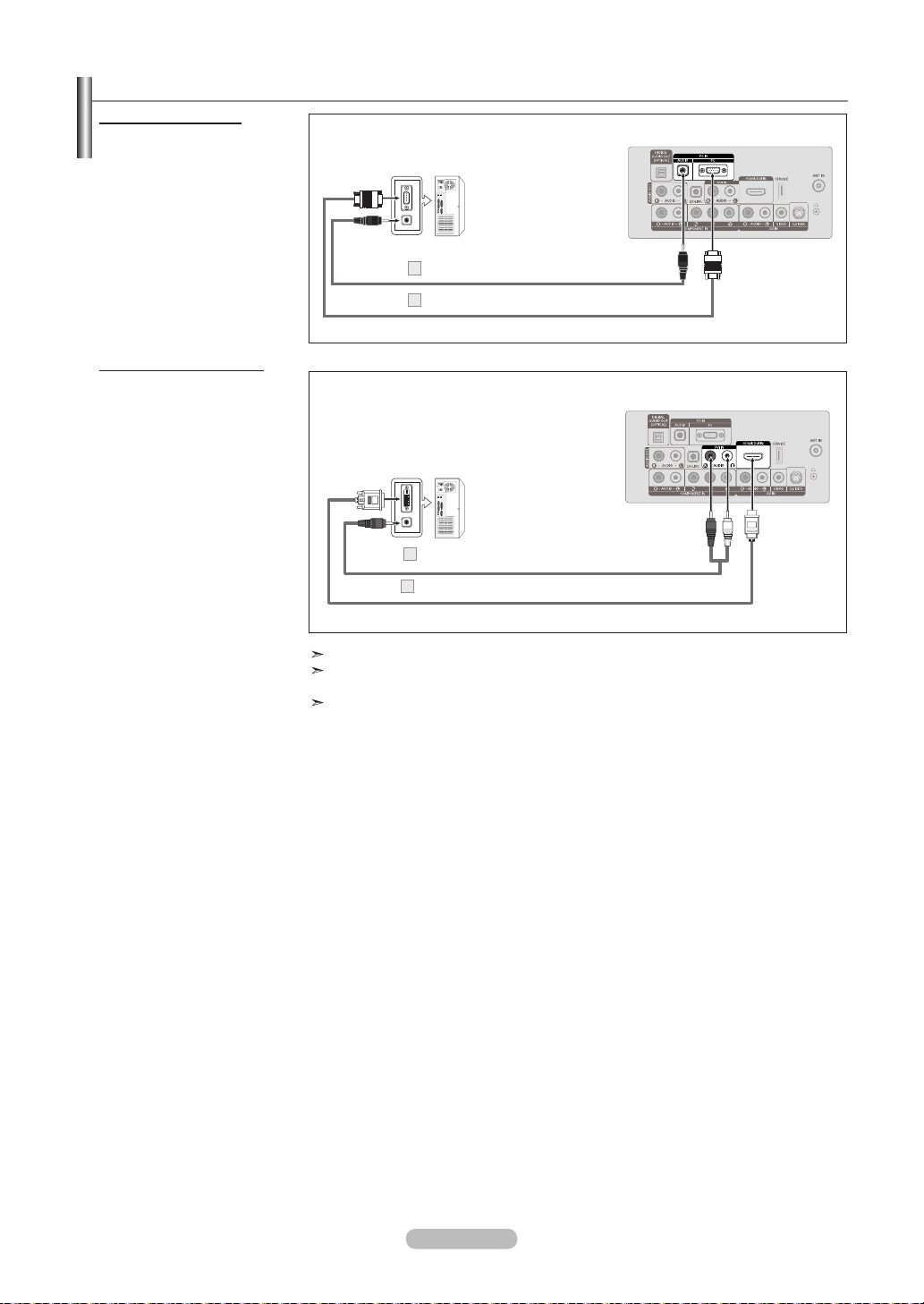

Connecting a PC ........................................................................ 12

■

OPERATION

Turning the TV On and Off .........................................................13

■

Plug & Play Feature ...................................................................13

■

Changing Channels .................................................................... 14

■

Adjusting the Volume ..................................................................15

■

Viewing the Display ....................................................................15

■

Viewing the Menus .....................................................................15

■

Using the TOOLS Button ............................................................ 16

■

Memorizing the Channels ........................................................... 16

■

To Select the Source ..................................................................18

■

To Edit the Input Source Name ..................................................18

■

PICTURE CONTROL

Changing the Picture Standard .................................................. 19

■

Customizing the Picture Settings ...............................................19

■

Conguring Picture Options .......................................................20

■

Resetting the Picture Settings to the Factory Defaults ............... 23

■

SOUND CONTROL

Changing the Sound Standard ...................................................24

■

Customizing the Sound .............................................................. 24

■

Setting the TruSurround XT ........................................................25

■

Choosing a Multi-Channel Sound (MTS) track - Digital ............. 25

■

Choosing a Multi-Channel Sound (MTS) track - Analog ............26

■

Automatic Volume Control .......................................................... 26

■

Setting the TV Speakers On/Off ................................................. 27

■

Connecting Headphones (Sold separately) ................................ 27

■

CHANNEL CONTROL

Clearing Scrambled Channels - Digital ......................................28

■

Adding and Erasing Channels .................................................... 29

■

To Set-Up Your Favorite Channels ............................................. 30

■

Viewing the Channel Lists .......................................................... 31

■

Labeling Channels ...................................................................... 32

■

Fine Tuning Analog Channels .................................................... 33

■

Checking the Digital-Signal Strength .......................................... 33

■

PC DISPLAY

Using Your TV as a Computer (PC) Display ............................... 34

■

Display Modes ............................................................................ 34

■

Setting up the TV with your PC .................................................. 35

■

TIME SETTING

Setting the Clock ........................................................................ 37

■

FUNCTION DESCRIPTION

Selecting a Menu Language ....................................................... 40

■

Using the V-Chip ........................................................................ 41

■

Viewing Closed Captions (On-Screen Text Messages)

■

- Analog ...................................................................................... 48

Viewing Closed Captions (On-Screen Text Messages)

■

- Digital .......................................................................................49

Adjusting the TV On/Off Melody Sound......................................50

■

Using the Energy Saving Feature ..............................................50

■

Upgrading the Software .............................................................. 51

■

APPENDIX

Troubleshooting .......................................................................... 52

■

How to Adjust the Stand (LN19A650A1D) ..................................54

■

How to Adjust the Angle of the TV (LN19A650A1D) .................. 54

■

Installing the Wall Mount Kit (LN19A650A1D) ............................ 54

■

Installing VESA Compliant Mounting Devices

■

(

LN19A650A1D

Using the Decoration Covers (LN19A650A1D) .......................... 54

■

Installing the Stand ..................................................................... 55

■

Disconnecting the Stand ............................................................55

■

Wall Mount Kit Specications (VESA) ........................................ 56

■

Using the Anti-Theft Kensington Lock ........................................ 57

■

Specications ............................................................................. 58

■

) .................................................................... 54

English - 1

Symbol Press Note One-Touch

Button

General Information

List of Features

 Adjustable picture settings that can be stored in the TV’s memory.  Automatic timer to turn the TV on and off.  A special sleep timer.  Excellent Digital Interface & Networking :

With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver

(Set-Top Box) needed.

 HDMI/DVI connection of your PC to this TV.  Excellent Picture Quality  SRS TruSurround XT

- SRS TruSurround XT provides a virtual surround system.

Accessories

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

Remote Control & Batteries

(AAA x 2)

(BN59-00678A)

Warranty Card / Registration Card /

Safety Guide Manual

(Not available in all locations)

Stand Screw(M4XL16)

(LN22A650A1D: 6002-001294)

The items color and shape may vary depending on the model.

Power Cord

(3903-000144)

Cover-Bottom

(LN22A650A1D: BN63-04269A)

Wall Mount kit

(LN19A650A1D: BN96-04960A)

Cleaning Cloth

(BN63-01798B)

Owner’s Instructions

Stand (LN19A650A1D: BN96-04794C) (LN22A650A1D: BN96-06463C)

Decoration Cover

LN19A650A1D: Right - BN63-04242A

Left - BN63-04254A

English - 2

Viewing the Control Panel

8 8

5 6

Buttons on the Lower-Right Part of the Panel

The buttons on the lower-right panel control your TV’s basic features, including the on-screen menu. To use the more advanced features, you must use the remote control.

Front Panel buttons

Touch each button to operate.

The product color and shape may vary depending on the model.

SOURCE

Toggles between all the available input sources (TV, AV, S-Video, Component, PC, HDMI). In the on-screen

menu, use this button as you would use the ENTER button on the remote control.

Press to see an on-screen menu of your TV’s features.

– VOL +

Press to increase or decrease the volume. In the on-screen menu, use the – VOL + buttons as you

would use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the CH buttons as you

would use the ▼ and ▲ buttons on the remote control.

POWER INDICATOR

Blinks and turns off when the power is on and lights up in stand-by mode.

(POWER)

Press to turn the TV on and off.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

SPEAKERS

English - 3

Viewing the Connection Panel

Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a VCR. For more information on connecting equipment, see pages 6~12.

The product color and shape may vary depending on the model.

AUDIO OUT

Connects to the audio input jacks on your Amplifier/

Home theater.

2 DIGITAL AUDIO OUT (OPTICAL) Connects to a Digital Audio component.

3 PC IN [PC] / [AUDIO] Connects to the video and audio output jacks on your

PC.

4 HDMI/DVI IN / DVI IN [R-AUDIO-L] Connects to the HDMI jack of a device with an HDMI

output. Use the HDMI/DVI IN jack for DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for video connection and the DVI IN [R-AUDIO-L] jacks for audio.

- No sound connection is needed for an HDMI to HDMI connection.

- When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack.

SERVICE, EX-LINK

Connector for SERVICE only.

6 ANT IN Connects to an antenna or cable TV system.

KENSINGTON LOCK

The Kensington Lock (optional) is a device used to

physically fix the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV.

The location of the Kensington Lock may be different depending on its model.

(HEADPHONE)

Connects a set of external headphones for private

listening.

9 AV IN Video and audio inputs for external devices, such as a

camcorder or VCR. S-VIDEO Connects an S-Video signal from a camcorder or VCR.

0 COMPONENT IN The COMPONENT IN jack is also used as the AV IN

jack.

! POWER INPUT Connects the supplied power cord.

English - 4

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.

POWER

Turns the TV on and off.

Selects the TV mode directly.

NUMERIC BUTTONS

Press to change the channel.

Press to select additional channels(digital and analog) being broadcast by the same station. For example, to select channel “54-3”, press “54”, then press “ ” and “3”.

5 (

MUTE)

Press to temporarily cut off the

sound.

VOL / VOL

Press to increase or decrease

the volume.

7 TOOLS Use to quickly select frequently

used functions.

8 UP▲ / DOWN▼ / LEFT◄ /

RIGHT► / ENTER

Use to select on-screen menu

items and change menu values.

9 INFO Press to display information on

the TV screen.

COLOR BUTTONS

Use these buttons in the

Channel list, etc.

Controls the caption decoder.

@ MTS

Press to choose stereo, mono

or Separate Audio Program (SAP broadcast).

SOURCE

Press to display and select the

available video sources.

PRE-CH

Tunes to the previous channel.

% CH / CH

Press to change channels.

RETURN

Returns to the previous menu.

& EXIT Press to exit the menu.

SRS

Selects SRS TruSurround XT

mode.

(

Displays the main on-screen

menu.

) FAV.CH

Press to switch to your favorite channels.

a P.SIZE

Picture size selection.

The performance of the remote control may be affected by bright light.

English - 5

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

3. Replace the cover. Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries should last for about one year.)

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special fluorescent light or neon sign nearby?

Connections

Connecting VHF and UHF Antennas

If your antenna has a set of leads that look like the diagram to the right, see "Antennas with

300 Ω Flat Twin Leads" below.

If your antenna has one lead that looks like the diagram to the right, see "Antennas with 75 Ω Round Leads". If you have two antennas, see "Separate VHF and UHF Antennas".

Antennas with 300 Ω Flat Twin Leads

If you are using an off-air antenna (such as a roof antenna or "rabbit ears") that has 300 Ω twin at leads, follow the directions

below.

1. Place the wires from the twin leads under the screws on a 300-75 Ω adapter

(not supplied). Use a screwdriver to tighten the screws.

2. Plug the adaptor into the ANT IN terminal on the back of the TV.

ANT IN

Antennas with 75 Ω Round Leads

1. Plug the antenna lead into the ANT IN terminal on the back of the TV.

ANT IN

Separate VHF and UHF Antennas

If you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).

1. Connect both antenna leads to the combiner.

UHF

VHF

2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.

English - 6

ANT IN

UHF

VHF

Connecting Cable TV

To connect to a cable TV system, follow the instructions below.

Cable without a Cable Box

1. Plug the incoming cable into the ANT IN terminal on the back of the TV.

Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.

ANT IN

Connecting to a Cable Box that Descrambles All Channels

1. Find the cable that is connected to the ANT OUT terminal on your cable box.

This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".

ANT IN

ANT OUT

2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.

ANT IN

Connecting to a Cable Box that Descrambles Some Channels

If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need a twoway splitter, an RF (A/B) switch and four lengths of RF cable. (These items are available at most electronics stores.)

1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.

This terminal might be labeled "ANT IN", "VHF IN" or simply, "IN".

ANT IN

2. Connect this cable to a two-way splitter.

Incoming

cable

Splitter

3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.

Incoming

cable

Splitter

Cable Box

4. Connect an RF cable between the ANT OUT terminal on the cable box and the B–IN terminal on the RF(A/B) switch.

Incoming

cable

Splitter

Cable Box

RF (A/B)

Switch

5. Connect another cable between the other OUT terminal on the splitter and the A–IN terminal on the RF (A/B) switch.

Incoming

cable

Splitter

Cable Box

RF (A/B)

Switch

6. Connect the last RF cable between the OUT terminal on the RF (A/B) switch and

ANT IN

the ANT IN terminal on the rear of the TV.

Incoming

cable

Splitter

Cable Box

RF (A/B)

Switch

TV Rear

After you have made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your TV to the cable box’s output channel, which is usually channel 3 or 4.)

English - 7

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI

This connection can only be made if there is an HDMI Output connector on the external device.

1. Connect an HDMI Cable

between the HDMI/DVI IN jack on the TV and the HDMI jack

DVD Player or Cable Box/Satellite receiver

(Set-Top Box) Rear Panel

TV Rear Panel

on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

HDMI Cable (Not supplied)

What is HDMI?

• HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals using a single cable.

• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed.

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration.

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via DVI

This connection can only be made if there is a DVI Output connector on the external device.

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI/DVI IN jack on the TV and the DVI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top

DVD Player or Cable Box/

Satellite receiver (Set-Top Box)

Box).

2. Connect Audio Cables between the DVI IN [R-AUDIO-L] jack on the TV and the DVD Player or Cable

Audio Cable

(Not supplied)

Box/Satellite receiver (Set-Top Box).

DVI to HDMI Cable (Not supplied)1

Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack.

TV Rear Panel

English - 8

Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables

The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV.

1. Connect a Component Cable between the COMPONENT IN [Y, PB, PR] jacks on the TV and the COMPONENT [Y, PB, PR] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

2. Connect Audio Cables between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

Component Cable (Not supplied)

Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality. Be sure to match the component video and audio connections. For example, if connecting a Component video cable to COMPONENT IN, connect the audio cable to COMPONENT IN also. Each DVD Player or Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. When connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box), match the color of the connection terminal to the cable.

TV Rear Panel

Connecting a Camcorder

They allow you to view the camcorder tapes without using a VCR.

1. Connect a Video Cable (or S-Video Cable) between the AV IN [VIDEO] (or S-VIDEO) jack on the TV and the VIDEO OUT jack on the camcorder.

2. Connect Audio Cables between the AV IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the camcorder.

Camcorder

Each Camcorder has a different back panel configuration. When connecting a Camcorder, match the color of the connection terminal to the cable.

Audio Cable (Not supplied)

Video Cable (Not supplied)

S-Video Cable (Not supplied)

TV Rear Panel

English - 9

Connecting a VCR

Video Connection

These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6~7). Skip step 1 if you have not yet connected to an antenna or a cable system.

1. Unplug the cable or antenna from the back of the TV.

2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.

3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.

4. Connect a Video Cable between the VIDEO OUT jack on the VCR and the AV IN [VIDEO] jack on the TV.

5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L] jacks on the TV.

If you have a “mono”

(non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the TV. If your VCRis stereo, you must connect two cables.

VCR Rear Panel

Audio Cable (Not supplied)

Video Cable (Not supplied)4

RF Cable (Not supplied)3

Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.

Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.

ANT IN

TV Rear Panel

S-Video Connection

Your Samsung TV can be connected to an S-Video jack on a VCR. (This connection delivers a better picture when compared to the regular Video connection above.)

1. To begin, follow steps 1–3 in the previous section to

TV Rear Panel

connect the antenna or cable to your VCR and your TV.

VCR Rear Panel

2. Connect an S-Video Cable between the S-VIDEO OUT jack on the VCR and the AV IN [S-VIDEO] jack on the TV.

3. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L] jacks on the TV.

Audio Cable (Not supplied)

S-Video Cable (Not supplied)2

RF Cable (Not supplied)1

An S-Video cable may be included with a VCR. (If not, check your local electronics store.)

Each VCR has a different back panel configuration. When connecting a VCR, match the color of the connection terminal to the cable.

English - 10

Connecting a Digital Audio System

The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.

1. Connect an Optical Cable between the “DIGITAL AUDIO OUT (OPTICAL)” jacks on the

Digital Audio System

TV Rear Panel

TV and the Digital Audio Input jacks on the Digital Audio System.

When a Digital Audio System

is connected to the “DIGITAL AUDIO OUT (OPTICAL)” jack: Decrease the volume of the

Optical Cable (Not supplied)

TV and adjust the volume level with the system’s volume control.

5.1CH audio is possible when the TV is connected to an external device supporting 5.1CH. Each Digital Audio System has a different back panel configuration.

When the receiver (home theater) is set to On, you can hear sound output from the TV’s

Optical jack. When the TV is displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box directly to an Amplifier or Home Theater, not the TV.

Connecting an Amplier/DVD Home Theater

1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and AUDIO IN [R-AUDIO-L] jacks on the Amplifier/DVD Home Theater.

When an audio amplifier is

connected to the "AUDIO OUT [R-AUDIO-L]" jacks: Decrease the volume of the TV and adjust the volume level with the Amplifier’s volume control.

Amplier/DVD Home Theater

Audio Cable (Not supplied)

TV Rear Panel

Each Amplifier/DVD Home Theater has a different back panel configuration. When connecting an Amplifier/DVD Home Theater, match the color of the connection

terminal to the cable.

English - 11

Connecting a PC

Using the D-Sub Cable

1. Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.

2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.

Using the HDMI/DVI Cable

1. Connect a HDMI/DVI cable between the HDMI/DVI IN jack on the TV and the PC output jack on your computer.

2. Connect a 3.5 mm Stereo mini-plug/2RCA Cable between the DVI IN [R-AUDIO-L] jack on the TV and the Audio Out jack of the sound card on your computer.

PC Audio Cable (Not supplied)2

D-Sub Cable (Not supplied)1

3.5 mm Stereo mini-plug/2RCA Cable (Not supplied)

TV Rear Panel

HDMI/DVI Cable (Not supplied)1

Each PC has a different back panel configuration. When connecting a PC, match the color of the connection terminal to the cable. When using an HDMI/DVI cable connection, you must use the HDMI/DVI IN jack.

English - 12

Operation

Turning the TV On and Off

Press the POWER button on the remote control. You can also use the POWER button on the TV.

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

1. Press the POWER button on the remote control. The message “Menu Language, Store Demo, Channels and Time will be set.” is

displayed.

Press the ENTER button, then “Select the language of the OSD” menu is automatically displayed.

2. Press the ▲ or ▼ button to select language, then press the ENTER button. The message “Select ‘Home Use’ when installing this TV in your home.” is

displayed.

3. Press the ◄ or ► button to select “Store Demo” or “Home Use”, then press the ENTER button. The message “Select the antennas to memorize.” is displayed.

We recommend setting the TV to “Home Use” mode for the best picture in your

home environment. “Store Demo” mode is only intended for use in retail environments. If the unit is accidentally set to “Store Demo” mode and you want to return to

“Home Use” (Standard): Press the Volume button on the TV. When the volume

OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

4. Press the ▲ or ▼ button to memorize the channels of the selected connection. Press the ENTER button to select “Start”. Air: “Air” antenna signal.

Cable: “Cable” antenna signal. Auto: “Air” and “Cable” antenna signals.

In Cable mode, you can select the correct signal source among STD, HRC, and

IRC by pressing the ▲, ▼, ◄ or ► button, then press the ENTER button. If you have Digital cable, select the cable system signal source for both Analog and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.

Plug & Play

Menu Language, Store Demo,

Channels and Time will be set.

Start

Enter

Plug & Play

Select the language of the OSD.

Language :

Select ‘Home Use’ when installing this TV in your home.

Store Demo

Move Enter

Select the antennas to memorize.

Air Cable Auto

Move Enter Skip

Selects a cable signal type for your location.

Analog

STD

HRC IRC

Digital

STD

HRC IRC

Move Enter Skip

English

Español

Français

Move Enter

Plug & Play

Home Use

Plug & Play

Start Start Start

Plug & Play

Start

5. The TV will begin memorizing all of the available channels. To stop the search before it has finished, press the ENTER button with “Stop”

selected.

After all the available channels are stored, it starts to remove scrambled

channels (see page 28). The Auto program menu then reappears. Press the ENTER button when channel memorization is complete. The message “Set the Clock Mode.” is displayed.

English - 13

Plug & Play Auto Program in Progress. DTV Air : 02 Air : 11 DTV Cable : 23 Cable : 21

Enter Skip

Removing scrambled channel.

Enter Skip

Auto Program

Stop

Plug & Play

Auto Program

Stop

Cable 50

50 %

DTV Cable 41

77 %

6. Press the ENTER button.

Press the ▲ or ▼ button to select “Auto”, then Press the ENTER button. The message “Set to daylight saving time.” is displayed.

If you select “Manual”, “Enter the current date and time.” is displayed.

(See page 37)

7. Press the ▲ or ▼ button to select “Off” or “On”, then press the ENTER button. The message “Select the time zone in which you live.” is displayed.

8. Press the ▲ or ▼ button to highlight the time zone for your local area. Press the ENTER button. If you have received a digital signal, the time will be

set automatically. If not, see page 37 to set the clock.

9. The message “Enjoy your watching.” is displayed. When you have finished, press the ENTER button.

Auto Program

Plug & Play

Auto Program is completed. 75 Channels are memorized.

DTV Air : 24 Air : 1 DTV Cable : 17 Cable : 33

Enter Skip

Plug & Play

Set the Clock Mode.

Clock Mode :

Move Enter Skip

Set to daylight saving time.

DST :

Move Enter Skip

Select the time zone in which you live.

Newfoundland Atlantic

Eastern

Central Mountain Pacific Alaska Hawaii

Move Enter Skip

Auto

Manual

Plug & Play

Off

Plug & Play

Enjoy your watching.

If you want to reset this feature...

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Setup", then press the ENTER button.

2. Press the ENTER button again to select “Plug & Play”.

For further details on setting up options, refer to the pages 13~14.

The “Plug & Play” feature is only available in the TV mode.

Changing Channels

Using the Channel Buttons

1. Press the CH or CH button to change channels. When you press the CH or CH button, the TV changes channels in

sequence. You will see all the channels that the TV has memorized (The TV must have memorized at least three channels). You will not see channels that were either erased or not memorized. See page 16 to memorize channels.

Using the Number Buttons

1. Press the number buttons to go directly to a channel. For example, to select

channel 27, press 2, then 7.

For quick channel change, press the number buttons, then press the ENTER

button.

Enter

Plug & Play ► Language : English ► Time ► V-Chip ► Caption ► Melody : Medium ►

Energy Saving : Off ►

SW Upgrade ►

Move Enter Return

Setup

English - 14

Using the Button

The button is used to select stations that broadcast a digital signal.

1. For example, for Channel 7-1, press 7, then , then 1. HD indicates the TV is receiving a Digital High Definition signal. SD indicates

the TV is receiving a Standard Definition signal.

For quick channel change, press the number buttons, then press the ENTER

button.

Using the PRE-CH Button to select the Previous Channel

1. Press the PRE-CH button. The TV will switch to the last channel viewed.

To quickly switch between two channels that are far apart, tune to one channel, then use the number button to select the second channel. Then use the PRE-CH button to quickly alternate between them.

Adjusting the Volume

Using the Volume Buttons

1. Press the

Using the MUTE button At any time, you can cut off the sound using the MUTE button.

1. Press MUTE button and the sound cuts off. " " is displayed on the screen.

2. To turn mute off, press the MUTE button again or simply press the VOL or VOL button.

VOL or VOL button to increase or decrease the volume.

Viewing the Display

The display identies the current channel and the status of certain audio-video settings.

1. Press the INFO button on the remote control.

The TV will display the channel, the type of sound, and the status of certain picture and sound settings.

Press the INFO button once more or wait approximately 10 seconds and the

➣

display disappears automatically.

Viewing the Menus

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input.

2. Press the ▲ or ▼ button to select one of the icons.

Then press the ENTER

3. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

button to access the icon’s sub-menu.

English - 15

Air 7

Mono Picture Mode : Standard Sound Mode : Custom MTS : Stereo V-Chip : Off Caption : Off 5 : 54 pm

Mode : Standard ► Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint G 50 R 50

▼ More

Move Enter Exit

PictureTV

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu changes depending on which external input mode you are viewing.

1. Press the TOOLS button. The “Tools” menu will appear.

2. Press the ▲ or ▼ button to select a menu.

3. Press the ▲/▼/◄/►/ENTER buttons to display, change, or use the selected

items.For a more detailed description of each function, refer to the corresponding page.

Picture Mode ◄ Standard ►

Sound Mode : Custom Sleep Timer : Off Add to Favorite Switch to Air

Tools

• Picture Mode, see page 19

• Sound Mode, see page 24

• Sleep Timer, see page 39

Move Adjust Exit

• Add to Favorite, see page 30

• Switch to Air, see page 16

• Auto Adjustment, see page 35

Memorizing the Channels

Your TV can memorize and store all of the available channels for both "off-air" (Air) and "Cable" channels. After the available channels are memorized, use the CH or CH button to scan through the channels. This eliminates the need to change channels by entering the channel digits. There are three steps for memorizing channels: selecting a broadcast source, memorizing the channels (automatic) and adding or deleting channels (Channel Lists).

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER

button.

Antenna : Air ► Auto Program ►

Clear Scrambled Channel ►

Channel List ► Name ► Fine Tune ►

Signal Strength ►

Channel

2. Press the ENTER button to select “Antenna”.

Press the ▲ or ▼ button to select “Air” or “Cable”, then press the ENTER button. Press the EXIT button to exit.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Switch to Air” (or “Switch to Cable”), then press, then press the ENTER button.

English - 16

Move Enter Return

Antenna : Air

Auto Program

Clear Scrambled Channel

Channel List Name Fine Tune

Signal Strength

Move Enter Return

Picture Mode : Standard Sound Mode : Custom Sleep Timer Off Add to Favorite Switch to Air

Move Enter Exit

Channel

Air

Cable

Tools

Storing Channels in Memory (Automatic Method)

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select “Channel”, then press the ENTER button.

2. Press the ▲ or ▼ button to select "Auto Program", then press the ENTER

button.

3. Press the ▲ or ▼ button to select the antenna connection, then press the ENTER button.

Air: “Air” antenna signal.

Cable: “Cable” antenna signal. Auto: “Air” and “Cable” antenna signals.

4. When selecting the Cable TV system: Press the ENTER button to start the auto program.

Press the ◄ or ► button, then press the ▲ or ▼ to select the correct analog signal

cable system source among “STD”, “HRC”, and “IRC”. Press the ENTER button. If you have Digital cable TV, select the cable system signal source for both Analog and Digital.

STD, HRC and IRC identify various types of cable TV systems. Contact your

local cable company to identify the type of cable system that exists in your particular area. At this point the signal source has been selected.

5. The TV begins memorizing all available stations. After all the available channels are stored, it start to remove scrambled channels(see page 28).

If you want to stop Auto Programming, press the ENTER button. The “Stop

Auto Program?” message will be displayed. Select “Yes” by pressing the ◄ or ►

button, then press the ENTER button.

Press the EXIT button to exit.

Antenna : Air ► Auto Program ►

Clear Scrambled Channel ►

Channel List ► Name ► Fine Tune ►

Signal Strength ►

Selects the antenna to execute the Auto Program function.

Air Cable Auto

Selects a cable signal type for your location.

STD

HRC IRC

STD

HRC IRC

Auto Program in Progress. DTV Cable : -- Cable : 11

Enter Return

Removing scrambled channel.

Enter Return

Stop Auto Program? DTV Cable : -- Cable : 11

Yes

Move Enter Return

Auto Program is completed. 99 Channels are memorized.

DTV Cable : 65, Cable : 34

Enter Return

Channel

Move Enter Return

Auto Program

Start Start Start

Move Enter Return

Auto Program

Analog

Digital

Move Enter Return

Auto Program

Plug & Play

Auto Program

Plug & Play

Auto Program

Stop

Start

Cable 50

11 %

DTV Cable 40

11 %

English - 17

To Select the Source

Use to select TV or other external input sources such as DVD players or Cable Box/ Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice.

1. Press the MENU button to display the menu. Press the▲ or ▼ button to select “Input”, then press the ENTER button.

2. Press the ENTER

Press the ▲ or ▼ button to select signal source, then press the ENTER

button to select "Source List".

button.

Available signal sources: TV, AV, S-Video, Component, PC, HDMI. You can choose only those external devices that are connected to the TV.

Press the SOURCE button on the remote control to view an external signal source.

To Edit the Input Source Name

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.

Press the▲ or ▼ button to select “Input”, then press the ENTER button. Press the ▲ or ▼ button to select "Edit Name", then press the ENTER

button.

Source List : TV ► Edit Name ►

Move Enter Return

AV : ---S-Video : ---Component : ---PC : ---HDMI : ----

Move Enter Return

Source List : TV ► Edit Name ►

Input

Source ListTV

Input

2. Press the ▲ or ▼ button to select "AV”, "S-Video", "Component”, "PC", "HDMI”

input jack, then press the ENTER

button.

3. Press the ▲ or ▼ button to select “VCR”, “DVD”, “Cable STB”, “Satellite STB”,

“PVR STB”, “AV Receiver”, “Game”, “Camcorder”, “PC”, “TV”, “IPTV”, “Blu-Ray”, “HD DVD”, “Digital Media Adapter” input source, then press the ENTER button. Press the EXIT button to exit.

English - 18

Move Enter Return

Edit NameTV

AV : ---- ►

S-Video : ---- ► Component : ---- ► PC : ---- ► HDMI : ---- ►

Move Enter Return

AV : ----

S-Video : ---- Component : ---- PC : ---- HDMI : ----

Edit NameTV

----

VCR DVD Cable STB Satellite STB PVR STB AV Receiver Game

Move Enter Return

▼

Picture Control

Changing the Picture Standard

You can activate either Dynamic, Standard, Movie by making a selection from the menu.

1. Press the MENU button to display the menu.

Press the ENTER

2. Press the ENTER

Press the ▲ or ▼ button to select the “Dynamic”, “Standard” or “Movie”.

 Dynamic: Selects the picture for high-denition in a bright room.  Standard: Selects the picture for the optimum display in a normal environment.  Movie: Selects the picture for viewing movies in a dark room.

button, to select “Picture”.

button to select "Mode".

3. Press the EXIT button to exit.

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Picture Mode”.

3. Press the ◄ or ►button to select the required option.

4. Press the EXIT or TOOLS button to exit.

Customizing the Picture Settings

Mode : Standard ► Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint G 50 R 50

▼ More

Mode : Standard

Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint G 50 R 50

▼ More

Move Adjust Exit

PictureTV

Move Enter Return

PictureTV

Dynamic

Standard

Movie

Move Enter Return

Tools

Picture Mode ◄ Standard ►

Sound Mode : Custom Sleep Timer : Off Add to Favorite Switch to Air

Your television has several setting options that allow you to control the picture quality.

1. To select the desired picture mode, follow the “Changing the Picture Standard” instructions numbers 1 and 2.

2. Press the ▲ or ▼ button to select “Backlight”, “Contrast”, “Brightness”,

“Sharpness”, “Color” or “Tint”, then press the ENTER button.

3. Press the ◄ or ► button to decrease or increase the value of a particular item.

Press the ENTER button.

Press the EXIT button to exit.

➣

When you make changes to “Backlight”, “Contrast”, “Brightness”, “Sharpness”, “Color” or “Tint”, the OSD will be adjusted accordingly.

➣

In PC mode, you can only make changes to “Backlight”, “Contrast” and “Brightness”.

Settings can be adjusted and stored for each external device you have

➣

connected to an input of the TV. The energy consumed during use can be significantly reduced if the level of

➣

brightness of the picture is reduced, and that this will reduce the overall running cost.

Backlight: Adjusts the brightness of LCD back light.

•

Contrast: Adjusts the contrast level of the picture.

•

Brightness: Adjusts the brightness level of the picture.

•

Sharpness: Adjusts the edge definition of the picture.

•

Color: Adjusts color saturation of the picture.

•

Tint: Adjusts the color tint of the picture.

•

English - 19

Mode : Standard ► Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Color 50 Tint G 50 R 50

▼ More

Move Enter Return

▲

Backlight

▼

Move Adjust Return

PictureTV

Conguring Picture Options

Activating Picture Options

1. Press the MENU button to display the menu.

Press the ENTER button, to select “Picture”.

2. Press the ▲ or ▼ button to select "Picture Options", then press the ENTER

button.

Press the ▲ or ▼ button to select a particular item. Press the ENTER button. When you are satisfied with your setting, press the ENTER button. In PC mode, you can only make changes to the “Color Tone” and “Size” from

among the items in “Picture Options”.

▲ More

Picture Options ► Reset : OK ►

PictureTV

Move Enter Return

Setting the Color Tone

1. Follow the “Activating Picture Options” instructions numbers 1 and 2. (Refer to page 20)

2. Press the ▲ or ▼ button to select “Color Tone”, then press the ENTER button.

3. Press the ▲ or ▼ button to select “Cool2”, “Cool1”, “Normal”, “Warm1” or “Warm2”.

Press the ENTER button. “Warm1” or “Warm2” is only activated when the picture mode is “Movie”.

Settings can be adjusted and stored for each external device you have connected

to an input of the TV.

Setting the Screen Size

Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each designed to work best with specific types of video input. Your cable box or satellite receiver may have its own set of screen sizes as well. In general, though, you should view the TV in 16:9 mode as much as possible.

1. Follow the “Activating Picture Options” instructions numbers 1 and 2. (Refer to page 20)

2. Press the ▲ or ▼ button to select “Size”, then press the ENTER button.

3. Press the ▲ or ▼ button to select the screen format you want.

Press the ENTER button. Press the EXIT button to exit.

Wide: Adjusts the picture size to Wide appropriate for DVDs or wide

• broadcasting.

16:9: Sets the picture to 16:9 wide mode.

•

Zoom1: Magnifies the size of the picture on the screen.

•

Zoom2: Magnifies the size of the picture more than “Zoom1”.

•

Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.

•

4:3: Sets the picture to 4:3 normal mode.

•

Just Scan: Use the function to see the full image without any cutoff when

•

HDMI (720p/1080i), Component (1080i) or DTV (1080i) signals are input.

Picture OptionsTV

Color Tone : Normal ► Size : Wide ► Digital NR : Auto ►

HDMI Black Level : Normal ►

Film Mode : Off ►

Move Enter Return

Picture OptionsTV

Color Tone : Cool1

Size : Wide Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

Move Enter Return

Color Tone : Normal ► Size : Wide ► Digital NR : Auto ►

HDMI Black Level : Normal ►

Film Mode : Off ►

Move Enter Return

Wide 16 : 9 Zoom1 Zoom2

Wide Fit

4 : 3

Just Scan

Move Enter Return

Cool2 Cool1

Normal

Warm1 Warm2

Picture OptionsTV

SizeTV

English - 20

➣

Temporary image retention may occur when viewing a static image on the set for more than two hours.

After selecting “Zoom1”, “Zoom2” or “Wide Fit”:

➣

Press the ◄ or ► button to select “Position”, then press the ENTER button. Press the ▲ or ▼ button to move the picture up and down.

Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting.

After selecting “Just Scan” in HDMI (1080i) or Component (1080i) mode:

➣

Press the ▲ or ▼ button to select “H-Position” or “V-Position”, then press the

ENTER button.

Press the ◄ or ► button to adjust the screen Position. Press the

ENTER button. Reset: Press the ▲ or ▼ button to select “Reset”, then press the ENTER

button. You can initialize the setting. HD (High Definition)

➣

16:9 - 1080i (1920x1080), 720p (1280x720) Settings can be adjusted and stored for each external device you have connected to an input of the TV.

➣

Input Source Picture Size

TV, Video, S-Video, Component (480i, 480p) Wide, 16:9, Zoom1, Zoom2, 4:3 DTV(1080i), Component (1080i), HDMI (720p, 1080i) Wide, 16:9, 4:3, Wide Fit, Just Scan PC Wide, 4:3

Alternately, you can press the P.SIZE button on the remote control repeatedly to

change the picture size.

Wide 16 : 9 Zoom1 Zoom2

Wide Fit

4 : 3

Just Scan

H-Position 0 V-Position 0 Reset

SizeTV

Position Reset

Adjust Enter Return

Just ScanTV

Move Enter Return

Wide 16:9

Wide Adjusts the picture size to Wide appropriate

for DVDs or wide broadcasting.

Zoom2 U Move

Zoom2 Magnifies the size of the picture more

than “Zoom1”.

Just Scan

Just Scan Use the function to see the full

image without any cutoff when HDMI (720p/1080i), Component (1080i) or DTV (1080i) signals are input.

16:9 Sets the picture to 16:9 wide mode.

Wide Fit U Move

Wide Fit Enlarges the aspect ratio of the picture

to fit the entire screen.

Zoom1 U Move

Zoom1 Magnifies the size of the picture on the

screen.

4:3

4:3 Sets the picture to 4:3 normal mode.

English - 21

Setting the Digital Noise Reduction

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

1. Follow the “Activating Picture Options” instructions numbers 1 and 2. (Refer to page 20)

2. Press the ▲ or ▼ button to select "Digital NR", then press the ENTER button.

3. Press the ▲ or ▼ button to select "Off", "Low", "Medium", "High" or "Auto".

Press the ENTER button.

 Off: Turns the screen noise reduction function off.  Low: Reduces screen noise at a low level.  Medium: Reduces screen noise at a medium level.  High: Reduces screen noise at a high level.  Auto: Automatically recognizes and reduces screen noise.

Press the EXIT button to exit.

Setting the HDMI Black Level

You can select the black level on the screen to adjust the screen depth.

1. Follow the “Activating Picture Options” instructions numbers 1 and 2. (Refer to page 20)

2. Press the

▲ or ▼

button to select “HDMI Black Level”, then

press the ENTER button.

3. Press the

▲ or ▼

button to select “Normal” or “Low”, then press

the ENTER button.

• Normal: The screen gets brighter.

• Low: The screen gets darker.

This function is active only when an external device is connected to the TV via

➣

HDMI. “HDMI Black Level” function may not be compatible with all external devices.

Press the EXIT button to exit.

Color Tone : Normal ► Size : Wide ► Digital NR : Auto ►

HDMI Black Level : Normal ►

Film Mode : Off ►

Move Enter Return

Color Tone : Normal Size : Wide

Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

Move Enter Return

Color Tone : Normal ► Size : Wide ► Digital NR : Auto ► HDMI Black Level : Low ►

Film Mode : Off ►

Move Enter Return

Color Tone : Normal Size : Wide Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

Move Enter Return

Picture OptionsTV

Off Low Medium High

Auto

Picture Options

Normal

Low

Setting the Film Mode

The TV can be set to automatically sense and process lm signals from all sources and

adjust the picture for optimum quality.

1. Follow the “Activating Picture Options” instructions numbers 1 and 2. (Refer to page 20)

2. Press the ▲ or ▼ button to select "Film Mode", then press the ENTER

3. Press the ▲ or ▼ button to select "Off" or "Auto", then press the ENTER

button.

Press the EXIT button to exit.

" Film mode" is supported in TV, VIDEO, S-VIDEO, COMPONENT(480i / 1080i)

and HDMI(480i / 1080i).

English - 22

Color Tone : Normal ► Size : Wide ► Digital NR : Auto ►

HDMI Black Level : Normal ►

Film Mode : Off ►

Move Enter Return

Color Tone : Normal Size : Wide Digital NR : Auto

HDMI Black Level : Normal

Film Mode : Off

Move Enter Return

Picture Options

Off

Auto

Resetting the Picture Settings to the Factory Defaults

1. Press the MENU button to display the menu.

Press the ENTER button, to select “Picture”.

2. Press the ▲ or ▼ button to select "Reset", then press the ENTER Press the ▲ or ▼ button to select “OK” or “Cancel” then press the ENTER

button.

Press the EXIT button to exit. Each mode can be reset.

button.

▲ More

Picture Options

Reset : OK

PictureTV

Cancel

Move Enter Return

English - 23

Sound Control

Changing the Sound Standard

You can select the sound mode to best suit the programming you’re watching.

1. Press the MENU button to display the menu. Press the

▲ or ▼

button to select "Sound", then press the ENTER

button.

Mode : Custom ►

Equalizer ► SRS TruSurround XT : Off ►

Multi-Track Options ►

Auto Volume : Off ► TV Speaker : On ►

SoundTV

2. Press the ENTER

Press the ▲ or ▼ button to select “Standard”, “Music”, “Movie”, “Speech”, or

button to select "Mode".

“Custom” sound setting, then press the ENTER button.

Press the EXIT button to exit.

• Standard: selects the normal sound mode.

• Music: emphasizes music over voices.

• Movie: provides the best sound for movies

• Speech: emphasizes voice over other sounds.

• Custom: recalls your customized sound settings.

(see “Customizing the Sound”)

Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Sound Mode”.

3. Press the ◄ or ►button to select the required option.

4. Press the EXIT or TOOLS button to exit.

Customizing the Sound

The sound settings can be adjusted to suit your personal preference.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the ENTER

2. Press the ▲ or ▼ button to select "Equalizer", then press the ENTER

button.

Move Enter Return

Mode : Custom

Equalizer SRS TruSurround XT : Off Multi-Track Options Auto Volume : Off TV Speaker : On

Picture Mode : Standard

Sound Mode ◄ Custom ►

Sleep Timer : Off Add to Favorite Switch to Air

Move Adjust Exit

Mode : Custom ►

Equalizer ► SRS TruSurround XT : Off ►

Multi-Track Options ►

Auto Volume : Off ► TV Speaker : On ►

SoundTV

Standard Music Movie Speech

Custom

Move Enter Return

Tools

SoundTV

3. Press the ◄ or ► button to select a particular frequency to adjust.

Press the ▲ or ▼ button to increase or decrease the level of the particular frequency.

Press the ENTER

button.

Press the EXIT button to exit.

• L/R Sound Balance Adjustment: To adjust the sound balance of the L/R

speakers.

• Bandwidth Adjustment (100Hz, 300Hz, 1KHz, 3KHz, 10KHz): To adjust the

level of different bandwidth frequencies.

If you make any changes to the "Equalizer" settings, the sound mode is

automatically switched to the "Custom" mode.

English - 24

Move Enter Return

EqualizerTV

100Hz

300Hz 1KHz 3KHz 10KHzBalance

Move Adjust Return

Setting the TruSurround XT

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the ENTER

button.

2. Press the ▲ or ▼ button to select "SRS TruSurround XT", then press the ENTER

3. Press the ▲ or ▼ button to select "Off" or "On", then press the ENTER

button.

Press the EXIT button to exit.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.

button.

Mode : Custom ►

Equalizer ► SRS TruSurround XT : Off ►

Multi-Track Options ►

Auto Volume : Off ► TV Speaker : On ►

Mode : Custom Equalizer

SRS TruSurround XT : Off

Multi-Track Options Auto Volume : Off TV Speaker : On

SoundTV

Move Enter Return

SoundTV

Off

TruSurround XT technology is incorporated under license

from SRS Labs, Inc.

Press the SRS button on the remote control to select "Off" or "On".

Move Enter Return

Choosing a Multi-Channel Sound (MTS) track - Digital

The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). The availability of these additional “multitracks” depends upon the program.

"Multi-Track Options" is available only in TV mode.

Preferred Language

SoundTV

Move Enter Return

Multi-Track OptionsTV

: English ►

►

Multi-Track OptionsTV

: English

English

Spanish French

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER

button.

Quick way to access the MTS menu: Just press the “MTS” button on the remote

control. You can listen in a language other than your chosen language by pressing the MTS button.

2. Press the ▲ or ▼ button to select “Multi-Track Options", then press the ENTER

button.

3. Press the ENTER button to select “Preferred Language”.

Press the ▲ or ▼ button to choose the language (English, Spanish or French) you

want, then press the ENTER button. Press the EXIT button to exit. “Preferred Language” is available only in Digital TV mode. You can only select the language from among the actual languages being broadcast.

Mode : Custom ►

Equalizer ► SRS TruSurround XT : Off ►

Multi-Track Options ►

Auto Volume : Off ► TV Speaker : On ►

Preferred Language

Multi-Track Sound : Stereo

Enter Return

Preferred Language

Multi-Track Sound : Stereo

You can listen in a language other than the Preferred language by pressing

the MTS button on the remote control.

English - 25

Move Enter Return

Choosing a Multi-Channel Sound (MTS) track - Analog

Multi-Track Sound

1. Press the MENU button to display the menu. Press the ▲ or ▼ button to select "Sound", then press the ENTER

2. Press the ▲ or ▼ button to select "Multi-Track Options", then press the ENTER

button.

3. Press the ▲ or ▼ button to select “Multi-Track Sound”, then press the ENTER

button. Press the ▲ or ▼ button to select a setting you want, then press the ENTER button. Press the EXIT button to exit.

• Mono: Choose for channels that are broadcasting in mono or if you are having

difficulty receiving a stereo signal.

• Stereo: Choose for channels that are broadcasting in stereo.

• SAP: Choose to listen to the Separate Audio Program, which is usually a

foreign-language translation.

“Multi-Track Sound” is available only in Analog TV mode. Depending on the particular program being broadcast, you can listen to “Mono”,

“Stereo” or “SAP”.

Press the MTS buttons on the remote control repeatedly to select “Mono”,

“Stereo” or “SAP”.

button.

Multi-Track OptionsTV

Preferred Language

Multi-Track Sound : Stereo

Enter Return

Preferred Language

Multi-Track Sound : Stereo

: English ►

►

Multi-Track OptionsTV

: English

Mono

Stereo

SAP

Move Enter Return

Automatic Volume Control

Reduces the differences in volume level among broadcasters.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the ENTER

2. Press the ▲ or ▼ button to select "Auto Volume", then press the ENTER

3. Press the ▲ or ▼ button to set Auto Volume "Off" or "On" then press the

ENTER

button.

Press the EXIT button to exit.

button.

Mode : Custom ►

Equalizer ► SRS TruSurround XT : Off ►

Multi-Track Options ►

Auto Volume : Off ► TV Speaker : On ►

Mode : Custom Equalizer SRS TruSurround XT : Off Multi-Track Options

Auto Volume : Off

TV Speaker : On

SoundTV

Move Enter Return

SoundTV

Off

Move Enter Return

English - 26

Setting the TV Speakers On/Off

Sound output from the TV speakers is muted.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Sound", then press the ENTER

2. Press the ▲ or ▼ button to select "TV Speaker", then press the ENTER

button.

3. Press the ▲ or ▼ button to select “Off”, then press the ENTER button.

Press the EXIT button to exit. When “TV Speaker” is set to “Off”, Sound menus except “Multi-Track Options”

cannot be adjusted.

The VOL , VOL and MUTE buttons do not operate when the "TV Speaker" is set to “Off”.

TV's Internal Speakers Audio Out (Optical, L/R Out) to Sound System

TV Speaker On

TV Speaker Off

Video No Signal

RF AV, S-Video

Speaker Output Speaker Output Speaker Output Sound Output Sound Output Sound Output

Mute Mute Mute Sound Output Sound Output Sound Output

Mute Mute Mute Mute Mute Mute

Component, PC, HDMI

RF AV, S-Video

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Mode : Custom ►

Equalizer ► SRS TruSurround XT : Off ►

Multi-Track Options ►

Auto Volume : Off ► TV Speaker : On ►

Mode : Custom Equalizer SRS TruSurround XT : Off Multi-Track Options Auto Volume : Off

TV Speaker : On

SoundTV

Move Enter Return

SoundTV

Off

Move Enter Return

Component, PC, HDMI

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV program without disturbing other people in the room.

When you insert the headphone’s plug into the headphone jack, you cannot operate “TV Speaker” in Sound menu.

Prolonged use of headphones at a high volume may damage your hearing. You will not hear sound from the speakers when you connect headphones to the TV.

TV Rear Panel

English - 27

Channel Control

Clearing Scrambled Channels - Digital

The Clear Scrambled Channel function is used to lter out scrambled channels after Auto Program is completed. This process may take up to 20~30 minutes.

1. Press the MENU button to display the menu.

Press the ▲ or ▼ button to select "Channel", then press the ENTER

button.

2. Press the ▲ or ▼ button to select "Clear Scrambled Channel", then press the

ENTER button. It searches scrambled channels, which are to be removed from the list.

To stop searching scrambled channels: Press the ENTER button to select Stop. Press the ◄ button to select "Yes", then press the ENTER button.

3. When the scrambled channel searching is completed, press the ENTER

button.

Press the EXIT button to exit.

This function is only available in “Cable” mode.

Antenna : Cable ► Auto Program ► Clear Scrambled Channel ► Channel List ►

Name ► Fine Tune ►

Signal Strength ►

Clear Scrambled Channel

Removing scrambled channel.

Enter Return

Channel

Move Enter Return

Plug & Play

DTV Cable 40

35 %

Stop

English - 28

+ 91 hidden pages
