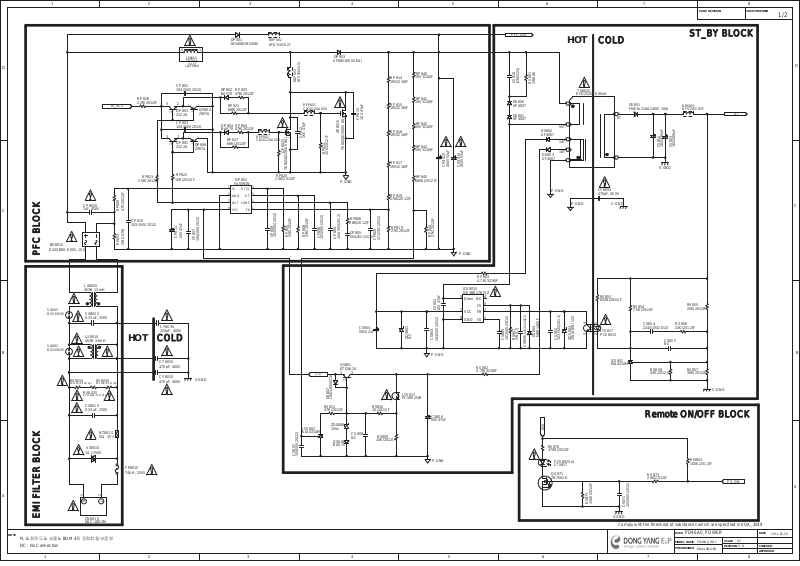

Samsung BN44-00422B PSU Schematic

12 3 4 567 8

COLD

ST_BY BLOCK

Remote ON/OFF BLOCK

EMI FILTER BLOCK PFC BLOCK

COLD

SHEET NUMBERPAGE REVISION

1/2

D

C

BD801S
D10XB60, 600V, 10A

SA803
DSS-601M

SA802

B

DSS-601M

A

NOTE

PL & & & BO M 4

䟀⦐⓸ 㐘Ɒ 㥄 㥉䚝䚜㡸 ⸨㫑䚜

NC : No Connection

12345678

CP802S

1uF, 450V

453B

RX801S

RC1206JR-07470KL

RX802S

RC1206JR-07470KL

1

LX802S

13mH

CX802S

0.33uF, 250V

LX801S
453B

13mH

RX803S

RC1206JR-07470KL

CX801S

0.33uF, 250V

NT801S

5, 25୅

VX801S

େ750V

14

2

N

CN801S
DAC-18D3M

M_VCC

RP809

47R(2012)F

RP813

5W0.07RJ

RP826
22R(2012)F

RP823

10R(2012)F

CP810
103/50V(2012)

3 2

3 2

1

1

LP801S
PQ3211

34.5T

Lp=180uH

CP802
104/50V(2012)

2 3

QP803
2222A

CP803
104/50V(2012)

2 3

QP805
2222A

RP822

10R(2012)F

CP811

50V47uF

1

1

QP806
2907A

CP807

14

QP804
2907A

104/50V(2012)

DP801

1N5408(1N5406)

DP802
BAV70

RP821
68R(2012)F

DP804
BAV70

RP827
68R(2012)F

5

IS

6

GND

7

OUT
VCC8FB

RP803

47R(2012)F

RP804

47R(2012)F

ICP801
FA5591N

RTZC

RT

COMP

BEP802
CB2012GA600

4
3
2
1

BBP802
BFD3565 R2F

1

RP820

10K(2012)F

CP808

103/50V(2012)

QP802S

PFC-OUT

DP803
SF68G(600V 6A)

RP840
1M(3216)F

1KV 47pF

RP814
1M(3216)F

RP841

1M(3216)F
RP815
1M(3216)F

RP842

1M(3216)F
RP816

1M(3216)F

RP843

1M(3216)F

RP817
1M(3216)F

RP845

680K(2012)F

RP829
270k(2012)F

RP819
27K(2012)F

471/50V(2012)

CP809

RP844

CP803S

CP801S

450V53uF

450V53uF

27K(2012)F

CS810

630V222J

DS805
UF4007

DS801
UF4007

RS801

2W68K

BBP803

BFS3565A0L

23

BEP801
CB2012GA600

CP812

1KV 47pF

23

1

CP813

QP801S

TK8A50D(500V 8A)

RP811

10K(2012)F

TK8A50D(500V 8A)

P-GND

RP806
68K(2012)F

RP805

RP808

33K(2012)F

33K(2012)F

CP806

103/50V(2012)

CP804

104/50V(2012)

CP805

684/25V(2012)

DS802
UF4007

DS803
UF4007

P-GND

50T

14T

18T

HOT

3

1

5

6

7

P-GND

TS801S

EFD2525 600uH

CY805S
470pF, 400V

S-GND

12

5T

9

DS851
FMEN-210A(100V 10A)

CS852

S-GND

BBS801
BFS3565 R2F

CS853

16V1000uF

16V1000uF

D

A5V

C

P-GND

RS803

4.7R(3216)F

ICS801S
ICE3BR1765JZ

4

5

NC

Drain

3

7

VCC
GND8SS

CS

2

FB

1

RS802

4.7R(3216)F

104/50V(2012)

DS804

MBR140SF

CS802

RS807

2W0.7J

CS805

101/50V(2012)

CS809

103/50V(2012)

ZDS804

A5V

RS870
470R(2012)F

PCS802S/A
LTV817

QS871

32

2N7002K

1

HOT

FP801S

T4AH, 250V

CY803S
220pF, 400V

CY802S
470pF, 400V

CY801S
470pF, 400V

S-GND

CS807

ICS802
KIA431AM

104/50V(2012)

M_VCC

LMDL6050T1G

DS807

RS811
47R(2012)F

ZDS806
15Vz

DS806
BAV70

QS801
KTD1624

2

31

CS808
NC

CS804
50V22uF

RS810
1K(2012)F

RS809

10K(2012)F

ZDS801

NC

LTV817
PCS802S/B

CS801

CS803

104/50V(2012)

P-GND

CS806
50V47uF

P-GND

1KV 47pF

L

1W(0.8W) 12V

4

3

RS873

1

2

150K(2012)F

RS853
820R(2012)F

LTV817
PCS801S

ICS851
KIA431AM

CS855
NC

RS855
20K(2012)F

RS856
22K(2012)F

RS857
30K(2012)F

RS854

7.5K(2012)F

CS854
224/50V(2012)

RS858
43K(2012)F

RM853
100K(2012)F

RS874
20K(2012)F

CS871

103/50V(2012)

S-GND

PS-ON

B

A

S-GND

Comply with the threshold of substances which are specified in 0QA_2049

PD46A0_POWER

MODEL NAME

PDM NUMBER

PD46A0_BDY
BN44-00422B

SCALE
REVISION CHECKED

DATEUSER

A3

R.D

2011-01-18

APPROVED

LED DRIVE BLOCK

MULTI BLOCK

PFC_OUT

D

C

12 3 4 567 8

2

5

P-GND

CY806S
1000pF, 400V

COLDHOT

TM801S
EFD4549 400uH

4

3

QQ852
2222A

RM854
12K(2012)F

1

PCM803S

2

LTV817M

PS-ON

3

2

S-GND

7

27T

8

9,10

3T

12

3T

11

RQ865

RM855

20K(2012)F

RQ864
120K(2012)F

1

470K(2012)F

CM856
224/50V(2012)

CQ860

475/16V(2012)

ICM851
KIA431AM

DM851

SF26G(400V 2A)

DM853

SF26G(400V 2A)

DM852

SF26G(400V 2A)

DM854
SF26G(400V 2A)

DM856
FMEN-220B(150V20A)

2

3

1

RM856

5.6K(2012)F

RM858

10K(2012)F

DQ856
BAV70

FLAG

CQ861

475/16V(2012)

RQ866

RM866
NC

1K(2012)F

CM851

250V47uF

RM857

5.6K(2012)F

DQ857
BAV70

DQ858
BAV70

DQ855
BAV70

S-GND

CM855
NC

RM859
NC

RM860

2.7K(2012)F

ZDQ851
15Vz

ZDQ852

6.8Vz

ZDQ853

15Vz

RM872
100K(2012)F

RM873
100K(2012)F

RM874
75K(2012)F

RM826

1.2K(3216)F

QM851
AO4498EL,18A,30V

5
6
7

RQ875
30K(2012)F

Vdrv_130V

50V47uF

B13V

Vamp

S-GND

B5V

A5V

680R(3216)F

RM864

RM865

680R(3216)F

D9805

RM852

RM851

NC

2W68K

40V2A

R9845
2W20J

NCS_IN

RM828

RM827

CM852

1.2K(3216)F

1.2K(3216)F

4

D

G

3

S

D

2

D

S

1

D8S

S-GND

25V560uF

S-GND

CM853NCCM854

25V560uF

S-GND

RM861

47K(2012)F

CM860

224/50V(2012)

CM858

NC

RM862
1K(2012)F

RM850

2W470RJ

CM859

S-GND

RM801
1M(3216)F

RM802
1M(3216)F

RM816
1M(3216)F

RM818
1M(3216)F

RM813
150k(2012)F

RM809

24K(2012)F

BBM801
BFS3565A0L

DM801

TM802S

DM811
MBR140SF

DM802
MBR140SF

EE1011 500uH

31T

RM824
15K(2012)F

M_VCC

RM815

CM803

104/50V(2012)

20K(2012)F

CM809

333/50V(2012)

RM808

3.3K(2012)F

P-GND

CM804
50V47uF

ICM801
ICE1HS01G

1

FMIN

2
3

FB
VINS4GND

CM805
102/50V(2012)

RM806

10R(2012)F

8

VCC

HG7CS

6

LG

5

P-GND

RM807
10R(2012)F

CM806
104/50V(2012)

BAV70

23

QM803S

1

RM811
10K(2012)F

1

RM825
10K(2012)F

NDF05N50ZG(500V 5A)

23

QM804S
NDF05N50ZG(500V 5A)

RM812

20K(2012)F

CM802
474/25V(2012)

RM810

31T

47R(2012)F

DM803
BAV70

RM817

31T

47R(2012)F

DM806
BAV70

CM808

1KV47pF

RM822

4.7K(2012)F

P-GND

P-GND

50T

CM810S

0.033uF, 1250V

SHEET NUMBERPAGE REVISION

XY

Z[

\]

^

`XW

XX XY

XZ X[

CNM803
SMAW200A-H14S2

XY

iXZ}
iXZ}

Z

}

\
^

}

`

nuk

XX

i\}

XZ

i\}

EPWM

NC

BLU_ON

_

S-GND

A5V

PS-ON

lw~t

uUjOsjkaoGzP

[

is|Gvu

]
_

nuk

XW

nuk

XY

h\}

wzTvu

X[

2/2

D

C

S-GND

B

B5V

R9823
10K(2012)F

EPWM

B5V

R9826
10K(2012)F

B5V

BLU_ON

A

NOTE

PL & & & BO M 4

䟀⦐⓸ 㐘Ɒ 㥄 㥉䚝䚜㡸 ⸨㫑䚜

NC : No Connection

12345678

L9801
EFD2020

2

Vdrv_130V

R9831
220K(2012)F

R9834

S-GND

IF2

R9851

FLAG

13K(2012)F

IF1

BLU-ON Only/ 280mA

22K(2012)F

R9832
220K(2012)F

R9833
220K(2012)F

183/50V(2012)

C9828

R9819

18K(2012)F

S-GND

R9827
10K(2012)F

R9828
20K(2012)F

Q9803
2222A

C9821

104/50V(2012)

R9829

32

1

470K(2012)F

R9824
750R(2012)F

Q9804
2222A

R9825
1K(2012)F

R9830

C9823

101/50V(2012)

27K(2012)F

C9825
103/50V(2012)

C9826

C9827

104/50V(2012)

102/50V(2012)

C9824

102/50V(2012)

32

1

C9822

104/50V(2012)

R9821

3

2

1

20K(2012)F

VR9801

1/2W20KJ

2

2

1

1

R9822

1.6K(2012)F

CNL804

SMW200-02P

R9820

13K(2012)F

S-GND

75T

L=250uH

B13V

IC9802
SLC3011M

14

GND

13

OVP

12

REF

11

FBP

10

FBN

9

COMP

8

S-GND

37" /290mA

40/46" /308mA

10

C9837
NC

D9804

BAV70

R9850

10R(3216)F

1

VCC

2

GATE

3

CS

4

LINE

5

NCS

6

FLAG

PWMI7PWMO

Current Option

OPEN

OPEN

D9802

R9843

BAV70

10R(2012)F

Q9805

NDF05N50ZG(500V 5A)

1

2W0.24J

R9839

10K(2012)F

R9840

R9841

1K(2012)F

C9833

102/50V(2012)

S-GND

BE9801
CB2012GA600

R9842

150R(2012)F

R9844
1K(2012)F

NCS_IN

C9834
104/50V(2012)

C9835

105/25V(2012)

S-GND

CNL804IF1 IF2
SHORT

OPENSHORT
OPEN

D9801

SF26G(400V 2A)

R9835
100K(2012)F

R9836
200K(2012)F

R9837

220K(2012)F

23

400V10uF

C9832

1KV 47pF

R9852
100K(2012)F

C9831

183/50V(2012)

R9846

5.1K(2012)F

R9847

5.1K(2012)F

C9829

400V10uF

C9830

R9838

5.6K(2012)F

D9803
BAV70

C9836
102/50V(2012)

C9840

400V224

R9848

1.3K(2012)F

CH1+

23

1

Q9806
FDT3N40(400V 1.2A)

R9849
2W2.7RJ

CNL802

X

SMAW200A-H102468A2

Y

Z

B

[

\

]

^

_

IF2

`

IF1

XW

CH1-

A

S-GND

Comply with the threshold of substances which are specified in 0QA_2049

PD46A0_MULTI_DRIVE

MODEL NAME

PDM NUMBER

PD46A0_BDY
BN44-00422B

SCALE
REVISION CHECKED

DATEUSER

A3

R.D

2011-02-23

APPROVED
