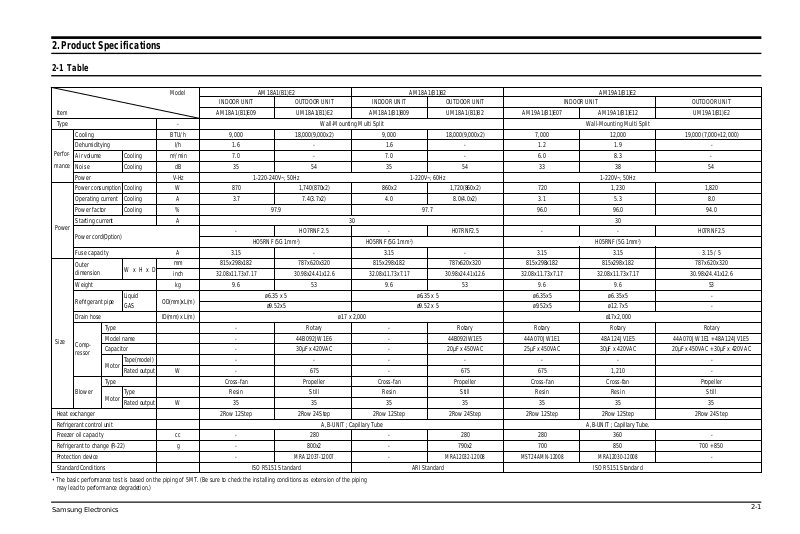

2. Product Specifications
2-1 Table
Model AM18A1(B1)E2 AM18A1(B1)B2 AM19A1(B1)E2
INDOOR UNIT OUTDOOR UNIT INDOOR UNIT OUTDOOR UNIT INDOOR UNIT OUTDOOR UNIT
Item AM18A1(B1)E09 UM18A1(B1)E2 AM18A1(B1)B09 UM18A1(B1)B2 AM19A1(B1)E07 AM19A1(B1)E12 UM19A1(B1)E2
Type - Wall-Mounting Multi Split Wall-Mounting Multi Split
Cooling BTU/h 9,000 18,000(9,000x2) 9,000 18,000(9,000x2) 7,000 12,000 19,000 (7,000+12,000)
Dehumiditying I/h 1.6 - 1.6 - 1.2 1.9 -
Performance
Power
Size
Air volume Cooling m3/min 7.0 - 7.0 - 6.0 8.3 Noise Cooling dB 35 54 35 54 33 38 54
Power V-Hz 1-220-240V~, 50Hz 1-220V~, 60Hz 1-220V~, 50Hz
Power consumption
Operating current Cooling A 3.7 7.4(3.7x2) 4.0 8.0(4.0x2) 3.1 5.3 8.0
Power factor Cooling % 97.9 97.7 96.0 96.0 94.0
Starting current A 30 30
Power cord(Option)
Fuse capacity A 3.15 - 3.15 - 3.15 3.15 3.15 / 5
Outer
dimension
Weight kg 9.6 53 9.6 53
Refrigerant pipe
Drain hose ID(mm) x L(m) ø17 x 2,000 ø17x2,000
Compressor
Blower
Heat exchanger 2Row 12Step 2Row 24Step 2Row 12Step 2Row 24Step 2Row 12Step 2Row 12Step 2Row 24Step
Refrigerant control unit A,B-UNIT ; Capillary Tube A,B-UNIT ; Capillary Tube.
Freezer oil capacity cc - 280 - 280 280 360 Refrigerant to change (R-22) g - 800x2 - 790x2 700 850 700 + 850
Protection device Standard Conditions ISO R5151 Standard ARI Standard ISO R5151 Standard
Cooling W 870 1,740(870x2) 860x2 1,720(860x2) 720 1,230 1,820
- HO7RNF 2.5 - H07RNF2.5 - - H07RNF2.5
HO5RNF (5G 1mm2) HO5RNF (5G 1mm2) H05RNF (5G 1mm2)
W x H x D
Liquid
GAS
Type - Rotary - Rotary Rotary Rotary Rotary
Model name - 44B092JW1E6 - 44B092IW1E5 44A070JW1E1 48A124JV1E5 44A070JW1E1 + 48A124JV1E5
Capacitor - 30µF x 420VAC - 20µF x 450VAC 25µF x 450VAC 30µF x 420VAC 20µF x 450VAC + 30µF x 420VAC
Tape(model) - - - - - - -
Motor
Rated output W - 675 - 675 675 1,210 -
Type Cross-fan Propeller Cross-fan Propeller Cross-fan Cross-fan Propeller
Type Resin Still Resin Still Resin Resin Still
Motor
Rated output W 35 35 35 35 35 35 35
mm 815x298x182 787x620x320 815x298x182 787x620x320 815x298x182 815x298x182 787x620x320
inch
OD(mm)xL(m)
32.08x11.73x7.17 30.98x24.41x12.6 32.08x11.73x7.17 30.98x24.41x12.6
ø6.35 x 5 ø6.35 x 5 ø6.35x5 ø6.35x5 -
ø9.52x5 ø9.52 x 5 ø9.52x5 ø12.7x5 -
MRA12037-12007
-
MRA12032-12008 MST24AMN-12008 MRA12030-12008 -
32.08x11.73x7.17 32.08x11.73x7.17 30.98x24.41x12.6
9.6 9.6 53
•The basic performance test is based on the piping of 5MT. (Be sure to check the installing conditions as extension of the piping
may lead to performance degradetion.)
Samsung Electronics
2-1
2-2 Dimensions
2-2-1 Indoor Unit
Air
in
Air out
2-2-1 Outdoor Unit
(Front view)
(Rear view)
815 182
(Remote control)
58
22
Installation plate
2-2
(Front view)
(Rear view)
