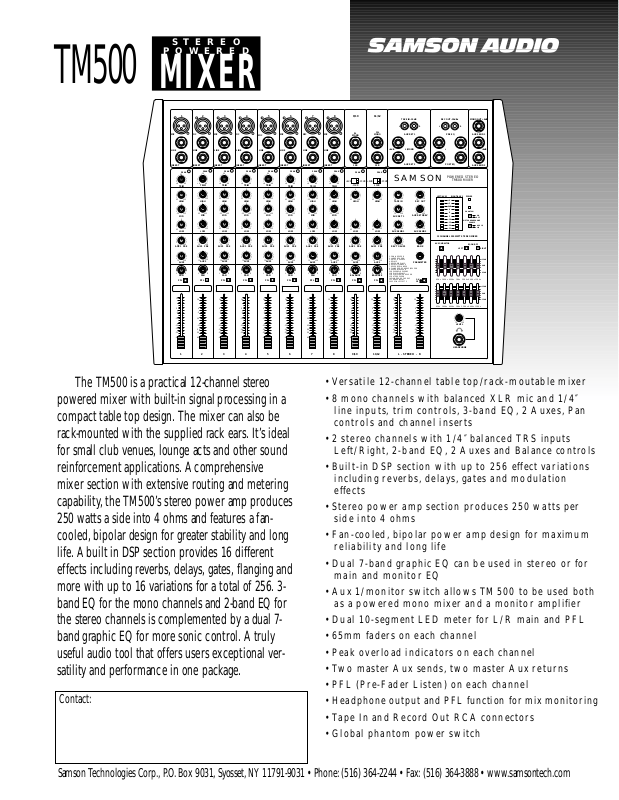

Samson TM 500 User Manual

• Versatile 12-channel table top/rack-moutable mixer

• 8 mono channels with balanced XLR mic and 1/4

″

line inputs, trim controls, 3-band EQ, 2 Auxes, Pan
controls and channel inserts

• 2 stereo channels with 1/4

″ balanced TRS inputs

Left/Right, 2-band EQ, 2 Auxes and Balance controls

• Built-in DSP section with up to 256 effect variations
including reverbs, delays, gates and modulation
effects

• Stereo power amp section produces 250 watts per
side into 4 ohms

• Fan-cooled, bipolar power amp design for maximum
reliability and long life

• Dual 7-band graphic EQ can be used in stereo or for
main and monitor EQ

• Aux 1/monitor switch allows TM500 to be used both
as a powered mono mixer and a monitor amplifier

• Dual 10-segment LED meter for L/R main and PFL

• 65mm faders on each channel

• Peak overload indicators on each channel

• Two master Aux sends, two master Aux returns

• PFL (Pre-Fader Listen) on each channel

• Headphone output and PFL function for mix monitoring

• Tape In and Record Out RCA connectors

• Global phantom power switch

POWERED STEREO

TM500 MIXER

SAMSON

MIC

8

7654321

MIC MIC MIC

MIC

MIC MIC MIC

INSERT

INSERT INSERT INSERT INSERT INSERT INSERT INSERT

LINE

LINE LINE

LINE

LINE LINE

LINE

LINE

9L

MONO

11L

MONO

10R

12R

9/10 11/12

PFL

PEAK

HIGH

-15

+15

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

BALANCE

L

R

+4dB

-20dB

-10dB

PEAK

HIGH

-15

+15

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

BALANCE

L

R

+4dB

-20dB

-10dB

0

PFL

10

0

-5

-10

-15

-20

-30

-40

9/10

10

0

-5

-10

-15

-20

-30

-40

11/12

0

0

0

+4dB+4dB

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PEAK

TRIM

+4

-40

HIGH

-15

+15

0

MID

-12

+12

0

LOW

-15

+15

0

AUX1

∞

+10

PRE

AUX2

∞

+10

PAN

L

R

PFL

PFL

PFLPFLPFLPFLPFLPFL

-10

-10 -10

-10

-10

-10

-10 -10

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

10

0

-5

-10

-15

-20

-30

-40

1

10

0

-5

-10

-15

-20

-30

-40

2

10

0

-5

-10

-15

-20

-30

-40

3

10

0

-5

-10

-15

-20

-30

-40

4

10

0

-5

-10

-15

-20

-30

-40

5

10

0

-5

-10

-15

-20

-30

-40

6

10

0

-5

-10

-15

-20

-30

-40

7

10

0

-5

-10

-15

-20

-30

-40

8

1.SMALL REVERB

2.LARGE REVERB

3.GATES, REVERSE

4.DELAYS

5.REVERB/DELAYS

6.DELAYS/FLANGER

7.REVERBS/FLANGER

8.FLANGER OR CHORUS/REVERB

9.REVERB+REVERB

10.REVERBS+REVERBS

11.DELAYS+DELAYS

12.DELAYS+GATED REVERB

13.GATED REVERB

14.FLANGER OR CHORUS

15.CHORUS/DELAY

16.SPECIAL EFFECTS

10

0

-5

-10

-15

-20

-30

-40

L - STEREO - R

10

0

-5

-10

-15

-20

-30

-40

TAPE IN

+10

0

AUX RET 1

+10

0

AUX SEND 1

+10

0

REV TO AUX1

∞

+10

0

∞

∞

∞

REC OUT

+10

0

AUX RET2/REV

+10

0

AUX SEND 2

+10

0

BANK

∞

∞

∞

3

1

2

4
5
6

7

8

9

10

11

12

13

14

15

16

PARAMETER

3

1

2

4
5
6

7

8

9

10

11

12

13

14

15

16

ON
OFF

ON
OFF

LEVEL

+10

0

∞

HEADPHONE

LEFT/AUX 1 RIGHT/AUX 2

L/R

AUX 1/2

PHANTOM

POWER

12 CHANNEL 250 WATT STEREO MIXER

+6
+3

0dB

-3

-5

-7

-10

-15

-20

-23

METER HEADPHONE

SOURCE

+12dB

0dB

6.4KHz2.5KHz1KHz

400Hz160Hz63Hz

12KHz

-12dB

EQ ON/OFF

AUX1/MONITOR

LEFT RIGHT

+12dB

0dB

6.4KHz2.5KHz1KHz

400Hz160Hz63Hz

12KHz

-12dB

TAPE IN -10dB

LR

REC OUT -10dBv

LR

AUX RET1 PRE EQ AUX SEND 1

MONO OUT +4dB

AUX SEND 2

POST EQ

LR

R

AUX RET2

L/MONO

TM500

POWERED

MIXER

The TM500 is a practical 12-channel stereo
powered mixer with built-in signal processing in a
compact table top design. The mixer can also be
rack-mounted with the supplied rack ears. It’s ideal
for small club venues, lounge acts and other sound
reinforcement applications. A comprehensive
mixer section with extensive routing and metering
capability, the TM500’s stereo power amp produces
250 watts a side into 4 ohms and features a fan­cooled, bipolar design for greater stability and long
life. A built in DSP section provides 16 different
effects including reverbs, delays, gates, f langing and
more with up to 16 variations for a total of 256. 3­band EQ for the mono channels and 2-band EQ for
the stereo channels is complemented by a dual 7­band graphic EQ for more sonic control. A truly
useful audio tool that offers users exceptional ver­satility and performance in one package.

Contact:

Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: [phone] • Fax: [phone] • www.samsontech.com

STEREO

ARCHITECT’S & ENGINEER’S

SPECIFICATION

The mixer amplifier shall incorporate a 250 W per
channel stereo amplifier, a dual 7-band graphic equaliz­er, digital signal processing and a stereo mixer with 8
microphone-line input channels and two stereo line
input channels. Microphone inputs shall be on XLR­type connectors and line inputs shall be on balanced
1/4

″ phone connectors. Each channel shall have a trim

control (microphone channels) or pad switch (stereo
line channels), one external and one internal effects
sends, 3-band equalization (microphone channels) or
2-band equalization (stereo line channels), pan, a
peak-level indicator and a level control.

Two stereo effects returns shall be provided on
1/4

″ phone connectors, and each shall have an inde-

pendent level control. The mixer shall provide 256
variations of digital signal processing.

Phantom power of +48 volts shall be provided for
operation of condenser microphones. The amplifier
shall be fan cooled. Amplifier output shall be provided
on two 1/4

″ phone connector s per side. Indicator s

shall be provided for output-signal level, power and
+48 volts. The unit shall be a stand alone or rack­mount type (rack ears included).

The amplifier shall deliver maximum power equal
to or greater than 250 watts per side into 4 ohms, sig­nal-to-noise equal to or greater than 112 dB, THD less
than 0.02% and frequency response of ±1 dB from 20
Hz to 20 kHz. The mixer shall have residual noise of ­90 dB and THD less than 0.02%. Dimensions shall be

19.35

″ (491 mm) wide, 13.75″ (349 mm) deep and

5.5

″ (139 mm) high. Weight shall be 36 lb. (16.4 kg).

The mixer amplifier shall carry a three-year warranty.

The mixer amplifier shall be a SAMSON TM500.

Specifications subject to change without notice. © 1999 SAMSON

TM500 SPECIFICATIONS

MIXER/PREAMP SECTION

Frequency Response (± 1 dB) 20 Hz - 20 kHz
Total Harmonic Distortion

(20 Hz to 20 kHz, -16 dB, trim minimum) 0.02%

Maximum Voltage Gain

Mic to Main Insert L,R +64 dB
Mic to Aux Send 1 +64 dB
Mic to Aux Send 2 +74 dB

Mic to Mono Out +74 dB
Line to Main Insert L,R +34 dB
Stereo to Main Insert L,R +24 dB
Aux Return to Main Insert L,R 0 dB
Tape In to Main Insert L,R +14 dB

Residual Noise (with DIN audio filter)

All Fader Min / Main Insert L,R -90 dB
All VR Min / Aux Send 1,2 -90 dB
Ch Fader Min, Master Fader Max -75 dB

Equivalent Input Noise

(-60 dB, Mic In pins 2,3 150 Ω,with DIN audio filter.) -127 dB

Crosstalk (@ 1 kHz, Trim Min.)

Channel to channel -70 dB
Input to output -70 dB

EQ Control

High (10 kHz) ±15 dB
Mid (1.8 kHz) ±12 dB
Low (100 Hz) ±15 dB

Graphic Equalizer

(63 Hz, 160 Hz, 400 Hz, 1 kHz, 2.5 kHz, 6.4 kHz, 15 kHz) ±12 dB
Phantom Power +48 V
Signal Polarity (Phase) same as Input

POWER AMP SECTION

Maximum Output Power (0.5% THD @ 1 kHz) 250 W / 4 ohm
Total Harmonic Distortion (20 Hz to 20 kHz, 1/2 rated power) 0.2%
Frequency Response (1 W/4 ohm, ±0.5 dB) 20 Hz - 20 kHz
Dynamic Range > 100 dB
Channel Separation 75 dB
Output Offset Voltage ± 100 mV

GENERAL

Dimensions (W x D x H)

Table top 19.35 in. x 13.75 x 5.5

491 mm x 349 x 139

Rack-mountable (rack ears included) 19 in. x 13.75 x 5.5

482.6 mm x 349 x 139
Weight 36 lb • 16.4 kg
Power Requirements 115 V ac 60 Hz for UL and CSA Version

230/240 V ac 50/60 Hz for BSI and Central Europe Version
100 V ac 50/60 Hz for Japan Version

Power Consumption 982 W
