WARE WASHING

RACK CONVEYOR DISHWASHERS

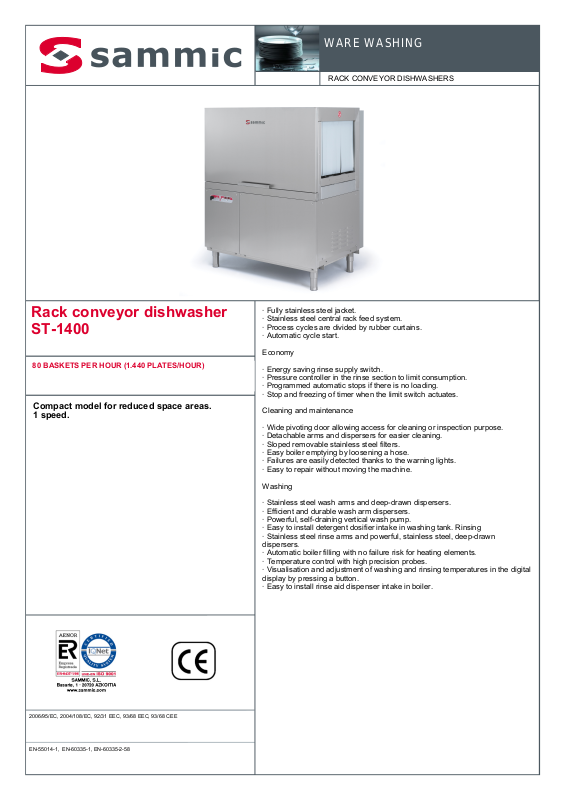

Rack conveyor dishwasher
ST-1400

80 BASKETS PER HOUR (1.440 PLATES/HOUR)

Compact model for reduced space areas.
1 speed.

· Fully stainless steel jacket.

· Stainless steel central rack feed system.

· Process cycles are divided by rubber curtains.

· Automatic cycle start.

Economy

· Energy saving rinse supply switch.

· Pressure controller in the rinse section to limit consumption.

· Programmed automatic stops if there is no loading.

· Stop and freezing of timer when the limit switch actuates.

Cleaning and maintenance

· Wide pivoting door allowing access for cleaning or inspection purpose.

· Detachable arms and dispersers for easier cleaning.

· Sloped removable stainless steel filters.

· Easy boiler emptying by loosening a hose.

· Failures are easily detected thanks to the warning lights.

· Easy to repair without moving the machine.

Washing

· Stainless steel wash arms and deep-drawn dispersers.

· Efficient and durable wash arm dispersers.

· Powerful, self-draining vertical wash pump.

· Easy to install detergent dosifier intake in washing tank. Rinsing

· Stainless steel rinse arms and powerful, stainless steel, deep-drawn
dispersers.

· Automatic boiler filling with no failure risk for heating elements.

· Temperature control with high precision probes.

· Visualisation and adjustment of washing and rinsing temperatures in the digital
display by pressing a button.

· Easy to install rinse aid dispenser intake in boiler.

2006/95/EC, 2004/108/EC, 92/31 EEC, 93/68 EEC, 93/68 CEE

EN-55014-1, EN-60335-1, EN-60335-2-58

Rack conveyor dishwasher ST-1400

DEFAULT EQUIPMENT

WARE WASHING

RACK CONVEYOR DISHWASHERS

TECHNICAL SPECIFICATIONS

Production

·Production baskets/hour: 80

·Production plates/hour: 1440

Wash

·Temperature: 55 ºC - 65 ºC

·Wash tank capacity: 80 l

·Pump: 2 Hp / 1500 W

·Wash heating element : 7500 W

Rinse

·Temperature: 80 ºC - 90 ºC

·Water consumption: 270 l/h

·Rinse heating element : 15000 W

·Boiler capacity: 20 l

Drag

·Drag motor power: 0,16 Hp / 120 W

Loading

·Central module total power : 24120 W

External dimensions (WxDxH)

·Width: 1180 mm

·Depth: 829 mm

·Height: 1430 mm

Net weight: 200 Kg
Water Intake: 3/4 "
Drain diameter: 1 1/2"
Noise level (1m.): 71 dB(A)

Optional accessories

·Drying unit: TS-600

·Extraction systems: CA/EV/CV

·Tables

OPTIONAL EQUIPMENT

· Drying unit TS-600.

· Extraction hood without motor CA.

· Extraction hood with motor EV.

· Extraction hood with steam condensation CV.

· Inlet tables and compositions.

· Outlet tables and compositions.
