Saitek AVIATOR User Manual

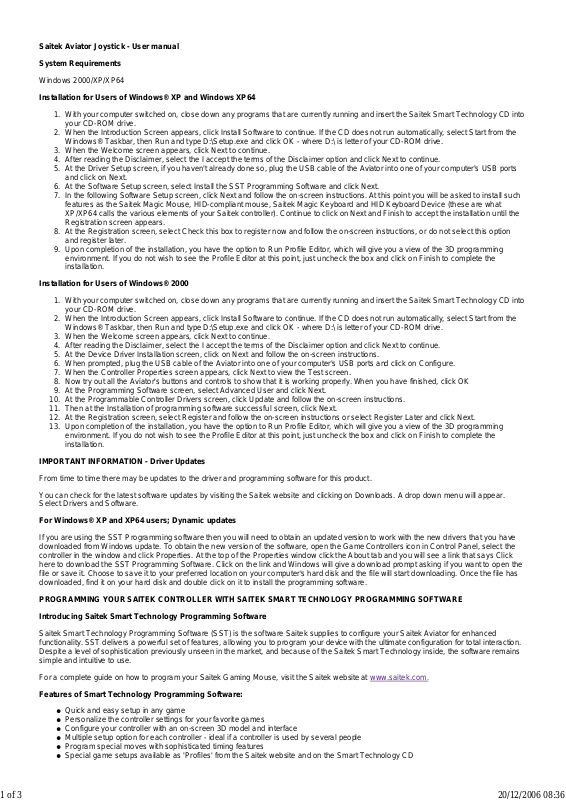

Saitek Aviator Joystick - User manual
System Requirements

Windows 2000/XP/XP64

Installation for Users of Windows® XP and Windows XP64

With your computer switched on, close down any programs that are currently running and insert the Saitek Smart Technology CD into

1.
your CD-ROM drive.
When the Introduction Screen appears, click Install Software to continue. If the CD does not run automatically, select Start from the

2.
Windows® Taskbar, then Run and type D:\Setup.exe and click OK - where D:\ is letter of your CD-ROM drive.
When the Welcome screen appears, click Next to continue.3.
After reading the Disclaimer, select the I accept the terms of the Disclaimer option and click Next to continue.4.
At the Driver Setup screen, if you haven't already done so, plug the USB cable of the Aviator into one of your computer's USB ports

5.
and click on Next.
At the Software Setup screen, select Install the SST Programming Software and click Next. 6.

7.

In the following Software Setup screen, click Next and follow the on-screen instructions. At this point you will be asked to install such
features as the Saitek Magic Mouse, HID-compliant mouse, Saitek Magic Keyboard and HID Keyboard Device (these are what
XP/XP64 calls the various elements of your Saitek controller). Continue to click on Next and Finish to accept the installation until the
Registration screen appears.
At the Registration screen, select Check this box to register now and follow the on-screen instructions, or do not select this option

8.
and register later.
Upon completion of the installation, you have the option to Run Profile Editor, which will give you a view of the 3D programming

9.
environment. If you do not wish to see the Profile Editor at this point, just uncheck the box and click on Finish to complete the
installation.

Installation for Users of Windows® 2000

With your computer switched on, close down any programs that are currently running and insert the Saitek Smart Technology CD into

1.
your CD-ROM drive.
When the Introduction Screen appears, click Install Software to continue. If the CD does not run automatically, select Start from the

2.
Windows® Taskbar, then Run and type D:\Setup.exe and click OK - where D:\ is letter of your CD-ROM drive.
When the Welcome screen appears, click Next to continue. 3.
After reading the Disclaimer, select the I accept the terms of the Disclaimer option and click Next to continue.4.
At the Device Driver Installation screen, click on Next and follow the on-screen instructions. 5.
When prompted, plug the USB cable of the Aviator into one of your computer's USB ports and click on Configure.6.
When the Controller Properties screen appears, click Next to view the Test screen.7.
Now try out all the Aviator's buttons and controls to show that it is working properly. When you have finished, click OK8.
At the Programming Software screen, select Advanced User and click Next.9.
At the Programmable Controller Drivers screen, click Update and follow the on-screen instructions.10.
Then at the Installation of programming software successful screen, click Next.11.
At the Registration screen, select Register and follow the on-screen instructions or select Register Later and click Next. 12.
Upon completion of the installation, you have the option to Run Profile Editor, which will give you a view of the 3D programming

13.
environment. If you do not wish to see the Profile Editor at this point, just uncheck the box and click on Finish to complete the
installation.

IMPORTANT INFORMATION - Driver Updates

From time to time there may be updates to the driver and programming software for this product.
You can check for the latest software updates by visiting the Saitek website and clicking on Downloads. A drop down menu will appear.

Select Drivers and Software.

For Windows® XP and XP64 users; Dynamic updates

If you are using the SST Programming software then you will need to obtain an updated version to work with the new drivers that you have
downloaded from Windows update. To obtain the new version of the software, open the Game Controllers icon in Control Panel, select the
controller in the window and click Properties. At the top of the Properties window click the About tab and you will see a link that says Click
here to download the SST Programming Software. Click on the link and Windows will give a download prompt asking if you want to open the
file or save it. Choose to save it to your preferred location on your computer's hard disk and the file will start downloading. Once the file has
downloaded, find it on your hard disk and double click on it to install the programming software.

PROGRAMMING YOUR SAITEK CONTROLLER WITH SAITEK SMART TECHNOLOGY PROGRAMMING SOFTWARE
Introducing Saitek Smart Technology Programming Software

Saitek Smart Technology Programming Software (SST) is the software Saitek supplies to configure your Saitek Aviator for enhanced
functionality. SST delivers a powerful set of features, allowing you to program your device with the ultimate configuration for total interaction.
Despite a level of sophistication previously unseen in the market, and because of the Saitek Smart Technology inside, the software remains
simple and intuitive to use.

For a complete guide on how to program your Saitek Gaming Mouse, visit the Saitek website at

Features of Smart Technology Programming Software:

Quick and easy setup in any game
Personalize the controller settings for your favorite games
Configure your controller with an on-screen 3D model and interface
Multiple setup option for each controller - ideal if a controller is used by several people
Program special moves with sophisticated timing features
Special game setups available as 'Profiles' from the Saitek website and on the Smart Technology CD

www.saitek.com.

1 of 3 20/12/2006 08:36

Download the latest version of Saitek Smart Technology software from the Saitek website

What is a Profile

A Profile is a custom setup for improved gameplay - consisting of a set of commands that are pre-assigned to the buttons or axes of your
controller. There are pre-written Profiles available on the Product Companion Disk that accompanies this device. Please also check the
Saitek Website (www.saitek.com) for new profiles which will be added for the Saitek Aviator.

How Do I Program My Controller?

After getting to know your controller, you can start creating your own personal Profiles with the Saitek Smart Technology programming
software (SST). This software has virtually unlimited programming capabilities and allows you to customize the controller to your exact
gaming needs.

The Profile Editor allows you to program the buttons on your controller to perform different actions within your games - this is especially
useful if the game you are using does not have its own screen that allows reconfiguring of your buttons.

Getting Started

Double-click on the Saitek Smart Technology icon the install left on your desktop.1.
In the Profile Editor, choose the control to which you wish to assign a keyboard command. You do this by left-clicking on the control's

2.
cell in the control list on the right of the screen
With the cursor flashing, type in the key commands and then click on the green tick mark when complete.3.
Repeat this procedure for all the buttons you would like to program and then click File, Save at the top of the Profile Editor window.4.
Give the profile a name (it is recommended you name it after the game for which the profile is intended) and then click Save. 5.
To enable the profile either click the Profile Now icon at the top of the Profile Editor (it looks like a black and yellow crosshair) or

6.
right-click on the controller icon in your taskbar and select the name of the profile from the pop-up list of options.
You will notice that when a profile is loaded that the controller icon in your taskbar has a green square behind it, indicating that a

7.
profile is currently loaded. If you wish to unload a profile simply right-click on the controller icon and click Clear Profile from the pop-up
list of options.

If you require more detailed assistance with using the SST Programming Software, click on Help at the top of the Profile Editor and then
Manual.

Technical Support

Can't get your controller to work - don't worry, we're here to help you!
Nearly all the products that are returned to us as faulty are not faulty at all - they have just not been installed properly.
If you experience any difficulty with this product, please first visit our website www.saitek.com. The technical support area will provide you

with all the information you need to get the most out of your product and should solve any problems you might have.
If you do not have access to the internet, or if the website cannot answer your question, please contact your local Saitek Technical Support

Team. We aim to offer quick, comprehensive and thorough technical support to all our users so, before you call, please make sure you have
all the relevant information at hand.

To find your local Saitek Technical Support Center, please see the Worldwide Support link on the this disc.

Conditions of Warranty

Warranty period is 2 years from date of purchase with proof of purchase submitted1.
Operating instructions must be followed2.
Specifically excludes any damages associated with leakage of batteries

3.
Note: Batteries can leak when left unused in a product for a period of time, so it is advisable to inspect batteries regularly.

4.

Product must not have been damaged as a result of defacement, misuse, abuse, neglect, accident, destruction or alteration of the
serial number, improper electrical voltages or currents, repair, alteration or maintenance by any person or party other than our own
service facility or an authorized service center, use or installation of non-Saitek replacement parts in the product or the modification of
this product in any way, or the incorporation of this product into any other products, or damage to the product caused by accident,
fire, floods, lightning, or acts of God, or any use violative of instructions furnished by Saitek plc.

5.

Obligations of Saitek shall be limited to repair or replacement with the same or similar unit, at our option. To obtain repairs under this
warranty, present the product and proof of purchase (eg, bill or invoice) to the authorized Saitek Technical Support Center (listed on
the separate sheet packaged with this product) transportation charges prepaid. Any requirements that conflict with any state or
Federal laws, rules and/or obligations shall not be enforceable in that particular territory and Saitek will adhere to those laws, rules,
and/or obligations.

6.

2 of 3 20/12/2006 08:36

When returning the product for repair, please pack it very carefully, preferably using the original packaging materials. Please also
include an explanatory note.

IMPORTANT: To save yourself unnecessary cost and inconvenience, please check carefully that you have read and followed the
instructions in this manual.

This warranty is in lieu of all other expressed warranties, obligations or liabilities. ANY IMPLIED WARRANTIES, OBLIGATIONS, OR
LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN LIMITED WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. IN NO
EVENT SHALL WE BE LIABLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental or
consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
