User Manual
Freesat+
HD Digital TV recorder
DTR94 HD Freesat
UG 253443006-C DTR94 HD Freesat UK.book Page 1 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
2
CONGRATULATIONS!
This Recorder is a new generation of Sagemcom recorder dedicated to Digital Satellite
Television and equipped with a hard disk. With this technological advantage, you can make
digital audio/video recordings.
Once you have connected your recorder and performed the initial installation, you will be able to
watch and enjoy freesat HD and SD channels. You can update your recorder if new functions or
services become available.
The Sagemcom Recorder follows a continuous development strategy. Therefore, we reserve the
right to make changes and improvements to the product described in this user manual without
any prior notice.
CE marking:
The CE marking certifies that the product complies with the essential requirements of the
Directive1999/5/EC concerning radio equipment and telecommunication equipment, and of
Directives 2006/95/EC concerning safety, 2004/108/EC concerning electromagnetic compatibility
and ErP 2009/125/EC concerning ecodesign requirements, defined by the European Parliament
and Council to minimize electromagnetic interferences, ensure the safety of users and their
equipment and protect their health, and minimize the impact of products on the environment.
The CE declaration of conformity can be viewed in the support section of the Sagemcom site
www.sagemcom.com, or it can be obtained from the following address:
Sagemcom Broadband SAS - Customer Relation Service
250, route de l’Empereur
92848 Rueil-Malmaison Cedex - FRANCE
Copyright © Sagemcom Broadband SAS
All rights reserved
Sagemcom is a registered trademark.
"freesat" and "freesat+" are registered trademarks and the "freesat" and "freesat+" logos are
trademarks of Freesat (UK) Ltd.
This "HD TV" Television Receiver complies with the "HD TV" Minimum Requirements. The "HD
TV" Logo is a trademark of DIGITALEUROPE. HDMI, HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI Licensing LLC. Dolby Digital and
AC-3 are registered trademarks of Dolby Laboratories Inc.
DTS is a registered trademark of Digital Theater Systems, Inc.
Telephone number for your local store is on your till receipt.
Please check the following Website Link for reception:
http://www.freesat.co.uk
UG 253443006-C DTR94 HD Freesat UK.book Page 2 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
3
Table of contents
1. Product overview ........................... 4
Pack Contents............................................. 4
Front panel of the recorder.......................... 5
Rear panel of the recorder .......................... 6
Remote control............................................ 7
2. Safety recommendations............... 8
Where to put your recorder? ....................... 8
Warnings and safety instructions ................ 8
Batteries ...................................................... 9
Interference ............................................... 10
Hard disk ................................................... 10
Cleaning the recorder................................ 10
3. Environment ................................. 11
Meaning of logos present on the
product or its packaging ............................ 11
Product recycling and disposal ................. 11
European Directive on Waste Electrical
and Electronic Equipment (WEEE) ........... 12
Directive on the Restriction of use of
certain hazardous substances in
electronic equipment (ROHS) ................... 12
Electrical consumption of the recorder ...... 12
4. Connections.................................. 13
Connection to the satellite dish ................. 13
Connection to the TV set........................... 14
Connection to the VCR/DVD recorder ...... 16
Connection to a home cinema amplifier .... 17
Connection to a hi-fi unit ........................... 17
5. First installation............................ 18
Freesat Settings ........................................ 18
Main Settings ............................................ 19
Channel Search ........................................ 19
6. Everyday Use ................................ 20
Selecting a channel ................................... 20
Adjusting the audio volume........................ 21
Changing the favourites list ....................... 21
Temporarily selecting audio languages
and subtitles............................................... 22
Teletext and interactive services ............... 22
Electronic programme guide ..................... 22
Live mode/Deferred mode ......................... 24
7. Video recordings .......................... 25
Immediate recording (Live or Deferred
programme) ............................................... 25
Recording programmes from the menu ..... 26
Recording programmes from the
Electronic programme guide...................... 27
Recording Library ..................................... 28
Managing the Recording list ...................... 29
8. Installation menus ........................ 31
Icons .......................................................... 31
User settings ............................................. 31
Managing channels and favourite lists ...... 34
Recorder settings ...................................... 35
9. Information Menu.......................... 39
Signal Information...................................... 39
Recorder Information ................................. 39
Hard disk Information................................. 39
10. Software Update ........................... 40
11. Troubleshooting ........................... 41
12. Customer support......................... 43
13. Guarantee terms ........................... 44
14. Technical specifications .............. 46
UG 253443006-C DTR94 HD Freesat UK.book Page 3 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
4
1. Product overview
Your Recorder is a digital recorder that lets you watch and record freesat HD and SD channels.
Pack Contents
Your new equipment includes:
N° Description
1 1 freesat+ HD Digital TV recorder
2 1 power supply unit (power adapter and power cord)
3 1 remote control with 2 batteries (AAA)
4 1 HDMI lead for connection to the HD TV set
5 1 installation guide
6 1 freesat presentation leaflet
7 This User Manual
UG 253443006-C DTR94 HD Freesat UK.book Page 4 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
Getting started
5

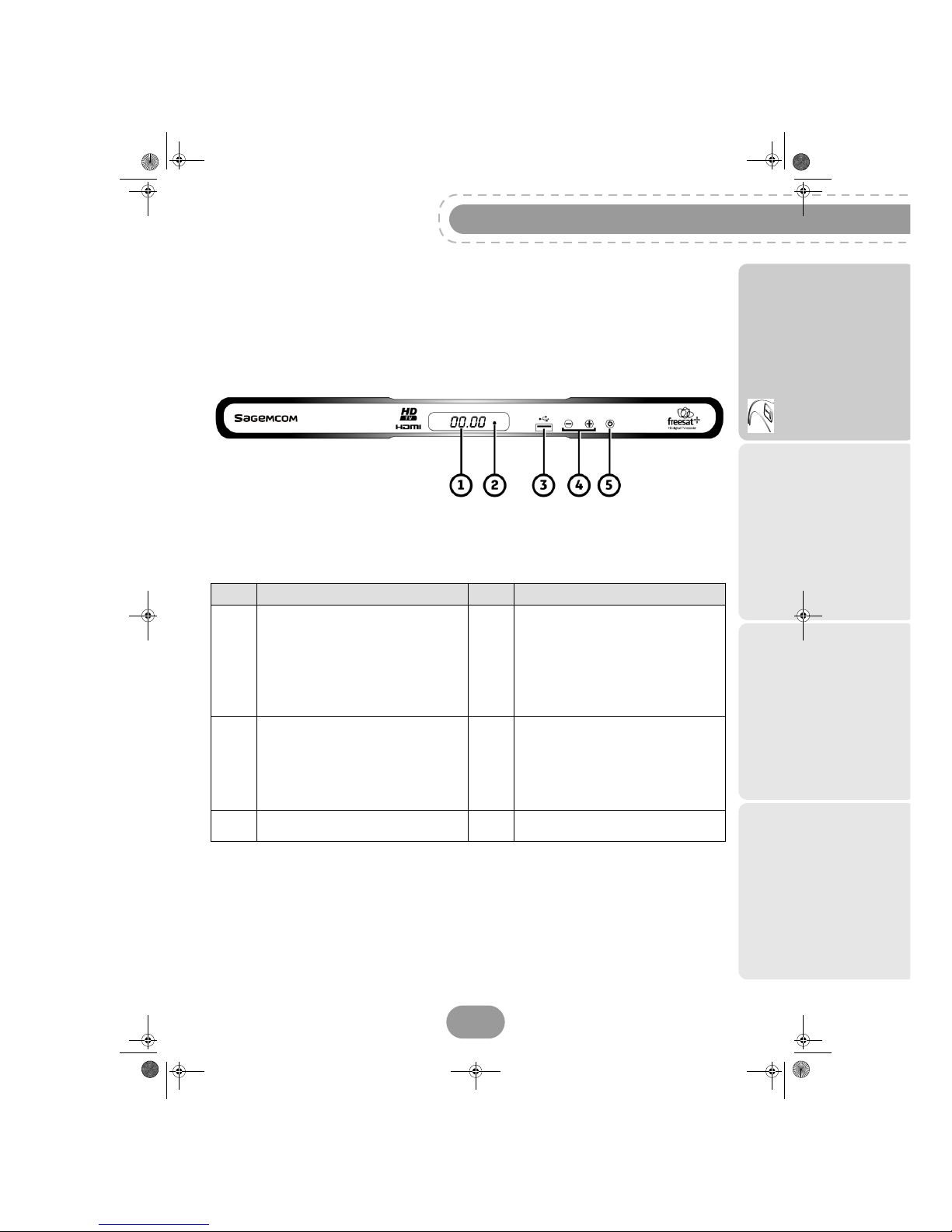

Front panel of the recorder
Item Description Item Description
1
Digital display
• Shows the current time when the
recorder is in standby.
• Shows the programme number when
the recorder is on.
• Shows hard disk activity (recording in
progress, programme playback, ...)
4 Change channels
2 Status indicator 5
Standby button
• Put the recorder in standby
mode / Wake up the recorder from
standby mode (press and let go).
• Restart the recorder (press and hold
for 5 sec.)
3
USB port: To allow manual software
updates
UG 253443006-C DTR94 HD Freesat UK.book Page 5 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
6
Rear panel of the recorder
Item Description Item Description
6 Satellite dish input 2 11 Analogue component video (Y Pb Pr)
7 Satellite dish input 1 12 Digital audio connector (S/PDIF)
8
Ethernet port (for the use of BBC
iPlayer)
13
Scart connector (to VCR or DVD
recorder)
9 HDMI Digital video audio connector 14 Scart connector (to TV)
10 Analogue audio connectors 15 Power supply unit connector
Important
To fully enjoy the features of your recorder, make sure that you connect
the 2 satellite tuners (see Connection to the satellite dish, page 13).
UG 253443006-C DTR94 HD Freesat UK.book Page 6 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
Getting started
7

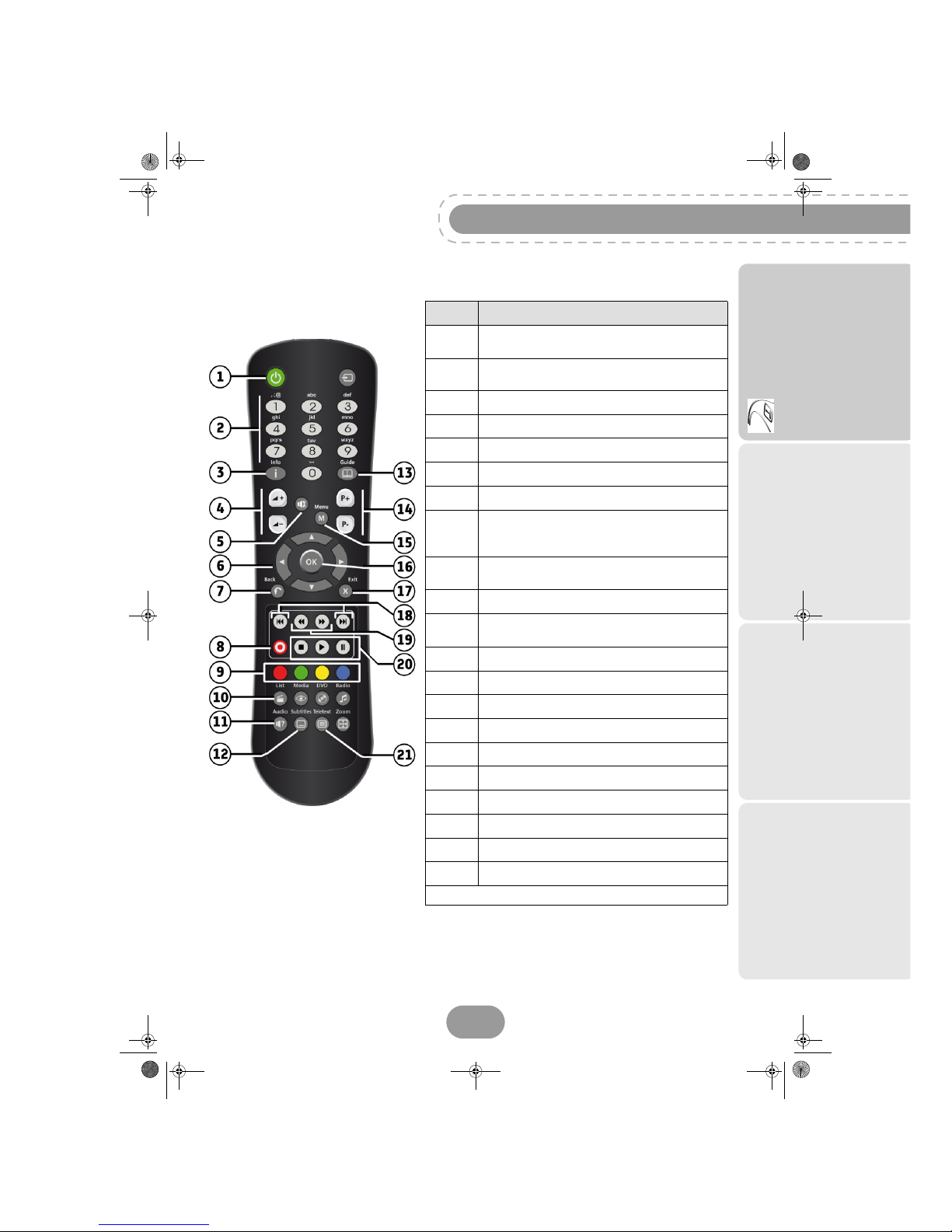

Remote control
Batteries
The remote control needs two batteries (AAA) to operate. The drawing in the battery compartment
indicates how to install them. The batteries provided are not rechargeable.
Key Functions
1
Put the recorder in standby mode / Wake up
the recorder from standby mode
2
Access channels and various on-screen
options
3 Display programme information and options
4 Turn the volume up or down
5 Turn the sound off or on
6 Move in a page, a menu…
7 Go back to the previous screen or mode
8
Launch immediate recording, Schedule a
recording from the electronic programme
guide (EPG)
9
On-screen options (MHEG, Teletext pages and
menu)
10 Access the recording library
11
Select audio tracks and activate/deactivate
audio description
12 Select subtitles
13 Display the electronic programme guide (EPG)
14 Change channels
15 Access menus
16 Display the channel list, confirm a selection
17 Exit a screen, a mode
18 Skip backward / forward
19 Rewind / fast forward
20 Stop / P lay / Pau se
21 Display Teletext pages when available
Note: Undocumented keys are not used on this product.
UG 253443006-C DTR94 HD Freesat UK.book Page 7 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
8

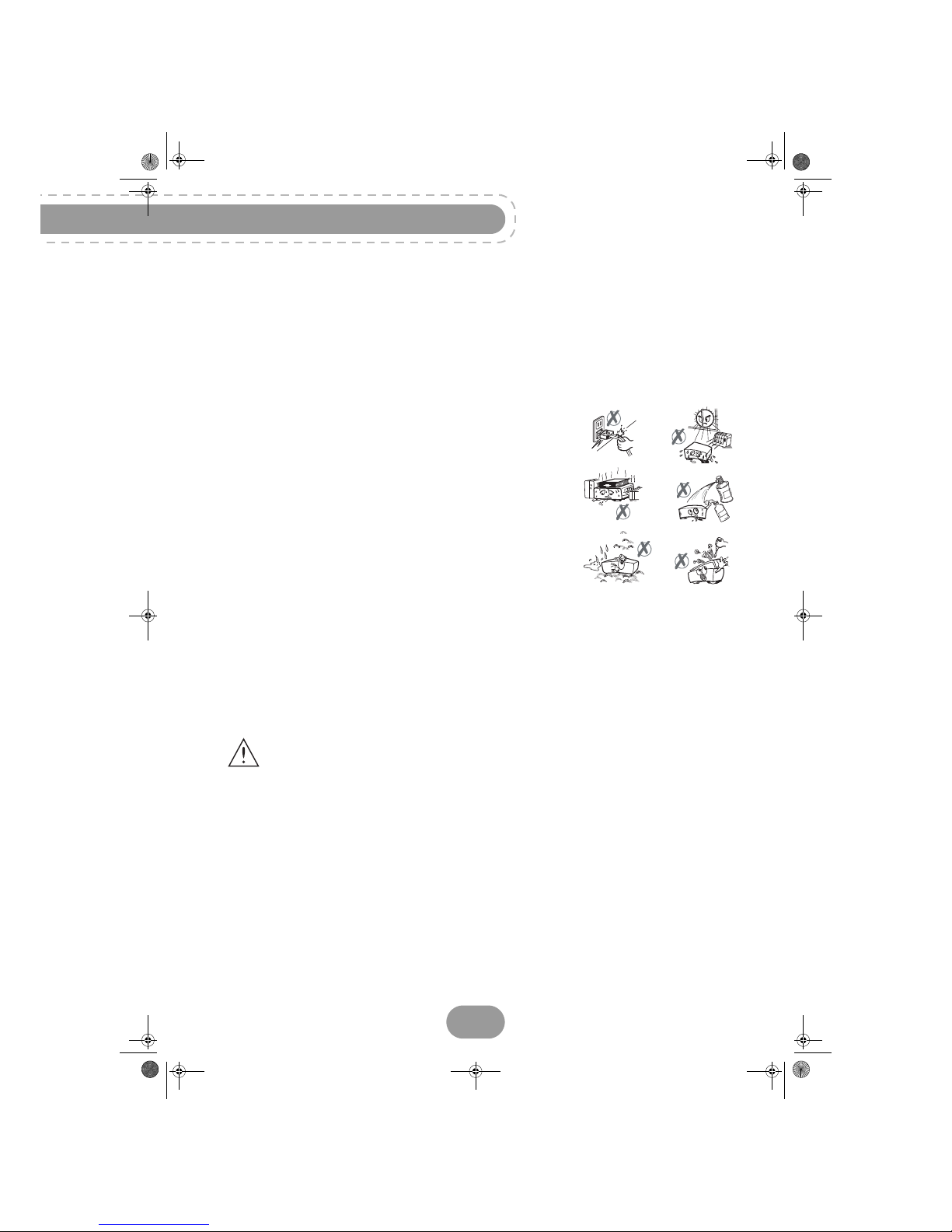

2. Safety recommendations
Use of the recorder is subject to safety measures designed to protect users and their environment.
Where to put your recorder?
In order to guarantee the correct operation of your recorder, you must:
• place it indoors to protect it from lightning, rain, and sun rays,
• place it in a dry and well ventilated area,
• keep it away from heat sources such as radiators, candles,
lamps, etc.
• protect it from dampness, place it on a flat surface from where it
will not fall and is out of reach of the children,
• avoid violent shocks. Choose a stable, horizontal surface on
which the recorder will not be exposed to intense vibrations.
• do not place anything on top of your recorder (as it would restrict
ventilation): the ventilation slots located on the casing prevent
your recorder from overheating. If you place the recorder in a
compartment, leave a space of at least 10 cm on each side and
20 cm on the front and back of the recorder,
• connect it directly to the mains with the provided cords, the socket must be near the recorder and
easy to access. The use of an extension cable (with multi-points) is not recommended.
Warnings and safety instructions
NEVER OPEN THE RECORDER OR THE POWER SUPPLY UNIT! YOU RISK GETTING AN
ELECTRIC SHOCK.
• Use only the power supply unit supplied with the recorder to connect it to the mains.
Other practice may be dangerous.
• As a precaution, in case of danger, the power supply unit act as a disconnecting mechanism
for the 230 V power supply. That is why it is imperative that you connect the recorder to a
power outlet located nearby and easily accessible.
• Connect the recorder to the mains in accordance with the indications mentioned on the identification
label affixed on the recorder (voltage, current, frequency of electricity network).
• The identification label is located under the recorder or on the rear panel.
• You must imperatively connect the power supply unit to the recorder before connecting the power
supply unit to the power socket. Ensure the power cord is correctly connected to the mains power
socket and to the recorder. Otherwise, there is a risk of fire and you risk getting an electric shock
when touching the recorder.
• You must imperatively use the recorder in an environment that complies with the following
requirements:
• temperature of between 0°C [32°F] and 40°C [104°F].
• ambient humidity of between 20% and 90%.
• altitude below 2000 m/ 6562 ft.
UG 253443006-C DTR94 HD Freesat UK.book Page 8 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
Getting started
9
• To avoid short-circuits (fire or electrocution hazard), do not expose your recorder to dampness. Do
not place any object containing liquid (vase for example) on the appliance. The recorder must not be
splashed with liquid. If liquid is upset onto the recorder, unplug it immediately from the mains and
consult your supplier.
• Take care not to allow liquids or metal objects to enter the recorder through the ventilation slots.
• Avoid reconnecting the recorder after it has been subjected to large changes in temperature.
• The recorder must be disconnected from mains supply (from the power outlet or rear panel) before
any modification of connection between TV, VCR or dish.
• In the event of a storm, it is advisable to unplug the dish. Even if the recorder and the television set
are disconnected from the power supply, lightning can still damage them.
• If you hear unusual noise coming from the mains power socket or from the power cord or adapter,
disconnect immediately the power cord from the mains power socket in accordance with all the
precautions of use, you risk getting an electric shock, and contact your retailer.
• Never connect the recorder to a mains power socket which is loose, shows signs of wear or
damage, you risk getting an electric shock.
• Never touch the power cord with wet hands. You risk getting an electric shock.
• When connecting or disconnecting the power cord, always take hold of the plug without pulling on
the cord. A damaged cord presents a potential risk of fire or electric shock. Never pull the power
cord when disconnecting from the mains power socket.
• Never place objects on the power cord, and never pull on it or fold it. This may cause a risk of fire or
electric shock. Ensure that the recorder never lies on the power cord or any other cables.
• Never place objects on the power adapter, never step on it or roll over it with a rolling device. You
risk damaging the power adapter and creating a risk of fire or electric shock.
• Ensure the recorder is placed on a flat and stable surface, placing it incorrectly may lead to the
power cord being disconnected. This may cause a risk of fire or electric shock.
• Always connect the power adapter cord to the recorder first, then connect the power cord to the
power adapter, and finally connect the power cord to the mains power socket. By not observing the
order indicated, you risk getting an electric shock.
• Ensure the power cord is correctly connected to the power adapter, and that it is firmly inserted in its
slot. It is important that you push the connector into its slot. There is a risk of fire or electric shock in
case of incorrect connection.
• Always keep the power cord and power supply unit out of the reach of children or domestic animals.
• Only personnel approved by the manufacturer can repair the recorder. Failure to comply with these
safety precautions will invalidate the guarantee.
• Have a specialised installer perform all connections if you want to use cables that are not provided
with the recorder.
Batteries
Batteries are easily swallowed by young children. Do not allow young children to play with the remote
control.
Always keep batteries away from excessive heat sources such as sun rays, fire or similar sources.
To avoid damaging the remote control, only use identical batteries or batteries of equivalent type. The
batteries provided are not rechargeable.
UG 253443006-C DTR94 HD Freesat UK.book Page 9 Jeudi, 13. octob re 2011 11:25 11
DTR94 HD freesat
10
Interference
Do not place the recorder near appliances that may cause electromagnetic interferences (for example
loudspeakers). This could affect recorder operation and distort the picture or sound.
Hard disk
This unit contains a hard disk. Please wait for the unit to go into standby mode before unplugging and
moving it.
Never cut off the electrical supply while the disk is reading or writing, you may lose data and/or damage
the hard disk.
Cleaning the recorder
The outer casing of the recorder can be cleaned with a soft and dry cloth. Do not use any type of
abrasive pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage the
surface of the recorder.
UG 253443006-C DTR94 HD Freesat UK.book Page 10 Jeudi, 13. octo bre 2011 11:25 11
DTR94 HD freesat
Getting started
11
3. Environment
Preservation of the environment is an essential concern of the manufacturer. The desire of the
manufacturer is to operate systems observing the environment and consequently it has decided
to integrate environmental performances in the life cycle of its products, from manufacturing to
commissioning, use and elimination.
Meaning of logos present on the product or its packaging
The crossed-out dustbin sign stuck on the product or its accessories means that at the end
of its life, the product is subject to selective collection and must not be thrown away in
unsorted household waste.
The looped arrow sign means that the packaging may be recycled and must not be
disposed of with household waste.
The green logo means that a financial contribution is paid to an approved national
organisation to improve packaging recovery and recycling infrastructures.
The logo with three arrows shown on the plastic parts means that they may be recycled
and that they must not be disposed of with household waste.
Product recycling and disposal
To facilitate recycling, please respect the sorting rules set up locally for this kind of waste.
If your product contains batteries, they must be disposed of at appropriate collection points.
European regulations ask you to dispose of products belonging to the family of electrical and
electronic equipments ( ) selectively:
• At the collection points made available to you locally (drop-off centre, selective collection,
etc.),
• At sales points in the event of the purchase of similar equipment.
In this way you can participate in the re-use and upgrading of Electrical and Electronic
Equipment Waste, which can have an effect on the environment and human health.
UG 253443006-C DTR94 HD Freesat UK.book Page 11 Jeudi, 13. octo bre 2011 11:25 11
DTR94 HD freesat
12
European Directive on Waste Electrical and Electronic
Equipment (WEEE)
In the context of sustainable development, the reduction of wastes to be eliminated by reusing,
recycling, composting and energy recovery is strongly advised.
In order to comply with this directive which is applicable to EEEs sold after 13/08/2005, your
recorder will be taken back free of charge and recycled by the distributor of the EEE within the
limits of the quantity and types of equipment bought from them. These appliances which contain
substances potentially dangerous to human health and the environment will be recycled.
Directive on the Restriction of use of certain hazardous
substances in electronic equipment (ROHS)
Your recorder along with the batteries supplied comply with the directive relating to the RoHS –
dangerous materials such as lead, mercury or cadmium are not used. This avoids environmental
hazards and any risks to the health of personnel at the recycling centres. The batteries of the
remote control can be removed simply.
Note: When the batteries of the remote control are worn out, please dispose of them at a
collection point and not with household waste.
Electrical consumption of the recorder
To reduce the consumption of your recorder, you are recommended to place it in standby mode
when not in use. We recommend you to turn off the recorder or unplug it from the mains if you will
not be using it for a prolonged period of time.
Your recorder will automatically switch to standby mode after 3 hours to save electricity. This
option is set by default but can be deactivated in the User preferences.
UG 253443006-C DTR94 HD Freesat UK.book Page 12 Jeudi, 13. octo bre 2011 11:25 11
DTR94 HD freesat
Getting started
13
4. Connections
Before installing your recorder, please check that:
• the delivery is complete (see Product overview, page 4),
• please make sure the appliances to be connected (recorder, TV, VCR…) are unplugged before
making any connections.
Connection to the satellite dish
To get all the freesat HD and SD channels, make sure that your satellite dish is oriented towards
ASTRA 2, facing 28.2° East.
To fully enjoy the recording and timeshifting features of your recorder, you must connect the 2
satellite tuners, making sure that:
• your 2 satellite signal inputs are fully independent. This implies that you use 2 distinct LNB heads
(i.e. twin LNB-head aerial). The use of a splitter is excluded.
• your 2 LNB heads are both directed towards ASTRA 2, facing 28.2° East.
Contact your satellite installer/dealer for more information on your satellite dish installation and
alignment.
1. Plug the first satellite dish cable into the IN 1 input connector on your recorder.
2. Plug the second satellite dish cable into the IN 2 input connector on your recorder.
UG 253443006-C DTR94 HD Freesat UK.book Page 13 Jeudi, 13. octo bre 2011 11:25 11
DTR94 HD freesat
14
Connection to the TV set
Connection to a High-Definition television using a HDMI lead
1. To take advantage of HD high-quality definition, you must connect the HDMI connector of your
digital recorder to the HDMI connector on your television set.
2. To connect other devices to the recorder (VCR, home cinema...), refer to the following pages.
3. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the recorder.
4. Plug the power cord into the wall socket.
UG 253443006-C DTR94 HD Freesat UK.book Page 14 Jeudi, 13. octo bre 2011 11:25 11
DTR94 HD freesat
Getting started
15

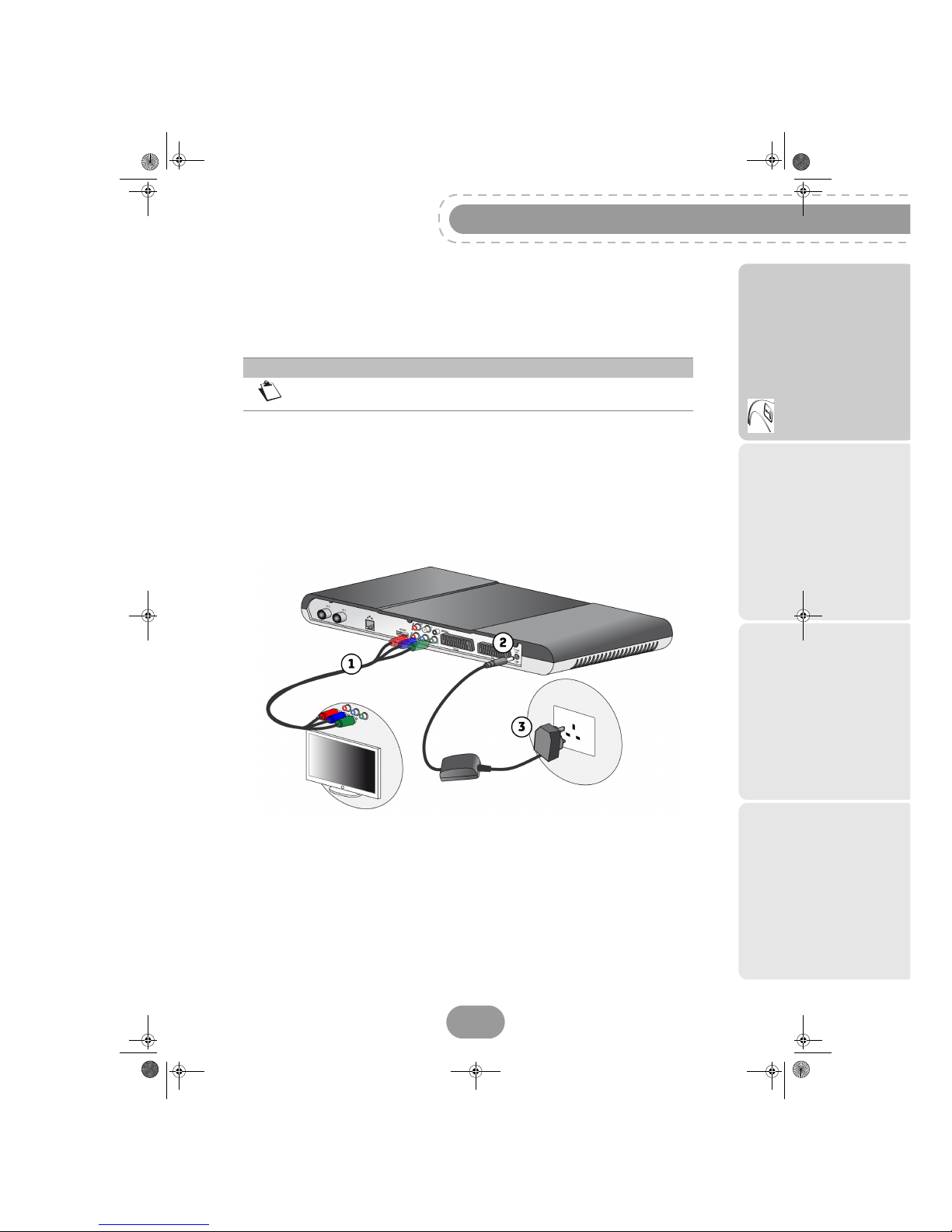

Connection to a High-Definition television using the component video link (Y Pb Pr)
1. Connect the YPbPr connectors (red, blue and green) of your recorder to the YPbPr connectors on
your television set, respecting the connectors colour (cable not supplied).
2. Connect the right and left audio outputs of your recorder to the audio inputs on your television set or
your Hi-Fi system (cable not supplied).
3. To connect other devices to the recorder (VCR, home cinema...), refer to the following pages.
4. Connect the power adapter to the power cable. Then, connect the power cable into the 12V
connector on the recorder.
5. Plug the power cord into the wall socket.
Note
Make sure to connect an audio device (TV set or Hi-Fi) otherwise there will be
no sound output.
UG 253443006-C DTR94 HD Freesat UK.book Page 15 Jeudi, 13. octo bre 2011 11:25 11
Loading...
