English
Table of Contents
Table of Contents ...................................................................................... 1
Usage Notice .............................................................................................. 2
Precautions ......................................................................................................... 2
Introduction ............................................................................................... 4
Product Features ................................................................................................. 4
Package Overview............................................................................................... 5
Product Overview ................................................................................................ 6
Main Unit......................................................................................................................... 6
Panel Control .................................................................................................................. 7
Connection Ports ............................................................................................................ 7
Remote Control............................................................................................................... 8
Installation .................................................................................................. 9
Connecting the Projector ..................................................................................... 9
Powering On/Off the Projector............................................................................ 10
Powering On the Projector ............................................................................................ 10
Powering off the projector ............................................................................................. 11
Warning Indicator ......................................................................................................... 11
Adjusting the Projected Image ........................................................................... 12
Adjusting the Projector Height ...................................................................................... 12
Adjusting the Projector Zoom / Focus .......................................................................... 13
Adjusting Projection Image Size................................................................................... 13
User Controls .......................................................................................... 14
Panel Control & Remote Control ........................................................................ 14
On-Screen Display Menus................................................................................. 16
How to operate .............................................................................................................. 16
Language ...................................................................................................................... 17

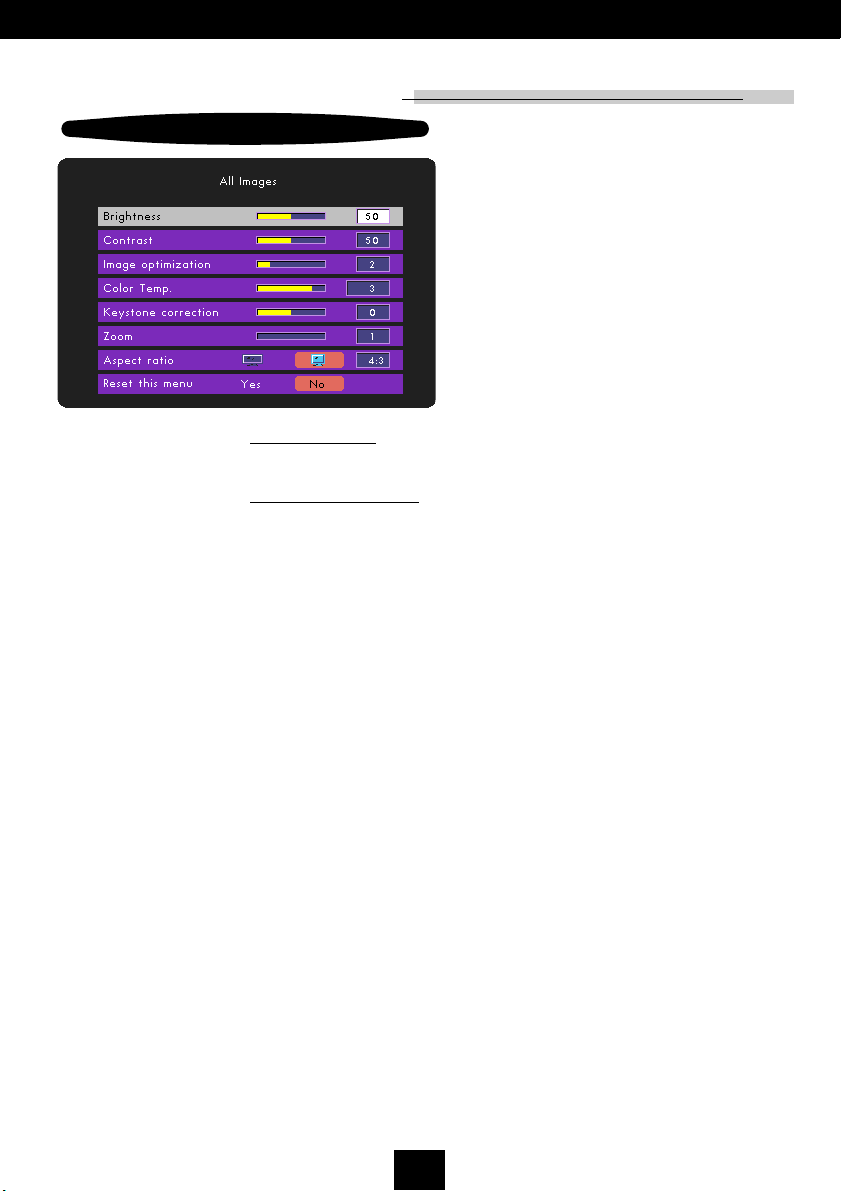

All Images .................................................................................................................... 18

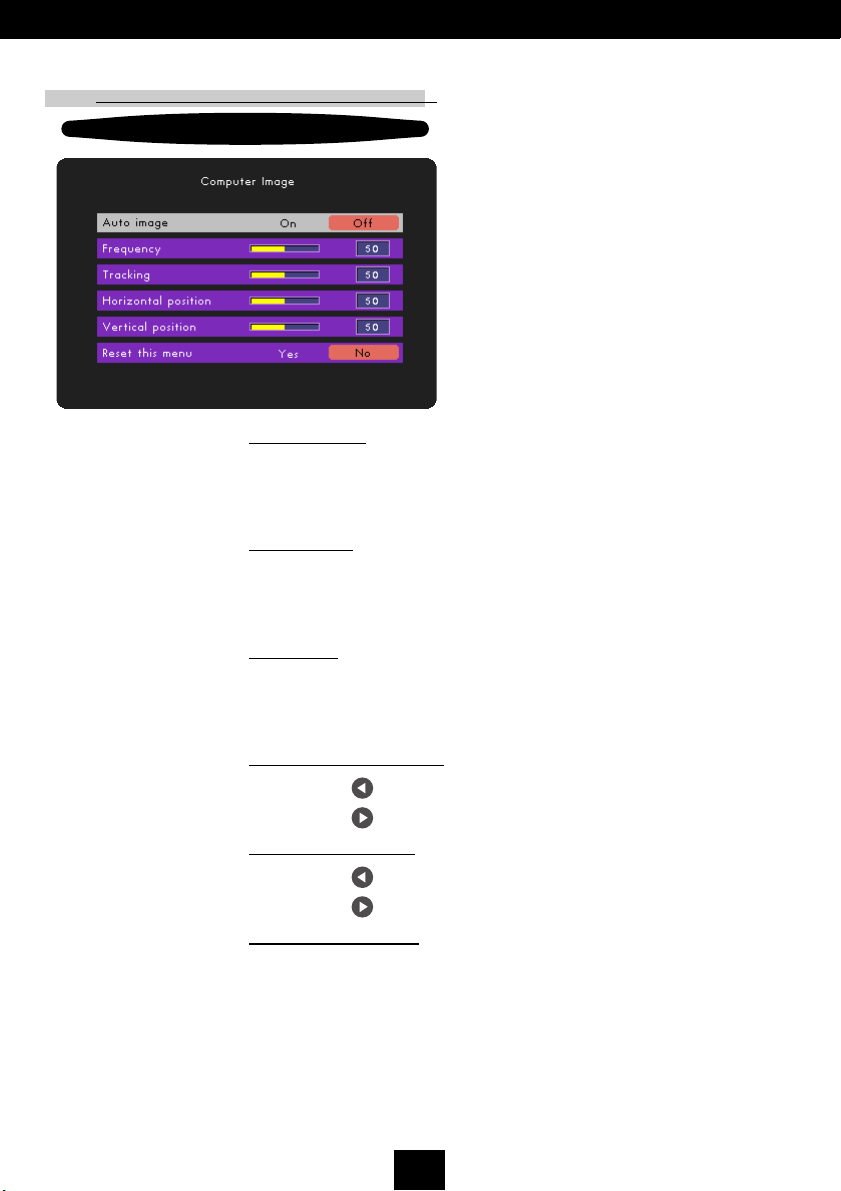

Computer Image ........................................................................................................... 20
Video Image ................................................................................................................. 21

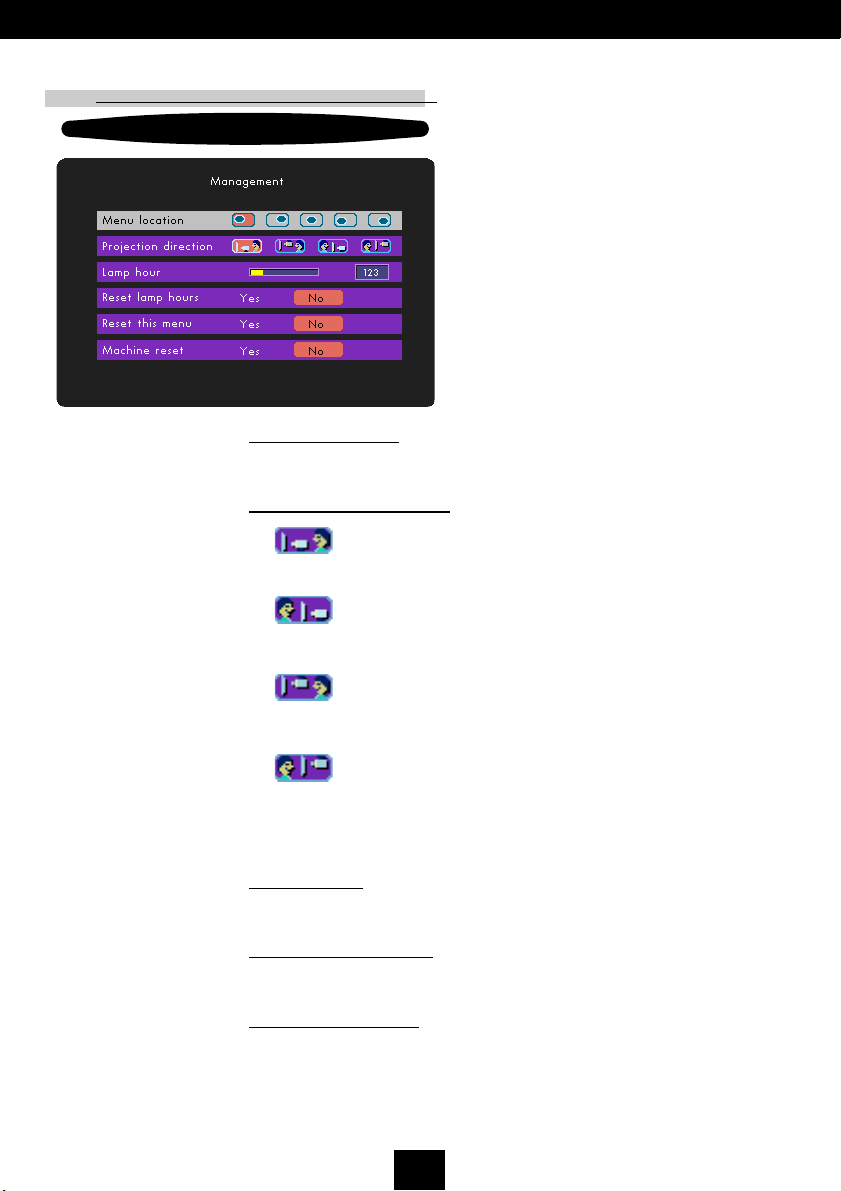

Management ................................................................................................................. 22
PIP ............................................................................................................................... 24
Appendices ............................................................................................... 25
Troubleshooting ................................................................................................. 25
Changing the lamp ............................................................................................. 28
Specifications .................................................................................................... 29
Compatibility Modes .......................................................................................... 30
1
English
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recommended in this users guide to maximize the life of your unit.
Warning- Do not look into the projectors lens when the lamp is
Warning- To reduce the risk of fire or electric shock, do not
Warning- Please do not open or disassemble the product as this
Warning- When changing the lamp, please allow unit to cool
Warning- This product will detect the life of the lamp itself.
on. The bright light may hurt your eyes.
expose this product to rain or moisture.
may cause electric shock.
down, and follow all changing instructions.
Please be sure to change the lamp when it shows
warning messages.
Warning- Reset the Reset Lamp Hours function from the On
Screen Display Management menu after replacing
the lamp module (refer to page 22).
Warning- When switching the projector off, please ensure the
projector completes its cooling cycle before
disconnecting power.
Warning- Turn on the projector first and then the signal sources.
Warning- When the lamp reaches the end of its life, it will burn
out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the
lamp, follow the procedures listed under Changing
the Lamp.
2
Usage Notice
Do:
v Turn off the product before cleaning.
v Use a soft cloth moistened with mild detergent to clean the
display housing.
v Disconnect the power plug from AC outlet if the product is not
being used for a long period of time.
Dont:
v Block the slots and openings on the unit provided for
ventilation.
v Use abrasive cleaners, waxes or solvents to clean the unit.
v Use under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
English
3
English
Introduction
Product Features
This product is an XGA single chip 0.7 DLPTM projector.
Outstanding features include:
u True XGA, 1024 x 768 addressable pixels
u 2.1 lbs (0.95 kgs) compact design
u Single chip DLPTM technology
u NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
u Full function remote control
u User friendly multilingual on screen display menu
u Advanced electronic keystone correction and high
HDTV compatible
quality full screen image re-scaling
u User friendly control panel
u SXGA compression and VGA, SVGA re-sizing
u 120 watt user replaceable P-VIP lamp
u Mac compatible
4
English
Introduction
Package Overview
This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immediately if anything is missing.
Projector with lens cap
S-Video Cable
Carrying Case
Quick Start Card Warranty Card
Power Cord
Composite Video Cable
Remote Control
VGA Cable
Users Guide
Battery
5
English
Introduction
Product Overview
Main Unit
1
2
3
4
5
8
1. Focus Ring
2. Zoom Ring
3. Elevator Button
4. Zoom Lens
5. Remote Control Receiver
6. Connection Ports
7. Power Connector
8. Panel Control
6
5
6
7
Panel Control
1
3
4
1. Power/Standby Indicator
2. Warning Indicator
3. Power
4. Source
5. Directional Select and Enter Keys
6. Keystone Correction
7. Menu (On/Off)
2
5
English
Introduction
7
6
Connection Ports
2
1
1. Power Connector
2 PC Analog Signal/HDTV/Component Video Connector
3. Composite Video Input Connector
4. S-Video Input Connector
5. Remote Control Receiver
6. Keysington
TM
Lock Port
4
3
7
6
5
English
Introduction
Remote Control
1
8
9
10
1. Transmit Indicator Light
2. Power
3. Source
4. Keystone Correction
5. Zoom In/Zoom Out
6. Four Directional Select Keys
7. Menu Key
8. Picture-In-Picture
9. Hide
10. Freeze
2
3
4
5
6
7
8
Installation
Connecting the Projector
English
S-Video Output
1. Power Cord
2. VGA Cable
3. S-Video Cable
4. Composite Video Cable
2
3
4
Video Output
1
v To ensure the projector works well with your computer, please
set the display mode of your graphic card than or equal to
1024 X 768 resolution. Make sure timing of the display mode is
compatible with the projector. Refer to the Compatibility
Modes section on page 30.
9
English
Installation
Powering On/Off the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely
3. Turn on the lamp by pressing Power button on the
4. Turn on your source (computer, notebook, video player ,
v If the screen displays No Signal, please make sure the signal
v If you connect multiple sources at the same time, use the Source
Powering On the Projector
connected.
control panel.
The startup screen will display for 20 seconds and the
Power/Standby indicator will flash green.
When the startup screen disappears, the Power/Standby
indicator will turn green.
etc.). The projector will detect your source automatically.
cables are securely connected.
button on the remote control or control panel to switch.
vTurn on the projector
first and then the
computer.
1
Lens cap
10
2
Power
English
Installation
Powering Off the Projector
1. Press the Power button to turn off the projector lamp.
2. After pressing the Power button, you will see a message
Power off the lamp? on the on-screen display. Press the
Power button again to confirm.
Otherwise the message will disappear after 5 seconds.
3. Power/Standby indicator flashes orange for about 40
seconds. The projector will automatically shut itself down.
If you want to turn on the projector again, you must press
the Power button within 40 seconds of the flashing
indicator.
4. Disconnect the power cord from the electrical outlet and
the projector.
5. Do not turn on the projector immediately following a
power off procedure.
Warning Indicator
v When the Warning indicator turns red, it indicates the projec-
tor has overheated. The projector will automatically shut itself
down.
v When the Warning indicator flashes red (0.5 second
intervals), it indicates a problem with the lamp. Turn off the
projector and disconnect the power cord from the electrical
outlet, then contact your local dealer or our service center.
v When the Warning indicator flashes red (1 second intervals),
it indicates an internal problem. Stop using the projector and
disconnect the power cord from the electrical outlet, then
contact your local dealer or our service center.
v When the Warning indicator flashes orange, it indicates high-
speed cooling in progress. This is not an abnormal condition,
and you can continue using the projector.
11
English
Installation
Adjusting the Projected Image
The projector is equipped with an elevator foot for adjusting the
projector height.
To raise the projector:
1. Press the elevator button .
2. Raise the projector to the desired display angle , then
release the button to lock the elevator foot into position.
3. Use to fine-tune the display angle.
To lower the projector:
1. Press the elevator button.
2. Lower the projector, then release the button to lock the
elevator foot into position.
3. Use to fine-tune the display angle.
Adjusting the Projector Height
3
Tilt Adjusted wheel
1
Elevator Button
2
Elevator Foot
12
English
Installation
Adjusting the Projector Zoom / Focus
You may adjust zoom ring to zoom in or out. To focus the image,
rotate the focus ring until the image is clear. The projector will
focus at distances from 3.94 to 32.81 feet (1.20 to 10.0 meters).
Focus Ring
Zoom Ring
Adjusting Projection Image Size
267.2"(678.7cm)
213.8"(543.0cm)
229.8"
(583.7cm)
183.8"
(466.9cm)
160.3" (407.2cm)
133.6"(339.3cm)
137.9"
(350.2cm)
114.9"
(291.8cm)
80.2"(203.6cm)
68.9"
(175.1cm)
32.1"(81.4cm)
27.6"
(70.0cm)
Screen
(Diagonal)
Screen
Size
Distance
.xaM )mc4.18("1.23 )mc6.302("2.08 )mc3.933("6.331 )mc2.704("3.061 )mc0.345("8.312 )mc7.876("2.762
.niM)mc0.07("6.72)mc1.571("9.86)mc8.192("9.411)mc2.053("9.731)mc9.664("8.381)mc7.385("8.922
)HxW(.xaM
)HxW(.niM
"62.91x"86.52
)mc8.84xmc1.56(
"65.61x"80.22
)mc0.24xmc0.65(
)m2.1('49.3 )m0.3('48.9 )m0.5('04.61 )m0.6('96.91 )m0.8('52.62 )m0.01('18.23
"21.84x"61.46
)mc2.221xmc9.261(
"43.14x"21.55
)mc1.501xmc1.041(
vThis graph is for users reference only.
13
3.94'
(1.2m)
9.84'
(3.0m)
16.40'
(5.0m)
19.69'
(6.0m)
26.25'
(8.0m)
32.81'
(10.0m)
"61.08x"88.601
)mc6.302xmc4.172(
"49.86x"29.19
)mc1.571xmc4.332(
"81.69x"42.821
)mc3.442xmc8.523(
"47.28x"23.011
)mc1.012xmc2.082(
"82.821x"40.171
)mc8.523xmc4.434(
"82.011x"40.741
)mc1.082xmc5.373(
"23.061x"67.312
)mc2.704xmc0.345(
"88.731x"48.381
)mc2.053xmc0.764(
English
User Controls
Panel Control & Remote Control
There are two ways for you to control the functions: Remote
Control and Panel Control.
Remote ControlPanel Control
Using the Panel Control
Power
Refer to the Power On/Off the Projector section on pages
4
10-11.
Source
Press Source to choose RGB, Component-p, Component-i,
4
S-Video, Composite Video and HDTV sources.
Menu
Press Menu to launch the on screen display (OSD) menu.
4
To exit OSD, press Menu again.
Keystone
Adjusts image distortion caused by tilting the projector (±16
4
degrees).
Directional Select
Use to select items or use to make adjustments for
4
your selection.
Enter
Confirm your selection of items.
4
14
User Controls
Using the Remote Control
Power
Refer to the Power On/Off the Projector section on pages
4
10-11.
Source
Press Source to choose RGB, Component-p, Component-i,
4
S-Video, Composite Video and HDTV sources.
PiP
Displays the PiP menu of the on screen display.
4
Keystone /
Adjust image distortion caused by tilting the projector (±16
4
degrees).
Hide
Press Hide to hide the image, press again to resume display of
4
the image.
Zoom In /Zoom Out
Press in to magnify an image on the projection screen.
4
Press out to reduce the image size.
4
Freeze
Press Freeze to pause the screen image.
4
Four Directional Select Keys
Use to select items or make adjustments to
4
your selection.
Menu
Press Menu to launch the on screen display menu. To exit
4
OSD, press Menu again.
English
15
English
User Controls
On Screen Display Menus
The Projector has multilingual On Screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press Menu on the Remote Control or
Panel Control.
2. When OSD is displayed, use keys to select the main menu.
While making a selection on a particular page, press Enter /
key to enter sub menu.
3. Use keys to select the desired item and adjust the
settings by
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
key.
5. Press Menu to confirm, and the screen will return to the main
menu.
6. To exit, press Menuagain. The OSD menu will close and the
projector will automatically save the new settings.
Main Menu Sub Menu Setting
16
Computer / Video Mode
Language
You can display the multilingual OSD menu . Use the or
key to select your prefered language.
Press Menu to finalize the selection.
English
User Controls
Language
17
English
User Controls
Computer / Video Mode
Brightness
Adjusting the brightness of the image.
Press the to darken image.
4
Press the to lighten the image.
4
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
Press the to decrease the contrast.
4
Press the to increase the contrast.
4
Image Optimization
Image Optimization can be incrementally adjusted between 0 and
10. Click on the slider bar to adjust.
Setting 10 will maximize brightness and contrast.
4
Setting 0 will maximize color reproduction quality.
4
Color Temperature
Adjust the color temperature. At higher temperature, the screen
looks colder; at lower temperature, the screen looks warmer.
Keystone Correction
Adjusts image distortion caused by tilting projection (±16 degrees).
Zoom
Press the to reduce the size of an image.
4
Press the to magnify an image on the projection screen.
4
All Images
18
Computer / Video Mode
Aspect Ratio
Selects the desired aspect ratio.
Reset This Menu
Choose Yes to return the display parameters on this menu to
their factory default settings.
English
User Controls
All Image
19
English
User Controls
Computer Mode
Auto Image
The projector automatically adjusts frequency, tracking, horizontal
and vertical position. With most signal sources, Auto Image
provides the best results.
Frequency
Frequencychanges the display data frequency to match the
frequency of your computers graphic card. If you experience a
vertical flickering bar, use this function to make an adjustment.
Tracking
Tracking to synchronizes the signal timing of the display with the
graphic card. If you experience an unstable or flickering image, use
this function to correct it.
Horizontal Position
Press the to move the image left.
4
Press the to move the image right.
4
Vertical Position
Press the to move the image down.
4
Press the to move the image up.
4
Reset This Menu
Choose Yes to return the display parameters on this menu to
their factory default settings.
Computer Image
20
Video Mode
Color Saturation
Adjusts a video image from black and white to fully saturated
color.
Press the to decrease the amount of color in the image.
4
Press the to increase the amount of color in the image.
4
Sharpness
Adjusts the sharpness of the image.
Press the to decrease the sharpness.
4
Press the to increase the sharpness.
4
Tint
Adjusts the color balance of red and green.
Press the to increase the amount of green in the image.
4
Press the to increase the amount of red in the image.
4
Reset This Menu
Choose Yes to return the display parameters on this menu to
their factory default settings.
English
User Controls
Video Image
21
English
User Controls
Computer / Video Mode
Menu Location
Choose the Menu location on the display screen.
Projection Direction
Management
4
The factory default setting.
4
When you select this function, the projector reverses the image
so you can project behind a translucent screen.
4
When you select this function, the projector turns the image
upside down for ceiling-mounted projection.
4
When you select this function, the projector reverses and turns
the image upside down at same time. You can project from
behind a translucent screen with ceiling mounted projection.
Front-Desktop
Rear-Desktop
Front-Ceiling
Rear-Ceiling
Lamp Hour
Displays the lamps elapsed operating time (in hours).
Reset Lamp Hours
Turns the lamp hour counter to 0 hours.
Reset This Menu
Choose Yes to return the display parameters on this menu to
their factory default settings.
22
Computer / Video Mode
Machine Reset
Choose Yes to return the display parameters (except for Lamp
Hours) on all menus to their factory default settings.
English
User Controls
Management
23
English
User Controls
Computer Mode
PIP
Choose On to select on the PIP screen.
PIP Location
Choose the PIP screen position on the display screen.
PIP Switch Source
Choose the input source of the projector on the PIP screen.
PIP
Picture-In-Picture
vThe OSD does not
include a PIP menu
under Video mode.
Reset This Menu
Choose Yes to return the display parameters on this menu to
their factory default settings.
24
English
Appendices
Troubleshooting
If you experience trouble with the projector, refer to
the following information. If the problem persists, please
contact your local reseller or service center.
Problem: No image appears on screen.
Ensure all the cables and power connections are correctly and
4
securely connected as described in the Installation section.
Ensure the pins of connectors are not crooked or broken.
4
Check if the projection lamp has been securely installed. Please
4
refer to the Changing the lamp section.
Make sure you have removed the lens cap and the projector is
4
switched on.
Problem: Partial, scrolling or incorrectly displayed image.
Press the Auto Image function in the Computer Image menu
4
of the on screen display.
If you use a PC:
4
If the resolution of your computer is higher than 1024 x 768.
Follow the steps outlined below to reset the resolution.
For Windows 3.x:
1. In the Windows Program Manager, click the Windows Setup
icon in the Main group.
2. Verify that your display resolution setting is less than or equal
to 1024 x 768.
For Windows 95,98,2000,XP:
1. Open My Computer icon, the Control Panel folder, and
then double click the Display icon.
2. Select the Setting tab.
3. In the Desktop Area you will find the resolution setting.
Verify that the resolution setting is less than or equal to 1024 x
768 resolution.
If the projector is still not projecting the whole image, you will
also need to change the monitor display you are using. Refer to
the following steps.
25
English
Appendices
4
4
Problem: The screen of the Notebook or PowerBook computer is not displaying your presentation.
4
4
4. Follow above steps 1-2. Click on the Advanced Properties
button.
5. Select the Change button under the Monitor tab .
6. Click on Show all devices. Then select Standard monitor
types under the Manufactures box ; choose the resolution
mode you need under the Models box.
7. Verify that the resolution setting of the monitor display is less
than or equal to 1024 x 768.
If you are using a Notebook PC:
1. You are required to implement above steps of resolution setting
of computer first.
2. Switch the Notebook PC display to the external display only
or CRT only mode.
If you experience difficulty in changing resolutions or your monitor
freezes, restart all the equipment and the projector.
If you are using Notebook PC:
Some Notebook PCs may deactivate their screens when a second
display device is in use. Refer to your computers documentation
for information on how to reactivate the monitor display.
If you are using an Apple PowerBook:
In Control Panels, open the PowerBook Display to select Video
Mirroring On.
Problem: Image is unstable or flickering
Use Tracking to correct it. Refer to page 20.
4
Change the monitor color setting from your computer.
4
Problem: Image has vertical flickering bar
Use Frequency to make an adjustment. Refer to page 22.
4
Check and reconfigure the display mode of your graphic card to
4
make it compatible with the product. Refer to page 25.
26
English
Appendices
Problem: Image is out of focus
Adjusts the Focus Ring on the projector lens. Refer to page 13.
4
Make sure the projection screen is between the required distance
4
3.94 to 32.81 feet (1.20 to 10.00 meters) from the projector.
Problem: The image is outstretched when displaying 16:9
DVD.
The projector automatically detects 16:9 DVD and adjusts the aspect
ratio by digitizing to full screen with 4:3 default setting.
If the image is still outstretched, you will also need to adjust the aspect
ratio by referring to the following: (See page 18)
Please select 4:3 aspect ratio type on your DVD player if you are
4
playing a 16:9 DVD.
If you cant select 4:3 aspect ratio type on your DVD player, please
4
refer to page 18 to choose 4:3 aspect ratio in the on screen menu.
Problem: Image is reversed.
To select Management from the OSD and adjust the projection
4
direction. See page 23.
Problem: Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
4
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace
the lamp, follow the procedures in the Changing the Lamp. See
page 28.
27
English
Appendices
Changing the lamp
The projector will detect the lamp life itself. It will show you a
warning message The Lamp has been in use for over 1400
hours. You should purchase a spare bulb. When you see this
message, please contact your local reseller or service center to
change the lamp as soon as possible or refer to the following
instructions to replace it yourself.
Warning: Lamp
compartment is hot!
Allow it to cool down
before changing lamp!
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
2
1
Warning: To reduce
the risk of personal
injury, do not drop the
lamp module or touch
the lamp bulb. The bulb
may shatter and cause
injury if it is dropped.
3
4
Lamp Changing Procedure:
1. Turn off the power to the projector by pressing the Power
button.
2. Allow the projector to cool down at least 30 minutes.
3. Disconnect the power cord.
4. Use a screwdriver to remove 2 screws from the cover.
5. Remove the cover.
6. Remove the 2 screws from the lamp module.
7. Pull out the lamp module.
To replace the lamp module, reverse the previous steps.
28
English
Appendices
Specifications
Light Valve - Single Chip DLPTM Technology by Texas Instruments
Lamp - 120W User Replaceable P-VIP Lamp
Number of Pixels - 1024 pixels(H) X 768 lines(V)
Displayable Color - 16.7M colors
Projection Lens - F/2.8~3.1 f=25.8~30.0mm with 1.16x Manual zoom
lens
Projection Screen Size (Diag.) - 27.6 to 267.2 inches (0.70 to 6.79 meters) Diagonal
Projection Distance - 3.94 to 32.81 feet (1.20 to10.00 meters)
Video Compatibility - NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM
and HDTV compatible
- Composite video & S-Video capability
H. Frequency - 15kHz~100kHz horizontal scan
V. Frequency - 43Hz~120Hz vertical refresh
Power Supply - Universal AC input 100~240V ;
Input Frequency 50-60Hz
I/O Connectors - Power: AC power input socket
- Computer Input:
One VGA for analog/component and HDTV signal
- Video Input:
One Composite video RCA input
One S-Video input
Weight - 2.1 lbs (0.95 kgs)
Dimensions (W x H x D) - 7.8 x 5.8 x 2.2 inches (198 x 148 x 57 mm)
Environmental - Operating Temperature: 41~95
Humidity: 80% maximum
- Storage Temperature: -4~140
Humidity: 80% maximum
Safety Regulation - FCC Class B,CE Class B,VCCI-II,UL,cUL,TÜV-GS,
CCC, PSE, IRAM, C-Tick, MIC, ICES
o
F (5~ 35oC)
o
F (-20~60oC)
29
English
Appendices
Compatibility Modes
Remark : *
compression computer
image.
Mode Resolution
AGVASEV 053X046 07 5.13
AGVASEV 053X046 58 9.73
AGVASEV 004X046 58 9.73
AGVASEV 084X046 06 5.13
AGVASEV 084X046 27 9.73
AGVASEV 084X046 57 5.73
AGVASEV 084X046 58 3.34
AGVASEV 004X027 07 5.13
AGVASEV 004X027 58 9.73
AGVS 006X008 65 2.53
AGVS 006X008 06 9.73
AGVS 006X008 27 1.84
AGVS 006X008 57 9.64
AGVS 006X008 58 7.35
AGXASEV 867X4201 4.34 5.53
AGXASEV 867X4201 06 4.84
AGXASEV 867X4201 07 5.65
AGXASEV 867X4201 57 0.06
AGXASEV 867X4201 58 7.86
AGXSASEV* 468X2511 07 8.36
AGXSASEV* 468X2511 57 5.76
AGXSASEV* 468X2511 58 1.77
AGXSASEV* 069X0821 06 06
AGXSASEV* 069X0821 57 57
AGXSASEV* 4201X0821 34 4.64
AGXSASEV* 4201X0821 06 89.36
AGXSASEV* 4201X0821 57 89.97
"61CAM 426X238 55.47 527.94
"91CAM 867X4201 57 42.06
CAM* 078X2511 60.57 86.86
4GCAM 084X046 06 53.13
4GCAM 084X046 021 30.86
4GCAM 867X4201 021 90.79
VDCAMI 084X046 711 06
VDCAMI 006X008 59 06
VDCAMI 867X4201 57 06
VDCAMI* 078X2511 57 94.86
VDCAMI* 069X0821 57 57
V.Frequency
(Hz)
(ANALOG)
H.Frequency
(kHz)
30
Loading...
