SAF XL-FW10017OM User Manual

Owner’s Manual

Simplex SE and II SE Series Fifth Wheels

Operation, Maintenance and Troubleshooting Procedures; Warranty Information

SE Top Plate Series II SE Top Plate Series

XL-FW10017OM-en-US Rev A

2

Contents

Introduction

Notes, Cautions, and Warnings

NOTE:

IMPORTANT:

Introduction ………………..…….................. 2

Notes, Cautions, and Warnings…………….. 2 Section 1—Model Identification…………… 3 Section 2—General Safety Instructions….. 4 Section 3—Fifth Wheel Intended Use…….. 5 Section 4—Fifth Wheel NON-Intended Use 5 Section 5—Coupling Preparation………….. 5 Section 6—Coupling Procedures…………… 6 Section 7—Uncoupling Procedures……….. 8 Section 8—Positioning Sliding Fifth Wheels……………………………..

This manual provides the information necessary for the proper operation and maintenance of Holland Simplex SE and II SE series fifth wheels.

components contact SAF-HOLLAND Customer Service: 1-888-396-6501.

For Holland replacement

Page

Section 9—Top Plate Removal ………….. 11 Section 10—Fifth Wheel Lubrication…… 12 Section 11—Fifth Wheel Adjustment…… 13

Section 12—Bracket Pad and Shoe Inspection…………………….

Section 13—Top Plate Installation……… 17 Troubleshooting……………………………... 18 Rebuild and Replacement Kits………….. 21

Warranty …………………………………….... 23

9

Throughout this manual, you will notice the terms, “NOTE,” “IMPORTANT,” “CAUTION,” and “WARNING” followed by product information. So that you may better understand the manual, those terms are defined as follows:

Includes additional information to enable accurate and easy performance of procedures.

Page

16

You must read and understand all of the procedures presented in this manual before operating or starting work on any Holland Simplex SE or II SE series fifth wheel.

location for future reference.

Proper tools must be used to perform the maintenance and repair procedures described in this manual.

safety requirements are defined by federal and/or state Occupational Safety and Health Acts. Equivalent laws may exist in other countries. This manual is written based on the assumption that OSHA or other applicable employee safety regula tions are followed by the location where the work is performed.

In the United States, work shop

Keep this manual in a safe

information that if not followed could lead to hindered product

performance.

potentially hazardous situation which, if not avoided, may result in property damage.

if not avoided, may result in minor or moderate injury.

if not avoided, could result in death or serious injury.

Includes additional

Used without the safety alert symbol, indicates a

Indicates a potentially hazardous situation which,

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

3

Model Identification

1. Model Identification

Figure 1

Figure 2

Figure 1

Figure 2

Fifth wheel serial tags are located on the left side of the fifth wheel top plate above the fifth wheel bracket pin, or on the

pickup ramps as shown (

The part number and serial number are listed on the tag as shown (

).

XL-FW10017OM-en-US Rev A 11-10 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

4

General Safety Instructions

2. General Safety Instructions

IMPORTANT

Read and observe all Warning and Caution hazard alert messages in this publication. They provide information that can help prevent serious personal injury, damage to

components, or both.

All fifth wheel installation and maintenance must be performed by a trained technician using proper tools and safe procedures.

fifth wheel you must be thoroughly satisfied that the fifth wheel has been appropriately installed on the vehicle.

: Prior to operation of the

Failure to follow all the

operating procedures contained in these instructions may result in a hazardous condition which, if not avoided, could result in death or serious injury.

These instructions apply to the proper operation of your fifth wheel only. There are other important checks, inspections, and procedures listed in the Owner’s Manuals for your tractor and trailer that are necessary, prudent, and/or required by law.

Only SAF-HOLLAND Original Parts should be used.

Failure to properly install

the fifth wheel may result in tractor trailer separation which, if not avoided, could result in death or serious

injury.

A list of SAF-HOLLAND technical support locations to supply SAF-HOLLAND Original Parts can be found on the Internet at www.safholland.us or contact our customer service group at 1-888-396-6501.

Updates to this manual will be published as necessary on the Internet at www.safholland.us.

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

5

Operation Instructions

3. Fifth Wheel Intended Use

4. Fifth Wheel NON-Intended Use

5. Coupling Preparation

IMPORTANT

1. For pulling trailers with standard SAE kingpins which are in good condition and securely mounted or locked in

position in the trailer.

2. To transport loads that are within the maximum fifth wheel rated capacities: SE-55,000 lbs. II SE– 70,000 lbs. Maximum Vertical Load

150,000 lbs. Maximum Drawbar Pull.

3. In on-road applications.

of off-road refers to terrain on which a tractor-trailer operates which is unpaved and rough, or ungraded. Any terrain not considered part of the public highway system falls under this heading.

: SAF-HOLLAND definition

Failure to couple with a

proper kingpin may result in improper coupling, allowing tractor and trailer separation, which if not avoided, could result in death or

serious injury.

2. Tow-away operations which

damage or interfere with the proper operation of the fifth

wheel.

3. The attachment of lifting devices.

4. The transport of loads in excess

of rated capacity.

5. In off-road applications.

6. Applications other than

recommended in SAF-HOLLAND literature available on the Internet at www.safholland.us.

4. As recommended in SAF-HOLLAND literature available on the internet at www.safholland.us.

1. Use with non-SAE kingpins, such as kingpins which are bent, improper size or dimensions, not secured to maintain SAE configuration, or which are installed in warped trailer bolster plates, or upper coupler and fifth wheel lube plates that do not maintain the SAE kingpin dimensions. Refer to SAF-HOLLAND Service Bulletin XL-SB004-01(available on the Internet at www.safholland.us) for more information on fifth wheel lube

plates.

1. Prior to coupling you must inspect the fifth wheel and

mounting.

• Tighten loose fasteners.

• Replace missing fasteners.

• Repair/replace missing,

cracked or otherwise damaged components.

• Clean grease grooves if a

large amount of debris is present.

• Lubricate fifth wheel-to-trailer

contact surfaces if needed.

• Inspect fifth wheel

mechanism. Lubricate dry or rusty components.

XL-FW10017OM-en-US Rev A 11-10 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

6

Operation Instructions

Figure 3

Figure 4)

Figure 5)

6. Coupling Procedures

Figure 6

Figure 3

Figure 4

Figure 5

Figure 6

Note:

Figure 5

• If you have a sliding fifth wheel, make sure both plungers are fully engaged.

• Inspect air line connections.

• Make sure fifth wheel is in appropriate position for

weight distribution on the tractor. For proper positioning of the fifth wheel refer to SAF-HOLLAND publication XL-FW10008IM-en-US

available on the Internet at www.safholland.us.

2. Make sure coupling area is flat, level and clear of persons and obstacles.

3. Tilt ramps of fifth wheel downward (

4. Make sure lock is open (

).

lock is closed pull release handle all the way out, lift handle up and hook on casting (

. If air release equipped, set tractor brakes and actuate fifth wheel control valve to

open lock.

. If

TILT DOWNWARD

LOCKS ARE OPEN LOCKS ARE CLOSED

AUTOMATIC INDICATOR

MANUAL INDICATOR

If fifth wheel is equipped with a manual safety indicator, the indicator must be manually rotated out of the way before pulling release

handle (

).

1. Position the tractor so that the center

of the fifth wheel is aligned with kingpin and back up straight

).

(

TRAILER

(TOP)

KINGPIN

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

7

NOTE:

Operation Instructions

Figure 7

Figure 8

Figure 9

Figure 10

Figure 7

Figure 8

Figure 9

Figure 10

CORRECT INCORRECT

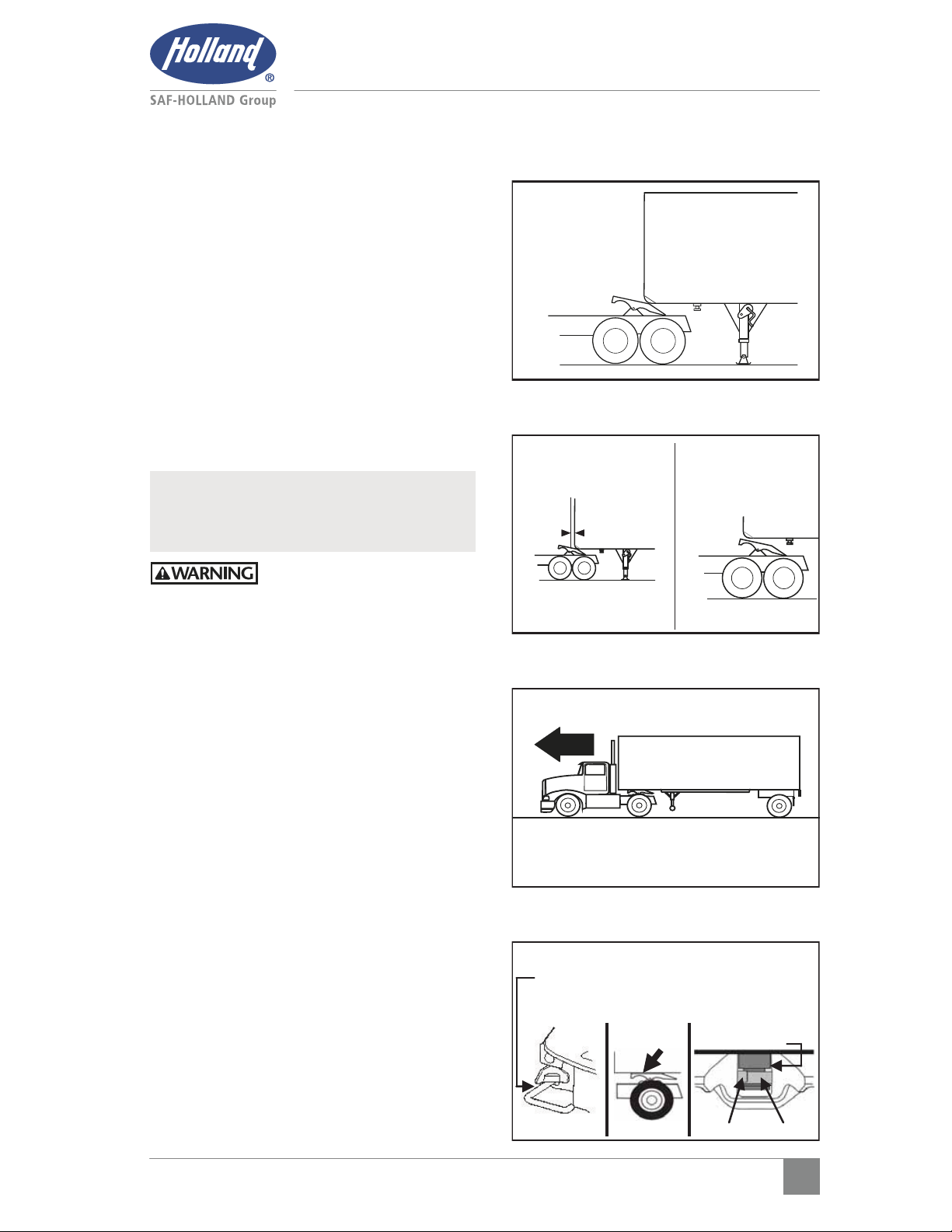

2. Back tractor close to the trailer and STOP before making contact with

trailer (

).

3. Chock trailer wheels.

4. Connect brake lines and light cord.

5. Support slack in lines to prevent interference.

6. Set trailer brakes.

7. Adjust trailer height so fifth wheel will lift trailer. Trailer should contact fifth wheel 4”-6” behind the center of fifth

wheel (

Follow instructions published

by manufacturer for proper operation of landing gear.

).

Failure to couple with the trailer at the proper height may result in improper cou- pling, allowing tractor and trailer separation, which if not avoided, could result in

death or serious injury.

BACK IN AND STOP!

FIFTH WHEEL WILL NOT LIFT TRAILER

4”-6”

FIFTH WHEEL TILTED DOWN

FIFTH WHEEL MUST LIFT TRAILER

8. Slowly back into trailer, engaging kingpin in fifth wheel.

9. Perform a pull test as an INITIAL CHECK by locking trailer brakes and pulling forward with tractor to make sure tractor trailer separation does

not occur (

10. Get out of tractor and visually inspect

).

LOCK TRAILER BRAKES AND

PULL FORWARD WITH TRAILER

the following to be sure lock is closed and tractor and trailer are properly

coupled (

).

a. Release handle fully retracted with

lock indicator in down position

RELEASE HANDLE RETRACTED LOCK INDICATOR IN DOWN POSITION

NO GAP!

above release handle.

b. No gap is permissible between trailer bolster plate and fifth wheel.

c. Lock securely closed behind jaw.

XL-FW10017OM-en-US Rev A 11-10 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

KINGPIN ENGAGED IN JAW WITH JAW SECURED BY CLOSED LOCK

KINGPIN

LOCK

JAW

8

Operation Instructions

Figure 11

7. Uncoupling Procedures

Figure 11

IMPORTANT:

NOTE:

11. If you do not achieve a proper couple,

Failure to properly couple the tractor and trailer may result in tractor trailer separation while in use which, if not avoided, could result in death or

serious injury.

that fails to operate properly.

Failure to repair a malfunctioning fifth wheel before use may result in a tractor trailer separation which, if not avoided, could result in death or

serious injury.

12. Fully retract the landing gear legs off

repeat the coupling procedure.

Do not use any fifth wheel

the ground and secure the crank handle (

).

SECURE CRANK

Follow instructions published

by landing gear manufacturer for proper operation of landing gear.

13. Verify brake lines and light cords are connected.

14. Remove wheel chocks, continue with pre-trip inspection.

1. Position tractor and trailer on firm, level ground clear of obstacles and

persons.

2. Set trailer brakes.

3. Slowly back tractor tightly against trailer to relieve pressure on the fifth

wheel locks.

4. Set tractor brakes.

5. Chock trailer wheels.

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

9

Operation Instructions

Figure 12

Figure 13

8. Positioning Sliding Fifth Wheels

Figure 14

Figure 12

Figure 13

Figure 14

NOTE:

6. Lower landing gear until pads just touch the ground (

).

Follow instructions published by manufacturer for proper operation of landing gear and ability to transfer trailer weight off fifth wheel. Do not raise trailer off the

fifth wheel.

7. Disconnect brake lines and light cord.

8. Pull release handle all the way out,

then lift handle up and hook on casting (

). (If equipped with a manual safety indicator, the indicator must be manually rotated out of the way before pulling release handle.) If air release equipped, actuate fifth wheel control valve to

open locks.

9. Release tractor brakes and slowly drive away from trailer.

LOWER LANDING GEAR

AUTOMATIC INDICATOR

MANUAL INDICATOR

1. Position tractor and trailer in a straight line on level ground.

2. Lock trailer brakes.

Failure to stop and

properly lock the trailer brakes may cause uncontrolled sliding of fifth wheel which, if not avoided, may result in component damage to

tractor or trailer.

3. Release slide locking plungers by

moving cab switch to unlock position ( equipped, pull release lever.) If plungers do not come out, lower the landing gear to relieve pressure on the fifth wheel. This will allow fifth

wheel to slide easier.

XL-FW10017OM-en-US Rev A 11-10 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

). (If manual slide release

AIR OPERATED

MOVE CAB SWITCH

TO UNLOCK POSITION

Cab switch style may differ by

OEM design.

10

Maintenance Procedures

Figure 15

Figure 16

FIFTH WHEEL MAINTENANCE

Figure 15

Figure 16

IMPORTANT:

NOTE:

4. Slowly drive the tractor forward or

5. Re-engage slide locking plungers by

6. Retract landing gear legs if lowered.

landing gear manufacturer for proper operation of landing gear.

7. Verify that slide locking plungers have

if the plungers are not fully engaged (locked).

backward to position fifth wheel and stop tractor at desired position.

moving cab switch to the lock position (

). (If manual slide release

equipped, trip release arm to allow plungers to retract.)

Follow instructions published by

been re-engaged by performing a pull test. Lock trailer brakes and pull forward with tractor to make sure fifth wheel does not slide (

Do not operate the vehicle

).

AIR OPERATED

MOVE CAB SWITCH

TO LOCK POSITION

LOCK TRAILER BRAKES AND

PULL FORWARD WITH TRAILER

Failure to properly engage

plungers and slide base may cause loss of vehicle control which, if not avoided, could result in death or serious

injury.

performed by a trained technician using proper tools

and safe procedures.

performed while the tractor is uncoupled from the trailer.

in tractor trailer separation which, if not avoided, may result in death or serious injury.

All maintenance must be

Failure to properly maintain

your fifth wheel could result

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

11

Maintenance Procedures

9. Top Plate Removal

Figure 17)

Figure 17

NOTE:

IMPORTANT:

NOTE:

Removal of the fifth wheel top plate is not required for maintenance but may be required when performing

repairs.

replaceable bracket pads and shoes installed between the fifth wheel top plate and mounting base. Take care when removing fifth wheel top plate not to lose bracket pads or shoes.

out of the top plate could cause a potentially hazardous situation which, if not avoided, may result

in minor or moderate injury.

Fifth wheel assembly has

Failure to prevent bracket pads or shoes from falling

RETENTION NUT

RETENTION BOLT

TOP

PLATE

BRACKET PIN

1. Remove bracket pin retention nuts

and bolts from both sides of fifth wheel top plate (

2. Using a pry bar, pull bracket pins out

of fifth wheel top plate (

Using a lifting device capable of

3.

.

).

lifting 500 lbs., remove the top plate from the mounting base. Place fifth

wheel on a flat, clean working area.

Follow instructions published by lifting device manufacturer for proper operation of lifting device.

XL-FW10017OM-en-US Rev A 11-10 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

12

Maintenance Procedures

10. Fifth Wheel Lubrication

10.A. Proper Lubrication Method

Figures

18 and 19

Figure 19

Figure 18

Figure 19

IMPORTANT:

necessary to get the maxi- mum service life from your SE or II SE fifth wheel. Perform the following procedures at the intervals shown.

Lubricate locking mechanism every 3 months or 30,000 miles.

Thoroughly clean the locking mechanism every 6 months or

60,000 miles.

snowy or icy winter conditions, lubrication should be performed every spring in addition to routine lubrication (as noted above), to ensure optimum

operation.

Fifth wheel lubrication is

If your fifth wheel operates in

GREASE THE TRAILER CONTACT SURFACE

3

1

2

1. Remove old grease and debris from all fifth wheel-to-trailer contact surfaces. Apply new water-resistant lithium-based grease to all fifth wheel

-to-trailer contact surfaces (

2. Using water-resistant lithium-based grease, lubricate ( contact is made with kingpin. Also lubricate where lock contacts casting

(

Item 2

) as shown (

3. Using a light oil, lubricate ( release handle pivot (

).

Item 1

) jaw where

).

Item 3

) ).

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

13

Maintenance Procedures

10.B As-Needed Lubrication

11. Fifth Wheel Adjustment

IMPORTANT:

NOTE:

Maintain lubrication on fifth wheel-totrailer contact surfaces. Use a waterresistant lithium-based grease. Clean grease grooves if a large amount of

debris is present.

Clean and lubricate locking mechanism if operational difficulties arise during the service life of your fifth wheel ( pling, uncoupling, or pulling the

release handle).

i.e.

problems with cou-

Fifth wheel adjustment should be checked at a minimum of every 60,000 miles or if excessive movement between kingpin and fifth wheel is noticed when driving the

vehicle.

between the tractor and trailer can effect vehicle

handling.

could result in loss of vehicle control which, if not avoided, could result in

death or serious injury.

adjustment SAF-HOLLAND recommends use of Holland lock tester Part No. 4000171, available from your local Holland

distributor.

Excessive movement

Failure to maintain proper fifth wheel adjustment

To obtain proper fifth wheel

XL-FW10017OM-en-US Rev A 11-10 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

14

Figure 20

Figure 21

Figure 20

Figure 21

Figure 22

Figure

23

Figure 22

Figure 23

Maintenance Procedures

1. If fifth wheel is locked, pull release handle all the way out, then lift handle up and hook on casting. (If equipped with a manual safety indicator, the indicator must be manually rotated out of the way before pulling release handle.) If air release equipped, actuate fifth wheel

control valve to open lock (

2. Ram lock tester into fifth wheel top plate to lock fifth wheel (

3. Push the lock tester forward so that it is tight against the fifth wheel’s front lock. Ensure the lock tester is pressed flat against the surface of the fifth wheel. Scribe a line on the surface of the fifth wheel face along

front edge of lock tester (

4. Pull lock tester toward fifth wheel ramps. Ensure the lock tester is pressed flat against the surface of the fifth wheel. Scribe a second line on the surface of the fifth wheel face along front edge of lock tester (

).

AUTOMATIC INDICATOR

FIFTH WHEEL

FRONT LOCK

MANUAL INDICATOR

SCRIBE FIRST LINE

SCRIBE SECOND LINE

XL-FW10017OM-en-US Rev A 1110 Amendments and Errors Reserved. © SAF-HOLLAND, Inc.

15

Figure 24

Figure

25

Figure 26

NOTE:

Maintenance Procedures

Figure 24

Figure 25

Figure 26

5. Rotate lock tester out of the way and measure distance between scribed lines. If distance between lines exceeds 1/8”, the lock should be ad-

justed tighter (

).

6. To adjust lock:

With lock tester still locked in fifth wheel, lift up on fifth wheel ramps and rotate fifth wheel to its forward most position

(towards cab).

Remove clinch pin from bottom of lock adjustment pin (

).

Lift lock adjustment pin and rotate clockwise to the next adjustment position shown on the

face of fifth wheel (

Push lock adjustment pin into fifth wheel in the new position.

).

MEASURE DISTANCE

BETWEEN LINES

CLINCH PIN

Replace clinch pin.

7. Re-check for free play in the locks by repeating Steps 3-5. If free play still exceeds 1/8”, repeat Step 6 and rotate lock adjustment pin one more

notch.

If free play greater than 1/8” remains with the lock adjustment pin on the last (fourth) position, then the fifth wheel should be

rebuilt using rebuild kit 4000647.

16

Figure 27

9.

12. Bracket Pad and Shoe Inspection

Figure 28

Maintenance Procedures

Figure 27

NOTE:

8. Verify the proper adjustment by locking and unlocking fifth wheel several time with lock tester. Verify that there is at least 1/16” of forward and backward play in the lock by sliding a 1/16” drill bit between the front edge of the kingpin on the lock tester and the front lock (radius) of the fifth wheel (

).

A minimum of 1/16” free play is

critical to proper operation of the fifth wheel.

If there is not 1/16” minimum freeplay in the lock, the fifth wheel lock adjustment pin must be rotated counterclockwise to the next lower position. Reverify that 1/16” minimum play exists using 1/16” drill bit as described above. Check that the fifth

wheel is properly locked.

3/8” MAX. (MEASURED AT EAR)

PUSH DOWN

Rotate lock adjustment tool from side

-to-side to ensure that the lock is not over tightened. The lock should not grip the kingpin and the lock tester

should rotate freely

.

Replace bracket pads and shoes if:

The free vertical movement of top plate on the bracket exceeds

3/8” (

The bracket pads or shoes are severely chipped, cracked or gouged.

).

17

Figure 29

Figure 30

Figure 31

13. Top Plate Installation

Figures 29—31

Figure 32

Maintenance Procedures

NOTE:

1. If bracket pads are dislodged from fifth wheel casting, reinstall by pressing the bracket pads down into bracket pockets. If bracket shoes are dislodged from fifth wheel casting, slide bracket shoe into bracket pocket by inserting one edge of the shoe into the forward (tractor ) side of the bracket pocket and fully rotating (sliding) it into bracket pocket

(

2. Using a lifting device capable of lifting 500 lbs., install the fifth wheel

top plate onto its mounting base.

Follow instructions published by lifting device manufacturer for proper operation of lifting device.

).

FORWARD

SIDE

BRACKET SHOE

BRACKET PAD

RAMP

SIDE

FIFTH WHEEL SURFACE

3. Install bracket pins through fifth

wheel casting and mounting base and secure by installing the bracket pin retention bolts and nuts ( Torque retention bolts not to exceed

60 ft-lbs.

).

TOP PLATE

RETENTION BOLT

RETENTION NUT

BRACKET PIN

18

Troubleshooting

Difficult to Couple to Trailer:

MUST

POSSIBLE CAUSE REMEDY

3

Attempting to couple too fast.

The trailer may be too high; the kingpin is not entering the lock properly.

Lock is closed.

Accumulated rust or grime interfering with the lock operation.

The lock is adjusted too tightly.

The lock may be damaged.

Couple in accordance with the procedure in this Owner’s Manual.

Lower the trailer in accordance with manufacturer’s instructions.

Manually pull the release handle out as far as possible and swing the hinged lock open. If air release equipped, set tractor brakes and actuate

fifth wheel control valve to open lock.

Thoroughly clean the fifth wheel and relubricate in accordance with the procedure in this Owner’s

Manual.

Check lock adjustments in accordance with the procedure in this Owner’s Manual.

The fifth wheel M appropriate SAF-HOLLAND service kit.

be rebuilt using the

Damaged, bent release handle.

Jammed safety indicator.

Lock jaw opening is spread due to a prior high coupling attempt.

Top plate is damaged just below the lock adjustment pin.

Bent kingpin, damaged upper coupler, or improper use of “lube plate” may be

interfering with lock movement.

Replace release handle using the appropriate SAF-HOLLAND service kit.

Inspect the release handle, if bent , replace using the appropriate SAF-HOLLAND service kit.

Measure the width of the opening in the jaw. If greater than 2.38”, replace using the appropriate

SAF-HOLLAND service kit.

The entire fifth wheel top plate M

Check the kingpin and upper coupler as detailed in Holland Service Bulletin XL-SB020. Repair/ replace as required. Remove any improperly installed or improperly specified lube plates. Refer to Holland Service Bulletin XL-SB004-01 for

lube plate warnings.

be replaced.

19

Troubleshooting

Difficult to Uncouple from Trailer:

MUST

NOTE:

POSSIBLE CAUSE REMEDY

3

The tractor may be putting pressure against the locks.

Tractor too low. Raise tractor suspension to proper ride height.

The primary release handle is not pulled out completely and hooked on

the notch in the casting.

Accumulated rust or grime interfering with the lock operation.

The lock is adjusted too tightly.

The release handle will not stay out or must be held out when unlocking.

Missing or damaged release system parts.

Lock the trailer brakes and back the tractor tightly against the kingpin to relieve the pressure on the fifth wheel lock, set the brakes, then pull the

release handle.

Pull the release handle all the way out, then lift handle up and hook on casting.

Thoroughly clean the fifth wheel and relubricate in accordance with the procedure in this Owner’s

Manual.

Check lock adjustments in accordance with the procedure in this Owner’s Manual.

The fifth wheel M appropriate SAF-HOLLAND service kit.

be rebuilt using the

handle to come off the unlock notch of the casting and move into a “ready-to-couple” position.

Casting bent/damaged at throat area, restricting movement.

Bent cover plate interfering with lock movement.

Bent kingpin, damaged upper coupler, or improper use of “lube plate” may be

interfering with lock movement.

After the fifth wheel is unlocked and disengages from the kingpin, it is normal for the release

The entire fifth wheel top plate M

Inspect the cover plate for flatness and replace, if necessary.

Check the kingpin and upper coupler as detailed in Holland Service Bulletin XL-SB020. Repair/ replace as required. Remove any improperly installed or improperly specified lube plates. Refer to Holland Service Bulletin XL-SB004-01 for

lube plate warnings.

be replaced.

20

Troubleshooting

MUST

Excessive Movement between Fifth Wheel and Kingpin:

Hard Steering or Binding:

POSSIBLE CAUSE REMEDY

3

Fifth wheel lock requires adjustment.

Fifth wheel cannot be adjusted further.

Kingpin is loose. Repair trailer.

Kingpin is worn.

Follow the procedures contained in this Owner’s Manual.

The fifth wheel M appropriate SAF-HOLLAND service kit.

Check kingpin for acceptable wear with Holland TF-0110. Replace kingpin if necessary.

POSSIBLE CAUSE REMEDY

3

Lack of lubrication on fifth wheel top surface.

Lubricate top of fifth wheel plate using a high pressure, lithium-based grease. Follow recommended lubrication schedule as

described in this Owner’s Manual.

be rebuilt using the

Warped trailer upper coupler plate.

Check upper coupler for flatness and replace, if necessary. Refer to Holland Service Bulletin

XL-SB020.

21

Rebuild and Replacement Kits

Rebuild and Replacement Kits Part Number

Lock Replacement Kit 4000647

Jaw Replacement Kit 4000644

Release Handle Replacement Kit 4100531

Release Handle Replacement Kit-II SE Right Hand 4100448

Air Cylinder Replacement Kit 4100423

Bracket Connection Kit (.33” pads) 4000641

Bracket Connection Kit (.38” pads) 4000504

Bracket Connection Kit (.42” pads) 4000588

22

Notes

23

SAF XL-FW10017OM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
