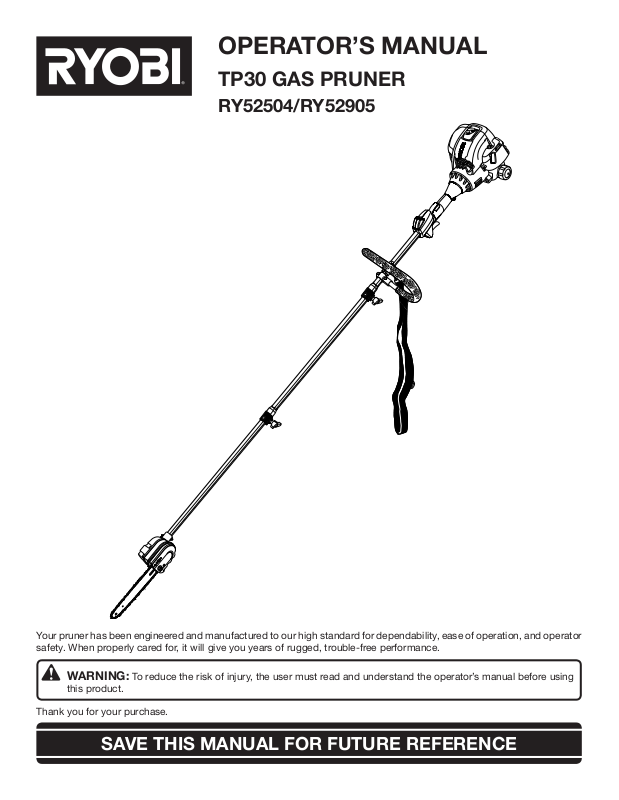

OPERATOR’S MANUAL
TP30 GAS PRUNER
RY52504/RY52905
Your pruner has been engineered and manufactured to our high standard for dependability, ease of operation, and operator
safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
Introduction ..................................................................................................................................................................... 2
General Safety Rules ....................................................................................................................................................... 3
Specific Safety Rules ....................................................................................................................................................... 4
Symbols ........................................................................................................................................................................5-6
Features ........................................................................................................................................................................... 7
Assembly ....................................................................................................................................................................8-10
Operation ..................................................................................................................................................................11-13
Maintenance ............................................................................................................................................................. 14-18
Troubleshooting ............................................................................................................................................................. 19
Warranty ...................................................................................................................................................................20-22
Parts Ordering / Service ................................................................................................................................................ 24
INTRODUCTION
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product, making it easy to maintain and operate.
2
GENERAL SAFETY RULES
WARNING!
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock,
fire and/or serious personal injury.
READ ALL INSTRUCTIONS
For safe operation, read and understand all instructions
before using this product. Follow all safety instructions.
Failure to follow all safety instructions listed below, can result
in serious personal injury.
Do not allow children or untrained individuals to use this
unit.
Never let anyone use the machine who has not received
adequate instructions in the machine’s proper use. This
applies to rentals as well as privately owned units and also
to the power head it is attached to.
Al w a y s wear s a f e t y glasses w i t h side s h i e l d s.
Everyday glasses have only impact resistant lenses. They
are NOT safety glasses. Following this rule will reduce the
risk of eye injury.
Product users on United States Forest Service land, and in
some states, must comply with fire prevention regulations.
This product is equipped with a spark arrestor; however,
other user requirements may apply. Check with your federal,
state, or local authorities.
Wear heavy, long pants, boots, and gloves. Do not wear
loose fitting clothing, short pants, or go barefoot. Do not
wear jewelry of any kind. Wear hearing protection.
Heavy protective clothing may increase operator fatigue,
which could lead to heat stroke. During weather that is hot
and humid, heavy work should be scheduled for early morning
or late afternoon hours when temperatures are cooler.
Never operate this unit on the operator’s left side.
Secure long hair above shoulder level to prevent entangle-
ment in moving parts.
Keep all bystanders, children, and pets at least
50 ft. away. Bystanders should be encouraged to wear
eye protection. If you are approached, stop the engine and
cutting attachment. In the case of bladed units, there is the
added risk of injury to bystanders from being struck with
the moving blade in the event of a blade thrust or other
unexpected reaction of the saw.
Do not operate this unit when you are tired, ill, or under the
influence of alcohol, drugs, or medication.
Do not operate in poor lighting.
Do not operate in rain or use in damp or wet environ-
ments.
Keep firm footing and balance. Do not overreach. Over-
reaching can result in loss of balance or exposure to hot
surfaces.
Keep all parts of your body away from any moving part.
To avoid hot surfaces, never operate the unit with the bottom
of the engine above waist level.
Do not touch area around the muffler or cylinder of the unit.
These parts get hot from operation. Failure to heed this
warning could result in possible serious personal injury.
Carry the chain saw with the engine stopped, the guide bar
and saw chain to the rear, scabbard on the guide bar and
saw chain, and the muffler away from your body.
Always stop the engine and remove the spark plug wire be-
fore making any adjustments or repairs except for carburetor
adjustments.
Inspect the unit before each use for loose fasteners, fuel
leaks, etc. Replace any damaged parts before use.
The chain may rotate during carburetor adjustments.
It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon
exposure to cold. Hereditary factors, exposure to cold and
dampness, diet, smoking and work practices are all thought
to contribute to the development of these symptoms. It is
presently unknown what, if any, vibrations or extent of exposure may contribute to the condition. There are measures
that can be taken by the operator to possibly reduce the
effects of vibration:
a) Keep your body warm in cold weather. When operat
ing the unit wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
b) After each period of operation, exercise to increase blood
circulation.
c) Take frequent work breaks. Limit the amount of exposure
per day.
d) Keep the tool well maintained, fasteners tightened and
worn parts replaced.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician about
these symptoms.
Mix and store fuel in a container approved for gasoline.
Mix fuel outdoors where there are no sparks or flames. Wipe
up any fuel spillage. Move 30 ft. away from refueling site
before starting engine.
Stop the engine and allow to cool before refueling or storing
the unit.
Allow the engine to cool, empty the fuel tank, and secure
the unit from moving before transporting in a vehicle.
Check for damaged parts. Before further use of the tool, any
part that is damaged should be carefully checked to determine that it will operate properly and perform its intended
function. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by
an authorized service dealer. Be sure the chain stops moving
when the throttle trigger is released. Following this rule will
reduce the risk of shock, fire, or serious injury.
-
3
SPECIFIC SAFETY RULES
Kickback is a dangerous reaction that can lead to serious
injury. Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the guide
bar or when the wood closes in and pinches the chain
in the cut. Contact at the upper portion of the tip of the
guide bar can cause the chain to dig into the object and
stop the chain for an instant. The result is a lightning-fast,
reverse reaction which kicks the guide bar up and back
toward the operator. If the chain is pinched along the top
of the guide bar, the guide bar can be driven rapidly back
toward the operator, which can cause loss of control and
may result in serious injury. Do not rely exclusively upon
the safety devices built into the product.
With a basic understanding of kickback, you can reduce
or eliminate the element of surprise. Sudden surprise
contributes to accidents.
Make sure that the area in which you are cutting is free
from obstructions. Do not let the nose of the guide bar
contact a log, branch, fence, or any other obstruction
while you are operating the unit. Have a planned retreat
path.
Cut only when visibility and light are adequate for you to
see clearly.
Do not use on a ladder or unstable support. Always cut
with both feet on solid ground to prevent being pulled off
balance.
To protect yourself from electrocution, do not operate
within 50 feet of overhead electrical lines.
Before starting the engine, make sure the chain is not
contacting any object.
Always cut with the engine running at full speed. Fully
squeeze the throttle trigger and maintain a steady cutting
speed.
Do not force tool. Use the correct tool for your applica-
tion. The correct tool will do the job better and safer at
the rate for which it is designed.
To protect yourself from falling branches, do not stand di-
rectly under the branch or limb being cut. This unit should
not be held at an angle over 60° from ground level.
Keep the handles dry, clean, and free of lubricant or fuel
mixture.
Shut off the engine and make sure the cutting attachment
has stopped before setting the unit down.
To prevent electrical shock or serious personal injury, do
not use this product with any AC power head.
Follow the sharpening and maintenance instructions for
the saw chain.
Use only the replacement guide bars and low kickback
chains specified for the unit.
Operate saw in well ventilated areas.
Do not operate the saw with one hand! Serious injury to
the operator, helpers, bystanders, or any combination of
these persons may results from one hand operation. This
saw is intended for two-handed use.
Use extreme caution when cutting small sized brush
and saplings because slender material may catch the
saw chain and be whipped toward you or pull you off
balance.
When cutting a limb that is under tension, be alert for
spring back so that you will not be struck when tension
in wood fibers are released.
Keep a good firm grip on the saw with both hands, the
right hand on the rear and the left hand on the front
handle, when the engine is running. Use a firm grip with
thumbs and fingers encircling the chain saw handles. A
firm grip will help you avoid kickback and maintain control
of the saw. Don’t let go.
Do not operate a chain saw in a tree unless you have
been specifically trained to do so.
REFUELING
FUEL IS HIGHLY FLAMMABLE. Take precautions when
using to reduce the chance of serious personal injury.
Store fuel in a cool, well-ventilated area, safely away from
spark and/or flame-producing equipment.
Store fuel in containers specifically designed for this
purpose.
Only refuel outdoors and do not smoke while refueling.
Add fuel before starting the engine. Never remove the cap
of the fuel tank or add fuel while the engine is running or
when the engine is hot.
If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
Replace all fuel tank and container caps securely.
If the fuel tank has to be drained, do this outdoors.
4
SYMBOLS
50' 15m
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Precautions that involve your safety.
Read The Operator’s Manual
Eye, Hearing, and Head Protection
Safety Footwear Wear non-slip safety footwear when using this equipment.
Gloves
Moving Parts Keep hands away from moving parts.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
Kickback DANGER! Beware of kickback.
Hot Surface
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Wear eye, hearing, and head protection when operating this
equipment.
Wear non-slip, heavy-duty protective gloves when handling
the pole pruner attachment and the saw chain.
To reduce the risk of injury or damage, avoid contact with
any hot surface.
Risk of Electrocution DANGER! Risk of electrocution!
Use unleaded gasoline intended for motor vehicle use with
Gasoline and Lubricant
an octane rating of 87 [(R + M)/2] or higher. This product is
powered by a 2-cycle engine and requires pre-mixing gasoline
and 2-cycle lubricant.
5
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use this
product until you read thoroughly and understand completely the operator’s manual. If you do not understand
the warnings and instructions in the operator’s manual,
do not use this product. Call Ryobi customer service for
assistance.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye
protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
6
FEATURES
PRODUCT SPECIFICATIONS
Engine Displacement.......................................................................................................................................................30cc
Bar length .......................................................................................................................................................................10 in.
Weight ..........................................................................................................................................................................16 lbs.
PRUNER
ATTACHMENT
CHAIN OILER
TANK CAP
EXTENSION
SHAfT
COUPLER
ENGINE
SwITCH
KNOB
STARTER GRIP
TRIGGER
LOCK
PRIMER BULB
THROTTLE
TRIGGER
“j”
HANDLE
SHOULDER
STRAP
CHAIN
COMBINATION
BAR
wRENCH
KNOW YOUR PRUNER
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
ENGINE SWITCH
The engine switch controls the ignition system. The switch
must be in the ON (I) position for the engine to start and
run.
“J” HANDLE
Using the “J” handle allows better control of the pruner to
maximize operator safety.
PRIMER BULB
The priming bulb pumps fuel from the fuel tank to the carburetor. This is necessary only when starting a cold engine
or after refueling an engine that has run out of fuel.
SCABBARD
Fig. 1
SHOULDER STRAP
The shoulder strap helps support the weight of the pruner
during use.
START LEVER
The start lever opens and closes the choke valve in the
carburetor.
STARTER GRIP
The starter grip is used for starting the engine.
THROTTLE TRIGGER
The throttle trigger is used for starting the pruner, and also
for controlling blade rotation.
7
ASSEMBLY
UNPACKING
This product requires assembly.
Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Power Head Assembly
Pruner Attachment
Extension Shaft
Scabbard
Combination Wrench (5/8 in. x 3/4 in.)
8 oz. Bar and Chain Lubricant
Bottle of 2-cycle Lubricant
Shoulder Strap Hanger (with mounting hardware)
Shoulder Strap
“J” Handle Assembly:
“J” Handle
Top and Bottom Clamp
Short Bolt
Long Bolt
Flat Washers (2)
Lock Washers (2)
Nuts (2)
Hanger Cap
Operator’s Manual
ATTACHING THE “J” HANDLE
See Figure 2.
Hold the top and bottom clamp snugly in position on the
shaft housing so that the handle will be located to the
operator’s left.
Insert the end of the handle between the clamps.
Align the bolt holes and push the long bolt (1/4-20 x
1-1/2 in.) through the handle side.
Place short bolt (1/4-20 x 1 in.) through opposite side of
the clamp. Install the flat washer, lock washers, and hex
nuts to hold the assembly in place.
After assembly is complete, adjust the position of the
handle for best balance and comfort.
Tighten the long bolt first and then the short bolt.
SHORT
BOLT
LONG
BOLT
CLAMP
“j”
HANDLE
WARNING:
If any parts are damaged or missing do not operate this
tool until the parts are replaced. Failure to heed this warning could result in serious personal injury.
WARNING:
Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug when assembling parts.
CLAMP
fLAT wASHER
HEX NUT
LOCK
wASHER
Fig. 2
INSTALLING THE SHOULDER STRAP AND
HANGER
See Figure 3.
When operating this unit, you must wear a shoulder strap
to support the unit.
To install the shoulder strap hanger:
Remove the hex nut, lock washer, and bolt from the
shoulder strap hanger.
Pull apart the ends of the hanger to expand slightly.
Slide the hanger over the power head shaft immediately
behind the “J” handle.
Squeeze hanger ends together to retighten.
8
ASSEMBLY
Reinstall the bolt, lock washer, and hex nut to secure.
Connect the latch on the shoulder harness to the strap
hanger.
SHOULDER
“j”
HANDLE
BOLT
STRAP
LATCH
BOLT
STRAP
HANGER
LOCK NUT
NUT
BOLT
WARNING:
Be certain the knob is fully tightened before operating
equipment; check it periodically for tightness during use
to avoid serious injury.
To remove:
Loosen the knob.
Push in the button and twist the shafts to remove and
separate ends.
POwER HEAD
SHAfT
BUTTON
GUIDE
RECESS
COUPLER
NUT
fIG. A fIG. B
LOCK
wASHER
Fig. 3
CONNECTING THE POWER HEAD TO THE
EXTENSION SHAFT AND PRUNER ATTACHMENT
See Figure 4.
The pruner attachment connects to the power head, or for
extra reach to an extension shaft, by means of a coupler
device.
To install the attachment:
Loosen the knob on the coupler of the power head shaft
and remove the end cap from the attachment.
Push in the button located on the shaft of the pruner at-
tachment. Align the button with the guide recess on the
extension shaft coupler and slide the two shafts together.
Rotate extension shaft until button locks into the positioning hole.
NOTE: The attachment should only be operated with the
blade in a vertical position. If the button does not release
completely in the positioning hole, the shaft is not locked
into place. Slightly rotate from side to side until the button
is locked into place.
Tighten the knob securely.
Repeat previous steps to attach extension shaft to power
head.
POSITIONING
HOLE
EXTENSION
SHAfT
KNOB
Fig. 4
AUTOMATIC BAR AND CHAIN LUBRICATION
Add bar and chain lubricant in the bar lube reservoir before
starting the engine of the power head. Refer to Automatic
bar and chain lubrication in the Maintenance section of
this manual.
FUELING AND REFUELING THE PRUNER
FUEL MIXTURE
This product is powered by a 2-cycle engine and requires
pre-mixing gasoline and 2-cycle lubricant. Pre-mix unleaded
gasoline and 2-cycle engine lubricant in a clean 1 gallon
container approved for gasoline.
This engine is certified to operate on unleaded gasoline
intended for automotive use.
Mix high quality 2-cycle engine lubricant at 2.6 oz. per
gallon.
Do not use automotive lubricant or 2-cycle outboard
lubricant.
DO NOT mix quantities larger than usable in a 30-day
period.
PREMIUM EXACT MIX™ (50:1)
GASOLINE LUBRICANT
1 Gallon (US) 2.6 oz.
1 Liter 20 cc (20 ml)
9
ASSEMBLY
FILLING TANK
Clean surface around fuel cap to prevent contamina-
tion.
Loosen fuel cap slowly. Rest the cap on a clean
surface.
Carefully pour fuel into the tank. Avoid spillage.
Prior to replacing the fuel cap, clean and inspect the
gasket.
Immediately replace fuel cap and hand tighten. Wipe up
any fuel spillage.
NOTE:
engine after first use.
It is normal for smoke to be emitted from a new
WARNING:
Always shut off engine before fueling. Never add fuel to
a machine with a running or hot engine. Move at least
30 ft. from refueling site before starting the engine. Do
not smoke! Failure to heed this warning could result in
serious personal injury.
OXYGENATED FUELS
Some conventional gasolines are blended with alcohol or an
ether compound. These gasolines are collectively referred
to as oxygenated fuels. To meet clean air standards, some
areas of the United States and Canada use oxygenated fuels
to help reduce emissions.
If using an oxygenated fuel, make sure it is unleaded and
meets the minimum octane rating requirements. Before using an oxygenated fuel, try to confirm the fuel’s contents.
Some states/provinces require this information to be posted
on the pump. The following are the EPA approved percentages of oxygenates:
Ethanol (ethyl or grain alcohol) 10% by volume. You may
use gasoline containing up to 10% ethanol by volume. Gasoline containing ethanol may be marketed under the name
“Gasohol.” Do not use E85 fuel.
MTBE (methyl tertiary butyl ether) 15% by volume. You
may use gasoline containing up to 15% MTBE by volume.
Methanol (methyl or wood alcohol) 5% by volume. You
may use gasoline containing up to 5% methanol by volume
as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more
than 5% methanol by volume may cause starting and/or
performance problems. It may also damage metal, rubber,
and plastic parts of the product or your fuel system.
If you notice any undesirable operating symptoms, try another
service station or switch to another brand of gasoline.
NOTE: Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more
than the percentages of oxygenates stated previously are
not covered under warranty.
10
OPERATION
WARNING:
Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with
side shields, a hard hat, and safety shoes when operating power tools. Failure to do so could result
in objects being thrown into your eyes, resulting in
possible serious injury.
WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of
attachments or accessories not recommended can result
in serious personal injury.
WARNING:
To avoid kickback, binding of the saw bar, and possible
injury, never cut limbs that the pruner does not reach
when supported by the shoulder strap.
Hold unit firmly with both hands. Always keep your left
hand on the front handle and your right hand on the rear
handle, so your body is to the left of the chain line. Never
use a left-handed (cross-handed) grip, or any stance that
places your body or arm across the chain line.
Never stand directly under the limb you are cutting.
Always wear shoulder strap for increased safety and to
support the pruner.
Be certain the knob is fully tightened before operating
equipment; check it periodically for tightness during use
to avoid serious injury.
BASIC CUTTING PROCEDURE
Follow the steps below to prevent damage to tree or shrub
bark. Do not use a back-and-forth sawing motion.
Accelerate the engine to full throttle just before entering
the cut by squeezing the throttle trigger. Keep the engine
at full throttle the entire time you are cutting.
Make a shallow first cut (1/4 of limb diameter) on the
underside of the limb close to the main limb or trunk.
Make a second cut from the top side of the limb outboard
from the first cut.
Make a final cut close to trunk.
LOAD
SECOND CUT
APPLICATIONS
You may use this product for the purposes listed below:
Limbing
Pruning
PREPARATION FOR CUTTING
See Figures 5 - 6.
Wear non-slip gloves for maximum grip and protection.
Maintain a proper grip on the unit whenever the engine is
running. Use your right hand to firmly grip the rear handle
while your left hand has a firm grip on the front handle.
fIRST CUT
1/4 DIAMETER
fINAL CUT
Fig. 5
11
OPERATION
NOTE: For second and final cuts (from top of limb or branch),
hold front cutting guide against the limb being cut. This will
help steady the limb and make it easier to cut. Allow chain to
cut for you; exert only light downward pressure. If you force
the cut, damage to the bar, chain, or engine can result.
Release the trigger as soon as the cut is completed, allow-
ing the engine to idle. If you run the pruner at full throttle
without a cutting load, unnecessary wear or damage can
occur to the chain, bar, and engine.
60° MAXIMUM
CUTTING GUIDE
Failure to follow proper cutting procedures will result in the
bar and chain binding and becoming pinched or trapped in
the limb. If this should happen:
Stop the engine.
Loosen the knob on the coupler.
Depress the button on the shaft; twist and pull the shafts
to separate the pruner from the power head.
If the limb can be reached from the ground, lift the limb
while holding the attachment. This should release the
“pinch” and free the pruner.
If the pruner is still trapped, call a professional for as-
sistance.
Fig. 6
LIMBING AND PRUNING
See Figures 7 - 8.
This unit is designed for trimming small branches and limbs
up to 6 in. in diameter. For best results, observe the following precautions.
Plan the cut carefully. Be aware of the direction in which
the branch will fall.
Branches may fall in unexpected directions. Do not stand
directly under the branch being cut.
The most typical cutting application is to position the
unit at an angle of 60° or less, depending on the specific
situation, as shown. As the angle of the pruner shaft to
ground increases, the difficulty of making the first cut
(from the underside of limb) increases.
Remove long branches in several stages.
Cut lower branches first to allow the top branches more
room to fall.
Fig. 7
Work slowly, keeping both hands on the saw with a firm
grip. Maintain secure footing and balance.
Keep the tree between you and the chain while limbing.
Cut from side of tree opposite branch you are cutting.
Do not cut from a ladder; this is extremely dangerous.
Leave this operation for professionals.
Do not make the flush cut next to the main limb or trunk
until you have cut off the limb further out to reduce the
weight. Following proper cutting procedures will prevent
stripping the bark from the main member.
Do not use the pruner for felling or bucking.
To prevent electrocution, do not operate within 50 ft. of
overhead electrical lines.
Keep bystanders at least 50 ft. away.
Fig. 8
12
OPERATION
POSITION FOR STARTING
See Figure 9.
Lay the pruner on the ground and ensure that no objects or
obstructions are in the immediate vicinity. Make sure nothing
can come in contact with the bar and chain.
PRIMER BULB
STARTER
GRIP
ENGINE
SwITCH
Fig. 9
STARTING AND STOPPING
See Figures 10 - 12.
To start a cold engine:
DO NOT squeeze the throttle trigger until the engine starts
and runs.
Lay the trimmer on a flat, bare surface.
PRIME - Press the primer bulb 7 times.
SET the start lever to the START position.
PULL the rope until the engine starts.
Allow the engine to run for 6-10 seconds.
Squeeze trigger lock and throttle trigger.
NOTE: Squeezing and releasing the throttle trigger releases
the start lever to the RUN position.
To start a warm engine:
PULL the rope until the engine starts.
To stop the engine:
Press and hold the switch in the stop “ ” position until the
engine stops.
STARTING
INSTRUCTION
LABEL
THROTTLE
TRIGGER
Fig. 11
START
THROTTLE
TRIGGER
ENGINE
SwITCH
TRIGGER
LOCK
Fig. 10
RUN
Fig. 12
13
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
Before inspecting, cleaning or servicing the unit (except
for carburetor adjustments), shut off engine, wait for all
moving parts to stop, and disconnect spark plug wire
and move it away from spark plug. Failure to follow
these instructions can result in serious personal injury or
property damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, lubricant, grease, etc.
Stop the engine before setting the chain tension. Make
sure the guide bar nut is loose to finger tight, turn the
chain tensioning screw clockwise to tension the chain.
Refer to Replacing the Bar and Chain for additional
information.
NOTE: A cold chain is correctly tensioned when there is
no slack on the underside of the guide bar, the chain is
snug, but it can be turned by hand without binding.
Chain must be re-tensioned whenever the flats on
the drive links hang out of the bar groove as shown in
figure 13.
During normal operation, the temperature of the chain
will increase. The drive links of a correctly tensioned
warm chain will hang approximately .050 in. out of the
bar groove, as shown in figure 14.
NOTE: New chain tends to stretch; check chain tension
frequently and tension as required.
CAUTION:
Chain tensioned while warm, may be too tight upon cooling. Check the “cold tension” before next use.
fLATS
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating lubricant, etc., come in contact with plastic parts. Chemicals can damage, weaken, or
destroy plastic, which may result in serious personal
injury.
All chain saw service, other than the items listed in the instruction manual maintenance instructions, should be performed
by competent chain saw service personnel. (For example, if
improper tool is used to hold the flywheel in order to remove
the clutch, structural damage to the flywheel could occur
and subsequently could cause the flywheel to burst).
CHAIN TENSION
See Figures 13 - 14.
WARNING:
To avoid possible serious injury, never touch or adjust the
chain while the motor is running. The saw chain is very
sharp; always wear protective gloves when performing
maintenance to the chain.
APPROX .050
in.
Fig. 13
Fig. 14
14
MAINTENANCE
REPLACING THE BAR AND CHAIN
See Figures 15 - 20.
WARNING:
To avoid possible serious injury, stop engine before replacing the bar, chain, or performing any maintenance
operation.
Remove the bar nut and drivecase cover.
The bar contains a bar stud slot that fits over the bar stud.
The bar also contains a chain tensioning pin hole which
fits over the chain tensioning pin.
Place the bar onto the bar stud so that the chain tension-
ing pin fits into the chain tensioning pin hole.
Fit the chain over the sprocket and into the bar groove.
The cutters on the top of the bar should face toward the
bar tip, in the direction of the chain rotation.
Replace the drivecase cover and install the bar nut.
Tighten the bar nut finger tight only. The bar must be free
to move for tension adjustment.
CHAIN
BAR
BAR NUT
DRIVECASE
COVER
Remove all slack from chain by turning the chain tension-
ing screw clockwise, assuring that the chain seats into
the bar groove during tensioning.
Lift the tip of the bar up to check for sag. Release the tip
of the bar, and turn the chain tensioning screw 1/2 turn
clockwise. Repeat this process until sag does not exist.
Hold the tip of the bar up and tighten the bar nut
securely.
Chain is correctly tensioned when there is no slack on
the underside of the bar, the chain is snug, but it can be
turned by hand without binding.
NOTE: If chain is too tight, it will not rotate. Loosen the
bar nut slightly and turn adjusting screw 1/4 turn counterclockwise. Lift the tip of the bar up and retighten bar nut.
CHAIN
ROTATION
CHAIN
SPROCKET
CHAIN
TENSIONING PIN
BAR NUT
BAR STUD
BAR STUD SLOT
Fig. 15
DRIVECASE
COVER
Fig. 16
BAR
BAR NUT
Fig. 18
CHAIN
TENSIONING SCREw
Fig. 19
BAR NUT
SPROCKET
CHAIN TENSIONING
PIN HOLE
Fig. 17
Fig. 20
15
MAINTENANCE
IDLE SPEED ADJUSTMENT
See Figure 21.
If the chain turns at idle, the idle speed screw needs adjusting
on the engine. Turn the idle speed screw counterclockwise
to reduce the idle RPM and stop the chain movement. If
the saw chain still moves at idle speed, contact a service
dealer for adjustment and discontinue use until the repair
is made.
WARNING:
The saw chain should never turn at idle. Turn the idle
speed screw counterclockwise to reduce the idle RPM
and stop the chain, or contact a service dealer for adjustment and discontinue use until the repair is made.
Serious personal injury may result from the saw chain
turning at idle.
IDLE
SPEED SCREw
Fig. 21
AUTOMATIC BAR AND CHAIN LUBRICATION
See Figure 22.
Use Premium Bar and Chain Lubricant. It is designed for
chains and chain oilers and is formulated to perform over
a wide temperature range with no dilution required.
Remove the cap and carefully pour approximately 8 oz.
of bar and chain lubricant into the bar lube reservoir.
Replace the cap and tighten securely.
Check and refill the bar lube reservoir every time the
engine is fueled.
NOTE:
lubricant. Damage may occur to the oil pump, bar, or
chain.
Do not use dirty, used or otherwise contaminated
BAR LUBE
RESERVOIR
REPLACE
CAP
REMOVE
CAP
Fig. 22
CHAIN MAINTENANCE
See Figure 23.
For smooth and fast cutting, the chain needs to be maintained properly. The following conditions indicate that the
chain requires sharpening:
Wood chips are small and powdery
Chain must be forced through the wood during cutting
Chain cuts to one side
During maintenance of the chain, consider the following:
Improper filing angle of the side plate can increase the
risk of a severe kickback.
Depth gauge (or raker clearance) setting determines the
height the cutter enters the wood and the size of the wood
chip that is removed. Too much clearance increases the
potential for kickback. Too little clearance decreases the
size of the wood chip thus decreasing the chain's cutting
ability.
If cutter teeth have hit hard objects such as nails and
stones, or have been abraded by mud or sand on the
wood, have service dealer sharpen chain.
RAKER (DEPTH GAUGE) CLEARANCE
.025 in.
(0.6 mm)
Fig. 23
16
MAINTENANCE
HOW TO SHARPEN THE CUTTERS
See Figures 24 - 27.
Be careful to file all cutters to the specified angles and to
the same length, as fast cutting can be obtained only when
all cutters are uniform.
Put a few firm strokes on every tooth. File all left hand
cutters in one direction. Then move to the other side and
file the right hand cutters in the opposite direction. Oc-
casionally remove filings from the file with a wire brush.
PARTS Of A CUTTER
TOP PLATE
RIVET HOLE
HEEL
Tighten the chain tension enough that the chain does not
wobble. Do all of your filing at the mid-point of the bar.
Wear gloves for protection.
Use a 5/32 in. diameter round file and holder.
Keep the file level with the top plate of the tooth. Do not
let the file dip or rock.
CUTTING CORNER
GULLET
SIDE PLATE
DEPTH GAUGE
TOE
Fig. 24
LEfT HAND
CUTTERS
RIGHT HAND
CUTTERS
Fig. 27
CAUTION:
Dull or improperly sharpened chain can cause excessive
engine speed during cutting which may result in severe
engine damage.
WARNING:
Improper chain sharpening increases the potential of
kickback. Failure to replace or repair damaged chain can
cause serious injury.
Fig. 25
Using light but firm pressure, stroke towards the front
corner of the tooth. Lift file away from the steel on each
return stroke.
Fig. 26
CLEANING THE EXHAUST PORT AND
MUFFLER
Depending on the type of fuel used, the type and amount
of lubricant used, and/or your operating conditions, the
exhaust port and muffler may become blocked with carbon
deposits. If you notice a power loss with your gas powered
tool, a qualified service technician will need to remove these
deposits to restore performance.
SPARK ARRESTOR
The spark arrestor must be replaced every 50 hours or yearly
to ensure proper performance of the product. Spark arrestors may be in different locations depending on the model
purchased. Please contact the nearest service dealer for the
location of the spark arrestor for your model.
17
MAINTENANCE
CLEANING AIR FILTER SCREEN
See Figure 28-29.
For proper performance and long life, keep air filter clean.
Remove the air filter cover by pushing down on the latch
with your thumb while gently pulling on the cover.
Brush the air filter screen lightly to clean.
Replace the air filter cover by inserting the tabs on the
bottom of the cover into the slots on the air filter base;
push the cover up until it latches securely in place.
NOTE: For best performance, replace annually.
LATCH
AIR fILTER
COVER
FUEL CAP
WARNING:
A leaking fuel cap is a fire hazard and must be replaced
immediately.
The fuel cap contains a non-serviceable filter and a check
valve. A clogged fuel filter will cause poor engine performance.
If performance improves when the fuel cap is loosened,
check valve may be faulty or filter clogged. Replace fuel
cap if required.
SPARK PLUG REPLACEMENT
This engine uses a Champion RCJ6Y with .025 in. electrode
gap. Use an exact replacement and replace annually.
STORING THE PRODUCT
See Figure 30.
Clean all foreign material from the product. Store idle unit
indoors in a dry, well-ventilated area that is inaccessible
to children. Keep away from corrosive agents such as
garden chemicals and de-icing salts.
Abide by all ISO and local regulations for the safe storage
and handling of gasoline.
Always place the scabbard on the saw bar when trans-
porting or storing the pruner. The scabbard is a snug fit
and must be attached very carefully due to the sharp
teeth on the saw chain. This is best done by grasping the
scabbard at one end, in the center portion of the scabbard, and carefully sliding it over the chain as shown. Use
caution to avoid the sharp teeth of the chain.
NOTE:
tive gloves when handling the chain.
To use the hanger cap, push in the button and place the
hanger cap over end of the lower end attachment shaft.
Slightly rotate the cap from side to side until the button
locks into place.
When storing 1 month or longer:
Drain all fuel from tank into a container approved for
gasoline. Run engine until it stops.
The saw chain is very sharp. Always wear protec-
PULL COVER
TO OPEN
AIR fILTER
COVER
Fig. 28
LATCH
fILTER SCREEN
Fig. 29
Fig. 30
18
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REMEDY
Engine will not start. No spark.
No fuel.
Engine is flooded.
Starter rope pulls harder
now than when new.
Engine starts but will
not accelerate.
Engine starts but will
only run at high speed
at half choke.
Engine does not reach
full speed and emits
excessive smoke.
Engine requires approximately three minutes to
warm up.
Carburetor requires
adjustment.
Check lu b ricant fuel
mixture.
Air filter screen is dirty.
Spark arrestor screen is
dirty.
Clean or replace spark plug. Reset spark plug gap. Refer to Spark
Plug Replacement earlier in this manual.
Push primer bulb until bulb is full of fuel. If bulb does not fill, primary
fuel delivery system is blocked. Contact a servicing dealer. If primer
bulb fills, engine may be flooded, proceed to next item.
Pull starter three times with choke lever at “RUN”. If engine does
not start, move choke lever to “START” and repeat normal starting
procedure. If engine still fails to start, repeat procedure with a new
spark plug.
Contact a servicing dealer.
Allow engine to completely warm up. If engine does not accelerate
after three minutes, contact a servicing dealer.
Contact a servicing dealer.
Use fresh fuel and the correct 2-cycle lubricant mix.
Clean air filter screen. Refer to Cleaning Air Filter Screen earlier
in this manual.
Contact a servicing dealer.
Engine starts, runs,
and accelerates but
will not idle.
Bar and chain running
hot and smoking.
Motor runs, but chain
is not rotating.
Idle sp e e d screw o n
carburetor
Check chain tension for
overtightened condition
Chain oil tank empty
Chain tension too tight.
Check guide bar and chain
assembly.
Check guide bar and chain
for damage.
Turn idle speed screw clockwise to increase idle speed.
Tension chain. Refer to Chain Tension earlier in this manual.
Check oil tank.
Retention chain. Refer to Chain Tension earlier in this manual.
Refer to Replacing the Bar and Chain earlier in this manual.
Inspect guide bar and chain for damage.
19
WARRANTY
LIMITED WARRANTY STATEMENT
Techtronic Industries North America, Inc., warrants to the
original retail purchaser that this RYOBI® brand outdoor
product is free from defect in material and workmanship
and agrees to repair or replace, at Techtronic Industries
North America, Inc.’s, discretion, any defective product
free of charge within these time periods from the date of
purchase.
Two years if the product is used for personal, family or
household use;
90 days, if used for any other purpose, such as
commercial or rental.
This warranty extends to the original retail purchaser
only and commences on the date of the original retail
purchase.
Any part of this product found in the reasonable judgment
of Techtronic Industries North America, Inc. to be defective
in material or workmanship will be repaired or replaced
without charge for parts and labor by an authorized service
center for RYOBI® brand outdoor products (Authorized
Ryobi Service Center).
The product, including any defective part, must be returned
to an authorized RYOBI service center within the warranty
period. The expense of delivering the product to the service
center for warranty work and the expense of returning it
back to the owner after repair or replacement will be paid
by the owner. Techtronic Industries North America, Inc.’s,
responsibility in respect to claims is limited to making the
required repairs or replacements and no claim of breach of
warranty shall be cause for cancellation or rescission of the
contract of sale of any RYOBI® brand outdoor product. Proof
of purchase will be required by the dealer to substantiate
any warranty claim. All warranty work must be performed
by an authorized service dealer.
This warranty is limited to ninety (90) days from the date
of original retail purchase for any RYOBI® brand outdoor
product that is used for rental or commercial purposes, or
any other income-producing purpose.
This warranty does not cover any product that has been
subject to misuse, neglect, negligence, or accident, or that
has been operated in any way contrary to the operating
instructions as specified in this operator’s manual. This
warranty does not apply to any damage to the product that
is the result of improper maintenance or to any product
that has been altered or modified. The warranty does not
extend to repairs made necessary by normal wear or by the
use of parts or accessories which are either incompatible
with the RYOBI® brand outdoor product or adversely affect
its operation, performance, or durability. In addition, this
warranty does not cover:
A. Tune-ups – Spark Plugs, Carburetor, Carburetor
Adjustments, Ignition, Filters
B. Wear items – Bump Knobs, Outer Spools, Cutting
Lines, Inner Reels, Starter Pulleys, Starter Ropes, Drive
Belts, Tines, Felt Washers, Hitch Pins, Mulching Blades,
Blower Fans, Blower and Vacuum Tubes, Vacuum Bag
and Straps, Guide Bars, Saw Chains
Techtronic Industries North America, Inc., reserves the
right to change or improve the design of any RYOBI® brand
outdoor product without assuming any obligation to modify
any product previously manufactured.
ALL IMPLIED WARRANTIES ARE LIMITED IN DURATION
TO THE STATED WARRANTY PERIOD. ACCORDINGLY,
ANY SUCH IMPLIED WARRANTIES INCLUDING
MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR OTHERWISE, ARE DISCLAIMED IN
THEIR ENTIRETY AFTER THE EXPIRATION OF THE
APPROPRIATE TWO-YEAR, ONE-YEAR, OR NINETYDAY WARRANTY PERIOD. TECHTRONIC INDUSTRIES
NORTH AMERICA, INC.’S, OBLIGATION UNDER THIS
WARRANTY IS STRICTLY AND EXCLUSIVELY LIMITED TO
THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS
AND TECHTRONIC INDUSTRIES NORTH AMERICA,
INC., DOES NOT ASSUME OR AUTHORIZE ANYONE
TO ASSUME FOR THEM ANY OTHER OBLIGATION.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. TECHTRONIC
INDUSTRIES NORTH AMERICA, INC., ASSUMES NO
RESPONSIBILITY FOR INCIDENTAL, CONSEQUENTIAL,
OR OTHER DAMAGES INCLUDING, BUT NOT LIMITED
TO, EXPENSE OF RETURNING THE PRODUCT TO AN
AUTHORIZED RYOBI SERVICE CENTER AND EXPENSE
OF DELIVERING IT BACK TO THE OWNER, MECHANIC’S
TRAVEL TIME, TELEPHONE OR TELEGRAM CHARGES,
RENTAL OF A LIKE PRODUCT DURING THE TIME
WARRANTY SERVICE IS BEING PERFORMED, TRAVEL,
LOSS OR DAMAGE TO PERSONAL PROPERTY, LOSS
OF REVENUE, LOSS OF USE OF THE PRODUCT,
LOSS OF TIME, OR INCONVENIENCE. SOME STATES
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
This warranty applies to all RYOBI® brand outdoor products
manufactured by or for Techtronic Industries North America,
Inc., and sold in the United States and Canada.
To locate your nearest Authorized Ryobi Service Center,
dial 1-800-860-4050.
20
WARRANTY
THE FOLLOWING CALIFORNIA AIR RESOURCES BOARD (CARB) STATEMENT ONLY APPLIES TO MODEL NUMBERS REQUIRED TO MEET THE CARB REQUIREMENTS.
TECHTRONIC INDUSTRIES NORTH AMERICA, INC., LIMITED WARRANTY STATEMENT FOR FEDERAL
AND CALIFORNIA EMISSION CONTROL SYSTEMS NON-ROAD AND SMALL OFF-ROAD ENGINES
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The U.S. Environmental Protection Agency (EPA), the California Air Resources Board
(CARB), and Techtronic Industries North America, Inc., are pleased to explain the
Emissions Control System Warranty on your 2008 model year non-road or small offroad engine. In California, new equipment that uses small off-road engines must be
designed, built, and equipped to meet the state’s stringent anti-smog standards. In
other states, new 2000 and later model year non-road engines must be designed,
built, and equipped at the time of sale to meet the U.S. EPA regulations for small
non-road engines. The non-road engine must be free from defects in materials and
workmanship which cause it to fail to conform with U.S. EPA standards for the first
two years of engine use from the date of sale to the ultimate purchaser. Techtronic
Industries North America, Inc., must warrant the emission control system on your
non-road or small off-road engine for the period of time listed above provided there
has been no abuse, neglect, or improper maintenance of your non-road or small
off-road engine.
Your emission control system may include parts such as the carburetor or fuel injection
system, the ignition system, catalytic converters, fuel tanks, valves, filters, clamps,
connectors, and other associated components. Also included may be hoses, belts
and connectors, and other emission-related assemblies.
Where a warrantable condition exists, Techtronic Industries North America, Inc., will
repair your non-road or small off-road engine at no cost to you, including diagnosis, parts, and labor performed at an authorized service center for RYOBI® brand
outdoor products.
MANUFACTURER’S WARRANTY COVERAGE:
This product’s emissions control system is warranted for two years. If any emission-related part on your engine is defective, the part will be repaired or replaced by
Techtronic Industries North America, Inc., free of charge.
OWNER’S WARRANTY RESPONSIBILITIES
(a) As the non-road or small off-road engine owner, you are responsible for
the performance of the required maintenance listed in your operator’s manual.
Techtronic Industries North America, Inc., recommends that you retain all receipts covering maintenance on your non-road or small off-road engine, but
Techtronic Industries North America, Inc., cannot deny warranty solely for the
lack of receipts or for your failure to ensure the performance of all scheduled
maintenance. Any replacement part or service that is equivalent in performance
and durability may be used in non-warranty maintenance or repairs, and shall
not reduce the warranty obligations of Techtronic Industries North America, Inc.
(b) As the non-road or small off-road engine owner, you should be aware, however,
that Techtronic Industries North America, Inc., may deny you warranty coverage if
your non-road or small off-road engine or a part has failed due to abuse, neglect,
improper maintenance, or unapproved modifications.
(c) You are responsible for presenting your non-road or small off-road engine to an
authorized service dealer as soon as a problem exists. The warranty repairs should
be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you
should contact a Techtronic Industries North America, Inc., Customer Representative at 1-800-860-4050.
DEFECT WARRANTY COVERAGE REQUIREMENTS:
(a) The warranty period begins on the date the engine or equipment is delivered to
an ultimate purchaser.
(b) General Emissions Warranty Coverage. Techtronic Industries North America,
Inc., warrants to the ultimate purchaser and each subsequent purchaser that your
non-road or small off-road engine is designed, built, and equipped at the time of sale
to conform with all applicable regulations adopted by the California Air Resources
Board or the United States Environmental Protection Agency; and that it is free from
defects in materials and workmanship which cause the engine to fail to conform with
applicable regulations for a period of two years from the date the non-road or small
off-road engine is purchased by the initial purchaser.
(c) The warranty on emissions-related parts will be interpreted as follows: Any
warranted part that is not scheduled for replacement as required in the Emissions
Maintenance Schedule and Warranty Parts List set forth below is warranted for two
years. If any such part (including any part that is scheduled only for regular inspection)
fails during the period of warranty coverage, it will be repaired or replaced at any
RYOBI® Authorized Service Center at no charge. Any such part repaired or replaced
under warranty will be warranted for the remaining warranty period. A statement to
the effect of “repair or replace as necessary” would not reduce the period of warranty coverage. Any warranted part that is scheduled for replacement as required
maintenance in the Emissions Maintenance Schedule and Warranty Parts List is
warranted for the period of time prior to the first scheduled replacement point for
that part. Any such part repaired or replaced under warranty is warranted for the
remainder of the period prior to the first scheduled replacement point, and will be
repaired or replaced at any RYOBI® Authorized Service Center for no charge until
that replacement point is reached.
Techtronic Industries North America, Inc., shall remedy warranty defects at any
authorized RYOBI® Authorized Service Center, including any distribution center
that may be franchised to service the subject engines. Any diagnostic work done
at a RYOBI® Authorized Service Center shall be free of charge to the owner if such
work determines that a warranted part is defective. Any manufacturer-approved or
equivalent replacement part may be used for any warranty maintenance or repairs
on emission-related parts, and must be provided free of charge to the owner if the
part is still under warranty. Techtronic Industries North America, Inc., is liable for
damages to other engine components caused by the failure of a warranted part
still under warranty.
Add-on or modified parts that are not exempted by the California Air Resource Board
may not be used. The use of any non-exempted add-on or modified parts will be
grounds for disallowing a warranty claim. Techtronic Industries North America, Inc.,
will not be liable to warrant failures of warranted parts caused by the use of a nonexempted add-on or modified part.
The California Air Resources Board’s Emission Warranty Parts List specifically defines
the emission-related warranted parts. (EPA’s regulations do not include a parts list,
but the EPA considers emission-related warranted parts to include all the parts listed
below.) Techtronic Industries North America, Inc., will provide any documents that
describe its warranty procedures or policies within five days upon request by the
California Air Resources Board.
EMISSIONS PARTS LIST
Emissions parts vary from product to product. Your emissions control system warranty
applies to any of the following components that may be included on your product:
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or pressure regulator or fuel injection
system).
(ii) Air/fuel ratio feedback and control system.
(iii) Cold start enrichment system.
(iv) Fuel Tank.
(2) Air Induction System
(i) Controlled hot air intake system.
(ii) Intake manifold.
(iii) Air filter.
(3) Ignition System
(i) Spark Plugs.
(ii) Magneto or electronic ignition system.
(iii) Spark advance/retard system.
(4) Exhaust Gas Recirculation (EGR) System
(i) EGR valve body and carburetor spacer, if applicable.
(ii) EGR rate feedback and control system.
(5) Air Injection System
(i) Air pump or pulse valve.
(ii) Valves affecting distribution of flow.
(iii) Distribution manifold.
(6) Catalyst or Thermal Reactor System
(i) Catalytic converter.
(ii) Thermal reactor.
(iii) Exhaust manifold.
(7) Particulate Controls
(i) Traps, filters, precipitators, and any other device used to capture particulate
emissions.
(8) Miscellaneous Items Used in Above Systems
(i) Electronic controls.
(ii) Vacuum, temperature, and time sensitive valves and switches.
(iii) Hoses, belts, connectors, and assemblies.
Techtronic Industries North America, Inc., will furnish with each new engine written
instructions for its maintenance and use by the owner.
The Emissions Compliance Period referred to on the Emissions Compliance label
indicates the number of operating hours for which the engine has been shown to
meet Federal emission requirements. Category C=50 hours, B=125 hours, and
A=300 hours.
21
CAL
L
1-800-860-4050
www
.ryobitools.com
WARRANTY
THIS PRODUCT WAS MANUFACTURED WITH A CATALYST MUFFLER
Congratulations! You have made an investment toward protecting the environment. In order to maintain this product’s
original emission level, please refer to the maintenance section below.
EMISSIONS MAINTENANCE SCHEDULE AND WARRANTED PARTS LIST
Emissions Parts Inspect Before Clean Every Replace Clean Every Replace Every
Each Use 5 Hours Every 25 Hours 25 Hours 50 Hours
or Yearly or Yearly
CATALYST MUFFLER ASSEMBLY ..................................................................................................................... X
AIR FILTER ASSY
includes:
Filter Screen ..................................................... X
FUEL TANK ASSY
includes:
Fuel Lines ........................ X
Fuel Cap .......................... X
IGNITION ASSY
includes:
Spark Plug ........................................................................................ X
ALL EMISSIONS-RELATED PARTS ARE WARRANTED FOR TWO YEARS OR FOR THE PERIOD OF TIME PRIOR TO
THE PARTS FIRST SCHEDULED REPLACEMENT WHICHEVER COMES FIRST.
CALL US fIRST
For any questions about operating or maintaining your product,
call the Ryobi® Help Line!
Your product has been fully tested prior to shipment
to ensure your complete satisfaction.
22
NOTES
23
OPERATOR’S MANUAL
TP30 GAS PRUNER
RY52504/RY52905
WARNING:
The engine exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
CALIFORNIA PROPOSITION 65
• PARTS AND SERVICE
Prior to requesting service or purchasing replacement parts, please obtain your model
and serial number from the product data plate.
• MODEL NUMBER
• SERIAL NUMBER
RY52504/RY52905
• HOW TO OBTAIN REPLACEMENT PARTS:
Replacement parts can be purchased online at www.ryobitools.com or by calling
1-800-860-4050. Replacement parts can also be obtained at one of our Authorized
Service Centers.
• HOW TO LOCATE AN AUTHORIZED SERVICE CENTER:
Authorized Service Centers can be located online at www.ryobitools.com or by calling
1-800-860-4050.
• HOW TO OBTAIN CUSTOMER OR TECHNICAL SUPPORT:
To obtain Customer or Technical Support please contact us at 1-800-860-4050.
RYOBI® is a registered trademark of Ryobi Limited used under license.
987000-194
10-18-07 (REV:01)
TECHTRONIC INDUSTRIES NORTH AMERICA, INC.
1428 Pearman Dairy Road
Anderson, SC 29625
Phone 1-800-860-4050
www.ryobitools.com
Loading...
