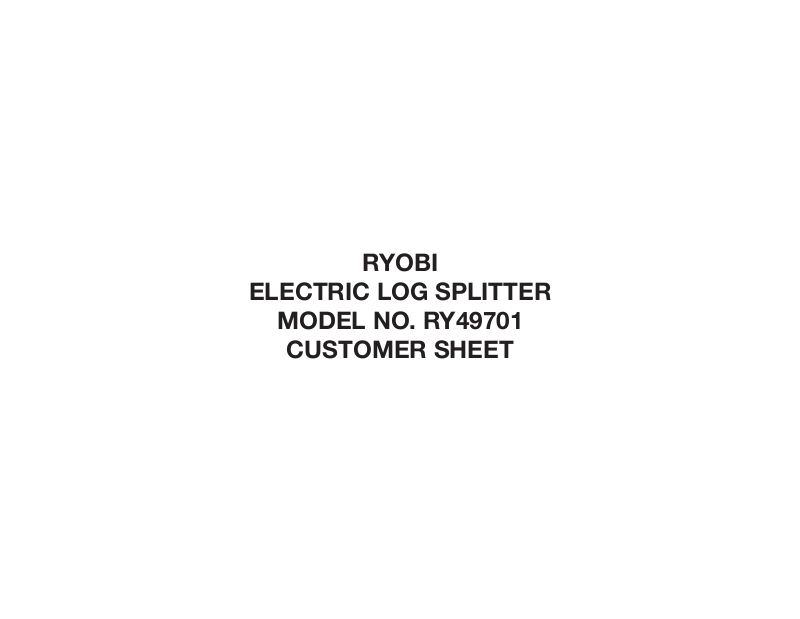

RYOBI
ELECTRIC LOG SPLITTER
MODEL NO. RY49701
CUSTOMER SHEET
RYOBI ELECTRIC LOG SPLITTER
1
2
20 21
3
4
5
6
7
8
9
22
23
10
11
12
13
15
14
16
17
19
18
24
25
MODEL NUMBER RY49701
2
RYOBI ELECTRIC LOG SPLITTER
* STANDARD HARDWARE ITEM — MAY BE PURCHASED LOCALLY
MODEL NUMBER RY49701
The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence
regarding your ELECTRIC LOG SPLITTER or when ordering repair parts.
PARTS LIST
KEY PART
NO. NUMBER DESCRIPTION QTY.
1 099077001501 Hydraulic Control Lever....................................................................................... 1
2 099077001075 Control Lever Guard ............................................................................................ 1
3 099077001103 Warning Label...................................................................................................... 1
4 099077001104 Data Label ........................................................................................................... 1
5 099077001101 Bleed Screw Instruction Label............................................................................. 1
6 099077001100 Warning Label...................................................................................................... 1
7 099077001102 Bleed Screw Label............................................................................................... 1
8 099077001018 * Screw (M5 X 16 mm) ........................................................................................... 2
9 099077001019 Handle ................................................................................................................. 1
10 099077001088 * Bolt (M8 X 55 mm) ............................................................................................... 8
11 099077001087 Washer................................................................................................................. 8
12 099077001031 Plug...................................................................................................................... 2
13 099077001032 Rubber Grip ......................................................................................................... 2
14 099077001099 Logo Label........................................................................................................... 2
15 099077001502 Wheel Assembly .................................................................................................. 2
16 099077001049 Rubber Foot (R) ................................................................................................... 1
17 099077001051 Rubber Foot (L).................................................................................................... 1
18 099077001070 Washer................................................................................................................. 1
19 099077001071 Nut ....................................................................................................................... 1
20 099077001085 Leg Frame (R) ...................................................................................................... 1
21 099077001086 Leg Frame (L)....................................................................................................... 1
22 099077001025 O-Ring ................................................................................................................. 1
23 099077001026 Wing Bolt ............................................................................................................. 1
24 099077001029 O-Ring ................................................................................................................. 1
25 099077001030 Dipstick................................................................................................................ 1
983000588 Operator's Manual (099077001108)
983000702 Replacement Parts List
