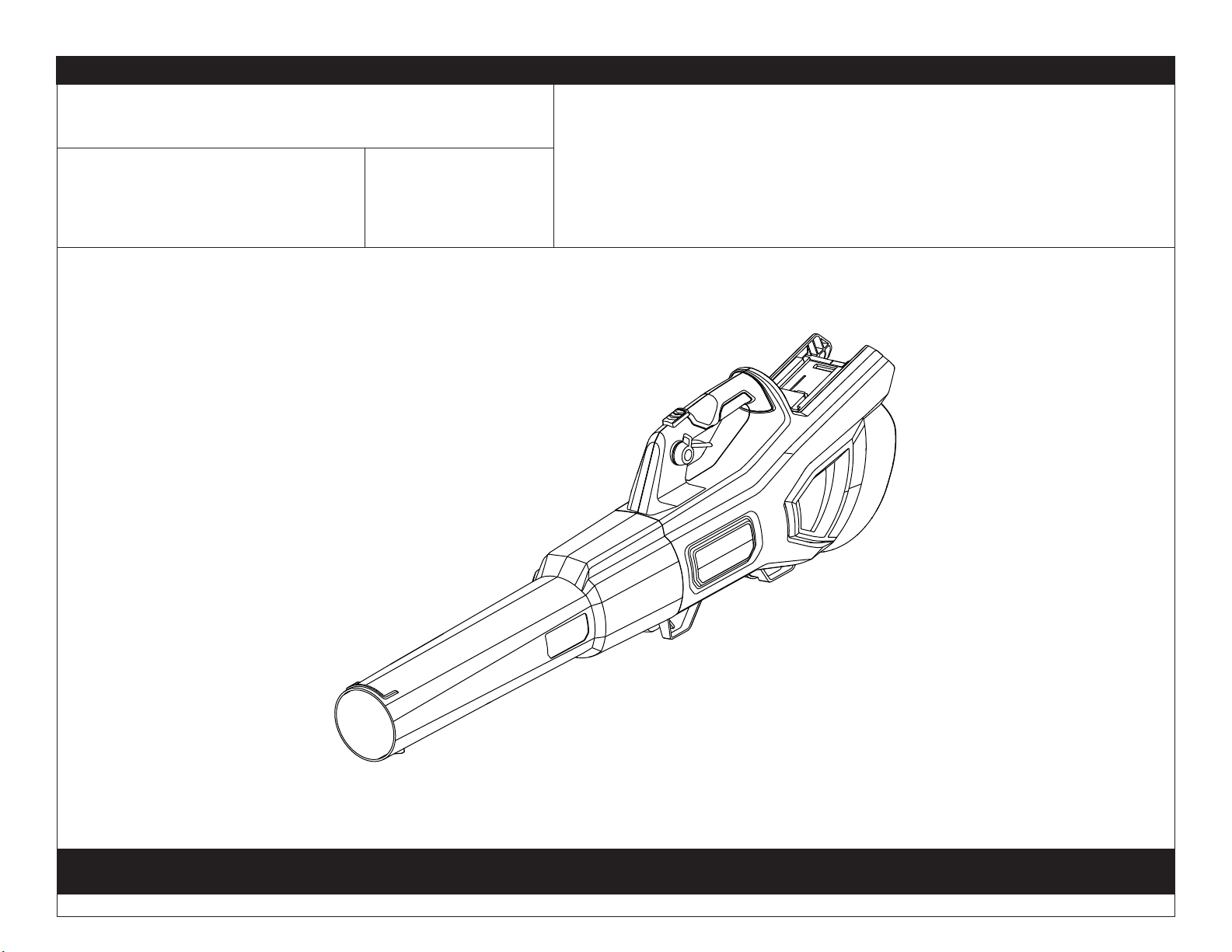

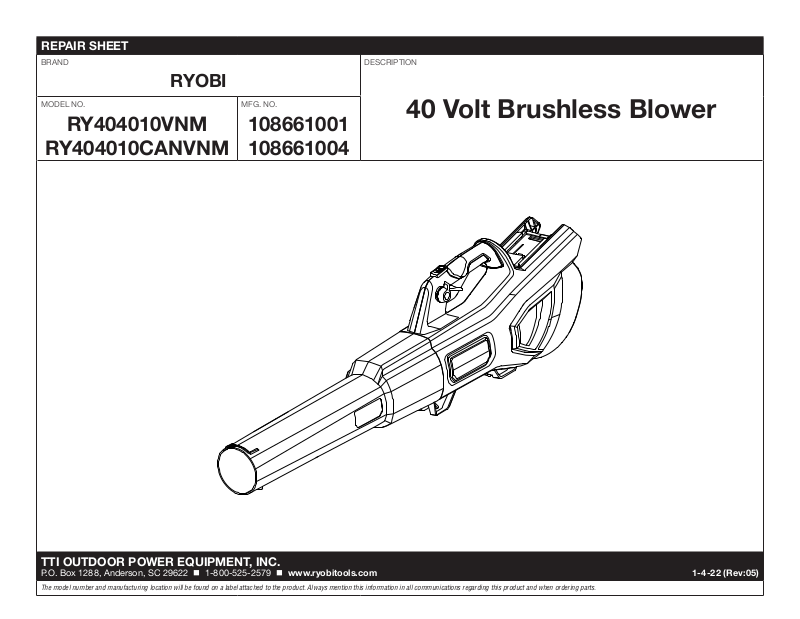

REPAIR SHEET
BRAND
DESCRIPTION
RYOBI
MODEL NO.
RY404010VNM
RY404010CANVNM
MFG. NO.
40 Volt Brushless Blower
108661001
108661004
TTI OUTDOOR POWER EQUIPMENT, INC.
P.O. Box 1288, Anderson, SC 29622 1-800-525-2579 www.ryobitools.com 1-4-22 (Rev:05)
The model number and manufacturing location will be found on a label attached to the product. Always mention this information in all communications regarding this product and when ordering parts.

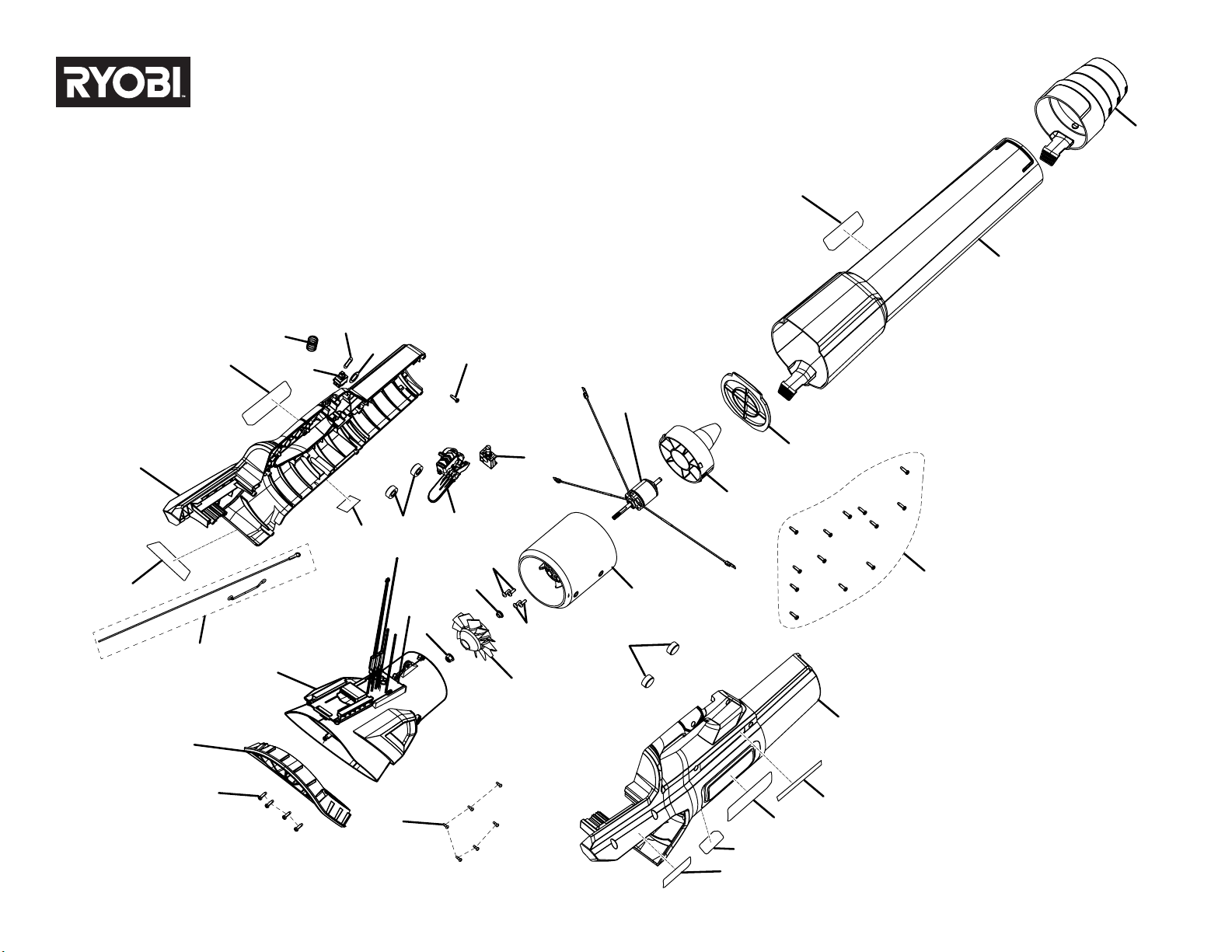

Page 2
RY404010VNM/RY404010CANVNM
8
27
25
9
22
23
30
24
14
10
19
3
12
13
11
13
20
15
18
16
3
7
14
21
26
6
5
1
6
2
3
4
17
2
28
31
29
Page 3
RY404010VNM/RY404010CANVNM
PARTS LIST
KEY NO. PART NO. DESCRIPTION QTY.
1 318194001 Motor Controller and Inlet Bell Assembly 1
2 543748001 Inlet Guard 1
3 661817001 Screw (M4 x 13.5 mm, T15 Torx Pan Hd.) 18
4 660203001 Screw (M3 x 8 mm, Pan Hd.) 6
5 318193001 Grounding Strap Assembly 1
318190001 Housing Assembly (Inc. Key Nos. 17 & 26-31, R404010VNM) 1
6
205765001 Housing Assembly (Inc. Key Nos. 17 & 26-31, R404010CANVNM) 1
7 318192001 Stator Assembly 1
8 318191001 Speed Nozzle Assembly 1
9 318195001 Blower Tube Assembly (Inc. Key No. 25) 1
10 678774009 Flange Lock Nut (M6) 1
11 543752001 Fan 1
12 612854002 Bushing 1
13 660137001 Screw w/Washer (M4 x 12 mm) 4
14 565463001 Rubber Cap 4
15 742653002 Motor 1
16 543754001 Nose Cone 1
17 941110041 Ingestion Icon Label 1
KEY NO. PART NO. DESCRIPTION QTY.
18 543756001 Cross-Hairs 1
19 317856001 Trigger and Cruise Control Assembly 1
20 760750001 Signal Switch 1
21 699363001 Spring 1
22 760781001 Push Switch 1
23 636095001 Wave Washer (ID13.7 x OD19.2 x 0.3t) 1
24 635793001 Flat Washer (ID13.5 x OD20 x 2t) 1
25 940705583 40V HP BRUSHLESS Logo Label 1
26 941110030 RYOBI 40V HP Logo Label 1
27 941110031 WHISPER SERIES Logo Label 1
941110099 Data/Warning Label (RY404010VNM) 1
28
941110084 Data/Warning Label (RY404010CANVNM) 1
29 941110033 Icon Label 1
30 941097124 dB Label 1
31 941097056 QR Label 1
Not Shown:
998000561 Operator’s Manual
3
Page 4
MOTOR
GROUND
PLATE
WIRE
RY404010VNM/RY404010CANVNM
BLUE
MOTOR
CONTROLLER
BLACK
RED
BLACK
SIGNAL
SWITCH
PUSH
SWITCH
BATTERY CONTACT
RED
WHITE
BLACK
RED

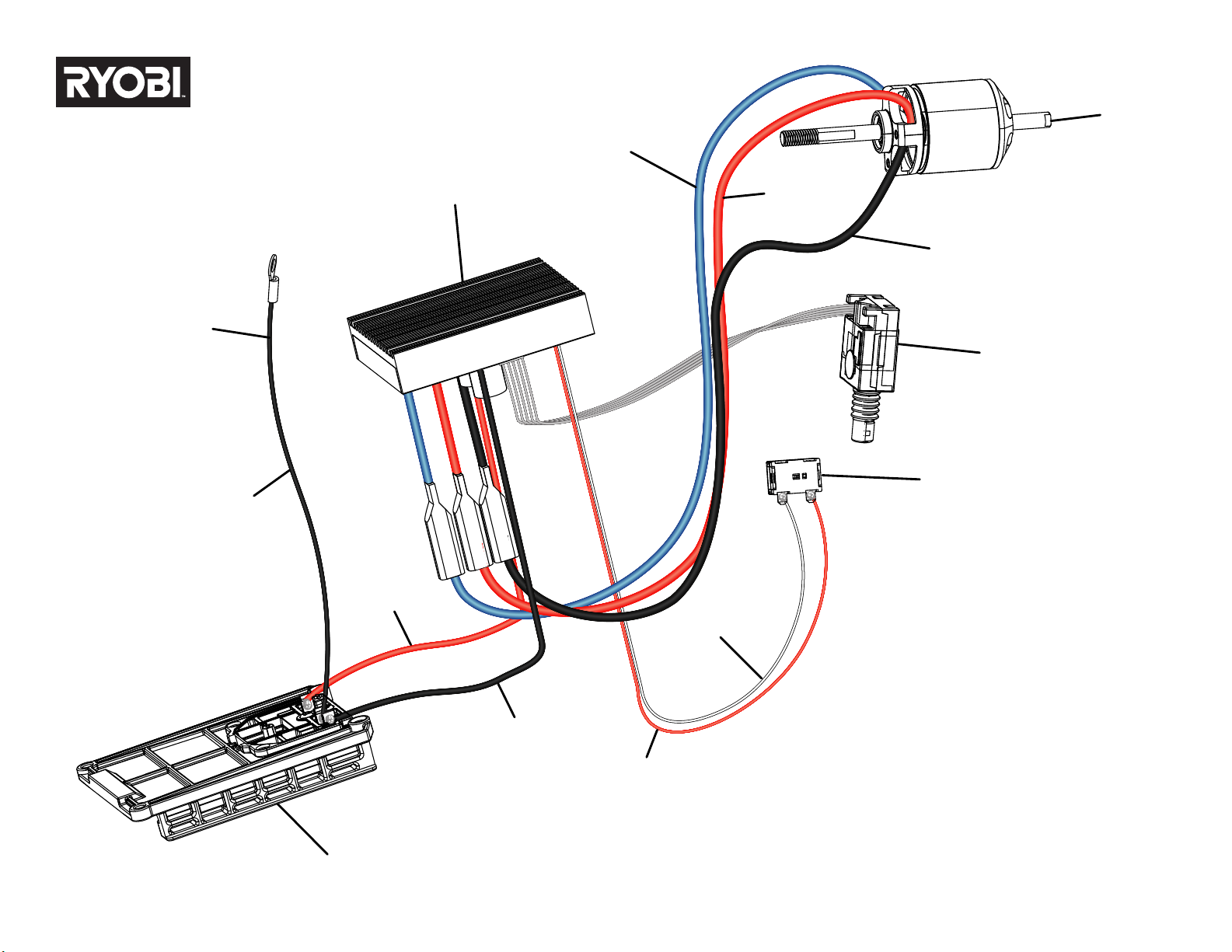

WIRING DIAGRAM
4
