Page 1
RYOBI
30cc STRING TRIMMER
MODEL NUMBER RY29550
REPAIR SHEET
Page 2
2

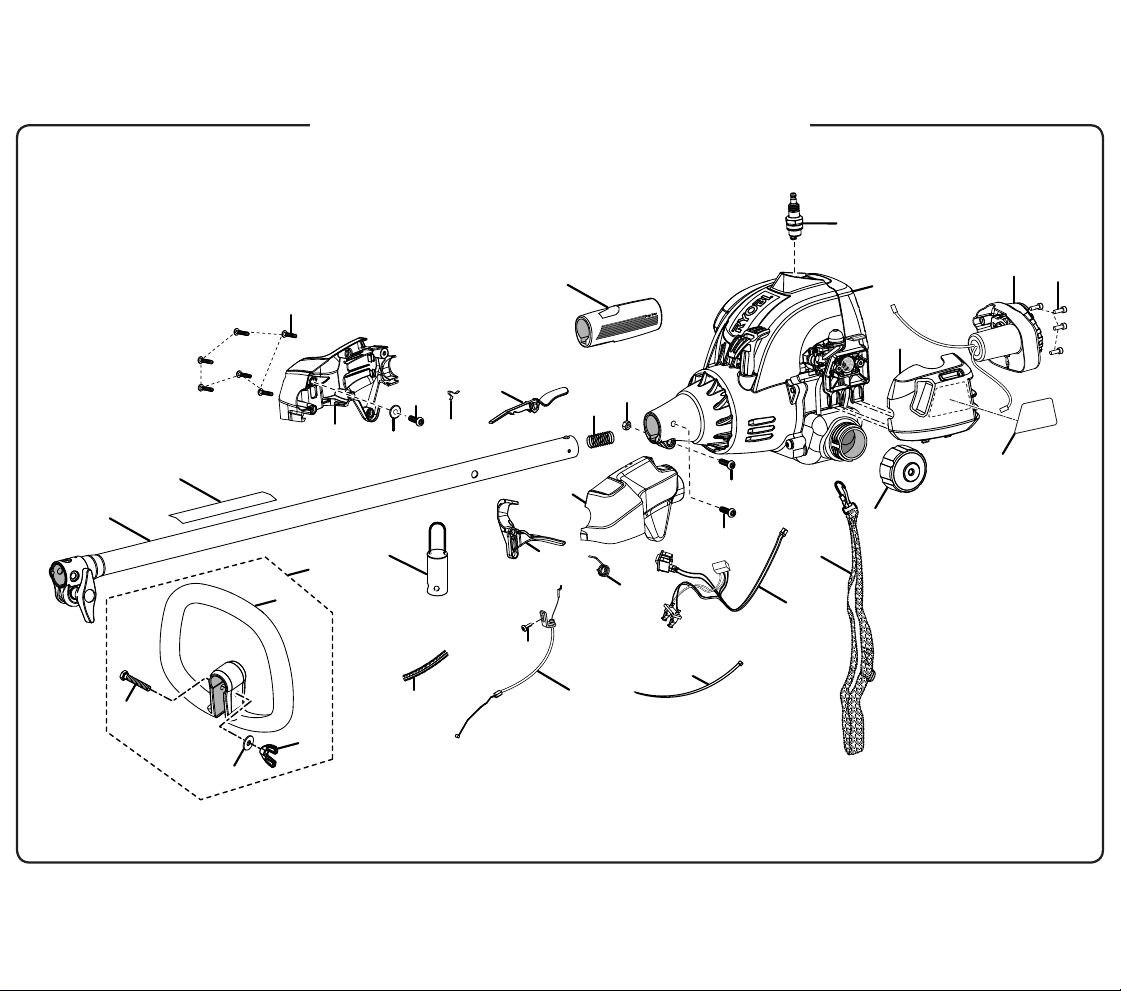

FIGURE A
1
3
2
14
4
13
16
15
19
20
24
17
18
6
7
9
26
27
10
11
12
35
25
23
34
21
30
5
33
8
22
32
31
28
29
Page 3
3
21 660616001 * Screw (10-24 x 7/8 in.) .......................................... 1
22 308487001 Shoulder Strap ......................................................1
23 678029002 * Hex Nut (M6) ......................................................... 1
24 690694002 Spring .................................................................... 1
25 660634001 * Bolt (8-16 x 5/16 in. Torx T.F.) ................................ 1
26 310568001 Electrical Start Assembly ......................................1
27 660527001 * Screw (M5 x 14 mm) ............................................. 4
28 309800001 Power Head Assembly .......................................... 1
29 308439012 Throttle Cable ........................................................ 1
30 518798001 Right Handle ......................................................... 1
31 690969001 Washer ..................................................................1
32 660870001 Screw ....................................................................1
33 900333010 Cable Tie ...............................................................3
34 690140011 Spring .................................................................... 1
35 518036006 Tube.......................................................................1
130269012 Battery Pack (Not Shown) ..................................... 1
140295003 Charger (Not Shown) ............................................. 1
987000310 Operator’s Manual (960703004) 8-13-08 (REV:01)
1 660563001 * Screw (M4 x 18 mm) ............................................. 6
2 518797001 Left Handle ............................................................ 1
3 518695001 Trigger Lock ..........................................................1
4 638431001 Strap Hanger ......................................................... 1
5 308315001 Wire Harness ......................................................... 1
6 570234003 Rear Handle ..........................................................1
7 870174002 * Spark Plug (Champion RCJ6Y) ............................. 1
8 518366001 Hanger Cap ........................................................... 1
9 518777001 Air Box Cover ........................................................ 1
10 300758006 Fuel Cap Assembly ...............................................1
11 940686033 Label...................................................................... 1
12 660697002 * Bolt (M6 x 20 mm) ................................................. 1
13 308470006 Upper Boom Assembly ......................................... 1
14 940230132 Warning Decal ....................................................... 1
15 308991001 Front Handle Assembly ......................................... 1
16 518738001 Front Handle.......................................................... 1
17 660643008 * Bolt (1/4-20 x 40 mm) ...........................................1
18 678008001 Washer ..................................................................1
19 518949001 * Wing Nut (1/4-20) .................................................. 1
20 518696001 Throttle Trigger ...................................................... 1
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
PARTS LIST (FIGURE A)
KEY PART NO. NUMBER DESCRIPTION QTY
KEY PART NO. NUMBER DESCRIPTION QTY
Page 4
4
6
5
4
7
8
11
9
12
2
1
10
14
13
3
16
17
18
19
20
21
22
15

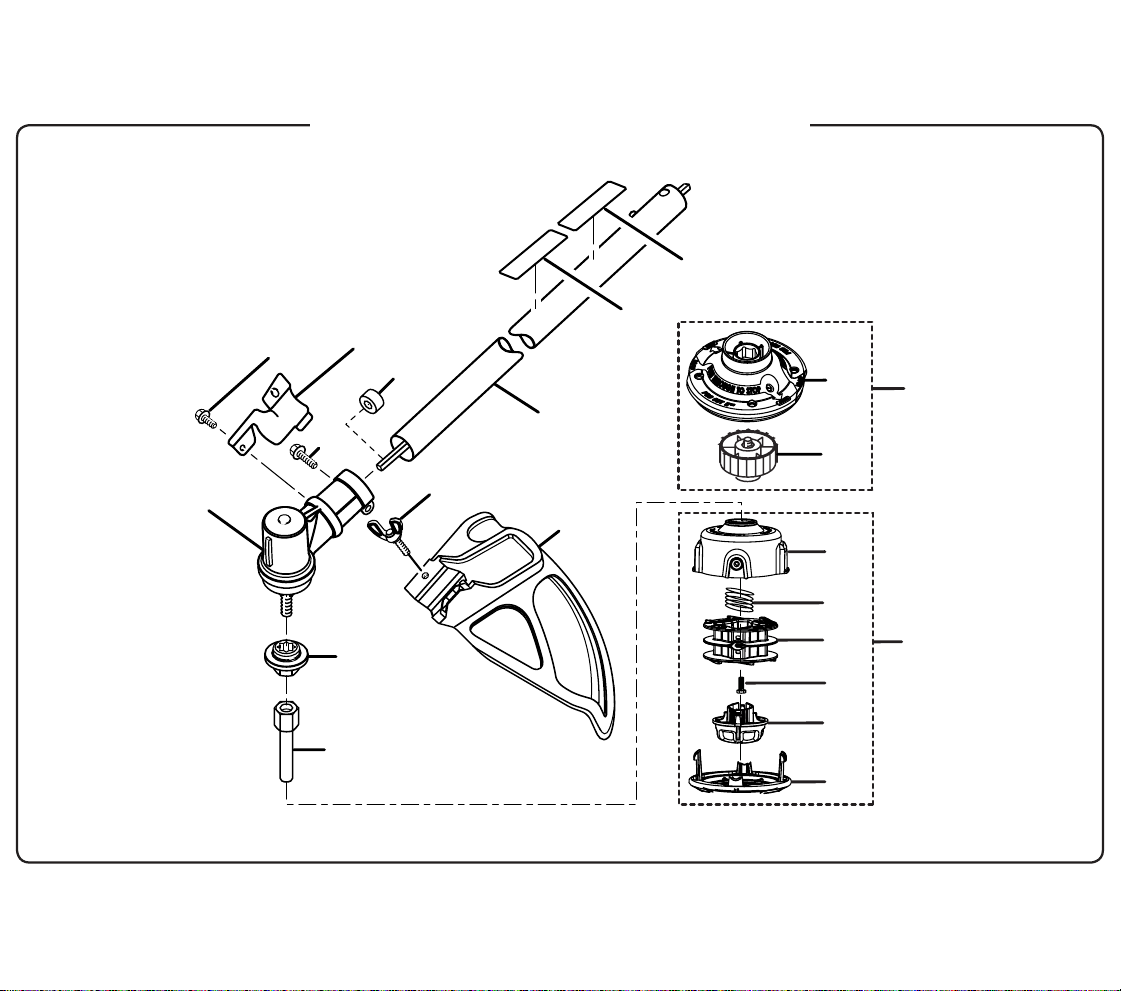

FIGURE B
Page 5
5
13 308925001 Pro Cut II String Head ........................................... 1
14 308042003 Spool Retainer (Red) .............................................1
15 120950011 Pro Cut II String Head Assembly
(Inc. Key Nos. 13-14) ............................................. 1
16 308827002 Housing ................................................................. 1
17 678749001 Spring .................................................................... 1
18 308924001 Spool ..................................................................... 1
19 660649001 * Bolt (5/16-18 x 1/2 in. LH) ..................................... 1
20 518803001 Knob ...................................................................... 1
21 518804001 Cover ..................................................................... 1
22 120950010 Reel Easy String Head Assembly
(Inc. Key Nos. 16-21) ............................................. 1
1 940627024 Expand-it Label ..................................................... 1
2 940230132 Warning Decal ....................................................... 1
3 308035011 Straight Shaft Assembly ........................................ 1
4 660736001 * Screw (10-24 x 5/8 in.) .......................................... 1
5 638125001 Clamp .................................................................... 1
6 518367001 Spacer ................................................................... 1
7 660642001 * Screw (1/4-20 x 1-1/4 in.)......................................1
8 308210002 Gear Head ............................................................. 1
9 678011002 Flanged Washer ....................................................1
10 678019002 Arbor ..................................................................... 1
11 660886001 * Wing Screw (1/4-20 x 1-1/4 in.) ............................ 1
12 308473001 Grass Deflector Assembly ..................................... 1
PARTS LIST (FIGURE B)
KEY PART NO. NUMBER DESCRIPTION QTY
KEY PART NO. NUMBER DESCRIPTION QTY
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
Page 6
6
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
28
29
30
38
39
40
41
43
42
31
44
45
46
47
48
51
50
49
32
33
34
35
36
37
18
19
20
21
22
23
24
25
26
27
7
11

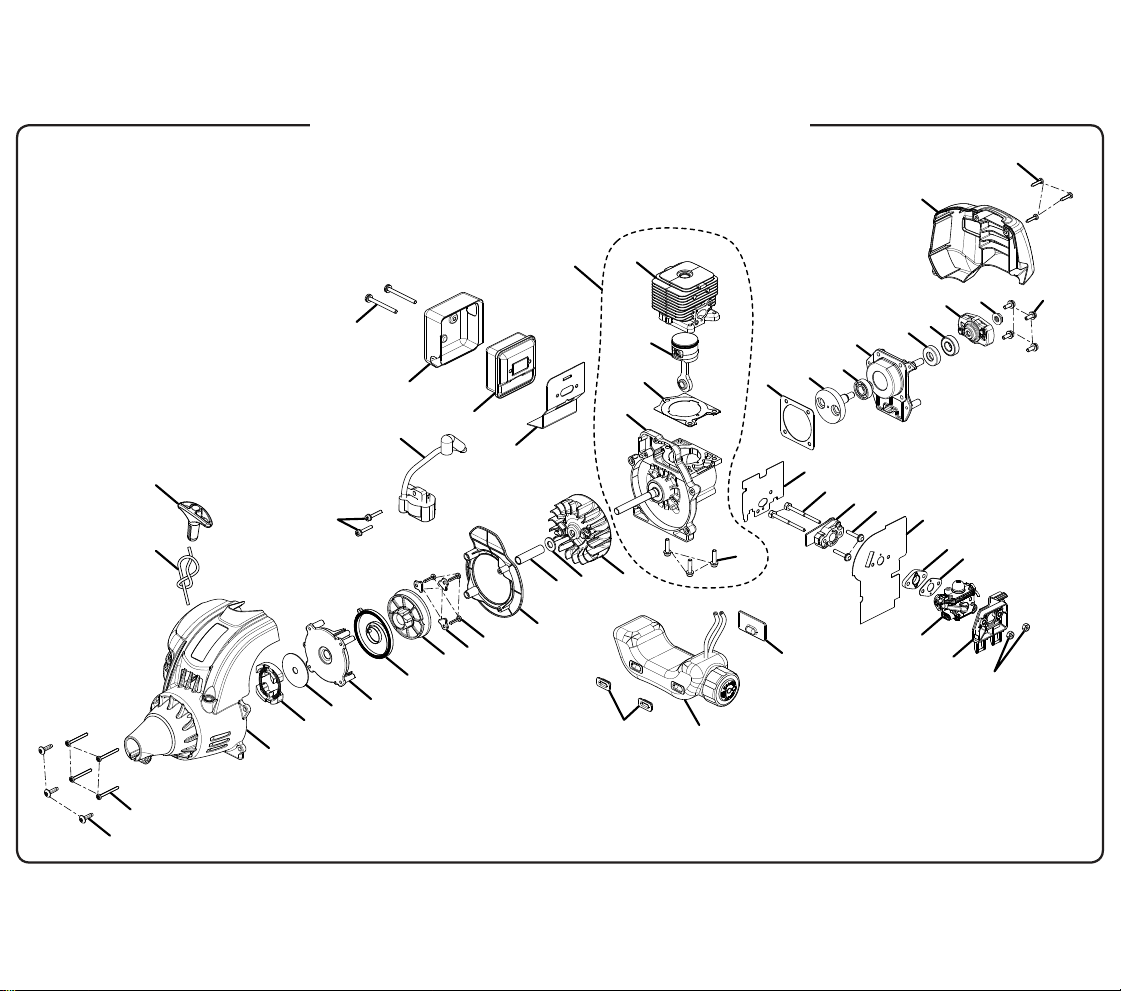

FIGURE C
Page 7
7
1 660630002 * Screw (10-24 x 3/4 in.) .......................................... 3
2 661508001 * Screw (M4 x 38 mm) ............................................. 4
3 308194005 Starter Housing Assembly .................................... 1
4 300960002 Clutch Assembly ................................................... 1
5 638090001 Washer .................................................................. 1
6 518134001 Starter Retaining ................................................... 1
7 518854001 Baffle Plate ............................................................ 1
8 638033001 Spring & Container ................................................ 1
9 518501001 Pulley ..................................................................... 1
10 638389001 Pulley Retainer ...................................................... 3
11 660466001 * Screw (M4 x 18 mm) ............................................. 6
12 638284003 Spacer ................................................................... 1
13 650017001 Washer .................................................................. 1
14 308433008 Rotor Assembly ..................................................... 1
15 570256001 Bumper.................................................................. 2
16 308181012 Fuel Tank & Cap Assembly ................................... 1
17 570549001 Bumper.................................................................. 1
18 678027001 * Lock Nut (10-24) ................................................... 2
19 518766001 Air Filter Base ........................................................ 1
20 308054012 Carburetor Assembly ............................................ 1
21 900994004 Carburetor Gasket ................................................. 1
22 590456003 Gasket ................................................................... 1
23 900740003 Carburetor Gasket ................................................. 1
24 660662001 * Screw (10-24 x 1 in. Pan Hd.) ............................... 2
25 518070001 Heat Dam .............................................................. 1
26 660346002 * Screw (10 x 2-1/2 in.) ............................................ 2
27 901657001 Heat Dam Gasket .................................................. 1
28 900954001 Crankcase Gasket ................................................. 1
29 310564001 Starter Shaft Assembly ......................................... 1
30 690685001 Ball Bearing ........................................................... 1
31 641601001 Crankcase Cover................................................... 1
32 650012001 Shaft Seal .............................................................. 1
33 650011001 Ball Bearing ........................................................... 1
34 308004002 Pulley Assembly .................................................... 1
35 678339002 * Nut (M8 x 1-1/4 in.) ............................................... 1
36 660638004 * Pan Head Screw (10-24 x 3/4”)............................. 4
37 518775001 Rear Housing ........................................................ 1
38 309920001 Short Block Assembly (Inc. Key Nos. 39-43) ........ 1
39 640069002 Cylinder ................................................................. 1
40 308023005 Piston w/Rod Assembly ........................................ 1
41 900953001 Cylinder Gasket ..................................................... 1
42 309920002 Crankcase Assembly ............................................ 1
43 660342002 * Screw (M5 x 0.8-20 mm) ....................................... 3
44 901452005 Muffler Gasket ....................................................... 1
45 309316001 Muffler Assembly................................................... 1
46 638481001 Heat Shield ............................................................ 1
47 660638003 * Screw (10-24 x 2-1/8 in.) ....................................... 2
48 310563001 Ignition................................................................... 1
49 660660001 * Screw (M4 x 25 mm) ............................................. 2
50 518502003 Starter Grip ............................................................ 1
51 900849002 Starter Rope .......................................................... 1
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
PARTS LIST (FIGURE C)
KEY PART NO. NUMBER DESCRIPTION QTY
KEY PART NO. NUMBER DESCRIPTION QTY
Page 8
8
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
PARTS LIST (FIGURE D)
1 561978001 Cover ..................................................................... 1
2 518782001 Motor Cover .......................................................... 1
3 660526001 * Screw (M4 x 11 mm) ............................................. 2
4 641600001 Motor ..................................................................... 1
5 610715001 Pinion .................................................................... 1
6 660520001 * Screw (M3 x 8 mm) ............................................... 2
7 310567001 Bracket & Shaft Assembly .................................... 1
8 678568001 Thrust Washer ....................................................... 1
9 678566001 Pulley & Gear ......................................................... 1
10 678569001 Retaining Ring ....................................................... 1
11 660525001 * Screw (M4 x 6 mm) ............................................... 1
12 310693001 Final Start Gear & Pawl Assembly ........................ 1
13 678592001 Bushing ................................................................. 1
14 678596001 Spacer ................................................................... 1
15 518780001 Rear Cover ............................................................ 1
KEY PART NO. NUMBER DESCRIPTION QTY
KEY PART NO. NUMBER DESCRIPTION QTY
1
2
3
4
5
6
7
8
9
11
12
10
13
14
15

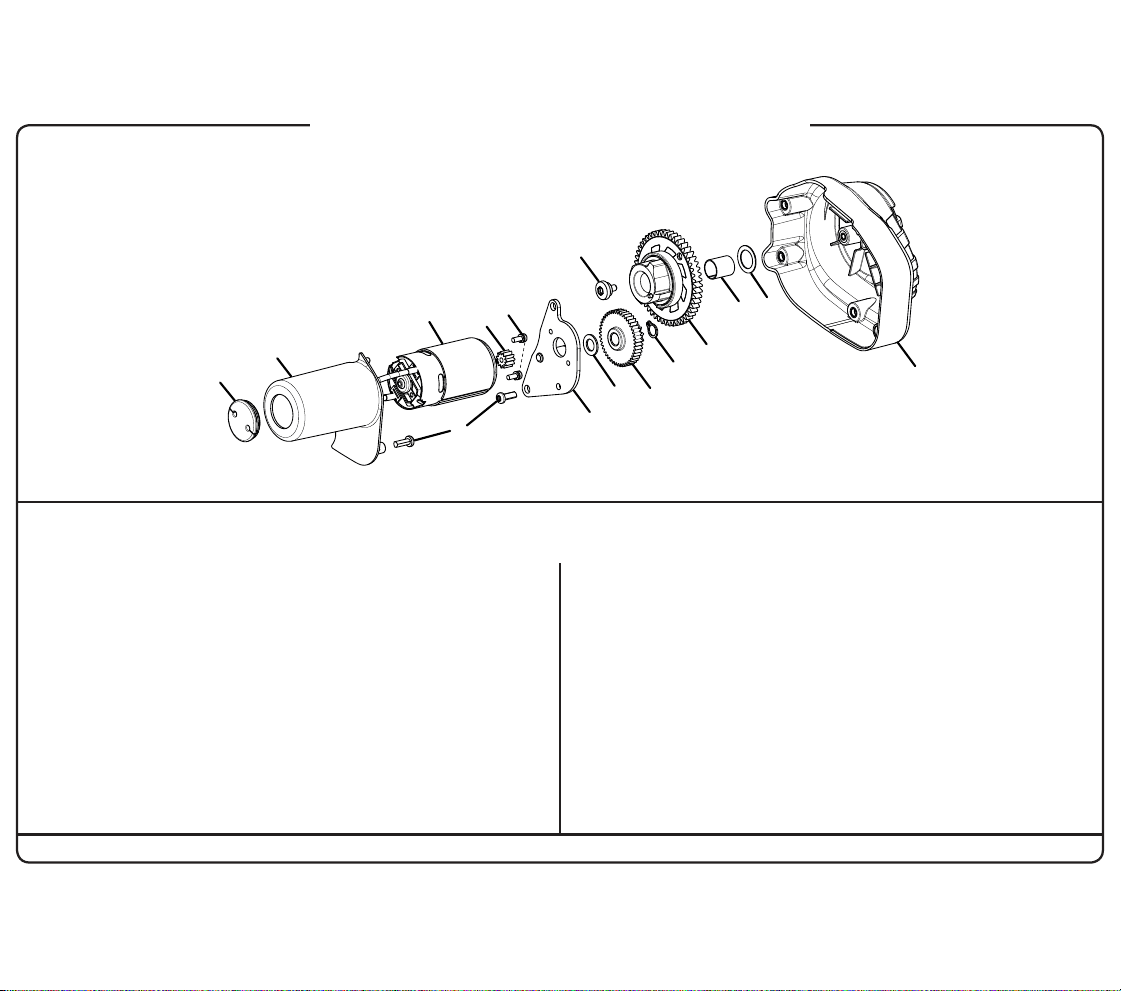

FIGURE D
