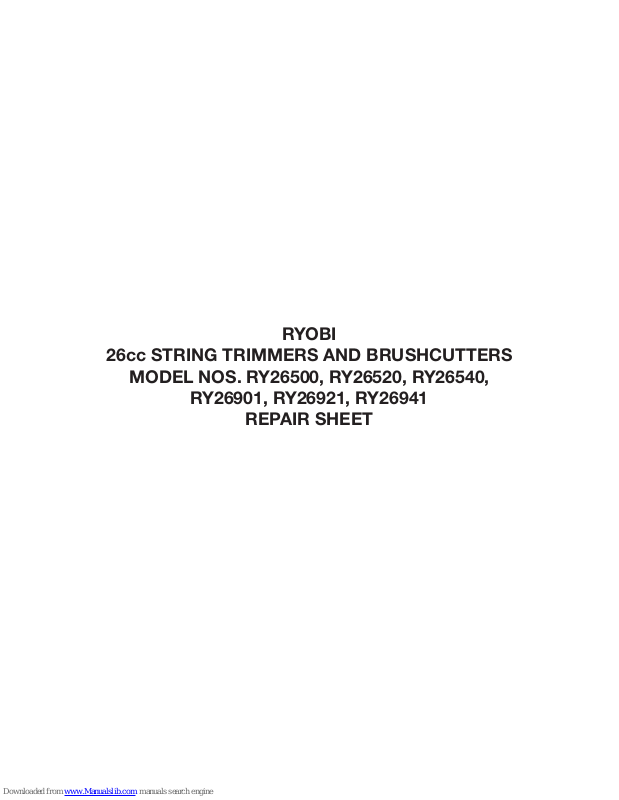

Page 1
RYOBI
26cc STRING TRIMMERS AND BRUSHCUTTERS
MODEL NOS. RY26500, RY26520, RY26540,
RY26901, RY26921, RY26941
REPAIR SHEET
Page 2
2
RYOBI 26cc STRING TRIMMERS AND BRUSHCUTTERS
MODEL NUMBERS – RY26500, RY26520, RY26540, RY26901, RY26921, RY26941

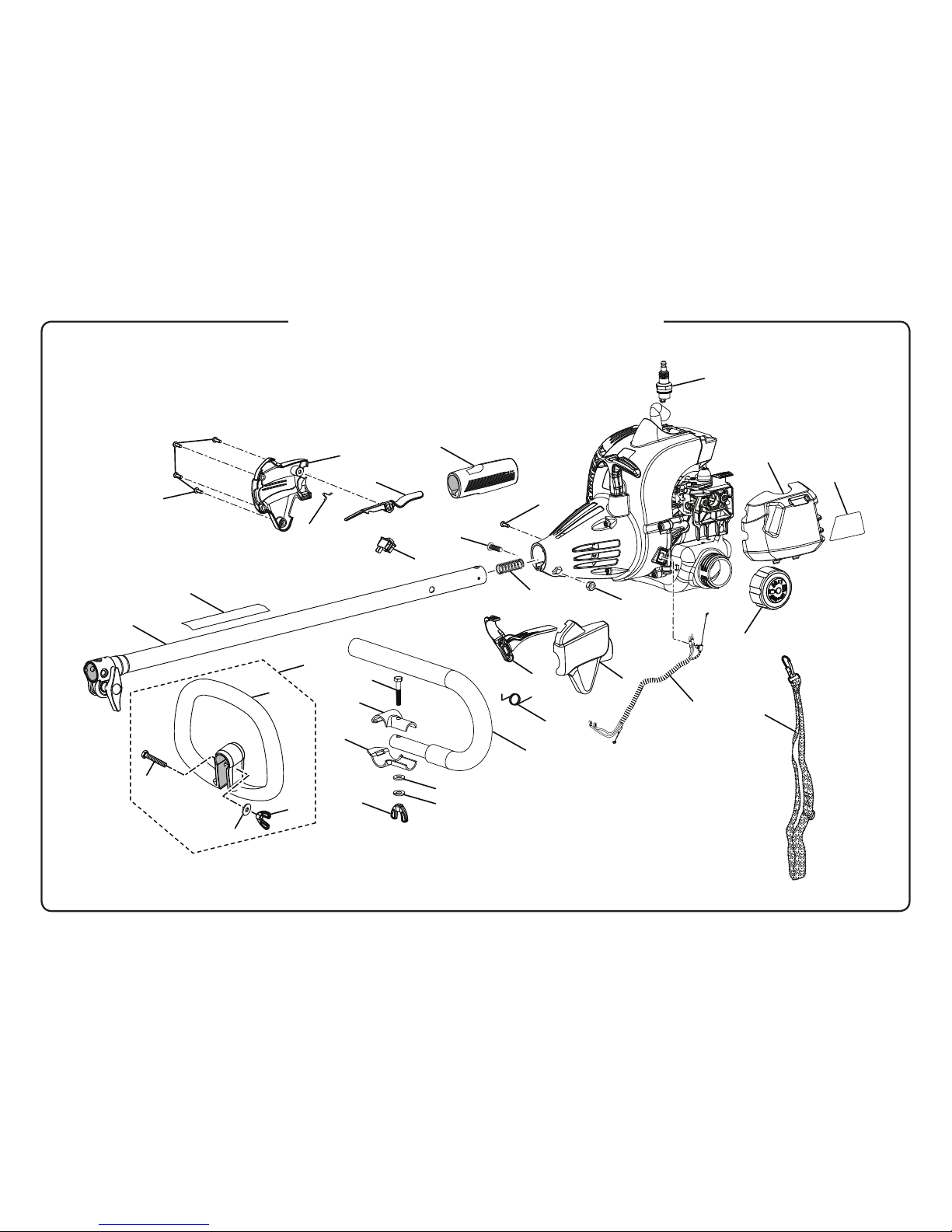

FIGURE A
1
3
2
14
4
13
16
15
19
27
32
20
21
23
17
18
22
25
24
5
6
7
9
10
11
12
29
31
8
2
30
26
28
Page 3
3
RYOBI 26cc STRING TRIMMERS AND BRUSHCUTTERS
MODEL NUMBERS – RY26500, RY26520, RY26540, RY26901, RY26921, RY26941
21 660643001 Bolt (1/4-20 x 1-1/2 in. Hex Hd.) (BC26) ............... 1
22 308046001 “J” Handle and Grip (BC26) .................................. 1
23 638565001 Bottom “J” Handle Clamp (BC26) ......................... 1
24 678013001 Washer (BC26) ......................................................1
25 518949001 Wing Nut (1/4-20) (BC26) ...................................... 1
26 678012001 Lock Washer (BC26) .............................................1
27 518696001 Throttle Trigger ......................................................1
28 308842004 Throttle and Lead Assembly
(Incl. Key No. 5) ..................................................... 1
29 660634001 Screw (8-16 x 5/16 in. Torx T.F.) ............................ 1
30 308487001 Shoulder Harness (BC26) ......................................1
31 678029002 Hex Nut (M6) .........................................................1
32 690694002 Spring ....................................................................1
Not Shown:
940705011 Logo Label ............................................................1
940991028 Model Label (CS26) ...............................................1
940991030 Model Label (SS26) ............................................... 1
940991031 Model Label (BC26) ............................................... 1
987000426 Operator’s Manual (960736001) ............................ 1
3-19-09
(REV:02)
1 660563002 Screw (M4 x 20 mm) ............................................. 4
2 308869002 Control Handle Assembly .....................................1
3 518695001 Trigger Lock .......................................................... 1
4 638431001 Strap Hanger .........................................................1
5 760700002 Switch (Momentary Contact).................................1
6 570234002 Rear Handle ..........................................................1
7 870174001 Spark Plug (Champion RCJ6Y) .............................1
8 690140011 Compression Spring .............................................1
9 518777001 Air Box Cover ........................................................ 1
10 308680001 Fuel Cap Assembly (1.5 in. Diameter) ................... 1
300758006 Fuel Cap Assembly (2 in. Diameter) ...................... 1
11 940686026 Label ...................................................................... 1
12 660697002 Bolt (M6 x 20 mm) .................................................1
13 308470004 Upper Boom Assembly ......................................... 1
14 940657034 Warning Decal .......................................................1
15 308991001 Front Handle Assembly
(CS26 and SS26) ...................................................1
16 518738001 Front Handle .......................................................... 1
17 660643008 Bolt (1/4-20 x 40 mm) ...........................................1
18 678008001 Washer .................................................................. 1
19 518949001 Wing Nut ...............................................................1
20 638564001 Top “J” Handle Clamp (BC26) ............................... 1
PARTS LIST (FIGURE A)
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
Page 4
4
RYOBI 26cc STRING TRIMMERS AND BRUSHCUTTERS
MODEL NUMBERS – RY26500, RY26520, RY26540, RY26901, RY26921, RY26941

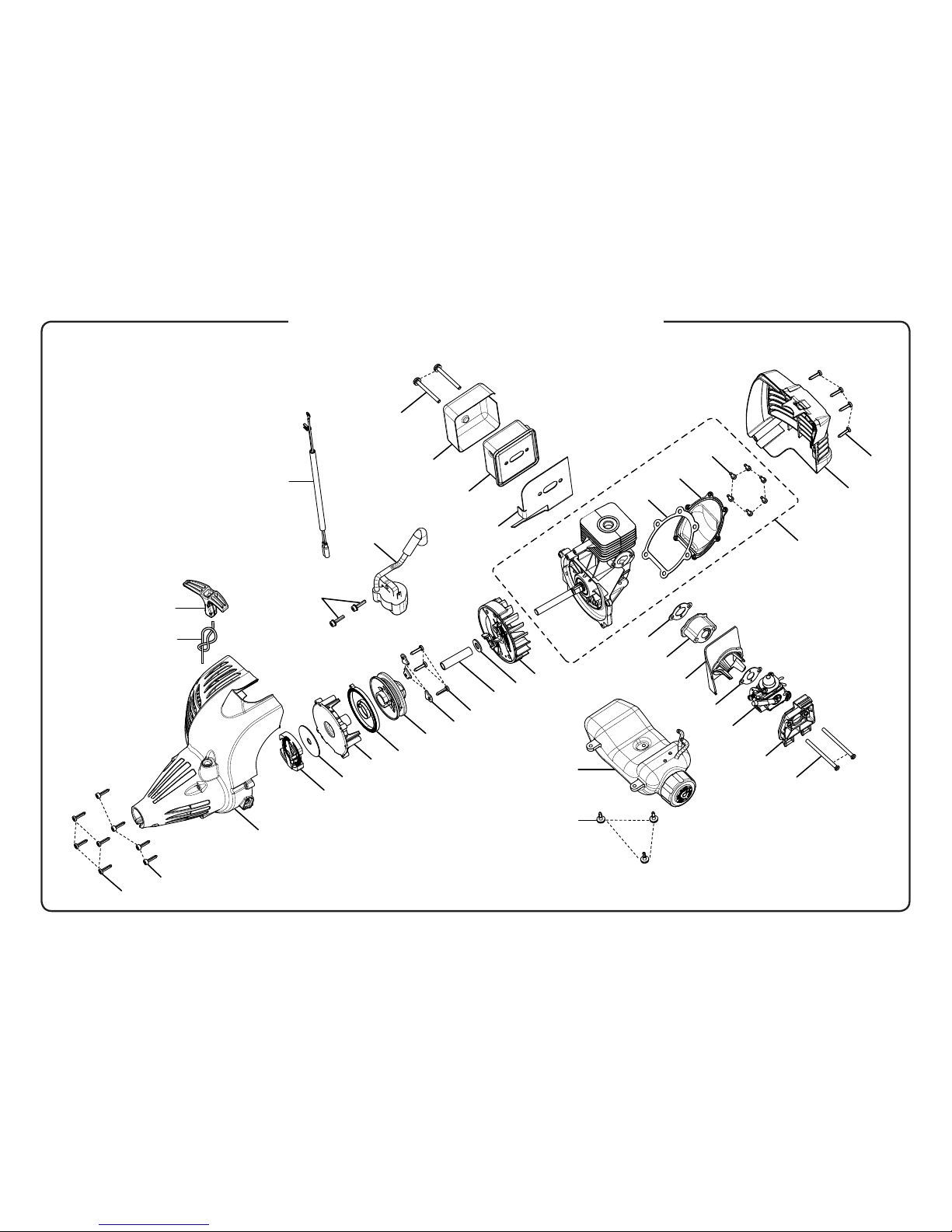

FIGURE B
26
4
5
6
7
8
9
10
11
12
3
13
14
15
16
17
18
19
20
21
22
23
3
24
25
27
28
29
30
31
32
34
33
35
2
3
1
Page 5
5
RYOBI 26cc STRING TRIMMERS AND BRUSHCUTTERS
MODEL NUMBERS – RY26500, RY26520, RY26540, RY26901, RY26921, RY26941
1 511731001 Starter Grip ............................................................ 1
2 900849002 Starter Rope .......................................................... 1
3 660466001 Screw (M4 x 18 mm) ............................................ 11
4 660970001 Screw (M4 x 16 mm) ............................................. 4
5 308671009 Starter Housing Assembly .................................... 1
6 300960002 Clutch Assembly ................................................... 1
7 638090001 Washer .................................................................. 1
8 518692001 Starter Baffle ......................................................... 1
9 638033001 Spring and Container ............................................ 1
10 310022001 Easy Starter Assembly .......................................... 1
11 638389001 Pulley Retainer ...................................................... 3
12 638284002 Spacer Tube .......................................................... 1
13 650017001 Washer .................................................................. 1
14 308811001 Flywheel Assembly ................................................ 1
15 308675021 Fuel Tank and Cap Assembly ................................ 1
16 660970002 Screw (M4) ............................................................ 3
17 660454001 Bolt (M5 x 70 mm) ................................................. 2
18 518766001 Air Box Base ......................................................... 1
19 308054013 Carburetor Assembly ............................................ 1
20 901552001 Outer Heat Dam Gasket ........................................ 1
21 518685001 Air Baffle ................................................................ 1
22 518497001 Heat Dam .............................................................. 1
23 901551001 Inner Heat Dam Gasket ......................................... 1
24 518504002 Rear Housing ........................................................ 1
25 308892003 Short Block Assembly ........................................... 1
26 660925003 Screw (M4 x 12 mm) ............................................. 6
27 638337001 Crankcase Cover ................................................... 1
28 901550001 Crankcase Cover Gasket ...................................... 1
29 901452001 Muffler Gasket ....................................................... 1
30 308990011 Muffler Assembly .................................................. 1
31 638442001 Muffler Housing ..................................................... 1
32 660638003 Muffler Bolt (10-24 x 2-1/8 in.) .............................. 2
33 308863003 Electrical Lead Wire Assembly .............................. 1
34 850108002 Ignition Module ..................................................... 1
35 660968001 Screw (M4 x 19 mm) ............................................. 2
PARTS LIST (FIGURE B)
KEY PART
NO. NUMBER DESCRIPTION QTY
KEY PART
NO. NUMBER DESCRIPTION QTY
Page 6
6
RYOBI 26cc STRING TRIMMERS AND BRUSHCUTTERS
MODEL NUMBERS – RY26500, RY26520, RY26540, RY26901, RY26921, RY26941
8
18
1
2
3
9
5
6
4
7
10
11
12
13
14
15
16
17
24
25
19
20
21
22
23
6
5
4
7
8
11
9
12
2
1
10
13
3
14
15
16
17
18
19
Key Service
No. Number Description Qty.
1 940726013 Expand-it Label .................................1
2 940230132 Warning Decal ..................................1
3 308038010 Curved Shaft Assembly .....................1
4 120642001 Fastener Kit .......................................1
5 308052001 Grass Deflector ..................................1
6 310734001 Dual Spool™ Fixed Line
String Head Insert..............................1
7 308746002 Bump Feed String Head ....................1
8 678022001 Spring ................................................1
9 308044008 Bump Feed Spool..............................1
10 308042002 Spool Retainer ...................................1
11 120950053 Bump Feed String Head Assembly
(Incl. Key Nos. 7-10) ..........................1
12 518019002 Hanger Cap .......................................1

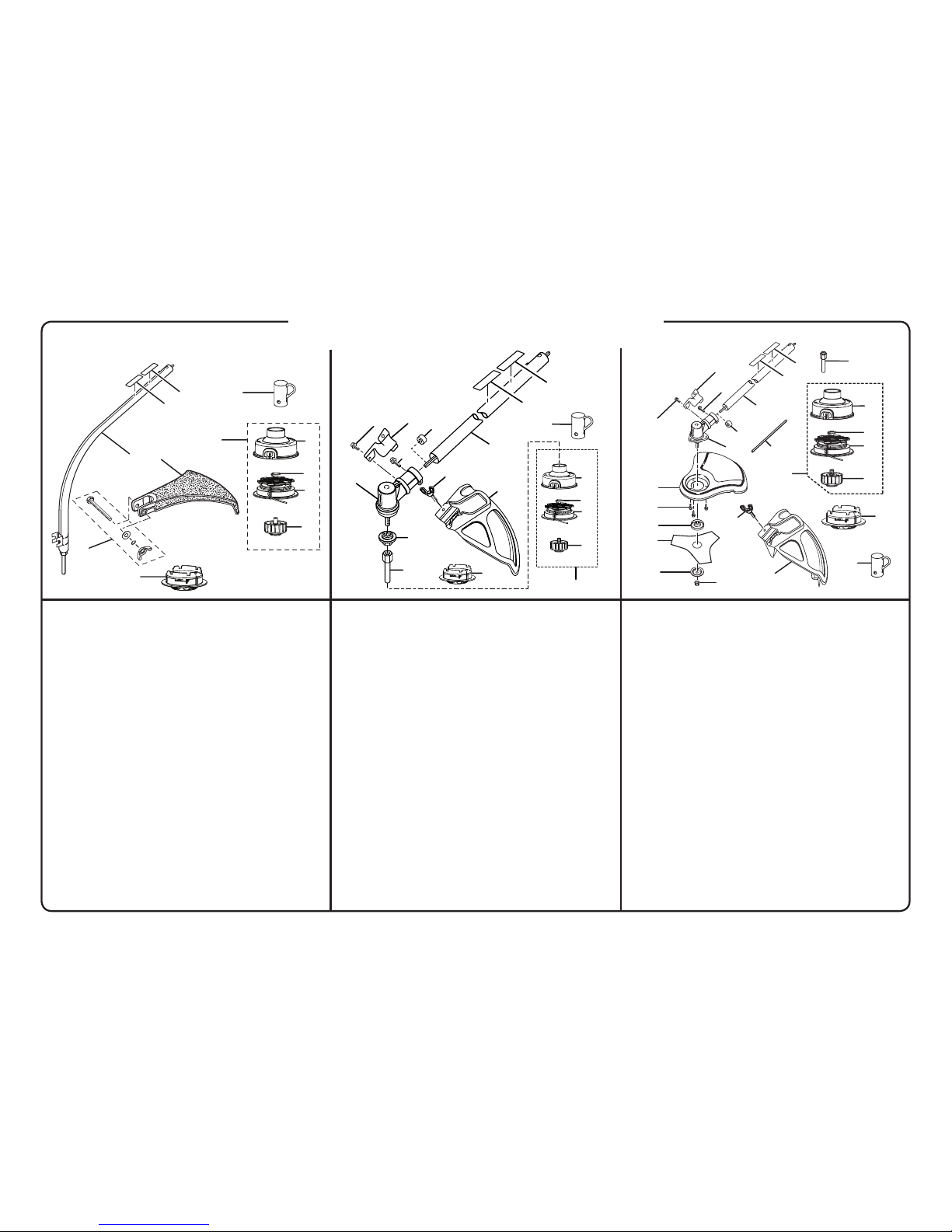

FIGURE C
MODEL
RY26520
RY26921
FIGURE C
MODEL
RY26540
RY26941
Key Service
No. Number Description Qty.
1 940726013 Expand-it Label ....................................1
2 940230132 Warning Decal ......................................1
3 308035011 Straight Shaft Assembly ......................1
4 660736001 Screw (10-24 x 5/8 in.) ......................... 1
5 638125001 Clamp ...................................................1
6 518367001 Spacer ..................................................1
7 660642001 Screw (1/4-20 x 1-1/4 in.) ....................1
8 308210002 Gear Head ............................................1
9 678011002 Flanged Washer ...................................1
10 678019002 Arbor ....................................................1
11 660886001 Wing Screw (1/4-20 x 1-1/4 in.) ...........1
12 308473001 Grass Deflector Assembly
(Incl. Key No. 11) ..................................1
13 310734001 Dual Spool™ Fixed Line
String Head Insert ................................ 1
14 308746002 Bump Feed String Head ......................1
15 678022001 Spring ...................................................1
16 308044008 Bump Feed Spool ................................1
17 308042003 Spool Retainer .....................................1
18 000998361 Bump Feed String Head Assembly
(Incl. Key Nos. 14-17) ...........................1
19 518019002 Hanger Cap .......................................... 1
Key Service
No. Number Description Qty.
1 940726013 Expand-it Label ....................................1
2 940627027 Brushcutter Safety Label ..................... 1
3 308035011 Straight Shaft Assembly. ......................1
4 660736001 Screw (10-24 x 5/8 in.) .........................1
5 638125001 Clamp ................................................... 1
6 660642001 Screw (1/4-20 x 1-1/4 in.) .................... 1
7 308210001 Gear Head ............................................1
8 518367001 Spacer .................................................. 1
9 678020001 Gear Head Locking Tool ......................1
10 638120001 Brushcutter Guard ...............................1
11 660737001 Screw (10-24 x 1/2 in.) .........................3
12 678011001 Flanged Washer ..................................1
13 638006004 Blade ....................................................1
14 638017001 Cupped Washer ...................................1
15 678018001 Blade Nut .............................................1
16 660886001 Screw (1/4-20 x 1-1/4 in.) ....................1
17 308473001 Grass Deflector Assembly
(Incl. Key No. 16). .................................1
18 678019001 Arbor ....................................................1
19 308746002 Bump Feed String Head ......................1
20 678022001 Spring ...................................................1
21 308044008 Bump Feed Spool ................................1
22 308042003 Spool Retainer .....................................1
23 000998361 Bump Feed String Head Assembly
(Incl. Key Nos. 19-22) ...........................1
24 310734001 Dual Spool™ Fixed Line
String Head Insert ................................1
25 518019002 Hanger Cap .......................................... 1
6
7
4
3
5
2
1
11
8
9
10
12
FIGURE C
MODEL
RY26500
RY26901
