OPERATOR’S MANUAL
1/2 in., 18 VOLT HAMMER DRILL
2-SPEED
P211
BATTERIES AND CHARGERS
SOLD SEPARATELY
Your hammer drill has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
n Introduction ..................................................................................................................................................................... 2
�n General Safety Rules.................................................................................................................................................... 3-4
�n Specific Safety Rules....................................................................................................................................................... 4
n Safety Rules for Charger ................................................................................................................................................. 5
�n Symbols........................................................................................................................................................................ 6-7
��n Features........................................................................................................................................................................ 8-9
��n Assembly....................................................................................................................................................................... 10
�n Operation.................................................................................................................................................................. 10-19
�n Maintenance............................................................................................................................................................. 20-21
�n Parts Ordering / Service ................................................................................................................................................ 22
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
WARRANTY
RYOBI® POWER TOOL - LIMITED TWO YEAR WARRANTY AND 30 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI® power tools with the following conditions:
30-DAY EXCHANGE POLICY: During the first 30 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI® power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool
or requested warranty service, you must present proof of purchase and return all original equipment packaged with the
original product. The replacement power tool will be covered by the limited warranty for the balance of the two year period
from the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI® power
tool for a period of two years from the date of purchase. With the exception of batteries, power tool accessories are
warranted for ninety (90) days. Batteries are warranted for two years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service
Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One
World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to
www.ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World
Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools
other than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to two years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
2 3
GENERAL SAFETY RULES
WARNING!
Read all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or
serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
n Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
n Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
n Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
n Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
n Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
n Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
n Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
n When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suit-
able for outdoor use reduces the risk of electric shock.
n Use battery only with charger listed.
MODEL BATTERY PACK (P100) CHARGER (P110)
P211 130255004 1423701, 140237021
or 130224028 or 140237023
PERSONAL SAFETY
n Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
n Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
n Avoid accidental starting. Ensure the switch is in the
off-position before plugging in. Carrying power tools
with your finger on the switch or plugging in power tools
that have the switch on invites accidents.
n Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
n Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
n Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
n If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
n Do not wear loose clothing or jewelry. Contain long
hair. Loose clothes, jewelry, or long hair can be drawn
into air vents.
n Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
power tool in unexpected situations.
POWER TOOL USE AND CARE
n
Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
n Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
n Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
n Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
n Maintain power tools. Check for misalignment or bind-
ing of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation.
If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power
tools.
n Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
GENERAL SAFETY RULES
n Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work to
be performed. Use of the power tool for operations dif-
ferent from those intended could result in a hazardous
situation.
BATTERY TOOL USE AND CARE
n Ensure the switch is in the off position before insert-
ing battery pack. Inserting the battery pack into power
tools that have the switch on invites accidents.
n Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
n Use power tools only with specifically designated bat-
tery packs. Use of any other battery packs may create
a risk of injury and fire.
n When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
n Under abusive conditions, liquid may be ejected from
the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery
may cause irritation or burns.
SERVICE
n Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
WARNING!
To reduce the risk of injury, user must read instruction
manual.
n When servicing a power tool, use only identical replace-
ment parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to
follow Maintenance instructions may create a risk of
shock or injury.
SPECIFIC SAFETY RULES
n Wear ear protectors with impact drills. Exposure to
noise can cause hearing loss.
n Use auxiliary handles supplied with the tool. Loss of
control can cause personal injury.
n Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord. Contact with a
“live” wire will also make exposed metal parts of the tool
“live” and shock the operator.
n Know your power tool. Read operator’s manual care-
fully. Learn its applications and limitations, as well as
the specific potential hazards related to this power
tool. Following this rule will reduce the risk of electric
shock, fire, or serious injury.
n Always wear safe ty glasses with side shields.
Everyday glasses have only impact resistant lenses. They
are NOT safety glasses. Following this rule will reduce
the risk of eye injury.
n Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
n Protect your hearing. Wear hearing protection
during extended periods of operation. Following this
rule will reduce the risk of serious personal injury.
n Battery tools do not have to be plugged into an elec-
trical outlet; therefore, they are always in operating
condition. Be aware of possible hazards when not
using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
n Do not place battery tools or their batteries near fire
or heat. This will reduce the risk of explosion and pos-
sibly injury.
n Never use a battery that has been dropped or
received a sharp blow. A damaged battery is subject to
explosion. Properly dispose of a dropped or damaged
battery immediately.
n Batteries vent hydrogen gas and can explode in the
presence of a source of ignition, such as a pilot light.
To reduce the risk of serious personal injury, never use
any cordless product in the presence of open flame. An
exploded battery can propel debris and chemicals. If
exposed, flush with water immediately.
n Do no t charge battery tool in a damp or we t
location. Following this rule will reduce the risk of electric
shock.
n For best results, your battery tool should be charged
in a location where the temperature is more than
50°F but less than 100°F. Do not store outside or in
vehicles.
n Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water, then
neutralize with lemon juice or vinegar. If liquid gets
into your eyes, flush them with clean water for at least
10 minutes, then seek immediate medical attention.
Following this rule will reduce the risk of serious personal
injury.
4 5
SAFETY RULES FOR CHARGER
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
n Before using battery charger, read all instructions and
cautionary markings in this manual, on battery charger,
battery, and product using battery to prevent misuse of
the products and possible injury or damage.
CAUTION:
To reduce the risk of electric shock or damage to
the charger and battery, charge only nickel-cadmium
rechargeable batteries as specifically designated on your
charger. Other types of batteries may burst, causing personal injury or damage.
n Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
n Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
fire, electric shock, or injury to persons. Following this
rule will reduce the risk of electric shock, fire, or serious
personal injury.
n Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather than
the plug when disconnecting from receptacle. Damage
to the cord or charger could occur and create an electric
shock hazard. Replace damaged cords immediately.
n Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges
or moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury, and damage to the cord, which could
result in electric shock.
n Ke ep cord and charger from heat to prevent
damage to housing or internal parts.
n Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
n An exten sion cord should not be used unle ss
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of exte n s i o n cord are the
same number, size and shape as those of
plug on charger.
b. That extension co rd is properl y wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
n Do not operate charger with a damaged cord or
plug, which could cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
n Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way. Take
it to an authorized serviceman for electrical check to
determine if the charger is in good working order.
n Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
n Unplug char ger fro m out let bef ore attempti ng
any maintenance or cleaning to reduce the risk of
electric shock.
n Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock or
damage to the charger if metal items should fall into the
opening. It also will help prevent damage to the charger
during a power surge.
n Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
n Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them these
instructions also to prevent misuse of the product and
possible injury.
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopic particles.
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts
A Amperes
Hz Hertz
W Watt
min Minutes
Alternating Current
Direct Current
n
o
.../min
No Load Speed
Class II Construction
Per Minute
Wet Conditions Alert
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
Read The Operator’s Manual
Eye Protection
Safety Alert
No Hands Symbol
No Hands Symbol
No Hands Symbol
No Hands Symbol
Hot Surface
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Always wear safety goggles, safety glasses with side shields, or
a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
Failure to keep your hands away from the blade will result in
serious personal injury.
To reduce the risk of injury or damage, avoid contact with any
hot surface.
6 7
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
CAUTION:
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property damage.
SERVICE
Servicing requires extreme care and knowledge and
should be performed only by a qualified service technician. For service we suggest you return the product to
the nearest AUTHORIZED SERVICE CENTER for repair.
When servicing, use only identical replacement parts.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool operation, always wear safety goggles,
safety glasses with side shields, or a full face shield when needed. We recommend Wide Vision Safety
Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection
which is marked to comply with ANSI Z87.1.
WARNING:
To avoid serious personal injury, do not attempt to use this
product until you read thoroughly and understand completely the operator’s manual. Save this operator’s manual
and review frequently for continuing safe operation and
instructing others who may use this product.
SAVE THESE INSTRUCTIONS
FEATURES
PRODUCT SPECIFICATIONS
Chuck .......................................................... 1/2 in. Keyless
Motor..................................................................18 Volt DC
Switch..........................................................Variable Speed
No Load Speed ....................................0-440/0-1,600/min.
Hammer Speed .............................0-5,720/0-20,800 BPM*
*Blows Per Minute
Clutch.................................................................24 position
Torque.................................................. Maximum 330 in.lb.
Charger Input ...................................120 V, 60 Hz, AC only
Charge Rate .............................................................1 Hour
MAGNETIC BIT
HOLDER
KEYLESS CHUCK
TORQUE
ADJUSTMENT RING
TWO-SPEED
GEAR TRAIN (HI-LO)
QUICK MODE
SELECTOR
SWITCH
TRIGGER
DIRECTION OF
ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
DEPTH
STOP ROD
MAG TRAY™
AUXILIARY
HANDLE
ASSEMBLY
BIT
STORAGE
MAGNETIC BIT HOLDER
STORAGE
Fig. 1
8 9
FEATURES
KNOW YOUR HAMMER DRILL
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
AUXILIARY HANDLE
Your drill is equipped with an auxiliary handle for ease of
operation and to prevent loss of control.
BIT STORAGE
Bits provided with the drill can be placed in the storage area,
located on the base of the drill.
BLOWS PER MINUTE
This tool features an impact speed of 0-5,720/0-20,800
BPM (Blows Per Minute). Blows Per Minute is the number
of impacts per minute.
DEPTH STOP ROD
A depth stop rod has been supplied with this product to
assist in controlling the depth of drilled holes.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
Your drill has a direction of rotation (forward/reverse/center
lock) selector located above the switch trigger for changing
the direction of bit rotation. Setting the switch trigger in the
OFF (center lock) position helps reduce the possibility of
accidental starting when not in use.
MAGNETIC BIT HOLDER
The magnetic bit holder extends the reach of the bit and
holds the bit and screws until you are ready to drive them.
Storage is located on the front of the drill’s base.
MAG TRAY™
The magnetic tray conveniently stores screws or other small
parts.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release the
drill bit in the chuck jaws.
QUICK MODE SELECTOR
The Quick Mode Selector allows you to quickly switch from
drive mode to drill mode.
TORQUE ADJUSTMENT RING
Your drill has a 24-position clutch. The torque adjustment
ring can be turned to select the right amount of torque for
the application.
TWO-SPEED GEAR TRAIN
The two-speed gear train is designed for drilling or driving
at LO (1) or HI (2) speeds. A slide switch is located on top
of the drill for selecting either LO (1) or HI (2) speed.
VARIABLE SPEED
The switch trigger delivers higher speed with increased
trigger pressure and lower speed with decreased trigger
pressure.
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
n Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
n If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
PACKING LIST
Hammer Drill with Auxiliary Handle Assembly
Magnetic Bit Holder
Bits (2)
Lanyard (Not included in combo)
Operator’s Manual
Warranty Registration Card
WARNING:
If any parts are damaged or missing do not operate this
tool until the damaged or missing parts are replaced.
Failure to do so could result in possible serious personal
injury.
WARNING:
Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from the
tool when assembling parts.
OPERATION
WARNING:
Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side
shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in
possible serious injury.
WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended can result
in serious personal injury.
APPLICATIONS
You may use this tool for the following purposes:
n Drilling in wood
n Drilling in ceramics, plastics, fiberglass, and laminates
n Drilling in metals
n Mixing paint
n Hammer drilling in concrete, brick, or other masonry
CAUTION:
If at any point during the charging process none of the
LEDs are lit, remove the battery pack from the charger
to avoid damaging the product. DO NOT insert another
battery. Return the charger and battery to your nearest
service center for service or replacement.
LED FUNCTIONS OF CHARGER
LED WILL BE ON TO INDICATE STATUS OF
CHARGER AND BATTERY PACK:
n Red LED on = Fast charging mode.
n Green LED on = Fully charged and in trickle charge
mode.
n Green LED on = When battery pack is inserted into char-
ger, indicates hot battery pack or that battery pack is out
of or below normal temperature range.
n Yellow and Green LEDs on = Deeply discharged or defec-
tive battery pack.
n No LED on = Defective charger or battery pack.
10 11
OPERATION
CHARGING THE BATTERY PACK
Battery packs for this tool are shipped in a low charge condition to prevent possible problems. Therefore, you should
charge them until the green LED on the front of the charger
comes on.
NOTE: Batteries will not reach full charge the first time they
are charged. Allow several cycles (operation followed by
recharging) for them to become fully charged.
CHARGING A COOL BATTERY PACK
If battery pack is below normal temperature range, the green
LED on charger will come on. Allow battery pack to reach
normal temperature, then the red LED will come on.
NOTE: If the charger does not charge the battery pack
under normal circumstances, return both the battery
pack and charger to the nearest Sears Repair Center for
electrical check.
n Charge the battery pack only with the charger provided.
n Make sure the power supply is normal household
voltage, 120 volts, 60 Hz, AC only.
n Connect the charger to the power supply.
n Place the battery pack in the charger aligning raised rib
on the battery pack with the groove in the charger. See
Figure 3.
n Press down on the battery pack to be sure contacts on
the battery pack engage properly with contacts in the
charger.
n Normally the red LED on charger will come on. This indi-
cates the charger is in fast charging mode.
n Red LED should remain on for approximately 1 hour
then the green LED will come on. Green LED on
indicates battery pack is fully charged and charger is
in maintenance charge mode.
NOTE: The green LED will remain on until the bat-
tery pack is removed from the charger or charger is
disconnected from the power supply.
n If both yellow and green LEDs come on, this indicates
a deeply discharged or defective battery pack. Allow the battery pack to remain in the charger for 15
to 30 minutes. When the battery pack reaches normal
voltage range, the red LED should come on. If the
red LED does not come on after 30 minutes, this may
indicate a defective battery pack and should be
replaced.
n After normal usage, a minimum of 1 hour of charging time
is required to fully recharge battery pack.
n The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
P110
GREEN LED
YELLOW LED
RED LED
BATTERY PACK SHOWN IN CHARGER
P100
BATTERY PACK
n Do not place the charger and battery pack in an area of
extreme heat or cold. They will work best at normal room
temperature.
NOTE
When batteries become fully charged, unplug the
n
: The charger and battery pack should be placed
in a location where the temperature is more than 50°F
but less than 100°F.
charger from power supply and remove the battery pack.
CHARGER
Fig. 2
P110
CHARGER
Fig. 3
OPERATION
CHARGING A HOT BATTERY PACK
When using the tool continuously, the batteries in the battery
pack will become hot. You should let a hot battery pack cool
down for approximately 30 minutes before attempting to
recharge. When the battery pack becomes discharged and
is hot, this will cause the green LED to come on instead of
the red LED. After 30 minutes, reinsert the battery pack in
the charger. If the green LED continues to remain on, return
battery pack to your nearest Ryobi Authorized Service Center
for checking or replacing.
NOTE: This situation only occurs when continuous use of
the tool causes the batteries to become hot. It does not
occur under normal circumstances. Refer to “CHARGING
A COOL BATTERY PACK” for normal recharging of batteries. If the charger does not charge your battery pack under
normal circumstances, return both the battery pack and
charger to your nearest Ryobi Authorized Service Center
for electrical check.
TO INSTALL BATTERY PACK
See Figure 4.
n Lock the switch trigger by placing the direction of rotation
selector in the center position.
n Place the battery pack on the tool.
n Make sure the latches on each side of the battery pack
snap into place and the battery pack is secured on the
tool before beginning operation.
BATTERY PACK
DEPRESS LATCHES TO
RELEASE BATTERY PACK
LATCHES
Fig. 4
CAUTION:
When placing battery pack in the tool, be sure raised
rib on battery pack aligns with the bottom of the drill
and latches into place properly. Improper installation of the battery pack can cause damage to internal
components.
TO REMOVE BATTERY PACK
See Figure 4.
n Lock the switch trigger by placing the direction of rotation
selector in the center position.
n Depress the latches on the side of battery pack.
n Remove the battery pack from the tool.
12 13
OPERATION
SWITCH TRIGGER
See Figure 5.
To turn the drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed and
torque with increased trigger pressure and lower speed with
decreased trigger pressure.
NOTE: You might hear a whistling or ringing noise from the
switch during use. Do not be concerned; this is a normal
part of the switch function.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
See Figure 5.
The direction of bit rotation is reversible and is controlled
by a selector located above the switch trigger. With the drill
held in normal operating position, the direction of rotation
selector should be positioned to the left of the switch trigger
for drilling. The drilling direction is reversed when the selector
is to the right of the switch trigger.
Setting the switch trigger in the OFF (center lock) position
helps reduce the possibility of accidental starting when not
in use.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
REVERSE
SWITCH
TRIGGER
FORWARD
Fig. 5
UNLOCK
(RELEASE)
KEYLESS
CHUCK
CAUTION:
To prevent gear damage always allow the chuck to
come to a complete stop before changing the direction
of rotation.
To stop the drill, release the switch trigger and allow the
chuck to come to a complete stop.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended periods
of time. Running at low speeds under constant usage may
cause the drill to become overheated. If this occurs, cool
the drill by running it without a load and at full speed.
INTERNAL SPINDLE LOCK
The internal spindle lock allows the user single-handed
control of chuck adjustments and bit changes. Squeezing
the chuck body stops the chuck jaws from turning. For bit
changes and chuck adjustments, squeeze the chuck body
and turn.
KEYLESS CHUCK
See Figure 6.
The drill has a keyless chuck to tighten or release drill bits
in the chuck jaws. The arrows on the chuck indicate which
direction to rotate the chuck body in order to LOCK (tighten)
or UNLOCK (release) the drill bit.
LOCK
(TIGHTEN)
Fig. 6
WARNING:
Do not hold chuck body with one hand and use power
of the drill to tighten the chuck jaws on the drill bit. The
chuck body could slip in your hand, or your hand could
slip and come in contact with the rotating drill bit. This
could cause an accident resulting in serious personal
injury.
OPERATION

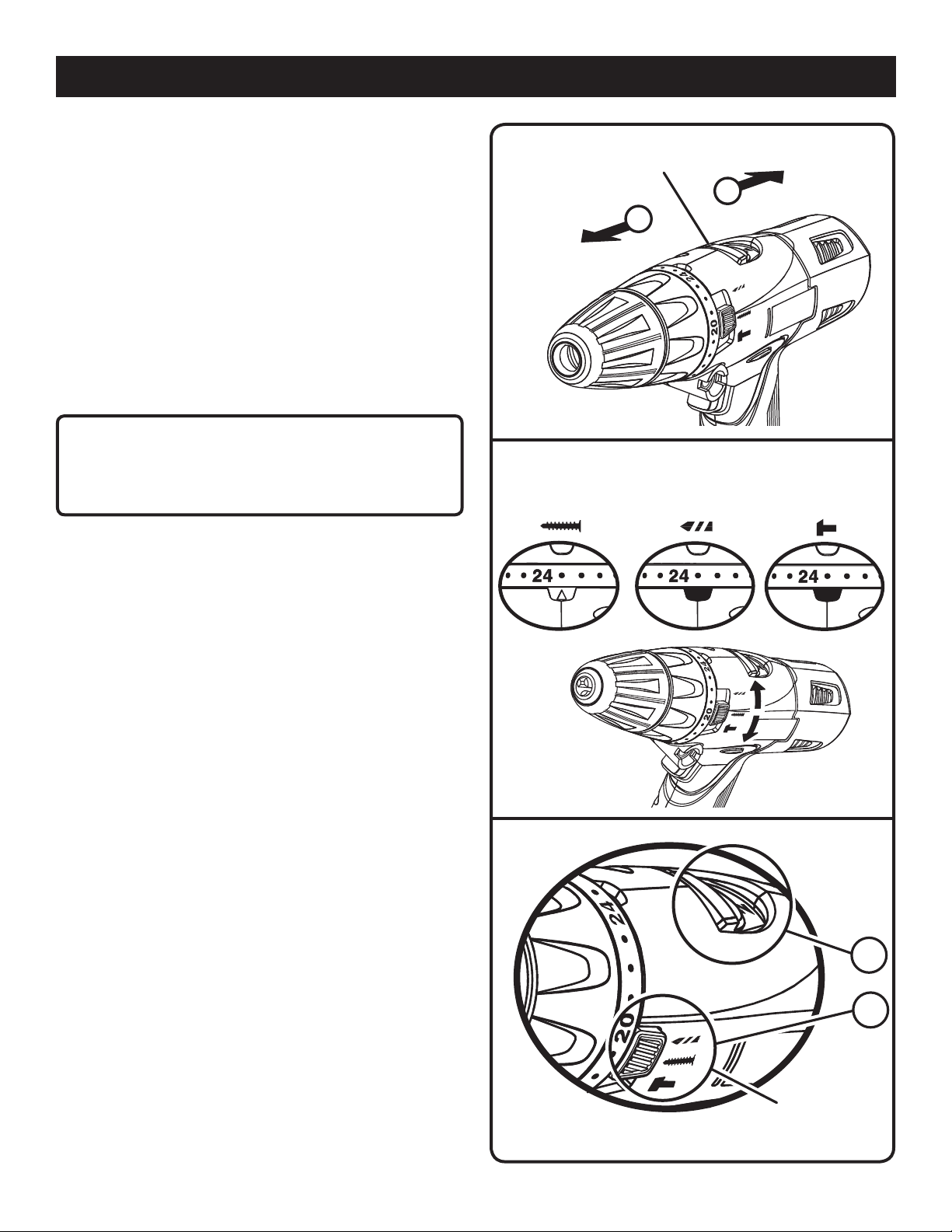

TWO-SPEED GEAR TRAIN
See Figure 7.
The drill has a two-speed gear train designed for drilling or
driving at LO (1) or HI (2) speeds. A slide switch is located on
top of the drill to select either LO (1) or HI (2) speed. When
using drill in the LO (1) speed range, speed will decrease
and unit will have more power and torque. When using drill in
the HI (2) speed range, speed will increase and unit will have
less power and torque. Use LO (1) speed for high power
and torque applications and HI (2) speed for fast drilling or
driving applications.
NOTE: If you have difficulty changing from one gear
range to the other, turn the chuck by hand until the gears
engage.
CAUTION:
Never change gears while the tool is running. Failure to
obey this caution could result in serious damage to the
drill.
QUICK MODE SELECTOR
See Figure 8.
The Quick Mode Selector allows you to quickly switch from
drill mode to drive mode.
In general, drill mode should be used for drilling and other
heavy duty applications. Drive mode should be used for
driving screws. Hammer mode should be used for hammer
drilling.
HIGH
SPEED
DRIVE
MODE
TWO-SPEED
GEAR TRAIN (HI-LO)
2
DRILL MODE
(TORQUE ADJUSTMENT
NOT ACTIVE)
LOW
SPEED
1
Fig. 7
HAMMER
MODE
SELECTING DRIVE OR DRILL SETTING
See Figure 9.
Using the chart on the next page, select the option that
best matches the type of bit, fastener, and material you will
be using.
1. CHOOSE YOUR APPLICATION
2. CHOOSE THE CORRECT SPEED
(1/LOW or 2/HIGH)
3. CHOOSE THE CORRECT MODE
(DRIVE, DRILL, OR HAMMER)
Fig. 8
2
3
QUICK MODE
SELECTOR
Fig. 9
14 15
OPERATION
1. APPLICATION
• Lag screws up to 3/8 in. dia. by 1-1/2 in. long
• Hole saw up to 2 in.
• Spade bits up to 1-1/2 in.
• Drill bits up to 1/2 in.
• Drilling into metal
• Concrete screws
• Drill bits up to 1/4 in.
• Deck or wood screws up to 3 in.
• Self tapping screws
• Deck or wood screws up to 2 in.
• Small screws or delicate work that requires more control
• Deck or wood screws #8 up to 1 in.
• Screws for rough work where speed is more important than
precise control
2. SPEED
1/LOW
2/HIGH
1/LOW
2/HIGH
1/LOW
2/HIGH
3. MODE
DRILL MODE
(TORQUE ADJUSTMENT
NOT ACTIVE)
DRIVE MODE
HAMMER MODE
TORQUE ADJUSTMENT
See Figure 10.
When using the drill-driver for various driving applications,
it becomes necessary to increase or decrease the torque
in order to help prevent the possibility of damaging screw
heads, threads, workpiece, etc. In general, torque intensity
should correspond to the screw diameter. If the torque is
too high or the screws too small, the screws may be damaged or broken.
The torque is adjusted by rotating the torque adjustment
ring.
The torque is greater when the torque adjustment ring is
set on a higher setting. The torque is less when the torque
adjustment ring is set on a lower setting.
The proper setting depends on the type of material and the
size of screw you are using.
TO DECREASE TORQUE
TO INCREASE TORQUE
TORQUE
ADJUSTMENT
RING
Fig. 10
OPERATION
BIT STORAGE
See Figure 11.
When not in use, bits provided with the drill can be placed
in the storage areas located on the base of the drill.
MAG TRAY™
See Figure 12.
The magnetic tray conveniently stores screws or other small
parts.
MAGNETIC BIT HOLDER
See Figure 12.
The magnetic bit holder extends the reach of the bit and holds
the bit and screws until you are ready to drive them. Storage
for the bit holder is located on the front of the tool’s base.
INSTALLING/REMOVING THE MAGNETIC BIT
HOLDER
See Figure 13.
n Lock the switch trigger by placing the direction of
rotation selector in the center position.
n Open or close the chuck jaws to a point where the opening
is slightly larger than the end of the magnetic bit holder.
Also, raise the front of the drill slightly to keep the bit
holder from falling out of the chuck jaws.
n Insert the bit holder.
NOTE: Open the chuck jaws just enough to fully insert
the end of the magnetic bit holder. The body of the bit
holder should rest against the chuck jaws when the jaws
are closed and tightened.
n Tighten the chuck jaws on the bit holder.
n Insert a bit into the open end of the magnetic bit holder.
n Tighten the chuck jaws on the bit holder.
n To remove the magnetic bit holder, see
Removing Bits.
BIT(S)
SCREWS
BIT
BIT STORAGE
Fig. 11
BIT
HOLDER
STORAGE
MAG
TRAY
Fig. 12
UNLOCK
(RELEASE)
CHUCK
JAWS
MAGNETIC BIT
HOLDER
16 17
LOCK
(TIGHTEN)
CHUCK BODY
Fig. 13
OPERATION
USING THE AUXILIARY HANDLE ASSEMBLY
See Figures 14 - 15.
An auxiliary handle is packed with the drill for ease of operation and to help prevent loss of control. The handle can be
mounted on the opposite side for left or right hand use.
ADJUS TIN G THE AUXILIARY HAND LE
ASSEMBLY
See Figure 14.
To adjust the auxiliary handle assembly.
n Loosen the handle assembly by turning the handle coun-
terclockwise.
n Insert the auxiliary handle assembly in the desired operat-
ing position.
n Securely tighten by turning the auxiliary handle clock-
wise.
NOTE: Be sure the auxiliary handle is securely tightened
against the depth stop rod clamp. This secures the depth
stop rod at the desired depth of cut. It also secures the
auxiliary handle.
ADJUSTING THE DEPTH STOP ROD
See Figure 15.
The depth stop rod helps control the depth of drilled holes.
For convenience and ease of starting threads, the hex nut
has been trapped inside the molded slot in the auxiliary
handle. To adjust the depth stop rod.
n Lock the switch trigger by placing the direction of rotation
selector in the center position.
n Loosen the auxiliary handle assembly by turning the knob
counterclockwise.
n Adjust the depth stop rod so that the drill bit extends be-
yond the end of the rod to the required drilling depth.
n Tighten the auxiliary handle assembly by turning the knob
clockwise.
NOTE: When properly installed, the teeth on the depth stop
rod should be aligned with the teeth indicator on the depth
stop rod clamp.
NOTCH
EARS
DEPTH
STOP ROD
DRILL BIT
PLATE
SCALE
DEPTH STOP
ROD CLAMP
TO
LOOSEN
AUXILIARY HANDLE
ASSEMBLY
TO
TIGHTEN
Fig. 14
TEETH
TO INCREASE
DRILLING DEPTH
DRILLING
DEPTH
TO DECREASE
DRILLING DEPTH
TO
TIGHTEN
TO
LOOSEN
Fig. 15
OPERATION
INSTALLING BITS
See Figure 16 - 17.
n Lock the switch trigger by placing the direction of
rotation selector in the center position.
n Open or close the chuck jaws to a point where the open-
ing is slightly larger than the bit size you intend to use.
Also, raise the front of the drill slightly to keep the bit from
falling out of the chuck jaws.
n Insert the drill bit.
n Tighten the chuck jaws on the drill bit.
WARNING:
Make sure to insert the drill bit straight into the chuck
jaws. Do not insert the drill bit into the chuck jaws at
an angle then tighten, as shown in figure 17. This could
cause the drill bit to be thrown from the drill, resulting
in possible serious personal injury or damage to the
chuck.
n Rotate the chuck clockwise to tighten the chuck jaws
securely on the bit.
NOTE: Rotate the chuck body in the direction of the ar-
row marked LOCK to tighten the chuck jaws. Do not use
a wrench to tighten or loosen the chuck jaws.
CHUCK
JAWS
DRILL
BIT
UNLOCK (RELEASE)
LOCK (TIGHTEN)
CHUCK
SLEEVE
RIGHT
Fig. 16
REMOVING BITS
See Figure 16 .
n Lock the switch trigger by placing the direction of
rotation selector in the center position.
n Rotate the chuck sleeve clockwise to open the chuck
jaws.
NOTE: Rotate the chuck body in the direction of the ar-
row marked UNLOCK to loosen the chuck jaws. Do not
use a wrench to tighten or loosen the chuck jaws.
n Remove the drill bit.
WRONG
Fig. 17
18 19
OPERATION
DRILLING
n Check the direction of rotation selector for the correct
setting (forward or reverse).�
n Secure the material to be drilled in a vise or with clamps
to keep it from turning as the drill bit rotates.�
n Hold the drill firmly and place the bit at the point to be
drilled.�
n Depress the switch trigger to start the drill.
n Move the drill bit into the workpiece, applying only enough
pressure to keep the bit cutting. Do not force the drill or
apply side pressure to elongate a hole. Let the tool do
the work.
WARNING:
Be prepared for binding at bit breakthrough. When these
situations occur, drill has a tendency to grab and kick opposite to the direction of rotation and could cause loss of
control when breaking through material. If not prepared,
this loss of control can result in possible serious injury.
n When drilling hard, smooth surfaces, use a center punch
to mark the desired hole location. This will prevent the
drill bit from slipping off-center as the hole is started.
n When drilling metals, use a light oil on the drill bit to keep
it from overheating. The oil will prolong the life of the bit
and increase the drilling action.
n If the bit jams in the workpiece or if the drill stalls, stop
the tool immediately. Remove the bit from the workpiece
and determine the reason for jamming.
NOTE: This drill has an electric brake. When the switch
trigger is released, the chuck stops turning. When the
brake is functioning properly, sparks will be visible through
the vent slots on the housing. This is normal and is the
action of the brake.
WOOD DRILLING�
For maximum performance, use high speed steel bits for
wood drilling.�
n Select normal drilling mode.�
n Begin drilling at a very low speed to prevent the bit from
slipping off the starting point. Increase the speed as the
drill bit bites into the material.�
n When drilling through holes, place a block of wood behind
the workpiece to prevent ragged or splintered edges on
the back side of the hole.�
METAL DRILLING�
For maximum performance, use high speed steel bits for
metal or steel drilling.
n Select normal drilling mode.
n Begin drilling at a very low speed to prevent the bit from
slipping off the starting point.�
n Maintain a speed and pressure which allows cutting
without overheating the bit. Applying too much pressure
will:
• Overheat the drill;
• Wear the bearings;
• Bend or burn bits; and
• Produce off-center or irregular-shaped holes.�
n When drilling large holes in metal, start with a small bit,
then finish with a larger bit. Also, lubricate the bit with oil
to improve drilling action and increase bit life.
MASONRY DRILLING
For maximum performance, use carbide-tipped masonry
impact bits when drilling holes in brick, tile, concrete, etc.
n Slide adjustment button on hammer drill left for hammer
mode.�
n Apply light pressure and medium speed for best results
in brick.�
n Apply additional pressure for hard materials such as
concrete.�
n When drilling holes in tile, practice on a scrap piece to
determine the best speed and pressure. Begin drilling at
a very low speed to prevent the bit from slipping off the
starting point.�
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other parts may create a hazard or
cause product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
BATTERIES
The battery pack for this tool is equipped with nickel-cadmium
rechargeable batteries. Length of service from each charging
will depend on the type of work you are doing.
The batteries in this tool have been designed to provide
maximum trouble-free life. However, like all batteries, they
will eventually wear out. Do not disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
To obtain the longest possible battery life, we suggest the
following:
n Remove the battery pack from the charger once it is fully
charged and ready for use.
For battery storage longer than 30 days:
n Store the battery pack where the temperature is below
80°F.
n Store battery packs in a “discharged” condition.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at a Ryobi Authorized Service Center.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve natural resources, please
re c y c l e or dispose of batteries
properly.
This product contains nickel-cadmium
batteries. Local, state or federal laws
may prohibit disposal of nickel-cadmium
batteries in ordinary trash.
Consult your local waste authority for information regarding
available recycling and/or disposal options.
WARNING:
Up on removal, cover t he batt ery pac k’s te rminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery pack or
remove any of its components. Nickel-cadmium
batteries must be recycled or disposed of properly. Also,
never touch both terminals with metal objects and/or
body parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
result in fire and/or serious injury.
20 21
MAINTENANCE
CHUCK REMOVAL
See Figures 18 - 20.
The chuck may be removed and replaced by a new one.
n Lock the switch trigger by placing the direction of rotation
selector in center position.
n Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
n Tap the hex key sharply with a mallet in a clockwise di-
rection. This will loosen the screw in the chuck for easy
removal.
n Open the chuck jaws and remove the hex key. Using a
screwdriver, remove the chuck screw by turning it in a
clockwise direction.
NOTE: The chuck screw has left hand threads.
n Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap sharply with a mallet in a counterclockwise direction. This will loosen the chuck on the spindle.
It can now be unscrewed by hand.
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on the spindle and develop
a wobble. Also, the chuck screw may become loose, causing the chuck jaws to bind and prevent them from closing.
To tighten:
n Lock the switch trigger by placing the direction of rotation
selector in the center position.
n Open the chuck jaws.
n Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap the hex key sharply with a mallet in
a clockwise direction. This will tighten the chuck on the
spindle.
n Open the chuck jaws and remove the hex key.
n Tighten the chuck screw.
CHUCK JAWS
HEX KEY
SCREWDRIVER
MALLET
CHUCK
Fig. 18
Fig. 19
HEX KEY
MALLET
Fig. 20
OPERATOR’S MANUAL
1/2 in./18 VOLT HAMMER DRILL
2-SPEED
P211
• SERVICE
Now that you have purchased your tool, should a need ever exist for repair parts or
service, simply contact your nearest Authorized Service Center. Be sure to provide
all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest
Authorized Service Center. You can also check our web site at www.ryobitools.com for
a complete list of Authorized Service Centers.
• MODEL NO. AND SERIAL NO.
The model number of this tool will be found on a plate attached to the motor housing.
Please record the model number and serial number in the space provided below.
• HOW TO ORDER REPAIR PARTS
When ordering repair parts, always give the following information:
• MODEL NUMBER
• SERIAL NUMBER
Ryobi® is a registered trademark of Ryobi® Limited used under license.
RYOBI TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Post Office Box 1207, Anderson, SC 29622-1207
Phone 1-800-525-2579
P211
www.ryobitools.com
983000-749
10-05 (REV:01)
22
Loading...
