Operator ′ s manual
M48 Pro M53 S Pro
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
EEEEnnnngggglllliiiisssshh
hh
KEY TO SYMBOLS
Key to symbols
WARNING! The machine can be a
dangerous tool if used incorrectly or
carelessly, which can cause serious or fatal
injury to the operator or others.
Please read the operator’s manual carefully
and make sure you understand the
instructions before using the machine.
Always wear:
• Approved hearing protection
Never use the machine if persons, especially
children or pets, are in the immediate vicinity.
Watch out for thrown objects and ricochets.
Other symbols/decals on the machine refer to special
certification requirements for certain markets.
Always wear protective gloves.
Regular cleaning is required.
Visual check.
The ignition lead should always be removed
from the spark plug before repair, cleaning or
maintenance work.
Switch off the engine by releasing the engine
brake handle before carrying out any checks
or maintenance.
Warning: rotating cutter. Keep hands and
feet clear.
This product is in accordance with
applicable EC directives.
Noise emission to the environment
according to the European Community’s
Directive. The machine’s emission is
specified in chapter Technical data and on
label.
The engine is stopped.
Drive position
Steps before using a new lawn
mower
• Please read the operator’s manual carefully.
• Check that the cutting equipment is correctly fitted and
adjusted. See instructions under the heading Assembly.
• Fill with fuel and oil in the engine. A container with
sufficient oil quantity is supplied with the machine. See the
instructions under the heading fuel handling.
WARNING! Under no circumstances may the
design of the machine be modified without
!
the permission of the manufacturer. Always
use genuine accessories. Non-authorized
modifications and/or accessories can result
in serious personal injury or the death of the
operator or others.
WARNING! A lawn mower is a dangerous
tool if used carelessly or incorrectly and can
!
cause serious, even fatal injuries. It is
extremely important that you read and
understand the contents of this operator's
manual.
Neutral
English
2 –
WARNING! Long-term inhalation of the
engine's exhaust fumes can represent a
!
health hazard.
Husqvarna AB has a policy of continuous product
development and therefore reserves the right to modify the
design and appearance of products without prior notice.
CONTENTS
Contents
KEY TO SYMBOLS
Key to symbols ............................................................. 2
Steps before using a new lawn mower ........................ 2
CONTENTS
Contents ...................................................................... 3
SAFETY INSTRUCTIONS
Personal protection ...................................................... 4
Machine ′ s safety equipment ........................................ 4
Checking, maintaining and servicing the machine ′ s
safety equipment .......................................................... 5
General safety precautions .......................................... 6
General working instructions ....................................... 8
WHAT IS WHAT?
What is what on the lawn mower? M48 Pro.................. 10
What is what on the lawn mower? M53 S Pro .............. 11
ASSEMBLY
Fitting the handlebar .................................................... 12
Dismantling and assembling the cutter ........................ 12
FUEL HANDLING
Fuel .............................................................................. 13
STARTING AND STOPPING
Starting and stopping ................................................... 14
MAINTENANCE
Maintenance ................................................................ 16
Air filter ......................................................................... 16
Spark plug .................................................................... 16
Muffler .......................................................................... 16
Cutter ........................................................................... 17
Changing the oil ........................................................... 17
Lubrication of the cutting height adjustment ................ 17
Drive and gearbox ........................................................ 18
Daily maintenance ....................................................... 18
Weekly maintenance .................................................... 18
Monthly maintenance ................................................... 18
TECHNICAL DATA
Technical data .............................................................. 19
EC-declaration of conformity ........................................ 20
English
– 3
SAFETY INSTRUCTIONS
Personal protection
WARNING! You must use personal
protection whenever you use the machine.
!
• Hearing protection
• Gloves must be worn when required, for example when
fitting, inspecting or cleaning cutting attachments.
• Always wear heavy, long pants. Do not wear shorts,
sandals or go barefoot.
• Engine brake handle
• Vibration damping system
• Muffler
• Cutting equipment
• Wear sturdy, non-slip boots or shoes.
Generally clothes should be close-fitting without restricting
your freedom of movement.
Machine ′′
This section describes the machine ′ s safety equipment, its
purpose, and how checks and maintenance should be carried
out to ensure that it operates correctly. See the ”What is
what?” section to locate where this equipment is positioned
on your machine.
!
′′
s safety equipment
WARNING! Never use a machine that has
faulty safety equipment! Carry out the
inspection, maintenance and service
routines listed in this section.
Cutting cover and protective cover
On lawn mower M53 S Pro there is a protective cover
mounted over the drive's gearbox.
The protective cover is designed to reduce the risk of crush
injuries and to catch a broken drive belt.
The cutting cover is designed to reduce vibration and to
reduce the risk of cuts.
Engine brake handle
The engine brake is designed to stop the engine. When the
grip on the engine brake handle is released the engine should
stop.
• Cutting cover and protective cover
English
4 –
On lawn mower M53 S Pro the engine brake handle should
also disengage the drive.
SAFETY INSTRUCTIONS
Vibration damping system
Your machine is equipped with a vibration damping system
that is designed to minimize vibration and make operation
easier.
The handlebar system's steel tube and the cutting cover are
designed to minimise the vibrations from the engine.
This model also has a vibration damper fitted on the
handlebar unit to further reduce vibrations.
The machine ′ s vibration damping system reduces the transfer
of vibration between the engine unit/cutting equipment and
the machine ′ s handle unit.
WARNING! Overexposure to vibration can
lead to circulatory damage or nerve damage
!
in people who have impaired circulation.
Contact your doctor if you experience
symptoms of overexposure to vibration.
These symptoms include numbness, loss of
feeling, tingling, pricking, pain, loss of
strength, changes in skin colour or
condition. These symptoms normally appear
in the fingers, hands or wrists.
Checking, maintaining and servicing
the machine ′′
WARNING! All servicing and repair work on
the machine requires special training. This is
!
especially true of the machine
equipment. If your machine fails any of the
checks described below you must contact
your service agent. When you buy any of our
products we guarantee the availability of
professional repairs and service. If the
retailer who sells your machine is not a
servicing dealer, ask him for the address of
your nearest service agent.
Checking the cutting cover and protective
cover
Make sure the cutting cover is not damaged and that there are
no visible defects such as cracks.
Check that the protective cover is undamaged and that it is
properly secured.
′′
s safety equipment
′′
s safety
′′
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.
WARNING! The exhaust fumes from the
engine are hot and may contain sparks
!
which can start a fire. Never start the
machine indoors or near combustible
material!
In areas with a hot, dry climate there is a high risk of fires.
These areas are sometimes controlled by legislation and
requirements that among other things the muffler must be
equipped with an approved type of spark arrestor mesh.
For mufflers it is very important that you follow the instructions
on checking, maintaining and servicing your machine.
WARNING! The muffler gets very hot in use
and remains so for a short time afterwards.
!
Do not touch the muffler if it is hot!
Checking the brake trigger
Place the lawn mower on firm, flat surface and start it. Make
sure that the cutter cannot come into contact with the ground
or other objects. See the instructions under the heading Start
and stop.
Apply full throttle and then release the brake handle.
The engine brake should always be adjusted so that the
engine stops within 3 seconds.
On lawn mower M53 S Pro the engine brake handle should
also disengage the drive. Start the machine and engage the
drive by moving the clutch lever towards you.
Apply full throttle and then release the brake handle. The
engine should stop and the drive should disengage.
English
– 5
SAFETY INSTRUCTIONS
Vibration damping system
Check regularly that the vibration damping element is free
from cracks.
The handlebar system's steel tube and the cutting cover are
designed to minimise the vibrations from the engine. Make
sure the cutting cover is not damaged and that there are no
visible defects such as cracks.
Muffler
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the
machine.
The washer and cup spring should always be replaced when
changing the cutter or cutter bracket.
WARNING! Never use a machine with faulty
safety equipment. The machine’s safety
!
equipment must be checked and maintained
as described in this section. If your machine
fails any of these checks contact your
service agent to get it repaired.
General safety precautions
• A lawn mower is only designed to mow lawns. The only
accessories you can use with this engine unit are the
cutters we recommend in the Technical data chapter.
• Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduces machine vibration.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
Make sure the cutter does not hit foreign objects such as
stones, roots or the like. This can make the cutter dull and
bend the engine shaft. Always ensure the cutter is well ground
and balanced correctly. See also instructions under the
heading Maintenance.
Check the cutting attachment for damage or cracks. A
damaged cutting attachment should always be replaced.
Also check that the cutter bolt is undamaged and that the
engine shaft is not bent.
WARNING! Running an engine in a confined
or badly ventilated area can result in death
!
due to asphyxiation or carbon monoxide
poisoning.
• You must use personal protection whenever you use the
machine. See the instructions under the heading Personal
protection.
• Never use a machine that has been modified in any way
from its original specification.
Never use any accessories other than those recommended in
this manual. See instructions under the headings Cutting
equipment and Technical data.
WARNING! A faulty cutting attachment may
increase the risk of accidents.
!
• Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures must
be carried out by trained and qualified specialists. See
instructions under the heading Maintenance.
6 –
English
SAFETY INSTRUCTIONS
Before use:
1 Check that the engine brake works correctly and is
undamaged. See the instructions under the heading
Checking the braking effect.
2 Check that all handles and controls are undamaged and
free of oil.
3 Check that the anti vibration system works and is not
damaged.
4 Check that the muffler is securely attached and not
damaged.
5 Check that all parts of the lawn mower are tightened
correctly and that they are not damaged or missing.
6 Check that the cutter is undamaged and not cracked.
Replace the cutter if necessary.
7 Clean the air filter. Replace if necessary.
Starting
WARNING! Long-term inhalation of the
engine's exhaust fumes can represent a
!
health hazard.
Fuel safety
(Refuelling/Storage.)
WARNING! Fuel and fuel vapour are highly
inflammable. Take care when handling fuel
!
and engine oil. Bear in mind the risk of fire,
explosion and inhaling fumes.
• Never refuel the machine while the engine is running.
• Always ensure there is adequate ventilation when
refuelling and filling oil.
• Move the machine at least 3 m from the refuelling point
before starting it.
• Never start the machine:
1 If you have spilt fuel or engine oil on the machine. Wipe
off the spill and allow the remaining fuel to evaporate.
2 If you spill fuel or engine oil on yourself or your clothes.
Change your clothes.
3 If the machine is leaking fuel. Check regularly for leaks
from the fuel cap and fuel lines.
• Never start a lawn mower unless the cutters and all covers
are fitted correctly.
• Never start the machine indoors. Exhaust fumes can be
dangerous if inhaled.
• Observe your surroundings and make sure that there is no
risk of people or animals coming into contact with the
cutting equipment.
• Place the lawn mower on firm, flat surface and start it.
Make sure that the cutter cannot come into contact with
the ground or other objects.
• Never twist the starter cord around your hand.
See the instructions under the heading Start and stop.
Transport and storage
• The fuel and engine oil tanks should be emptied before
longer periods of storage or when transporting the lawn
mower. Ask where you can dispose of surplus fuel and
engine oil at your local petrol station.
• Always store the lawn mower and fuel so that any leakage
or vapours do not risk coming into contact with sparks or
naked flames. For example, electrical machines, electric
motors, relays/switches, boilers, or the like.
• Always store fuel in an approved container designed for
that purpose.
English
– 7
SAFETY INSTRUCTIONS
General working instructions
WARNING! This section describes basic
safety precautions for working with the lawn
!
mower. This information is never a
substitute for professional skills and
experience. If you get into a situation where
you feel unsure about how to progress, stop
and seek expert advice. Contact your dealer,
service agent or an experienced lawn mower
user. Avoid all usage which you consider to
be beyond your capability
Basic safety rules
• Look around you:
- To ensure that people, animals or other things cannot
affect your control of the machine.
- To make sure that none of the above might come into
contact with the cutting equipment.
• Branches, twigs, stones, etc. should be removed from the
lawn before you start to mow. Make sure the cutter does
not hit foreign objects such as stones, roots or the like.
This can make the cutter dull and bend the engine shaft.
• Never lift up the lawn mower or carry it around when the
engine is running. If you must lift the lawn mower, first
switch off the engine and disconnect the ignition lead from
the spark plug.
• The brake handle must never be permanently anchored in
handle when the machine is running.
Follow the instructions above, but do not use a lawn mower in
a situation where you cannot call for help in case of an
accident.
Basic mowing technique
WARNING! Make sure that your hands and
feet do not come near the cutting
!
attachment when the engine is running.
General
• Mowing slopes can be dangerous. Do not use the lawn
mower on very steep slopes.
• The lawn mower should not be used on inclines greater
than 15 degrees. Inclines that are too great can result in
fuel leakage
• On sloping ground you should work along the slope. It is
much easier to work along a slope than it is to work up and
down it.
• Branches, twigs, stones, etc. should be removed from the
lawn before you start to mow.
• Do not use the machine in bad weather, such as dense
fog, heavy rain, strong wind, intense cold, etc. Working in
bad weather is tiring and often brings added risks, such as
icy ground.
• Make sure you can move and stand safely. Check the area
around you for possible obstacles (roots, rocks, branches,
ditches, etc.) in case you have to move suddenly. Take
great care when working on sloping ground.
• The lawn mower should not be used on inclines greater
than 15 degrees. Inclines that are too great can result in
fuel leakage
• The engine should be switched off when moving over
ground that is not to be mowed. For example, gravel
paths, stone, shingle, asphalt, etc.
• Never lift up the lawn mower or carry it around when the
engine is running. If you must lift the lawn mower, first
switch off the engine and disconnect the ignition lead from
the spark plug.
• Make sure the cutter does not hit foreign objects such as
stones, roots or the like. This can make the cutter dull and
bend the engine shaft. A bent axle gives imbalance and
heavy vibration, which results in a great risk of the cutter
becoming loose.
If any foreign object is hit or if vibrations occur stop the
machine immediately. Disconnect the HT lead from the
spark plug. Check that the machine is not damaged.
Repair any damage.
• Never mow more than 1/3 of the length of the grass. This
especially applies during dry periods. Mow first with the
cutting height set high. Then check the result and lower to
an appropriate height. If the grass is really long, drive
slowly and mow twice if necessary.
8 –
English
SAFETY INSTRUCTIONS
• Never run with the machine when it is running. You should
always walk with the lawn mower.
Cutting height
Shut down the engine before changing the cutting height.
The cutting height adjustment is spring assisted. The cutting
height can be adjusted in five different steps.
Do not set the cutting height too low as there is a risk that the
cutters might hit slopes with unevenness.

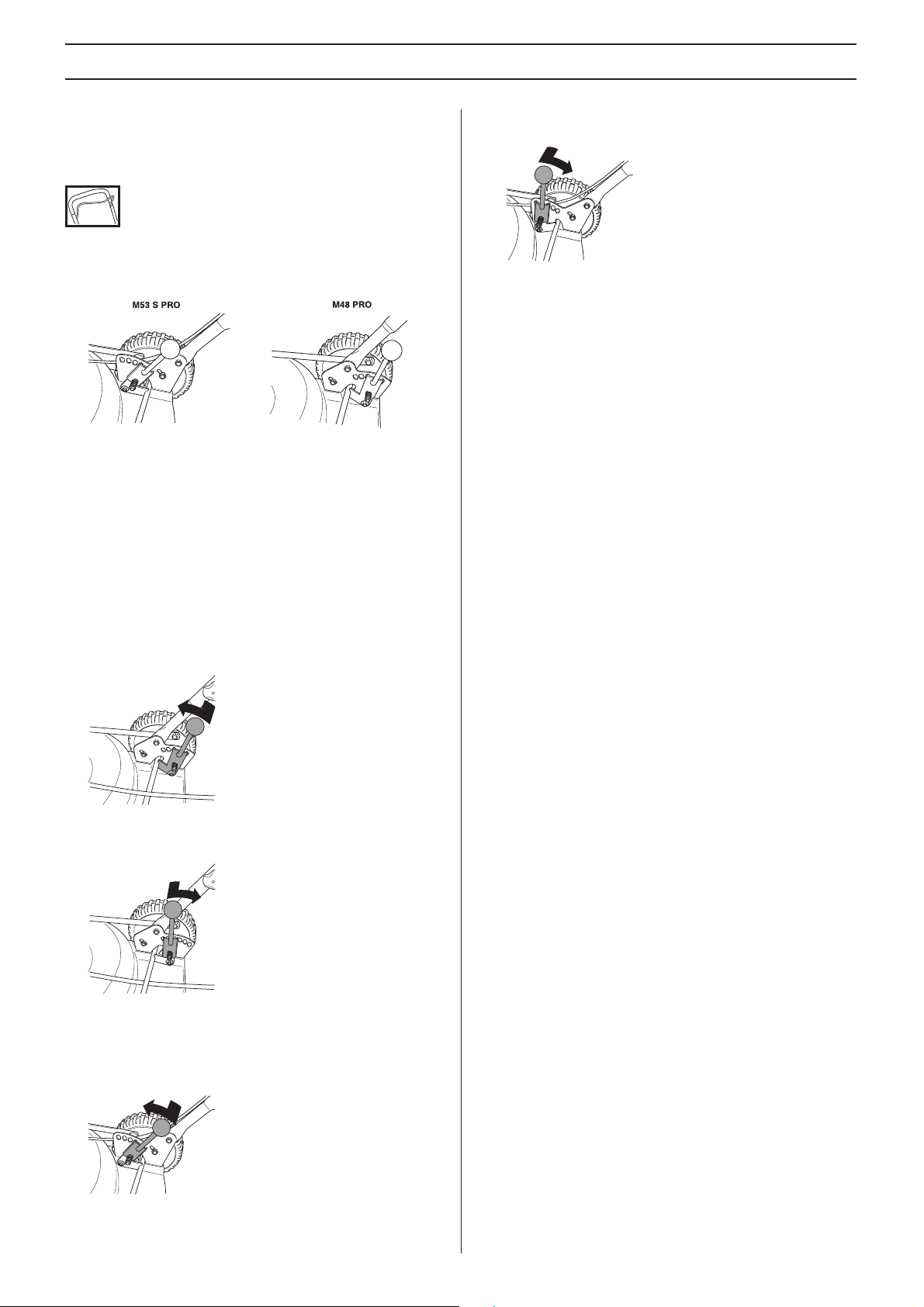

Adjusting the cutting height
Shut down the engine before changing the cutting height.
Set the cutting height using the cutting height control on the
right-hand side of the lawn mower.
On lawn mowers with the type designation M48 Pro, proceed
as follows:
• To raise the cutting height move the lever to the left and
then forward.
• To raise the cutting height move the lever to the left and
then backward.
Do not set the cutting height too low as there is a risk that the
cutters might hit slopes with unevenness.
• To lower the cutting height move the lever to the left and
then backward.
On lawn mowers with the type designation M53 S Pro,
proceed as follows:
• To lower the cutting height move the lever to the left and
then forward.
English
– 9
WHAT IS WHAT?
What is what on the lawn mower?
M48 Pro
1 Handle / handlebar
2 Vibration damper
3 Engine brake handle
4 Starter handle
5 Throttle control/choke control
6 Cutting height control
7 Fuel tank
8 Muffler
9 Spark plug
10 Lower handlebar
11 Oil tank
12 Fuel tap
13 Air filter
14 Cutting cover
15 Cutter/cutting equipment
16 Cutter bolt
17 Cup spring
18 Cutter bracket
19 Engine shaft
20 Operator ′ s manual
10 –
English
WHAT IS WHAT?
1
2
19
3
12
13
20
5
6
4
23
22
21
11
14
15
16
18
7
17
24
8
9
10
What is what on the lawn mower?
M53 S Pro
1 Handle / handlebar
2 Vibration damper
3 Engine brake handle
4 Throttle control/choke control
5 Starter handle
6 Clutch lever
7 Cutting height control
8 Fuel tank
9 Muffler
10 Protective cover
11 Spark plug
12 Lower handlebar
13 Oil tank
14 Fuel tap
15 Air filter
16 Cutting cover
17 Drive belt
18 Gear housing
19 Cutter/cutting equipment
20 Cutter bolt
21 Cup spring
22 Cutter bracket
23 Engine shaft
24 Operator ′ s manual
English
– 11

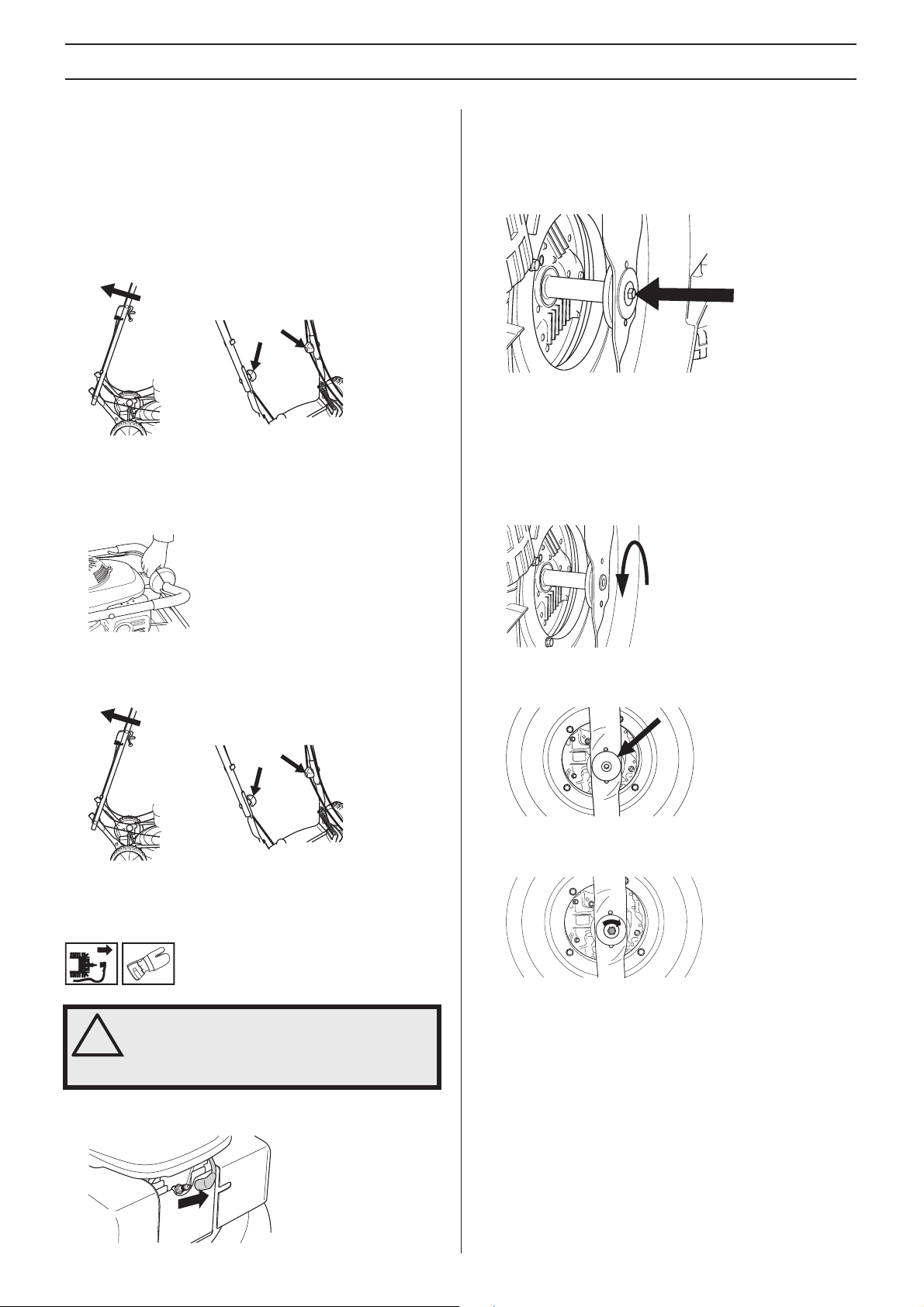

ASSEMBLY
Fitting the handlebar
Take care not to damage the cables and wires when you fold
up the handlebar.
M48 Pro
Lift up the handlebar until the handlebar's upper tubular
construction comes directly opposite to the handlebar's lower
section. Tighten the knob correctly.
M53 S Pro
Fold up the upper section of the handlebar by:
1 Fold in the engine brake handle towards the handlebar.
Always empty the fuel tank before you place the lawn mower
on its side.
Dismantling
• Unscrew the bolt holding the cutter.
• Remove bolt, washer and cup spring.
• Remove the cutter.
Assembly
• Position the cutter so that the cutting edge faces in the
direction of rotation.
2 Lift up the handlebar until the handlebar's upper tubular
construction comes directly opposite to the handlebar's
lower section. Tighten the knob correctly.
Dismantling and assembling the
cutter
WARNING! Always wear heavy-duty gloves
when servicing and maintaining the cutting
!
equipment. The cutters are very sharp and
cuts can occur very easily.
The ignition lead should always be removed from the spark
plug before repair, cleaning or maintenance work.
• Fit the cup spring, make sure it centres correctly on the
engine shaft.
• Fit the washer and tighten the bolt correctly. The bolt
should be tightened with a torque of 45-60 Nm.
12 –
English
FUEL HANDLING
Fuel
WARNING! Always ensure there is adequate
ventilation when handling fuel.
!
Petrol
• Use good quality unleaded or leaded petrol.
• Use fuel with a low octane grade.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Engine oil
Check the oil level before starting the lawn mower. A too low
oil level can cause serious damage to the engine.
• For the best result and function use HUSQVARNA fourstroke oil.
• If HUSQVARNA four-stroke oil is not available, you may
use another four-stroke oil of good quality. Contact your
dealer when selecting oil. In general SAE 30 is
recommended.
• Never use oil intended for two-stroke engines.
Check the oil level before starting the lawn mower. A too low
oil level can cause serious damage to the engine.
Oil level
The lawn mower should stand on flat ground when you check
the oil level. Ensure the ignition lead has been removed from
the spark plug before you open the oil filler cap.
Only use recommended engine oil. See the Technical data
section.
Fuelling
WARNING! Taking the following precautions,
will lessen the risk of fire:
!
Do not smoke or place hot objects near fuel.
Always shut off the engine before refuelling.
When refuelling, open the fuel cap slowly so
that any excess pressure is released gently.
Tighten the fuel cap carefully after refuelling.
Always move the machine away from the
refuelling area before starting.
Always remove the ignition lead from the spark plug before
refuelling.
Clean around the fuel cap. Clean the fuel and oil tank
regularly. The fuel filter should be changed at least once a
year. Contamination in the tanks causes malfunction.
Always move the machine about 3 metres from the refuelling
position before starting.
Unscrew the oil filler cap and check the oil level on the dipstick
fitted to the cover.
The oil filler cap must be completely screwed down to give a
correct picture of the oil level.
If the oil level is low, fill using engine oil up to the upper level
on the dipstick.
English – 13
STARTING AND STOPPING
Starting and stopping
WARNING! Note the following before
starting:
!
Do not start a lawn mower unless the cutter
and all covers are fitted correctly. Otherwise
the cutter could come loose and cause
personal injuries.
Always move the machine away from the
refuelling area before starting.
Place the machine on a flat surface. Ensure
the cutting attachment cannot come into
contact with any object.
On the M53 S Pro model
disengage the drive on the
wheel by moving the clutch
lever forward.
Keep people and animals well away from the
working area.
Starting
On the M53 S Pro model disengage the drive on the wheel by
moving the clutch lever forward.
Pull the engine brake handle against the upper handlebar
with your left hand.
Grip the starter handle, slowly pull out the cord with your right
hand until you feel some resistance (the starter pawls grip),
now quickly and powerfully pull the cord.
Never twist the starter cord around your hand.
Cold engine
Ensure the ignition lead sits correctly on the spark plug.
Starting: Open the fuel tap.
Choke: Set the throttle control in the choke position.
Disengage the choke position with the throttle control when
the engine is warm.
CAUTION! Do not pull the starter cord all the way out and do
not let go of the starter handle when the cord is fully extended.
This can damage the machine.
Warm engine
Use the same starting procedure as for a cold engine, but do
not set the throttle control in the choke position.
14 – English
STARTING AND STOPPING
Drive
The model M53 S Pro is a self-propelled machine with the
drive on the front wheels.
To use the drive on the wheel pull the clutch lever towards
you.
Stopping
Set the throttle control in the idling position.
Stop the engine by releasing the engine brake handle.
On model M53 S Pro the drive is also disengaged when you
release the engine brake handle.
Close the fuel tap.
English – 15
MAINTENANCE
Maintenance
WARNING! Make sure the cutting
attachment has stopped before cleaning,
!
carrying out repairs or an inspection.
Disconnect the HT lead from the spark plug.
Air filter
The air filter must be regularly cleaned to remove dust and dirt
in order to avoid:
• Carburettor malfunctions
• Starting problems
• Loss of engine power
• Unnecessary wear to engine parts.
• Excessive fuel consumption.
Clean the air filter daily, or more often in demanding
conditions.
The air filter is dismantled once the air filter cover has been
lifted off. Press in the catches on the top of the air filter cover
and lower the cover.
When reassembling, make sure that the filter completely
seals against the filter holder.
Spark plug
WARNING! The muffler gets very hot in use
and remains so for a short time afterwards.
!
Do not touch the muffler if it is hot!
If the machine is low on power, difficult to start or runs poorly
at idle speed: always check the spark plug first before taking
any further action. If the spark plug is dirty, clean it and check
that the electrode gap is 0.7-0.8 mm. The spark plug should
be replaced after about a month in operation or earlier if
necessary.
CAUTION! Always use the recommended spark plug type!
Use of the wrong spark plug can damage the piston/cylinder.
Remove the air filter and check that it is undamaged. Replace
with a new air filter if you believe it to be defective.
Clean the filter by knocking the filter carefully against a hard
surface and blowing with compressed air from inside. Never
brush the dirt away. Replace the air filter if it is very dirty.
An air filter that has been in use for a long time cannot be
cleaned completely. The filter must therefore be replaced with
a new one at regular intervals. A damaged air filter must
always be replaced.
Muffler
The muffler is designed to reduce the noise level and to direct
the exhaust gases away from the operator. The exhaust
gases are hot and can contain sparks, which may cause fire
if directed against dry and combustible material.
Regularly check that the muffler is securely attached to the
machine.
Never use a machine that has a faulty muffler.
16 – English
MAINTENANCE
Cutter
WARNING! Always wear heavy-duty gloves
when repairing the cutting attachment. The
!
blades are very sharp and can easily cause
cuts.
It is important to have a sharp and correctly balanced cutter.
Loosen the bolt holding the cutter and leave the cutter at a
service workshop at least once a year for grinding and
balancing. An appropriate time to do this is after the mowing
season has finished.
If the cutter or cutter bracket need to be changed you must
replace the cutter bolt, washer and cup spring at the same
time.
The bolt should be tightened with a torque of 45-60 Nm when
you fit the cutter again. See instructions under the heading
Assembly.
If the cutter hits foreign objects such as stones, roots or the
like the cutter will slip against the cutter bracket. This may
mean that the contact surface of the cutter bracket appears
slightly worn, which is completely normal. This is a safety
device, which reduces the risk of the engine shaft becoming
bent.
Changing the oil
• Unscrew the oil filler cap.
• Drain the oil by tipping the engine so that the oil runs out
through the filler pipe.
• Ask where you can dispose of surplus engine oil at your
local petrol station.
• Fill with new engine oil of a good quality. See the Technical
data section.
• Check the oil level with the dipstick on the oil filler cap. The
oil filler cap must be completely screwed down to give a
correct picture of the oil level.
If the oil level is low, fill using engine oil up to the upper
level on the dipstick.
• Screw on the oil filler cap.
Lubrication of the cutting height
adjustment
The engine oil should be changed each year and every 25
working hours.
When changing the oil proceed as follows::
• Disconnect the HT lead from the spark plug.
• Empty the fuel tank
• Close the fuel tap.
The mechanical parts of the cutting height system should be
lubricated regularly (once a week). Lubricate the cutting
height system with a few drops of oil.
English – 17
MAINTENANCE
Drive and gearbox
M53 S Pro
Ensure the wheels and wheel axles are clean and free from
leaves, grass, etc. It is also important to keep clean around
the drive gearbox.
• Remove the protective cover by unscrewing the screws.
• Now guide the protective cover out under the stay and
over the drive axle.
• Clean the gearbox with a brush. Also check that the drive
belt and belt pulley are undamaged, for example, no
cracks.
Weekly maintenance
1
1 Change the engine oil.
2 Lubricate the cutting height system
3 Clean the spark plug. Check that the electrode gap is 0.7-
0.8 mm.
4 Clean the cooling fins on the cylinder.
2
3
4
Monthly maintenance
Below you will find some general maintenance
instructions.
Daily maintenance
1 Check that the engine brake handle works safely.
2 Brush leaves, grass and the like off of the lawn mower.
3 Clean the air intake on the starter. Check the starter and
starter cord.
4 Check the oil level.
5 Clean the air filter. Replace if necessary.
6 Check that nuts and screws are tight.
7 Check the cutting attachment. Never use blades that are
dull, cracked or damaged.
1 Check that drive belt is not damaged and is not visibly
defective.
2 Clean the gearbox.
3 Check the fuel filter and the fuel hose. Replace if
necessary.
4 Clean the inside of the fuel tank.
5 Lubricate the drive control.
18 – English
TECHNICAL DATA
Technical data
M48 Pro M53 S Pro
Engine
Cylinder displacement, cm
Cylinder bore, mm 64 64
Stroke, mm 50 50
Power, kW 4,1 4,1
Ignition system
Type of ignition system Transistor Transistor
Spark plug NGK - BPR6ES NGK - BPR6ES
Electrode gap, mm 0,7 - 0,8 0,7 - 0,8
Fuel and lubrication system
Fuel tank capacity, litre 1,1 1,1
Oil tank capacity, litre 0,55 0,55
Engine oil
Weight
Lawn mower with empty tanks, kg 30,3 35,4
Noise emissions
(see note 1)
Sound power level, measured dB(A) 94 96
Sound power level, guaranteed L
Vibration levels
(see note 2)
Handle left, m/s
Handle right, m/s
Cutting equipment
Cutting system BioClip BioClip
The cutting height can be adjusted in five different steps, mm. 28-65 28-65
Cutting width, cm 48 53
Cutter Fixed Fixed
Drive
Speed, km/h ---- 4,5
2
2
3
dB(A) 95 97
WA
160 160
Service classification SG - SJ;
SAE 10W -30
3,6 3,5
3,5 3,8
Service classification SG - SJ;
SAE 10W -30
Note 1: Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/EC.
Note 2: Vibrations measured according to EN836 : 1997/A2:2001
English – 19
TECHNICAL DATA
EC-declaration of conformity
(Applies to Europe only)
Höörs Plåt, Box 76, SE-243 22 Höör, Sweden, tel: +46-413-29600, declares under sole responsibility that the lawn mowers
Husqvarna M48 Pro and M53 S Pro from the serial numbers 030600001 and onwards comply with the requirements of the
COUNCIL’S DIRECTIVE:
of May 3, 1989 ”relating to electromagnetic compatibility” 89/336/EEC, and applicable supplements.
of May 8, 2000 ”relating to the noise emissions in the environment” 2000/14/EC.
of June 22, 1998 ”relating to machinery” 98/37/EC.
For information relating to noise emissions, see the chapter Technical data.
The following standards have been applied: EN836:1997
Notified body: 0404, SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden, has compiled confirmity
assessment Report No. 01/901/020 - M48 Pro, 01/901/022 - M53 S Pro in accordance with Directive 2000/14/EC, Annex VI.
Höör January 3, 2003
Lennart Molin, Development manager
20 – English
´®z+H8|¶6d¨
´®z+H8|¶6d¨
´®z+H8|¶6d¨
1140249-26
´®z+H8|¶6d¨
2003-12-17
We hope you find the links below useful. For further gardening information visit
www.GardenResources.co.uk
Blower Vacs Brush cutters Brushcutters Chainsaws Chain saws
Cultivators Cylinder lawn
mowers
Electric
chainsaws
Garden tractors Garden vacuums Hayter lawn
Hover mowers Husqvarna
Lawn scarifiers Lawn tractors Leaf blowers Leaf vacuums Petrol chainsaws
Petrol hedge
cutters
Ryobi strimmers Scarifiers Strimmers Westwood lawn
Westwood
tractors
Chainsaws Cultivators Cylinder Lawn
Electric
Chainsaws
Garden
Shredders
Hedgecutters Hover Mowers Husqvarna
Lawn Mowers Scarifiers Lawn Tractors Leaf Blowers Leaf Vacuums
Petrol Chainsaws Petrol Hedge
Rotovators Ryobi Strimmers Garden Patio
Patio Heaters Patio Heater
Gas Greenhouse
Heaters
Christmas
Gardening Gifts
Fertiliser
spreaders
chainsaws
Ride on lawn
mowers
Brush Cutters
Fertiliser
Spreaders
Garden Tractors
Cutters
Covers
Stainless Steel
Patio Heaters
Garden Tractors Ride on Lawn
Brushcutters Blower Vacs Chain Saws
Cylinder mowers Echo chainsaws Echo Strimmers
Garden blowers Garden rollers Garden shredders
Hedge cutters
mowers
Kawasaki brush
cutters
Ride on mowers Rotary mowers Rotavators
Mowers
Garden Blowers Garden Rollers Lawn Rollers
Garden Vacuums Hayter Lawn
Chainsaws
Ride on Lawn
Mowers
Heaters
Garden Heaters
Table Top Patio
Heaters
Mowers
Kawasaki
strimmers
tractors
Echo Chainsaws Echo Strimmers
Mowers
Kawasaki Brush
Cutters
Ride on Mowers
Outdoor Patio
Heaters
Greenhouse
Heaters
Patio Heaters UK
Ride on Mowers
Hedgecutters
Lawn mowers
Westwood ride on
mowers
Hedge Cutters
Kawasaki
Strimmers
Rotary Mowers
Gas Patio Heaters
Green House
Heaters
Patio Heaters with
Covers
Also See
Gardening Tools Direct, for lawn mowers, brush cutters, chainsaws
Gardening Supply for patio heaters, lawn mowers, chainsaws
Garden Tractor, for lawn tractors and ride on mowers
Loading...
