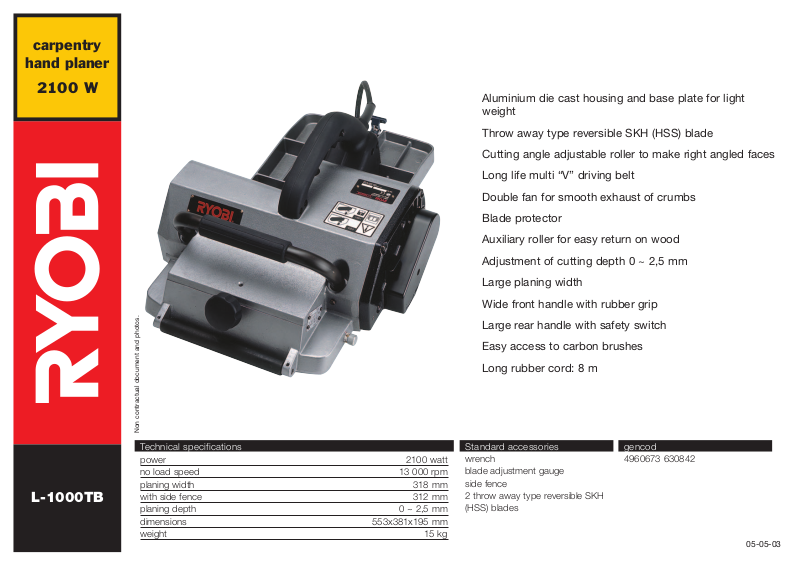

Ryobi L-1000TB User Manual

L-1000TB

carpentry

hand planer

2100 W

Aluminium die cast housing and base plate for light
weight

Throw away type reversible SKH (HSS) blade

Cutting angle adjustable roller to make right angled faces

Long life multi “V” driving belt

Double fan for smooth exhaust of crumbs

Blade protector

Auxiliary roller for easy return on wood

Adjustment of cutting depth 0 ~ 2,5 mm

Large planing width

Wide front handle with rubber grip

Large rear handle with safety switch

Easy access to carbon brushes

Long rubber cord: 8 m

gencod

4960673 630842

Standard accessories

wrench
blade adjustment gauge
side fence
2 throw away type reversible SKH
(HSS) blades

Technical specifications

power 2100 watt
no load speed 13 000 rpm
planing width 318 mm
with side fence 312 mm
planing depth 0 ~ 2,5 mm
dimensions 553x381x195 mm
weight 15 kg

05-05-03

Non contractual document and photos.
