Ryobi HT920, HT920DR User Manual
Issued 12/99

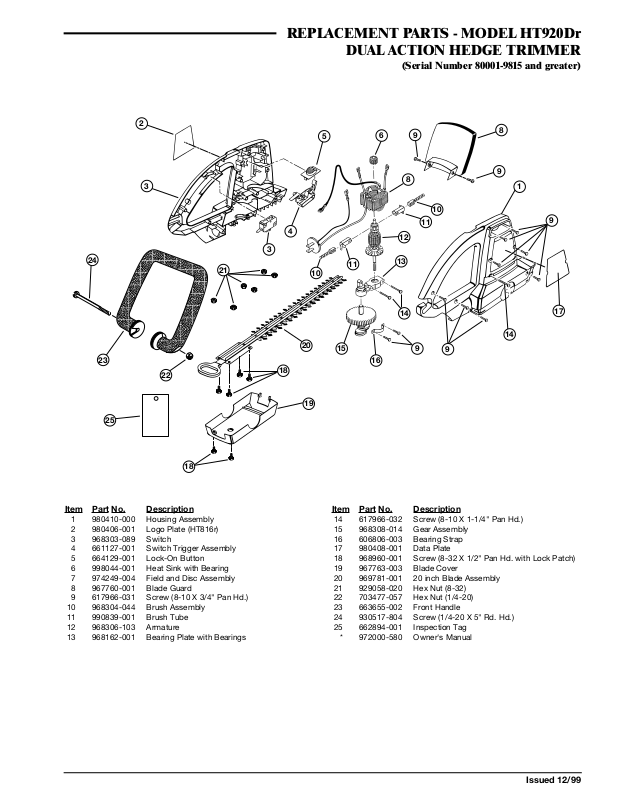

REPLACEMENT PARTS - MODEL HT920Dr
DUAL ACTION HEDGE TRIMMER
(Serial Number 80001-9815 and greater)
Item Part No. Description
1 980410-000 Housing Assembly
2 980406-001 Logo Plate (HT816r)
3 968303-089 Switch
4 661127-001 Switch Trigger Assembly
5 664129-001 Lock-On Button
6 998044-001 Heat Sink with Bearing
7 974249-004 Field and Disc Assembly
8 967760-001 Blade Guard
9 617966-031 Screw (8-10 X 3/4" Pan Hd.)
10 968304-044 Brush Assembly
11 990839-001 Brush Tube
12 968306-103 Armature
13 968162-001 Bearing Plate with Bearings
Item Part No. Description
14 617966-032 Screw (8-10 X 1-1/4" Pan Hd.)
15 968308-014 Gear Assembly
16 606806-003 Bearing Strap
17 980408-001 Data Plate
18 968960-001 Screw (8-32 X 1/2" Pan Hd. with Lock Patch)
19 967763-003 Blade Cover
20 969781-001 20 inch Blade Assembly
21 929058-020 Hex Nut (8-32)
22 703477-057 Hex Nut (1/4-20)
23 663655-002 Front Handle
24 930517-804 Screw (1/4-20 X 5" Rd. Hd.)
25 662894-001 Inspection Tag
* 972000-580 Owner's Manual
5
6
9
8
10
11
12
13
14
9
9
16
15
11
10
4
3
21
20
18
22
14
17
9
1
9
8
3
2
24
23
25
18
19
