Ryobi DP102L User Manual 2

OPERATOR’S MANUAL
10 in. DRILL PRESS
Your drill press has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
Introduction ..................................................................................................................................................................... 2
 Warranty .......................................................................................................................................................................... 2
General Safety Rules ....................................................................................................................................................3-4
Specific Safety Rules ....................................................................................................................................................... 5
Symbols ........................................................................................................................................................................ 6-7
 Electrical .......................................................................................................................................................................... 8
Glossary of Terms ............................................................................................................................................................ 9

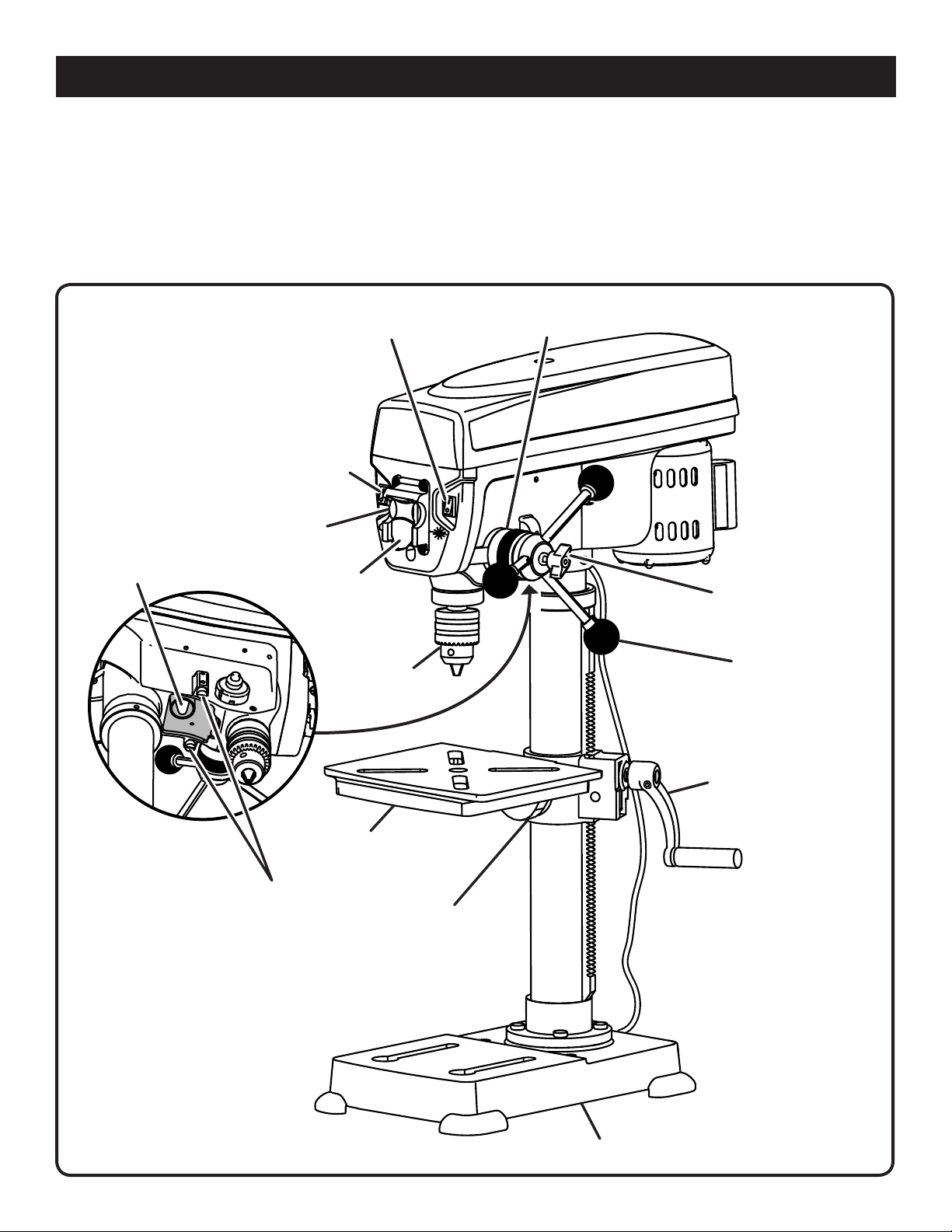

 Features ....................................................................................................................................................................10-11
 Tools Needed ................................................................................................................................................................. 11

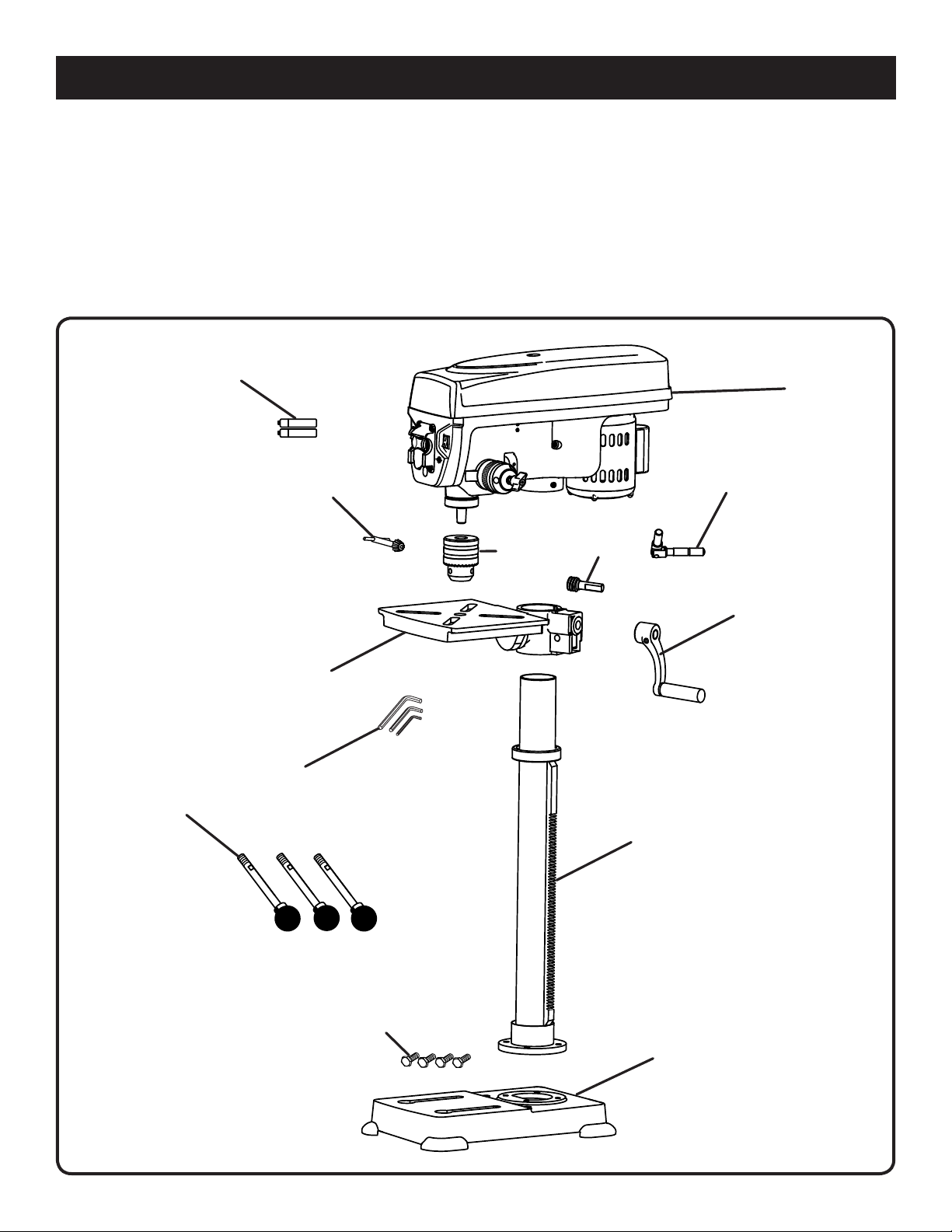

 Loose Parts ................................................................................................................................................................... 12

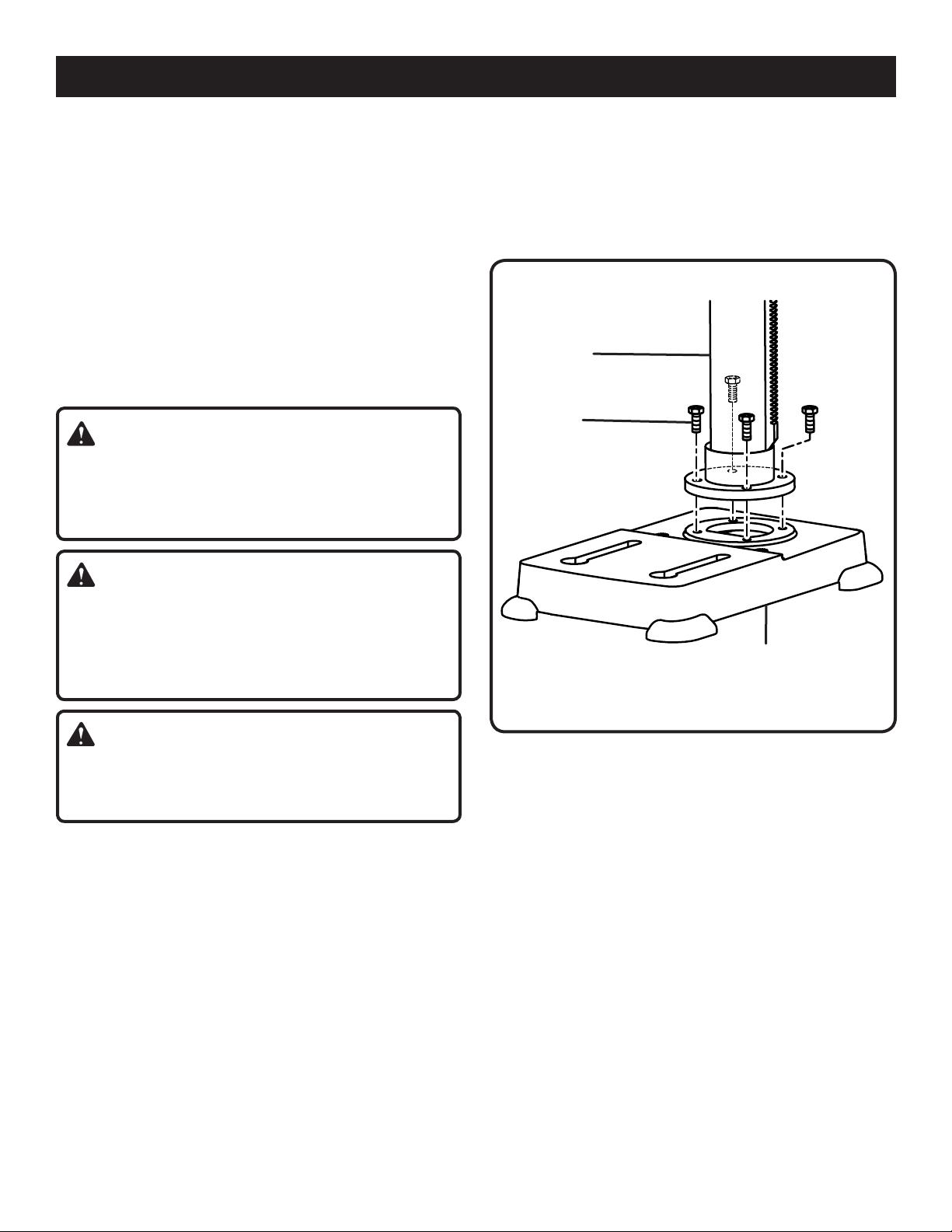

 Assembly .................................................................................................................................................................. 13-17
Operation .................................................................................................................................................................. 18-20
Adjustments .............................................................................................................................................................. 21-22
Maintenance .................................................................................................................................................................. 23
Troubleshooting ............................................................................................................................................................. 24
Parts Ordering / Service ................................................................................................................................... Back Page
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.
WARRANTY
RYOBI® POWER TOOL - LIMITED TWO YEAR WARRANTY AND 30 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI® power tools with the following conditions:
30-DAY EXCHANGE POLICY: During the first 30 days after date of purchase, you may either request service under this warranty or you may exchange any RYOBI® power tool which does not work properly due to defective workmanship or materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool or requested warranty service, you must present proof of purchase and return all original equipment packaged with the original product. The replacement power tool will be covered by the limited warranty for the balance of the two year period from the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI® power tool for a period of two years from the date of purchase. With the exception of batteries, power tool accessories are warranted for ninety (90) days. Batteries are warranted for two years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to www.ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time, but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools other than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or fitness for a particular purpose, are limited to two years from the date of purchase. One World Technologies, Inc. is not responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
2
GENERAL SAFETY RULES
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock, fire and/or serious personal injury.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator’s
manual carefully. Learn the applications and limitations as well as the specific potential hazards related to this tool.
GU A R D A G A I N S T ELE C T R I C A L SHOCK B Y
PREVENTING BODY CONTACT WITH GROUNDED SURFACES. For example: pipes, radiators, ranges,
refrigerator enclosures.
KEEP GUARDS IN PLACE and in good working order.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents. DO NOT leave tools or pieces of wood on the tool while it is in operation.
DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools in damp or wet locations or expose to rain. Keep the work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All visitors
should wear safety glasses and be kept a safe distance from work area. Do not let visitors contact tool or exten­sion cord while operating.
MAKE WORKSHOP CHILDPROOF with padlocks,
master switches, or by removing starter keys.
DON’T FORCE THE TOOL. It will do the job better and
safer at the feed rate for which it was designed.
USE THE RIGHT TOOL. Do not force the tool or attach-
ment to do a job for which it was not designed.
USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. Use only a cord heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. A wire gauge size (A.W.G.) of at least 16 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, or jewelry that can get caught and draw you into moving parts. Rubber gloves and nonskid footwear are recommended when working outdoors. Also wear protective hair covering to contain long hair.
ALWAYS WEAR SAF ETY GLAS SES WITH SI DE
SHIELDS. Everyday eyeglasses have only impact- resistant lenses, they are NOT safety glasses.
SECURE WORK. Use clamps or a vise to hold work when
practical, it is safer than using your hand and frees both hands to operate the tool.
DO NOT OVERREACH. Keep proper footing and balance
at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for better and safer performance. Follow instructions for lubricating and changing accessories.
DIS CONNECT TO OLS. When not in use, befo re
servicing, or when changing attachments, blades, bits, cutters, etc., all tools should be disconnected from power source.
AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in any tool.
USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The use of improper accessories may result in injury.
NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced by an authorized service center to avoid risk of personal injury.
USE THE RIGHT DIRECTION OF FEED. Feed work into
a blade, cutter, or sanding spindle against the direction or rotation of the blade, cutter, or sanding spindle only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Don’t leave tool until it comes to a
complete stop.
PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
DO NOT ABUSE CORD. Never carry tool by the cord or
yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
USE OUTDOOR EXTENSION CORDS. When tool is
used outdoors, use only extension cords with approved ground connection that are intended for use outdoors and so marked.
3
GENERAL SAFETY RULES
STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate tool when you are tired. Do not rush.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
ALWAYS TURN SWITCH OFF before disconnecting it
to avoid accidental starting.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE. Normal
sparking of the motor could ignite fumes.
INSPECT TOOL CORDS PERIODICALLY. If damaged,
have repaired by a qualified service technician at an authorized service facility. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is neces­sary, do not connect the equipment-grounding conductor to a live terminal. Repair or replace a damaged or worn cord immediately. Stay constantly aware of cord location and keep it well away from the rotating blade.
INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
GROUND ALL TOOLS. If tool is equipped with three-
prong plug, it should be plugged into a three-hole elec­trical receptacle.
USE ONLY CORRECT ELECTRICAL DEVICES: 3-wire
extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the tool’s plug.
KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake fluids, gasoline, petroleum-based products, or any solvents to clean tool.
NEVER START A TOOL WHEN ANY ROTATING
C O M PO N E NT I S I N C O N TA C T W I T H T H E WORKPIECE.
DO NOT OPERATE A TOOL WHILE UNDER THE IN-
FLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICA­TION.
WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause product damage.
USE ONLY RECOMMENDED ACCESSORIES listed in
this manual or addendums. Use of accessories that are not listed may cause the risk of personal injury. Instruc­tions for safe use of accessories are included with the accessory.
4
SPECIFIC SAFETY RULES
KEEP BITS CLEAN AND SHARP. Sharp bits minimize
stalling. Dirty and dull bits may cause misalignment of the material and possible operator injury.
KEEP HANDS AWAY FROM WORK AREA. Keep hands
away from the bit. Restrain any loose clothing, jewelry, long hair, etc., that may become entangled in the bit.

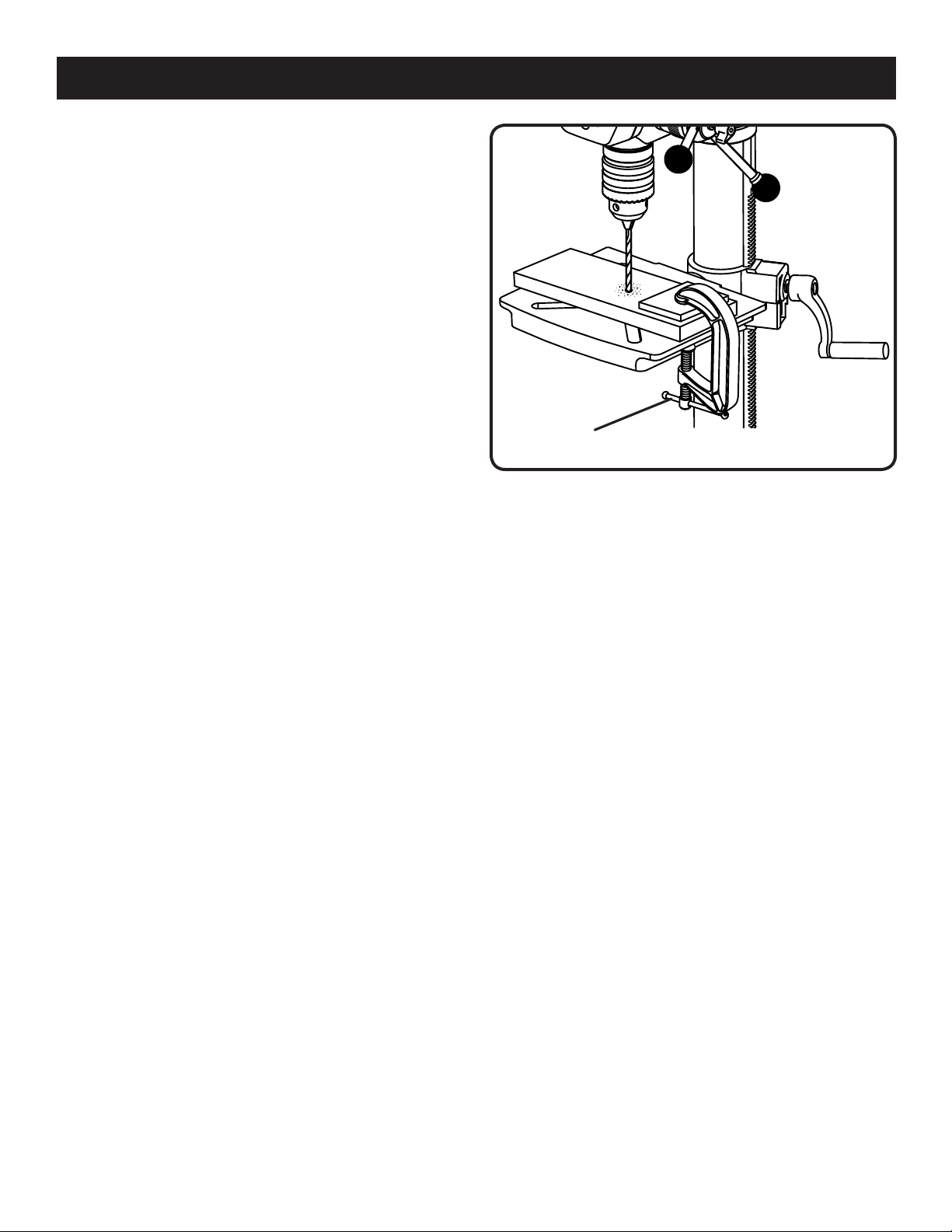

ALWAYS CLAMP WORKPIECE OR BRACE AGAINST
COLUMN TO PREVENT ROTATION. Never use your
hand to hold the object while drilling.
USE RECOMMENDED SPEED FOR DRILL ACCES-
SORY AND WORKPIECE MATERIAL.
BE SURE DRILL BIT OR CUTTING TOOL IS SECURELY
LOCKED IN THE CHUCK.
BE SURE CHUCK KEY IS REMOVED from the chuck
before connecting to power source or turning power ON.
ADJUST THE TABLE OR DEPTH STOP TO AVOID
DRILLING INTO THE TABLE. Shut off the power, remove
the drill bit, and clean the table before leaving machine.
AVOID DIRECT EYE EXPOSURE when using the laser
guide.
ALWAYS ENSURE THE LASER BEAM IS AIMED AT
A SURFACE WITHOUT REFLECTIVE PROPERTIES.
Shiny reflective materials are not suitable for laser use.
NEVER PLACE YOUR FINGERS IN A POSITION
WHERE THEY COULD CONTACT THE DRILL or other
cutting tool if the workpiece should unexpectedly shift.
NEVER PERFORM ANY OPERATION by moving the
head or table with respect to one another. Do not turn the motor switch ON or start any operation before checking that the head and table support lock handle is clamped tight to column and head and table support collars are correctly positioned.
BEFORE ENGAGING THE POWER SWITCH, MAKE
SURE THE BELT GUARD IS DOWN AND THE CHUCK IS INSTALLED PROPERLY.
LOCK THE MOTOR SWITCH OFF WHEN LEAVING
THE DRILL PRESS. Do not perform layout, assembly,
or set-up work on the table while the cutting tool is rotat­ing, switched on, or connected to a power source.
IF THE POWER SUPPLY CORD IS DAMAGED, it must
be replaced only by the manufacturer or by an authorized service center to avoid risk.
SAVE THESE INSTRUCTIONS. Refer to them frequently
and use to instruct other users. If you loan someone this tool, loan them these instructions also.
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
5
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta­tion of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts
A Amperes
Hz Hertz
W Watt
min Minutes
Alternating Current
Direct Current
n
o
.../min
No Load Speed
Class II Construction
Per Minute
Wet Conditions Alert
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Do not expose to rain or use in damp locations.
Read The Operator’s Manual
Eye Protection
Safety Alert
No Hands Symbol
Hot Surface
To reduce the risk of injury, user must read and understand operator’s manual before using this product.
Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
Precautions that involve your safety.
Failure to keep your hands away from the blade will result in seri­ous personal injury.
To reduce the risk of injury or damage, avoid contact with any hot surface.
6
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servic­ing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. Save this operator’s manual and review frequently for continuing safe opera­tion and instructing others who may use this product.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
7
ELECTRICAL
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong ground­ing plugs and 3-pole receptacles that accept the tool’s plug. When using a power tool at a considerable distance from the power source, use an extension cord heavy enough to carry the current that the tool will draw. An undersized extension cord will cause a drop in line voltage, resulting in a loss of power and causing the motor to overheat. Use the chart provided below to determine the minimum wire size required in an extension cord. Only round jacketed cords listed by Underwriter’s Laboratories (UL) should be used.
**Ampere rating (on tool faceplate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the tool outdoors, use an extension cord that is designed for outside use. This is indicated by the let­ters “WA” on the cord’s jacket.
Before using an extension cord, inspect it for loose or exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools or other obstructions while you are working with a power tool. Failure to do so can result in serious personal injury.
SPEED AND WIRING

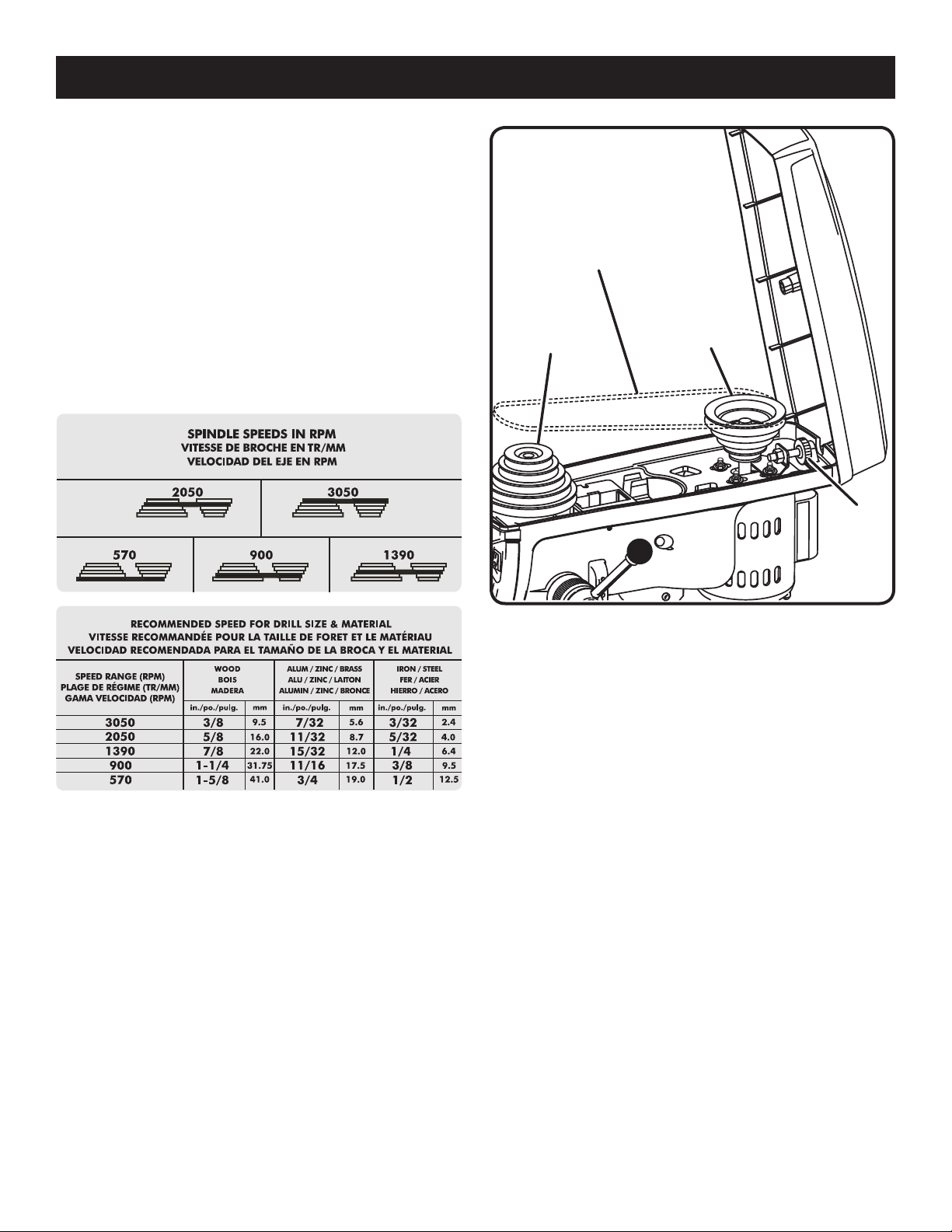

The no-load speed of this tool is approximately 3,050 rpm. This speed is not constant and decreases under a load or with lower voltage. For voltage, the wiring in a shop is as important as the motor’s horsepower rating. A line intended only for lights cannot properly carry a power tool motor. Wire that is heavy enough for a short distance will be too light for a greater distance. A line that can support one power tool may not be able to support two or three tools.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conduc­tor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified electrician. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or with­out yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is neces­sary, do not connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet like the one shown in figure 1. It also has a grounding pin like the one shown.
WARNING:
Check extension cords before each use. If damaged re­place immediately. Never use tool with a damaged cord since touching the damaged area could cause electrical shock resulting in serious injury.
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It should be connected to a power supply that is 120 volts, 60 Hz, AC only (normal household current). Do not operate this tool on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If the tool does not operate when plugged into an outlet, double check the power supply.
GroundinG
Pin
8
120V GroundEd ouTLET
Fig. 1
GLOSSARY OF TERMS
Anti-Kickback Pawls (radial arm and table saws)
A device which, when properly installed and maintained, is designed to stop the workpiece from being kicked back toward the front of the saw during a ripping operation.
Arbor
The shaft on which a blade or cutting tool is mounted.
Bevel Cut
A cutting operation made with the blade at any angle other than 90° to the table surface.
Chamfer
A cut removing a wedge from a block so the end (or part of the end) is angled rather than at 90°.
Compound Cut
A cross cut made with both a miter and a bevel angle.
Cross Cut
A cutting or shaping operation made across the grain or the width of the workpiece.
Cutter Head (planers and jointers)
A rotating piece of adjustable blades. The cutter head removes material from the workpiece.
Dado Cut
A non-through cut which produces a square-sided notch or trough in the workpiece (requires a special blade).
Featherboard
A device used to help control the workpiece by guiding it securely against the table or fence during any ripping operation.
FPM or SPM
Feet per minute (or strokes per minute), used in reference to blade movement.
Freehand
Performing a cut without the workpiece being guided by a fence, miter gauge, or other aids.
Gum
A sticky, sap-based residue from wood products.
Heel
Alignment of the blade to the fence.
Kerf
The material removed by the blade in a through cut or the slot produced by the blade in a non-through or partial cut.
Kickback
A hazard that can occur when the blade binds or stalls, throwing the workpiece back toward operator.
Leading End
The end of the workpiece pushed into the tool first.
Miter Cut
A cutting operation made with the workpiece at any angle to the blade other than 90°.
Non-Through Cuts
Any cutting operation where the blade does not extend completely through the thickness of the workpiece.
Pilot Hole (drill presses)
A small hole drilled in a workpiece that serves as a guide for drilling large holes accurately.
Push Blocks and Push Sticks
Devices used to feed the workpiece through the saw blade during cutting operations. A push stick (not a push block) should be used for narrow ripping operations. These aids help keep the operator's hands well away from the blade.
Resaw
A cutting operation to reduce the thickness of the workpiece to make thinner pieces.
Resin
A sticky, sap-based substance that has hardened.
Revolutions Per Minute (RPM)
The number of turns completed by a spinning object in one minute.
Ripping or Rip Cut
A cutting operation along the length of the workpiece.
Riving Knife/Spreader/Splitter (table saws)
A metal piece, slightly thinner than the blade, which helps keep the kerf open and also helps to prevent kickback.
Saw Blade Path
The area over, under, behind, or in front of the blade. As it applies to the workpiece, that area which will be or has been cut by the blade.
Set
The distance that the tip of the saw blade tooth is bent (or set) outward from the face of the blade.
Snipe (planers)
Depression made at either end of a workpiece by cutter blades when the workpiece is not properly supported.
Through Sawing
Any cutting operation where the blade extends completely through the thickness of the workpiece.
Throw-Back
The throwing back of a workpiece usually caused by the workpiece being dropped into the blade or being placed inadvertently in contact with the blade.
Workpiece or Material
The item on which the operation is being done.
Worktable
Surface where the workpiece rests while performing a cutting, drilling, planing, or sanding operation.
9
FEATURES
PRODUCT SPECIFICATIONS
Chuck ........................................................................ 1/2 in.
Input ............................... 120 Volt, 60Hz, AC Only, 3 Amps
Motor ........................................................ 1/4 HP Induction
No Load Speed ............................. 570–3,050 r/min. (RPM)
Swing .......................................................................... 10 in.
Spindle Travel .........................................................2-3/8 in.
Table Size ........................................... 9-1/4 in. x 8-3/16 in.
Table Movement ...............................45° bevel, 360° swivel
Overall Height ............................................................. 29 in.
Net Weight ................................................................ 62 lbs.
workLiGhT
workLiGhT
on/off
swiTch
swiTch kEy
PowEr
swiTch
LasEr on/off
swiTch
chuck
dEPTh GauGE
Lock knob
fEEd
handLE
TabLE
adjusTmEnT
handLE
LasEr
TabLE
bEVEL scaLE
10
basE
Fig. 2
FEATURES
KNOW YOUR DRILL PRESS
See Figure 2.
Before attempting to use this product, familiarize yourself with all operating features and safety rules.
BEVEL SCALE
The bevel scale indicates the degree the table is tilted.
CHUCK
Your drill press features a standard three-jaw type chuck with a self-ejecting chuck key, which prevents accidentally starting the drill press with the key still engaged in the chuck.
EXACTLINE™ LASER
The Exactline™ laser makes accurate, precision drilling simple and easy.
DEPTH GAUGE
A depth gauge is located between the pulley housing and feed handles to aid in drilling at desired depths.
DEPTH STOP
The adjustable locking depth stop permits accurate depth measurement and repetitive drilling.
FEED HANDLES
Feed handles raise and lower the chuck and bit during the drilling operation.
MOTOR
Your drill press is equipped with an industrial duty induction motor for long-lasting, smooth performance.
SPINDLE SPEED
Five different spindle speeds allow you to drill a wide variety of material including wood, plastic, and metal.
TABLE
The table of your drill press rotates 360˚ and bevels up to 45˚ for angle drilling.
WORKLIGHT
The integrated worklight can be used to help illuminate the work area. It requires a 15-watt, 120-volt, candelabra-base bulb (not included).
TOOLS NEEDED
The following tools (not included) are needed for assembly and alignment:
maLLET or
hammEr
PhiLLiPs scrEwdriVEr
adjusTabLE wrEnch
Fig. 3
11
LOOSE PARTS
The following items are included with the drill press:
Head Assembly .................................................................1
Column Assembly .............................................................1
Table Assembly .................................................................1
Base ..................................................................................1
Hex Key (3 mm, 4 mm, and 5 mm) ....................................3
Hex Bolts (M8) ...................................................................4
Feed Handles ....................................................................3
Table Adjustment Handle ..................................................1
aa baTTEriEs
Table Lock Handle .............................................................1
AA Batteries .......................................................................2
Chuck ................................................................................1
Chuck Key .........................................................................1
Worm Gear ........................................................................1
Operator’s Manual (not shown) .........................................1
hEad
assEmbLy
fEEd handLEs
chuck
kEy
TabLE assEmbLy
hEx kEy
chuck
TabLE Lock
handLE
worm
GEar
TabLE
adjusTmEnT
handLE
coLumn
assEmbLy
hEx boLTs
basE
Fig. 4
12
ASSEMBLY
UNPACKING
This product requires assembly.
Carefully remove the tool and any accessories from the
box. Place it on a level work surface.
NOTE: This tool is heavy. To avoid back injury, lift with
your legs, not your back, and get help when needed.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected the tool, identified all loose parts, and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
WARNING:
If any parts are damaged or missing do not operate this tool until the missing parts are replaced. Failure to heed this warning could result in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso­ries not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
ATTACHING COLUMN ASSEMBLY TO BASE
See Figure 5.
Place the base on a flat surface. Align screw holes in the
column assembly with screw holes in the base.
Place a hex bolt in each hole and tighten using an adjust-
able wrench.
coLumn
assEmbLy
hEx boLT
basE
WARNING:
Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.
Fig. 5
13
ASSEMBLY
INSTALLING TABLE ASSEMBLY
See Figures 6 - 8.
Loosen the set screw in the column collar. Remove the
column collar and gear rack from the column and set aside.
Locate the worm gear and feed the D-shaft through the
hole in the table assembly.
Install table adjustment handle over the end of the D-shaft
so that the flat side of the shaft aligns with the set screw. Tighten the set screw using the hex key.
Feed the gear rack through the slot in the table assembly
so that the teeth are facing out and the longer smooth end faces up. The worm gear should engage the gear rack.
Using both hands, slide the entire table assembly and gear
rack onto the column until the bottom of the gear rack is positioned in the base collar and against the column.
Slide the column collar, bevel-side down, over the column
until the beveled side engages the beveled end of the gear rack. Tighten the set screw in the collar using the hex key. Do not overtighten.
NOTE: You should be able to move the table from side
to side.
Locate the table lock handle. Insert it into the threaded
hole at the rear of the table assembly and tighten by hand.
worm
GEar
TabLE
assEmbLy
sET scrEw
TabLE
assEmbLy
sLoT
d-shafT
hoLE
TabLE
adjusTmEnT
handLE
sET scrEw
Fig. 6
coLumn
coLLar
GEar rack
ThrEadEd
hoLE
basE
coLLar
Fig. 7
TabLE
Lock
handLE
Fig. 8
14
ASSEMBLY
INSTALLING CHUCK, HEAD ASSEMBLY, AND FEED HANDLES
See Figures 9 - 11.
Place the head assembly upside down on a level, flat
surface.
Position chuck on spindle. Chuck should be fully opened
to avoid damaging jaws.
Using a piece of scrap wood to protect the chuck, firmly
tap the chuck into place using a mallet or hammer.
Position the head assembly onto the column with the
chuck positioned over the table.
NOTE: This tool is heavy. Get help when needed.
chuck
scraP
wood
sPindLE
fEEd
handLE
Slide the head assembly down as far as it will go. Align
the table assembly with the base and then tighten the two head set screws with the hex key.
Attach the three feed handles by screwing them into the
threaded holes in the hub.
Fig. 11
INSTALLING/CHANGING WORKLIGHT BULB
See Figure 12.
The integrated worklight can be used to help illuminate the work area. The worklight requires a 15-watt, 120-volt, candelabra-base bulb (bulb not included).
To install, insert the bulb into the worklight receptacle and twist clockwise to secure.
hEad
assEmbLy
hEad
assEmbLy
sET
scrEws
Fig. 9
buLb
Fig. 12
Fig. 10
15
INSTALLING/CHANGING LASER BATTERIES
DANGER / DANGER
/ PELIGR
O
DANGER / DANGER
/ PELIGR
O
See Figure 13.
Lift head assembly cover from front to open.
Remove cover from battery compartment and install two
AA batteries according to the polarity indicated in the compartment.
Reinstall the battery compartment cover.
Close head assembly cover.
WARNING:
Use of controls or adjustments or performance of pro­cedures other than those specified herein could result in hazardous radiation exposure.
MOUNTING THE DRILL PRESS
See Figure 14.
If the drill press is to be used in a permanent location, secure it to a workbench or other stable surface.
If the drill press is to be used as a portable tool, fasten it permanently to a mounting board that can easily be clamped to a workbench or other stable surface. The mounting board should be of sufficient size to avoid tipping while drill press is in use. Any good grade plywood or chipboard with a 3/4 in. thickness is recommended.
Mark holes on surface where drill press is to be mounted
using holes in drill press base as a template for hole pat­tern.
Drill holes through mounting surface.Place drill press on mounting surface, aligning holes in
the base with holes drilled in the mounting surface.
Insert bolts (not included) and tighten securely with lock
washers and hex nuts (not included).
If lag bolts are used, make sure they are long enough to
go through holes in drill press base and material the drill press is being mounted to. If machine bolts are used, make sure bolts are long enough to go through holes in drill press, the material being mounted to, and the lock washers and hex nuts.
NOTE: All bolts should be inserted from the top. Install
the lock washers and hex nuts from the underside of the workbench.
Once the drill press is securely mounted on a sturdy sur­face:
Check for vibration when the motor is switched ON.
Adju st and retighten t he mo unt ing hardware as
necessary.
Check the table assembly to assure smooth movement
up and down the column.
Check to assure that the spindle shaft moves smoothly.
ASSEMBLY
baTTEry comParTmEnT
coVEr
aa baTTEriEs
hEad assEmbLy
Fig. 13
mounTinG
boLTs
basE
Fig. 14
16
ASSEMBLY
CHECKING/ADJUSTING LASER ALIGNMENT
See Figure 15.
Check the laser alignment to ensure the intersection of the laser lines is precisely at the spot where the drill bit meets the workpiece. If it is not, the laser lines should be adjusted using the laser adjustment knobs located on opposite sides of the head assembly.
Mark an “X” on a piece of scrap wood.
Insert a small drill bit into the chuck and align its tip to
the intersection of the lines of the “X”.
Secure the board to the table.
Turn on the laser and verify the laser lines align with the
“X” on the workpiece.
If the laser lines do not align, loosen the set screws on
each of the laser housings with a hex key and rotate the laser adjustment knobs until the lines meet in the center of the “X”. Retighten the set screws to secure.
LasEr housinG
sET scrEw
LasEr
adjusTmEnT
knob
Fig. 15
17
OPERATION
WARNING:
Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is suf­ficient to inflict serious injury.
WARNING:
Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes re­sulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not recom­mended by the manufacturer of this tool. The use of at­tachments or accessories not recommended can result in serious personal injury.
APPLICATIONS
You may use this tool for the purposes listed below:
Drilling in wood
Drilling in ceramics, plastics, fiberglass, and laminates
Drilling in metals
WARNING:
Always remove the switch key when the tool is not in use and keep it in a safe place. In the event of a power failure, turn the switch OFF ( O ) and remove the key. This action will prevent the tool from accidentally starting when power returns.
WARNING:
Always make sure the workpiece is not in contact with the bit before operating the switch to start the tool. Fail­ure to heed this warning may cause the workpiece to be kicked back toward the operator and result in serious personal injury.
PowEr
on
PowEr
off
POWER SWITCH
See Figure 16.
The drill press is equipped with a power switch that has a built-in locking feature. This feature is intended to prevent unauthorized and possible hazardous use by children and others.
TO TURN THE DRILL PRESS ON:
With the switch key inserted into the switch, lift the switch
to turn ON ( l ).
TO TURN THE DRILL PRESS OFF:
With the switch key inserted into the switch, push the
switch down to turn OFF ( O ).
TO LOCK THE DRILL PRESS:
Place the switch in the OFF ( O ) position.
Remove the switch key from the switch and store in a
secure location.
swiTch
kEy
Fig. 16
18
OPERATION
SELF-EJECTING CHUCK KEY
See Figure 17.
The self-ejecting chuck key ensures the chuck key is removed from the chuck before the drill press is turned on.
In order to loosen or tighten the chuck using the chuck key, push the key into the key hole located on the chuck. Rotate the key clockwise to tighten the chuck or counterclockwise to loosen the chuck.
WARNING:
Use only the self-ejecting chuck key provided. Always remove chuck key. Failure to heed this warning could result in serious personal injury.
TABLE ROTATION
See Figure 18.
The table can be rotated out of the way when drilling large objects.
Loosen the table lock handle.
Rotate the table to the desired position.
Retighten the table lock handle
INSTALLING AND REMOVING BITS
See Figure 19.
 Unplug the drill press.
Open or close the chuck jaws to a point where the open-
ing is slightly larger than the bit size you intend to use.
Insert drill bit into the chuck the full length of the jaws.
WARNING:
Do not insert drill bit into chuck jaws and tighten as shown in figure 19. This could cause drill bit to be thrown from the drill press, resulting in possible serious personal injury or damage to the chuck.
chuck kEy
kEy hoLE
Fig. 17
TabLE
assEmbLy
TabLE
Lock
handLE
Fig. 18
Tighten chuck jaws securely using chuck key provided.
Do not use a wrench to tighten or loosen chuck jaws.
Remove chuck key.
To remove the drill bit, reverse the steps listed above.
wronG
Fig. 19
19
OPERATION
DRILLING
See Figure 20.
Using a clamping device, secure the workpiece to the
worktable. To protect the top surface of the workpiece, use a piece of scrap wood between the vise and the workpiece.
Select the proper drill bit based on the hole size desired.
For large holes, drill a pilot hole first, using a smaller diameter bit.
Select and set the recommended spindle speed. Refer
to Changing Speeds in the Adjustments section of this manual.
Set table assembly to desired height. Refer to Adjust-
ing Table Height in the Adjustments section of this
manual.
If desired, set feed shaft at desired spindle depth. Refer
to Adjusting Depth Gauge in the Adjustments section of this manual.
Make sure the work table is free of all loose objects and
the bit is not in contact with the workpiece.
Plug electrical cord into power supply and turn switch
ON. Make sure spindle rotates freely.
Slowly lower drill bit into workpiece. Do not force the bit;
let the drill press do the work.
Once the hole is completed, allow the spindle to return to
its normal position. This will automatically raise the chuck and bit.
cLamP
Fig. 20
DRILLING TIPS
If a large hole is needed, it’s a good idea to drill a smaller
pilot hole before drilling the final one. Your hole will be more accurately positioned, rounder, and the bits will last longer.
If the hole is deeper than it is wide, back off occasionally
to clear the chips.
When drilling metal, lubricate the bit with oil to improve
drilling action and increase bit life.
As you increase the drill size, you may need to reduce
the spindle speed.
If drilling a through hole, make sure that the bit will not
drill into the table after moving through the workpiece.
20
ADJUSTMENTS
WARNING:
Before performing any adjustment, make sure the tool is unplugged from the power supply. Failure to heed this warning could result in serious personal injury.
ADJUSTING TABLE HEIGHT
See Figure 21.
Hold the table with one hand and loosen the table lock
handle.
Rotate the table adjustment handle clockwise to raise
the table.
Rotate the table adjustment handle counterclockwise to
lower the table.
 Position the table to the desired height and retighten the
table lock handle.
TabLE Lock
handLE
bEVEL scaLE
TabLE adjusTmEnT
handLE
Fig. 21
ADJUSTING TABLE BEVEL
See Figures 22 - 23.
The drill press is equipped with a tilting table that allows you to drill angled holes. The table can be tilted left or right, from 0º to 45º.
To tilt the table:
Loosen the large hex bolt located underneath the
table.
Use the bevel scale to tilt the table to the desired
angle.
Retighten the hex bolt securely.
ADJUSTING DEPTH GAUGE
See Figure 23.
Adjust the depth gauge when you need to drill a number of holes to exactly the same depth.
Loosen the lock knob.
Rotate depth gauge to desired setting.
Retighten lock knob securely using the hex key, if
needed.
TabLE Lock
handLE
hEx boLT
Fig. 22
dEPTh GauGE
21
Lock knob
Fig. 23
ADJUSTMENTS
CHANGING SPEEDS
See Figure 24.
The spindle speed is determined by the location of the belt on the pulleys inside the head assembly. The speed chart located on the cover inside the head assembly shows the recommended speed and pulley configuration for each drill­ing operation.
To change the pulley configuration:
Lift head assembly cover from front to open.
Loosen the tension bolt.
Remove the drive belt.
Reposition the belt according to the speed chart.
Retighten the tension bolt.
sPindLE
PuLLEy
driVE
bELT
moTor PuLLEy
TEnsion
boLT
Fig. 24
22
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
WARNING:
Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask.
WARNING:
To prevent accidental starting that could cause possible serious personal injury, turn off the tool, remove the switch key, and unplug the drill press before performing any maintenance or adjustment.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
MOTOR/ELECTRICAL
The induction motor is easy to maintain but must be kept clean. Do not allow water, oil, or sawdust to accumulate on or in it. The sealed bearings are permanently lubricated and need no further attention.
HEAD ASSEMBLY AND MOTOR HOUSING
Frequently blow out any dust that may accumulate inside the head assembly and/or motor housing.
PULLEYS
See Figure 25.
Should you feel an unusually high level of vibration, the pul­leys may not be tightly secured on the motor and/or spindle shafts. To make sure the pulleys are properly seated and tight, locate the set screw on each of the pulleys. Tighten each set screw with the hex key.
PuLLEy
sET scrEws
WARNING:
Do not at any time let brake fluids, gasoline, petroleum­based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
After using the drill press, clean it completely and lubricate
all sliding and moving parts. Apply a light coat of automotive­type paste wax to the table and column to help keep the surfaces clean.
LUBRICATION
Lower spindle to maximum depth and oil moderately once
every three months.
Oil the column lightly every two months.
If cranking becomes difficult, grease gear rack lightly.
The ball bearings in the tool are permanently lubricated.
Fig. 25
GEAR RACK
Periodically lubricate the worm gear and gear rack in order to keep the vertical movement smooth and to help prolong the life of the drill press.
BATTERIES
Check the laser batteries regularly to avoid deterioration. Remove the batteries if you will not be using the laser for an extended time.
23
TROUBLESHOOTING
Problem Possible Cause Solution
Noisy operation Incorrect belt tension
Dry spindle
Loose spindle pulley or motor pulley
Bit burns or smokes Incorrect speed
Chips not coming out of hole
Dull bit
Feeding too slow
Not lubricated
Excessive drill runout or wobble Bent bit
Bit not properly installed in chuck
Chuck not properly installed
Worn spindle bearings
Drill bit binds in workpiece Excessive feed pressure
Improper belt tension
Adjust belt tension.
Lubricate spindle.
Tighten set screws in pulleys.
Change speed. See Changing Speeds in the Adjustments section of this manual.
Ret rac t bit frequentl y to clear chips.
Sharpen or replace bit.
Feed fast enough; allow drill to cut.
Lubricate bit for metal work.
Replace bit.
Install bit properly.
Install chuck properly.
Contact authorized service center.
Reduce feed pressure.
Adjust belt tension.
Workpiece support loosens Workpiece not supported or clamped
properly
Ch eck su pport and /or recl amp workpiece.
24
NOTES
25
OPERATOR’S MANUAL
10 in. DRILL PRESS
• SERVICE
Now that you have purchased your tool, should a need ever exist for repair parts or service, simply contact your nearest Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please call 1-800-525-2579 for your nearest Authorized Service Center. You can also check our web site at www.ryobitools.com for a complete list of Authorized Service Centers.
• MODEL NO. AND SERIAL NO.
The model number of this tool will be found on a plate attached to the motor housing. Please record the model number and serial number in the space provided below.
• HOW TO ORDER REPAIR PARTS
When ordering repair parts, always give the following information:
• MODEL NUMBER
• SERIAL NUMBER
Ryobi® is a registered trademark of Ryobi® Limited used under license.
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
DP102L
Tel.:1-800-525-2579
www.ryobitools.com
983000-641 9-15-08 (REV:07)
26
Loading...
