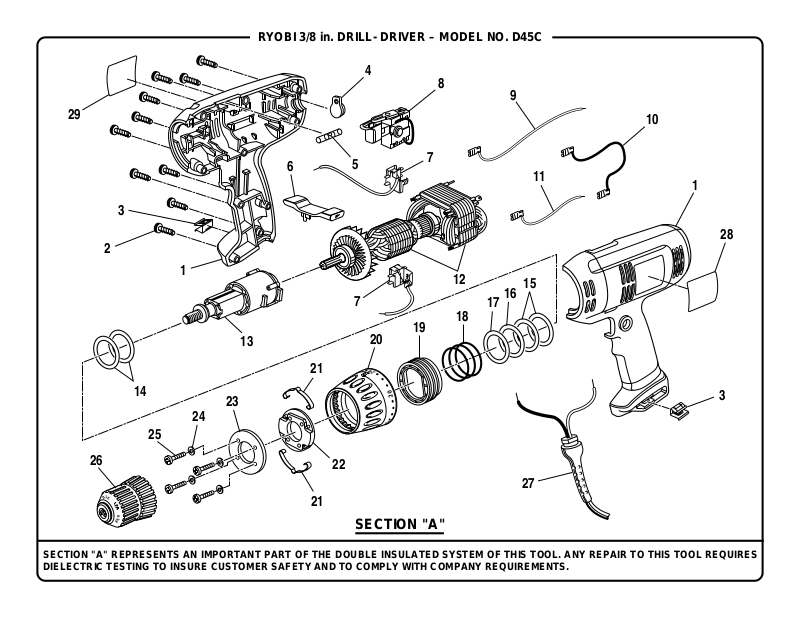

RYOBI 3/8 in. DRILL- DRIVER – MODEL NO. D45C
L
F
A
4
8
9
29
10
6
5
7
11
1
3
28
2
1
12
7
17
15
16
18
19
13
21
14
23
24
20
24
20
5
3
25
26
22
27
1
0
-
0
0
-
3
/
8
21
SECTION "A"
SECTION "A" REPRESENTS AN IMPORTANT PART OF THE DOUBLE INSULATED SYSTEM OF THIS TOOL. ANY REPAIR TO THIS TOOL REQUIRES
DIELECTRIC TESTING TO INSURE CUSTOMER SAFETY AND TO COMPLY WITH COMPANY REQUIREMENTS.
RYOBI 3/8 in. DRILL- DRIVER – MODEL NO. D45C
The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your
DRILL-DRIVER or when ordering repair parts.
PARTS LIST
Key Part
No. Number Description Quan.
1 982839-001 HOUSING ASSEMBLY ..................................................................................... 1
2 981901-001 * SCREW (M4 X 16 mm) ................................................................................... 10
3 6320601 BIT CLIP............................................................................................................ 2
4 3048001 REAR BUBBLE LEVEL..................................................................................... 1
5 3000901 TOP LEVEL....................................................................................................... 1
6 5422901 FORWARD-REVERSE SELECTOR................................................................. 1
7 2906903 BRUSH ASSEMBLY ......................................................................................... 1
8 7619701 SWITCH ............................................................................................................ 1
9 2908511 WHITE LEAD (100 mm).................................................................................... 1
10 2908505 BLACK LEAD (100 mm).................................................................................... 1
11 2908510 WHITE LEAD (250 mm).................................................................................... 1
12 2909424 MOTOR ASSEMBLY (INCLUDES ARMATURE AND FIELD).......................... 1
13 2200913 GEAR BOX ASSEMBLY ................................................................................... 1
14 6759003 WASHER (0.50 mm) ......................................................................................... 2
15 6897002 WASHER (0.20 mm) ......................................................................................... 2
16 6897005 WASHER (0.10 mm) ......................................................................................... 1
17 6897003 WASHER (0.15 mm) ......................................................................................... 1
18 6843401 SPRING ............................................................................................................ 1
19 5437201 SLEEVE ............................................................................................................ 1
20 5474801 CLUTCH CAP ................................................................................................... 1
21 6399201 SPRING PLATE ................................................................................................ 2
22 5434601 SPRING HOLDER ............................................................................................ 1
23 6359801 MOUNTING PLATE .......................................................................................... 1
24 6702801 * LOCK WASHER (M3) ....................................................................................... 4
25 6621120 * SCREW (M3 X 15 mm) ..................................................................................... 4
26 7320201 POWER CORD ................................................................................................. 1
27 982674-001 3/8 in. KEYLESS CHUCK ................................................................................. 1
28 982673-001 LOGO PLATE ................................................................................................... 1
29 982672-001 DATA PLATE .................................................................................................... 1
972000-875R OWNER'S MANUAL
10-01
* Standard Hardware Item — May Be Purchased Locally
