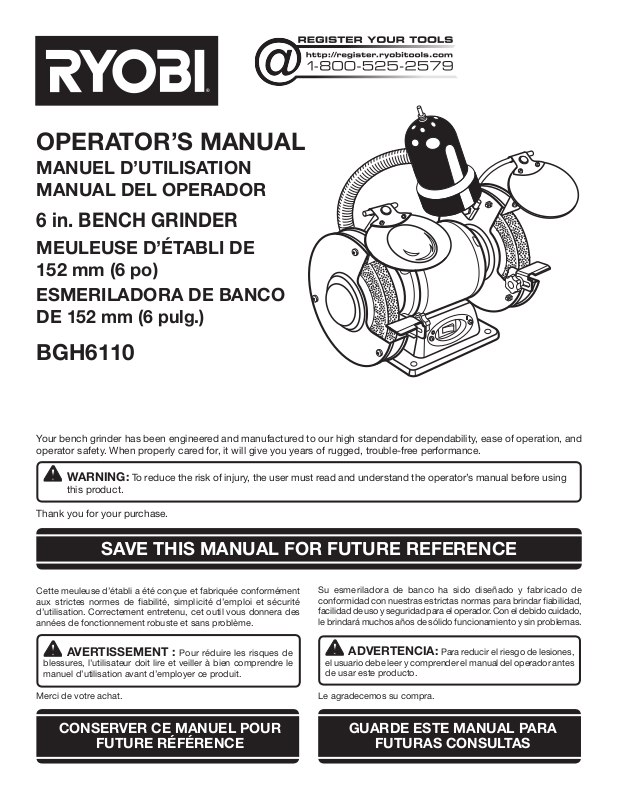

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
6 in. BENCH GRINDER
MEULEUSE D’ÉTABLI DE
152 mm (6 po)
ESMERILADORA DE BANCO
152 mm (6 pulg.)
DE
O
I
BGH6110
Your bench grinder has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using
this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Cette meuleuse d’établi a été conçue et fabriquée conformément
aux strictes normes de fiabilité, simplicité d’emploi et sécurité
d’utilisation. Correctement entretenu, cet outil vous donnera des
années de fonctionnement robuste et sans problème.
Su esmeriladora de banco ha sido diseñado y fabricado de
conformidad con nuestras estrictas normas para brindar fiabilidad,
facilidad de uso y seguridad para el operador. Con el debido cuidado,
le brindará muchos años de sólido funcionamiento y sin problemas.
AVERTISSEMENT : Pour réduire les risques de
blessures, l’utilisateur doit lire et veiller à bien comprendre le
manuel d’utilisation avant d’employer ce produit.
Merci de votre achat.
CONSERVER CE MANUEL POUR
FUTURE RÉFÉRENCE
ADVERTENCIA: Para reducir el riesgo de lesiones,
el usuario debe leer y comprender el manual del operador antes
de usar este producto.
Le agradecemos su compra.
GUARDE ESTE MANUAL PARA
FUTURAS CONSULTAS
TABLE OF CONTENTS
Introduction ..................................................................................................................................................................... 2
Warranty .......................................................................................................................................................................... 2
General Safety Rules .................................................................................................................................................... 3-4
Specific Safety Rules .................................................................................................................................................... 4-5

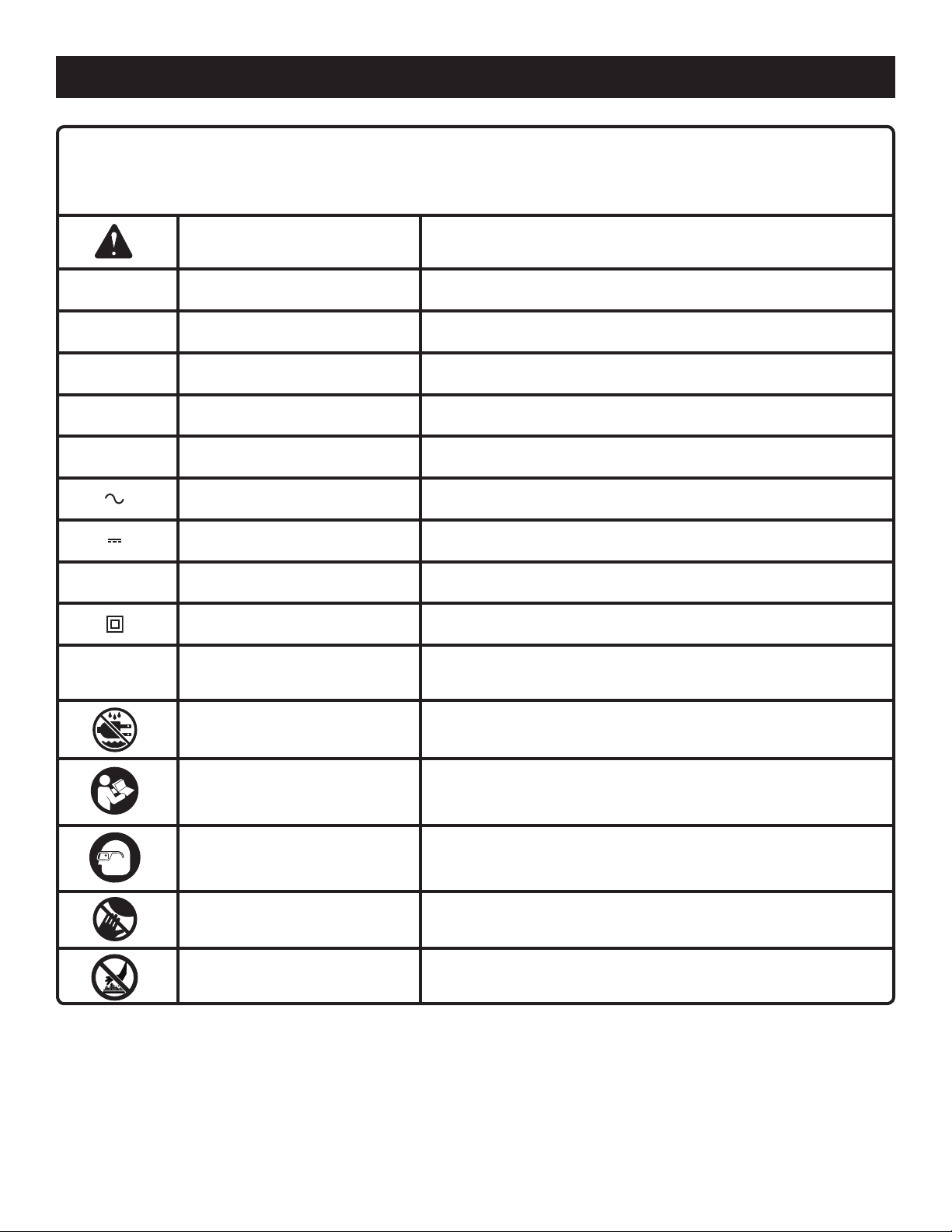

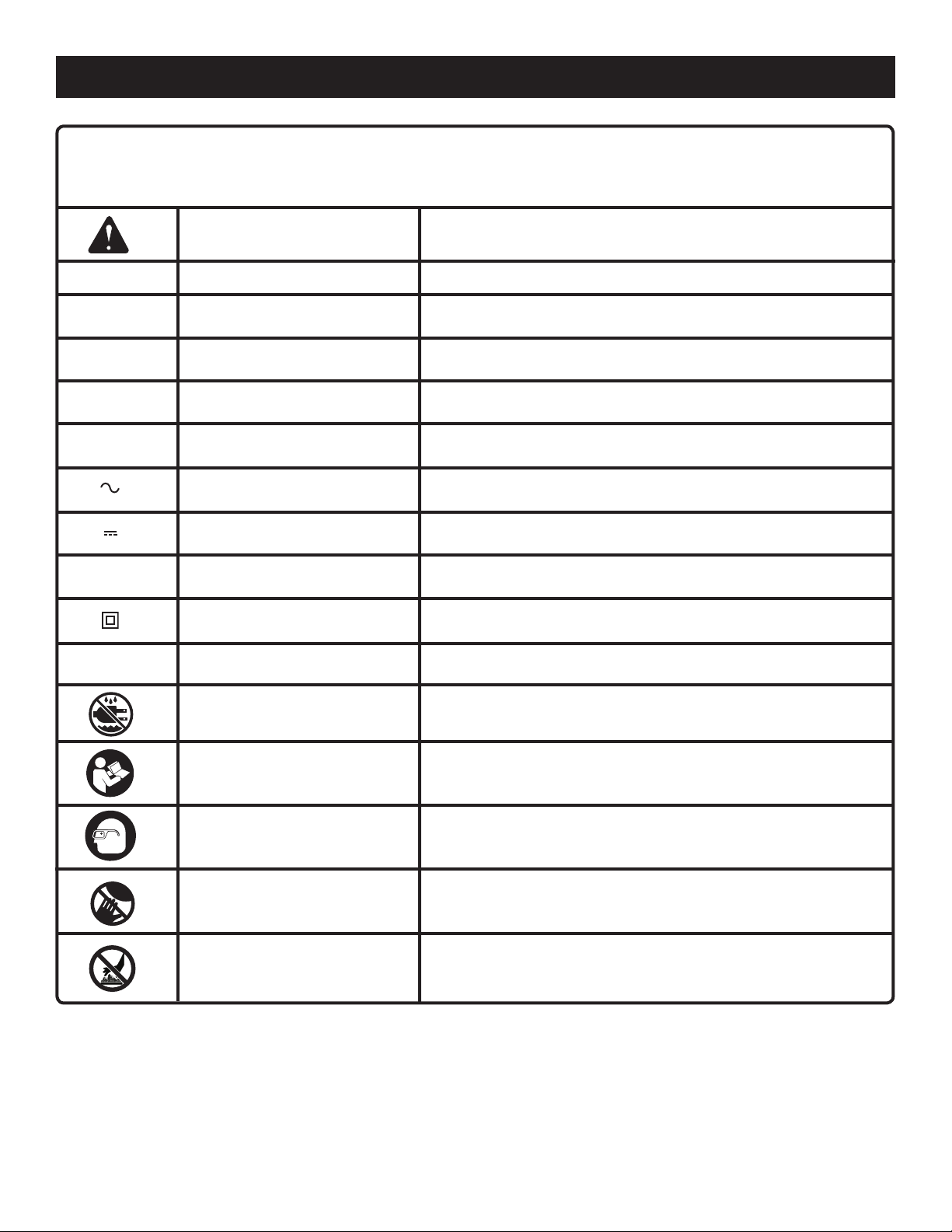

Symbols ........................................................................................................................................................................6-7
Electrical .......................................................................................................................................................................... 8
Features ........................................................................................................................................................................... 9
Assembly ....................................................................................................................................................................... 10
Operation ....................................................................................................................................................................... 11
Maintenance .................................................................................................................................................................. 12
Figure numbers (illustrations) ................................................................................................................................... 13-16
Parts Ordering / Service ................................................................................................................................... Back page
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
IMPORTANT INFORMATION ON THE USE OF GRINDING WHEELS AND ANSI B7.1 can be obtained by writing to:
UNIFIED ABRASIVES MANUFACTURERS’ ASSOCIATION, 30200 Detroit Road, Cleveland, OH 44145-1967
WARRANTY
RYOBI® POWER TOOL - LIMITED THREE YEAR WARRANTY AND 90 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI® power tools with the following conditions:
90-DAY EXCHANGE POLICY: During the first 90 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI® power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool or
requested warranty service, you must present proof of purchase and return all original equipment packaged with the original
product. The replacement power tool will be covered by the limited warranty for the balance of the two year period from
the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI® power
tool for a period of three years from the date of purchase. With the exception of batteries, power tool accessories are warranted for ninety (90) days. Batteries are warranted for three years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service
Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One
World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to
www.ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools other
than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to three years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
2
GENERAL SAFETY RULES
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock,
fire and/or serious personal injury.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read the operator’s
manual carefully. Learn the grinder’s applications and
limitations as well as the specific potential hazards related
to this tool.
GUARD AGAINST ELECTRICAL SHOCK BY PREVENT-
ING BODY CONTACT WITH GROUNDED SURFACES.
For example, pipes, radiators, ranges, refrigerator, enclosures.
KEEP GUARDS IN PLACE and in good working order.
REMOVE ADJUSTING KEYS AND WRENCHES. Form
the habit of checking to see that keys and adjusting
wrenches are removed from tool before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents. DO NOT leave tools or pieces of wood
on the bench grinder while it is in operation.
DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools in damp or wet locations or expose
to rain. Keep the work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All visi-
tors should wear safety glasses and be kept a safe
distance from work area. Do not let visitors contact
tool or extension cord while operating.
MAKE WORKSHOP CHILDPROOF with padlocks and
master switches, or by removing starter keys.
DON’T FORCE TOOL. It will do the job better and safer
at the feed rate for which it was designed.
USE RIGHT TOOL. Don't force the tool or attachment to
do a job it was not designed for. Don't use it for a purpose
not intended.
USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. Use only a
cord heavy enough to carry the current your product will
draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. A wire
gauge size (A.W.G.) of at least 16 is recommended for an
extension cord 25 feet or less in length. If in doubt, use
the next heavier gauge. The smaller the gauge number,
the heavier the cord.
DRESS PROPERLY. Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear
are recommended when working outdoors. Also wear
protective hair covering to contain long hair.
ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impactresistant lenses, they are NOT safety glasses.
SECURE WORK. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and frees both
hands to operate tool.
DON’T OVERREACH. Keep proper footing and
balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for better and safer performance. Follow instructions for lubricating and changing accessories.
DISCONNECT TOOLS. When not in use, before
servicing, or when changing attachments, blades, bits,
cutters, etc., all tools should be disconnected.
AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in any tool.
USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The
use of improper accessories may risk injury.
NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped or if the cutting tool is unintentionally
contacted.
CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF.
PROTECT YOUR LUNGS. Wear a face or dust mask if
the grinding operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
DO NOT ABUSE CORD. Never yank cord to disconnect
from receptacle. Keep cord away from heat, oil, and sharp
edges.
USE OUTDOOR EXTENSION CORDS. When tool
is used outdoors, use only extension cords with
approved ground connection that are intended for use
outdoors and so marked.
WHEELS COASTS AFTER BEING TURNED OFF.
NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorized service center.
3 — English
GENERAL SAFETY RULES
INSPECT TOOL CORDS PERIODICALLY. If
damaged, have repaired by a qualified service technician
at an authorized service facility. The conductor with insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor
to a live terminal. Repair or replace a damaged or worn
cord immediately. Stay constantly aware of cord location
and keep it well away from the rotating grinding wheels.
INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
USE ONLY CORRECT WHEELS. DO NOT use wheels
with incorrect size holes. Never use wheel washers or wheel bolts that are defective or incorrect. The
maximum wheel capacity of your grinder is 6 in.
SPECIFIC SAFETY RULES
NEVER TOUCH WHEEL or other moving parts during
use.
NEVER START A TOOL WHEN ANY ROTATING COM-
PONENT IS IN CONTACT WITH THE WORKPIECE.
DO NOT OPERATE A TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
USE ONLY RECOMMENDED ACCESSORIES listed
in this manual or addendums. Use of accessories that
are not listed may cause the risk of personal injury.
Instructions for safe use of accessories are included
with the accessory.
DOUBLE CHECK ALL SETUPS. Make sure blade is
tight and not making contact with saw or workpiece
before connecting to power supply.
FIRMLY BOLT THE GRINDER TO A WORK BENCH OR
LEG STAND at approximately hip height.
NEVER reach to pick up a workpiece, a piece of scrap,
or anything else that is in or near the grinding path of the
wheel.
AVOID AWKWARD OPERATIONS AND HAND POSI-
TIONS where a sudden slip could cause your hand to
move into the wheel. ALWAYS make sure you have good
balance.
NEVER stand or have any part of your body in line with
the path of the wheel.
DO NOT TURN THE MOTOR SWITCH ON AND OFF
RAPIDLY. This could cause the wheel to loosen and could
create a hazard. Should this ever occur, stand clear and
allow the wheel to come to a complete stop. Disconnect
your grinder from the power supply and securely retighten
the wheel nut.
USE ONLY FLANGES furnished with this bench grinder.
IF ANY PART OF THIS GRINDER IS MISSING or should
break, bend, or fail in any way, or should any electrical
component fail to perform properly, shut off the power
switch, remove the machine plug from the power source
and have damaged, missing, or failed parts replaced
before resuming operation.
DO NOT OVERTIGHTEN THE WHEEL NUT. Excessive
tightening can cause the wheel to crack during operation.
ALWAYS USE THE GRINDER'S WHEEL GUARDS AND
SAFETY SHIELDS.
INSPECT GRINDING WHEEL for visible defects. Check
the wheel for fissures and cracks, and test for normal operation prior to use. Replace cracked wheel immediately.
ADJUST distance between wheel and work rest to main-
tain 1/16 in. or less separation as the diameter of the
wheel decreases with use. The value of separation used
in the marking is to be the separation recommended by
the manufacturer but shall not be more than 1/8 in.
ALWAYS EASE THE WORKPIECE AGAINST THE
ABRASIVE WHEEL when starting to grind. A harsh
impact can break the wheel. Use light pressure when
starting to grind; too much pressure on a cold wheel
can cause the wheel to crack.
RISK OF INJURY DUE TO ACCIDENTAL STARTING.
Do not use in an area where children may be present.
NEVER START THE GRINDER when the wheel is in
contact with the workpiece.
SECURE WORK. Always hold workpiece firmly against
the work rest.
DO NOT USE THE BENCH GRINDER if the flange nut
or clamp nut is missing or if the spindle shaft is bent.
FREQUENTLY clean grinding dust from beneath grinder.
4 — English
SPECIFIC SAFETY RULES
SECURE LONG HAIR so it is above shoulder level to
prevent entanglement in any rotating parts.
STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do NOT operate
tool when you are tired. Do NOT rush.
DO NOT TOUCH the cut material until it cools or you can
be burned.
IF THE POWER SUPPLY CORD IS DAMAGED, it must
be replaced only by the manufacturer or by an authorized
service center to avoid risk.
SAVE THESE INSTRUCTIONS. Refer to them
frequently and use to instruct other users. If you loan
someone this tool, loan them these instructions also.
WARNING:
This product and some dust created by power sanding, sawing, grinding, drilling, and other construction activities may
contain chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling.
Some examples of these chemicals are:
-lead from lead-based paints,
-crystalline silica from bricks and cement and other masonry products and,
-arsenic and chromium from chemically treated lumber.
Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your
exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially
designed to filter out microscopic particles.
5 — English
SYMBOLS
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert
V Volts
A Amperes
Hz Hertz
W Watt
min Minutes
Alternating Current
Direct Current
n
o
.../min
No Load Speed
Class II Construction
Per Minute
Precautions that involve your safety.
Voltage
Current
Frequency (cycles per second)
Power
Time
Type of current
Type or a characteristic of current
Rotational speed, at no load
Double-insulated construction
Revolutions, strokes, surface speed, orbits etc., per minute
Wet Conditions Alert
Read Operator’s Manual
Eye Protection
No Hands Symbol
Hot Surface
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Always wear eye protection with side shields marked to comply
with ANSI Z87.1.
Failure to keep your hands away from the blade will result in
serious personal injury.
To reduce the risk of injury or damage, avoid contact with any
hot surface.
6 — English
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER:
WARNING:
CAUTION:
CAUTION:
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. For
service we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use this
product until you read thoroughly and understand completely the operator’s manual. If you do not understand
the warnings and instructions in the operator’s manual,
do not use this product. Call Ryobi customer service for
assistance.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety
glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask
for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
7 — English
ELECTRICAL
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong grounding
plugs and 3-pole receptacles that accept the product’s plug.
When using a power tool at a considerable distance from
the power source, use an extension cord heavy enough to
carry the current that the product will draw. An undersized
extension cord will cause a drop in line voltage, resulting in
a loss of power and causing the motor to overheat. Use the
chart provided below to determine the minimum wire size
required in an extension cord. Only round jacketed cords
listed by Underwriter’s Laboratories (UL) should be used.
**Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
100' 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the product outdoors, use an extension
cord that is designed for outside use. This is indicated by the
letters “W-A” or “W” on the cord’s jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on lumber,
tools, or other obstructions while you are working with a
power tool. Failure to do so can result in serious personal
injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use the product with a
damaged cord since touching the damaged area could
cause electrical shock resulting in serious injury.
ELECTRICAL CONNECTION
This product is powered by a precision-built electric motor. It
should be connected to a power supply that is 120 V, AC only
(normal household current), 60 Hz. Do not operate this
product on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If
the product does not operate when plugged into an outlet,
double check the power supply.
SPEED AND WIRING
The no-load speed of this product is approximately 3,600
rpm. This speed is not constant and decreases under a
load or with lower voltage. For voltage, the wiring in a
shop is as important as the motor’s horsepower rating. A
line intended only for lights cannot properly carry a power
tool motor. Wire that is heavy enough for a short distance
will be too light for a greater distance. A line that can
support one power tool may not be able to support two
or three products.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of a malfunction
or breakdown, grounding provides a path of least resistance
for electric current to reduce the risk of electric shock.
This product is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into a matching outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
WARNING:
Improper connection of the grounding plug can result in a
risk of electric shock. When repair or replacement of the
cord is required, do not connect the grounding wire to
either flat blade terminal. The wire with insulation having
an outer surface that is green with or without yellow
stripes is the grounding wire.
Check with a qualified electrician or service personnel if
the grounding instructions are not completely understood,
or if in doubt as to whether the product is properly grounded.
Repair or replace a damaged or worn cord immediately.

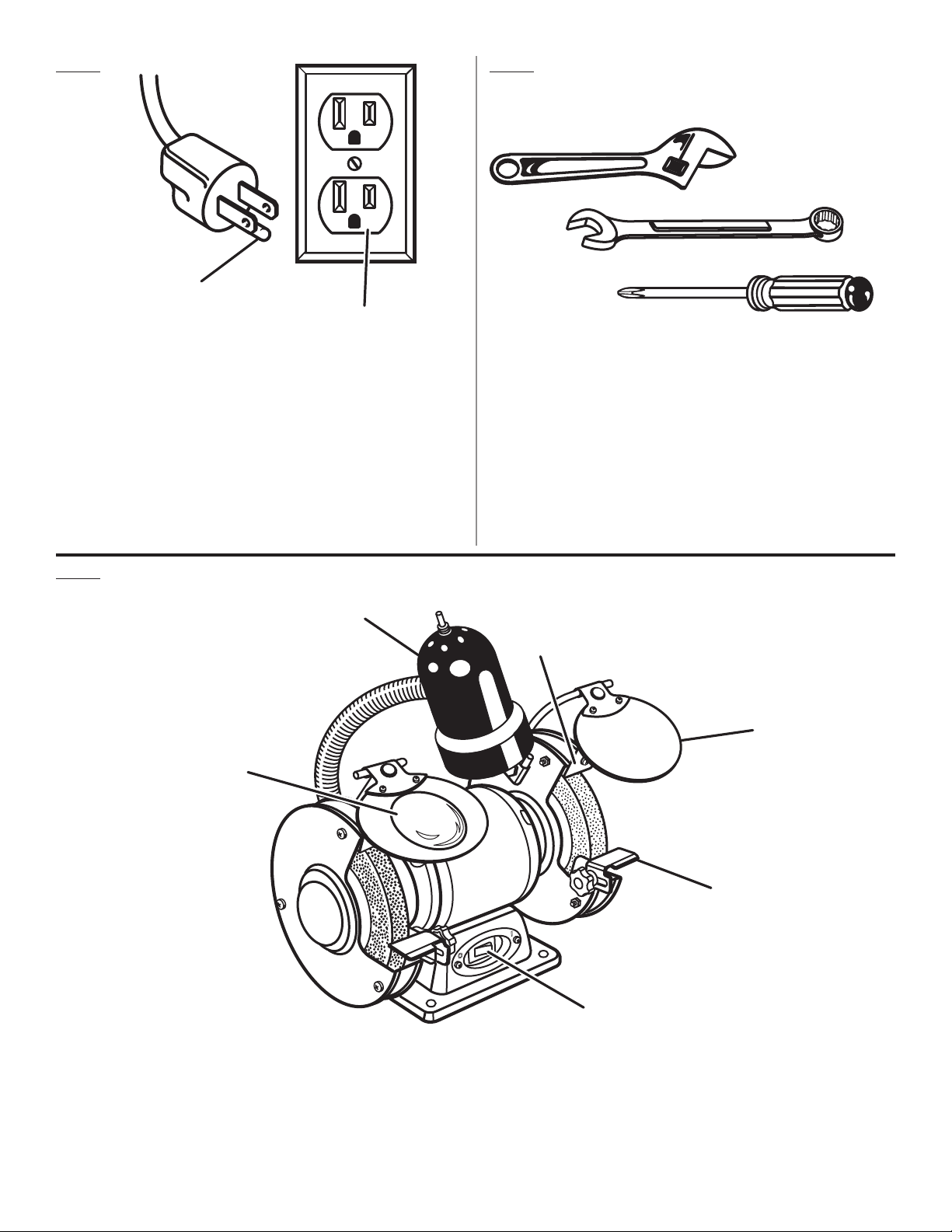

This product is for use on a nominal 120 V circuit and has
a grounding plug similar to the plug illustrated in figure 1,
page 13. Only connect the product to an outlet having the
same configuration as the plug. Do not use an adapter with
this product.
8 — English
FEATURES
PRODUCT SPECIFICATIONS
Wheel Diameter ............................................................ 6 in.
Wheel Thickness
Arbor Hole
.......................................................3/4 in.
.................................................................1/2 in.
No Load Speed .....................................3,600 r/min. (RPM)
Input
...................................................120 V~, 2.1 A, 60 Hz
KNOW YOUR BENCH GRINDER
See Figure 2, page 13.
The safe use of this product requires an understanding of
the information on the tool and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
GRINDING WHEELS
Equipped with course and fine grinding wheels to suit most
applications.
ON/OFF SWITCH
The bench grinder features a front access on/off switch for
convenience and safety.
SAFETY SHIELD AND SPARK DEFLECTOR
The safety shields and spark deflectors are provided to
ensure your safety.
WORKLIGHT
This tool comes equipped with a worklight that lights the
work area.
WORK REST
Provides a stable work surface when performing most
grinding tasks.
9 — English
ASSEMBLY
UNPACKING
This product requires assembly.
Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the Loose Parts
are included.
WARNING:
Do not use this product if any parts on the Loose Parts
List are already assembled to your product when you
unpack it. Parts on this list are not assembled to the
product by the manufacturer and require customer installation. Use of a product that may have been improperly
assembled could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
WARNING:
If any parts are damaged or missing do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.

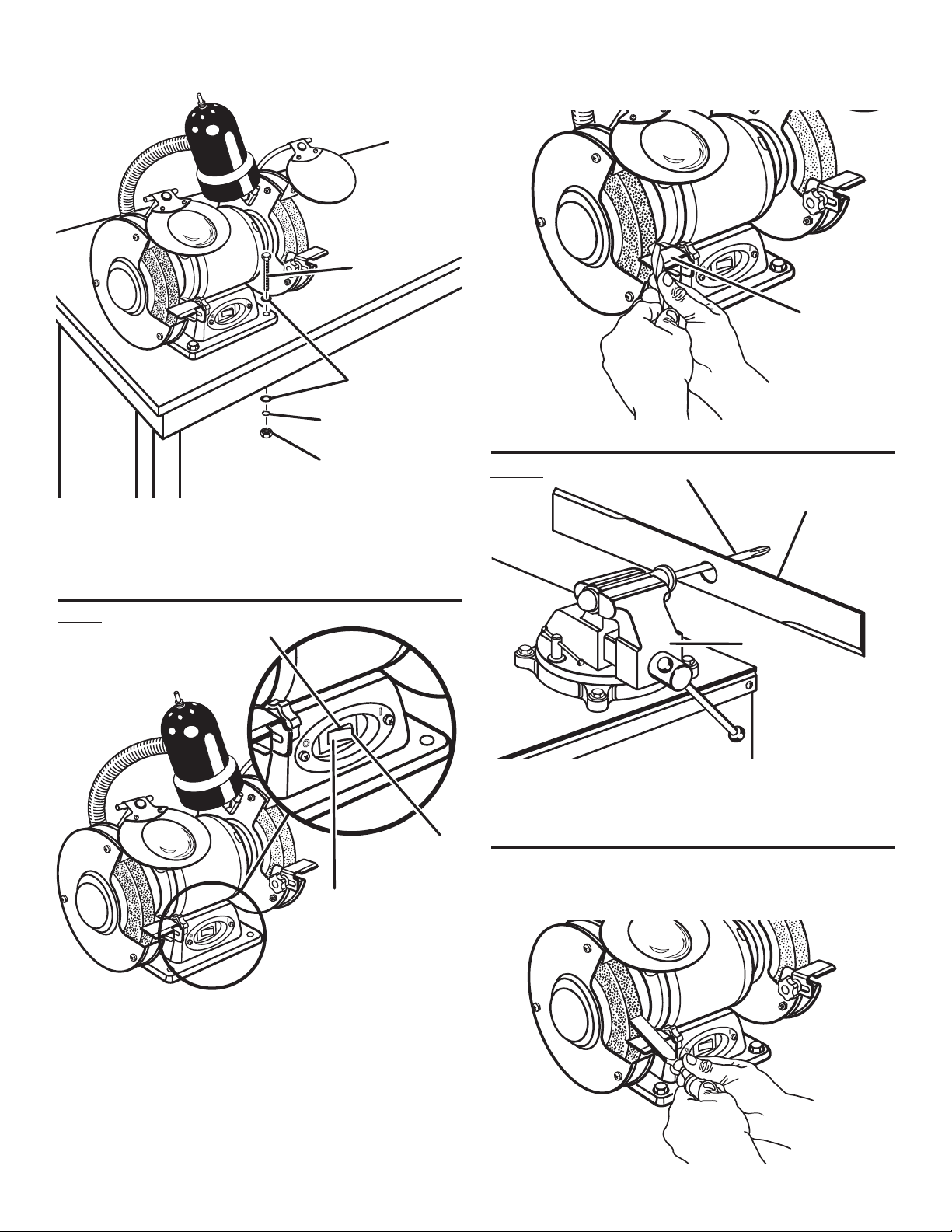

MOUNTING GRINDER TO WORKBENCH
See Figure 5, page 14.
The bench grinder must be mounted to a firm supporting
surface such as a workbench or leg stand. Four bolt holes
have been provided in the tool’s base for this purpose. Each
of the four mounting holes should be bolted securely using
machine bolts, lock washers, and hex nuts (not included).
Bolts should be of sufficient length to accommodate the
saw base, lock washers, hex nuts, and the thickness of the
workbench. Tighten all four bolts securely.
Carefully check the workbench after mounting to make sure
that no movement can occur during use. If any tipping, sliding, or walking is noted, secure the workbench to the floor
before operating.

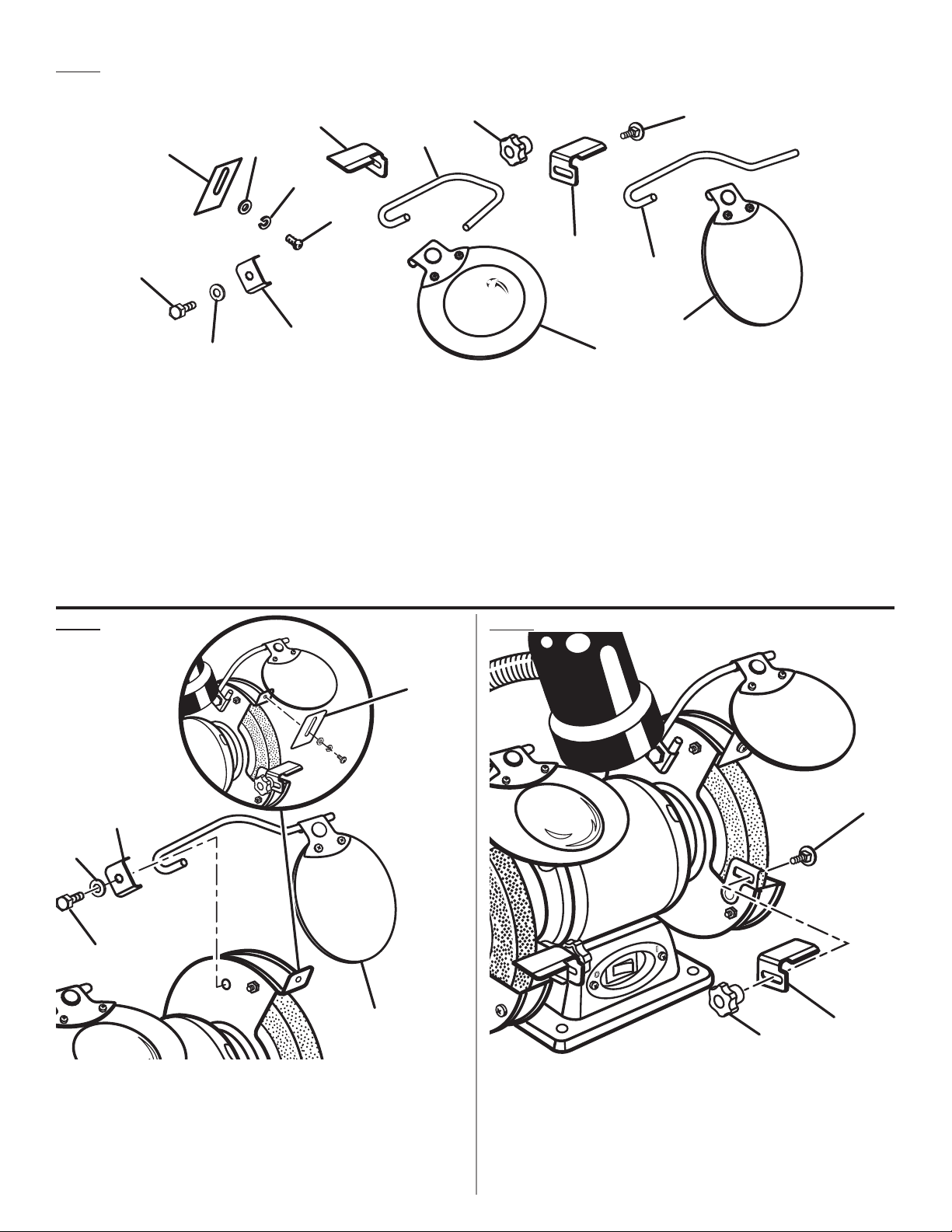

MOUNTING SAFETY SHIELD ASSEMBLY
See Figure 6, page 14.
Attach the safety shield assembly and bracket to the wheel
guard using a clamp bracket, washer, and hex head bolt.
Tighten bolt securely.
Repeat above steps for the other side.
MOUNTING SPARK DEFLECTOR
See Figure 6, page 14.
Using the two phillips head screws, washers, and lock
washers, attach the spark deflector to the top of the wheel
guard.
Adjust the spark deflectors to within 1/16 in. (1.6 mm) of
the grinding wheel. Tighten screws securely.
WARNING:
Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING:
Always spin the wheel by hand before turning on the
grinder to make sure the spark deflector doesn’t hit the
grinding wheel.
MOUNTING WORK REST
See Figure 7, page 15.
Unscrew and remove the carriage bolt from the work rest
knob.
Attach the work rest to the inside of the wheel guard as
shown.
NOTE: As the diameter of the wheel decreases with use,
adjust the distance between the wheel and the work rest
to maintain 1/16 in. or less separation.
Tighten knob securely.
10 — English
OPERATION
WARNING:
Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is
sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes, resulting in possible
serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.
CAUTION:
Excessive pressure on a cold wheel may cause the wheel
to crack.
The proper way to sharpen a tool and avoid overheating is:
Keep the object in constant motion, moving it at an even
pace.
Never force a tool against the grinding wheel.
Keep the tool cool by using a pan of water.
The grinding wheel should rotate “into” the object being
sharpened.
NOTE: Excessive pressure may damage the tool, cause the
motor to overheat, and prematurely wear down the grinding
wheel.
ON/OFF SWITCH
See Figure 8, page 15.
The Bench Grinder features a front access On/Off switch for
convenience and safety.
SHARPENING TWIST DRILL BITS
See Figure 9, page 15.
Drill bits are best sharpened on a sharpening jig (available at
most hardware stores). Begin on one side of the point at the
existing angle, then twist the bit while maintaining contact
with the grinding surface. Sharpen only the tip.
This technique requires considerable practice, so take your
time and make a few “dry runs” first with the grinder off. Be
sure to maintain the original cutting edge angle as this is
important to the efficiency of your bits.
CAUTION:
Never sharpen or grind anything made of aluminum,
brass, or copper.
WARNING:
Do not use wheels rated less than the speed of this tool.
Failure to heed this warning could result in personal injury.
APPLICATIONS
This product has been designed only for the purposes listed
below:
Sharpening drill bits
Sharpening lawn mower blades
Sharpening chisels and flat screwdrivers
BASIC OPERATION
To be efficient and work as designed, your tools should be
kept sharp. Dull tools can and will cause accidents.
Bench Grinders are ideal for sharpening tools such as chisels, planer blades, scissors, etc., and for removing rust or
corrosion. Grinders remove material rapidly so pressure is
the key to efficient grinding.
SHARPENING LAWN MOWER BLADES
See Figure 10, page 15.
Lawn mower blades are usually sharpened on only one edge
and dressed up slightly on the other. Perform this sharpening
process on both cutting ends of the blade. After sharpening,
be sure to balance the blade by removing additional material.
CAUTION:
An unbalanced lawn mower blade may cause excessive
vibration which will damage the lawn mower.
SHARPENING CHISELS AND SCREWDRIVER
BLADES
See Figure 11, page 15.
When sharpening chisels and screwdrivers, work rest should
support the chisel at the correct angle against the wheel.
11 — English
MAINTENANCE
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other parts may create a hazard or
cause product damage.
WARNING:
Always wear eye protection with side shields marked to
comply with ANSI Z87.1. Failure to do so could result in
objects being thrown into your eyes resulting in possible
serious injury.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake fluids, gasoline, petroleumbased products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal injury.

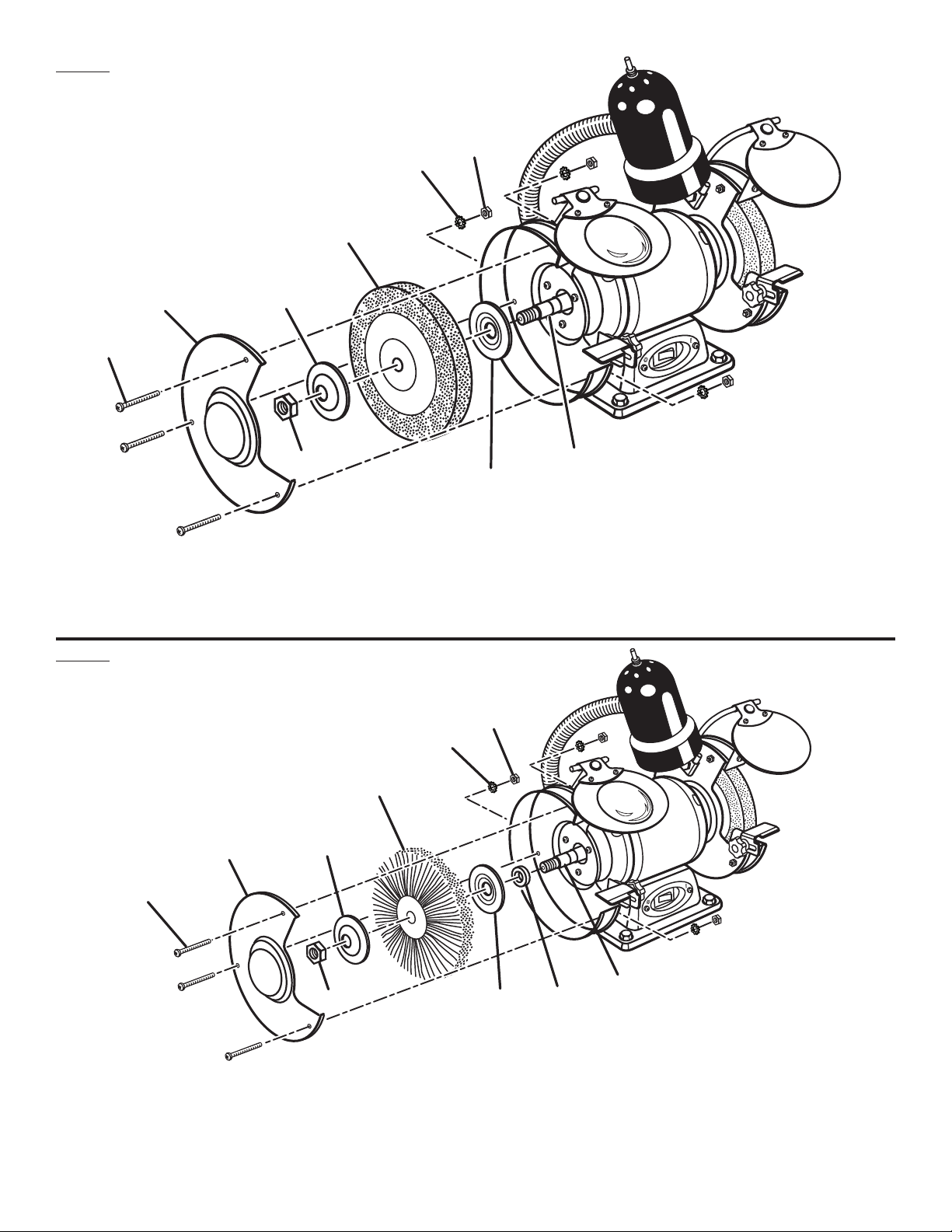

WHEEL REPLACEMENT
See Figure 12, page 16.
If you must replace a grinding wheel, be sure to obtain one
with a safe rated speed at least as high as the “no load
speed” RPM marked on the data plate of the grinder and
which is marked to comply with ANSI B7.1.
To replace the grinding wheel.
Unplug the grinder.
Remove the wheel cover by loosening the screws.
Loosen the wheel nut in a clockwise direction for the left
side and a counterclockwise direction for the right side.
Remove the outer flange and grinding wheel.
To install a new grinding wheel, reverse the above pro-
cedure.
NOTE: Be sure the grinding wheel and outer flange are
properly seated on the spindle shaft.
WIRE WHEEL REPLACEMENT (NOT INCLUDED)
See Figure 13, page 16.
When replacing the grinding wheel with a wire wheel, it is
necessary to place a spacer on the spindle shaft BEFORE
installing the inner flange, wheel, outer flange, and wheel nut.
LUBRICATION
All of the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit under
normal operating conditions. Therefore, no further lubrication is required.
NOTE: FIGURES (ILLUSTRATIONS) START ON PAGE 13 AFTER
FRENCH AND SPANISH LANGUAGE SECTIONS.
12 — English
Loading...
