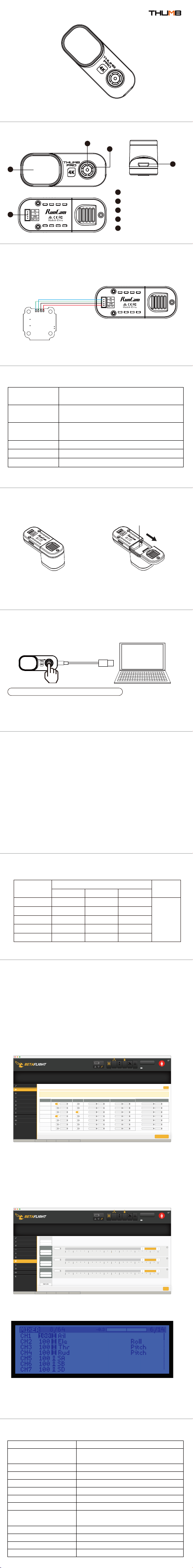

RunCam Thumb Pro Camera manual

Please read this manual carefully before use and keep it in a safe place

Function indication

Detachable lens protection cover

Button （power/shutter button）

Indicator light(Red/Green)

MicroUSB

1.25mm 4P

Power supply connection and ight controller connection

GRX

ight control

Please avoid long video recording in the case of high temperature and no ventilation.

Overheating will aect the peormance of the device and cause the product to operate abnormally.

Camera basic operations

Power on/o

Sta/Stop recording

Mode switch

Parameter settings mode

Remote control mode

Automatically turn on when powered on, the red light is always on Cut the power or long press the button to power o

Click the shutter button to sta recording, the red light ashes slowly / Click the shutter button again to stop recording, the red light is always on

Double-click the shutter button quickly to switch between the

recording mode (the red light is always on) and the parameter settings mode (the green light is always on)

Scan the QR code in the Runcam APP to congure

Thumb Pro Connect ThumbPro to ight controller for operations

SD card error Red light keeps ashing fast

Attention: SD card error includes card full, slow card speed, card damage and etc.

Micro SD Card

U3 card is recommended (4K@30FPS/2.7K@60FPS/1080P@120FPS requires U3 or above)

Suppos up to 256G microSD card

Step 1 Step 2

Note: Be careful when handling the microSD card, please avoid contact with liquids, dust and debris. As a precaution, turn o the camera before inseing or removing a microSD card. Please refer to the microSD card manufacturer's instructions for use within an acceptable temperature range.

MicroSD Card

Computer Connection

Connect the computer via Micro USB, it will be recognized as a U disk.

Sho press the shutter button to switch to PCCAM

(1) f it cannot be recognized after connecting to the computer, please conrm that there is a microSD card inseed; if the microSD card cannot be read normally, please t to replace the USB cable or the computer USB inteace.

(2) While connecting to a computer, please ensure that it‘s only powered via USB, otherwise it will damage the computer's USB po or the camera.

Firmware Update

To ensure optimal peormance of the camera, please use the latest rmware version.

Check the link below to update for reference: https://www.runcam.com/download/ThumbPro

Firmware upgrade status (Red and green lights ashing fast; when the upgrade is

completed, the camera automatically shuts down.)

Android and IOS APP

Search“RunCam”on Google play and Apple Store,

or download on our website http://www.runcam.com/download

Technical Suppo

Please visit: https://suppo.runcam.com

Video Bitrate and Codec

Resolution

4K@30fps

1440P@60fps

1080P@120fps

Video Quality

High Medium Low

60Mbps 50Mbps 40Mbps

60Mbps 50Mbps 40Mbps2.7K@60fps

40Mbps 30Mbps 20Mbps

60Mbps 50Mbps 40Mbps

45Mbps 30Mbps 22Mbps1080P@60fps

Codec

H.264

Flight Controller UART Control

Preparation

· Firmware: BetaFlight Firmware (≥3.2.0),CleanFlight Firmware(≥2.1.0) ,

KISS Firmware (≥1.3-RC30) or INAV Firmware (≥1.7.3).

· Any available UART interface on the Flight Controller

1. Connect the Runcam Thumb PRO with the UART interface of the Flight Controller

2. Make the Flight Controller recognize the Runcam Thumb PRO

For example, we connect the Runcam Thumb PRO to the UART 5 interface on the Flight Controller: connect the Flight Controller to the computer, then open the congurator software of the Flight Controller. (Open up the congurator that matches the rmware you are running, Betaight Congurator for Betaight, Cleanight Congurator for Cleanight). In the Peripherals column of the line UART 5 (on the Ports tab), select Camera (RunCam Protocol) and click Save And Reboot.

Configurator: 10.0.0 Firmware: BTFL 3.2.3 (Target: OB72)

2019-09-16 @ 11:22:53 -- Running firmware released on: Sep 3 2019 12:26:08

2019-09-16 @ 11:22:53 -- Board: SPEEDYBEEF7, version: 0

2019-09-16 @ 11:22:53 -- Unique device ID: 0x4700233237511631313935

2019-09-16 @ 11:22:53 -- Craft name:

2019-09-16 @ 11:22:53 -- Arming Disabled

Setup

Ports

Note: not all combinations are valid. When the flight controller firmware detects this the serial port configurator will be reset.

Configuration

Note: Do NOT disable Msp on the first serial port unless you know what you are doing. You may have to reflash and erase your configuration if you do.

Power & Battery

Identifier Configuration/MSP Serial Rx Telemetry Output Sensor Input Peripherals

PID Tuning

USBVCP

Receiver

UART1

Modes

UART2

Motors

UART3

OSD

UART4

Blackbox

CLI

UART5

SOFTSERIAL1

Port utilization: D: 18% U: 1%

Packet error: 0 I2C error: 0 Cycle Time: 128 CPU Load: 6%

3. Instructions of the functions of the camera and assigning transmitter channels to them

In the Flight Controller Congurator, navigate to the Modes tab. There are new CAMERA WI-FI, CAMERA POWER and CAMERA CHANGE modes

· CAMERA POWER: start/stop the video. When in the OSD of the camera, this is used to

move to the next menu item.

· CAMERA CHANGE MODE: Switch between the recording mode and the QR code

setting mode.

Assign any available channel to the function you need, for example:

· Assign the AUX2 to the CAMERA POWER, range 1900-2100

· Assign the AUX3 to the CAMERA CHANGE MODE, range 1900-2100

Configurator: 10.0.0 Firmware: BTFL 3.2.3 (Target: OB72)

2019-09-16 @ 11:23:25 -- Board: SPEEDYBEEF7, version: 0

2019-09-16 @ 11:23:25 -- Unique device ID: 0x4700233237511631313935

2019-09-16 @ 11:23:25 -- Craft name:

2019-09-16 @ 11:23:25 -- Arming Disabled

2019-09-16 @ 11:23:59 -- EEPROM saved

Port utilization: D: 27% U:29%

4. Assign the channel to the switch of the controller

Please choose your Model on the controller, then access to the MIXER interface and assign the channel to the switch of the controller. Take opentx 2.2.0 for example, assign the channels CH5, CH6 and CH7 to SA, SB and SD respectively

5. Test

Power the Flight Controller and the Runcam Thumb PRO

· Set the SA to the bottom, the camera starts/stops the video

· Set the SD to the bottom, the camera switches among the two modes:

video and OSD setting mode

BLACKBOX ERASE

Setup

Ports

Configuration

Power & Battery

PID Tuning

Receiver

Modes

Motors

OSD

Blackbox

CLI

(>30s)

Add Link

Add Range

CAMERA WI-FI

BUTTON

Add Link

Add Range

CAMERA POWER

BUTTON

Add Link

Add Range

CAMERA CHANGE

MODE

Add Link

Add Range

FLIP OVER AFTER

CRASH

Add Link

Add Range

Packet error: 0 I2C error: 0 Cycle Time: 125 CPU Load: 7%

MIXER

CH1 100 I Ail CH2 100 I Ele CH3 100 I Thr CH4 100 I Rud CH5 100 SA CH6 100 SB CH7 100 SD

Min: 1900 Max: 2100

AUX 1

AUX 2

AUX 3

Betaflight Configurator

0.1 V

Gyro

Accel

Mag

Gyro

Accel

Mag

115200

119200

115200

900 1000 1200 1400 1500 1600 1800 2000 2100

Disabled

Betaflight Configurator

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

0.1 V

Gyro

Accel

Mag

Gyro

Accel

Mag

No dataflash

chip found

Baro

GPS

Sonar

Baro

GPS

Sonar

Enable Expert Mode

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

AUTO

Disabled

Camera (RunCam

AUTO

Disabled115200 AUTOSmartPort AUTODisabled AUTO

Firmware: BTFL 4.0.6, Target: SPEEDYBEEF7, Configurator: 10.5.1 (a769d38)

No dataflash

chip found

Baro

GPS

Sonar

Baro

GPS

Sonar

Enable Expert Mode

Firmware: BTFL 4.0.6 Target: SPEEDYBEEF7, Configurator: 10.5.1 (a769d38)

-0.3

Roll Pitch Pitch

Disconnect

Hide Log

< >

Scroll

WIKI

AUTO

Save and Reboot

Disconnect

Hide Log

< >

Scroll

Save

6/148/64

Specications

Mode Runcam Thumb Pro

Resolution

Sensor IMX577(12MP)

F.O.V OLD VERSION 145°,NEW VERSION 155°

Video Format MP4

Gyro Bulit-in

Communication Inteace Micro USB

Micro SD Card Capacity 256G Max

USB Power Input/ Terminal Power Supply

Remote Control Ua

Power Consumption 500mA@5V Max

Dimension 54mm*25.5mm*21mm

Net Weight 16g

4K@30fps\2.7K@60fps\1440P@60fps\ 1080P@120fps\1080P@60fps

DC 5.0V
