Dimensions & Installation
Camera Menu
Parameters
MAIN MENU
· · EXPOSURE MODE (GLOBE/BLC)
EXPOSURE
BRIGHTNESS
EXPOSURE MODE
ADVANCED
RETURN
AE
WB
DAY NIGHT
IMAGE ENHANCE
VIDEO SETTING
LANGUAGE
RESET
SAVE XEIT
EXIT
Model
Image Sensor
Horizontal Resolution
Lens
Screen Format
Mirror/Flip
Signal System
S/N Ratio
Electronic Shutter Speed
Auto Gain Control (AGC)
Min. Illumination
WDR
Day/Night
Menu Control
Power
Current
Housing Material
Net Weight
Dimensions
RunCam Phoenix 2
1/2" COMS Sensor
1000TVL
2.1mm (M12) FOV155° (4:3)
4:3 / 16:9 switchable
Available
PAL / NTSC Switchable
>50dB (AGC OFF)
Auto
Auto
[email protected]
Global WDR
Color/BW/EXT/Auto
Cable Control
DC 5-36V
220mA@5V 120mA@12V
ABS
9g
19mm*19mm*20mm
www.runcam.com
M2 Screws
M12 Lens
19mm
12mm8mm
20mm
19mm

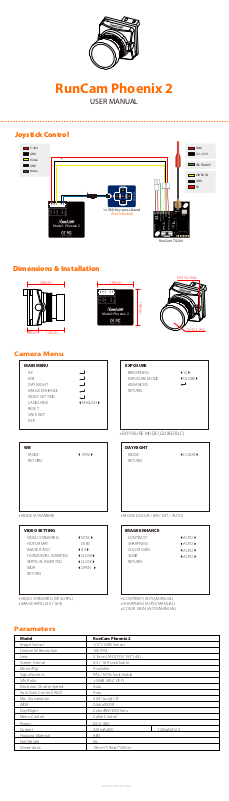

RunCam Phoenix 2
USER MANUAL
Joystick Control
5-36V
GND
Video
GND
Menu
GND
5-36V
Video
GND
GND
3.3~5.5V
IRC TRAMP
VIDEO IN
GND
RIGHT
UP
ENTER
DOWN
RunCam
LEFT
1x OSD Key-press Board
Menu
(Not Included)
5V
Model: Phoenix 2
RunCam TX200
GND
5-36V
Model: Phoenix 2
Video
GND
Menu
ENGLISH
12
GLOBE
WB
MODE
RETURN
AT W
DAY NIGHT
MODE
RETURN
COLOR
·
MODE (ATW/MWB)
VIDEO SETTING
VIDEO STANDARD
HD FORMAT
IMAGE RATIO
HORIZONTAL INVERTED
VERTICAL INVERTED
WDR
RETURN
NTSC
CVBS
4:3
CLOSE
CLOSE
OPEN
·
MODE (COLOR / BW / EXT / AUTO)
IMAGE ENHANCE
CONTRAST
SHARPNESS
COLOR GAIN
3DNR
RETURN
AUTO
AUTO
AUTO
AUTO
·
VIDEO STANDARD (NTSC/PAL)
·
IMAGE RATIO (4:3 /16:9)
·
CONTRAST (AUTO/MANUAL)
·
SHARPNESS (AUTO/MANUAL)
·
COLOR GAIN (AUTO/MANUAL)
