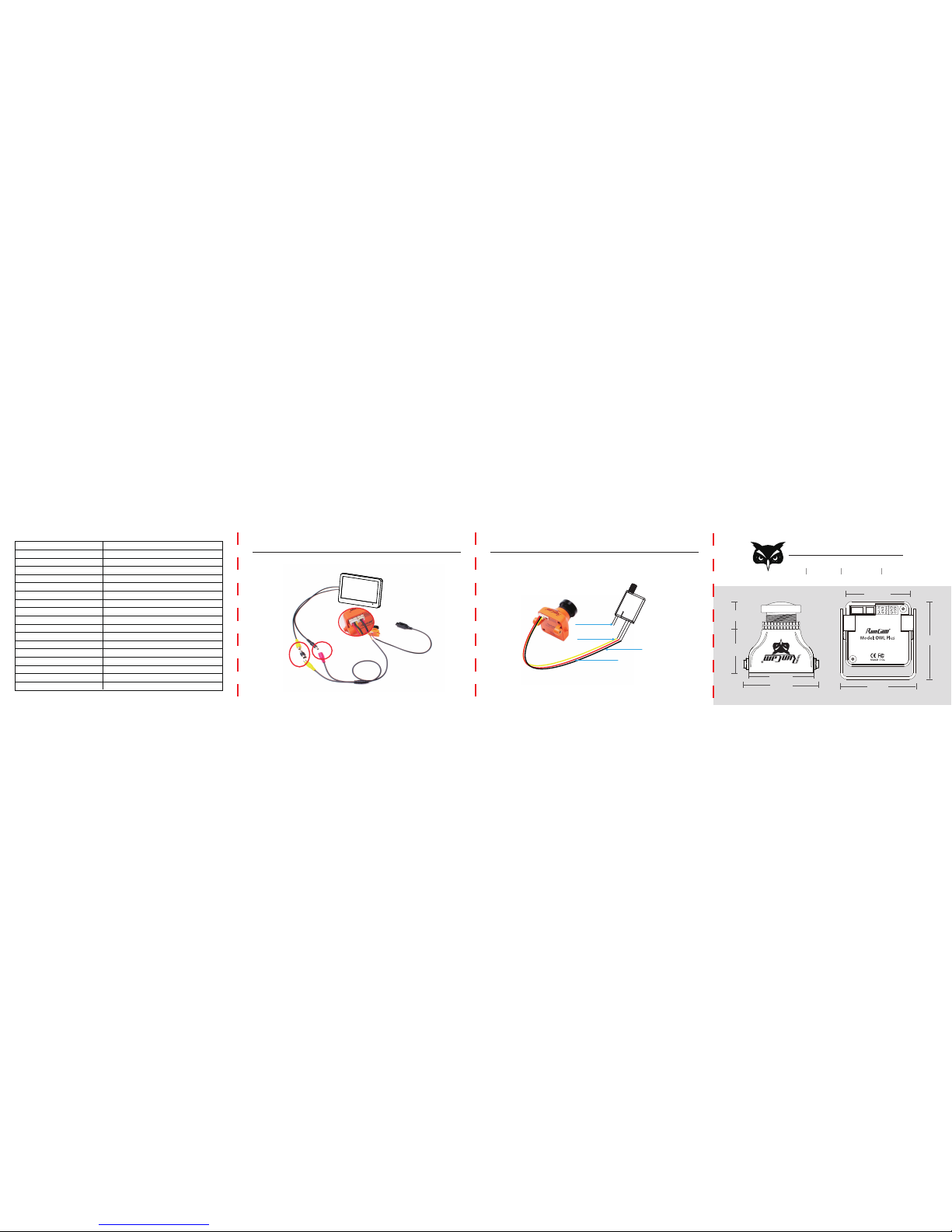

Connection
For OSD setting
①
Connection
For FPV
②
Model
RunCam OWL Plus
Image Sensor
1/2" Sensor
Horizontal Resolution 700TVL
Lens FOV 150°
Signal System PAL/NTSC
Synchronization Internal
YES
OSD SET
S/N Ratio
>52dB
Electronic Shutter Speed
PAL: 1/50~100,000; NTSC: 1/60~100,000
YES
YES
0.0001Lux/1.2F
Auto Gain Control(AGC)
Back Light Compensation (BLC)
Min. Illumination
WDR
D-WDR
DNR 2DNR
Day/ Night
Auto/Color/B&W
Power
5-22 VDC
Net Weight
15g
Dimensions 26mm * 26mm * 30mm
RunCam Owl Plus
Wide Angle Mini FPV Camera
700TVL 5-22VDC 0.0001Lux FOV 150°
12mm
18mm
26mm
30mm
30mm
29mm
26mm
Video out
Power in
Monitor
5D-OSD
Transmitter
Power
GND
Video
Power in
* Unplug the 5D-OSD menu cable after OSD setting.
SETUP EXPOSURE
SHUTTER
BRIGHTNESS
060
144
003
015
000
012
AGC
DWDR
RETURN
AUTO
BLC
D＆N AUTO
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT / RIGHT
TOP / BOTTOM
RETURN
AREA1
D N LEVEL
214
SEC
150
SEC
3
1
ON
RET
RET
RET
RET
ON
RET
HLC
LEVEL
MODE
RETURN
200
ALL DAY
RET
D＆N B＆W
BURST
IR SMART
IR LEVEL
RETURN
RET
RETURN
OFF
FONT COLOR
FONT
003
ID＆TITLE
003
IMAGE ADJ
LENS SHAD
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG IMAGE
RETURN
OFF
OFF
OFF
124
016
CRT
ON
ON
HIGH
D N DELAYL
N D LEVEL
N D DELAY
RETURN
OSD Menu OSD Menu OSD Menu OSD Menu
CAM TITLE
ON
EXPOSURE
WHITE BAL
ATW1
BLC
AUTO
BACKLIGHT
DAY＆NIGHT
ENGLISH
DPC
IMAGE ADJ
LANGUAGE
RESET
EXIT
· CAM TITLE
(ON/OFF)
· DPC (Cover the lens then press enter key)
· SHUTTER
(AUTO / 250-100000 / FLK)
· BRIGHTNESS (60 / 0-255)
·
DWDR (ON:16 0-63 / OFF)
·
WHITE BAL (ATW1 / ATW2 / AWC SET /
MANUAL:MANUAL,INDOOR,OUTDOOR)
·
BURST
(OFF/ON)
· IR SMART (ON/OFF)
·
IR LEVEL (HIGH/LOW)
·
AREA SEL
(AREA1/AREA2)
·
BACKLIGHT （
BLC / HLC / OFF
)
·
EXPOSURE
·
MAIN MENU
·
DAY＆NIGHT
（AUTO / COLOR / B＆W /EXT)
·
IMAGE ADJ
· GAIN (144 / 0-255 )
·
HEIGHT (3 / 0-3)
·
LEVEL
(200 / 0-255)
· MODE (ALL DAY / NIGHT ONLY )
·
WIDTH (15 / 0-15)
· LEFT / RIGHT (0 / 0-3)
·
TOP / BOTTOM (12 / 0-12)
·
LANS SHAD
(OFF/ON:22 0-255)
· CONTRAST (124 / 0-255)
·
SHARPNESS (16 / 0-31)
·
DISPLAY (CRT/LCD/USER)
·
FONT
(3 / 0-15)
· ID＆TITLE (3 / 0-15)
·
DAY NIGHT LEVEL (214 / 214-255)
· DAY NIGHT DELAY (3 / 1-30)
· NIGHT DAY LEVEL (150 / 0-86)
· NIGHT DAY DELAY (1 / 1-30)
· LANGUAGE (English/中文)
