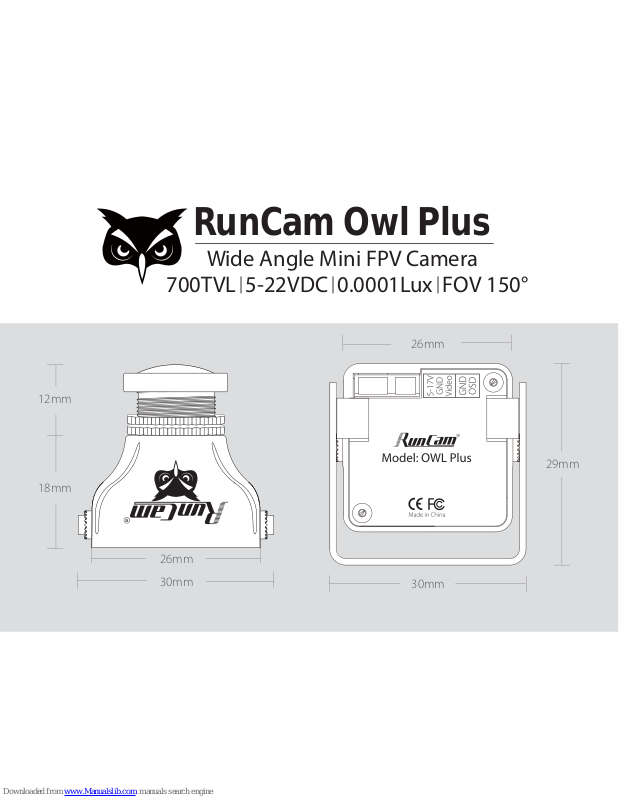

RunCam Owl Plus
Wide Angle Mini FPV Camera
700TVL 5-22VDC 0.0001Lux FOV 150°
12mm
18mm
26mm
30mm
30mm
29mm
26mm
Page 2
Connection
For OSD setting
①
Videoout
Powerin
Monitor
5D-OSD
Page 3
For FPV
Connection
②
Transmitter
Power
GND
Video
Power in
* Unplug the 5D-OSD menu cable after OSD setting.
Page 4
SETUP EXPOSURE
SHUTTER
BRIGHTNESS
060
AGC
DWDR
RETURN
AUTO
ON
RET
OSD Menu
CAM TITLE
ON
EXPOSURE
WHITE BAL
AT W1
BLC
AUTO
BACKLIGHT
DAY＆NIGHT
ENGLISH
DPC
IMAGE ADJ
LANGUAGE
RESET
EXIT
· · CAM TITLE
(ON/OFF)
· · DPC (Cover the lens then press enter key)
·
·
SHUTTER
(AUTO / 250-100000 / FLK)
· · BRIGHTNESS (60 / 0-255)
·
·
DWDR (ON:16 0-63 / OFF)
·
·
WHITE BAL (ATW1 / ATW2 / AWC SET /
MANUAL:MANUAL,INDOOR,OUTDOOR)
·
·
EXPOSURE
· · MAIN MENU
· · LANGUAGE (English/中文)
Page 5
200
ALL DAY
RET
144
003
015
000
012
BLC
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT / RIGHT
TOP / BOTTOM
RETURN
AREA1
ON
RET
HLC
LEVEL
MODE
RETURN
OSD Menu
· · AREA SEL
(AREA1/AREA2)
· · BACKLIGHT （
BLC / HLC / OFF
)
· · GAIN (144 / 0-255 )
·
·
HEIGHT (3 / 0-3)
·
·
LEVEL
(200 / 0-255)
· · MODE (ALL DAY / NIGHT ONLY )
·
·
WIDTH (15 / 0-15)
·
·
LEFT / RIGHT (0 / 0-3)
·
·
TOP / BOTTOM (12 / 0-12)
Page 6
D＆N AUTO
D N LEVEL
214
SEC
150
SEC
3
1
RET
RET
D＆N B＆W
BURST
IR SMART
IR LEVEL
RETURN
OFF
ON
HIGH
D N DELAYL
N D LEVEL
N D DELAY
RETURN
OSD Menu
· · BURST
(OFF/ON)
· · IR SMART (ON/OFF)
·
·
IR LEVEL (HIGH/LOW)
·
·
DAY＆NIGHT
（AUTO / COLOR / B＆W /EXT)
· · DAY NIGHT LEVEL (214 / 214-255)
· · DAY NIGHT DELAY (3 / 1-30)
· · NIGHT DAY LEVEL (150 / 0-86)
· · NIGHT DAY DELAY (1 / 1-30)
Page 7
RET
RET
RETURN
FONT COLOR
FONT
003
ID＆TITLE
003
IMAGE ADJ
LENS SHAD
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG IMAGE
RETURN
OFF
OFF
OFF
124
016
CRT
ON
OSD Menu
· · IMAGE ADJ
· · LANS SHAD
(OFF/ON:22 0-255)
· · CONTRAST (124 / 0-255)
·
·
SHARPNESS (16 / 0-31)
·
·
DISPLAY (CRT/LCD/USER)
·
·
FONT
(3 / 0-15)
· · ID＆TITLE (3 / 0-15)
Page 8
Model
RunCam OWL Plus
Image Sensor
1/2" Sensor
Horizontal Resolution 700TVL
Lens FOV 150°
Signal System PAL/NTSC
Synchronization
Internal
YES
OSD SET
S/N Ratio
>52dB
Electronic Shutter Speed
PAL: 1/50~100,000; NTSC: 1/60~100,000
YES
YES
0.0001Lux/1.2F
Auto Gain Control(AGC)
Back Light Compensation (BLC)
Min. Illumination
WDR
D-WDR
DNR 2DNR
Day/ Night
Auto/Color/B&W
Power
5-22 VDC
Net Weight
15g
Dimensions
26mm * 26mm * 30mm
Page 9
