RunCam New Swift 2
USER MANUAL

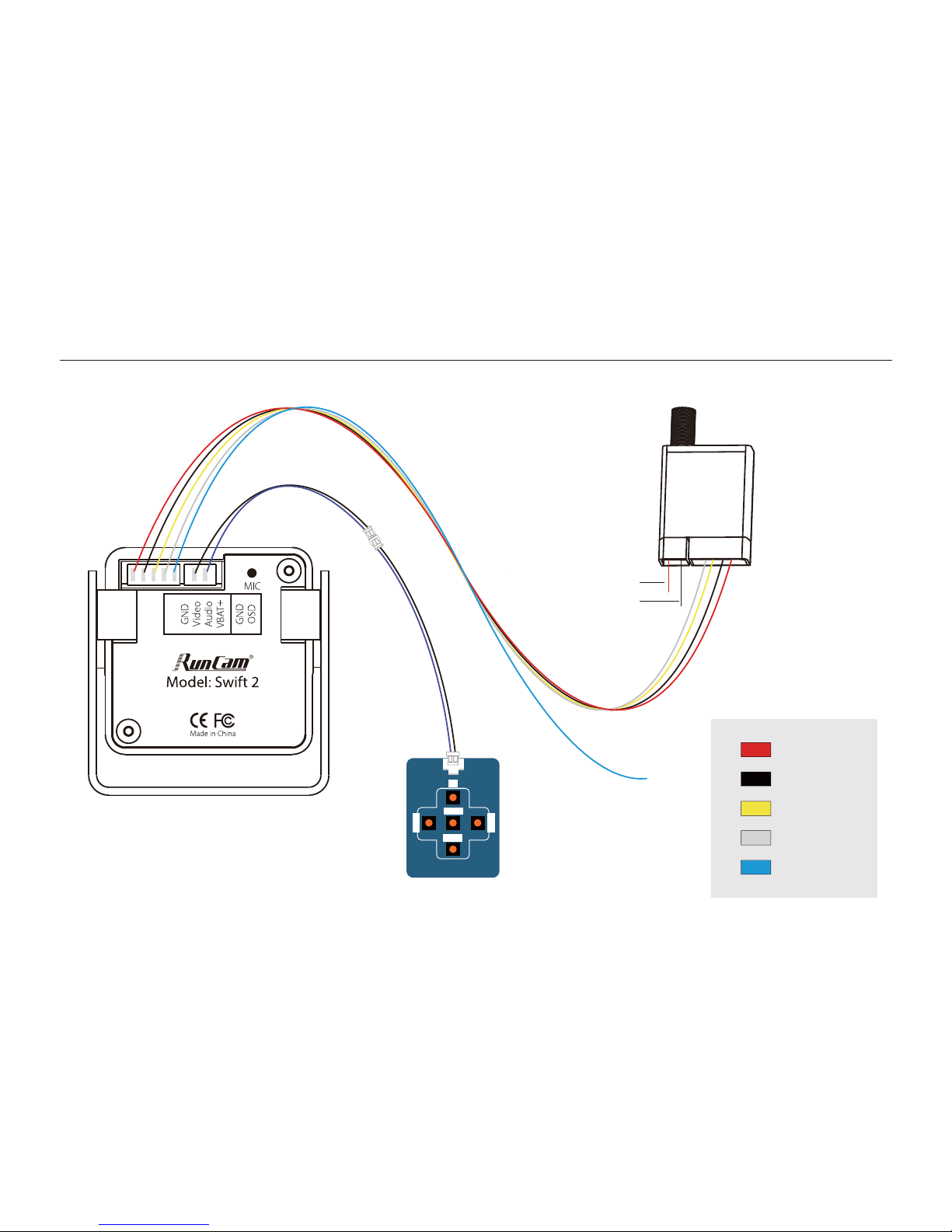

Connection
Transmitter
1x OSD Key-press Board
2 pin extension cord
Power in
GND
To VBAT+
* Unplug the 5D-OSD menu cable after OSD setting.
5-36V in
GND
Video out
Audio out
VBAT+
5-36V
RIGHT
LEFT
UP
ENTER
DOWN
RunCam
1
Nylon Gaskets
2
M2*4 Screws
3
M3*5 Screws
4
M3 Non-slip Nuts
26mm
28.5mm
26mm
1 1
11
44
2
2
2
33
2
Dimensions & Installation
OSD Menu
16.8V RUNCAM
01:08
· · Quick settings:
·
Long press UP button for three seconds to
access to the OSD setting‘s screen
· · Long press LEFT button for three seconds to
calibrate the voltage. When the voltage text
flashes, press UP/DOWN button to adjust it
· · Long press DOWN button for five seconds to
reset OSD settings to default
· · Long press RIGHT button for three seconds to
switch between the camera presets
OSD Menu
· · CLR: clear the ID character
· · ALARM: low voltage warning value, smartly
judge the warning value of the battery when
it's low; if set it manually, then it saves the
manual preset value
· · SCENE: switch the camera presets among
Personal/Lightrax/Outdoor/Indoor/Cloudy
/Twilight
· · Press the middle button to switch ON / OFF,
then move to POS to enter the position
adjustment
RUNCAMCLR
RSTUVWXYZ=/&:.
1234567890ABC
DEFGHIJKLMNOPQ
ALARM
SCENE
SYSTEM
PILOT
TIMER
VOLTAGE
HORIZON
EXIT
: 14.8V
: PERSONAL
: ON
: ON
: ON
: ON
: OFF
POS
POS
POS
POS
POS
· · LANGUAGE (English/中文)
·
· DPC (Cover the lens then press enter key)
·
· SHUTTER
(AUTO / 50-100000 / FLK)
· · BRIGHTNESS (50 / 0-255)
·
· AGC (OFF / LOW / MIDDLE / HIGH)
· ·
EXPOSURE
· ·
MAIN MENU
· · WHITE BAL (ATW1 / ATW2 / AWC→ SET /
MANUAL: MANUAL, INDOOR, OUTDOOR)
·
· DWDR (ON: 63 0-63 / OFF)
EXPOSURE
SHUTTER
BRIGHTNESS 50
AGC
DWDR
RETURN
AUTO
ON
RET
ON
SETUP
EXPOSURE
WHITE BAL
BACKLIGHT
DAY & NIGHT
DPC
IMAGE ADJ
LANGUAGE
RESET
EXIT
AT W1
OFF
ENGLISH
COLOR
Camera Menu
· ·
IMAGE ADJ
· · LENS SHAD
(OFF / ON:22 0-255)
· · CONTRAST (110 / 0-255)
· · SHARPNESS (26 / 0-31)
· · DISPLAY (CRT / LCD / USER)
· · GAMMA
(0.5 / 0.05-1.0)
· · PED LEVEL (17 / 0-63)
Camera Menu
IMAGE ADJ
LENS SHAD
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG IMAGE
RETURN
OFF
OFF
OFF
110
26
LCD
OFF
LCD ADJUST
RETURN
GAMMA
PED LEVEL
COLOR GAIN
0.5
17
RET
176
· · COLOR GAIN (176 / 0-255)
Camera Menu
· · AREA SEL
(AREA1/AREA2)
· ·
BACKLIGHT (BLC / HLC / OFF)
· GAIN (168 / 0-255 )
· · HEIGHT (5 / 0-10)
· · LEVEL
(200 / 0-255)
· · MODE (ALL DAY / NIGHT ONLY )
· · WIDTH (5 / 0-9)
·
· LEFT/RIGHT (4 / 0-6)
· · TOP/BOTTOM (4 / 0-10)
200
BLC
168
005
005
004
004
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
RETURN
AREA1
ON
RET
HLC
LEVEL
MODE
RETURN
ALL DAY
RET
·· DAY NIGHT LEVEL (144 / 0-176)
·
· DAY NIGHT DELAY (3 / 1-30)
· · NIGHT DAY LEVEL (112 / 0-255)
·
· NIGHT DAY DELAY (1 / 1-30)
Camera Menu
· · BURST
(OFF/ON)
· · IR SMART (OFF/ON)
· · IR LEVEL (HIGH/LOW)
·
·
DAY & NIGHT (AUTO / COLOR / B&W / EXT)
D & N AUTO
144
SEC
112
SEC
3
1
D N LEVEL
D N DELAY
N D LEVEL
N D DELAY
RETURN
RET
D & N B & W
BURST
IR SMART
IR LEVEL
RETURN
OFF
OFF
HIGH
RET
Model
Image Sensor
Horizontal Resolution
Lens
Signal System
Integrated OSD
S/N Ratio
Electronic Shutter Speed
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Min. Illumination
WDR
DNR
Day/Night
Power
Net Weight
Dimensions
RunCam New Swift 2
1/3″SONY SUPER HAD II CCD
600TVL
2.5mm (Default) / 2.3mm / 2.1mm
PAL/NTSC
Yes
Yes
>60dB (AGC OFF)
Yes
Yes
0.01Lux@1.2F
PAL: 1/50~100,000; NTSC: 1/60~100,000
D-WDR
2DNR
Color/Auto/B&W
DC 5-36V
14g
Working Current
5V@60mA 12V@140mA
28.5mm*26mm*26mm
Integrated MIC
