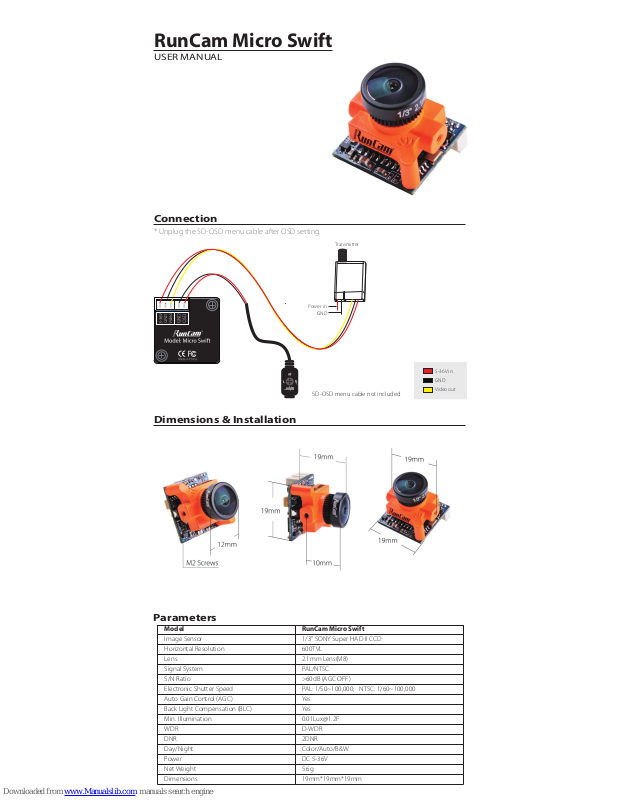

Connection
Transmitter
5D-OSD menu cable not included
Power in
GND
* Unplug the 5D-OSD menu cable after OSD setting.
5-36V in
GND
Video out
Dimensions & Installation
Model
Image Sensor
Horizontal Resolution
Lens
Signal System
S/N Ratio
Electronic Shutter Speed
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Min. Illumination
WDR
DNR
Day/Night
Power
Net Weight
Dimensions
RunCam Micro Swift
1/3" SONY Super HAD II CCD
600TVL
2.1mm Lens(M8)
PAL/NTSC
>60dB (AGC OFF)
Yes
Yes
0.01Lux@1.2F
PAL: 1/50~100,000; NTSC: 1/60~100,000
D-WDR
2DNR
Color/Auto/B&W
DC 5-36V
5.6g
19mm*19mm*19mm
Parameters
RunCam Micro Swift
USER MANUAL
UP
DOWN
L R
· DAY NIGHT LEVEL (80 / 0-176)
·
DAY NIGHT DELAY (3 / 1-30)
·
NIGHT DAY LEVEL (032 / 0-255)
·
NIGHT DAY DELAY (1 / 1-30)
Camera Menu
· AREA SEL
(AREA1/AREA2)
·
BACKLIGHT (BLC / HLC / OFF)
· GAIN (042 / 0-255 )
·
HEIGHT (4 / 0-10)
· LEVEL
(200 / 0-255)
· MODE (ALL DAY / NIGHT ONLY )
· WIDTH (3 / 0-9)
·
LEFT/RIGHT (6 / 0-6)
·
TOP/BOTTOM (10 / 0-10)
Camera Menu
· BURST
(OFF/ON)
· IR SMART (OFF/ON)
·
IR LEVEL (HIGH/LOW)
·
DAY ＆ NIGHT（AUTO / COLOR / B&W / EXT)
BLC
042
004
003
006
005
AREA SEL
AREA STATE
GAIN
HEIGHT
WIDTH
LEFT/RIGHT
TOP/BOTTOM
RETURN
AREA1
ON
RET
200
HLC
LEVEL
MODE
RETURN
ALL DAY
RET
D＆N AUTO
080
SEC
032
SEC
3
1
D N LEVEL
D N DELAY
N D LEVEL
N D DELAY
RETURN RET
D＆N B＆W
BURST
IR SMART
IR LEVEL
RETURN
OFF
OFF
HIGH
RET
Camera Menu
· CAM TITLE
(ON/OFF)
· LANGUAGE (English/中文)
·
DPC (Cover the lens then press enter key)
·
SHUTTER
(AUTO / 50-100000 / FLK)
· BRIGHTNESS (50 / 0-255)
·
AGC (ON / LOW / MIDDLE / HIGH)
·
EXPOSURE
·
MAIN MENU
· WHITE BAL (ATW1 / ATW2 / AWC→ SET /
MANUAL: MANUAL, INDOOR, OUTDOOR)
·
DWDR (ON: 63 0-63 / OFF)
EXPOSURE
SHUTTER
BRIGHTNESS 050
AGC
DWDR
RETURN
AUTO
ON
RET
ON
SETUP
CAM TITLE
EXPOSURE
WHITE BAL
BACKLIGHT
DAY ＆NIGHT
DPC
IMAGE ADJ
LANGUAGE
RESET
EXIT
AT W1
ENGLISH
OFF
COLOR
IMAGE ADJ
LENS SHAD
2DNR
MIRROR
FONT COLOR
CONTRAST
SHARPNESS
DISPLAY
NEG IMAGE
RETURN
OFF
OFF
OFF
110
026
USER
OFF
·
IMAGE ADJ
· LENS SHAD
(OFF/ ON:22 0-255)
· CONTRAST (110 / 0-255)
·
SHARPNESS (26 / 0-31)
·
DISPLAY (CRT/LCD/USER)
·
GAMMA
(0.5 / 0.05-1.0)
· PED LEVEL (17 / 0-63)
Camera Menu
USER ADJ.
RETURN
GAMMA
PED LEVEL
COLOR GAIN
0.50
017
RET
176
· COLOR GAIN (176 / 0-255)
