rotork p3 Technical Manual

Download

Page 1

Publication PUB059-002-00 Issue 06/15

P3 - Pakscan Master Station

Technical Manual

Page 2

P3 - Pakscan Master Station Technical Manual

2 of 136 Publication PUB059-002-00 Issue 06/15

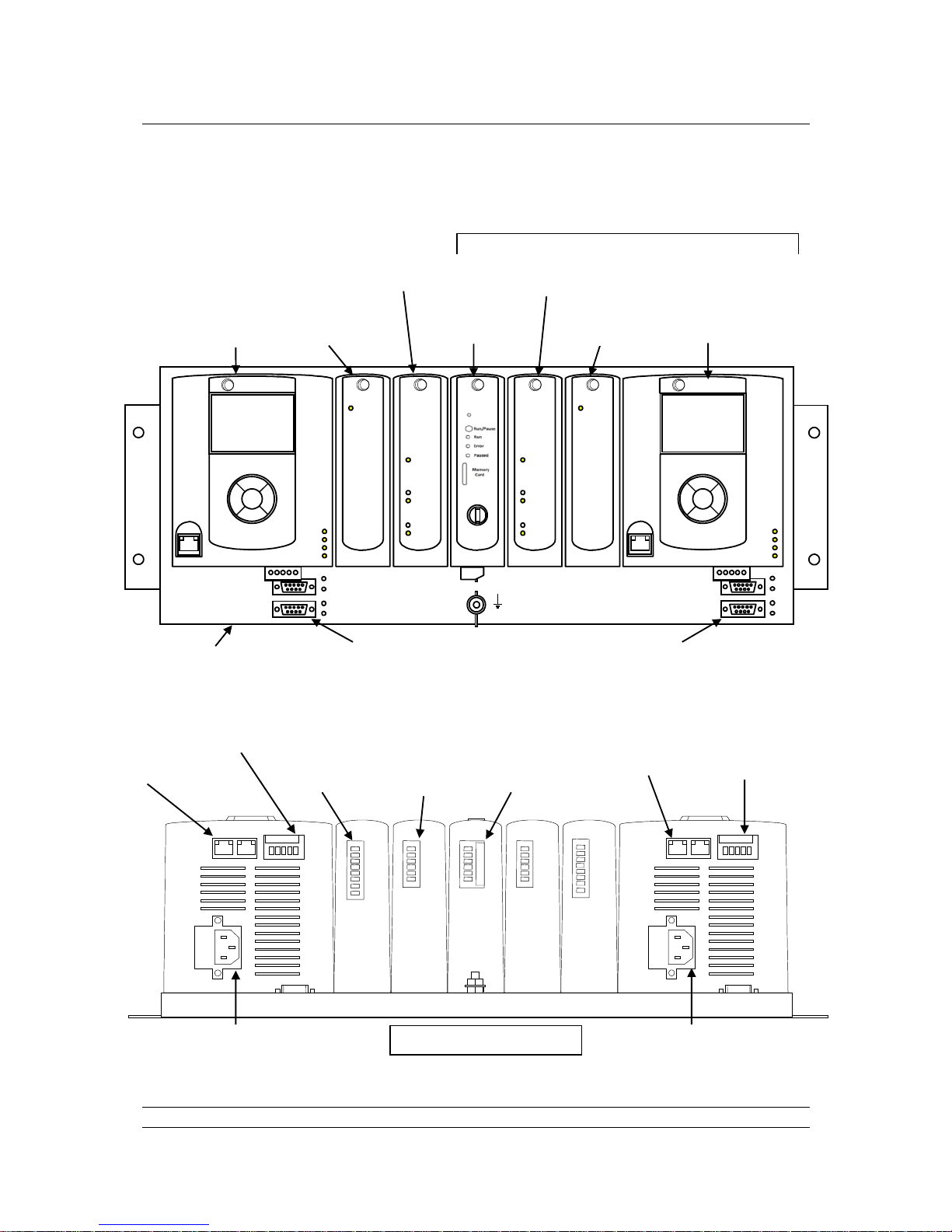

KNOW YOUR MASTER STATION

Port 3 Port 4

1 2 3 4 5

Host Ethernet

Ports for A

master station

Connection to

wireless module

Port 1

Port 2

PS731

Keyswitch

Auto

P 3 P

PS720

IIE Loop

Standby

Port A

Port B

PS720

IIE Loop

Standby

Port A

Port B

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

CPU/PSU

Port 1

Port 2

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

Option 1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

rotork

P3 Wireless

Comms

PS721

P3 Wireless

Comms

PS721

rotork

These modules not fitted on single master stations

Main

Chassis

Host Comms

Serial Ports for A

master station

Host Comms

Serial Ports for B

master station

A side P3

CPU Main

Module

Optional

Wireless

Module

Optional

Current Loop

Module

Key Switch and

LTD Module

Optional

Current Loop

Module

Optional Wireless

Module

B side P3

CPU Main

Module

Power Connector

View from below

Current

Loop

Connection

Terminals

Current Loop

Connection

Terminals (Single

Master Only)

Alarm and

ESD

Terminals

Alarm and

ESD

Terminals

Host Ethernet

Ports for B

master station

Page 3

Contents

Issue 06/15 Publication PUB059-002-00 3 of 136

CONTENTS:

KNOW YOUR MASTER STATION ............................................................................. 2

TABLE OF FIGURES:................................................................................................. 5

INTRODUCTION ......................................................................................................... 7

1. MOUNTING AND CONNECTING THE MASTER STATION .............................. 9

1.1 Mechanical Fixing ................................................................................................................ 9

1.2 Host Serial Communications Connections ....................................................................... 12

1.3 Ethernet Communications Connections ................................................................ ........... 12

1.4 Power Connector and Fuses ............................................................................................. 12

1.5 Alarm and Hardwired ESD Connector ............................................................................... 13

1.6 Current Loop Connections ................................................................................................ 13

1.7 P3W Coordinator Connections .......................................................................................... 14

1.8 P3W Repeater and P3W WMA AC Power Connections .................................................... 15

1.9 P3W Repeater and P3W WMA 24VDC Connections.......................................................... 16

1.10 P3W WMA Modbus Connections ..................................................................................... 17

1.11 Setting up the P3W Repeater and P3W WMA .................................................................. 18

1.12 Front Panel LEDs ............................................................................................................. 21

2. THE FIELD CURRENT LOOP NETWORK ....................................................... 23

2.1 Loop Checks....................................................................................................................... 24

2.2 Connecting Up .................................................................................................................... 25

3. THE FIELD WIRELESS NETWORK................................................................. 27

3.1 Wireless Site Survey ................................................................................................ .......... 28

3.2 Wireless Specification ....................................................................................................... 28

3.3 Connecting Up .................................................................................................................... 28

4. CONFIGURING SERIAL COMMUNICATIONS ................................................ 31

4.1 Setting Port 1 and 2 for RS-232 or RS-485 ........................................................................ 31

5. CONFIGURING ETHERNET COMMUNICATIONS .......................................... 35

5.1 Default Ethernet Settings ................................................................................................... 36

5.2 Ethernet Security................................................................................................................ 37

6. SETTING UP THE MASTER STATION BY THE KEYPAD .............................. 39

6.1 Using the Keypad ............................................................................................................... 39

6.2 The Screen Display ............................................................................................................ 40

6.3 Setting the Current Loop Option Module Parameters ...................................................... 41

6.4 Setting the Wireless Option Module Parameters .............................................................. 45

Page 4

P3 - Pakscan Master Station Technical Manual

4 of 136 Publication PUB059-002-00 Issue 06/15

6.5 Setting the Master Host Communications Parameters..................................................... 47

6.6 The Other Settings ............................................................................................................. 49

6.6.1 Security .......................................................................................................... 49

6.6.2 ESD ............................................................................................................... 49

6.6.3 Date and Time ................................................................................................ 49

6.6.4 Master Station Parameters ............................................................................. 50

7. INTERNAL WEB PAGES ................................................................................. 51

7.1 Making an Internet / Intranet Connection .......................................................................... 51

7.2 Connecting a Computer Directly to the Master Station .................................................... 52

7.3 Adjusting the Network Settings of the Computer ............................................................. 52

7.4 Web Page Structure ........................................................................................................... 54

7.4.1 User Levels .................................................................................................... 54

7.4.2 Overview of Web Page Layout........................................................................ 54

7.5 The Web Pages in Detail .................................................................................................... 56

7.5.1 Log In Screen ................................................................................................. 56

7.5.2 Master Station ................................................................................................ 57

7.5.3 View Configuration ......................................................................................... 59

7.5.4 System Diagnostics ........................................................................................ 60

7.5.5 Master Station Data Logger [ms datalogger] ................................................... 62

7.5.6 Master Station Host Analyser [host analyser] .................................................. 64

7.5.7 Pakscan 2 Loop Diagnostics [diagnostics] ...................................................... 65

7.5.8 Pakscan Wireless Diagnostics [diagnostics] .................................................... 68

7.5.9 Pakscan 2 Loop Option Module Event Logger [Event Log] .............................. 70

7.5.10 Pakscan Wireless Option Module Event Logger [Event Log] ........................... 71

7.5.11 FCU Menu ...................................................................................................... 72

7.5.12 FCU Control – IQ / IQT Actuator ................................................................ ..... 73

7.5.13 FCU Control - Integral Actuator (2-wire loop only) ........................................... 82

7.5.14 FCU Control - General Purpose Field Control Unit (2-wire loop only) .............. 86

7.5.15 Admin ............................................................................................................. 90

7.5.16 Users ............................................................................................................. 90

7.5.17 Master station Configuration ........................................................................... 93

7.5.18 Host Port Configuration ................................................................................ 102

7.5.19 Alarms .......................................................................................................... 107

7.5.20 Time ............................................................................................................. 109

7.5.21 General ........................................................................................................ 110

7.5.22 Network ........................................................................................................ 111

7.6 Setting Up the Master station Configuration Using the Web Pages .............................. 113

7.6.1 Masterstation Config - Modbus Address ....................................................... 113

7.6.2 Masterstation Config - Pakscan 2 Current loop option ................................... 113

7.6.3 Masterstation Config - Pakscan 3 Wireless option ......................................... 114

7.6.4 Host port settings ......................................................................................... 114

7.6.5 Network IP address settings ......................................................................... 115

8. MAKING THE SYSTEM WORK ..................................................................... 117

8.1 Commissioning the Wired System .................................................................................. 117

8.2 Commissioning the Wireless network ............................................................................. 118

8.3 Monitoring and Controlling the Actuators from the HMI or web pages ......................... 119

Page 5

Contents

Issue 06/15 Publication PUB059-002-00 5 of 136

9. LONG TERM DATALOGGER (LTD) .............................................................. 121

9.1 Removing the memory card and copying data ............................................................... 122

9.2 Viewing the data with the LTD Viewer software .............................................................. 124

9.2.1 Messages ................................................................................................ ..... 125

9.2.2 Messages – Filter Options ............................................................................ 125

9.2.3 Reports ........................................................................................................ 128

9.2.4 FCU Data ..................................................................................................... 129

10. RESETTING THE MASTER STATION TO DEFAULT VALUES .................... 130

11. REPLACING THE P3 MASTER STATION BATTERY ................................... 132

GENERAL SAFETY INFORMATION ...................................................................... 133

TABLE OF FIGURES:

Fig 1: The Pakscan 3 Single Master Station – option: Current loop ............................................7

Fig 2: The Pakscan 3 Hot Standby Master Station - option: Current loop ...................................7

Fig 3: The Pakscan 3 Single Master Station – option: Wireless ................................ ..................8

Fig 4: The Pakscan 3 Hot Standby Master Station – option: Wireless ........................................8

Fig 5: The P3W (Pakscan 3 Wireless) coordinator – PS722. .....................................................8

Fig 6: Pakscan 3 surface mounting dimensions. ........................................................................9

Fig 7: Pakscan 3, 19-inch rack mounting dimensions............................................................... 10

Fig 8: View below the Pakscan P3 master station showing the Connectors ............................. 10

Fig 9: P3W coordinator, P3W WMA and P3W Repeater mounting details ................................ 11

Fig 10: Serial Communication connections ................................................................................ 12

Fig 11: PS710 CPU module connector terminal functions .......................................................... 13

Fig 12: PS720/PS730/PS731/PS732 Current Loop connections ................................................ 13

Fig 13: PS721 to PS722 connections (Master station to P3W Coordinator) ................................ 14

Fig 14: Power module for P3W Repeater and P3W WMA. ......................................................... 15

Fig 15: Connections from DC power supply to P3W WMA or P3W repeater .............................. 16

Fig 16: Connections from Modbus device to P3W WMA ............................................................ 17

Fig 17: P3W WMA operation ..................................................................................................... 19

Fig 18: P3W Repeater and P3W WMA database....................................................................... 20

Fig 19: CPU LEDs (Light Emitting Diodes) ................................................................................ 21

Fig 20: Pakscan P3 Wired Network ........................................................................................... 23

Fig 21: Pakscan P3 Current Wired Loop System Block Diagram (hot standby master station) .... 25

Fig 22: Pakscan P3 Current Wired Loop System Block Diagram (single master station) ............. 26

Fig 23: A typical P3 wireless network ........................................................................................ 27

Fig 24: Pakscan P3 Wireless network Block Diagram (hot standby master station) .................... 29

Fig 25: Pakscan P3 Chassis, CPU and Key Switch modules removed ....................................... 31

Fig 26: Port Function Switches shown in RS-232 position ......................................................... 32

Fig 27: Port Termination Switches shown in Off position............................................................ 32

Fig 28: Cross connection switch settings on the backplane behind the Switch Module ............... 33

Fig 29: Hot Standby Serial Communications.............................................................................. 34

Fig 30: Hot Standby Ethernet Communications ......................................................................... 35

Fig 31: Hot Standby, Dual Redundant Ethernet Communications .............................................. 36

Fig 32: Pakscan P3 Main module connection to laptop and keypad detail .................................. 39

Fig 33: Connecting a Laptop to the Pakscan P3 Main Module ................................................... 52

Fig 34: Changing the Network Connections TCP/IP Properties – Windows XP .......................... 53

Fig 35: Web Page Menu Layout ................................................................................................ 55

Page 6

P3 - Pakscan Master Station Technical Manual

6 of 136 Publication PUB059-002-00 Issue 06/15

Fig 36: Web page Log In Screen ................................................................ ............................... 56

Fig 37: Web page Header Navigation ........................................................................................ 56

Fig 38: Master Station Overview web page and Option 1 data, if a Wireless module is fitted ...... 57

Fig 39: System Configuration Overview web page ..................................................................... 59

Fig 40: System Diagnostics web page wired only and option 1 data, if wireless fitted ................. 60

Fig 41: Master Station Data Logger pop-up ............................................................................... 62

Fig 42: Close up of Master Station Data Logger Information ...................................................... 62

Fig 43: Saving the master station log file ................................................................................... 63

Fig 44: Host Analyser pop-up .................................................................................................... 64

Fig 45: Pakscan 2 Loop Diagnostics web page ......................................................................... 65

Fig 46: Pakscan Wireless Diagnostics web page ................................................................ ....... 68

Fig 47: Wired Option Module Event Logger pop-up ................................................................... 70

Fig 48: Wireless Option Module Event Logger pop-up ............................................................... 71

Fig 49: FCU Menu web page .................................................................................................... 72

Fig 50: IQ and IQT actuator FCU Control web pages ................................................................. 73

Fig 51: Wired IQ / IQT Parameters pop-up ................................ ................................................ 74

Fig 52: Wired IQ / IQT Alarms pop-up ....................................................................................... 75

Fig 53: Wired and Wireless IQ / IQT Torque Profile pop-up ....................................................... 75

Fig 54: Wired IQ / IQT FCU Event Log pop-up .......................................................................... 76

Fig 55: Wireless IQ / IQT Parameters pop-up ............................................................................ 77

Fig 56: Wireless IQ / IQT Alarms pop-up ................................................................................... 78

Fig 57: Wireless IQ / IQT FCU Event Log pop-up ...................................................................... 79

Fig 58: Wireless IQ / IQT Downloads pop-up ............................................................................. 80

Fig 59: Wireless Neighbour tables pop-up ................................................................................. 80

Fig 60: Q actuator FCU Control Web page ................................................................................ 82

Fig 61: Q Parameters pop-up .................................................................................................... 83

Fig 62: Q Alarms pop-up ........................................................................................................... 84

Fig 63: Q FCU Event Log pop-up ................................ .............................................................. 84

Fig 64: GPFCU Control web page ............................................................................................. 86

Fig 65: GPFCU Parameters pop-up .......................................................................................... 87

Fig 66: GPFCU Alarms pop-up .................................................................................................. 88

Fig 67: GPFCU Event Log pop-up ............................................................................................. 88

Fig 68: Administrator Level........................................................................................................ 90

Fig 69: Users web page ............................................................................................................ 90

Fig 70: Add User web page ....................................................................................................... 91

Fig 71: Modify User web page ................................................................................................... 92

Fig 72: Master station configuration web page: General Settings ............................................... 93

Fig 73: Web page Field unit distribution bar ............................................................................... 97

Fig 74: Master station configuration web page: Pakscan 2 Loop ................................................ 98

Fig 75: Master station configuration web page: Pakscan 3 Wireless ........................................ 100

Fig 76: Host Port Configuration web page ............................................................................... 102

Fig 77: Modbus Message Generator web page ....................................................................... 105

Fig 78: Modbus Message Example web page ......................................................................... 106

Fig 79: Alarm Reporting Set up web page ............................................................................... 107

Fig 80: Time Settings web page .............................................................................................. 109

Fig 81: General web page ....................................................................................................... 110

Fig 82: Ethernet Network Settings web page ........................................................................... 111

Fig 83: Detailed Actuator Condition HMI pages ....................................................................... 119

Fig 84: Hot standby master station with Long Term Datalogger (LTD) ..................................... 121

Fig 85: Front view of the LTD .................................................................................................. 122

Page 7

Introduction

Issue 06/15 Publication PUB059-002-00 7 of 136

Port 1

Port 2

PS731

Keyswitch

Auto

P 3 P

PS720

IIE Loop

Standby

Port A

Port B

PS720

IIE Loop

Standby

Port A

Port B

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

CPU/PSU

Port 1

Port 2

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

Option 1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

rotork

Port 1

Port 2

Port 1

Port 2

P 3 P

PS720

IIE Loop

Standby

Port A

Port B

CPU/PSU

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

Option 1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

rotork

INTRODUCTION

Pakscan 3 is a complete field network control system from Rotork. With the addition of a wireless (P3W) network the user now has the choice of proven current loop technology of the Pakscan IIE system or the flexibility of a meshed wireless network. The P3W master station is supplied with a P3W Coordinator module; this module is powered by the master station and facilitates the communications between the master station and the wireless network. Most types of Rotork actuators can be connected to a Pakscan current loop provided they are fitted with the necessary field unit. Information on the respective actuator field units can be found in the appropriate manuals. In this guide, the type of actuator is not considered, though reference is made to both the integral and IQ actuator types of field unit. The type of field unit does not affect the setting up of the system. The IQ and IQT range of actuators integrate fully with the wireless network. The network range can be extended using a P3W Repeater module, this module is externally powered and it extends the network range by receiving and retransmitting network messages. Other actuators or devices can be added to the wireless network using a Pakscan 3 Wireless Modbus Adaptor (P3W WMA). This module is very similar to the P3W Repeater, but has a RS-485 serial port for communication. The Pakscan 3 master stations are delivered either as loose items for mounting by the user, or contained in an enclosure provided by Rotork. The master station will generally be either a single unit, or a hot standby pair. This manual provides a guide to setting up the Pakscan master, the various P3W Wireless modules, the loop communications, wireless communications, and the host connections for the most commonly found applications.

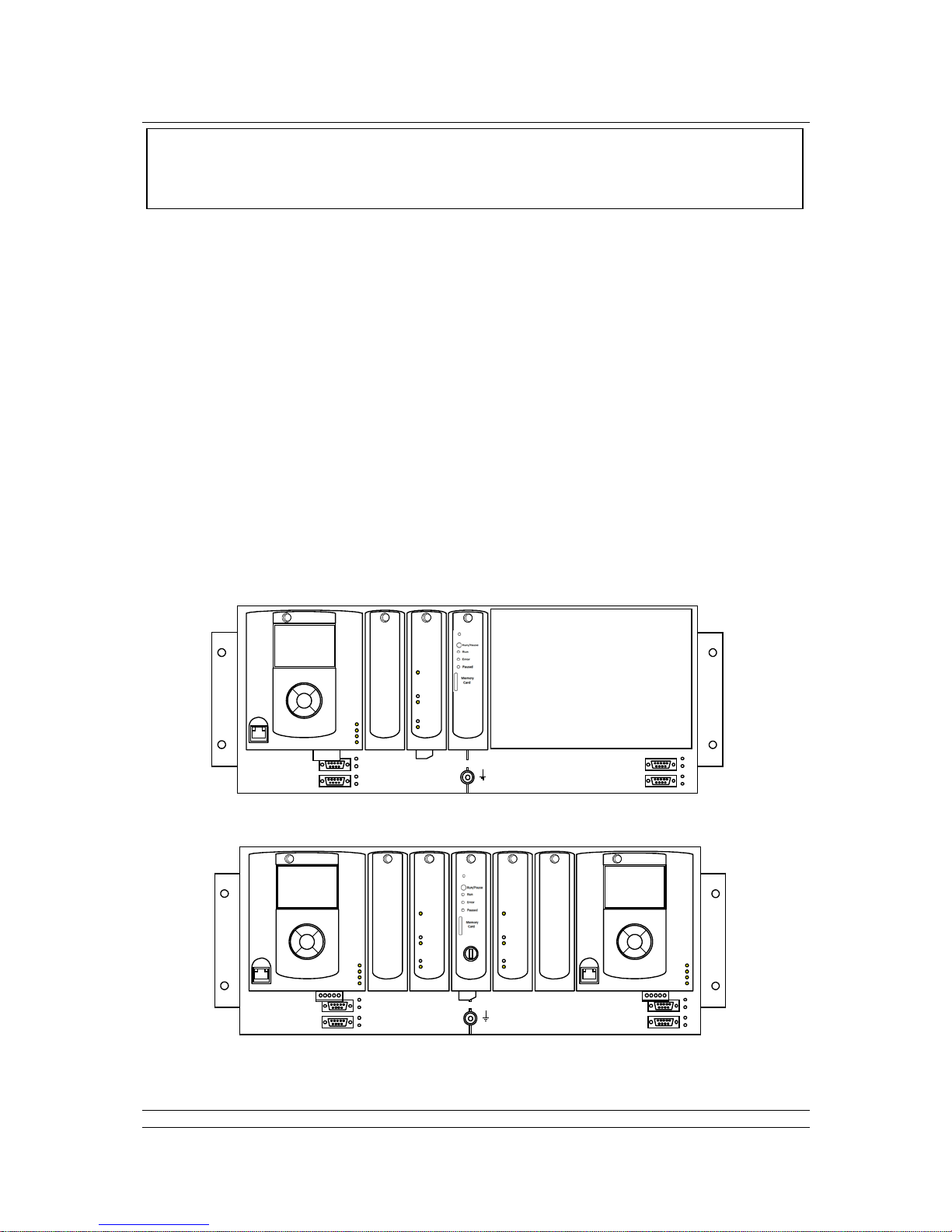

Fig 1: The Pakscan 3 Single Master Station – option: Current loop

Fig 2: The Pakscan 3 Hot Standby Master Station - option: Current loop

This manual relates to Pakscan 3 Master Stations fitted with

PS720 Current Loop modules and/or the PS721 and PS722

Wireless modules

Page 8

P3 - Pakscan Master Station Technical Manual

8 of 136 Publication PUB059-002-00 Issue 06/15

A master station fitted with the wired network only requires the PS720 module that fits in to the back plane. A master station fitted with wireless requires a module to be fitted to the back plane (in option

1) and connected to this module, a P3W coordinator module (PS722).

Fig 3: The Pakscan 3 Single Master Station – option: Wireless

Fig 4: The Pakscan 3 Hot Standby Master Station – option: Wireless

Fig 5: The P3W (Pakscan 3 Wireless) coordinator – PS722. One required for single channel master stations, two for hot standby master stations. The P3W repeater (a device for extending the range of wireless) and the P3W WMA look identical to this.

Port 1

Port 2

PS730

Keyswitch

Aut

P 3 P 3 P

PS720

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

CPU/PSU

Port

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

Option1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

rotork

Comms

PS721

Comms

PS721

rotork

P 3 P 3 P

CPU/PSU

Port 1

Port 2

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

Option 1

Option 2

Switch

CЄ

rotork

P3 Wireless

Comms

PS721

rotork

Page 9

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 9 of 136

1. MOUNTING AND CONNECTING THE MASTER STATION

The Pakscan 3 master station (single or hot standby) provides front access for all the user connections, including power feed and the field network connections – either loop wires to the Current Loop module (PS720) or network connection to the P3W coordinator (PS721 and PS722). The host communication links use plug in D-type connectors for the serial communications and RJ45 connections for the Ethernet links.

 The field wiring for the current loop, P3W coordinator and the master station alarms are taken

to screw terminals on plug in connectors that are fitted from below their appropriate module.

 Power wiring is connected using an IEC connector in the bottom of the master station module

PS710. Two connections are required for a hot standby system.

 Serial communications (RS-232 or RS-485) plug into 9 way female D-type connectors on the

front of the mounting chassis.

 Ethernet connections use RJ45 connectors on the bottom of the master station module

PS710. The connector on the front is intended for connection to a service laptop computer.

1.1 Mechanical Fixing

Room should be left around the module for all the connections and cables, allowing for a suitable bending radius on each lead. Power wiring should be suitably fused or protected with miniature circuit breakers (MCBs) external to the master station.

The master station may be mounted on a flat surface using the mounting brackets provided. Also, the extension brackets allow it to be mounted in a 19-inch rack. In either case it should be located in a way that permits easy access to the pushbuttons and easy viewing of the display panel(s).

Before mounting the master station, set the communications link

switches, as discussed in section 3.

178

482

467

438

140

4 holes 6.5

All dimensions in mm

Allow 30 mm minimum space for cabling

Port 1

Port 2

Port 1

Port 2

P 3 P 3 PS720

IIE Loop

Standby

Port A

Port B

CPU/PSU

PS710

Pakscan

P 3 Status

Pri/Stby

Power

Alarm

Option 1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

rotork

Fig 6: Pakscan 3 surface mounting dimensions. (Both single and hot standby master stations may be surface mounted)

rotork

Page 10

P3 - Pakscan Master Station Technical Manual

10 of 136 Publication PUB059-002-00 Issue 06/15

All dimensions in mm

178

102

482

466

4 slots 6.5

Allow 30 mm minimum space for cabling

Port 1

Port 2

PS730

Keyswitch

Auto

P 3 P

PS720

IIE Loop

Standby

Port A

Port B

PS720

IIE Loop

Standby

Port A

Port B

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

CPU/PSU

Port 1

Port 2

PS710

Pakscan

Status

Pri/Stby

Power

Alarm

Option 1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

rotork

140

133

Fig 7: Pakscan 3, 19-inch rack mounting dimensions. (Both single and hot standby master stations can be panel or rack mounted)

Fig 8: View below the Pakscan P3 master station showing the Connectors

(The B side connections are similar)

Port 3 Port 4

1 2 3 4 5

1 2 3 4 5 6

IEC Power

Connector

Ethernet

Ports

Hard Wired

ESD

Serial

Ports

Current

Loop

Fuses

(Hot Standby)

(Single)

Wireless

module

2 3 4 5 6 7

Page 11

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 11 of 136

Wireless installations will include a P3W Coordinator and may include P3W Repeaters and P3W Wireless Modbus Adaptors (WMA). These units are identical with regards to mechanical fixing.

Dimensions in mm, Module weight: 4,400g

Fig 9: P3W coordinator, P3W WMA and P3W Repeater mounting details

The P3W Coordinator, P3W Repeater and P3W wireless Modbus Adaptor

may be located in Hazardous locations. If this is the case, please refer to

the Hazardous Area notes in the General Safety Information section at the

back of this manual.

4 off: 6.5mm diameter mounting holes

All cable entry threads are M25 x

1.5p

External Earth connection

Page 12

P3 - Pakscan Master Station Technical Manual

12 of 136 Publication PUB059-002-00 Issue 06/15

1.2 Host Serial Communications Connections

The serial data connections are via the D-type connectors below each master station PS710 on the main chassis. They are labelled Port 1 and Port 2 on both the A and B (left and right) sides of the assembly. All the connectors are 9 way female and they may be set for RS-485 (2-wire) or RS-232 use. On hot standby systems they can be cross coupled to provide seamless communication when the systems change over. The pin-out connections are shown below.

 With RS-485 it is possible to arrange a multi-drop data highway for the serial communications,

whilst RS-232 must be single point communications.

1.3 Ethernet Communications Connections

Each Pakscan P3 CPU module (master station module) has 2 x RJ45 Ethernet connectors for the two host communication ports (accessed from below) marked Port 3 and Port 4. A third RJ45 connector is located on the front of each module. This is provided to allow a portable computer (laptop) to be connected for diagnostic and set up purposes. Standard Ethernet patch cables can be used with these connectors.

All Ethernet cables must be screened, and of good quality. Many screened Ethernet cables of low quality have questionable screening efficacy.

All Ethernet ports on the master station have LEDs to indicate communication. Green indicates 10M bit/s and orange indicates 100Mbit/s. Communication may be half duplex or full duplex.

1.4 Power Connector and Fuses

Each Pakscan P3 CPU module has its own internal power supply. A standard IEC connector is provided to allow the mains power (85 to 263V AC – 47 to 63 Hz) to be connected from below the module. The mains IEC socket also includes the two fuses for the system, which must only be replaced with the same and rating 250V 1A 5x20mm anti-surge fuses.

Fig 10: Serial Communication connections

Page 13

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 13 of 136

Port A OUT

Port A IN

Screen

Port B OUT

Port B IN

Screen

PS720/PS730 CONNECTOR

Source A

Source B

For the 24V DC version, a three pin removable screw terminal connector is provided. There is no internal fuse.

1.5 Alarm and Hardwired ESD Connector

There is a removable screw terminal connector in each Pakscan P3 CPU module for the connection of ESD hard-wired inputs and for connection to the internal alarm relay contacts, when required. On most systems these terminals will not be used; in which case a hard-wired link between pins 4 and 5 must be fitted, this is usually fitted by the factory.

Note the relay is shown in the ‘alarm active’ or ‘power removed’ position. The Alarm relay will activate if there are any alarm conditions in any field unit or the master station. This alarm will not prevent operation of the master station.

1.6 Current Loop Connections

A connector is located in the bottom of the key switch module on hot standby Pakscan 3 systems for the connection of the current loop to the field mounted actuators. On single P3 master stations the connector beneath the current loop module itself should be used.

Terminal

Function

Alarm (common)

Alarm (normally closed)

Alarm (normally open)

Emergency Shutdown

Terminal

Function

Port B In

Port B Out

Port B Screen

Port A In

Port A Out

Port A Screen

Port A OUT

Port A IN

Screen

Port B OUT

Port B IN

Screen

PS720/PS730 CONNECTOR

Source A

Source B

Alarm

1 2 3

Emergency Shutdown

PS710 CONNECTOR

Fig 11: PS710 CPU module connector terminal functions

Fig 12: PS720/PS730/PS731/PS732 Current Loop connections

Page 14

P3 - Pakscan Master Station Technical Manual

14 of 136 Publication PUB059-002-00 Issue 06/15

1.7 P3W Coordinator Connections

A connector is located in the bottom of the (PS721) wireless option module to connect to the P3W coordinator (PS722). The connection between these should be made using a shielded network cable with 3 pairs of wires – each pair to be twisted. Suitable cable conforms to the specification for RS-422 networks. This cable can be up to 200m long so that the P3W coordinator may be mounted, for example, on the roof of the building containing the master station.

The Communications cable and appropriate glands for the P3W coordinator will need to be sourced locally, according to site requirements. Connect the Communications cable as shown below, noting that the connections are NOT all one to one.

Supply 0 V DC 8

P3W COORDINATOR

MODULE

PS722

-ve 2

+ve

Scr/

Gnd

Scr/ Gnd

+ve

-ve 5

24V

200m maximum

Supply 24 V DC 7

Tx Shield/Gnd 6

RS422 Tx -ve 5 RS422 Tx +ve 4 Rx Shield/Gnd 3

RS422 Rx -ve 2

RS422 Rx +ve 1

WIRELESS OPTION

MODULE

PS721

Fig 13: PS721 to PS722 connections (Master station to P3W Coordinator)

Page 15

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 15 of 136

1.8 P3W Repeater and P3W WMA AC Power Connections

The P3W Repeater AC and the P3W WMA AC will contain a power module for the appropriate power supply requested by the user. The power module is mounted the base half of the module with the wireless module in the other half, the modules will be connected together by an interconnecting loom, connected to SK1 on the power module and SK3A on the wireless module. The mains AC connections are made to the power module connections L1, L2 and L3, shown in the Figure below. The mains cable will need to be terminated in 4 mm ring crimps.

SK1, a flying lead, will be fitted by the factory to the appropriate tapping for the power supply that the customer has indicated will be used. Fitting to the posts labelled W, X, Y and Z selects the correct voltage. This should be checked for correct fitment before power is applied.

A switch or circuit breaker must be included in the wiring installations. The switch or circuit breaker must be mounted as close to the module as possible and shall be marked to indicate that it is the disconnect device for that particular module. The Power cable and appropriate glands for the P3W coordinator will need to be sourced locally, according to site requirements. Power supply: 3 Phase up to nominal 690V, 50 or 60Hz or Single Phase up to nominal 230V, 50 or 60 Hz. Check that the supply voltage agrees with that stated on the nameplate.

Power should only be applied with the module fully assembled i.e. the base

and the cover connected together with the bolts supplied.

Cable glands used must be appropriate to the classification of the area.

Conduit seals must be installed at the enclosure.

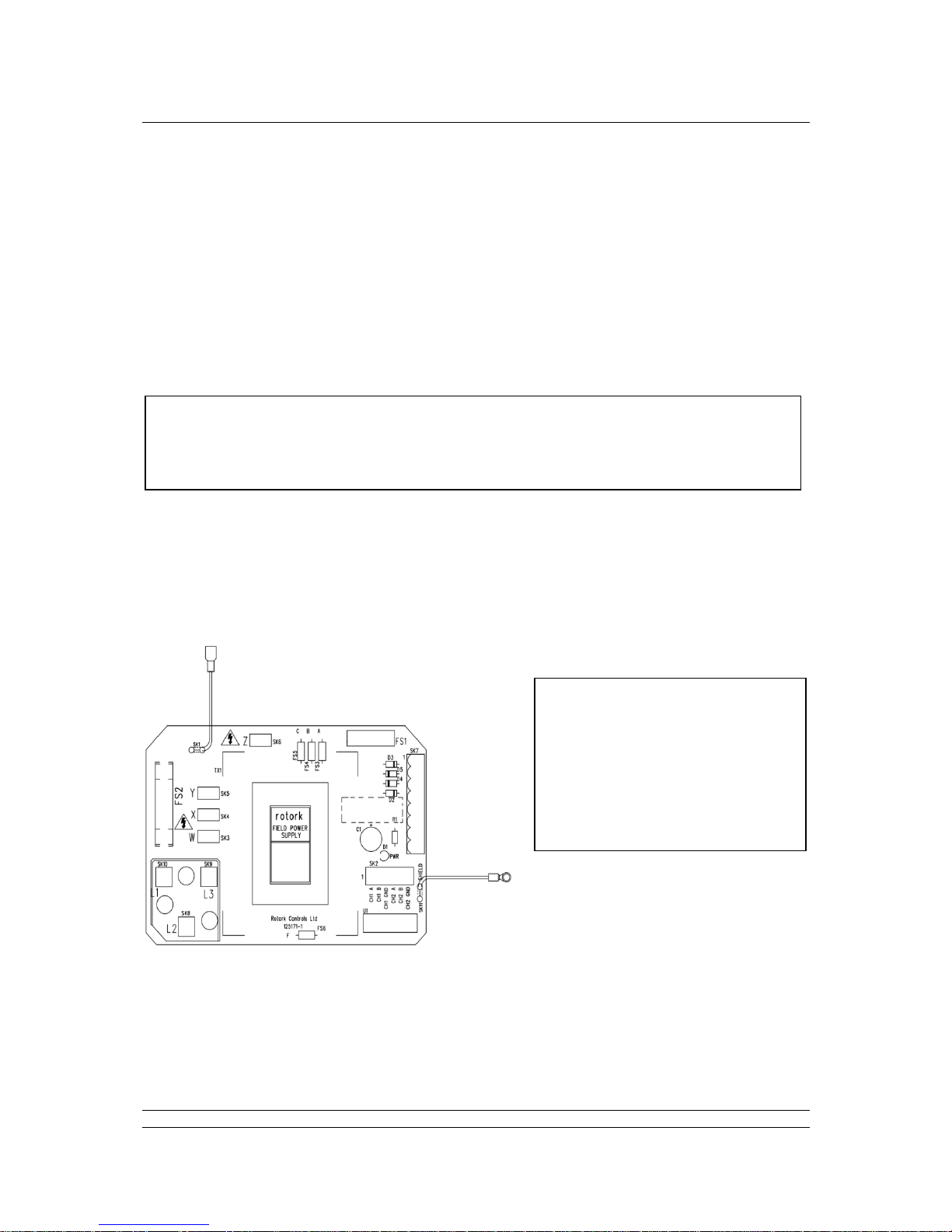

Fig 14: Power module for P3W Repeater-AC and P3W WMA-AC.

SK2 is the Modbus connection. U1 is the cable screen clamp. SK7 is the loom for the Wireless pcb. FS1 is a 250 mA S500 fuse. FS2 is a 100mA TDC11 fuse. The wire attached to SK11 should be attached by one of the pcb mounting screws to the casing.

Page 16

P3 - Pakscan Master Station Technical Manual

16 of 136 Publication PUB059-002-00 Issue 06/15

1.9 P3W Repeater and P3W WMA 24VDC Connections

The P3W WMA DC may be powered from the Modbus device to which it is connected, assuming the device has the appropriate DC supply available. Under this circumstance the interconnection cable between the device and the P3W WMA-DC should contain 2 shielded pairs, one for power supply and one for the communication signal. In this case, the distance between the Modbus device and the P3W WMA-DC should not exceed 10 meters.

The P3W repeater DC may also be powered from an external DC supply in the same way. Connect the power cable as shown below, the connector labelled SK3A is used on the P3W WMA-DC

and P3W repeater-DC. The power supply should be nominally 24volts (range 9-35volts, suggested power supply current

capabilities – 200mA)

P3W module

DC +ve

Scr/Gnd

DC +ve

DC 0v

DC Power supply

DC 0v

Fig 15: Connections from DC power supply to P3W WMA or P3W repeater

Page 17

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 17 of 136

1.10 P3W WMA Modbus Connections

The P3W WMA connects to a Modbus RTU device enabling a Modbus host to connect through the Pakscan wireless system to the Modbus device. The connection between the Modbus device and the P3W WMA should be made using a shielded network cable with 1 twisted pair of wires. Suitable cable conforms to the specification for RS-485 networks. This cable length will depend on the baud rate chosen for communications.

The Communications cable and appropriate glands for the P3W coordinator will need to be sourced locally, according to site requirements. Connect the Communications cable as shown below, the connector labelled SK3A is used on the P3W WMA.

P3W WIRELESS MODBUS

ADAPTOR

(WMA)

RS-485

(B)

RS-485

(A)

Scr/Gnd

Scr/Gnd RS-485 (B) RS-485 (A)

MODBUS DEVICE

Fig 16: Connections from Modbus device to P3W WMA

Page 18

P3 - Pakscan Master Station Technical Manual

18 of 136 Publication PUB059-002-00 Issue 06/15

1.11 Setting up the P3W Repeater and P3W WMA

The P3W Repeater requires the PAN ID (Personal Area Network Identification number) and RF Channel to be set up for the network to which it is attached. The P3W WMA also requires these parameters and its Modbus communication parameters to be set up. This is achieved using the Modbus interface that is available on both modules.

The Modbus physical connections are detailed in the previous section ‘P3W WMA (Wireless Modbus Adapter) Modbus Connections’. For the purpose of configuration, these connections can be temporary, for example, it may be more convenient to make the configuration changes in a workshop before installation on site. For both devices it is likely that configuration is only required once, therefore after installation there should be no need to access the Modbus connections again on the P3W repeater.

During configuration in a workshop environment, the 2 halves of the module can be separated, such that the Wireless module is disconnected from its power supply module. The wireless module can then be powered, separately, using a 24VDC source as described in the previous section ‘P3W WMA (Wireless Modbus Adapter) 24VDC Connections’.

For making configuration changes to the P3W Repeater or P3W WMA, there is a fixed Configuration Modbus address of 248.

The P3W Repeater, requires the PAN ID and RF Channel to be set up, and if there are multiple P3W repeaters the Modbus slave address must be set up such that all P3W repeaters are unique and can appear as separate nodes on the wireless network.

The P3W WMA requires the Modbus communication parameters (baud rate and parity) to be set up, as appropriate for communicating to the Modbus slave device it is to be connected to. The Modbus slave device address is not required to be set up within the P3W WMA, as it will automatically scan for attached devices using the baud rate and parity set. Up to 10 slave Modbus devices can be connected, each device will require a unique Modbus address, within the range 201 to 247. The address must be unique for the host device to be able to access it. Within the master station configuration pages, the Modbus addresses used for the devices fitted to the P3W WMAs are required to be selected. See section 7.5.17 master station configuration.

Changes to RF communication parameters will take place immediately. Changes to Modbus communication parameters will take effect after a power cycle.

Page 19

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 19 of 136

The principle of operation of the P3W WMA is shown in the diagram below.

MODBUS DEVICE

Modbus RTU message

P3W COORDINATOR

Modbus message

encapsulated in Rotork Wireless

Protocol

P3W MODBUS

ADAPTOR

(WMA)

MASTER STATION

MODBUS MASTER

Modbus RTU or TCP message

Same Modbus Message

Fig 17: P3W WMA operation

Page 20

P3 - Pakscan Master Station Technical Manual

20 of 136 Publication PUB059-002-00 Issue 06/15

The following parameters can be configured when addressing the P3W repeater or P3W WMA using the configuration Modbus address of 248:

Modbus Register

Modbus Function code

Description

Range

Default Value

Read / Write?

100

03, 04, 06, 16

PAN ID

0000 – FFFFhex (0 – 65535)

DA15 hex

R/W

102

03, 04, 06, 16

RF Channel

16 – 25dec (channel 16 to Channel 25)

R/W

104

03, 04

03, 04, 06, 16

P3W WMA: Lowest Modbus Address of device (s) connected to the WMA, if no device is found this will default to 247 P3W Repeater: Address of the repeater, required to be set up for the device to appear in the master station for status info – must be unique in the network

201-247dec

301-315dec

247

301

R/W

200

03, 04, 06, 16

Modbus Baud rate

Value 1 to 5: 1–9600 / 2–19200 3–38400 / 4–57600 5-115200

1 (9600)

R/W

201

03, 04, 06, 16

RS-485 Parity

Value 1 to 5: 1–None / 2-Odd 3-Even

1 (None)

R/W

The baud rate of communications between the P3W WMA and the Device should be set to a value faster than the host (Modbus Master) will communicate to the master station.

Fig 18: P3W Repeater and P3W WMA database

Page 21

1. Mounting and Connecting the Master Station

Issue 06/15 Publication PUB059-002-00 21 of 136

1.12 Front Panel LEDs

There are four Light Emitting Diodes (LEDs) on the front panel of the CPU module, in the bottom righthand corner. These are fitted to show if a unit is powered-up, which unit is in Primary or Standby mode and whether there are any errors or alarms.

On power-up, there is a sequence of colour changes and flashes from the LEDs, which take almost a minute to complete and confirms that all parts of the system are operating correctly: The Status LED sequence is: off > amber > flashing green > steady green. The Pri/Stdby LED sequence is: off > green > off > amber > steady green (amber for standby). The Power LED sequence is: off > amber > green > green > steady green. The Alarm LED sequence is: off > red > off > red > off.

The Status LED will show steady red if communications with the host is lost over Ethernet, or there is a communications error between the master station and a field unit. The LED shows flashing green only during the power-up sequence. The LED shows steady green to confirm that all applications are running after power-up is completed.

The Pri/Stdby LED will show steady green if it is a single unit or if it is the Primary unit of a hot standby pair. The LED will show steady amber if it is the Standby unit in a hot standby pair.

The Power LED is off when there is no power and steady green when power is present. It only shows amber during the power-up sequence.

The Alarm LED will show steady red if there are any alarm conditions in any field unit or the master station. This alarm will not prevent operation of the master station.

Fig 19: CPU LEDs (Light Emitting Diodes)

Page 22

P3 - Pakscan Master Station Technical Manual

22 of 136 Publication PUB059-002-00 Issue 06/15

(The rest of this page is intentionally blank)

Page 23

2. The Field Current Loop Network

Issue 06/15 Publication PUB059-002-00 23 of 136

Port A

OUT = Term'l

IN = Term'l 4

Port

B IN = Term'l 1 OUT = Term'l

Up to 240 actuators

per loo

Current loo

- up to 20 km

2. THE FIELD CURRENT LOOP NETWORK

The Pakscan current loop field network must be correctly cabled and connected to the master station. The values of the field loop resistance and capacitance must be known to determine the loop speed that can be used. If these are not known then the LOWEST loop speed must be set in each actuator and the master station to ensure good field network connectivity.

Fig 20: Pakscan P3 Wired Network

Page 24

P3 - Pakscan Master Station Technical Manual

24 of 136 Publication PUB059-002-00 Issue 06/15

2.1 Loop Checks

The most common errors in installing the system occur on the field wiring.

Loop Continuity

With all the field units connected, but none of them powered up, check the continuity of the 2 cores of the Pakscan loop cable. Measure and record the resistance of each core. These measurements will be useful as they can be compared with future measurements to determine if cable resistance has changed significantly or not, this may help identify a cable fault. Cable resistance (R) is the sum of the resistance of both cores.

Screen Continuity

Screen continuity must be continuous between each end of the loop. Ensure the screen is either connected to a signal earth bar at only one point or to terminals on the loop driver plug; pin 3 connects directly to the enclosure earth and pin 6 connects to the enclosure earth via an internal capacitor, preventing an earth loop. Both screens must be connected to the terminals provided on the loop driver, so as to ensure the product meets the European Directive on EMC.

Cable Capacitance

The capacitance (C) between the cores of the cable is critical to system performance. Too high a capacitance for the selected loop baud rate will result in poor communications, or even communication failure. If a suitable meter is available, measure and record the capacitance between the cable cores.

Maximum Loop Speed

The cable resistance must not exceed 500 Ohms (250 Ohms per core) and the total capacitance must not exceed the maximum value for each communication speed. In addition to cable capacitance, each field unit adds a small amount of capacitance to the loop which must also be considered when determining maximum loop speed. Use the measured resistance and capacitance values from the above tests to determine which loop speed should be used.

Baud Rate

R max (ohms)

C max (F)

110

500

4.5

300

500

2.1

600

500

1.54

1200

500

0.6

2400

500

0.3

Each field unit will add a capacitance of 2.2nF

The C max figure given is the maximum value for the network capacitance

including the field unit capacitance.

Test Equipment

A good quality multimeter with capacitance test facility is adequate for testing loop resistance and capacitance. Under no circumstances should any high voltage test equipment be used such as insulation Megger testers when any part of the cable loop is connected to either the master station or actuators. The high test voltages generated by such equipment may damage the Pakscan components.

Page 25

2. The Field Current Loop Network

Issue 06/15 Publication PUB059-002-00 25 of 136

2.2 Connecting Up

Once the checks are complete, connect the Loop Cables to the PS730 Key switch module on a hot standby system or the PS720 Current Loop module on a single system. The Pakscan loop should look like the figure below. Check the loop wiring complies with this drawing and then proceed to Section 8.1 for commissioning instructions.

Note: If there is no hard-wired ESD requirement a shorting link must be fitted across pins 4 and 5 on both side A and side B of the PS710 modules.

Fig 21: Pakscan P3 Current Wired Loop System Block Diagram (hot standby master station)

POWER

SUPPLY

POWER

SUPPLY

MAINS

SUPPLY

MAINS

SUPPLY

L N E

L N

PORT 1

PORT 3

PORT 2

PORT 4

PORT 1

PORT 2

PORT 3 PORT 4

1 2 3

4 5

SCR

Actuator Terminals

B C A

SCR

A C B

ACB SCR

ALARM

EMERGENCY

SHUTDOWN

WIRE A SIDE EMERGENCY

SHUTDOWN IN SERIES WITH B SIDE

Note: 4 and 5 swap over

ALARM

Screen

Port A OUT Port A IN

Port B OUT Port B IN

PS710 MODULE

(PROCESSORS

AND DISPLAY)

PS710 MODULE

(PROCESSORS

AND DISPLAY)

P3 MASTER

STATION ‘A’

P3 MASTER

STATION ‘B’

PS720 MODULE

(CURRENT LOOP

CONTROLLER)

PS720 MODULE

(CURRENT LOOP

CONTROLLER)

PS730

KEY SWITCH

MODULE

SIGNAL EARTH BAR

If there is a signal earth bar,

connect the screen on one side only

to the bar.

Either connect cable

screen to terminals 3 & 6

OR to signal earth bar, but

not to both.

Page 26

P3 - Pakscan Master Station Technical Manual

26 of 136 Publication PUB059-002-00 Issue 06/15

POWER

SUPPLY

MAINS

SUPPLY

L N E

PORT 1

PORT 2

PORT 3

PORT 4

SCR

Actuator Terminals

B C A

SCR

A C B

B SCR

ALARM

EMERGENCY

SHUTDOWN

Screen

Port A OUT

Port A IN

Port B OUT

Port B IN

PS710 MODULE

(PROCESSORS

AND DISPLAY)

P3 MASTER

STATION ‘A’

PS720 MODULE

(CURRENT LOOP

CONTROLLER)

SIGNAL EARTH BAR

If there is a signal earth bar,

connect the screen on one side only

to the bar.

Either connect cable

screen to terminals 3 & 6

OR to signal earth bar, but

not to both.

Fig 22: Pakscan P3 Current Wired Loop System Block Diagram (single master station)

Note: If there is no hard-wired ESD requirement a shorting link must be fitted across pins 4 and 5 of the PS710 module

Page 27

3. The Field Wireless Network

Issue 06/15 Publication PUB059-002-00 27 of 136

3. THE FIELD WIRELESS NETWORK

A Pakscan wireless network will contain a master station with a PS721 module fitted to its back plane (2 for hot standby). Each of these will connect to a PS722 P3W coordinator module. The P3W coordinator module is the device that controls and organises the wireless network. For an actuator to be connected on the network it must have a wireless actuator module. The IQ and IQT range of actuators fully integrate into the wireless system. Other devices can be integrated into the system using a Wireless to Modbus adaptor (P3W WMA). The P3W WMA can be attached to any device that has a Modbus interface on it. The host then uses the master station and the wireless network as a transport layer only to send Modbus messages that are directed to a Modbus device.

A network may also require a number of P3W repeaters to overcome wireless dead spots or to ensure a redundant path to all devices.

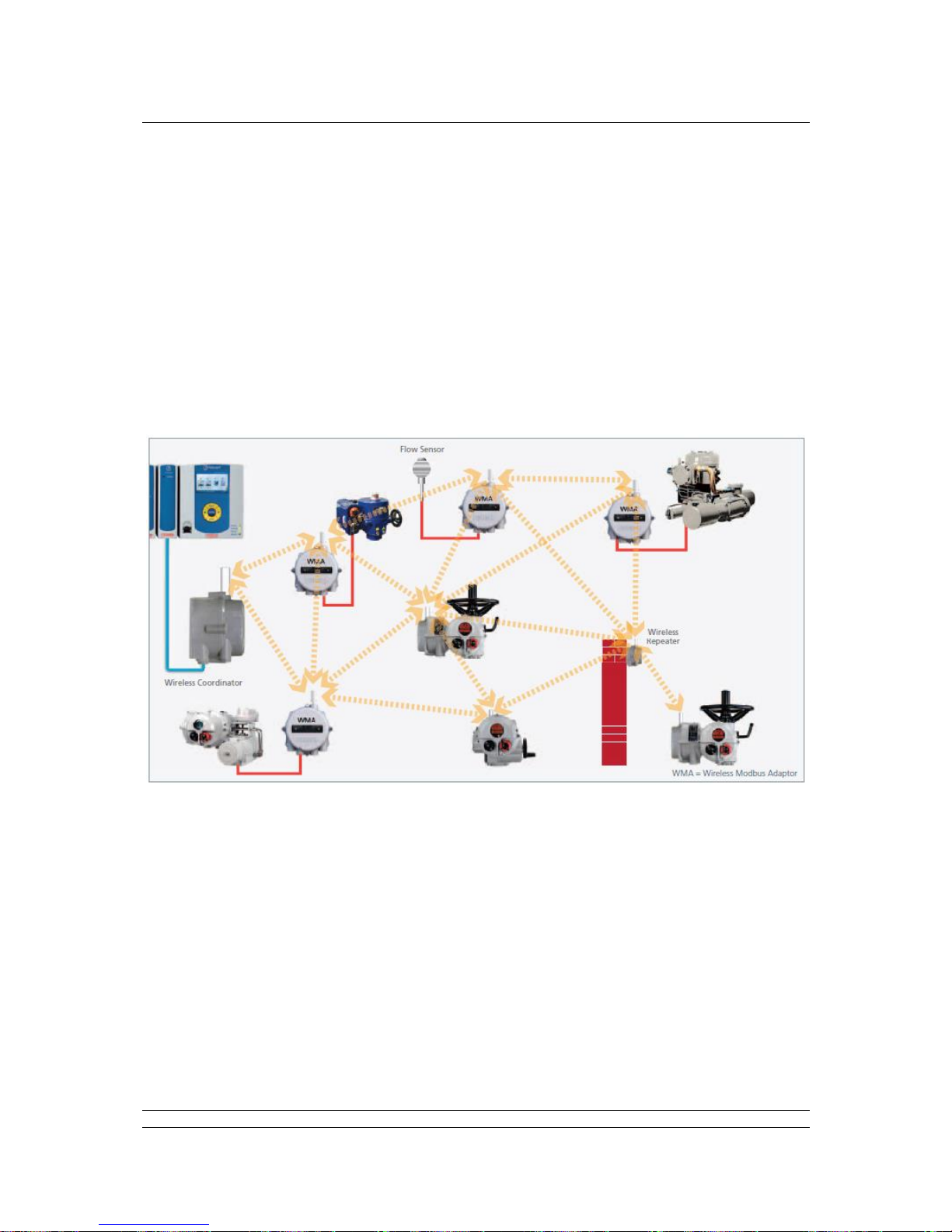

Fig 23: A typical P3 wireless network Up to 60 devices can be connected in a wireless network. The distances between each node in the

network is recommended to be no more than: Indoors: 30 metres Outside: 100 metres

In practice, it has been found that these distances can be extended, but a site survey is required to confirm this. Each device is able to route messages onto the next device. By this method, the range

of the network is increased. It is recommended to have no more than 7 ‘hops’ from the master station

to the final device. A ‘hop’ is where a message routes through a wireless device to get to the

destination device.

Page 28

P3 - Pakscan Master Station Technical Manual

28 of 136 Publication PUB059-002-00 Issue 06/15

3.1 Wireless Site Survey

The first step in setting up a wireless network will be a Wireless Site Survey, which would be performed by Rotork Personnel. This will establish the suitability of the site for a wireless network. The survey will establish the levels of background wireless signals within the spectrum of the 2.4 GHz band used for the P3 wireless network and also the potential strength of the wireless signals between the actuator and P3W coordinator locations. This will aid in positioning the P3W coordinator and in deciding upon the need for P3W repeaters.

As a result of the survey, one or more channels within the band will be found to be suitable for the network. All devices on the network will be shipped with a default channel set.

3.2 Wireless Specification

Network Based on: IEEE 802.15.4, DSSS (Direct Sequence Spread Spectrum). Maximum Wireless devices: 60. Frequency: 2.4GHz band. Operating Range: 30m indoors, 100m outside. Network Structure: Mesh. Channels available: 16. (Currently 13 are useable). Security: AES and anti-spoofing. Power: 10mW default, potential for 100mW if the location allows.

3.3 Connecting Up

The IQ and IQT actuators fitted with a wireless module will only require mains power connections and the appropriate glands for the environment to be connected to them. Where a P3W WMA is supplied, power is required to be provided by the user and the user must also provide the necessary cable and glands between the WMA and the device to which it is attached. A P3W repeater also only requires a power cable and glands supplied by the user. The power required for the P3W Repeater and P3W WMA will be indicated on the serial label.

Figure on the next page shows the master station block diagram. The site survey will have indicated the appropriate position to locate the P3W coordinator(s) and any

P3W repeaters. Once all the equipment is in place, the user can then proceed to Section 8.2 for commissioning instructions.

Page 29

3. The Field Wireless Network

Issue 06/15 Publication PUB059-002-00 29 of 136

POWER

SUPPLY

POWER

SUPPLY

MAINS

SUPPLY

MAINS

SUPPLY

L N E

L N

PORT 1

PORT 3

PORT 2

PORT 4

PORT 1

PORT 2

PORT 3 PORT 4

1 2 3

4 5

ALARM

EMERGENCY

SHUTDOWN

WIRE B SIDE EMERGENCY

SHUTDOWN IN SERIES WITH A SIDE

Note: 4 and 5 swap over

ALARM

PS710 MODULE

(PROCESSORS

AND DISPLAY)

PS710 MODULE

(PROCESSORS

AND DISPLAY)

P3 MASTER

STATION ‘A’

P3 MASTER

STATION ‘B’

PS731 LONG TERM

DATALOGGER KEYSWITCH

MODULE

PS721

WIRELESS

COMMS

MODULE

PS721

WIRELESS

COMMS

MODULE

P3W

COORDINATOR

MODULE ‘A’

P3W

COORDINATOR

MODULE ‘B’

8 7 6

5 4 3 2

8 7 6

5 4 3 2 1

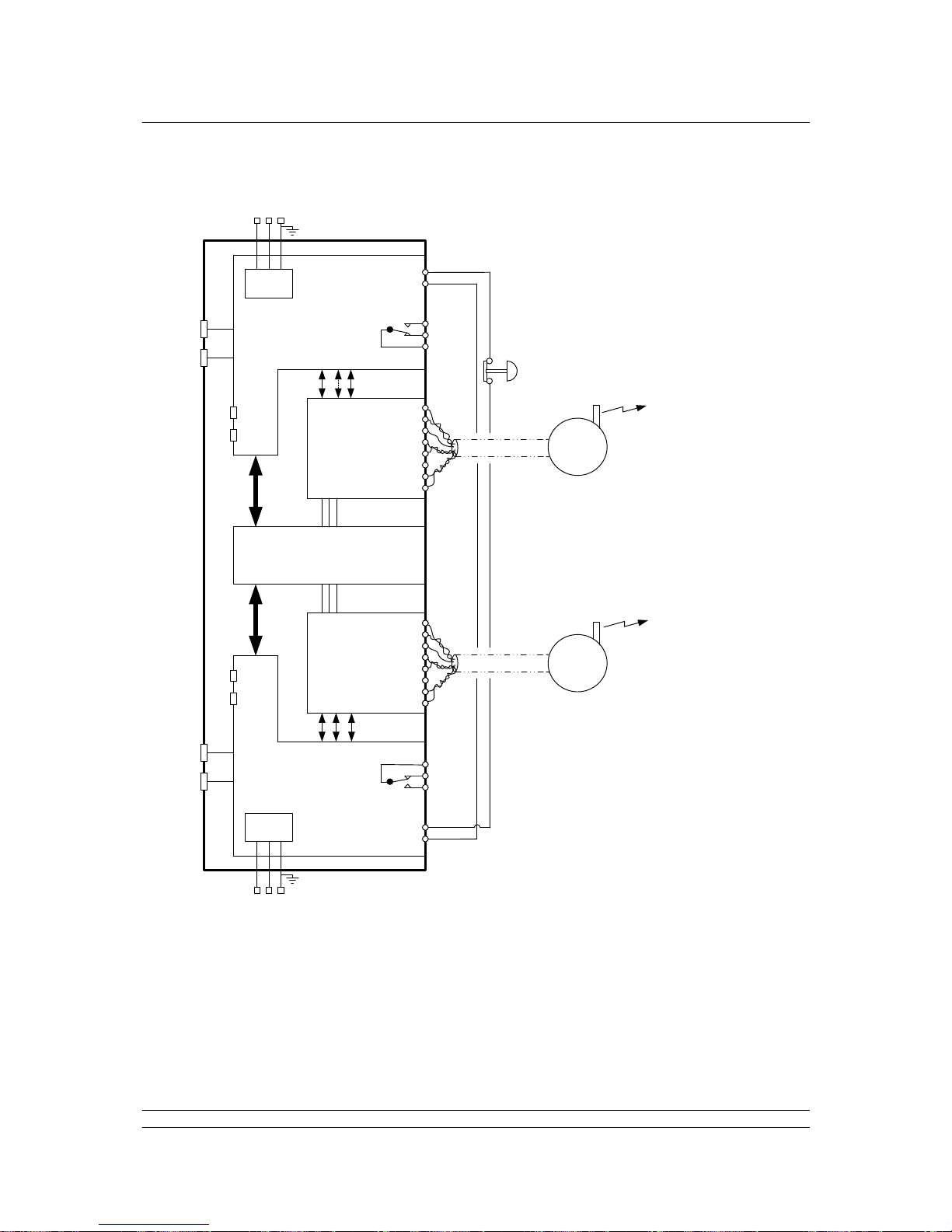

Fig 24: Pakscan P3 Wireless network Block Diagram (hot standby master station)

Note: If there is no hard-wired ESD requirement a shorting link must be fitted across pin 4 and 5 on both side A and side B of the PS710 modules.

Page 30

P3 - Pakscan Master Station Technical Manual

30 of 136 Publication PUB059-002-00 Issue 06/15

(The rest of this page is intentionally blank)

Page 31

4. Configuring Serial Communications

Issue 06/15 Publication PUB059-002-00 31 of 136

Port 1

Port 2

P 3 P

PS720

IIE Loop

Standby

Port A

Port B

PS720

IIE Loop

Standby

Port A

Port B

CPU/PSU

Port 1

Port 2

Option 1

Option 2

Switch

CЄ

Option 2

Option 1

CPU/PSU

Not Cross

Connected

Cross

Connected

Port Terminations

Off

Off 1 2

Port 1

Port 2

RS-232

RS-485

Port Terminations

Off

Off 1 2

Port 1

Port 2

Port 1

Port 2

Port 1

Port 2

Only

Port 1

Port 2

rotork

RS-232

RS-485

4. CONFIGURING SERIAL COMMUNICATIONS

The Pakscan 3 CPU module has two serial ports. Each of these is configurable for RS-232 or RS-485. Most hot standby systems will probably require two RS-485 connections in a seamless redundant configuration. Single systems may use RS-232 or RS-485.

4.1 Setting Port 1 and 2 for RS-232 or RS-485

The chassis has DIP switches behind the PS710 CPU module for setting the type of serial port that is presented at the port connectors.

Fig 25: Pakscan P3 Chassis, CPU and Key Switch modules removed

The switches on the backplane behind the PS710 CPU Module are used to set Port 1 and Port 2 parameters.

To access the switches, you will need to remove the modules shown above from the backplane. To do this, power-off the master station completely from any power sources, either mains or DC. Then

unscrew the hex head bolt from the top of the module using the 2mm ball driver tool supplied with the master station. Once the screw is removed, or loosened sufficiently, the module may be carefully pulled forward at the top until the lower claws of the module can be unhooked from the slots in the backplane.

If any plugs are left in the power sockets or serial sockets, these may prevent you from tipping the module forward sufficiently to unhook it from the backplane.

Replacement of the module is the opposite of removal, being careful to align the module and backplane connectors.

Select

Function

Select RS-485

Termination

Select RS-485

Cross

Connection

CPU Feedback

for Cross

Connection

Select

Function

Select RS-485

Termination

Page 32

P3 - Pakscan Master Station Technical Manual

32 of 136 Publication PUB059-002-00 Issue 06/15

Port Function

Two DIP switches allow each port to be selected between RS232 and RS-485. For RS-485 slide the appropriate Port switches to the right, for RS-232 they should be on the left.

Each of the two ports may be set independently.

Fig 26: Port Function Switches shown in RS-232 position

RS-485 Termination Resistors

Two DIP switches are used to connect end-of-line termination and biasing resistors to the RS-485 highway. All RS-485 network highways must be terminated at both ends of the highway, in this case, at the host controller and at the master station. Only RS-485 highways need termination and biasing resistors. If a CPU port is configured for RS-232, it must never be terminated. Each port can be terminated independently.

Each CPU module serial port sits on an independent highway and should be terminated independently. So, if ports 1 & 2 on a CPU module are both being used for redundant RS-485 communications to a Host controller, then each port may need to be terminated and biased.

However, where more than one CPU Module sits on the same RS-485 highway, then only the one furthest from the host controller needs the biasing and termination resistors to be enabled.

Port Terminations

1 2

Off Off

On On

Fig 27: Port Termination Switches shown in Off position

RS-232 RS-485

Port 1

Port 2

+5V

Gnd

120

Data +

Data -

Off

Page 33

4. Configuring Serial Communications

Issue 06/15 Publication PUB059-002-00 33 of 136

Cross Connection switches

The cross connection switches, found on the backplane behind the PS710 CPU Module, are used to cross connect the serial RS-485 connections. They are only applicable for a hot standby system and should ONLY be set as cross connected for a port that has been selected as RS-485.

Fig 28: Cross connection switch settings on the backplane behind the Switch Module The switches are shown in the Factory Default positions (Hot Standby). Port 1 is set to Cross-Connected for RS-485 Serial communications. Port 2 is set to Not Cross-

Connected for RS-232 Serial Communications. The feedback switch positions must reflect the Cross-Connection settings for Port 1 and Port 2.

These switches are used, by the master station CPU, to indicate to the user (via the HMI or web pages) the position of the cross-connect switches.

Page 34

P3 - Pakscan Master Station Technical Manual

34 of 136 Publication PUB059-002-00 Issue 06/15

Typical Serial Host connections to the P3 master station and appropriate switch settings:

Hot Standby RS-485 communications

Hot Standby RS-485 Communications

710

PS 710

Port 1 Port 2

Host

Port

Port 1

Ports 1 and 2 set to Cross-Connect

Port 1 & 2

Termination

RS-485

Communications between the Host and the master stations uses the Modbus protocol. Because the Master A is cross-connected to Master B, they both share the same Modbus address. The standby action must then be set to passive. Thus, the host can have two-way communications with the Primary (Main ) module and the Standby module will only listen to the messages.

Hot Standby RS-232 Communications

PS 710 PS 710

Port 1 Port 2

Host

RS-232

Port 2 set to Not Cross-Connect

Port 2

Port 1

With RS-232, communications between the Host and Hot Standby master station must be point-topoint. Multi-drop connection is not allowed, so separate cables must be run from the Host to each side of the master station. Also, the Cross-Connect switch must be set to Not Cross-Connect. The standby action must be set to active, so that the Host has full communications with Master A and Master B. Note: only actuator commands sent to the Primary CPU Module will be actioned.

Hot Standby dual Host RS-232 or RS-485 communications

Fully dual-redundant system. Port 2 set to RS-232 or RS-485 to match Host communication

Fig 29: Hot Standby Serial Communications

A B

Port 1 Port 2

PS 710 PS 710

Port 1

Port 2

HostHost

1 2

RS-232 or

RS-485

Port 2 set to Not Cross-Connect

Page 35

5. Configuring Ethernet Communications

Issue 06/15 Publication PUB059-002-00 35 of 136

5. CONFIGURING ETHERNET COMMUNICATIONS

Pakscan 3 master stations come complete with two Ethernet ports for connection to host systems. A third Ethernet port is also available for connection to a computer for configuration purposes. The master station is ready to use with Ethernet and Modbus TCP protocol for the host to access data and control the actuators on the field network. The IP address is factory set to the default value and can be changed during set up of the master station.

The Pakscan master station defaults to the same IP address on both ports, and can use the same address on the A and B master stations. It is possible to change the IP address on either master station, but ports 3 and 4 of each CPU Module always have the same address.

Hot Standby Ethernet communications

A B

Port 1 Port 2

PS 710

Port 1

Port 2

HostHost

1 2

PS 710

Port 3 or 4

Port 2 set to Not

Cross-Connect

Ethernet

Ethernet comms between Hosts and master station are made using Port 3 or Port 4. The CrossConnect switches can be in either position, or set appropriately for any additional serial comms. In this case, with two Hosts, Standby must be set to Active. The IP address of Master A and Master B can be set to be the same or different, with Standby Active.

A B

Port 1 Port 2

PS 710

Port 1

Port 2

Host

PS 710

Port 3 or 4

Port 2 set to Not

Cross-Connect

Ethernet Switch

Ethernet Ethernet

Where an Ethernet switch is used to connect a Host to the hot standby master station and the IP address is set the same for Master A and B, then Standby must be set to Passive.

Fig 30: Hot Standby Ethernet Communications

Hot Standby Redundant Host, Redundant Ethernet communications

Page 36

P3 - Pakscan Master Station Technical Manual

36 of 136 Publication PUB059-002-00 Issue 06/15

A B

Port 1 Port 2

PS 710

Port 1

Port 2

Host

PS 710

Port 3 4

Port 2 set to Not

Cross-Connect

Managed

Ethernet

Switch

Managed

Ethernet

Switch

Ethernet

Fig 31: Hot Standby, Dual Redundant Ethernet Communications

For full Ethernet communications redundancy, use two Hosts and two managed Ethernet switches. Managed Ethernet switches with rapid spanning tree protocol are required. This type of switch is able to prevent Ethernet Storms, where messages are re-circulated continuously.

Ethernet communications between Hosts and master station are made using Port 3 and Port 4. In this case, with two Hosts, Standby must be set to Passive. The IP addresses of Master A and Master B can be set to be the same with Standby Passive, or different, with Standby Active.

The Pakscan P3 master station defaults to the same IP address on all ports. It is possible to change the IP address for Master A and Master B independently, but all ports for each master will have the same address. In a hot standby system, if the Copy IP Settings option is selected, both sides of the master station will have the same IP address.

5.1 Default Ethernet Settings

The default Ethernet parameters set in each Pakscan 3 CPU Module are given below:

DHCP

Static

Default IP address

200 1 1

Default Subnet mask

255

255 0 Standby Action

Passive

Changes to the IP address, Subnet Mask or clock settings will cause a re-boot of the CPU module.

The master station uses the 192.168.1 subnet internally, therefore if it is required to set the external IP address of the master station to a value within this range the internal address will need to be modified. Contact your local technical support team for details.

Page 37

5. Configuring Ethernet Communications

Issue 06/15 Publication PUB059-002-00 37 of 136

5.2 Ethernet Security

When connecting the master station to an Ethernet network, care should be taken to consider security of the master station.

There are a number of Ethernet services available in the master station and, where appropriate, the user should ensure that the Ethernet infrastructure is able to protect the master station from unwanted access to a service.

Transmission Control Protocol (TCP) and Internet Protocol (IP) are the core protocols utilised in Local Area Networks (LANs) and computer networking. Within these networks a ‘port’ is an endpoint to a logical connection – not to be confused with the physical port!

The port number in this case refers to the type of port. For example, port 80 is used for HTTP web page traffic.

The ports that are available at the master station are:

Port description

Port number

HTTP

HTTPS

443

Modbus/TCP

502, 50003, 50004, 50005, 50006, 50007, 50008 and 50009

Ethernet products, like routers, can prevent other Ethernet equipment on the same LAN from accessing certain services in the master station. If web page access were not required, the most secure set up would be to prevent all but Modbus traffic entering the master station.

Page 38

P3 - Pakscan Master Station Technical Manual

38 of 136 Publication PUB059-002-00 Issue 06/15

(The rest of this page is intentionally blank)

Page 39

6. Setting Up the Master Station by the Keypad

Issue 06/15 Publication PUB059-002-00 39 of 136

6. SETTING UP THE MASTER STATION BY THE KEYPAD

The Pakscan 3 master station CPU module has a full colour display and 5 button input pad. All the settings for the performance of the master station, the Option module fitted and the Field Network can be made using these facilities. The keypad and screen also allows every connected actuator to be interrogated and its status monitored. Finally, the actuators and valves can be moved using these facilities.

Alternatively, a computer with an Internet browser facility can be used with the internal web server pages. These pages allow the whole system to be set up and modified. In addition, they allow the connected actuators to be viewed and controlled.

Fig 32: Pakscan P3 Main module connection to laptop and keypad detail

6.1 Using the Keypad

The keypad controls the movement through the display screens and the movement within each screen, as well as the ability to input data or requests.

  (Left) and  (Right) arrow keys Allow active items within a page display to be highlighted.

If the item is selected and a numeric input is needed, then these keys increase or decrease the number.

 ENTER Selects a highlighted element on the screen or completes

the entry of information.

 BACK and NEXT BACK moves up one level in the menu of the displays,

returning to the previous screen viewed. NEXT only functions if there is more data to show than fits on the screen. When there is additional data, a small arrow is shown on the right side of the screen. It points down () for NEXT and up () for BACK to operate.

Ethernet cable

Display

Keypad

Ethernet

Set up

Port

Keypad Detail

Status

rotork

Pri/Stby

Power

Alarm

PS710

Pakscan

BACK

ENTER

Page 40

P3 - Pakscan Master Station Technical Manual

40 of 136 Publication PUB059-002-00 Issue 06/15

BACK

ENTER

BACK

ENTER

6.2 The Screen Display

The opening, or top screen display shows the network status and three icons (four icons, if keypad ESD is enabled – see below).

Menu Section

Network Information

Current Status

Selected Icon Highlighted

Selected Icon Function

Menu Location

The Diagnostics icon (Magnifying Glass) will have a black square around it. The position of the square indicates the part of the menu that will be accessed if the ENTER key is pressed. The highlighted icon can be changed by pressing the arrow buttons ( or ) to scroll round them. The bottom bar shows the selected function as a text message.

Diagnostics Menus Field Unit Menus Settings Menus ESD control - only visible when “Keypad ESD” is enabled

Highlight the Spanner icon for ‘Settings’; then press ENTER. The menu location changes to A3 and the ‘Settings’ menu screen appears with the ‘Host’ icon selected.

This screen also contains the icons used for access to all the other setting menus.

Host Option Module Security ESD Date/Time M/S

Page 41

6. Setting Up the Master Station by the Keypad

Issue 06/15 Publication PUB059-002-00 41 of 136

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

6.3 Setting the Current Loop Option Module Parameters

On the ‘Settings’ menu, select the Option Module Icon by pressing the right arrow key () followed by the ENTER key.

The Option choice screen appears where the module to be set can be selected. Firstly we need to ensure that the field units are correctly assigned to the field network chosen. The selection box by the ‘Option 1’ text should be highlighted by pressing the right arrow key twice ().

Pressing ENTER enables changes to be made using the left () or right () arrow key, press the ENTER key to make a change to the value. This box will increment in steps of 60. In a wired only network all available field units should be allocated to the Pakscan 2 module. Once the number is correct, press ENTER once more

To make changes to the Pakscan 2 Current Loop module settings, highlight Option 2 by using the left () or right () arrow key.

Page 42

P3 - Pakscan Master Station Technical Manual

42 of 136 Publication PUB059-002-00 Issue 06/15

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

Pressing ENTER brings the next choice for the setting. This time select ‘Loop Settings’ by once more using the right arrow key ().

The Loop Settings screen is split over two pages, as indicated by the small arrow () on the right side of the screen, so the NEXT and BACK buttons are used to jump between the two.

Once a setting box is highlighted, by using the left () or right () arrow key, press the ENTER key to make a change to the value. This will make the security screen appear for the PIN number entry. The default value for the system security requires a PIN to be entered before any settings can be changed. This setting can be altered from the Security Setting menu.

The default PIN number is 0000. To enter a PIN, or accept the number, press ENTER and the first digit will flash. The value can be changed by using the left or right arrow keys ( or ). Once the number is correct, press ENTER once more. When all 4 digits of the PIN are entered correctly, select the OK button with the arrow keys ( or ).

Press ENTER and the screen will return to the settings screen and the Current Speed will be highlighted. Press ENTER once more to select this parameter and the current value begins to flash.

Page 43

6. Setting Up the Master Station by the Keypad

Issue 06/15 Publication PUB059-002-00 43 of 136

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

Use the arrow keys ( or ) to change the value shown until the desired figure appears, then press ENTER and the new value will be set. The arrow keys can be used to navigate to other settings, and the NEXT button goes to the Loop Test screen and Loop Reset function.

 Set the loop performance parameters in accordance with the data recorded earlier. Make sure

the loop speed is compatible with the setting for the loop capacitance.

 Set the highest field unit address parameter equal to the actual highest address.  Doubling can be set to ‘On’ if the loop performance is not fast enough. It has the effect of

halving the time to collect data from the field units. This feature will only operate if the loop is functioning correctly with “loopbacks off”.

 IQ DV Convert should be set to ‘On’ if analogue position control is being used on the IQ / IQT

actuators on the network.

 Data Retain set to ‘Off’ clears all the field unit data if communication is lost. Some host

systems want the data to be retained, in which case set the parameter to ‘On’. Once the parameters are all set, leave this part of the setting menu to ensure the new values are loaded. Use the BACK button to return to the Host Settings page, and then ENTER to select the Host Settings menu.

Make alterations to the host protocol settings and Alarm linkage, if required, in a similar manner to altering the loop performance parameters described earlier. The PIN will need to be entered if no keys are operated for approximately 5 minutes from the last PIN entry. Where the two serial ports are being used by the same host system it is advisable to ‘Link’ the alarms so that both ports always report exactly the same alarm data.

Page 44

P3 - Pakscan Master Station Technical Manual

44 of 136 Publication PUB059-002-00 Issue 06/15

BACK

ENTER

When the settings are as required, use the BACK key to return to the top Settings menu.

Page 45

6. Setting Up the Master Station by the Keypad

Issue 06/15 Publication PUB059-002-00 45 of 136

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

6.4 Setting the Wireless Option Module Parameters

On the ‘Settings’ menu, select the Option Module Icon by pressing the right arrow key () followed by the ENTER key.

The Option choice screen appears where the module to be set can be selected. The Pakscan Wireless is always in the Option 1 slot and this is highlighted as the page is entered.

The Wireless network Settings screen is split over two pages, as indicated by the small arrow () on the right side of the screen, so the NEXT and BACK buttons are used to jump between the two.

Page 46

P3 - Pakscan Master Station Technical Manual

46 of 136 Publication PUB059-002-00 Issue 06/15

BACK

ENTER

BACK

ENTER

Press ENTER and the screen will return to the settings screen and the Lowest FCU addr. will be highlighted. Press ENTER once more to select this parameter and the current value begins to flash. Use the arrow keys ( or ) to change the value shown until the desired figure appears, then press ENTER and the new value will be set. The arrow keys can be used to navigate to other settings, and the NEXT button goes to the second setting page and the Network Reset function.

 Set Lowest FCU addr. to the lowest address used for a Wireless field device. This will be

where the addressing starts from.

 Set the Num of FCU to the actual number of Field units in the network. The field units will be

numbered from the lowest FCU address contiguously for the Number for field units fitted.

 Set the PAN ID to a value different from the default. This should be noted as this needs to be

set in all the individual field units.

 Data Retain set to ‘Off’ clears all the field unit data if communication is lost. Some host

systems want the data to be retained, in which case set the parameter to ‘On’.

 Set the AES key to something different from the default. This should be noted as this needs

to be set in all the individual field units.

 The most suitable channel for the system will have been selected during the site survey. This

setting should be set to that value.

 Set the number of P3W repeaters used in the system – P3W repeaters may be required in the

system to ensure redundancy or for improved communications. The network can be reset from the second page. This will need to be done if network changes have

been made and these are required to be uploaded to all field units. Note that changes to network parameters will only be loaded to those devices currently communicating on the network.

When the settings are as required, use the BACK key to return to the top Settings menu.

Page 47

6. Setting Up the Master Station by the Keypad

Issue 06/15 Publication PUB059-002-00 47 of 136

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

BACK

ENTER

6.5 Setting the Master Host Communications Parameters

Select the Host icon using the arrow keys ( or ) and press ENTER. The Host Settings menu choices screen appears.

Select ‘Ethernet Settings’ using the arrow keys ( or ) and press Enter once more. The Ethernet settings screen appears, note that there are two pages to the menu as indicated by the small arrow () on the right side of the screen.

Use the NEXT button to move to the second page, the BACK button returns to the first page.

It is usually only necessary to change the IP address and Netmask to match the requirements of the network connected to the master station. When making any change it will be necessary to enter the PIN number for the master station as shown in the previous section.

To return to the previous Host Settings screen, press BACK and then select the Serial Settings using the arrow keys ( or ) and press ENTER. The communications port speed (default 9600), and parity are changed here.

Page 48

P3 - Pakscan Master Station Technical Manual

48 of 136 Publication PUB059-002-00 Issue 06/15

BACK

ENTER

BACK

ENTER

The port type is determined by the DIP switch settings on the main chassis behind the PS710 CPU module and the setting is reflected in the message on the screen. If the port is set to RS-485 and cross connected, the description changes to show these settings. This is particularly useful when determining the settings already in place. Select the option to be changed by using the arrow keys ( or ), then ENTER (the PIN screen may appear before a change can be made). Once the PIN is entered, the value of the parameter can be altered by the arrow keys ( or ). The speed can be varied from 2400 to 115,200 and the parity may be Odd, Even, Zero or None. Once the value is as required, press ENTER to set the value.

When the parameters are all as required, press BACK to return to the Host Settings screen, then select the Modbus Address using the arrow keys ( or ) and press ENTER.

 The Pakscan 3 Modbus address is for accessing the Wireless database.  The Pakscan 2 Modbus address is for accessing the Wired (current loop) database.  The Pakscan 2 and Pakscan 3 Modbus addresses MUST NOT be the same value.

The Modbus address for the communication to the actuators on the Pakscan 2 current loop (via the module in option 2 slot) is altered in the lower window. It is recommended that this is altered to a value other than the generic Modbus default address of 247 and the master Station defaults to ensure that any new stations introduced do not conflict with this address.

The address is changed by first selecting it with the arrow keys, then pressing ENTER (if the PIN requires entry the prompt page then appears). Use the arrow keys to change the number to the new value, and then press ENTER once more. The new address becomes active once the screen has been changed to a new one.

The Pakscan 3 wireless Modbus address is modified in the same way.

Change this address for communication with the actuators connected to the current loop module

Do not change unless a Pakscan 3 option module is fitted

Page 49

6. Setting Up the Master Station by the Keypad

Issue 06/15 Publication PUB059-002-00 49 of 136

BACK

ENTER

Once the settings are as required, use the BACK key to return to the top Settings menu.

6.6 The Other Settings

There are menus for setting all the parameters of the system. These are more fully explained in the system manual and, in general, the default settings will allow most systems to operate with reasonable success.

6.6.1 Security

Security is used for setting the PIN number to be used, plus the actions permitted from the keypad and the serial ports via the Interlocks. The Security setting default requires a PIN for adjusting the settings for system performance, but not for issuing actuator commands.

Interlocking controls the serial communications that are permitted to operate the actuators. The default grants permission to all the serial ports and the Ethernet ports, but prevents the web page facility from moving the valves.

 The default PIN = 0000.

6.6.2 ESD

The default condition is to disable all the possible Emergency Shut Down routes. ESD can be enabled from the serial ports, Ethernet ports, Web page, hard-wired input or keypad on an individual actuator selection basis. If this ESD function is not required, ensure that a shorting link is fitted across pins 4 and 5 of the PS710 CPU module connector.

6.6.3 Date and Time

The date and time, plus the use of an NTP server are set from this menu. The time stamp is used for the logging facility.

Page 50

P3 - Pakscan Master Station Technical Manual

50 of 136 Publication PUB059-002-00 Issue 06/15

6.6.4 Master Station Parameters

The master station parameters include the Tag for the master station and the setting for data transferred between the two CPU modules on a hot standby system along with several other parameters. Most of the default settings are suitable on most systems, though there is one particular set of parameters that must be correctly set in the case of hot standby systems.

The Serial Ports should appear as Passive if the Cross Connect DIP switch is set to ‘cross connect’. If the port is set to RS-485 highway and is being used on a multi-drop highway it must be set to passive. If it is not shown correctly it probably means the DIP switch is incorrectly set.

Remember, the default setting is Standby Active.

Page 51

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 51 of 136

7. INTERNAL WEB PAGES

The master station includes a set of web pages that may be remotely accessed via Ethernet. They can be used for setting up the system, examining the system for any faults or alarms and also for controlling the actuators on the network (provided the Interlock permission is set to allow this feature).

If the master station is connected to an Ethernet Network it will act as a web server and any computer within that network can connect to the master station. The master station can also be configured and the field network set up by using these web pages. The host system or computer connected via the Ethernet Network or directly will need a web browser such as Internet Explorer to access the master station web pages.

7.1 Making an Internet / Intranet Connection

Connect the master station to an Ethernet host as described in section 5, or connect via a suitable router to the internet / intranet. A computer can be connected directly to the master station using the configuration port.

Start the browser and enter the IP address of the master station. The default address is 10.200.1.1, so the address is http://10.200.1.1. The browser will then access the master station and bring up the opening page of the master station. In order to log in as a verified user, enter a user name of admin and a password of admin. (The default password should be altered as soon as convenient to prevent unauthorised access to the system.)

Default IP address

10 . 200 . 1 . 1

Default User

admin

Default Password

admin

Once entry to the web pages has been made, if no changes to the display or information is made for a few minutes, the system will automatically log out and the user/password must be re-entered.

Page 52

P3 - Pakscan Master Station Technical Manual

52 of 136 Publication PUB059-002-00 Issue 06/15

7.2 Connecting a Computer Directly to the Master Station

The simplest direct connection to the master station is by using the Ethernet port on the front of the CPU module. A standard Ethernet patch cable or crossover cable can be used to link the two directly. A permanent connection can also be made directly to one of the underside connectors (port 3 or 4). In order to establish a connection it is probably necessary to adjust the settings of the computer’s Internet connection.

Fig 33: Connecting a Laptop to the Pakscan P3 Main Module

7.3 Adjusting the Network Settings of the Computer

 Ensure that nothing is connected to the Ethernet port of the computer.  Open the Control Panel and select Network Connections (XP) or Network and Sharing Centre

(Windows 7).

 Select Change Adaptor settings (Windows 7 only).  In the ‘Network Connections’ window, double-click on the appropriate ‘LAN or High Speed

Internet’ icon and the ‘Local Area Connection Status’ window will open.

 Click on the ‘Properties’ button, and a second window will open. Select ‘Internet Protocol

TCP/IP’ (‘Internet Protocol Version 4 (TCP/IPv4)’ for Windows 7) and click on the ‘Properties’

button in this window.

 The ‘Internet Protocol TCP/IP Properties’ window will open. Next, change the setting to force

the computer to adopt a fixed IP address and enter an address of 10.200.1.3 and a subnet

mask of 255.255.255.0. Click on the ‘OK’ button and the window will close.

Page 53

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 53 of 136

Fig 34: Changing the Network Connections TCP/IP Properties – Windows XP

 Click OK on the ‘Local Area Connection Properties’ window and then close the status window.  Finally, close the ‘Network Connections’ window and the Control Panel.  It may be necessary to reboot the computer to be sure that the new settings take effect

correctly.

 Connect the cable between the computer and the Pakscan master station.  Start the browser and enter the IP address of the master station. The default address is

10.200.1.1, so set the address to http://10.200.1.1. The browser will then access the master

station and bring up the opening page of the master station. In order to log in as a verified

user, enter the username of admin and the password admin. Note: If the IP address of the master station has been changed from the defaults, then the settings

above will not work and will have to be modified to suit the actual settings.

Page 54

P3 - Pakscan Master Station Technical Manual

54 of 136 Publication PUB059-002-00 Issue 06/15

7.4 Web Page Structure

The web pages have three access levels, each requiring a password with the correct level set. A user enters the web server with a particular degree of access to the functions of the server and the master station.

7.4.1 User Levels

Access Level

Function

Lowest level

Read

Allows access to read master station status and settings, plus the option module status and settings, plus the actuator and field unit status on the option module network. No commands or alterations to the system are permitted.

Write

As for read access with the addition of the ability to issue network commands, swap masters and command actuators on the option module network to change position.

Highest Level

Administrator

As for the two lower levels plus the ability to configure the master station, option modules and all system settings. Set and remove user names and passwords; set alarm reporting parameters, change system addresses and test system communications.

The Administrator level sets all other user names and passwords. As soon as the system is set up the default password should be changed. Make sure all changes made to log in details are recorded.

7.4.2 Overview of Web Page Layout

The web pages are organised using a menu structure with the primary menu on the top of each page. Within a page there are other controls for parameter alteration or to reveal extended information on the topic of the particular page.

Navigation between the pages is by selecting another topic on the main menu. If there is no activity with the mouse to change the display or update the information or selection for a

few minutes, the system automatically logs out the user. The username and password must be reentered to continue using the pages.

Page 55

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 55 of 136

Master Station

View Configuration

System Diagnostics

Master Station Log

Host Analyser

Option Diagnostics

Network Diagnostics

Option Event Log

FCU Menu

FCU

Admin*

Users

Master Station and Option Configuration

Host Ports

Alarms

Time

General

Network

* requires Admin level log in

Fig 35: Web Page Menu Layout

Page 56

P3 - Pakscan Master Station Technical Manual

56 of 136 Publication PUB059-002-00 Issue 06/15

7.5 The Web Pages in Detail

7.5.1 Log In Screen

Fig 36: Web page Log In Screen The first screen is the Log In screen on which the user must enter a Username and Password.

 Username - a case sensitive identification for an individual or group used to give access to

the system. User names are listed for administrators to see on the ‘Add User’ page.

 Password - the case sensitive confirmation required before a username is accepted by the

system. Passwords are not listed on any page in the system and cannot be retrieved, even at

the administrator level. Select the box with the mouse and enter the appropriate name or password, then click on the login

button. The system will move to the next page if the login is accepted. If it fails, the data is cleared from the boxes and must be re-entered correctly in both boxes before access is granted.

The default user name is admin and default password is admin. The password should be altered as soon as convenient to prevent unauthorised access to the system.

Fig 37: Web page Header Navigation

User name and access level.

Menu of available screens to visit (changes to blue when selected) for Read and Write access levels

Log out when finished by clicking here (changes to red when selected).

Page 57

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 57 of 136

7.5.2 Master Station

Fig 38: Master Station Overview web page and Option 1 data, if a Wireless module is fitted

This screen reports the current status of the master station and the option modules fitted. The picture shows the master station, single or hot standby version. The green, orange and red lights show the condition of the associated parameter. Greyed out text and lights are not applicable or else in a safe (normal) condition.

Master station CPU Module

Site name : The name of the site where the system is located, as entered during

configuration.

Tag name : The master station tag, as entered during configuration.

Status

Location A/B : Indicates the CPU module currently in communication over the Ethernet.

Site Name

Option Module 1

Tag Name

Status

Option Module 2

Status

Controls

This screen is accessible to Read, Write and Administrator user levels.

Page 58

P3 - Pakscan Master Station Technical Manual

58 of 136 Publication PUB059-002-00 Issue 06/15

Primary/Standby : Shows the condition of the CPU with regard to controlling the option

modules. The Primary CPU is in control. A Standby CPU is prepared to become the Primary and take control if the partner unit fails.

Module Health : Indicates the absence (green light) or presence (red light) of a fault on the

CPU.

ESD Presence : Shows a yellow light if an Emergency Shut Down signal is active.

Redundancy : Shows a green light if there is a partner module fitted. Option

Other Master : Indicates the absence (green light) or presence (red light) of a fault on the Station health partner CPU.

Alarm : Indicates the presence of an alarm (red light) somewhere on the system.

Option 1 and Option 2 - Show the type of Option module fitted, either: Pakscan 2 Loop Option Module

Loopback in : A blue light shows whilst the master station is reconfiguring the loop. Progress

Loopback in Use : A yellow light shows when the master station has detected a loopback fault

on the system. Auto Loopback : If a fault occurs on the network and an automatic reconfiguration of the occurred loop occurs, then a yellow light is shown here.

Common Field : A red light shows if any field unit on the network has an alarm bit present. Unit Alarm

Common : A red light shows if any actuator on the network is unavailable due to its Actuator Alarm monitor relay having tripped.

ESD Active : If there is an Emergency Shut Down signal present on the system a red

light shows.

Pakscan 3 Wireless Option Module

Configuration in Progress

: A blue light shows whilst the master station is reconfiguring the network.

Network Healthy

: A Green light shows when the master station has detected NO faults in the network and it is healthy.

Field Unit Alarm

: A Red light shows when the master station has detected an alarm on any of the field units.

Field unit Comms fail

: A Red light shows when the master station has detected a communications failure to a field unit.

ESD Active

: If there is any Emergency Shut Down signal present for that network on the system a red light shows.

Controls - Not Available for Read level users

Network ESD : Click here to issue an ESD to all actuators connected to both option

modules. The resulting action will depend on the individual actuator

settings. A confirmation screen appears to verify or cancel the instruction

before the action occurs. Changeover : Only applicable to hot standby systems. Click this button to make the

Master master station CPU in control; change from A to B or B to A.

Page 59

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 59 of 136

7.5.3 View Configuration

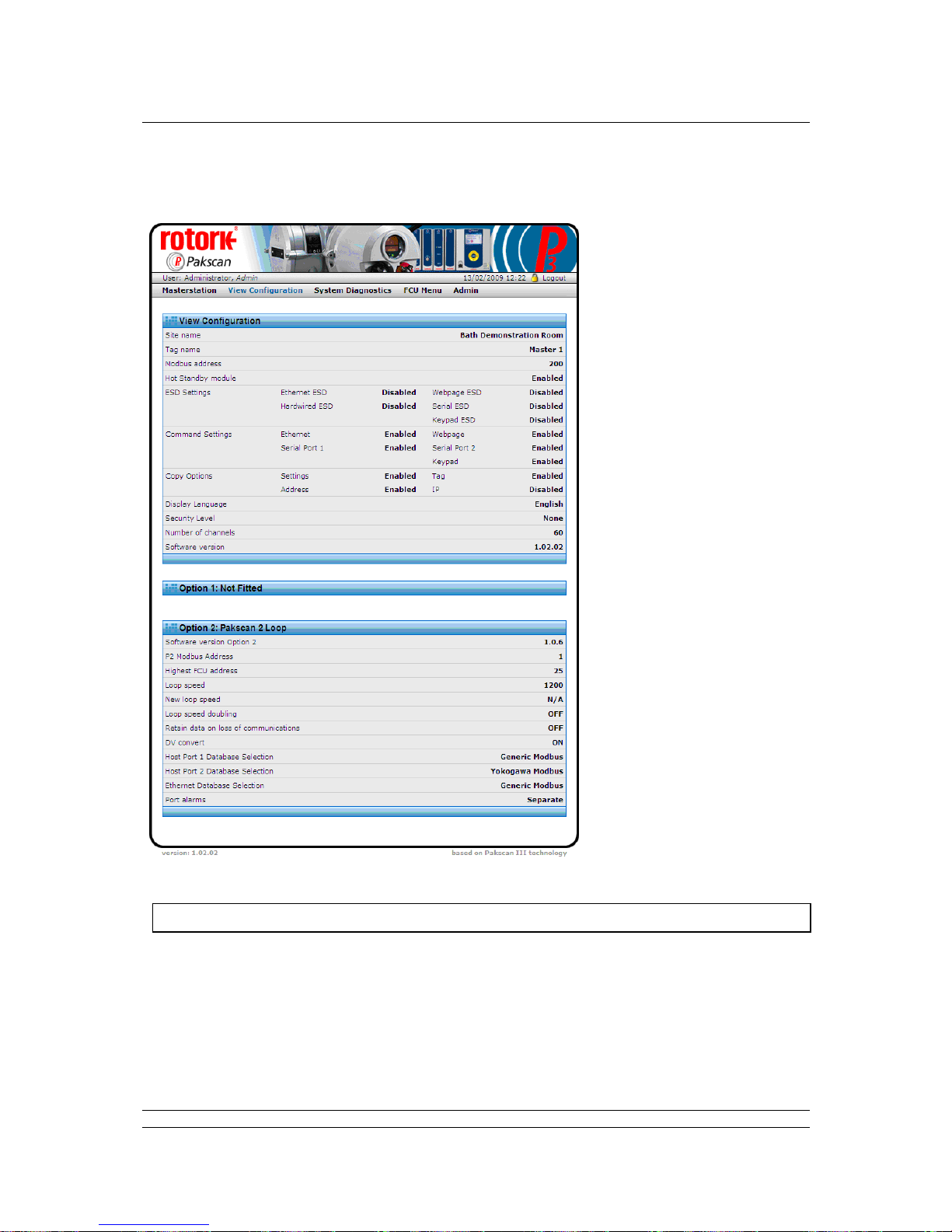

Fig 39: System Configuration Overview web page

The screen shows the settings for the control of the option module networks and the CPU control capability, software fitted and various options selected. All of these settings can be modified elsewhere, but only by users with Administrator level access. There are no controls on this page.

The settings are explained in the Master Station Configuration page section.

This screen is accessible to Read, Write and Administrator user levels.

Page 60

P3 - Pakscan Master Station Technical Manual

60 of 136 Publication PUB059-002-00 Issue 06/15

7.5.4 System Diagnostics

Fig 40: System Diagnostics web page wired only and option 1 data, if wireless fitted

The System Diagnostics screen shows an overview of the status of the fitted modules and also provides access to further information.

Master Station Diagnostics

Module Health : A green light shows if the module is operating correctly, changes to red if

there is a fault.

Primary/Standby : Indicates which module is being accessed. A green light indicates Primary,

a yellow light indicates Standby and a red light indicates a fault.

Redundancy : Shows a green light if there is a partner module fitted. Option

Other Master : Indicates the absence (green light) or presence (red light) of a fault on the Station Health partner CPU. Host port 1 : Indicates when there is serial communication taking place on

activity communications port 1. Host port 2 : Indicates when there is serial communication taking place on

activity communications port 2. Modbus/TCP : Indicates when Ethernet control using Modbus/TCP is present on either

activity Ethernet port.

Controls

Master Station CPU

Option Module 1

Status

Option Module

This screen is accessible to Read, Write and Administrator user levels.

Page 61

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 61 of 136

Controls - Available to all user levels

ms datalogger : Reveals a pop-up showing a log of the activity on the master station and

the source of requests or commands received. See section 7.5.5 for

details.

host analyser : Reveals a pop-up with the data logger data and the additional controls

required for using the inbuilt data analyser for commands and data sent to

the host system. See section 7.5.6.

Option 1 Diagnostics

Pakscan wireless network

Shows module type and status, or ‘Not Fitted’ when there is nothing in the

slot.

Option Health

Shows a green light when healthy and a red light if there is a fault on the module.

Option 2 Diagnostics

Pakscan 2 Loop : Shows module type and status, or ‘Not Fitted’ when there is nothing in the

slot.

Option Health : Shows a green light when healthy and a red light if there is a fault on the

module.

Controls - Available (when module fitted) to all user levels

diagnostics : Reveals the diagnostic page for the option module fitted. See section 7.5.7

Pakscan 2 Loop and section 7.5.8 Pakscan Wireless.

event log : Shows the option module event recorder. See section 7.5.9 Pakscan 2

Loop and section 7.5.10 Pakscan Wireless.

Page 62

P3 - Pakscan Master Station Technical Manual

62 of 136 Publication PUB059-002-00 Issue 06/15

7.5.5 Master Station Data Logger [ms datalogger]

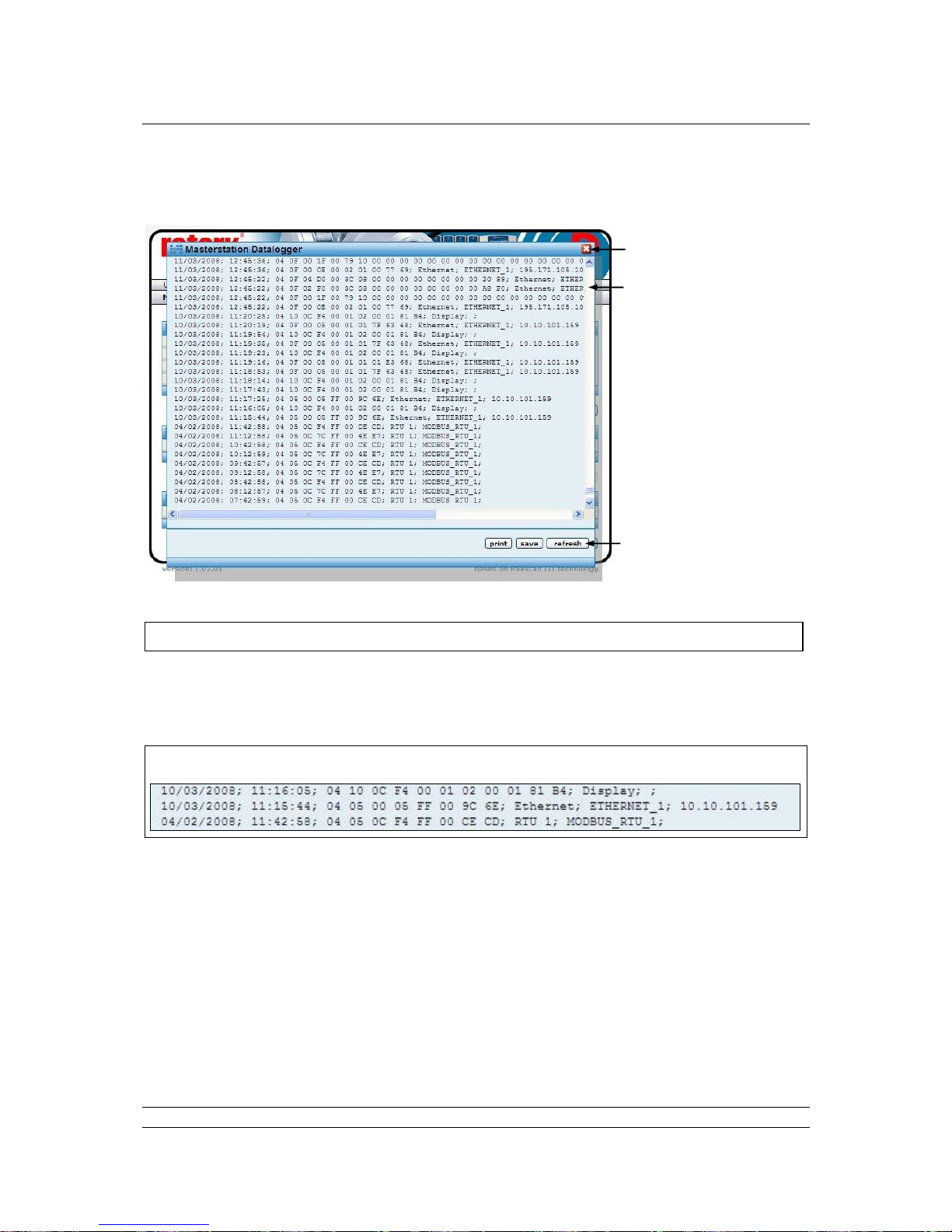

Fig 41: Master Station Data Logger pop-up

The data logger displays Modbus instructions received by the master station to carry out commands such Alarm Accept or commands to move a valve. Each event is prefixed by a date and time and they are listed in time order. They are followed by the source from which the command originated. Once full the log rolls over and rewrites over the oldest events, the log is 1Mbyte in size.

Fig 42: Close up of Master Station Data Logger Information

Date and Time

Formatted Day/Month/Year or Month / Day / Year.

Modbus Message

Standard Modbus RTU format for all ‘write’ messages.

Message Source and Address

Display : Keypad on the master station CPU. Ethernet : Ethernet input and IP address of the source. RTU : Serial port 1 (RTU 1) or serial port 2 (RTU 2). Webpages : Web page Log In name and IP address.

Master Station Events

Controls

This screen is accessible to Read, Write and Administrator user levels.

Close pop-up

Date and Time

Modbus Message

Message Source / Address

Page 63

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 63 of 136

Controls - Available to all user levels

Print : Prints the logger data to a printer attached to the computer. Save : Saves the logger data to a file on the computer.

The saved file is of the type cmdlog.log and can be opened in the Notepad

on the computer. It can also be imported into a spreadsheet, such as

Excel, for analysis as required.

Refresh : Updates the screen with any new data.

Fig 43: Saving the master station log file

Page 64

P3 - Pakscan Master Station Technical Manual

64 of 136 Publication PUB059-002-00 Issue 06/15

7.5.6 Master Station Host Analyser [host analyser]

Fig 44: Host Analyser pop-up

The Host Analyser is a real time system analyser that can be used with either a Modbus RTU serial data control source, acting through one of the serial data ports (Port 1 or 2), or a Modbus TCP Ethernet control source, acting through the Ethernet ports.

The analyser will record up to 100 messages (requests and responses) on the data line between the two points. It is especially useful for debugging a host control system to ensure that messages are correctly formatted and that the required control or data points are being accessed. In particular, the use of correct offsets in the Modbus protocol can be checked.

Controls - Available to Administrator user level

RTU1 : Selects Serial Port 1 host input. RTU2 : Selects Serial Port 2 host input. ETH : Selects the Ethernet port host input (all Ethernet ports are monitored). Print : Prints the analyser data to a printer attached to the computer. Save : Saves the analyser data to a file on the computer. Refresh : Updates the screen with any new data.

Analyser Events Controls

This screen may be used by Administrator user level only.

Close pop-up

Page 65

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 65 of 136

7.5.7 Pakscan 2 Loop Diagnostics [diagnostics]

Fig 45: Pakscan 2 Loop Diagnostics web page

The Pakscan 2 Loop Diagnostics screen gives diagnostic information on the 2-wire loop option module and the network connected to it. The top part of the screen shows the information about the option module itself, whilst the lower part shows the loop map. This is the order in which the field units on the 2-wire loop are connected. It also shows the device type and tag name for each address and position.

Network Information

Controls

Network FCU Map

This screen is accessible to Read, Write and Administrator user levels.

Page 66

P3 - Pakscan Master Station Technical Manual

66 of 136 Publication PUB059-002-00 Issue 06/15

Network Diagnostics

No. Of Devices : This is the number of field units that are expected to be located on the On Network network. It is the highest address that the network will scan up to when

locating field units. All field units need to be consecutively addressed, and

there should be no gaps in the addresses.

No. Of FCUs : This is the total number of field units located on the network. If all the field Found units are powered on and connected, then the number will equal the No. Of

Devices On The Network above.

Configuration : This field shows any fault that exists on the network cabling and the stages Status passed through as network configuration takes place.

During configuration the following sequence can be displayed -

1. Wait for Loopbacks 1 (first wait for loopbacks to come on)

2. Find FCUs on Port A (finding FCUs on port A)

3. Test Loop (testing for complete loop)

4. Find FCUs on Port B (finding FCUs on port B)

5. Wait for Loopbacks 2 (second wait for loopbacks to come on)

6. Loopbacks off on A (removing loopbacks from port A)

7. Loopbacks off on B (removing loopbacks from port B) (The normal sequence for a fault-free loop would be 1, 2 and 3. A

sequence for a break in the loop, anywhere except at port A or port B, would be 1 to 7. Some of the phases may be very quick, particularly at higher baud rates, and so may not be seen on the browser display.

Whilst the configuration is taking place, the master station web page shows ‘Loopback in Progress’ and a blue light on the Option module.

If the configuration process detects a fault on the loop and switches on the loopback circuits of two field units, the master station web page shows ‘Loopback in Use’ and illuminates the yellow light.

Last Network : The loop can be reconfigured for a number of reasons and this field will Reset Initiated show the cause of the last reset/reconfigure that occurred. By The possible reasons are:

Power on Reset - loop configured because the master station

powered up.

Fault Found - fault detected on the loop whilst it was running

without loopbacks present.

Fault Found A - fault detected on the A side of broken loop whilst

running with loopbacks on.

Fault Found B - fault detected on the B side of broken loop whilst

running with loopbacks on.

Reset Command - loop Reconfigure command entered from keypad

or serial port.

Return wire fault - fault detected in the return current path whilst the

loop was running at double speed.

Doubling failed - fault detected after loop assumed double speed.

Page 67

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 67 of 136

Network Fault : This field shows the type of fault detected that caused the loopback to Type occur, or an addressing fault on the field units. The types are:

Zero Address - a field unit has been found with an address of zero. Address too High xx - a field unit has been found with an address higher than that set up within the master station; xx is the address. Same Address xx - two field units found with the same address; xx is the address. Loop Open Circuit - an open-circuit fault found on the loop. Loop Short Circuit - a short-circuit fault found on the loop.

If two field units are found with the same address, or there is an address outside the range of addresses expected (as set by No. of Devices on Network), the network will continue to operate and miss out the faulty field units.

Loop Baud Rate : Shows the current speed selected. The speed can be 110, 300, 600, 1200,

or 2400 baud.

No. Of FCUs : This is the total number of field units connected to the option module Port A On Side A and communicating via Port A.

No. Of FCUs : This is the total number of field units connected to the option module Port B On Side B and communicating via Port B. Port B is only used if there is a loopback

present on the network.

Controls - Available to all user levels

Reset network : Causes the option module to reconfigure the 2-wire network. This should

be used after a loop fault has been corrected.

Network Map

The map shows the order in which the field units have been identified and found by the option module during the last loop reconfiguration process (reset). Each time the loop is reconfigured the map is regenerated and repopulated. Any field unit that is not powered-up at the time of reconfiguration will be absent from the map.

Position : The position in the loop. Number 1 is nearest to Port A. Address : The address of the field unit. Failures : Shows a count of communication errors with the field unit. The count has a

range of 0 to 255, after which it rolls around to zero and it increments for

every communication error. The system will only announce a ‘Comms failure’ when 3 successive tries have failed to locate the field unit. This

counter therefore reflects the communications condition and can be used as an indicator of the health of the field unit to assess the probability of failure in the future.

Page 68

P3 - Pakscan Master Station Technical Manual

68 of 136 Publication PUB059-002-00 Issue 06/15

Type : The type of field unit depends on the actuator and function required.

Current types are -

IQ - IQ or IQT actuator Integral - Non IQ actuator Flowpak - Flowpak actuator GPFCU - GP - General Purpose Field Unit GPFCU - Act - General Purpose in Actuator mode IQA - IQ Analogue card ROMpak - ROMpak actuator

Tag Name : The associated identification Tag assigned to this field unit.

7.5.8 Pakscan Wireless Diagnostics [diagnostics]

Fig 46: Pakscan Wireless Diagnostics web page

The Pakscan Wireless Diagnostics screen gives diagnostic information on the wireless option module and the network connected to it.

No of Devices On Network

This is the number of wireless field units that are expected to be located on the network. This is set up in the master station configuration web page.

No of FCUs found

This is the total number of field units found on the network. If all the field units are powered on and able to communicate, the number will equal the number expected on the network.

Wireless repeater nodes expected

This is the number of P3W repeater modules that are expected to be located on the network. This is set up in the master station configuration web page.

Network Information

Controls

This screen is accessible to Read, Write and Administrator user levels.

Page 69

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 69 of 136

Wireless repeater nodes found

This is the total number of P3W repeater nodes found on the network. If all the P3W repeater nodes are powered on and able to communicate, the number will equal the number expected on the network.

Configuration Status

During configuration of the wireless network the network goes through various stages as indicated below. Some of the stages can be quite quick and therefore may not be seen:

 Uninitialised.  Initialised / starting up.  Detecting field units.  Building map of field units.  Detecting field units complete.  Obtaining initial field unit data.  Field unit data collection complete.  Network Ready to run.  Master station updating RF parameters.

After a reset network command is sent from the web page, the normal sequence seen would be: Initialised / starting up, Detecting Complete, Obtaining initial Data, Data collection complete, Ready to run. ‘Ready to run’ is the normal state of a good network.

Last Network Reset Initialised By

This field indicates the cause of the last reset, this can either be due to a power cycle (value will be 00), as a result of receiving a reset network command, due to a parameter change causing the P3W coordinator to reset or due to a Radio communications parameter change.

Network Fault Type

This field indicates any faults on the network. Faults reported can be:

 P3W coordinator fault.  Insufficient wireless neighbours for the P3W coordinator or

the field units, the intention is always to have at least 2 neighbours.

 RF parameter change failed.  Duplicate field unit address detected.

Page 70

P3 - Pakscan Master Station Technical Manual

70 of 136 Publication PUB059-002-00 Issue 06/15

7.5.9 Pakscan 2 Loop Option Module Event Logger [Event Log]

Fig 47: Wired Option Module Event Logger pop-up

The event logger shows the last occurrence of the listed events and, in the case of an ESD, where the signal originated.

Controls - Available to all user levels

Print : Prints the logger data to a printer attached to the computer. Save : Saves the logger data to a file on the computer. Refresh : Updates the screen with any new data.

Event Log

Controls

This screen is accessible to Read, Write and Administrator user levels.

Close pop-up

Page 71

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 71 of 136

7.5.10 Pakscan Wireless Option Module Event Logger [Event Log]

Fig 48: Wireless Option Module Event Logger pop-up

The event logger shows the last occurrence of the listed events. In the case of an ESD, where the ESD signal originated is reported. In the case of the last field unit comms fail, it also indicates which field unit lost communications.

Controls - Available to all user levels

Print : Prints the logger data to a printer attached to the computer. Save : Saves the logger data to a file on the computer. Refresh : Updates the screen with any new data.

Event Log

Controls

This screen is accessible to Read, Write and Administrator user levels.

Close pop-up

Page 72

P3 - Pakscan Master Station Technical Manual

72 of 136 Publication PUB059-002-00 Issue 06/15

7.5.11 FCU Menu

Fig 49: FCU Menu web page

The FCU Menu lists all the field units in address order (which may not be the same as the order in which they are connected together on the wired loop).

For each address, the Tag name and Type of field unit is listed. Field unit types are described in section 7.5.7. The Network column shows which option module network each actuator is connected to; this will be Pakscan 2 for the 2-wire loop option module and Wireless for the wireless option.

The next two columns show critical alarm conditions that will prevent remote control of the actuator. An Alarm present will generally prevent operation, whilst Comms Fail indicates that the actuator is no longer in communication with the field network.

The final column has Navigation controls to the individual FCU screens.

Controls - Available to all user levels

FCU Control : Click here to show the selected FCU individual control panel web page.

The different types of devices each have different screens and only the relevant data and controls for each type are included on the screen, together with a picture identifying the type of device.

When not in communication the screen may still be visited, but the actuator

picture will have a large red cross over it to show that a problem exists.

This screen is accessible to Read, Write and Administrator user levels.

Network Information

Controls

Page 73

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 73 of 136

7.5.12 FCU Control – IQ / IQT Actuator

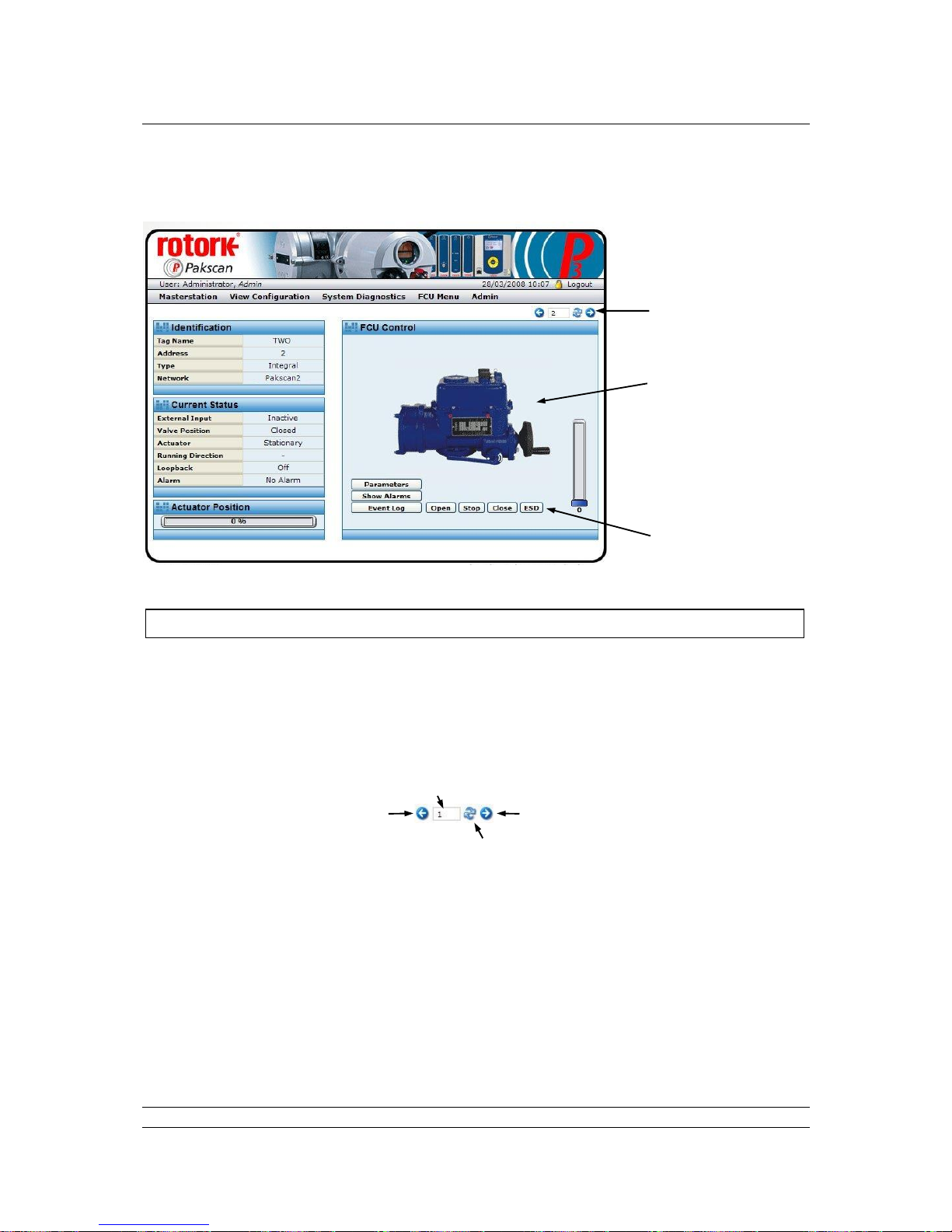

Fig 50: IQ and IQT actuator FCU Control web pages

The IQ and IQT control screens are similar and show a picture to identify the actual type of actuator at this FCU address.

The FCU Control screen shows a control and status page for the selected field unit and actuator. The screen has information relating to the device, its current condition and system parameters. It also includes the ability to change the actuator’s position by means of the control buttons. When not in communication the screen may still be visited, but the picture has a large red cross over it to show a lack of communication.

Navigation

Navigation between the field units is either by returning to the previous screen, or by using the navigation buttons on this screen. Entering an address directly in the ‘Address’ box and clicking Refresh moves directly to the selected field unit.

This screen is accessible to Read, Write and Administrator user levels.

Controls

Navigation

Address

Refresh

Actuator picture

Page 74

P3 - Pakscan Master Station Technical Manual

74 of 136 Publication PUB059-002-00 Issue 06/15

Identification

Tag name : Identification tag given for this device. Address : Network address. Type : Shows the identified actuator type as IQ or IQT. Network : The network to which this device is connected (Pakscan 2 for 2-wire loop).

Current Status

The real-time status of the actuator is listed in this pane on the screen: Auxiliary Input : Active or Inactive, shows the status of the input.

1 to 4

Valve Position : Current position, Closed, Open or Stopped Mid Position. Actuator : Moving or Stationary. Running direction : Opening or Closing. Loopback : Off or On. Battery Status : OK or Low. Alarm Status : No Alarm or Alarm.

Actuator Position

A bar graph shows the current actuator analogue position between 0 (closed) and 100% (open).

Instantaneous Torque

A bar graph shows the current torque value between 0 and 120% of actuator rated torque.

FCU Control web page Controls Parameters (2-wire loop Field unit) - Available to all user levels

Fig 51: Wired IQ / IQT Parameters pop-up

Pop-up screen shows the settings for all the parameters relating to the IQ / IQT actuator field unit. For users with Administrator level rights, the values can be edited and, for later version field units, the type of actuator can be modified. The parameters are used to determine the way in which the actuator responds to commands and reports data. Information on how to set

Close pop-up

Controls

Page 75

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 75 of 136

these fields is contained in the actuator field unit manuals. This screen is used for changing the Tag Name.

Controls

Save Settings : Edited fields may be saved to the FCU; accessible by Administrator level

users only.

Show Alarms (2-wire loop Field unit) - Available to all user levels

Fig 52: Wired IQ / IQT Alarms pop-up

Pop-up screen shows the alarms on the actuator as red lights; grey is no alarm. Additional information on the meaning of these alarms is contained in the individual field unit manuals.

Torque Profile (2-wire loop and Wireless Field unit) - Available to all user levels

Fig 53: Wired and Wireless IQ / IQT Torque Profile pop-up

Pop-up screen shows the last complete stroke torque profile generated by the actuator.

Close pop-up

Page 76

P3 - Pakscan Master Station Technical Manual

76 of 136 Publication PUB059-002-00 Issue 06/15

Event Log (2-wire loop Field unit) - Available to all user levels

Fig 54: Wired IQ / IQT FCU Event Log pop-up

Pop-up screen showing a log of the last occasion on which the various control and alarm events occurred. For commands, the source of the command is also given.

Remote selected - local / remote selector in remote position. Moving - actuator centre column moving. Monitor Relay - monitor relay alarm. Open Limit - open position limit switch. Closed Limit - closed position limit switch. Comms Failed - loss of network communication. Thermostat - motor thermostat tripped. Torque Tripped - torque limit level exceeded. Manual move - actuator moved by the handwheel. POR - power on reset. Watchdog - field unit watchdog alarm. AUX OR - auxiliary input present. Start / Stop - failure to respond to a remote control input. MemF - FCU memory chip RAM or ROM fault. EOT - motor running at end of travel. Network Open - open instruction over the control network. Network Close - close instruction over the control network. Network Stop - stop instruction over the control network. Network ESD - ESD instruction over the control network. Position / Time - last position control event. Position / Time - last but one position control event. Position / Time - last but two position control event.

Close pop-up

Controls

Page 77

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 77 of 136

Controls

Print : Prints the logger data to a printer attached to the computer. Save : Saves the logger data to a file on the computer.

Parameters (Wireless Field unit) - Available to all user levels

Fig 55: Wireless IQ / IQT Parameters pop-up

Pop-up screen shows the settings for all the parameters relating to the IQ / IQT actuator field unit. For users with Administrator level rights, the values can be edited. The parameters are used to determine the way in which the actuator responds to commands and reports data. Information on how to set these fields is contained in the actuator field unit manuals.

Controls

Save Settings : Edited fields may be saved to the FCU; accessible by Administrator level

users only.

Close pop-up

Controls

Page 78

P3 - Pakscan Master Station Technical Manual

78 of 136 Publication PUB059-002-00 Issue 06/15

Show Alarms (Wireless Field unit) - Available to all user levels

Fig 56: Wireless IQ / IQT Alarms pop-up

Pop-up screen shows the alarms on the actuator as red lights; grey is no alarm. Additional information on the meaning of these alarms is contained in the individual field unit manuals.

Close pop-up

Page 79

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 79 of 136

Event Log (Wireless Field unit) - Available to all user levels

Fig 57: Wireless IQ / IQT FCU Event Log pop-up

Pop-up screen showing a log of the last occasion on which the various control and alarm events occurred. For commands, the source of the command is also given. Rmt control OK - On means that the local / remote selector in remote position. General Alarm - Any Alarm present on the actuator e.g. Stall. ESD Active - ESD signal active on the actuator. Open Limit - open position limit switch. Closed Limit - closed position limit switch. Comms Failed - loss of network communication. Torque Tripped - torque limit level exceeded. Mid travel stop - motor stopped between open and close limits. Network Open - open instruction over the control network. Network Close - close instruction over the control network. Network Stop - stop instruction over the control network. Network ESD - ESD instruction over the control network. Position / Time - last position control event. Position / Time - last but one position control event. Position / Time - last but two position control event.

Controls

Print : Prints the logger data to a printer attached to the computer. Save : Saves the logger data to a file on the computer.

Close pop-up

Controls

Page 80

P3 - Pakscan Master Station Technical Manual

80 of 136 Publication PUB059-002-00 Issue 06/15

Misc (Wireless Field unit) – Downloads available to all user levels, Upload only available to Admin user level

Fig 58: Wireless IQ / IQT Downloads pop-up

Pop-up screen with controls to extract the Actuator Datalogger and Actuator Configuration files. It is also possible to load a configuration file to an actuator using this facility, assuming Admin login. The files that this facility creates are for viewing with the Rotork In-sight software, available on the Rotork web site.

Neighbour Table (Wireless Field unit) - Available to all user levels

Fig 59: Wireless Neighbour tables pop-up

Pop-up screen that shows, for the field unit selected, the wireless neighbours that it has. It indicates the address of that neighbour and the Link Quality Index (LQI) of the signal from the device to its neighbour. The LQI is represented as a percentage value and is a good indication of signal quality and strength. A good signal would be in the range 93% to 100%. A reasonable signal would be in the range 61% to 92%; reasonable means that if environmental conditions deteriorate there is a greater potential for message retries and message failure.

It should be noted that rain, humidity and fog have a negligible effect on the wireless network. The greatest effect can be seen for heavy snow. By this, we mean snow that has settled on and around the antenna, i.e. 2 inches of snow packed around the antenna can cause a loss of about 10dBs.

Close pop-up

Controls

Progress bar

Close pop-up

Page 81

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 81 of 136

Actuator Controls - Available to Write and Administrator user levels only

Open : Command to open the valve fully. Stop : Command to stop the actuator in its present position. Close : Command to close the valve fully. ESD : Command to put the valve in its Emergency Shut Down position. (This can

be ‘stayput’ or move to either the open or closed position).

Pos DV : A slider control that is used to generate a setpoint position (Desired Value)

for the valve in the range 0 - 100%.

All the controls have a confirmation pop-up, so that the action has to be confirmed before it takes place. Web page control must be enabled for these controls to work.

Page 82

P3 - Pakscan Master Station Technical Manual

82 of 136 Publication PUB059-002-00 Issue 06/15

7.5.13 FCU Control - Integral Actuator (2-wire loop only)

Fig 60: Q actuator FCU Control Web page

The Integral actuator FCU Control screen shows a control and status page for a Q type actuator. The screen has information relating to the device, its current condition and system parameters. Control of the actuator is permitted via the control buttons for users with write level access or higher. When not in communication, the screen may still be visited, but the picture has a large red cross over it to show a lack of communication.

Navigation

Navigation between the field units is either by returning to the previous screen, or by using the

navigation buttons on this screen. Entering an address directly in the ‘Address’ box and

clicking Refresh moves directly to the selected field unit.

Identification

Tag name : Identification tag given for this device. Address : Network address. Type : Shows the identified actuator type as Q. Network : The network to which this device is connected (Pakscan 2 for 2-wire loop).

This screen is accessible to Read, Write and Administrator user levels.

Actuator picture

Controls

Navigation

Address

Refresh

Page 83

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 83 of 136

Current Status

The real time status of the actuator is listed in this pane on the screen: External Input : Active or Inactive, shows the status of the input. Valve Position : Current position, Closed, Open or Stopped Mid-Position. Actuator : Moving or Stationary. Running Direction : Opening or Closing. Loopback : Off or On. Alarm Status : No Alarm or Alarm.

Actuator Position

For actuators fitted with position feedback facilities, a bar graph shows the current actuator analogue position between 0 (closed) and 100% (open).

FCU Control web page Controls Parameters - Available to all user levels

Fig 61: Q Parameters pop-up

Pop-up screen shows the settings for all the parameters relating to the integral field unit. For users with Administrator level rights the values can be edited.

Controls Save Settings : Edited fields may be saved to the FCU, accessible by Administrator level

users only

Close pop-up

Controls

Page 84

P3 - Pakscan Master Station Technical Manual

84 of 136 Publication PUB059-002-00 Issue 06/15

Show Alarms - Available by all user levels

Fig 62: Q Alarms pop-up

Pop-up screen shows the alarms on the actuator as red lights, grey is no alarm. Additional information on the meaning of these alarms is contained in the individual field unit manuals.

Event Log - Available to all user levels

Fig 63: Q FCU Event Log pop-up

Pop-up screen showing a log of the last occasion on which the various control and alarm events occurred. For commands, the source of the command is also given.

Close pop-up

Controls

Close pop-up

Page 85

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 85 of 136

Remote selected - local remote selector in remote position. Moving - actuator centre column moving. Monitor Relay - monitor relay alarm. Open Limit - open position limit switch. Closed Limit - closed position limit switch. Comms Failed - loss of network communication. Thermostat - motor thermostat tripped. Torque Tripped - torque limit level exceeded. Manual move - actuator moved by the handwheel. POR - power on reset. Watchdog - field unit watchdog alarm. AUX OR - auxiliary input present. Start / Stop - failure to respond to a remote control input. MemF - FCU memory chip fault. EOT - motor running at end of travel. Network Open - open instruction over the control network. Network Close - close instruction over the control network. Network Stop - stop instruction over the control network. Network ESD - ESD instruction over the control network. Position / Time - last position control event. Position / Time - last but one position control event. Position / Time - last but two position control event.

Controls

Print : Prints the logger data to a printer attached to the computer. Save : Saves the logger data to a file on the computer.

Actuator Controls - Available to Write and Administrator user levels only

be ‘stayput’ or move to either the open or closed position).

Pos DV : A slider control that is used to generate a setpoint position (Desired Value)

for the valve in the range 0 - 100%.

All the controls have a confirmation pop-up, so that the action has to be confirmed before it takes place. Web page control must be enabled for these controls to work.

Page 86

P3 - Pakscan Master Station Technical Manual

86 of 136 Publication PUB059-002-00 Issue 06/15

7.5.14 FCU Control - General Purpose Field Control Unit (2-wire loop only)

Fig 64: GPFCU Control web page

The GPFCU Control screen shows a control and status page for a general purpose field control unit. The screen has information relating to the device, its current condition and system parameters. Control of the outputs is permitted via the control buttons for users with write level access or higher. When not in communication, the screen may still be visited, but the picture has a large red cross over it to show that a problem exists.

Navigation

This screen is accessible to Read, Write and Administrator user levels.

Device picture (shows rack mounted version)

Controls

Navigation

Address

Refresh

Page 87

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 87 of 136

Identification

Tag name : Identification tag given for this device. Address : Network address. Type : Shows the identified device type as GPFCU - GP. Network : The network to which this device is connected (Pakscan 2 for 2-wire loop).

Current Status

The real time status of the actuator is listed in this pane on the screen. Digital # 1 to # 8 : Digital input signal status, Active or Inactive. Loopback : Off or On. Relay Type : Fleeting or Maintained outputs from the relays. Alarm Status : No Alarm or Alarm.

Analogue Input 1 and 2

For the two analogue input channels a bar graph shows the current analogue input value between 0 (closed) and 100% (open).

FCU Control web page Controls Parameters - Available to all user levels

Fig 65: GPFCU Parameters pop-up

Pop-up screen shows the settings for all the parameters relating to the general purpose field control unit. For users with Administrator level rights, the values can be edited.

Controls

Save Settings : Edited fields may be saved, accessible by Administrator level users only.

Close pop-up

Page 88

P3 - Pakscan Master Station Technical Manual

88 of 136 Publication PUB059-002-00 Issue 06/15

Show Alarms - Available to all user levels

Fig 66: GPFCU Alarms pop-up

Pop-up screen shows the alarms on the actuator as red lights; grey is no alarm.

Event Log - Available to all user levels

Fig 67: GPFCU Event Log pop-up

Pop-up screen showing a log of the last occasion on which the various alarms, input and output events occurred. For commands, the source of the command is also given.

Comms Failed - loss of communication with the field unit. POR - power on reset. Digital Input 1-8 - when turned on and off. Analogue I/P 1-2 - when last updated. Digital Output 1-4 - when energised and de-energised. Analogue Output - when last altered and by which source.

Controls

Print : Prints the logger data to a printer attached to the computer.

Close pop-up

Controls

Close pop-up

Page 89

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 89 of 136

Save : Saves the logger data to a file on the computer.

GPFCU Controls - Available to Write and Administrator user levels only

Energise : Command to energise the relays (green light when energised). Relay 1-4 De-energise : Command to de-energise the relays (red light when de-energised). Relay 1-4 AO : A slider control that is used to generate a 0-5volt analogue output. Slider range 0 - 100%.

All the controls have a confirmation pop-up, so that the action has to be confirmed before it takes place.

Page 90

P3 - Pakscan Master Station Technical Manual

90 of 136 Publication PUB059-002-00 Issue 06/15

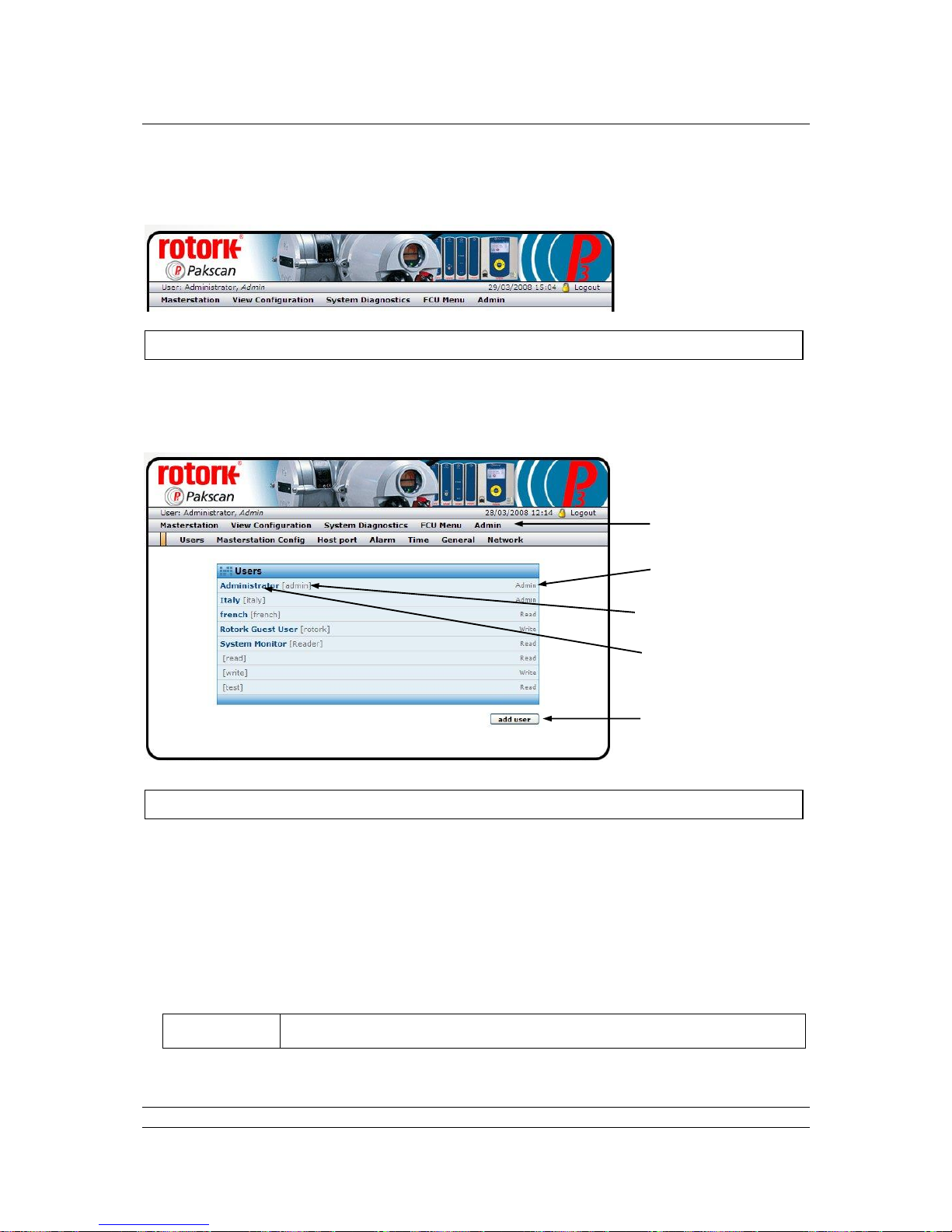

7.5.15 Admin

Fig 68: Administrator Level

When logged in at Administrator level, the top of the screen menu list includes the Admin button. Clicking on this button gives entry to the Administrator level screens.

7.5.16 Users

Fig 69: Users web page

The ‘Users’ screen shows all the users currently entered into the system. The actual user at any time

is shown on the top left of the menu bar. Each user has a Name, a User ID, a User Level and a Password. When logging in to the system, to

gain entry, the User ID and Password are required. The screen shows the Name, User ID and User Level; the password is not shown and cannot be revealed on any of the screens.

Every system includes a default User ID of ‘admin’ and Password of ‘admin’ on delivery, in order that the system can be set up and commissioned. The user ID ‘admin’ cannot be removed, but the Password should be changed as soon as possible to protect the system against unauthorised access.

Name

Name of the current user, displayed on the top bar.

Admin button

This screen is only accessible to Administrator user levels.

This screen is only accessible to Administrator user level.

Controls

User Level

User ID

Name

Page 91

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 91 of 136

User ID

Identification used to gain entry to the system, shown in user list.

Password

Secret code of letters (and numbers) used to gain entry to the system. Not shown on the system.

User Level

Indication of access level permitted for this user, shown on the top bar.

Controls - Available to Administrators only

Add user : Click this button to bring up the screen to add a user. Username : Click on a user name (e.g. Administrator) to bring up the Modify User

screen for editing user details.

Fig 70: Add User web page

The Add User screen contains the fields to be completed for each permitted user, either by completing the data box, selecting from a drop-down box or selecting a radio button.

User ID : Enter a unique name to use when logging in to the system. Name : Enter a name to be used in all emails and on the system logs.

Several users can have the same name, but this is not recommended. Email : If Email messages concerning the system alarms are to be sent to this

user, enter a valid Email address.

Mobile : If text messages are to be sent to a mobile phone associated with this

user, enter the complete phone number here.

Alarm User : Select ‘Yes’ or ‘No’ for the choice of sending Emails and Text messages to

this user.

Controls

Page 92

P3 - Pakscan Master Station Technical Manual

92 of 136 Publication PUB059-002-00 Issue 06/15

Email Master : Select ‘Yes’ or ‘No’ for the choice of sending the master station log file via

station Log Email.

Language : Select the language to be used on the screens. Choices are English,

Spanish, French, German and Italian. User Level : Select between Read, Write and Admin levels. Password : Enter a unique password of letters and/or numbers kept secret by this user. Repeat : Enter the same password as above.

Password

Back : Exit the screen without saving anything and return to the previous screen. Save Settings : Save the details of this user (either new or edited values).

Fig 71: Modify User web page

The Modify User screen allows user details to be altered or a user to be removed. A User cannot delete himself from the system. So, here in the example, the User ID of ‘admin’ is greyed out, since this is the actual user.

Remove : Delete this entry on the system. A User cannot delete themselves, only

those with less access rights. If the User selects his own entry to modify

the button is greyed out.

Controls

Page 93

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 93 of 136

7.5.17 Master station Configuration

The master station configuration page is used to set the parameters required for successful operation of the system and the parameters for the option modules fitted. In addition, it may be used to enter the site name and tag name of the system and various security settings. The values set in these parameters can be viewed under the ‘View Configuration’ button, but they may only be altered by users logged in at Administrator level.

The Master station settings relate to the overall performance of the system and common features and actions, irrespective of the option module fitted. Where these settings are relevant, they apply to all the option modules in the master station.

The Option module settings relate to the particular option module fitted in the Option 1 and Option 2 slots.

Fig 72: Master station configuration web page: General Settings

This screen is only accessible to Administrator user level.

Drop-Down boxes

Controls

Page 94

P3 - Pakscan Master Station Technical Manual

94 of 136 Publication PUB059-002-00 Issue 06/15

Masterstation Configuration [General Settings]

Site Name

A text field in which a description of the site can be entered for identification purposes.

Tag Name

A text field in which a tag identifier for this particular master station on the site can be entered.

Option 1 and Option 2 Modbus Address

A numeric field for the address number. When addressing the P3 master station using a host, the user must use the appropriate Modbus address. It is possible to fit up to 2 network option modules to the P3 master station. Each option module will have its own Modbus address, therefore there are up to 2 Modbus addresses to set up, one for each option module fitted. In a system with only 1 option module fitted, only the address for the appropriate option module fitted is required to be set up.

The default value is 240 for a Pakscan 2 Loop option module and 200 for a Pakscan wireless option module. It is recommended that his is changed to avoid conflict with any new system added

Note for Pakscan 2 Loop module Modbus Addressing

In some cases when using Pakscan Generic Modbus protocol settings, the master station will respond to more than one address; and the setting here is the Base address. There is more information on the base address and offset addresses in the Pakscan Modbus Protocol document (PUB059-003 formerly S171E).

Monitoring wireless and Control wired

Only in a system where each actuator has a wired and a wireless Pakscan module fitted, should this be enabled. This feature will pair up the wired and wireless modules and enable them to be shown together in the FCU menu web page. The pairings will be:

 the first wired address with the first wireless address,  the second wired address with the second wireless address,

 ...... and so on.

Therefore in a system where the wireless addresses start at 61 (wired always start from 1) the pairings would be:

 Wired address 1 with wireless address 61  Wired address 2 with wireless address 62  Wired address 3 with wireless address 63

 ..... and so on.

The FCU menu will appear as below:

Page 95

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 95 of 136

Hot Standby Module

Either ‘Enabled’ or ‘Disabled’. When there is a partner module acting as a standby unit this option should be set to ‘Enabled’ to allow exchange of data between the two modules.

ESD Settings

These five drop-down boxes can each be set to ‘Enable’ or ‘Disable’ the related Emergency Shut Down signal, depending on the particular site requirements. In general the settings should be ‘Disabled’ unless the particular Emergency Shut Down function is required. The action for each individual actuator has to be set locally on the actuator to either close, open or stay put (no movement on receipt of the ESD signal), as required for each valve; refer to individual actuator manuals.

Command Settings

These five drop-down boxes can each be set to ‘Enable’ or ‘Disable’ the host system commands to the actuators and field units from the indicated source of the signal. For example, commands over the Ethernet connection can be disabled, whilst those from Serial Port 1 can be enabled. Ethernet commands are those sent via the Ethernet ports from the host system using Modbus TCP. Commands on the individual field unit web pages can also be disabled. Serial Port 1 and Serial Port 2 are the RS-232/RS-485 Modbus RTU ports, which are commonly used for control and monitoring. The Keypad is the control source on the front panel of the CPU module.

Copy Options

These four drop-down boxes can each be set to ‘Enable’ or ‘Disable’ the copying of information between the A side and B side CPU and Option modules in a hot standby system. They do not appear in a single module system.

Settings - Enable to copy all the settings, except those listed below, between the units.

Address - Enable to copy the Modbus addresses of the CPU (P3 option) and Pakscan Loop option module between the units.

Tag - Enable to copy the Site name and system Tag name between the units.

IP - Enable to copy the IP address and Ethernet settings between the units

Display Language

This drop-down box contains the options enabling the system language to be chosen. The options are English, Spanish (Espanol), French (Francais), German (Deutsch), Italian (Italiano) and Hungarian.

Security Settings

A text box is provided in which the system PIN can be entered, and a drop-down box provides the options for access permission when using the CPU keypad and screen.

Note that the ‘Command Settings’ above can be used to prevent keypad commands under all circumstances, but when the keypad is enabled the security settings below will apply.

PIN - The Password number is a variable between 0 and 9999. When a number is entered, it indicates that the PIN must be used for settings or commands to be allowed from the CPU keypad in accordance with the associated drop-down box setting.

Page 96

P3 - Pakscan Master Station Technical Manual

96 of 136 Publication PUB059-002-00 Issue 06/15

Security - The drop-down box contains the options for selecting the protection afforded against inappropriate actions when using the CPU keypad.

None : All settings and control commands accessible via the keypad without protection by a PIN.

Set up : Control commands accessible via the keypad without a PIN, but all setting changes via the keypad require the PIN to be entered first.

Set up and Control : Any control command action or setting changes via the keypad require the PIN to be entered.

Locked : No keypad access permitted for any control commands or setting changes whilst there is host activity on any of the serial or Ethernet data links. [If all serial and Ethernet communication links are inactive for 5 seconds then keypad commands can be entered provided the PIN is entered (as with the Set up and Control level)].

Software Version

The version of software fitted to the CPU module. In hot standby systems the modules in both the A and B side should have the same version of software.

Country Code

This setting relates to the wireless option only. Whilst the frequency band over which the wireless communicates is a globally available band, there are frequencies within this band that certain countries do not allow. This parameter is set up during the first 5 times that the master station is powered up or by using the HMI menu A3F. This setting will ensure that that the channels made available for selection within the wireless option module are only those legally available within that particular country.

Number of Channels

This value is derived from the actual hardware of the CPU and indicates the maximum number of actuators or field units that can be connected to this system. The field units can be split between the option modules fitted.

FCU distribution between Option Slots

Using the slider bar the user is able to select the number of field units connected to each option module fitted in batches of 60. Simply select and drag the bar to the appropriate setting with the mouse, the text above the bar will indicate what has been selected.

The bar will only allow selection up to the maximum number of field units available on the master station in question.

This bar only selects the number of field units allocated to the two option slots and not the address range of the field units on the option slot network. The Pakscan 2 loop actuators will always start at address

1. In the example shown on the next page, where there are 180 devices on the Pakscan 2 loop module, the addresses 1 to 180 will be for the Pakscan 2 loop units. The starting address for the wireless devices is set up in the wireless configuration section and this would logically (but not necessarily) be set to 181. This would mean that the addresses for the 60 wireless devices can range between 181 and 240.

Page 97

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 97 of 136

Fig 73: Web page Field unit distribution bar

Controls

print page : Prints the settings to a printer attached to the computer. save settings : Saves the settings to the master station CPU module. Until they are saved

any alterations to the settings will not take effect.

Indicates the absolute limit of a Pakscan system

Indicates the limit of this Pakscan master station system, this will be the same as the Number of channels field

Indicates the number of field units selected for the option in slot 2

Indicates the number of field units selected for the option in slot 1

Indicates the type of option fitted to slot 1

Indicates the type of option fitted to slot 2

Slider bar for selecting the number of units for each option

Indicates the maximum number of devices possible on option slot 2 (3 x 60)

Indicates the maximum number of devices possible on option slot 1 (1 x 60)

Page 98

P3 - Pakscan Master Station Technical Manual

98 of 136 Publication PUB059-002-00 Issue 06/15

Masterstation Configuration [Pakscan 2 Loop]

The Pakscan 2 Loop option module controls the actuators and field units over a 2-wire cable wired in a ring or loop, visiting each actuator in turn. The data signal is a modulated 20 mA current and the system includes automatic cable failure protection and detection.

Fig 74: Master station configuration web page: Pakscan 2 Loop

Software Version : The version of software fitted to the Pakscan 2 Loop option module. In hot

standby systems the modules on both the A and B side should have the

same version of software. Highest FCU : This text box contains the setting for the highest address used for an

actuator (or field unit) on the 2-wire loop. The Pakscan 2 Loop module polls

all field units from address 1 up to this highest address. The loop scan time

is minimised by restricting the polling to only those field units that should be

present and scanning up to the highest address. All the addresses in the

selected range should be used and gaps in the address range should be

avoided. Gaps or unused addresses cause the system to run more slowly

as the unused addresses are still checked. In addition, unused addresses

will generate a communication failure alarm. Loop Speed : This shows the current loop scanning speed (loop baud rate) and the drop-

down box allows a desired loop speed to be selected. The choices are

2400, 1200, 600, 300 and 110 baud. When a new speed is entered it will

take effect as soon as the values are saved. The setting applies to the

Pakscan 2 Loop option module only and the actuators must be changed

individually.

Page 99

7. Internal Web pages

Issue 06/15 Publication PUB059-002-00 99 of 136

New Loop Speed : The drop-down box allows a new scanning speed (loop baud rate) to be

selected for the field units in the actuators. The new speed will be adopted

next time the loop is reconfigured. A change here should be mirrored by a

change in the loop speed setting above. It is possible to select rates in the

range one step up or two steps down from the current speed. If the loop communication is not stable, it is often necessary to reduce the

speed to improve reliability. If the field units are all in communication with

the master station, this facility to globally change the speed of all the field

units can be used to assist in improving the reliability. Loop Speed : On a stable loop it is possible to halve the loop scan time by doubling the

Doubling data speed using this setting. Care is needed to ensure that the loop

continues to be stable, since the use of this feature slightly reduces the

system’s capability to reject interference from pumps and motors. Retain Data on : Normally the database information about an actuator is cleared to zeros if

Loss of communication with the actuator is lost. This ensures that the false valve Communication position information is not transmitted to the host system during the loss of

communication. A single ‘Comms Fail’ data bit is set. This system setting

allows the data to be kept at the last value received from the actuator. Note

that the data is retained indefinitely and does not necessarily reflect the

true actuator status. DV Convert : This option can be used to ensure that 100% and 0% Desired Value

outputs to the IQ, IQT, Skil and EH actuators are transformed into actions

to make the actuator run to the fully open (100%) and fully closed (0%)

positions. The message is converted from a DV command to an Open or

Close command. This is useful for positioning actuators, where it is

possible that the valve will not fully shut or open when moved by only a

small amount. When used for tight shut-off valves, with analogue position

control only, the setting should be ON; the default is OFF.

If limited range positioning is selected, only enable DV Convert if you wish

the valve to travel to the fully open and fully closed positions. Host Port 1 : The drop-down box allows the database organisation use on this port to

Database be selected. The choices are Generic Modbus, Honeywell EPLCG Selection Modbus, Yokogawa Modbus and Honeywell SI Modbus.

Host Port 2 : The drop-down box allows the database organisation used on this port to Database be selected. The choices are the same as for Host Port 1. Selection

Ethernet : The drop-down box allows the database organisation use on the Ethernet Database ports to be selected. The choices are the same as for Host Port 1. Selection

Port Alarms : This drop-down box allows port alarm handling to be configured. Alarms

can either operate completely independently (‘separate’) for each port, or

can be linked such that the same alarm information is always reported,

regardless of which port is used. Alarms must be read and accepted before they can clear and return to

normal. If configured as separate, alarm reading and acceptance must be

done separately for each of the three ports. This ensures that the different

hosts see all the alarms. When the alarms are linked, accepting an alarm

on one port accepts the alarm on all the other ports as well.

Page 100

P3 - Pakscan Master Station Technical Manual

100 of 136 Publication PUB059-002-00 Issue 06/15

The status screen displays for alarm indication cannot be linked to the

serial communications alarm handling. Linking the port alarm operations is useful in dual redundant serial link

configurations between the master station and the host computer.

Controls

Save Settings : Saves the settings to the Pakscan 2 Loop option module. Until they are

saved, any alterations to the settings will not take effect.

To print out the settings use the Print Page button below the Master station Configuration section of the screen.

Masterstation Configuration [Pakscan 3 Wireless]

The Pakscan 3 Wireless option module controls the actuators and field units over a wireless network.

Fig 75: Master station configuration web page: Pakscan 3 Wireless

Software version

The version of software fitted to the Pakscan 3 option module. In hot standby systems the modules on both the A and B side should have the same version of software.

Coordinator Software version

The version of software fitted to the Pakscan 3 option module / P3W coordinator, relating to the radio functions. In hot standby systems the modules on both the A and B side should have the same version of software.

Lowest FCU address on this card

This field indicates the starting address of the field units connected to this option module. It is important to ensure that there is no overlap of addresses between option modules. Where the wireless module is

the only module fitted the address can be ‘1’. If a wired option

network module is fitted, the wireless address should be a value above the wired network limit. For example, where there are 180

rotork p3 Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
