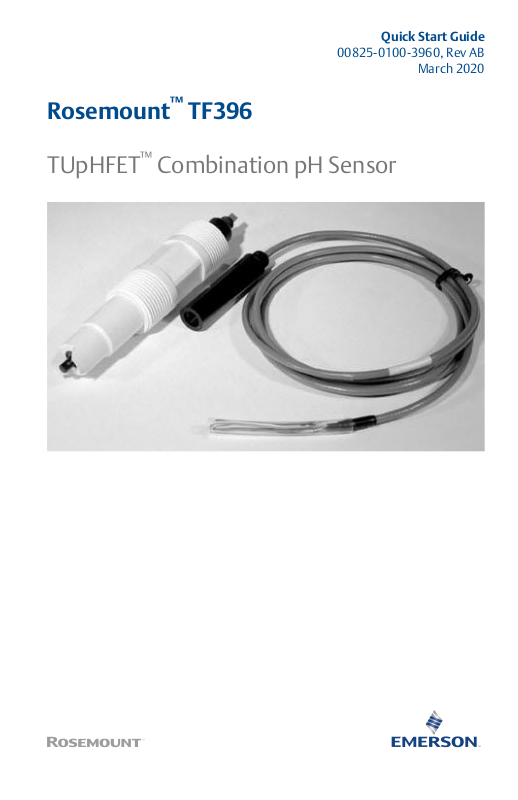

Quick Start Guide
00825-0100-3960, Rev AB
Rosemount™ TF396
TUpHFET™ Combination pH Sensor
March 2020
Quick Start Guide March 2020
Essential instructions
Read this page before proceeding!
Emerson designs, manufactures, and tests its products to meet many national and international
standards. Because these instruments are sophisticated technical products, you must properly install,
use, and maintain them to ensure they continue to operate within their normal specifications. You
must adhere to the following instructions and integrate them into your safety program when
installing, using, and maintaining Emerson's Rosemount products. Failure to follow the proper
instructions may cause any one of the following situations to occur: loss of life, personal injury,
property damage, damage to this instrument, and warranty invalidation.
• Read all instructions prior to installing, operating, and servicing the product.
• If this Quick Start Guide is not the correct one, call 1-800-854-8257 or 949-757-8500 to request
the correct Quick Start Guide. Save this Quick Start Guide for future reference.
• If you do not understand any of the instructions, contact your Emerson representative for
clarification.
• Follow all warnings, cautions, and instructions marked on and supplied with the product.
• Inform and educate your personnel in the proper installation, operation, and maintenance of the
product.
• Install equipment as specified in the installation instructions of the appropriate Reference Manual
and per applicable local and national codes. Connect all products to the proper electrical and
pressure sources.
• To ensure proper performance, use qualified personnel to install, operate, update, program, and
maintain the product.
• When replacement parts are required, ensure that qualified people use replacement parts
specified by Emerson. Unauthorized parts and procedures can affect the product's performance,
place the safe operation of your process at risk, and VOID YOUR WARRANTY. Look-alike
substitutions may result in fire, electrical hazards, or improper operation.
WARNING
Hazardous area installation
This sensor is not intrinsically safe or explosion-proof.
Installations near flammable liquids or in hazardous locations must be carefully evaluated by
qualified on-site safety personnel.
To secure and maintain an instrinsically safe installation, use an appropriate transmitter/safety
barrier/sensor combination.
The installation system must be in accardance with the governing approval agency (FM, CSA, or
BASEEFA/CENELEC) hazardous area classification requirements.
Consult your transmitter Reference Manual for details.
Proper installation, operation, and servicing of this sensor in a hazardous area installation is
entirely the operator's responsibility.
CAUTION
The wetted sensor materials may not be compatible with process composition and operating
conditions.
Application compatibility is entirely the operator's responsibility.
2 Emerson.com/Rosemount
March 2020 Quick Start Guide
Warranty
Seller warrants that the firmware will execute the programming instructiosn provided by Seller, and
that the Goods manufactured or services provided by Seller will be free from defects in materials or
workmanship under normal use and care until the expiration of the applicable warranty period. Goods
are warranted for twelve (12) months from the date of intial installation or eighteen (18) months from
the date of shipment by Seller, whichever period expires first. Consumables, such as glass electrodes,
membranes, liquid junctions, electrolyte, O-rings, catalytic beads, etc. and services are warranted for a
period of 90 days from the date of shipment or provision.
Products purchased by Seller for resale to Buyer ("Resale Products") shall carry only the warranty
extended by the original manufacturer. Buyer agrees that Seller has no liability for Resale Products
beyond making a reasonable commercial effeort to arrange for procurement and shipping of the
Resale Products.
If Buyer discovers any warranty defects and notifies Seller thereof in writing during the applicable
warranty period, Seller shall, at its option, promptly correct any errors that are found by Seller in the
firmware or Services, or repair or replace F.O.B. point of manufacture that portion of Goods or
firmware found by Seller to be defective, or refund the purchase price of the defective portion of the
Goods/Services.
All replacements or repairs necessitated by inadequate maintenance, normal wear and usage,
unsuitable power sources, unsuitable environmental conditions, accident, misuse, improper
installation, modification, repair, storage or handling, or any other cause not the fault of Seller are not
covered by this limited warranty, and shall be at Buyer's expense. Seller shall not be obligated to pay
any costs or charges incurred by Buyer or by any other party except as may be agreed upon in writing in
advance by an authorized Seller representative. All costs of dismantling, reinstallation and freight and
the time and expenses of Seller's personnel for site travel and diagnosis under this warranty clause shall
be borne by Buyer unless accepted in writing by Seller.
Goods repaired and parts replaced during the warranty period shall be in warranty for the remainder of
the original warranty period or ninety (90) days, whichever is longer. This limited warranty is the only
warranty made by Seller and can be amended only in a writing signed by an authorized representative
of Seller. Except as otherwise expressly provided in the Agreement, THERE ARE NO REPRESENTATIONS
OR WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO MERCHANTABILITY, FITNESS FOR
PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS OR SERVICES.
Contents
Description and specifications......................................................................................................5
Install........................................................................................................................................... 7
Wire the sensor.......................................................................................................................... 19
Start up and calibrate................................................................................................................. 26
Maintenance.............................................................................................................................. 28
Return of material...................................................................................................................... 31
China RoHS table........................................................................................................................33
Quick Start Guide 3
Quick Start Guide March 2020
4 Emerson.com/Rosemount
March 2020 Quick Start Guide
1 Description and specifications
1.1 Features and applications
The ion-selective field effect transistor (ISFET) pH electrode provides a stable
pH measurement.
Its rate of response can be ten times faster than glass electrodes, enabling
better process control. Its short response time and increased stability at low
temperatures makes it suitable for use in cold processes like brine or water
for cooling. Aging effects caused by temperature fluctuations or large
changes of process pH are greatly reduced, providing longer intervals
between calibration and maintenance of the sensor.
Because there is no glass bulb, you can use the sensor in many applications
that restrict or prohibit pH glass electrodes due to the risk of broken glass
getting into the process. It may also provide longer sensor life in processes
that will break or crack pH glass bulbs. By allowing direct installation into the
process, costs for laboratory analysis of sample lines are greatly reduced.
The TUpH Reference technology includes a large area reference junction for
minimum maintenance requirements. The reference junction provides an
electrical connection between the reference electrode and the sample and
helps maintain a stable reference potential, regardless of the change in
sample pH. The TUpH reference electrode junction (the entire plastic tip
surrounding the ISFET electrode) maintains a steady reference signal, even
in dirty applications, by resisting plugging (a common cause of pH signal
drift). This large reference junction area (400 times greater than typical PTFE
or ceramic junctions) is made of micron-sized reference pathways, allowing
for ionic exchange, but preventing plugging by larger particles; the junction
continues to send a pH signal even in the dirtiest of applications. The fieldproven TUpH reference junction technology results in greatly reduced
maintenance requirements.
The TUpH helical reference pathway resists reference poisoning. Ions diffuse
through the reference pathways, and a charge is passed to the reference
element. The reference element must be protected from contamination by
poisoning ions such as sulfide, mercury, cyanide, and ammonia that will
cause reference drifts and offsets. The TUpH sensor's long internal reference
pathway hinders the contaminants' migration to the reference element
thereby providing an increased sensor life.
Emerson has specifically designed all TUpH sensor models for improved
performance in harsh, dirty, or abrasive applications where large quantities
or suspended solids are present.
The Rosemount TF396 offers a watertight sensor-to-cable connector that
prevents cable twisting and eliminates the need for rewiring when replacing
the sensor. The sensor cable includes an integral preamplifier cap with
mating connector and is compatible with most Rosemount transmitters.
Quick Start Guide 5
Quick Start Guide March 2020
1.2 Specifications
Measurement range
Measuring element
Repeatability
Response time to pH
change
Wetted materials
Process connections
Temperature range
Pressure range
Minimum process
conductivity
Cable lengths
Weight/shipping
weight
2 to 12 pH
Ion-selective field effect transistor (ISFET)
±0.05 pH
99% in 30 seconds step change
Code -01: Polypropylene, EPDM, ryton, silicone
Code -02: 316 stainless steel, titanium,
polypropylene, EPDM, ryton, silicone
Code -01: 1-in. (25.4 mm) male national pipe
threads (MNPT), front and rear facing
Code -02: 2-in. (50.8 mm) Tri-Clamp connection
32 to 212 °F (0 to 100 °C) at 50 psig (344.7 kPa
[abs])
-10 to 100 psig (32 to 790 kPa [abs]) at 122 °F
(50 °C)
75 µS/cm; nominal: 100 µS/cm
20 ft., 50 ft. (6.1 m, 15.2 m)
1 lb./2 lb. (0.45 kg/0.9 kg)
6 Emerson.com/Rosemount
March 2020 Quick Start Guide
2 Install
2.1 Unpack and inspect
WARNING
Buffer solution in the vinyl boot may cause skin or eye irritation.
CAUTION
Wet electrode tip at all times to maximize storage life.
CAUTION
Cable connection at back of sensor body is fragile.
Do not overtighten.
Procedure
1. Inspect the outside of the carton for any damage. If you detect
damage, contact the carrier immediately.
2. Inspect the hardware. Make sure all the items on the packing list are
present and in good condition. Notify the factory if any part is
missing.
Postrequisites
If the sensor appears to be in satisfactory condition, proceed to .
Note
Save the original packing cartons and materials as most carriers require
proof of damage due to mishandling, etc. Also, if you need to return the
sensor to the factory, you must pack it in the same manner as it was
received. Refer to for return instructions. If storing the sensor, fill the vinyl
boot with pH buffer solution and replace it on the sensor tip until you are
ready to use it.
Quick Start Guide 7
Quick Start Guide March 2020
2.2 Mount
Emerson has designed the sensor to be located in industrial process
environments.
Do not exceeed temperature and pressure limitations at any time. A caution
label regarding this matter is attached to the sensor. Please do not remove
this label. See Figure 2-1.
WARNING
Internal electrolyte fill solution may cause skin or eye irritation.
CAUTION
Cable connection at back of sensor body is fragile.
Do not overtighten.
8 Emerson.com/Rosemount
March 2020 Quick Start Guide
Figure 2-1: Dimensional Drawing
A. Connection, preamp cap adapter with cable. PN 23991-02/03
B. 1-in. MNPT (two places)
C. 1-in. wrench opening
D. Reference
E. Electrode
Quick Start Guide 9
Quick Start Guide March 2020
WARNING
Pressurized spray injury
US and foreign patents pending.
Do not exceed pressure and temperature specifications. From 32 to 122
°F (0 to 50 °C): maximum pressure: 100 psig (790 k Pa). From 122 to 212
°F (50 to 100 °C): maximum pressure: 50 psig (345 kPa).
Remove pressure and allow to cool before removal.
Read and follow manual.
In most cases, you can simply install the pH sensor as shipped and obtain
readings with an accuracy of ±0.6 pH. To obtain greater accuracy or to verify
proper operation, calibrate the sensor as a loop with its compatible
transmitter.
2.2.1 Flow through and insertion mounting
The sensor has a 1-in. MNPT process connection at the front of the sensor for
mounting into a 1½-in. tee or the process pipes.
See Figure 2-1 through Figure 2-8 for installation configurations.
Note
Do not use large pipe wrenches to tighten the sensor into a flange or other
type of mounting.
Figure 2-2: Flow-Through Tee with Adapter (PN 915240-xx*)
A. Adapter retrofit PN 33211-00.
B. O-ring must be in place prior to use.
C. Process connection threads: two places.
D. 2-in. (50.8 mm) scheduled 80 "T".
E. Sensor cable with connector - not shown.
10 Emerson.com/Rosemount
March 2020 Quick Start Guide
xx* Process connection threads
03 ¾ in.
04 1 in.
05 1½ in.
Figure 2-3: Flow-Through and Insertion Installations
A. Straight flow shown
B. 1½-in. pipe tee with reducing bushing PN 2002011
C. Pipe "Y" installation shown
D. 1½-in. Pipe "Y" (by others)
E. 1½-in. x 1 in. reducing bushing PN 933044
F. Flow
G. 1½-in. pipe tee with reducing bushing PN 2002011
H. 1½-in. x 1-in. reducing bushing
I. Angle flow shown
Quick Start Guide 11
Quick Start Guide March 2020
Figure 2-4: Rosemount™ TF396 with Insertion Mounting Adapter PN
23242-02
A. Peek adapter 1-in. FNPT x ¾-in. FNPT (reversible).
B. 1-135 Viton O-ring. O-ring must be in place prior to use (PN 9550175).
C. Nut, hex union 2-in. 3-in. wrench opening (304 stainless steel).
D. 2.531.8 Acme thread (typ).
E. Neck, union fitting (316 stainless steel). 2⅝-in. wrench opening.
F. 1½-in. MNPT.
12 Emerson.com/Rosemount
March 2020 Quick Start Guide
Figure 2-5: Submersion Installations
Regularly check to make sure connections are water tight.
A. 2-in. pipe mounting bracket PN 2002565
B. Junction box: PN 23550-00 (without preamp)
C. 1-in. pipe by others
D. 2 x 1-in. FNPT CPVC union PN 9320057
E. Rosemount TF396
F. Flexible conduit required
Quick Start Guide 13
Quick Start Guide March 2020
Figure 2-6: Submersion Installations (Continued)
A. End cap PVC.
B. Sensor cable.
C. 1½-in. PVC pipe schedule 80.
D. 1½-in. pipe clamp, three places.
E. Sensor Rosemount TF396. Regularly check to make sure connections are
watertight.
F. Sweep pipe with 1-in. FNPT adapter.
G. Unistrut 1⅝ x 1⅝ in. aluminum.
H. 1½-in. pipe clamp, two places.
I. Can be any convenient dimension.
J. Customer handrail two places.
K. Locking pin with bead chain.
L. Mounting channel aluminum two places.
M. Coupling.
14 Emerson.com/Rosemount
March 2020 Quick Start Guide
Figure 2-7: Low Flow Cell PN 24901-00
Inlet and outlet connections are stainless steel and take ¼-in. OD tubing.
Flow cell is polycarbonate with ¼-in. FNPT fittings.
Wetted materials
Body
Nut
Fittings
Seals
Quick Start Guide 15
Acrylic
CPVC
316 stainless steel
Buna N
Quick Start Guide March 2020
Flow cell ratings
Temperature
Maximum pressure
Flow rate
32 to 122 °F (0 to 50 °C)
65 psig (549 kPa [abs])
2 to 5 gph (7.6 to 18.9 lph)
16 Emerson.com/Rosemount
March 2020 Quick Start Guide
Figure 2-8: Jet Spray Cleaner PN 12707-00
A. Cleaning solution by others
B. Solenoid valve or manual valve (supplied by others)
C. Corrosion resistant tubing (supplied by others)
D. Polypropylene ¼-in. compression fitting.
E. ¼-in. 316 stainless steel
F. ¼-in. polypropylene
G. Stainless set screw for adjustable spray nozzle height
H. 2-in. NPT threads
I. Sensor
J. 1-in. PVC coupling for submersible applications (supplied by others)
K. 1-in. PVC or stainless conduit (supplied by others)
L. Cable
M. Timer (supplied by others or use Model 1054 or 54 timer)
Quick Start Guide 17
Quick Start Guide March 2020
2.2.2 Submersion mounting
The sensor has a 1-in. MNPT process connection at the back. You can use a
standard 1-in. union to mount the sensor to a 1-in. SCH 80 CPVC or PVDF
standpipe.
See Figure 2-5. Tapered pipe threads in plastic tend to loosen after
installation. Therefore, Emerson recommends using Teflon™ tape on the
threads and checking the tightness of the connection frequently to ensure
that no loosening has occurred. To prevent rain water or condensation from
running into the sensor, Emerson recommends a weatherproof junction box.
Run the sensor cable through a protective conduit for isolation from
electrical interference or physical abuse from the process. Install the sensor
within 80 ° of vertical with the electrode facing down. Do not run the sensor
with power or control wiring.
18 Emerson.com/Rosemount
March 2020 Quick Start Guide
3 Wire the sensor
Figures in this section provide the guidelines for wiring the sensor to various
transmitters. To determine which wiring guideline to use, locate the model
number of the transmitter to be installed.
WARNING
Electrical shock
Serious injury may result.
Do not connect sensor cable to power lines.
1. If you need to extend the cable (maximum distance from sensor to
transmitter is 250 ft. [76.2 m]), use a high quality eleven conductor
double shielded instrument cable available from Rosemount™.
Note
If the cable is too long, loop up the excess cable. If you need to
shorten the cable, cut and terminate each conductor neatly and
make sure that the overall (outermost) drain wire is not shorted out
with either of the two inner drain wires (shields).
2. Run signal cable in a dedicated conduit (preferably an earth
grounded metallic conduit) and keep it away from AC power lines.
For your convenience, Emerson has furnished a wire nut kit (in a
plastic bag wrapped around the cable.
Note
For maximum EMI/RFI protection when wiring from the sensor to the
junction box, connect the outer braid of the sensor to the outer
braided shiedl of the extension cable. Terminate the outer braid of
the extension cable at earth ground with an appropriate cable gland
fitting that provides a secure connection to the instrument cable.
The sensor has a mating cable with built-in preamplifier and comes with a
shielded cable. Handle the cable carefully and keep it dry and free of
corrosive chemicals at all times. Take extreme care to prevent it from being
twisted, damaged, or scraped by rough, sharp edges or surfaces. Please refer
to through for wiring the sensor.
Quick Start Guide 19
Quick Start Guide March 2020
Figure 3-1: Wiring to Rosemount 1055: TB3 and TB4
A. White/black (pH mV).
B. Refer to image below for TB3 and TB5 connections. RC jumpers required
for dual measurement only. See detail.
C. Jumper.
D. Black (reference in).
E. N/C - orange (no connection).
F. Yellow (mV drain).
G. White (resistance temperature device in).
H. Red/black (resistance temperature device sense).
I. Red (resistance temperature device return).
J. Blue.
K. Green.
L. Black.
M. White/black.
N. Reference in.
O. Reference shield.
20 Emerson.com/Rosemount
March 2020 Quick Start Guide
P. Solution ground.
Q. pH/mV shield (preamp).
R. pH/mV shield (no preamp).
S. pH/mV in.
Quick Start Guide 21
Quick Start Guide March 2020
Figure 3-2: Wiring to Rosemount 1055: TB5
A. Red (resistance temperature device return).
B. Red/black (resistance temperature device sense).
C. White (resistance temperature device in).
D. Yellow (mV drain).
E. Blue.
F. Green.
G. N/C: orange (no connection).
H. Black reference in.
I. Jumper.
J. Refer to image above for TB3 and TB4 connections. RC jumpers required
for dual measurement only. See detail.
K. Reference in.
L. Reference shield.
M. Solution ground.
N. pH/mV shield (preamp).
O. pH/mV shield (no preamp).
22 Emerson.com/Rosemount
March 2020 Quick Start Guide
P. pH/mV in.
Q. Black.
R. White/black.
Quick Start Guide 23
Quick Start Guide March 2020
Figure 3-3: Wiring to Rosemount 3081, 4081, and 5081
A. Earth ground
B. Shield inner drain
C. Resistance temperature device return
D. -Resistance temperature device sense
E. Resistance temperature device in
F. Reference ground braid
G. Reference in
H. Solution ground
I. pH guard
J. pH in
K. +Resistance temperature device sense
L. Yellow (mV drain)
M. Red (resistance temperature device return)
N. Red/black (resistance temperature device sense)
O. White (resistance temperature device in)
P. Black (reference in)
Q. White/black (pH/mV)
R. Green
S. Blue
T. Orange (no connection)
24 Emerson.com/Rosemount
March 2020 Quick Start Guide
Figure 3-4: Wiring to Rosemount 54e
A. Yellow (resistance temperature device shield)
B. Red (resistance temperature device return)
C. Red/black (resistance temperature device sense)
D. White (resistance temperature device in)
E. Black (reference in)
F. Jumper
G. White/black (pH mV)
H. Green
I. Blue
J. Innder drain
K. Resistance temperature device return
L. Resistance temperature device sense
M. Resistance temperature device in
N. Reference in
O. pH/mV in
Quick Start Guide 25
Quick Start Guide March 2020
4 Start up and calibrate
4.1 Prepare sensor
In most cases, you can simply install the pH sensor as shipped and obtain
readings with an accuracy of ±0.6 pH. To obtain greater accuracy or to verify
proper operation, calibrate the sensor as a loop with its compatible
transmitter.
4.2 pH calibration
After establishing a temporary connection between the sensor and the
transmitter, you may perform a buffer calibration.
Consult the appropriate pH transmitter reference manual for specific
calibration and standardization procedures or see below for recommended
two-point buffer calibration.
4.2.1 Recommended two-point buffer calibration
Prerequisites
Select two stable buffer solutions, preferably pH 4.0 and 10.0. pH buffers
other than pH 4.0 and pH 10.0 can be used as long as the pH values are at
least two pH units apart.
Note
A pH 7.0 buffer solution reads an mV value of zpprozimately zero, and pH
buffers read approximately 59.1 mV for each pH unit above or below 7.0.
Check the pH buffer manufacturer specifications for millivolt values at
various temperatures, since it may affect the actual value of the buffer
solution mV/pH values.
Procedure
1. Immerse sensor in the first buffer solution. Allow sensor to adjust to
the buffer temperature (to avoid errors due to temperature
differences between the buffer solution and sensor temperature) and
wait for reading to stabilize.
The transmitter can now acknowledge the value of the buffer.
2. Rinse the buffer solution off of the sensor with distilled or deionized
water.
3. Repeat Step 1 and Step 2 using the second buffer solution.
Once the transmitter has acknowledged both buffer solutions, a sensor
slope (mV/pH) is established. You can find the slope value within the
transmitter.
26 Emerson.com/Rosemount
March 2020 Quick Start Guide
4.2.2 Recommended pH sensor standardization
For maximum accuracy, you can standardize the sensor online or with a
process grab sample after performing a buffer calibration and conditioning
the sensor to the process. Standardization accounts for the sensor junction
potential and other interferences. Standardization will not change the
sensor's slope, but will simply adjust the transmitter's reading to match that
of the known process pH.
Procedure
1. While obtaining a process solution sample, record the pH value that
is shown on the transmitter display.
Emerson recommends taking the sample close to the sensor.
2. Measure and record the pH of the process solution with another
temperature compensated, calibrated pH instrument.
For best results, perform standardization at the process temperature.
3. Adjust the transmitter value to the standardized value.
4.3 Configure transmitter
Configuration requirements: For proper operation, transmitters capable of
advanced sensor diagnostics must have this feature turned off. (Refer to the
appropriate transmitter's reference manual for complete instructions.
Rosemount™ 54e pH/ORP
Go to Program → Configure → Diagnostics. Edit diagnostics and select Off.
Rosemount 1055
Go to Program → Measurement → Sensor 1 or Sensor 2 → pH. At the
screen prompt Glass Fault Enable?, select No.
Rosemount 81, 3081, 4081, or 5081
From the Program menu, select dIAG and toggle it to OFF.
Quick Start Guide 27
Quick Start Guide March 2020
5 Maintenance
The sensor requires minimum maintenance.
Keep the sensor clean and free of debris and sediment at all times.
Determine the frequency of cleaning by the nature of the solution being
measured. To clean, wipe or brush the sensor with a soft cloth or brush.
Remove the sensor from the process and check it in buffer solutions
periodically.
WARNING
Before removing the sensor, be absolutely certain that the process pressure
is reduced to 0 psig and the process temperature is at a safe level.
If the sensor will not calibrate, refer to your transmitter reference manual for
proper test procedures. If you determine that the sensor has failed, discard
and replace it.
5.1 Automatic temperature compensator
The temperature compensator element is temperature sensitive and can be
checked with an ohmmeter. Resistance increases with temperature.
The Pt100 will read 110 ohms at 77 °F (25 °C). Resistance varies with
temperature. Determine it with Table 5-1 or the following formula:
RT=R0 [l+R1 (T-20)]
Where RT = Resistance and T = Temperature in °C
See Table 5-2 for R0 and R1 values.
Table 5-1: Temperature vs. Resistance of Automatic Temperature
Compensated Elements
Temperature in °C Resistance (ohms) ±1% Pt100
0 100.0
10 103.8
20 107.7
25 109.6
30 111.5
40 115.4
50 119.2
60 123.1
70 126.9
28 Emerson.com/Rosemount
March 2020 Quick Start Guide
Table 5-1: Temperature vs. Resistance of Automatic Temperature
Compensated Elements (continued)
Temperature in °C Resistance (ohms) ±1% Pt100
80 130.8
90 134.6
100 138.5
Table 5-2: R0 and R1 Values for Temperature Compensation Elements
Temperature
compensation element
Pt100 107.7 .00385
5.2 Clean electrode
If the electrode is coated or dirty, clean as follows:
Procedure
1. Remove the sensor from the process.
2. Wipe the ISFET silicone surface with a soft, clean, lint-free cloth or
tissue. If this does not remove the dirt or coating, go to Step 3.
Detergents clean oil and grease; acids remove scale.
3. Wash the sensor tip in a mild detergent solution and rinse it in clean
water. If this does not clean the ISFET, go to Step 4.
4.
WARNING
The solution used during the following check is an acid.
Handle with care.
Follow the directions of the acid manufacturer.
Wear the proper protective equipment.
Do not let the solution come in contact with skin or clothing.
If contact with skin is made, immediately rinse with clean water.
Wash the sensor tip in a dilute 5% hydrochloric acid solution and rinse
with clean water.
Soaking the sensor overnight in the acid solution can improve
cleaning action.
R
0
R
1
Note
Erroneous pH results may result immediately after acid soak, due to
reference junction potential build-up.
Quick Start Guide 29
Quick Start Guide March 2020
Postrequisites
Replace the sensor if cleaning does not restore sensor operation.
30 Emerson.com/Rosemount
March 2020 Quick Start Guide
6 Return of material
To expedite the repair and return of instruments, proper communication
between the customer and the factory is important. Before returning a
product for repair, call +1 800 999 9307 for a Retrun Materials Authorization
(RMA) number.
6.1 Warranty repair
The following is the procedure for returning instruments still under
warranty.
1. Call Rosemount™ for authorization.
2. To verify warranty, supply the factory sales order number of the
original purchase order number. In the case of individual parts or subassemblies, you must supply the serial number on the unit.
3. Carefully package the materials and enclose your Letter of
Transmittal. If possible, pack the materials in the same manner as
they were received.
4. Send the package prepaid to:
Emerson Automation Solutions
8200 Market Boulevard
Chanhassen, MN 55317, USA
Attn: Factory Repair
RMA No._______________
Mark the package: Returned for Repair
Model No._______________
Quick Start Guide 31
Quick Start Guide March 2020
6.2 Non-warranty repair
The following is the procedure for returning instruments that are no longer
under warranty for repair.
1. Call Rosemount™ for authorization.
2. Supply the purchase order number and make sure to provide the
name and telephone number of the individual to be contacted
should additional information be needed.
3. Do steps 3 and 4 in Warranty repair.
Note
Consult the factory for additional information regarding service or repair.
32 Emerson.com/Rosemount
March 2020 Quick Start Guide
7 China RoHS table
Quick Start Guide 33
Quick Start Guide March 2020
34 Emerson.com/Rosemount
March 2020 Quick Start Guide
Quick Start Guide 35
GLOBAL HEADQUARTERS
6021 Innovation Blvd.
Shakopee, MN 55379
+1 866 347 3427
+1 952 949 7001
RMTNA.RCCPO@Emerson.com
*00825-0100-3960*
Quick Start Guide
00825-0100-3960, Rev. AB
March 2020
NORTH AMERICA
Emerson Automation Solutions
8200 Market Blvd
Chanhassen, MN 55317
Toll Free +1 800 999 9307
F +1 952 949 7001
RMTNA.RCCPO@Emerson.com
MIDDLE EAST AND AFRICA
Emerson Automation Solutions
Emerson FZE
Jebel Ali Free Zone
Dubai, United Arab Emirates, P.O. Box
17033
+971 4 811 8100
+971 4 886 5465
RMTNA.RCCPO@Emerson.com
Linkedin.com/company/Emerson-
Automation-Solutions
twitter.com/rosemount_news
Facebook.com/Rosemount
youtube.com/RosemountMeasurement
EUROPE
Emerson Automation Solutions
Neuhofstrasse 19a PO Box 1046
CH-6340 Baar
Switzerland
+41 (0) 41 768 6111
+41 (0) 41 768 6300
RMTNA.RCCPO@Emerson.com
ASIA-PACIFIC
Emerson Automation Solutions
1 Pandan Crescent
Singapore 128461
Republic of Singapore
+65 6 777 8211
+65 6 777 0947
RMTNA.RCCPO@Emerson.com
©
2020 Emerson. All rights reserved.
The Emerson logo is a trademark and service
mark of Emerson Electric Co. Rosemount is a
mark of one of the Emerson family of companies.
All other marks are the property of their
respective owners.
Loading...
