Product Data Sheet

00813-0100-4485, Rev GA

Rosemount™ DP Flowmeters and Primary Elements

February 2017

 Multivariable capabilities allow for real-time fully compensated mass and energy flow

 Fully-Integrated wireless flowmeters allow for easy installation

 Minimize permanent pressure loss and save energy with Rosemount Annubar

Te ch no lo gy

 Reduce straight pipe requirements to two diameters upstream and downstream from most flow

disturbances with Conditioning Orifice Technology

 Improve accuracy and repeatability in small line sizes with Integral Orifice Plate Technology

™

Averaging Pitot Tube

Page 2

Rosemount DP Flow

February 2017

Contents

DP Flowmeter Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 5

Rosemount 3051SF DP Flowmeters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

Rosemount 3051SFA Annubar Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 8

Rosemount 3051SFC Compact Orifice Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 19

Rosemount 3051SFP Integral Orifice Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 27

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 36

Dynamic performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 37

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 39

Physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 44

Rosemount 3051SF Wireless Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46

Rosemount 3051CF Flowmeter Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 61

Rosemount 3051CFA Annubar Flowmeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 61

Rosemount 3051CFC Compact Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 70

Rosemount 3051CFP Integral Orifice Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 76

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 83

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 85

Physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 89

Rosemount 3051 Product Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 91

Additional Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 96

Rosemount 2051CF Flowmeter Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 99

Rosemount 2051CFA Annubar Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 99

Rosemount 2051CFC Compact Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 107

Rosemount 2051CFP Integral Orifice Flowmeter ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . page 113

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 119

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 120

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 124

Rosemount 2051 Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 126

Rosemount 485 Annubar Primary Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 134

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 134

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 140

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 140

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 141

Rosemount 585 Annubar Primary Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 145

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 145

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 151

Emerson.com/Rosemount

Page 3

February 2017

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 151

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 152

Rosemount 405 Compact Primary Element. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 154

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 154

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 157

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 157

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 158

Rosemount 1595 Conditioning Orifice Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 161

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 161

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 164

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 164

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 164

Rosemount 1195 Integral Orifice Primary Element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 166

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 166

Performance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 170

Rosemount DP Flow

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 170

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 172

Rosemount 1495 Orifice Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 174

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 174

Rosemount 1496 Orifice Flange Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 178

Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 178

Functional specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 182

Physical specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 183

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 195

Emerson.com/Rosemount

Page 4

Rosemount DP Flow

February 2017

DP Flowmeter Selection Guide

Rosemount integrated DP Flowmeters arrive fully assembled, configured, and leak tested for out-of-the-box installation.

Rosemount 3051SF Flowmeters enable best-in-class flow measurement utilizing advanced functionality

 Up to 0.80 percent mass flow rate accuracy

 Multivariable capabilities allow for real time fully compensated mass and energy

flow

 Advanced diagnostics predict and prevent abnormal process conditions

 Installation ready wireless flow solution

 Ultra for Flow measures percent-of-reading performance over 14:1 flow turndown

 15-year stability, 15-year warranty

 SIL3 Capable: IEC 61508 certified by an accredited 3rd party agency for use in

safety instrumented systems up to SIL 3 (minimum requirement of single use [1oo1] for SIL 2 and redundant use [1oo2] for SIL 3)

 Available with 4–20 mA HART

, WirelessHART, and FOUDATION™ Fieldbus Protocols

Rosemount 3051CF Flowmeters combine the proven 3051C Pressure Transmitter and the latest primary element technology

 Up to 1.65 percent volumetric flow accuracy at 8:1 turndown

 Available with HART, WirelessHART, FOUNDATION Fieldbus, and PROFIBUS

 10-year stability

 SIL3 Capable: IEC 61508 certified by an accredited 3rd party agency for use in safety

Protocols

instrumented systems up to SIL 3 (minimum requirement of single use [1oo1] for SIL 2 and redundant use [1oo2] for SIL 3)

Rosemount 2051CF Flowmeters combine the 2051C Pressure Transmitter and the latest primary element technology

 Up to 2.00% volumetric flow accuracy at 5:1 turndown

 Available with HART, WirelessHART, and FOUNDATION Fieldbus Protocols

 3-year stability

Emerson.com/Rosemount

Page 5

February 2017

Rosemount Annubar Primary Element Technology

 Energy savings gained through minimal permanent pressure loss

 Innovative T-shape design providing accuracies up to ±0.75 percent of flow rate

(Rosemount 485 Annubar Primary Element)

 Variety of sensor materials for optimal compatibility with the process fluid

 Handles applications where conditions exceed the structural limitations of

other primary elements

 Symmetrical sensor design allows bi-directional flow measurement (Rosemount 585

Annubar Primary Element)

 Rosemount 405A Compact Annubar primary element easily installs like an orifice plate

 Integral thermowell allows temperature measurement without additional pipe

penetrations for Rosemount 485, 585, and 405A models.

Rosemount Conditioning Orifice Plate Technology

 Reduce straight pipe requirements to two diameters upstream and

downstream from most flow disturbances

 Discharge coefficient uncertainty as low as ±0.5 percent

 Integral thermowell allows temperature measurement without an additional pipe

penetration with the compact design

 Reduce installation costs compared to traditional orifice plates with the

compact design

 Conditioning orifice plate is based on AGA, ASME, and ISO industry

standards

 Available in various plate styles providing installation flexibility

Rosemount DP Flow

Rosemount Integral Orifice Plate Technology

 Improves accuracy and repeatability in

 Self-centering plate design eliminates installation errors that are magnified in

/2-in., 1-in., and 11/2-in. line sizes

small line sizes

 Precision honed pipe sections allow accuracy of up to ±0.75 percent of flow rate

 Installation flexibility with numerous process connections

 Integral thermowell allows temperature measurement without an additional pipe

penetration

Emerson.com/Rosemount

Page 6

February 2017

Rosemount 3051SFP

Rosemount 3051SFC

Rosemount 3051SFA

Rosemount 3051SF DP Flowmeters

Rosemount 3051SF Flowmeters integrate industry leading transmitters with industry leading primary elements. Capabilities include:

 Flowmeters are factory configured to meet your application needs (Configuration Data

Sheet required)

 Multivariable capabilities allow scalable flow compensation (measurement types 1–4)

 4–20 mA HART, WirelessHART, and FOUNDATION Fieldbus Protocols

 Ultra for Flow for improved flow performance across wider flow ranges

 Integral temperature measurement (option code T)

 Advanced diagnostics (option code DA2)

 Direct or remote mount configurations available

Additional information

Specifications: page 34 Dimensional Drawings: page 195

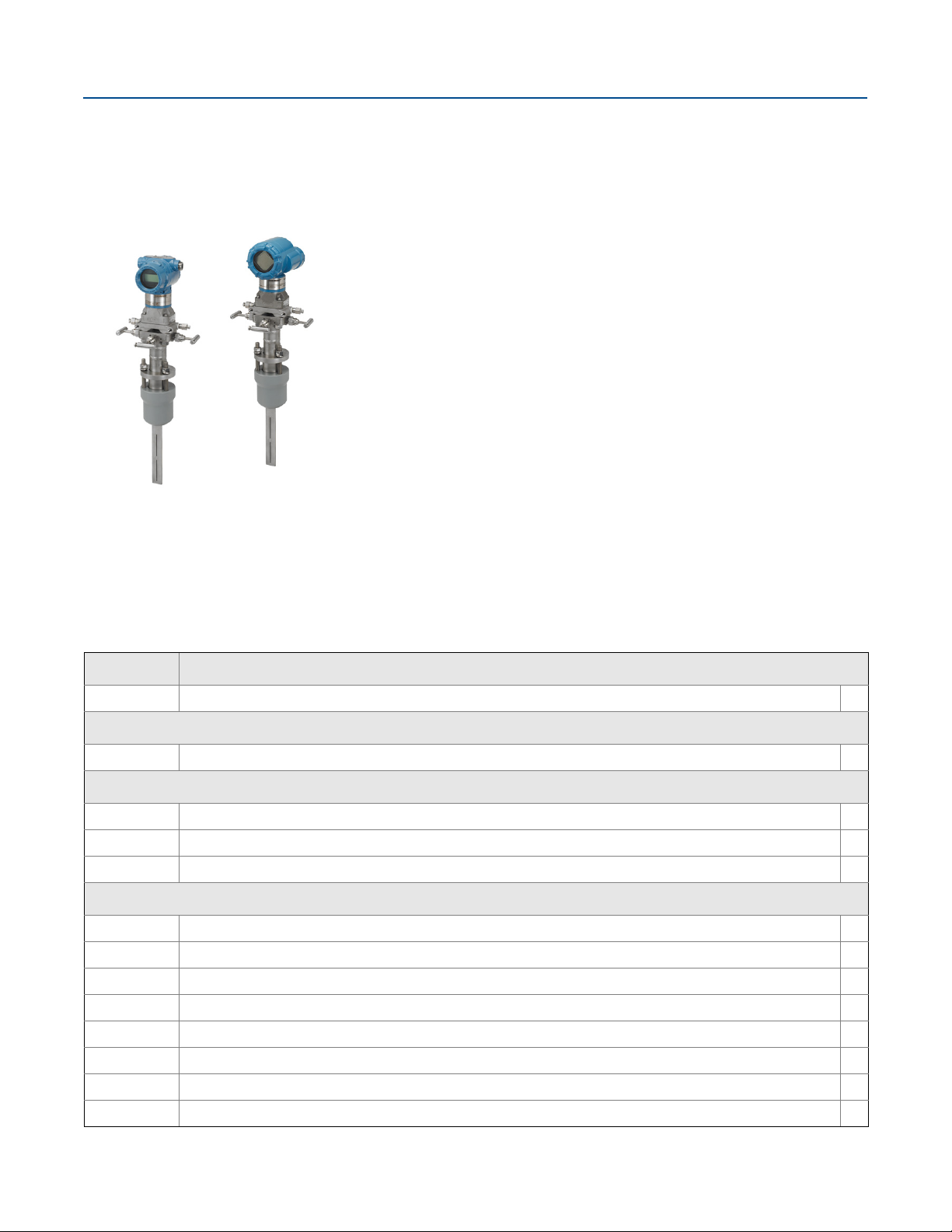

Rosemount 3051SFA Annubar Flowmeter ordering information

Rosemount DP Flow

 Rosemount Annubar Flowmeters reduce permanent pressure loss by creating less blockage in the pipe.

 Ideal for large line size installations when cost, size and weight of the flowmeter are concerns.

Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See page 42 for more information on material selection.

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Measurement

Model Product description

typ e

• = Available — =Unavailable

D 1-7

3051SFA Rosemount Annubar Flowmeter • •

Measurement type

2 Compensated flow calculations – Differential and static pressures — • ★

3 Compensated flow calculations – Differential pressure and temperature — • ★

4 Compensated flow calculations – Differential pressure — • ★

D Differential pressure • — ★

6 Process variables only (no flow calculations) – Differential and static pressures — • ★

7 Process variables only (no flow calculations) – Differential pressure and temperature — • ★

Fully compensated mass and energy flow calculations – Differential and static pressures with temperature

Process variables only (no flow calculations) – Differential and static pressures with temperature

— • ★

Fluid type

L Liquid • • ★

G Gas • • ★

S Steam • • ★

Emerson.com/Rosemount

Page 7

Rosemount DP Flow

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

February 2017

Line size

020 2-in. (50 mm) • • ★

025 21/2-in. (63,5 mm) • • ★

030 3-in. (80 mm) • • ★

035 31/2-in. (89 mm) • • ★

040 4-in. (100 mm) • • ★

050 5-in. (125 mm) • • ★

060 6-in. (150 mm) • • ★

070 7-in. (175 mm) • • ★

080 8-in. (200 mm) • • ★

100 10-in. (250 mm) • • ★

120 12-in. (300 mm) • • ★

140 14-in. (350 mm) • •

160 16-in. (400 mm) • •

180 18-in. (450 mm) • •

200 20-in. (500 mm) • •

240 24-in. (600 mm) • •

300 30-in. (750 mm) • •

360 36-in. (900 mm) • •

420 42-in. (1066 mm) • •

480 48-in. (1210 mm) • •

600 60-in. (1520 mm) • •

720 72-in. (1820 mm) • •

780 78-in. (1950 mm) • •

840 84-in. (2100 mm) • •

900 90-in. (2250 mm) • •

960 96-in. (2400 mm) • •

Pipe I.D. range (see “Pipe I.D. range code for Rosemount Annubar Flowmeters and Primary Elements” on page 143)

C Range C from the pipe I.D. table • • ★

D Range D from the pipe I.D. table • • ★

A Range A from the pipe I.D. table • •

B Range B from the pipe I.D. table • •

E Range E from the pipe I.D. table • •

Z Non-standard pipe I.D. range or line sizes greater than 12-in. (300 mm) • •

Pipe material/mounting assembly material

C Carbon steel (A105) • • ★

S 316 Stainless steel • • ★

Emerson.com/Rosemount

Page 8

February 2017

Rosemount DP Flow

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

(1)

No mounting (customer supplied) • • ★

G Chrome-moly grade F-11 • •

N Chrome-moly grade F-22 • •

J Chrome-moly grade F-91 • •

Piping orientation

H Horizontal piping • • ★

D Vertical piping with downwards flow • • ★

U Vertical piping with upwards flow • • ★

Rosemount Annubar type

P Pak-Lok • • ★

F Flanged with opposite side support • • ★

L Flange-Lok • •

G Gear-drive Flo-Tap • •

M Manual Flo-Tap • •

Sensor material

S 316 stainless steel • • ★

H Alloy C-276 • •

Sensor size

1 Sensor size 1 — Line sizes 2- to 8-in. (50 to 200 mm) • • ★

2 Sensor size 2 — Line sizes 6- to 96-in. (150 to 2400 mm) • • ★

3 Sensor size 3 — Line sizes greater than 12-in. (300 mm) • • ★

Mounting type

T1 Compression/threaded connection • • ★

A1 Class 150 RF ANSI • • ★

A3 Class 300 RF ANSI • • ★

A6 Class 600 RF ANSI • • ★

D1 DN PN16 flange • • ★

D3 DN PN40 flange • • ★

D6 DN PN100 flange • • ★

(2)

R1 Class 150 RTJ ANSI flange • •

R3 Class 300 RTJ ANSI flange • •

R6 Class 600 RTJ ANSI flange • •

(2)

Class 900 RF ANSI • •

Class 1500 RF ANSI • •

Class 2500 RF ANSI • •

Class 900 RTJ ANSI flange • •

Class 1500 RTJ ANSI flange • •

Class 2500 RTJ ANSI flange • •

Emerson.com/Rosemount

Page 9

Rosemount DP Flow

February 2017

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Opposite side support or packing gland

No opposite side support or packing gland (required for Pak-Lok and Flange-Lok models)

• • ★

Opposite side support (required for Flanged models)

C NPT threaded opposite support assembly – extended tip • • ★

D Welded opposite support assembly – extended tip • • ★

Packing gland (required for Flo-Tap models)

Packing gland material Rod material

(3)

Stainless steel packing gland/cage nipple Carbon steel PTFE • •

Stainless steel packing gland/cage nipple Stainless steel PTFE • •

Stainless steel packing gland/cage nipple Carbon steel Graphite • •

Stainless steel packing gland/cage nipple Stainless steel Graphite • •

Packing material

R Alloy C-276 packing gland/cage nipple Stainless steel Graphite • •

Isolation valve for Flo-Tap Models

(1)

1 Gate valve, carbon steel • •

2 Gate valve, stainless steel • •

5 Ball valve, carbon steel • •

6 Ball valve, stainless steel • •

Not applicable or customer supplied • • ★

Temperature measurement

T Integral RTD – not available with Flanged model greater than Class 600 • • ★

0 No temperature sensor • • ★

R Remote thermowell and RTD • •

Transmitter connection platform

7 Remote-mount NPT connections (1/2 NPT) • • ★

8 Remote-mount SW connections (1/2-in.) • •

Direct-mount, Integral 3-valve manifold– not available with Flanged model greater than Class 600

Direct-mount, 5-valve manifold – not available with Flanged model greater than Class 600

Direct-mount, high temperature 5-valve manifold – not available with Flanged model greater than Class 600

• • ★

• •

Differential pressure range

1 0 to 25 inH2O (0 to 62,16 mbar) • • ★

2 0 to 250 inH2O (0 to 621,60 mbar) • • ★

3 0 to 1000 inH2O (0 to 2,48 bar) • • ★

Emerson.com/Rosemount

Page 10

February 2017

Rosemount DP Flow

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Static pressure range

(4)

None • • ★

D Absolute 0 to 800 psia (0 to 55,15 bar) — • ★

(5)

Absolute 0 to 3626 psia (0 to 250,00 bar) — • ★

J Gage –14.2 to 800 psig (–0.98 to 55,15 bar) — • ★

(5)

Gage –14.2 to 3626 psig (–0.98 to 250,00 bar) — • ★

Transmitter output

A 4–20 mA with digital signal based on HART protocol • • ★

(6)

(7)(8)

FOUNDATION Fieldbus protocol (requires PlantWeb™ housing) • • ★

Wireless (requires wireless options and Wireless PlantWeb housing) • • ★

Transmitter housing style Material

Conduit entry size

00 None (customer-supplied electrical connection) N/A N/A • — ★

1A PlantWeb housing Aluminum

/2–14 NPT • • ★

1B PlantWeb housing Aluminum M20 ⫻ 1.5 • • ★

1J PlantWeb housing SST

/2–14 NPT • • ★

1K PlantWeb housing SST M20 ⫻ 1.5 • • ★

2A Junction box housing Aluminum

/2–14 NPT • — ★

2B Junction box housing Aluminum M20 ⫻ 1.5 • — ★

Junction box housing with output for remote display and interface

Aluminum

Aluminum M20 ⫻ 1.5 • — ★

2J Junction box housing SST

(9)

(7)(10)

Junction box housing with output for remote display and interface

SST

Wireless PlantWeb housing Aluminum

Wireless PlantWeb housing SST

Quick connect (A size mini, 4-pin male termination) N/A N/A • — ★

/2–14 NPT • — ★

/2–14 NPT • • ★

1C PlantWeb housing Aluminum G1/2 • •

1L PlantWeb housing SST G1/2 • •

2C Junction box housing Aluminum G1/2 • —

Performance class

Junction box housing with output for remote display and interface

(11)

Aluminum G1/2 • —

Rosemount 3051S MultiVariable™ SuperModule™, Measurement Types 1, 2, 5, and 6

(12)

Ultra for flow: 0.8% flow rate accuracy, 14:1 flow turndown, 15-year stability, 15-year limited warranty

• • ★

5 Classic MV: 1.15% flow rate accuracy, 8:1 flow turndown, 15-yr. stability — • ★

Emerson.com/Rosemount

Page 11

Rosemount DP Flow

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount 3051S Single Variable SuperModule, Measurement Types 3, 4, 7, and D

2 Classic: up to 1.4% flow rate accuracy, 8:1 flow turndown, 15-year stability • • ★

(12)

Wireless options

Ultra: up to 0.95% flow rate accuracy, 8:1 flow turndown, 15-year stability, 15-year limited warranty

Ultra for flow: 0.8% flow rate accuracy, 14:1 flow turndown, 15-year stability, 15-year limited warranty

(8)

(requires option code X and wireless PlantWeb housing)

• • ★

February 2017

Update rate, operating frequency and protocol

WA3 User configurable update rate, 2.4 GHz DSSS, IEC 62591 (WirelessHART) • • ★

Omni-directional wireless antenna and SmartPower

WK1 External antenna, adapter for Black Power module (I.S. Power Module sold separately) • • ★

WM1

WN1

Extended range, external antenna, adapter for Black Power Module (I.S. Power Module sold separately)

High-gain, remote antenna, adapter for Black Power Module (I.S. Power Module sold separately)

™

D 1-7

• • ★

• •

Other options (include with selected model number)

HART Revision configuration (requires HART Protocol output code A)

HR7 Configured for HART Revision 7 • — ★

(13)

D 1-7

Extended product warranty

WR3 3-year limited warranty • • ★

WR5 5-year limited warranty • • ★

Pressure testing

P1 Hydrostatic testing with certificate • •

PX Extended hydrostatic testing • •

(14)

Special cleaning

P2 Cleaning for special services • •

PA Cleaning per ASTM G93 level D (section 11.4) • •

Material testing

V1 Dye penetrant exam • •

Material examination

V2 Radiographic examination • •

Flow calibration

W1 Flow calibration (Average K) • •

WZ Special calibration • •

Special inspection

QC1 Visual and dimensional inspection with certificate • • ★

QC7 Inspection and performance certificate • • ★

Emerson.com/Rosemount

Page 12

February 2017

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount DP Flow

Surface finish

RL Surface finish for low pipe Reynolds number in gas and steam • • ★

RH Surface finish for high pipe Reynolds number in liquid • • ★

Material traceability certification

Q8 Material traceability certificate per EN 10204:2004 3.1 • • ★

Code conformance

J2 ANSI/ASME B31.1 • •

J3 ANSI/ASME B31.3 • •

(17)

J6 European Pressure Directive (PED) • • ★

J1 Canadian Registration • •

NACE MR-0175/ISO 15156 • •

(16)

(15)

Installed in flanged pipe spool section

H3 Class 150 flanged connection with Rosemount standard length and schedule • •

H4 Class 300 flanged connection with Rosemount standard length and schedule • •

H5 Class 600 flanged connection with Rosemount standard length and schedule • •

Instrument connections for remote mount option

G2 Needle valves, stainless steel • • ★

G6 OS and Y gate valve, stainless steel • • ★

G1 Needle valves, carbon steel • •

G3 Needle valves, alloy C-276 • •

G5 OS and Y gate valve, carbon steel • •

G7 OS and Y gate valve, alloy C-276 • •

Special shipment

Y1 Mounting hardware shipped separately • • ★

Special dimensions

VM Variable mounting • •

VT Variable tip • •

VS Variable length spool section • •

Transmitter calibration certification

Q4 Calibration certificate for transmitter • • ★

QP Calibration certificate and tamper evident seal • • ★

Quality certification for safety

(20)(25)

QS Prior-use certificate of FMEDA data • — ★

(19)

Safety certified to IEC 61508 with certificate of FMEDA data • — ★

Emerson.com/Rosemount

Page 13

Rosemount DP Flow

February 2017

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Product certifications

E1 ATEX F lam eproof • • ★

I1 ATEX Intrinsic Safety • • ★

IA ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus protocol only • • ★

N1 ATEX Type n • • ★

ND ATE X Dus t • • ★

K1 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and ND) • • ★

E4 TIIS Flameproof • • ★

E5 FM Explosion-proof, Dust Ignition-proof • • ★

I5 FM Intrinsically Safe; Nonincendive • • ★

IE FM FISCO Intrinsically Safe for FOUNDATION Fieldbus Protocol only. • • ★

(18)

I6 CSA Intrinsically Safe • • ★

IF CSA FISCO Intrinsic Safety • • ★

(18)

E7 IECEx Flameproof, Dust Ignition-proof • • ★

I7 IECEx Intrinsic Safety • • ★

IG IECEx FISCO Intrinsic Safety • • ★

N7 IECEx Type n • • ★

E3 China Flameproof • • ★

I3 China Intrinsic Safety • • ★

EM Technical Regulations Customs Union (EAC) Flameproof • • ★

IM Technical Regulations Customs Union (EAC) Intrinsic Safety • • ★

KM Technical Regulations Customs Union (EAC) Flameproof, Intrinsic Safety • • ★

EP Republic of Korea Flameproof • • ★

IP Republic of Korea Intrinsic Safety • • ★

KP Republic of Korea Flameproof, Intrinsic Safety • • ★

KA ATEX and CSA Flameproof, Intrinsically Safe, Division 2 (combination of E1, I1, E6, and I6) • • ★

(18)

KG ATEX, FM, CSA, and IECEx FISCO Intrinsic Safety (combination of IA, IE, IF, and I7) • • ★

E2 INMETRO Flameproof • • ★

FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5 and I5)

• • ★

CSA Explosion-proof, Dust Ignition-proof, Division 2 • • ★

CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E6 and I6)

IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, Type n (combination of E7, I7, and N7)

FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Div 2 (combination of E5, E6, I5, and I6)

FM and ATEX Explosion-proof, Intrinsically Safe, Division 2 (combination of E5, E1, I5, and I1)

FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of E5, I5, E6, I6, E1, and I1)

• • ★

Emerson.com/Rosemount

Page 14

February 2017

Rosemount DP Flow

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Shipboard approvals

SBS American Bureau of Shipping • • ★

SBV Bureau Veritas (BV) Type Approval • • ★

SDN Det Norske Veritas (DNV) Type Approval • • ★

SLL Lloyds Register (LR) Type Approval • • ★

Sensor fill fluid and O-ring options

L1 Inert sensor fill fluid • • ★

L2 Graphite-filled (PTFE) O-ring • • ★

LA Inert sensor fill fluid and graphite-filled (PTFE) O-ring • • ★

Digital display

M5 PlantWeb LCD display (requires PlantWeb housing) • • ★

(20)(21)(22)

(20)(21)

Transient protection

(19)

Remote mount LCD display and interface, PlantWeb housing, no cable; SST bracket • — ★

Remote mount LCD display and interface, PlantWeb housing, 50 ft. (15 m) cable; SST bracket

Remote mount LCD display and interface, PlantWeb housing, 100 ft. (31 m) cable; SST bracket

(23)

• — ★

T1 Transient terminal block • • ★

Manifold for remote mount option

F2 3-valve manifold, stainless steel • • ★

F6 5-valve manifold, stainless steel • • ★

F1 3-valve manifold, carbon steel • •

F3 3-valve manifold, alloy C-276 • •

F5 5-valve manifold, carbon steel • •

F7 5-valve manifold, alloy C-276 • •

PlantWeb control functionality

A01 FOUNDATION Fieldbus Advanced Control Function Block Suite • — ★

PlantWeb diagnostic functionality

D01 FOUNDATION Fieldbus Diagnostics Suite • — ★

(24)(25)

DA2

PlantWeb enhanced measurement functionality

H01 FOUNDATION Fieldbus fully compensated mass flow block • — ★

Cold temperature

BRR –60 °F (–51 °C) Cold temperature start-up • • ★

Alarm limit

Advanced HART Diagnostic Suite • — ★

(26)

(27)

(20)(25)

C4 NAMUR alarm and saturation levels, high alarm • • ★

C5 NAMUR alarm and saturation levels, high alarm • • ★

Emerson.com/Rosemount

Page 15

Rosemount DP Flow

February 2017

Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

C6 Custom alarm and saturation levels, high alarm • • ★

C7 Custom alarm and saturation levels, high alarm • • ★

C8 Low alarm (standard Rosemount alarm and saturation levels) • • ★

Hardware adjustments and ground screw

(20)(25)(28)

(29)

(20)(25)(28)

Hardware adjustments (zero, span, alarm, security) • — ★

External ground screw assembly • • ★

Hardware adjustments (zero, span, alarm, security) and external ground screw assembly • — ★

Conduit plug

DO 316 SST Conduit plug • • ★

Conduit electrical connector

(30)

GE M12, 4-pin, male connector (eurofast®) • • ★

GM A size mini, 4-pin, male connector (minifast®) • • ★

Typical model number: 3051SFA D L 060 D C H P S 2 T1 0 0 0 3 2A A 1A 3

1. Provide the “A” dimension for Flanged, Flange-Lok, and Threaded Flo-Tap models. Provide the “B” dimension for Flange Flo-Tap models.

2. Available in remote mount applications only.

3. The cage nipple is constructed of 304SST.

4. Required for measurement type codes 3, 4, 7, and D.

5. For measurement type codes 1, 2, 5, and 6 with DP range 1, absolute limits are 0.5 to 2000 psi (0,03 to 137,9 bar) and gage limits are (

–0,98 to 137,9 bar).

6. Transmitter output code F is only available with measurement type code 1, 2, 5, 6, and D.

7. Only intrinsically safe approval codes apply.

8. Only available wi th measurement ty pes D and 6.

9. Only available with output code X.

10. Only available with output code A.

11. For detailed specifications see “Specifications” on page 35.

12. Only available with differential pressure ranges 2 and 3, and silicone fill fluid.

13. Opt ion HR7 conf igures the H ART output to HART Revis ion 7. This option requ ires the sel ection of the advance d diagnosti c (DA2) option. The device with this option can be field configured to HART Revision 5 or 7 if desired.

14. Applies to assembled flowmeter only, mounting not tested.

15. Instrument connections for remote mount options and isolation valves for Flo-Tap models are not included in the Material Traceability Certification.

16. Not available with transmitter connection platform 6.

17. Materials of construction comply with metallurgical requirements within NACE apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

18. Not available with M20 or G

19. Not available with housing code 7J.

20. Not available with output code X. Only available with measurement type D.

21. Not available with output code F, option code DA2, or option code QT.

22. See the Rosemount 3051S Reference Manual

23. Not available with housing code 5A, 5J, or 7J. External ground screw assembly (option code D4) is included with the T1 option. The T1 option is not needed with FISCO Product Certifications.

24. Includes hardware adjustments (option code D1) as standard. Not available with output code X. Only available with measurement type D.

25. Not available with output code F.

26. Requires Rosemount Engineering Assistant to configure (to ensure correct operation download the Engineering Assist ant software at:

Emerson.com/Rosemount/Engineering Assistant Software

27. –58 °F (50 °C) for measurement type 1-7.

/2 conduit e ntry size.

for cable requirements. Contac t an Emerson representative for additional information.

MR0175/ISO 15156 for sour oil field production environments. Environmental limits

–14.2 to 2000 psig

Emerson.com/Rosemount

Page 16

February 2017

28. Not available with housing codes 2E, 2F, 2G, 2M, 5A, 5J, or 7J.

29. This assembly is included with options E1, N1, K1, ND, E4, E7, N7, K7, E2, E3, KA, KC, KD, IA, IE, N3, T1, EM, and KM.

30. Not available with housing code 5A, 5J, or 7J. Available with Intrinsically Safe approvals only. For FM Intrinsically Safe; Nonincendive (option code I5) or FM FISCO Intrinsically Safe (option code IE), install in accordance with Rosemount drawing 03151-1009.

Rosemount DP Flow

Emerson.com/Rosemount

Page 17

Rosemount DP Flow

February 2017

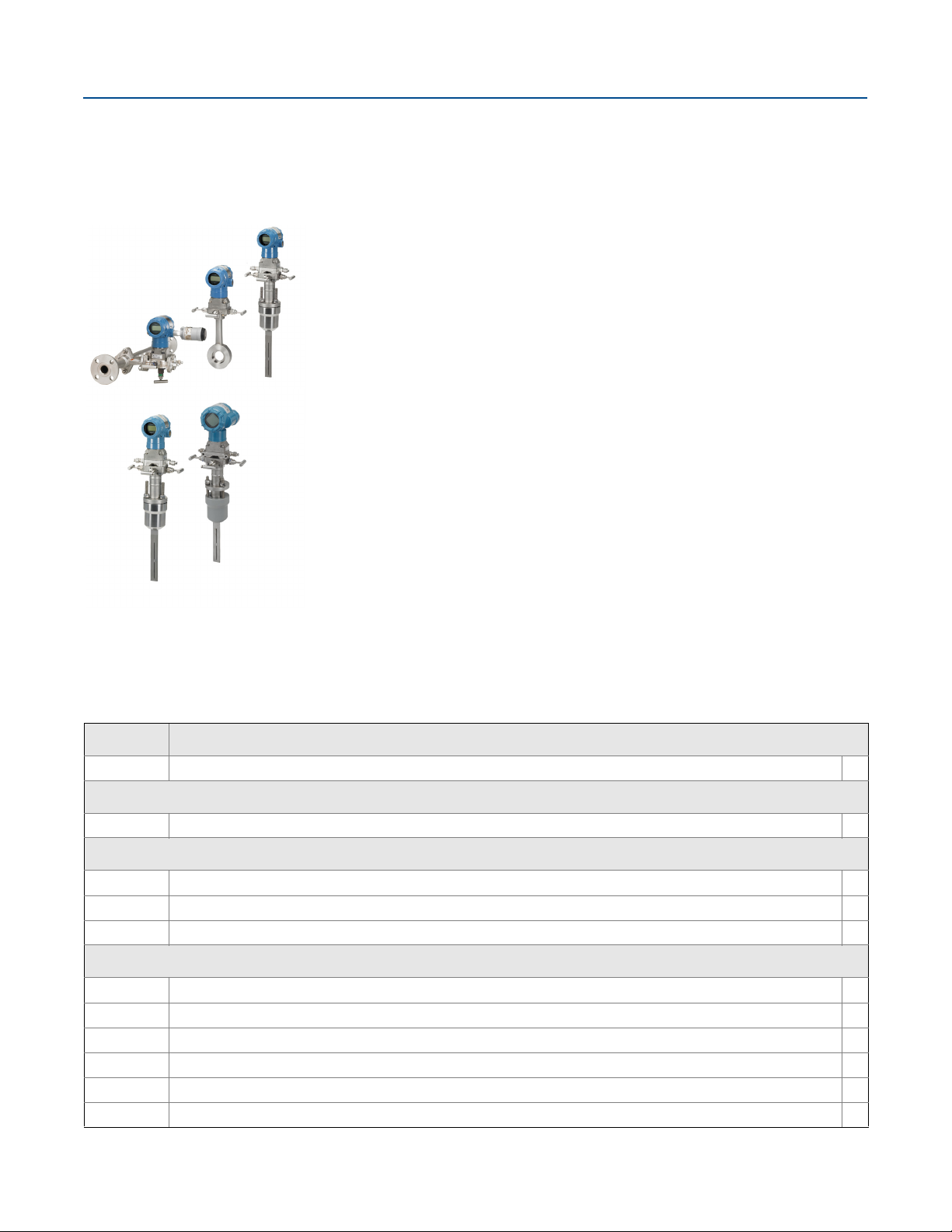

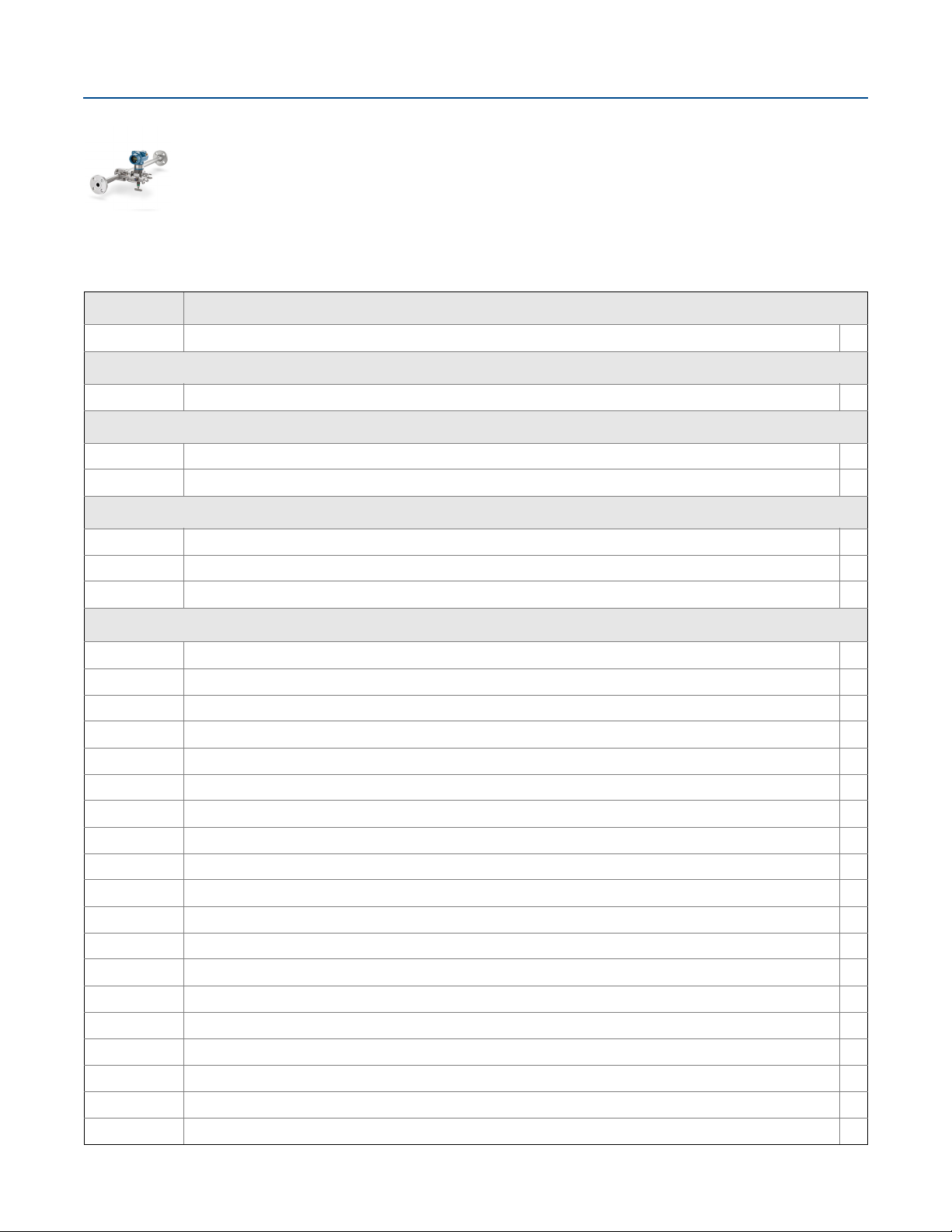

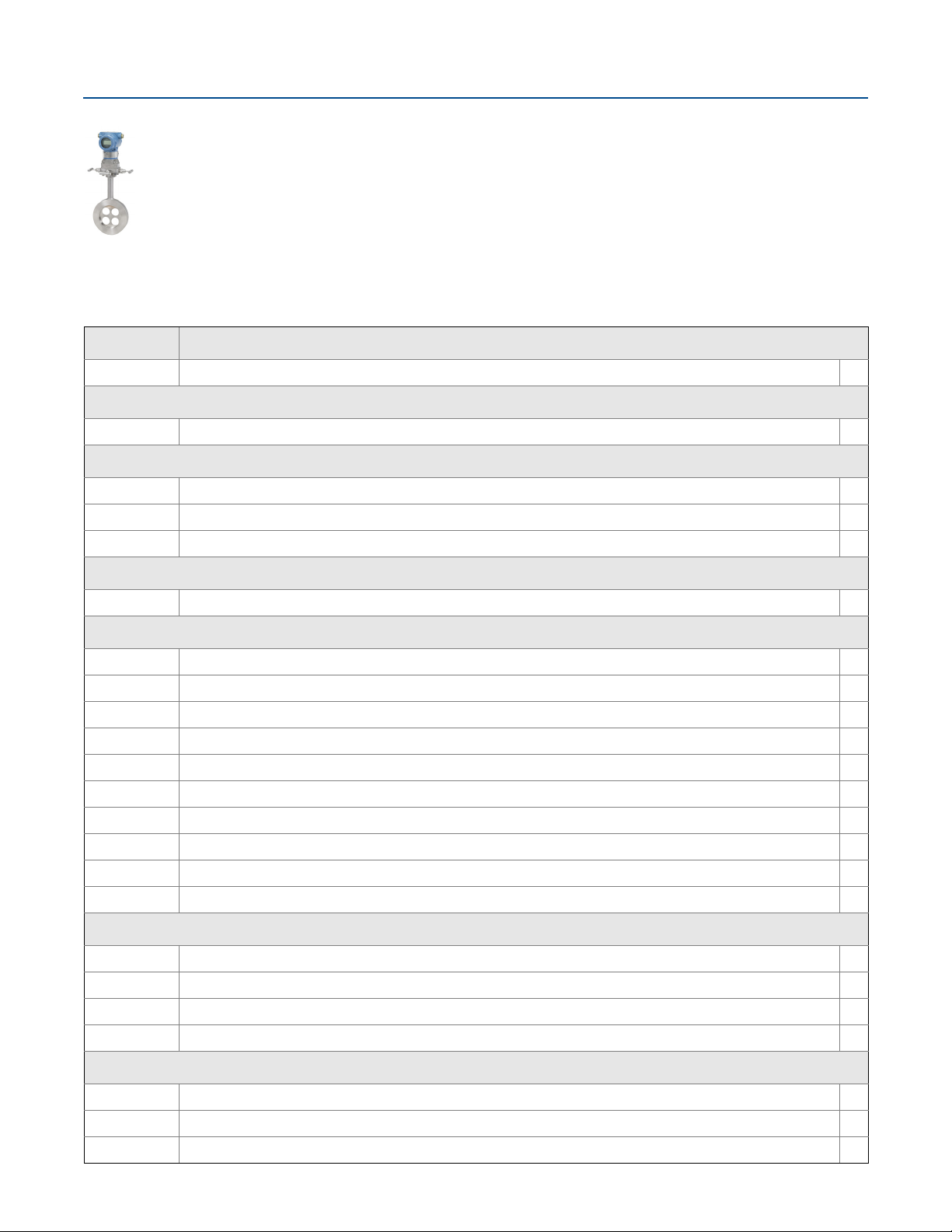

Rosemount 3051SFC Compact Orifice Flowmeter ordering information

 Compact conditioning flowmeters reduce straight piping requirements to 2D upstream and 2D downstream from

most flow disturbances.

 Simple installation of compact flowmeters between any existing raised-face flanges

Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See page 42 for more information on material selection.

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Measurement

Model Product description

3051SFC Compact Orifice Flowmeter • •

Measurement type

typ e • = Available

— =Unavailable

D 1-7

Fully compensated mass and energy flow calculations – Differential and Static Pressures with Temperature

— • ★

2 Compensated flow calculations – Differential and Static Pressures — • ★

3 Compensated flow calculations – Differential Pressure and Temperature — • ★

4 Compensated flow calculations – Differential Pressure — • ★

D Differential Pressure • — ★

Process variables only (no flow calculations) – Differential and Static Pressures with Tem p er at u re

— •

6 Process variables only (no flow calculations) – Differential and Static Pressures — •

7 Process variables only (no flow calculations) – Differential Pressure and Temperature — •

Primary element technology

A Rosemount Annubar averaging pitot tube • • ★

C Conditioning orifice plate • • ★

P Orifice plate • • ★

Material type

S 316 SST • • ★

Line size

(1)

005

(1)

010

(1)

015

020 2-in. (50 mm) • • ★

030 3-in. (80 mm) • • ★

/2-in. (15 mm) • • ★

1-in. (25 mm) • • ★

11/2-in. (40 mm) • • ★

040 4-in. (100 mm) • • ★

060 6-in. (150 mm) • • ★

Emerson.com/Rosemount

Page 18

February 2017

Rosemount DP Flow

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

080 8-in. (200 mm) • • ★

(2)(3)

100

120

(2)(3)

10-in. (250 mm) • • ★

12-in. (300 mm) • • ★

Primary element type

N000 Rosemount Annubar sensor size 1 • • ★

N040 0.40 beta ratio () • • ★

N050 0.50 beta ratio () • • ★

(4)

N065

0.65 beta ratio () • • ★

Temperature measurement

(5)

0 No temperature sensor • • ★

(5)

Integral RTD — • ★

Remote thermowell and RTD • •

Transmitter connection platform

3 Direct-mount, integral 3-valve manifold • • ★

7 Remote-mount, NPT connections • • ★

Differential pressure range

1 0 to 25 inH2O (0 to 62,16 mbar) • • ★

2 0 to 250 inH2O (0 to 621,60 mbar) • • ★

3 0 to 1000 inH2O (0 to 2,48 bar) • • ★

Static pressure range

(6)

None • • ★

D Absolute 0 to 800 psia (0 to 55,15 bar) — • ★

(7)

Absolute 0 to 3626 psia (0 to 250,00 bar) — • ★

J Gage –14.2 to 800 psig (–0,98 to 55,15 bar) — • ★

(7)

Gage –14.2 to 3626 psig (–0,98 to 250,00 bar) — • ★

Transmitter output

A 4–20 mA with digital signal based on HART protocol • • ★

(8)(9)

(10)(11)

FOUNDATION Fieldbus protocol • • ★

Wireless • • ★

Transmitter housing style Material

Conduit entry size

00 None (customer-supplied electrical connection) N/A N/A • — ★

1A PlantWeb housing Aluminum1/2–14 NPT • • ★

1B PlantWeb housing Aluminum M20 ⫻ 1.5 • • ★

1J PlantWeb housing SST

/2–14 NPT • • ★

Emerson.com/Rosemount

Page 19

Rosemount DP Flow

February 2017

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

1K PlantWeb housing SST M20 ⫻ 1.5 • • ★

2A Junction box housing Aluminum1/2–14 NPT • — ★

2B Junction box housing Aluminum M20 ⫻ 1.5 • — ★

2J Junction box housing SST

(12)

(10)(13)

Junction box housing with output for remote display and interface

Aluminum1/2–14 NPT • — ★

Aluminum M20 ⫻ 1.5 • — ★

/2–14 NPT • — ★

SST

/2–14 NPT • — ★

Wireless PlantWeb housing Aluminum1/2–14 NPT • • ★

Wireless PlantWeb housing SST

/2–14 NPT • • ★

Quick connect (A size mini, 4-pin male termination) N/A N/A • — ★

1C PlantWeb housing Aluminum G1/2 • •

1L PlantWeb housing SST G1/2 • •

2C Junction box housing Aluminum G1/2 • —

Performance class

Junction box housing with output for remote display and interface

(14)

Aluminum G1/2 • —

Rosemount 3051S MultiVariable SuperModule, Measurement Types 1, 2, 5, and 6

(15)

Ultra for flow: 0.75% flow rate accuracy, 14:1 flow turndown, 15-yr stability, 15-yr limited warranty

• • ★

5 Classic MV: 1.10% flow rate accuracy, 8:1 flow turndown, 15-yr stability — • ★

Rosemount 3051S Single Variable SuperModule, Measurement Types 3, 4, 7, and D

Ultra: 0.90% flow rate accuracy, 8:1 flow turndown, 15-yr stability, 15-yr limited warranty

• • ★

2 Classic: 1.40% flow rate accuracy, 8:1 flow turndown, 15-yr stability • • ★

(15)

Wireless options

Update rate, operating frequency and protocol

Ultra for Flow: 0.75% flow rate accuracy, 14:1 flow turndown, 15-yr stability, 15-yr limited warranty

(11)

(requires option code X and wireless PlantWeb housing)

• • ★

D 1-7

WA3 User configurable update rate, 2.4 GHz DSSS, IEC 62591 (WirelessHART) • • ★

Omni-directional wireless antenna and SmartPower

™

WK1 External antenna, adapter for Black Power Module (I.S. Power Module sold separately) • • ★

WM1

WN1

Extended range, external antenna, adapter for Black Power Module (I.S. Power Module sold separately)

High-gain, remote antenna, adapter for Black Power Module (I.S. Power Module sold separately)

• • ★

• •

Emerson.com/Rosemount

Page 20

February 2017

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount DP Flow

Other options (include with selected model number)

HART Revision configuration (requires HART Protocol output code A)

HR7 Configured for HART Revision 7 • — ★

(16)

D 1-7

Extended product warranty

WR3 3-year limited warranty • • ★

WR5 5-year limited warranty

• • ★

Installation accessories

G DIN alignment ring (PN 16) • • ★

H DIN alignment ring (PN 40) • • ★

J DIN alignment ring (PN 100) • • ★

B JIS alignment ring (10K) • •

R JIS alignment ring (20K) • •

S JIS alignment ring (40K) • •

ANSI alignment ring (Class 150) (only required for 10- and 12-in. [250 and 300 mm] line sizes)

ANSI alignment ring (Class 300) (only required for 10- and 12-in. [250 and 300 mm] line sizes)

ANSI alignment ring (Class 600) (only required for 10- and 12-in. [250 and 300 mm] line sizes)

• • ★

Remote adapters

E Flange adapters 316 SST (1/2 NPT) • • ★

High temperature applications

T Graphite valve packing (T

= 850 °F) • •

max

Flow calibration

(17)

(18)(19)

Flow calibration, 3 Pt, conditioning option C (all pipe schedules) • •

Flow calibration, 10 pt, conditioning option C (all schedules), Rosemount Annubar option A (schedule 40)

• •

Pressure testing

P1 Hydrostatic testing with certificate • •

Special cleaning

P2 Cleaning for special processes • •

PA Cleaning per ASTM G93 Level D (section 11.4) • •

(20)

Special inspection

QC1 Visual and dimensional Inspection with certificate • • ★

QC7 Inspection and performance certificate • • ★

Emerson.com/Rosemount

Page 21

Rosemount DP Flow

February 2017

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Transmitter calibration certification

Q4 Calibration data certificate for transmitter • • ★

QP Calibration certificate and tamper evident seal • • ★

Quality certification for safety

(21)(22)

QS Prior-use certificate of FMEDA data • — ★

(25)

Safety certified to IEC 61508 with certificate of FMEDA data • — ★

Material traceability certifications

Q8 Material traceability certification per EN 10204:2004 3.1 • • ★

Code conformance

J2 ANSI/ASME B31.1 • •

J3 ANSI/ASME B31.3 • •

J4 ANSI/ASME B31.8 • •

J5 NACE MR-0175/ISO 15156

(23)

• •

Country certification

J1 Canadian registration • •

Product certifications

E1 ATEX Flam epr oof • • ★

I1 ATEX Intrinsic Safety • • ★

IA ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus protocol only • • ★

N1 ATEX Type n • • ★

ND ATEX Dus t • • ★

K1 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and ND) • • ★

E4 TIIS Flameproof • • ★

E5 FM Explosion-proof, Dust Ignition-proof • • ★

I5 FM Intrinsically Safe; Nonincendive • • ★

IE FM FISCO Intrinsic Safety • • ★

(24)

I6 CSA Intrinsically Safe • • ★

FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5 and I5)

• • ★

CSA Explosion-proof, Dust Ignition-proof, Division 2 • • ★

IF CSA FISCO Intrinsic Safety • • ★

(24)

CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E6 and I6)

• • ★

E7 IECEx Flameproof, Dust Ignition-proof • • ★

I7 IECEx Intrinsic Safety • • ★

Emerson.com/Rosemount

Page 22

February 2017

Rosemount DP Flow

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

IG IECEx FISCO Intrinsic Safety: for FOUNDATION Fieldbus Protocol only • • ★

IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, Type n (combination of E7, I7, and N7)

• • ★

E3 China Flameproof • • ★

I3 China Intrinsic Safety • • ★

EP Republic of Korea Flameproof • • ★

IP Republic of Korea Intrinsic Safety • • ★

KP Republic of Korea Flameproof, Intrinsic Safety • • ★

EM Technical Regulations Customs Union (EAC) Flameproof • • ★

IM Technical Regulations Customs Union (EAC) Intrinsic Safety • • ★

KM Technical Regulations Customs Union (EAC) Flameproof, Intrinsic Safety • • ★

(24)

ATEX and CSA Flameproof, Intrinsically Safe, Division 2 (combination of E1, I1, E6, and I6)

• • ★

(24)

FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5, E6, I5, and I6)

FM and ATEX Explosion-proof, Intrinsically Safe, Division 2 (combination of E5, E1, I5, and I1)

FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of E5, E6, E1, I5, I6, and I1)

• • ★

E2 INMETRO Flameproof • • ★

I2 INMETRO Intrinsic Safety • • ★

K2 INMETRO Flameproof, Intrinsic Safety • • ★

IB INMETRO FISCO Intrinsic Safety • — ★

Shipboard approvals

SBS American Bureau of Shipping • • ★

SBV Bureau Veritas (BV) Type Approval • • ★

SDN Det Norske Veritas (DNV) Type Approval • • ★

SLL Lloyds Register (LR) Type Approval • • ★

Sensor fill fluid and O-ring options

L1 Inert sensor fill fluid • • ★

L2 Graphite-filled (PTFE) O-ring • • ★

LA Inert sensor fill fluid and graphite-filled (PTFE) O-ring • • ★

Digital display

(25)

M5 PlantWeb LCD display • • ★

(22)(26)(27)

(22)(26)

Remote mount LCD display and interface, PlantWeb housing, no cable, SST bracket • — ★

Remote mount LCD display and interface, PlantWeb housing, 50 ft. (15 m) cable, SST bracket

Remote mount LCD display and interface, PlantWeb housing, 100 ft. (31 m) cable, SST bracket

• — ★

Emerson.com/Rosemount

Page 23

Rosemount DP Flow

February 2017

Table 2. Rosemount 3051SFC Compact Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Transient protection

(28)

T1 Transient terminal block • • ★

Manifold for remote mount option

F2 3-valve manifold, SST • • ★

F6 5-valve manifold, SST • • ★

PlantWeb control functionality

A01 FOUNDATION Fieldbus Advanced Control Function Block Suite • — ★

PlantWeb diagnostic functionality

D01 FOUNDATION Fieldbus Diagnostics Suite • — ★

(29)

DA2

H01 FOUNDATION Fieldbus fully compensated mass flow block • — ★

Cold temperature

Advanced HART Diagnostic Suite • — ★

(30)

BRR –60 °F (–51 °C) Cold temperature start-up • • ★

Alarm limit

(21)(22)

C4 NAMUR alarm and saturation levels, high alarm • • ★

C5 NAMUR alarm and saturation levels, low alarm • • ★

C6 Custom alarm and saturation levels, high alarm • • ★

C7 Custom alarm and saturation levels, low alarm • • ★

C8 Low alarm (standard Rosemount alarm and saturation levels) • • ★

Hardware adjustments and ground screw

(21)(22)(31)

(32)

(21)(22)(31)

Hardware adjustments (zero, span, alarm, security). • — ★

External ground screw assembly • • ★

Hardware adjustments (zero, span, alarm, security) and external ground screw assembly

• — ★

Conduit plug

DO 316 SST Conduit plug • • ★

Conduit electrical connector

ZE M12, 4-pin, male connector (eurofast) • • ★

ZM A size mini, 4-pin, male connector (minifast) • • ★

(33)

Typical model number: 3051SFC 1 C S 060 N 065 T 3 2 J A 1A 3

1. Available wi th primary element tech nology P only.

2. For the 10- and 12-in. (250 and 300 mm) line sizes, the alignment ring must be ordered (installation accessories).

3. 10- and 12-in. (250 and 300 mm) line sizes not available with primary element technology code A.

4. For 2-in. (50 mm) line size the beta ratio is 0.6 for primary element technology code C.

Emerson.com/Rosemount

Page 24

February 2017

5. Only available with measurement type codes 1, 3, 5, 7.

6. Required for measurement type codes 3, 4, 7, and D.

7. For Measurement Type codes 1, 2, 5, and 6 with DP range 1, absolute limits are 0.5 to 2000 psi (0,03 to 137,9 bar) and gage limits are

Rosemount DP Flow

–14.2 to 2000 psig (–0,98 to 137,9 bar).

8. Requires PlantWeb housing.

9. Transmitter output code F is only available with measurement type code 1, 2, 5, 6, and D.

10. Only intrinsically safe approval codes apply.

11. Only available with measurement types D and 6.

12. Only available with output code X.

13. Available with output code A only.

14. For detailed specifications see “Specifications” on page 35.

15. Only available with differential pressure ranges 2 and 3, and silicone fill fluid.

16 . O ptio n HR 7 co nfig ure s the HAR T out put to H ART R evis ion 7. Th is o ptio n re qui res t he s elec tio n of the adva nce d dia gno stic s (DA 2) option. The device with this option

can be field configured to HART Revision 5 or 7 if desired.

17. Available with primary element technology code C only.

18. Available with primary element technology codes C or A only.

19. For Rosemount Annubar option A, consult factory for pipe schedules other than Sch. 40.

20. Available with primary element technology C o r P only.

21. Not available with output protocol code F.

22. Not available with output code X. Only available with measurement type D.

23. Materials of construction comply with metallurgical requirements within NACE MR0175/ISO for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

24. Not available with M20 or G

25. Not available with housing code 7J.

26. Not available with output code F, option code DA2, or option code QT.

27. See the Rosemount 3051S Reference Manual

28. Not available with housing code 00, 5A, 5J, or 7J. External ground screw assembly (option code D4) is included with the T1 option. The T1 option is not needed with FISCO Product Certifications.

29. Includes hardware adjustments (option code D1) as standard. Not available with output code X. Only available with measurement type D.

30. –58 °F (50 °C) for measurement type 1-7.

31. Not available with housing codes 2E, 2F, 2G, 2M, 5A, 5J, or 7J.

32. This assembly is included with options EP, KP, E1, N1, K1, ND, E4, E7, K7, E3, KA, KC, KD, IA, T1, EM, and KM.

33. Not available with Housing code 5A, 5J, or 7J. Available with Intrinsically Safe approvals only. For FM Intrinsically Safe; Nonincendive (option code I5) or FM FISCO Intrinsically Safe (option code IE), install in accordance with Rosemount drawing 03151-1009.

/2 conduit e ntry size.

for cable requirements. Contac t an Emerson representative for additional information.

Emerson.com/Rosemount

Page 25

Rosemount DP Flow

February 2017

Rosemount 3051SFP Integral Orifice Flowmeter ordering information

 Precision honed pipe section for increased accuracy in small line sizes

 Self-centering plate design prevents alignment errors that magnify measurement inaccuracies in small line sizes

Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See page 42 for more information on material selection.

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Measurement

Model Product description

typ e

D 1-7

3051SFP Integral Orifice Flowmeter • •

Measurement type

• = Available — = Unavailable

2 Compensated flow calculations – Differential and Static Pressures — • ★

3 Compensated flow calculations – Differential Pressure and Temperature — • ★

4 Compensated flow calculations – Differential Pressure — • ★

D Differential Pressure • — ★

6 Process variables only (no flow calculations) – Differential and Static Pressures — •

7 Process variables only (no flow calculations) – Differential Pressure and Temperature — •

Fully compensated mass and energy flow calculations – Differential and Static Pressures with Temperature

Process variables only (no flow calculations) – Differential and Static Pressures with Tem pe ra tu re

— • ★

— •

Body material and type

F 316 SST, enhanced support body • • ★

S 316 SST, traditional body • • ★

Line size

005

010 1-in. (25 mm) • • ★

015 11/2-in. (40 mm) • • ★

/2-in. (15 mm) • • ★

Process connection

T1 NPT Female body (not available with thermowell and RTD) • • ★

(1)

P1 Pipe ends: NPT threaded • • ★

P2 Pipe ends: beveled • • ★

D1 Pipe ends: flanged, DIN PN16, slip-on • • ★

D2 Pipe ends: flanged, DIN PN40, slip-on • • ★

D3 Pipe ends: flanged, DIN PN100, slip-on • • ★

W1 Pipe ends: flanged, RF, ANSI Class 150, weld-neck • • ★

Socket Weld body (not available with thermowell and RTD) • • ★

Emerson.com/Rosemount

Page 26

February 2017

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

W3 Pipe ends: flanged, RF, ANSI Class 300, weld-neck • • ★

W6 Pipe ends: flanged, RF, ANSI Class 600, weld-neck • • ★

W9 Pipe ends: flanged, RF, ANSI Class 900, weld-neck • • ★

A1 Pipe ends: flanged, RF, ANSI Class 150, slip-on • •

A3 Pipe ends: flanged, RF, ANSI Class 300, slip-on • •

A6 Pipe ends: flanged, RF, ANSI Class 600, slip-on • •

R1 Pipe ends: flanged, RTJ, ANSI Class 150, slip-on • •

R3 Pipe ends: flanged, RTJ, ANSI Class 300, slip-on • •

R6 Pipe ends: flanged, RTJ, ANSI Class 600, slip-on • •

R9 Pipe ends: flanged, RTJ, ANSI Class 900, weld-neck • •

P9 Special process connection • •

Rosemount DP Flow

Orifice plate material

S 316/316L SST • • ★

H Alloy C-276 • •

M Alloy 400 • •

Bore size option

0066 0.066-in. (1.68 mm) for 1/2-in. pipe • • ★

0109 0.109-in. (2.77 mm) for 1/2-in. pipe • • ★

0160 0.160-in. (4.06 mm) for 1/2-in. pipe • • ★

0196 0.196-in. (4.98 mm) for 1/2-in. pipe • • ★

0260 0.260-in. (6.60 mm) for 1/2-in. pipe • • ★

0340 0.340-in. (8.64 mm) for 1/2-in. pipe • • ★

0150 0.150-in. (3.81 mm) for 1-in. pipe • • ★

0250 0.250-in. (6.35 mm) for 1-in. pipe • • ★

0345 0.345-in. (8.76 mm) for 1-in. pipe • • ★

0500 0.500-in. (12.70 mm) for 1-in. pipe • • ★

0630 0.630-in. (16.00 mm) for 1-in. pipe • • ★

0800 0.800-in. (20.32 mm) for 1-in. pipe • • ★

0295 0.295-in. (7.49 mm) for 11/2-in. pipe • • ★

0376 0.376-in. (9.55 mm) for 11/2-in. pipe • • ★

0512 0.512-in. (13.00 mm) for 11/2-in. pipe • • ★

0748 0.748-in. (19.00 mm) for 11/2-in. pipe • • ★

1022 1.022-in. (25.96 mm) for 11/2-in. pipe • • ★

1184 1.184-in. (30.07 mm) for 11/2-in. pipe • • ★

0010 0.010-in. (0.25 mm) for 1/2-in. pipe • •

0014 0.014-in. (0.36 mm) for 1/2-in. pipe • •

Emerson.com/Rosemount

Page 27

Rosemount DP Flow

February 2017

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

0020 0.020-in. (0.51 mm) for 1/2-in. pipe • •

0034 0.034-in. (0.86 mm) for 1/2-in. pipe • •

Transmitter connection platform

D3 Direct-mount, 3-valve manifold, SST • • ★

D5 Direct-mount, 5-valve manifold, SST • • ★

R3 Remote-mount, 3-valve manifold, SST • • ★

R5 Remote-mount, 5-valve manifold, SST • • ★

D4 Direct-mount, 3-valve manifold, alloy C-276 • •

D6 Direct-mount, 5-valve manifold, alloy C-276 • •

R4 Remote-mount, 3-valve manifold, alloy C-276 • •

R6 Remote-mount, 5-valve manifold, alloy C-276 • •

Differential pressure range

1 0 to 25 inH2O (0 to 62,16 mbar) • • ★

2 0 to 250 inH2O (0 to 621,60 mbar) • • ★

3 0 to 1000 inH2O (0 to 2,48 bar) • • ★

Static pressure range

(2)

None • • ★

D Absolute 0 to 800 psia (0 to 55,15 bar) — • ★

(3)

Absolute 0 to 3626 psia (0 to 250,00 bar) — • ★

J Gage –14.2 to 800 psig (–0,98 to 55,15 bar) — • ★

(3)

Gage –14.2 to 3626 psig (–0,98 to 250,00 bar) — • ★

Transmitter output

A 4–20 mA with digital signal based on HART protocol • • ★

(4)

(5)(6)

Transmitter housing style Material

00 None (customer-supplied electrical connection) • — ★

1A PlantWeb housing Aluminum1/2–14 NPT • • ★

1B PlantWeb housing Aluminum M20 ⫻ 1.5 • • ★

1J PlantWeb housing SST

1K PlantWeb housing SST M20 ⫻ 1.5 • • ★

FOUNDATION Fieldbus (requires PlantWeb housing) • • ★

Wireless (requires wireless options and wireless PlantWeb housing) • • ★

Conduit entry size

/2–14 NPT • • ★

2A Junction box housing Aluminum1/2–14 NPT • — ★

2B Junction box housing Aluminum M20 ⫻ 1.5 • — ★

Junction box housing with output for remote display and interface

Aluminum1/2–14 NPT • — ★

Emerson.com/Rosemount

Page 28

February 2017

Rosemount DP Flow

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

2J Junction box housing SST

(7)

(5)(8)

Junction box housing with output for remote display and interface

Aluminum M20 ⫻ 1.5 • — ★

/2–14 NPT • — ★

SST

/2–14 NPT • — ★

Wireless PlantWeb housing Aluminum1/2–14 NPT • • ★

Wireless PlantWeb housing SST

/2–14 NPT • • ★

Quick Connect (A size mini, 4-pin male termination) • — ★

1C PlantWeb housing Aluminum G1/2 • •

1L PlantWeb housing SST G1/2 • •

2C Junction box housing Aluminum G1/2 • —

Performance class

Junction box housing with output for remote display and interface

(9)

Aluminum G1/2 • —

Rosemount 3051S MultiVariable SuperModule, measurement types 1, 2, 5, and 6

(10)

Ultra for flow: 0.95% flow rate accuracy, 14:1 flow turndown, 15-year stability, 15-year limited warranty

• • ★

5 Classic MV: 1.25% flow rate accuracy, 8:1 flow turndown, 15-year stability — • ★

Rosemount 3051S Single Variable SuperModule, measurement types 3, 4, 7, and D

Ultra: 1.05% flow rate accuracy, 8:1 flow turndown, 15-year stability, 15-year limited warranty

• • ★

2 Classic: 1.50% flow rate accuracy, 8:1 flow turndown, 15-year stability • • ★

(10)

Wireless options

Update rate, operating frequency and protocol

Ultra for Flow: 0.95% flow rate accuracy, 14:1 flow turndown, 15-year stability, 15-year limited warranty

(6)

(requires option code X and wireless PlantWeb housing)

• • ★

D 1-7

WA3 User configurable update rate, 2.4 GHz DSSS, IEC 62591 (WirelessHART) • • ★

Omni-directional wireless antenna and SmartPower

™

WK1 External antenna, adapter for Black Power Module (I.S. Power Module sold separately) • • ★

WM1

WN1

Extended range, external antenna, adapter for Black Power Module (I.S. Power Module sold separately)

High-gain, remote antenna, adapter for Black Power Module (I.S. Power Module sold separately)

• • ★

• •

Other options (include with selected model number)

HART Revision configuration (requires HART Protocol output code A)

(11)

HR7 Configured for HART Revision 7 • — ★

D 1-7

Emerson.com/Rosemount

Page 29

Rosemount DP Flow

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

February 2017

Extended product warranty

WR3 3-year limited warranty • • ★

WR5 5-year limited warranty

Transmitter/body bolt material

G High temperature option (554 °F [290 °C]) • •

Temperature sensor

T Thermowell and RTD • • ★

(13)

(12)

• • ★

Optional connection

G1 DIN 19213 Transmitter connection • • ★

Pressure testing

P1 Hydrostatic testing with certificate • •

(14)

Special cleaning

P2 Cleaning for special services • •

PA Cleaning per ASTM G93 Level D (Section 11.4) • •

Material testing

V1 Dye penetrant exam • •

Material examination

Flow calibration

WD Discharge coefficient verification • •

WZ Special calibration • •

Radiographic examination (available only with process connection code W1, W3, W6, and W9)

(15)

• •

Special inspection

QC1 Visual and dimensional Inspection with certificate • • ★

QC7 Inspection and performance certificate • • ★

Material traceability certification

Q8 Material certification per EN 10204:2004 3.1 • • ★

Code conformance

(16)

J2 ANSI/ASME B31.1 • •

J3 ANSI/ASME B31.3 • •

J4 ANSI/ASME B31.8 • •

Materials conformance

J5 NACE MR-0175/ISO 15156 • •

(17)

Emerson.com/Rosemount

Page 30

February 2017

Rosemount DP Flow

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Country certification

J6 European Pressure Directive (PED) • • ★

J1 Canadian registration • •

Transmitter calibration certification

Q4 Calibration data certificate for transmitter • • ★

Quality certification for safety

QS Prior-use Certificate of FMEDA data • — ★

(22)

Product certifications

E1 ATE X Flamepro of • • ★

I1 ATEX Intrinsic Safety • • ★

IA ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus protocol only • • ★

Safety-certified to IEC 61508 with Certificate of FMEDA data • — ★

(20)

(18)(19)

N1 ATEX Type n • • ★

ND ATE X Dust • • ★

K1 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E1, I1, N1, and ND) • • ★

E4 TIIS Flameproof • • ★

E5 FM Explosion-proof, Dust Ignition-proof • • ★

I5 FM Intrinsically Safe; Nonincendive • • ★

IE FM FISCO Intrinsic Safety • • ★

(21)

FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5 and I5)

• • ★

CSA Explosion-proof, Dust Ignition-proof, Division 2 • • ★

I6 CSA Intrinsically Safe • • ★

(21)

CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E6 and I6)

• • ★

E7 IECEx Flameproof, Dust Ignition-proof • • ★

I7 IECEx Intrinsic Safety • • ★

IG IECEx FISCO Intrinsic Safety • • ★

IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, Type n (combination of E7, I7, and N7)

• • ★

KG IECEx, FM, CSA, and IECEx FISCO Intrinsic Safety (combination of IA, IE, IF, and IG) • • ★

E3 China Flameproof • • ★

I3 China Intrinsic Safety • • ★

EM Technical Regulations Customs Union (EAC) Flameproof • • ★

IM Technical Regulations Customs Union (EAC) Intrinsic Safety • • ★

KM Technical Regulations Customs Union (EAC) Flameproof, Intrinsic Safety • • ★

EP Republic of Korea Flameproof • • ★

Emerson.com/Rosemount

Page 31

Rosemount DP Flow

February 2017

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

IP Republic of Korea Intrinsic Safety • • ★

KP Republic of Korea Flameproof, Intrinsic Safety • • ★

(21)

ATEX and CSA Flameproof, Intrinsically Safe, Division 2 (combination of E1, I1, E6, and I6)

FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2 (combination of E5, E6, I5, and I6)

FM and ATEX Explosion-proof, Intrinsically Safe, Division 2 (combination of E5, E1, I5, and I1)

FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of E5, I5, E6, I6, E1, and I1)

• • ★

E2 INMETRO Flameproof • • ★

Shipboard approvals

SBS American Bureau of Shipping • • ★

SBV Bureau Veritas (BV) Type Approval • • ★

SDN Det Norske Veritas (DNV) Type Approval • • ★

SLL Lloyds Register (LR) Type Approval • • ★

Sensor fill fluid and O-ring options

L1 Inert sensor fill fluid • • ★

L2 Graphite-filled (PTFE) O-ring • • ★

LA Inert sensor fill fluid and graphite-filled (PTFE) O-ring • • ★

Digital display

(22)

M5 PlantWeb LCD display (requires PlantWeb housing) • • ★

(18)(23)(24)

(18)(24)

Transient protection

Remote mount LCD display and interface, PlantWeb housing, no cable, SST bracket • — ★

Remote mount LCD display and interface, PlantWeb housing, 50 ft. (15 m) cable, SST bracket

Remote mount LCD display and interface, PlantWeb housing, 100 ft. (31 m) cable, SST bracket

(25)

• — ★

T1 Transient terminal block • • ★

T2 Terminal block with WAGO spring clamp terminals • —

T3 Transient terminal block with WAGO spring clamp terminals • —

PlantWeb control functionality

A01 FOUNDATION Fieldbus advanced control function block suite • • ★

PlantWeb diagnostic functionality

D01 FOUNDATION Fieldbus Diagnostics Suite • — ★

(26)

DA2

Advanced HART Diagnostics Suite • — ★

Emerson.com/Rosemount

Page 32

February 2017

Rosemount DP Flow

Table 3. Rosemount 3051SFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

PlantWeb enhanced measurement functionality

(27)

H01 FOUNDATION Fieldbus fully compensated mass flow block • — ★

Cold temperature

(28)

BRR –60 °F (–51 °C) Cold temperature start-up • • ★

Alarm limit

(18)(19)

C4 NAMUR alarm and saturation levels, high alarm • • ★

C5 NAMUR alarm and saturation levels, low alarm • • ★

C6 Custom alarm and saturation levels, high alarm • • ★

C7 Custom alarm and saturation levels, low alarm • • ★

C8 Low alarm (standard Rosemount alarm and saturation levels) • • ★

Hardware adjustments and ground screw

(18)(19)(29)

(30)

(18)(19)(29)

Hardware adjustments (zero, span, alarm, security) • — ★

External ground screw assembly • • ★

Hardware adjustments (zero, span, alarm, security) and external ground screw assembly

• — ★

Conduit plug

DO 316 SST conduit plug • • ★

Conduit electrical connector

(31)

GE M12, 4-pin, male connector (eurofast) • •

GM A size mini, 4-pin, male connector (minifast) • •

Typical model number: 3051SFP 1 F 010 W3 S 0150 D3 1 J A 1A 3 M5

1. To improve pipe perpendicularity for gasket sealing, socket diameter is smaller than standard pipe O.D.

2. Required for measurement type codes 3, 4, 7, and D.

3. For measurement type codes 1, 2, 5, and 6 with DP range 1, absolute limits are 0.5 to 2000 psi (0,03 to 137,9 bar) and gage limits are –14.2 to 2000 psig (–0,98 to 137,9 bar).

4. Transmitter output code F is only available with measurement type code 1, 2, 5, 6, and D.

5. Only intrinsically safe approval codes apply.

6. Only available wi th measurement ty pes D and 6.

7. Only available with output code X.

8. Only available with output code A.

9. For detailed specifications see “Specifications” on page 35.

10. Only available with differential pressure ranges 2 and 3, and silicone fill fluid.

11. Opt ion HR 7 conf igur es the HART outpu t to H ART Rev isio n 7. T his op tion requi res th e sel ecti on of t he ad vance d diag nost ics ( DA2) option. The device with this option can be field configured to HART Revision 5 or 7 if desired.

12. Only available for body material and type code F.

13. Thermowell material is the same as the body material.

14. Does not apply to process connection codes T1 and S1.

15. Not available for bore sizes 0010, 0014, 0020, 0034, 0066, or 0109.

16. Not available with DIN process connection codes D1, D2, or D3.

Emerson.com/Rosemount

Page 33

Rosemount DP Flow

17. Materials of construction comply with metallurgical requirements within NACE MR0175/ISO for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

18. Not available with output code X. Only available with measurement type D.

19. Not available with output code F.

20. If select body material and type code F, consult the factory for product certifications availability.

21. Not available with M20 or G

22. Not available with housing code 7J.

23. See the Rosemount 3051S Reference Manual

24. Not available with output code F, option code DA2, or option code QT.

25. Not available with Housing code 5A, 5J, or 7J. The T1 option is not needed with FISCO Product Certifications.

26. Includes hardware adjustments (option code D1) as standard. Not available with output code X. Only available with Measurement Type D.

27. Requires Rosemount Engineering Assistant to configure (to ensure correct operation download the Engineering Assist ant software at:

Emerson.com/Rosemount/Engineering Assistant Software

28. –58 °F (50 °C) for measurement type 1-7.

29. Not available with housing codes 2E, 2F, 2G, 2M, 5A, 5J, or 7J.

30. This assembly is included with options E1, E2, E3, E4,E7, EM, EP, K1, K2, K6, K7, KA, KC, KD, KP, KM, N1, N3, N7, ND, and T1.

31. Not available with housing code 5A, 5J, or 7J. Available with Intrinsically Safe approvals only. For FM Intrinsically Safe; Nonincendive (option code I5) or FM FISCO Intrinsically Safe (option code IE), install in accordance with Rosemount drawing 03151-1009.

/2 conduit e ntry size.

for cable requirements. Contac t an Emerson representative for additional information.

February 2017

Emerson.com/Rosemount

Page 34

February 2017





Rosemount DP Flow

Specifications

Performance specifications

Performance assumptions include: measured pipe I.D, transmitter is trimmed for optimum flow accuracy, and performance is dependent on application parameters.

Table 4. Multivariable Flow Performance - Flow Reference Accuracy (Measurement Type 1)

Rosemount 3051SFA Annubar Flowmeter

Classic MV (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

Ranges 2–3 ±1.15% of flow rate ±0.80% of flow rate

Rosemount 3051SFC_A Compact Annubar Flowmeter - Rosemount Annubar option A

Classic MV (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

Ranges 2–3

Standard ±1.60% of flow rate ±1.55% of flow rate Calibrated ±1.00% of flow rate ±0.80% of flow rate

Rosemount 3051SFC Compact Orifice Flowmeter - Conditioning option C

Classic MV (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

Ranges 2–3 ±1.45% of flow rate ±1.15% of flow rate

Rosemount 3051SFC Compact Orifice Flowmeter - Orifice option P

Classic MV (8:1 flow turndown) Ultra for Flow (14:1 flow turndown)

Ranges 2–3

= 0.4 ±1.45% of flow rate ±1.30% of flow rate = 0.50, 0.65 ±1.45% of flow rate ±1.30% of flow rate

(3)

Rosemount 3051SFP Integral Orifice Flowmeter

Classic MV (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

< 0.1 ±2.65% of flow rate ±2.60% of flow rate

Ranges 2–3

0.1 < < 0.2 ±1.60% of flow rate ±1.40% of flow rate

0.2 <<0.6 ±1.25% of flow rate ±0.95% of flow rate

0.6 < < 0.8 ±1.80% of flow rate ±1.60% of flow rate

(1)(2)

1. Measurement types 2–4 assume the unmeasured variables are constant. Additional uncertainty will depend on the variation in the unmeasured variables.

2. Range 1 flowmeters experience an additional uncertainty up to 0.9 percent. Consult your Emerson Representative for exact specifications.

3. For line size less than 2-in. (50 mm) or greater than 8-in. (200 mm), add an additional 0.5 percent uncer tainty.

Table 5. Flow Performance - Flow Reference Accuracy (Measurement Type D)

(1)(2)(3)

Rosemount 3051SFA Annubar Flowmeter

Classic (8:1 flow turndown) Ultra (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

Ranges 2–3 ±1.25% of flow rate ±0.95% of flow rate ±0.80% of flow rate

Rosemount 3051SFC_A Compact Annubar Flowmeter - Rosemount Annubar option A

Classic (8:1 flow turndown) Ultra (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

Ranges 2–3

Uncalibrated ±1.70% of flow rate ±1.65% of flow rate ±1.55% of flow rate Calibrated ±1.25% of flow rate ±0.95% of flow rate ±0.80% of flow rate

Rosemount 3051SFC Compact Orifice Flowmeter – Conditioning option C

Classic (8:1 flow turndown) Ultra (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

Ranges 2–3 ±1.40% of flow rate ±1.25% of flow rate ±1.15% of flow rate

Rosemount 3051SFC Compact Orifice Flowmeter - Orifice Option P

Classic (8:1 flow turndown) Ultra (8:1 flow turndown) Ultra for Flow (14:1 flow turndown)

Ranges 2–3

= 0.4 ±1.80% of flow rate ±1.35% of flow rate ±1.30% of flow rate = 0.65 ±1.80% of flow rate ±1.35% of flow rate ±1.30% of flow rate

(4)

Emerson.com/Rosemount

Page 35

Rosemount DP Flow





February 2017

Table 5. Flow Performance - Flow Reference Accuracy (Measurement Type D)

(1)(2)(3)

3051SFP Integral Orifice Flowmeter

Classic (8:1 flow turndown) Ultra (8:1 flow turndown) Ultra for flow (14:1 flow turndown)

< 0.1 ±2.70% of flow rate ±2.65% of flow rate ±2.60% of flow rate

Ranges 2–3

1. For measurement types 5–7, refer to the reference accuracy specification for the Rosemount 3051SMV with measurement type P.

2. These flow measurement accuracies assume a constant density, viscosity, and expansibility factor.

3. Range 1 flowmeters experience an additional uncertainty up to 0.9 percent. Consult your Emerson representative for exact specifications.

4. For line size less than 2-in. (50 mm) or greater than 8-in. (200 mm), add an additional 0.5 percent uncer tainty.

Warranty

Models Ultra and Ultra for flow

All Rosemount 3051S

1. Warranty details can be found in Emerson Terms and Conditions of Sale, Document 63445, Rev G (10/06).

2. Rosemount Ultra and Ultra for Flow transmitters have a limited warranty of 15 years from date of shipment. All other provisions of Emerson standard limited warranty remain the same.

3. Goods are warranted for 12 months from the date of initial installation or 18 months from the date of shipment by seller, whichever period expires first.

4. Rosemount extended warranties have a limited warranty of five or three years from date of shipment.

0.1 < < 0.2 ±1.80% of flow rate ±1.45% of flow rate ±1.40% of flow rate

0.2 <<0.6 ±1.50% of flow rate ±1.05% of flow rate ±0.95% of flow rate

0.6 < < 0.8 ±2.00% of flow rate ±1.70% of flow rate ±1.60% of flow rate

(1)

Optional extended

(3)

warranty

WR5: 5-year limited warranty WR3: 3-year limited warranty

Products 15-year limited warranty

(2)

Classic and classic MV

1-year limited warranty

(4)

Dynamic performance

Total time response at 75 °F (24 °C), includes dead time

3051SF_D 3051SF_1, 2, 5, or 6 3051SF_3, 4, or 7

DP ranges 2-5: 100 ms Range 1: 255 ms Range 0: 700 ms

1. For FOUNDATION Fieldbus (output code F), add 52 ms to stated values (not including segment macro-cycle). For option code DA2, add 45 ms (nominal) to stated values.

Dead time

(1)

DP range 1: 310 ms DP range 2: 170 ms DP range 3: 155 ms AP and GP: 240 ms

3051SF_D 3051SF_1-7

DP: 100 ms

45 ms (nominal)

AP and GP: 140 ms RTD Interface: 1 s

1. For option code DA2, dead time is 90 milliseconds (nominal).

Update rate

(1)

3051SF_D 3051SF_1-7

DP: 22 updates per sec.

22 updates per sec.

AP and GP: 11 updates per sec. RTD Interface: 1 update per sec.

(1)

DP ranges 2–5: 145 ms DP range 1: 300 ms DP range 0: 745 ms

Calculated variables: Mass/volumetric flow rate: 22 updates per sec. Energy flow rate: 22 updates per sec. Totalized flow: 1 update per sec.

1. Does not apply to wireless (output code X). See “Wireless self-organizing networks” on page 41 for wireless update rate.

Emerson.com/Rosemount

Page 36

February 2017

Mounting position effects

Models Ultra, Ultra for Flow, Classic and Classic MV

Rosemount DP Flow

3051SF_3, 4, 7, or D

DP sensor:

Zero shifts up to ±1.25 inH Span: no effect

Zero shifts up to ±1.25 inH2O (3,11 mbar), which can be zeroed Span: no effect

3051SF_1, 2, 5, or 6

GP/AP sensor:

Zero shifts to ±2.5 inH2O (6,22 mbar), which can be zeroed Span: no effect

Vibration effect for Rosemount 3051SFA, 3051SFC

Less than ±0.1 percent of URL when tested per the requirements of IEC60770-1 field with general application or pipeline with low vibration level (10 to 1000 Hz test frequency range, 0.15 mm

displacement peak amplitude, 20m/s amplitude).

(1)

acceleration

Vibration effect for Rosemount 3051SFC_A

Less than ±0.1 percent of URL when tested per the requirements of IEC60770-1 field or pipeline with high vibration level (10–60 Hz, 0.15 mm displacement peak amplitude/60–2000 Hz 2g).

1. Stainless steel temperature housing is not recommended with Primary Ele-

ment Technology A in application with mechanical vibration.

(1)

Vibration effect for Rosemount 3051SFP

Less than ±0.1percent of URL when tested per the requirements of IEC60068-2-6 (10 to 1000 Hz test frequency range, 0.075 mm displacement peak amplitude, 10 m/s

acceleration amplitude).

O (3,11 mbar), which can be zeroed

Power supply effect

Less than ±0.005 percent of calibrated span per volt change in voltage at the transmitter terminals

Electromagnetic compatibility (EMC)

Meets all industrial environment requirements of EN 61326 and NAMUR NE-21 EMC disturbance.

1. NAMUR NE- 21 does not apply to wireless output code X configurations.

2. During surge event device may exceed maximum EMC deviation limit or reset; however, device will self-recover and return to normal operation within specified start-up time.

3. For devices with junction box housing or remote display (housing styles: 2A-2C, 2E-2G, 2J, 2M) testing performed with shielded cable.

4. Rosemount 3051SF measurement type 1, 3, 5, 7 require shielded cable for the process temperature connection.

(1)

. Maximum deviation <1% span during

(2)(3)(4)

Transient protection (option T1)

Meets IEEE C62.41.2–2002, location category B

6 kV crest (0.5 s–100 kHz)

3 kA crest (8 ⫻ 20 microseconds)

6 kV crest (1.2 ⫻ 50 microseconds)

Meets IEEE C37.90.1–2002 Surge Withstand Capability

SWC 2.5 kV crest, 1.0 MHz wave form

Emerson.com/Rosemount

Page 37

Rosemount DP Flow

Functional specifications

Range and sensor limits

Flowmeter with coplanar sensor module

Range

Lower (LRL) Upper (URL)

February 2017

DP Sensor (3051SF_3, 4, or 7)

10 inH

20 inH

30 inH

O (0 mbar) 25.00 inH2O (62,16 mbar)

O (0 bar) 250.00 inH2O (621,60 mbar)

O (0 bar) 1000.00 inH2O (2,48 bar)

Flowmeter with multivariable sensor module

DP Sensor (3051SF1, 2, 5, or 6)

Range

Lower (LRL) Upper (URL)

10 inH

20 inH

30 inH

O (0 mbar) 25.00 inH2O (62,16 mbar)

O (0 bar) 250.00 inH2O (621,60 mbar)

O (0 bar) 1000.00 inH2O (2,48 bar)

Static Pressure Sensor (GP/AP)

Range

Lower (LRL) Upper (URL)

(2)

: –14.20 psig (0,97 bar)

1. For SP Range 4 with DP Range 1, the URL is 2000 psi (137,9 bar).

2. Iner t Fill: Minimum pressure = 1.5 psia (0,10 bar) or –13.2 psig (–0,91 bar).

AP: 0.50 psia (34,47 mbar)

(2)

: –14.20 psig (0,97 bar)

AP: 0.50 psia (34,47 mbar)

(1)

GP: 800.00 psig (55,15 bar) AP: 800.00 psia (55,15 bar)

GP: 3626.00 psig (250,00 bar)

AP: 3626.00 psia (250,00 bar)

Process Temperature RTD Interface (3051SF_1, 3, 5 or 7)

(1)

Lower (LRL) Upper (URL)

–328 °F (–200 °C) 1562 °F (850 °C)

1. Transmitter is compatible with any Pt 100 RTD sensor. Examples of compatible RTDs include Rosemount Series 68 and 78 RTD Temperature Sensors.

Minimum span limits

Transmitter with coplanar sensor module (single variable)

DP sensor (3051SF_D, 3, 4 or 7)

Range

Ultra and ultra for flow Classic

10.5 inH

21.25 inH

35.0 inH

O (1,24 mbar) 0.5 inH2O (1,24 mbar)

O (3,11 mbar) 1.67 inH2O (4,15 mbar)

O (12,43 mbar) 6.67 inH2O (16,58 mbar)

Transmitter with multivariable sensor module

DP sensor (3051SF_1, 2, 5, or 6)

Range

Ultra for flow Classic MV

1 0.5 inH2O (1,24 mbar) 0.5 inH2O (1,24 mbar) 2 1.3 inH2O (3,23 mbar) 2.5 inH2O (6,22 mbar) 3 5.0 inH2O (12,43 mbar) 10.0 inH2O (24,86 mbar)

Static pressure sensor (GP/AP)

Range

Ultra for flow Classic MV

3 4.0 psi (275,79 mbar) 8.0 psi (551,58 mbar) 4 18.13 psi (1,25 bar) 36.26 psi (2,50 bar)

Emerson.com/Rosemount

Page 38

February 2017

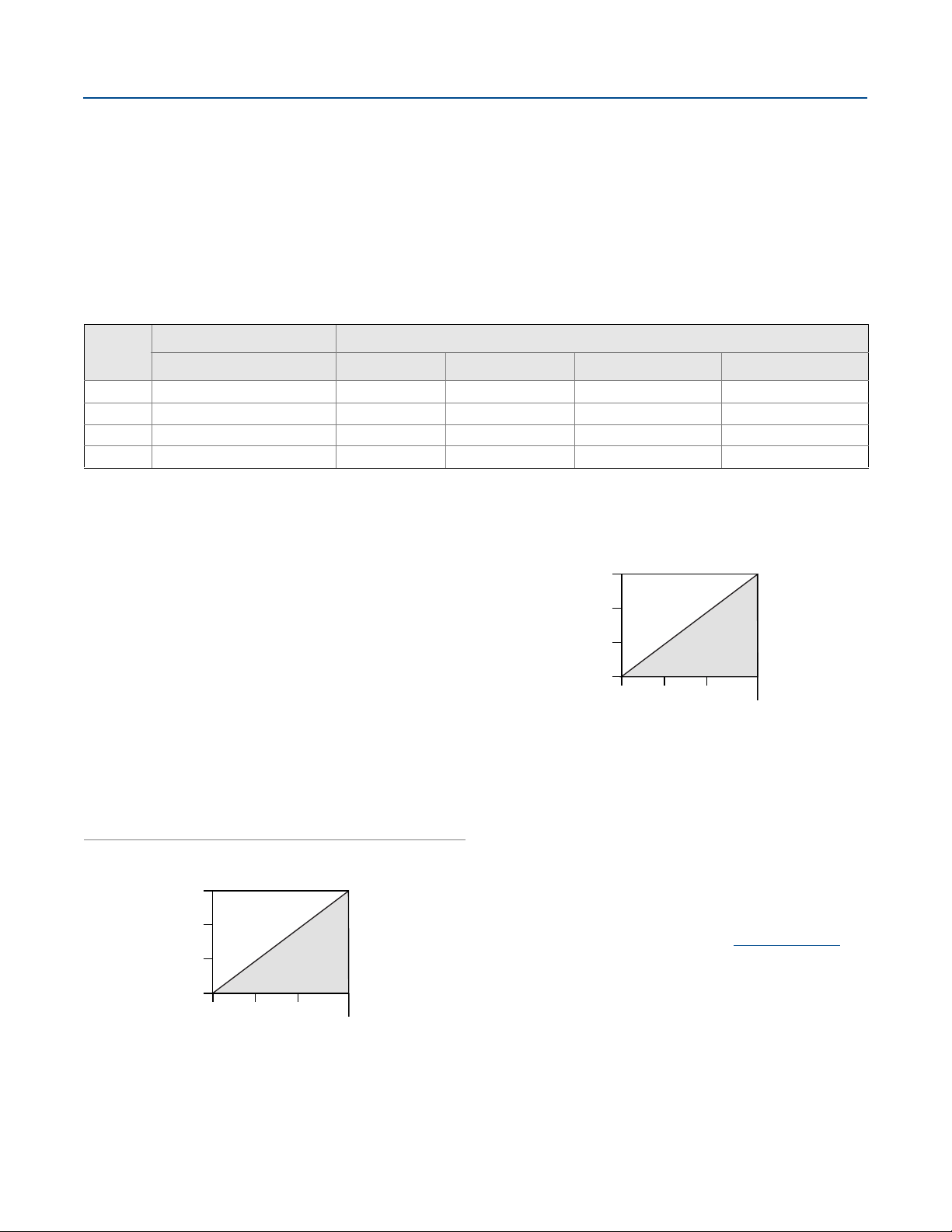

Voltag e (Vdc)

Load (Ohms)

Operating

region

1387

1000

500

10.5 20 30

42.4

Voltag e (Vd c)

Load (Ohms)

Operating

region

1322

1000

500

12.0 20 30

42.4

Process temperature RTD interface (Rosemount 3051SF_1, 3, 5 or 7)

Minimum span = 52 °F (11 °C)

Service

Rosemount 3051SF_5, 6, 7, or D (direct process variable output):

Liquid, gas, and steam applications

Fluid compatibility with pressure and temperature compensation

Ordering

code

1 DP/P/T (full compensation)

2 DP/P

3 DP/T

4 DP only

Measurement type Liquids Saturated steam Superheated steam Gas and natural gas

• • • •

• •

Rosemount DP Flow

Rosemount 3051SF_1, 2, 3, or 4 (mass and energy flow output):

Some fluid types are only supported by certain measurement types 4–20 mA/HART

•Available

Fluid types

— —

— Not available

Zero and span adjustment

Zero and span values can be set anywhere within the range. Span must be greater than or equal to the minimum span.

HART output

Two-wire 4–20 mA is user-selectable for linear or square root output. Digital process variable superimposed on 4–20 mA signal, available to any host that conforms to the HART protocol.

Power supply

External power supply required.

• 3051SF_D: 10.5 to 42.4 Vdc with no load

• 3051SF_D with Advanced HART Diagnostics Suite: 12 to 42.4 Vdc

with no load

• 3051SF_1-7: 12 to 42.4 Vdc with no load

Load limitations

Maximum loop resistance is determined by the voltage level of the external power supply, as described by:

Rosemount 3051SF_D

Maximum loop resistance

= 43.5 ⫻ (Power supply voltage – 10.5)

Rosemount 3051SF_1-7 and 3051SF_D with HART Diagnostics (option code DA2)

Maximum loop resistance

= 43.5 ⫻ (Power supply voltage – 12.0)

The Field Communicator requires a minimum loop resistance of 250  for communication.

Selectable HART revisions (option code HR7)

The 2-wire 4–20 mA is user-selectable for linear or square root output. Digital process variable superimposed on 4–20 mA signal is available to any host that conforms to HART protocol. The Rosemount 3051S with Advanced HART Diagnostics (DA2) comes with Selectable HART revisions. Digital communications based on HART Revision 7 (with option code HR7 selected) or Revision 5 (default) protocol can be selected. The HART revision can be switched in the field using any HART-based configuration. See the Rosemount 3051S Reference Manual instructions on how to switch HART revision.

for

The Field Communicator requires a minimum loop resistance of 250  for communication.

Emerson.com/Rosemount

Page 39

Rosemount DP Flow

February 2017

Advanced HART diagnostics suite (option code DA2)

SPM provides statistical data (standard deviation, mean, coefficient of variation) that can be used to detect process and process equipment anomalies, including plugged impulse lines, air entrainment, pump cavitation, furnace flame instability, distillation column flooding and more. This diagnostic allows you to take preventative measures before abnormal process situations result in unscheduled downtime or rework.

Power advisory diagnostic pro-actively detects and notifies you of degraded electrical loop integrity before it can affect your process operation. Example loop problems that can be detected include water in the terminal compartment, corrosion of terminals, improper grounding, and unstable power supplies.

The Device Dashboard presents the diagnostics in a graphical, task-based interface that provides single click access to critical process/device information and descriptive graphical troubleshooting.

Suite includes: SPM, Power Advisory, Status Log, Variable Log, Advanced Process Alerts, Service Alerts, and Time Stamp capability.

OUNDATION Fieldbus

Power supply

External power supply required; transmitters operate on 9.0 to 32.0 Vdc transmitter terminal voltage.

Current draw

17.5 mA for all configurations (including LCD display option)

OUNDATION Fieldbus Parameters

Schedule Entries 14 (max.) Links 30 (max.) Virtual Communications Relationships (VCR) 20 (max.)

Standard function blocks

Resource block

Contains hardware, electronics, and diagnostic information.

Transducer block

Contains actual sensor measurement data including the sensor diagnostics and the ability to trim the pressure sensor or recall factory defaults.

LCD display block

Configures the local display.

Analog input blocks

Processes the measurements for input into other function blocks. The output value is in engineering or custom units and contains a status indicating measurement quality.

PID block with auto-tune

Contains all logic to perform PID control in the field including cascade and feedforward. Auto-tune capability allows for superior tuning for optimized control performance.

Backup link active scheduler (LAS)

The transmitter can function as a Link Active Scheduler if the current link master device fails or is removed from the segment.

Software upgrade in the field

Software for the Rosemount 3051SF with F easy to upgrade in the field using the FOUNDATION Fieldbus Common Device Software Download procedure.

PlantWeb alerts

Enable the full power of the PlantWeb digital architecture by diagnosing instrumentation issues, communicating advisory, maintenance, and failure details, and recommending a solution.

Advanced control function block suite (option code A01)

Input selector block

Selects between inputs and generates an output using specific selection strategies such as minimum, maximum, midpoint, average, or first “good.”

Arithmetic block

Provides pre-defined application-based equations including flow with partial density compensation, electronic remote seals, hydrostatic tank gauging, ratio control and others.

Signal characterizer block

Characterizes or approximates any function that defines an input/output relationship by configuring up to twenty X, Y coordinates. The block interpolates an output value for a given input value using the curve defined by the configured coordinates.

Integrator block

Compares the integrated or accumulated value from one or two variables to pre-trip and trip limits and generates discrete output signals when the limits are reached. This block is useful for calculating total flow, total mass, or volume over time.

Output splitter block

Splits the output of one PID or other control block so that the PID will control two valves or other actuators.

OUNDATION Fieldbus is

Emerson.com/Rosemount

Page 40

February 2017

Rosemount DP Flow

Control selector block

Selects one of up to three inputs (highest, middle, or lowest) that are normally connected to the outputs of PID or other control function blocks.

Block Execution time

Resource N/A Tra n sd uc er N/A LCD display Block N/A Analog Input 1, 2 20 milliseconds PID with Auto-tune 35 milliseconds Input Selector 20 milliseconds Arithmetic 20 milliseconds Signal Characterizer 20 milliseconds Integrator 20 milliseconds Output Splitter 20 milliseconds Control Selector 20 milliseconds

Fully compensated mass flow block (Option Code H01)

Calculates fully compensated mass flow based on differential pressure with external process pressure and temperature measurements over the Fieldbus segment. Configuration for the mass flow calculation is easily accomplished using the Rosemount Engineering Assistant 6 software. To ensure correct operation download the most current version of the Engineering Assistant software at: Emerson.com/Rosemount/Engineering

Assistant Software.

ASP Diagnostics Suite for FOUNDATION Fieldbus (option code D01)

Statistical Process Monitoring (SPM) provides statistical data (standard deviation and mean) that can be used to detect process and process equipment anomalies, including plugged impulse lines, air entrainment, pump cavitation, furnace flame instability, distillation column flooding, and more. This diagnostic allows you to take preventative measures before abnormal process situations result in unscheduled downtime or rework.

The Device Dashboard presents the diagnostics in a graphical, task-based interface that provides single click access to critical process/device information and descriptive graphical troubleshooting.

Suite includes: Statistical Process Monitoring (SPM) and Plugged Impulse Line Detection (PIL).

Wireless self-organizing networks

Output

WirelessHART, 2.4 GHz DSSS.

Local display

The optional 7-digit LCD display can display user-selectable information such as primary variable in engineering units, percent of range, sensor module temperature, and electronics temperature. Display updates at up to once per minute.

Update rate

WirelessHART, user selectable1 second to 60 minutes

Power module

Field replaceable, keyed connection eliminates the risk of incorrect installation, Intrinsically Safe Lithium-thionyl chloride Power Module with polybutadine terephthalate (PBT) enclosure. Ten-year life at one minute update rate.

1. Reference conditions are 70 °F (21 °C), and routing data for three additional network devices.

2. 6.5-year life at one minute update rates when used with 3051SMV

Note

Continuous exposure to ambient temperature limits of –40 °F or 185 °F (–40 °C or 85 °C) may reduce specified life by less than 20 percent.

(1)(2)

Overpressure limits

Transmitters withstand the following limits without damage:

Coplanar sensor module (single variable)

(1)

Range

3051SF_3, 4, 7, or D

1 2000 psi (137,90 bar) 2 3626 psi (250,00 bar) 3 3626 psi (250,00 bar)

1. The overpressure limit of a DP Sensor with the P9 option is 4500 psig (310,26 bar). The overpressure limit of a DP Sensor with the P0 option is 6092 psig (420,00 bar).

Coplanar multivariable sensor module (Rosemount 3051SF_1, 2, 5, or 6)

Static

pressure

Range 3

GP/AP

Range 4

GP/AP

Range 1 Range 2 Range 3

1600 psi

(110,32 bar)

2000 psi

(137,90 bar)

1600 psi

(110,32 bar)

3626 psi

(250,00 bar)

1600 psi

(110,32 bar)

3626 psi

(250,00 bar)

Static pressure limits

Coplanar sensor module

Operates within specifications between static line pressures of:

Range

DP sensor

3051SF_3, 4, 7, or D

1 0.5 psia to 2000 psig (0,03 to 137,90 bar) 2 0.5 psia to 3626 psig (0,03 to 250,00 bar) 3 0.5 psia to 3626 psig (0,03 to 250,00 bar)

(1)

Emerson.com/Rosemount

Page 41

Rosemount DP Flow

1. The static pressure limit of a DP Sensor with the P9 option is 4500 psig (310,26 bar). The static pressure limit of a DP Sensor with the P0 option is 6092 psig (420,00 bar).

Coplanar multivariable sensor module (Rosemount 3051SF_1, 2, 5, or 6)

Operates within specifications between static line pressures of

0.5 psia (0,03 bar) and the values in the table below:

Static

pressure

Range 3

GP/AP

Range 4

GP/AP

Range 1 Range 2 Range 3

800 psi

(55,15 bar)

2000 psi

(137,90 bar)

800 psi

(55,15 bar)

3626 psi

(250,00 bar)

800 psi

(55,15 bar)

3626 psi

(250,00 bar)

February 2017

Rosemount 3051SFC process temperature limits

Direct mount transmitter

• –40 to 450 °F (–40 to 232 °C)

• Up to 400 °F (204 °C) when top mounted in steam service

Remote mount transmitter

• –148 to 850 °F (–100 to 454 °C) – Stainless steel

Rosemount 3051SFP process temperature limits

Standard (direct/remote mount)

• –40 to 450 °F (–40 to 232 °C)

Extended (remote mount only with option code G)

• –112 to 554 °F (–80 to 290 °C)

1. Consult factory for all-welded design for temperatures up to 850 °F (454 °C) and down to –320 °F (–195 °C).

(1)

Burst pressure limits

Coplanar sensor module

10000 psig (689,5 bar)

Temperature limits

Ambient

–40 to 185 °F (–40 to 85 °C)

(1)

With LCD display

: –40 to 175 °F (–40 to 80 °C)

With Option Code P0: –20 to 185 °F (–29 to 85 °C)

1. LCD display may not be readable and LCD display updates will be slower at temperatures below –4 °F (–20 °C).

Storage

–

50 to 185 °F (–46 to 85 °C) With LCD display: –40 to 185 °F (–40 to 85 °C) With Wireless Output: –40 to 185 °F (–40 to 85 °C)

Process temperature limits

Rosemount 3051SFA process temperature limits

Direct mount transmitter

• 500 °F (260 °C)

• 750 °F (398 °C) when used with a direct mount, high temperature

5-valve manifold (transmitter connection platform code 6). Maximum temperature limit for steam processes is 650 °F (343 °C).

• 400 °F (204 °C) when top mounted in steam service

Remote mount transmitter

• 1250 °F (677 °C) –Alloy C-276 sensor material (for

superheated steam applications above 1000 °F

[538 °C], it is recommended that the Rosemount 585 with alloy 800H sensor material is used.)

°F (454 °C) –Stainless steel sensor material

• 850

Humidity limits

0–100 percent relative humidity

Turn-on time

(1)

When power is applied to the transmitter during startup, performance will be within specifications per the time period described below:

Tra ns mitt er Turn-on time (typical)

3051S, 3051SF_D 2 seconds Diagnostics 5 seconds 3051SMV, 3051SF_1-7 5 seconds

1. Does not apply to wireless option code X.

Volumetric displacement

Less than 0.005 in3 (0,08 cm3)

Damping

Analog output response time to a step change is user-selectable from 0 to 60 seconds for one time constant. For Rosemount 3051SF_1–7, each variable can be individually adjusted. Software damping is in addition to sensor module response time.

1. Does not apply to wireless option code X.

(1)

Emerson.com/Rosemount

Page 42

February 2017

Rosemount DP Flow

Failure mode alarm

HART 4–20 mA (output option code A)

If self-diagnostics detect a gross transmitter failure, the analog signal will be driven offscale to alert the user. Rosemount standard (default), NAMUR, and custom alarm levels are available (see Alarm Configuration below).

High or low alarm signal is software-selectable or hardware-selectable via the optional switch (option D1).

Table 6. Alarm Configuration

High alarm Low alarm

Default 21.75 mA 3.75 mA

(2)(3)

(1)

22.5 mA 3.6 mA

20.2–23.0  3.4–3.8 

(2)

(1)

NAMUR compliant

Custom levels

1. Analog output levels are compliant with NAMUR recommendation NE 43, see option codes C4 or C5.

2. Low alarm must be 0.1 mA less than low saturation and high alarm must be

0.1 mA greater than high saturation.

3. For Rosemount 3051SMV and option code DA2, low alarm custom values are 3.6–3.8 mA.

Safety-certified transmitter failure values

Safety accuracy: 2.0% Safety response time: 1.5 seconds

1. Does not apply to wireless option code X.

2. A two percent variation of the transmitter mA output is allowed before a

safety trip. Trip valu es in the DCS or safety logic solver should be derated by two percent.

Physical specifications

Electrical connections

/2–14 NPT, G1/2, and M20 ⫻ 1.5 conduit. HART interface

connections fixed to terminal block for Output code A and X.

Process-wetted parts

Rosemount 3051SFA wetted parts - Annubar sensor material

 316 stainless steel

 Alloy C-276

Transmitter connection studs and nuts

• Studs– A193 Grade B8M.

• Nuts– A194 Grade 8M.

Gasket and O-rings

• Gaskets are customer supplied.

• Durlon 8500 fiber gaskets are recommended. Consult an Emerson

representative for use with other gaskets.

• Available as a spare part

Note

Gaskets and O-rings should be replaced when the Rosemount 405 is disassembled.

Rosemount 3051SFP wetted parts - material of construction

Orifice plate

• 316/316L SST

• Alloy C-276

• Alloy 400

Body

• 316 SST (CF8M), material per ASTM A351

Pipe material (if applicable)

• A312 Gr 316/316L

Flange

• A182 Gr 316/316L

• Flange pressure limits are per ANSI B16.5

• Flange face finish per ANSI B16.5, 125 to 250 RMS

Body bolts/studs

• ASTM A193 Gr B8M studs

• ASTM A193 Gr B8M Class 2 body studs provided for high

temperature Option Code G

Transmitter connection studs

• ASTM A193 Gr B8M studs

Gaskets/O-rings

• Glass filled PTFE

• Alloy X-750 provided for high temperature Option Code G

• Gaskets and O-rings must be replaced each time the Rosemount

3051SFP is disassembled for installation or maintenance.

Drain/vent valves

316 SST, Alloy C-276, or Alloy 400/K–500 material (Drain vent seat: Alloy 400, Drain vent stem: Alloy K–500)

Process flanges and adapters

Rosemount 3051SFC wetted parts - material of construction

Body/plate

• 316/316L SST

• 50 micro-inch Ra surface finish

Manifold head/valves

• 316 SST

Flange studs and nuts

• Customer supplied

• Available as a spare part

Emerson.com/Rosemount

Plated carbon steel SST: CF-8M (Cast 316 SST) per ASTM A743 Cast C-276: CW-12MW per ASTM A494 Cast alloy 400: M-30C per ASTM A494

Non-wetted parts

Electronics housing

Low-copper aluminum alloy or CF-8M (Cast 316 SST)

NEMA

4X, IP 66, IP 68 (66 ft. [20 m] for 168 hours)

Page 43

Rosemount DP Flow

February 2017

Note

IP 68 not available with wireless output.

Paint for aluminum housing

Polyurethane

Coplanar sensor module housing

SST: CF-3M (Cast 316L SST)

Bolts

Plated carbon steel per ASTM A449, Type 1 Austenitic 316 SST per ASTM F593 ASTM A453, Class D, Grade 660 SST ASTM A193, Grade B7M alloy steel ASTM A193, Class 2, Grade B8M SST Alloy K–500

Sensor module fill fluid

Silicone or inert halocarbon

Cover O-rings

Nitirile Butadiene (NBR)

Wireless antenna

PBT/polycarbonate (PC) integrated omni-directional antenna

Power module

Field replaceable, keyed connection eliminates the risk of incorrect installation, Intrinsically Safe Lithium-thionyl chloride Power Module with PBT enclosure.

Emerson.com/Rosemount

Page 44

February 2017

Product Certifications

Rosemount 3051SMV/3051SFx

Rev 1.18

Rosemount DP Flow

European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at

Emerson.com/Rosemount

Ordinary Location Certification

As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).

Installing Equipment in North America

The US National Electrical Code® (NEC) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in Zones and Zone marked equipment in Divisions. The markings must be suitable for the area classification, gas, and temperature class. This information is clearly defined in the respective codes.

USA

E5 US Explosionproof (XP) and Dust Ignition-proof (DIP)

Certificate: FM16US0089X

Standards: FM Class 3600 - 2011, FM Class 3615 - 2006, FM

Class 3616 - 2011, FM Class 3810 - 2005, ANSI/NEMA® 250 - 2003

Markings: XP CL I, DIV 1, GP B, C, D; T5; DIP CL II, DIV 1, GP

E, F, G; CL III; T5(–50 °C  T Sealed; Type 4X

I5 US Intrinsically Safe (IS) and Nonincendive (NI)

Certificate: FM16US0233

Standards: FM Class 3600 -2011, FM Class 3610 - 2007, FM

Class 3611 - 2004, FM Class 3616 - 2006, FM Class 3810 - 2005, NEMA 250 - 1991

Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F,

G; Class III; Class 1, Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D; T4(–50 °C  T when connected per Rosemount drawing 03151-1206; Type 4X

Note

Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using general Division 2 wiring methods or Nonincendive Field Wiring (NIFW). See Drawing 03151-1206.

 +85 °C); Factory

 +70 °C);

Canada

E6 Canada Explosionproof, Dust Ignition-proof, Division 2

Certificate: 1143113

Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

25-1966, CSA Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07 , CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/CSA-C22.2 No. 61010-1-12, ANSI/ISA

12.27.01-2003, CSA Std C22.2 No. 60529:05 (R2010)

Markings: Explosionproof Class I, Division 1, Groups B, C,

D; Dust-Ignitionproof Class II, Division 1, Groups E, F, G; Class III; suitable for Class I, Division 2, Groups A, B, C, D; Type 4X

I6 Canada Intrinsically Safe

Certificate: 1143113

Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

25-1966, CSA Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07 , CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/CSA-C22.2 No. 61010-1-12, ANSI/ISA

12.27.01-2003, CSA Std C22.2 No. 60529:05 (R2010)

Markings: Intrinsically Safe Class I, Division 1; Groups A, B,

C, D; suitable for Class 1, Zone 0, IIC, T3C,

=70 °C; when connected per Rosemount

drawing 03151-1207; Type 4X

IF Canada FISCO Intrinsically Safe

Certificate: 1143113

Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

25-1966, CSA Std C22.2 No. 30-M1986, CSA C22.2 No. 94.2-07, CSA Std C22.2 No. 213-M1987, CAN/CSA C22.2 60079-11:14, CAN/CSA-C22.2 No. 61010-1-12, ANSI/ISA

12.27.01-2003, CSA Std C22.2 No. 60529:05 (R2010)

Markings: FISCO Intrinsically Safe Class I, Division 1;

Groups A, B, C, D; suitable for Class I, Zone 0; T3C,

= 70 °C; when installed per Rosemount

drawing 03151-1207; Type 4X

Europe

E1 ATEX Fla meproof

Certificate: KEMA 00ATEX2143X

Standards: EN 60079-0:2012, EN 60079-1: 2007, EN

60079-26:2007 (3051SFx models with RTD are certified to EN 60079-0:2006)

Emerson.com/Rosemount

Page 45

Rosemount DP Flow



February 2017

Markings: II 1/2 G Ex d IIC T6…T4 Ga/Gb,

T6(–60 °C  Ta  +70 °C), T5/T4(–60 °C  Ta  +80 °C)

Temperature class Process temperature

T6 –60 °C to +70 °C

T5 –60 °C to +80 °C

T4 –60 °C to +120 °C

Special Conditions for Safe Use (X):

1. The device contains a thin wall diaphragm. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer's instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

2. For information on the dimensions of the flameproof joints the manufacturer shall be contacted.

I1 ATEX Intrinsic Safety

Certificate: Baseefa08ATEX0064X

Standards:EN 60079-0: 2012, EN 60079-11: 2012

Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C  T

FOUNDATIO

HART

Fieldbus

Volt age U

Current Ii300 mA 300 mA 300 mA 2.31 mA 18.24 mA

Power P

Capacitance Ci14.8 nF 0 0.11 F 0 0.8 nF

Inductance L

30 V 30 V 7.14 V 30 V 30 V

1 W 1.3 W 887 mW 17.32 mW 137 mW

0 0 0 0 1.33 mH

SuperModul

e only

RTD (for

3051SFx)

Special Conditions for Safe Use (X):

1. If the equipment is fitted with the optional 90 V transient suppressor, it is incapable of withstanding the 500 V isolation from earth test and this must be taken into account during installation.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a Zone 0 environment.

IA ATEX FISCO

Certificate: Baseefa08ATEX0064X

Standards: EN 60079-0: 2012, EN 60079-11: 2012

Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C  Ta  +70 °C)

Parameter

Voltage U

Current I

Power P

Capacitance C

Inductance L

380 mA

(HART)

FISCO

17.5 V

5.32 W

 +70 °C)

RTD (for

3051SFx)

(Fieldbus)

ND ATE X Dust

Certificate: BAS01ATEX1374X

Standards:EN 60079-0: 2012, EN 60079-31: 2009

Markings: II 1 D Ex ta IIIC T105 °C T

(–20 °C Ta  +85 °C), V

500

max

95 °C Da,

= 42.4 V

Special Conditions for Safe Use (X):

1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66.

2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66.

3. Cable entries and blanking plugs must be suitable for the ambient temperature range of the apparatus and capable of withstanding a 7J impact test.

4. The SuperModule(s) must be securely screwed in place to maintain the ingress protection of the enclosure(s).

N1 ATEX Type n

Certificate: Baseefa08ATEX0065X

Standards: EN 60079-0: 2012, EN 60079-15: 2010

Markings: II 3 G Ex nA IIC T4 Gc, (–40 °C  T

= 45 V

max

70 °C),

Special Condition for Safe Use (X):

1. If fitted with a 90 V transient suppressor, the equipment is not capable of withstanding the 500 V electrical strength test as defined in Clause 6.5.1 of EN 60079-15:2010. This must be taken into account during installation.

International

E7 IECEx Flameproof and Dust

Certificate: IECEx KEM 08.0010X (Flameproof)

Standards: IEC 60079-0:2011, IEC 60079-1: 2007, IEC

60079-26:2006 (3051SFx models with RTD are certified to IEC 60079-0:2004)

Markings: Ex d IIC T6…T4 Ga/Gb, T6(–60 °C  T

T5/T4(–60 °C  T

 +80 °C)

Temperature class Process temperature

T6 –60 to +70 °C

T5 –60 to +80 °C

T4 –60 to +120 °C

Special Conditions for Safe Use (X):

2. For information on the dimensions of the flameproof joints the manufacturer shall be contacted.

 +70 °C),

Emerson.com/Rosemount

Page 46

February 2017



Rosemount DP Flow

Certificate: IECEx BAS 09.0014X (Dust)

Standards: IEC 60079-0:2011, IEC 60079-31:2008

Markings: Ex ta IIIC T105 °C T

(–20 °C  T

 +85 °C), V

95 °C Da,

500

= 42.4 V

max

Special Conditions for Safe Use (X):

1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66.

2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66.

3. Cable entries and blanking plugs must be suitable for the ambient temperature range of the apparatus and capable of withstanding a 7J impact test.

4. The Rosemount 3051S- SuperModule must be securely screwed in place to maintain the ingress protection of the enclosure.

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 08.0025X Standards: IEC 60079-0: 2011, IEC 60079-11: 2011 Markings: Ex ia IIC T4 Ga, T4(–60 °C  T

FOUNDATION

HART

Vol tage Ui30 V 30 V 7.14 V 30 V 30 V

Current Ii300 mA 300 mA 300 mA 2.31 mA 18.24 mA

Power P

Capacitance Ci14.8 nF 0 0.11 F 0 0.8 nF

Inductance Li0 0 0 0 1.33 mH

Fieldbus

1 W 1.3 W 887 mW 17.32 mW 137 mW

SuperModule

only

 +70 °C)

RTD (for

3051SFx)

(HART)

RTD (for

3051SFx)

(Fieldbus)

Special Conditions for Safe Use (X):

1. If the equipment is fitted with the optional 90 V transient suppressor, it is incapable of withstanding the 500 V isolation from earth test and this must be taken into account during installation.

IG IECEx FISCO

Certificate: IECEx BAS 08.0025X

Standards: IEC 60079-0: 2011, IEC 60079-11: 2011

Markings: Ex ia IIC T4 Ga, T4(–60 °C  T

Parameter

Voltage U

Current I

Power P

Capacitance C

Inductance L

380 mA

 +70 °C)

FISCO

17.5 V

5.32 W

N7 IECEx Type n

Certificate: IECEx BAS 08.0026X

Standards: IEC 60079-0: 2011, IEC 60079-15: 2010

Markings: Ex nA IIC T5 Gc,

(–40 °C  T

 +70 °C)

Special Condition for Safe Use (X):

1. If fitted with a 90 V transient suppressor, the equipment is not capable of withstanding the 500 V electrical strength test as defined in Clause 6.5.1 of IEC 60079-15:2010. This must be taken into account during installation.

Brazil

E2 INMETRO Flameproof

Certificate: UL-BR 15.0393X

Standards: ABNT NBR IEC 60079-0:2008 + Corrigendum

1:2011, ABNT NBR IEC 60079-1:2009 + Corrigendum 1:2011, ABNT NBR IEC 60079-26:2008 + Corrigendum 1: 2008

Markings: Ex d IIC T* Ga/Gb, T6(–40 °C  T

T5/T4(–40 °C  Ta  +70 °C), IP66

Special Conditions for Safe Use (X):

2. For information on the dimensions of the flameproof joints, the manufacturer shall be contacted.

I2 INMETRO Intrinsic Safety

Certificate: UL-BR 15.0357X

Standards: ABNT NBR IEC 60079-0:2008 + Addendum

1:2011, ABNT NBR IEC 60079-11:2009

Markings: Ex ia IIC T4 Ga (–60 °C  T

Special Conditions for Safe Use (X):

1. If the equipment is fitted with the optional 90 V transient suppressor, it is incapable of withstanding the 500 V isolation from earth test and this must be taken into account during installation.

2. For processes with temperatures above 135 °C, the user must assess whether the SuperModule temperature class is suitable for such applications, because in this situation there is a risk of the SuperModule temperature being above T4.

HART Fieldbus

Parameter

Input RTD Input RTD

Voltage U

Current I

Power P

Capacitance Ci14.8 nF 0 0 0.8 F

Inductance L

30 V 30 V 30 V 30 V

300 mA 2.31 mA 300 mA 18.24 mA

1 W 17.32 W 1.3 mW 137 mW

0 0 0 1.33 F

 +70 °C)

 +70 °C),

Emerson.com/Rosemount

Page 47

Rosemount DP Flow



February 2017

China

E3 China Flameproof and Dust Ignition-proof

Certificate: 3051SMV: GYJ14.1039X

[Mfg USA, China, Singapore] 3051SFx: GYJ11.1711X [Mfg USA, China, Singapore]

Standards: 3051SMV: GB3836.1-2010, GB3836.2-2010,

GB3836.20-20103051SFx: GB3836.1-2010, GB3836.2-2010, GB3836.20-2010, GB12476.1-2000

Markings: 3051SMV: Ex d IIC T6/T5 Ga/Gb

3051SFx: Ex d IIC T6/T5 Ga/Gb; DIP A20 T 105 °C; IP66

Special Conditions for Safe Use (X):

1. Sym bol “X ” is use d to denote specif ic conditi ons of use: For information on the dimensions of the flameproof joints the manufacturer shall be contacted.

2. The relationship between T code and ambient temperature range are as follows:

T code Temperature range

T5 –50 ~ +65 °C

T6 –50 ~ +80 °C

3. The earth connection facility in the enclosure should be connected reliably.

4. During installation, use and maintenance of the product in explosive atmosphere, observe the warning “Do not open cover when circuit is alive”. During installation, use, and maintenance in explosive dust atmosphere, observe the warning “Do not open when an explosive dust atmosphere is present”.

5. During installation there should be no mixture harmful to the housing.

6. During installation, use and maintenance in explosive dust atmosphere, product enclosure should be cleaned to avoid dust accumulation, but compressed air should not be used.

7. During installation in a hazardous location, cable glands and blanking plugs certified by state appointed inspection bodies with Ex d C Gb or Ex d IIC Gb DIP A20 [Flowmeters] IP66 type of protection should be used. Redundant cable entries should be blocked with blanking plugs.

8. End users are not permitted to change any components but to contact the manufacturer to avoid damage to the product.

9. Maintenance should be done when no explosive gas and dust atmosphere is present.

10. During installation, use and maintenance of this product, observe following standards:

GB3836.13-1997 “Electrical apparatus for explosive gas atmospheres Part 13: Repair and overhaul for apparatus used in explosive gas atmospheres”

GB3836.15–2000 “Electrical apparatus for explosive gas atmospheres Part 15: Electrical installations in hazardous area (other than mines)”

GB3836.16–2006 “Electrical apparatus for explosive gas atmospheres Part 16: Inspection and maintenance of electrical installation (other than mines)”

GB50257-1996 Norse for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”

I3 China Intrinsic Safety

Certificate: 3051SMV: GYJ14.1040X [Mfg USA, China,

Singapore] 3051SFx: GYJ11.1707X [Mfg USA, China, Singapore]

Standards: 3051SMV: GB3836.1-2010, GB3836.4-2010,

GB3836.20-2010 3051SFx: GB3836.1/4-2010, GB3836.20-2010, GB12476.1-2000

Markings: 3051SMV: Ex ia IIC T4 Ga

3051SFx: Ex ia IIC T4 Ga, DIP A20 T

105 °C; IP66

Special Conditions for Safe Use (X):

1. The enclosure may contain light metal, attention should be taken to avoid ignition hazard due to impact or friction.

2. The apparatus is not capable of withstanding the 500 V electrical strength test defined in Clause 6.3.12 of GB3836.4–2010.

3. Ambient temperature range: –60

+70 °C

4. Intrinsically safe electric parameters:

Maximum

input

voltage:

(V)

30 300 1.0 14.8 0

Model

RTD 30 2.31 17.32 0 0

SuperModule 7.14 300 887 110 0

Maximum

input

current:

(mA)

Maximu

m output

voltage:

(V)

Maximum input

power:

(W)

Maximu

m output

Maximu

m output

current:

(mA)

Maximum internal

Ci (nF) Li (uH)

power:

(W)

parameter:

Maximum

external

parameters:

Ci (nF) Li (H)

5. The cables between this product and associated apparatus should be shielded cables. The shield should be grounded reliably in non-hazardous area.

Emerson.com/Rosemount

Page 48

February 2017

Rosemount DP Flow

6. The product should be used with Ex certified associated apparatus to establish explosion protection system that can be used in explosive gas atmospheres. Wiring and terminals should comply with the instruction manual of the product and associated apparatus.

7. End users are not permitted to change any components, contact the manufacturer to avoid damage to the product.

8. During installation in hazardous location, cable glands, conduit, and blanking plugs certified by state-appointed inspection bodies with DIP A20 IP66 type of protection should be used. Redundant cable entries should be blocked with blanking plugs.

9. During installation, use, and maintenance in explosive dust atmosphere, observe the warning “Do not open when an explosive dust atmosphere is present”.

10. Maintenance should be done when no explosive dust atmosphere is present.

11. During installation, use and maintenance of this product, observe following standards:

GB3836.13-1997 “Electrical apparatus for explosive gas atmospheres Part 13: Repair and overhaul for apparatus used in explosive gas atmospheres”

GB3836.15–2000 “Electrical apparatus for explosive gas atmospheres Part 15: Electrical installations in hazardous area (other than mines)”

GB3836.16–2006 “Electrical apparatus for explosive gas atmospheres Part 16: Inspection and maintenance of electrical installation (other than mines)”

GB50257-1996 ”Code for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”.

EAC - Belarus, Kazakhstan, Russia

EM Technical Regulation Customs Union (EAC) Flameproof

Certificate: RU C-US.AA87.B.00094

Markings: Ga/Gb Ex d IIC T6…T4 X

IM Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate: RU C-US.AA87.B.00094

Markings: 0Ex ia IIC T4 Ga X

Japan

E4 Japan Flameproof

Certificate:TC19070, TC19071, TC19072, TC19073 Markings: Ex d IIC T6

Republic of Korea

EP Republic of Korea Flameproof [HART only]

Certificate: 12-KB4BO-0180X [Mfg USA],

11-KB4BO-0068X [Mfg Singapore]

Markings: Ex d IIC T5 or T6

IP Republic of Korea Intrinsic Safety [HART only]

Certificate: 10-KB4BO-0021X [Mfg USA, SMMC]

Markings: Ex ia IIC T4

Combinations

K1 Combination of E1, I1, N1, and ND

K2 Combination of E2 and I2

K5 Combination of E5 and I5

K6 Combination of E6 and I6

K7 Combination of E7, I7, and N7

KA Combination of E1, I1, E6, and I6

KB Combination of E5, I5, E6, and I6

KC Combination of E1, I1, E5, and I5

KD Combination of E1, I1, E5, I5, E6, and I6

KM Combination of EM and IM

KP Combination of EP and IP

Additional Certifications

SBS American Bureau of Shipping (ABS) Type Approval

Certificate: 00-HS145383

Intended Use: Measure gauge or absolute pressure of

liquid, gas or vapor applications on ABS classed vessels, marine, and offshore installations. [HART Only]

SBV Bureau Veritas (BV) Type Approval

Certificate: 31910 BV

Requirements: Bureau Veritas Rules for the Classification of

Steel Ships

Application: Class Notations: AUT-UMS, AUT-CCS,

AUT-PORT and AUT-IMS. [HART Only]

SDN Det Norske Veritas (DNV) Type Approval

Certificate: A-14186

Intended Use: Det Norske Veritas' Rules for Classification of

Ships, High Speed & Light Craft, and Det Norske Veritas' Offshore Standards. [HART Only]

Application:

Location classes

Ty pe 3051S

Tem p er at u re D

Humidity B

Vibration A

EMC A

Enclosure D/IP66/IP68

SLL Lloyds Register (LR) Type Approval

Certificate: 11/60002

Application: Environmental categories ENV1, ENV2, ENV3,

and ENV5. [HART Only]

Emerson.com/Rosemount

Page 49

Rosemount DP Flow

Rosemount 3051S/3051SFx

Rev 1.9

February 2017

European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at

Emerson.com/Rosemount

Ordinary Location Certification

Installing Equipment in North America

The US National Electrical Code (NEC) and the Canadian Electrical Code (CEC) permit the use of Division marked equipment in Zones and Zone marked equipment in Divisions. The markings must be suitable for the area classification, gas, and temperature class. This information is clearly defined in the respective codes.

USA

E5 FM Explosionproof (XP) and Dust-Ignitionproof (DIP)

Certificate: 3008216

Standards: FM Class 3600 – 2011, FM Class 3615 – 2006, FM Class 3616 – 2011, 3810 – 2005, ANSI/NEMA 250 – 2003

Markings: XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F,

G; CL III;T5(–50 °C Ta  +85 °C); Factory Sealed; Typ e 4X

I5 FM Intrinsic Safety (IS) and Nonincendive (NI)

Certificate: 3012350

Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004, FM Class 3810 – 2005, NEMA 250 –2003

Markings: IS CL I, DIV 1, GP A , B, C, D; CL II, DIV 1, GP E, F, G;

Class III; Class 1, Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D; T4(–50 °C T [HART]; T4(–50 °C  T [Fieldbus]; when connected per Rosemount drawing 03151-1006; Type 4X

Special Condition for Safe Use (X):

1. The Rosemount 3051S/3051S ERS Pressure Transmitter contains aluminum and is considered to constitute a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.

 +60 °C)

 +70 °C)

Note

Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using general Division 2 wiring methods or Nonincendive Field Wiring (NIFW). See Drawing 03151-1006.

IE FM FISCO

Certificate: 3012350

Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004, FM Class 3810 – 2005, NEMA 250 –2003

Markings: IS CL I, DIV 1, GP A, B, C, D;

(–50 °C  T Rosemount drawing 03151-1006; Type 4X

Special Condition for Safe Use (X):

 +60 °C); when connected per

Canada

E6 CSA Explosionproof, Dust-Ignitionproof, and Division 2

Certificate: 143113

Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

25-1966, CSA Std C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 213-M1987, ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05

Markings: Explosionproof Class I, Division 1, Groups B, C,

D; Dust-Ignitionproof Class II, Division 1, Groups E, F, G; Class III; suitable for Class I, Zone 1, Group IIB+H2, T5; suitable for Class I, Division 2, Groups A, B, C, D; suitable for Class I, Zone 2, Group IIC, T5; when connected per Rosemount drawing 03151-1013; Type 4X

I6 CSA Intrinsically Safe

Certificate: 1143113

Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05

Markings:Intrinsically Safe Class I, Division 1; Groups A, B,

C, D; suitable for Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing 03151-1016 [3051S] 03151-1313 [ERS]; Type 4X

Emerson.com/Rosemount

Page 50

February 2017

IF CSA FISCO

Certificate: 1143113

Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05

Markings: FISCO Intrinsically Safe Class I, Division 1; Groups

A, B, C, D; suitable for Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing 03151-1016 [3051S] 03151-1313 [ERS]; Type 4X

Europe

E1 ATE X Fl ameproof

Certificate: KEMA 00ATEX2143X

Standards: EN 60079-0:2012, EN 60079-1:2007, EN

60079-26:2007 (3051SFx models with RTD are certified to EN60079-0:2006)

Markings: II 1/2 G Ex d IIC T6…T4 Ga/Gb,

T6(–60 °C  T T5/T4(–60 °C Ta  +80 °C)

Temperature class Process temperature

Special Conditions for Safe Use (X):

1. The device contains a thin wall diaphragm. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer’s instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

2. For information on the dimensions of the flameproof joints, the manufacturer shall be contacted.

I1 ATEX Intrinsic Safety

Certificate: BAS01ATEX1303X

Standards: EN 60079-0:2012, EN 60079-11:2012

Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C  T

 +70 °C),

T6 –60 to +70 °C

T5 –60 to +80 °C

T4 –60 to +120 °C

 +70 °C)

Rosemount DP Flow

Model

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A;

30 V 300 mA 1.0 W 12 nF 0

3051SAL…C

3051S…F; 3051SF…F

30 V 300 mA 1.3 W 0 0

3051S …A…M7, M8, or M9; 3051SF…A…M7, M8, or M9;

30 V 300 mA 1.0 W 12 nF 60 H

3051SAL…C… M7, M8, or M9

3051SAL or 3051SAM

30 V 300 mA 1.0 W 12 nF 33 H

3051SAL…M7, M8, or M9 3051SAM…M7,

30 V 300 mA 1.0 W 12 nF 93 H

M8, or M9

RTD Option for 3051SF

5 V 500 mA 0.63 W N/A N/A

Special Conditions for Safe Use (X):

1. The Rosemount 3051S Transmitters fitted with transient protection are not capable of withstanding the 500 V test as defined in Clause 6.3.13 of EN 60079-11:2012. This must be taken into account during installation.

2. The terminal pins of the Rosemount 3051S SuperModule must be provided with a degree of protection of at least IP20 in accordance with IEC/EN 60529.

3. The Rosemount 3051S enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a zone 0 area.

IA ATE X FISCO

Certificate: BAS01ATEX1303X

Standards: EN 60079-0:2012, EN 60079-11:2012

Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C  T

Parameter

 +70 °C)

FISCO

Emerson.com/Rosemount

Voltage U

Current I

Power P

Capacitance C

Inductance L

17.5 V

380 mA

5.32 W

Page 51

Rosemount DP Flow

February 2017

Special Conditions for Safe Use (X):

2. The terminal pins of the Rosemount 3051S SuperModule must be provided with a degree of protection of at least IP20 in accordance with IEC/EN 60529.

ND ATE X Dust

Certificate: BAS01ATEX1374X

Standards: EN 60079-0:2012, EN 60079-31:2009

Markings: II 1 D Ex ta IIIC T105 °C T

(–20 °C  T

+85 °C), V

= 42.4 V

max

95 °C Da,

500

Special Conditions for Safe Use (X):

1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66.

2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66.

3. Cable entries and blanking plugs must be suitable for the ambient temperature range of the apparatus and capable of withstanding a 7 J impact test.

4. The SuperModule(s) must be securely screwed in place to maintain the ingress protection of the enclosure(s).

N1 ATEX Type n

Certificate: BAS01ATEX3304X

Standards: EN 60079-0:2012, EN 60079-15:2010

Markings: II 3 G Ex nA IIC T5 Gc, (–40 °C T

= 45 V

max

 +85 °C),

Special Condition for Safe Use (X):

1. The equipment is not capable of withstanding the 500 V insulation test required by clause 6.5 of EN 60079-15:2010. This must be taken into account when installing the equipment.

Note

RTD Assembly is not included with the Rosemount 3051SFx Type n Approval.

Temperature class Process temperature

T6 –60 to +70 °C

T5 –60 to +80 °C

T4 –60 to +120 °C

Special Conditions for Safe Use (X):

1. The device contains a thin wall diaphragm. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer’s instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

2. For information on the dimensions of the flameproof joints, the manufacturer shall be contacted.

Certificate: IECEx BAS 09.0014X (Dust)

Standards: IEC 60079-0:2011, IEC 60079-31:2008

Markings: Ex ta IIIC T105 °C T

(–20 °C  Ta  +85 °C), V

Special Conditions for Safe Use (X):

1. Cable entries must be used which maintain the ingress protection of the enclosure to at least IP66.

2. Unused cable entries must be filled with suitable blanking plugs which maintain the ingress protection of the enclosure to at least IP66.

3. Cable entries and blanking plugs must be suitable for the ambient temperature range of the apparatus and capable of withstanding a 7 J impact test.

4. The Rosemount 3051S- SuperModule must be securely screwed in place to maintain the ingress protection of the enclosure.

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 04.0017X

Standards: IEC 60079-0:2011, IEC 60079-11:2011

Markings: Ex ia IIC T4 Ga, T4(–60 °C  T

Model

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A;

30 V 300 mA 1.0 W 12 nF 0

3051SAL…C

95 °C Da,

500

max

= 42.4 V

 +70 °C)

International

E7 IECEx Flameproof and Dust

Certificate: IECEx KEM 08.0010X (Flameproof)

Standards: IEC 60079-0:2011, IEC 60079-1:2007, IEC

60079-26:2006, (3051SFx models with RTD are certified to IEC 60079-0:2004)

Markings: Ex d IIC T6…T4 Ga/Gb, T6(–60 °C  T

T5/T4(–60 °C  T

 +80 °C)

 +70 °C),

3051S…F; 3051SF…F

3051S …A…M7, M8, or M9; 3051SF…A…M7, M8, or M9; 3051SAL…C… M7, M8, or M9

30 V 300 mA 1.3 W 0 0

30 V 300 mA 1.0 W 12 nF 60 H

Emerson.com/Rosemount

Page 52

February 2017

Rosemount DP Flow

Model

3051SAL or 3051SAM

30 V 300 mA 1.0 W 12 nF 33 H

3051SAL…M7, M8, or M9 3051SAM…M7,

30 V 300 mA 1.0 W 12 nF 93 H

M8, or M9

RTD Option for 3051SF

5 V 500 mA 0.63 W N/A N/A

Special Conditions for Safe Use (X):

1. The Rosemount 3051S Transmitters fitted with transient protection are not capable of withstanding the 500 V test as defined in Clause 6.3.13 of IEC 60079-11:2011. This must be taken into account during installation.

2. The terminal pins of the Rosemount 3051S SuperModule must be provided with a degree of protection of at least IP20 in accordance with IEC/EN 60529.

I7 IECEx Intrinsic Safety – Group I - Mining

(I7 with Special A0259)

Certificate: IECEx TSA 14.0019X

Standards: IEC 60079-0:2011, IEC 60079-11:2011

Markings: Ex ia I Ma (–60 °C  T

Model

 +70 °C)

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A;

30 V 300 mA 1.0 W 12 nF 0

3051SAL…C

3051S…F; 3051SF…F

30 V 300 mA 1.3 W 0 0

3051S …A…M7, M8, or M9; 3051SF…A…M7 , M8, or M9;

30 V 300 mA 1.0 W 12 nF 60 H

3051SAL…C… M7, M8, or M9

3051SAL or 3051SAM

30 V 300 mA 1.0 W 12 nF 33 H

3051SAL…M7, M8, or M9 3051SAM…M7,

30 V 300 mA 1.0 W 12 nF 93 H

M8, or M9

RTD Option for 3051SF

5 V 500 mA 0.63 W N/A N/A

1. If the apparatus is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by clause 6.6.13 of IEC60079-11. This must be taken into account when installing the apparatus.

2. It is a condition of safe use that the following parameters shall be taken into account during installation.

3. It is a condition of manufacture that only the apparatus fitted with housings, junction boxes, covers and sensor module housings made out of stainless steel are used in Group I applications.

IG IECEx FISCO

Certificate: IECEx BAS 04.0017X Standards: IEC 60079-0:2011, IEC 60079-11:2011 Markings: Ex ia IIC T4 Ga, T4(–60 °C  Ta  +70 °C)

Special Conditions for Safe Use (X):

Parameter

Voltage U

Current I

Power P

Capacitance C

Inductance L

FISCO

17.5 V

380 mA

5.32 W

Special Conditions for Safe Use (X):

1. The Rosemount 3051S Transmitters fitted with transient protection are not capable of withstanding the 500 V test as defined in Clause 6.3.13 of IEC 60079-11:2011. This

must be taken into account during installation.

2. The terminal pins of the Rosemount 3051S SuperModule must be provided with a degree of protection of at least IP20 in accordance with IEC/EN 60529.

IG IECEx Intrinsic Safety – Group I – Mining

(IG with Special A0259)

Certificate: IECEx TSA 04.0019X

Standards: IEC 60079-0:2011, IEC 60079-11:2011

Markings: FISCO FIELD DEVICE Ex ia I Ma,

(–60 °C  Ta  +70 °C)

Parameter

Voltage U

Current I

Power P

Capacitance C

Inductance L

FISCO

17.5 V

380 mA

5.32 W

Emerson.com/Rosemount

Page 53

Rosemount DP Flow

February 2017

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by Clause 6.3.13 of IEC60079-11. This must be taken into account when installing the apparatus.

2. It is a condition of safe use that the above input parameters shall be taken into account during installation.

3. It is a condition of manufacture that only the apparatus fitted with housing, covers and sensor module housing made out of stainless steel are used in Group I applications.

N7 IECEx Type n

Certificate: IECEx BAS 04.0018X

Standards: IEC 60079-0:2011, IEC 60079-15:2010

Markings: Ex nA IIC T5 Gc, (–40 °C  T

 +85 °C)

Special Condition for Safe Use (X):

1. The equipment is not capable of withstanding the 500 V insulation test required by clause 6.5 of EN 60079-15:2010. This must be taken into account when installing the equipment.

Brazil

E2 INMETRO Flameproof

Certificate: UL-BR15.0393X

Standards: ABNT NBR IEC 60079-0:2008 + Corrigendum

1:2011, ABNT NBR IEC 60079-1:2009 + Corrigendum 1:2011, ABNT NBR IEC 60079-26:2008 + Corrigendum 1:2008

Markings: Ex d IIC T* Ga/Gb, T6(–60 °C  T

T5/T4(–60 °C  Ta  +80 °C), IP66

Special Conditions for Safe Use (X):

2. For information on the dimensions of the flameproof joints, the manufacturer shall be contacted.

I2/IB INMETRO Intrinsic Safety/FISCO

Certificate: UL-BR 15.0392X

Standards: ABNT NBR IEC 60079-0:2008 + Corrigendum

1:2011, ABNT NBR IEC 60079-11:2009

Markings: Ex ia IIC T4 Ga, T4(–60 °C  T

Special Condition for Safe Use (X):

1. The Rosemount 3051S enclosure may be made of aluminium alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in areas that requires EPL Ga.

 +70 °C),

 +70 °C), IP66

Model

SuperModule 30 V 300 mA 1.0 W 30 nF 0

3051S...A; 3051SF…A; 3051SAL…C

3051S…F; 3051SF…F

3051S…F…IB; 3051SF…F…IB

3051S…A…M7, M8, or M9; 3051SF…A…M7, M8, or M9; 3051SAL…C… M7, M8, or M9

3051SAL or 3051SAM

3051SAL…M7, M8, or M9 3051SAM…M7, M8, or M9

RTD Option for 3051SF

30 V 300 mA 1.0 W 11.4 nF 0

30 V 300 mA 1.3 W 0 0

17.5V 380 mA 5.32 W 0 0

30 V 300 mA 1.0 W 11.4 nF 60 H

30 V 300 mA 1.0 W 11.4 nF 33 H

30 V 300 mA 1.0 W 11.4 nF 93 H

5 V 500 mA 0.63 W N/A N/A

China

E3 China Flameproof and Dust Ignition-proof

Certificate: 3051S: GYJ16.1249X

3051SFx: GYJ11.1711X 3051S-ERS: GJY15.1406X

Standards: 3051S: GB3836.1-2010, GB3836.2-2010,

GB3836.20-2010, GB12476.1-2013, GB12476.5-2013 3051SFx: GB3836.1-2010, GB3836.2-2010, GB3836.20-2010, GB12476.1-2000 3051S-ERS: GB3836.1-2010, GB3836.2-2010, GB3836.20-2010

Markings: 3051S: Ex d IIC T6…T4; Ex tD A20 T 105 °C

95 °C; IP66

500

3051SFx: Ex d IIC T5/T6 Ga/Gb; DIP A20 T 105 °C; IP66 3051S-ERS: Ex d IIC T4

T6 Ga/Gb

Special Conditions for Safe Use (X):

1. Only the pressure transmitters, consisting of Rosemount 3051SC Series, 3051ST Series, 3051SL Series and 300S Series, are certified.

2. The ambient temperature range is (–20

+60) °C.

3. The ambient temperature range for the Rosemount 3051S in a dust environment is –20 °C  Ta 95 °C.

4. The relation between temperature class and maximum temperature of process medium is as follows:

Emerson.com/Rosemount

Page 54

February 2017

Temperature

class

T5  95 °C

T4  130 °C

T3  190 °C

Temperature

class

T6 –60 °C Ta  +70 °C –60 °C Ta  +70 °C

T5 –60 °C T

T4 –60 °C T

5. The earth connection facility in the enclosure should be connected reliably.

6. During installation, use and maintenance of transmitter, observe the warning “Don’t open the cover when the circuit is alive.”

7. During installation, there should be no mixture harm to flameproof housing.

8. Cable entry, certified by NEPSI with type of protection Ex d IIC in accordance with GB3836.1-2000 and GB3836.2-2000, should be applied when installation in hazardous location. Five full threads should be in engagement when the cable entry is assembled onto the transmitter. When pressure transmitter is used in the presence of combustible dust, the ingress of protection of the cable entry should be IP66.

Temperature of process medium

Ambient

temperature (°C)

 + 80 °C –60 °C Ta  + 80 °C

 +80 °C –60 °C Ta  +120 °C

Process

temperature (°C)

Rosemount DP Flow

GB12476.2-2006 “Electrical apparatus for use in the presence of combustible dust – Part 1-2: Electrical apparatus protected by enclosures and surface temperature limitation – Selection, installation and maintenance”

I3 China Intrinsic Safety

Certificate: 3051S: GYJ16.1250X [Mfg USA, China,

Singapore] 3051SFx: GYJ11.1707X [Mfg USA, China, Singapore] 3051S-ERS: GYJ16.1248X [Mfg USA, China, Singapore]

Standards: 3051S: GB3836.1-2010, GB3836.4-2010,

GB3836.20-2010 3051SFx: GB3836.1/4-2010, GB3836.20-2010, GB12476.1-2000 3051S-ERS: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010

Markings: 3051S, 3051SFx: Ex ia IIC T4 Ga

3051S-ERS: Ex ia IIC T4

Special Conditions for Safe Use (X):

1. Symbol “X” is used to denote specific conditions of use: For output code A and F: This apparatus is not capable of withstanding the 500 V r.m.s. insulation test required by Clause 6.4.12 of GB3836.4-2000.

2. The ambient temperature range is:

Output code Ambient temperature

A –50 °C  Ta +70 °C

F –50 °C  Ta +60 °C

9. The diameter of cable should observe the instruction manual of cable entry. The compressing nut should be fastened. The aging of seal ring should be changed in time.

10. Maintenance should be done in non-hazardous location.

11. End users are not permitted to change any components inside.

12. When installation, use and maintenance of transmitter, observe following standards:

GB3836.13-1997 “Electrical apparatus for explosive gas atmospheres Part 13: Repair and overhaul for apparatus used in explosive gas atmospheres”

GB3836.15-2000 “Electrical apparatus for explosive gas atmospheres Part 15: Electrical installations in hazardous area (other than mines)”

GB50257-1996 “Code for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”

GB15577-1995 “Safe regulation for explosive dust atmospheres”

3. Intrinsically safe parameters:

(W)

Maximum

internal

parameters:

(nF)

Maximu

Output

Housing

code

A =00 / 30 300 1 38 0

A 00 / 30 300 1 11.4 2.4

A00

F 00 / 30 300 1.3 0 0

FISCO

Display

code

00 / 17.5 500 5.5 0 0

code

M7/ M8/ M9

m input voltage:

Maximu m input current:

(V)

30 300 1 0 58.2

(mA)

Maximu m input

power:

4. The product should be used with Ex-certified associated apparatus to establish explosion protection system that can be used in explosive gas atmospheres. Wiring and terminals should comply with the instruction manual of the product and associated apparatus.

(uH)

Emerson.com/Rosemount

Page 55

Rosemount DP Flow

February 2017

5. The cable between this product and associated apparatus should be shielded cables (the cables must have insulated shield). The shield has to be grounded reliably in non-hazardous area.

6. The product complies to the requirements for FISCO field devices specified in IEC60079-27:2008. For the connection of an intrinsically safe circuit in accordance FISCO model, FISCO parameters of this product are as above.

7. End users are not permitted to change any components inside, but to settle the problem in conjunction with manufacturer to avoid damage to the product.

8. When installation, use and maintenance of this product, observe the following standards:

GB3836.13-1997 “Electrical apparatus for explosive gas atmospheres Part 13: Repair and overhaul for apparatus used in explosive gas atmospheres”

GB3836.15-2000 “Electrical apparatus for explosive gas atmospheres Part 15: Electrical installations in hazardous area (other than mines)”

GB3836.16-2006 “Electrical apparatus for explosive gas atmospheres Part 16: Inspection and maintenance of electrical installation (other than mines)”

GB50257-1996 “Code for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”

N3 China Type n

Certificate: 3051S: GYJ15.1106X [Mfg China]

3051SF: GYJ15.1107X [Mfg China]

Markings: Ex nA IIC T5 Gc

Special Conditions for Safe Use (X):

1. The ambient temperature range is: –40 °C  T

2. Maximum input voltage: 45 V

3. Cable glands, conduit or blanking plugs, certified by NEPSI with Ex e or Ex n protection type and IP66 degree of protection provided by enclosure, should be used on external connections and redundant cable entries.

4. Maintenance should be done in non-hazardous location.

5. End users are not permitted to change any components inside, but to settle the problem in conjunction with manufacturer to avoid damage to the product.

When installation, use and maintenance of this product, observe following standards:

GB3836.13-2013 “Electrical apparatus for explosive gas atmospheres Part 13: Repair and overhaul for apparatus used in explosive gas atmospheres”

GB3836.15-2000 “Electrical apparatus for explosive gas atmospheres Part 15: Electrical installations in hazardous area (other than mines)”

 85 °C.

GB3836.16-2006 “Electrical apparatus for explosive gas atmospheres Part 16: Inspection and maintenance of electrical installation (other than mines)”

GB50257-1996 “Code for construction and acceptance of electric device for explosion atmospheres and fire hazard electrical equipment installation engineering”

EAC – Belarus, Kazakhstan, Russia

EM Technical Regulation Customs Union (EAC) Flameproof

Certificate: RU C-US.AA87.B.00094

Markings: Ga/Gb Ex d IIC T6…T4 X

IM Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate: RU C-US.AA87.B.00094

Markings: 0Ex ia IIC T4 Ga X

Japan

E4 Japan Flameproof

Certificate: TC15682, TC15683, TC15684, TC15685,

TC15686, TC15687, TC15688, TC15689, TC15690, TC17099, TC17100, TC17101, TC17102, TC18876

3051ERS: TC20215, TC20216, TC20217, TC20218,

TC20219, TC20220, TC20221

Markings: Ex d IIC T6

Republic of Korea

EP Republic of Korea Flameproof

Certificate: 12-KB4BO-0180X [Mfg USA],

11-KB4BO-0068X [Mfg Singapore]

Markings: Ex d IIC T5 or T6

IP Republic of Korea Intrinsic Safety

Certificate: 12-KB4BO-0202X [HART – Mfg USA],

12-KB4BO-0204X [Fieldbus – Mfg USA], 12-KB4BO-0203X [HART – Mfg Singapore], 13-KB4BO-0296X [Fieldbus – Mfg Singapore]

Markings: Ex d IIC T4

Combinations

K1 Combination of E1, I1, N1, and ND

K2 Combination of E2 and I2

K5 Combination of E5 and I5

K6 Combination of E6 and I6

K7 Combination of E7, I7, and N7

KA Combination of E1, I1, E6, and I6

KB Combination of E5, I5, E6, and I6

KC Combination of E1, I1, E5, and I5

KD Combination of E1, I1, E5, I5, E6, and I6

KG Combination of IA, IE, IF, and IG

KM Combination of EM and IM

KP Combination of EP and IP

Emerson.com/Rosemount

Page 56

February 2017

Additional Certifications

SBS American Bureau of Shipping (ABS) Type Approval

Certificate: 00-HS145383-6-PDA

Intended Use: Measure gauge or absolute pressure of liquid, gas or vapor applications on AB classed vessels, marine, and offshore installations.

SBV Bureau Veritas (BV) Type Approval

Certificate: 31910 BV

Requirements: Bureau Veritas Rules for the Classification of

Steel Ships

Application: Class Notations: AUT-UMS, AUT-CCS,

AUT-PORT, and AUT-IMS

SDN Det Norske Veritas (DNV) Type Approval

Certificate: A-14186

Intended Use: Det Norske Veritas’ Rules for Classification of

Ships, High Speed and Light Craft, and Det Norske Veritas’ Offshore Standards

Application:

Location classes

Rosemount DP Flow

Typ e 3051S

Tem pe ra tu re D

Humidity B

Vibration A

EMC A

Enclosure D/IP66/IP68

SLL Lloyds Register (LR) Type Approval

Certificate: 11/60002

Application: Environmental categories ENV1, ENV2, ENV3,

and ENV5

D3 Custody Transfer – Measurement Canada Accuracy

Approval [3051S only]

Certificate: AG-0501, AV-2380C

Emerson.com/Rosemount

Page 57

Rosemount DP Flow

Rosemount 3051S and 3051SMV Wireless

Rev 2.2

European Directive Information

A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at

Emerson.com/Rosemount

Telecommunication Compliance

All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification.

Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.

FCC and IC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. This device must be installed to ensure a minimum antenna separation distance of 20 cm from all persons.

Ordinary Location Certification

Installing Equipment in North America

USA

I5 USA Intrinsically Safe (IS), Nonincendive (NI), and

Dust-Ignitionproof (DIP)

Certificate: FM 3027705

Standards: FM Class 3600 – 2011, FM Class 3610 – 2010,

FM Class 3611 – 2004, FM Class 3810 – 2005, NEMA 250 – 2003

Markings: IS CL I, DIV 1, GP A , B, C, D; CL II, DIV 1, GP E, F, G;

CL III T4; CL 1, Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D T4; DIP CL II, DIV 1, GP E, F, G; CL III, T5; T4(–50 °C  T T5(–50 °C  T Rosemount drawing 03151-1000; Type 4X

 +70 °C)/

+85 °C); when connected per

February 2017

Special Conditions for Safe Use (X):

1. The Rosemount 3051S and SMV Wireless Transmitters shall only be used with the 701PBKKF Rosemount SmartPower Battery Pack or alternatively the perpetuum intelligent power module vibration harvester.

2. The transmitter may contain more than 10% aluminum and is considered a potential risk of ignition by impact or friction.

3. The surface resistivity of the antenna is greater than 1 G. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

Canada

I6 Canada Intrinsically Safe

Certificate: CSA 1143113

Standards:CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No.

30-M1986, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05

Markings: Intrinsically Safe Class I, Division 1; suitable for

Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing 03151-1010; Type 4X

Europe

I1 ATEX Intrinsic Safety

Certificate: Baseefa13ATEX0127X

Standards: EN 60079-0:2012, EN 60079-11:2012

Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C  T

Special Conditions for Safe Use (X):

1. The Rosemount 3051S Wireless and 3051SMV Wireless enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a zone 0 area.

2. The surface resistivity of the antenna is greater than 1 G. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or dry cloth.

+70 °C)

International

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 13.0068X

Standards: IEC 60079-0:2011, IEC 60079-11:2011

Markings: Ex ia IIC T4 Ga, T4(–60 °C  T

 +70 °C)

Emerson.com/Rosemount

Page 58

February 2017

Rosemount DP Flow

Special Conditions for Safe Use (X):

2. The surface resistivity of the antenna is greater than 1G. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or dry cloth.

Brazil

I2 INMETRO Intrinsic Safety

Certificate: UL-BR 14.0760X

Standards: ABNT NBR IEC60079-0:2008 + Errata 1:2011,

ABNT NBR IEC60079-11:2009

Markings: Ex ia IIC T4 Ga, T4(–60 °C  T

Special Condition for Safe Use (X):

1. See certificate.

 +70 °C)

China

I3 China Intrinsic Safety

Certificate: 3051S Wireless: GYJ161250X

3051SFX: GYJ11.1707X [Flowmeters]

Standards:GB3836.1-2010, GB3836.4-2010,

GB3836.20-2010

Markings: Ex ia IIC T4 Ga, T4(–60

Special Condition for Safe Use (X):

1. See appropriate certificate.

Note

Not currently available on the Rosemount 3051S MultiVariable Wireless Transmitter.

70 °C)

Japan

I4 TIIS Intrinsically Safe

Certificate: TC18649, TC18650, TC18657 Markings: Ex ia IIC T4, T4(–20 ~ 60 °C)

Note

Not currently available on the Rosemount 3051S MultiVariable Wireless Transmitter.

EAC – Belarus, Kazakhstan, Russia

IM EAC Intrinsic Safety

Certificate: RU C-US.AA87.B.00094

Markings: 0Ex ia IIC T4 Ga X (–60 °C  T

Special Condition for Safe Use (X):

1. See certificate for special conditions.

+70 °C)

Republic of Korea

IP Korea Intrinsic Safety

Certificates: 12-KB4BO-0202X, 12-KB4BO-0203X

Markings: Ex ia IIC T4, (–60 °C  T

Special Condition for Safe Use (X):

1. See certificate for special conditions.

Note

Not currently available on the Rosemount 3051S MultiVariable Wireless Transmitter.

 +70 °C)

Combinations

KQ Combination of I1, I5, and I6

Emerson.com/Rosemount

Page 59

February 2017

Rosemount 3051CF Flowmeter Series

Rosemount 3051CFA Annubar Flowmeter

The Rosemount 3051CFA Annubar Flowmeter utilizes the T-shaped sensor design that delivers best in class accuracy and performance while meeting the needs of diverse process applications, whether it is high accuracy for precision control or high strength for severe flow applications. Main capabilities include:

 Up to 1.8 percent of flow rate accuracy

 Available in 2- to 96-in. (50 to 2400 mm) line sizes

 Fully assembled and leak tested for out-of-the-box installation

 Power advisory can proactively detect degraded electrical loop integrity issues

(option code DA0)

 Local Operator Interface (LOI) with straightforward menus and built-in

configuration buttons (option code M4)

Additional information:

Specifications: page 83 Certifications: page 91 Dimensional drawings: page 203

See “Specifications” on page -83 and options for more details on each configuration.

Rosemount DP Flow

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Model Product description

3051CFA Rosemount Annubar Flowmeter

Measurement type

D Differential Pressure ★

Fluid type

L Liquid ★

G Gas ★

S Steam ★

Line size

020 2-in. (50 mm) ★

025 21/2-in. (63.5 mm) ★

030 3-in. (80 mm) ★

035 31/2-in. (89 mm) ★

040 4-in. (100 mm) ★

050 5-in. (125 mm) ★

060 6-in. (150 mm) ★

070 7-in. (175 mm) ★

Emerson.com/Rosemount

Page 60

Rosemount DP Flow

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

080 8-in. (200 mm) ★

100 10-in. (250 mm) ★

120 12-in. (300 mm) ★

140 14-in. (350 mm)

160 16-in. (400 mm)

180 18-in. (450 mm)

200 20-in. (500 mm)

240 24-in. (600 mm)

300 30-in. (750 mm)

360 36-in. (900 mm)

420 42-in. (1066 mm)

480 48-in. (1210 mm)

600 60-in. (1520 mm)

February 2017

720 72-in. (1820 mm)

780 78-in (1950 mm)

840 84-in. (2100 mm)

900 90-in. (2250 mm)

960 96-in (2400 mm)

Pipe I.D. range (see “Pipe I.D. range code for Rosemount Annubar Flowmeters and Primary Elements” on page 143)

C Range C from the pipe I.D. table ★

D Range D from the pipe I.D. table ★

A Range A from the pipe I.D. table

B Range B from the pipe I.D. table

E Range E from the pipe I.D. table

Z Non-standard pipe I.D. range or line sizes greater than 12 inches

Pipe material/mounting assembly material

C Carbon steel (A105) ★

S 316 Stainless steel ★

0 No mounting (customer supplied) ★

G Chrome-moly grade F-11

N Chrome-moly grade F-22

J Chrome-moly grade F-91

Piping orientation

H Horizontal piping ★

D Vertical piping with downwards flow ★

U Vertical piping with upwards flow ★

Emerson.com/Rosemount

Page 61

February 2017

Rosemount DP Flow

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount Annubar type

P Pak-Lok ★

F Flanged with opposite side support ★

L Flange-Lok

G Gear-Drive Flo-Tap

M Manual Flo-Tap

Sensor material

S 316 stainless steel ★

H Alloy C-276

Sensor size

1 Sensor size 1 — line sizes 2- to 8-in. (50 to 200 mm) ★

2 Sensor size 2 — line sizes 6- to 96-in. (150 to 2400 mm) ★

3 Sensor size 3 — line sizes greater than 12-in. (300 mm)

Mounting type

T1 Compression or threaded connection ★

A1 Class 150 RF ANSI ★

A3 Class 300 RF ANSI ★

A6 Class 600 RF ANSI ★

D1 DN PN16 flange ★

D3 DN PN40 flange ★

D6 DN PN100 flange ★

(1)

R1 Class 150 RTJ ANSI flange

R3 Class 300 RTJ ANSI flange

R6 Class 600 RTJ ANSI flange

(1)

Class 900 RF ANSI

Class 1500 RF ANSI

Class 2500 RF ANSI

Class 900 RTJ ANSI flange

Class 1500 RTJ ANSI flange

Class 2500 RTJ ANSI flange

Opposite side support or packing gland

0 No opposite side support or packing gland (required for Pak-Lok and Flange-Lok models) ★

Opposite side support – required for flanged models

C NPT threaded opposite support assembly – extended tip ★

D Welded opposite support assembly – extended tip ★

Emerson.com/Rosemount

Page 62

Rosemount DP Flow

February 2017

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Packing gland – required for Flo-Tap models

Packing Gland Material Rod material Packing material

(2)

Stainless steel packing gland/cage nipple Carbon steel PTFE

Stainless steel packing gland/cage nipple Stainless steel PTFE

Stainless steel packing gland/cage nipple Carbon steel Graphite

Stainless steel packing gland/cage nipple Stainless steel Graphite

R Alloy C-276 packing gland/cage nipple Stainless steel Graphite

Isolation valve for Flo-Tap models

0 Not applicable or customer supplied ★

1 Gate valve, carbon steel

2 Gate valve, stainless steel

5 Ball valve, carbon steel

6 Ball valve, stainless steel

Temperature measurement

T Integral RTD – not available with Flanged model greater than Class 600 ★

0 No temperature sensor ★

R Remote thermowell and RTD

Transmitter connection platform

3 Direct-mount, Integral 3-valve manifold– not available with flanged model greater than Class 600 ★

5 Direct -mount, 5-valve manifold – not available with flanged model greater than Class 600 ★

7 Remote-mount NPT connections (1/2 NPT) ★

6 Direct-mount, high temperature 5-valve manifold – not available with flanged model greater than Class 600

8 Remote-mount SW connections (1/2-in.)

Differential pressure range

1 0 to 25 in H2O (0 to 62,16 mbar) ★

2 0 to 250 in H2O (0 to 621,60 mbar) ★

3 0 to 1000 in H2O (0 to 2,48 bar) ★

Transmitter output

(3)

F FOUNDATION Fieldbus Protocol ★

(4)

(5)

(6)

4–20 mA with digital signal based on HART Protocol ★

PROFIBUS PA Protocol ★

Wireless (requires wireless options and engineered polymer housing) ★

Low-power 1–5 Vdc with digital signal based on HART Protocol

Emerson.com/Rosemount

Page 63

February 2017

Rosemount DP Flow

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Transmitter housing material Conduit entry size

A Aluminum

B Aluminum M20 ⫻ 1.5 ★

J SST

K SST M20 ⫻ 1.5 ★

(7)

(8)

Engineered polymer No conduit entries ★

Aluminum G1/2

SST G1/2

/2–14 NPT ★

Transmitter performance class

1 1.8% flow rate accuracy, 8:1 flow turndown, 10-yr. stability ★

Wireless options (requires Wireless Output Code X and Engineered Polymer Housing Code P)

Wireless transmit rate, operating frequency, and protocol

WA3 User configurable transmit Rate, 2.4GHz WirelessHART ★

Antenna and SmartPower

WP5 Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately) ★

Options (include with selected model number)

Extended product warranty

WR3 3-year limited warranty ★

WR5 5-year limited warranty ★

Pressure testing

(9)

P1 Hydrostatic testing with certificate

PX Extended hydrostatic testing

Special cleaning

P2 Cleaning for special services

PA Cleaning per ASTM G93 level D (Section 11.4)

Material testing

V1 Dye penetrant exam

Material examination

V2 Radiographic examination

Flow calibration

W1 Flow calibration (average K)

Special inspection

QC1 Visual and dimensional inspection with certificate ★

QC7 Inspection and performance certificate ★

Emerson.com/Rosemount

Page 64

Rosemount DP Flow

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

February 2017

Surface finish

RL Surface finish for low pipe Reynolds number in gas and steam ★

RH Surface finish for high pipe Reynolds number in liquid ★

Material traceability certification

Q8 Material Traceability Certification per EN 10474:2004 3.1 ★

Code conformance

J2 ANSI/ASME B31.1

J3 ANSI/ASME B31.3

Materials conformance

J5 NACE MR-0175/ISO 15156

(11)

(12)

(10)

Country certification

J6 European Pressure Directive (PED) ★

J1 Canadian Registration

Installed in flanged pipe spool section

H3 Class 150 flanged connection with Rosemount standard length and schedule

H4 Class 300 flanged connection with Rosemount standard length and schedule

H5 Class 600 flanged connection with Rosemount standard length and schedule

Instrument connections for remote mount options

G2 Needle valves, stainless steel ★

G6 OS and Y gate valve, stainless steel ★

G1 Needle valves, carbon steel

G3 Needle valves, alloy C-276

G5 OS and Y gate valve, carbon steel

G7 OS and Y gate valve, alloy C-276

Special shipment

Y1 Mounting hardware shipped separately ★

Special dimensions

VM Variable mounting

VT Variable tip

VS Variable length spool section

PlantWeb control functionality

(13)

A01 FOUNDATION Fieldbus Control Function Block Suite ★

PlantWeb diagnostic functionality

(14)

DA0

D01

(13)

Power Advisory HART Diagnostic ★

FOUNDATION Fieldbus Diagnostics Suite ★

Emerson.com/Rosemount

Page 65

February 2017

Rosemount DP Flow

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Product certifications

E8 ATEX Flameproof, Dust ★

(15)

IA ATEX FISCO Intrinsic Safety ★

N1 ATEX Type n and Dust ★

K8 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1) ★

E5 FM Explosion-proof, Dust Ignition-proof ★

(16)

IE FM FISCO Intrinsically Safe ★

K5 FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of E5 and I5) ★

C6 CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 ★

(7)

K6 CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1) ★

E7 IECEx Flameproof, Dust Ignition-proof ★

ATEX Intrinsic Safety and Dust ★

FM Intrinsically Safe, Nonincendive ★

CSA Intrinsically Safe ★

I7 IECEx Intrinsic Safety ★

N7 IECEx Type n ★

K7 IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7) ★

E2 INMETRO Flameproof ★

I2 INMETRO Intrinsic Safety ★

IB INMETRO FISCO intrinsically safe ★

K2 INMETRO Flameproof, Intrinsic Safety ★

E3 China Flameproof ★

I3 China Intrinsic Safety ★

KB FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of K5 and C6) ★

KD CSA, FM, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8) ★

EM Technical Regulations Custom Union (EAC) Flameproof ★

IM Technical Regulations Custom Union (EAC) Intrinsic Safety ★

KM Technical Regulations Custom Union (EAC) Flameproof, Intrinsic Safety (combination of EM and IM) ★

Sensor fill fluid and O-ring options

(17)

L2 Graphite-filled (PTFE) O-ring ★

(17)

Shipboard approvals

Inert sensor fill fluid (silicone fill fluid is standard) ★

Inert sensor fill fluid and graphite-filled (PTFE) O-ring ★

(17)

SBS American Bureau of Shipping ★

(18)

SLL

Lloyds Register (LR)

Emerson.com/Rosemount

Page 66

Rosemount DP Flow

February 2017

Table 7. Rosemount 3051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Display and interface options

(19)

LCD display with LOI ★

M5 LCD display ★

Transmitter calibration certification

Q4 Calibration Certificate for Transmitter ★

Quality certification for safety

(14)

QS Prior-use certificate of FMEDA data ★

QT Safety certified to IEC 61508 with certificate of FMEDA ★

Transient protection

(17)(20)

T1 Transient terminal block ★

Manifold for remote mount option

F2 3-valve manifold, stainless steel ★

F6 5-valve manifold, stainless steel ★

F1 3-valve manifold, carbon steel

F3 3-valve manifold, alloy C-276

F5 5-valve manifold, carbon steel

F7 5-valve manifold, alloy C-276

Lower power output

C2 0.8–3.2 Vdc output with digital signal based on HART Protocol (available with output code M only)

Alarm levels

(14)

C4 NAMUR alarm and saturation levels, high alarm ★

CN NAMUR alarm and saturation levels, low alarm ★

CR Custom alarm and saturation signal levels, high alarm ★

CS Custom alarm and saturation signal levels, low alarm ★

CT Rosemount Standard low alarm ★

Configuration buttons

(14)

(21)

Ground screw

Analog zero and span ★

Digital zero trim ★

(17)(22)

V5 External ground screw assembly ★

HART Revision configuration (requires HART Protocol Output Code A)

(3)

HR5 Configured for HART Revision 5 ★

HR7 Configured for HART Revision 7 ★

Typical model number: 3051CFA D L 060 D C H P S 2 T1 0 0 0 3 2 A A 1

Emerson.com/Rosemount

Page 67

February 2017

1. Available in remote mount applications only.

2. The cage nipple is constructed of 304 SST.

3. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.

4. For local addressing and configuration, M4 (LOI) is required.

5. Requires wireless options and engineered polymer housing. Available approvals are FM Intrinsically Safe, (option code I5), CSA Intrinsically Safe (option code I6), ATEX Intrinsic Safety (option code I1), and IECEx Intrinsic Safety (option code I7).

6. Only available with C6, E2, E5, I5, K5, KB and E8 approval. Not available with GE, GM, SBS, DA0, M4, D4, DZ, QT, HR5, HR7, CR, CS, CT.

7. Only available with wireless (output code X).

8. Transmitter conduit entry will be K6, E7, K7, E2, K2, E3, KB, KD.

9. Applies to assembled flowmeter only, mounting not tested.

10. Inst rument connections for remote mount options and isolation valves for Flo-tap Models are not included in the Material Traceability Certification.

11. Not available with transmitter connection platform 6.

12. Materials of construction comply with metallurgical requirements within NACE MR0175/ISO for sour oil field production environments. E nvironmental limits appl y to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

13. Only valid with F

14. Only available with 4–20 mA HART (output code A).

15. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless” on page 97 for wireless approvals

16. Nonincendive certification not provided with Wireless output option code (X).

17. Not available with Wireless (output code X).

18. Only available with product certifications E7, E8, I1, I7, IA, K7, K8, KD, N1, N7

19. Not available with F

20. The T1 option is not needed with FISCO Product Certifications, transient protection is included with the FISCO Product Certification codes IA, IB, and IE.

21. Only available with 4–20 mA HART Output (output code A) and Wireless (output code X).

22. The V5 option is not needed with the T1 option; external ground screw assembly is included with the T1 option.

OUNDATION Fieldbus (output code F).

OUNDATION Fieldbus (output code F) or wireless (output code X) or low power (output code M).

/2 NPT and a 1/2 NPT to G1/2 thread adapter will be provided. Not available with Product certifications options E8, K8, E5, K5, C6,

Rosemount DP Flow

Emerson.com/Rosemount

Page 68

Rosemount DP Flow

February 2017

Rosemount 3051CFC Compact Flowmeter ordering information

 Compact conditioning flowmeters reduce straight piping requirements to 2D upstream and 2D downstream from

most disturbances.

 Simple installation of compact flowmeters between any existing raised-face flanges

Table 8. Rosemount 3051CFC Compact Flowmeter Ordering Information

★The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Model Product description

3051CFC Compact Flowmeter

Measurement type

D Differential Pressure ★

Primary element technology

A Rosemount Annubar Averaging pitot tube ★

C Conditioning orifice plate ★

P Orifice plate ★

Material type

S 316 SST ★

Line size

(1)

005

(1)

010

(1)

015

020 2-in. (50 mm) ★

030 3-in. (80 mm) ★

040 4-in. (100 mm) ★

060 6-in. (150 mm) ★

080 8-in. (200 mm) ★

(2)(3)

100

(2)(3)

120

/2-in. (15 mm) ★

1-in. (25 mm) ★

11/2-in. (40 mm) ★

10-in. (250 mm) ★

12-in. (300 mm) ★

Primary element type

N000 Rosemount Annubar sensor size 1 ★

N040 0.40 Beta ratio ★

N050 0.50 Beta ratio ★

(4)

N065

0.65 Beta ratio ★

Temperature measurement

0 No temperature sensor ★

R Remote thermowell and RTD

(5)

Integral temperature

Emerson.com/Rosemount

Page 69

February 2017

Rosemount DP Flow

Table 8. Rosemount 3051CFC Compact Flowmeter Ordering Information

★The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Transmitter connection platform

3 Direct-mount, integral 3-valve manifold ★

7 Remote-mount, NPT connections ★

Differential pressure range

1 0 to 25 inH2O (0 to 62,16 mbar) ★

2 0 to 250 inH2O (0 to 621,60 mbar) ★

3 0 to 1000 inH2O (0 to 2,48 bar) ★

Transmitter output

(6)

F FOUNDATION Fieldbus Protocol ★

(7)

(8)

(9)

4–20 mA with digital signal based on HART Protocol ★

PROFIBUS PA Protocol ★

Wireless (requires wireless options and engineered polymer housing) ★

Low-power 1–5 Vdc with Digital Signal Based on HART Protocol

Transmitter housing material Conduit entry size

A Aluminum

B Aluminum M20 ⫻ 1.5 ★

J SST

K SST M20 ⫻ 1.5 ★

(10)

(11)

Engineered polymer No conduit entries ★

Aluminum G1/2

SST G1/2

/2–14 NPT ★

Transmitter performance class

1 Up to ±1.65 percent flow rate accuracy, 8:1 flow turndown, 10-year stability ★

Wireless options (requires Wireless output code X and engineered polymer housing code P)

Wireless transmit rate, operating frequency, and protocol

WA3 User configurable transmit rate, 2.4GHz WirelessHART ★

Antenna and SmartPower

WP5 Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately) ★

Options (include with selected model number)

Extended product warranty

WR3 3-year limited warranty ★

WR5 5-year limited warranty ★

Emerson.com/Rosemount

Page 70

Rosemount DP Flow

Table 8. Rosemount 3051CFC Compact Flowmeter Ordering Information

★The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

February 2017

Installation accessories

AB ANSI alignment ring (Class 150) (only required for 10- and 12-in. [250 and 300 mm] line sizes) ★

AC ANSI alignment ring (Class 300) (only required for 10- and 12-in. [250 and 300 mm] line sizes) ★

AD ANSI alignment ring (Class 600) (only required for 10- and 12-in. [250 and 300 mm] line sizes) ★

DG DIN alignment ring (PN16) ★

DH DIN alignment ring (PN40) ★

DJ DIN alignment ring (PN100) ★

JB JIS alignment ring (10K)

JR JIS alignment ring (20K)

JS JIS alignment ring (40K)

Remote adapters

FE Flange adapters 316 SST (1/2 NPT) ★

High temperature application

HT Graphite valve packing (T

Flow calibration

WC Flow calibration, 3 pt, conditioning orifice option C (all pipe schedules)

(13)

(12)

Flow calibration, 10 pt, conditioning option C (all schedules), Rosemount Annubar option A (schedule 40)

= 850 °F)

max

Pressure testing

P1 Hydrostatic testing with certificate

Special cleaning

P2 Cleaning for special services

PA Cleaning per ASTM G93 Level D (section 11.4)

(14)

Special inspection

QC1 Visual and dimensional inspection with certificate ★

QC7 Inspection and performance certificate ★

Transmitter calibration certification

Q4 Calibration certificate for transmitter ★

Quality certification for safety

QS Prior-use certificate of FMEDA data ★

QT Safety certified to IEC 61508 with certificate of FMEDA ★

(15)

Material traceability certification

Q8 Material Traceability Certification per EN 10204:2004 3.1 ★

Emerson.com/Rosemount

Page 71

February 2017

Rosemount DP Flow

Table 8. Rosemount 3051CFC Compact Flowmeter Ordering Information

★The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Code conformance

J2 ANSI/ASME B31.1

J3 ANSI/ASME B31.3

J4 ANSI/ASME B31.8

Materials conformance

(16)

J5 NACE MR-0175/ISO 15156

Country certification

J1 Canadian registration

Product certifications

E8 ATEX Flameproof, Dust ★

(17)

IA ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus or PROFIBUS PA protocols only ★

N1 ATEX Type n and Dust ★

K8 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1) ★

ATEX Intrinsic Safety and Dust ★

E5 FM Explosion-proof, Dust Ignition-proof ★

(18)

FM Intrinsically Safe, Nonincendive ★

IE FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA protocols only ★

K5 FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of E5 and I5) ★

C6 CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 ★

(10)

CSA Intrinsically Safe ★

K6 CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1) ★

E7 IECEx Flameproof, Dust Ignition-proof ★

I7 IECEx Intrinsic Safety ★

N7 IECEx Type n ★

K7 IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7) ★

E2 INMETRO Flameproof ★

I2 INMETRO Intrinsic Safety ★

IB INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA protocols only ★

K2 INMETRO Flameproof, Intrinsic Safety ★

E3 China Flameproof ★

I3 China Intrinsic Safety ★

KB FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of K5 and C6) ★

KD CSA, FM, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8) ★

EM Technical Regulations Custom Union (EAC) Flameproof ★

IM Technical Regulations Custom Union (EAC) Intrinsic Safety ★

KM Technical Regulations Custom Union (EAC) Flameproof, Intrinsic Safety (combination of EM and IM) ★

Emerson.com/Rosemount

Page 72

Rosemount DP Flow

February 2017

Table 8. Rosemount 3051CFC Compact Flowmeter Ordering Information

★The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Sensor fill fluid and O-ring options

(19)

Inert sensor fill fluid ★

L2 Graphite-filled (PTFE) O-ring ★

(19)

Shipboard approvals

Inert sensor fill fluid and graphite-filled (PTFE) O-ring ★

(19)

SBS American Bureau of Shipping ★

(20)

SLL

Lloyds Register (LR)

Display and interface options

(21)

M5 LCD display ★

Transient protection

T1 Transient terminal block ★

LCD display with LOI ★

(19)(22)

Manifold for remote mount option

F2 3-valve manifold, stainless steel ★

F6 5-valve manifold, stainless steel ★

PlantWeb control functionality

(23)

A01 FOUNDATION Fieldbus Control Function Block Suite ★

PlantWeb diagnostic functionality

(15)

DA0

D01

(23)

Power Advisory HART Diagnostic ★

FOUNDATION Fieldbus Diagnostic Suite ★

Low power output

C2 0.8–3.2 Vdc output with Digital Signal Based on HART Protocol (available with output code M only)

Alarm levels

C4 NAMUR alarm and saturation levels, high alarm ★

CN NAMUR alarm and saturation levels, low alarm ★

CR Custom alarm and saturation signal levels, high alarm ★

CS Custom alarm and saturation signal levels, low alarm ★

CT Rosemount Standard low alarm ★

Ground screw

(15)

(19)(24)

V5 External ground screw assembly ★

Configuration buttons

(15)

(25)

Analog zero and span ★

Digital zero trim ★

Emerson.com/Rosemount

Page 73

February 2017

Rosemount DP Flow

Table 8. Rosemount 3051CFC Compact Flowmeter Ordering Information

★The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

HART Revision Configuration (requires HART Protocol output code A)

(6)

HR5 Configured for HART revision 5 ★

HR7 Configured for HART revision 7 ★

Typical model number: 3051CFC D C S 060 N 065 0 3 2 A A 1 WC E5 M5

1. Available with Primary Element Technology P only.

2. 10- and 12-in. (250 and 300 mm) line sizes not available with Primary Element Technology A.

3. For the 10- and 12-in. (250 and 300 mm) line size, the alignment ring must be ordered (installation accessories).

4. For 2-in. (50 mm) line sizes the Primary Element Type is 0.6 for Primary Element Technology Code C.

5. Available with Primary Element Technology A only.

6. O ption HR5 co nfig ures t he HA RT out put to HART R evisi on 5. Optio n HR7 config ures the HA RT ou tput t o HART Revis ion 7 . The d evice can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.

7. For local addressing and configuration, M4 (LOI) is required.

8. Requires wireless options and engineered polymer housing. Available approvals are FM Intrinsically Safe, (option code I5), CSA Intrinsically Safe (option code I6), ATEX Intrinsic Safety (option code I1), and IECEx Intrinsic Safety (option code I7).

9. Only available with C6, E2, E5, I5, K5, KB and E8 approval. Not available with GE, GM, SBS, DA0, M4, D4, DZ, QT, HR5, HR7, CR, CS, CT.

10. Only available with wireless (output code X).

11. Transmitter conduit entry will be K6, E7, K7, E2, K2, E3, KB, KD.

12. Available with Primary Element Technology C only.

13. For Rosemount Annubar option A, consult factory for pipe schedules other than schedule 40.

14. Available with Primary Element Technology C or P only.

15. Only available with HART 4–20 mA (output code A).

16. Materials of Construction comply with metallurgical requirements within NACE MR0175/ISO for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

17. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless” on page 97 for wireless approvals

18. Nonincendive certification not provided with Wireless output (option code X).

19. Not available with Wireless (output code X).

20. Only available with product certifications E7, E8, I1, I7, IA, K7, K8, KD, N1, N7

21. Not available with output code F - F

22. The T1 option is not needed with FISCO Product Certifications, transient protection is included with the FISCO Product Certification code IA, IB, and IE.

23. Only valid with F

24. The V5 option is not needed with the T1 option; external ground screw assembly is included with the T1 option.

25. Only available with 4–20 mA HART (output code A) and Wireless (output code X).

OUNDATION Fieldbus (output code F).

/2 NPT and a 1/2 NPT to G1/2 thread adapter will be provided. Not available with Product certifications options E8, K8, E5, K5, C6,

OUNDATION Fieldbus or wireless (output code X) or low power (output code M).

Emerson.com/Rosemount

Page 74

Rosemount DP Flow

February 2017

Rosemount 3051CFP Integral Orifice Flowmeter ordering information

 Precision honed pipe section for increased accuracy in small line sizes

 Self-centering plate design prevents alignment errors that magnify measurement inaccuracies in small line sizes

Table 9. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Model Product description

3051CFP Integral orifice flowmeter

Measurement type

D Differential Pressure ★

Body material and type

F 316 SST, enhanced support body ★

S 316 SST, traditional body ★

Line size

005

010 1-in. (25 mm) ★

015 11/2-in. (40 mm) ★

/2-in. (15 mm) ★

Process connection

T1 NPT female body (not available with thermowell and RTD) ★

(1)

P1 Pipe ends: NPT threaded ★

P2 Pipe ends: Beveled ★

D1 Pipe ends: Flanged, DIN PN16, slip-on ★

D2 Pipe ends: Flanged, DIN PN40, slip-on ★

D3 Pipe ends: Flanged, DIN PN100, slip-on ★

W1 Pipe ends: Flanged, RF, ANSI Class 150, weld-neck ★

W3 Pipe ends: Flanged, RF, ANSI Class 300, weld-neck ★

W6 Pipe ends: Flanged, RF, ANSI Class 600, weld-neck ★

W9 Pipe ends: Flanged, RF, ANSI Class 900, weld-neck ★

A1 Pipe ends: Flanged, RF, ANSI Class 150, slip-on

A3 Pipe ends: Flanged, RF, ANSI Class 300, slip-on

A6 Pipe ends: Flanged, RF, ANSI Class 600, slip-on

R1 Pipe ends: Flanged, RTJ, ANSI Class 150, slip-on

R3 Pipe ends: Flanged, RTJ, ANSI Class 300, slip-on

R6 Pipe ends: Flanged, RTJ, ANSI Class 600, slip-on

R9 Pipe ends: Flanged, RTJ, ANSI Class 900, weld-neck

Socket weld body (not available with thermowell and RTD) ★

P9 Special process connection

Emerson.com/Rosemount

Page 75

February 2017

Table 9. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount DP Flow

Orifice plate material

S 316/316L SST ★

H Alloy C-276

M Alloy 400

Bore size option

0066 0.066-in. (1.68 mm) for 1/2-in. pipe ★

0109 0.109-in. (2.77 mm) for 1/2-in. pipe ★

0160 0.160-in. (4.06 mm) for 1/2-in. pipe ★

0196 0.196-in. (4.98 mm) for 1/2-in. pipe ★

0260 0.260-in. (6.60 mm) for 1/2-in. pipe ★

0340 0.340-in. (8.64 mm) for 1/2-in. pipe ★

0150 0.150-in. (3.81 mm) for 1-in. pipe ★

0250 0.250-in. (6.35 mm) for 1-in. pipe ★

0345 0.345-in. (8.76 mm) for 1-in. pipe ★

0500 0.500-in. (12.70 mm) for 1-in. pipe ★

0630 0.630-in. (16.00 mm) for 1-in. pipe ★

0800 0.800-in. (20.32 mm) for 1-in. pipe ★

0295 0.295-in. (7.49 mm) for 11/2-in. pipe ★

0376 0.376-in. (9.55 mm) for 11/2-in. pipe ★

0512 0.512-in. (13.00 mm) for 11/2-in. pipe ★

0748 0.748-in. (19.00 mm) for 11/2-in. pipe ★

1022 1.022-in. (25.96 mm) for 11/2-in. pipe ★

1184 1.184-in. (30.07 mm) for 11/2-in. pipe ★

0010 0.010-in. (0.25 mm) for 1/2-in. pipe

0014 0.014-in. (0.36 mm) for 1/2-in. pipe

0020 0.020-in. (0.51 mm) for 1/2-in. pipe

0034 0.034-in. (0.86 mm) for 1/2-in. pipe

Transmitter connection platform

D3 Direct-mount, 3-valve manifold, SST ★

D5 Direct-mount, 5-valve manifold, SST ★

R3 Remote-mount, 3-valve manifold, SST ★

R5 Remote-mount, 5-valve manifold, SST ★

D4 Direct-mount, 3-valve manifold, alloy C-276

D6 Direct-mount, 5-valve manifold, alloy C-276

R4 Remote-mount, 3-valve manifold, alloy C-276

R6 Remote-mount, 5-valve manifold, alloy C-276

Emerson.com/Rosemount

Page 76

Rosemount DP Flow

February 2017

Table 9. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Differential pressure ranges

1 0 to 25 inH2O (0 to 62,16 mbar) ★

2 0 to 250 inH2O (0 to 621,60 mbar) ★

3 0 to 1000 inH2O (0 to 2,48 bar) ★

Transmitter output

(2)

4–20 mA with digital signal based on HART Protocol ★

F FOUNDATION Fieldbus Protocol ★

(3)

(4)

(5)

PROFIBUS PA Protocol ★

Wireless ★

Low-power 1–5 Vdc with digital signal based on HART Protocol

Transmitter housing material Conduit entry size

A Aluminum

B Aluminum M20 ⫻ 1.5 ★

J SST

K SST M20 ⫻ 1.5 ★

(6)

(7)

Engineered polymer No conduit entries ★

Aluminum G1/2

SST G1/2

/2–14 NPT ★

Transmitter performance class

1 up to ±1.8 percent flow rate accuracy, 8:1 flow turndown,10-year stability ★

Wireless options (requires wireless output code X and engineered polymer housing code P)

Wireless transmit rate, operating frequency, and protocol

WA3 User configurable transmit rate, 2.4GHz WirelessHART ★

Antenna and SmartPower

WP5 Internal antenna, Compatible with Green Power Module (I.S. Power Module sold separately) ★

Options (include with selected model number)

Extended product warranty

WR3 3-year limited warranty ★

WR5 5-year limited warranty ★

Transmitter body/bolt material

GT High temperature (554 °F/290 °C)

Temperature sensor

RT Thermowell and RTD

(9)

(8)

Emerson.com/Rosemount

Page 77

February 2017

Table 9. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount DP Flow

Optional connection

G1 DIN 19213 transmitter connection ★

Pressure testing

P1 Hydrostatic testing with certificate

(10)(11)

Special cleaning

P2 Cleaning for special services

PA Cleaning per ASTM G93 level D (section 11.4)

Material testing

V1 Dye penetrant exam

Material examination

V2 Radiographic examination

Flow calibration

(12)

WD Discharge coefficient verification

Special inspection

QC1 Visual and Dimensional inspection with certificate ★

QC7 Inspection and performance certificate ★

Material traceability certification

Q8 Material traceability certification per EN 10204:2004 3.1 ★

Code conformance

J2 ANSI/ASME B31.1

J3 ANSI/ASME B31.3

J4 ANSI/ASME B31.8

Materials conformance

J5 NACE MR-0175/ISO 15156

(13)

(14)

Country certification

J6 European Pressure Directive (PED) ★

J1 Canadian Registration

Transmitter calibration certification

Q4 Calibration certificate for transmitter ★

Quality certification for safety

QS Prior-use certificate of FMEDA data ★

QT Safety certified to IEC 61508 with certificate of FMEDA ★

(15)

Emerson.com/Rosemount

Page 78

Rosemount DP Flow

February 2017

Table 9. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Product certifications

(16)

E8 ATE X Fl ameproof, Dust ★

(17)

ATEX Intrinsic Safety and Dust ★

IA ATEX FISCO Intrinsic Safety; for FOUNDATION Fieldbus or PROFIBUS PA protocols only ★

N1 ATE X Type n and Dust ★

K8 ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1) ★

E5 FM Explosion-proof, Dust Ignition-proof ★

(18)

FM Intrinsically Safe, Nonincendive ★

IE FM FISCO Intrinsically Safe; for FOUNDATION Fieldbus or PROFIBUS PA protocols only ★

K5 FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of E5 and I5) ★

C6 CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 ★

(6)

CSA Intrinsically Safe ★

K6 CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1) ★

E7 IECEx Flameproof, Dust Ignition-proof ★

I7 IECEx Intrinsic Safety ★

N7 IECEx Type n ★

K7 IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7) ★

E2 INMETRO Flameproof ★

I2 INMETRO Intrinsic Safety ★

IB INMETRO FISCO intrinsically safe; for FOUNDATION Fieldbus or PROFIBUS PA protocols only ★

K2 INMETRO Flameproof, Intrinsic Safety ★

E3 China Flameproof ★

I3 China Intrinsic Safety ★

KB FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of K5 and C6) ★

KD CSA, FM, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8) ★

EM Technical Regulations Custom Union (EAC) Flameproof ★

IM Technical Regulations Custom Union (EAC) Intrinsic Safety ★

KM Technical Regulations Custom Union (EAC) Flameproof, Intrinsic Safety (combination of EM and IM) ★

Sensor fill fluid and O-ring options

(19)

L2 Graphite-filled (PTFE) O-ring ★

(19)

Shipboard approvals

Inert sensor fill fluid ★

Inert sensor fill fluid and graphite-filled (PTFE) O-ring ★

(19)

SBS American Bureau of Shipping ★

(20)

SLL

Lloyds Register (LR)

Emerson.com/Rosemount

Page 79

February 2017

Rosemount DP Flow

Table 9. Rosemount 3051CFP Integral Orifice Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Display and interface options

(21)

LCD display with LOI ★

M5 LCD display ★

Transient protection

(19)(22)

T1 Transient terminal block ★

PlantWeb control functionality

(23)

A01 FOUNDATION Fieldbus control function block suite ★

PlantWeb diagnostic functionality

(15)

DA0

D01

(23)

Power Advisory HART diagnostic ★

FOUNDATION Fieldbus diagnostic suite ★

Low power output

C2 0.8–3.2 Vdc output with digital signal based on HART Protocol (available with output code M only)

Alarm levels

(15)

C4 NAMUR alarm and saturation levels, high alarm ★

CN NAMUR alarm and saturation levels, low alarm ★

CR Custom alarm and saturation signal levels, high alarm ★

CS Custom alarm and saturation signal levels, low alarm ★

CT Rosemount Standard low alarm ★

Ground screw

(19)(24)

V5 External ground screw assembly ★

Configuration buttons

(15)

(25)

HART revision configuration (requires HART Protocol output code A)

Analog zero and span ★

Digital zero trim ★

(2)

HR5 Configured for HART Revision 5 ★

HR7 Configured for HART Revision 7 ★

Typical model number: 3051CFP D F010 W1 S 0500 D3 2 A A 1 E5 M5

1. To improve pipe perpendicularity for gasket sealing, socket diameter is smaller than standard pipe O.D.

2. O ption HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.

3. For local addressing and configuration, M4 (LOI) is required.

4. Requires wireless options and engineered polymer housing. Available approvals are FM Intrinsically Safe, (option code I5), CSA Intrinsically Safe (option code I6), ATEX Intrinsic Safety (option code I1), and IECEx Intrinsic Safety (option code I7).

5. Only available with C6, E2, E5, I5, K5, KB and E8 approval. Not available with GE, GM, SBS, DA0, M4, D4, DZ, QT, HR5, HR7, CR, CS, CT.

6. Only available with wireless (output code X).

Emerson.com/Rosemount

Page 80

Rosemount DP Flow

7. Transmitter conduit entry will be 1/2 NPT and a 1/2 NPT to G1/2 thread adapter will be provided.Not available with Product cer tifications options E8, K8, E5, K5, C6, K6, E7, K7, E2, K2, E3, KB, KD.

8. Only available for body material and type code F.

9. Thermowell Material is the same as the body material.

10. Does not apply to process connection codes T1 and S1.

11. Option P1 may not be ordered in combination with P2 or PA.

12. Not available for bore sizes 0010, 0014, 0020, 0034, 0066, or 0109.

13. Not available with DIN Process Connection codes D1, D2, or D3.

14. Materials of Construction comply with metallurgical requirements within NACE MR0175/ISO for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

15. Only available with HART 4–20 mA output (option code A).

16. If select body material and type code F, consult the factory for product certifications availability.

17. Dust approval not applicable to output code X. See “Rosemount 3051 Wireless” on page 97 for wireless approvals

18. Nonincendive certification not provided with Wireless output option code (X).

19. Not available with wireless (output code X).

20. Only available with product certifications E7, E8, I1, I7, IA, K7, K8, KD, N1, N7.

21. Not available with F

22. The T1 option is not needed with FISCO Product Certifications, transient protection is included with the FISCO Product Certification code IA, IB, and IE.

23. Only valid with F

24. The V5 option is not needed with E1, E2, E3, E4, E7, E8, EM, EP, K1, K2, K4, K6, K7, K8, KA, KC, KD, KP, KM, N1, N3, N7, ND, NK, or T1 as the ex ternal ground screw assembly is included with these options.

25. Only available with 4–20 mA (output code A) and wireless (output code X).

OUNDATION Fieldbus (output code F) or wireless (output code X) or Low Power (output code M).

OUNDATION Fieldbus (output code F).

February 2017

Emerson.com/Rosemount

Page 81

February 2017





Rosemount DP Flow

Specifications

Performance specifications

This product data sheet covers HART, WirelessHART, FOUNDATION Fieldbus, and PROFIBUS PA protocols unless specified. For zero-based spans, reference conditions, silicone oil fill, glass-filled PTFE o-rings, SST materials, coplanar flange digital trim values

set to equal range points.

Conformance to specification Flow performance - Flow reference accuracy

Rosemount 3051CFA Annubar Flowmeter

Ranges 2–3 ±1.80% of flow rate at 8:1 flow turndown

Rosemount 3051CFC_A Compact Annubar Flowmeter - Rosemount Annubar option A

(1)

Ranges 2–3

Standard ±2.10% of flow rate at 8:1 flow turndown

Calibrated ±1.80% of flow rate at 8:1 flow turndown

Rosemount 3051CFC Compact Orifice Flowmeter – conditioning option C

Ranges 2–3 ±1.95% of flow rate at 8:1 flow turndown

Rosemount 3051CFC Compact Orifice Flowmeter - orifice option P

= 0.4 ±2.00% of flow rate at 8:1 flow turndown

Ranges 2–3

= 0.50, 0.65 ±2.00% of flow rate at 8:1 flow turndown

(2)

Rosemount 3051CFP Integral Orifice Flowmeter

< 0.1 ±3.00% of flow rate at 8:1 flow turndown

Ranges 2–3

1. Range 1 flowmeters may experience an additional uncertainty up to 0.9 percent. Consult your Emerson representative for exact specifications.

2. For line size less than 2-in. (50 mm) or greater than 8-in. (200 mm), add an additional 0.5 percent uncer tainly.

0.1 < < 0.2 ±1.95% of flow rate at 8:1 flow turndown

0.2 < < 0.6 ±1.75% of flow rate at 8:1 flow turndown

0.6 < < 0.8 ±2.15% of flow rate at 8:1 flow turndown

Tot al per formance

Total performance is based on combined errors of reference accuracy, ambient temperature effect, and static pressure effect.

For ±50 °F (28 °C) temperature changes, up to 1000 psi (6,9 MPa) line pressure (CD only), from 1:1 to 5:1 rangedown.

Models Total per formance

3051CF

Ranges 2–5 ±0.15 percent of span

Emerson.com/Rosemount

Page 82

Rosemount DP Flow

Td = Dead time T

= Time constant

Pressure released

Response time = Td+T

63.2% of Total Step Change

Time

100%

36.8%

Tra nsm itter out put vs. Tim e

Long term stability

Models Long term stability

February 2017

Rosemount 3051CF

Ranges 2–5

±0.2 percent of URL for 10 years ±50 °F (28 °C) temperature changes, and up to 1000 psi (6,9 MPa) line pressure

Rosemount 3051CF Low/Draft Range

Ranges 0–1 ±0.2 percent of URL for 1 year

Warranty

Models Standard

All Rosemount 3051 1-year limited warranty

1. Warranty details can be found in Emerson Terms and Conditions of Sale, Document 63445, Rev G (10/06).

2. Goods are warranted for 12 months from the date of initial installation or 18 months from the date of shipment by seller, whichever period expires first.

3. Rosemount extended warranties have a limited warranty of five or three years from date of shipment.

(1)

(2)

Optional extended warranty

WR5: 5-year limited warranty WR3: 3-year limited warranty

(3)

Dynamic performance

4–20 mA HART

(1)

1–5 Vdc HART Low Power

Total response time (Td + Tc)

3051CF, Ranges 2–5:

Range 1:

Range 0: Dead Time (Td) 45 ms (nominal) 97 ms Update Rate

1. Dead time and update rate apply to all models and ranges; analog output only.

2. Nominal total response time at 75 °F (24 °C) reference conditions.

3. Transducer block response time, Analog Input block execution time not included.

4. Does not apply to wireless (output code x). See “WirelessHart (output code X)” on page 87

for wireless update rate.

(4)

(2)

100 ms 255 ms 700 ms

22 times per second 22 times per second

FOUNDATION Fieldbus and PROFIBUS PA Protocols

152 ms 307 ms N/A

(3)

Typ ical HART transmitter response time

Vibration effect for Rosemount 3051CFA, 3051CFC

Less than ±0.1 percent of URL when tested per the requirements of IEC60770-1 field with general application or pipeline with low vibration level (10–1000 Hz test frequency range, 0.15 mm displacement peak amplitude, 20 m/s amplitude).

Vibration effect for Rosemount 3051CFC_A

Less than ±0.1percent of URL when tested per the requirements of IEC60770-1 field or pipeline with high vibration level (10–60 Hz, 0.15mm displacement peak amplitude/60–2000 Hz 2g).

1. Stainless steel temperature housing is not recommended with primary ele-

(1)

ment technology A in applications with mechanical vibration.

acceleration

Vibration effect for Rosemount 3051CFP

Less than ±0.1 percent of URL when tested per the requirements of IEC60068-2-6 (10–1000 Hz test frequency range, 0.075 mm

displacement peak amplitude, 10 m/s

acceleration amplitude).

Power supply effect

Less than ±0.005 percent of calibrated span per volt.

Emerson.com/Rosemount

Page 83

February 2017

Communication requires a minimum

loop resistance of 250 ohms.

1. For CSA approval, power supply must not exceed 42.4 V.

Max. loop resistance = 43.5 (power supply voltage – 10.5)

Voltag e (Vd c)

Load (s)

Operating

Region

1387

1000

500

10.5 20 30

42.4

(1)

Rosemount DP Flow

Electromagnetic Compatibility (EMC) Transient protection (option code T1)

Meets all industrial environment requirements of EN61326 and NAMUR NE-21 disturbance

1. NAMUR NE-21 does not apply to low-power (transmitter option code M) and wireless (transmitter output code X).

2. During surge event device may exceed maximum EMC deviation limit or reset; however, device will self-recover and return to normal operation within specified start-up time.

(1)

. Maximum deviation <1% span during EMC

(2)

Meets IEEE C62.41, Category Location B

6 kV crest (0.5 s - 100 kHz) 3 kV crest (8 ⫻ 20 microseconds) 6 kV crest (1.2 ⫻ 50 microseconds)

Note

Calibrations at 68 °F (20 °C) per ASME Z210.1 (ANSI)

Functional specifications

Range and sensor limits

Table 10. 3051CF Range and Sensor Limits

(1)

Range

Minimum span

1 0.50 inH2O (1,24 mbar) 25.00 inH2O (62,16 mbar) –25.00 inH2O (–62,16 mbar) 2 1.67 inH2O (4,15 mbar) 250.00 inH2O (621,60 mbar) –250.00 inH2O (–621,60 bar) 3 6.67 inH2O (16,58 mbar) 1000.00 inH2O (2,48 bar) –1000.00 inH2O (–2,48 bar)

(2)

Upper (URL) Lower (LRL)

1. inH2O referenced at 68 °F.

2. For output options W and M. minimum span are:

Range 1–0.50 inH Range 3–2.50 inH Range 4–3.00 psi (0,21 bar) Range 5–20.00 psi (1,38 bar)

O (1,24 mbar)

O (24,86 mbar)

4–20 mA HART (output code A)

Power supply

External power supply required. Standard transmitter (4–20 mA) operates on 10.5–42.4 Vdc with no load

Load limitations

Maximum loop resistance is determined by the voltage level of the external power supply described by:

Indication

Optional two line LOI/LCD display

Emerson.com/Rosemount

Optional configuration buttons

Configuration buttons need to be specified: digital zero trim (option code DZ) changes digital value of the transmitter and is used for performing a sensor zero trim. analog zero span (option code D4) changes analog value and can be used to rerange the transmitter with an applied pressure.

Output

Two-wire 4–20mA, user selectable for linear or square root output. Digital process variable superimposed on 4–20 mA signal, available to any host that conforms to HART protocol. The Rosemount 3051 comes with Selectable HART Revisions. Digital communications based on HART Revision 5 (default) or Revision 7 (option code HR7) protocol can be selected. The HART revision can be switched in the field using any HART based configuration tool or the optional LOI (M4).

Power advisory diagnostics

Power advisory diagnostics pro-actively detect and notify you of degraded electrical loop integrity before it can affect your process operation. Example loop problems that can be detected include water in the terminal compartment, corrosion of terminals, improper grounding, and unstable power supplies. The device dashboard presents the diagnostics in a graphical, task-based interface that provides single-click access to critical process/device information and descriptive graphical troubleshooting.

Page 84

Rosemount DP Flow

February 2017

LOI

The LOI utilizes a two button menu with internal and external configuration buttons. Internal buttons are always configured for LOI. External Buttons can be configured for either LOI (option code M4), analog zero and span (option code D4) or digital zero trim (option code DZ). For LOI configuration menu see Rosemount 3051 Product Manual

FOUNDATION Fieldbus (output code F)

Power supply

External power supply required; transmitters operate on 9.0 to

32.0 V dc transmitter terminal voltage. FISCO transmitters

operate on 9.0 to 17.5 Vdc.

Current draw

17.5 mA for all configurations (including LCD display option)

Indication

Optional 2-line LCD display

OUNDATION Fieldbus block execution times

Block Execution time

Resource N/A

Sensor and SPM Transducer N/A

LCD Display N/A

Analog Input 1, 2 20 milliseconds

PID 25 milliseconds

Input Selector 20 milliseconds

Arithmetic 20 milliseconds

Signal Characterizer 20 milliseconds

Integrator 20 milliseconds

Output Splitter 20 milliseconds

Control Selector 20 milliseconds

OUNDATION Fieldbus parameters

Links 25 (max.)

Virtual Communications Relationships (VCR) 20 (max.)

FOUNDATION Fieldbus function blocks (option A01)

Resource block

The resource block contains diagnostic, hardware, and electronics information. There are no linkable inputs or outputs to the resource block.

Sensor transducer block

The sensor transducer block contains sensor information and the ability to calibrate the pressure sensor or recall factory calibration.

LCD transducer block

The LCD transducer block is used to configure the LCD display meter.

Analog input (AI) block

The AI block processes the measurements from the sensor and makes them available to other function blocks. The output value from the AI block is in engineering units and contains a status indicating the quality of the measurement. The AI Block is widely used for scaling functionality.

Input selector (ISEL) block

The ISEL block can be used to select the first good, hot backup, maximum, minimum, or average of as many as eight input values and place it at the output. The block supports signal status propagation.

Integrator (INT) block

The INT block integrates one or two variables over time. The block compares the integrated or accumulated value to pre-trip and trip limits and generates discrete output signals when the limits are reached.

The INT block is used as a totalizer. This block will accept up to two inputs, has six options how to totalize the inputs, and two trip outputs.

Arithmetic (ARTH) block

The ARTH block provides the ability to configure a range extension function for a primary input. It can also be used to compute nine different arithmetic functions including flow with partial density compensation, electronic remote seals, hydrostatic tank gaging, ratio control, and others.

Signal characterizer (SGCR) block

The SGCR block characterizes or approximates any function that defines an input/output relationship. The function is defined by configuring as many as twenty X,Y coordinates. The block interpolates an output value for a given input value using the curve defined by the configured coordinates. Two separate analog input signals can be processed simultaneously to give two corresponding separate output values using the same defined curve.

PID block

The PID function block combines all of the necessary logic to perform proportional/integral/derivative (PID) control. The block supports mode control, signal scaling and limiting, feed forward control, override tracking, alarm limit detection, and signal status propagation.

Control selector block

The control selector function block selects one of two or three inputs to be the output. The inputs are normally connected to the outputs of PID or other function blocks. One of the inputs would be considered normal and the other two overrides.

Output splitter block

The output splitter function block provides the capability to drive two control outputs from a single input. It takes the output of one PID or other control block to control two valves or other actuators.

Emerson.com/Rosemount

Page 85

February 2017

Rosemount DP Flow

Backup Link Active Scheduler (LAS)

The transmitter can function as a LAS if the current link master device fails or is removed from the segment.

OUNDATION Fieldbus diagnostics suite

F (option code D01)

The Rosemount 3051C FOUNDATION Fieldbus diagnostics suite features SPM technology to detect changes in the process, process equipment, or installation conditions (such as plugged impulse lines) of the transmitter. This is done by modeling the process noise signature (using the statistical values of mean and standard deviation) under normal conditions and then comparing the baseline values to current values over time. If a significant change in the current values is detected, the transmitter can generate an alert.

PROFIBUS PA (output code W)

Profile version

3.02

Power supply

External power supply required; transmitters operate on 9.0 to

32.0 Vdc transmitter terminal voltage.

Current draw

17.5 mA for all configurations (including LCD display option)

Output update rate

Four times per second

Standard function blocks

Analog input (AI block)

The AI function block processes the measurements and makes them available to the host device. The output value from the AI block is in engineering units and contains a status indicating the quality of the measurement.

Physical block

The physical block defines the physical resources of the device including type of memory, hardware, electronics and diagnostic information.

Transducer block

Contains actual sensor measurement data including the sensor diagnostics and the ability to trim the pressure sensor or recall factory defaults.

Indication

Optional 2-line LCD display

LOI

Optional external configuration buttons

WirelessHart (output code X)

Output

IEC 62591 (WirelessHART), 2.4 GHz DSSS

Wireless radio (internal antenna, WP5 option)

 Frequency: 2.400–2.485 GHz

 Channels: 15

 Modulation: IEEE 802.15.4 compliant DSSS

 Transmission: Maximum of 10 dBm EIRP

Local display

The optional 3-line, 7-digit LCD display can display user-selectable information such as primary variable in engineering units, scaled variable, percent of range, sensor module temperature, and electronics temperature. The display updates based on the wireless update rate.

Digital zero trim

Digital zero trim (option DZ) is an offset adjustment to compensate for mounting position effects, up to 5 percent of URL.

Update rate

User selectable 1 sec. to 60 min.

Power module

Field replaceable, keyed connection eliminates the risk of incorrect installation, Intrinsically Safe Lithium-thionyl chloride Power Module with PBT/PC enclosure. Ten-year life at one minute update rate.

1. Reference conditions are 70 °F (21 °C), and routing data for three additional network devices.

(1)

Note

Continuous exposure to ambient temperature limits of –40 °F or 185 °F (–40 °C or 85 °C) may reduce specified life by less than 20 percent.

1–5 Vdc HART low power (output code M)

Output

Three wire 1–5 Vdc or 0.8–3.2 Vdc (option code C2) user-selectable output. Also user selectable for linear or square root output configuration. Digital process variable superimposed on voltage signal, available to any host conforming to the HART protocol. Low-power transmitter operates on 6–12 Vdc with no load.

Power consumption

3.0 mA, 18–36 mW

Minimum load impedance

Emerson.com/Rosemount

100 k (V

out

wiring)

Page 86

Rosemount DP Flow

February 2017

Indication

Optional 5-digit LCD display

Overpressure limits

Rosemount 3051CFX

 Range 1: 2000 psig (137,9 bar)

 Ranges 2-3: 3626 psig (250 bar)

4500 psig (310,3 bar) for option code P9

Burst pressure limits

Rosemount 3051CF

10081 psig (695,06 bar)

Failure mode alarm

HART 4–20 mA (output option code A)

If self-diagnostics detect a sensor or microprocessor failure, the analog signal is driven either high or low to alert the user. High or low failure mode is user-selectable with a jumper/switch on the transmitter. The values to which the transmitter drives its output in failure mode depend on whether it is factory-configured to standard or NAMUR-compliant, or custom levels (see Alarm Configuration ). The values for each are as follows:

Table 11. Alarm Configuration

High alarm Low alarm

Default

NAMUR compliant

Custom levels

1. Analog output levels are compliant with NAMUR recommendations NE 43, see option codes C4 or C5.

2. Low alarm must be 0.1 mA less than low saturation and high alarm must be

0.1 mA greater than high saturation.

(1)

(2)

Output code M

If self-diagnostics detect a gross transmitter failure, the analog signal will be driven either below 0.94 or above 5.4 V to alert the user (below 0.75 or above 4.4 V for option C2). High or low alarm signal is user-selectable by internal jumper.

Output code F, W, and X

 21.75 mA  3.75 mA

 22.5 mA  3.6 mA

20.2–23.0 mA 3.4–3.8 mA

Temperature limits

For Rosemount 3051CFA temperature limits

Process temperature limits

Direct mount transmitter

• 500 °F (260 °C)

• 750 °F (398 °C) when used with a direct mount, high temperature

5-valve manifold (transmitter connection platform code 6). Maximum temperature limit for steam processes is 650 °F (343 °C).

• 400 °F (204 °C) when top mounted in steam service

Remote mount transmitter

• 1250 °F (677 °C) – Alloy C-276 sensor material (for superheated

steam applications above 1000 °F (538 °C), it is recommended that the Rosemount 585 with alloy 800H sensor material is used.)

• 850 °F (454 °C) – Stainless steel sensor material

Pressure and temperature limits

Direct mount transmitter

• Up to Class 900 ANSI (2160 psig at 100 °F [149 bar at 38 °C])

Remote mount transmitter

• Up to Class 2500 ANSI (6000 psig at 100 °F [416 bar at 38 °C])

• Integral temperature measurement is not available with Flanged

mounting type greater than Class 900

1.Static pressure selection may effect pressure limitations.

For Rosemount 3051CFC temperature limits

Process temperature limits

Direct mount transmitter

• –40 to 450 °F (–40 to 232 °C)

• Up to 400 °F (204 °C) when top mounted in steam service

Remote mount transmitter

• –148 to 850 °F (-100 to 454 °C) – Stainless steel

Differential pressure limits

Maximum differential pressure (DP) up to 800 inH

Note

When the temperature is 400–850 °F (204–454 °C), the DP Limit should be 400 inH2O (1 bar).

(1)

O (2 bar).

If self-diagnostics detect a gross transmitter failure, that information gets passed as a status along with the process variable.

Emerson.com/Rosemount

Page 87

February 2017

Rosemount DP Flow

For Rosemount 3051CFP temperature limits

Process temperature limits

Standard (direct/remote mount)

• –40 to 450 °F (–40 to 232 °C)

Extended (remote mount only with option code G)

• –112 to 554 °F (–80 to 290 °C)

1. Consult factory for all-welded design for ex tended range from –320 to 850 °F.

(1)

Table 12. Temperature Limits

Sensor Limit

Silicone fill sensor With coplanar flange

1. Process temperatures above 185 °F (85 °C) require derating the ambient limits by a 1.5:1 ratio.

2. 220 °F (104 °C) limit in vacuum service; 130 °F (54 °C) for pressures below 0.5 psia.

(1)

Humidity limits

0–100 percent relative humidity

N/A

–40 to 250 °F (–40 to 121 °C)

(2)

Turn-on time

Performance within specifications less than 2.0 seconds (20.0 s for PROFIBUS PA and FOUNDATION Fieldbus protocols) after power is applied to the transmitter.

1. Does not apply to wireless option code X.

(1)

Volumetric displacement

Less than 0.005 in3 (0,08 cm3)

Damping

4–20 mA HART

Analog output response to a step input change is user-selectable from 0 to 60 seconds for one time constant. This software damping is in addition to sensor module response time.

OUNDATION Fieldbus

Transducer block: 0.4 seconds fixed

AI Block: user configurable

PROFIBUS PA

AI Block only: user configurable

Physical specifications

Electrical connections

/2–14 NPT, G1/2, and M20 ⫻ 1.5 (CM20) conduit. The polymer housing (code P) has no conduit entries. HART interface connections fixed to terminal block for output code A and to Rosemount 701P Power Module for option code X.

Process connections

For Rosemount 3051CFA- Rosemount Annubar sensor material

 316 stainless steel

 Alloy C-276

For Rosemount 3051CFC-material of construction

 316/316L SST

For Rosemount 3051CFP-material of construction

Orifice plate

 316/316L SST

 Alloy C-276

 Alloy 400

Body

 316 SST (CF8M), material per ASTM A351

Pipe material (if applicable)

 A312 Gr 316/316L

Flange

 A182 Gr 316/316L

 Flange pressure limits are per ANSI B16.5 or DIN EN 1092-1

 Flange face finish per ANSI B16.5 or DIN EN 1092-1, 125, to

250 RMS

Body bolts/studs

 ASTM A193 Gr B8M studs

 ASTM A193 Gr B8M Class 2 body studs provided for high

temperature Option Code GT

Transmitter connection studs

 ASTM A193 Gr B8M studs

Gaskets/O-rings

 Glass filled PTFE

 Alloy X-750 provided for high temperature option code GT

 Gaskets and O-rings must be replaced each time the

Rosemount 3051CFP is disassembled for installation or maintenance.

Emerson.com/Rosemount

Page 88

Rosemount DP Flow

Orifice type

Square edge–orifice bore sizes

 0.066-in. and larger

Quadrant edge–orifice bore sizes (for 1/2-in. [15 mm] line size only)

 0.034-in. (0.86 mm)

 0.020-in. (0.51 mm)

 0.014-in. (0.35 mm)

 0.010-in. (0.25 mm)

Note

Integral orifice bodies contain corner tapped pressure ports.

Transmitter process wetted parts

Drain/vent valves

316 SST, alloy C-276, or Alloy 400 material

Wetted O-rings

February 2017

Glass-filled PTFE or Graphite-filled PTFE

Non-wetted parts

Electronics housing

Low-copper aluminum or CF-8M (cast version of 316 SST). Enclosures meet NEMA type 4X, IP66, and IP68 when properly installed. Housing material code P: PBT/PC with NEMA 4X and IP66/67/68

Coplanar sensor module housing

CF-3M (Cast version of 316L SST, material per ASTM-A743)

Bolts

TM A449, Type 1 (zinc-cobalt plated carbon steel) ASTM F593G, Condition CW1 (Austenitic 316 SST) ASTM A193, Grade B7M (zinc plated alloy steel) Alloy K–500

Sensor module fill fluid

Silicone oil (D.C. 200)

Paint

Polyurethane

Cover O-rings

Nitirile Butadiene (NBR)

Emerson.com/Rosemount

Page 89

February 2017

Product Certifications

Rosemount 3051

Rev 1.6

European Directive Information

A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at

Emerson.com/Rosemount

Ordinary Location Certification

As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by FM Approvals, a nationally recognized test laboratory (NRTL) as accredited by the Federal Occupational Safety and Health Administration (OSHA).

North America

E5 FM Explosionproof (XP) and Dust-Ignitionproof (DIP)

Certificate: 0T2H0.AE Standards: FM Class 3600 - 2011, FM Class 3615 - 2006, ,

FM Class 3810 - 2005, ANSI/NEMA 250 - 2003

Markings: XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E,

F, G; CL III; T5(–50 °C Sealed; Type 4X

I5 FM Intrinsic Safety (IS) and Nonincendive (NI)

Certificate: FM16US0120X Standards: FM Class 3600 - 2011, FM Class 3610 - 2010, FM

Class 3611 - 2004, FM Class 3810 - 2005, ANSI/NEMA 250 - 2008

Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F,

G; Class III; DIV 1 when connected per Rosemount drawing 03031-1019; NI CL 1, DIV 2, GP A, B, C, D; T4(–50 °C [HART], T5(–50 °C [HART]; T4(–50 °C  Ta  +60 °C) [Fieldbus/PROFIBUS]; Type 4x

Special Conditions for Safe Use (X):

1. The Rosemount 3051 transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.

2. The Rosemount 3051 transmitter with the transient terminal block (Option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation.

IE USA FISCO

Certificate: 1Q4A4.AX Standards: FM Class 3600 – 2011, FM Class 3610 – 2010,

FM Class 3611 – 2004, FM Class 3810 – 2005

 T

 +85 °C); Factory

 T

 +70 °C)

 +40 °C)

 T

Rosemount DP Flow

Markings: IS CL I, DIV 1, GP A, B, C, D when connected per

Rosemount drawing 03031-1019

 Ta  +60 °C); Type 4x

(–50 °C

Special Conditions for Safe Use (X):

2. The Rosemount 3051 transmitter with the transient terminal block (option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation.

C6 Canada Explosionproof, Dust-Ignitionproof, Intrinsic Safety

and Nonincendive

Certificate: 1053834 Standards: ANSI/ISA 12.27.01–2003,

CSA Std. C22.2 No. 30 -M1986, C SA Std. C22.2 No.142-M1987, CSA Std. C22.2. No.157-92, CSA Std. C22.2 No. 213 - M1987, CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CAN/CSA-C22.2 No. 94-M91, CAN/CSA-E60079-0-07, CAN/CSA-E60079-1-07

Markings: Explosionproof for Class I, Division 1, Groups B,

C and D; Suitable for Class I, Zone 1, Group IIB+H2, T5; Dust-Ignitionproof Class II, Division 1, Groups E, F, G; Class III Division 1; Intrinsically Safe Class I, Division 1 Groups A, B, C, D when connected in accordance with Rosemount drawing 03031-1024, Temperature Code T3C; Suitable for Class I, Zone 0; Class I Division 2 Groups A, B, C and D, T5; Suitable for Class I Zone 2, Group IIC; Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053)

E6 Canada Explosionproof, Dust-Ignitionproof and Division 2

Certificate: 1053834

Standards: ANSI/ISA 12.27.01–2003,

CSA Std. C22.2 No. 30 -M1986, CSA Std. C22.2 No.142-M1987, CSA Std. C22.2 No. 213 - M1987, CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966, CAN/CSA-C22.2 No. 94-M91, CAN/CSA-C22.2 No. 157-92, CAN/CSA-E60079-0-07, CAN/CSA-E60079-1-07

Emerson.com/Rosemount

Page 90

Rosemount DP Flow

February 2017

Markings: Explosionproof Class I, Division 1, Groups B, C

and D; Suitable for Class I, Zone 1, Group IIB+H2, T5; Dust-Ignitionproof for Class II and Class III, Division 1, Groups E, F and G; Class I, Division 2, Groups A, B, C and D; Suitable for Class I Zone 2, Group IIC; Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053)

Europe

E8 ATEX Flameproof and Dust

Certificate: KEMA00ATEX2013X; Baseefa11ATEX0275X Standards: EN60079-0:2012 + A11:2013,

EN60079-1:2014, EN60079-26:2015, EN60079-31:2009

Markings: II 1/2 G Ex db IIC T6…T4 Ga/Gb

T6(–60 °C  Ta  +70 °C), T4/T5(–60 °C  Ta  +80 °C);

II 1 D Ex ta IIIC T95 °C T

(–20 °C  Ta  +85 °C)

Temperature class Process temperature

T6 –50 °C to +65 °C

T5 –50 °C to +80 °C

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer’s instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

2. For information on the dimensions of the flameproof joints the manufacturer shall be contacted.

3. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

I1 ATEX Intrinsic Safety and Dust

Certificate: BAS97ATEX1089X; Baseefa11ATEX0275X Standards: EN60079-0:2012, EN60079-11:2012,

EN60079-31:2009

Markings: HART: II 1 G Ex ia IIC T5/T4 Ga

T5(–60 °C  Ta  +40 °C), T4(–60 °C  Ta  +70 °C)

Fieldbus/PROFIBUS: II 1 G Ex ia Ga IIC

 T

T4(–60°C

 +60°C)

DUST: II 1 D Ex ta IIIC T95 °C T (–20 °C

 T

 +85 °C)

HART Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Inductance L

30 V 30 V

200 mA 300 mA

0.9 W 1.3 W

0.012 μF 0 μF

0 mH 0 mH

105 °C Da

500

105 °C Da

500

Special Conditions for Safe Use (X):

1. The apparatus is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of EN60079-11:2012. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however care should be taken to protect it from impact or abrasion if located in Zone 0.

3. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

IA ATEX FISCO

Certificate: BAS97ATEX1089X Standards: EN60079-0:2012, EN60079-11:2009 Markings: II 1 G Ex ia IIC Ga T4(–60 °C  Ta  +60 °C)

FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

Special Conditions for Safe Use (X):

1. The apparatus is not capable of withstanding the 500 V insulation test required by EN60079-11. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however care should be taken to protect it from impact or abrasion if located in Zone 0.

ATEX Type n and Dust

Certificate: BAS00ATEX3105X; Baseefa11ATEX0275X Standards: EN60079-0:2012, EN60079-15:2010,

EN60079-31:2009

Markings: II 3 G Ex nA IIC T5 Gc (–40 °C

II 1 D Ex ta IIIC T95 °C T

 T

(–20 °C

 +85 °C)

Special Conditions for Safe Use (X):

1. This apparatus is not capable of withstanding the 500 V insulation test that is required by clause 6.8.1 of EN60079-15. This must be taken into account when installing the apparatus.

2. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

380 mA

5.32 W

<10 μH

105 °C Da

500

17.5 V

<5 nF

 T

 +70 °C);

Emerson.com/Rosemount

Page 91

February 2017

Rosemount DP Flow

International

E7 IECEx Flameproof and Dust

Certificate: IECEx KEM 09.0034X; IECEx BAS 10.0034X Standards: IEC60079-0:2011, IEC60079-1:2014-06,

IEC60079-26:2014-10,IEC60079-31:2008

 T

Markings: Ex db IIC T6…T4 Ga/Gb T6(–60 °C

 T

T4/T5(–60 °C Ex ta IIIC T95 °C T

 +80 °C);

105 °C Da

500

(–20 °C  Ta  +85 °C)

Temperature class Process temperature

T6 –50 °C to +65 °C

T5 –50 °C to +80 °C

Special Conditions for Safe Use (X):

2. For information on the dimensions of the flameproof joints the manufacturer shall be contacted.

3. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking.

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 09.0076X Standards: IEC60079-0:2011, IEC60079-11:2011 Markings: HART: Ex ia IIC T5/T4 Ga,

 T

T5(–60 °C

 +40 °C),

T4(–60 °C  Ta  +70 °C) Fieldbus/PROFIBUS: Ex ia IIC Ga

 T

T4(–60 °C

 +60 °C)

HART Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Inductance L

30 V 30 V

200 mA 300 mA

0.9 W 1.3 W

0.012 μF 0 μF

0 mH 0 mH

 +70 °C),

IECEx Mining (Special A0259)

Certificate: IECEx TSA 14.0001X Standards: IEC60079-0:2011, IEC60079-11:2011

 T

Markings: Ex ia I Ma (–60 °C

 +70 °C)

HART Fieldbus/PROFIBUS FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by IEC60079-11. This must be taken into account when installing the apparatus.

2. It is a condition of safe use that the above input parameters shall be taken into account during installation.

3. It is a condition of manufacture that only the apparatus fitted with housing, covers and sensor module housing made out of stainless steel are used in Group I applications.

N7 IECEx Type n

Certificate: IECEx BAS 09.0077X Standards: IEC60079-0:2011, IEC60079-15:2010 Markings: Ex nA IIC T5 Gc (–40 °C

Special Condition for Safe Use (X):

1. The apparatus is not capable of withstanding the 500 V insulation test required by IEC60079-15. This must be taken into account when installing the apparatus.

30 V 30 V 17.5 V

200 mA 300 mA 380 mA

0.9 W 1.3 W 5.32 W

0.012 μF 0 μF <5 nF

0 mH 0 mH <10 μH

 T

 +70 °C)

Brazil

E2 INMETRO Flameproof

Certificate: UL-BR 13.0643X Standards: ABNT NBR IEC60079-0:2008 + Errata 1:2011,

ABNT NBR IEC60079-1:2009 + Errata 1:2011, ABNT NBR IEC60079-26:2008 + Errata 1:2008

Markings: Ex db IIC T6…T4 Ga/Gb,

 T

T6(–60 °C T4/T5(–60 °C

 +70 °C),

 T

 +80 °C)

Special Conditions for Safe Use (X):

1. If the apparatus is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of IEC60079-11. This must be taken into account when installing the apparatus.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0.

Emerson.com/Rosemount

Special Conditions for Safe Use (X):

1. This device contains a thin wall diaphragm less than 1 mm thickness that forms a boundary between zone 0 (process connection) and zone 1 (all other parts of the equipment). The model code and datasheet are to be consulted for details of the diaphragm material. Installation, maintenance and use shall take into account the environmental conditions to which the diaphragm will be subjected. The manufacturer's instructions for installation and maintenance shall be followed in detail to assure safety during its expected lifetime.

Page 92

Rosemount DP Flow

February 2017

2. Flameproof joints are not intended for repair.

3. Non-standard paint options may cause risk from electrostatic discharge. Avoid installations that could cause electrostatic build-up on painted surfaces, and only clean the painted surfaces with a damp cloth. If paint is ordered through a special option code, contact the manufacturer for more information.

I2 INMETRO Intrinsic Safety

Certificate: UL-BR 13.0584X Standards: ABNT NBR IEC60079-0:2008 + Errata 1:2011,

ABNT NBR IEC60079-11:2009

Markings: HART: Ex ia IIC T5/T4 Ga,

 T

T5(–60 °C

 +40 °C),

T4(–60 °C  Ta  +70 °C) Fieldbus/PROFIBUS: Ex ia IIC T4 Ga (–60 °C

 Ta  +60 °C)

HART Fieldbus/PROFIBUS

Voltage U

Current I

Power P

Capacitance C

Inductance L

30 V 30 V

200 mA 300 mA

0.9 W 1.3 W

0.012 μF 0 μF

0 mH 0 mH

Special Conditions for Safe Use (X):

1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IRC 60079-11. This must be taken into account when installing the equipment.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0.

INMETRO FISCO

Certificate: UL-BR 13.0584X Standards: ABNT NBR IEC60079-0:2008 + Errata 1:2011,

ABNT NBR IEC60079-11:2009

 T

Markings: Ex ia IIC T4 Ga (–60 °C

 +60 °C)

FISCO

Voltage U

Current I

Power P

Capacitance C

Inductance L

17.5 V

380 mA

5.32 W

<5 nF

<10 μH

Special Conditions for Safe Use (X):

1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IEC 60079-11. This must be taken into account when installing the equipment.

2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0.

China

E3 China Flameproof

Certificate: GYJ14.1041X; GYJ10.1313X [Flowmeters] Standards: GB3836.1–2000, GB3836.2–2010,

GB12476–2000

 T

Markings: Ex d IIC T6/T5, T6(–50 °C

T5(–50 °C  Ta  +80 °C)

Special Conditions for Safe Use (X):

1. The relation between ambient temperature arrange and temperature class is as follows:

Temperature class

–50 °C~+80 °C T5

–50 °C~+65 °C T6

When used in a combustible dust environment, the maximum ambient temperature is 80 °C.

2. The earth connection facility in the enclosure should be connected reliably.

3. Cable entry certified by notified body with type of protection Ex d IIC in accordance with GB3836.1–2000 and GB3836.2–2000, should be applied when installed in a hazardous location. When used in combustible dust environment, cable entry in accordance with IP66 or higher level should be applied.

4. Obey the warning “Keep tight when the circuit is alive.”

5. End users are not permitted to change any internal components.

6. During installation, use and maintenance of this product, observe the following standards: GB3836.13-1997, GB3836.15–2000, GB3836.16–2006, GB50257-1996, GB12476.2–2006, GB15577–2007

I3 China Intrinsic Safety

Certificate: GYJ13.1362X; GYJ101312X [Flowmeters] Standards: GB3836.1–2010, GB3836.4–2010,

GB3836.20–2010, GB12476.1–2000

Markings: Ex ia IIC Ga T4/T5

 +65 °C),

Emerson.com/Rosemount

Page 93

February 2017

Rosemount DP Flow

Special Conditions for Safe Use (X):

1. Symbol “X” is used to denote specific conditions of use: a. If the apparatus is fitted with an optional 90V

transient suppressor, it is not capable of withstanding the 500 V insulation test for 1 minute. This must be taken into account when installing the apparatus.

b. The enclosure may be made of aluminum alloy and

given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0.

2. The relation between T code and ambient temperature

range is:

Model T code Temperature range

HART T5 –60 °C  Ta  +40 °C

HART T4 –60 °C  Ta  +70 °C

Fieldbus/PROFIBUS/

FISCO

3. Intrinsically Safe parameters:

Voltage U

Current I

Power P

Capacitance C

Inductance L

Note

FISCO parameters apply to both Group IIC and IIB.

[For Flowmeters] When Rosemount 644 Temperature Transmitter is used, it should be used with Ex-certified associated apparatus to establish explosion protection system that can be used in explosive gas atmospheres. Wiring and terminals should comply with the instruction manual of both Rosemount 644 and associated apparatus. The cables between Rosemount 644 and associated apparatus should be shielded cables (the cables must have insulated shield). The shielded cable has to be grounded reliably in a non-hazardous area.

T4 –40 °C  Ta  +60 °C

HART

Fieldbus/

PROFIBUS

FISCO

30 V 30 V 17.5 V

200 mA 300 mA 380 mA

0.9 W 1.3 W 5.32 W

0.012 μF 0 μF <5 nF

0 mH 0 mH <10 μH

7. End users are not permitted to change any intern components but to settle the problem in conjunction with the manufacturer to avoid damage to the product.

8. During installation, use and maintenance of this product, observe the following standards: GB3836.13-1997, GB3836.15–2000, GB3836.16–2006, GB50257-1996, GB12476.2–2006, GB15577–2007

N3 China Type n

Certificate: GYJ15.1105X Standards: GB3836.1–2010, GB3836.8–2003

 T

Markings: Ex nA nL IIC T5 Gc (–40 °C

 +70 °C)

Special Condition for Safe Use (X):

1. Symbol “X” is used to denote specific conditions of use: The apparatus is not capable of withstanding the 500V test to earth for one minute. The must be taken into consideration during installation.

Japan

E4 Japan Flameproof

Certificate: TC20577, TC20578, TC20583, TC20584

[HART]; TC20579, TC20580, TC20581, TC20582 [Fieldbus]

Markings: Ex d IIC T5

Technical Regulations Customs Union (EAC)

EM EAC Flameproof

Certificate: RU C-US.GB05.B.01197

 T

Markings: Ga/Gb Ex d IIC T5/T6 X, T5(–60 °C

T6(–60 °C  Ta  +65 °C)

Special Condition for Safe Use (X):

1. See certificate for special conditions.

IM EAC Intrinsically Safe

Certificate: RU C-US.GB05.B.01197 Markings: HART: 0Ex ia IIC T4/T5 Ga X,

T4(–60 °C T5(–60 °C

 T

 +70 °C),

 T

 +40 °C)

Fieldbus/PROFIBUS: 0Ex ia IIC T4 Ga X

 T

(–60 °C

 +60 °C)

Special Condition for Safe Use (X):

1. See certificate for special conditions.

 +80 °C),

4. Transmitters comply with the requirements for FISCO field devices specified in IEC60079-27:2008. For the connection of an intrinsically safe circuit in accordance with FISCO Model, FISCO parameters are listed in the table above.

5. The product should be used with Ex-certified associated apparatus to establish explosion protection system that can be used in explosive gas atmospheres. Wiring and terminals should comply with the instruction manual of the product and associated apparatus.

6. The cables between this product and associated apparatus should be shielded cables (the cables must have insulated shield). The shielded cable has to be grounded reliably in a non-hazardous area.

Emerson.com/Rosemount

Combinations of certifications

K2 Combination of E2 and I2 K5 Combination of E5 and I5 K6 Combination of C6, E8, and I1 K7 Combination of E7, I7, and N7 K8 Combination of E8, I1, and N1 KB Combination of E5, I5, and C6 KD Combination of E8, I1, E5, I5, and C6 KM Combination of EM and IM

Page 94

Rosemount DP Flow

February 2017

Conduit plugs and adapters

IECEx Flameproof and Increased Safety Certificate: IECEx FMG 13.0032X Standards: IEC60079-0:2011, IEC60079-1:2007,

IEC60079-7:2006–2007

Markings: Ex de IIC Gb

ATEX Flameproof and Increased Safety Certificate: FM13ATEX0076X Standards: EN60079-0:2012, EN60079-1:2007,

IEC60079-7:2007

Markings: II 2 G Ex de IIC Gb

Table 13. Conduit Plug Thread Sizes

Thread Identification mark

M20 ⫻ 1.5 M20

/2–14 NPT

Table 14. Thread Adapter Thread Sizes

Male thread Identification mark

M20 ⫻1.5 – 6H M20

/2–14 NPT

/4–14 NPT

Female thread Identification mark

M20 ⫻ 1.5–6H M20

/2–14 NPT

PG 1/2 PG 1/2

/2 NPT

/2–14 NPT

/4 –14 NPT

/2–14 NPT

SDN Det Norske Veritas (DNV) Type Approval

Certificate: A-13245 Intended: Det Norske Veritas’ Rules for Classification of

Ships, High Speed and Light Craft and Det Norske Veritas’ Offshore Standards

Application:

Location classes

Tem pe ra tu re D

Humidity B

Vibration A

EMC B

Enclosure D

SLL Lloyds Register (LR) Type Approval

Certificate: 11/60002 Application: Environmental categories ENV1, ENV2, ENV3

and ENV5

C5 Custody Transfer - Measurement Canada Accuracy

Approval

Certificate: AG-0226; AG-0454; AG-0477

Special Conditions for Safe Use (X):

1. When the thread adapter or blanking plug is used with an enclosure in type of protection increased safety “e” the entry thread shall be suitably sealed in order to maintain the ingress protection rating (IP) of the enclosure.

2. The blanking plug shall not be used with an adapter.

3. Blanking Plug and Threaded Adapter shall be either NPT or

Metric thread forms. G

/2 thread forms are only acceptable

for existing (legacy) equipment installations.

Additional Certifications

SBS American Bureau of Shipping (ABS) Type Approval

Certificate: 09-HS446883A-PDA Intended: Marine & Offshore Applications - Measurement

of either gauge or absolute pressure for liquid, gas and vapor.

SBV Bureau Veritas (BV) Type Approval

Certificate: 23155 Requirements: Bureau Veritas Rules for the Classification of

Steel Ships

Application: Class notations: AUT-UMS, AUT-CCS,

AUT-PORT and AUT-IMS; Pressure transmitter type 3051 cannot be installed on diesel engines

Emerson.com/Rosemount

Page 95

February 2017



Rosemount 3051 Wireless

Rev 1.3

Rosemount DP Flow

European Directive Information

A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at

Emerson.com/Rosemount

Telecommunication Compliance

All wireless devices require certification to ensure that they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.

FCC and IC

Ordinary Location Certification from FM Approvals

USA

I5 U.S.A. Intrinsically Safe (IS)

Certificate: FM 3046325 Standards: FM Class 3600 - 2011, FM Class 3610 - 2010, FM

Class 3810 - 2005, ANSI/ISA 60079-0 - 2009, ANSI/ISA 60079-11 - 2009, NEMA 250 - 2003, ANSI/IEC 60529

Markings: IS CL I, DIV 1, GP A, B, C, D T4; CL 1, Zone 0 AEx

ia IIC T4; T4(–40 °C  T installed per Rosemount drawing 03031-1062; Type 4X/IP66/IP68

Special Conditions for Safe Use (X):

1. The Rosemount 3051 Wireless Pressure Transmitter shall only be used with the 701PGNKF Rosemount SmartPower Battery Pack.

+70 °C) when

2. The in-line pressure sensor may contain more than 10 percent aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and used to prevent impact and friction.

3. The surface resistivity of the transmitter housing is greater than one gigaohm. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth.

Canada

I6 Canada Intrinsically Safe

Certificate: CSA 2526009 Standards: CAN/CSA C22.2 No. 0-M91, CAN/CSA C22.2

No. 94-M91, CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 157-92, CSA Std C22.2 No. 60529:05

Markings: Intrinsically Safe for Class I, Division 1, Groups

A, B, C, D, T4 when installed per Rosemount drawing 03031-1063; Type 4X/IP66/IP68

European

I1 ATEX Intrinsic Safety

Certificate: Baseefa12ATEX0228X Standards: EN 60079-0: 2012, EN 60079-11: 2012 Markings: II 1 G Ex ia IIC T4 Ga, T4(–40 °C T

IP66/IP68

Special Conditions for Safe Use (X):

1. The plastic enclosure may constitute a potential electrostatic ignition risk and must not be rubbed or cleaned with a dry cloth.

2. The Model 701PGNKF Power Module may be replaced in a hazardous area. The power module has a surface resistivity greater than 1G and must be properly installed in the wireless device enclosure. Care must be taken during transportation to and from the point of installation to prevent electrostatic charge build-up.

70 °C)

International

I7 IECEx Intrinsic Safety

Certificate: IECEx BAS 12.0124X Standards: IEC 60079-0: 2011, IEC 60079-11: 2011 Markings: Ex ia IIC T4 Ga, T4(–40 °C T

IP66/IP68

70 °C)

Emerson.com/Rosemount

Page 96

Rosemount DP Flow



February 2017

Special Conditions for Safe Use (X):

1. The plastic enclosure may constitute a potential electrostatic ignition risk and must not be rubbed or cleaned with a dry cloth.

Brazil

I2 INMETRO Intrinsic Safety

Certificate: UL-BR 13.0534X Standards: ABNT NBR IEC 60079-0:2008 + Errata 1:2011,

ABNT NBR IEC 60079-11:2009

Markings: Ex ia IIC T4 IP66 Ga, T4(–40 °C  T

Special Condition for Safe Use (X):

1. See certificate for special conditions.

+70 °C)

China

I3 China Intrinsic Safety

Certificate: GYJ13.1362X

GYJ15.1367X [Flowmeters]

Standards: GB3836.1-2010, GB3836.4-2010,

GB3836.20-2010

Markings: Ex ia IIC T4 Ga, T4(–40

70 °C)

Japan

I4 TIIS Intrinsic Safety

Certificate: TC22022X (3051C/L)

TC22023X (3051T) TC22024X (3051CFx)

Markings: Ex ia IIC T4 Ga, T4(–20

Special Condition for Safe Use (X):

1. See certificate for special conditions.

+60 °C)

EAC - Belarus, Kazakhstan, Russia

IM Technical Regulation Customs Union (EAC) Intrinsic Safety

Certificate: RU C-US. Markings: Ex ia IIC T4 Ga, T4(–20 ~ +60 °C)

Special Condition for Safe Use (X):

1. See certificate for special conditions.

ГБ05.B.00400

Korea

IP Korea Intrinsic Safety

Certificate: 13-KB4BO-0295X Markings: Ex ia IIC T4 (–40 °C  T

Special Condition for Safe Use (X):

1. See certificate for special conditions.

+70 °C)

Special Condition for Safe Use (X):

1. See certificate for special conditions.

Emerson.com/Rosemount

Page 97

February 2017

Rosemount 2051CF Flowmeter Series

Rosemount 2051CFA Annubar Flowmeter

Rosemount 2051CF Flow meters integrate industry leading transmitters with industry leading primary elements. Capabilities include:

 Flow meters are fully assembled and leak tested for out-of-the-box installation

 4–20 mA HART, WirelessHART, and FOUNDATION Fieldbus Protocols

 Integral temperature measurement (option code T)

 Advanced diagnostic (option code DA2)

 Direct or remote mount configuration available

 Rosemount Annubar flowmeters reduce permanent pressure loss by creating less

blockage in the pipe

 Ideal for large line size installations when cost, size, and weight of the flow meter are

concerns

Additional information

Specifications: page 119 Certifications: page 126 Dimensional drawings: page 211

Rosemount DP Flow

Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See page 124 for more information on material selection.

Table 15. Rosemount 2051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Model Product description

2051CFA Rosemount Annubar Flowmeter

Measurement type

D Differential Pressure ★

Fluid type

L Liquid ★

G Gas ★

S Steam ★

Line size

020 2-in. (50 mm) ★

025 21/2-in. (63.5 mm) ★

030 3-in. (80 mm) ★

035 31/2-in. (89 mm) ★

040 4-in. (100 mm) ★

050 5-in. (125 mm) ★

Emerson.com/Rosemount

Page 98

Rosemount DP Flow

Table 15. Rosemount 2051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

060 6-in. (150 mm) ★

070 7-in. (175 mm) ★

080 8-in. (200 mm) ★

100 10-in. (250 mm) ★

120 12-in. (300 mm) ★

140 14-in. (350 mm)

160 16-in. (400 mm)

180 18-in. (450 mm)

200 20-in. (500 mm)

240 24-in. (600 mm)

300 30-in. (750 mm)

360 36-in. (900 mm)

420 42-in. (1066 mm)

480 48-in. (1210 mm)

600 60-in. (1520 mm)

720 72-in. (1820 mm)

780 78-in. (1950 mm)

840 84-in. (2100 mm)

900 90-in. (2250 mm)

960 96-in. (2400 mm)

February 2017

Pipe I.D. range (see “Pipe I.D. range code for Rosemount Annubar Flowmeters and Primary Elements” on page 143)

C Range C from the pipe I.D. table ★

D Range D from the pipe I.D. table ★

A Range A from the pipe I.D. table

B Range B from the pipe I.D. table

E Range E from the pipe I.D. table

Z Non-standard pipe I.D. range or line sizes greater than 12-in.

Pipe material/mounting assembly material

C Carbon steel (A105) ★

S 316 stainless steel ★

(1)

G Chrome-moly grade F-11

N Chrome-moly grade F-22

J Chrome-moly grade F-91

No mounting (customer supplied) ★

Piping orientation

H Horizontal piping ★

D Vertical piping with downwards flow ★

U Vertical piping with upwards flow ★

100

Emerson.com/Rosemount

Page 99

February 2017

Table 15. Rosemount 2051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Rosemount DP Flow

Rosemount Annubar type

P Pak-Lok ★

F Flanged with opposite side support ★

Sensor material

S 316 stainless steel ★

Sensor size

1 Sensor size 1 — Line sizes 2- to 8-in. (50 to 200 mm) ★

2 Sensor size 2 — Line sizes 6- to 96-in. (150 to 2400 mm) ★

3 Sensor size 3 — Line sizes greater than 12-in. (300 mm)

Mounting type

T1 Compression or threaded connection ★

A1 Class 150 RF ANSI ★

A3 Class 300 RF ANSI ★

A6 Class 600 RF ANSI ★

D1 DN PN16 flange ★

D3 DN PN40 flange ★

D6 DN PN100 flange ★

R1 Class 150 RTJ ANSI flange

R3 Class 300 RTJ ANSI flange

R6 Class 600 RTJ ANSI flange

Opposite side support or packing gland

0 No opposite side support or packing gland (required for Pak-Lok and Flange-Lok models) ★

Opposite side support (required for Flanged models)

C NPT threaded opposite support assembly – extended tip ★

D Welded opposite support assembly – extended tip ★

Isolation valve for Flo-Tap models

0 Not applicable or customer supplied ★

Temperature measurement

T Integral RTD – not available with Flanged model greater than Class 600 ★

0 No temperature sensor ★

R Remote thermowell and RTD

Transmitter connection platform

3 Direct-mount, Integral 3-valve manifold– not available with Flanged model greater than Class 600 ★

5 Direct -mount, 5-valve manifold – not available with Flanged model greater than Class 600 ★

7 Remote-mount NPT connections (1/2-in. FNPT) ★

8 Remote-mount SW connections (1/2-in.)

Emerson.com/Rosemount

101

Page 100

Rosemount DP Flow

February 2017

Table 15. Rosemount 2051CFA Annubar Flowmeter Ordering Information

The starred offerings (★) represent the most common options and should be selected for best delivery. The non-starred offerings are subject to additional delivery lead time.

Differential pressure range

1 0 to 25 inH2O (0 to 62,3 mbar) ★

2 0 to 250 inH2O (0 to 623 mbar) ★

3 0 to 1000 inH2O (0 to 2,5 bar) ★

Transmitter output

(2)

4–20 mA with digital signal based on HART Protocol ★

F FOUNDATION Fieldbus Protocol ★

W PROFIBUS PA Protocol ★

X Wireless ★

M Low-power, 1–5 Vdc with digital signal based on HART Protocol

Transmitter housing material Conduit entry size

A Aluminum

B Aluminum M20 ⫻ 1.5 ★

J SST

(3)

(4)

SST M20⫻ 1.5 ★

Engineered polymer No conduit entries ★

D Aluminum G1/2

(3)

SST G1/2

/2–14 NPT ★

Transmitter performance class

1 2.3 percent flow rate accuracy, 5:1 flow turndown, 2-year stability ★

Wireless options (requires wireless output code X and Engineered Polymer housing code P)

Wireless transmit rate, operating frequency and protocol

WA3 User configurable transmit rate, 2.4GHz WirelessHART ★

Antenna and SmartPower

WP5 Internal antenna, compatible with Green Power Module (I.S. Power Module sold separately) ★

Options (include with selected model number)

Extended product warranty

WR3 3-year limited warranty ★

WR5 5-year limited warranty

Pressure testing

P1 Hydrostatic testing with Certificate

PX Extended hydrostatic testing

Special cleaning

★

P2 Cleaning for special services

PA Cleaning per ASTM G93 level D (section 11.4)

102

Emerson.com/Rosemount

Rosemount 3051SFC, 2051CFC, 2051CFP, 1195 Specifications

Specifications and Main Features

Frequently Asked Questions

User Manual

DP Flowmeter Selection Guide

Rosemount 3051SF DP Flowmeters

Rosemount 3051SFA Annubar Flowmeter ordering information

Rosemount 3051SFC Compact Orifice Flowmeter ordering information

Rosemount 3051SFP Integral Orifice Flowmeter ordering information

Specifications

Performance specifications

Dynamic performance

Functional specifications

Physical specifications

Product Certifications

Rosemount 3051SMV/3051SFx

Rosemount 3051S/3051SFx

Rosemount 3051S and 3051SMV Wireless

Rosemount 3051CF Flowmeter Series

Rosemount 3051CFA Annubar Flowmeter

Rosemount 3051CFC Compact Flowmeter ordering information

Rosemount 3051CFP Integral Orifice Flowmeter ordering information

Specifications

Performance specifications

Functional specifications

Physical specifications

Product Certifications

Rosemount 3051

Rosemount 3051 Wireless

Rosemount 2051CF Flowmeter Series

Rosemount 2051CFA Annubar Flowmeter
