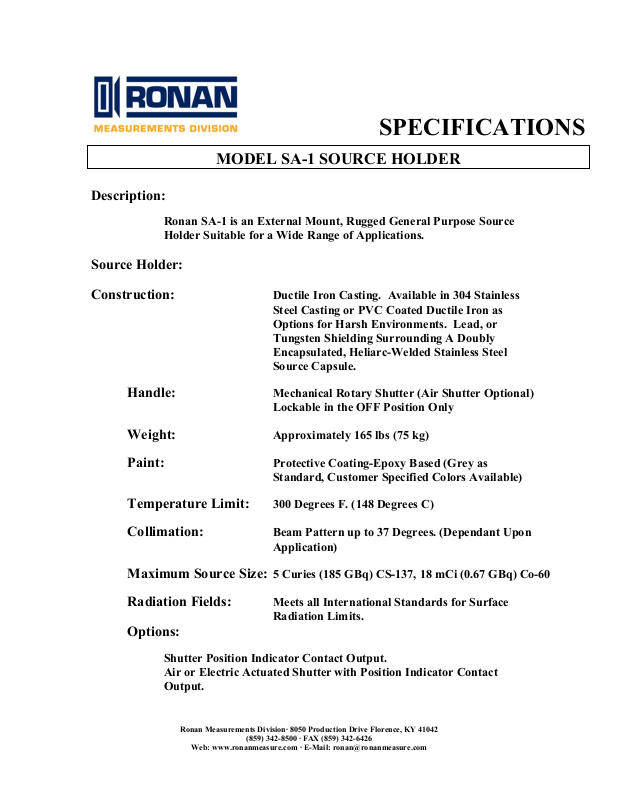

Ronan SA-1 User Manual

Description:

Ronan SA-1 is an External Mount, Rugged General Purpose Source
Holder Suitable for a Wide Range of Applications.

Source Holder:

SPECIFICATIONS

-

Construction:

Handle: Mechanical Rotary Shutter (Air Shutter Optional)

Weight: Approximately 165 lbs (75 kg)

Paint: Protective Coating-Epoxy Based (Grey as

Temperature Limit: 300 Degrees F. (148 Degrees C)

Collimation: Beam Pattern up to 37 Degrees. (Dependant Upon

Maximum Source Size: 5 Curies (185 GBq) CS-137, 18 mCi (0.67 GBq) Co-60

Ductile Iron Casting. Available in 304 Stainless
Steel Casting or PVC Coated Ductile Iron as
Options for Harsh Environments. Lead, or
Tungsten Shielding Surrounding A Doubly
Encapsulated, Heliarc-Welded Stainless Steel
Source Capsule.

Lockable in the OFF Position Only

Standard, Customer Specified Colors Available)

Application)

Radiation Fields: Meets all International Standards for Surface

Radiation Limits.

Options:

Shutter Position Indicator Contact Output.
Air or Electric Actuated Shutter with Position Indicator Contact
Output.
