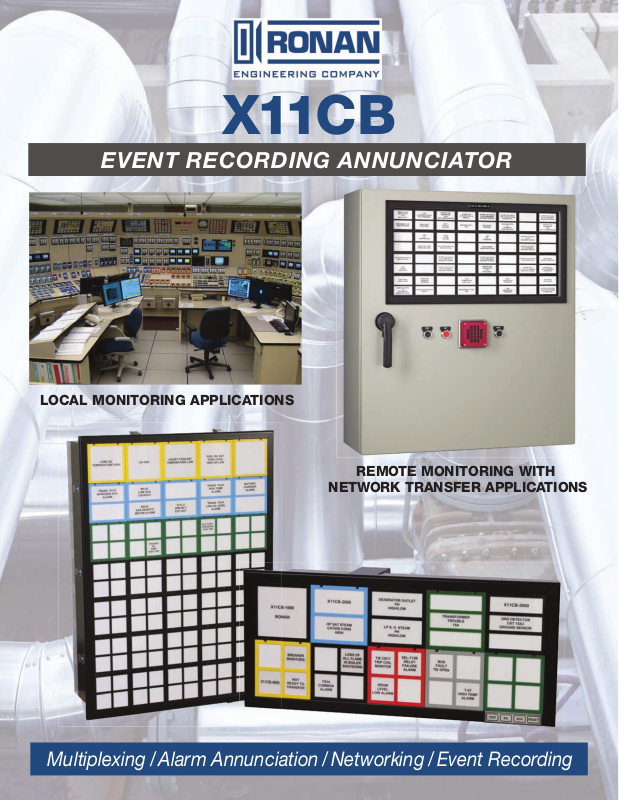

Ronan X11CB User Manual

X11CB

EVENT RECORDING ANNUNCIATOR

LOCAL MONITORING APPLICATIONS

REMOTE MONITORING WITH

NETWORK TRANSFER APPLICATIONS

Multiplexing / Alarm Annunciation / Networking / Event Recording

TECHNICAL SPECIFICATIONS

SYSTEM CONFIGURATIONS

Chassis:

Up to 100 I/O Modules*

•

Power Supply Filter Module

•

AUX Relay Modules

•

Communications Module

•

System Size:

Basic Cabinet Module is 3.50 in.

•

(88.90mm) x 3.50 in. (88.90mm)

Enclosures:

Weather Proof

•

- NEMA 4 (optional)

- NEMA 4X (optional)

- NEMA 12 (optional)
Panel Mount

•

Surface-Mount

•

19” Rack-Mount

•

*Multiple chassis can be connected to share communications
capabilities up to a maximum of 100 Modules.

FEATURES

Alarm Display LEDs:

Minimum of 4 LEDs per window

•

Colors: Red, Green, Yellow, White

•

and Blue

Dual Redundancy:

(-1000 & -2000 Models Only)

Built-In Diagnostics:

Hardware startup

•

Periodic Maintenance

•

Event Time Stamping to 1mS
resolution with Date and Time of Day
correlation when an external IRIG-B
Timing Source is provided

Stores latest 1000 events in
distributed, non-volatile memory

Fully Congurable Using the
Ronan Conguration Tool

(software provided):

Via TCP/IP over a network (LAN)

•

Compatible with the Ronan’s

X1001

SER/HMI, X110 and

Remote Alarm Annunciators

X118

PUSHBUTTON INPUTS

Front Bezel Pushbuttons

•

Rear Input Terminals

•

via Network Interface

•

- Silence

- Acknowldge

- Reset

- First-Out Reset

- LED Test

SYSTEM VOLTAGE

Lamps, Logic:

24Vdc

•

Field Contacts:

Vdc: 24, 48, or 125 Vdc

•

Vac: 115, 240 Vac

•

X11-2048 INTERFACE MODULE

Communications with the SER/HMI or
a Host via a 10/100 BaseT Interface via:

Ronan Proprietary Protocol

•

ModBus RTU Protocol

•

DNP 3.0 Protocol via Ronan REC-UCM

•

(Optional)

Alarm module monitoring generates

•

system error with missing module.

Continuous alarm module conguration

•

monitoring. (Veries each alarm module
for correct conguration and recongures
improperly congured modules)

Facilitates and preserves
Alarm Module conguration

X11-2047 ALARM MODULE

(4) Opto-Isolated Channels
per module featuring:

1500V Isolation to Ground and

•

Channel-to-Channel

Vdc: 24V, 48V or 125V Vac: 115V or 240V

•

(Selectable by Module)

Wetted or Dry Contacts

•

(Selectable by Module)

Normally Open/Normaly Closed

•

Contact Sensing

(Field Selectable Congurable by Channel)

Input Response Time < 1mS

•

Multiple Filter Options

•

(S/W Congurable by Channel)

Hot swapable (remove and replace

•

module without disrupting system
operation)

Field contact Debounce lter with:

•

- Filters for each eld contacts normal and
alarm transition

- Integrating and non integrating lter types

- Units in miliseconds, seconds, and minutes

Output Response 1 to 16383mS

•

H/W First-Out Discrimination 1mS

•

S/W First-Out Discrimination <100mS

•

ENVIRONMENT

Operating Temperature

•

- 0 to 60º C (32 to 140ºF)**
Storage Temperature

•

- 40 to +85ºC (-40 to +185ºF)
Humidity 0-95% RH, non condensing

•

** Operating at temperatures over 50ºC for more than a few
hours at a time will shorten the life of the system. The average
temperature over life of the system should be <50ºC, but
never exceeding 60ºC

WARRANTY

Ronan warrants equipment of its own manufacture to be free
from defects in workmanship and material under normal
conditions of use and service, and will replace any component
found to be defective, on its return, transportation charges
prepaid, within one (1) year of its original purchase. This warranty
carries no liability, either expressed or implied, beyond our
obligations to replace the unit which carries the warranty.

Extended Warranties are available.
