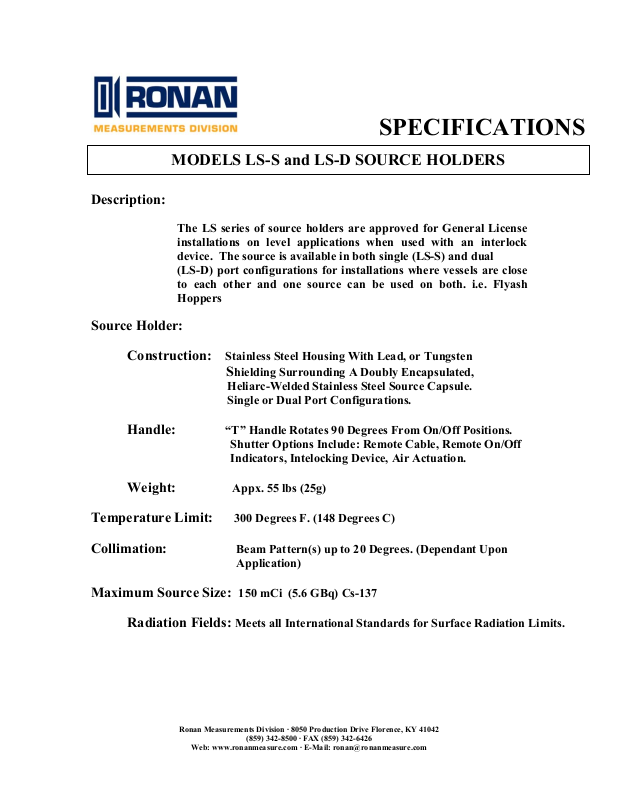

MODELS LS-S and LS-D SOURCE HOLDERS

Description:

Source Holder:

SPECIFICATIONS

The LS series of source holders are approved for General License
installations on level applications when used with an interlock
device. The source is available in both single (LS-S) and dual
(LS-D) port configurations for installations where vessels are close
to each other and one source can be used on both. i.e. Flyash
Hoppers

Construction:

Stainless Steel Housing With Lead, or Tungsten

Shielding Surrounding A Doubly Encapsulated,

Heliarc-Welded Stainless Steel Source Capsule.
Single or Dual Port Configurations.

Handle: “T” Handle Rotates 90 Degrees From On/Off Positions.

Shutter Options Include: Remote Cable, Remote On/Off
Indicators, Intelocking Device, Air Actuation.

Weight: Appx. 55 lbs (25g)

Temperature Limit:

300 Degrees F. (148 Degrees C)

Collimation: Beam Pattern(s) up to 20 Degrees. (Dependant Upon

Application)

Maximum Source Size: 150 mCi (5.6 GBq) Cs-137

Radiation Fields: Meets all International Standards for Surface Radiation Limits.

Ronan Measurements Division · 8050 Production Drive Florence, KY 41042

Web: www.ronanmeasure.com · E-Mail: [e-mail]

[phone] · FAX [phone]

SPECIFICATIONS

MODELS LS-S and LS-D SOURCE HOLDERS

α

α

α
