Rollei RCP-7324 User Guide

Download
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may
cause undesired operation.
Note:
Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.
Notice
If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.
EN-1
READ THIS FIRST

Trademark Information

Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.
Pentium® is a registered trademark of Intel Corporation.  Macintosh is a trademark of Apple Computer, Inc.SD™ is a trademark.Other names and products may be trademarks or registered trademarks of their
respective owners.

Product Information

Product design and specifications are subject to change without notice. This
includes primary product specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide for the product.
The product and accessories that come with your camera may be different from
those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.
The illustrations in this manual are for the purpose of explanation and may differ
from the actual design of your camera.
The manufacturer assumes no liability for any errors or discrepancies in this user
manual.
EN-2
SAFETY INSTRUCTIONS
Read and understand all Warnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power off and remove the battery.
Continued use might cause fire or electric shock. Consult the store of purchase.
If the camera has fallen or its case has been damaged, turn the power off and remove the battery.
Continued use might cause fire or electric shock. Consult the store of purchase.
Do not disassemble, change or repair the camera.
This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.
Use the supplied AC adapter only with the indicated power supply voltage.
Use with any other power supply voltage might cause fire or electric shock.
Do not use the camera in areas near water.
This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.
Do not place the camera on inclined or unstable surfaces.
This might cause the camera to fall or tilt over, causing damage.
Keep the battery out of the reach of children.
Swallowing the battery might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician.
Do not use the camera while you are walking, driving or riding a motorcycle.
This might cause you to fall over or result in traffic accident.
EN-3

Cautions

Insert the batteries paying careful attention to the polarity (+ or –) of the terminals.
Inserting the batteries with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.
Do not fire the flash close to anyone’s eyes.
This might cause damage to the person’s eyesight.
Do not subject the LCD monitor to impact.
This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment.
A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.
This might cause damage to the camera.
Do not use the camera in humid, steamy, smoky, or dusty places.
This might cause fire or electric shock.
Do not remove the batteries immediately after long period of continuous use.
The batteries becomes hot during use. Touching a hot battery might cause burns.
Do not wrap the camera or place it in cloth or blankets.
This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.
Do not leave the camera in places where the temperature may rise significantly, such as inside a car.
This might adversely affect the case or the parts inside, resulting in fire.
Before you move the camera, disconnect cords and cables.
Failure to do this might damage cords and cables, resulting in fire and electric shock.
EN-4

Notes on Battery Usage

When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:
Use only the specified batteries.Avoid extremely cold environments as low temperatures can shorten the battery life and
reduce camera performance. Therefore Ni-MH rechargeable batteries are highly recommended.
When you are using a new rechargeable batteries or rechargeable batteries that has not
been used for an extended period of time (the battery that passed the expiry date is an exception), it may affect the number of images that can be captured. Therefore, to maximize its performance and lifetime, we recommend that you fully charge the battery and discharge it for at least one complete cycle before use.
The batteries may feel warm after a long period of continuous use of the camera or the
flash. This is normal and not a malfunction.
The camera may feel warm after a long period of continuous use. This is normal and not
a malfunction.
If the batteries are not to be used for a long period of time, remove them from the camera
to prevent leakage or corrosion and store them after no battery power is left. Stored for a long time in a fully charged condition, their performance may be impaired.
Always keep the battery terminals clean.There is a risk of explosion if the batteries are replaced by an incorrect type.Dispose of used batteries according to the recycle instructions.We recommend charging the rechargeable batteries for 8 hours before the camera’s first
use.
EN-5
CONTENTS
7 INTRODUCTION
7 Package Contents
8 GETTING TO KNOW YOUR
CAMERA
8 Front View 9 Rear View 10 Mode Dial 11 LCD Monitor Information
13 PREPARING THE CAMERA
13 Preparation
14 LED Indicators and Self-timer
Indicators)
15 GETTING STARTED
15 Turning the Power On/Off 15 Choosing the Screen Language 16 Setting the Date and Time 16 Formatting an SD Memory Card or
Internal Memory
17 PHOTOGRAPHY MODE
17 Shooting Images 18 Setting Image Resolution and Quality 19 Using the Zoom Function 20 Using the Flash 21 Setting Focus
22 CAPTURE MODE
22 Burst 22 Auto Bracket 23 Self-Timer 24 Adjusting the Exposure (EV
Compensation)
24 Setting White Balance
25 PLAYBACK MODE - THE
BASICS
25 Viewing Images 26 Magnifying Images 26 Thumbnail Display 27 Slideshow Display 27 Resizing an Image
28 MOVIE MODE
28 Recording Movie Clips 28 Playing Back Movie Clips
29 PLAYBACK MODE -
ADVANCED FEATURES
29 Playing Back Still Images/Movie Clips
on TV 30 Deleting Images/Movie Clips 31 Protecting Images/Movie Clips 32 Setting the DPOF
34 TRANSFERRING RECORDED
IMAGES AND VIDEOS TO YOUR
COMPUTER
34 Downloading Your Files
35 EDITING SOFTWARE
INSTALLATION
36 USING THE DIGITAL CAMERA
AS A PC CAMERA
36 Step 1: Install the PC camera driver 37 Step 2: Connect the digital camera to
your computer 37 Step 3: Run your application software
(i.e. Windows NetMeeting)
38 MENU OPTIONS
38 Camera Menu 41 Movie Menu 42 Playback Menu 44 Setup Menu
46 SPECIFICATIONS
47 TROUBLESHOOTING GUIDE
48 POSSIBLE NUMBER OF
RECORDABLE IMAGES
49 CONNECTING TO A
PICTBRIDGE-COMPATIBLE
PRINTER
EN-6

INTRODUCTION

Thank you for purchasing the new digital still camera! Equipped with a 7.0-megapixel CCD sensor, your camera delivers high quality, 3072 x 2304 resolution images. Besides, 4x digital zoom in conjunction with the 3x optical zoom permit zoom photography of up to 12x.

Package Contents

Carefully unpack your kit box and ensure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer.
Common Product Components:
Digital CameraUser's ManualSoftware CD-ROMCamera Strap x 2AV C a bleUSB CableAA Alkaline battery x 2
EN-7

GETTING TO KNOW YOUR CAMERA

Front View

1
1. Shutter release button
2. Mode dial
3. Power switch
4. Flash
5. Self-timer LED
2
3
4
5
6
7
8 9
6. PC / AV terminal
7. DC input terminal
8. Lens
9. Microphone
EN-8

Rear View

1
2
3
4 5 6
7 8
9
10
11
1314
1. LED indicator
2. / Zoom in (telephoto) button / Zoom out (wide-angle)
button
3. MENU button
4. Arrow button (Up) Self-timer button
5. Arrow button (Right) Focus button
6. OK OK button Display button
7. Strap holder
12
8. Arrow button (Down) Exposure compensation button
9. Playback button
10. Arrow button (Left) Flash button
11. Delete button
12.Battery / SD card cover
13. LCD monitor
14. Tripod socket
EN-9

Mode Dial

You can select from seven shooting modes and setup mode.
8
7
6
4
5
Mode Description
1.
2.
3. Landscape Select this mode to take photographs of distant scenery
4.
5.
6.
7.
8.
Using the Mode Dial
1. Rotate the mode dial to the desired mode and turn your camera on by pressing the
2. Compose your subject within the focus frame. When you press the shutter release

3. Press the shutter release button all the way down to capture the image.

Program
Portrait
Spor ts
Night
Setup
Video
Auto
power switch.
button down half way, the camera’s Auto Focus feature automatically focuses the image. Proper exposure is determined and locked at the same time.
Select this mode to permit the ISO, EV, and White Balance to be set manually.
Select this mode to make people stand out with the background out-of-focus.
or landscapes.
Select this mode to shoot fast moving objects.
Select this mode to take photographs of people against a dusk or night-time background.
Select this mode to adjust the camera settings.
Select this mode to record video clips.
Select this mode to adjust point-and-shoot action.
1
2
3
EN-10

LCD Monitor Information

+0. 3
3
Camera Mode
1. Mode indication [ ] Program Mode [] Portrait Mode [ ] Landscape Mode [ ] Sport Mode [ ] Night Mode [ ] Movie Mode [ ] Auto Mode

2. Flash mode [] Auto [] Red-eye [ ] Flash on [ ] Flash off

3. Capture mode [] Single [] Burst [ ] AEB [ ] 2 sec. Self-timer [ ] 10 sec. Self-timer [ ] 10+2 sec. Self-timer

4. Focus mode [ ] Standard [] Macro [ ] Infinity

5. Possible number of shots

6. Memory status

: Built-in memory
(without card)
: SD memory card

7. Battery and AC adapter [ ] Full battery power [ ] Medium battery power [ ] Low battery power [ ] No battery power [ ] AC adapter

14 13

8. Recorded pixels [ ] 3072 x 2304 [ ] 2560 x 1920 [ ] 1600X1200 [ ] 640 x 480

9. Image quality [] Fine [] Normal [ ] Economy

10.White balance [ ] Auto [] Daylight [ ] Cloudy [ ] Tungsten [ ] Fluorescent

11. ISO sensitivity [ ] Auto [] 64 [] 100 [] 200 [] 400

12. EV compensation

13.Focus area

14.Zoom bar

5321 4
3
+0.3
+0.3
6
7 8 9
10
11 12
EN-11
Movie Mode
00: 00 :49
12: 00
+0. 3
01/ 01 /20 07
1/7
100 -0 001
1/1 25 F2. 8
12: 01
01/ 01 /20 07
1/7
100 -0 001
00: 00 :05
1. Movie mode

2. Recordable movie time available

3. Memory status

4. Battery power and AC adapter indicator

5. Focus area

6. Zoom bar

00:00:49
00:00:49
21
3
4
5
Image Playback
1. Playback mode

2. Number of image

3. Memory status

4. Battery power and AC adapter indicator

5. Index number of total number

6. DPOF indicator

7. Protect indicator

8. Date

9. Time

10.Aperture

11.Shutter speed

12. EV compensation

13. ISO sensitivity

14. White balance

15. Image quality

16. Recorded pixels

Movie Playback
1. Playback mode

2. Movie mode

3. Number of movie

4. Memory status

5. Battery power and AC adapter indicator

6. Index number of total number

7. Elapsed time

8. Date

9. Time

10.Play/Pause indicator

6
21
3
100-0001
16 15 14
13
12
+0.3
+0.3
1/125
1/125
11
F2.8
F2.8
10
10
100-0001
01/01/2007
01/01/2007 12:00
12:00
31 2
100-0001
100-0001
00:00:05
00:00:05
01/01/2007
01/01/2007 12:01
12:01
1/7
1/7
1/7
1/7
4 5 6
7 8 9
4
5 6 7
8 9
EN-12

PREPARING THE CAMERA

Preparation
1. Attach the camera strap.

2. Open the battery/SD memory card cover.

3. Insert the batteries with correct orientation as shown.

4. Insert an SD memory card. The camera has 16 MB internal
memory for image storage but you can load an SD memory card to expand the camera’s memory capacity.
Be sure to format the memory card with
this camera before its initial usage.

5. Close the battery/SD memory card cover and make sure it is locked securely.

2
1
Be careful not to drop the batteries when opening or closing the battery cover.Due to the characteristics of alkaline batteries, camera performance may be less than
expected. AA alkaline batteries are recommended only in case of emergency and for checking the camera’s functions. Ni-MH rechargeable batteries are a superior choice for performance and economy.
To prevent valuable data from being accidentally erased from an SD card, you can slide the
write protect tab (on the side of the SD memory card) to “LOCK”.
To save, edit, or erase data on an SD memory card, you must unlock the card.
EN-13

LED Indicators and Self-timer Indicators

Indicators State Description/Activity
LED indicator Solid green The digital camera is on.
LED indicator Blinking red and
green
LED indicator Blinking red and
green
Self-timer indicator Blinking red The self-timer function is activated.
USB communication/transfer in progress
Charging the flash.
EN-14

GETTING STARTED

Set-up1
Set-up2
Set-up3
Language
Da
te & Time
Beeper
Format
Select :
Eng
lish
m/d/y
Louder

Turning the Power On/Off

Press the power switch until the digital
camera turns on.
To turn the power off, press the power
switch again.

Choosing the Screen Language

Follow the steps below to choose the desired language.
1. Rotate the mode dial to and turn your camera on by pressing the power switch.
Power switch

2. [Set-up1] is displayed.

3. Use the four-way controller (T) to select [Language], then press the button.
4. Use the four-way controller (ST) to select the language you want.

5. Press the button to confirm.

Set-up1
Set-up1 Set-up2
Set-up2 Set-up3
For mat
Beeper
Beeper
te & Tim
Date & Time
Langu
Language
Set-up3
Louder
Louder
m/d/y
m/d/y
English
En
Select :
Select :
EN-15
lis

Setting the Date and Time

Da
te & Time
Select :
Set :
/ 01 / 2007
00 : 00
Select :
Format
No
Yes
Follow the steps below to set the date display style, current date and time.
1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. [Set-up1] is displayed.

3. Use the four-way controller (T) to select [Date & Time], then press the button.
4. Press the four-way controller (WX) to select Day, Month, Year and Time fields.
te & Tim
Date & Time
To increase a value, press the four-way
0101 / 01 / 2007
controller (S).
01 / 01 / 2007
To decrease a value, press the
four-way controller (T).
The time is displayed in 24-hour format.

5. Press the button after all fields are set.

The date illustration shown is for the purpose of explanation and may differ from the actual
setting of your camera.
Set :
Set :
00 : 00
00 : 00
Select :
Select :

Formatting an SD Memory Card or Internal Memory

The term “Formatting” means preparing an “SD memory card” to record images; this process is also called “initialization”. This utility formats an SD memory card or the internal memory and erases all stored images and data.
1. Rotate the mode dial to and turn your camera on by pressing the power switch. [Set-up1] is displayed.
2. Use the four-way controller (T) to select [Format], then press the button.
3. Use the four-way controller (ST) to select [Yes], then press the button to confirm.
For mat
Yes
No
No
Select :
Select :
When you format an SD memory card, be aware that all data on the SD memory card will be
erased. Protected images are also erased.
To format the internal memory, do not insert an SD memory card into the camera. Otherwise,
you will format the SD memory card.
An SD memory card having any problem cannot be properly formatted.
EN-16

PHOTOGRAPHY MODE

Shooting Images

1. Rotate the mode dial to , , , ,
, or and turn your camera on by
pressing the power switch.

2. Compose the image on the LCD monitor screen so that the main subject is within the focus frame.

3. Press the shutter release button down halfway to focus the image. When you press the shutter release

button down halfway, the camera’s Auto Focus feature automatically focuses the image. The focus frame turns green if the subject is in focus. Proper exposure is determined and locked at the same time.

4. Press the shutter release button the rest of the way down to capture the image.

The actual captured image appears to be larger than the one displayed by the LCD monitor
screen after the image has been captured.
Pressing the / button switches the LCD monitor display mode. Each time you press the
/ button, the display changes in the following order: Normal Display Æ Information
Display Æ No Icons.
EN-17

Setting Image Resolution and Quality

640 x 480
Ima
ge Size
Select :
Cancel :
3072 x 2304
2560 x 1920
1600 x 1200
As you get to know the digital camera, you can set the image resolution (number of vertical and horizontal pixels) and image quality (compression ratio) based on the types of images you want to shoot. These settings affect the number of images that can be stored in the internal memory, or on an SD memory card. Higher resolution and higher quality images provide finer detail but cause the images’ file size to be larger. To change image resolution or image quality, perform these steps below:
1. Rotate the mode dial to , , , ,
, or and turn your camera on by
pressing the power switch.

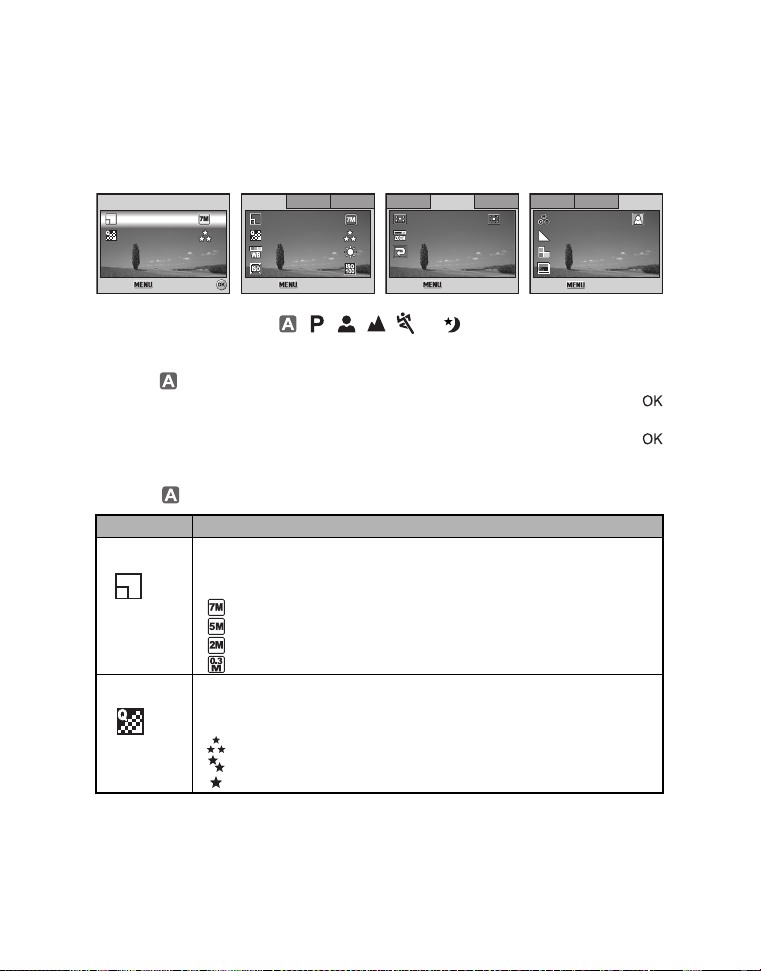

2. Press the MENU button.

[Mode1] is displayed.In the mode, [Auto] is displayed.
3. Use the four-way controller (T) to select [Image Size], then press the button.
Cancel :
4. Use the four-way controller (ST) to select the desired setting, then press the button to confirm.

5. Follow the step 3 and 4 above to set the [Quality].

The possible number of shots and recording time depend on the storage size, resolution and
quality settings and the subject of the image to be captured.
You can resize the images later. Please refer to the section in this manual titled “Resizing an
Image” for further detail.
Im
ge Si
Image Size
3072 x 2304
3072 x 2304
2560 x 1920
2560 x 1920
1600 x 1200
1600 x 1200
640 x 480
640 x 480
Select :
Select :Cancel :
EN-18

Using the Zoom Function

3

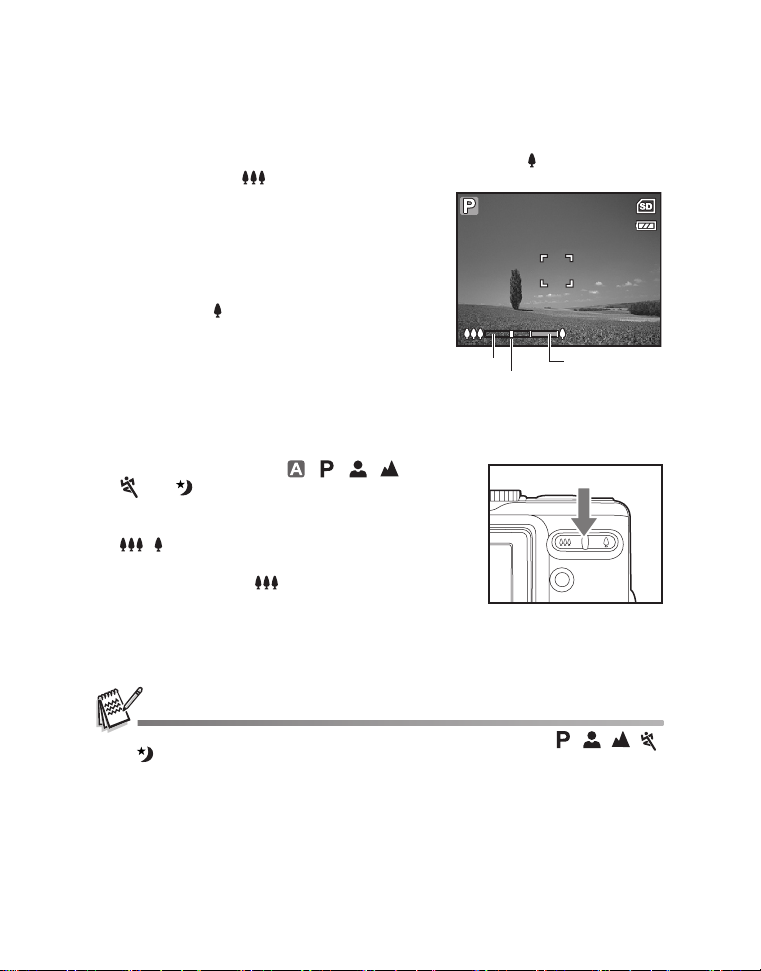

This camera is equipped with 3x optical zoom. The lens moves during the optical zoom photography, allowing you to capture telephoto and wide-angle shots. By using the optical zoom function, images appear closer by pressing the button, or smaller away by pressing the button. The zoom bar indicates the current level of magnification. When the digital zoom is within 3x magnification, the zoom bar is within the optical zoom range. When the digital zoom function is set to On, you can further enlarge the subjects with 4x digital zoom by pressing continuously the button. It is activated after your camera reaches its maximum optical zoom factor (3x) and the zoom bar is within the digital zoom area. You can enlarge the subject to a maximum magnification equivalent to 12
Optical zoom range
Zoom bar
times. A useful feature as it is, however, the more the image is enlarged, the more pixelated the image will appear.
To capture a zoomed image, perform the following steps:
1. Rotate the mode dial to , , , ,
, or and turn your camera on by
pressing the power switch.
2. Adjust the magnification ratio by using the
/ button.
To exit the zoom photography, press
continuously the button.
The status of digital magnification is
displayed on the LCD monitor.

3. Compose your scene and press the shutter release button.

3
Digital zoom range
 To enable digital zoom feature, set the [Mode2- Digital Zoom] to [On] in the , , , ,
or mode.
EN-19

Using the Flash

F
lash Mode
A
uto
OK :
The flash is designed to function automatically when lighting conditions warrant the use of flash. You can take an image using a desired flash mode to suit your circumstances.
1. Rotate the mode dial to , , , ,
, or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (W/). The flash mode changes each time the button is pressed. You can also change the setting using the four-way controller (ST).

4. Press the button to confirm the setting.

5. Compose your scene and press the shutter release button.

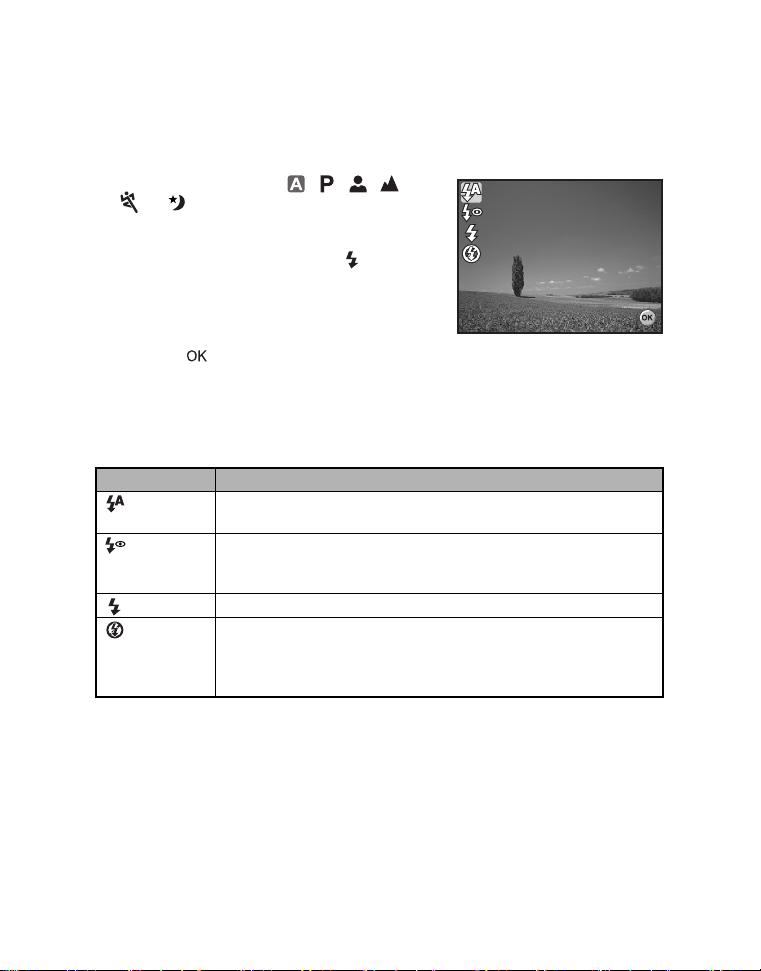

The camera has four flash modes: Auto, Auto + Red-eye, Flash on and Flash off. The table below will help you to choose the appropriate flash mode:
Flash mode Description
Auto The flash fires automatically according to the photographic
conditions.
Red-eye Use this mode to reduce the red-eye phenomenon when you want
to take natural-looking photographs of people and animals in low-light conditions.
Flash on The flash will always fire regardless of the surrounding brightness.
Flash off The flash will not discharge, regardless of the brightness. Use this
mode when taking pictures using indoor lighting, for stages and indoor competitions, and when the subject is too far away for the flash to be effective.
lash Mod
Flash Mode
Auto
ut
OK :
OK :
EN-20

Setting Focus

F
ocus
Standard
OK :
Images can be captured with the focus determined automatically using auto focus. You may over-ride the auto focus and specify [ ] macro or [ ] infinity.
1. Rotate the mode dial to , , , ,
, or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (X/). The focus mode changes each time the button is pressed. You can also change the setting using four-way controller (ST).

4. Press the button to confirm the setting.

5. Compose your scene and press the shutter release button.

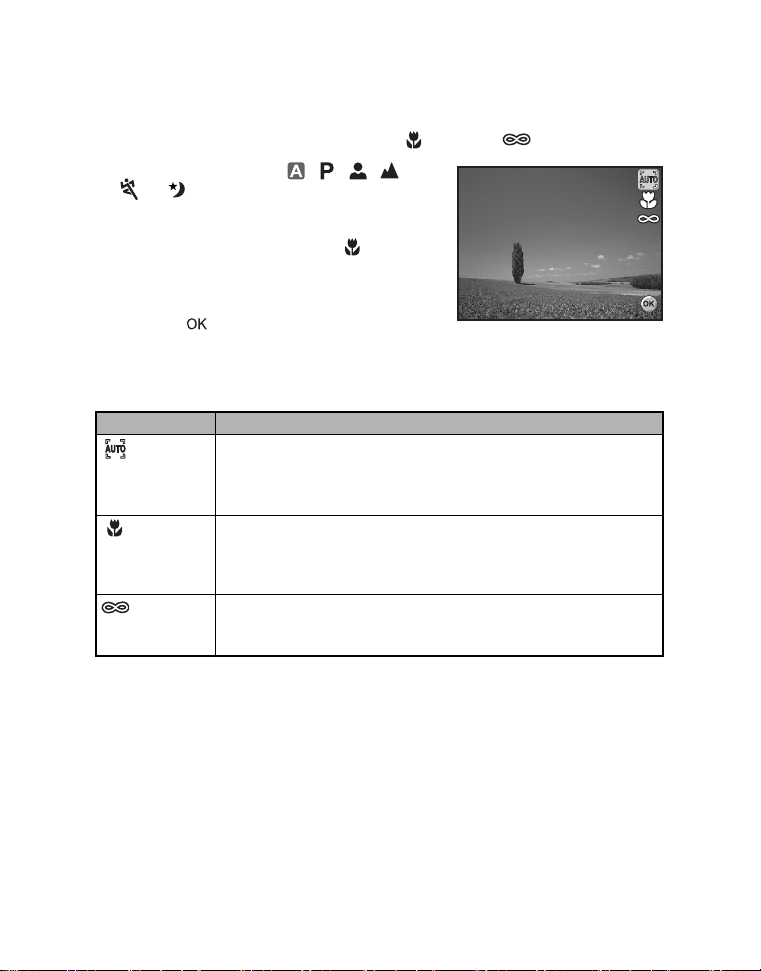

The camera has three focus modes: Standard, Macro and Infinity. The table below will help you choose the appropriate focus mode:
Focus mode Description
Standard Select Standard-focus setting for most occasions when you want
the camera to automatically determine the focus setting. When using Standard-focus setting, any object at a focus range of 40 cm or greater can be in focus.
Macro Select Macro-focus setting to capture close-up images. When the
lens is zoomed to its widest position you may focus objects as close as 5 cm. When the lens is zoomed to its telephoto position (3x zoom) you may focus objects as close as 35 cm.
Infinity Select Infinity-focus setting when you want to capture images of
subject at a distance of infinity. The flash mode will be set to Flash Off automatically.
ocu
Focus
Standard
Standa
OK :
OK :
EN-21

CAPTURE MODE

Ca
ptur
e Mode
Burst
OK :
Ca
ptur
e Mode
AEB
OK :

Burst

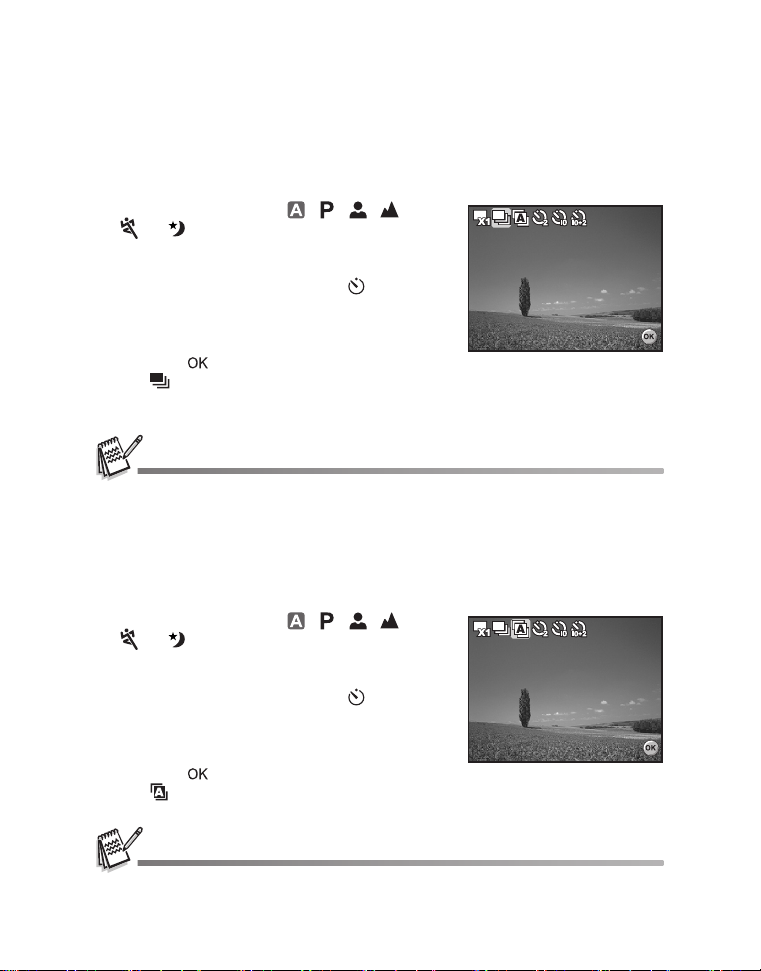

This mode is used for continuous shooting. 3 pictures are taken continuously once the shutter release button is pressed. Secure the camera to a tripod or place it on a stable surface.
1. Rotate the mode dial to , , , ,
, or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (S/) and use (S) to select [Burst]. You can also change the setting using four-way controller (WX).

4. Press the button to confirm the setting. The indicator is displayed on the monitor screen.

5. Press the shutter release button halfway to lock the focus.

6. Press the shutter release button to capture a sequence of images.

In Burst mode, the flash mode will be set to Flash Off automatically.

Auto Bracket

In this mode, the camera automatically changes the exposure within a set range to take three shots after you press the shutter release button once. Auto Bracket settings can be combined with exposure compensation settings to extend the adjustment range.
1. Rotate the mode dial to , , , ,
, or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (S/) and use (S) to select [AEB]. You can also change the setting using the four-way controller (WX).

4. Press the button to confirm the setting. The indicator is displayed on the LCD monitor screen.

5. Press the shutter release button to capture the three images.

ptu
e Mod
Capture Mode
Burst
Bu
ptu
e Mod
Capture Mode
AEB
AEB
OK :
OK :
OK :
OK :
In AEB mode, the flash mode will be set to Flash Off automatically.
EN-22

Self-Timer

Ca
ptur
e Mode
2 sec. Self-timer
OK :

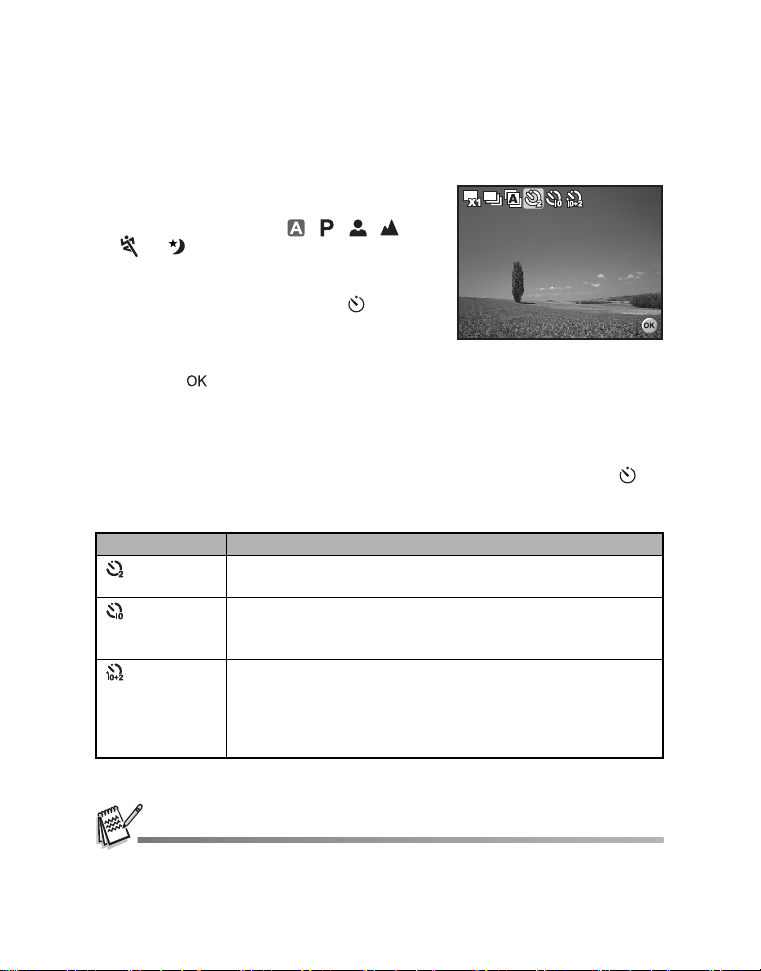

The self-timer can be used in situations such as group shots. When using this option, you should either mount the camera on a tripod (recommended) or rest it on a flat, level surface.
1. Secure the camera to a tripod or place it on a stable surface.
2. Rotate the mode dial to , , , ,
, or .

3. Press the power switch to turn on the power.

4. Press the four-way controller (S/) and use (S) to select your desired self-timer mode. You can also change the setting using four-way controller (WX).

5. Press the button to confirm the setting.

6. Compose your scene and press the shutter release button.

The self-timer function is activated.The photograph is then taken after the preset time.To cancel the self-timer at any time, press the four-way controller (S/) or
press the shutter release button halfway. The table below will help you choose the appropriate self-timer mode:
Self-timer mode Description
2 sec.
Self-timer
10 sec.
Self-timer
The image is captured about 2 seconds after the shutter is pressed. This mode is useful for preventing camera shake.
The image is captured about 10 seconds after the shutter is pressed. This mode is suitable for the shots in which the photographer has to be included.
10+2 sec.
Self-timer
The first image is captured about 10 seconds after the shutter release button is pressed, and then the second image is captured 2 seconds later. This mode is convenient when capturing group images in succession. Flash does not fire in this mode.
ptu
e Mod
Capture Mode
2 sec. Self-timer
2 sec. Self-timer
OK :
OK :
After one shot is taken, the self-timer mode is turned off.If you wish to take another image using the self-timer, repeat these steps.
EN-23

Adjusting the Exposure (EV Compensation)

Set :
Select :
±
0. 0
Select :
Cancel :
Aututoo
T
ungstenn
Daylight
Cloudy
W
. Balance
Select :
Cancel :
F
luor
escent
W
. Balance
You can manually adjust the exposure determined by the digital camera. Use this mode when the proper exposure cannot be obtained, for example, when the contrast (difference between bright and dark areas) between the subject and the background is extremely high. The EV compensation value can be set in the range from -2.0EV to +2.0EV.
1. Rotate the mode dial to , , , , or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (T/) and use (WX) to set the range of EV compensation value from -2.0EV to
EVEVEV
0.0
±0.0
Select :
Select : Set :
Set :
+2.0EV.

4. Press the button to confirm the setting.

Setting White Balance

This feature lets you make adjustments to compensate for different lighting types according to your shooting conditions.
1. Rotate the mode dial to , , , , or .

2. Press the power switch to turn on the power.

3. Press the MENU button. [Mode1] is displayed.

4. Use the four-way controller (T) to select [W. Balance], then press the button.
5. Use the four-way controller (ST) to select the desired white balance setting, then press the button to confirm.

6. To cancel the setting, press the MENU button and exit the menu.

Cancel :
. Balanc
W. Balance
A
Auto
Daylight
Daylight
Cloudy
Cloudy
ungste
Tungsten
T
. Balanc
W. Balance
luo
escen
Fluorescent
Select :
Select :Cancel :
EN-24
Cancel :
Select :
Select :Cancel :

PLAYBACK MODE - THE BASICS

100 -0 00 1

Viewing Images

You can display the still images one by one.
1. Rotate the mode dial to , , , ,
, or and turn your camera on by
pressing the power switch.

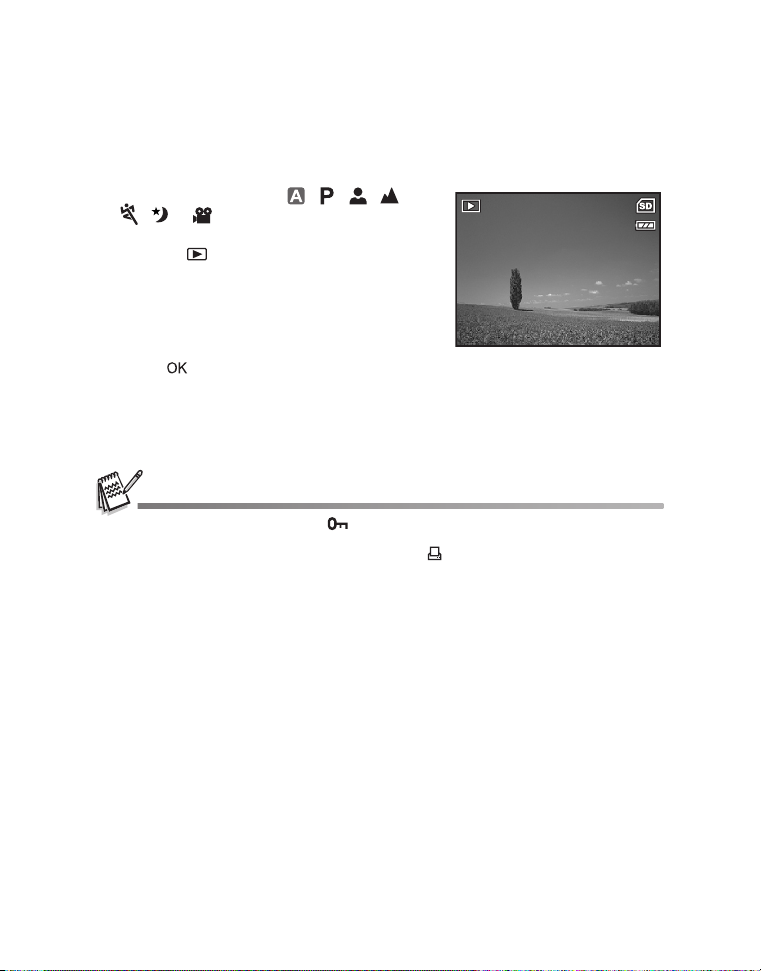

2. Press the button. The last recorded image appears on

the LCD monitor screen.
Basic information is shown by
indicators on the LCD monitor screen. To see full information display, press the button.
3. Use the four-way controller (WX) to select the desired images.
 To view the previous image, press the four-way controller (W).  To view the next image, press the four-way controller (X).
For protected images/movie clips, mark will be displayed. Refer to the section in this
manual titled “Protecting Images/Movie Clips” for further details.
For images selected for printing with DPOF setting, mark will be displayed. (Refer to the
section in this manual titled “Setting the DPOF” for further details.)
If there is no image stored in the internal memory or on the SD memory card, [No image]
message will appear on the LCD monitor screen.
You cannot enter the Playback mode from the Setup mode.
100-0001
100-0001
EN-25

Magnifying Images

1.5 X
1
2
3
4
5
6
7
8
9
While reviewing your images, you may enlarge a selected portion of an image. This magnification allows you to view fine details. The zoom factor displayed on the screen shows the current magnification.
1. Press the button. The last recorded image appears on
the LCD monitor screen.
To view the previous image, press the
four-way controller (W).
To view the next image, press the
four-way controller (X).

2. Adjust the zoom ratio by using the / button.

To enlarge the selected image, press the button.To return to the normal image, press the button.The magnification factor is displayed on the LCD monitor screen.
3. To view different portions of the images, press the four-way controller (STWX) to adjust the display area.
The magnification factors range from 1.5X to 4X (within 6 stages: 1.5X, 2.0X, 2.5X, 3.0X, 3.5X
and 4.0X).

Thumbnail Display

This function allows you to view 9 thumbnail images on the LCD monitor screen simultaneously so you may search for a particular image.
1. Press the button. The last recorded image appears on
the LCD monitor screen.

2. Press the button once. Nine thumbnail images are displayed

simultaneously.
For recorded movie clips, the movie
mode icon will be displayed.
For protected images/movie clips,
mark will be displayed.
3. Use the four-way controller (STWX) to move the cursor to select the image to be displayed at regular size.

4. Press the or / button to display the selected image on full screen.

1
123
4
456
7
789
1.5X
1.5X
2
5
8
3
6
9
EN-26
Slide Show
Start t :
Cancel :
3 Sec.
5 Sec.
10 Sec.
Image Size
640 x 480
Select :
Cancel :
2560 x 1920
1600 x 1200

Slideshow Display

The slideshow function enables you to play your images back automatically in sequential order. This is very useful and entertaining feature for reviewing recorded images and for presentations.
1. Press the button. The last recorded image appears on the LCD monitor screen.
2. Press the MENU button to access the Playback menu. Then use the four-way controller (T) to select [Slide Show] and press the button.
3. Use the four-way controller (ST) to set the playback interval, then press the button.
The slideshow starts.
The movie clips display the first frame image, and the movie is not played back.
To stop slideshow, press the button.
Cancel :
You can adjust the slideshow display interval within the range of 3 sec., 5 sec., 10 sec..
Slide Sh
Slide Show
3 Sec.
3 Sec.
5 Sec.
5 Sec.
10 Sec.
10 Sec.

Resizing an Image

You can change the image size of a captured image to one of the following sizes: 2560 x 1920 pixel, 1600 x 1200 pixel and 640 x 480 pixel.
1. Press the button. The last recorded image appears on
the LCD monitor screen.
2. In the mode, use the four-way controller (WX) to select the desired images. To view the previous image, press the
four-way controller (W).
To view the next image, press the
Cancel :
four-way controller (X).
3. Press the
MENU
button to access the Playback menu. Press the four-way controller
(X) to select [Playback2] and press (T) to select [Resize] and press the button.
4. Use the four-way controller (ST) to select the desired setting, then press the button to confirm.
You can only choose a smaller size image; you cannot increase the resolution of an image.Movie cannot be resized.
Image Size
Image Size
2560 x 1920
2560 x 1920
1600 x 1200
1600 x 1200
640 x 480
640 x 480
Sta
Start :Cancel :
Select :
Select :Cancel :
EN-27

MOVIE MODE

00: 00 :49
12: 01
01/ 01 /20 07
1/7
100 -0 001
00: 00 :05

Recording Movie Clips

This mode allows you to record movie clips with sound via built-in microphone.
1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Press the shutter release button to start recording.

3. To stop recording, press the shutter release button again.

The optical zoom function (3X) can be activated before you start recording the movie clips The digital zoom function can be activated before and during the recording.Pressing the / button switches the LCD monitor screen display mode. Each time you
press the / button, the display changes in the following order: Normal Display Æ No Icons.

Playing Back Movie Clips

You can play back the recorded movie clips on the LCD monitor screen. However, the sound recorded with movie clips can only be played back on a computer.
1. Press the button.
2. Use the four-way controller (WX) to go through the images until the movie clip you want to play back is displayed. To view the previous image, press the
four-way controller (W).
To view the next image, press the
four-way controller (X).

3. Press the button to start playing back the movie clips. To pause or resume movie playback, press the button again.

00:00:49
00:00:49
100-0001
100-0001
00:00:05
00:00:05
01/01/2007
01/01/2007 12:01
12:01
1/7
1/7
The index number, date and time indicators displayed on the LCD monitor screen will disappear
after a few seconds.
The zoom function cannot be activated when playing back movie clips.we recommend using Windows Media Player (WMP) 9.0 or later. You can download the latest
version from the microsoft web site at www.microsoft.com
EN-28
.

PLAYBACK MODE - ADVANCED FEATURES

Playing Back Still Images/Movie Clips on TV

You can also playback your images on a TV screen. Before connecting to any device, make sure to select NTSC/PAL system to match the video output system of the video equipment you are going to connect to the digital camera, then turn off all devices to be connected.
1. Connect one end of the AV cable to the AV terminal of the digital camera.

2. Connect the other end to the AV input socket of the TV set.

3. Turn the TV and digital camera on.

4. Playback the images/movie clips. The method of operation is the same as

playing back still images and movie clips on the digital camera.

5. Set the TV to receive its signal from the line-in jack rather than the antenna or cable.

The sound recorded with movie clips can only be played back on a TV or on a computer.
PC/AV terminal
EN-29

Deleting Images/Movie Clips

Delete
Select :
Cancel :
T
his Image
All Imageges
Select :
This image
No
s
Use this function to delete one or all images/movie clips stored in SD memory card or the internal memory. Please note that the deleted images or movie clips cannot be recovered. Exercise caution before deleting a file.
1. Rotate the mode dial to , , , ,
, or and turn your camera on by
pressing the power switch.

2. Press the button. The last recorded image/movie clip

appears on the LCD monitor screen.
3. Use the four-way controller (WX) to select the image/movie clip you want to delete.

4. Press the button to delete.

5. Use the four-way controller (ST) to select [This Image] or [All Images], then press the
button.
6. When the delete message appears, use the four-way controller (ST) to select [Yes], then press the button to confirm the deletion. If you wish to cancel the deletion, select
[No].
Protected images cannot be deleted with the delete function.
Cancel :
Delete
Delete
his Im
This Image
All Images
All Im
This image
This image
YYees
Yes
No
No
Select :
Select :
Select :
Select :Cancel :
EN-30

Protecting Images/Movie Clips

Slide Show
Select :
R
eturn n :
Playback2
Playback1
DPOF
Pr
otect
Select :
Cancel :
Pr
otect One
Pr
otect All
Pr
otect One
Select :
Cancel :
Lock
Unlock
Set the data to read-only to prevent images from being erased by mistake.
1. Press the button. The last recorded image appears on
the LCD monitor screen.
2. In the mode, use the four-way controller (WX) to select the desired images. To view the previous image, press the
four-way controller (W).
To view the next image, press the
four-way controller (X).
3. Press the MENU button, then use the four-way controller(T) to select [Protect] and press the button.
4. Use the four-way controller (ST) to choose the desired setting, then press the
button.
[Protect One]: Protect one image/
movie.
[Protect All]: Protect all images/
movies (at once).
5. Use the four-way controller (ST) to select [Lock], then press the button to confirm. Press the MENU button to return to the
mode. The indicator appears on
the selected image.
If you wish to cancel the protect
function of a protected image, select [Unlock].
Playba
Playback1
Slide Sh
Slide Show
Protect
DPOF
DPOF
etu
Return :
Cancel :
Cancel :
otec
Protect
otect On
Protect One
otect Al
Protect All
otect On
Protect One
Lock
Lo
Unlo
Unlock
Playba
Playback2
Select :
Select :
Select :
Select :Cancel :
Select :
Select :Cancel :
EN-31

Setting the DPOF

100 -00 01
Pr
otect
Slide Show
Select :
R
eturn n :
Playback2
Playback1
DPOF
R
eset All
DPOF
Select :
Cancel :
One Image
All Imageges

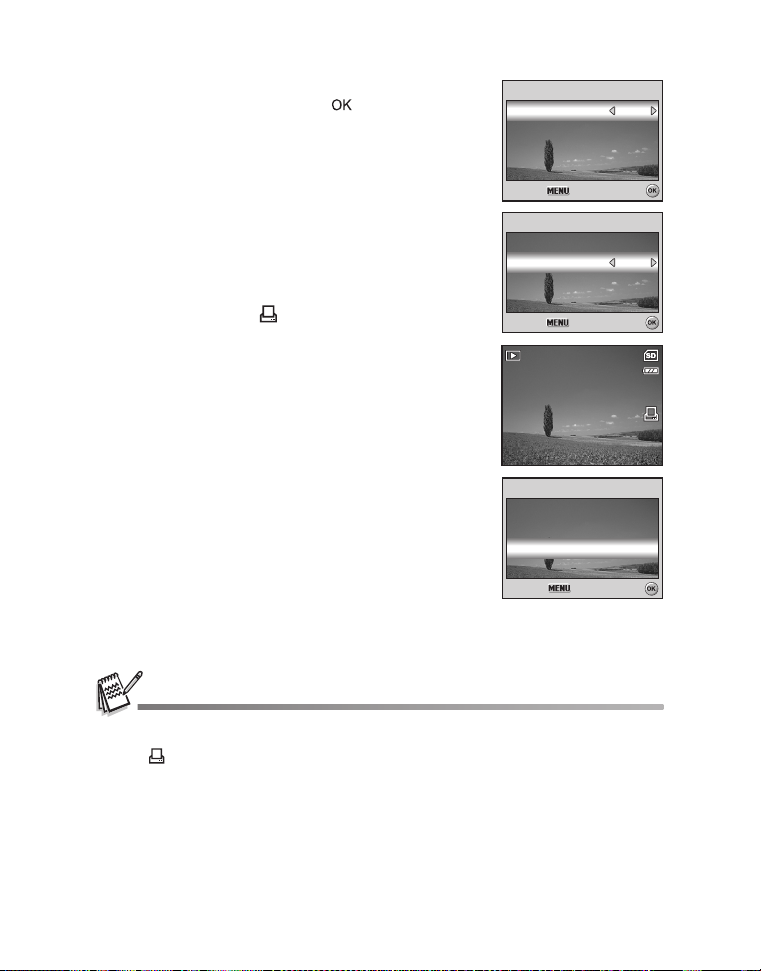

DPOF (Digital Print Order Format) allows you to embed printing information on your SD memory card. By using DPOF, you can select an image to be printed and then specify how many prints or which image you would like. Take your SD memory card to a DPOF enabled printer that accepts SD memory cards. The DPOF/card-compatible printer will read the embedded information on the SD memory card and print your images as specified.
To configure print settings for a single image / all images.
1. Press the button, then use the four-way controller (WX) to select the desired image you want to print.
100-0001
100-0001
2. Press the MENU button. Use the four-way controller (ST) to select [DPOF], then press the button.
3. Use the four-way controller (ST) to select by your preference, then press the button. [One Image]: To configure print settings for a
single image.
[All Images]: To configure print settings for
all images.
[Reset All]: Resets all DPOF settings.
EN-32
Playba
Playback1
Slide Show
Slide Sh
Protect
DPOF
DPOF
etu
Return :
Cancel :
otec
One Image
One Im
All Im
All Images
eset Al
Reset All
DPOF
DPOF
Playba
Playback2
Select :
Select :
Select :
Select :Cancel :
4. Use the four-way controller (ST) to select by
100 -00 01
With
1
One Image
Select :
Cancel :
Quantity
Date
One Image
0
Select :
Cancel :
Quantity
Date
With
R
eset All
DPOF
Select :
Cancel :
One Image
All Imageges
your preference, then press the button. [Quantity]: Allows you to select image
quantity (0~10). Use the four-way controller (WX) to set the image quantity.
[Date]: The date of recording can be
printed directly on the images. Select [With] or [Without] with the four-way controller (WX).
5. Press the MENU button to return to the image playback mode. The print icon is marked on the
displayed image.
To cancel the DPOF settings for a single
image, go back to step 3 to select [One Image] and select 0 in [Quantity] in the next step. For resetting all the DPOF settings, go back to step 3 to select [Reset All].
Cancel :
Cancel :
Cancel :
One Im
One Image
Quantity
Quantity
100-0001
100-0001
DPOF
DPOF
With
Select :
Select :Cancel :
With
Select :
Select :Cancel :
Select :
Select :Cancel :
Date With
One Im
One Image
Quantity
Quantity
Date With
One Image
One Im
All Im
All Images
eset Al
Reset All
1
0
Before you perform the DPOF settings on your camera, always remember to copy your images
from the internal memory to an SD memory card first.
The
You cannot print movies.Depending on the printer or printing equipment at the photo processing lab., the date may not
print icon will appear on the LCD monitor screen indicating images selected for
printing.
be imprinted on the pictures even if the DPOF settings are made.
EN-33

TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR COMPUTER

System Requirements (Windows)
Pentium III 600 MHz or higher Windows 2000/XP64MB RAM 128MB hard disk spaceCD-ROM drive Available USB port
System Requirements (Macintosh)
PowerPC G3/G4/G5 OS 9.0 or later64MB RAM 128MB hard disk spaceCD-ROM drive Available USB port
Downloading Your Files
1. Rotate the mode dial to and turn your camera on by pressing the power switch.
2. Press the four-way controller (X) to select the [Set-up2] menu, then use the four-way controller (T) to select [USB Mode].

3. Press the button.

4. Use the four-way controller (T) to select [PC], then press the button.

5. Turn off your camera.

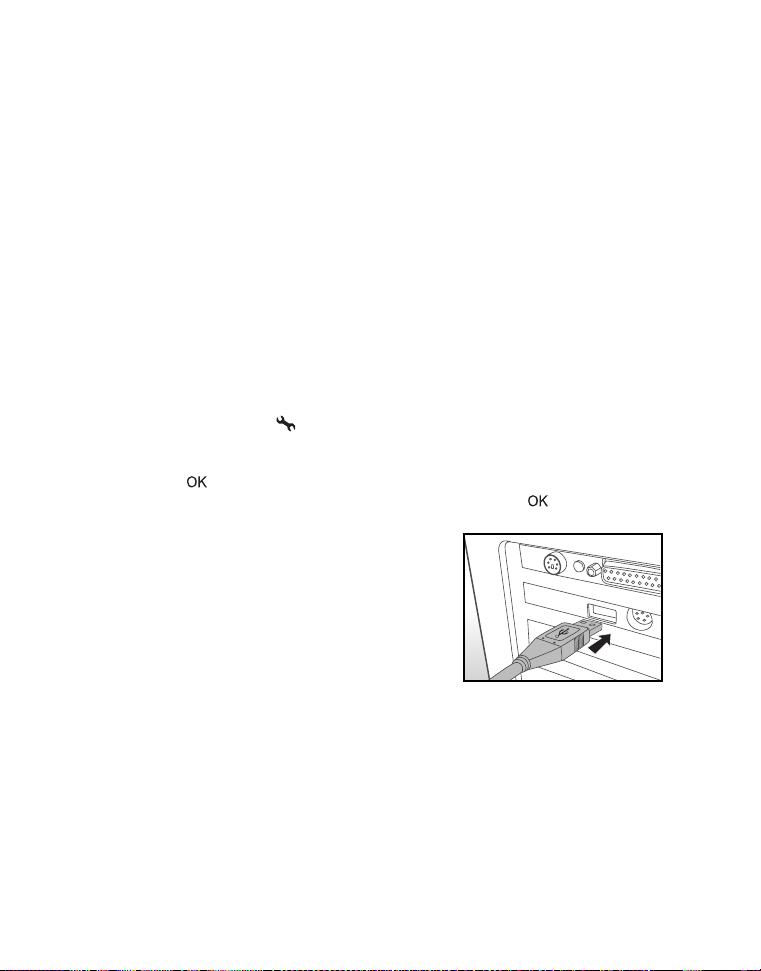

6. Connect your camera and the computer via the supplied USB cable.

7. Turn your camera on by pressing the power switch.

8. From the Windows desktop, double click on “My Computer”.

9. Look for a new “removable disk” icon. This “removable disk” is actually the

memory (or memory card) in your camera. Typically, the camera will be assigned drive letter “e” or higher.

10. Double click on the removable disk and locate the DCIM folder.

11.Double click on the DCIM folder to open it to find more folders. Your recorded images and video clips will be inside these folders.

12. Copy & Paste or Drag-N-Drop image and video files to a folder on your computer.

Mac users: Double-click the “untitled” or “unlabeled” disk drive icon on your desktop. iPhoto may automatically launch.
EN-34

EDITING SOFTWARE INSTALLATION

There are two types of software that are bundled inside the CD-ROM:
Ulead® Photo Explorer - lets you spend more time enjoying photos, music and videos and less time finding them. It is the all-in-one solution for owners of digital cameras, camcorders, scanners or anyone who wants to make it easier to keep track of their media.
Ulead® Photo Express - makes it easy to edit and share digital photos and create fun photo projects. Edit and enhance images, browse your photo collection and express your creativity with stunning special effects and creative photo projects. .
To install software:
1. Insert the CD-ROM that came with the camera into your CD-ROM drive. The welcome screen appears.

2. Click the respective software name. Follow the on-screen instructions to complete the installation.

For more information about the operation of the software, refer to its respective help documentation.
For Windows 2000/XP users, please make sure to install and use the software in
“Administrator” mode.
The software is not supported on the Mac.
EN-35

USING THE DIGITAL CAMERA AS A PC CAMERA

Your digital camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the digital camera for videoconferencing, your computer system must include the items as below:
MicrophoneSound cardSpeakers or headphonesNetwork or Internet connection
Video conferencing (or video editing) software is not included with the digital camera.This mode is not supported for Mac.

Step 1: Install the PC camera driver

The PC-camera driver included in the CD-ROM is exclusively for Windows. The PC camera function is not supported for Mac platforms.
1. Insert the enclosed CD-ROM into your CD-ROM drive.

2. When the welcome screen appears, click “INSTALL PC-CAM DRIVER”. Follow the on-screen instructions to complete the installation.

3. After the driver installation is completed, restart your computer.

EN-36

Step 2: Connect the digital camera to your computer

1. Rotate the mode dial to and turn your camera on by pressing the power switch.
2. Press the four-way controller (X) to select the [Set-up2] menu, then use the four-way controller (T) to select [USB Mode].

3. Press the button.

4. Use the four-way controller (ST) to select [PC Camera], then press the button.

5. Connect your camera and the computer via the supplied USB cable.

6. Position the digital camera steadily on top of your computer
monitor or use a tripod.

Step 3: Run your application software (i.e. Windows NetMeeting)

To use Windows NetMeeting for videoconferencing:
1. Go to Start Æ Programs Æ Accessories Æ Communications Æ NetMeeting to launch the NetMeeting program.

2. Click the Start Video button to view live video.

3. Click the Place Call button.

4. Type the e-mail address or the network address of the computer that you are calling.

5. Click Call. The person that you are calling must also have Windows NetMeeting running and be willing to accept your call to start the videoconference.

The video resolution for videoconferencing applications is generally 320 x 240.For more information about the operation of videoconference application software, refer to its
respective help documentation.
Use of AC adapter is recommended while the camera is used as a PC camera.
EN-37

MENU OPTIONS

Select :
Aututo
Quality
Ima
ge Size
R
eturn n :
Mode1
Mode2
Mode3
ISO
Quality
Ima
ge Size
W
. Balance
R
eturn n :
Mode1
Mode2
Mode3
R
eturn n :
On
Digital Zoom
Metering
Off
Quick k Vieiew
Mode1
Mode2
Mode3
R
eturn n :
Da
te Imprint
Shar
pness
Color
Satutura
tion
Off
Medium
Medium

Camera Menu

This menu is for the basic settings to be used when capturing still images.
etu
Return :
Im
ge Si
Image Size
Quality
Quality
Auto
Select :
Select :
Mode1
Mode1 Mode2
Mode2 Mode3
Im
ge Si
Image Size
Quality
Quality
. Balanc
W. Balance
ISO
ISO
etu
Return :
Mode3
Mode1
Mode1 Mode2
Mode2 Mode3
Metering
Metering
Digital Zoom
Qui
etu
Return :
Mode3
On
OnDigital Zoom
OffQuick View
Mode1
Mode1 Mode2
Color
Color
Sha
pnes
Sharpness
tio
Saturation Medium
te Imprin
Date Imprint
etu
Return :
Mode3
Mode3Mode2
Medium
Medium
Medium
Off
1. Rotate the mode dial to , , , , , or and turn your camera on.
2. Press the MENU button, then use the four-way controller (WX) to select the [Mode1] / [Mode2] / [Mode3] menu. In Mode, press the MENU button to access the [Auto] menu directly.
3. Use the four-way controller (ST) to select the option item, then press the button.
4. Press the four-way controller (ST) to select the desired setting, then press the button.
In the Mode
Item Functional Description
Image Size Sets the size of the image that will be captured. Refer to the section
in this manual titled "Setting Image Resolution and Quality" for further details.
3072 x 2304 2560 x 1920 1600 x 1200 640x480
Quality Sets the quality (compression) at which the image is captured. Refer
to the section in this manual titled "Setting Image Resolution and Quality" for further details.
Fine Normal Economy
EN-38
In the , , , , or Mode.Mode1 settings
Item Functional Description
Image Size Refer to the section in this manual titled “Setting Image Resolution
and Quality” for further details.
Quality Refer to the section in this manual titled “Setting Image Resolution
W.Balance Sets the white balance when shooting under a variety of lighting
ISO Sets the sensitivity for taking pictures. When the sensitivity is raised
Mode2 settings
Item Functional Description
Metering You can select the metering mode that sets which part of the subject to
Digital Zoom
and Quality” for further details.
conditions and permits photographs to be taken that approach the conditions that are seen by the human eye.
Auto Daylight Cloudy Tungsten Fluorescent
(and the ISO figure is increased), photography will become possible even in dark locations, but the more pixelated (grainier) the image will appear. Auto / 64 / 100 / 200 / 400
measure to determine the exposure.
Center-weighted: Averages the light metered from the entire frame, but gives greater weight to the subject matter in the center. Spot: The exposure is determined by the small area in the center of the screen only.
This sets whether or not to use digital zoom at the time of shooting. Refer to the section in this manual titled “Using the Zoom Function” for further details.
Quick View Set to display a photographed image on LCD monitor screen
immediately after you have taken the shot.
EN-39
Mode3 settings
Item Functional Description

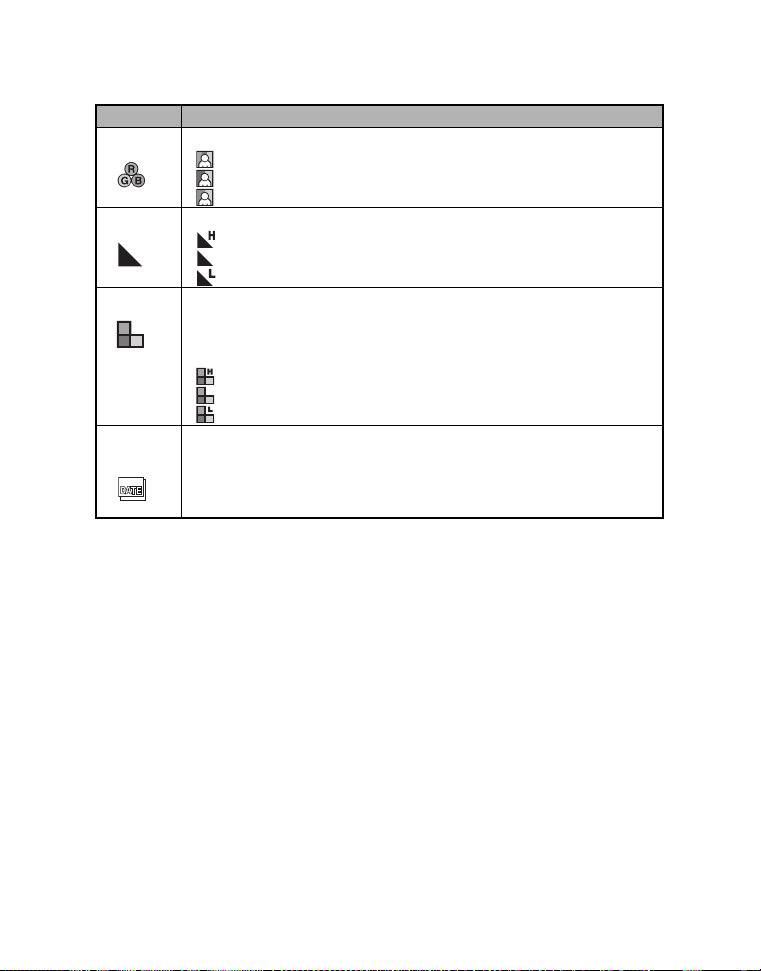

Color Sets the color of the image that will be captured.
Sharpness Sets the level of image sharpness.
Saturation To capture an image, your camera offers you three different degrees of
Date Imprint
Full Color Black & White Sepia
High Medium Low
color. Your images will demonstrate different impression by selecting different degrees of color. This is called “Saturation”.
High Medium Low
The date of recording can be printed directly on the still images. This function must be activated before the image is captured. The date appears on the right bottom of the captured picture. When images are shot with date imprint feature, the date cannot be removed later.
EN-40

Movie Menu

Select :
V
ideo
R
eturn n :
On
Digital Zoom
Color
This menu is for the basic settings to be used when recording movie clips.
ide
Video
Color
Color
Digital Zoom
etu
Return :
1. Rotate the mode dial to and turn your camera on.

2. Press the MENU button.

3. Press the four-way controller (ST) to select the option item. Then press the button.
4. Press the four-way controller (ST) to select the desired setting, then press the button.

5. To exit the movie menu, press the MENU button.

Item Functional Description
Color
Refer to the Camera Menu's option item (in the , , , , or Modes) for further details.
OnDigital Zoom
On
Select :
Select :
Digital Zoom
Refer to the Camera Menu's option item (in the , , , , or Modes) for further details.
EN-41

Playback Menu

Select :
R
eturn n :
Playback2
Playback1
DPOF
Pr
otect
Slide Show
Select :
R
eturn n :
Playback2
Playback1
Copy y T
o Card
Quality Change
R
esize
In the menu, select the settings used for playback.
Playba
Playback1
Slide Sh
Slide Show
Protect
DPOF
DPOF
etu
Return :
otec
Playba
Playback2
Select :
Select :
o Ca
Playba
Select :
Select :
Playba
Playback1 Playback2
esi
Resize
Quality Change
Quality Change
Copy To Card
Co
etu
Return :
1. Press the button. The last recorded image appears on the LCD monitor screen.
2. Press the MENU button, then use the four-way controller (ST) to select the [Playback1] / [Playback2] menu.
3. Use the four-way controller (ST) to select the option item, then press the button.
4. Press the four-way controller (ST) to select the desired setting, then press the
button.

5. To exit the playback menu, press the MENU button.

Playback1
Item Functional Description
Slide Show
You can play back recorded images in order with a selected interval time. This function is useful for checking your images or for presentations, etc. Refer to the section in this manual titled “Slideshow Display” for further details. 3 Sec. / 5 Sec. / 10 Sec.
Protect Set the data to read-only to prevent images from being erased by
mistake. Refer to the section in this manual titled “Protecting Images/Movie Clips” for further details.
DPOF Allows you to select the desired pictures to be printed and set the number
of prints and whether or not to imprint the data in DPOF format. You can print images easily just by inserting the SD memory card to a DPOF-compatible printer or taking it to a print shop. Refer to the section in this manual titled “Setting the DPOF” for further details.
EN-42
Playback2
Item Functional Description
Resize Changes the size of a recorded image.
Quality Change
Copy to Card
Resizing replaces the original image with the changed image. Only resizing to a smaller size is available. Refer to the section in this manual titled “Resizing an Image” for further details.
2560 x 1920 1600 x 1200 640x480
Changes the quality (compression) of a recorded image. Compresses images and overwrites an old size images with a newly compressed image. Only quality changing to a lower quality level is available.
Normal Economy
Allows you to copy your files from the digital camera’s internal memory to an SD memory card. You can only do this if you have an SD memory card installed and some files in internal memory.
EN-43
Set-up1
Set-up2
Set-up3
Language
Da
te & Time
Beeper
Format
Select :
Eng
lish
m/d/y
Louder
Select :
Set-up1
Set-up2
Set-up3
A
uto Shut Down
L
CD Brightness
TV
USB Mode
3 Min.
NTSC
PC
Select :
Set-up1
Set-up2
Set-up3
Ver
sion
Set T
o Def
ault
R
eset Number
11

Setup Menu

This feature allows you to select the default settings for using your camera.
Set-up1
PC
PC
Set-up1 Set-up2
eset Numbe
Reset Number
Set To Default
Set
Version
sio
Set-up1
Set-up1 Set-up2
Set-up2 Set-up3
Form at
Beeper
Beeper
Date & Time
te & Tim
Langu
Language
Set-up3
Louder
Louder
m/d/y
m/d/y
English
En
Select :
Select :
Set-up1 Set-up2
lis
Set-up2 Set-up3
USB Mode
USB Mode
TV
TV
CD Brightnes
LCD Brightness
uto Shut D
Auto Shut Down
Set-up3
NTSC
NTSC
3 Min.
3 Min.
Select :
Select :
Set-up1
1. Rotate the mode dial to mode and turn your camera on.
2. Press the four-way controller (WX) to select the [Set-up1] / [Set-up2] / [Set-up3] menu.
3. Use the four-way controller (ST) to select the desired option item, then press the
button.

4. To exit the setup menu, rotate the mode dial to another mode.

Set-up1 settings
Item Functional Description
Format Erases all images and reformats the SD memory card loaded in your
camera. Protected images are also erased. SD memory card cannot be formatted if it is write-protected. Refer to the section in this manual titled “Formatting an SD Memory Card or Internal Memory” for further details.
Beeper This sets whether or not to mute the start-up sound, and the camera
sound each time you press a camera button. Louder / Soft / Off
Date & Time
This sets the date and the time. Refer to the section in this manual titled “Setting the Date and Time” for further details. d / m/ y m / d/ y y/ m / d
Language Sets the language that is displayed on the LCD monitor screen.
Refer to the section in this manual titled “Choosing the Screen
Language” for further details.
EN-44
o De
aul
Set-up3
Set-up3Set-up2
Select :
Select :
Set-up2 settings
1
Item Functional Description
USB Mode Selects one of the following modes for further settings.
PC / PictBridge / PC Camera
TV Sets video output of the camera for matching the video output system
LCD Brightness
Auto Shut Down
Set-up3 settings
Item Functional Description
Reset Number.
Set to Default
Version This displays the current firmware version of the camera.
of the equipment that you are going to connect to the camera. PAL / N TSC
This sets the brightness of the LCD monitor screen. The adjustment range is from -5 to +5.
If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful to reduce battery wear. 2 Min. / 3 Min. / 5 Min. / Off
Sets whether or not to reset the file number when you take photographs. This creates a new folder. The captured images are recorded to the newly created folder from number 0001. If you want to reset the file number, be sure that no images are recorded in the internal memory or the SD memory card.
Returns all basic settings to the digital camera's default settings. The time setting will not be reset.
EN-45

SPECIFICATIONS

Item Description
Image Sensor CCD
Effective pixels 7.0 Mega pixels
Image size Still image: 3072 x 2304, 2560 x 1920, 1600X1200, 640 x 480
Image quality Still image: Fine / Normal / Economy
Recording media Approx. 16MB internal memory
File format JPEG (Exif 2.2), DCF, Motion JPEG (AVI)
Lens F-no.: Wide: 2.8 / Tele: 4.8
Focus range Normal :40 cm ~ infinity
Flash effective range
LCD monitor 2.36" color TFT-LCD
Self-timer 10 sec self-timer, 2 sec self-timer, 10+2 sec self-timer
Exposure compensation
White balance Auto, Daylight, Cloudy, Tungsten, Fluorescent
ISO Auto, 64, 100, 200, 400
Interface PC / AV terminal, DC input terminal
Power 2 x AA (alkaline or Ni-MH rechargeable) batteries
Dimension Approx. 89.9 x 61 x 27mm
Weight Approx. 136g (without batteries & SD card)
* Recording capacity shows approximate number of shots recorded during CIPA-compliant testing.
Actual performance may vary according to operating conditions.
* Design and specifications are subject to change without notice.
Movie clip: 320 x 240
Movie image: QVGA
SD memory card (Up to 4 GB)
Focal length: 6.1mm~18.3mm (equivalent to 36 ~ 108mm)
Macro : Wide: 5cm ~ infinity Tele: 35cm ~ infinity
Wide: Approx. 0.3m - Approx. 2.7m Tele: Approx. 0.3m - Approx. 2.4m
Approx. 115K pixels display
-2.0EV~ +2.0EV (in 1/3 EV increments)
AC-DC adapter (3.3V/2A)
EN-46

TROUBLESHOOTING GUIDE

Symptom Possible causes Solutions / Corrective Actions
Power does not turn on.
Camera suddenly powers down.
Image is not captured when the shutter release button is pressed.
Flash does not fire.
Continuous shooting is not possible.
Cannot transfer files over a USB connection.
* The battery has run out. * The battery is not oriented
correctly.
* The battery cover is not
closed properly.
* The AC adapter is
disconnected.
* The function of [Auto Shut
Down] in the mode has been activated.
* The battery has run out.
* The camera is in the or
mode.
* Memory is full.
* Flash off is selected in flash
mode.
* 10+2 sec. Self-timer is
selected in self-timer mode.
* The [Capture Mode] is set
to [Burst] or [AEB].
* The camera is in the
(video) mode.
* The capacity of the built-in
memory or SD memory card is full.
* USB cable is connected to
the computer improperly.
* Camera is turned off.
* Load new or fully charged battery. * Load the battery in the correct
direction. * Close the battery cover correctly. * Properly connect the AC adapter.
* Turn the power back on and set
the option of [Auto Shut Down] to
[Off]. * Load new or fully charged battery.
* Rotate the mode dial to , ,
, , , or .
* Transfer the desired files to your
computer and then delete
unnecessary files, or use a
different memory card.
* Select a different flash mode. * Select [Single] in the [Capture
Mode]. * Switch the mode dial to another
mode.
* Insert SD memory card with
available space or delete
unwanted images.
* Check all connections. * Turn on the camera.
EN-47

POSSIBLE NUMBER OF RECORDABLE IMAGES

The frame counter indicates the approximate number of images that can be stored on the internal memory and the SD memory card. The number of recordable images may vary depending on the recorded subject, the capacity of the memory card, if there are files other than images or when the recording is made while switching the picture quality or resolution.
Resolution Quality
3072 x 2304
2560 x 1920
1600 x 1200
640 x 480
The above data shows the standard testing results. The actual capacity varies
according to the shooting conditions and settings.
Fine 5
Normal 7 16 33 56 136 273 548 1098 2205
Economy 8 19 41 70 168 337 676 1354 2720
Fine 9 20 42 72 173 349 699 1401 2814
Normal 11 24 51 87 210 422 845 1693 3400
Economy 13 28 58 100 240 482 966 1934 3886
Fine 20 43 89 153 365 734 1471 2944 5914
Normal 21 46 95 162 388 779 1561 3126 6278
Economy 24 53 108 185 443 889 1780 3564 7159
Fine 78 169 345 587 1404 2816 5640 11289 22673
Normal 83 181 370 629 1504 3018 6043 12096 24293
Economy 91 196 401 682 1630 3271 6550 13110 26330
Internal
Memory
32MB64MB128MB256MB512
13 27
Approximate Duration of Recording Time
The table below indicates the approximate duration of recording time depending on the capacity of the internal memory and the SD memory card.
Image size
320 x 240 00:24 00:53 01:50 03:07 07:27 14:58 29:58 59:59 02:00:28
Internal
Memory
32MB 64MB 128MB 256MB 512MB 1GB 2GB 4 GB
The values for the recording time may vary depending on the shooting conditions
and settings.
The frame rate is 30 fps (frames per second).
SD Memory Card
MB
47 114
SD Memory Card
230 461 923 1854
1GB 2 GB 4 GB
EN-48
CONNECTING TO A PICTBRIDGE-COMPATIBLE
Printing Mode Select
OK :
Print
Print All
Print W
ith DPOF
100-0 008
Witith
W
ith
10
Print Info
Select :
Cancel :
Quantity
Date
File Name
100-0 008
PRINTER
Even if you do not have a computer, you can connect the camera directly to a printer that supports PictBridge to perform image selection and printing using the camera screen and controls. DPOF support also lets you specify which images you want to print and how many copies of each should be printed.
Connecting the camera to the printer
1. Rotate the mode dial to and turn your camera on by pressing the power switch.
2. Press the four-way controller (X) to select the [Set-up2] menu, then use the four-way controller (T) to select [USB Mode]. Press the button.
3. Use the four-way controller (ST) to select [PictBridge], then press the button.

4. Connect your camera and the printer via a supplied USB cable. The message “One moment” will appear on the LCD monitor screen.

Printing images
When the camera is properly connected to a PictBridge-compatible printer, the [Printing Mode Select] screen is displayed on the LCD monitor screen. Use the four-way controller (ST) to select the print mode.
In [Print] Mode: Lets you print the specified image with PictBridge.
Step Figure Procedure
Printing Mode Select
Printing Mode Select
Print
Print
Print All
1
Print All
Print With DPOF
Print
ith DPO
2
Print In
Print Info
Quantity
Quantity
Date
File Name
File Name
3
Cancel :
4
Use the four-way controller (ST) to select the [Print] mode, then press the button.
OK :
OK :
Use the four-way controller (WX) to select the image you
100-0008
100-0008
want to print, then press the four-way controller (T) to set more detailed settings.
Print :Select :
Set :Cancel :
Use the four-way controller (ST) to select by your
10
10
preference, then press the button.
With
[Quantity]: Specifies the number of prints. You can select the
it
With
number up to 10.
Select :
Select :Cancel :
[Date]: If you select [With], images are printed with the date. [File Name]: If you select [With], images are printed with the file name.
After Print Setting is set, the print icon is marked on the
100-0008
100-0008
displayed image. You can still use the four-way controller (WX) to change the image by your preference, then press the
Print :Select :
Set :Cancel :
button to print.
EN-49
Step Figure Procedure
Standard
Standard
Print Papeper
OK :
Cancel :
Size
Bordeder
less
T
otal 3
Cancel :
1/ 3
Tr
an s fe r
ri n g
Print
OK :
Continue
Cancel
Printing Mode Select
OK :
Print
Print All
Print W
ith DPOF
Printing Mode Select
OK :
Print
Print All
Print W
ith DPOF
Print
Print Paper
Si
Size
Borderless
Bo
Cancel :
les
otal
Total 3
5
Use the four-way controller (ST) to access the paper
Standa
Standard
selection setting, then press the button to confirm.
Standard
Standa
[Size]: You may select the desired item depending on the type
OK :
OK :Cancel :
of printer being used.
[Borderless]: You may select the desired item depending on
the type of printer being used.
This starts printing and displays the message “Transferring” on the LCD monitor screen.The message will disappear after
ans
Transferring
1/3
1/3
6
Continue
Continue
Cancel
Cancel
Print
Print
the printing is finished. Then the screen returns to [Printing
rin
Mode Select].
Cancel :
Cancel :
To cancel printing: Pressing the button during print data transfer displays the screen for selecting whether to [Continue] or [Cancel] printing.
OK :
OK :
In [Print All] Mode: Lets you print all images with PictBridge.
Step Figure Procedure
Printing Mode Select
Printing Mode Select
Print
Print
Print All
1
Print All
Print
ith DPO
Print With DPOF
2
If you wish to print all the images stored in the camera, you may choose [Print All] in [Printing Mode Select].
OK :
OK :
To set Print Settings, follow steps 2 to 6 in [Print] Mode.
In [Print With DPOF] Mode: This function only lets you print the specified image
based on the previous DPOF settings.
Step Figure Procedure
Printing Mode Select
Printing Mode Select
Print
Print
Print All
1
Print All
Print With DPOF
Print
ith DPO
2
If you wish to print images with DPOF setting, you may choose [Print With DPOF] in [Printing Mode Select].
OK :
OK :
To set Print Settings, follow steps 2 to 6 in [Print] Mode.
When connecting a printer which is not compatible with DPOF, [Print With DPOF] cannot be
selected.
EN-50
Attention: Your prod-
uct is marked with this
symbol. It means that
used electrical and
electronic products
should not be mixed
with general house-
hold waste. There is a
separate collection
system for these prod-
ucts.
A. Information on Disposal for Users (private households)
1. In the European Union
Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local dealer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accu­mulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authori­ties and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you donít purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.
B. Information on Disposal for Business Users
1. In the European Union
If the product is used for business purposes and you want to discard it: Please contact your local dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. For Spain: Please contact the established collection system or your local authority for take-back of your used products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your localauthorities and ask for the correct method of disposal.
EN-51
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
