Rollei Prego DP6300 User Guide

ENGLISH

Digital Camera >>

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference

that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital

devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help

Use of shielded cable is required to comply with Class B limits in Subpart B of

Part 15 of the FCC rules. Do not make any changes or modifications to the

equipment unless otherwise specified in the manual. If such changes or

modifications should be made, you could be required to stop operation of the

equipment.

2-E

TRADEMARK INFORMATION

Microsoft R and Windows R are U.S. registered trademarks of Microsoft

Corporation.

Pentium R is a registered trademark of Intel Corporation.

Macintosh is a trademark of Apple Computer, Inc.

is a trademark.

Other names and products may be trademarks or registered trademarks of

their respective owners.

READ THIS FIRST

Notice:

1. Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user’s manual. This User Manual is a general reference guide for the product.

2. The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.

3. The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera.

4. The manufacturer assumes no liability for any errors or discrepancies in this user manual.

5. For driver updates, refer to our website.

User’s Manual >>

E-3

Digital Camera >>

WARNING

Do not use this camera if it is emitting smoke (or an unusual odor), if it becomes unusually hot to the touch, produces a peculiar noise, or exhibits any other abnormal conditions. Operating the camera in any of these circumstances may cause a fire or an electrical shock. Stop using the camera immediately, turn the camera off and remove the battery. Contact your dealer or authorized service facility for repairs. Never attempt to repair this camera by yourself, as this may be dangerous.

Do not expose the camera to moisture and make sure no water gets into the camera. Take particular care when using the camera under extreme weather conditions, such as rain or snow, or when operating the camera at the beach or near water. Avoid using this camera in places subject to extreme moisture. Do not use the camera if water has entered the camera. Turn the camera off and remove the battery. Contact your dealer or authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock.

Do not use the camera if any foreign objects have entered the camera. Turn the camera off and remove the battery. Contact your dealer or authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock.

Do not place the camera in an unstable location such as on a wobbly table or sloping surface where the camera may fall or tip over and cause injury. If the camera has been dropped or damaged, turn the camera off and remove the battery. Contact your dealer or authorized service facility. Do not continue to use the camera as this may cause a fire or an electrical shock.

4-E

Do not insert or drop metallic or other foreign objects into the camera through access points such as the memory card slot. This may cause a fire or an electrical shock.

Do not attempt to modify this camera. Do not remove the camera casing. This may cause a fire or an electrical shock. Internal inspection and repairs should only be carried out by an authorized service facility.

Never operate this camera in any way while driving a vehicle. This may cause a traffic accident.

CAUTION

Do not place this camera in a location affected by oil fumes or steam, such as near a cooking stove or humidifier. This may cause a fire or an electrical shock.

Do not leave this camera in a location subject to extremely high temperatures, such as in a sealed vehicle or in direct sunlight. Exposure to high temperatures may adversely affect the camera case and internal components and may cause a fire.

Do not cover or wrap the camera with a cloth or quilt. This may cause heat to build up and distort the camera case and cause a fire. Always use the camera and accessories in well-ventilated locations.

Handle the camera carefully and do not expose the camera to shock or vibration. Handling the camera roughly may cause a malfunction.

Do not use battery other than those specified for use with your camera. Use of unsuitable battery may result in the battery splitting, or leaking and may cause a fire, injury, or soiling of the battery compartment.

When placing the battery into the camera, check the polarity markings on the battery ( - and + ) to ensure that the battery is inserted correctly. Incorrect battery polarity will result in camera inoperability and may result in the battery splitting or leaking and causing a fire, injury, or soiling of the battery compartment.

User’s Manual >>

Remove the battery if the camera will not be used for an extended period of time. The battery may leak and cause a fire, injury or soiling of the battery compartment. If the battery leaks, clean and wipe the battery compartment carefully and install a new battery. Wash your hands carefully if you touch

the battery fluid.

E-5

Digital Camera >>

CONTENTS

8 INTRODUCTION

8 Overview 10 Package Contents

11 GETTING TO KNOW THE CAMERA

11 Front View 12 Rear View 14 Mode dial 15 Viewfinder LED Indicator 16 LCD Monitor Icons

19 GETTING STARTED

19 Attaching the Camera Strap 19 Inserting and Removing the Battery (Optional Accessory) 21 Charging the Battery 23 Inserting and Removing the SD Card (Optional Accessory) 24 Turning the Power On/Off 25 Formatting the SD Card 26 Choosing the Language 27 Setting the Date and Time 28 Setting Image Resolution and Quality

31 PHOTOGRAPHY MODE

31 [ ] Auto Photography Mode 33 Using the Optical Zoom 34 Using the Digital Zoom 35 Setting the Flash 37 Setting the Focus 39 Self-timer/Photographing at Intervals 41 Exposure Compensation/Backlight Correction 42 [ P ] Program (Automatic Exposure) Photography Mode 43 [ Tv ] Shutter Speed Priority Photography Mode 45 [ Av ] Aperture Priority Photography Mode 46 [ M ] Manual Photography Mode 47 Setting the Scene Mode

48 [

6-E

] Movie Mode

49 [ ] PLAYBACK MODE

49 Playing Back Still Images

51 Playing Back Video Clips

53 Playing Back Still Images/Video Clips on a TV

54 Recording Voice Memos

55 Thumbnail Display

56 Zoom Playback

57 Slideshow Display

58 Protecting Images

60 DPOF Settings

62 [

] Erasing Images

64 MENU OPTIONS

64 Photography Menu (Picture)

66 Photography Menu (Function) 69 Photography Menu (AE/AWB)

71 Playback Menu

72 Setup Menu (Basic)

74 Setup Menu (Custom)

76 TRANSFERRING RECORDED IMAGES AND VIDEOS TO YOUR

COMPUTER

77 Step 1: Installing the USB Driver

77 Step 2: Connecting the Camera to Your Computer

78 Step 3: Downloading Images and Video Files

User’s Manual >>

79 Installing Presto! Mr. Photo

80 Installing Presto! Image Folio

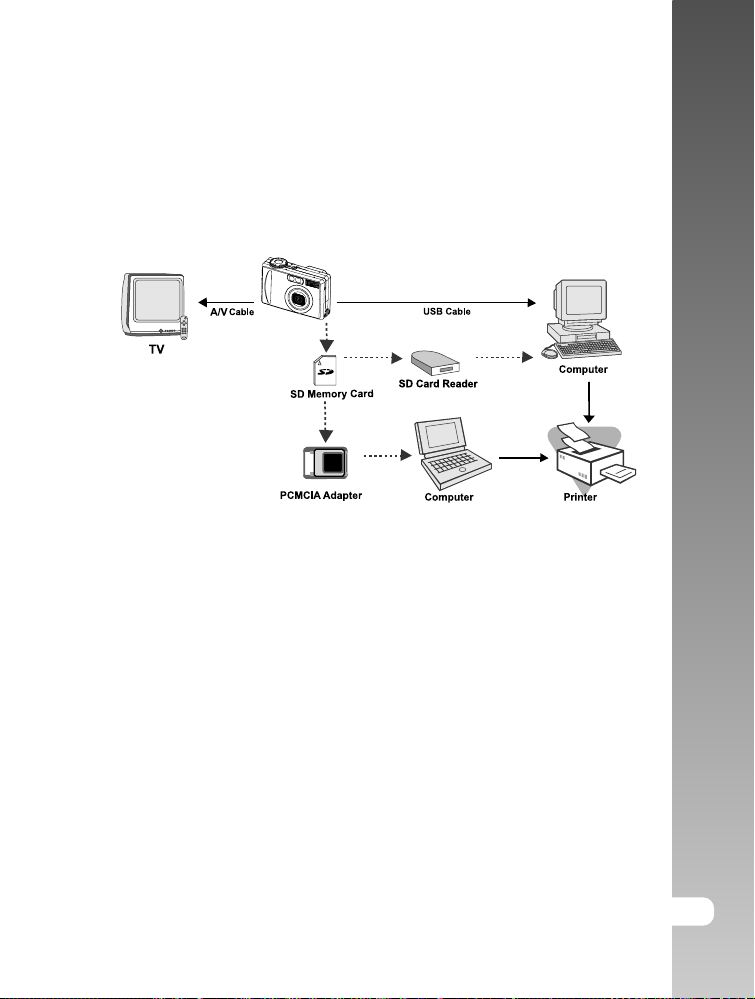

81 CONNECTING THE CAMERA TO OTHER DEVICES

82 CAMERA SPECIFICATIONS

E-7

Digital Camera >>

INTRODUCTION

Overview

Congratulations on your purchase of the new digital camera.

Capturing high-quality digital pictures is fast and easy with this state-of-the-art

smart camera. Equipped with a 6.3 Mega pixel CCD, this camera is capable of

capturing pictures with a resolution of up to 2816 x 2112 pixels.

Other cool features provided by the camera include the following:

LCD monitor - The 2.0" low temperature poly silicon TFT color LCD

monitor makes it easy to frame your subject when

taking pictures. It also displays the pictures you have

taken.

Recording medium - External memory supports SD card up to 512MB.

Camera mode - Variety of camera modes allows you to operate for

your preference and take photographs according to

photographic condition.

Optical zoom - 3x optical lens allows you to take telephoto and wide-

angle pictures.

Digital zoom - 4.4x digital zoom and 3x optical zoom permit zoom

photography of up to 13.2 times; 2x and 4x playback

captured images to enlarge a selected portion of an

image.

Flexible flash settings - Change the flash setting according to your lighting

environment and photography mode setting.

Focus mode - Photographs can be taken with the distance to the

subject set by auto focus, macro, infinity, 3 m, or 1 m.

Self-timer mode - Time selectable between 10 seconds, 2 seconds,

10+2 seconds and interval.

Still image capture - Take different still images including single, a series

of 3 images with different exposures, and 5 images

continuously.

8-E

Movie mode - Record video clips with voice.

Voice memo - A voice memo can be recorded once for 30 seconds

at photography mode immediately following a still

image captured or at playback mode while viewing

the picture.

Camera settings - Have more control over picture quality by adjusting

the menu options.

Thumbnail display - Display in sets of nine pictures on the LCD for easier

and quicker selection of pictures.

TV and PC connection - View pictures on a television monitor or computer

while connected to the USB or A/V cable.

DPOF settings - Allow you to embed printing information on your SD

card and to print your images on a DPOF compatible

printer by simply inserting it.

User’s Manual >>

E-9

Digital Camera >>

Package Contents

Carefully unpack your camera and ensure that you have the following items.

Common Product Components:

Digital camera

A/V cable

User’s manual

USB cable

Software CD-ROM

Camera strap

Camera pouch

Common (Optional) Accessories:

SD card

AC power adapter

Rechargeable lithium-ion battery

Battery charger

10-E

GETTING TO KNOW THE CAMERA

Front View

# Name Description

1. Self-timer LED Blinks green during Self-timer mode until picture

(AF auxiliary light) is taken.

Effective for still image capture mode when the

luminance value of Auto and Macro focus mode is below 6.

2. Viewfinder window Allows you to frame the subject of the picture.

3. Flash Provides flash illumination.

4. Shutter button Focuses and locks the exposure of the camera

when pressed halfway down, and takes the

picture when pressed all the way down.

5. Zoom lens 3x optical zoom lens allows you to take

telephoto and wide-angle pictures.

6. POWER button Turns the camera power on and off.

7. MIC (Microphone) Records audio clips.

8. Mode dial Sets the camera mode.

9. DC IN 5V terminal Allows you to connect AC power adapter to the

camera to operate the camera without battery, or to charge rechargeable battery.

10. USB/A/V OUT terminal Allows you to connect a USB cable or an A/V

cable to the camera.

User’s Manual >>

E-11

Digital Camera >>

Rear View

# Name Description

1. Diopter adjustment dial Provides a more clear image when using the

viewfinder.

2. Viewfinder window Allows you to frame the subject of the picture.

3. Viewfinder LED Displays the camera current state.

4. (Zoom in) button Zooms the lens to telephoto position.

(Zoom out) button Zooms the lens to wide-angle position.

5. Speaker Produces camera sounds and plays recorded

audio.

6. MENU button Toggles OSD menu on and off.

8. Strap holder Camera strap attachment.

9. Search dial Selects the next or previous picture in playback

10. (Erase) button Allows you to erase the picture.

11. Tripod socket Allows tripod mounting.

12. Battery/SD card cover Allows access to the battery and insert or

13. LCD monitor Provides menu information to operate the

14. SET /Direction button Allows you to scroll through menus and

12-E

(Display) button Turns the LCD monitor display and live view

on and off.

mode, or changes the exposure compensation, shutter speed or aperture value setting.

remove the memory card.

camera, and previews the picture before taking it and review it afterwards.

pictures, and then select choices.

SET /Direction button

# Name Description

1. SET button Enters the menu page and confirms the chosen

setting.

2. button Scrolls upwards.

(Focus) button Allows you to choose the appropriate focus

setting.

3. button Scrolls downwards.

(Self-timer) Allows you to toggle the self-timer on/off,

button selects the desired self-timer mode or choose

the interval photography.

4. button Scrolls left.

(Exposure Allows you to toggle the exposure

compensation compensation/ backlight correction on and off.

/ Backlight

correction)

button

5. button Scrolls right.

(Flash) button Allows you to choose the appropriate flash

setting.

User’s Manual >>

E-13

Digital Camera >>

Mode dial

: photography mode

# Mode Description

1. Auto photography The camera is automatically set for exposure, etc.

2. P Program This permits the shutter speed and aperture

(auto exposure) to be set automatically and other factors to be

set manually.

3. Tv Shutter speed priority Select this when you want to photograph with

shutter speed priority.

4. Av Aperture priority Select this when you want to photograph with

aperture priority.

5. M Manual photography Select this when you want to manually set the

exposure, aperture and other settings.

9. Movie Select this when recording video clips.

10.

11. PC PC Downloads the image to the personal computer.

12.

14-E

Portrait Select this when you want to photograph a

person and blur the background.

Sports Select this when photographing fast-moving

subjects.

Night scene Select this when photographing evening or

night scenes.

Set-up Chooses your preferences on the camera’s

settings.

Playback Performs image playback, deletion and writing

of the print information.

Viewfinder LED Indicator

This describes the color and state of the viewfinder LED.

User’s Manual >>

Color

Green

Red

Orange

State

Flashing

During

power off

Battery

charging in

progress.

adaptor

plug in

Battery

charging

error.

During

photography

Auto focusing

successful.

(AF is locked)

Writing to SD card

in progress

Auto focusing failure

Interval photography

stand by

Processing image.

Flash charging in

progress.

No battery power

left.

Camera malfunction.

Battery cover open SD card write-protect

During

playback

Accessing of

SD card in

progress.

DPOF file is

being created.

No battery

power left.

During

connection

to a PC

While the

camera is

connected to

a PC.

Accessing of

SD card in

progress.

PC mode

stand by

Not

recognized

by the PC, or

other status.

No battery

power left.

No SD card.

E-15

Digital Camera >>

LCD Monitor Icons

Photography modes [ ] [ ] [ ] [ ]

1. Mode icon

2. Focus icon

3. Unsteady hold warning icon

4. Zoom status

5. Focus area (When the shutter

button is pressed halfway.)

6. Voice memo

7. Remaining battery status

8. Flash icon

9. Image size

16-E

10. Quality

11. Capture mode icon

12. Self-timer icon

13. Possible number of shots

14. White balance icon

15. Metering icon

16. Backlight correction

17. Date and time

Each press of the button switches one step in the sequence of Normal

display (displaying the icons, etc), display OFF, LCD monitor OFF.

Photography modes [ P ] [ Tv ] [ Av ] [ M ]

User’s Manual >>

1. Mode icon

2. Focus icon

3. Unsteady hold warning icon

4. Zoom status

5. Focus area (When the shutter

button is pressed halfway.)

6. Voice memo

7. Remaining battery status

8. Flash icon

9. Image size

10. Quality

Each press of the button switches one step in the sequence of Normal display (display the icons, etc), Normal and Histogram display, display

OFF, LCD monitor OFF.

11. Capture mode icon

12. Self-timer icon

13. Possible number of shots

14. White balance icon

15. Metering icon

16. Exposure compensation

17. Shutter speed

18. Aperture

19. Histogram

20. Long time exposure mode icon

E-17

Digital Camera >>

Photography mode [ ]

1. Mode icon

2. Focus icon

3. Zoom status

4. Remaining battery status

5. Image size

6. Quality

7. Self-timer icon

8. Possible recording time/

elapsed time

9. Recording indicator

Playback mode [

]-Still Picture Playback

Playback mode [ ]-Video Playback

18-E

1. Folder number

2. File number

3. Voice memo icon

4. Protect icon

5. Mode icon

1. Folder number

2. File number

3. Protect icon

4. Movie status bar

5. Total time

6. Elapsed time

7. Play mode

8. Mode icon

GETTING STARTED

Attaching the Camera Strap

Attach the camera strap as shown in the illustration.

Inserting and Removing the Battery (Optional Accessory)

We highly recommend using specified rechargeable lithium-ion battery to fully

demonstrate this camera’s function. Charge the battery before using the camera.

Make sure that the power of the camera is off before inserting or removing the

battery.

User’s Manual >>

Inserting the Battery

1. Open the battery/SD card cover.

E-19

Digital Camera >>

2. Insert the battery in the correct

orientation shown.

Tilt the battery lock lever in the direction

of the arrow and orient the battery so

that its label is facing to the front side of

the camera, and then insert the battery.

3. Close the battery/SD card cover.

Removing the Battery

Open the battery/SD card cover and then release the battery lock lever. When

the battery has come out a little, slowly pull it out the rest of the way.

If you are not going to use the battery for an extended period of time,

remove it from the camera to prevent leakage or corrosion.

Avoid using the battery in extremely cold environments as low

temperatures can shorten the battery life and reduce the camera

performance.

20-E

Charging the Battery

New battery or the battery that has not been used for an extended period of

time (the battery that passed the expiry date is an exception) might affect the

number of pictures that can be taken. Therefore, to maximize its performance

and lifetime, we recommend that you fully charge the battery and discharge it

for at least one complete cycle before use. Using the optional AC power adapter

charges the battery. Make sure that the power of the camera is off and then

insert the battery before starting.

1. Insert one end of the AC power adapter into the DC IN 5V terminal of the

camera.

2. Insert the other end of the AC power adapter into a wall outlet.

The viewfinder LED lights green when charging is started and goes off

when charging is completed. It lights orange when a charging error occurs.

It is recommended to fully discharge or exhaust the battery before being

charged.

Charging time varies according to the ambient temperature and the status

of battery.

If you want to use the camera when the battery charging is in progress,

use the camera with the AC power adapter connected.

User’s Manual >>

E-21

Digital Camera >>

This camera must be used with specified AC power adapter. Damage

caused by the use of an incorrect adapter is not covered under the

warranty.

When the charging is not started even if following the above procedure,

turn the power on at any mode after LCD indication appears, and then

turn the power off.

The battery may feel warm after it has been charged or immediately after

being used. This is normal and not a malfunction.

When using the camera in cold areas, keep the camera and battery warm

by holding them inside your outer cloth.

If you open the battery cover without removing the battery, the power will

not be terminated. If you remove the battery, you have to insert the battery

again in a period of 2 hours in order to make sure that the date and time

will not be reset.

22-E

Inserting and Removing the SD Card (Optional Accessory)

Images photographed with this camera will be stored on the SD card. Without inserting the SD card, you cannot take photographs using the camera. Before inserting or removing the SD card, make sure that the power of the camera is off.

Inserting the SD card

1. Open the battery/SD card cover.

2. Insert the SD card in the correct orientation shown.

Hold the SD card with its metal contact end surface facing the rear side of the camera, and then insert the card as far as it can go.

3. Close the battery /SD card cover.

Removing the SD card

Open the battery/SD card cover, press lightly on the edge of the SD card and it will eject.

If the camera is powered on without

an SD card inserted into the

camera, the “NO CARD” message

appears on the LCD monitor.

To prevent valuable data from

being accidentally erased from an

SD card you can slide the write-

protected tab (on the side of the SD

card) to “LOCK”.

To save, edit or erase data on an SD card, you must unlock the card.

This camera does not support MultiMediaCardTM.

User’s Manual >>

E-23

Digital Camera >>

Turning the Power On/Off

Load the battery and insert an SD card before starting.

Turning the power on

Press the POWER button to turn the power on.

The viewfinder LED lights green and the

camera is initiated.

When the power is turned on, the camera

will start in the mode that was set with the

mode dial.

Turning the power off

Press the POWER button to turn the power off.

The power is turned off automatically when the camera has not been operated for a fixed period of time. To resume the operation condition,

turn power on again. Refer to section in this manual titled “Auto PoFF” in the Setup Menu (Basic) for further details.

After the power is turned on, it may take several seconds to charge the

flash. While the flash is being charged, the viewfinder LED lights orange,

and then the camera is not yet ready for photography. Start photography

after the viewfinder LED is turned off.

24-E

Formatting the SD Card

This erases all of the images and folders that have been recorded on the SD card. Formatting is not possible when the SD card is in the locked condition.

User’s Manual >>

1. Set the mode dial to [

[Basic] of the set-up menu is displayed.

2. Select [Format] with the [Basic] of the set-up menu, then press the SET button.

3. Select [Execute] with the and press the SET button.

To cancel formatting, select [Cancel] and press the SET button.

You need to format an SD card before using it in this camera.

Formatting the SD card also erases the protected images. All data other

than images are also erased. Before formatting the card, make sure that

all the images are unnecessary.

Formatting is an irreversible action and data cannot be recovered at a

later time.

An SD card having any problem cannot be properly formatted.

/ buttons from

/ buttons,

E-25

+ 58 hidden pages
