Page 1
Series
VIDEO CONVERTERS
Lossless 3G-SDI and HDMI Conversion
Page 2
Lossless conversion in the palm of your hand.
s
/
)
Awarding-winning multi-format conversion technology concentrated
in a simplified mini-converter.
Uncompromising commitment to picture quality. Faithful reproduction of video characteristics.
The VC-1 series faithfully converts the original source with no change
in color or brightness. It supports super-blacks and super-whites,
and converts video from cameras and other source devices with all
the originality intact.
Color bar signal
[
Vector scope]
Faithful conversion of color phase and chroma
[
Waveform monitor
Faithful conversion from super-blacks to super whites
]
On-board reclocker.
The VC-1 series reproduces the video characteristics of the original
source with no interlace artifacts, pixel shifting, or other conversion
problems or signal errors. Jitter and return loss are at exceptional levels
as well.
Burst signal
[
Waveform monitor
Perfect conversion of frequency character
]
Support for 1080 p 3G-SDI.
Video signals beyond 1080i can be input and output. The VC-1 series
supports both level A and level B 3G-SDI, letting you connect a wide
variety of 3G-SDI equipment. 1080i, 720p, and SD signals are
accommodated automatically on connection.
Interlaced (1080/60i
)
ing you connect a wide
and SD signals are
Progressive (1080 /6 0p
ive1
)
The VC-1 series features an on-board reclocker to compensate for
attenuation of SDI signals carried over long distances. This makes it possible
to receive camera-relay video while maintaining a high image quality.
Signal before reclocking Reduction of jitter

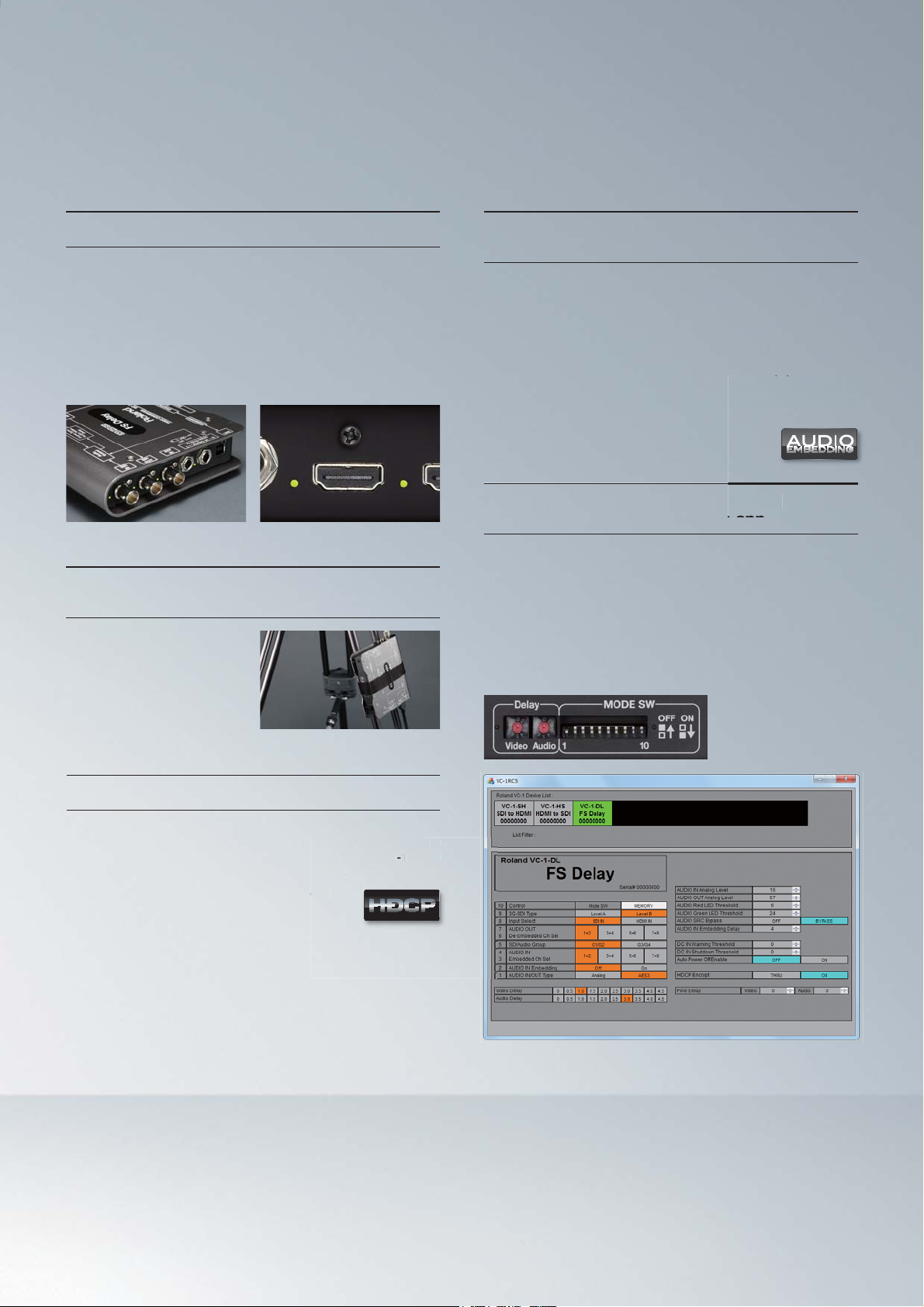

Page 3
High quality and rugged construction
h
es
qp
ync
series
.
for the rigors of front-line use.
High quality, smart design.
The exterior plating is aluminum at 2 millimeters thick. The connectors
laid out inside the exterior plates are fastened to the chassis with nuts
and bolts. This makes for a heavy-duty specification that can keep
the connectors from coming loose even with frequent cable changes,
as well as withstanding impact and drops. Every connector has an LED
input indicator enabling you to confirm the status of signal transmission
at a glance. The series is built for uncompromising reliability that includes
accurate operation even over long periods of continuous use thanks to a
design featuring exceptional heat-radiating efficiency.
Connectors fastened with nuts or screws. LED input indicators for confirming signals
A form factor that accommodates use
on-the-go.
Cutaway areas in the exterior plate
enable you to fasten the unit to
tripods or the like using velcro or
elastic ties. This makes for convenient
placement and setup even during
live on-site use.
Support for workflow
combining audio and video.
Audio embedding and de-embedding features are provided
(
channel-selectable) in the VC-1 Series. The audio embedding feature
lets you place audio signals from a different source into the video output.
For example, when converting an SDI signal to HDMI, you can use the
audio embedding feature to output high-quality audio from any of the SDI
audio channels. Digital (AES/EBU) input and output are also supported,
letting you exchange sound between professional audio equipment with no
degradaton in signal. Analog input and output is supported as well making
it possible to both monitor and input audio to/from a wide variety of
equipment such as an audio console.
Easy configuration with DIP switches
upported as well making
from a wide variety of
tc
or dedicated PC/Mac software app.
DIP switches make it simple to accommodate on-site requirements.
Change the conversion direction or other settings by simply sliding a DIP
switch on the side of the unit. Delay Dials (VC-1-DL only) set the amount
of delay for video and audio. Set the amount of delay independently for
video and audio in a range of 0 to 9 fields (0 to 4.5 frames). Connection
to a computer via USB cable unlocks even greater versatility with
advanced settings including a memory location to lock in a favorite
configuration. Control and configure multiple VC-1 units at the same
time using a USB hub.
Attached to a tripod for mobile production
Support for HDCP HDMI signals.
The VC-1 series is compliant with HDCP. For example, the VC-1-DL can
take HDCP-applied HDMI input signals, apply frame synchronization or
delay, and produce HDCP-applied HDMI output. This allows the VC-1 series
to be used in any HDCP-based system with no worries.
* HDCP-applied HDMI signals cannot be converted to SDI
and recorded to HDMI recorders and editors.
rame s
his allows the V
orries
SDI
hronization
Delay Dials (VC-1- DL only)
and DIP switches on side panel
r
VC-1 RCS
*The VC -1 RCS for PC/ Mac can be downloaded from www.rolandsystemsgroup.net.
VC -1 Series
VC -1 Series
Page 4
SDI to HDMI
VC-1-SH
Conversion of video and audio signals from SDI input to HDMI output
SDI
Input
SDI
Output
Audio
Input
USB
Port
Block Diagram
SDI IN
SDI
THRU/OUT
Audio
Embedded
Audio
De-Embedded
HDMI OUT
HDMI
Output
Audio
Output
DC IN
Connector
●
SDI to HDMI Conversion
●
Lossless image conversion
●
3G (Level A&B)/ HD / SD SDI
●
HDCP support
●
Selectable Channel for
Embedded / De-Embedded Audio
MODE DIP SW
Analog/AES3
L−AUDIO IN−R
HDMI to SDI
Analog/AES3
L−AUDIO OUT−R
VC-1-HS
Conversion of video and audio signals from HDMI input to SDI output
SDI
Output 1
SDI
Output 2
Audio
Input
USB
Port
HDMI
Input
HDMI
Output
Audio
Output
DC IN
Connector
●
HDMI to SDI Conversion
●
Lossless image conversion
●
3G (Level A&B)/ HD / SD SDI
●
HDCP support
●
Selectable Channel for
Embedded / De-Embedded Audio
MODE DIP SW
Block Diagram
HDMI IN
HDMI
THRU/OUT
Analog/AES3
L−AUDIO IN−R
Audio
Embedded
Audio
De-Embedded
SDI OUT 1
SDI OUT 2
Analog/AES3
L−AUDIO OUT−R

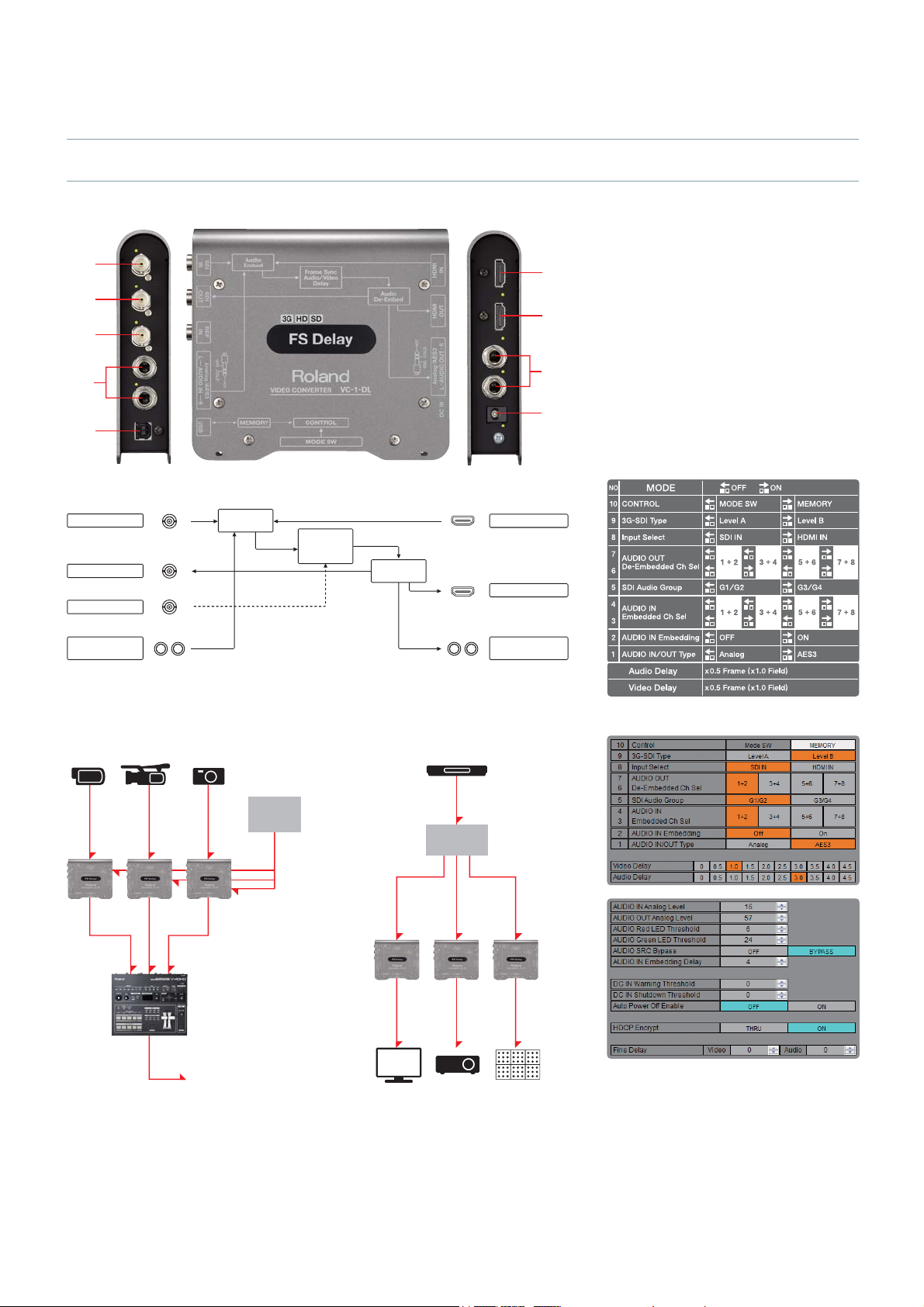

Page 5
FS Delay
VC-1-DL
Bi-directional Conversion of video and audio signals from HDMI to SDI or SDI to HDMI with Frame Sync and Delay
●
HDMI to SDI Conversion
●
SDI
Input
SDI
Output
Reference
Input
Audio
Input
USB
Port
Block Diagram
SDI IN
SDI OUT
REF IN
Audio
Embedded
Frame Sync
Audio/Video
Delay
Audio
De-Embedded
HDMI IN
HDMI OUT
HDMI
Input
HDMI
Output
Audio
Output
DC IN
Connector
SDI to HDMI Conversion
●
Lossless image conversion
●
3G (Level A&B)/ HD / SD SDI
●
HDCP support
●
Selectable Channel for
Embedded / De-Embedded Audio
●
Audio Delay - up to 9 fields (4.5 frames)
●
Video Delay - up to 9 fields (4.5 frames)
MODE DIP SW
Analog/AES3
L−AUDIO IN−R
Application for live video production
【
Sync
Generator
HDMISDISDI
IN
Switcher
Recording/
Live Broadcasting
】【
Application for event
SDI
SDI
Distributor
Analog/AES3
L−AUDIO OUT−R
】
SDISDI
HDMIHDMIHDMI
LED wall
VC-1 RCS for PC/Mac
Synchronizing signal for asynchronous cameras
Adjustment of timing among different displays

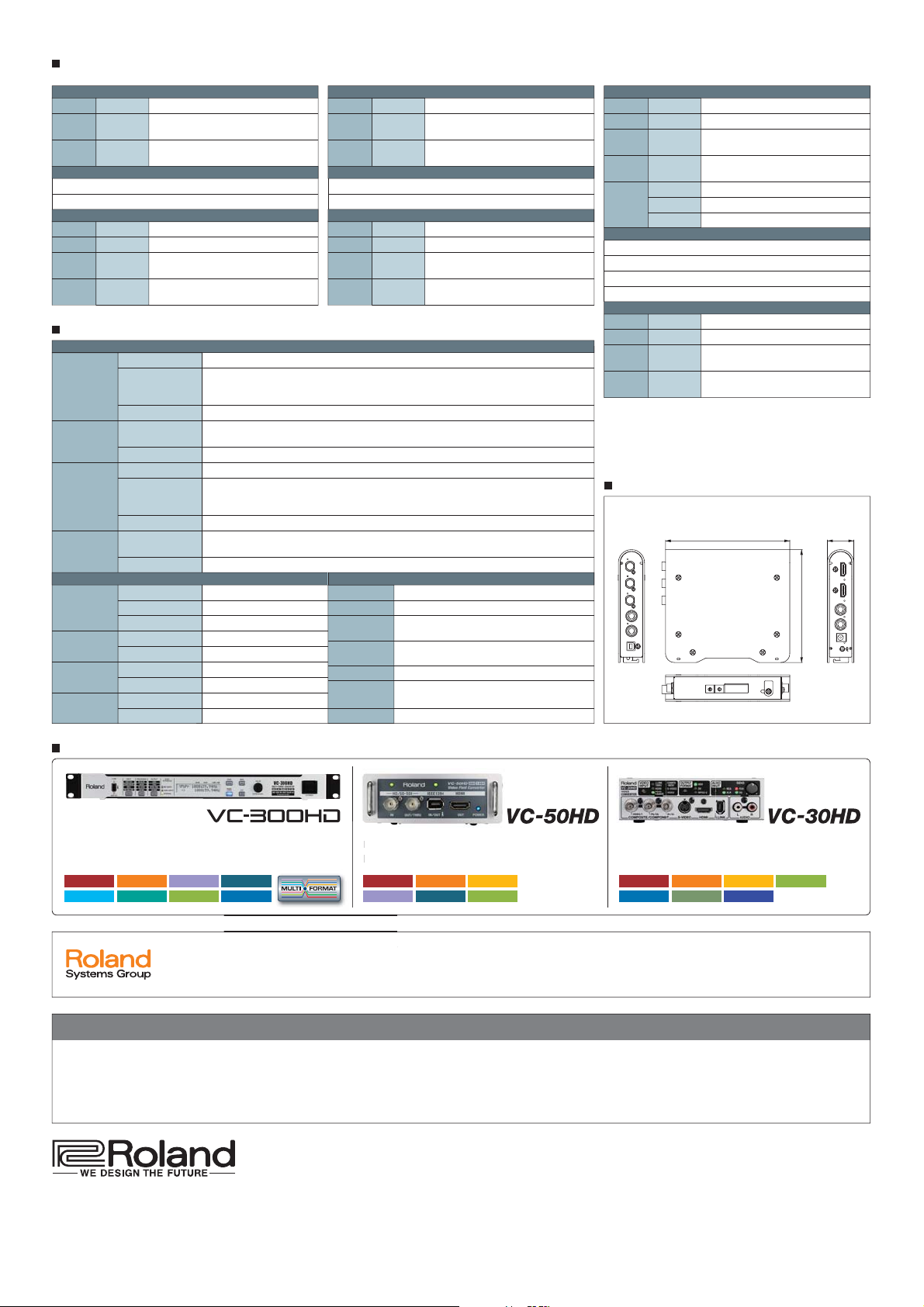

Page 6
w
dir
e
SD
Specifications
HDMI to SDI:VC -1-HS FS Delay:VC -1-DL
Input
HDMI
Connector
Analog
Connector
Audio
Digital
Connector
Audio
Processing Processing
Audio embedding
Audio de-embedding
Output Output
Connector
SDI
Connector
HDMI
Analog
Connector
Audio
Digital
Connector
Audio
Type A (19 pins ) x 1
1/4" TRS phone type ( balanced) x 1 pair (L/R)
1/4" TRS phone type ( balanced) x 1
( Combined use with Analog Audio R ch Connector)
BNC type x 2
Type A (19 pins ) x 1 (Th ru/Out )
1/4" TRS phone type (balanced ) x 1 pair (L/R)
1/4" TRS phone type ( balanced) x 1
(Combined use with Analog Audio R ch Connector )
VC-1 Common Specifications
Input / Output Format
Signal Standards
SDI Input
HDMI Input
SDI Output
HDMI Output
Video Format
Audio Format
Video Format
Audio Format
Signal Standards
Video Format
Audio Format
Video Format
Audio Format
Audio Input / Output Others
Analog Audio
Input
Digital Audio
Input
Analog Audio
Output
Digital Audio
Output
Input Level
Maximum Input Level
Impedance
Signal Format
Impedance
Signal Format
Impedance
Signal Format
Impedance
SMPTE 424M( SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i ( Conforms to SMPTE 274M),
1280x720/60p/59.94p/50p/30p/29.97p/25p ( Conforms to SMPTE 296M),
720x487/59.94i, 720x576/50i ( Conforms to ITU-R BT.601-5)
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C )
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i,
1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D )
Linear PCM, 24 bit, 48 kHz, 8 ch
SMPTE 424M (SMPTE 425M-AB ), SMPTE 292M, SMPTE 259M-C
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ),
1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ),
720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C )
1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i,
1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D )
Linear PCM, 24 bit, 48 kHz, 8 ch
+4dBu
+22dBu
150 k ohms
AES3, 16/24 bits, 32/48 kHz, 2 ch
110 ohms
+4dBu
600 ohms
AES3, 16/24 bits, 32/48 kHz, 2 ch
110 ohms
SDI to HDMI:VC -1-SH
Input
SDI
Connector
Analog
Connector
Audio
Digital
Connector
Audio
Audio embedding
Audio de-embedding
Connector
SDI
Connector
HDMI
Analog
Connector
Audio
Digital
Connector
Audio
USB Connector
Power Supply
Power
Consumption
Dimensions
Weight
Operation
Temperature
Accessories
USB Type B (Hi-Speed USB ) x 1
DC 9V
8W
150 (W) ×130 ( D) ×30 (H) mm
5-15/16 (W ) x 5-1/8 (D) x 1-3/16 (H) inches
500 g (without AC Adaptor) 1 lb 2 oz
+0 to +40 degrees Celsius
AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
BNC type x 1
1/4" TRS phone type ( balanced) x 1 pair (L/R)
1/4" TRS phone type ( balanced) x 1
(Combined use with Analog Audio R ch Connector )
BNC type x 1 ( Thru/ Out)
Type A (19 pins ) x 1
1/4" TRS phone type ( balanced) x 1 pair (L/R)
1/4" TRS phone type ( balanced) x 1
(Combined use with Analog Audio R ch Connector )
(
0dBu= 0.775Vrms
Input
SDI
Connector
HDMI
Connector
Analog
Connector
Audio
Digital
Connector
Audio
Connector
Reference
Signal Format
Impedance
Processing
Video delay ( 0 to 4.5 frames)
Audio delay ( 0 to 4.5 frames)
Audio embedding
Audio de-embedding
Output
SDI
Connector
HDMI
Connector
Analog
Connector
Audio
Digital
Connector
Audio
*All specification and appearances are subject to change without notice.
Dimensions
)
Related Items
BNC type x 1
Type A (19 pins) x 1
1/4" TRS phone type ( balanced) x 1 pair (L/R)
1/4" TRS phone type ( balanced) x 1
( Combined use with Analog Audio R ch Connector)
BNC type x 1
Black Burst, Bi-level, Tri-level
75 ohms
BNC type x 1
Type A (19 pins) x 1
1/4" TRS phone type ( balanced) x 1 pair (L /R)
1/4" TRS phone type (balanced ) x 1
(Combined use with Analog Audio R ch Connector )
Unit :mm
142
30
12 9
Bi-Directional Multi-Format Converter with Built-in
onverter with Built-in
Audio Delay
HD-SDI SD-SDI
DVI RGB HDMI COMPONENT
DV
Roland Systems Group, a member of the worldwide group of Roland companies, is dedicated to the support of audio and video
tems Group, a member of the
Bi-
Bi-directional video conversion between
HD/SD-SDI and MPEG-2 TS/HDV/DV
HDV
HD-SDI SD-SDI HDMI
MPEG-2TSHDV
DV
Audio/Video Converter for Webstreaming
and Capture/Archiving
HDV DV MPEG-2TS HDMI
COMPONENT S-VIDEO COMPOSITE
professionals demanding excellence in both performance and system design. Through the development and support of video and audio
products, we endeavor to improve workflow and maximize creative possibilities.
Ensuring high quality while protecting the environment: Roland is ISO9001 and ISO14001 certified
At Roland, several group companies have obtained ISO9001 certification. In addition, in January 1999, Roland also received ISO14001 international environmental management
system certification. We’re actively seeking ways to maintain harmony with the environment.
(
ISO=International Standardization Organization: an organization for the promotion of standardization of international units and terms. They provide different categories of
certification: ISO9001 Series certification is a product quality certification for products that undergo a certain level of quality control from the design stage to the after service
stage; ISO14001 Series certification is for environment-related standards. Each member of the Roland Group is striving to obtain certification.
All specifications and appearances are subject to change without notice. Company names and product names appearing in this document are registered
trademarks or trademarks of their respective owners. Roland is either registered trademark or trademark of Roland Corporation in the United States
and/or other countries. It is forbidden by law to make an audio recording, video recording, copy or revision of a third party's copyrighted work (musical
www.rolandsystemsgroup.com
work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform, or broadcast it without
the permission of the copyright owner. Do not use this product for purposes that could infringe on a copyright held by a third party. We assume
no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product. Copyright 2012 Roland
Corporation. All right reserved.
)
Printed in Japan. Jan. 2013 RAM-200 32 AMA-PD
Loading...
