Rockwell Automation Discrete 2 Reference Manual

Download

Reference Manual

Rockwell Automation Library of Process Objects: Discrete 2-, 3-, or 4-state Device (P_D4SD)

Version 3.5

IMPORTANT

This manual applies to the Rockwell Automation Library of Process Objects version 3.5 or earlier.

For Rockwell Automation Library of Process Objects version 5.0, see

• PROCES-RM200

For Rockwell Automation Library of Process Objects version 4.0 or later, use the following manuals:

• PROCES-RM013 contains logic instructions

• PROCES-RM014 contains display elements

Important User Information

Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.

Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.

If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.

IMPORTANT

Identifies information that is critical for successful application and understanding of the product.

Labels may also be on or inside the equipment to provide specific precautions.

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.

ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Allen-Bradley, Rockwell Software, and Rockwell Automation are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Preface Software Compatibility and Content Revision. . . . . . . . . . . . . . . . . . . . 5

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Discrete 2-, 3-, 4-state Device (P_D4SD)

Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Required Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Controller File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Visualization Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Controller Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Discrete 2-, 3-, 4-state Device Input Structure. . . . . . . . . . . . . . . . 12

Discrete 2-, 3-, or 4-state Device Output Structure . . . . . . . . . . . 16

Discrete 2-, 3-, or 4-state Device Local Configuration Tags. . . . 20

Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Execution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Programming Example. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Display Elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Status/Quality Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Mode Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Alarm Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Maintenance Bypass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Quick Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Faceplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Operator Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Maintenance Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Engineering Tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Diagnostics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Alarms Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Discrete 2-, 3-, 4-state Device Faceplate Help . . . . . . . . . . . . . . . . 54

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 3

Table of Contents

Notes:

4 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Preface

Software Compatibility and Content Revision

Table 1 - Summary of Changes

Topic Page

Visualization Files: Global Objects (.ggfx) - Process Diagnostic Objects 10

For the latest compatible software information and to download the Rockwell Automation® Library of Process Objects, see the Product Compatibility and Download Center at

http://www.rockwellautomation.com/rockwellautomation/support/pcdc.page.

For general library considerations, see Rockwell Automation Library of Process Objects, publication

PROCES-RM002.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 5

Preface

Additional Resources

These documents contain additional information concerning related products from Rockwell Automation.

Resource Description

PlantPAx® Distributed Control System Selection Guide, publication

PlantPAx Distributed Control System Reference Manual, publication

Rockwell Automation Library of Process Objects, publication

FactoryTalk® View Machine Edition User Manual, publication

FactoryTalk View SE Edition User Manual, publication

Logix5000™ Controllers Add-On Instructions Programming Manual, publication

Rockwell Automation Library of Process Objects: Common Alarm Block (P_Alarm) Reference Manual, publication

SYSLIB-RM002

Rockwell Automation Library of Process Objects: Interlocks with First Out and Bypass (P_Intlk) Reference Manual, publication

Rockwell Automation Library of Process Objects: Common Mode Block (P_Mode) Reference Manual, publication

SYSLIB-RM005

Rockwell Automation Library of Process Objects: Permissives with Bypass (P_Perm) Reference Manual, publication

SYSLIB-RM007

PROCES-SG001

PROCES-RM001

PROCES-RM002

VIEWME-UM004

VIEWSE-UM006

1756-PM010

SYSLIB-RM004

Provides information to assist with equipment procurement for your PlantPAx system.

Provides characterized recommendations for implementing your PlantPAx system.

Provides general considerations for the PlantPAx system library of process objects.

Provides details on how to use this software package for creating an automation application.

Provides details on how to use this software package for developing and running human-machine interface (HMI) applications that can involve multiple users and servers, distributed over a network.

Provides information for designing, configuring, and programming Add-On Instructions.

Details how to monitor an input condition to raise an alarm. Information includes acknowledging, resetting, inhibiting, and disabling an alarm. Generally the P_Alarm faceplate is accessible from the Alarms tab.

Explains how to collect (sum up) the interlock conditions that stop or de-energize a running or energized piece of equipment or prevent it from starting or being energized.

Explains how to choose the Mode (owner) of an instruction or control strategy. The Mode instruction is usually embedded within other instructions to extend their functionality. It is possible to use a standalone Mode instruction to enhance a program where modes are wanted.

Details how to collect permissive conditions to start a piece of equipment.

You can view or download publications at

http:/www.rockwellautomation.com/literature/. To order paper copies of

technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative.

6 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

The P_D4SD (Discrete 2-, 3-, 4-state Device) Add-On Instruction controls and monitors feedback from a discrete 2-state, 3-state, or 4-state device in various modes, monitoring for fault conditions. These devices include multiple-speed motors or multiple-position valves. The global objects and the following faceplate are examples of the graphical interface tools that are used with this instruction.

Add-On Instruction

Faceplate

Guidelines

Global Objects

Use this instruction in these situations:

• You need to operate a discrete device that has two, three, or four unique states, and the device is not supported by other Rockwell Automation Library of Process Objects Add-On Instructions for various motors, valves, and so forth.

• You have a device, such as a valve or motor, that is supported by other Add-On Instructions, but you want the device to use non-standard state names, such as ‘recycle’ and ‘deliver’ for a diverter valve, rather than the fixed names used in the other Instruction, such as ‘closed’ and ‘open’. The P_D4SD Instruction has configurable names for each of the device states.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 7

Discrete 2-, 3-, 4-state Device (P_D4SD)

Do not use this instruction in these situations:

• You need to operate a device that has more than four states, such as a six-

position rotary selector valve. You can use the P_nPos (n-Position Device) Add-On Instruction instead.

• You need to operate a single-speed motor, two-speed motor, simple reversing motor, solenoid valve, motor-operated valve, mix-proof valve, or other device that is better supported by other Rockwell Automation Library of Process Objects Add-On Instructions. Instructions such as P_Motor, P_MotorRev, P_Motor2Spd, P_ValveSO, P_ValveMO, and P_ValveMP more closely model the device under control and can provide better diagnostics for the device.

• You need to operate a continuously-variable device. Use the P_AOut (Analog Output), P_ValveC (Control Valve), or P_VSD (Variable Speed Drive) Add-On Instruction instead.

• You need to operate a two-state device that requires pulsing (single-pulse or continuous). Use the P_DOut (Discrete Output) Instruction instead.

Functional Description

The Discrete 2-, 3-, or 4-state Device Add-On Instruction provides the following capabilities:

• Provides configuration to have two, three, or four selectable states for the device.

• Provides Operator and Program Commands to select one of the two, three, or four states of the device.

• Controls four discrete outputs, with configurable states of each output in the various device states. Each output can be set, cleared, or left in last state in a given device state.

• Monitors four discrete feedback inputs, with configurable states (including ‘must be on’, ‘must be off’, and ‘don't care’) for each input in the various device states for monitoring the actual position of the device.

• Provides configurable text labels for each of the states.

• When feedback inputs are used, detects failure to reach the target state,

after a configurable time, and alarms the failure. Optionally ‘sheds’ to the default state (state 0) on a feedback failure.

• Monitors Permissive conditions that allow commanding the device to each state.

• Monitors Interlock conditions that return the device to its default state (state 0).

• Provides simulation of a normal working device, while holding the outputs to the real device de-energized, for use in testing or operator training.

• Monitors I/O communication status, providing an alarm on an I/O fault. Optionally ‘sheds’ to the default state on an I/O fault condition.

• Provides an ‘Available’ Status when in Program mode and operating normally for use by automation logic to determine if the logic can manipulate the device.

• Operates in Hand, Maintenance, Override, Program, and Operator modes. (See

Modes on page 20.)

8 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Required Files

Add-On Instructions are reusable code objects that contain encapsulated logic that can streamline implementing your system. This lets you create your own instruction set for programming logic as a supplement to the instruction set provided natively in the ControlLogix® firmware. An Add-On Instruction is defined once in each controller project, and can be instantiated multiple times in your application code as needed.

Controller File

The P_D4SD_3_5-00_AOI.L5X Add-On Instruction must be imported into the controller project to be used in the controller configuration. The service release number (boldfaced) can change as service revisions are created.

Visualization Files

This Add-On Instruction has associated visualization files that provide a common user interface. These files can be downloaded from the Product Compatibility and Download Center at

http://www.rockwellautomation.com/rockwellautomation/support/pcdc.page.

IMPORTANT

Images are external graphic files that can be used in displays. They must be imported for FactoryTalk View to make use of them.

When PNG files are imported, they are renamed by FactoryTalk View with a .bmp file extension, but retain a .png format.

Table 2 - Visualization Files: Images (.png)

FactoryTalk View SE Software FactoryTalk View ME Software Description

All .png files in the images folder All .png files in the images folder These are the common icons used in the global objects and

The Global Object files (.ggfx file type) in the following table are Process Library display elements that are created once and referenced multiple times on multiple displays in an application. When changes are made to a Global Object, all instances in the application are automatically updated.

The visualization file dependencies require Process Library content imports to occur in a specific order as reflected in the following tables:

• Images

• Global Objects

• Standard Displays

• HMI Tags

• Macros

standard displays for all Process Objects.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 9

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 3 - Visualization Files: Global Objects (.ggfx)

FactoryTalk View SE Software FactoryTalk View ME Software Description

(RA-BAS) Common Faceplate Objects (RA-BAS-ME) Common Faceplate Objects Global objects used on process object faceplates.

(RA-BAS) P_D4SD Graphics Library (RA-BAS-ME) P_D4SD Graphics Library P_D4SD global object device symbols used to build

(RA-BAS) P_D4SD Motor Graphics Library (RA-BAS-ME) P_D4SD Motor Graphics Library P_D4SD Motor global object device symbols used to build

(RA-BAS) Process Alarm Objects (RA-BAS-ME) Process Alarm Objects Global objects used for managing alarms on process

(RA-BAS) Process Diagnostic Objects (RA-BAS-ME) Process Diagnostic Objects Diagnostic global objects used on process object

(RA-BAS) Process Faceplate Misc Objects (RA-BAS-ME) Process Faceplate Misc Objects Miscellaneous global objects used on process object

(RA-BAS) Process Help Objects (RA-BAS-ME) Process Help Objects Global objects used for all process objects help displays.

(RA-BAS) Process Interlock Objects (RA-BAS-ME) Process Interlock Objects Global objects used for managing interlocks and

(RA-BAS) Process Mode Objects (RA-BAS-ME) Process Mode Objects Global objects used for managing modes on process

process graphics.

object faceplates.

faceplates.

permissives on process object faceplates.

object faceplates.

The Standard Display files (.gfx file type) in the following table are the Process Library displays that you see at runtime.

Table 4 - Visualization Files: Standard Displays (.gfx)

FactoryTalk View SE Software FactoryTalk View ME Software Description

(RA-BAS) Common-AnalogEdit N/A Faceplate used for analog input data entry. The FactoryTalk

(RA-BAS) P_Alarm-Faceplate (RA-BAS-ME) P_Alarm-Faceplate The faceplate that is used for managing alarms for

(RA-BAS) P_Alarm-Help (RA-BAS-ME) P_Alarm-Help Alarm Help information that is accessed from the

(RA-BAS) P_D4SD-Config (RA-BAS-ME) P_D4SD-Config The Configuration Display used to configure the

(RA-BAS) P_D4SD-Faceplate (RA-BAS-ME) P_D4SD-Faceplate The faceplate that is used for the object

(RA-BAS) P_D4SD-Quick (RA-BAS-ME) P_D4SD-Quick The Quick display that is used for the object

(RA-BAS) P_Mode-Config (RA-BAS-ME) P_Mode-Config The Configuration Display used to configure the

(RA-BAS) P_Mode-Help (RA-BAS-ME) P_Mode-Help Mode Help information that is accessed from the

(RA-BAS) Process Discrete Family-Help (RA-BAS-ME) Process Discrete Family-Help The Help display for Discrete objects

View ME faceplates use the native analog input data entry so no file is required.

the object.

P_AIarm faceplate.

P_D4SD object.

P_Mode object.

Help faceplate.

HMI Tags are created in a FactoryTalk View ME application to support tab switching on Process Library faceplates. The HMI tags may be imported via the comma-separated values file (.csv file type) in the following table.

Table 5 - Visualization Files: HMI Tags (.csv)

FactoryTalk View SE Software FactoryTalk View ME Software Description

N/A FTVME_PlantPAxLib_Tags_3_5_xx.csv

where xx = the service release number.

10 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

These tags must be imported into the FactoryTalk View ME project to support switching tabs on any Process Object faceplate.

Discrete 2-, 3-, 4-state Device (P_D4SD)

Controller Code

This section describes the parameter references for this Add-On Instruction.

Discrete 2-, 3-, 4-state Device Input Structure

Input parameters include the following:

• Input data elements (Inp_) are typically used to connect field inputs from I/O modules or signals from other objects.

• Configuration data elements (Cfg_) are used to set configurable capabilities and features of the instruction.

• Command data elements (PCmd_, OCmd_, MCmd_) are used by program logic, operators, and maintenance personnel to request instruction actions.

• Setting data elements (PSet_) are used by program logic to establish runtime setpoints, thresholds, and so forth.

Table 6 - P_D4SD Input Parameters

Input Parameter Data

Type

EnableIn BOOL 1 Ladder Diagram:

Inp_FdbkA BOOL 0 Feedback input signals from device. Use the feedback configuration

Inp_FdbkB

Inp_FdbkC

Inp_FdbkD

Inp_DeviceFault BOOL 0 Input Signal: Device fault from device.

Inp_PermOK0 BOOL 1 1 = Permissives OK, device can be commanded to State 0...3.

Inp_PermOK1

Inp_PermOK2

Inp_PermOK3

Inp_NBPermOK0 BOOL 1 1 = Non-Bypassable Permissives OK, device can be commanded to State 0...3.

Inp_NBPermOK1

Inp_NBPermOK2

Inp_NBPermOK3

Inp_IntlkOK BOOL 1 1 = Interlocks OK.

Inp_NBIntlkOK BOOL 1 1 = Non-bypassable Interlocks OK.

Alias For Default Description

If the rung-in condition is true, the instruction’s Logic routine executes. If the rung-in condition is false, the instruction’s EnableInFalse routine executes.

Function Block Diagram:

If true, or not connected, the instruction’s Logic routine executes. If the parameter is exposed as a pin and wired, and the pin is false, the instruction’s EnableInFalse routine executes.

Structured Text:

No effect. The instruction’s Logic routine executes.

parameters (for example, Cfg_FdbkSt0Check and Cfg_FdbkSt0State) to determine how these inputs are used to determine actual state.

1 = fault

0 = Not OK, go to State 0.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 11

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 6 - P_D4SD Input Parameters

Input Parameter Data

Type

Inp_IOFault BOOL 0 Input Communication Status:

Inp_Sim BOOL 0 Simulation input. When set to 1, the instruction simulates a working device

Inp_Hand BOOL Mode.Inp_Hand 0 1 = Select Hand (hard-wired) mode.

Inp_Ovrd BOOL Mode.Inp_Ovrd 0 1 = Select Override mode.

Inp_OvrdCmd DINT 0 Override mode device command:

Inp_Reset BOOL 0 Input parameter used to programatically reset alarms. When set to 1, all

Cfg_St0onShed BOOL 0 1 = Go to State 0 on Shed.

Cfg_NumStates DINT 2 Number of device states (2…4).

Cfg_OutSt0Write SINT 2#0000_1111 These configuration parameters determine how the outputs are used to

Cfg_OutSt0State 2#0000_0001

Cfg_OutSt1Write 2#0000_1111

Cfg_OutSt1State 2#0000_0010

Cfg_OutSt2Write 2#0000_1111

Cfg_OutSt2State 2#0000_0100

Cfg_OutSt3Write 2#0000_1111

Cfg_OutSt3State 2#0000_1000

Cfg_FdbkSt0Check SINT 2#0000_0000 These configuration parameters determine how the inputs are used to

Cfg_FdbkSt0State 2#0000_0001

Cfg_FdbkSt1Check 2#0000_0000

Cfg_FdbkSt1State 2#0000_0010

Cfg_FdbkSt2Check 2#0000_0000

Cfg_FdbkSt2State 2#0000_0100

Cfg_FdbkSt3Check 2#0000_0000

Cfg_FdbkSt3State 2#0000_1000

Cfg_HasPerm0Obj BOOL 0 1 = Tells HMI a permissive object (for example, P_Perm) is used for

Cfg_HasPerm1Obj

Cfg_HasPerm2Obj

Cfg_HasPerm3Obj

Cfg_HasIntlkObj BOOL 0 1 = Tells HMI an interlock object (for example, P_Intlk) is used for Inp_IntlkOK

Alias For Default Description

0 = OK 1 = Fail

while keeping outputs de-energized. When set to 0, the instruction controls the device normally.

0 = None 1 = State 0 2 = State 1 3 = State 2 4 = State 3

alarms requiring reset are reset.

0 = Hold position on Shed.

command state. The parameter Cfg_OutSt[x]Write configures which outputs get written for each state. The parameter Cfg_OutSt[x]State configures what gets written for each state.

For example, if all outputs must be set to 0 except Out_A which must be set to 1 to command the device to state 1, then Cfg_OutSt1Write must be 2#0000_1111 and Cfg_OutSt1State must be 2#0000_0001.

By default, all four outputs are written in every state, with a single output set to 1 in each state.

determine state. The parameter Cfg_FdbkSt[x]Check configures which inputs get checked for each state. The parameter Cfg_FdbkSt[x]State configures the values of the inputs which determine each state.

For example, if the device returns a 0 to Inp_FdbkA and Inp_FdbkB and a 1 to Inp_FdbkC when the device is in state 3, then Cfg_FdbkSt3Check must be 2#0000_0111 and Cfg_FdbkSt1Write must be 2#0000_0100.

By default, all inputs are ‘don’t’ care’ in every state (no feedback checking).

Inp_PermOK0....3 and navigation to the channel object’s faceplate is enabled.

IMPORTANT: The name of the Permissives object in the controller must be this object's name with the suffix ‘_Perm#’, where ‘#’ is the permissive number (0…3) For example, if your P_D4SD object has the name ’D4SD123’, then its Permissives object must be named ‘D4SD123_Perm0’.

and navigation to the interlock object’s faceplate is enabled. IMPORTANT: The name of the interlock object in the controller must be this

object's name with the suffix '_Intlk'. For example, if your P_D4SD object has the name 'D4SD123', then its interlock object must be named 'D4SD123_Intlk'.

12 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Table 6 - P_D4SD Input Parameters

Discrete 2-, 3-, 4-state Device (P_D4SD)

Input Parameter Data

Type

Cfg_PCmdClear BOOL Mode.Cfg_PCmdClear 1 When this parameter is 1, program commands are cleared once they are acted

Cfg_ProgDefault BOOL Mode.Cfg_ProgDefault 0 This parameter defines the default mode. When this parameter is 1, the mode

Cfg_OperSt0Prio BOOL 0 1 = OCmd_St0 has priority, accepted any time

Cfg_OCmdResets BOOL 0 1 = New Operator state command resets fault.

Cfg_OvrdPermIntlk BOOL 0 1 = Override mode ignores Bypassable Permissives/Interlocks.

Cfg_ShedOnFail BOOL 1 1 = Go to shed state and alarm on Fail to reach position, Device fault, or I/O

Cfg_ShedOnDeviceFault

Cfg_ShedOnIOFault

Cfg_HasFailAlm BOOL Fail.Cfg_Exists 0 1 = Fail to Reach State alarm, Device Fault alarm, Interlock Trip alarm, and I/O

Cfg_HasDeviceFaultAlm DeviceFault.Cfg_Exists

Cfg_HasIntlkTripAlm IntlkTrip.Cfg_Exists

Cfg_HasIOFaultAlm IOFault.Cfg_Exists

Cfg_FailResetReqd BOOL Fail.Cfg_ResetReqd 0 These parameters determine whether a reset is required to clear the alarm

Cfg_DeviceFaultResetReqd DeviceFault.Cfg_ResetReqd

Cfg_IntlkTripResetReqd IntlkTrip.Cfg_ResetReqd

Cfg_IOFaultResetReqd IOFault.Cfg_ResetReqd

Cfg_FailAckReqd BOOL Fail.Cfg_AckReqd 1 These parameters determine whether an acknowledgement is required for an

Cfg_DeviceFaultAckReqd DeviceFault.Cfg_AckReqd

Cfg_IntlkTripAckReqd IntlkTrip.Cfg_AckReqd

Cfg_IOFaultAckReqd IOFault.Cfg_AckReqd

Cfg_FailSeverity INT Fail.Cfg_Severity 1000 These parameters determine the severity of each alarm. This drives the color

Cfg_DeviceFaultSeverity DeviceFault.Cfg_Severity 1000

Cfg_IntlkTripSeverity IntlkTrip.Cfg_Severity 500

Cfg_IOFaultSeverity IOFault.Cfg_Severity 1000

Alias For Default Description

upon. When set to 0, program commands remain set until cleared by the application program logic.

IMPORTANT: Clearing this parameter online can cause unintended program command execution.

defaults to Program if no mode is being requested. When this parameter is 0, the mode defaults to Operator if no mode is being requested.

IMPORTANT: Changing this parameter online can cause unintended mode changes.

0 = OCmd_St0 only in Operator or Maintenance Mode.

0 = Reset required to clear fault.

0 = Override mode uses Bypassable Permissives/Interlocks.

fault. 0 = Alarm only on fail, Device fault, or I/O fault. Shed state is determined by configuration parameter Cfg_St0onShed.

Fault alarm exist and are checked.

status. When these parameters are 1, the alarm is latched On when the alarm occurs. After the alarm condition returns to normal, a reset is required to clear the alarm status (for example, OCmd_Reset, Inp_Reset, or Fail.OCmd_Reset is required to clear the Fail alarm after the alarm is set and the value returns to normal). When these parameters are 0, no reset is required and the alarm status is cleared when the alarm condition returns to normal.

IMPORTANT: If the reset clears the alarm, it also acknowledges the alarm.

alarm. When these parameters are 1, the acknowledge (ack) bit is cleared when the alarm occurs. An acknowledge command (for example, PCmd_FailAck or Fail.OCmd_Ack) is required to acknowledge the alarm. When set to 0, the Acknowledge bit is set when an alarm occurs indicating an acknowledged alarm and no acknowledge command is required.

and symbol that are used to indicate alarm status on the faceplate and global object.

The following are valid values: 1…250 = Low 251…500 = Medium 501…750 = High 751…1000 = Urgent IMPORTANT: For FactoryTalk View software version 7.0, these severity

parameters drive only the indication on the global object and faceplate. The Alarms and Events definition of severity drives the color and symbol that is used on the alarm banner and alarm summary as well as the value returned by FactoryTalk Alarms and Events display commands.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 13

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 6 - P_D4SD Input Parameters

Input Parameter Data

Type

Cfg_OutAPulseT REAL 0.0 Time to pulse Output A...D (s) (0=output held continuously).

Cfg_OutBPulseT

Cfg_OutCPulseT

Cfg_OutDPulseT

Cfg_SimFdbkT DINT 2 Delay to echo back reaching state when in simulation (seconds).

Cfg_FailT DINT 10 Time after new state requested to reach that state before fault (seconds).

PSet_Owner DINT 0 Program owner request ID (non-zero) or release (zero).

PCmd_St0 BOOL 0 When Cfg_PCmdClear is 1:

PCmd_St1

PCmd_St2

PCmd_St3

PCmd_Acq BOOL Mode.PCmd_Acq 0 When Cfg_PCmdClear is 1:

PCmd_Rel Mode.PCmd_Rel

PCmd_Lock BOOL Mode.PCmd_Lock 0 When Cfg_PCmdClear is 1:

PCmd_Unlock Mode.PCmd_Unlock

PCmd_Reset BOOL 0 • Set PCmd_Reset to 1 to reset all alarms requiring reset

PCmd_FailAck BOOL Fail.PCmd_Ack 0 • Set PCmd_<Alarm>Ack to 1 to Acknowledge alarm

PCmd_DeviceFaultAck DeviceFault.PCmd_Ack

PCmd_IntlkTripAck IntlkTrip.PCmd_Ack

PCmd_IOFaultAck IOFault.PCmd_Ack

Alias For Default Description

• Set PCmd_St0 to 1 to set the device to State 0

• Set PCmd_St1 to 1 to set the device to State 1

• Set PCmd_St2 to 1 to set the device to State 2

• Set PCmd_St3 to 1 to set the device to State 3

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• State 0 is the default State; PCmd_St0 is not used

• Set PCmd_St1, PCmd_St2, and PCmd_St3 to 0 to set the device to State 0

• Set PCmd_St1 to 1 to set the device to State 1

• Set PCmd_St2 to 1 to set the device to State 2

• Set PCmd_St3 to 1 to set the device to State 3

• These parameters do not reset automatically

• Set PCmd_Acq to 1 to Acquire

• Set PCmd_Rel to 1 to Release

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• Set PCmd_Acq to 1 to Acquire

• Set PCmd_Acq to 0 to Release

• PCmd_Rel is not used

• These parameters do not reset automatically

• Set PCmd_Lock to 1 to Lock

• Set PCmd_Unlock to 1 to Unlock

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• Set PCmd_Lock to 1 to Lock

• Set PCmd_Lock to 0 to Unlock

• PCmd_Unlock is not used

• These parameters do not reset automatically

• This parameter is always reset automatically

• The parameter is reset automatically

14 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Table 6 - P_D4SD Input Parameters

Discrete 2-, 3-, 4-state Device (P_D4SD)

Input Parameter Data

Type

PCmd_FailSuppress BOOL Fail.PCmd_Suppress 0 When Cfg_PCmdClear is 1:

PCmd_DeviceFaultSuppress DeviceFault.PCmd_Suppress

PCmd_IntlkTripSuppress IntlkTrip.PCmd_Suppress

PCmd_IOFaultSuppress IOFault.PCmd_Suppress

PCmd_FailUnsuppress BOOL Fail.PCmd_Unsuppress 0

PCmd_DeviceFaultUnsuppress

PCmd_IntlkTripUnsuppress IntlkTrip.PCmd_Unsuppress

PCmd_IOFaultUnsuppress IOFault.PCmd_Unsuppress

PCmd_FailUnshelve BOOL Fail.PCmd_Unshelve 0 • Set PCmd_<Alarm>Unshelve to 1 to Unshelve alarm

PCmd_DeviceFaultUnshelve

PCmd_IntlkTripUnshelve IntlkTrip.PCmd_Unshelve

PCmd_IOFaultUnshelve IOFault.PCmd_Unshelve

OCmd_St0 BOOL 0 Operator command to set device to State 0...3.

OCmd_St1

OCmd_St2

OCmd_St3

OCmd_Bypass BOOL 0 Operator command to bypass all bypassable Interlocks and Permissives.

OCmd_Check BOOL 0 Operator command to check (not bypass) all Interlocks and Permissives.

MCmd_Disable BOOL 0 Maintenance command to disable device.

MCmd_Enable BOOL 0 Maintenance command to enable device.

MCmd_Acq BOOL Mode.MCmd_Acq 0 Maintenance Command to Acquire Ownership (Operator/Program/Override to

MCmd_Rel BOOL Mode.MCmd_Rel 0 Maintenance Command to Release Ownership (Maintenance to

OCmd_AcqLock BOOL Mode.OCmd_AcqLock 0 Operator Command to Acquire (Program to Operator) /Lock Ownership

OCmd_Unlock BOOL Mode.OCmd_UnlockRel 0 Operator Command to Unlock/Release (Operator to Program) Ownership

OCmd_Reset BOOL 0 Operator command to reset all alarms requiring reset and any latched shed

OCmd_ResetAckAll BOOL 0 Operator command to reset and acknowledge all alarms and reset any latched

Alias For Default Description

• Set PCmd_<Alarm>Suppress to 1 to suppress alarm

• Set PCmd_<Alarm>Unsuppress to 1 to unsuppress alarm

• These parameters reset automatically

When Cfg_PCmdClear is 0:

• Set PCmd_<Alarm>Suppress to 1 to suppress alarm

• Set PCmd_<Alarm>Suppress to 0 to unsuppress alarm

DeviceFault.PCmd_Unsuppress

DeviceFault.PCmd_Unshelve

• PCmd_<Alarm>Unsuppress is not used

• These Parameters do not reset automatically

• The parameter is reset automatically

Maintenance)

Operator/Program/Override)

conditions.

shed conditions.

Discrete 2-, 3-, or 4-state Device Output Structure

Output parameters include the following:

• Output data elements (Out_) are the primary outputs of the instruction, typically used by hardware output modules; however’ they can be used by other application logic.

• Value data elements (Val_) are numeric outputs of the instruction for use by the HMI. Values can also be used by other application logic or software packages.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 15

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 7 - P_D4SD Output Parameters

• Source and Quality data elements (SrcQ_) are outputs of the instruction used by the HMI to indicate PV source and quality.

• Status data elements (Sts_) are bit outputs of the instruction for use by the HMI. Status bits can also be used by other application logic.

• Error data elements (Err_) are outputs of the instruction that indicate a particular configuration error. If any Err_ bit is set, then the Sts_Err configuration error summary status is set and the Invalid Configuration indicator is displayed on the HMI.

• Not Ready data elements (Nrdy_) are bit outputs of the instruction for use by the HMI for displaying the Device Not Ready indicator. Not Ready bits can also be used by other application logic.

• Alarm data elements (Alm_) are outputs of the instruction that indicate a particular alarm has occurred.

• Acknowledge data elements (Ack_) are outputs of the instruction that indicate the corresponding alarm has been acknowledged.

• Ready data elements (Rdy_) are bit outputs of the instruction used by the HMI to enable or disable command buttons and set data entry fields.

Output Parameter Data Type Alias For Description

EnableOut BOOL Enable Output: The EnableOut signal is not manipulated by this instruction. Its output state

Out_A BOOL Outputs A...D to device.

Out_B

Out_C

Out_D

SrcQ_IO SINT I/O signal source and quality.

SrcQ Final Device state source and quality.

Val_Cmd SINT Device command:

always reflects EnableIn Input state.

GOOD 0 = I/O live and confirmed good quality

1 = I/O live and assumed good quality 2 = No feedback configured, assumed good quality

TEST 8 = Device simulated

9 = Device loopback simulation 10 = Manually entered value

UNCERTAIN 16 = Live input, off-specification

17 = Value substituted at device/bus 18 = Value substituted by maintenance (Has and not Use) 19 = Shed, using last good value 20 = Shed, using replacement value

BAD 32 = Signal failure (out-of-range, NaN, invalid combination)

33 = I/O channel fault 34 = I/O module fault 35 = Bad I/O configuration (for example, scaling parameters)

0 = None 1 = State 0 2 = State 1 3 = State 2 4 = State 3

16 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 7 - P_D4SD Output Parameters

Output Parameter Data Type Alias For Description

Val_Sts SINT Device confirmed status:

0 = Powerup/Reset 1 = State 0 2 = State 1 3 = State 2 4 = State 3 9 = Moving 33 = Disabled

Val_Fault SINT Device fault status:

0 = None 16 = Position Fail 17 = Device Fault 32 = I/O Fault 34 = Configuration Error

Val_Mode SINT Mode.Val The current mode is shown with status bits and also as an enumeration ‘Val_Mode’ as follows:

0 = No mode 1 = Hand 2 = Maintenance 3 = Override 4 = Program (locked) 5 = Operator (locked) 6 = Program (unlocked, Operator is default) 7 = Operator (unlocked, Program is default) 8 = Program (unlocked, Program is default) 9 = Operator (unlocked, Operator is default)

Val_Owner DINT Current object owner ID (0 = not owned).

Val_Notify SINT Current alarm level and acknowledgement (enumeration):

0 = No alarm 1 = Alarm cleared: a reset or acknowledge is required 2 = Low (acknowledged) 3 = Low (unacknowledged) 4 = Medium (acknowledged) 5 = Medium (unacknowledged) 6 = High (acknowledged) 7 = High (unacknowledged) 8 = Urgent (acknowledged) 9 = Urgent (unacknowledged)

Sts_St0 BOOL 1 = Device commanded to and confirmed in State 0...3.

Sts_St1

Sts_St2

Sts_St3

Sts_Moving BOOL 1 = Device not yet confirmed in commanded state.

Sts_Available BOOL 1 = Device available for control by automation (Program).

Sts_Bypass BOOL 1 = Bypassable interlocks and permissives are bypassed.

Sts_BypActive BOOL 1 = Interlock / permissive bypassing active (Bypassed or Maintenance mode).

Sts_Disabled BOOL 1 = Device is disabled.

Sts_NotRdy BOOL 1 = Device is not ready to be operated.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 17

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 7 - P_D4SD Output Parameters

Output Parameter Data Type Alias For Description

Nrdy_Disabled BOOL 1 = Device Not Ready:

Nrdy_CfgErr

Nrdy_Intlk

Nrdy_Perm

Nrdy_OperPrio

Nrdy_Fail

Nrdy_IOFault

Nrdy_EqpFault

Nrdy_NoMode

Sts_MaintByp BOOL 1 = Device has a Maintenance Bypass function active.

Sts_AlmInh BOOL 1 = One or more alarms shelved, disabled, or suppressed.

Sts_Err BOOL 1 = Error in configuration: see detail bits for reason.

Err_Timer BOOL 1 = Error in configuration: feedback check timer preset (use 0…2,147,483 seconds).

Err_Sim BOOL 1 = Error in configuration: simulation timer preset (use 0…2,147,483 seconds).

Err_Alarm BOOL 1 = Error in configuration: alarm minimum on time or severity.

Sts_Hand BOOL Mode.Sts_Hand 1 = Mode is Hand (supersedes Operator, Program, Override, Maintenance).

Sts_Maint BOOL Mode.Sts_Maint 1 = Mode is Maintenance (supersedes Override, Program, Operator).

Sts_Ovrd BOOL Mode.Sts_Ovrd 1 = Mode is Override (supersedes Program, Operator).

Sts_Prog BOOL Mode.Sts_Prog 1 = Mode is Program (auto).

Sts_Oper BOOL Mode.Sts_Oper 1 = Mode is Operator (manual).

Sts_ProgOperLock BOOL Mode.Sts_ProgOperLock 1 = Program or Operator has requested Mode Lock.

Sts_NoMode BOOL Mode.Sts_NoMode 1 = No mode (disabled because EnableIn is false).

Sts_MAcqRcvd BOOL Mode.Sts_MAcqRcvd 1 = Maintenance Acquire command received this scan

Sts_Fail BOOL Fail.Inp 1 = Device failed to reach commanded state (one-shot).

Sts_DeviceFault DeviceFault.Inp 1 = Device fault (from Inp_DeviceFault).

Sts_IntlkTrip IntlkTrip.Inp 1 = Device commanded to State 0 by an Interlock NOT OK (one-shot).

Sts_IOFault IOFault.Inp I/O communication fault status:

Alm_Fail BOOL Fail.Alm 1 = Alarm: Device failed to reach commended state.

Alm_DeviceFault DeviceFault.Alm 1 = Device fault alarm.

Alm_IntlkTrip IntlkTrip.Alm 1 =Alarm: Device set to State 0 by an Interlock NOT OK.

Alm_IOFault IOFault.Alm 1 = I/O fault alarm.

Ack_Fail BOOL Fail.Ack 1 = Fail to reach commanded state alarm has been acknowledged.

Ack_DeviceFault DeviceFault.Ack 1 = Device fault alarm has been acknowledged.

Ack_IntlkTrip IntlkTrip.Ack 1 = Interlock Trip alarm has been acknowledged.

Ack_IOFault IOFault.Ack 1 = I/O fault alarm has been acknowledged.

• Device disabled by Maintenance

• Configuration error

• Interlock not OK

• Permissive not OK

• Operator State 0 priority command requires reset

• Device failure (Shed requires reset)

• I/O Fault (Shed requires reset)

• External Equipment Fault (fault or shed requires reset)

• Device logic disabled/no mode

0 = OK 1 = Bad

18 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 7 - P_D4SD Output Parameters

Output Parameter Data Type Alias For Description

Sts_FailDisabled BOOL Fail.Disabled 1 = Fail to reach commanded state alarm is disabled by Maintenance.

Sts_DeviceFaultDisabled DeviceFault.Disabled 1 = Device fault alarm has been disabled by Maintenance.

Sts_IntlkTripDisabled IntlkTrip.Disabled 1 = Interlock Trip alarm is disabled by Maintenance.

Sts_IOFaultDisabled IOFault.Disabled 1 = I/O fault alarm is disabled by Maintenance.

Sts_FailShelved BOOL Fail.Shelved 1 = Fail to reach commanded state Alarm is shelved by Operator.

Sts_DeviceFaultShelved DeviceFault.Shelved 1 = Device fault alarm is shelved by Operator.

Sts_IntlkTripShelved IntlkTrip.Shelved 1 = Interlock Trip Alarm is shelved by Operator.

Sts_IOFaultShelved IOFault.Shelved 1 = I/O fault alarm is shelved by Operator.

Sts_FailSuppressed BOOL Fail.Suppressed 1 = Fail to reach commanded state Alarm is suppressed by Program.

Sts_DeviceFaultSuppressed DeviceFault.Suppressed 1 = Device fault alarm is suppressed by Program.

Sts_IntlkTripSuppressed IntlkTrip.Suppressed 1 = Interlock Trip Alarm is suppressed by Program.

Sts_IOFaultSuppressed IOFault.Suppressed 1 = I/O fault alarm is suppressed by Program.

Rdy_St0 BOOL 1 = Ready to receive OCmd_St0...St3 (enables HMI button).

Rdy_St1

Rdy_St2

Rdy_St3

Rdy_Bypass BOOL 1 = Ready to receive OCmd_Bypass (enables HMI button).

Rdy_Check BOOL 1 = Ready to receive OCmd_Check (enables HMI button).

Rdy_Disable BOOL 1 = Ready to receive MCmd_Disable (enables HMI button).

Rdy_Enable BOOL 1 = Ready to receive MCmd_Enable (enables HMI button).

Rdy_Reset BOOL 1 = At least one alarm or latched shed requires reset.

Rdy_ResetAckAll BOOL 1 = At least one alarm or latched shed condition requires reset or acknowledged.

P_D4SD BOOL Unique parameter name for auto-discovery.

Discrete 2-, 3-, or 4-state Device Local Configuration Tags

Configuration parameters that are array, string, or structure data types cannot be configured as parameters for Add-On Instructions. Configuration parameters of these types appear as local tags to the Add-On Instruction. Local tags can be configured through the HMI faceplates or in Studio 5000 Logix Designer® application by opening the Instruction Logic of the Add-On Instruction instance and then opening the Data Monitor on a local tag. These parameters cannot be modified by using controller logic or Logix Designer application export/import functionality.

Table 8 - Local Configuration Tags

Tag Name Data Type Default Description

Cfg_Desc STRING_40 'Discrete 2, 3 or

4 state Device'

Cfg_Label STRING_20 'Discrete Device' Label for graphic symbol displayed on HMI. This string appears on the graphic symbol.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 19

Description for display on HMI. This string is shown in the title bar of the faceplate.

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 8 - Local Configuration Tags

Cfg_St0Text STRING_8 'Off' Text to display in State 0...3.

Cfg_St1Text 'On'

Cfg_St2Text ' '

Cfg_St3Text ' '

Cfg_Tag STRING_20 'P_D4SD' Tagname for display on HMI. This string is shown in the title bar of the faceplate.

Operations

This section describes the primary operations for this Add-On Instruction.

Modes

This instruction uses the following standard modes, which are implemented by using an embedded P_Mode Add-On Instruction.

Table 9 - Modes

Mode Description

Operator The Operator owns control of the device. Operator commands (OCmd_) and Operator settings

(OSet_) from the HMI are accepted.

Program Program logic owns control of the device. Program commands (PCmd_) and Program settings

(PSet_) are accepted.

Override Priority logic owns control of the device and supersedes Operator and Program control. Override

Inputs (Inp_OvrdCmd and other Inp_OvrdXxxx values) are accepted. If so configured, bypassable interlocks and permissives are bypassed.

Maintenance Maintenance owns control of the device and supersedes Operator, Program, and Override

control. Operator commands and settings from the HMI are accepted. Bypassable interlocks and permissives are bypassed, and device timeout checks are not processed.

Hand Hardwired logic or other logic outside the instruction owns control of the device. The instruction

tracks the state of the device for bumpless transfer back to one of the other modes.

No Mode The device is disabled and has no owner because the EnableIn input is false. The main

instruction Logic routine is not being scanned. See Execution section for more information on EnableInFalse processing.

See Rockwell Automation Library of Process Objects: Common Mode Block (P_Mode) Reference Manual, publication SYSLIB-RM005, for more information.

20 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Alarms

Click an alarm name to open the P_Alarm faceplate for that alarm. From the P_Alarm faceplate, you can configure and perform additional operations on

the alarm.

If an alarm is active, the panel behind the alarm changes color to match the severity of the alarm. The color of the bell icon at the top of the faceplate shows the severity of the highest active alarm, and the icon blinks if any alarm is unacknowledged or requires reset.

Table 10 - Alarm Severity Colors

Color Definition

Magenta Urgent

Red High

Yellow Medium

Blue Low

White (bell icon) Alarm has cleared but is unacknowledged

Background (Light Gray) No alarm

The following table shows the functions on the Alarms tab.

Table 11 - Alarms Tab Description

Function Action Security

Alarm Name Click an alarm name to open the associated

P_Alarm faceplate.

Click to acknowledge the alarm. Acknowledge Alarms

Click to reset and acknowledge all alarms.

None

(Code F)

When the Reset and Acknowledge All Alarms button is enabled, the panel behind the alarm blinks, indicating the alarm requires acknowledgement or reset. The Alarm Acknowledge button is enabled if the alarm requires acknowledgment. Click the button with the check mark to acknowledge the alarm.

See Rockwell Automation Library of Process Objects: Common Alarm Block (P_Alarm) Reference Manual, publication

SYSLIB-RM002, for

more information.

Simulation

Simulation in P_D4SD de-energizes the normal outputs and simulates the feedback of a working device.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 21

Discrete 2-, 3-, 4-state Device (P_D4SD)

You must set the Inp_Sim parameter in the controller to '1' to enable simulation.

The Simulation icon is displayed at the bottom left of the Operator faceplate indicating the device is in simulation.

While in simulation, you can set the delay (in seconds) for echoing back that the device has reached a state (Cfg_SimFdbkT).

When you have finished in simulation, set the Inp_Sim parameter in the controller to '0' to return to normal operation.

Execution

The following table explains the handling of instruction execution conditions.

Condition Description

EnableIn False (false rung) Handled the same as if the device were Disabled by

Command. The device outputs are de-energized and the device is shown as Disabled on the HMI. The mode is shown as ‘NO MODE’. All alarms are cleared.

Powerup (prescan, first scan) On Prescan, any Commands received before First Scan are

discarded. The device is de-energized. On first scan, the device is treated as if it were returning from Hand mode: the instruction state is set based on the position feedback received from the device.

Embedded P_Mode and P_Alarm instructions are handled in accordance with their standard powerup procedures. Refer to the P_Mode and P-Alarm reference manuals for details.

Postscan No SFC Postscan logic is provided.

See the Logix5000 Controllers Add-On Instructions Programming Manual, publication

1756-PM010, for more information.

22 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Programming Example

This example uses the P_D4SD Add-On Instruction to control a cooling fan that has three fixed speeds (‘low’, ‘medium’, ‘high’) and an ‘off’ state. This is considered a 4-state device. In this example, three digital outputs are used to set the speed setting (when all three are off, the fan is commanded off ) and three digital inputs provide feedback of the actual fan state (when all three are off, the fan is off).

In this example, the four cooling fan states are being mapped to the device as follows:

• State 0 = Off

• State 1 = Low

• State 2 = Medium

• State 3 = High

Set the Cfg_NumStates parameter to 4 to indicate this is a four-state device. The input parameters for states 1…3 (Inp_FdbkB, Inp_FdbkC, Inp_FdbkD) are connected to the digital inputs, representing the status of the fan. The output parameters for states 1…3 (Out_B, Out_C, Out_D) are connected to the digital outputs that command the fan to the desired state.

Based on the wiring of the I/O, we can now configure the P_D4SD instruction how we want to process the outputs to get to the desired state. We can do this via the following table.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 23

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 12 - P-D4SD Example Outputs

Output A Output B Output C Output D

State 01000

State 10100

State 20010

State 30001

1 = command output On, 0 = command output Off.

We are setting Output A so it can be used for display purposes even though Output A is not used by the cooling fan device. The parameter Cfg_OutSt[x]Write determines which outputs get written for each state. The parameter Cfg_OutSt[x]State determines the state that gets written. These parameters are single integers where bit 0 represents output A and bit 3 represents output D.

These parameters are displayed in binary format as indicated by the prefix 2#. By

Table 12, we can set the settings as follows:

using

Cfg_OutSt0Write: 2#0000_1111

Cfg_OutSt0State: 2#0000_0001

Cfg_OutSt1Write: 2#0000_1111

Cfg_OutSt1State: 2#0000_0010

Cfg_OutSt2Write: 2#0000_1111

Cfg_OutSt2State: 2#0000_0100

Cfg_OutSt3Write: 2#0000_1111

Cfg_OutSt3State: 2#0000_1000

We can now repeat this same effort to configure how the P_D4SD instruction determines actual state based on the field inputs via the following table,.

Table 13 - P_D4SD Example Inputs

Input A Input B Input C Input D

State 0x000

State 1x100

State 2x010

State 3x001

x = status not checked, 1 = status checked on, 0 = status checked off

24 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

The parameter Cfg_FdbkSt[x]Check determines which feedback inputs to check for each state. The parameter Cfg_FdbkSt[x]State determines how the state is interpreted from the input values.

By using

Table 13, we can set the settings as follows:

Cfg_FdbkSt0Check: 2#0000_1110

Cfg_FdbkSt0State: 2#0000_0000

Cfg_FdbkSt1Check: 2#0000_1110

Cfg_FdbkSt1State: 2#0000_0010

Cfg_FdbkSt2Check: 2#0000_1110

Cfg_FdbkSt2State: 2#0000_0100

Cfg_FdbkSt3Check: 2#0000_1110

Cfg_FdbkSt3State: 2#0000_1000

As this is a cooling fan, if there is a device mismatch or fault, we still want the logic to command to the desired state. Therefore, Cfg_ShedOnFail and Cfg_ShedOnDeviceFault are both set to 0.

Lastly, configure the following local configuration tags to drive the text on the operations faceplate. In this example, the cooling fan P&ID tag is M401. In this example, they are set as follows:

Cfg_Tag: ‘M401’

Cfg_Label: ‘Line 4 Rectifier Fan’

Cfg_Desc: ‘Line 4 Rectifier Cooling Fan’

Cfg_St0Text: ‘Stopped’

Cfg_St1Text: ‘Slow’

Cfg_St2Text: ‘Medium’

Cfg_St3Text: ‘Fast’

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 25

Discrete 2-, 3-, 4-state Device (P_D4SD)

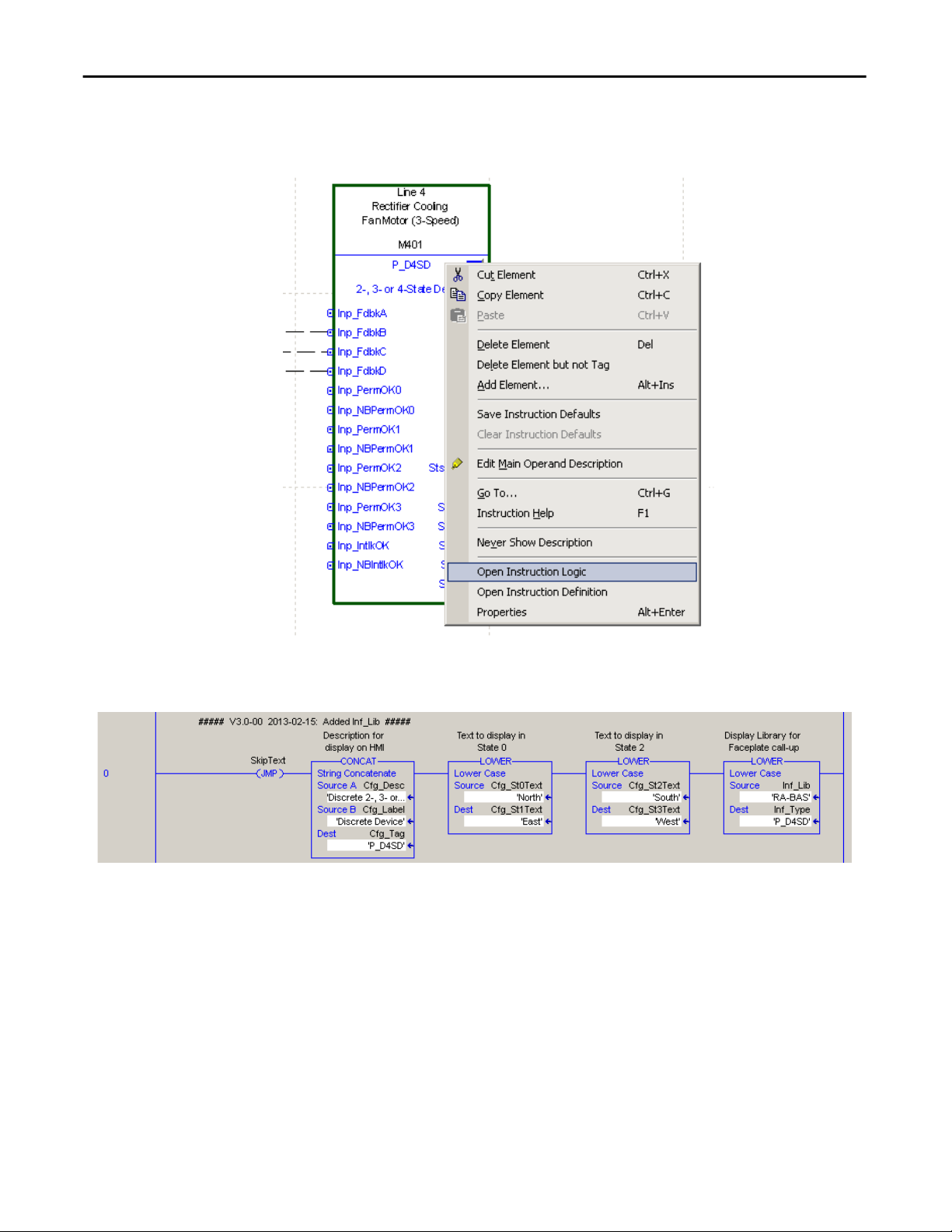

Local tags can be configured through the HMI faceplates or in Logix Designer application by opening the Instruction Logic of the Add-On Instruction instance and then selecting the string on the displayed rung.

All strings in local tags are shown on the first rung of the Add-On Instruction's ‘Logic’ routine for your convenience.

26 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Display Elements

A display element (global object) is created once and can be referenced multiple times on multiple displays in an application. When changes are made to the original (base) object, the instantiated copies (reference objects) are automatically updated. Use of global objects, in conjunction with tag structures in the ControlLogix system, aid consistency and save engineering time.

Table 14 - P_D4SD Display Elements Description

Display Element Name Display Element Description

GO_P_D4SD_4Way Three/Four-Way Valve.

The Three/Four-way Valve parameters define the inlet and output ports of the valve:

• No. 110 - Top port open state

• No. 111 - Right port open state

• No. 112 - Bottom port open state

• No. 113 - Left port open state

• 0 = Inlet (always shown as open)

• 1 = Open when Val_Sts = 1 (state 0)

• 2 = Open when Val_Sts = 2 (state 1)

• 3 = Open when Val_Sts = 3 (state 2)

• 4 = Open when Val_Sts = 4 (state 3)

GO_P_D4SD_3Way_SORt

GO_P_D4SD_3Way_SOLt

Two Way Solenoid-operated Diverter Valve in different positions: right, left, bottom, and top.

Parameters define the inlet and output ports of the Two-way Solenoid-operated Diverter Valve.

GO_P_D4SD_3Way_SOBtm

GO_P_D4SD_3Way_SOTop

GO_P_D4SD_Diverter

GO_P_D4SD_Diverter1

Two Way Diverter Valve in open top-left and open top-right positions.

The Two-way Diverter Valve parameters define the state of the valve:

• State 0: Open top-left

• State 1: Open top-right

• State 2: N/A

• State 3: N/A

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 27

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 14 - P_D4SD Display Elements Description

Display Element Name Display Element Description

GO_P_D4SD_3WayMO_Rt

GO_P_D4SD_3WayMO_Lt

GO_P_D4SD_3WayMO_Btm

GO_P_D4SD_3WayMO_Top

Two-Way Motor-operated Diverter Valve in different positions: right, left, bottom, and top.

Parameters define the inlet and output ports of the Two-way Motor-operated Diverter Valve.

GO_P_D4SD_R

GO_P_D4SD_U

GO_P_D4SD_D

GO_P_D4SD_Blower_R

GO_P_D4SD_Blower_L

GO_P_D4SD_Blower_U

Motors in different positions: right, up, and down.

Blowers in different positions: right, left, up, and down.

GO_P_D4SD_Blower_D

GO_P_D4SD_Conveyor-R Conveyor

28 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Table 14 - P_D4SD Display Elements Description

Display Element Name Display Element Description

GO_P_D4SD_Inline_U

GO_P_D4SD_Inline_L

GO_P_D4SD_Inline_D

GO_P_D4SD_Inline_R

GO_P_D4SD_Pump_R

Inline Motors in different positions: up, left, down, and right.

Pumps in different positions: right, left, and up.

Discrete 2-, 3-, 4-state Device (P_D4SD)

GO_P_D4SD_Pump_L

GO_P_D4SD_Pump_U

GO_P_D4SD_Agitator_D Agitator in down position.

GO_P_D4SD_Mixer_U Mixer in up position.

GO_P_D4SD_RPump_U Rotary Gear Pump in up position.

GO_P_D4SD_Fan_D Fan in down position.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 29

Discrete 2-, 3-, 4-state Device (P_D4SD)

Common attributes of the P_D4SD global objects include the following:

• A graphic representation of the device

• Status/Quality indicator

• Maintenance Bypass indicator

• Mode indicator

• Label

• Color changing alarm border that blinks on unacknowledged alarm

• Alarm indicator that changes color with the severity of an alarm

Graphic Representation of Device

Border

Status/Quality

Indicator

Alarm Indicator

Label

Mode Indicator

Maintenance Bypass Indicator

Status/Quality Indicator

Status/Quality Indicators

One of these symbols appears on the graphic symbol when the described condition is true.

Graphic Symbol Description

Invalid configuration.

Data quality bad/failure.

Data Quality degraded: uncertain, test, simulation, substitution, or out of specification.

The input or device has been disabled.

Device not ready to operate.

TIP

When the Invalid Configuration Indicator appears, you can find what configuration setting is invalid by following the indicators. Click the graphic symbol to open the faceplate. The Invalid Configuration indicator appears next to the appropriate tab at the top of the faceplate to guide you in finding the configuration error. Once you navigate to the tab, the misconfigured item is flagged with this indicator or appear in a magenta box.

30 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

For the Discrete 4-State Device Instruction, the Invalid Configuration indicator appears under the following conditions:

• The position failure check time or any output’s pulse time is set to a value less than zero or greater than 2,147,483 seconds.

• The simulated motion time is set to a value less than zero or greater than 2,147,483 seconds.

• An Alarm Minimum On Time is set to a value less than zero or greater than 2,147,483 seconds.

• Alarm Severity is set to a value less than 1 or greater than 1000.

TIP

When the Not Ready indicator appears, you can find what condition is

preventing operation by following the indicators. Click the graphic symbol to open the faceplate. The Not Ready indicator appears next to the appropriate tab at the top of the faceplate to guide you in finding the condition. When you navigate to the tab, the condition preventing operation is flagged.

For the Discrete 4-State Device Instruction, the Device Not Ready indicator appears under the following conditions:

• Device has been disabled by Maintenance.

• There is a configuration error.

• Interlock or Permissive is not OK.

• Operator State 0 priority command requires reset.

• Device Failure and shed requires reset.

• I/O Fault and shed requires reset.

• External equipment fault and Fault or Shed requires reset.

• Device logic is disabled or there is no mode.

Mode Indicators

One of these symbols appears on the right side of the graphic symbol to indicate the mode of the object instruction.

Graphic Symbol Description

Transparent Operator mode (if the default mode is Operator and the current mode is Operator, the mode

Transparent Program mode (if the default mode is Program and the current mode is Program, the mode

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 31

indicator is transparent).

Operator mode (if the default mode is Program).

Operator mode locked.

indicator is transparent).

Program mode (if the default mode is Operator).

Discrete 2-, 3-, 4-state Device (P_D4SD)

Graphic Symbol Description

Program mode locked.

Override mode

Maintenance mode.

Hand mode

No mode.

TIP

The images provided for the Operator and Program default modes are transparent; therefore, no mode indicators are visible if the device is in its default mode. This behavior can be changed by replacing the image files for these mode indicators with images that are not transparent.

See Rockwell Automation Library of Process Objects: Common Mode Block (P_Mode) Reference Manual, publication

SYSLIB-RM005, for more

information.

Alarm Indicators

One of these symbols appears on the left side of the label to indicate the described alarm condition and the alarm border and label background change color. The alarm border and label background blink if acknowledgement of an alarm condition is required. Once the alarm is acknowledged, the alarm border and label background remain the color that corresponds to the severity of the alarm.

Symbol Border and Label Background Description

No change in color Alarm Inhibit: an alarm is suppressed by the Program,

White Return to normal (no alarm condition), but a previous

disabled by Maintenance, or shelved by the Operator.

alarm has not been acknowledged.

Blue Low severity alarm.

Yellow Medium severity alarm.

Red High severity alarm.

Magenta Urgent severity alarm.

No symbol No change in color No alarm or alarm inhibit condition, and all alarms

32 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

are acknowledged.

Discrete 2-, 3-, 4-state Device (P_D4SD)

See Rockwell Automation Library of Process Objects: Common Alarm Block (P_Alarm) Reference Manual, publication

SYSLIB-RM002, for more

information.

Maintenance Bypass Indicator

This symbol appears to the right of the label to indicate that a maintenance bypass has been activated.

TIP

When the Maintenance Bypass Indicator appears, you can find what condition

was bypassed by following the indicators. Click the graphic symbol to open the faceplate. The Maintenance Bypass Indicator appears next to the appropriate tab at the top of the faceplate to guide you in finding the bypass. Once you navigate to the tab, the bypassed item is flagged with this indicator.

For the Discrete 4-State Device Instruction, the Maintenance Bypass Indicator appears when Maintenance has bypassed the bypassable interlocks and permissives.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 33

Discrete 2-, 3-, 4-state Device (P_D4SD)

Using Display Elements

The global objects for this instruction can be found in the global object file (RA-BAS) P_D4SD Graphics Library.ggfx. Complete the following to use a global object.

1. Copy it from the global object file and paste it in the display file.

2. In the display file, right-click the global object file and choose Global

Object Parameter Values.

The Global Object Parameter Values dialog box appears.

34 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

The global object parameters are as follows.

Parameter Required Description

#102 Y Object tag to point to the name of the associated object Add-On Instruction

#103 Y Path used for display navigation features to other objects. Include program

#110 Y Top port Open state (0 = Inlet, 1-4)

#111 Y Right port Open state (0 = Inlet, 1-4)

#112 Y Bottom port Open state (0 = Inlet, 1-4)

#113 Y Left port Open state (0 = Inlet, 1-4)

#120 N Additional parameter to pass to the display command to open the faceplate.

#121 N Additional parameter to pass to the display command to open the faceplate.

#122 Y These are the options for the global object display:

in the controller.

scope if tag is a program scope tag.

Typically used to define position for the faceplate.

If defining X and Y coordinate, separate parameters so that X is defined by #120 and Y is defined by #121. This lets the same parameters be used in subsequent display commands originating from the faceplate.

0 = Always show faceplate 1 = Show Quick Display for users without Maintenance access (Code C) 2 = Always show Quick Display

IMPORTANT

The preceding table is for the Three/Four Way Valve. Other valves that are used have similar parameters but different configurations.

3. Type the tag or value in the Value column as specified in the Description column.

TIP

You can click the ellipsis (…) to browse and select a tag.

Values for items marked ‘(optional)’ can be left blank.

4. Click OK.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 35

Discrete 2-, 3-, 4-state Device (P_D4SD)

Quick Display

The Quick Display screen provides a means for operators to perform simple interactions with the P_D4SD instruction instance. From the Quick Display, you can navigate to the faceplate for full access for operation, maintenance, and configuration.

Click to Navigate to Full Faceplate

Faceplate

The P_D4SD faceplate consists of five tabs and each tab consists of one or more pages. Each faceplate contains the value of local configuration tags Cfg_Tag and Cfg_Desc in the title bar.

The Operator tab is displayed when the faceplate is initially opened. Click the appropriate icon at the top of the faceplate to access a specific tab.

Maintenance

Operator

Engineering

Diagnostics

Alarms

Exit

Help

The faceplate provides the means for operators, maintenance personnel, engineers, and others to interact with the P_D4SD Instruction instance, including viewing its status and values and manipulating it through its commands and settings. When a given input is restricted via FactoryTalk View security, the required user security code letter is shown in the tables that follow.

36 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Operator Tab

The Faceplate initially opens to the Operator (‘Home’) tab. From here, an operator can monitor the device status and manually operate the device when it is in Operator mode.

The Operator tab shows the following information:

• Current Mode (Program, Operator, Override, Maintenance, or Hand)

• Requested Modes Indicator (appears only if the Operator or Program

Mode has been superseded by another mode)

• Device states

• Permissive states

• Input Source and Quality indicator (See 'SrcQ' in the Output parameters

table on

page 16 for details)

Operator Mode Lock and Unlock Command Buttons

Mode Indicator

Requested Modes

Indicator

Move To State

Command Buttons

Input Source and

Quality Indicator

Input Source and

Quality Icon

Device State Indicator

Interlocks Indicator and Navigation Button

Permissives 0…3 Indicators and Navigation Buttons

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 37

Discrete 2-, 3-, 4-state Device (P_D4SD)

The following table shows the functions that are included on the Operator tab.

Table 15 - Operator Tab Description

Function Action Security

Click to release Operator mode lock. Manual Device

Operation (Code B)

Click to lock in Operator mode.

Click to request Program mode.

Click to request Operator mode.

Click to reset and acknowledge all alarms. Acknowledge Alarms

Click to command the device to a state. Normal Operation of

There are up to four Permissive status indicators/buttons. Click the button beside each state to view the faceplate for Permissives associated with that state. The Permissive button appears when Cfg_HasPerm0Obj, Cfg_HasPerm1Obj, Cfg_HasPerm2Obj, or Cfg_HasPerm3Obj is set.

Click to open the interlock faceplate for the device. This button appears if Cfg_HasIntlkObj is set and opens the faceplate associated with the P_Intlk instruction configured in the global object instance.

(Code F)

Device (Code A)

None

If the object is configured to have permissive and interlock objects (for example, Cfg_HasIntlkObj is true), the permissive and interlock indication become buttons that open the faceplates of the source objects used as a permissive or interlock (often this is a P_Intlk or P_Perm object). If the object is not configured in this way, the permissive or interlock are indicators only.

See these publications for more information:

• Rockwell Automation Library of Process Objects: Interlock with First Out

and Bypass (P_Intlk) Reference Manual, publication

SYSLIB-RM004

• Rockwell Automation Library of Process Objects: Permissives with Bypass

(P_Perm) Reference Manual, publication

SYSLIB-RM007

38 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

One of these symbols appears to indicate the described Interlock or Permissive condition.

Permissive Symbol Interlock Symbol Description

One or more conditions not OK

Non-bypassed conditions OK

All conditions OK, bypass active

All conditions OK

Alarm indicators appear on the Operator tab when the corresponding alarm occurs.

Interlock Trip Alarm

Position Fail Alarm

Device Fault Alarm

I/O Fault Alarm

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 39

Discrete 2-, 3-, 4-state Device (P_D4SD)

The following table shows the alarm status on the Operator tab.

Table 16 - Operator Tab Alarm Status

Graphic Symbol Alarm Status

In Alarm (Active Alarm)

In Alarm and Acknowledged

Out of Alarm but Not Acknowledged

Alarm Suppressed (by Operator) (Alarm is logged but not displayed)

Alarm Disabled (by Maintenance)

Alarm Shelved (by Operator)

40 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Maintenance Tab

Maintenance personnel use the information and controls on the Maintenance tab to adjust device parameters, troubleshoot and temporarily work around device problems, and disable the device for routine maintenance.

Maintenance Tab Page 1

Page 1 of the Maintenance tab shows the following information:

• Current mode (Program, Operator, Override, Maintenance, or Hand)

• Requested Modes Indicator - This display highlights all modes that have

been requested. The leftmost highlighted mode is the active mode

• Shows whether the device is enabled or disabled

• Shows Permissive Bypassed/Enabled Indicator

• Shows whether Override mode bypasses the bypassable permissives

Mode Indicator

Requested Modes Indicator

Maintenance Mode Acquire and Release Command Buttons

Device Enable and Disable Command Buttons

Interlock and Permissive Bypass and Enable Command Buttons

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 41

Discrete 2-, 3-, 4-state Device (P_D4SD)

The following table shows the functions on page 1 of the Maintenance tab.

Table 17 - Maintenance Tab Page One Description

Function Action Security Configuration Parameters

Click to release device from Maintenance mode

Click to place device in Maintenance mode

Click to enable the device

Click to disable the device

Equipment Maintenance (Code C)

None

In Override Mode, bypass Interlocks and Permissives that can be bypassed

Click to enable checking of all permissives and interlocks

Click to bypass checking of bypassable permissives and interlocks

Check to bypass the bypassable permissives and interlocks in Override mode

Disable Alarms Bypass Permissives and Interlocks (Code H)

Cfg_OvrdPermIntlk

42 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Maintenance Tab Page 2

Page 2 of the Maintenance tab shows data entry fields for several configuration parameters.

The following table shows the functions on page 2 of the Maintenance tab.

Table 18 - Maintenance Tab Page 2 Description

Function Action Security Configuration Parameters

Time to pulse:

Output A (sec) Output B (sec) Output C (sec) Output D (sec)

Time after new

state requested to reach that state before Fault (sec)

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 43

Type a value (0…2,147,483.647) to

indicate the time (seconds) to energize outputs to the device to be sure they are latched in.

(0 = output held continuously)

Type a value (0…2,147,483.647) to

indicate the time (seconds) to allow the device to reach the commanded state before issuing a fault.

Configuration and Tuning Maintenance (Code D)

• Cfg_OutAPulseT

• Cfg_OutBPulseT

• Cfg_OutCPulseT

• Cfg_OutDPulseT

Cfg_FailT

Discrete 2-, 3-, 4-state Device (P_D4SD)

Engineering Tab

The Engineering tab provides access to device configuration parameters and ranges, options for device and I/O setup, displayed text, and faceplate-to-faceplate navigation settings, and for initial system commissioning or later system changes.

The engineering tab is divided into three pages.

Engineering Tab Page 1

Page 1 of the Engineering tab lets you configure the description, label, tag, and state names for the device.

Mode Configuration Button

Configure Device Description, Label, and Tag Text

Configure Text to Display in States 0…3

44 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

The following table lists the functions on the Engineering tab page 1.

Table 19 - Engineering Tab Page 1 Description

Function Action Security Configuration Parameters

Click to navigate to the Mode Configuration display box.

None See Mode Configuration Message

Display on

page 46.

Description Type the device description to show

Label Type the label to show on the Graphic

Tag Type the tag name to show on the

Text to Display in:

State 0: State 1: State 2: State 3:

Number of States: 2 3 4

Clear Program Commands on Receipt

Operator command resets fault

Operator State 0 command available in any mode

on the Faceplate title bar.

Symbol.

Faceplate and Tooltip. IMPORTANT: Pausing the mouse

over this field displays a tool tip with the configured Logix tag/path.

Type text to describe the state. • Cfg_St0Text

Click to select the number of states. Cfg_NumStates

Check to set this parameter to one of the following:

• ON to use Edge-triggered Program Commands (default).

• OFF to use Level-triggered Program Commands.

Check to reset a fault upon a new operator command.

Check (= 1) to make Operator State 0 (OCmd_St0) available in any mode.

Clear this checkbox (= 0) to make Operator State 0 (OCmd_St0) available only in Operator or Maintenance mode.

Engineering Configuration (Code E)

Cfg_Desc

Cfg_Label

Cfg_Tag

• Cfg_St1Text

• Cfg_St2Text

• Cfg_St3Text

Cfg_PCmdClear

Cfg_OCmdResets

Cfg_OperSt0Prio

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 45

Discrete 2-, 3-, 4-state Device (P_D4SD)

Mode Configuration Display

This display lets you select the default mode for the object by selecting the appropriate mode.

IMPORTANT

If no mode is being requested, changing the default mode changes the mode of the instruction.

You must have FactoryTalk View security code E to select the default mode on this display.

46 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device (P_D4SD)

Engineering Tab Page 2

Page 2 of the Engineering tab lets you enable navigation to the Permissive or Interlock objects and to set the output and feedback for the states.

The following table shows the functions on the Engineering tab page 2.

Table 20 - Engineering Tab Page 2 Description

Function Action Security Configuration Parameters

Enable navigation to North/South/ East/West Permissive objects

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 47

Check if the corresponding north, south, east, or west Permissive object is used with this device This changes the Permissive Indicator to a button that accesses the Permissive faceplate.

‘D4SD123_Perm0’.

Engineering Configuration (Code E)

• Cfg_HasPerm0Obj

• Cfg_HasPerm1Obj

• Cfg_HasPerm2Obj

• Cfg_HasPerm3Obj

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 20 - Engineering Tab Page 2 Description

Function Action Security Configuration Parameters

Enable navigation to interlock object

Outputs and Feedback

Check if a P_Intlk object is used with this device.

IMPORTANT: The name of the Permissive object in the controller must be this object's name with the suffix '_Intlk'. For example, if your P_DOut object has the name 'DOut123', then its Permissive object must be named 'DOut123_Intlk'.

Click a state to open the P_D4SD State Configuration display for that state.

Engineering Configuration (Code E)

None See State Configuration display on

Cfg_HasIntklObj

page 48.

State Configuration Display

This display directs how the P_D4SD instruction commands the device state via outputs and determines the actual device state via feedback inputs. The first two columns for output set parameters, Cfg_OutSt[x]Write, and Cfg_OutSt[x]Value, determine how outputs are written to command to a state. The second two columns for feedback set parameters, Cfg_FdbkSt[x]Check, and Cfg_FdbkSt[x]State, determine how the state is interpreted from the input values.

Changing the parameters requires engineering access (security code E).

48 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Engineering Tab Page 3

Discrete 2-, 3-, 4-state Device (P_D4SD)

The following table shows the functions on page 3 of the Engineering tab.

Table 21 - Engineering Tab Page 3 Description

Function Action Security Configuration Parameters

Shed Action: Go to State 0

Hold State

Shed Triggers: On Device Fault

Shed Triggers: On I/O Fault

Shed Triggers: On Failure to Reach State

Feedback delay for loopback test or when feedback not used (seconds)

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 49

Click to determine whether you hold position or go to state 0 upon a shed condition.

Check to shed if a Device Fault is detected.

Check to shed if an I/O Fault is detected.

The device always sheds an Interlock Trip. This item cannot be unchecked. It is displayed as a reminder that the Interlock Trip function always triggers a shed.

Type a value (seconds) to indicate the delay to echo back reaching state when in simulation.

Engineering Configuration (Code E)

Cfg_St0onShed

Cfg_ShedOnDeviceFault

Cfg_ShedOnIOFault

Cfg_ShedOnFail

Cfg_SimFdbkT

Discrete 2-, 3-, 4-state Device (P_D4SD)

Diagnostics Tab

The Diagnostic tab provides indications helpful in diagnosing or preventing device problems, which can include specific reasons a device is 'Not Ready', device warnings and faults, warning and fault history, and predictive/preventive maintenance data.

The Diagnostics tab displays possible reasons the device is not ready.

50 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Alarm Names

Discrete 2-, 3-, 4-state Device (P_D4SD)

Alarms Tab

The Alarms tab displays each configured alarm for the P_D4SDinstruction. The icon on the tab for the alarms page changes color based on the current active alarms. A blinking alarm icon indicates that one or more alarms must be acknowledged or the device must be reset.

Alarm Severity Indicators

Alarm Acknowledge Command Button

Reset and Acknowledge All Alarms Command Button

Click an alarm name to open the P_Alarm faceplate for that alarm. From the P_Alarm faceplate, you can configure and perform additional operations on

the alarm.

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 51

Discrete 2-, 3-, 4-state Device (P_D4SD)

Table 22 - Alarm Severity Colors

Color Definition

Magenta Urgent

Red High

Yellow Medium

Blue Low

White (bell icon) Alarm has cleared but is unacknowledged

Background (Light Gray) No alarm

The following table shows the functions on the Alarms tab.

Table 23 - Alarms Tab Description

Function Action Security

Alarm Name Click an alarm name to open the associated

P_Alarm faceplate.

Click to acknowledge the alarm. Acknowledge Alarms

None

(Code F)

Click to reset and acknowledge all alarms.

See Rockwell Automation Library of Process Objects: Common Alarm Block (P_Alarm) Reference Manual, publication

SYSLIB-RM002, for

more information.

52 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Discrete 2-, 3-, 4-state Device Faceplate Help

The Faceplate Help is divided into two pages.

Faceplate Help Page 1

Discrete 2-, 3-, 4-state Device (P_D4SD)

Faceplate Help Page 2

Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017 53

Discrete 2-, 3-, 4-state Device (P_D4SD)

Notes:

54 Rockwell Automation Publication SYSLIB-RM028E-EN-P - February 2017

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using its products.

http://www.rockwellautomation.com/support you can find technical and application notes, sample code, and links to

At software service packs. You can also visit our Support Center at updates, support chats and forums, technical information, FAQs, and to sign up for product notification updates.

In addition, we offer multiple support programs for installation, configuration, and troubleshooting. For more information, contact your local distributor or Rockwell Automation representative, or visit

http://www.rockwellautomation.com/services/online-phone.

Installation Assistance

If you experience a problem within the first 24 hours of installation, review the information that is contained in this manual. You can contact Customer Support for initial help in getting your product up and running.

United States or Canada 1.440.646.3434

Outside United States or Canada Use the

Worldwide Locator at http://www.rockwellautomation.com/rockwellautomation/support/overview.page, or contact your local

Rockwell Automation representative.

New Product Satisfaction Return

https://rockwellautomation.custhelp.com/ for software

Rockwell Automation tests all of its products to help ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.

United States Contact your distributor. You must provide a Customer Support case number (call the phone number above to obtain one) to your

Outside United States Please contact your local Rockwell Automation representative for the return procedure.

distributor to complete the return process.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete this form, publication

Rockwell Automation maintains current product environmental information on its website at

http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.

Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400

RA-DU002, available at http://www.rockwellautomation.com/literature/.

Publication SYSLIB-RM028E-EN-P - February 2017

Rockwell Automation Discrete 2 Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important User Information

Table of Contents

Preface

Software Compatibility and Content Revision

Additional Resources

Discrete 2-, 3-, 4-state Device (P_D4SD)

Guidelines

Functional Description

Required Files

Controller File

Visualization Files

Controller Code

Discrete 2-, 3-, 4-state Device Input Structure

Discrete 2-, 3-, or 4-state Device Output Structure

Discrete 2-, 3-, or 4-state Device Local Configuration Tags

Operations

Modes

Alarms

Simulation

Execution

Programming Example

Display Elements

Status/Quality Indicators

Mode Indicators

Alarm Indicators

Maintenance Bypass Indicator

Using Display Elements

Quick Display

Faceplate

Operator Tab

Maintenance Tab

Engineering Tab

Diagnostics Tab

Alarms Tab

Discrete 2-, 3-, 4-state Device Faceplate Help
