User Manual
SLC 500 EtherNet/IP Adapter
Catalog Number
1747-AENTR
Spare Allen-Bradley Parts
Important User Information
IMPORTANT
Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety
Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1
your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/
important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference,
and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment
must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from
the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous
environment, which may lead to personal injury or death, property damage, or economic loss.
available from
) describes some
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death,
property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the
consequence
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
dangerous voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
surfaces may reach dangerous temperatures.
Identifies information that is critical for successful application and understanding of the product.
Allen-Bradley, SLC 500, RSLogix 5000, Rockwell Automation, and TechConnect are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Preface
Read this preface to familiarize yourself with the rest of the manual. It provides
information concerning:
• who should use this manual
• the purpose of this manual
• related documentation
Who Should Use this
Manual
Purpose of this Manual
Additional Resources
Resource Description
Ethernet Design Considerations Reference Manual,
publication ENET-RM002
EtherNet/IP Embedded Switch Technology Application Guide,
publication ENET-AP005
EtherNet/IP Network Configuration User Manual,
publication ENET-UM001
EtherNet/IP Web Server Module User Manual,
publication ENET-UM527
Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1
Product Certifications website, http://ab.com
Application Considerations for Solid-State Controls SGI-1.1
National Electrical Code - Published by the National Fire
Protection Association of Boston, MA.
Allen-Bradley Industrial Automation Glossary AG-7.1
Use this manual if you are responsible for designing, installing, programming, or
troubleshooting control systems that use the EtherNet/IP Adapter Module.
You should have a basic understanding of electrical circuitry and familiarity with
relay logic. If you do not, obtain the proper training before using this product.
This manual is a reference guide for the EtherNet/IP Adapter Module. It
describes the procedures you use to install, program and troubleshoot your
module. This manual also includes several application examples.
These documents contain additional information concerning related Rockwell
Automation products
Provides declarations of conformity, certificates, and other certification details.
A description of important differences between solid-state programmable
A glossary of industrial automation terms and abbreviations.
Provides design considerations such as EtherNet/IP infrastructure components,
features, protocol and prediction of system performance.
Describes how to install, configure and maintain linear and Device-level Ring
(DLR) networks using Rockwell Automation EtherNet/IP devices with
embedded switch technology.
Describes how you can use EtherNet/IP communication modules with your
Logix5000 controller and communicate with various devices on the Ethernet
network.
Describes how to use the EtherNet/IP Web server module.
Provides general guidelines for installing a Rockwell Automation industrial
system.
controller products and hard-wired electromechanical devices.
An article on wire sizes and types for grounding electrical equipment.
You can view or download publications at http://www.rockwellautomation.com/
literature/. To order paper copies of technical documentation, contact your local
Rockwell Automation distributor or sales representative.
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 iii
Preface
Notes:
iv Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Table of Contents
Preface
About the SLC 500 EtherNet/IP
Adapter
Install Your Adapter
Who Should Use this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Chapter 1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

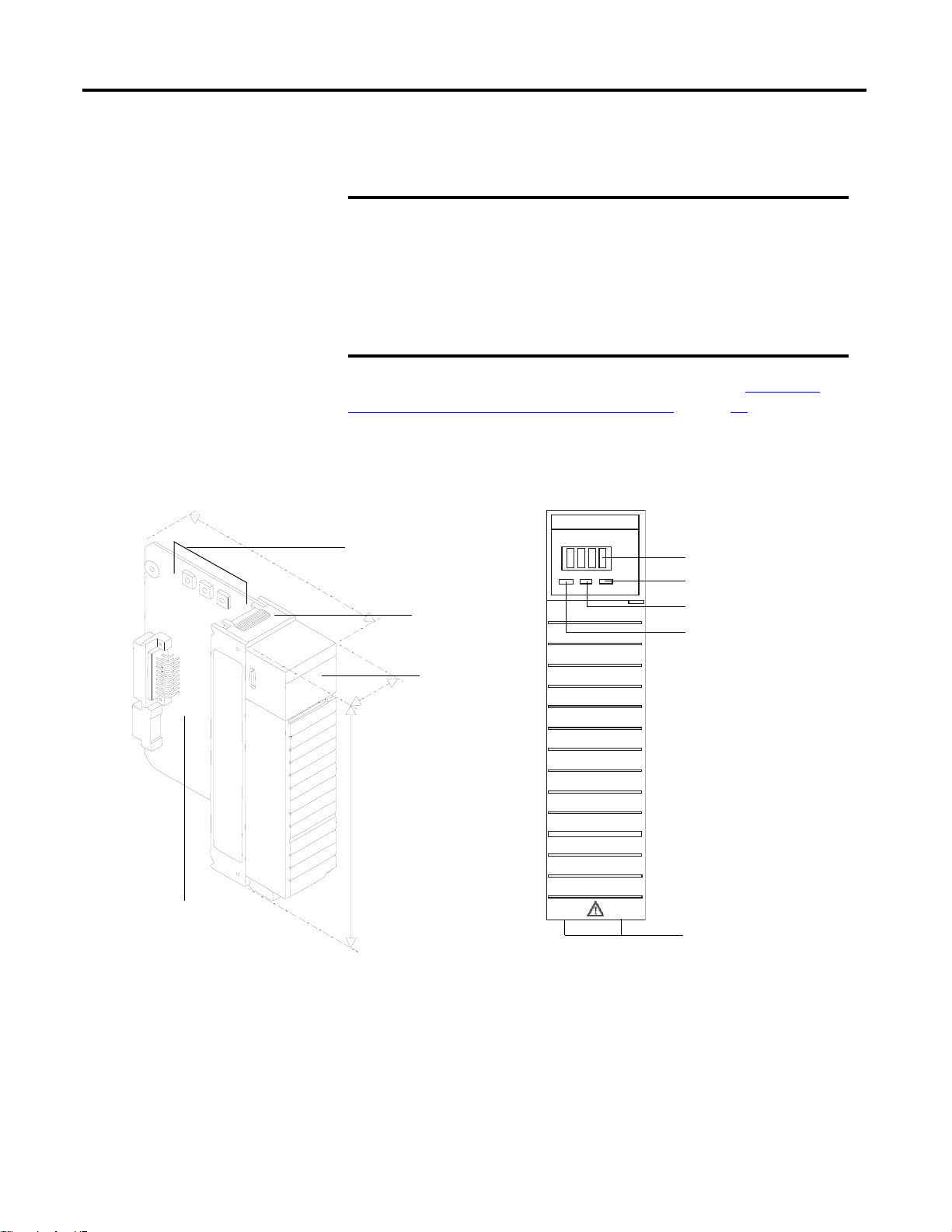

Hardware Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
The 1747-AENTR in a Logix System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware/Software Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Diagnostic Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
What the Adapter Does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Use of the Common Industrial Protocol (CIP) . . . . . . . . . . . . . . . . . . . . . . . 5
Understand the Producer/Consumer Model . . . . . . . . . . . . . . . . . . . . . . . . . 5
Support of Direct Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2

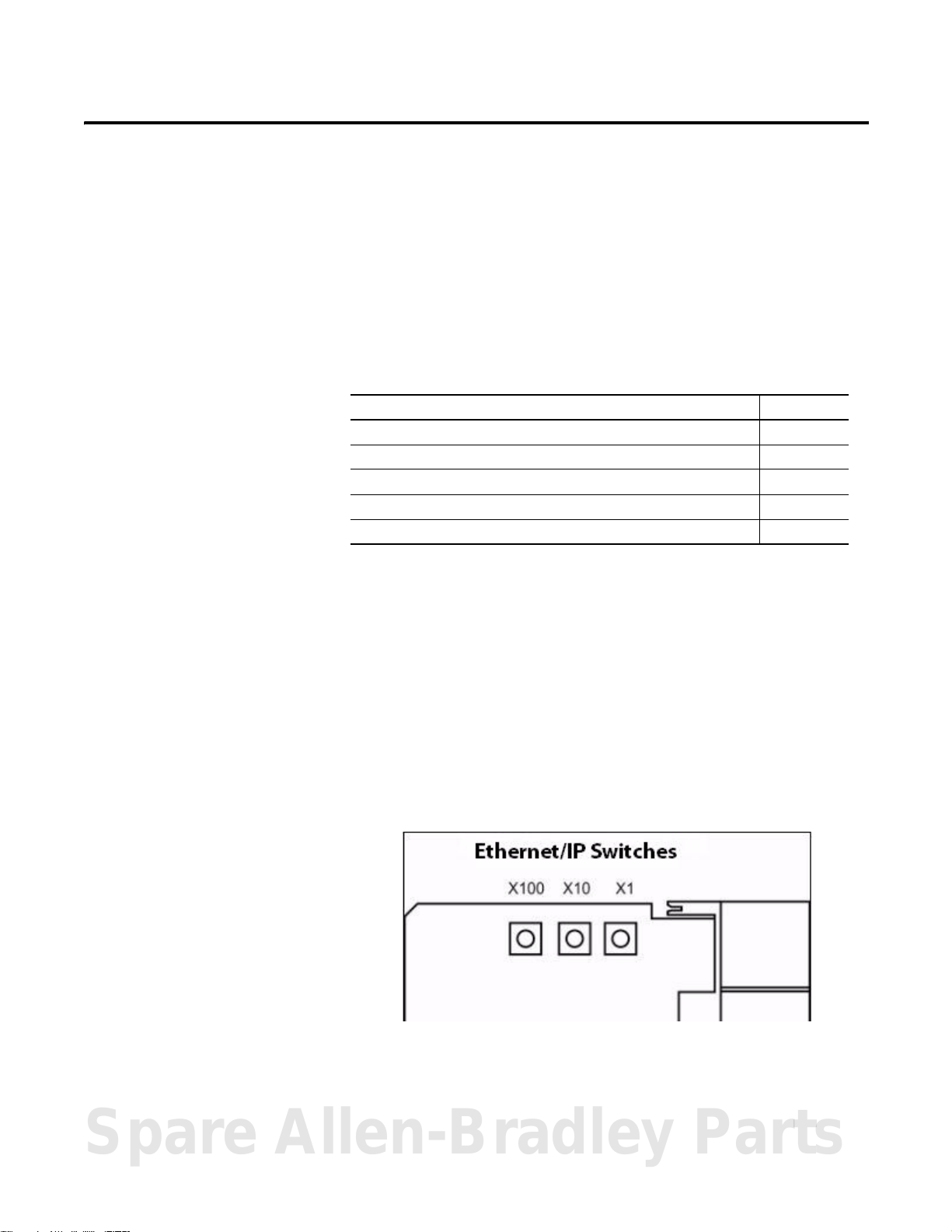

Set the Network Address Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Determine Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

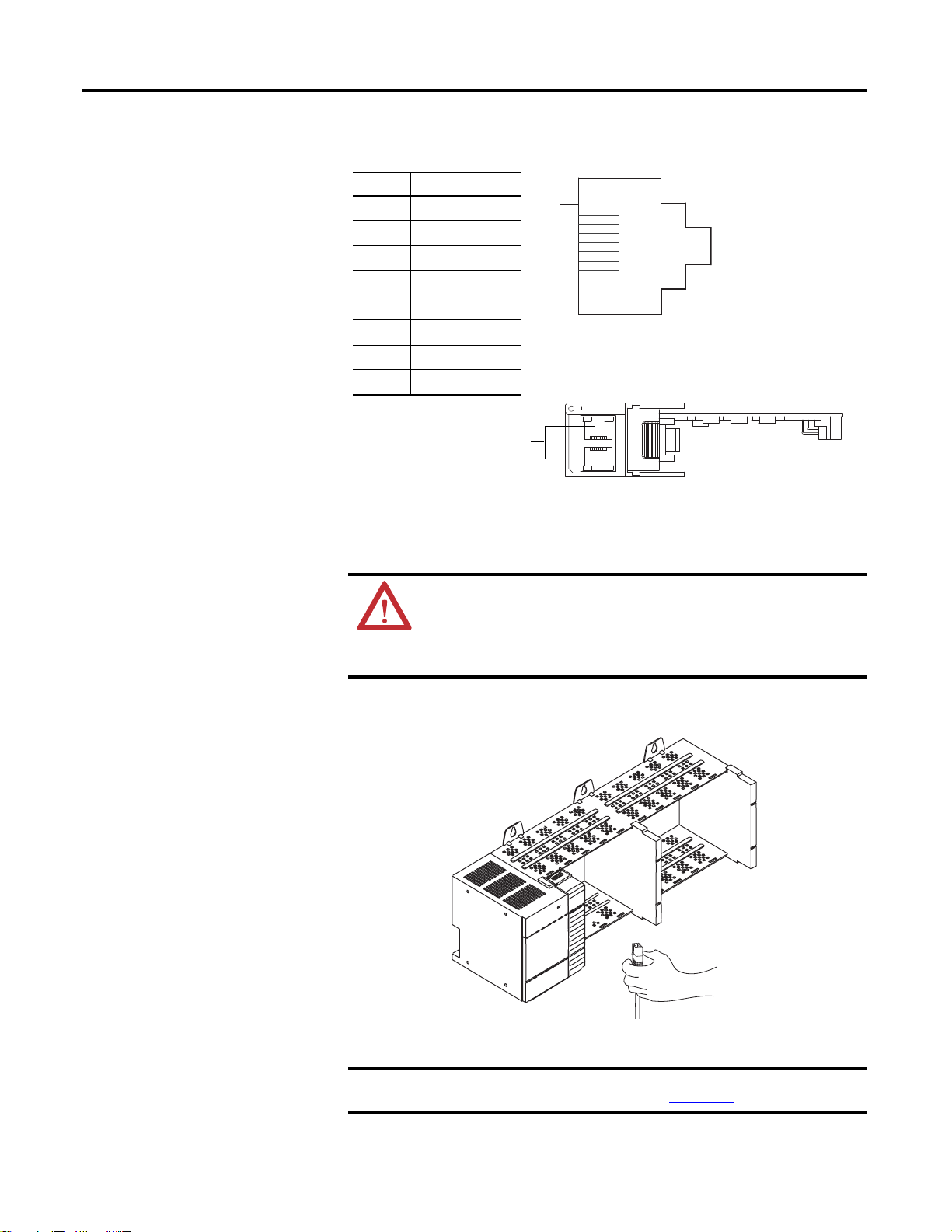

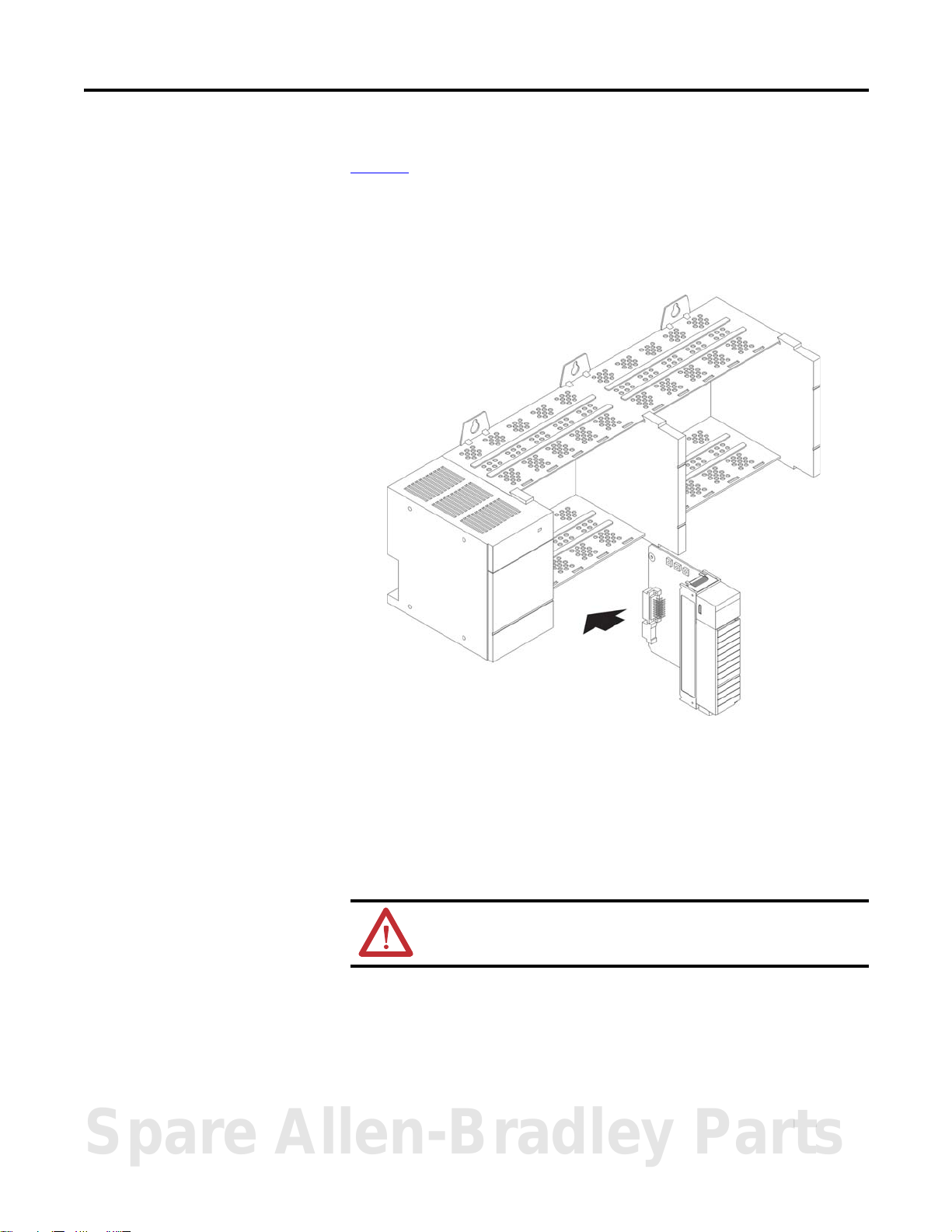

Install the Adapter Module in the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connect Your Adapter to the Ethernet/IP Network through RJ-45
Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 3
Configure the Adapter for Your
EtherNet/IP Network
Configuration Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Gateway Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Subnet Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

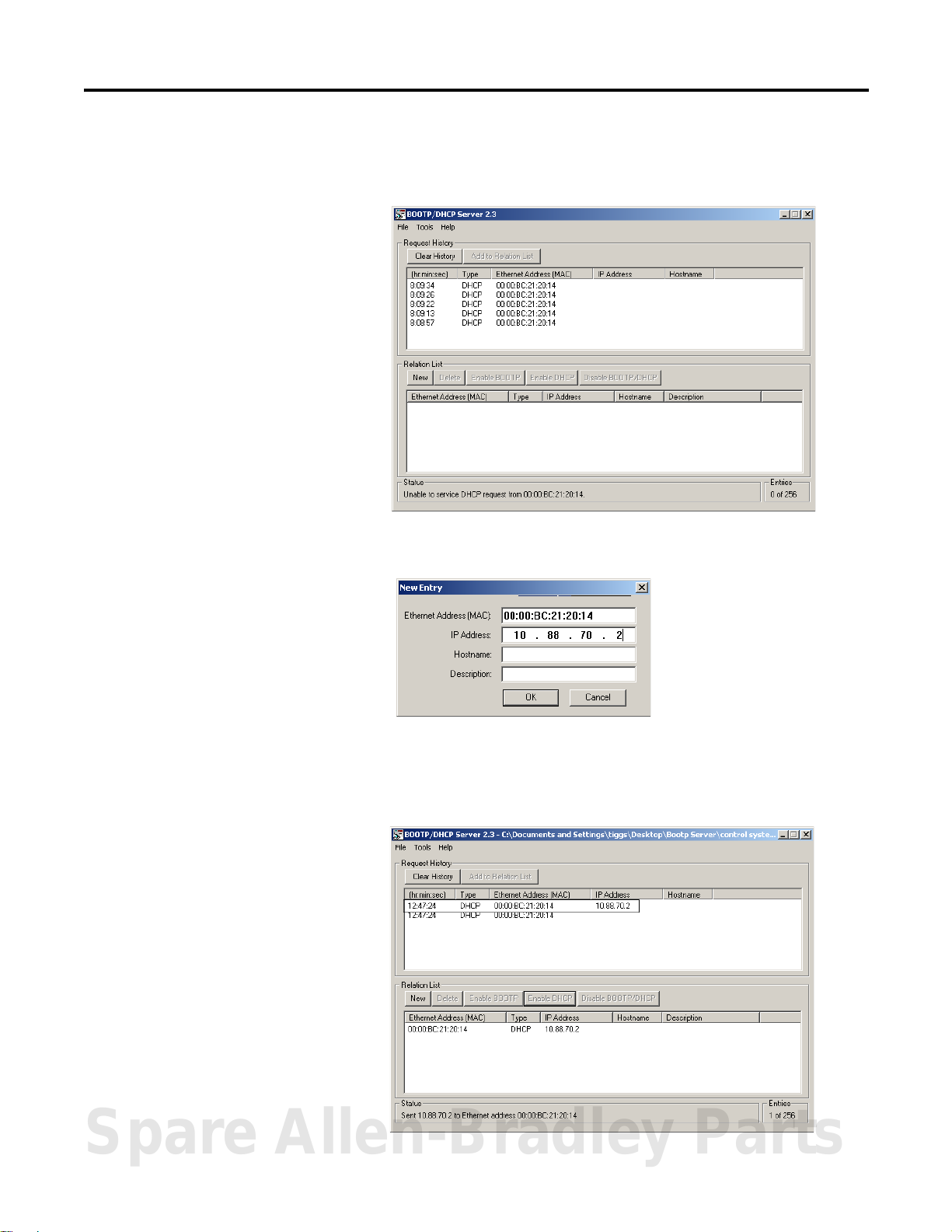

Use the Rockwell Automation BootP/DHCP Utility . . . . . . . . . . . . . . . 16
Save the Relation List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Use DHCP Software to Configure Your Adapter . . . . . . . . . . . . . . . . . . . 19
Chapter Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Chapter 4
Plan to Use Your EtherNet/IP
Adapter
Compatible 1746 and 1747 I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Overview of Adapter Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Module Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Module Keying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Output Operation During Fault and Idle Modes . . . . . . . . . . . . . . . . 25
Chapter Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 v
Table of Contents
Chapter 5
Configure the Adapter for Direct
Connection through the
RSLogix 5000 or Logix Designer
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Set Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Create the Example Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Configure the I/O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Software
Add the Adapter to the I/O Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 31
Download the Program to the Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Custom Settings
(Edit Adapter Configuration) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Custom Settings for your
I/O Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Online Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Chapter 6
Troubleshoot with the Status
Indicators
Interpret the Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Add the Local EtherNet/IP Bridge to the I/O Configuration. . . . . 30
Add I/O Modules to the I/O Configuration . . . . . . . . . . . . . . . . . . . . 33
Add Specialty I/O Modules using Advanced Connection . . . . . . . . 37
Specifications
Adapter Web Dialogs
Configure the RSLinx Ethernet
Communication Driver
Index
Appendix A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Appendix B
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Work with the Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Work with the Diagnostics Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Use the Diagnostic Overview Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Use the Network Settings Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Use the Ethernet Statistics Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Use the I/O Connections Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Work with the Configuration Pages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Use the Device Identity Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Use the Network Configuration Page . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Use the Device Services Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Appendix C
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Install the RSLinx Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Configure the AB_ETH/IP Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
vi Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Chapter
About the SLC 500 EtherNet/IP Adapter
1
Overview
Module Description
This chapter provides an introduction to the features and functionalities of the
1747-AENTR SLC 500 EtherNet/IP Adapter. It includes the following sections.
Topic Page
Module Description 1
Hardware Components 2
The 1747-AENTR in a Logix System 3
Hardware/Software Compatibility 4
Diagnostic Indicators 4
What the Adapter Does 5
Use of the Common Industrial Protocol (CIP) 5
Understand the Producer/Consumer Model 5
Support of Direct Connections 6
The 1747-AENTR Adapter enables CompactLogix and ControlLogix
processors to control SLC I/O modules. It is primarily designed to enable
migration of existing SLC controlled systems to Logix-based systems.
The adapter mainly acts as a gateway between the SLC backplane and
EtherNet/IP and typically replaces an SLC controller in the 1746 rack. On
remote SLC racks, it replaces the 1747-ASB module or the ControlNet adapters
1747-ACN15 and 1747-ACNR15.
Control of the backplane I/O is accomplished with a CompactLogix or
ControlLogix controller communicating through an EtherNet/IP router in the
Logix backplane, across EtherNet/IP, and into the 1747-AENTR gateway.
As a gateway between the SLC backplane and EtherNet/IP, the 1747-AENTR
module is a CIP server (for both Explicit Messaging and I/O) on the Ethernet
port, and an SLC host on the 1746 backplane.
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 1
Chapter 1 About the SLC 500 EtherNet/IP Adapter
IMPORTANT
5.15
1.37
5.72
Side view
Network switches
Front view
Latch
PCB
Front cover
4-character dot matrix display
Module status indicator
Link 2 status indicator
Link 1 status indicator
RJ-45 Ethernet connectors
Connections can be made to support 1746 and 1747 analog, digital, and specialty
I/O modules installed in the backplane.
Logix Designer application (previously RSLogix 5000) revision 21 and
later, and firmware revision 2.001 and later supports:
• multiple chassis, with a maximum number of three chassis;
• a maximum of 30 SLC I/O modules;
• a maximum of 96 Class 1 connections;
• up to 8 Class 3 connections.
For the complete list of supported I/O modules, see the table, List of I/O
Modules Supported by the 1747-AENTR Adapter on page 21.
Hardware Components
The adapter module consists of the following hardware components:
1747-AENTR
LINK1 LINK2
MOD
Link 1 Link 2
2 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
About the SLC 500 EtherNet/IP Adapter Chapter 1
1
8
8
1
45845
45846
Ethernet connectors (RJ-45)
45844
Left side view
Right side view
Bottom view
EtherNet/IP Network
PanelView
Terminal
ControlLogix
Controller
1747-AENTR Adapter
PC running
controller and
Rockwell Automation
configuration software
45848
The 1747-AENTR in a
Logix System
In this example, the I/O modules communicate with the controller through the
1747-AENTR adapter. The controller can produce and consume tags to the I/O.
Configuration of devices and the network is done through the personal computer
running the controller and configuration software.
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 3
Chapter 1 About the SLC 500 EtherNet/IP Adapter
Hardware/Software
Compatibility
Diagnostic Indicators
The adapter and the applications described in this manual is compatible with the
following firmware revisions and software releases.
Product Firmware Revision/
Software Release
1747-AENTR 1.001 or later
Logix controller v20 or later
RSLogix 5000 or Logix Designer v20 or later
RSLinx software v2.59 or later
The module has the following diagnostic indicators:
• Link 1 and Link 2 status indicator
• Module indicator
• 4-character status display
4 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
About the SLC 500 EtherNet/IP Adapter Chapter 1
CONTROLLER
EtherNet/IP Network
E
N
B
T
Other
Network
Devices
1
7
4
7
A
E
N
T
R
SLC I/O
What the Adapter Does
The 1747-AENTR EtherNet/IP adapter performs the following primary tasks:
• Control of real-time I/O data (also known as implicit messaging) – the
adapter serves as a bridge between I/O modules and the network
• Support of messaging data for configuration and programming
information (also known as explicit messaging)
Use of the Common
Industrial Protocol (CIP)
The adapter uses the Common Industrial Protocol (CIP), the application layer
protocol specified for EtherNet/IP, the Ethernet Industrial Protocol. It is a
message-based protocol that implements a relative path to send a message from
the producing device in a system to the consuming devices.
The producing device contains the path information that steers the message along
the proper route to reach its consumers. Since the producing device holds this
information, other devices along the path simply pass this information; they do
not store it.
This has the following significant benefits:
• You do not need to configure routing tables in the bridging modules,
Understand the Producer/
Consumer Model
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 5
which greatly simplifies maintenance and module replacement.
• You maintain full control over the route taken by each message, which
enables you to select alternative paths for the same end device.
The CIP producer and consumer networking model replaces the old source and
destination (master and slave) model. The producer and consumer model reduces
network traffic and increases speed of transmission. In traditional I/O systems,
controllers poll input modules to obtain their input status. In the CIP system,
Chapter 1 About the SLC 500 EtherNet/IP Adapter
input modules are not polled by a controller. Instead, they produce (multicast or
unicast) their data periodically or at a cyclic rate.
Unicast is the default for version 20 with multicast as a selectable option. The
frequency of update depends upon the options chosen during configuration and
where on the network the input module resides. The input module, therefore, is a
producer of input data, and the controller is a consumer of the data.
The controller also produces data for other controllers to consume. The
produced and consumed data is accessible by multiple controllers and other
devices over the EtherNet/IP network. This data exchange conforms to the
producer and consumer model.
Support of Direct
Connections
Chapter Summary
The EtherNet/IP adapter only supports direct connections. A direct connection
is a real-time data transfer link between a Logix controller and a 1746/1747 I/O
module through the 1747-AENTR adapter. Direct I/O connections occur at a
cyclic rate specified by the RPI during configuration.
The adapter can support direct connections to devices in expansion racks. This
feature is supported on Logix Designer application (previously RSLogix 5000
software) revision 21 and later, and firmware revision 2.001 and later.
See the EtherNet/IP Performance and Application Guide, publication number
ENET-AP001
This chapter provided an overview of the module features, what it does, and its
function in a Logix system.
, for more information on connections.
6 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Chapter
2
Install Your Adapter
This chapter describes how to install the 1747-AENTR adapter and connect it to
the EtherNet/IP network.
The following table lists where to find specific information.
Topic Page
Set the Network Address Switches 7
Determine Power Requirements 8
Install the Adapter Module in the Chassis 8
Connect Your Adapter to the Ethernet/IP Network through RJ-45 Connection 9
Chapter Summary 11
Set the Network Address
Switches
The network address switches are set to 999 and DHCP enabled, by default. You
can set the network Internet Protocol (IP) address in the following ways:
• Use the network address switches on the module.
• Use a Dynamic Host Configuration Protocol (DHCP) server, such as
Rockwell Automation BootP/DHCP.
• Retrieve the IP address from nonvolatile memory.
The adapter reads the network address switches first to determine if the switches
are set to a valid number. You set the node address by using the network address
switches. Valid settings range from 001…254.
When the switches are set to a valid number, the adapter’s IP address is
192.168.1.xxx (where xxx represents the number set on the switches).
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 7
Chapter 2 Install Your Adapter
IMPORTANT
The adapter’s subnet mask is 255.255.255.0 and the gateway address is set to
0.0.0.0. The adapter does not have a host name assigned, or use any Domain
Name System when using the network address switch settings.
If the switches are set to an invalid number (for example, 000 or a value greater
than 254 excluding 888), the adapter checks to see if DHCP is enabled. Setting
the switches to 888 restores default factory settings.
If you set the value of the adapter switch to 888 and then power cycle the
module, the following occurs:
• The DHCP Enabled function is enabled (set to True).
• The Ethernet link is negotiated automatically. The Auto Negotiate function is
set to True.
• The web server is enabled. The Disabled Web Server function is disabled.
• The Ethernet ports are disabled. Both ports are re-enabled once the
switches are returned to their previous value and power is cycled.
DHCP Enabled and Not Enabled
DHCP Enabled and Not Enabled
If DHCP is Then the Adapter
Enabled Asks for an address from a DHCP server. The DHCP server also assigns other
Transport Control Protocol (TCP) parameters.
The 1747-AENTR factory default is DHCP enabled. When you apply power, the
module sends a message containing its hardware address to any DHCP server on
the network. The server(s) replies by sending a message with an appropriate IP
address for the adapter. The adapter responds by acknowledging to a server that
it will use the offered IP address.
Not enabled Uses the IP address (along with other TCP configurable parameters) stored in
nonvolatile memory.
When the IP address assigned to the module, as indicated in the four-character
dot matrix status display, is changed through the DHCP configuration utility, the
DHCP is disabled.
When power is cycled to the device, it uses the new configuration and
implements the new IP address.
See the chapter, Configure the Adapter for Your EtherNet/IP Network on page
13, for information on how to use your BootP/DHCP utility to configure your
adapter for the network.
Determine Power
Requirements
Install the Adapter Module
in the Chassis
8 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
The Ethernet adapter requires 5V DC with current consumption of 470 mA.
The power is supplied through backplane from SLC power supply. Remember to
consider this requirement when planning your system configuration.
After you set the appropriate switch assemblies for your adapter module, follow
these procedures for installation.
Install Your Adapter Chapter 2
Refer to the Industrial Controller Wiring and Grounding Guidelines publication
1770-4.1
module.
for proper grounding and wiring methods to use when installing your
1. Remove power from the I/O chassis before inserting (or removing) the
module.
2. Align the circuit board with the chassis card guide in the left slot.
3. Install the module in slot 0 of the chassis by aligning the circuit board with
the chassis card guide.
The 1747-AENTR module must be installed only in slot 0 (leftmost
slot)of the chassis.
4. Press firmly and evenly to seat the module in its backplane connectors. To
remove the module, press the releases at the top and bottom of the module
and pull it out.
ATTENTION: Do not force the module into the backplane connector. If
you cannot seat the module with firm pressure, check the alignment.
Forcing the module can damage the backplane connector or the module.
Connect Your Adapter to the
Ethernet/IP Network
Connect your 1747-AENTR adapter module to an Ethernet/IP network as
shown below:
through RJ-45 Connection
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 9
Chapter 2 Install Your Adapter
IMPORTANT
Signal
1 TxData+
2 TxData-
3Recv Data+
4Reserved
5Reserved
6Recv Data-
7Reserved
8Reserved
RJ-45 connectors
1747-AENTR module bottom view
45844
RJ-45
Wire the RJ-45 connectors as shown.
8
1
8
1
To connect the module to the network, follow these steps:
WARNING: If you connect or disconnect the communication cable with
power applied to this module or any device on the network, an electrical
arc can occur. This could cause an explosion in hazardous location
installations. Be sure that power is removed or the area is nonhazardous
before proceeding.
1. Attach the cables with the RJ-45 connectors to the two Ethernet ports on
the bottom of the module.
2. Attach the other end of the cables to the devices in your network.
To install systems with rack extensions, you can refer to the SLC 500 Modular
Hardware Style User Manual, publication 1747-UM011
.
10 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Install Your Adapter Chapter 2
Chapter Summary
This chapter provided instructions on how to install and wire the module. It also
included power requirements for the module.
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 11
Chapter 2 Install Your Adapter
Notes:
12 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Chapter
3
Configure the Adapter for Your EtherNet/IP Network
Before using your adapter in an EtherNet/IP network, you need to configure it
with an IP address, subnet mask, and optional Gateway address. This chapter
describes these configuration requirements and the procedures for providing
them. Here are ways you can do this:
• Use the Rockwell Automation BootP/DHCP utility, version 2.3 or later,
that ships with RSLogix 5000 or RSLinx software.
– You can also use this utility to reconfigure a device with an IP address
you must change.
Configuration
Requirements
• Use a third party DHCP server.
• Use the Network Address rotary switches.
• Have your network administrator configure the adapter via the network
DHCP server.
See the table for a list of where to find information in this chapter.
Topic Page
Configuration Requirements 13
Use the Rockwell Automation BootP/DHCP Utility 16
Use DHCP Software to Configure Your Adapter 19
Before you can use your adapter, you must configure its IP address, its subnet
mask, and, optionally, a gateway address. You can use the Rockwell Automation
BootP utility, version 2.3 or later, to perform the configuration. You can also use a
DHCP server or the network address switches to configure these parameters.
If you need to reset the adapter to factory defaults, see Work with the
Configuration Pages on page 66.
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 13
Chapter 3 Configure the Adapter for Your EtherNet/IP Network
Class A
Class B
Class C
Network ID
Host ID
Host ID
Host ID
0
0
0
10
0
110
78
15 16
31
31
3123 24
Network ID
Network ID
EXAMPLE
IP Address
The IP address identifies each node on the IP network, or system of connected
networks. Each TCP/IP node on a network, including the adapter, must have a
unique IP address.
The IP address is 32 bits long and has a Network ID part and Host ID part.
Networks are classified A, B, C, or other. The class of the network determines
how an IP address is formatted.
You can distinguish the class of the IP address from the first integer in its dotteddecimal IP address as follows:
Range of first
integer
0 1…27 A 192…223 C
128…191 B 224… 255 Other
Class Range of first
integer
Class
Each node on the same physical network must have an IP address of the same
class and must have the same network ID. Each node on the same network must
have a different Host ID thus giving it a unique IP address.
IP addresses are written as four decimal integers (0…255) separated by periods
where each integer gives the value of one byte of the IP address.
For example, the 32-bit IP address:
10000000 00000001 00000000 00000001 is written as 128.1.0.1
Gateway Address
This section applies to multi-network systems. If you have a single network
system, refer to the next section.
The Gateway Address is the default address of a network. It provides a single
domain name and point of entry to the site. Gateways connect individual physical
networks into a system of networks.
14 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Configure the Adapter for Your EtherNet/IP Network Chapter 3
EXAMPLE
Network 1
Network 2
128.1.0.1
128.2.0.1 128.2.0.2 128.2.0.3
128.1.0.2
A
B
G
C
These two bits of the Host ID are used to
extend the netdwork ID.
When a node needs to communicate with a node on another network, a gateway
transfers the data between the two networks. The figure shows gateway G
connecting Network 1 with Network 2.
When host B with IP address 128.2.0.1 communicates with host C, it knows
from C’s IP address that C is on the same network. In an Ethernet environment,
B can then resolve C’s IP address into a hardware address (MAC address) and
communicate with C directly.
When host B communicates with host A, it knows from A’s IP address that A is
on another network (the network IDs are different). In order to send data to A, B
must use the IP address of the gateway connecting the two networks. In this
example, the gateway’s IP address on Network 2 is 128.2.0.3.
The gateway has two IP addresses (128.1.0.2 and 128.2.0.3). The first must be
used by hosts on Network 1 and the second must be used by hosts on Network 2.
To be usable, a gateway of a host must be addressed using a network ID matching
its own.
Subnet Mask
The subnet mask is used for splitting IP networks into a series of subgroups, or
subnets. The mask is a binary pattern that is matched up with the IP address to
turn part of the Host ID address field into a field for subnets.
Take Network 2 (a Class B network) in the previous example and add
another physical network. Selecting the following subnet mask would
add two additional network ID bits, allowing for four physical networks:
11111111 11111111 11000000 00000000 = 255.255.192.0
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 15
Chapter 3 Configure the Adapter for Your EtherNet/IP Network
Network 1
Network 2.1
Network 2.2
A
BC
DE
128.1.0.2
128.1.0.1
128.2.64.3
128.2.128.2
128.2.64.1 128.2.64.2
128.2.128.3
128.2.128.1
G2
G
Two bits of the Class B host ID are used to extend the network ID. Each unique
combination of bits in the part of the Host ID where subnet mask bits are 1
specifies a different physical network.
The new configuration is:
A second network with Hosts D and E was added. Gateway G2 connects
Network 2.1 with Network 2.2.
Hosts D and E will use Gateway G2 to communicate with hosts not on
Network 2.2.
Use the
Rockwell Automation
BootP/DHCP Utility
Hosts B and C will use Gateway G to communicate with hosts not on
Network 2.1.
When B is communicating with D, G (the configured Gateway for B) will route
the data from B to D through G2.
The Rockwell Automation BootP/DHCP utility is a standalone program that
incorporates the functionality of standard BootP software with a user friendly
graphical interface. It is located in the Utility directory on the RSLogix 5000
software installation CD. The adapter must have DHCP enabled (factory default
and the network address switches set to an invalid value) to use the utility.
To configure your adapter using the BootP utility, perform the following steps:
16 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Configure the Adapter for Your EtherNet/IP Network Chapter 3
1. Run the BootP software.
In the BOOTP Request History panel you see the hardware addresses of
devices issuing BootP requests.
2. Double-click the hardware address of the device you want to configure.
The New Entry dialog appears with the device’s Ethernet Address (MAC).
3. Enter the IP Address you want to assign to the device and click OK. The
device is added to the Relation List, displaying the Ethernet Address
(MAC) and corresponding IP Address, Hostname, and Description (if
applicable).
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 17
Chapter 3 Configure the Adapter for Your EtherNet/IP Network
When the address displays in the IP Address column in the Request
History section, the IP address assignment has been made.
4. To make this configuration static in the device, highlight the device in the
Relation List panel, and click the Disable BOOTP/DHCP button.
When power is cycled to the device, it uses the configuration saved in nonvolatile memory and will not issue a DHCP request.
5. To enable DHCP for a device with DHCP disabled, highlight the device
in the Relation List, and click the Enable DHCP button.
You must have an entry for the device in the Relation List panel to reenable DHCP.
Save the Relation List
You can save the Relation List for later use. To save the Relation List, perform the
following steps:
1. Select Save As... from the File menu.
The Save As dialog appears.
18 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
Configure the Adapter for Your EtherNet/IP Network Chapter 3
2. Select the folder where you want to save the Relation List.
3. Enter a File name for the Relation List, for example, control system
configuration, and click Save.
You can leave the Save as type at the default setting: Bootp Config Files
(*.bpc).
You now have the option to open the file containing the Relation List at a
later session.
Use DHCP Software to
Configure Your Adapter
DHCP (Dynamic Host Configuration Protocol) software automatically assigns
IP addresses to client stations logging onto a TCP/IP network.
DHCP is based on BootP and maintains some backward compatibility. The main
difference is that BootP was designed for manual configuration, while DHCP
allows for dynamic allocation of network addresses and configurations to newly
attached devices.
Be cautious about using DHCP software to configure your adapter. A DHCP
server typically assigns a finite lease time to the offered IP address.
When 50% of the leased time has expired, the adapter attempts to renew its IP
address with the DHCP server.
The possibility exists that the adapter will be assigned a different IP address,
which would cause the adapter to cease communicating with the ControlLogix
controller.
See Configure the Adapter with Fixed IP Address on page 45 to configure the
adapter with a fixed IP address.
ATTENTION: To avoid unintended control or loss of control, the I/O
adapter must be assigned a fixed IP address. A dynamically provided IP
address should be used only at initial configuration. If a DHCP server is
used, it must be configured to assign the same IP address to your adapter.
Failure to observe this precaution may result in unintended machine
motion or loss of process control.
Chapter Summary
This chapter described the requirements and procedures for configuring the IP
address, subnet mask, and optional Gateway address.
Spare Allen-Bradley Parts
Rockwell Automation Publication 1747-UM076C-EN-E - January 2013 19
Chapter 3 Configure the Adapter for Your EtherNet/IP Network
Notes:
20 Rockwell Automation Publication 1747-UM076C-EN-E - January 2013
