Reaction Dynamic Filter
Instruction Manual
May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047,
4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.
Other patents pending. Foreign patents pending.
Page 2
Compliance
Your Reaction Dynamic Filter™ pedal has been tested and complies with the following
Standards and Directives as set forth by the European Union:
Council Directive(s): 89/336/EEC Electromagnetic
Compatibility
Standard(s): EN55013, EN50082-1
This means that this product has been designed to meet stringent guidelines on how much
RF energy it can emit, and that it should be immune from other sources of interference when
properly used. Improper use of this equipment could result in increased RF emissions, which
may or may not interfere with other electronic products.
To insure against this possibility, always use good shielded cables for all audio input and
output connections. This will help insure compliance with the Directive(s).
For more information about other Rocktron products, please see your local dealer or one of
our importers closest to you (listed on the Rocktron website
(www.rocktron.com).
Read all instructions contained in this manual.
Keep these instructions
Heed all warnings
Follow all instructions.
Do not use this apparatus near water.
Clean with dry cloth
Copyright © 2009 GHS Corporation
All Rights Reserved.
Page 3
Precautions
Refer all service to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain
or moisture, does not operate normally or has been dropped.
DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED PERSONNEL
SHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY INTERNAL
ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT AT ANY TIME OR TAMPER
WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS EQUIPMENT
AS WELL AS CAUSING A SHOCK HAZARD.
OPERATING TEMPERATURE
Do not expose this unit to excessive heat. This unit is designed to operate between 32 F and
104 F (0 C and 40 C). This unit may not function properly under extreme temperatures.
Do not block any ventilation openings (if applicable). Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves or other ap-
paratus (including ampliers) that produce heat.
This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a
9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.
Only used attachments/accessories specied by the manufacturer.
Do not use this product with any case, stand tripod, bracket or table that is not specied by
the manufacturer. Insure that the case, stand, tripod, bracket etc. is properly adjusted and
setup (follow all instructions). Extra care and caution should be taken to avoid tip over
and injury.
Unplug this apparatus during lightening storms or when unused during long periods of time.
Page 4
Introduction:
Are you searching for something new to add to your
setup and spice things up? Are you a guitar player who
wants to add a crazy, phasey and downright out of sight
twisted effect to your pedal arsenal. Maybe you are a
bass player searching for something that will give you
that funk with lots of punch? Rocktron aims to please
that eclectic wild streak deep inside every musician with
the Reaction Dynamic Filter.
The Reaction Dynamic Filter utilizes harmonic phase
shifting effect that sweeps the frequency spectrum from
high to low providing a unique one of a kind sound.
Since a dynamic lter is triggered by your pick attack,
the harder you pick the string, the higher the resonant
frequencies become. The SENSITIVITY control
determines the frequency at which the lter will begin
its phase shifting.
For bass players, lower SENSITIVITY settings provide
a funky walking talking swanky arpeggio effect tracking
your pick dynamics to produce a smooth and cool feel.
Turn on the DISTORTION to make it growl.
For guitar players higher SENSITIVITY settings
provide a more expressive “zipper” effect that is ideally
suited for lead breaks. Play around with it and you will
nd that there are a lot of possibilities, all the way to a
searing razor edge off the hook vibe controlled by your
pick attack!
Page 5
Introduction continued....:
LEVEL control determines the output level of the effect.
We have also included a DISTORTION button to give
you a little more “dirt” when playing.
Rocktron’s Reaction Series pedals are built into a
rugged metal slim form factor chassis, taking up as little
space as possible on your pedal board. The Reaction
Dynamic Filter is a TRUE BYPASS pedal: when you
turn it off…it is out of your signal path!
The Reaction Dynamic Filter can be placed in the
signal chain before or after a distortion. We recommend
placing it after. If using multiple pedals such as delays
and other modulation effects, try the Reaction Dynamic
Filter in different parts of the signal chain until you nd
the sound you personally prefer.
Rocktron’s Reaction Series pedals are built into a
rugged metal slim form factor chassis, taking up as little
space as possible on your pedal board. The Reaction
Dynamic Filter is a TRUE BYPASS pedal: when you
turn it off…it is out of your signal path!
The footswitch on the Reaction Dynamic Filter controls
On/Off status as shown by the LED indicator. Reaction
stomp boxes run on a 9V Alkaline battery, or may also
be powered by Rocktron’s DC OnTap Universal Power
Supply adaptor.
Page 6
Descriptions
Page 7
Descriptions continued.........

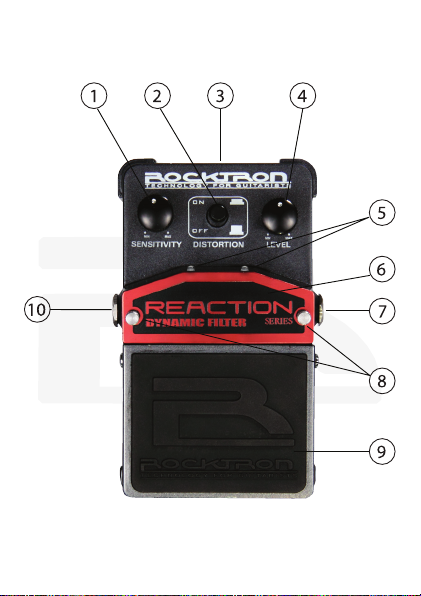

SENSITIVITY Control - This control
1
determines level of attack to cause the effect to
activate.
DISTORTION Switch - This switch adds
2
distortion to the effect. When the switch is in
the distortion is on. When out, the distortion
is off.
9VDC Input - This input jack provides 9VDC
3
power to the pedal from the Rocktron DC
OnTap 9V power supply (sold seperately).
LEVEL Control - This control determines the
4
volume of the effect summed to the output.
ON/OFF Leds - These LEDs shows if the pedal
5
is on or off. When the LED is lit the pedal is
on. When the LED is not lit the pedal is off.
BATTERY COMPARTMENT and COVER
6
The 9V battery can be found in this
compartment.
Page 8
Descriptions continued.........
INPUT Jack - Using a standard 1/4” guitar
7
cable, plug your guitar into this jack.
THUMB SCREWS for Battery Compartment.
8
Unscrew these thunb screws to access the battery compartment.
FOOTSWITCH - Use this switch to turn on or
9
off the pedal. The On/Off Led will show you
if the pedal is on or off.
OUTPUT Jack - Using a standard 1/4” guitar
10
cable you can plug in another pedal from this
jack or plug directly into your amplier.
Page 9

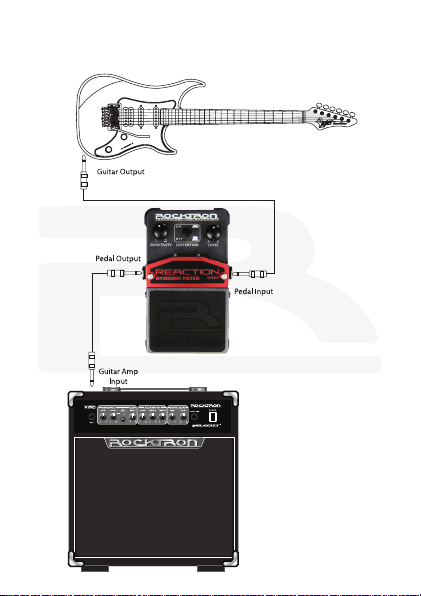

Typical Connection
Page 10
Specications
Maximum Input
Maximum Output
Imput Impedance
Output Impedance
Current Consumption
Power Requirements
Dimensions
Weight
7dBu
-1dBu
220kΩ
1kΩ
15mA
9V Alkaline Battery or
Rocktron DC OnTap Univeral Power Supply (sold
seperately). Negative tip.
125mm x 78mm 61mm
5” x 3.25” x 2.5”
0.7kg
1.5lbs
Page 11
How to change the battery:
To change the battery, remove the thumb screws on
the top of the pedal and remove the battery compartment cover. Remove the old battery and replace
it with a new 9V Alkaline battery. Replace battery
in the same area as the old battery was located.
Place the battery compartment cover on the pedal
and re-insert the thumb screws.
Save yourself tons of money in batteries by using
the Rocktron DC OnTap Universal Power Supply
to power this pedal (sold seperately). The Rock-
tron DC OnTap provides a constant ow of power
to the pedal, unlike a battery that will degrade over
time. The Rocktron DC OnTap Univeral Power
Supply can also power up to 20 pedals and can be
used with both 110V and 220V power sources.
Check, www.rocktron.com for more information
on the DC OnTap and where to purchase.
Page 12
Rocktron - A Division of GHS Corporation
2813 Wilber Ave
Battle Creek MI 49037
USA
www.rocktron.com
[email protected]
tel: 1-269-968-3351
rev. 7-27-09
2009.1
