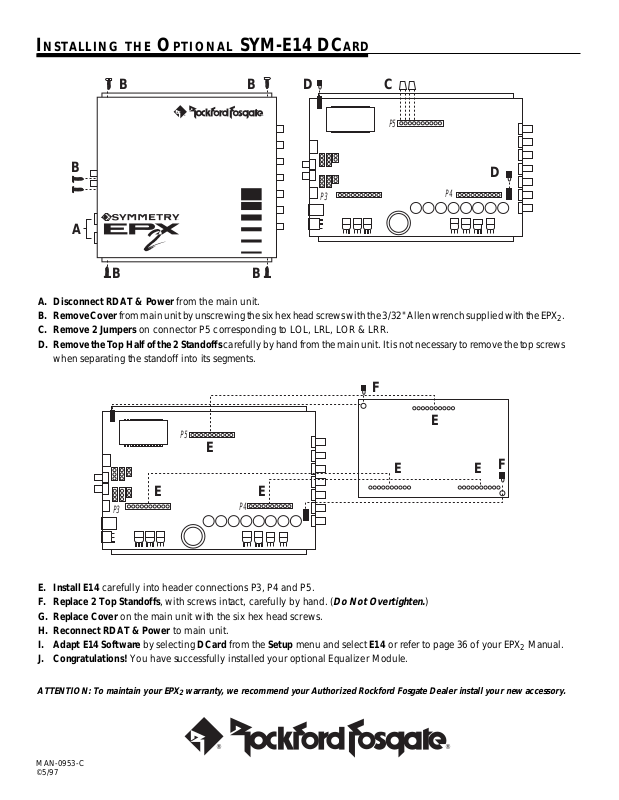

INSTALLING THE OPTIONAL SYM-E 14 DCARD

BB

® ®

B

™

D

P3

C

P5

D

P4

A

B

A. Disconnect RDAT & Power from the main unit.
B. Remove Cover from main unit by unscrewing the six hex head screws with the 3/32" Allen wrench supplied with the EPX2.
C. Remove 2 Jumpers on connector P5 corresponding to LOL, LRL, LOR & LRR.
D. Remove the Top Half of the 2 Standoffs carefully by hand from the main unit. It is not necessary to remove the top screws

when separating the standoff into its segments.

B

F

E

P5

E

F

EE

EE

P3

E. Install E14 carefully into header connections P3, P4 and P5.
F. Replace 2 Top Standoffs, with screws intact, carefully by hand. (
G. Replace Cover on the main unit with the six hex head screws.
H. Reconnect RDAT & Power to main unit.
I. Adapt E14 Software by selecting DCard from the Setup menu and select E14 or refer to page 36 of your EPX2 Manual.
J. Congratulations! You have successfully installed your optional Equalizer Module.

P4

Do Not Overtighten.

)

ATTENTION: To maintain your EPX2 warranty, we recommend your Authorized Rockford Fosgate Dealer install your new accessory.

®®

MAN-0953-C
©5/97

INSTALLING THE OPTIONAL SYM-E 2 8 DCARD

BB

® ®

B

™

D

P3

C

P5

D

P4

A

B

A. Disconnect RDAT & Power from the EPX
B. Remove Cover from main unit by unscrewing the six hex head screws with the 3/32" Allen wrench supplied with the EPX2.
C. Remove 2 Jumpers on connector P5 corresponding to LOL, LRL, LOR & LRR.
D. Remove 2 Nylon Screws carefully from standoffs with a slotted screwdriver.

B

2.

G

Header

Extension

P5

E

F

G

FF

Header

Extension

P3

E. Install 3 Header Extensions supplied with EQ carefully into P3, P4 and P5.
F. Install E28 carefully into header extensions P3, P4 and P5.
G. Replace 2 Nylon Screws carefully through EQ and secure into standoffs with a slotted screwdriver. (
H. Replace Cover on the main unit with the six hex head screws.
I. Reconnect RDAT & Power to main unit.
J. Adapt E28 Software by selecting DCard from the Setup menu and select E28 or refer to page 36 of your EPX2 Manual.
K. Congratulations! You have successfully installed your optional Equalizer Module.

EE

P4

Header

Extension

Do Not Overtighten.

)

ATTENTION: To maintain your EPX2 warranty, we recommend your Authorized Rockford Fosgate Dealer install your new accessory.

®®
