-1-

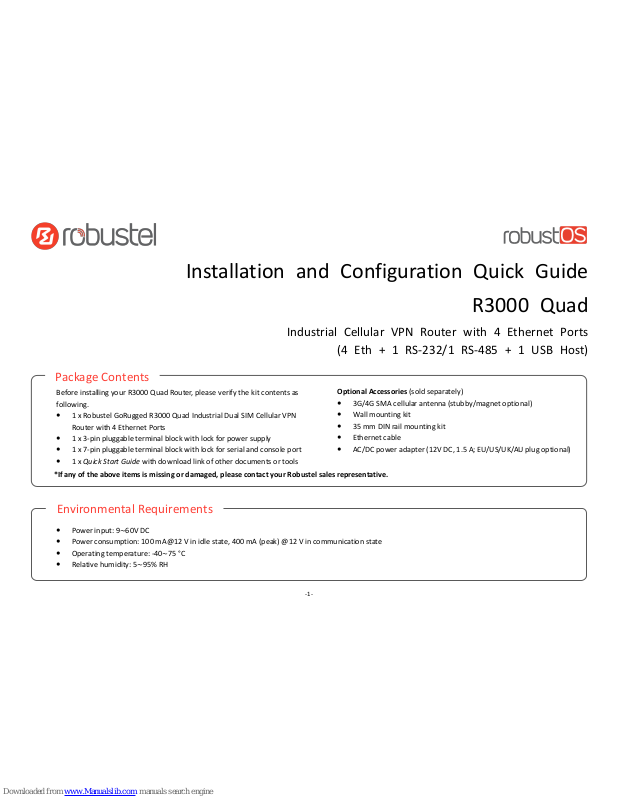

Installation and Configuration Quick Guide
R3000 Quad
Industrial Cellular VPN Router with 4 Ethernet Ports
(4 Eth + 1 RS-232/1 RS-485 + 1 USB Host)
Environmental Requirements
Power input: 9~60V DC
Power consumption: 100 mA@12 V in idle state, 400 mA (peak) @12 V in communication state
Operating temperature: -40~75 °C
Relative humidity: 5~95% RH
Package Contents
Optional Accessories (sold separately)
3G/4G SMA cellular antenna (stubby/magnet optional)
Wall mounting kit
35 mm DIN rail mounting kit
Ethernet cable
AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)
Before installing your R3000 Quad Router, please verify the kit contents as
following.
1 x Robustel GoRugged R3000 Quad Industrial Dual SIM Cellular VPN
Router with 4 Ethernet Ports
1 x 3-pin pluggable terminal block with lock for power supply
1 x 7-pin pluggable terminal block with lock for serial and console port
1 x Quick Start Guide with download link of other documents or tools
*If any of the above items is missing or damaged, please contact your Robustel sales representative.
-2-
Hardware Introduction
1.
Overview
2.
Dimensions
PIN
Polarity
8
Positive
9
Negative
10
GND
PIN
Debug
RS-232
RS-485
Direction
1
CR
--
--
Router Device
2
CT
--
--
Router Device
3
GND
GND
GND
-- 4 --
TXD
Data+(A)
Router Device
5
--
RXD
Data+(B)
Router Device
6
--
RTS
--
Router Device
7
--
CTS
--
Router Device
PIN
Function
1
TX+
2
TX- 3 RX+ 6 RX-
3. Pinouts
-3-
4. LED Indicators
Name
Color
Status
Description
RUN
Green
On, fast blinking
(250 mSec blink time)
Router is powered on
(System is initializing)
On, blinking
(500 mSec blink time)
Router starts operating
Off
Router is powered off
PPP
Green
On, solid
Link connection is working
Off
Link connection is not working
USR-
OpenVPN
Green
On, solid
OpenVPN connection is
established
Off
OpenVPN connection is not
established
USR-IPsec
Green
On, solid
IPsec connection is established
Off
IPsec connection is not
established
USR-WiFi
Green
On, solid
WiFi is enabled and working
properly
Off
WiFi is disabled or not working
properly
Green
On, solid
High Signal strength (21-31) is
available
Yellow
On, solid
Medium Signal strength (11-20)
is available
Red
On, solid
Low Signal strength (1-10) is
available
/
Off
No signal
Name
Color
Status
Description
NET
Green
On, solid
Connection to 4G network is
established
Yellow
On, solid
Connection to 3G network is
established
Red
On, solid
Connection to 2G network is
established
/
Off
Connection to network is not
established or establishing
SIM
Green
On, blinking
Backup card is being used
Off
Main card is being used
5. USB Interface
Function
Operation
Firmware upgrade
USB interface is used for batch firmware upgrading, but
cannot be used for sending or receiving data from slave
devices which connected to it. You can insert a USB
storage device into the router’s USB interface, such as a
U disk or a hard disk. If there have a supported
configuration file or a router firmware in this USB
storage device, the router will automatically update the
configuration file or the firmware.
-4-
6. Reset Button
Function
Operation
Reboot
Press and hold the RST button for 5 seconds under the
operating status.
Restore to factory
default settings
Wait for 5 seconds after powering up the router, press
and hold the RST button until all six LEDs start blinking
one by one, and release the button to return the router
to factory defaults.
7. Ethernet Port
R3000 Quad Router has four Ethernet port with two LED indicators. The
yellow one is link indicator and the green one is speed indicator. For details
about status, see the table below.
Indicator
State
Description
Link indicator
On, solid
Connection is established
On, blinking
Data is being transferred
Off
Connection is not established
Speed indicator
On, solid
100 Mbps mode
Off
10 Mbps mode
