Robustel R3000 Lite User Manual

R3000 Lite

Industrial Dual SIM Cellular VPN Router

1 Eth + 1 RS-232 + 1 RS-485 + 1 USB Host

User Guide

Guangzhou Robustel Technologies Co., Ltd.

www.robustel.com

R3000 Lite

Industrial Dual SIM Cellular VPN Router

1 Eth + 1 RS-232 + 1 RS-485 + 1 USB Host

User Guide

Guangzhou Robustel Technologies Co., Ltd

www.robustel.com

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 1/109 Confidential

About This Document

This document provides hardware and software information of the Robustel R3000 Lite Router, including introduction, installation, configuration and operation.

Trademarks and Permissions

、

are trademarks of Guangzhou Robustel Technologies Co., Ltd. All other

trademarks and trade names mentioned in this document are the property of their respective owners.

Disclaimer

No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.

Technical Support

Tel: +86-20-29019902 Fax: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 2/109 Confidential

Important Notice

Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare when wireless devices such as the router is used in a normal manner with a well-constructed network, the router should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.

Safety Precautions General

 The router generates radio frequency (RF) power. When using the router, care must be taken on safety issues

related to RF interference as well as regulations of RF equipment.

 Do not use your router in aircraft, hospitals, petrol stations or in places where using cellular products is

prohibited.

 Be sure that the router will not be interfering with nearby equipment. For example: pacemakers or medical

equipment. The antenna of the router should be away from computers, office equipment, home appliance, etc.

 An external antenna must be connected to the router for proper operation. Only uses approved antenna with

the router. Please contact authorized distributor on finding an approved antenna.

 Always keep the antenna with minimum safety distance of 20 cm or more from human body. Do not put the

antenna inside metallic box, containers, etc.

 RF exposure statements

1. For mobile devices without co-location (the transmitting antenna is installed or located more than 20cm

away from the body of user and nearby person)

 FCC RF Radiation Exposure Statement

1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and human body.

Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open.

Router may be used at this time.

Using the Router in Vehicle

 Check for any regulation or law authorizing the use of cellular devices in vehicle in your country before installing

the router.

 The driver or operator of any vehicle should not operate the router while driving.  Install the router by qualified personnel. Consult your vehicle distributor for any possible interference of

electronic parts by the router.

 The router should be connected to the vehicle’s supply system by using a fuse-protected terminal in the

vehicle’s fuse box.

 Be careful when the router is powered by the vehicle’s main battery. The battery may be drained after extended

period.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 3/109 Confidential

Protecting Your Router

To ensure error-free usage, please install and operate your router with care. Do remember the following:

 Do not expose the router to extreme conditions such as high humidity / rain, high temperature, direct sunlight,

caustic / harsh chemicals, dust, or water.

 Do not try to disassemble or modify the router. There is no user serviceable part inside and the warranty would

be void.

 Do not drop, hit or shake the router. Do not use the router under extreme vibrating conditions.  Do not pull the antenna or power supply cable. Attach/detach by holding the connector.  Connect the router only according to the instruction manual. Failure to do it will void the warranty.  In case of problem, please contact authorized distributor.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 4/109 Confidential

Regulatory and Type Approval Information Table 1: Directives

2011/65/EC

Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)

2012/19/EU

Directive 2012/19/EU the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE)

Table 2: Standards of the Ministry of Information Industry of the People’s Republic of China

SJ/T 11363-2006

“Requirements for Concentration Limits for Certain Hazardous Substances in Electronic Information Products” (2006-06).

SJ/T 11364-2006

“Marking for Control of Pollution Caused by Electronic Information Products” (2006-06).

According to the “Chinese Administration on the Control of Pollution caused by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental

Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise marked. The EPUP is valid only as long as the product is operated within the operating limits described in the Hardware Interface Description. Please see Table 3 for an overview of toxic or hazardous substances or elements that might be contained in product parts in concentrations above the limits defined by SJ/T 11363-2006.

Table 3: Toxic or Hazardous Substances or Elements with Defined Concentration Limits

Name of the Part Hazardous Substances

(Pb)

(Hg)

(Cd)

(Cr (VI) )

(PBB)

(PBDE)

Metal parts

o o o o o

o

Circuit modules

x o o o o o Cables and cable assemblies

o o o o o

o

Plastic and polymeric parts

o o o o o

o

o: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006. x: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials for this part might exceed the limit requirement in SJ/T11363-2006.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 5/109 Confidential

Document History

Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions.

Date

Firmware Version

Doc Version

Change Description

24 March, 2017

2.9.1

v.3.0.0

Initial release

19 May, 2017

3.0.0

v.3.0.1

Updated system firmware

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 6/109 Confidential

Contents

Chapter 1 Product Concept ............................................................................................................................. 8

1.1 Key Features ............................................................................................................................................... 8

1.2 Package Contents ....................................................................................................................................... 9

1.3 Specifications ........................................................................................................................................... 11

1.4 Dimensions ............................................................................................................................................... 13

1.5 Ordering Information ............................................................................................................................... 13

Chapter 2 Hardware Installation .................................................................................................................... 14

2.1 LED Indicators ........................................................................................................................................... 14

2.2 PIN Assignment ........................................................................................................................................ 15

2.3 USB Interface ............................................................................................................................................ 16

2.4 Reset Button ............................................................................................................................................. 16

2.5 Ethernet Port ............................................................................................................................................ 17

2.6 Insert or Remove SIM Card ...................................................................................................................... 17

2.7 Attach External Antenna (SMA Type) ....................................................................................................... 18

2.8 Mount the Router .................................................................................................................................... 19

2.9 Connect the Router to a Computer .......................................................................................................... 20

2.10 Power Supply ............................................................................................................................................ 20

Chapter 3 Initial Configuration ...................................................................................................................... 21

3.1 Configure the PC....................................................................................................................................... 21

3.2 Factory Default Settings ........................................................................................................................... 24

3.3 Log in the Router ...................................................................................................................................... 24

3.4 Control Panel ............................................................................................................................................ 25

3.5 Status ........................................................................................................................................................ 26

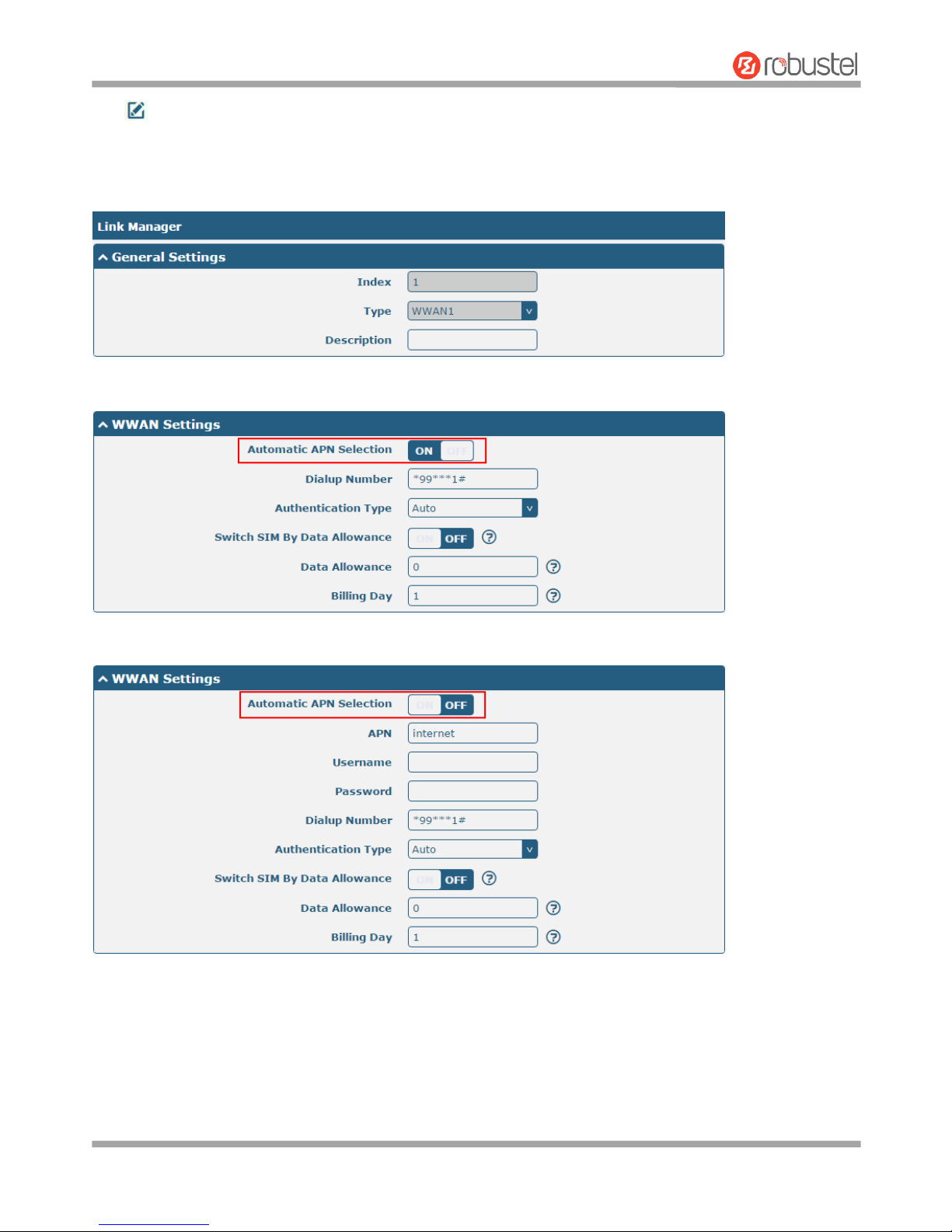

3.6 Interface > Link Manager ......................................................................................................................... 28

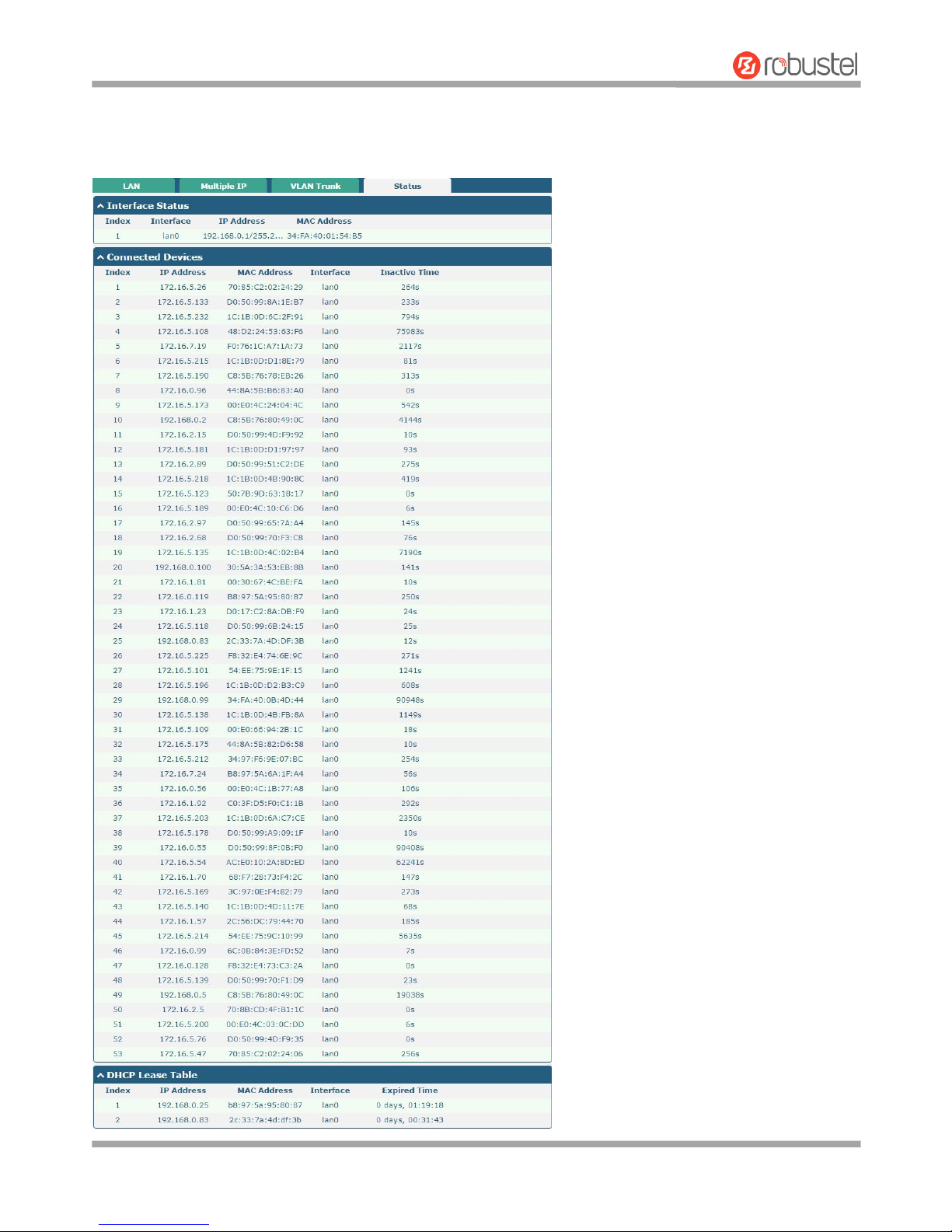

3.7 Interface > LAN ......................................................................................................................................... 33

3.8 Interface > Ethernet ................................................................................................................................. 38

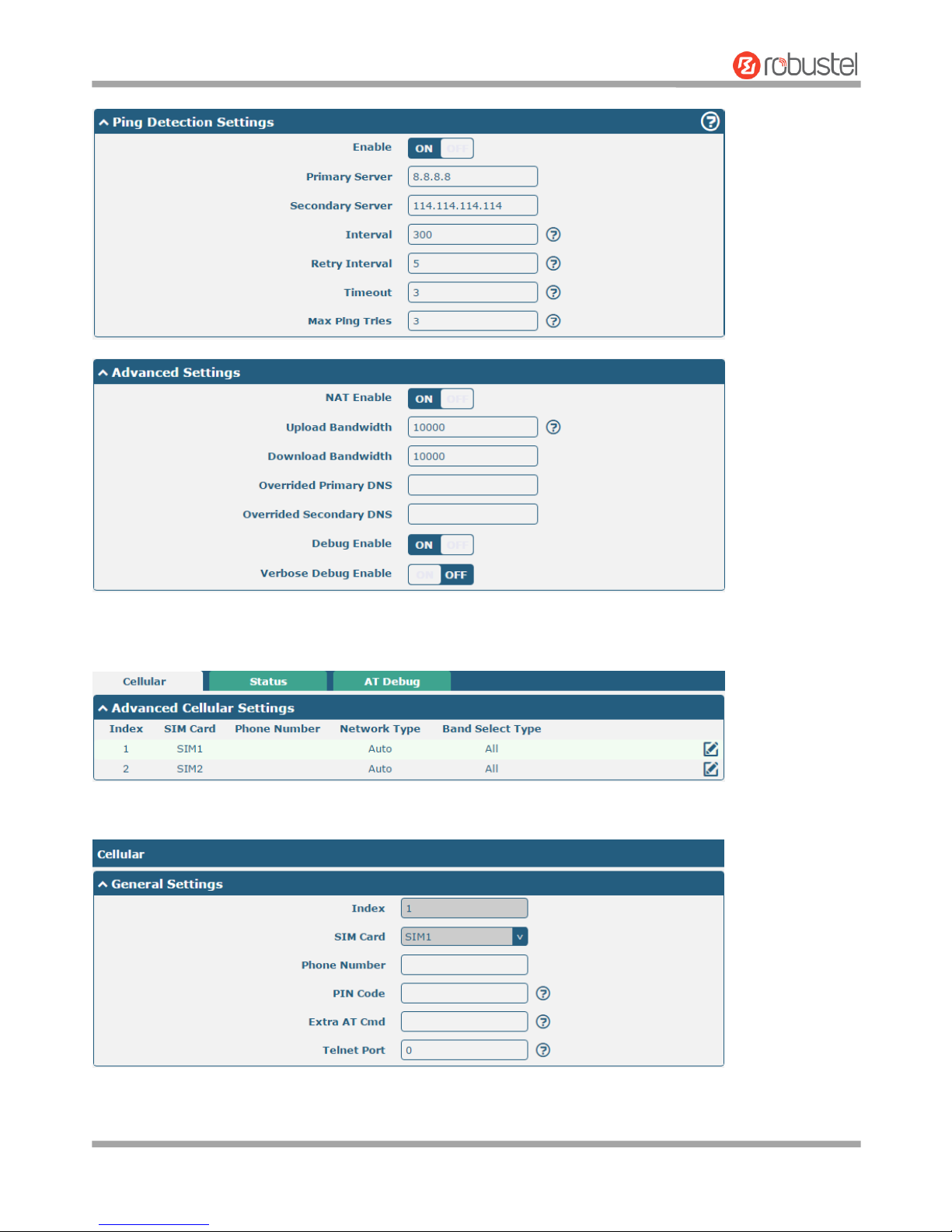

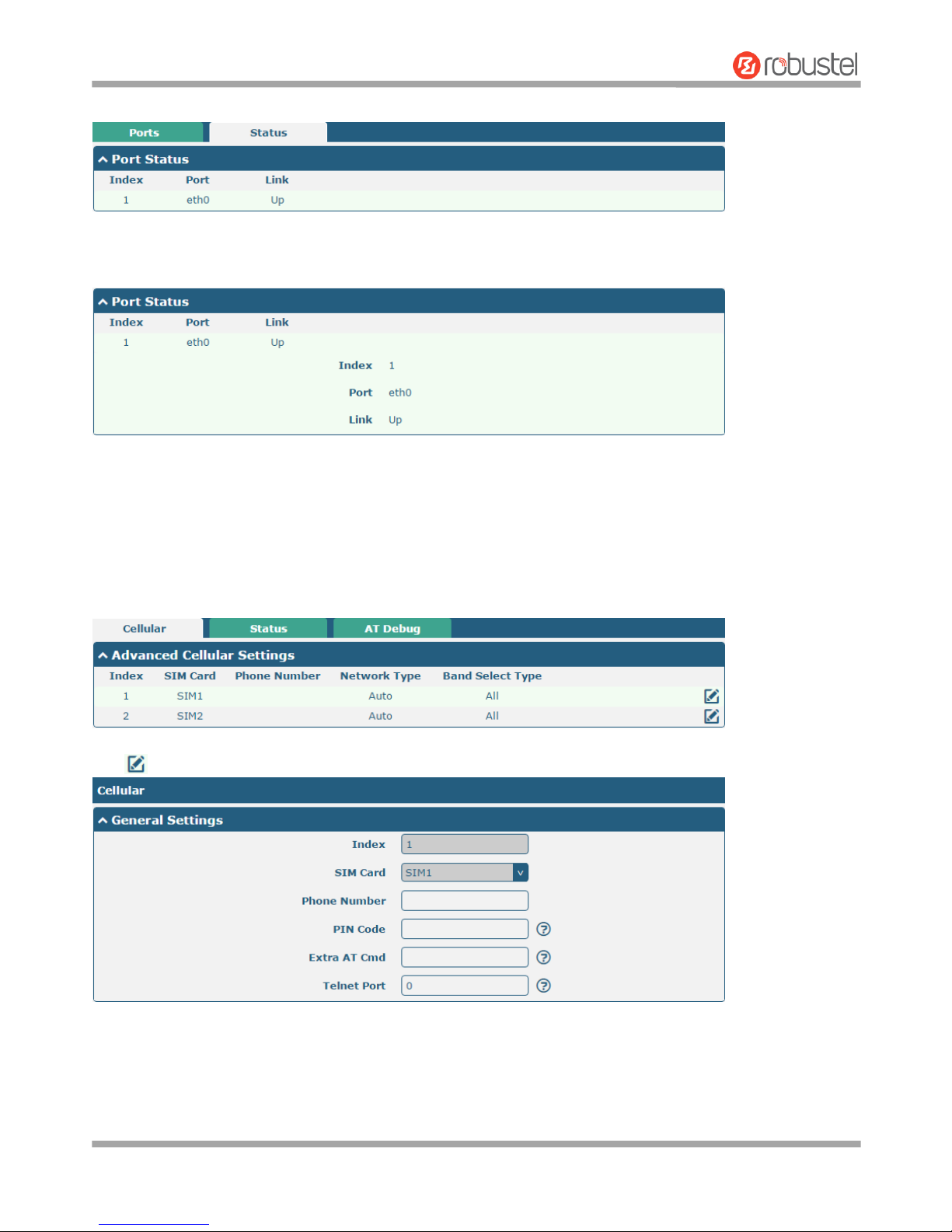

3.9 Interface > Cellular ................................................................................................................................... 39

3.10 Interface > USB ......................................................................................................................................... 43

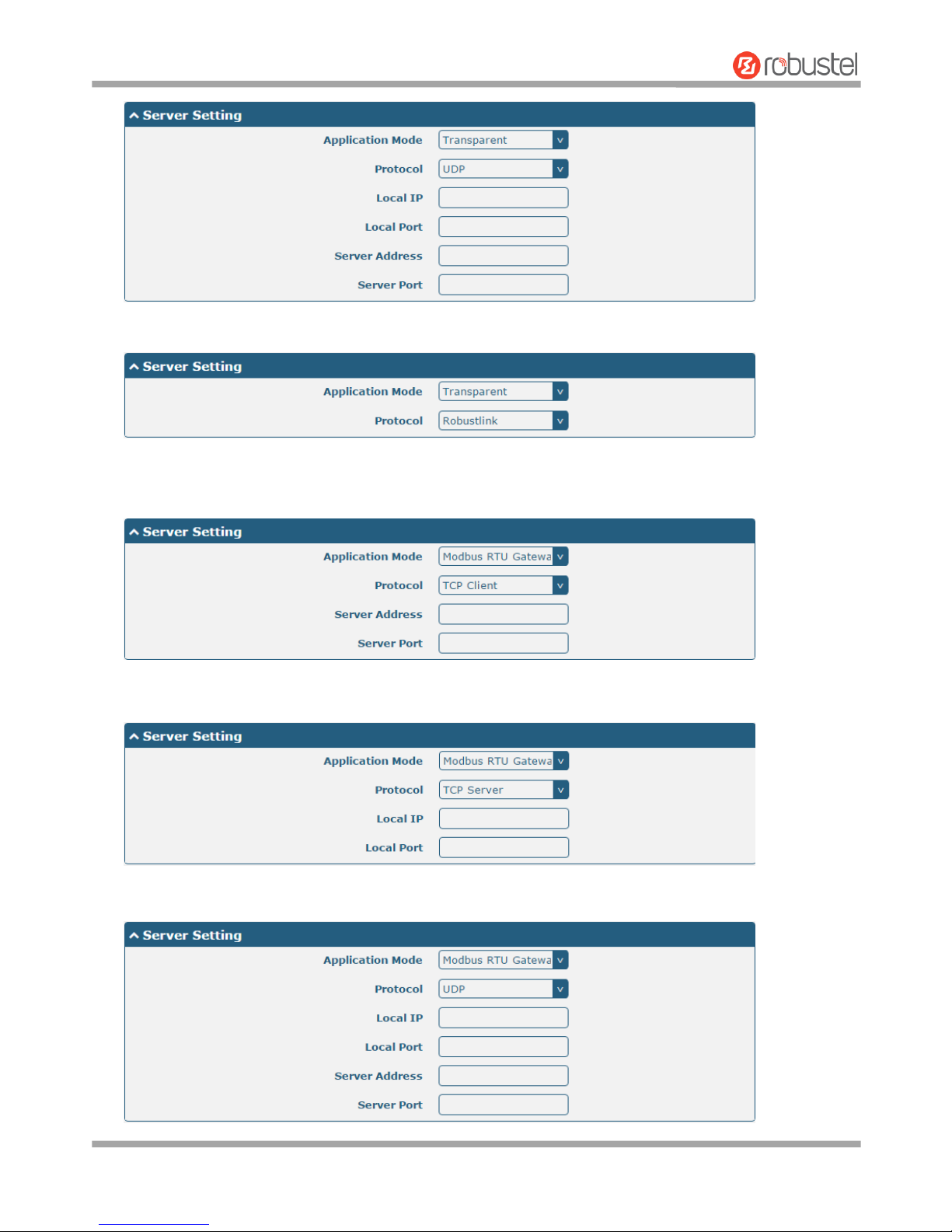

3.11 Interface > Serial Port ............................................................................................................................... 44

3.12 Network > Route ...................................................................................................................................... 48

3.13 Network > Firewall ................................................................................................................................... 49

3.14 Network > IP Passthrough ........................................................................................................................ 52

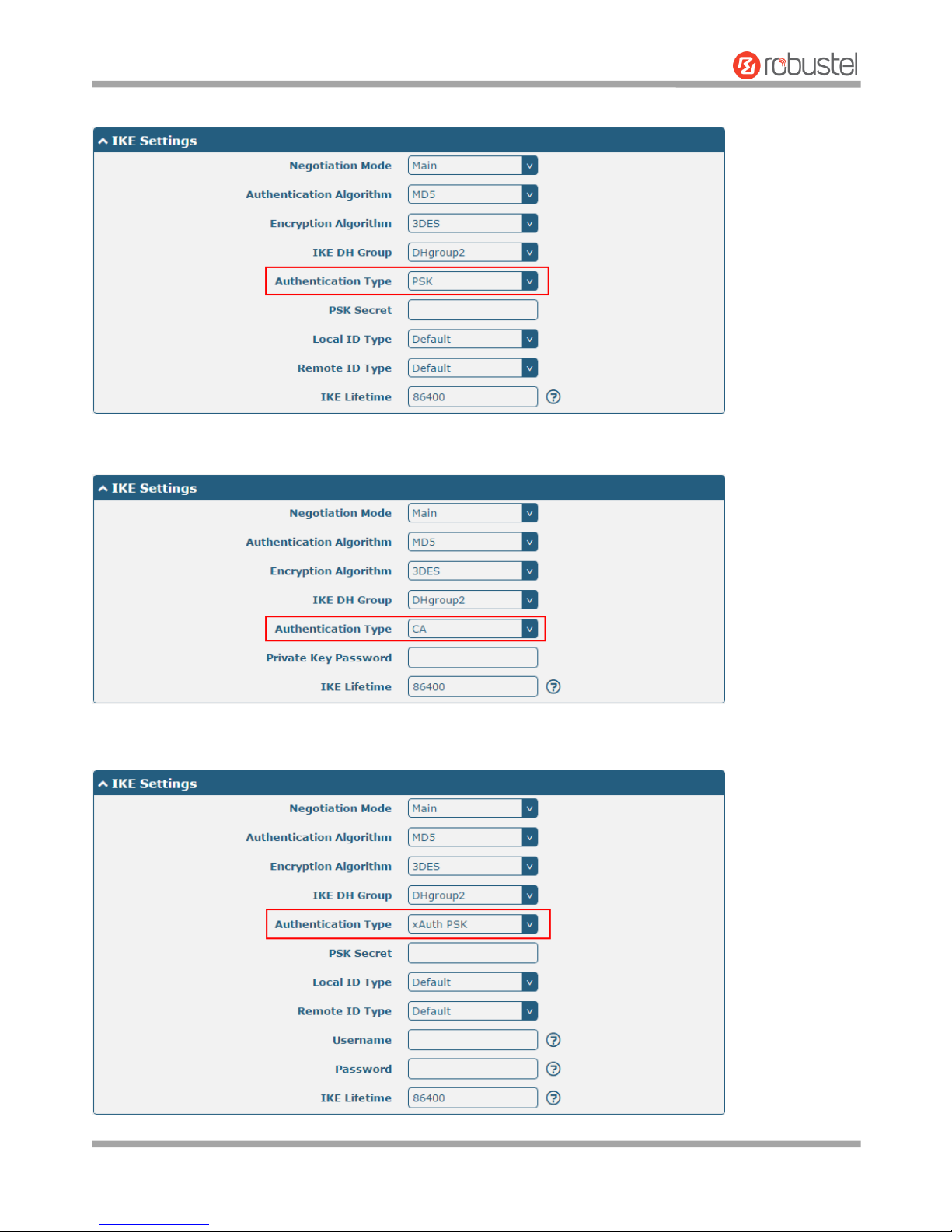

3.15 VPN > IPsec ............................................................................................................................................... 53

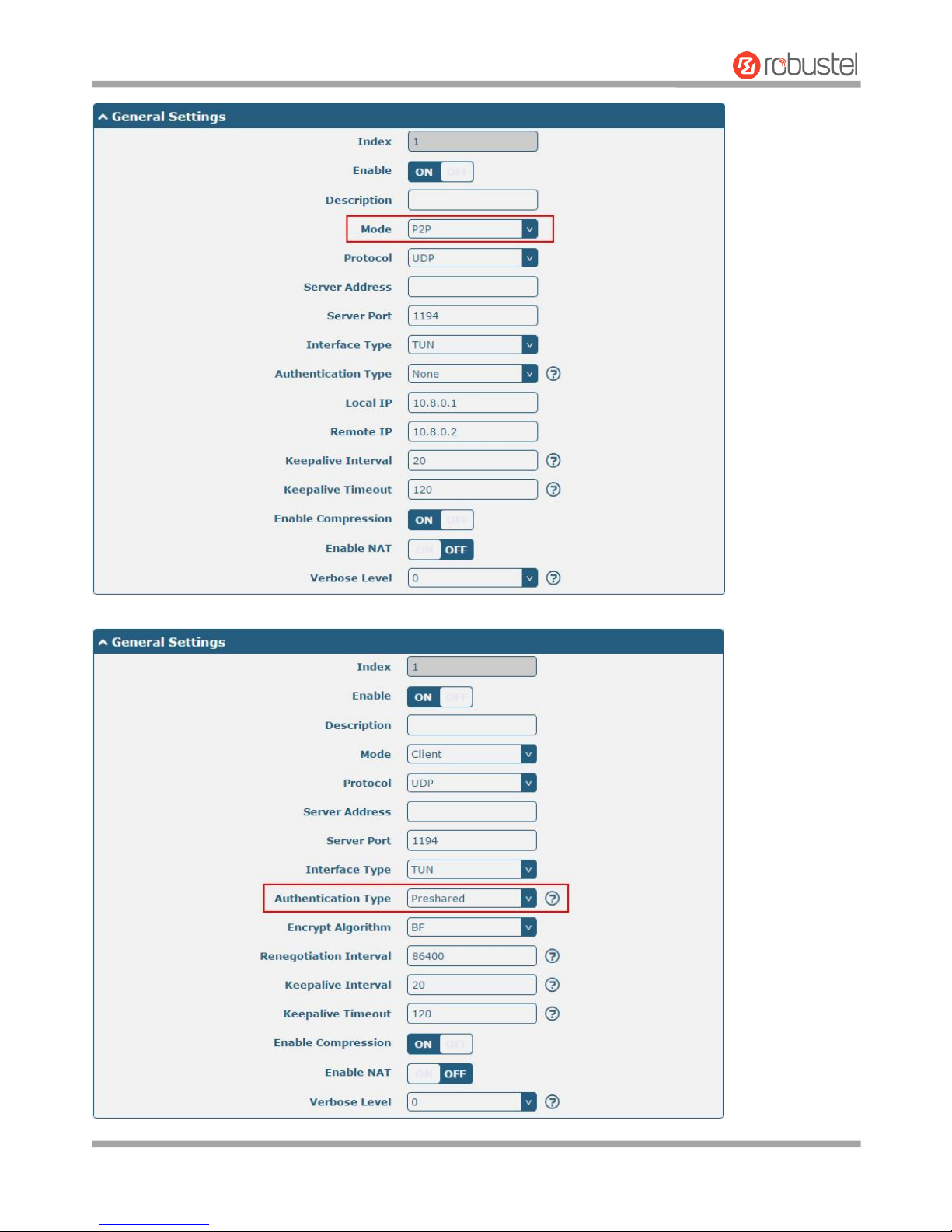

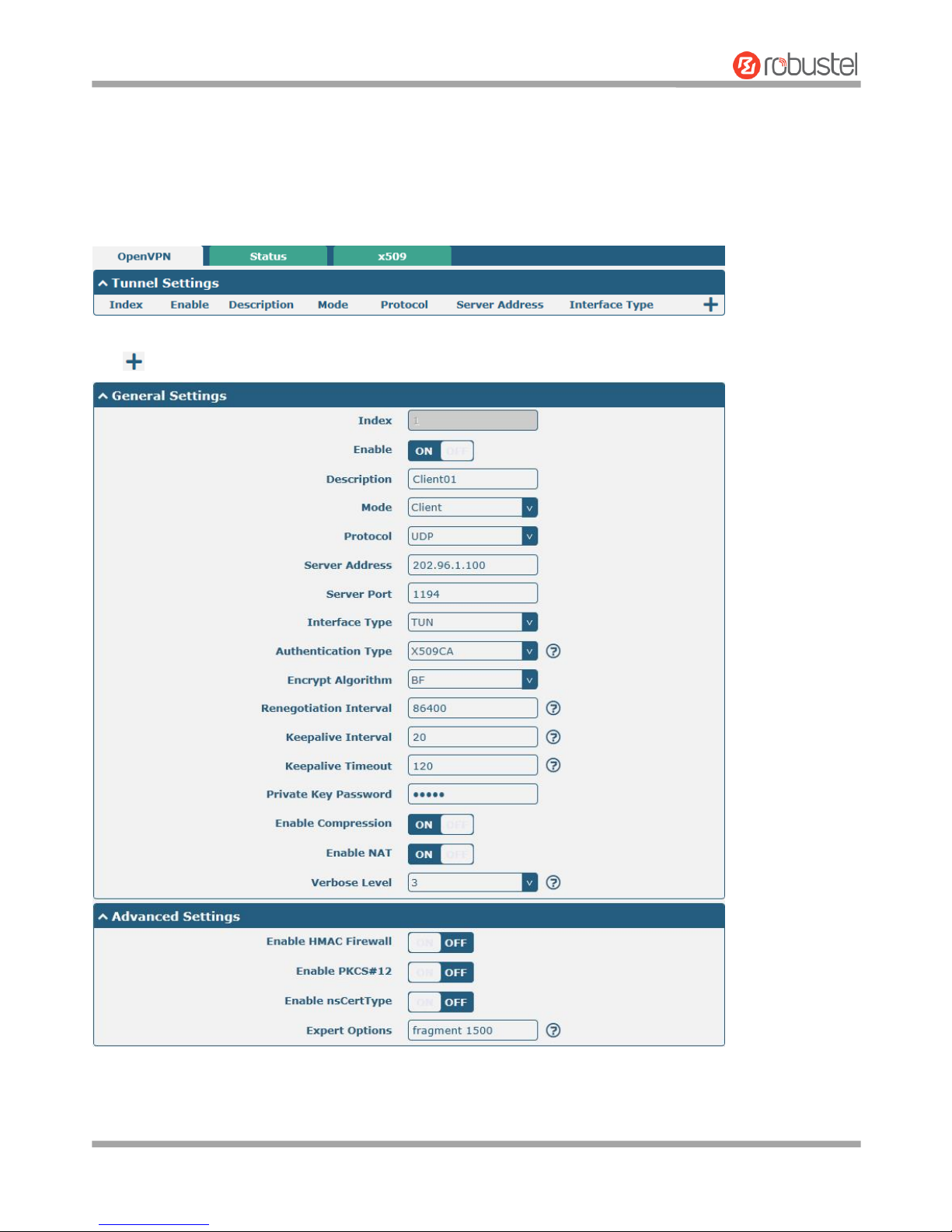

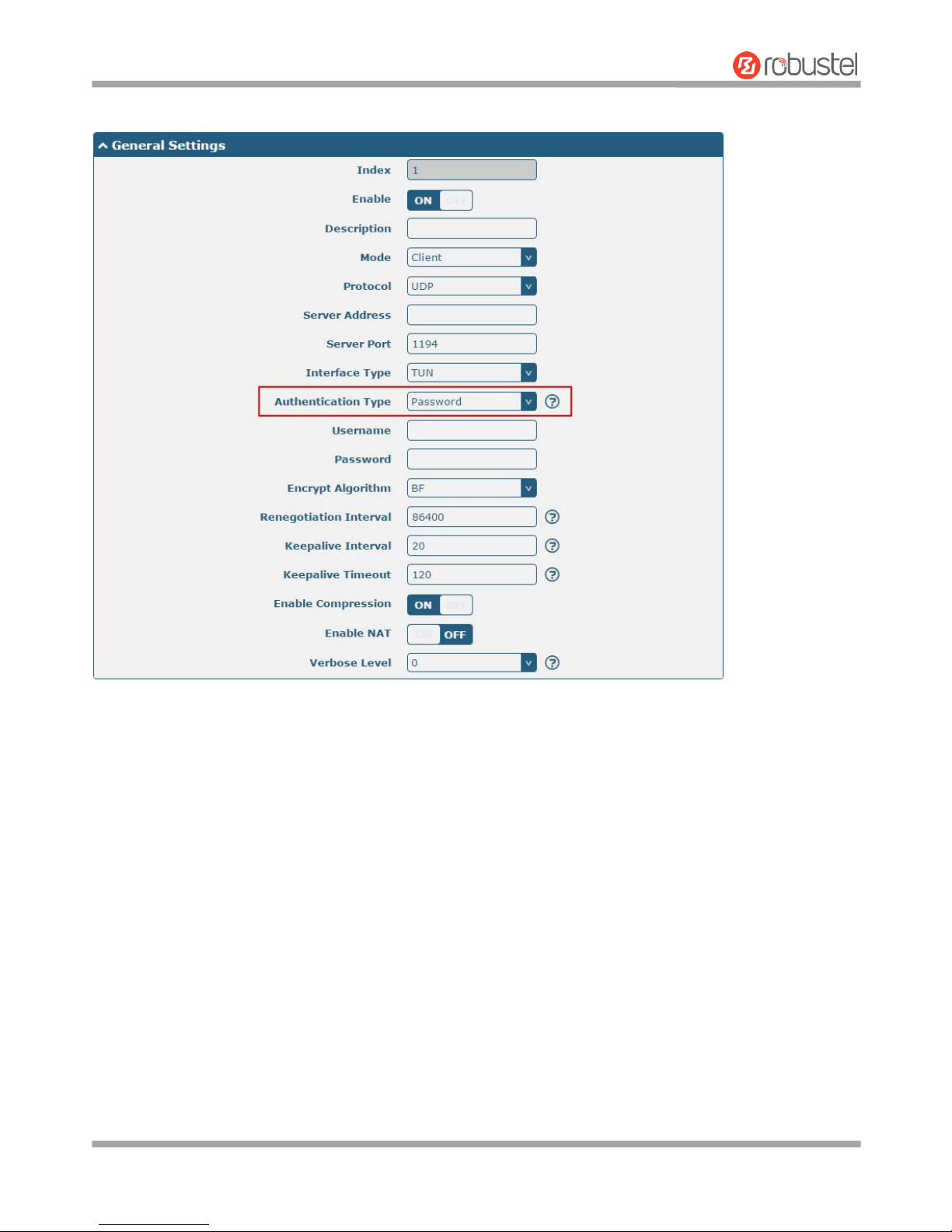

3.16 VPN > OpenVPN ....................................................................................................................................... 60

3.17 VPN > GRE ................................................................................................................................................ 67

3.18 Services > Syslog ....................................................................................................................................... 68

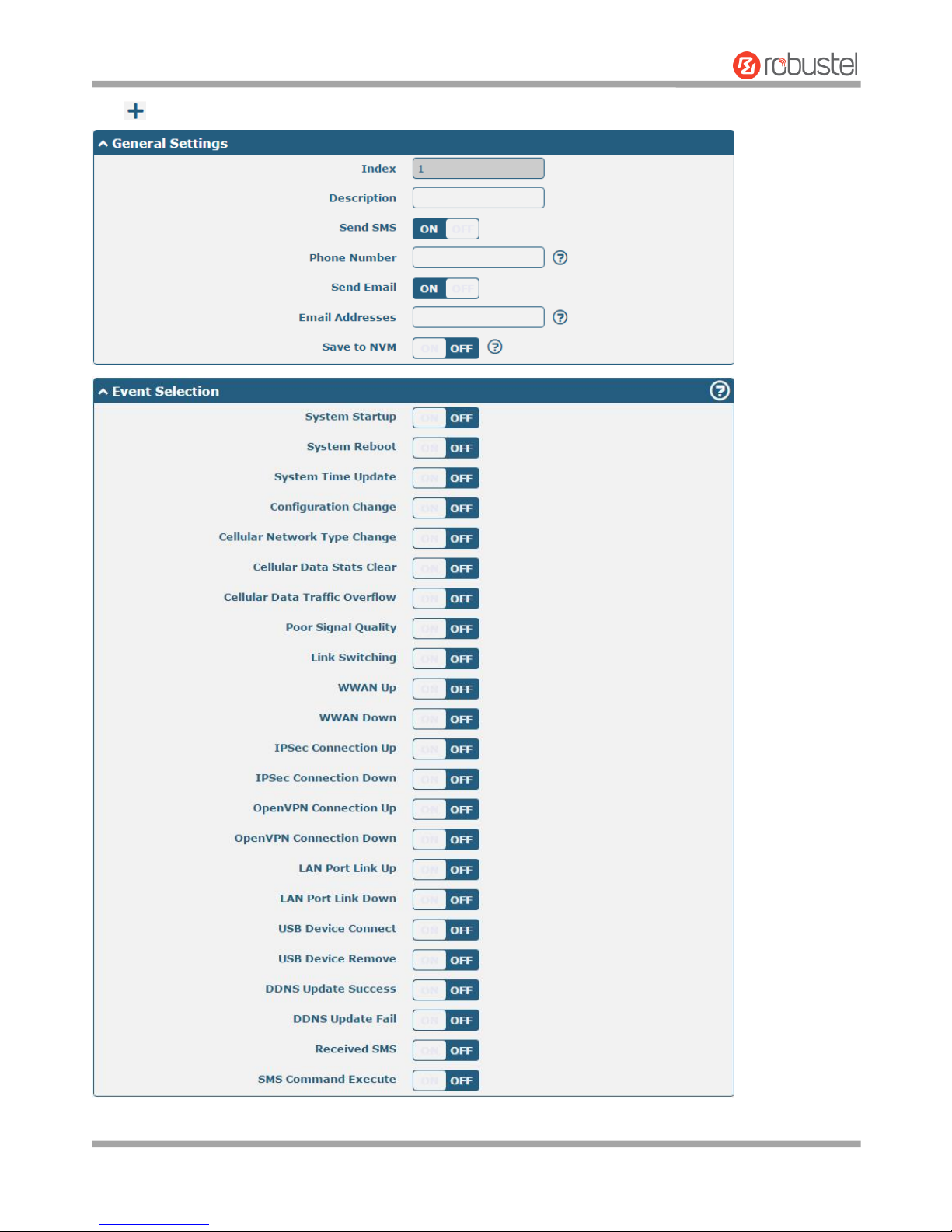

3.19 Services > Event ........................................................................................................................................ 69

3.20 Services > NTP .......................................................................................................................................... 72

3.21 Services > SMS .......................................................................................................................................... 73

3.22 Services > Email ........................................................................................................................................ 74

3.23 Services > DDNS ....................................................................................................................................... 75

3.24 Services > SSH........................................................................................................................................... 76

3.25 Services > Web Server .............................................................................................................................. 77

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 7/109 Confidential

3.26 Services > Advanced ................................................................................................................................. 78

3.27 System > Debug ........................................................................................................................................ 79

3.28 System > Update ...................................................................................................................................... 80

3.29 System > APP Center ................................................................................................................................ 80

3.30 System > Tools .......................................................................................................................................... 82

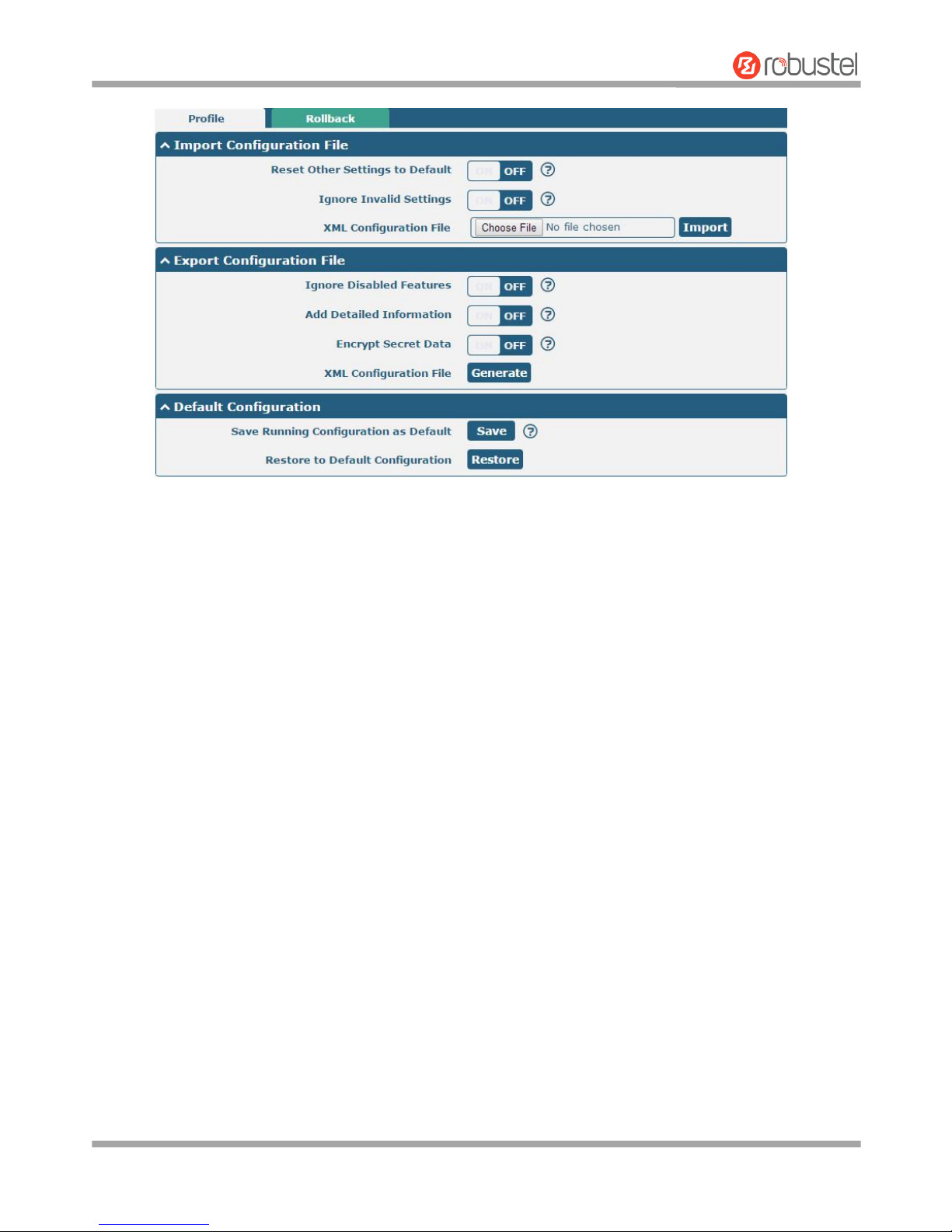

3.31 System > Profile ........................................................................................................................................ 84

3.32 System > User Management .................................................................................................................... 85

Chapter 4 Configuration Examples ................................................................................................................. 87

4.1 Cellular ..................................................................................................................................................... 87

4.1.1 Cellular Dial-Up ................................................................................................................................. 87

4.1.2 SMS Remote Control ......................................................................................................................... 89

4.2 Network .................................................................................................................................................... 91

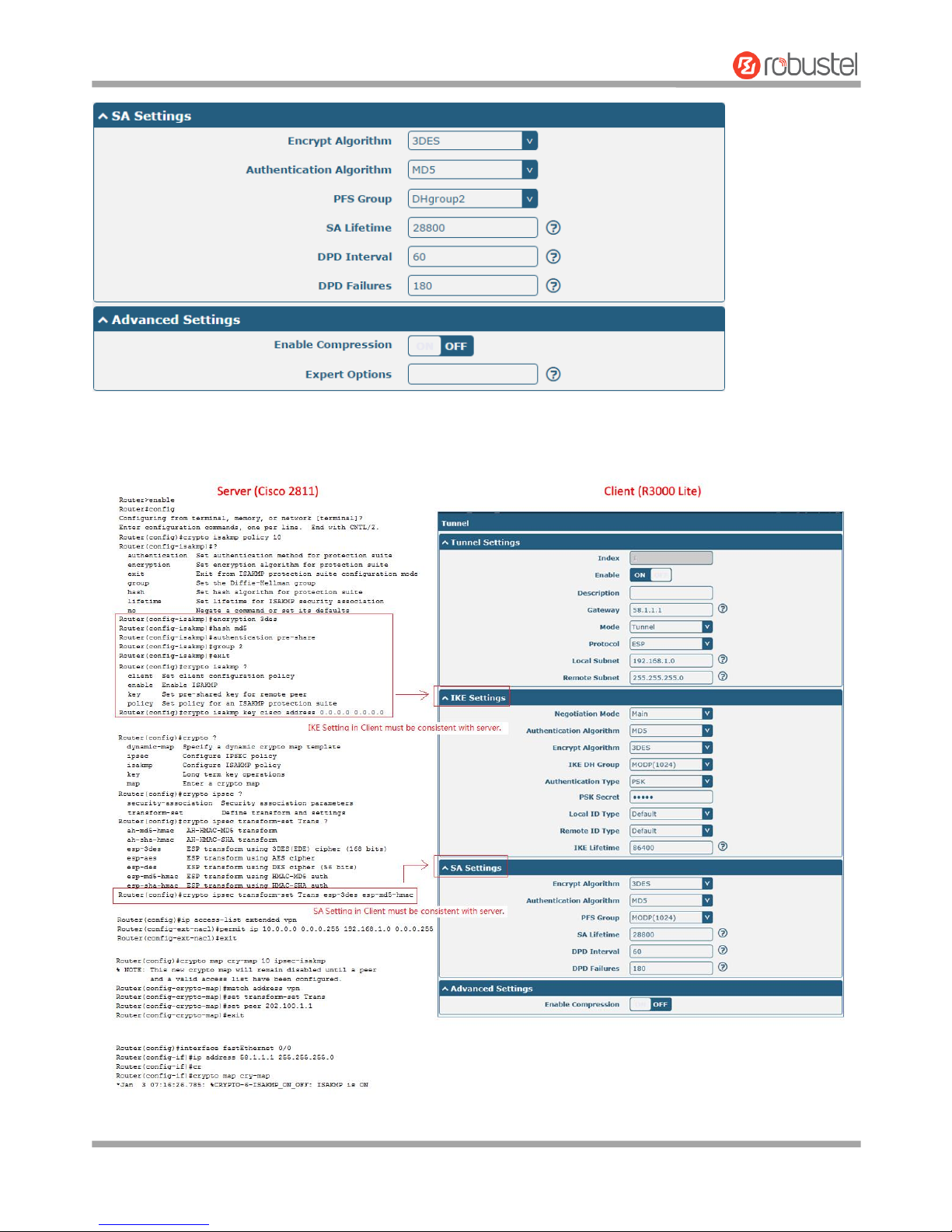

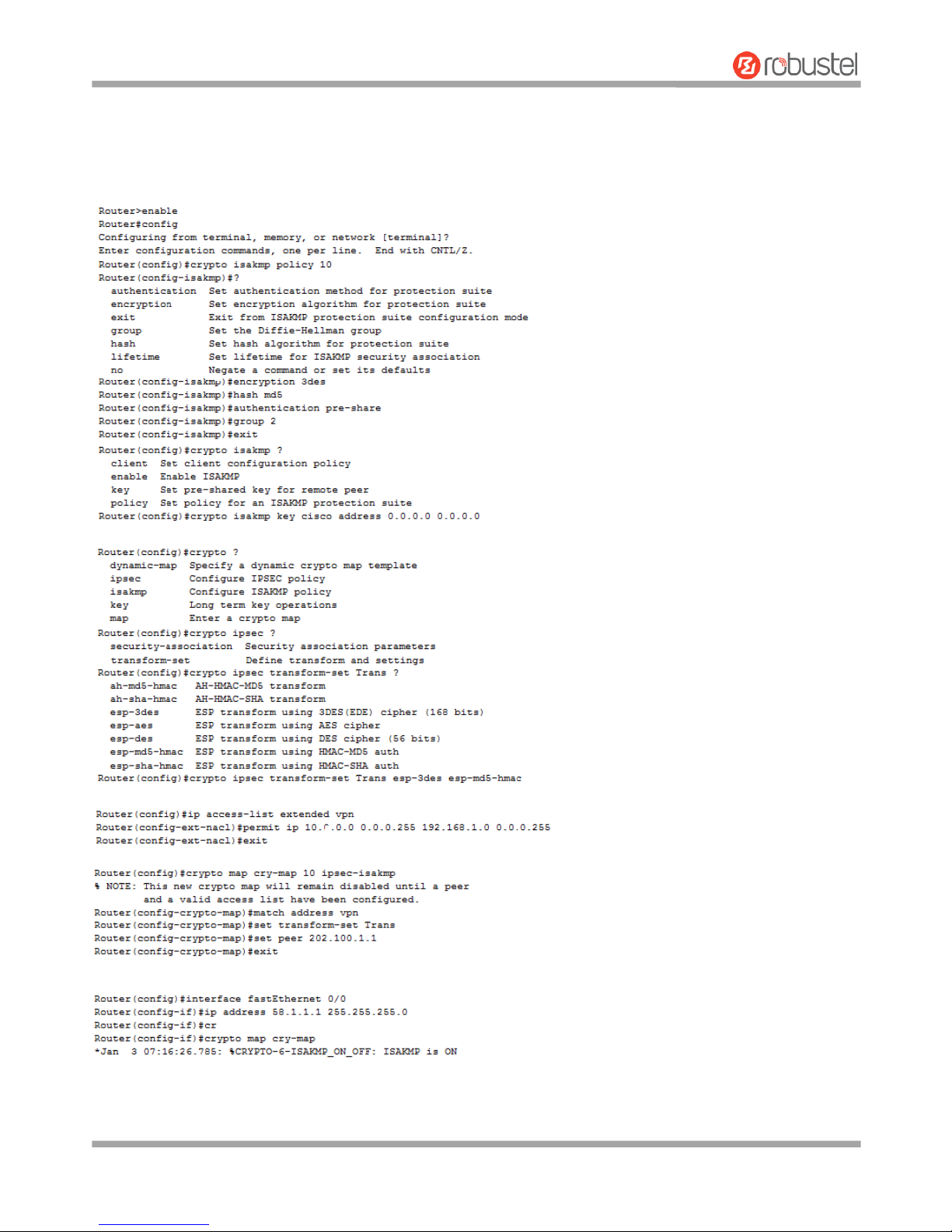

4.2.1 IPsec VPN .......................................................................................................................................... 91

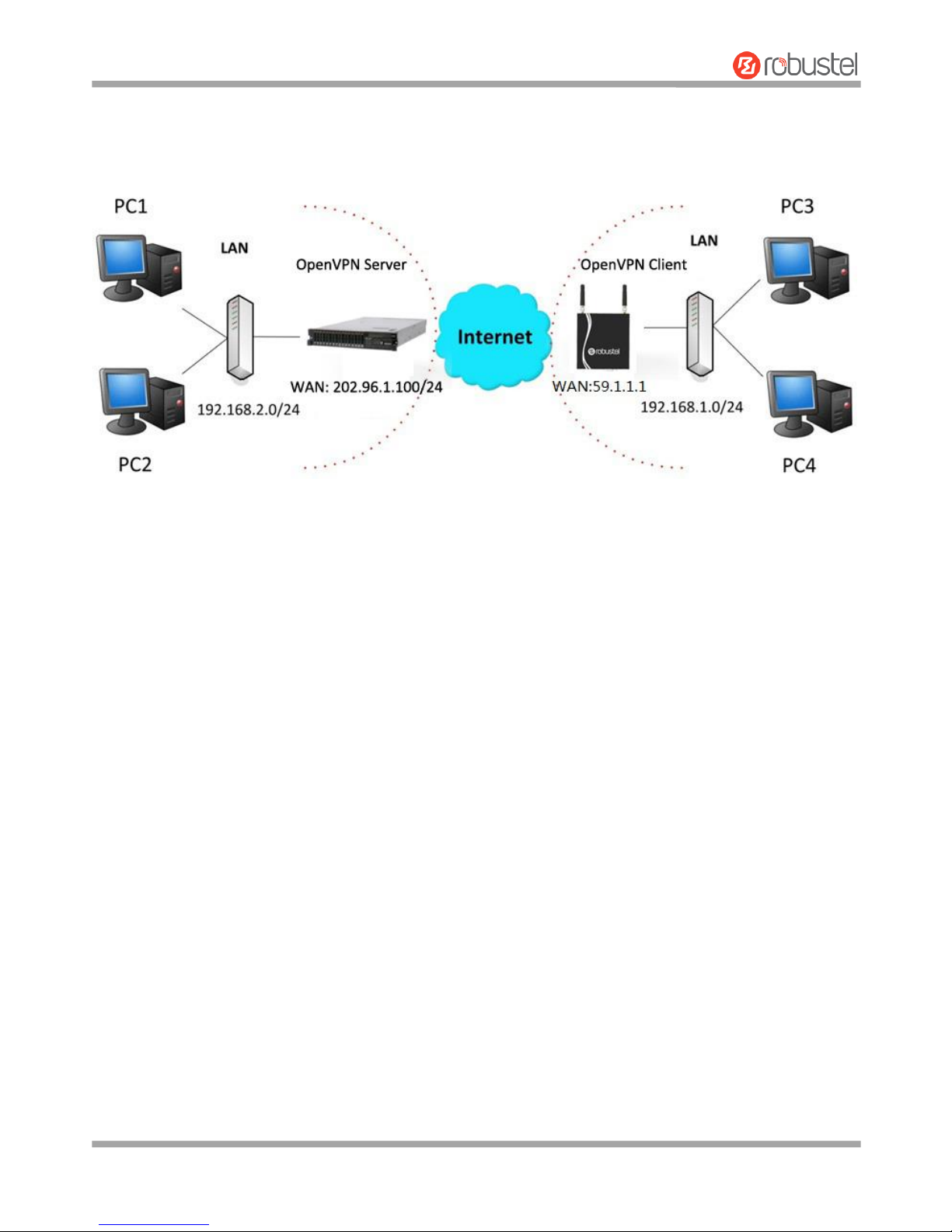

4.2.2 OpenVPN .......................................................................................................................................... 95

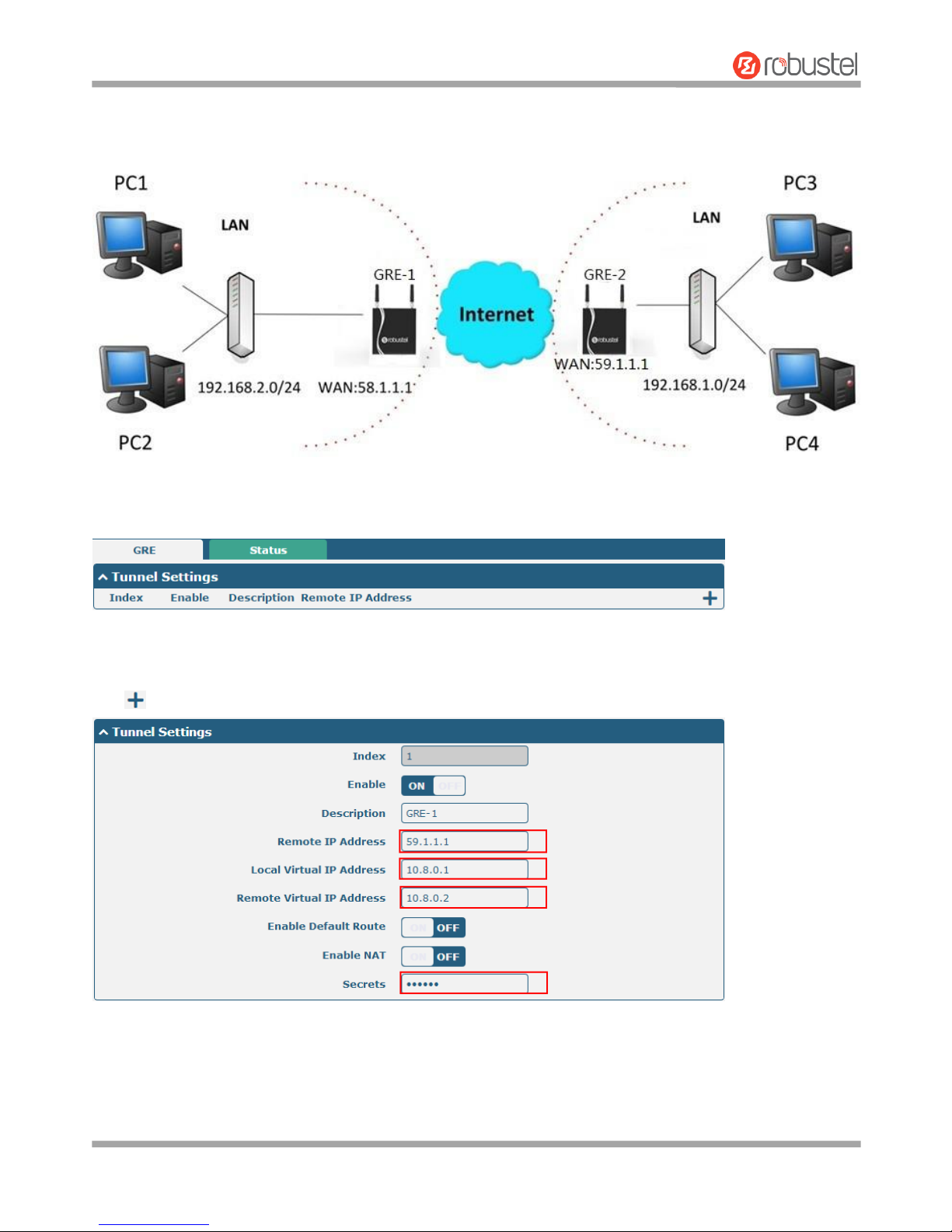

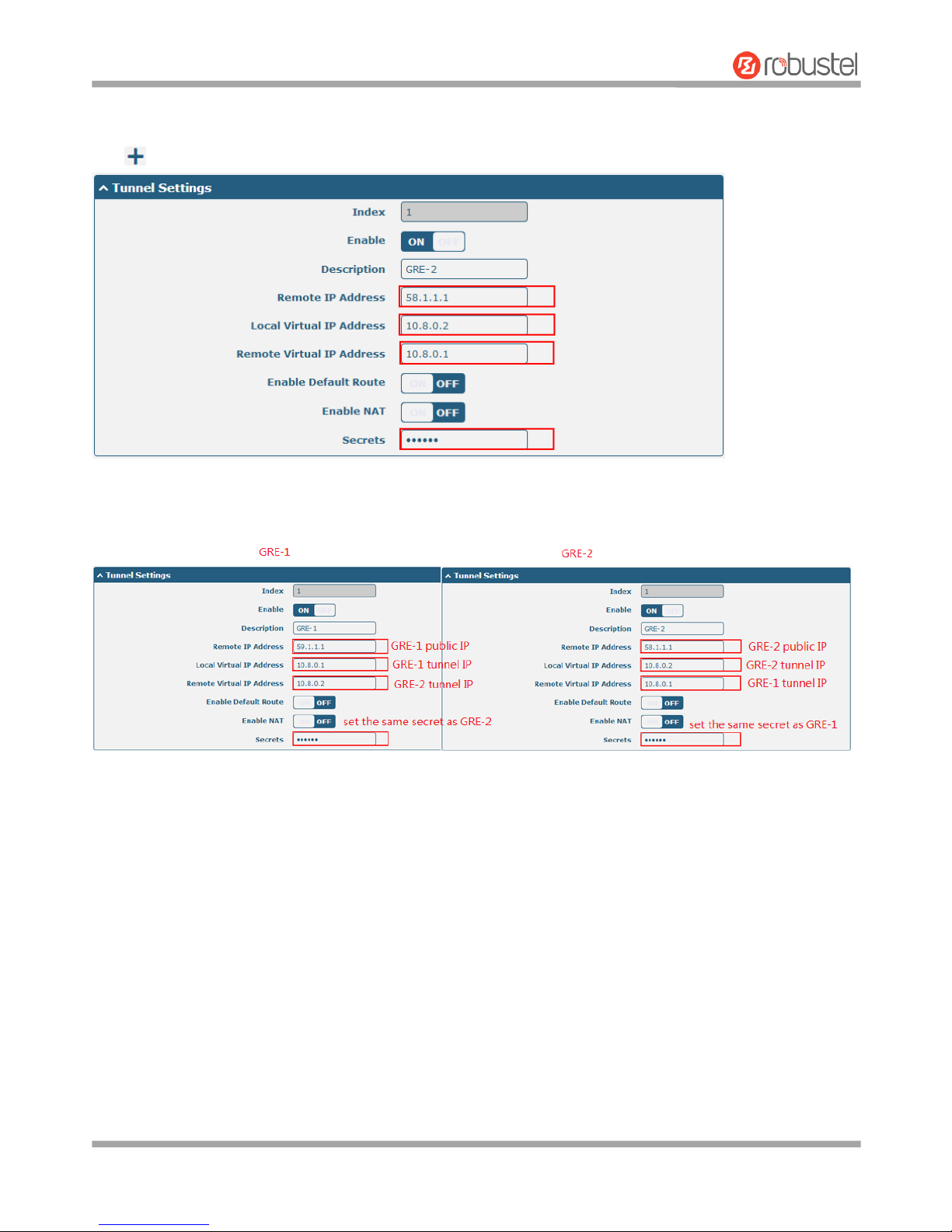

4.2.3 GRE VPN ............................................................................................................................................ 97

Chapter 5 Introductions for CLI ...................................................................................................................... 99

5.1 What Is CLI ................................................................................................................................................ 99

5.2 How to Configure the CLI ....................................................................................................................... 100

5.3 Commands Reference ............................................................................................................................ 106

Glossary........................................................................................................................................................... 107

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 8/109 Confidential

Chapter 1 Product Concept

1.1 Key Features

The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular router offering state-of-the-art

mobile connectivity for machine to machine (M2M) applications. R3000 Lite is a powerful router developed from

RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel

hardware routers. The RobustOS includes basic networking features and protocols providing customers with a very

good user experience. Meanwhile, Robustel offers a Software Development Kit (SDK) for partners and customers to

allow additional customization by using C, Python or Java. It also provides rich APPs to meet fragmented IoT market

demands.

 Dual SIM redundancy for persistent 2G/3G/4G cellular network connections  RobustOS + SDK + App  IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN  Supporting Modbus RTU  Supporting Modbus Master  Supporting TCP Client/Server, UDP and virtual serial port  Supporting DHCP server  Supporting 802.1Q VLAN Trunk protocol  Supporting IP Pass-through  Supporting RobustVPN (a Cloud VPN Portal providing easy and secure remote access for PLCs and machines)  Management and maintenance via Web/CLI/SMS/SNMP/RobustLink Cloud  Alarm via SMS/Email/SNMP trap/RobustLink  Auto reboot via SMS/Timing  Desktop and easy wall or DIN rail mounting options

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 9/109 Confidential

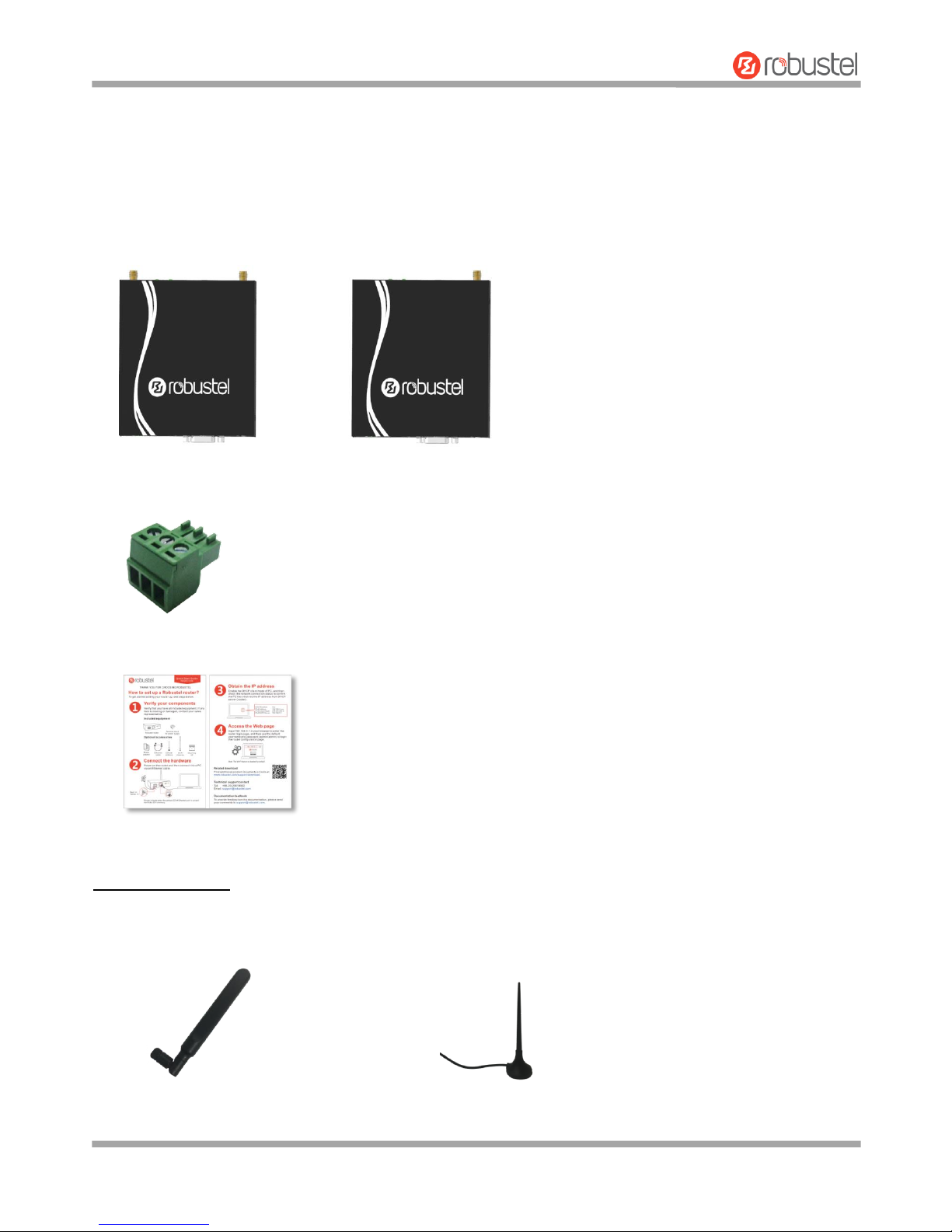

1.2 Package Contents

Before installing your R3000 Lite Router, verify the kit contents as following. Note: The following pictures are for illustration purposes only, not based on their actual sizes.

 1 x Robustel GoRugged R3000 Lite Industrial Dual SIM Cellular VPN Router

 1 x 3-pin pluggable terminal block for power supply

 1 x Quick Start Guide with download link of other documents or tools

*If any of the above items is missing or damaged, please contact your Robustel sales representative.

Optional accessories (sold separately):

 3G/4G SMA cellular antenna (stubby/magnet optional)

Stubby antenna Magnet antenna

OR

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 10/109 Confidential

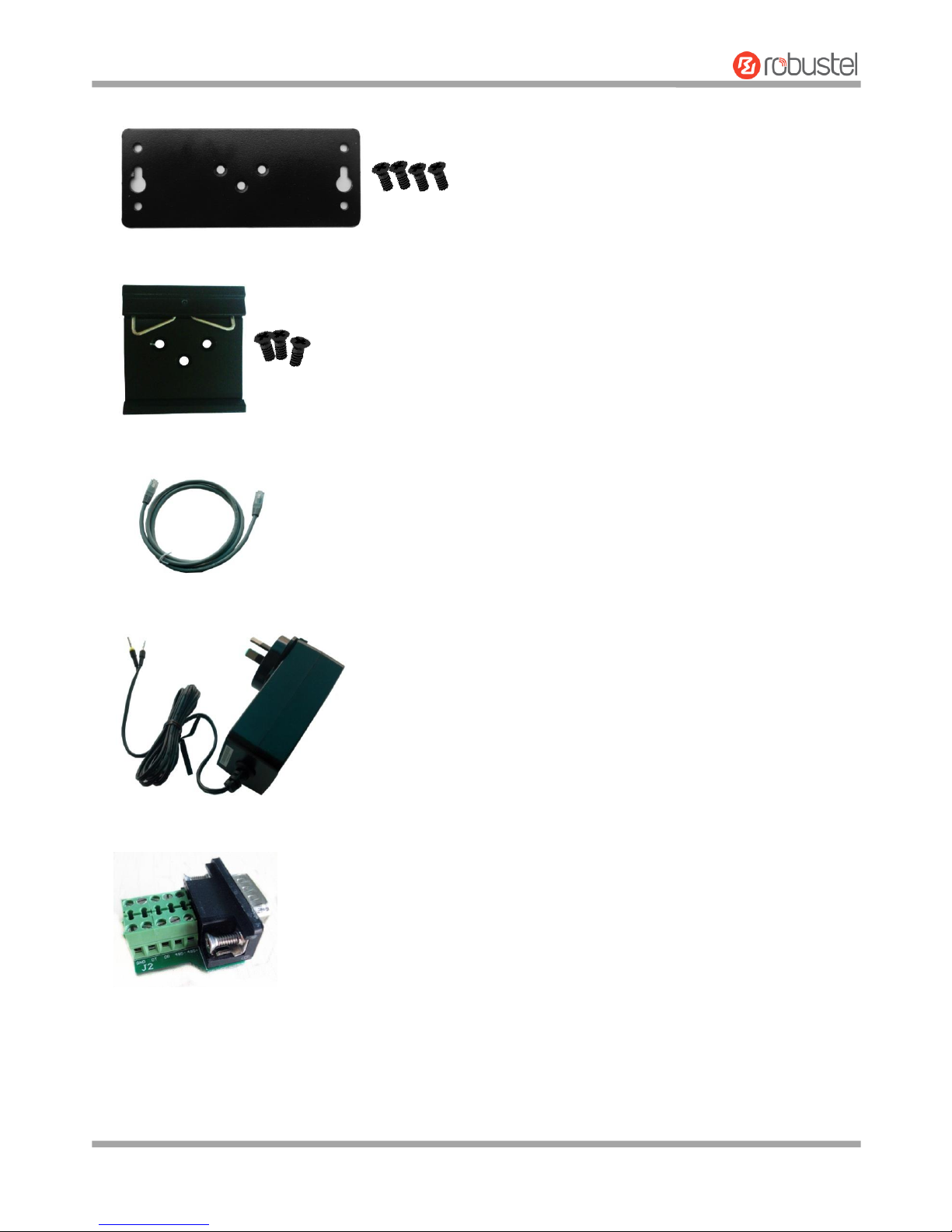

 Wall mounting kit

 35 mm DIN rail mounting kit

 Ethernet cable

 AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)

 Terminal block with a DB9 male connector for serial port connection

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 11/109 Confidential

1.3 Specifications

Cellular Interface

 Number of ports: 2 (MAIN + AUX)  Connector: SMA, female  SIM: 2 (3.0 V & 1.8 V)  Standards: GSM/GPRS/EDGE/WCDMA/TD-SCDMA/CDMA (CDMA 1X/EVDO)/HSDPA/HSUPA/HSPA+/

DC-HSPA+/FDD LTE/TDD LTE GSM: max DL/UL = 9.6/2.7 Kbps GPRS: max DL/UL = 86 Kbps EDGE: max DL/UL = 236.8 Kbps WCDMA/TD-SCDMA: max DL/UL = 2.8 Mbps/384 Kbps EVDO: max DL/UL = 5.4 Mbps/14.7 Kbps HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G DC-HSPA+: max DL/UL = 42/5.76 Mbps, fallback to 2G FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G TDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G

Cellular interface

The number of antenna interface

3G HSDPA

1

3G HSPA+

2

4G LTE

2

Ethernet Interface

 Number of ports: 1 x 10/100 LAN port  Magnet isolation protection: 1.5 KV

Serial Interface

 Number of ports: 1 x RS-232 + 1 x RS-485  Connector: DB9, female  ESD protection: ±15 KV  Baud rate: 300 bps to 230400 bps  Parameters: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1  RS232: TxD, RxD, RTS, CTS, GND  RS485: Data+ (A), Data- (B)

Others

 Reset button : 1 x RST  Expansion: 1 x USB 2.0 host up to 480 Mbps  LED indicators: 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI  Built-in: RTC, Watchdog, Timer

Software (Basic features of RobustOS)

 Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, RIP, OSPF, NTP, SMTP, Telnet,

VLAN, SSH2, DDNS, etc.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 12/109 Confidential

 VPN tunnel: IPsec, OpenVPN, GRE  Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control  Management: Web, CLI, SMS  Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway

App Center

 Available apps for RobustOS: L2TP, PPTP, DMVPN, RobustVPN, DDNS, VRRP, QoS, SNMP, Language, RobustLink

*Request on demand. For more APPs please visit www.robustel.com.

Power Supply and Consumption

 Connector: 3.5 mm DC Jack socket  Input voltage: 9 to 36V DC  Power consumption: Idle: 100 mA@12 V

Data link: 400 mA (peak) @12 V

Physical Characteristics

 Ingress protection: IP30  Housing & Weight: Metal, 300 g  Dimensions: 105 x 98 x 30 mm  Installations: Desktop or wall mounting or 35 mm DIN rail mounting

Certifications

 Approvals & Certificates: CE, R & TTE, RCM, RoHS, WEEE  EMC:

EMI: EN 55022: 2006/A1: 2007 (CE & RE) Class B EMS: IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-3 (RS) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (CS) Level 3

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 13/109 Confidential

1.4 Dimensions

1.5 Ordering Information

Model

R3000-L3H

R3000-L3P

R3000-L4L

Router Type

HSDPA router

HSPA+ router

LTE router

Antenna Number

1 2 2

Air Interface

GSM/GPRS/EDGE/ HSDPA

GSM/GPRS/EDGE/ HSDPA/HSUPA/HSPA+

GSM/GPRS/EDGE/WCDMA/HSDPA/ HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/ CDMA (CDMA 1X/EVDO)/FDD LTE/ TDD LTE

Frequency Bands

- - AU: B1/B3/B5/B7/B8/B28, B40 EU: B1/B3/B7/B8/B20/B28/B31, B38/B40 US: B2/B4/B5/B13/B17/B25, B41 JP: B1/B3/B8/B9/B18/B19/B21/B28, B41 CN: B1/B3, B38/B39/B40/B41

4G

3G

B1/B8

B1/B2/B4(AWS)/B5/ B8/B19

WCDMA/HSDPA/HSUPA/HSPA+/ DC-HSPA+: B1/B2/B5/B6/B8/B9/B19 TD-SCDMA: B34/B39 CDMA (CDMA 1X/EVDO): R0/A BC0/BC1/BC10

2G

850/900/1800/1900 MHz

Operating Environment

-40 to 75°C 5 to 95% RH

*For more information about 4G frequency bands in different countries, please contact your Robustel sales representative.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 14/109 Confidential

Chapter 2 Hardware Installation

2.1 LED Indicators

The R3000 Lite has been designed to be placed on a desktop. Below is the top view of the R3000 Lite.

Name

Color

Status

Description

RUN

Green

On, fast blinking (250 mSec blink time)

Router is powered on (System is initializing)

On, blinking (500 mSec blink time)

Router starts operating Off

Router is powered off

USR-SIM

Green On, blinking

Backup card is being used

Off

Main card is being used

USR-NET

Green

On, solid

Network is joined successfully and worked in an optimum one

On, blinking

Network is joined successfully but worked in a lower-level than standard

Off

Network is not joined or joining

USR-OpenVPN

Green On, solid

OpenVPN connection is established

Off

OpenVPN connection is not established

USR-IPsec

Green On, solid

IPsec connection is established

Off

IPsec connection is not established

PPP

Green On, solid

Link connection is established

Off

Link connection is not established

Green

Three lights are solid green

High signal strength (21-31) is available

Two lights are solid green

Medium signal strength (11-20) is available One light is solid green

Low signal strength (1-10) is available

Off

No signal

When the network is disconnected, those three signal LEDs are designed as a binary combination code to indicate a series of error report. Blinking: 1 Off: 0

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 15/109 Confidential

Note: You can choose the display type of USR LED. For more details, please refer to 3.26 Service > Advanced.

2.2 PIN Assignment

The R3000 Lite has been designed to be placed on a desktop. Below is the bottom view of the R3000 Lite.

DB9 female connector

001 AT command failed 010 no SIM card detected 011 need to enter the PIN code 100 need to enter the PUK code 101 registration failed 110 module error

111 not support the module

Polarity

10

Positive

11

Negative

12

GND

Debug

RS-232

RS-485 (2-wire)

Terminal block

Direction

1

CR

--

Data+ (A)

485+

-- 2 CT

RXD

--

RXD

Router  Device

3

--

TXD

--

TXD

Router  Device

4

DRXD

--

DT

Router  Device

5

GND

--

GND x 2

-- 6 --

--

Data- (B)

485-

-- 7 --

RTS

--

RTS

Router  Device

8

--

CTS

--

CTS

Router  Device

9

DTXD

--

DR

Router  Device

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 16/109 Confidential

2.3 USB Interface

2.4 Reset Button

Function

Operation

Firmware upgrade

USB interface is used for batch firmware upgrading, but cannot be used for sending or receiving data from slave devices which connected to it. You can insert a USB storage device into the router’s USB interface, such as a U disk or a hard disk. If there have a supported configuration file or a router firmware in this USB storage device, the router will automatically update the configuration file or the firmware. For more details, see 3.10 Interface > USB.

Function

Operation

Reboot

Press and hold the RST button for 5 seconds under the operating status.

Restore to factory default settings

Wait for 5 seconds after powering up the router, press and hold the RST button for about 60 seconds until all six LEDs start blinking simultaneously five times, and release the button to return the router to factory defaults.

USB

Reset Button

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 17/109 Confidential

2.5 Ethernet Port

2.6 Insert or Remove SIM Card

Insert or remove the SIM as shown in the following steps.

 Insert SIM card

1. Make sure router is powered off.

R3000 Lite Router has one Ethernet port with two LED indicators. The yellow one is link indicator and the green one is speed indicator. For details about status, see the table below.

Indicator

Status

Description

Link indicator

On, solid

Connection is established

On, blinking

Data is being transferred

Off

Connection is not established

Speed indicator On, solid

100 Mbps mode

Off

10 Mbps mode

Ethernet Port

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 18/109 Confidential

2. To remove slot cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM

card slot.

3. To insert SIM card, press the card with finger until you hear a click and then tighten the screws associated with

the cover by using a screwdriver.

4. To put back the cover and tighten the screws associated with the cover by using a screwdriver.

 Remove SIM card

1. Make sure router is powered off.

2. To remove slot cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM

card slot.

3. To remove SIM card, press the card with finger until it pops out and then take out the SIM card.

4. To put back the cover and tighten the screws associated with the cover by using a screwdriver.

Note:

1. Recommended torque for inserting is 0.5 N.m, and the maximum allowed is 0.7 N.m.

2. Use the specific M2M SIM card when the device is working in extreme temperature (temperature exceeding

40℃), because the regular card for long-time working in harsh environment will be disconnected frequently.

3. Do not forget to twist the cover tightly to avoid being stolen.

4. Do not touch the metal of the card surface in case information in the card will lose or be destroyed.

5. Do not bend or scratch the card.

6. Keep the card away from electricity and magnetism.

7. Make sure router is powered off before inserting or removing the card.

2.7 Attach External Antenna (SMA Type)

Attach an external SMA antenna to the router’s connector and twist tightly. Make sure the antenna is within the correct frequency range provided by the ISP and with 50 Ohm impedance. Note: Recommended torque for tightening is 0.35 N.m.

SMA antenna with a

male connector for cellular connection

SMA antenna with a

male connector for cellular connection

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 19/109 Confidential

2.8 Mount the Router

The router can be placed on a desktop or mounted to a wall or a 35 mm DIN rail. Two methods for mounting the router

1. Wall mounting

Use 3 pcs of M3*4 flat head Phillips screws to fix the wall mounting kit to the router, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall. Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.

2. DIN rail mounting

Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the router, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket.

Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 20/109 Confidential

2.9 Connect the Router to a Computer

Connect an Ethernet cable to the port marked ETH at the bottom of the R3000 Lite, and connect the other end of the cable to your computer.

2.10 Power Supply

R3000 Lite router supports reverse polarity protection, but always refers to the figure above to connect the power adapter correctly. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way. Note: The range of power voltage is 9 to 36V DC.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 21/109 Confidential

Chapter 3 Initial Configuration

The router can be configured through your web browser that including IE 8.0 or above, Chrome and Firefox, etc. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc. It provides an easy and user-friendly interface for configuration. There are various ways to connect the router, either through an external repeater/hub or connect directly to your PC. However, make sure that your PC has an Ethernet interface properly installed prior to connecting the router. You must configure your PC to obtain an IP address through a DHCP server or a fixed IP address that must be in the same subnet as the router. If you encounter any problems accessing the router web interface, it is advisable to uninstall your firewall program on your PC, as this tends to cause problems accessing the IP address of the router.

3.1 Configure the PC

There are two methods to get IP address for the PC, one is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a static IP address manually within the same subnet of the router. Please refer to the steps below.

Here take Windows 7 as example, and the configuration for windows system is similar.

1. Click Start > Control panel, double-click Network and Sharing Center, and then double-click Local Area

Connection.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 22/109 Confidential

2. Click Properties in the window of Local Area Connection Status.

3. Choose Internet Protocol Version 4 (TCP/IPv4) and click Properties.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 23/109 Confidential

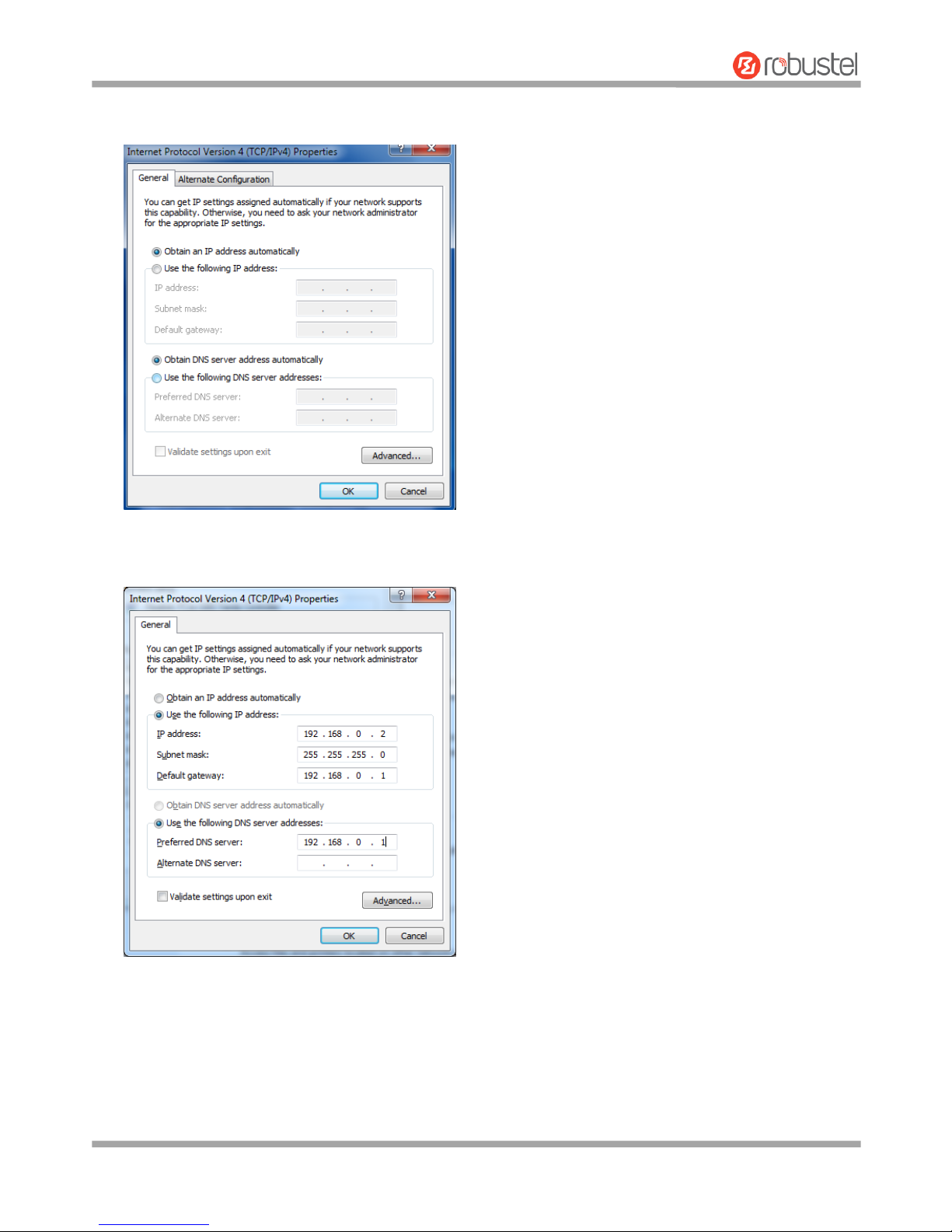

4. Two ways for configuring the IP address of PC.

Obtain an IP address automatically:

Use the following IP address:

(Configured a static IP address manually within the same subnet of the router)

5. Click OK to finish the configuration.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 24/109 Confidential

3.2 Factory Default Settings

Before configuring your router, you need to know the following default settings.

Item

Description

Username

admin

Password

admin

ETH

192.168.0.1/255.255.255.0, LAN mode

DHCP Server

Enabled

3.3 Log in the Router

To log in to the management page and view the configuration status of your router, please follow the steps below.

1. On your PC, open a web browser such as Internet Explorer, Google and Firebox, etc.

2. From your web browser, type the IP address of the router into the address bar and press enter. The default IP

address of the router is 192.168.0.1, though the actual address may vary.

3. In the login page, enter the username and password, choose language and then click LOGIN. The default

username and password are “admin”. Note: If enter the wrong username or password over six times, the login web will be locked for 5 minutes.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 25/109 Confidential

3.4 Control Panel

After logging in, the home page of the R3000 Lite Router’s web interface is displayed, for example.

Using the original password to log in the router, the page will pop up the following tab

It is strongly recommended for security purposes that you change the default username and/or password. To change your username and/or password, see 3.34 System > User Management.

Control Panel

Item

Description

Button

Save & Apply

Click to save the current configuration into router’s flash and apply the modification on every configuration page, to make the modification taking effect.

Reboot

Click to reboot the router. If the Reboot button is yellow, it means that some completed configurations will take effect only after reboot.

Logout

Click to log the current user out safely. After logging out, it will switch to login page. Shut down web page directly without logout, the next one can login web on this browser without a password before timeout.

Submit

Click to save the modification on current configuration page.

Cancel

Click to cancel the modification on current configuration page.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 26/109 Confidential

Note: The steps of how to modify configuration are as bellow:

1. Modify in one page;

2. Click under this page;

3. Modify in another page;

4. Click under this page;

5. Complete all modification;

6. Click .

3.5 Status

This page allows you to view the System Information, Internet Status and LAN Status of your router.

System Information

Item

Description

Device Model

Show the model name of your device.

System Uptime

Show the current amount of time the router has been connected.

System Time

Show the current system time.

RAM Usage

Show the free memory and the total memory.

Firmware Version

Show the firmware version running on the router.

Hardware Version

Show the current hardware version.

Kernel Version

Show the current kernel version.

Serial Number

Show the serial number of your device.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 27/109 Confidential

Internet Status

Item

Description

Active Link

Show the current active link.

Uptime

Show the current amount of time the link has been connected.

IP Address

Show the IP address of current link.

Gateway

Show the gateway address of the current link.

DNS

Show the current primary DNS server and secondary server.

LAN Status

Item

Description

IP Address

Show the IP address and the Netmask of the router.

MAC Address

Show the MAC address of the router.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 28/109 Confidential

3.6 Interface > Link Manager

This section allows you to setup the link connection.

General Settings @ Link Manager

Item

Description

Default

Primary Link

Select from “WWAN1” or “WWAN2”.

 WWAN1: Select to make SIM1 as the primary wireless link  WWAN2: Select to make SIM2 as the primary wireless link

WWAN1

Backup Link

Select from “None”, “WWAN1” or “WWAN2”.

 None: Do not select any backup link  WWAN1: Select to make SIM1 as backup wireless link  WWAN2: Select to make SIM2 as backup wireless link

WWAN2

Backup Mode

Select from “Cold Backup”, “Warm Backup” or “Load Balancing”.

 Cold Backup: The inactive link is offline on standby  Warm Backup: The inactive link is online on standby  Load Balancing: Use two links simultaneously

Note: R3000 Lite supports only the cold backup mode.

Cold Backup

Revert Interval

Specify the number of minutes that elapses before the primary link is checked if a backup link is being used in cold backup mode. 0 means disable checking. Note: Revert interval is available only under the cold backup mode.

0

Emergency Reboot

Click the toggle button to enable/disable this option. Enable to reboot the whole system if no links available.

OFF

Note: Click for help.

Link Settings allows you to configure the parameters of link connection, including WWAN1 and WWAN2.

It is recommended to enable Ping detection to keep the router always online. The Ping detection increases the reliability and also costs the data traffic.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 29/109 Confidential

Click on the right-most of WWAN1/WWAN2 to enter the configuration window.

WWAN1/WWAN2

The window is displayed as below when enabling the “Automatic APN Selection” option.

The window is displayed as below when disabling the “Automatic APN Selection” option.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 30/109 Confidential

Link Settings (WWAN)

Item

Description

Default

General Settings

Index

Indicate the ordinal of the list.

--

Type

Show the type of the link.

WWAN1

Description

Enter a description for this link.

Null

WWAN Settings

Automatic APN Selection

Click the toggle button to enable/disable the “Automatic APN Selection” option. After enabling, the device will recognize the access point name automatically. Alternatively, you can disable this option and manually add the access point name.

ON

APN

Enter the Access Point Name for cellular dial-up connection, provided by local ISP.

internet Username

Enter the username for cellular dial-up connection, provided by local ISP.

Null

Password

Enter the password for cellular dial-up connection, provided by local ISP.

Null

Dialup Number

Enter the dialup number for cellular dial-up connection, provided by local ISP.

*99***1# Authentication Type

Select from “Auto”, “PAP” or “CHAP” as the local ISP required.

Auto

Switch SIM By Data Allowance

Click the toggle button to enable/disable this option. After enabling, it will switch to another SIM when the data limit reached. Note: Only used for dual SIM backup.

OFF

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 31/109 Confidential

Link Settings (WWAN)

Item

Description

Default

Data Allowance

Set the monthly data traffic limitation. The system will record the data traffic statistics when data traffic limitation (MiB) is specified. The traffic record will be displayed in Interface > Link Manager > Status > WWAN Data Usage Statistics. 0 means disable data traffic record.

0

Billing Day

Specify the monthly billing day. The data traffic statistics will be recalculated from that day.

1

Ping Detection Settings

Enable

Click the toggle button to enable/disable the ping detection mechanism, a keepalive policy of the router.

ON

Primary Server

Router will ping this primary address/domain name to check that if the current connectivity is active.

8.8.8.8

Secondary Server

Router will ping this secondary address/domain name to check that if the current connectivity is active.

114.114.11

4.114

Interval

Set the ping interval.

300

Retry Interval

Set the ping retry interval. When ping failed, the router will ping again every retry interval.

5 Timeout

Set the ping timeout.

3

Max Ping Tries

Set the max ping tries. Switch to another link or take emergency action if the max continuous ping tries reached.

3

Advanced Settings

NAT Enable

Click the toggle button to enable/disable the Network Address Translation option.

ON Upload Bandwidth

Set the upload bandwidth used for QoS, measured in kbps.

10000

Download Bandwidth

Set the download bandwidth used for QoS, measured in kbps.

10000

Overrided Primary DNS

Override primary DNS will override the automatically obtained DNS.

Null

Overrided Secondary DNS

Override secondary DNS will override the automatically obtained DNS.

Null

Debug Enable

Click the toggle button to enable/disable this option. Enable for debugging information output.

ON

Verbose Debug Enable

Click the toggle button to enable/disable this option. Enable for verbose debugging information output.

OFF

Status

This page allows you to view the status of link connection and clear the monthly data usage statistics.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 32/109 Confidential

Click the right-most button to select the connection status of the current link.

Click the row of the link, and it will show the details information of the current link connection under the row.

Click the button to clear SIM1 or SIM2 monthly data traffic usage statistics. Data statistics will be displayed

only if enable the Data Allowance function in Interface > Link Manager > Link Settings > WWAN Settings > Data Allowance.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 33/109 Confidential

3.7 Interface > LAN

This section allows you to set the related parameters for LAN port. There is one LAN port on R3000 Lite Router, which is ETH. The default settings of ETH is lan0 and its default IP is 192.168.0.1/255.255.255.0.

LAN

Note: Lan0 cannot be deleted.

You may click to edit the configuration of the LAN port, or click to delete the current LAN port. Now, click to add a new LAN port.

General Settings @ LAN

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Interface

Lan1 is available only if it was selected by one of ETH1~ETH4 in Ethernet > Ports > Port Settings, and so on.

lan0 IP Address

Set the IP address of the LAN port.

192.168.0.1

Netmask

Set the Netmask of the LAN port.

255.255.255.0

MTU

Enter the Maximum Transmission Unit.

1500

The window is displayed as below when choosing “Server” as the mode.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 34/109 Confidential

The window is displayed as below when choosing “Relay” as the mode.

LAN

Item

Description

Default

DHCP Settings

Enable

Click the toggle button to enable/disable the DHCP function.

ON

Mode

Select from “Server” or “Relay”.

 Server: Lease IP address to DHCP clients which have been

connected to LAN port

 Relay: Router can be a DHCP Relay, which will provide a relay

tunnel to solve the problem that DHCP Client and DHCP Server are not in a same subnet

Server

IP Pool Start

Define the beginning of the pool of IP addresses which will be leased to DHCP clients.

192.168.0.2

IP Pool End

Define the end of the pool of IP addresses which will be leased to DHCP clients.

192.168.0.100

Subnet Mask

Define the subnet mask of IP address obtained by DHCP clients from DHCP server.

255.255.255.0 DHCP Server for Relay

Enter the IP address of DHCP relay server.

Null

DHCP Advanced Settings

Gateway

Define the gateway assigned by the DHCP server to the clients, which must be on the same network segment with DHCP address pool.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 35/109 Confidential

LAN

Item

Description

Default

Primary DNS

Define the primary DNS server assigned by the DHCP server to the clients.

Null

Secondary DNS

Define the secondary DNS server assigned by the DHCP server to the clients.

Null

WINS Server

Define the Windows Internet Naming Service obtained by DHCP clients from DHCP sever.

Null

Lease Time

Set the lease time which the client can use the IP address obtained from DHCP server, measured in seconds.

120

Static lease

Bind a lease to correspond an IP address via a MAC address. format: mac,ip;mac,ip;..., e.g. FF:ED:CB:A0:98:01,192.168.0.200

Null

Expert Options

Enter some other options of DHCP server in this field. format: config-desc;config-desc, e.g. log-dhcp;quiet-dhcp

Null

Debug Enable

Click the toggle button to enable/disable this option. Enable for DHCP information output.

OFF

Multiple IP

You may click to add a multiple IP to the LAN port, or click to delete the multiple IP of the LAN port. Now, click

to edit the multiple IP of the LAN port.

IP Settings

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Interface

Show the editing port.

--

IP Address

Set the multiple IP address of the LAN port.

Null

Netmask

Set the multiple Netmask of the LAN port.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 36/109 Confidential

VLAN Trunk

Click to add a VLAN. The maximum count is 8.

VLAN Settings

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Enable

Click the toggle button to enable/disable this VLAN. Enable to make router can encapsulate and de-encapsulate the VLAN tag.

ON

Interface

Choose the interface which wants to enable VLAN trunk function. Select from “lan0”, “lan1”, “lan2” or “lan3” depends on your ETH1~ETH4’s corresponding LAN port.

lan0

VID

Set the tag ID of VLAN and digits from 1 to 4094.

100

IP Address

Set the IP address of VLAN port.

Null

Netmask

Set the Netmask of VLAN port.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 37/109 Confidential

Status

This section allows you to view the status of LAN connection.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 38/109 Confidential

Click the row of status, the details status information will be display under the row. Please refer to the screenshot below.

3.8 Interface > Ethernet

This section allows you to set the related parameters for Ethernet. There is one Ethernet port on R3000 Lite Router, which is ETH. The default settings of ETH is lan0 and its default IP is 192.168.0.1/255.255.255.0.

Click button of eth1 to configure its parameters.

Port Settings

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Port

Show the editing port, read only.

--

Port Assignment

Choose the Ethernet port’s type, as a WAN port or a LAN port. Note: The Ethernet port on R3000 Lite can only be configured as a LAN port.

lan0

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 39/109 Confidential

This column allows you to view the status of Ethernet port.

Click the row of status, the details status information will be display under the row. Please refer to the screenshot below.

3.9 Interface > Cellular

This section allows you to set the related parameters of Cellular. The R3000 Lite Router has two SIM card slots, but do not support two SIM cards online simultaneously due to its single-module design. If insert single SIM card at the first time, SIM1 slot and SIM2 slots are available.

Click of SIM 1 to edit the parameters.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 40/109 Confidential

The window is displayed as below when choosing “Auto” as the network type.

The window is displayed as below when choosing “Specify” as the band select type.

Cellular

Item

Description

Default

General Settings

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 41/109 Confidential

Cellular

Item

Description

Default

Index

Indicate the ordinal of the list.

--

SIM Card

Show the currently editing SIM card.

SIM1

Phone Number

Enter the phone number of the SIM card.

Null

PIN Code

Enter a 4-8 characters PIN code used for unlocking the SIM.

Null

Extra AT Cmd

Enter the AT commands used for cellular initialization.

Null

Telnet Port

Specify the Port listening of telnet service, used for AT over Telnet.

0

Cellular Network Settings

Network Type

Select from “Auto”, “2G Only”, “2G First”, “3G Only”, “3G First”, “4G Only”, “4G First”.

 Auto: Connect to the best signal network automatically  2G Only: Only the 2G network is connected  2G First: Connect to the 2G Network preferentially  3G Only: Only the 3G network is connected  3G First: Connect to the 3G Network preferentially  4G Only: Only the 4G network is connected  4G First: Connect to the 4G Network preferentially

Auto

Band Select Type

Select from “All” or “Specify”. You may choose certain bands if choosing “Specify”.

All

Advanced Settings

Debug Enable

Click the toggle button to enable/disable this option. Enable for debugging information output.

ON

Verbose Debug Enable

Click the toggle button to enable/disable this option. Enable for verbose debugging information output.

OFF

This section allows you to view the status of the cellular connection.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 42/109 Confidential

Click the row of status, the details status information will be displayed under the row.

Status

Item

Description

Index

Indicate the ordinal of the list.

Modem Status

Show the status of the radio module.

Modem Model

Show the model of the radio module.

Current SIM

Show the SIM card that your router is using.

Phone Number

Show the phone number of the current SIM.

IMSI

Show the IMSI number of the current SIM.

ICCID

Show the ICCID number of the current SIM.

Registration

Show the current network status.

Network Provider

Show the name of Network Provider.

Network Type

Show the current network service type, e.g. GPRS.

Signal Strength

Show the signal strength detected by the mobile.

Bit Error Rate

Show the current bit error rate.

PLMN ID

Show the current PLMN ID.

Local Area Code

Show the current local area code used for identifying different area.

Cell ID

Show the current cell ID used for locating the router.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 43/109 Confidential

Status

Item

Description

IMEI

Show the IMEI (International Mobile Equipment Identity) number of the radio module.

Firmware Version

Show the current firmware version of the radio module.

This page allows you to check the AT Debug.

AT Debug

Item

Description

Default

Command

Enter the AT command that you want to send to cellular module in this text box.

Null Result

Show the AT command responded by cellular module in this text box.

Null Click the button to send AT command.

--

3.10 Interface > USB

This section allows you to set the USB parameters. The USB interface of the router can be used for firmware upgrade and configuration upgrade.

General Settings @ USB

Item

Description

Default

Enable USB

Click the toggle button to enable/disable the USB option.

ON

Enable Automatic Firmware Updating

Click the toggle button to enable/disable this option. Enable to update automatically the router’s firmware when inserting a USB storage device with a router’s firmware.

ON

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 44/109 Confidential

Router has the key for USB automatic update. User can generate the key in this page.

Key

Item

Description

Default

USB Automatic Update Key

Click to generate a key, and click to download the key.

--

3.11 Interface > Serial Port

This section allows you to set the serial port parameters. R3000 Lite Router supports one RS-232 and one RS-485 across a DB9 connector. Serial port provides a way to transfer serial data to IP data, or vice versa, and transmit these data via wired or wireless network to achieve data transparent transmission.

Click the edit button of COM1.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 45/109 Confidential

Serial Port

Item

Description

Default

Serial Port Application Settings

Index

Indicate the ordinal of the list.

--

Port

Show the current serial’s name, read only.

COM1

Enable

Click the toggle button to enable/disable this serial port. When the status is OFF, the serial port is not available.

OFF

Baud Rate

Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”, “57600” , “115200” or “230400”.

115200 Data Bits

Select from “7” or “8”.

8

Stop Bits

Select from “1” or “2”.

1

Parity

Select from “None”, “Odd” or “Even”.

None

Flow control

Select from “None”, “Software” or “Hardware”.

None

Data Packing

Packing Timeout

Set the packing timeout. The serial port will queue the data in the buffer and send the data to the Cellular WAN/Ethernet WAN when it reaches the Interval Timeout in the field. Note: Data will also be sent as specified by the packet length even when data is not reaching the interval timeout in the field.

50 Packing Length

Set the packet length. The Packet length setting refers to the maximum amount of data that is allowed to accumulate in the serial port buffer before sending. When a packet length between 1 and 3000 bytes is specified, data in the buffer will be sent as soon it reaches the specified length.

1200

 The window is displayed as below when choosing “Transparent” as the application mode and “TCP Client” as the

protocol.

The window is displayed as below when choosing “Transparent” as the application mode and “TCP Server” as the protocol.

The window is displayed as below when choosing “Transparent” as the application mode and “UDP” as the protocol.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 46/109 Confidential

The window is displayed as below when choosing “Transparent” as the application mode and “Robustlink” as the protocol.

 The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP

Client” as the protocol.

The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP Server” as the protocol.

The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “UDP” as the protocol.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 47/109 Confidential

The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “Robustlink” as the protocol.

Server Settings

Item

Description

Default

Application Mode

Select from “Transparent” or “Modbus RTU Gateway”.

 Transparent: Router will transmit the serial data

transparently

 Modbus RTU Gateway: Router will translate the Modbus RTU

data to Modbus TCP data and sent out, and vice versa

Transparent

Protocol

Select from “TCP Client”, “TCP Server”, “UDP” or “Robustlink”.

 TCP Client: Router works as TCP client, initiate TCP

connection to TCP server. Server address supports both IP and domain name

 TCP Server: Router works as TCP server, listening for

connection request from TCP client

 UDP: Router works as UDP client  Robustlink: Router will automatically upload the serial data

to Robustlink platform under the Robustlink protocol. Robustlink is a management platform from Robustel. This function only available when Router is connects to Robustlink

TCP Client

Server Address

Enter the address of server which will receive the data sent from router’s serial port. IP address or domain name will be available.

Null

Server Port

Enter the specified port of server which is used for receiving the serial data.

Null

Local IP @ Transparent

Enter router’s LAN IP which will forward to the internet port of router.

Null Local Port @ Transparent

Enter the port of router’s LAN IP.

Null

Local IP @ Modbus

Enter the local IP of under Modbus mode.

Null

Local Port @ Modbus

Enter the local port of under Modbus mode.

Null

Click the “Status” column to view the type which the current serial port corresponds.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 48/109 Confidential

3.12 Network > Route

This section allows you to set the static route. Static route is a form of routing that occurs when a router uses a manually-configured routing entry, rather than information from a dynamic routing traffic. Route Information Protocol (RIP) is widely used in small network with stable use rate. Open Shortest Path First (OSPF) is made router within a single autonomous system and used in large network.

Static Route

Click to add static routes. The maximum count is 20.

Static Route

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Description

Enter a description for this static route.

Null

Destination

Enter the IP address of destination host or destination network.

Null

Netmask

Enter the Netmask of destination host or destination network.

Null

Gateway

Define the gateway of the destination.

Null

Interface

Choose the corresponding port of the link that you want to configure.

wwan1

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 49/109 Confidential

Status

This window allows you to view the status of route.

3.13 Network > Firewall

This section allows you to set the firewall and its related parameters, including Filtering, Port Mapping and DMZ.

Filtering

The filtering rules can be used to either accept or block certain users or ports from accessing your router.

Filtering

Item

Description

Default

General Settings

Enable Filtering

Click the toggle button to enable/disable the filtering option.

ON

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 50/109 Confidential

Filtering

Item

Description

Default

Default Filtering Policy

Select from “Accept” or “Drop”. Cannot be changed when filtering rules table is not empty.

 Accept: Router will accept all the connecting requests except the

hosts which fit the drop filter list

 Drop: Router will drop all the connecting requests except the

hosts which fit the accept filter list

Accept

Access Control Settings

Enable Remote SSH Access

Click the toggle button to enable/disable this option. When enabled, the Internet user can access the router remotely via SSH.

OFF

Enable Local SSH Access

Click the toggle button to enable/disable this option. When enabled, the LAN user can access the router locally via SSH.

ON

Enable Remote Telnet Access

Click the toggle button to enable/disable this option. When enabled, the Internet user can access the router remotely via Telnet.

OFF

Enable Local Telnet Access

Click the toggle button to enable/disable this option. When enabled, the LAN user can access the router locally via Telnet.

ON

Enable Remote HTTP Access

Click the toggle button to enable/disable this option. When enabled, the Internet user can access the router remotely via HTTP.

OFF

Enable Local HTTP Access

Click the toggle button to enable/disable this option. When enabled, the LAN user can access the router locally via HTTP.

ON

Enable Remote HTTPS Access

Click the toggle button to enable/disable this option. When enabled, the Internet user can access the router remotely via HTTPS.

ON

Enable Remote Ping Respond

Click the toggle button to enable/disable this option. When enabled, the router will reply to the Ping requests from other hosts on the Internet.

ON

Enable DOS Defending

Click the toggle button to enable/disable this option. When enabled, the router will defend the DOS. Dos attack is an attempt to make a machine or network resource unavailable to its intended users.

ON

Click to add a filtering rule. The maximum count is 20.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 51/109 Confidential

Filtering Rules

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Description

Enter a description for this filtering rule.

Null

Source Address

Specify an access originator and enter its source address.

Null

Source Port

Specify an access originator and enter its source port.

Null

Source MAC

Specify an access originator and enter its source MAC address.

Null

Target Address

Enter the target address which the access originator wants to access.

Null

Target Port

Enter the target port which the access originator wants to access.

Null

Protocol

Select from “All”, “TCP”, “UDP”, “ICMP” or “TCP-UDP”. Note: It is recommended that you choose “All” if you don’t know which protocol of your application to use.

All

Action

Select from “Accept” or “Drop”.

 Accept: When Default Filtering Policy is drop, router will drop all the

connecting requests except the hosts which fit this accept filtering list

 Drop: When Default Filtering Policy is accept, router will accept all the

connecting requests except the hosts which fit this drop filtering list

Drop

Port Mapping

Click to add port mapping rules. The maximum rule count is 40.

Port Mapping Rules

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Description

Enter a description for this port mapping.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 52/109 Confidential

Port Mapping Rules

Item

Description

Default

Remote IP

Specify the host or network which can access the local IP address. Empty means unlimited, e.g. 10.10.10.10/255.255.255.255 or 192.168.1.0/24

Null

Internet Port

Enter the internet port of router which can be accessed by other hosts from internet.

Null Local IP

Enter router’s LAN IP which will forward to the internet port of router.

Null

Local Port

Enter the port of router’s LAN IP.

Null

Protocol

Select from “TCP”, “UDP” or “TCP-UDP” as your application required.

TCP-UDP

DMZ

DMZ host is a host on the internal network that has all ports exposed, except those ports otherwise forwarded.

DMZ Settings

Item

Description

Default

Enable DMZ

Click the toggle button to enable/disable DMZ.

OFF

Host IP Address

Enter the IP address of the DMZ host on your internal network.

Null

Source IP Address

Set the address which can talk to the DMZ host. Null means for any addresses.

Null

3.14 Network > IP Passthrough

Click Network > IP Passthrough > IP Passthrough to enable or disable the IP Pass-through option.

If router enables the IP Pass-through, the terminal device (such as PC) will enable the DHCP Client mode and connect to LAN port of the router; and after the router dial up successfully, the PC will automatically obtain the IP address and DNS server address which assigned by ISP.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 53/109 Confidential

3.15 VPN > IPsec

This section allows you to set the IPsec and the related parameters. Internet Protocol Security (IPsec) is a protocol suite for secure Internet Protocol (IP) communications that works by authenticating and encrypting each IP packet of a communication session.

General

General Settings @ General

Item

Description

Default

Enable NAT Traversal

Click the toggle button to enable/disable the NAT Traversal function. This option must be enabled when router under NAT environment.

ON

Keepalive

Set the keepalive time, measured in seconds. The router will send packets to NAT server every keepalive time to avoid record remove from the NAT list.

60 Debug Enable

Click the toggle button to enable/disable this option. Enable for IPsec VPN information output to the debug port.

OFF

Tunnel

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 54/109 Confidential

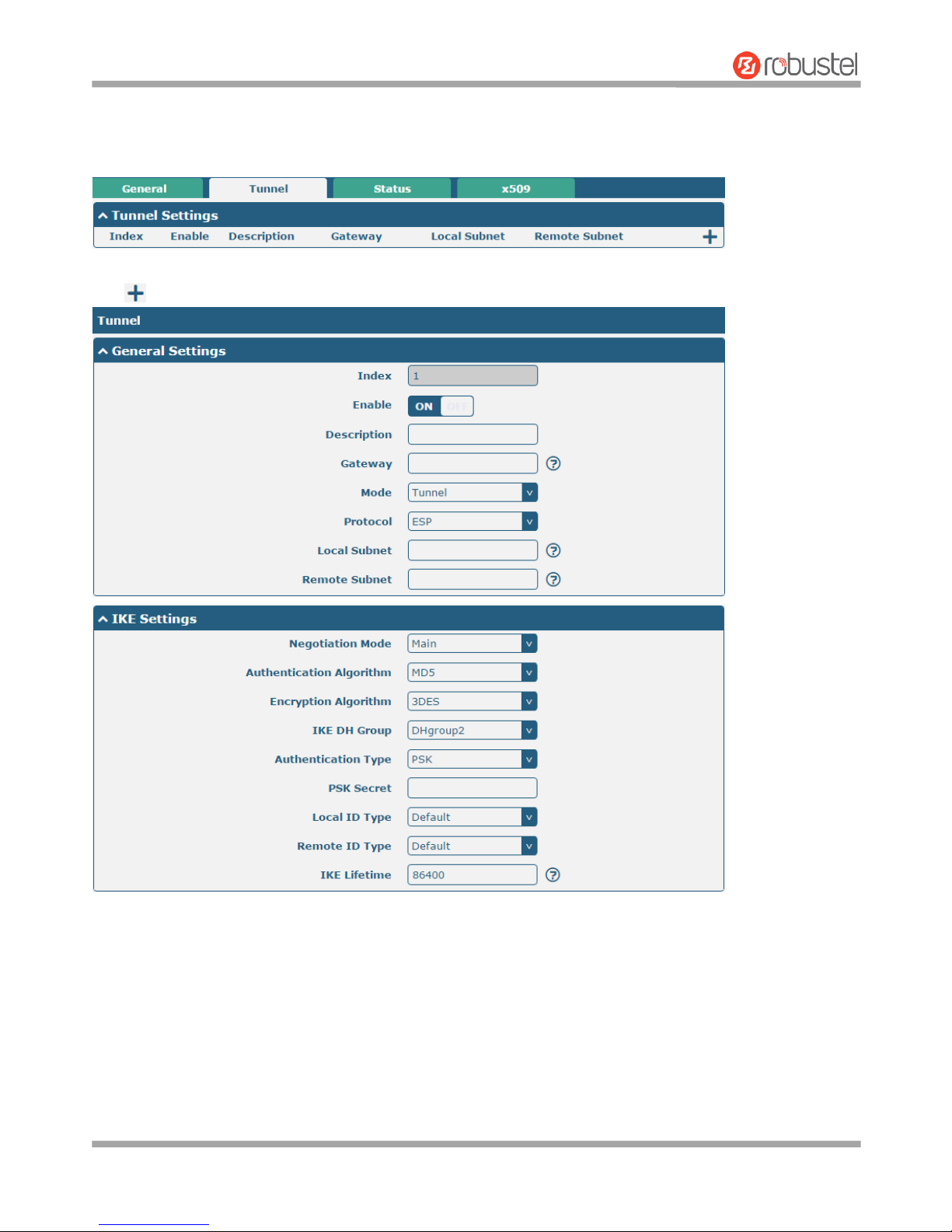

Click to add tunnel settings. The maximum count is 3.

General Settings @ Tunnel

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Enable

Click the toggle button to enable/disable this IPsec tunnel.

ON

Description

Enter a description for this IPsec tunnel.

Null

Gateway

Enter the address of remote IPsec VPN server. 0.0.0.0 represents for any address.

Null

Mode

Select from “Tunnel” and “Transport”.

 Tunnel: Commonly used between gateways, or at an end-station to a gateway,

the gateway acting as a proxy for the hosts behind it

 Transport: Used between end-stations or between an end-station and a

gateway, if the gateway is being treated as a host-for example, an encrypted Telnet session from a workstation to a router, in which the router is the actual destination

Tunnel

Protocol

Select the security protocols from “ESP” and “AH”.

 ESP: Use the ESP protocol  AH: Use the AH protocol

ESP

Local Subnet

Enter the local subnet’s address with mask protected by IPsec, e.g. 192.168.1.0/24

Null

Remote Subnet

Enter the remote subnet’s address with mask protected by IPsec, e.g. 10.8.0.0/24

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 55/109 Confidential

The window is displayed as below when choosing “PSK” as the authentication type.

The window is displayed as below when choosing “CA” as the authentication type.

The window is displayed as below when choosing “xAuth PSK” as the authentication type.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 56/109 Confidential

The window is displayed as below when choosing “xAuth CA” as the authentication type.

IKE Settings

Item

Description

Default

Negotiation Mode

Select from “Main” and “Aggressive” for the IKE negotiation mode in phase 1.

If the IP address of one end of an IPsec tunnel is obtained dynamically, the IKE negotiation mode must be aggressive. In this case, SAs can be established as long as the username and password are correct.

Main

Authentication Algorithm

Select from “MD5”, “SHA1”, “SHA2 256” or “SHA2 512” to be used in IKE negotiation.

MD5

Encrypt Algorithm

Select from “3DES”, “AES128” and “AES256”to be used in IKE negotiation.

 3DES: Use 168-bit 3DES encryption algorithm in CBC mode  AES128: Use 128-bit AES encryption algorithm in CBC mode  AES256: Use 256-bit AES encryption algorithm in CBC mode

3DES IKE DH Group

Select from “DHgroup2”, “DHgroup5”, “DHgroup14”, “DHgroup15”, “DHgroup16”, “DHgroup17” or “DHgroup18” to be used in key negotiation

phase 1.

DHgroup2

Authentication Type

Select from “PSK”, “CA”, “xAuth PSK” and “xAuth CA” to be used in IKE

negotiation.

 PSK: Pre-shared Key  CA: x509 Certificate Authority  xAuth: Extended Authentication to AAA server

PSK

PSK Secret

Enter the pre-shared key.

Null

Local ID Type

Select from “Default”, “FQDN” and “User FQDN” for IKE negotiation.

 Default: Use an IP address as the ID in IKE negotiation  FQDN: Use an FQDN type as the ID in IKE negotiation. If this option is

selected, type a name without any at sign (@) for the local security gateway, e.g., test.robustel.com.

 User FQDN: Use a user FQDN type as the ID in IKE negotiation. If this

option is selected, type a name string with a sign “@” for the local security gateway, e.g., test@robustel.com.

Default

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 57/109 Confidential

IKE Settings

Item

Description

Default

Remote ID Type

Select from “Default”, “FQDN” and “User FQDN” for IKE negotiation.

 Default: Use an IP address as the ID in IKE negotiation  FQDN: Use an FQDN type as the ID in IKE negotiation. If this option is

selected, type a name without any at sign (@) for the local security gateway, e.g., test.robustel.com.

 User FQDN: Use a user FQDN type as the ID in IKE negotiation. If this

option is selected, type a name string with a sign “@” for the local security gateway, e.g., test@robustel.com.

Default

IKE Lifetime

Set the lifetime in IKE negotiation. Before an SA expires, IKE negotiates a new SA. As soon as the new SA is set up, it takes effect immediately and the old one will be cleared automatically when it expires.

86400

Private Key Password

Enter the private key under the “CA” and “xAuth CA” authentication types.

Null

Username

Enter the username used for the “xAuth PSK” and “xAuth CA” authentication types.

Null

Password

Enter the password used for the “xAuth PSK” and “xAuth CA” authentication types.

Null

If click VPN > IPsec > Tunnel > General Settings, and choose ESP as protocol. The specific parameter configuration is shown as below.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 58/109 Confidential

If choose AH as protocol, the window of SA Settings is displayed as below.

SA Settings

Item

Description

Default

Encrypt Algorithm

Select from “3DES”, “AES128” or “AES256” when you select “ESP” in “Protocol”. Higher security means more complex implementation and lower

speed. DES is enough to meet general requirements. Use 3DES when high confidentiality and security are required.

3DES

Authentication Algorithm

Select from “MD5”, “SHA1”, “SHA2 256” or “SHA2 512” to be used in SA negotiation.

MD5

PFS Group

Select from “DHgroup2”, “DHgroup5”, “DHgroup14”, “DHgroup15”, “DHgroup16”, “DHgroup17” or “DHgroup18” to be used in SA negotiation.

DHgroup 2

SA Lifetime

Set the IPsec SA lifetime. When negotiating set up IPsec SAs, IKE uses the smaller one between the lifetime set locally and the lifetime proposed by the peer.

28800

DPD Interval

Set the interval after which DPD is triggered if no IPsec protected packets is received from the peer. DPD is Dead peer detection. DPD irregularly detects dead IKE peers. When the local end sends an IPsec packet, DPD checks the time the last IPsec packet was received from the peer. If the time exceeds the DPD interval, it sends a DPD hello to the peer. If the local end receives no DPD

60

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 59/109 Confidential

SA Settings

Item

Description

Default

acknowledgment within the DPD packet retransmission interval, it retransmits the DPD hello. If the local end still receives no DPD acknowledgment after having made the maximum number of retransmission attempts, it considers the peer already dead, and clears the IKE SA and the IPsec SAs based on the IKE SA.

DPD Failures

Set the timeout of DPD (Dead Peer Detection) packets.

180

Advanced Settings

Enable Compression

Click the toggle button to enable/disable this option. Enable to compress the inner headers of IP packets.

OFF

Expert Options

Add more PPP configuration options here, format: config-desc;config-desc, e.g. protostack=netkey;plutodebug=none

Null

Status

This section allows you to view the status of the IPsec tunnel.

x509

User can upload the X509 certificates for the IPsec tunnel in this section.

x509

Item

Description

Default

X509 Settings

Tunnel Name

Choose a valid tunnel.

Tunnel 1

Certificate Files

Click on “Choose File” to locate the certificate file from your computer, and then import this file into your router. The correct file format is displayed as follows: @ca.crt @remote.crt @local.crt @private.key @crl.pem

Null

Certificate Files

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 60/109 Confidential

x509

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Filename

Show the imported certificate’s name.

Null

File Size

Show the size of the certificate file.

Null

Last Modification

Show the timestamp of that the last time to modify the certificate file.

Null

3.16 VPN > OpenVPN

This section allows you to set the OpenVPN and the related parameters. OpenVPN is an open-source software application that implements virtual private network (VPN) techniques for creating secure point-to-point or

site-to-site connections in routed or bridged configurations and remote access facilities. Router supports

point-to-point and point-to-points connections.

OpenVPN

Click to add tunnel settings. The maximum count is 3. The window is displayed as below when choosing “None” as the authentication type. By default, the mode is “Client”.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 61/109 Confidential

The window is displayed as below when choosing “Preshared” as the authentication type.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 62/109 Confidential

The window is displayed as below when choosing “Password” as the authentication type.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 63/109 Confidential

The window is displayed as below when choosing “X509CA” as the authentication type.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 64/109 Confidential

The window is displayed as below when choosing “X509CA Password” as the authentication type.

General Settings @ OpenVPN

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Enable

Click the toggle button to enable/disable this OpenVPN tunnel.

ON

Description

Enter a description for this OpenVPN tunnel.

Null

Mode

Select from “P2P” or “Client”.

Client

Protocol

Select from “UDP”, “TCP-Client” or “TCP-Server”.

UDP

Server Address

Enter the end-to-end IP address or the domain of the remote OpenVPN server.

Null

Server Port

Enter the end-to-end listener port or the listening port of the OpenVPN server.

1194

Interface Type

Select from “TUN” or “TAP” which are two different kinds of device interface for OpenVPN. The difference between TUN and TAP device is that a TUN device is a point-to-point virtual device on network while a TAP device is a virtual device on Ethernet.

TUN

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 65/109 Confidential

General Settings @ OpenVPN

Item

Description

Default

Authentication Type

Select from “None”, “Preshared”, “Password”, “X509CA” and “X509CA Password”. “None” and “Preshared” authentication type are only

working with p2p mode.

None Username

Enter the username used for “Password” or “X509CA Password” authentication type.

Null

Password

Enter the password used for “Password” or “X509CA Password” authentication type.

Null Local IP

Enter the local virtual IP.

10.8.0.1

Remote IP

Enter the remote virtual IP.

10.8.0.2

Encrypt Algorithm

Select from “BF”, “DES”, “DES-EDE3”, “AES128”, “AES192” and “AES256”.

 BF: Use 128-bit BF encryption algorithm in CBC mode  DES: Use 64-bit DES encryption algorithm in CBC mode  DES-EDE3: Use 192-bit 3DES encryption algorithm in CBC mode  AES128: Use 128-bit AES encryption algorithm in CBC mode  AES192: Use 192-bit AES encryption algorithm in CBC mode  AES256: Use 256-bit AES encryption algorithm in CBC mode

BF

Renegotiation Interval

Set the renegotiation interval. If connection failed, OpenVPN will renegotiate when the renegotiation interval reached.

86400 Keepalive Interval

Set keepalive (ping) interval to check if the tunnel is active.

20

Keepalive Timeout

Set the keepalive timeout. Trigger OpenVPN restart after n seconds pass without reception of a ping or other packet from remote.

120

Private Key Password

Enter the private key password under the “X509CA” and “X509CA Password” authentication type.

Null

Enable Compression

Click the toggle button to enable/disable this option. Enable to compress the data stream of the header.

ON

Enable NAT

Click the toggle button to enable/disable the NAT option. When enabled, the source IP address of host behind router will be disguised before accessing the remote OpenVPN client.

OFF

Verbose Level

Select the level of the output log and values from 0 to 11.

 0: No output except fatal errors  1~4: Normal usage range  5: Output R and W characters to the console for each packet read

and write

 6~11: Debug info range

0

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 66/109 Confidential

Advanced Settings @ OpenVPN

Item

Description

Default

Enable HMAC Firewall

Click the toggle button to enable/disable this option. Add an additional layer of HMAC authentication on top of the TLS control channel to protect against DoS attacks.

OFF

Enable PKCS#12

Click the toggle button to enable/disable the PKCS#12 certificate. It is an exchange of digital certificate encryption standard, used to describe personal identity information.

OFF Enable nsCertType

Click the toggle button to enable/disable nsCertType. Require that peer certificate was signed with an explicit nsCertType designation of "server".

OFF

Expert Options

Enter some other options of OpenVPN in this field. Each expression can be separated by a ‘;’.

Null

Status

This section allows you to view the status of the OpenVPN tunnel.

x509

User can upload the X509 certificates for the OpenVPN in this section.

x509

Item

Description

Default

X509 Settings

Tunnel Name

Choose a valid tunnel.

Tunnel 1

Certificate Files

Click on “Choose File” to locate the certificate file from your computer, and then import this file into your router. The correct file format is displayed as follows: @ca.crt @remote.crt @local.crt @private.key

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 67/109 Confidential

@crl.pem @client.p12

Certificate Files

Index

Indicate the ordinal of the list.

--

Filename

Show the imported certificate’s name.

Null

File Size

Show the size of the certificate file.

Null

Last Modification

Show the timestamp of that the last time to modify the certificate file.

Null

3.17 VPN > GRE

This section allows you to set the GRE and the related parameters. Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a wide variety of network layer protocols inside virtual point-to-point links over an Internet Protocol network.

GRE

Click to add tunnel settings. The maximum count is 3.

Tunnel Settings @ GRE

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Enable

Click the toggle button to enable/disable this GRE tunnel.

ON

Description

Enter a description for this GRE tunnel.

Null

Remote IP Address

Set the remote real IP address of the GRE tunnel.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 68/109 Confidential

Local Virtual IP Address

Set the local virtual IP address of the GRE tunnel.

Null

Local Virtual Netmask

Set the local virtual Netmask of the GRE tunnel.

Null

Remote Virtual IP Address

Set the remote virtual IP Address of the GRE tunnel.

Null

Enable Default Route

Click the toggle button to enable/disable this option. When enabled, all the traffics of the router will go through the GRE VPN.

OFF

Enable NAT

Click the toggle button to enable/disable this option. This option must be enabled when router under NAT environment.

Disable Secrets

Set the key of the GRE tunnel.

Null

Status

This section allows you to view the status of GRE tunnel.

3.18 Services > Syslog

This section allows you to set the syslog parameters. The system log of the router can be saved in the local, also supports to be sent to remote log server and specified application debugging. By default, the “Log to Remote” option is disabled.

The window is displayed as below when enabling the “Log to Remote” option.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 69/109 Confidential

Syslog Settings

Item

Description

Default

Enable

Click the toggle button to enable/disable the Syslog settings option.

OFF

Syslog Level

Select from “Debug”, “Info”, “Notice”, “Warning” or “Error”, which from low to high. The lower level will output more syslog in details.

Notice

Save Position

Select the save position from “RAM”, “NVM” or “Console”. Choose “RAM”. The data will be cleared after reboot. Note: It's not recommended that you save syslog to NVM (Non-Volatile Memory) for a long time.

RAM Log to Remote

Click the toggle button to enable/disable this option. Enable to allow router sending syslog to the remote syslog server. You need to enter the IP and Port of the syslog server.

OFF Add Identifier

Click the toggle button to enable/disable this option. When enabled, you can add serial number to syslog message which used for loading Syslog to RobustLink.

OFF Remote IP Address

Enter the IP address of syslog server when enabling the “Log to Remote” option.

Null

Remote Port

Enter the port of syslog server when enabling the “Log to Remote” option.

514

3.19 Services > Event

This section allows you to set the event parameters. Event feature provides an ability to send alerts by SMS or Email when certain system events occur.

General Settings @ Event

Item

Description

Default

Signal Quality Threshold

Set the threshold for signal quality. Router will generate a log event when the actual threshold is less than the specified threshold. 0 means disable this option.

0

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 70/109 Confidential

Click button to add an Event parameters.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 71/109 Confidential

General Settings @ Notification

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Description

Enter a description for this group.

Null

Sent SMS

Click the toggle button to enable/disable this option. When enabled, the router will send notification to the specified phone numbers via SMS if event occurs. Set the related phone number in “3.24 Services > Email”, and use ‘;’to separate each number.

OFF

Phone Number

Enter the phone numbers used for receiving event notification. Use a semicolon (;) to separate each number.

Null

Send Email

Click the toggle button to enable/disable this option. When enabled, the router will send notification to the specified email box via Email if event occurs. Set the related email address in “3.24 Services > Email”.

OFF Email Address

Enter the email addresses used for receiving event notification. Use a space to separate each address.

Null

Save to NVM

Click the toggle button to enable/disable this option. Enable to save event to nonvolatile memory.

OFF

In the following window you can query various types of events record. Click to query filtered events while

click to clear the event records in the window.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 72/109 Confidential

Event Details

Item

Description

Default

Save Position

Select the events’ save position from “RAM” or “NVM”.

 RAM: Random-access memory  NVM: Non-Volatile Memory

RAM

Filter Message

Enter the filtering message based on the keywords set by users. Click the “Refresh” button, the filtered event will be displayed in the follow box. Use “&” to separate more than one filter message, such as message1&message2.

Null

3.20 Services > NTP

This section allows you to set the related NTP (Network Time Protocol) parameters, including Time zone, NTP Client and NTP Server.

NTP

Item

Description

Default

Timezone Settings

Time Zone

Click the drop down list to select the time zone you are in.

UTC +08:00

Expert Setting

Specify the time zone with Daylight Saving Time in TZ environment variable format. The Time Zone option will be ignored in this case.

Null

NTP Client Settings

Enable

Click the toggle button to enable/disable this option. Enable to synchronize time with the NTP server.

ON Primary NTP Server

Enter primary NTP Server’s IP address or domain name.

pool.ntp.org

Secondary NTP Server

Enter secondary NTP Server’s IP address or domain name.

Null

NTP Update interval

Enter the interval (minutes) synchronizing the NTP client time with the NTP server’s. Minutes wait for next update, and 0 means update only once.

0

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 73/109 Confidential

NTP Server Settings

Enable

Click the toggle button to enable/disable the NTP server option.

OFF

This window allows you to view the current time of router and also synchronize the router time. Click button

to synchronize the router time with the PC’s.

3.21 Services > SMS

This section allows you to set SMS parameters. Router supports SMS management, and user can control and configure their routers by sending SMS. For more details about SMS control, refer to 4.1.2 SMS Remote Control.

SMS Management Settings

Item

Description

Default

Enable

Click the toggle button to enable/disable the SMS Management option. Note: If this option is disabled, the SMS configuration is invalid.

ON

Authentication Type

Select Authentication Type from “Password”, “Phonenum” or “Both”.

 Password: Use the same username and password as WEB manager for

authentication. For example, the format of the SMS should be “username: password; cmd1; cmd2; …” Note: Set the WEB manager password in System > User Management section.

 Phonenum: Use the Phone number for authentication, and user should

set the Phone Number that is allowed for SMS management. The format of the SMS should be “cmd1; cmd2; …”

 Both: Use both the “Password” and “Phonenum” for authentication. User

should set the Phone Number that is allowed for SMS management. The format of the SMS should be “username: password; cmd1; cmd2; …”

Password

Phone Number

Set the phone number used for SMS management, and use ‘; ‘to separate each number.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 74/109 Confidential

User can test the current SMS service whether it is available in this section.

SMS Testing

Item

Description

Default

Phone Number

Enter the specified phone number which can receive the SMS from router.

Null

Message

Enter the message that router will send it to the specified phone number.

Null

Result

The result of the SMS test will be displayed in the result box.

Null

Click the button to send the test message.

--

3.22 Services > Email

Email function supports to send the event notifications to the specified recipient by ways of email.

Email Settings

Item

Description

Default

Enable

Click the toggle button to enable/disable the Email option.

OFF

Enable TLS/SSL

Click the toggle button to enable/disable the TLS/SSL option.

OFF

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 75/109 Confidential

Email Settings

Item

Description

Default

Outgoing server

Enter the SMTP server IP Address or domain name.

Null

Server port

Enter the SMTP server port.

25

Timeout

Set the max time for sending email to SMTP server. When the server doesn’t receive the email over this time, it will try to resend.

10 Username

Enter the username which has been registered from SMTP server.

Null

Password

Enter the password of the username above.

Null

From

Enter the source address of the email.

Null

Subject

Enter the subject of this email.

Null

3.23 Services > DDNS

This section allows you to set the DDNS parameters. The Dynamic DNS function allows you to alias a dynamic IP address to a static domain name, allows you whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time. This dynamic IP address is the WAN IP address of the router, which is assigned to you by your ISP. The service provider defaults to “DynDNS”, as shown below.

When “Custom” service provider chosen, the window is displayed as below.

DDNS Settings

Item

Description

Default

Enable

Click the toggle button to enable/disable the DDNS option.

OFF

Service Provider

Select the DDNS service from “DynDNS”, “NO-IP” or “3322”. Note: the DDNS service only can be used after registered by Corresponding service provider.

DynDNS

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 76/109 Confidential

Hostname

Enter the hostname provided by the DDNS server.

Null

Username

Enter the username provided by the DDNS server.

Null

Password

Enter the password provided by the DDNS server.

Null

URL

Enter the URL customized by user.

Null

Click “Status” bar to view the status of the DDNS.

DDNS Status

Item

Description

Status

Display the current status of the DDNS.

Last Update Time

Display the date and time for the DDNS was last updated successfully.

3.24 Services > SSH

Router supports SSH password access and secret-key access.

SSH Settings

Item

Description

Default

Enable

Click the toggle button to enable/disable this option. When enabled, you can access the router via SSH.

OFF Port

Set the port of the SSH access.

22

Disable Password Logins

Click the toggle button to enable/disable this option. When enabled, you cannot use username and password to access the router via SSH. In this case, only the key can be used for login.

OFF

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 77/109 Confidential

Import Authorized Keys

Item

Description

Authorized Keys

Click on “Choose File” to locate an authorized key from your computer, and then click “Import” to import this key into your router.

Note: This option is valid when enabling the password logins option.

3.25 Services > Web Server

This section allows you to modify the parameters of Web Server.

General Settings @ Web Server

Item

Description

Default

HTTP Port

Enter the HTTP port number you want to change in router’s Web Server. On a Web server, port 80 is the port that the server "listens to" or expects to receive from a Web client. If you configure the router with other HTTP Port number except 80, only adding that port number then you can login router’s Web Server.

80

HTTPS Port

Enter the HTTPS port number you want to change in router’s Web Server. On a Web server, port 443 is the port that the server "listens to" or expects to receive from a Web client. If you configure the router with other HTTPS Port number except 443, only adding that port number then you can login router’s Web Server. Note: HTTPS is more secure than HTTP. In many cases, clients may be exchanging confidential information with a server, which needs to be secured in order to prevent unauthorized access. For this reason, HTTP was developed by Netscape corporation to allow authorization and secured transactions.

443

This section allows you to import the certificate file into the route.

Import Certificate

Item

Description

Default

Import Type

Select from “CA” and “Private Key”.

CA

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 78/109 Confidential

Import Certificate

Item

Description

Default

 CA: a digital certificate issued by CA center  Private Key: a private key file

HTTPS Certificate

Click on “Choose File” to locate the certificate file from your computer, and then click “Import” to import this file into your router.

--

3.26 Services > Advanced

This section allows you to set the Advanced and parameters.

System Settings

Item

Description

Default

Device Name

Set the device name to distinguish different devices you have installed; valid characters are a-z, A-Z, 0-9, @, ., -, #, $, and *.

router

User LED Type

Specify the display type of your USR LED. Select from “None”, “SIM”, “NET”, “OpenVPN” or “IPsec”.

 None: Meaningless indication, and the LED is off  SIM: USR indicator showing the SIM card status  NET: USR indicator showing the NET status  OpenVPN: USR indicator showing the OpenVPN status  IPsec: USR indicator showing the IPsec status

Note: For more details about USR indicator, see “2.1 LED Indicators”.

None

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 79/109 Confidential

Periodic Reboot Settings

Item

Description

Default

Periodic Reboot

Set the reboot period of the router. 0 means disable.

0

Daily Reboot Time

Set the daily reboot time of the router. You should follow the format as HH: MM, in 24h time frame, otherwise the data will be invalid. Leave it empty means disable.

Null

3.27 System > Debug

This section allows you to check and download the syslog details.

Syslog

Item

Description

Default

Syslog Details

Log Level

Select from “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to high.

Debug

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 80/109 Confidential

The lower level will output more syslog in detail.

Filtering

Enter the filtering message based on the keywords. Use “&” to separate more than one filter message, such as “keyword1&keyword2”.

Null

Refresh

Select from “Manual Refresh”, “5 Seconds”, “10 Seconds”, “20 Seconds” or “30 Seconds”. You can select these intervals to refresh the log information displayed

in the follow box. If selecting “manual refresh”, you should click the refresh button to refresh the syslog.

Manual Refresh

Click the button to clear the syslog.

--

Click the button to refresh the syslog.

--

Syslog Files

Syslog Files List

It can show at most 5 syslog files in the list, the files’ name range from message0 to message 4. And the newest syslog file will be placed on the top of the list.

--

System Diagnosing Data

Click to generate the syslog diagnosing file.

-- Click to download system diagnosing file.

--

3.28 System > Update

This section allows you to upgrade the firmware of your router. Click System > Update > System Update, and click on

“Choose File” to locate the firmware file to be used for the upgrade. Once the latest firmware has been chosen, click “Update” to start the upgrade process. The upgrade process may take several minutes. Do not turn off your Router

during the firmware upgrade process.

Note: To access the latest firmware file, please contact your technical support engineer.

System Update

Item

Description

Default

System Update

Click button to select the correct firmware in your PC, and then click

button to update. After updating successfully, you need to click “save

and apply”, and then reboot the router to take effect.

Null

3.29 System > APP Center

This section allows you to add some required or customized applications to the router. Import and install your applications to the APP Center, and reboot the device according to the system prompts. Each installed application will be displayed under the “Services” menu, while other applications related to VPN will be displayed under the “VPN” menu.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 81/109 Confidential

Note: After importing the applications to the router, the page display may have a slight delay due to the browser cache. It is recommended that you clear the browser cache first and log in the router again.

App Center

Item

Description

Default

App Install

File

Click on “Choose File” to locate the App file from your computer, and then click

to import this file into your router.

Note: File format should be xxx.rpk, e.g. R3000 Lite-robustlink-1.0.0.rpk.

--

Installed Apps

Index

Indicate the ordinal of the list.

--

Name

Show the name of the App.

Null

Version

Show the version of the App.

Null

Status

Show the status of the App.

Null

Description

Show the description for this App.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 82/109 Confidential

3.30 System > Tools

This section provides users three tools: Ping, Traceroute and Sniffer.

Ping

Item

Description

Default

IP address

Enter the ping’s destination IP address or destination domain.

Null

Number of Requests

Specify the number of ping requests.

5

Timeout

Specify the timeout of ping requests.

1

Local IP

Specify the local IP from cellular WAN, Ethernet WAN or Ethernet LAN. Null stands for selecting local IP address from these three automatically.

Null Click this button to start ping request, and the log will be displayed in the follow box.

Null Click this button to stop ping request.

--

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 83/109 Confidential

Traceroute

Item

Description

Default

Trace Address

Enter the trace’s destination IP address or destination domain.

Null

Trace Hops

Specify the max trace hops. Router will stop tracing if the trace hops has met max value no matter the destination has been reached or not.

30 Trace Timeout

Specify the timeout of Traceroute request.

1

Click this button to start Traceroute request, and the log will be displayed in the follow box.

-Click this button to stop Traceroute request.

--

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 84/109 Confidential

Sniffer

Item

Description

Default

Interface

Choose the interface according to your Ethernet configuration.

All

Host

Filter the packet that contain the specify IP address.

Null

Packets Request

Set the packet number that the router can sniffer at a time.

1000

Protocol

Select from “All”, “IP”, “TCP”, “UDP” and “ARP”.

All

Port

Set the port number for TCP or UDP that is used in sniffer.

Null

Status

Show the current status of sniffer.

Null

Click this button to start the sniffer.

--

Click this button to stop the sniffer. Once you click this button, a new log file will be displayed in the following List.

--

Capture Files

Every times of sniffer log will be saved automatically as a new file. You can find the file from this Sniffer Traffic Data List and click to download the log, click

to delete the log file. It can cache a maximum of 5 files.

Null

3.31 System > Profile

This section allows you to import or export the configuration file, and restore the router to factory default setting.

Profile

Item

Description

Default

Import Configuration File

Reset Other Settings to Default

Click the toggle button as “ON” to return other parameters to default settings.

OFF

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 85/109 Confidential

Ignore Invalid Settings

Click the toggle button as “OFF” to ignore invalid settings.

OFF

XML Configuration File

Click on to locate the XML configuration file from your computer, and then click to import this file into your router.

-Export Configuration File

Ignore Disabled Features

Click the toggle button as “OFF” to ignore the disabled features.

OFF

Add Detailed Information

Click the toggle button as “On” to add detailed information.

OFF

Encrypt Secret Data

Click the toggle button as “ON” to encrypt the secret data.

OFF

XML Configuration File

Click button to generate the XML configuration file, and click

to export the XML configuration file.

--

Default Configuration

Save Running Configuration as Default

Click this button to save the current running parameters as default configuration.

--

Restore to Default Configuration

Click this button to restore the factory defaults.

--

Rollback

Item

Description

Default

Configuration Rollback

Save as a Rollbackable Archive

Create a save point manually. Additionally, the system will create a save point every day automatically if configuration changes.

--

Configuration Archive Files

View the related information about configuration archive files, including name, size and modification time.

--

3.32 System > User Management

This section allows you to change your username and password, and create or manage user accounts. One router has only one super user who has the highest authority to modify, add and manage other common users. Note: Your new password must be more than 5 character and less than 32 characters and may contain numbers, upper and lowercase letters, and standard symbols.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 86/109 Confidential

Super User Settings

Item

Description

Default

Old Username

Enter the old username of your router. The default is “admin”.

Null

New Username

Enter a new username you want to create; valid characters are a-z, A-Z, 0-9, @, ., -, #, $, and *.

Null Old Password

Enter the old password of your router. The default is “admin”.

Null

New Password

Enter a new password you want to create; valid characters are a-z, A-Z, 0-9, @, ., -, #, $, and *.

Null Confirm Password

Enter the new password again to confirm.

Null

Click button to add a new common user. The maximum rule count is 5.

Common User Settings

Item

Description

Default

Index

Indicate the ordinal of the list.

--

Role

Select from “Visitor” and “Editor”.

 Visitor: Users only can view the configuration of router under this level  Editor: Users can view and set the configuration of router under this level

Visitor

Username

Set the Username; valid characters are a-z, A-Z, 0-9, @, ., -, #, $, and *.

Null

Password

Set the password which at least contains 5 characters; valid characters are a-z, A-Z, 0-9, @, ., -, #, $, and *.

Null

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 87/109 Confidential

Chapter 4 Configuration Examples

4.1 Cellular

4.1.1 Cellular Dial-Up

This section shows you how to configure the primary and backup SIM card for Cellular Dial-up. Connect the router correctly and insert two SIM, then open the configuration page. Under the homepage menu, click Interface > Link Manager > Link Manager > General Settings, choose “WWAN1” as the primary link, “WWAN2” as the backup link and “Cold Backup” as the backup mode.

Click the edit button of WWAN1 to set its parameters according to the current ISP.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 88/109 Confidential

When finished, click Submit > Save & Apply for the configuration to take effect.

The window is displayed below by clicking Interface > Cellular > Advanced Cellular Settings.

Click the edit button of SIM1 to set its parameters according to your application request.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 89/109 Confidential

When finished, click Submit > Save & Apply for the configuration to take effect.

4.1.2 SMS Remote Control

R3000 Lite supports remote control via SMS. You can use following commands to get the status of the router, and set all the parameters of the router. There are three authentication types for SMS control. You can select from “Password”, “Phonenum” or “Both”.

An SMS command has the following structure:

1. Password mode—Username: Password;cmd1;cmd2;cmd3; …cmdn (available for every phone number).

2. Phonenum mode--cmd1; cmd2; cmd3; … cmdn (available when the SMS was sent from the phone number

which had been added in router’s phone group).

3. Both mode-- Username: Password;cmd1;cmd2;cmd3; …cmdn (available when the SMS was sent from the phone

number which had been added in router’s phone group).

SMS command Explanation:

1. User name and Password: Use the same username and password as WEB manager for authentication.

2. cmd1, cmd2, cmd3 to Cmdn, the command format is the same as the CLI command, more details about CLI cmd

please refer to Chapter 5 Introductions for CLI.

Note: Download the configure XML file from the configured web browser. The format of SMS control command

can refer to the data of the XML file.

Go to System > Profile > Export Configuration File, click

to generate the XML file and click

to export the XML file.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 90/109 Confidential

XML command:

<lan >

SMS cmd: set lan network 1 interface lan0 set lan network 1 ip 172.16.7.29 set lan network 1 netmask 255.255.0.0 set lan network 1 mtu 1500

3. The semicolon character (‘;’) is used to separate more than one commands packed in a single SMS.

4. E.g.

admin:admin;status system

In this command, username is “admin”, password is “admin”, and the function of the command is to get the system status.

SMS received:

hardware_version = 1.3 firmware_version = "3.0.0" kernel_version = 4.1.0 device_model = R3000 Lite

serial_number = 14251212121111 uptime = "1 day, 04:52:34" system_time = "Fri May 12 15:44:07 2017"

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 91/109 Confidential

admin:admin;reboot

In this command, username is “admin”, password is “admin”, and the command is to reboot the Router.

SMS received:

OK

admin:admin;set firewall remote_ssh_access false;set firewall remote_telnet_access false

In this command, username is “admin”, password is “admin”, and the command is to disable the remote_ssh

and remote_telnet access.

SMS received:

OK

admin:admin; set lan network 1 interface lan0;set lan network 1 ip 172.16.99.11;set lan network 1 netmask

255.255.0.0;set lan network 1 mtu 1500

In this command, username is “admin”, password is “admin”, and the commands is to configure the LAN

parameter.

SMS received:

OK

4.2 Network

4.2.1 IPsec VPN

The configuration of server and client is as follows.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 92/109 Confidential

IPsec VPN_Server:

Cisco 2811:

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 93/109 Confidential

IPsec VPN_Client:

The window is displayed as below by clicking VPN > IPsec > Tunnel.

Click button and set the parameters of IPsec Client as below.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 94/109 Confidential

When finished, click Submit > Save & Apply for the configuration to take effect.

The comparison between server and client is as below.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 95/109 Confidential

4.2.2 OpenVPN

OpenVPN supports two modes, including Client and P2P. Here takes Client as an example.

OpenVPN_Server:

Generate relevant OpenVPN certificate on the server side firstly, and refer to the following commands to configuration the Server: local 202.96.1.100 mode server port 1194 proto udp dev tun tun-mtu 1500 fragment 1500 ca ca.crt cert Server01.crt key Server01.key dh dh1024.pem server 10.8.0.0 255.255.255.0 ifconfig-pool-persist ipp.txt push "route 192.168.3.0 255.255.255.0" client-config-dir ccd route 192.168.1.0 255.255.255.0 keepalive 10 120 cipher BF-CBC comp-lzo max-clients 100 persist-key persist-tun status openvpn-status.log

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 96/109 Confidential

verb 3

Note: For more configuration details, please contact your technical support engineer.

OpenVPN_Client:

Click VPN > OpenVPN > OpenVPN as below.

Click to configure the Client01 as below.

When finished, click Submit > Save & Apply for the configuration to take effect.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 97/109 Confidential

4.2.3 GRE VPN

The configuration of two points is as follows.

The window is displayed as below by clicking VPN > GRE > GRE.

GRE-1：

Click button and set the parameters of GRE-1 as below.

When finished, click Submit > Save & Apply for the configuration to take effect.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 98/109 Confidential

GRE-2:

Click button and set the parameters of GRE-1 as below.

When finished, click Submit > Save & Apply for the configuration to take effect.

The comparison between GRE-1 and GRE-2 is as below.

Robustel R3000 Lite User Guide

RT_UG_R3000 Lite_v.3.0.1 19 May, 2017 99/109 Confidential

Chapter 5 Introductions for CLI

5.1 What Is CLI

Command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection.

Route login:

Router login: admin

Password: admin

#

CLI commands:

# ? (Note: the ‘?’ won’t display on the page.)

! Comments

add Add a list entry of configuration

clear Clear statistics

config Configuration operation

debug Output debug information to the console

del Delete a list entry of configuration

exit Exit from the CLI

help Display an overview of the CLI syntax

ping Send messages to network hosts

reboot Halt and perform a cold restart

route Static route modify dynamically, this setting will not be saved

set Set system configuration

show Show system configuration

status Show running system information

tftpupdate Update firmware using tftp

traceroute Print the route packets trace to network host

urlupdate Update firmware using http or ftp

ver Show version of firmware

Robustel R3000 Lite User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
