gateway
User Guide
M1200
Smart Industrial IoT Gateway
2 SIM + 2 DI + 1 DO + 1 RS-232 + 1 RS-485 + 1 Mini USB
User Guide
Guangzhou Robustel Technologies Co., Ltd.
www.robustel.com
Page 2
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 2/78
About This Document
This document provides hardware and software information of the Robustel M1200, including introduction,
installation, configuration and operation.
Copyright© 2018 Guangzhou Robustel Technologies Co., Ltd.
All rights reserved.
Trademarks and Permissions
、
are trademarks of Guangzhou Robustel Technologies Co., Ltd. All other
trademarks and trade names mentioned in this document are the property of their respective owners.
Disclaimer
No part of this document may be reproduced in any form without the written permission of the copyright owner.
The contents of this document are subject to change without notice due to continued progress in methodology,
design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use
of this document.
Technical Support
Tel: +86-20-29019902
Fax: +86-20-82321505
Email: support@robustel.com
Web: www.robustel.com
Page 3
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 3/78
Important Notice
Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data
may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are rare
when wireless devices such as the gateway is used in a normal manner with a well-constructed network, the
gateway should not be used in situations where failure to transmit or receive data could result in damage of any kind
to the user or any other party, including but not limited to personal injury, death, or loss of property. Robustel
accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received
using the gateway, or for failure of the gateway to transmit or receive such data.
Safety Precautions
General
The gateway generates radio frequency (RF) power. When using the gateway, care must be taken on safety
issues related to RF interference as well as regulations of RF equipment.
Do not use your gateway in aircraft, hospitals, petrol stations or in places where using cellular products is
prohibited.
Be sure that the gateway will not be interfering with nearby equipment. For example: pacemakers or medical
equipment. The antenna of the gateway should be away from computers, office equipment, home appliance,
etc.
An external antenna must be connected to the gateway for proper operation. Only uses approved antenna with
the gateway. Please contact authorized distributor on finding an approved antenna.
Always keep the antenna with minimum safety distance of 20 cm or more from human body. Do not put the
antenna inside metallic box, containers, etc.
RF exposure statements
1. For mobile devices without co-location (the transmitting antenna is installed or located more than 20cm
away from the body of user and nearby person)
FCC RF Radiation Exposure Statement
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and human body.
Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open.
Gateway may be used at this time.
Using the gateway in Vehicle
Check for any regulation or law authorizing the use of cellular devices in vehicle in your country before installing
the gateway.
The driver or operator of any vehicle should not operate the gateway while driving.
Install the gateway by qualified personnel. Consult your vehicle distributor for any possible interference of
electronic parts by the gateway.
The gateway should be connected to the vehicle’s supply system by using a fuse-protected terminal in the
vehicle’s fuse box.
Be careful when the gateway is powered by the vehicle’s main battery. The battery may be drained after
extended period.
Page 4
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 4/78
Protecting Your Gateway
To ensure error-free usage, please install and operate your gateway with care. Do remember the following:
Do not expose the gateway to extreme conditions such as high humidity / rain, high temperature, direct sunlight,
caustic / harsh chemicals, dust, or water.
Do not try to disassemble or modify the gateway. There is no user serviceable part inside and the warranty
would be void.
Do not drop, hit or shake the gateway. Do not use the gateway under extreme vibrating conditions.
Do not pull the antenna or power supply cable. Attach/detach by holding the connector.
Connect the gateway only according to the instruction manual. Failure to do it will void the warranty.
In case of problem, please contact authorized distributor.
Page 5
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 5/78
Regulatory and Type Approval Information
Table 1: Directives
2013/56/EU
Directive 2013/56/EU of the European Parliament and of the Council of 10 Feburary 2013
on the restriction of the use of certain hazardous substances in electrical and
electronic equipment (RoHS)
2012/19/EU
Directive 2012/19/EU the European Parliament and of the Council
of 24 July 2012 on waste electrical and electronic equipment (WEEE)
Table 2: Standards of the Ministry of Information Industry of the People’s Republic of China
SJ/T
11363-2006
“Requirements for Concentration Limits for Certain Hazardous Substances in Electronic
Information Products” (2006-06).
SJ/T
11364-2006
“Marking for Control of Pollution Caused by Electronic Information Products”
(2006-06).
According to the “Chinese Administration on the Control of Pollution caused
by Electronic Information Products” (ACPEIP) the EPUP, i.e., Environmental
Protection Use Period, of this product is 20 years as per the symbol shown here, unless otherwise
marked. The EPUP is valid only as long as the product is operated within the operating limits
described in the Hardware Interface Description.
Please see Table 3 for an overview of toxic or hazardous substances or elements that might be
contained in product parts in concentrations above the limits defined by SJ/T 11363-2006.
Table 3: Toxic or Hazardous Substances or Elements with Defined Concentration Limits
Name of the Part
Hazardous Substances
(Pb)
(Hg)
(Cd)
(Cr (VI) )
(PBB)
(PBDE)
Metal parts
o o o o o
o
Circuit modules
x o o o o o Cables and cable assemblies
o o o o o o Plastic and polymeric parts
o o o o o
o
o:
Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363-2006.
x:
Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials for this
part might exceed the limit requirement in SJ/T11363-2006.
Page 6
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 6/78
Document History
Updates between document versions are cumulative. Therefore, the latest document version contains all updates
made to previous versions.
Date
Firmware Version
Document Version
Change Description
12 Mar., 2018
1.0.0
v. 1.0.0
Initial release
4 Apr., 2018
1.0.0
v.1.0.1
Updated product name
9 Apr., 2018
1.0.0
v.1.0.2
Updated EMI information
Page 7
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 7/78
Contents
Chapter 1 Product Overview ........................................................................................................................... 8
1.1 Key Features ............................................................................................................................................... 8
1.2 Package Contents ....................................................................................................................................... 9
1.3 Specifications ........................................................................................................................................... 10
1.4 Dimensions ............................................................................................................................................... 12
1.5 Ordering Information ............................................................................................................................... 12
Chapter 2 Hardware Installation .................................................................................................................... 13
2.1 PIN Assignment ........................................................................................................................................ 13
2.2 LED Indicators ........................................................................................................................................... 14
2.3 USB interface ............................................................................................................................................ 15
2.4 Insert or Remove SIM Card ...................................................................................................................... 16
2.5 Attach External Antenna (SMA Type) ....................................................................................................... 17
2.6 Mount the Gateway ................................................................................................................................. 17
2.7 Connect the Gateway to a Computer ....................................................................................................... 19
2.8 Power Supply ............................................................................................................................................ 19
Chapter 3 Initial Configuration ...................................................................................................................... 20
3.1 Configure the PC....................................................................................................................................... 20
3.2 Factory Default Settings ........................................................................................................................... 33
3.3 Log in the Gateway ................................................................................................................................... 33
3.4 Control Panel ............................................................................................................................................ 34
3.5 Status ........................................................................................................................................................ 35
3.6 Interface > Link Manager ......................................................................................................................... 37
3.7 Interface > Cellular ................................................................................................................................... 42
3.8 Interface > DIDO ....................................................................................................................................... 46
3.9 Interface > Serial Port ............................................................................................................................... 50
3.10 Services > Syslog ....................................................................................................................................... 55
3.11 Services > Event ........................................................................................................................................ 56
3.12 Services > NTP .......................................................................................................................................... 58
3.13 Services > SMS .......................................................................................................................................... 59
3.14 Services > Email ........................................................................................................................................ 60
3.15 Services > WakeUp ................................................................................................................................... 61
3.16 Services > DDNS ....................................................................................................................................... 63
3.17 Services > SSH........................................................................................................................................... 64
3.18 Services > Web Server .............................................................................................................................. 65
3.19 Services > Advanced ................................................................................................................................. 66
3.20 System > Debug ........................................................................................................................................ 66
3.21 System > Update ...................................................................................................................................... 67
3.22 System > App Center ................................................................................................................................ 67
3.23 System > Tools .......................................................................................................................................... 69
3.24 System > Profile ........................................................................................................................................ 71
3.25 System > User Management .................................................................................................................... 73
Glossary............................................................................................................................................................. 75
Page 8
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 8/78
Chapter 1 Product Overview
1.1 Key Features
The Robustel Smart Industrial IoT Gateway M1200 is a compact cellular gateway based on GSM/GPRS/
EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE networks. This dual-SIM gateway enables remote data
transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB. M1200
provides users with stable network connectivity and data transmission. It is available to meet industrial application
demands for its standards-compliant industrial designs. As a universal gateway, it can be applied in many scenarios
such as Energy, Transportation and Agriculture, etc.
Auto GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/
HSPA+/FDD LTE/TDD LTE connections (No AT command required)
Supporting two dial-up policies, Always Online and Connect on Demand
Dual-SIM backup (push-push or MFF type optional)
Supporting SMS Direct mode which can transparently convert serial data to SMS or vice versa
Transparent TCP and UDP protocol connections
ICMP, DDNS, SNTP and Telnet
Modbus RTU to TCP
Auto rebooting via SMS and Timer
Configuration and firmware upgrading via USB and RobustLink
Sending SMS if DI is triggered (optional)
Robust industrial design (9 to 36V DC, -40 to +75 °C extended operating temperature, desktop or wall mounting
or DIN rail mounting)
Page 9
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 9/78
1.2 Package Contents
Before installing your M1200, verify the kit contents as following.
Note: The following pictures are for illustration purposes only, not based on their actual sizes.
1 x Robustel Smart Industrial IoT Gateway M1200
1 x 10-pin 3.5 mm RP female terminal block with lock for DI/DO connections
1 x Quick Start Guide with download link of other documents or tools
Note: If any of the above items is missing or damaged, please contact your Robustel sales representative.
Optional Accessories (sold separately)
3G/4G SMA cellular antenna (stubby/magnet optional)
Stubby antenna 1 Stubby antenna 2
Page 10
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 10/78
Wall mounting kit
35 mm DIN rail mounting kit
Mini USB converter
AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)
1.3 Specifications
Cellular Interface
Number of antennas: 1
Connector: SMA, female
SIM slot: 2 (3.0 V & 1.8 V)
Standards: GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE
GSM: max DL/UL = 9.6/2.7 Kbps
GPRS: max DL/UL = 86 Kbps
EDGE: max DL/UL = 236.8 Kbps
UMTS: max DL/UL = 384/128 Kbps
WCDMA: max DL/UL = 2.8 Mbps/384 Kbps
HSDPA: max DL/UL = 14.4 Mbps/384 Kbps
Page 11
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 11/78
HSPA+: max DL/UL = 21/5.76 Mbps, fallback to 2G
FDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
TDD LTE: max DL/UL = 100/50 Mbps, fallback to 2G/3G
Serial Interface
Number of ports: 1 x RS-232 + 1 x RS-485
Connector: 10-pin 3.5 mm RP female socket with lock
Baud rate: 300 bps to 115200 bps
RS-232: TxD, RxD, GND
RS-485: A (Data+), B (Data-)
Digital Input / Digital Output
Number of ports: 2 x DI (wet contact) + 1 x DO (wet contact)
Connector: 10-pin 3.5 mm RP female socket with lock
ESD withstand level: contact: ±6 K, air: ±8 K
Absolute maximum VDC: “V+” +5V DC (DI), 30V DC (DO)
USB Port
Number of ports: 1 x Mini USB for configuration and power supply
Connector: Mini Female
Speed: 2.0 high speed up to 480 Mbit/s
Others
LED indicators: 1 x RUN + 1 x RSSI (red/green bi-color light)
Built-in: RTC, Watchdog, Timer
Software (Basic features of RobustOS)
Network protocols: PPP, TCP, UDP, ICMP, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, SSH2, DDNS, etc.
Management: Web, CLI, SMS
Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
App Center (Available Apps for RobustOS)
Apps*: Language, RobustLink
*Request on demand. For more Apps please visit www.robustel.com.
Power Supply and Consumption
Connector: 10-pin 3.5 mm RP female socket with lock
Input voltage: 9 to 36V DC
Power consumption: Idle: 50 to 70 mA@12 V
Data link: 300 mA (peak) @12 V
Physical Characteristics
Ingress protection: IP30
Housing & Weight: Plastic, 106 g
Dimensions: 85 x 75 x 28.5 mm
Installations: Desktop, wall mounting and 35 mm DIN rail mounting
Page 12
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 12/78
EMC
EMI: EN 55032: 2015 (CE) Class B
EN 55032: 2015 (RE) Class B
EMS: IEC 61000-4-2 2009 (ESD) Contact Level 3; Air Level 3
IEC 61000-4-4 2012 (EFT) Level 2
IEC 61000-4-5 2014 (Surge) Level 2
1.4 Dimensions
1.5 Ordering Information
Model
M1200-3P
M1200-4L
Antenna Number
1 1 Air Interface
GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUP
A/HSPA+
GSM/GPRS/EDGE/UMTS/WCDMA/HS
DPA/HSUPA/
HSPA+/FDD LTE/TDD LTE
Frequency Bands
--
FDD LTE:
B1/B2/B3/B4/B5/B7/B8/B13/B20/B28
TDD LTE: B38/B40/B41
3GPP E-UTRA Release 11
4G*
3G
B1/B2/B5/B8/B19
B1/B2/B5/B8
2G
850/900/1800/1900 MHz
850/900/1800/1900 MHz
Operating
Environment
-40 to +75 °C
0 to 95% RH
-40 to +75 °C
0 to 95% RH
*For more information about frequency bands in different countries, please contact your Robustel sales
representative.
Page 13
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 13/78
Chapter 2 Hardware Installation
2.1 PIN Assignment
PIN
Power
Function
RS-232
RS-485
Direction
1
V+
--
--
--
M1200 Device
2
V-
--
--
--
M1200 Device
3
--
DO1
--
--
M1200 Device
4
--
DI1
--
--
M1200 Device
5
--
DI2
--
--
M1200 Device
6
--
--
TXD
--
M1200 Device
7
--
--
RXD
--
M1200 Device
8
--
--
GND
--
M1200 Device
9
--
--
--
Data+(A)
M1200 Device
10
--
--
--
Data- (B)
M1200 Device
Page 14
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 14/78
2.2 LED Indicators
Name
Color
Status
Description
RUN
Yellow
On, solid
Power on
Yellow
Fast blinking (2Hz)
System initializing
Yellow
On, blinking (1Hz)
Initialization completed, device operating
normally
Green
On, blinking
Device operating normally, GPRS connected
Red
Fast blinking
Device in abnormal state
RSSI
None
Off
CSQ value 0 or 99, not registered on the
network
Red
On, solid
CSQ 1-10, poor signal
Yellow
On, solid
CSQ 11-20, normal signal
Green
On, solid
CSQ 21-31, good signal
Page 15
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 15/78
2.3 USB interface
Function
Operation
Data
communication
Use a USB cable to connect the gateway's mini USB interface to an external
communication device.
Power supply
Use a USB cable to connect the gateway's mini USB interface to external power supply.
Note: In general, a notebook computer USB 2.0 interface output current and output voltage are only 0.5
A and 5 V, so when using the USB interface for configuration, you should use power supply input interface
for power supply; and when using the USB interface for configuration and power supply, the output
current of USB interface should be at least 1 A, output voltage at least 5 V.
Page 16
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 16/78
2.4 Insert or Remove SIM Card
Please confirm before inserting the SIM card. When the SIM card is turned on and the device is configured without
the correct PIN, the SIM card is unavailable.
Insert SIM card
1. Make sure gateway is powered off.
2. To insert SIM card, press the card with finger until you hear a click
Remove SIM card
1. Make sure gateway is powered off.
2. To remove SIM card, press the card with finger until it pops out and then take out the card.
Note:
1. Recommended torque for inserting is 0.5 N.m, and the maximum allowed is 0.7 N.m.
2. Use the specific card when the device is working in extreme temperature (temperature exceeding 40 °C ),
because the regular card for long-time working in harsh environment will be disconnected frequently.
3. Do not touch the metal of the card surface in case information in the card will lose or be destroyed.
4. Do not bend or scratch the card.
5. Keep the card away from electricity and magnetism.
6. Make sure gateway is powered off before inserting or removing the card.
Page 17
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 17/78
2.5 Attach External Antenna (SMA Type)
Attach an external SMA antenna to the gateway’s antenna connector and twist tightly. Make sure the antenna is
within the correct frequency range provided by the ISP and with 50 Ohm impedance.
Note: Recommended torque for tightening is 0.35 N.m.
2.6 Mount the Gateway
The gateway can be placed on a desktop or mounted to a wall or a 35 mm DIN rail.
Two methods for mounting the gateway
Wall mounting (measured in mm)
SMA antenna with a male connector
for cellular connection
Page 18
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 18/78
Use 3 pcs of ST2.9*6 flat head self-tapping Phillips screws to fix the wall mounting kit to the gateway, and then
use 2 pcs of M3 drywall screws to mount the gateway associated with the wall mounting kit on the wall.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
DIN rail mounting (measured in mm)
Use 3 pcs of ST3*8 flat head self-tapping Phillips screws to fix the DIN rail to the gateway, and then hang the DIN
rail on the mounting bracket. It is necessary to choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
Page 19
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 19/78
2.7 Connect the Gateway to a Computer
Connect a USB cable to the gateway's mini USB interface to an external controller or computer's USB port
2.8 Power Supply
M1200 supports reverse polarity protection, but always refers to the figure above to connect the power adapter
correctly. There are two cables associated with the power adapter. Following to the color of the head, connect the
cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the
same way.
Note: The range of power voltage is 9 to 36V DC.
Page 20
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 20/78
Chapter 3 Initial Configuration
The gateway supports webpage configuration. The supported browsers are IE8.0 or above, Google, Firefox, etc. The
supported operating systems are Windows XP, Windows 7 and Windows 10. For M1200, the method of connecting to
the gateway is to use a PC to make a PPP dial-up connection to the device so that users can configure it on the web
page through the mini USB port.
3.1 Configure the PC
Establishing a PPP Server on the device side to monitor dialing request from the serial port, then use the serial port
to establish a PPP connection with PC to establish IP channel. On the PC side, configure the following for different
operating systems:
Here take Windows 7 as example, and the configuration for windows system is similar.
1. After the device is powered on, the PC detects the new serial port and tries to install the driver. If the PC can not
automatically install the driver, as shown in the figure below, you need to manually add the driver; please follow
the readme operation tips under m1200_ppp_configure\usb_driver in the attachment. Please download from
the official website or consult technical support for the corresponding attachments.
Page 21
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 21/78

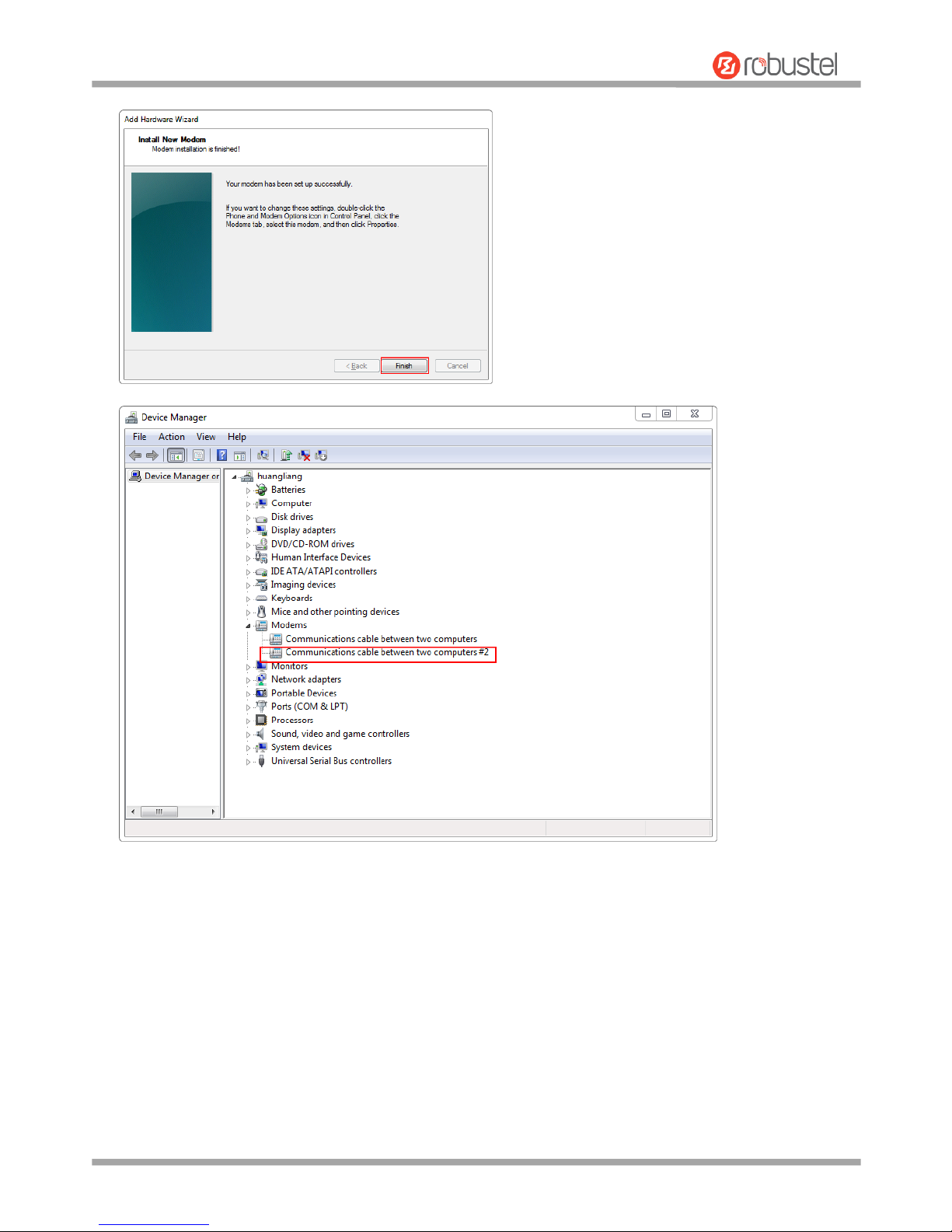

2. After the device USB is connected to the computer, check the identified serial port, right-click the Properties,
and set the serial port rate.

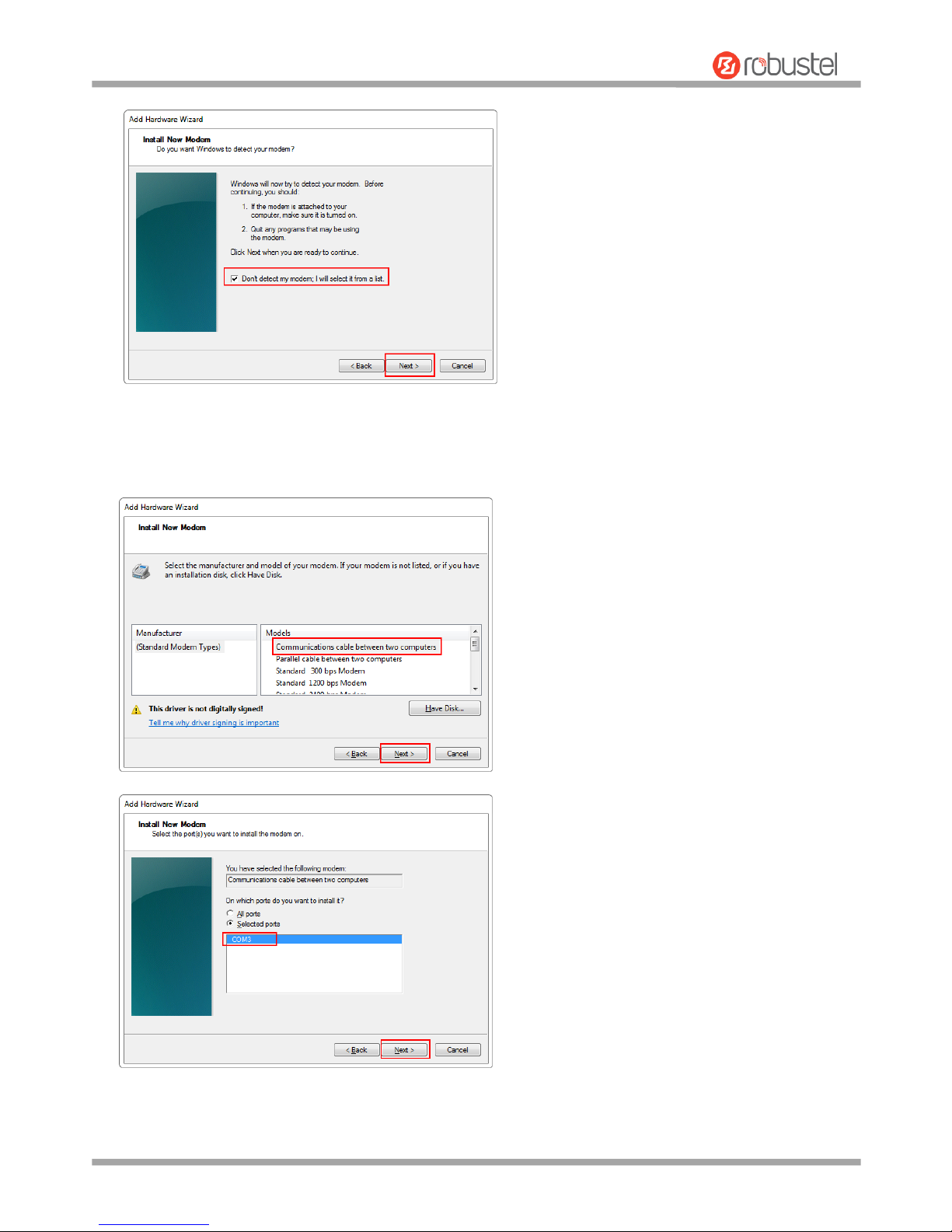

3. In the Control Panel, select Phone and Modem, add a modem.
Page 22
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 22/78
Page 23
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 23/78
When the standard modem type list as shown below does not appear, you need to manually add the driver;
please follow the readme operation tips under m1200_ppp_configure\usb_driver in the attachment. Please
download from the official website or consult technical support for the corresponding attachments.
Page 24
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 24/78
Page 25
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 25/78
Right-click the Properties to configure it.
Page 26
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 26/78
Page 27
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 27/78
Page 28
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 28/78
Page 29
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 29/78
Page 30
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 30/78
Page 31
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 31/78
Page 32
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 32/78
Page 33
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 33/78
3. Click Connect to establish a connection with the device.
4. After dialing successfully, open it on the browser: 192.168.0.1.
3.2 Factory Default Settings
Before configuring your gateway, you need to know the following default settings.
Item
Description
Username
admin
Password
admin
3.3 Log in the Gateway
To log in to the management page and view the configuration status of your gateway, please follow the steps below.
1. On your PC, open a web browser such as Internet Explorer, Google and Firebox, etc.
2. From your web browser, type the IP address of the gateway into the address bar and press enter. The default IP
address of the gateway is 192.168.0.1, though the actual address may vary.
Note: If a SIM card with a public IP address is inserted in the gateway, enter this corresponding public IP address
in the browser’s address bar to access the gateway wirelessly.
Page 34
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 34/78
3. In the login page, enter the username and password, choose language and then click LOGIN. The default
username and password are “admin”.
Note: If enter the wrong username or password over six times, the login web will be locked for 5 minutes.
3.4 Control Panel
After logging in, the home page of the M1200’s web interface is displayed, for example.
Using the original password to log in the gateway, the page will pop up the following tab
Page 35
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 35/78
It is strongly recommended for security purposes that you change the default username and/or password. To change
your username and/or password, see 3.25 System > User Management.
Control Panel
Item
Description
Button
Save & Apply
Click to save the current configuration into gateway’s flash and apply the
modification on every configuration page, to make the modification
taking effect.
Reboot
Click to restart the gateway.
Logout
Click to log the current user out safely.
Submit
Click to save the modification on current configuration page.
Cancel
Click to cancel the modification on current configuration page.
Note: The steps of how to modify configuration are as bellow:
1. Modify in one page;
2. Click under this page;
3. Modify in another page;
4. Click under this page;
5. Complete all modification;
6. Click .
3.5 Status
This page allows you to view the System Information, Internet Status and LAN Status of your gateway.
System Information
Page 36
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 36/78
System Information
Item
Description
Device Model
Show the model name of your device.
System Uptime
Show the current amount of time the gateway has been connected.
System Time
Show the current system time.
RAM Usage
Show the free memory and the total memory.
Firmware Version
Show the firmware version running on the gateway.
Hardware Version
Show the current hardware version.
Kernel Version
Show the current kernel version.
Serial Number
Show the serial number of your device.
Internet Status
Internet Status
Item
Description
Active Link
Show the current active link.
Uptime
Show the current amount of time the link has been connected.
IP Address
Show the IP address of current link.
Gateway
Show the gateway address of the current link.
DNS
Show the current primary DNS server and secondary server.
Page 37
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 37/78
3.6 Interface > Link Manager
This section allows you to setup the link connection.
General Settings @ Link Manager
Item
Description
Default
Primary Link
Select from “WWAN1” or “WWAN2”.
WWAN1: Select to make SIM1 as the primary wireless link
WWAN2: Select to make SIM2 as the primary wireless link
WWAN1
Backup Link
Select from “WWAN1”, “WWAN2”, or “None”.
WWAN1: Select to make SIM1 as backup wireless link
WWAN2: Select to make SIM2 as backup wireless link
None: Do not select any backup link
WWAN2
Backup Mode
Can only select from “Cold Backup”.
Cold Backup: The inactive link is offline on standby
Cold
Backup
Revert Interval
Specify the number of minutes that elapses before the primary link is
checked if a backup link is being used in cold backup mode. 0 means disable
checking.
0
Emergency Reboot
Click the toggle button to enable/disable this option. Enable to reboot the
whole system if no links available.
OFF
Note: Click for help.
Link Settings allows you to configure the parameters of link connection, including WWAN1/WWAN2, WAN and WLAN.
It is recommended to enable Ping detection to keep the gateway always online. The Ping detection increases the
reliability and also costs the data traffic.
Page 38
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 38/78
Click on the right-most of WWAN1/WWAN2 to enter the configuration window.
WWAN1/WWAN2
The window is displayed as below when enabling the “Automatic APN Selection” option.
The window is displayed as below when disabling the “Automatic APN Selection” option.
Page 39
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 39/78
Link Settings (WWAN)
Item
Description
Default
General Settings
Index
Indicate the ordinal of the list.
--
Type
Show the type of the link.
WWAN1
Description
Enter a description for this link.
Null
WWAN Settings
Automatic APN
Selection
Click the toggle button to enable/disable the “Automatic APN Selection”
option. After enabling, the device will recognize the access point name
automatically. Alternatively, you can disable this option and manually add
the access point name.
ON
APN
Enter the Access Point Name for cellular dial-up connection, provided by
local ISP.
internet
Username
Enter the username for cellular dial-up connection, provided by local ISP.
Null
Password
Enter the password for cellular dial-up connection, provided by local ISP.
Null
Dialup Number
Enter the dialup number for cellular dial-up connection, provided by local
ISP.
*99***1#
Authentication Type
Select from “Auto”, “PAP” or “CHAP” as the local ISP required.
Auto
Switch SIM By Data
Allowance
Click the toggle button to enable/disable this option. After enabling, it will
switch to another SIM when the data limit reached.
Note: Only used for dual-SIM backup.
OFF
Page 40
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 40/78
Link Settings (WWAN)
Item
Description
Default
Data Allowance
Set the monthly data traffic limitation. The system will record the data
traffic statistics when data traffic limitation (MiB) is specified. The traffic
record will be displayed in Interface > Link Manager > Status > WWAN
Data Usage Statistics. 0 means disable data traffic record.
0
Billing Day
Specify the monthly billing day. The data traffic statistics will be
recalculated from that day.
1
Ping Detection Settings
Enable
Click the toggle button to enable/disable the ping detection mechanism, a
keepalive policy of the gateway.
ON
Primary Server
Gateway will ping this primary address/domain name to check that if the
current connectivity is active.
8.8.8.8
Secondary Server
Gateway will ping this secondary address/domain name to check that if the
current connectivity is active.
114.114.11
4.114
Interval
Set the ping interval.
300
Retry Interval
Set the ping retry interval. When ping failed, the gateway will ping again
every retry interval.
5
Timeout
Set the ping timeout.
3
Max Ping Tries
Set the max ping tries. Switch to another link or take emergency action if
the max continuous ping tries reached.
3
Advanced Settings
Overrided Primary
DNS
Override primary DNS will override the automatically obtained DNS.
Null
Overrided Secondary
DNS
Override secondary DNS will override the automatically obtained DNS.
Null
Debug Enable
Click the toggle button to enable/disable this option. Enable for debugging
information output.
ON
Verbose Debug Enable
Click the toggle button to enable/disable this option. Enable for verbose
debugging information output.
OFF
Page 41
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 41/78
Status
This page allows you to view the status of link connection and clear the monthly data usage statistics.
Click the right-most button to select the connection status of the current link.
Click the row of the link, and it will show the details information of the current link connection under the row.
Click the button to clear SIM1 or SIM2 monthly data traffic usage statistics. Data statistics will be displayed
only if enable the Data Allowance function in Interface > Link Manager > Link Settings > WWAN Settings > Data
Allowance.
Page 42
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 42/78
3.7 Interface > Cellular
This section allows you to set the related parameters of Cellular. M1200 has two SIM card slots, but do not support
two SIM cards online simultaneously due to its single-module design. If insert single SIM card at the first time, SIM1
slot and SIM2 slots are available.
Click of SIM 1 to edit the parameters.
The window is displayed as below when choosing “Auto” as the network type.
The window is displayed as below when choosing “Specify” as the band select type.
Page 43
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 43/78
Cellular
Item
Description
Default
General Settings
Index
Indicate the ordinal of the list.
--
SIM Card
Show the currently editing SIM card.
SIM1
Phone Number
Enter the phone number of the SIM card.
Null
PIN Code
Enter a 4-8 characters PIN code used for unlocking the SIM.
Null
Extra AT Cmd
Enter the AT commands used for cellular initialization.
Null
Telnet Port
Specify the Port listening of telnet service, used for AT over Telnet.
0
Cellular Network Settings
Network Type
Select from “Auto”, “2G Only”, “2G First”, “3G Only”, “3G First”.
Auto: Connect to the best signal network automatically
2G Only: Only the 2G network is connected
2G First: Connect to the 2G Network preferentially
3G Only: Only the 3G network is connected
3G First: Connect to the 3G Network preferentially
Auto
Band Select Type
Select from “All” or “Specify”. You may choose certain bands if choosing
“Specify”.
All
Advanced Settings
Debug Enable
Click the toggle button to enable/disable this option. Enable for debugging
information output.
ON
Verbose Debug
Enable
Click the toggle button to enable/disable this option. Enable for verbose
debugging information output.
OFF
Page 44
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 44/78
This section allows you to view the status of the cellular connection.
Click the row of status, the details status information will be displayed under the row.
Status
Item
Description
Index
Indicate the ordinal of the list.
Modem Status
Show the status of the radio module.
Modem Model
Show the model of the radio module.
Current SIM
Show the SIM card that your gateway is using.
Phone Number
Show the phone number of the current SIM.
Note: This option will be displayed if enter manually in Cellular > Advanced Cellular
Settings > SIM1/SIM2 > General Settings > Phone Number.
IMSI
Show the IMSI number of the current SIM.
Registration
Show the current network status.
Network Provider
Show the name of Network Provider.
Network Type
Show the current network service type, e.g. WCDMA.
Page 45
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 45/78
Status
Item
Description
Signal Strength
Show the signal strength detected by the mobile.
Bit Error Rate
Show the current bit error rate.
PLMN ID
Show the current PLMN ID.
Local Area Code
Show the current local area code used for identifying different area.
Cell ID
Show the current cell ID used for locating the gateway.
IMEI
Show the IMEI (International Mobile Equipment Identity) number of the radio
module.
Firmware Version
Show the current firmware version of the radio module.
This page allows you to check the AT Debug.
AT Debug
Item
Description
Default
Command
Enter the AT command that you want to send to cellular module in this
text box.
Null
Result
Show the AT command responded by cellular module in this text box.
Null Click the button to send AT command.
--
Page 46
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 46/78
3.8 Interface > DIDO
This section allows you to set the DI and DO parameters. Digital Input and Digital Output are the specific interfaces
for M1200. The DI interface can be used for triggering alarm, while the DO can be used for controlling the slave
device so as to realize real-time monitoring.
DI
Click the right-most button of index 1 as below. The default mode is “ON-OFF”.
The window is displayed as below when choosing “Counter” as the mode.
General Settings @ DI
Item
Description
Default
Index
Indicate the ordinal of the list.
--
Enable
Click the toggle button to enable/disable this DI.
OFF
Mode
Select from “ON-OFF” or “Counter”.
ON-OFF
Page 47
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 47/78
General Settings @ DI
Item
Description
Default
ON-OFF: DI interface support ON and OFF mode (high or low level
electrical) trigger DI alarm. The mode default to ON, and OFF mode is
available only when enabling the inversion feature
ON—Under this mode, DI alarm status will be triggered to ON when DI
interface open from GND or input a high level electrical (logic 1), on the
contrary DI alarm status will be trigged to OFF when DI interface connect
to GND or input a low level electrical (logic 0)
OFF—Under this mode, DI alarm status will be triggered to ON when DI
interface connect to GND or input a low level electrical (logic 0), on the
contrary DI alarm status will be trigged to OFF when DI interface open
from GND or input a high level electrical (logic 1)
Counter: Event counter mode
Inversion
Click the toggle button to enable/disable this option. Enable to set DI mode as
OFF mode.
OFF
Threshold Value
Set the threshold vale. It will trigger alarm when event counter reaches this
figure. After triggering alarm, DI will keep counting but not trigger alarm
again. Enter 0 to 65535 digits. (0=will not trigger alarm)
Note: This option is only available when DI under the “Counter” mode.
Null
Alarm on Content
When alarm is on, show its content
Alarm On
Alarm off Content
When alarm is off, show its content.
Alarm Off
Note: It defaults as high alarm, while turns to low alarm after enabling the “Inversion” button.
DO
Click to enter the DO configuration window.
Page 48
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 48/78
The window is displayed as below when choosing “Pulse” as the alarm on action.
The window is displayed as below when choosing “Pulse” as the alarm off action.
General Settings @ DO
Item
Description
Default
Index
Indicate the ordinal of the list.
--
Enable
Click the toggle button to enable/disable this DO.
OFF
Alarm On Action
Digital Output initiates when there is an alarm. Selected from “High”, “Low” or
“Pulse”.
High: a high electrical level output
Low: a low electrical level output
Pulse: Generates a square wave as specified in the pulse mode parameters
when triggered
High
Page 49
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 49/78
General Settings @ DO
Item
Description
Default
Alarm Off Action
Digital Output initiates when alarm removed. Selected from “High”, “Low” or
“Pulse”.
High: a high electrical level output
Low: a low electrical level output
Pulse: Generates a square wave as specified in the pulse mode parameters
when triggered
Low
Initial State
Specify the Digital Output status when powered on. Selected from “Last”, “High” or
“Low”.
Last: DO’s status will consist with the status of last power off
High: DO interface is in high electrical level
Low: DO interface is in low electrical level
Low
Delay
Set the delay time for DO alarm start-up. The first pulse will be generated after a
“Delay”. Enter from 0 to 30000ms. (0=generate pulse without delay)
0
Hold Time
Set the hold time of DO status (Alarm On Action/Alarm Off Action). When the action
time reach this specified time, DO will stop the action. Enter from 0 to 255 seconds.
(0=keep on until the next action)
0
Low-level Width
Set the low-level width. It is available when enabling Pulse as “Alarm On
Action/Alarm Off Action”. In Pulse Output mode, the selected digital output channel
will generate a square wave as specified in the pulse mode parameters. The low
level widths are specified here. Enter from 1 to 300000 ms.
10
High-level Width
Set the high-level width. It is available when enabling Pulse as “Alarm On
Action/Alarm Off Action”. In Pulse Output mode, the selected digital output channel
will generate a square wave as specified in the pulse mode parameters. The high
level widths are specified here. Enter from 1 to 300000 ms.
10
Alarm Source
Digital Output initiates according to different alarm source. Selected from “DI1
Alarm”, “DI2 Alarm”. DI1/DI2 Alarm: Digital Output triggers the related action when
there is alarm from Digital Input.
DI1
Alarm
Page 50
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 50/78
Status
This window allows you to view the status of DO and DI interfaces. It also can clear the counter alarm of DI in here.
Click button to clear DI1 or DI2 monthly usage statistics info for counter alarm.
Click one row to view.
3.9 Interface > Serial Port
This section allows you to set the serial port parameters. M1200 supports one RS-232s and one RS-485. Serial port
provides a way to transfer serial data to IP data, or vice versa, and transmit these data via wired or wireless network
to achieve data transparent transmission.
Page 51
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 51/78
Click the edit button of COM1.
The window is displayed as below when choosing “Transparent” as the application mode and “TCP Client” as the
protocol.
The window is displayed as below when choosing “Transparent” as the application mode and “TCP Server” as
the protocol.
Page 52
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 52/78
The window is displayed as below when choosing “Transparent” as the application mode and “UDP” as the
protocol.
The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP
Client” as the protocol.
The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “TCP
Server” as the protocol.
The window is displayed as below when choosing “Modbus RTU Gateway” as the application mode and “UDP”
as the protocol.
Page 53
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 53/78
The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “TCP
Client” as the protocol.
The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “TCP
Server” as the protocol.
The window is displayed as below when choosing “Modbus ASCII Gateway” as the application mode and “UDP”
as the protocol.
Serial Port
Item
Description
Default
Serial Port Application Settings
Index
Indicate the ordinal of the list.
--
Port
Show the current serial’s name, read only.
--
Enable
Click the toggle button to enable/disable this serial port. When
the status is OFF, the serial port is not available.
OFF
Baud Rate
Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”,
“19200”, “38400”, “57600” , “115200” or “230400”.
115200
Data Bits
Select from “7” or “8”.
8
Stop Bits
Select from “1” or “2”.
1
Parity
Select from “None”, “Odd” or “Even”.
None
Data Packing
Packing Timeout
Set the packing timeout. The serial port will queue the data in the
buffer and send the data to the Cellular WAN/Ethernet WAN
50
Page 54
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 54/78
Serial Port
Item
Description
Default
when it reaches the Interval Timeout in the field.
Note: Data will also be sent as specified by the packet length
even when data is not reaching the interval timeout in the field.
Packing Length
Set the packet length. The Packet length setting refers to the
maximum amount of data that is allowed to accumulate in the
serial port buffer before sending. When a packet length between
1 and 3000 bytes is specified, data in the buffer will be sent as
soon it reaches the specified length.
1200
Server Setting
Application Mode
Select from “Transparent”, “Modbus RTU Gateway” or “Modbus
ASCII Gateway”.
Transparent: gateway will transmit the serial data
transparently
Modbus RTU Gateway: gateway will translate the Modbus
RTU data to Modbus TCP data and sent out, and vice versa
Modbus ASCII Gateway: gateway will translate the Modbus
ASCII data to Modbus TCP data and sent out, and vice versa
Transparent
Protocol
Select from “TCP Client”, “TCP Server” or “UDP”.
TCP Client: Gateway works as TCP client, initiate TCP
connection to TCP server. Server address supports both IP
and domain name
TCP Server: Gateway works as TCP server, listening for
connection request from TCP client
UDP: Gateway works as UDP client
TCP Client
Server Address
Enter the address of server which will receive the data sent from
gateway’s serial port. IP address or domain name will be
available.
Null
Server Port
Enter the specified port of server which is used for receiving the
serial data.
Null
Local IP
Enter the IP of TCP or UDP.
Null
Local Port
Enter the port of TCP or UDP.
Null
Click the “Status” column to view the current serial port type.
Page 55
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 55/78
3.10 Services > Syslog
This section allows you to set the syslog parameters. The system log of the gateway can be saved in the local, also
supports to be sent to remote log server and specified application debugging. By default, the “Log to Remote” option
is disabled.
The window is displayed as below when enabling the “Log to Remote” option.
Syslog Settings
Item
Description
Default
Enable
Click the toggle button to enable/disable the Syslog settings option.
OFF
Syslog Level
Select from “Debug”, “Info”, “Notice”, “Warning” or “Error”, which from low to
high.
Note: The lower level will output more syslog in details.
Debug
Save Position
Select the save position from “RAM”, “NVM” or “Console”. Choose “RAM”. The
data will be cleared after reboot.
Note: It's not recommended that you save syslog to NVM for a long time.
RAM
Log to Remote
Click the toggle button to enable/disable this option. Enable to allow gateway
sending syslog to the remote syslog server. You need to enter the IP and Port of
the syslog server.
OFF
Remote IP Address
Enter the IP address of syslog server when enabling the “Log to Remote” option.
Null
Remote Port
Enter the port of syslog server when enabling the “Log to Remote” option.
514
Page 56
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 56/78
3.11 Services > Event
This section allows you to set the event parameters. Event feature provides an ability to send alerts by SMS or Email
when certain system events occur.
General Settings @ Event
Item
Description
Default
Signal Quality Threshold
Set the threshold for signal quality. Gateway will generate a log event when
the actual threshold is less than the specified threshold. 0 means disable
this option.
0
Click button to add an Event parameters.
Page 57
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 57/78
General Settings @ Notification
Item
Description
Default
Index
Indicate the ordinal of the list.
--
Description
Enter a description for this group.
Null
Sent SMS
Click the toggle button to enable/disable this option. When enabled, the gateway
will send notification to the specified phone numbers via SMS if event occurs. Set
the related phone number in “3.14 Services > Email”, and use ‘;’to separate each
number.
OFF
Phone Number
Enter the phone numbers used for receiving event notification. Use a semicolon (;)
to separate each number.
Null
Send Email
Click the toggle button to enable/disable this option. When enabled, the gateway
will send notification to the specified email box via Email if event occurs. Set the
related email address in “3.14 Services > Email”.
OFF
Email Address
Enter the email addresses used for receiving event notification. Use a space to
separate each address.
Null
Save to NVM
Click the toggle button to enable/disable this option. Enable to save event to
nonvolatile memory.
OFF
In the following window you can query various types of events record. Click to query filtered events while
click to clear the event records in the window.
Page 58
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 58/78
Event Details
Item
Description
Default
Save Position
Select the events’ save position from “RAM” or “NVM”.
RAM: Random-access memory
NVM: Non-Volatile Memory
RAM
Filtering
Enter the filtering message based on the keywords set by users. Click the “Refresh”
button, the filtered event will be displayed in the follow box. Use “&” to separate
more than one filter message, such as message1&message2.
Null
3.12 Services > NTP
This section allows you to set the related NTP (Network Time Protocol) parameters, including Time zone, NTP Client
and NTP Server.
NTP
Item
Description
Default
Timezone Settings
Time Zone
Click the drop down list to select the time zone you are in.
UTC +08:00
Expert Setting
Specify the time zone with Daylight Saving Time in TZ environment
variable format. The Time Zone option will be ignored in this case.
Null
NTP Client Settings
Enable
Click the toggle button to enable/disable this option. Enable to
synchronize time with the NTP server.
ON
Primary NTP Server
Enter primary NTP Server’s IP address or domain name.
pool.ntp.org
Secondary NTP Server
Enter secondary NTP Server’s IP address or domain name.
Null
NTP Update interval
Enter the interval (minutes) synchronizing the NTP client time with the
NTP server’s. Minutes wait for next update, and 0 means update only
once.
0
Page 59
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 59/78
NTP Server Settings
Enable
Click the toggle button to enable/disable the NTP server option.
OFF
This window allows you to view the current time of gateway and also synchronize the gateway time. Click
button to synchronize the gateway time with the PC’s.
3.13 Services > SMS
This section allows you to set SMS parameters. Gateway supports SMS management, and user can control and
configure their gateways by sending SMS.
SMS Management Settings
Item
Description
Default
Enable
Click the toggle button to enable/disable the SMS Management option.
Note: If this option is disabled, the SMS configuration is invalid.
ON
Authentication Type
Select Authentication Type from “Password”, “Phonenum” or “Both”.
Password: Use the same username and password as WEB manager for
authentication. For example, the format of the SMS should be “username:
password; cmd1; cmd2; …”
Note: Set the WEB manager password in System > User Management
section.
Phonenum: Use the Phone number for authentication, and user should
set the Phone Number that is allowed for SMS management. The format
of the SMS should be “cmd1; cmd2; …”
Both: Use both the “Password” and “Phonenum” for authentication. User
should set the Phone Number that is allowed for SMS management. The
format of the SMS should be “username: password; cmd1; cmd2; …”
Password
Phone Number
Set the phone number used for SMS management, and use ‘; ‘to separate each
number.
Note: It can be null when choose “Password” as the authentication type.
Null
Page 60
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 60/78
User can test the current SMS service whether it is available in this section.
SMS Testing
Item
Description
Default
Phone Number
Enter the specified phone number which can receive the SMS from gateway.
Null
Message
Enter the message that gateway will send it to the specified phone number.
Null
Result
The result of the SMS test will be displayed in the result box.
Null Click the button to send the test message.
--
3.14 Services > Email
Email function supports to send the event notifications to the specified recipient by ways of email.
Email Settings
Item
Description
Default
Enable
Click the toggle button to enable/disable the Email option.
OFF
Page 61
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 61/78
Email Settings
Item
Description
Default
Enable TLS/SSL
Click the toggle button to enable/disable the TLS/SSL option.
OFF
Outgoing server
Enter the SMTP server IP Address or domain name.
Null
Server port
Enter the SMTP server port.
25
Username
Enter the username which has been registered from SMTP server.
Null
Password
Enter the password of the username above.
Null
From
Enter the source address of the email.
Null
Subject
Enter the subject of this email.
Null
3.15 Services > WakeUp
Gateway supports a variety of wake-up dialing policies, including regular wake-up, interval wake-up, serial data
wake-up, and SMS wake-up. Here, users can set different wake-up policies.
Click on the right side of the Timing to add a wake-up time point. Up to 3 can be added.
Page 62
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 62/78
WakeUp
Item
Description
Default
WakeUp
Enable
Click the toggle button to enable/disable this option. When it is
set to ON, the current link is disconnected, while set to OFF, the
device restarts GPRS dial-up.
OFF
Timing General Settings
Index
Display number.
--
Enable
Click the toggle button to enable/disable this option. When it is
set to ON, the gateway make GPRS dial-up on the set timing.
OFF
Timing
Every day at the timing (HH:MM) the gateway makes GPRS
dial-up.
Null
Periodical
Periodical WakeUp
Click the toggle button to enable/disable this option. When it is
set to ON, the gateway will periodically make GPRS dial-up.
OFF
Interval
Set the interval time for Periodical WakeUp, ranging 3-720 min.。
5
Serial Data
Serial Data WakeUp
Click the toggle button to enable/disable this option. When it is
set to ON, while sending data to the serial port, the gateway
make GPRS dial-up.
OFF
SMS
SMS WakeUp
Click the toggle button to enable/disable this option. When it is
set to ON, while gateway receives SMS from the set phone
number, the gateway make GPRS dial-up.
OFF
Enable SMS Reply
Click the toggle button to enable/disable this option. When it is
set to ON, while the gateway makes GPRS dial-up via SMS
WakeUp, it will send a reply message to the WakeUp phone
number.
OFF
Phonenum
The phone number which is allowed to wake up the gateway,
separated each number by a ';' character.
Null
Password
The phone number needs to send the password to the gateway.
If the sent content and the set password do not match, the GPRS
dial-up cannot be performed.
Null
Page 63
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 63/78
3.16 Services > DDNS
This section allows you to set the DDNS parameters. The Dynamic DNS function allows you to alias a dynamic IP
address to a static domain name, allows you whose ISP does not assign them a static IP address to use a domain
name. This is especially useful for hosting servers via your connection, so that anyone wishing to connect to you may
use your domain name, rather than having to use your dynamic IP address, which changes from time to time. This
dynamic IP address is the WWAN IP address of the gateway, which is assigned to you by your ISP. The service
provider defaults to “DynDNS”, as shown below.
When “Custom” service provider chosen, the window is displayed as below.
DDNS Settings
Item
Description
Default
Enable
Click the toggle button to enable/disable the DDNS option.
OFF
Service Provider
Select the DDNS service from “DynDNS”, “NO-IP”, “3322” or
“Custom”.
Note: the DDNS service only can be used after registered by
Corresponding service provider.
DynDNS
Hostname
Enter the hostname provided by the DDNS server.
Null
Username
Enter the username provided by the DDNS server.
Null
Password
Enter the password provided by the DDNS server.
Null
URL
Enter the URL customized by user.
Null
Click “Status” bar to view the status of the DDNS.
Page 64
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 64/78
DDNS Status
Item
Description
Status
Display the current status of the DDNS.
Last Update Time
Display the date and time for the DDNS was last updated successfully.
3.17 Services > SSH
Gateway supports SSH password access and secret-key access.
SSH Settings
Item
Description
Default
Enable
Click the toggle button to enable/disable this option. When enabled, you can
access the gateway via SSH.
ON
Port
Set the port of the SSH access.
22
Disable Password Logins
Click the toggle button to enable/disable this option. When enabled, you
cannot use username and password to access the gateway via SSH. In this
case, only the key can be used for login.
OFF
Import Authorized Keys
Item
Description
Authorized Keys
Click on “Choose File” to locate an authorized key from your computer, and then
click “Import” to import this key into your gateway.
Note: This option is valid when enabling the password logins option.
Page 65
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 65/78
3.18 Services > Web Server
This section allows you to modify the parameters of Web Server.
General Settings @ Web Server
Item
Description
Default
HTTP Port
Enter the HTTP port number you want to change in gateway’s Web Server. On
a Web server, port 80 is the port that the server "listens to" or expects to
receive from a Web client. If you configure the gateway with other HTTP Port
number except 80, only adding that port number then you can login gateway’s
Web Server.
80
HTTPS Port
Enter the HTTPS port number you want to change in gateway’s Web Server. On
a Web server, port 443 is the port that the server "listens to" or expects to
receive from a Web client. If you configure the gateway with other HTTPS Port
number except 443, only adding that port number then you can login gateway’s
Web Server.
Note: HTTPS is more secure than HTTP. In many cases, clients may be
exchanging confidential information with a server, which needs to be secured in
order to prevent unauthorized access. For this reason, HTTP was developed by
Netscape corporation to allow authorization and secured transactions.
443
This section allows you to import the certificate file into the gateway.
Import Certificate
Item
Description
Default
Import Type
Select from “CA” and “Private Key”.
CA: a digital certificate issued by CA center
Private Key: a private key file
CA
HTTPS Certificate
Click on “Choose File” to locate the certificate file from your computer, and then
click “Import” to import this file into your gateway.
--
Page 66
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 66/78
3.19 Services > Advanced
This section allows you to set the reboot.
Periodic Reboot Settings
Item
Description
Default
Periodic Reboot
Set the reboot period of the gateway by every X hours. 0 means disable.
0
Daily Reboot Time
Set the daily reboot time of the gateway. You should follow the format as HH:
MM, in 24h time frame. Leave it empty means disable.
Null
3.20 System > Debug
This section allows you to check and download the syslog details.
Page 67
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 67/78
Syslog
Item
Description
Default
Syslog Details
Log Level
Select from “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to high.
The lower level will output more syslog in detail.
Debug
Filtering
Enter the filtering message based on the keywords. Use “&” to separate more
than one filter message, such as “keyword1&keyword2”.
Null
Refresh
Select from “Manual Refresh”, “5 Seconds”, “10 Seconds”, “20 Seconds” or “30
Seconds”. You can select these intervals to refresh the log information displayed
in the follow box. If selecting “manual refresh”, you should click the refresh
button to refresh the syslog.
Manual
Refresh
Click the button to clear the syslog.
--
Click the button to refresh the syslog.
--
Syslog Files
Syslog Files List
It can show at most 5 syslog files in the list, the files’ name range from message0
to message 4. And the newest syslog file will be placed on the top of the list.
--
System Diagnosing Data
Click to generate the syslog diagnosing file.
-- Click to download system diagnosing file.
--
3.21 System > Update
This section allows you to upgrade the firmware of your gateway. Click System > Update > System Update, and click
on “Choose File” to locate the firmware file to be used for the upgrade. Once the latest firmware has been chosen,
click “Update” to start the upgrade process. The upgrade process may take several minutes. Do not turn off your
gateway during the firmware upgrade process.
Note: To access the latest firmware file, please contact your technical support engineer.
3.22 System > App Center
This section allows you to add some required or customized applications to the gateway. Import and install your
applications to the App Center, and reboot the device according to the system prompts. Each installed application will
be displayed under the “Services” menu.
Note: After importing the applications to the gateway, the page display may have a slight delay due to the browser
cache. It is recommended that you clear the browser cache first and log in the gateway again.
Page 68
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 68/78
App Center
Item
Description
Default
App Install
File
Click on “Choose File” to locate the App file from your computer, and then click
to import this file into your gateway.
Note: File format should be xxx.rpk, e.g. M1200-robustlink-1.0.0.rpk.
--
Installed Apps
Index
Indicate the ordinal of the list.
--
Name
Show the name of the App.
Null
Version
Show the version of the App.
Null
Status
Show the status of the App.
Null
Description
Show the description for this App.
Null
Page 69
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 69/78
3.23 System > Tools
This section provides users three tools: Ping, Traceroute and Sniffer.
Ping
Item
Description
Default
IP address
Enter the ping’s destination IP address or destination domain.
Null
Number of Requests
Specify the number of ping requests.
5
Timeout
Specify the timeout of ping requests.
1
Local IP
Specify the local IP from cellular WAN, Ethernet WAN or Ethernet LAN. Null
stands for selecting local IP address from these three automatically.
Null
Click this button to start ping request, and the log will be displayed in the
follow box.
Null
Click this button to stop ping request.
--
Page 70
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 70/78
Traceroute
Item
Description
Default
Trace Address
Enter the trace’s destination IP address or destination domain.
Null
Trace Hops
Specify the max trace hops. gateway will stop tracing if the trace hops has met
max value no matter the destination has been reached or not.
30
Trace Timeout
Specify the timeout of Traceroute request.
1
Click this button to start Traceroute request, and the log will be displayed in
the follow box.
-Click this button to stop Traceroute request.
--
Page 71
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 71/78
Sniffer
Item
Description
Default
Interface
Select the interface according to the "Ethernet" configuration and select from
"All", "PPP1", "WWAN" and "IO".
All
Host
Filter the packet that contain the specify IP address.
Null
Packets Request
Set the packet number that the gateway can sniffer at a time.
1000
Protocol
Select from “All”, “IP”, “TCP”, “UDP” and “ARP”.
All
Status
Show the current status of sniffer.
Null
Click this button to start the sniffer.
--
Click this button to stop the sniffer. Once you click this button, a new log file
will be displayed in the following List.
--
Capture Files
Every times of sniffer log will be saved automatically as a new file. You can find
the file from this Sniffer Traffic Data List and click to download the log, click
to delete the log file. It can cache a maximum of 5 files.
Null
3.24 System > Profile
This section allows you to import or export the configuration file, and restore the gateway to factory default setting.
Profile
Item
Description
Default
Import Configuration File
Reset Other Settings to
Default
Click the toggle button as “ON” to return other parameters to default
settings.
OFF
Page 72
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 72/78
Ignore Invalid Settings
Click the toggle button as “OFF” to ignore invalid settings.
OFF
XML Configuration File
Click on to locate the XML configuration file from your
computer, and then click to import this file into your gateway.
-Export Configuration File
Ignore Disabled Features
Click the toggle button as “OFF” to ignore the disabled features.
OFF
Add Detailed Information
Click the toggle button as “On” to add detailed information.
OFF
Encrypt Secret Data
Click the toggle button as “ON” to encrypt the secret data.
OFF
XML Configuration File
Click button to generate the XML configuration file, and click
to export the XML configuration file.
--
Default Configuration
Save Running Configuration
as Default
Click this button to save the current running parameters as default
configuration.
--
Restore to Default
Configuration
Click this button to restore the factory defaults.
--
Rollback
Item
Description
Default
Configuration Rollback
Save as a Rollbackable
Archive
Create a save point manually. Additionally, the system will create a save
point every day automatically if configuration changes.
--
Configuration Archive Files
Configuration Archive
Files
View the related information about configuration archive files, including
name, size and modification time.
--
Page 73
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 73/78
3.25 System > User Management
This section allows you to change your username and password, and create or manage user accounts. One gateway
has only one super user who has the highest authority to modify, add and manage other common users.
Note: Your new password must be more than 5 character and less than 32 characters and may contain numbers,
upper and lowercase letters, and standard symbols.
Super User Settings
Item
Description
Default
New Username
Enter a new username you want to create; valid characters are a-z, A-Z, 0-9,
@, ., -, #, $, and *. If you do not want to modify the username, leave it blank.
Null
Old Password
Enter the old password of your gateway. The default is “admin”.
Null
New Password
Enter a new password you want to create; valid characters are a-z, A-Z, 0-9,
@, ., -, #, $, and *.
Null
Confirm Password
Enter the new password again to confirm.
Null
Click button to add a new common user. The maximum rule count is 5.
Common User Settings
Item
Description
Default
Index
Indicate the ordinal of the list.
--
Role
Select from “Visitor” and “Editor”.
Visitor: Users only can view the configuration of gateway under this level
Editor: Users can view and set the configuration of gateway under this level
Visitor
Page 74
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 74/78
Username
Set the Username; valid characters are a-z, A-Z, 0-9, @, ., -, #, $, and *.
Null
Password
Set the password which at least contains 5 characters; valid characters are a-z, A-Z,
0-9, @, ., -, #, $, and *.
Null
Page 75
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 75/78
Glossary
Abbr.
Description
AC
Alternating Current
APN
Access Point Name
ASCII
American Standard Code for Information Interchange
CE
Conformité Européene (European Conformity)
CHAP
Challenge Handshake Authentication Protocol
CLI
Command Line Interface for batch scripting
CSD
Circuit Switched Data
CTS
Clear to Send
dB
Decibel
dBi
Decibel Relative to an Isotropic radiator
DC
Direct Current
DCD
Data Carrier Detect
DCE
Data Communication Equipment (typically modems)
DCS 1800
Digital Cellular System, also referred to as PCN
DI
Digital Input
DO
Digital Output
DSR
Data Set Ready
DTE
Data Terminal Equipment
DTMF
Dual Tone Multi-frequency
DTR
Data Terminal Ready
EDGE
Enhanced Data rates for Global Evolution of GSM and IS-136
EMC
Electromagnetic Compatibility
EMI
Electro-Magnetic Interference
ESD
Electrostatic Discharges
ETSI
European Telecommunications Standards Institute
EVDO
Evolution-Data Optimized
FDD LTE
Frequency Division Duplexing Long Term Evolution
GND
Ground
GPRS
General Packet Radio Service
GRE
generic route encapsulation
GSM
Global System for Mobile Communications
HSPA
High Speed Packet Access
ID
identification data
IMEI
International Mobile Equipment Identity
IP
Internet Protocol
IPsec
Internet Protocol Security
kbps
kbits per second
Page 76
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 76/78
Abbr.
Description
L2TP
Layer 2 Tunneling Protocol
LAN
local area network
LED
Light Emitting Diode
LoRa
Long Range
LoRaWAN
LoRa Wide Area Network
LPWAN
Low Power Wide Area Network
M2M
Machine to Machine
MAX
Maximum
Min
Minimum
MO
Mobile Originated
MS
Mobile Station
MT
Mobile Terminated
OpenVPN
Open Virtual Private Network
PAP
Password Authentication Protocol
PC
Personal Computer
PCN
Personal Communications Network, also referred to as DCS 1800
PCS
Personal Communication System, also referred to as GSM 1900
PDU
Protocol Data Unit
PIN
Personal Identity Number
PLCs
Program Logic Control System
PPP
Point-to-point Protocol
PPTP
Point to Point Tunneling Protocol
PSU
Power Supply Unit
PUK
Personal Unblocking Key
R&TTE
Radio and Telecommunication Terminal Equipment
RF
Radio Frequency
RTC
Real Time Clock
RTS
Request to Send
RTU
Remote Terminal Unit
Rx
Receive Direction
SDK
Software Development Kit
SIM
subscriber identification module
SMA antenna
Stubby antenna or Magnet antenna
SMS
Short Message Service
SNMP
Simple Network Management Protocol
TCP/IP
Transmission Control Protocol / Internet Protocol
TE
Terminal Equipment, also referred to as DTE
Tx
Transmit Direction
UART
Universal Asynchronous Receiver-transmitter
UMTS
Universal Mobile Telecommunications System
USB
Universal Serial Bus
USSD
Unstructured Supplementary Service Data
Page 77
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 77/78
Abbr.
Description
VDC
Volts Direct current
VLAN
Virtual Local Area Network
VPN
Virtual Private Network
VSWR
Voltage Stationary Wave Ratio
WAN
Wide Area Network
Page 78
Robustel M1200 User Guide
RT_UG_M1200_v.1.0.2 9 Apr., 2018 78/78
Guangzhou Robustel Technologies Co., Ltd.
Add: 3rd Floor, Building F, Kehui Park, No.95 Daguan Road,
Guangzhou, China 510660
Tel: 86-20-29019902
Email: info@robustel.com
Web: www.robustel.com
Loading...
